USER MANUAL ScreenPlay SP1081HD INFOCUS

Table of Contents ......1

Usage Notice....2

Safety Information......2

Precautions....3

Eye Safety Warnings 5

Product Features ....5

Introduction......6

Package Overview......6

Product Overview 7

Main Unit....7

Control Panel 8

Input/Output Connections....9

Remote Control....10

Installation 11

Connecting the Projector ....11

Connect to Computer/Notebook ..... 11

Connect to Video Sources.... 12

Powering the Projector On / Off......13

Powering On the Projector......13

Powering Off the Projector......14

Warning Indicator....14

Adjusting the Projected Image......15

Adjusting the Projector's Height ..... 15

Adjusting the Projector's Focus / Zoom... 16

Adjusting Projection Image Size...... 17

User Controls ....18

Control Panel & Remote Control .....18

Control Panel....18

Remote Control Battery Installation... 19

Remote Control....20

On-screen Display Menus ......24

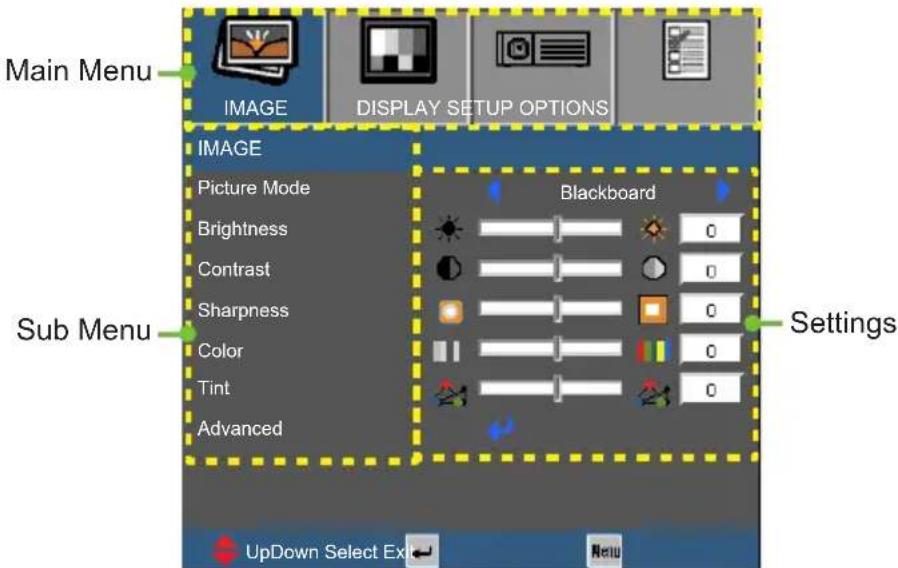

How to operate 24

Menu Tree....25

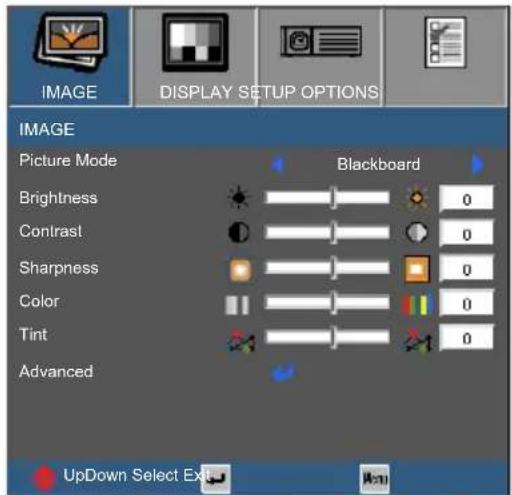

IMAGE 28

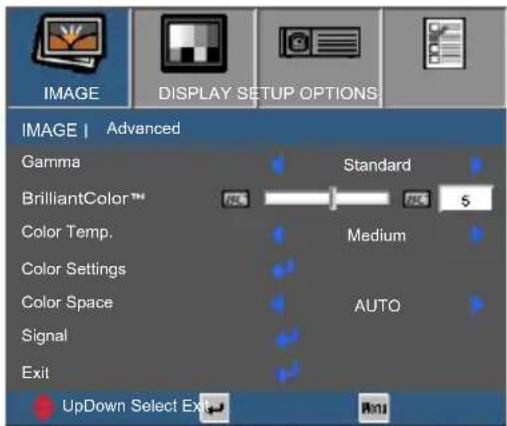

IMAGE | Advanced ....30

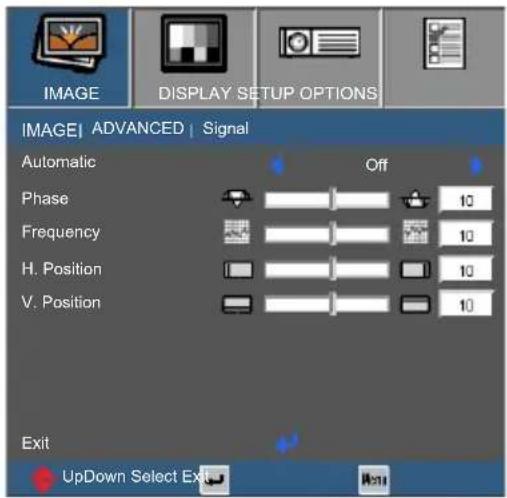

IMAGE | Advanced | Signal ...... 32

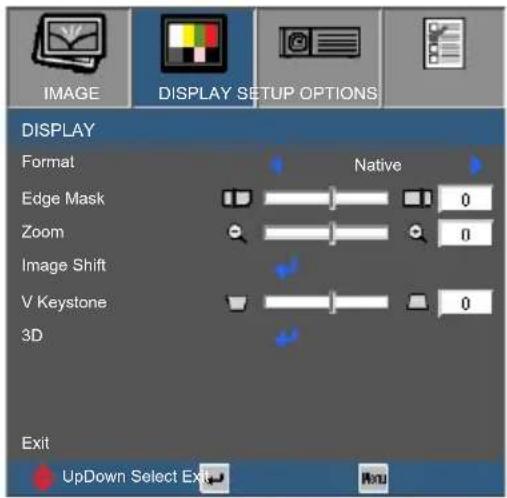

DISPLAY....33

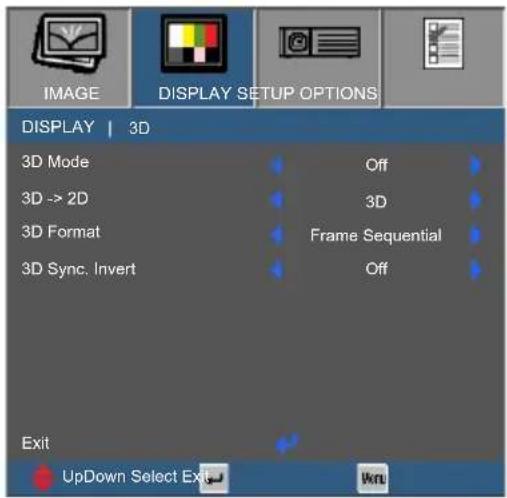

DISPLAY|3D 35

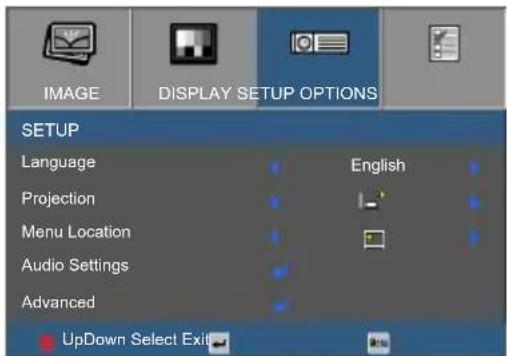

SETUP....36

SETUP |

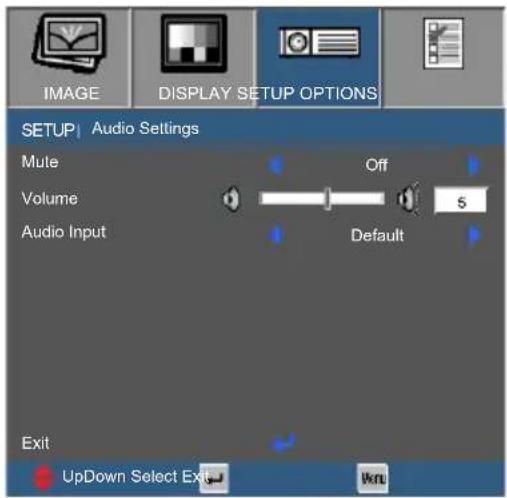

Audio Settings....38

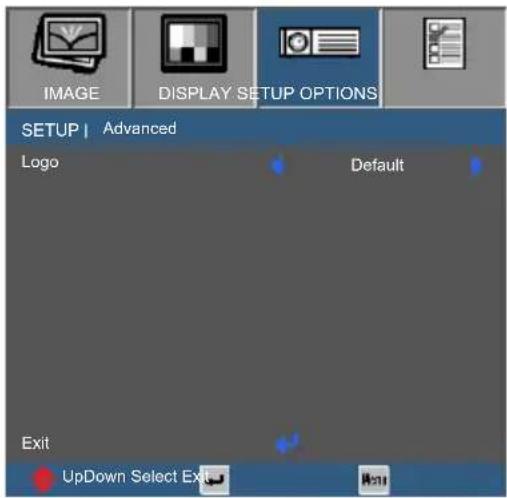

SETUP | Advanced 39

OPTIONS....40

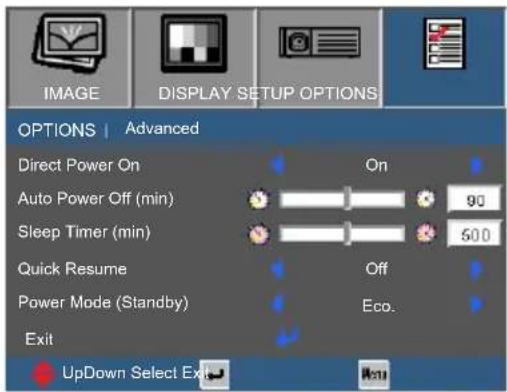

OPTIONS | Advanced....42

OPTIONS |

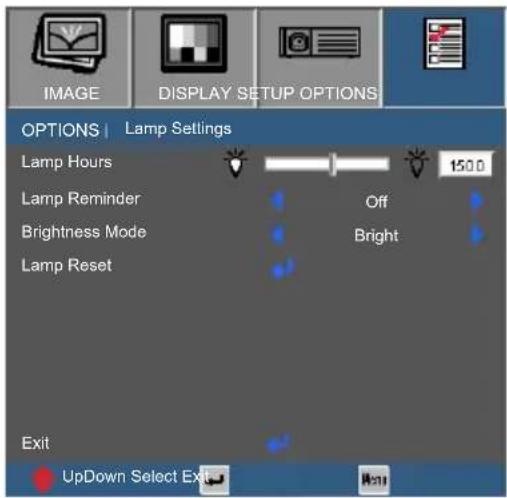

Lamp Settings......43

OPTIONS |

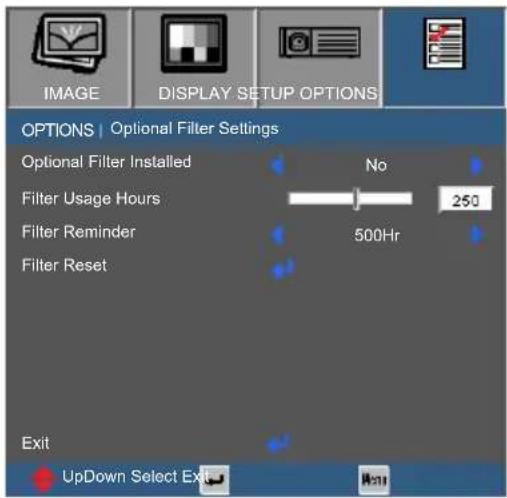

Optional Filter Settings 44

Appendices......45

Troubleshooting 45

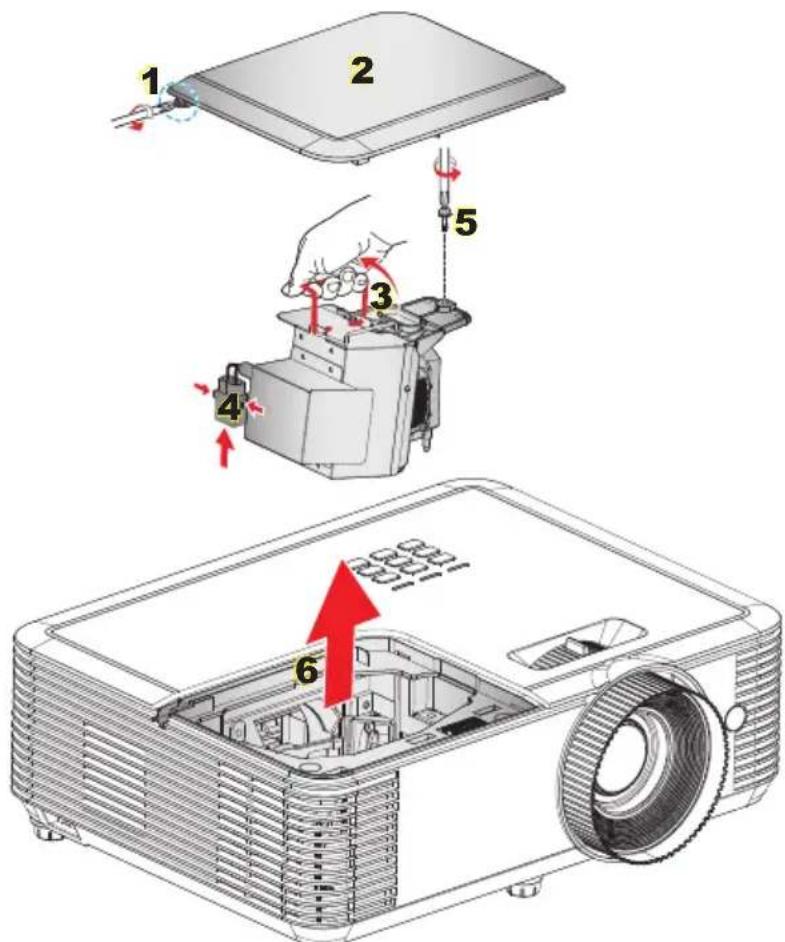

Replacing the Lamp....51

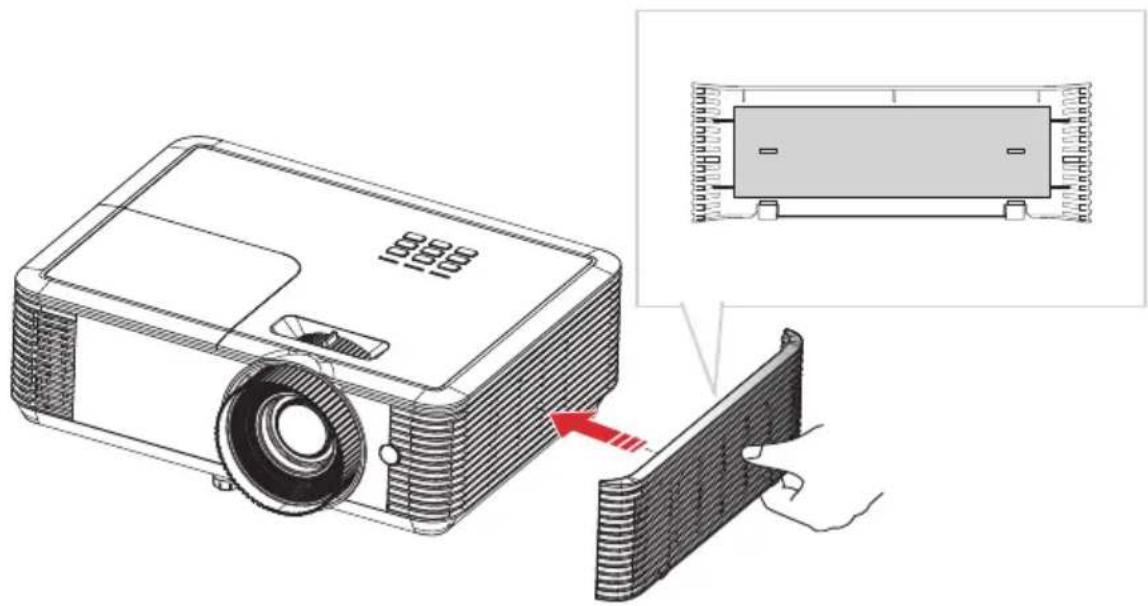

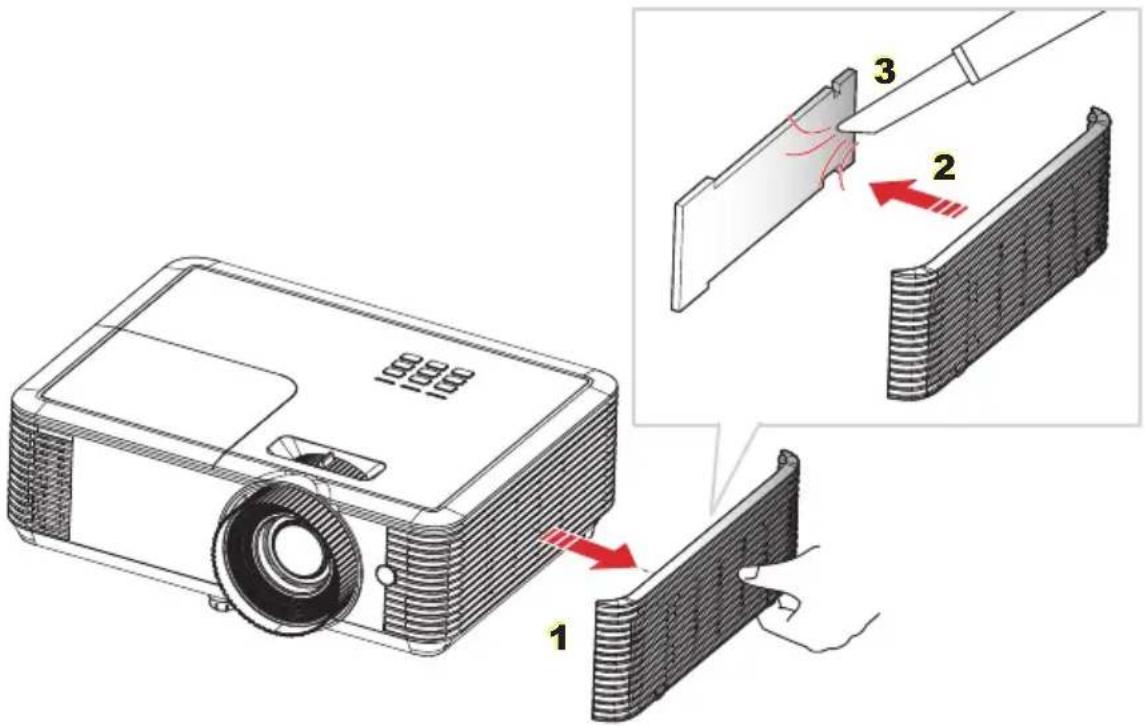

Installing and Cleaning the Optional

Dust Filter 53

Compatibility Modes ....55

Computer/Video/HDMI/Mac

Compatibility 55

RS232 Commands and Protocol

Function List 57

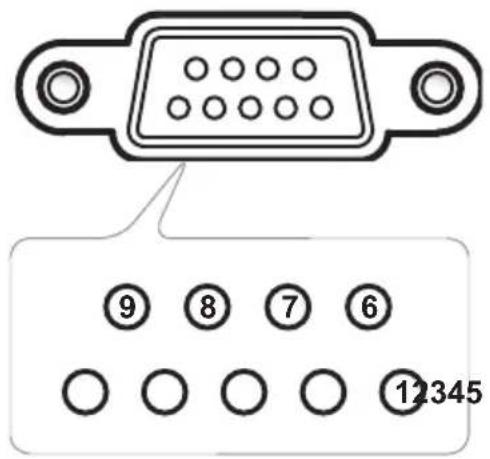

RS232 Pin Assignments 57

RS232 Protocol Function List 58

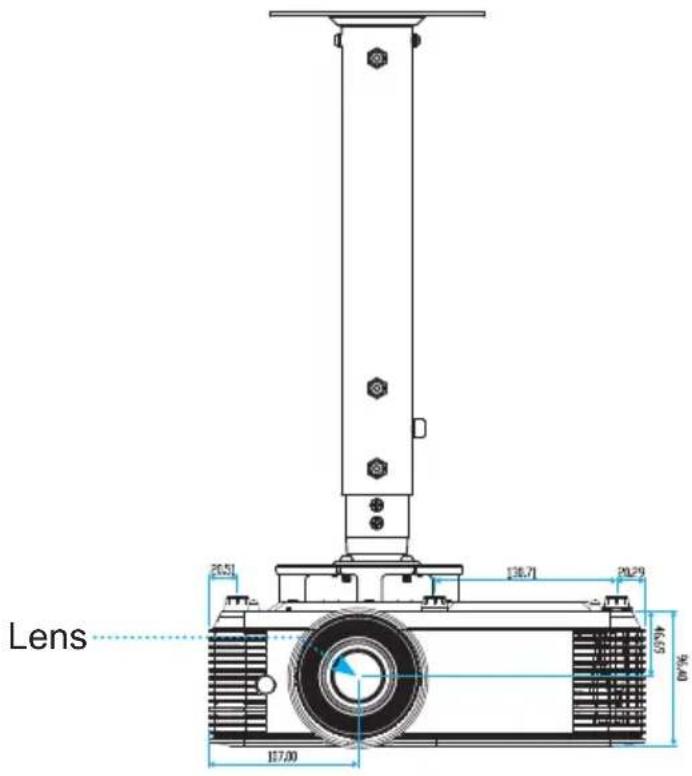

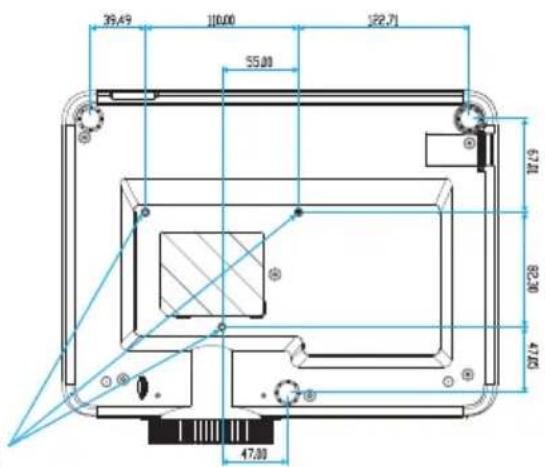

Ceiling Mount Installation....62

Regulation & Safety Notices......63

FCC Notice 63

Notice: Shielded cables 63

Caution 63

Operation Conditions....64

Notice: Canadian users 64

Declaration of Conformity for

EU countries 64

Safety Information

	The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
	The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

Important Safety Instruction

1. Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from overheating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air flow.
2. Do not use the projector near water or moisture. To reduce the risk of fire and/or electric shock, do not expose the projector to rain or moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or any other apparatus such as amplifiers that emit heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories specified by the manufacturer.
6. Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric shock.
7. See projector enclosure for safety related markings.
8. The unit should only be repaired by appropriate service personnel.

Precautions

Please follow all warnings, precautions and maintenance as recommended in this user's guide.

Warning- Do not look into the projector's lens when the lamp is on. The bright light may hurt and damage your eyes.
Warning- To reduce the risk of fire or electric shock, do not expose this projector to rain or moisture.
Warning- Please do not open or disassemble the projector as this may cause electric shock.
Warning- When replacing the lamp, please allow the unit to cool down. Follow instructions as described on pages 51-52.
Warning- This projector detects lamp life. Please be sure to change the lamp when a warning message is displayed.
Warning- When switching the projector off, please ensure the cooling cycle has been completed before disconnecting power. Allow 90 seconds for the projector to cool down.
Warning- Not all projectors come with a lens cap. For your safety, if the projector is equipped with a lens cap please ensure to remove it before you turn on the projector.

When the lamp reaches the end of its life, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp” section on pages 51-52.

Usage Notice

Do:

Turn off and unplug the power plug from the AC outlet before cleaning the product.
Use a soft dry cloth with mild detergent to clean the display housing.
Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
Use room blinds to reduce ambient light in order to minimize lamp power.

Do not:

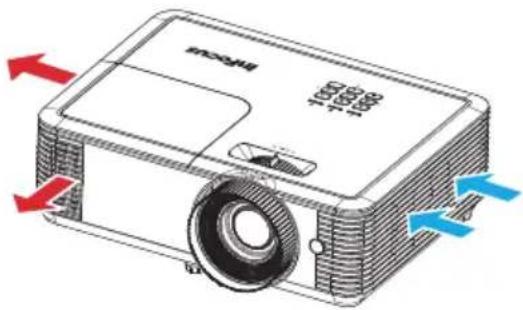

Block the projector inlet or outlet air vents.

Illustration of a projector with red and blue directional arrows indicating motion (no text or symbols)

Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:

- In extremely hot, cold or humid environments.

▶ Ensure that the ambient room temperature is within 5 - 40°C.
▶ Relative Humidity is 5 - 40°C, 80% (Max.), non-condensing.

• In areas susceptible to excessive dust and dirt.
• Near any appliance generating a strong magnetic field.

- In direct sunlight.

Eye Safety Warnings

Symbolic illustration of a computer monitor with a red X mark and eye inside, enclosed in an oval (no text or numbers present)

Avoid staring/facing directly into the projector beam at all times. Keep your back to the beam as much as possible.
When projector is used in a classroom, ensure students do not look into the beam when they are asked to point something out on screen.

Product Features

Product features may vary depending on model.

1080p (1920 x1080) Native resolution
HD compatible – 720p and 1080p supported
BrilliantColor ^TM Technology
Kensington Lock
RS232 control
Rapid shutdown
The Product Features shall be configured by the manufacturer as per practical conditions.

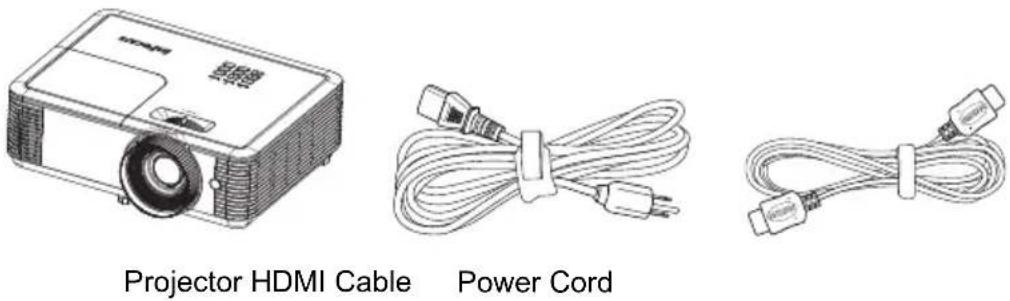

Package Overview

Unpack and inspect the contents to ensure all parts listed below are in the box. If something is missing, please contact your nearest customer service center.

◇◇◇

Due to different applications in each country, some regions may have different accessories.

IR Remote Control

Documentation:

User's Manual
Quick Start Card
Safety/Warranty Booklet

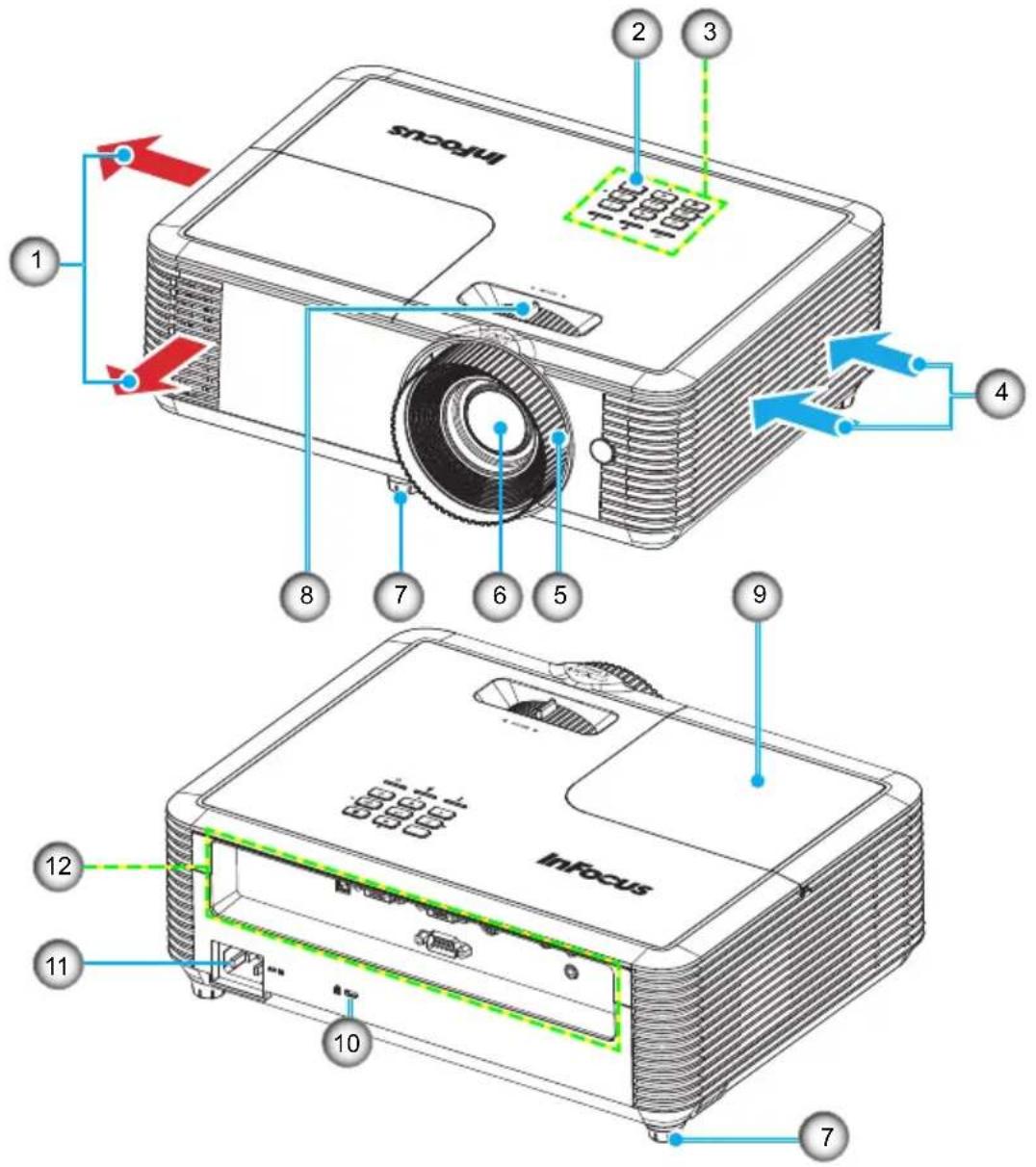

Product Overview

Main Unit

1 2 3 4 5 6 7 8 9 10 11 12 InFocus InFocus 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

The interface is subject to model's specifications.
Do not block projector in/out air vents.

1. Ventilation (outlet)
2. IR Receiver (remove protective film)
3. Control Panel
4. Ventilation (inlet)
5. Focus Ring

6. Lens

7. Tilt-Adjustment Feet

8. Zoom Lever
9. Lamp cover
10. Kensington ^TM Lock Port
11. Power Socket
12. Input / Output Connections

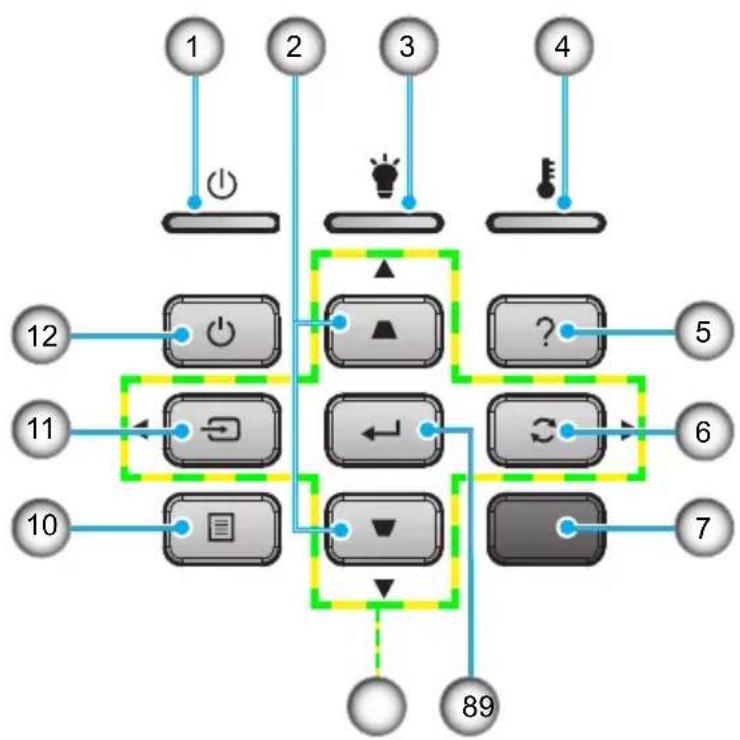

Control Panel

1. On/Standby LED
2. Keystone Correction
3. Lamp LED
4. Temp LED

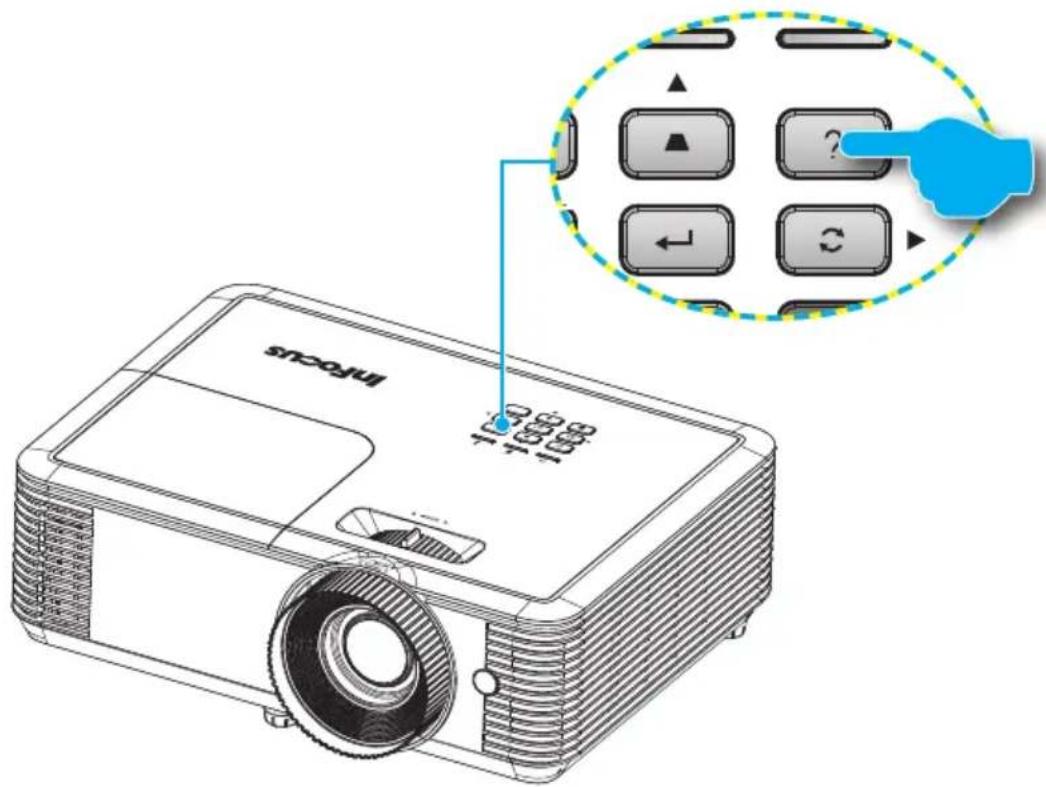

5. Help
6. Re-Sync
7. IR Receiver (remove protective film)
8. Enter
9. Four Directional Select Keys
10. Menu
11. Source
12. Power

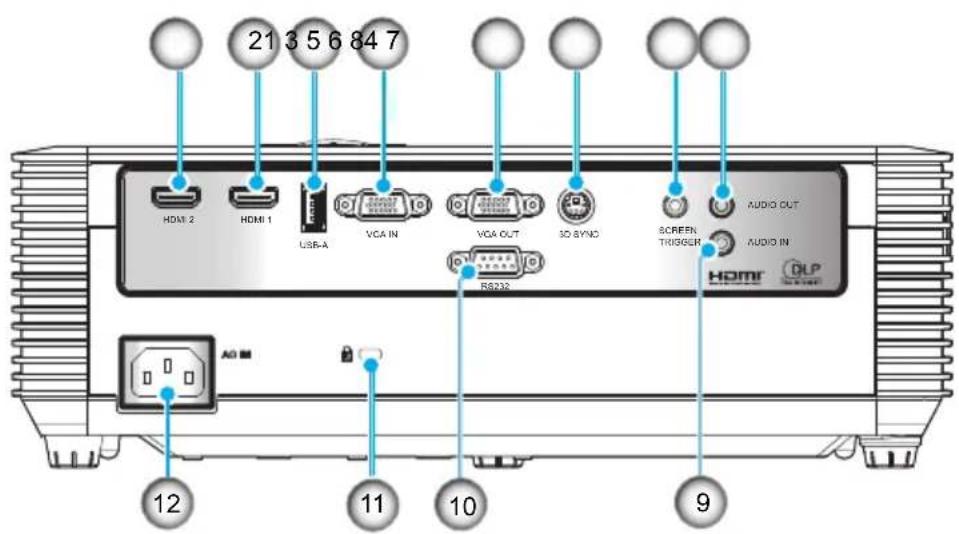

Input/Output Connections

21 3 5 6 84 7 HDMI 2 HDMI 1 USB-A VCA IN VCA OUT 3D SYND RS332 SCREEN TRIGGER AUDIO OUT AUDIO IN HDMI DLP 12 11 10 9

1. HDMI2 Connector
2. HDMI1 Connector
3. USB Type A Connector
4. VGA IN Connector
5. VGA OUT Connector
6. 3D Sync Connector
7. Screen Trigger Connector
8. Audio Output Connector (3.5mm mini jack)
9. Audio Input Connector (3.5mm mini jack)
10. RS232 Connector (9-pin)
11. Kensington Lock
12. Power Socket

The interface is subject to model's specifications.

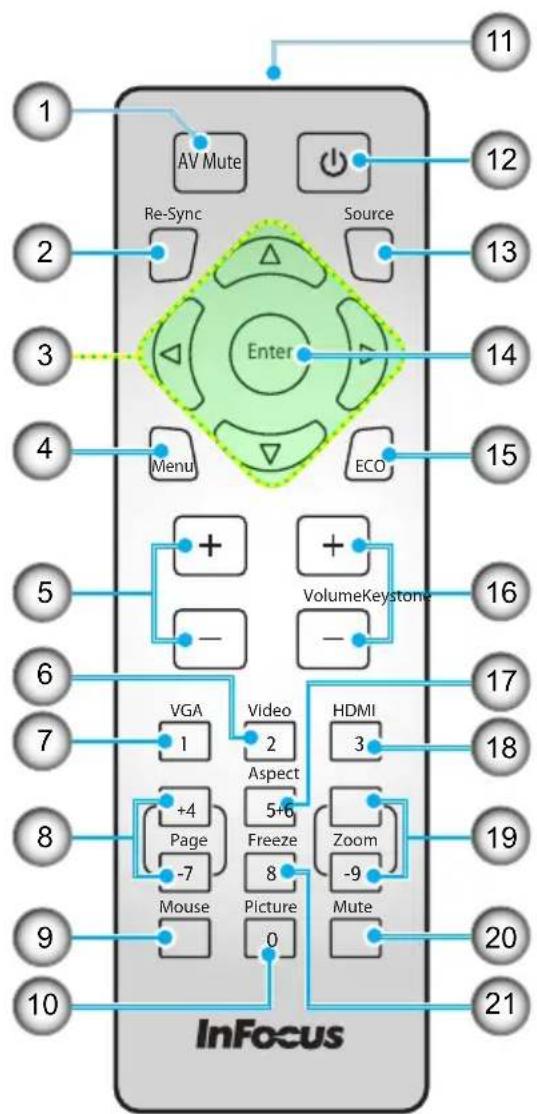

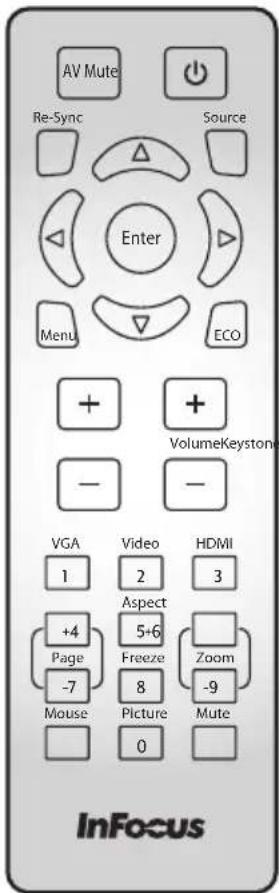

Remote Control

1 AV Mute Re-Sync Source Enter Menu ECO 5 + + VolumeKeystone - - 6 VGA Video HDMI 1 2 3 4 7 8 Page Aspect 5+6 Zoom -9 9 Mouse Freeze 8 Picture 0 InFocus 11 12 13 14 15 16 17 18 19 20 21

1. AV Mute

2. Re-Sync

3. Four Directional Select Keys

4. Menu

5. Keystone +/-

6. Video

7. VGA

8. Page +/-

9. Mouse

10. Picture

11. IR LED

12. Power

13. Source

14. Enter

15. ECO

16. Volume +/-

17. Aspect

18. HDMI

19. Zoom +/-

20. Mute

21. Freeze

Connecting the Projector

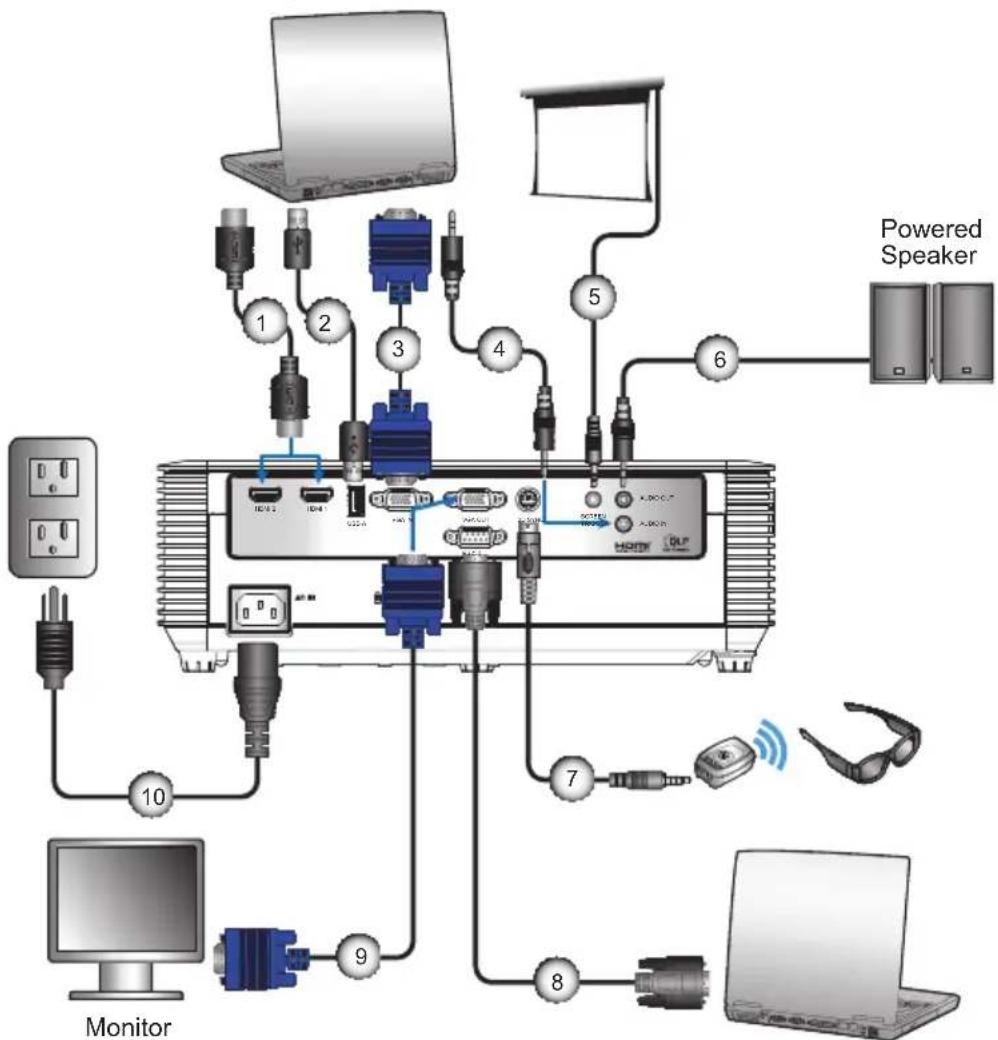

Connect to Computer/Notebook

Computer / Notebook

Computer / Notebook

Due to the difference in applications for each country, some regions may have different accessories.
(*) Optional accessory
USB has two functions: Service and Remote Mouse Control.
The interface is subject to model's specifications.

1...... HDMI Cable
2. USB Cable*
3. VGA-In Cable*
4....Audio Input Cable*
5.... 12V 200ma DC Jack*
6. Audio Output Cable*
7. 3D Emitter Cable*
8.... RS232 Cable*
9...... VGA-out Cable*
10....Power Cord

Connect to Video Sources

Due to the difference in applications for each country, some regions may have different accessories.

(*) Optional accessory
The interface is subject to model's specifications.

DVD Player, Set-top Box, HDTV receiver 1 2 3 Powered Speaker 4 5

1...... HDMI Cable
2....12V 200ma DC Jack*
3. Audio Output Cable*
4....3D Emitter Cable*
5....Power Cord

Powering the Projector On / Off

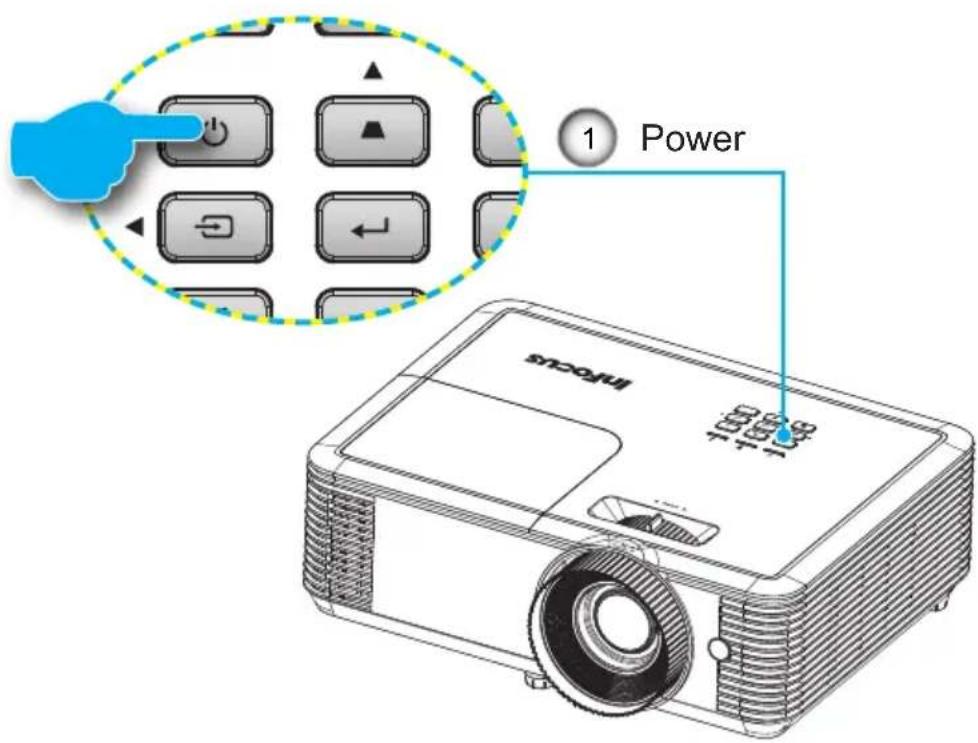

Powering On the Projector

1. Securely connect the power cord and signal cable. When connected, the On/Standby LED will turn red.

2. Turn on the lamp by pressing the "button either on the remote control or the control panel. The On/Standby LED will now flash blue. 1

The startup screen will display in approximately 10 seconds. The first time you use the projector, you will be asked to select the preferred language and power saving mode.

1. Turn on and connect the source that you want to display on the screen (computer, notebook, video player, etc). The projector will detect the source automatically. If not, press the "Menu" button and go to "Options".

Make sure that the "Source Lock" has been set to "Off".

If you connect multiple sources at the same time, press the "Source" button on the control panel or direct source keys on the remote control to switch between inputs.

1 Power INFOCUS 1000 1000 1000

Powering Off the Projector

1. Press the "button" on the remote control or the control panel to turn off the projector.

The following message will be displayed on the screen.

Power Off? Press power key again

Press the “” button again to confirm otherwise the message will disappear after 10 seconds. The projector will shut down when the “” button is pressed for the second time.

1. The fans will continue to operate for 10 seconds and the On/Standby LED will flash blue. During this period, the projector cannot be turned back on and the projector should not be unplugged.

Once the cooling cycle is complete the On/Standby LED will turn to solid red (standby mode). At this point, the projector can be turned back on by pressing the "button."

1. Disconnect the power cord from the electrical outlet and the projector.

Contact the nearest service center if the projector displays these symptoms. See page 49 for more information.

Warning Indicator

When the warning indicators (see below) come on, the projector will automatically shutdown:

Lamp LED indicator is lit red and if the On/Standby LED flashes red. This indicates the projector lamp has failed.
Temp LED indicator is lit red and if the On/Standby LED flashes red. This indicates the projector has overheated. Under normal conditions, the projector can be switched back on.
Temp LED indicator flashes red and if the On/Standby LED flashes red. This indicates a fan failure.

Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicators light up again, please contact your nearest service center for assistance.

Adjusting the Projected Image

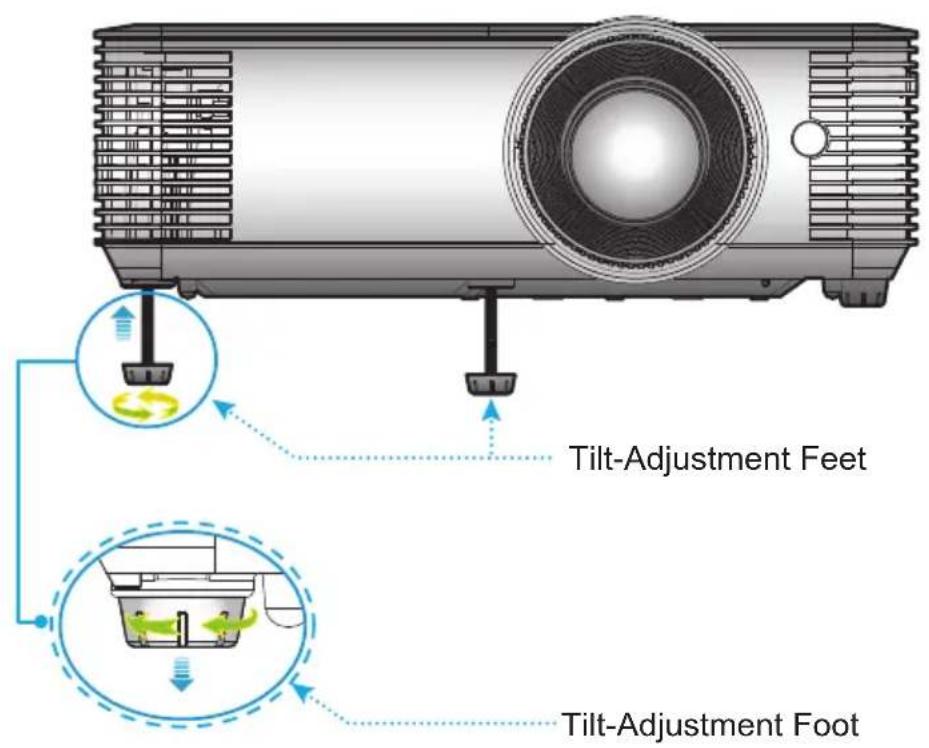

Adjusting the Projector's Height

The projector is equipped with tilt-adjustment feet for adjusting the image height.

1. Locate the tilt-adjustment foot you wish to modify on the underside of the projector.
2. Rotate the adjustable ring clockwise to raise the projector or counter clockwise to lower it. Repeat with the remaining feet as needed.

Tilt-Adjustment Feet Tilt-Adjustment Foot

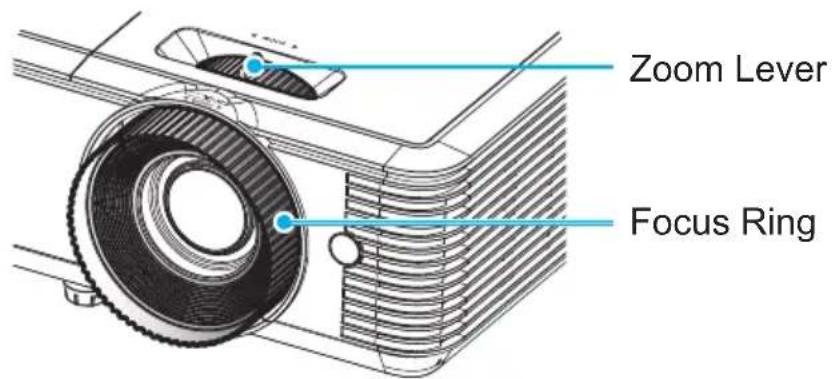

Adjusting the Projector's Focus / Zoom

To focus the image, rotate the focus ring until the image is clear. You may turn the zoom lever to zoom in or out.

The projector will focus at the distance 1.1m to 9.8m (optimized @ 1.95m).

Zoom Lever Focus Ring

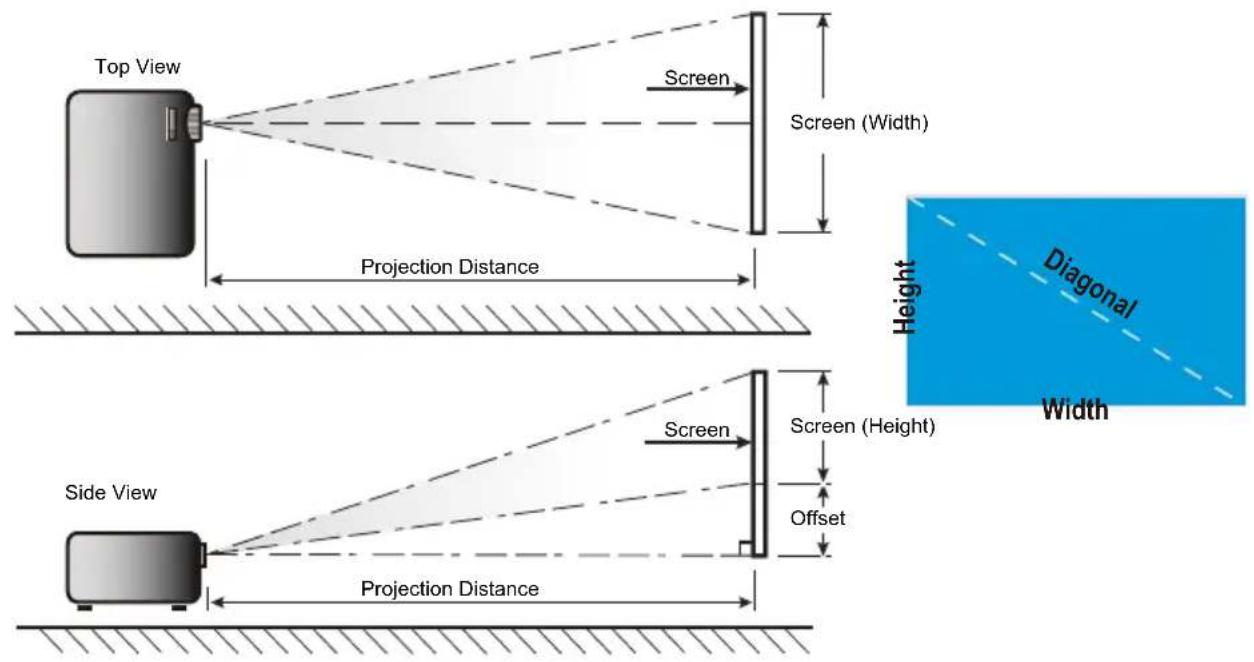

Adjusting Projection Image Size

Projection image size is from 28" to 301" (0.71m to 7.65m).

Top View Screen Screen (Width) Projection Distance Side View Screen Screen (Height) Offset Projection Distance Height Diagonal Width

16:9 diagonal screen	Height	Width	Height	Width		Projection Distance				Offset
						Wide.	Tele Wide	Tele
	(inches)	(inches)	(meters)	(meters)	(inches)	(inches)	(inches)	(meters)	(meters)	(cm)	(inches)
28	13.7	24.4	0.35	0.62	--	2.98	--	1.00	5.58	2.20
50	24.5	43.6	0.62	1.11	4.08	5.33	1.63	1.79	9.96	3.92
60	29.4	52.3	0.75	1.33	4.90	6.39	1.95	2.15	11.95	4.71
70	34.3	61.0	0.87	1.55	5.71	7.46	2.28	2.51	13.95	5.49
80	39.2	69.7	1.00	1.77	6.53	8.52	2.60	2.87	15.94	6.28
90	44.1	78.4	1.12	1.99	7.35	9.59	2.93	3.23	17.93	7.06
100	49.0	87.2	1.25	2.21	8.16	10.66	3.25	3.59	19.92	7.84
120	58.8	104.6	1.49	2.66	9.80	12.79	3.91	4.30	23.91	9.41
150	73.5	130.7	1.87	3.32	12.25	15.98	4.88	5.38	29.89	11.77
180	88.2	156.9	2.24	3.98	14.69	19.18	5.86	6.46	35.86	14.12
200	98.1	174.3	2.49	4.43	16.33	21.31	6.51	7.17	39.85	15.69
250	122.6	217.9	3.11	5.53	20.41	26.64	8.14	8.97	49.81	19.61
301	147.6	262.3	3.75	6.66	24.57	--	9.80	--	59.97	23.61

Control Panel & Remote Control

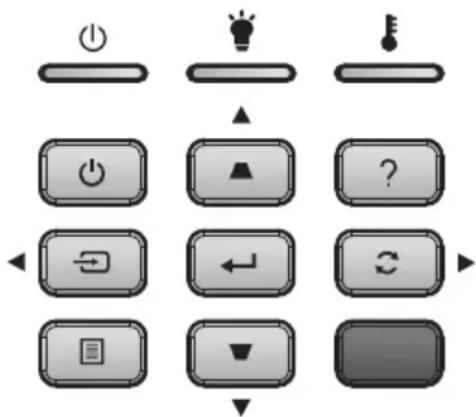

Control Panel

Using the Control Panel
Power	←	Refer to the “Powering the Projector On / Off” section on pages 13-14.
Source Select the input source.
Menu	→	Launch the on-screen display (OSD) menu. Press again to exit OSD menu.
Help	?	Help Menu (only available when OSD menu is not shown).
Re-Sync	←	Automatically synchronize the projector to the input source.
Enter Confirm your item selection.
Four Directional Select Keys		Use ▲▼to select items or make adjustments to your selection.
Keystone /		Use ▲▼adjust image distortion caused by tilting the projector ±40 degrees.
Lamp LED Indicates the projector's lamp status.
Temp LED Indicates the projector's temperature status.
On/Standby LED Indicates the projector's status.

Remote Control Battery Installation

1. Push the clip to release the battery cover.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

1. Install new batteries (AAA/R03). Ensure that you have the batteries' polarity (+/-) aligned correctly.

Diagram of a remote control panel with two buttons and a downward arrow indicating action (no text or symbols present)

1. Close the battery cover and press it down until it clicks into place. Do not mix different types of batteries or new and old batteries.

Line drawing of a mechanical component with a curved handle and arrow indicating rotation (no text or symbols)

To ensure safe operation, please observe the following precautions :

Use AAA/R03 type batteries.
Avoid contact with water or liquid.
Do not expose the remote control to moisture or heat.
Do not drop the remote control.
If the batteries have leaked in the remote control, carefully wipe the case clean and install new batteries.
There is a risk of explosion if the batteries are replaced with the wrong type.
▶ Dispose of used batteries according to the instructions.
Remove the batteries from the remote control when not using for extended periods.
The remote control may fail to operate if the infrared remote sensor is exposed to bright sunlight or fluorescent lighting.

Remote Control

AV Mute Re-Sync Source Enter Menu ECO + + VolumeKeystone - - VGA Video HDMI 1 2 3 +4 Aspect 5+6 Page Freeze Zoom -7 8 -9 Mouse Picture Mute 0 InFocus

AV Mute Turns off audio and video until pressed again.

Re-Sync Automatically synchronizes the projector to the input source.

Four Directional Select Keys Use ▲▼ to navigate the menu and make selections. Can be used as computer mouse navigation from USB-A with Mouse Function enabled.

Menu Launch the on-screen display (OSD) menu. Press again to exit OSD menu.

Keystone +/- Adjust the image to compensate for distortion caused by tilting the projector.

VGA Press to choose VGA source.

Video Press to choose Video source.

HDMI Press to cycle through all HDMI sources.

Page +/- Use to send Page Up and Page Down functions with Mouse Function enabled.

Mouse Turn on and off the Mouse Function.

Picture Display the Picture Mode menu.

Power Refer to the "Powering the Projector On / Off" section on pages 13-14.

Source Select the input source.

Enter Confirm your OSD selection. Can be used as computer mouse left click from USB-A when Mouse Function is enabled.

ECO Display the Lamp "Brightness Mode" menu.

Volume +/- Increase and decrease audio volume.

Aspect Display the Aspect Ratio menu.

Zoom +/- Increase or decrease the image magnification ratio.

Mute Turns off audio until pressed again.

Freeze Pauses the video source until pressed again.

Using the HELP button

The HELP function ensures easy setup and operation.

Press the ?button on the control panel to open the Help Menu.

1000 1000 1000 SPOYUI

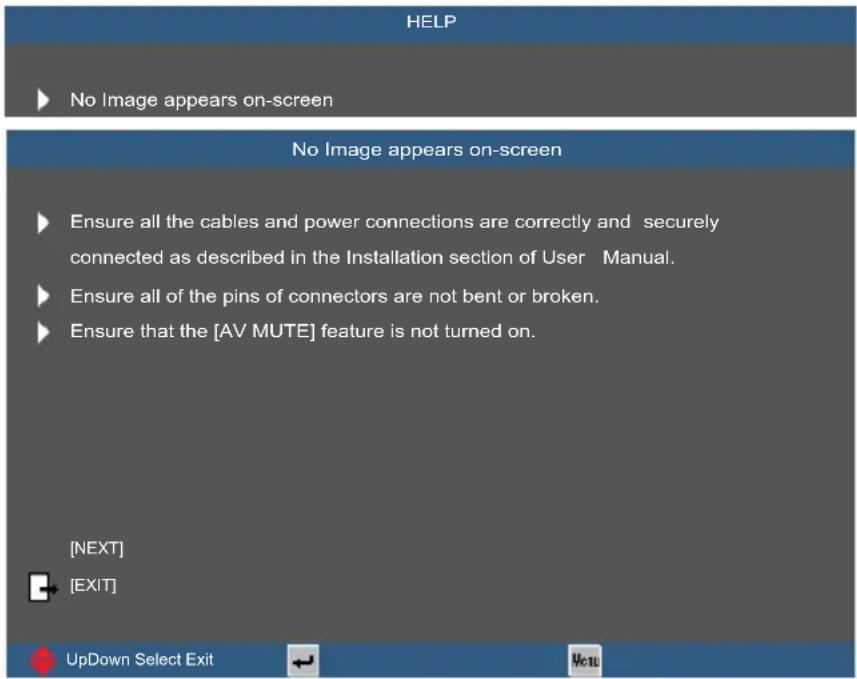

If no input source is detected, these Help menu screens are displayed.

Please refer to the "Troubleshooting" section on pages 45-48 for more details.

HELP ► No Image appears on-screen No Image appears on-screen ► Ensure all the cables and power connections are correctly and securely connected as described in the Installation section of User Manual. ► Ensure all of the pins of connectors are not bent or broken. ► Ensure that the [AV MUTE] feature is not turned on. [NEXT] [EXIT] UpDown Select Exit

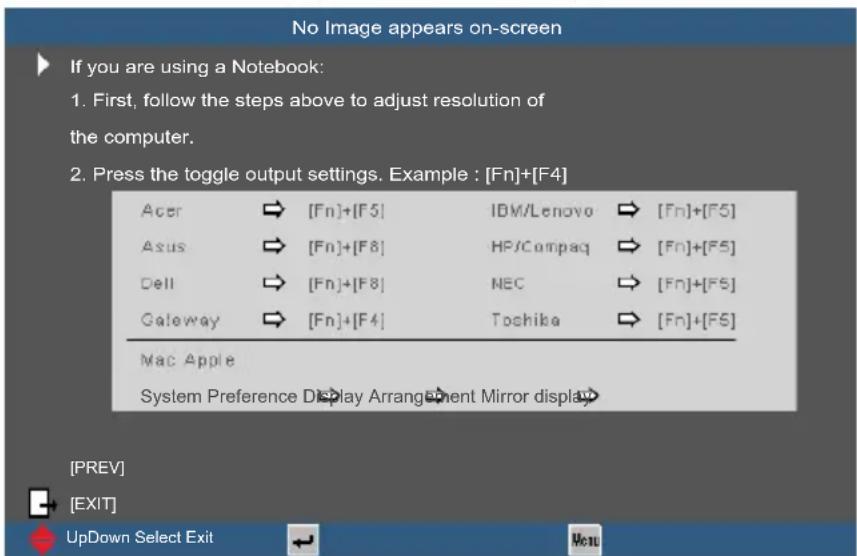

No Image appears on-screen If you are using a Notebook: 1. First, follow the steps above to adjust resolution of the computer. 2. Press the toggle output settings. Example : [Fn]+[F4] Acer → [Fn]+[F5] IBM/Lenovo → [Fn]+[F5] Asus → [Fn]+[F8] HP/Compaq → [Fn]+[F5] Dell → [Fn]+[F8] NEC → [Fn]+[F5] Gateway → [Fn]+[F4] Tochika → [Fn]+[F5] Mac Apple System Preference Display Arrangement Mirror display [PREV] [EXIT] UpDown Select Exit

If an input source is detected, these Help menu screens are displayed.

VGA input signal:

HELP ► Image has slanted sides ► Image is too small or too large ► Image is unstable or flickering.

Other signals (other than VGA input signal):

HELP ► Image has slanted sides ► Image is too small or too large

Image has slanted sides

If possible, reposition the projector so that is centered on the screen and below the bottom of the screen.
Press [Keystone +/-] button until the sides are vertical on the remote control.

[Keystone +/-]

[EXIT]

UpDown Select Exit

Image is too small or too large

Adjust the Zoom Ring on the top of the projector.
Move the projector closer to or further from the screen.
Press [Menu] button on the remote control or projector panel, go to Display | Format and try the different settings.

[DISPLAY | Format]

[EXIT]

UpDown Select Exit

Image is unstable or flickering.

Use [Phase / Frequency] to correct it.
Change the monitor color setting on your computer.

[Phase]

[Frequency]

UpDown Select Exit

On-screen Display Menus

The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source.

How to operate

1. To open the OSD menu, press "Menu" on the remote control or the control panel.
   2 When the OSD is displayed, use ◀▶ keys to select any item in the main menu. While making a selection on a particular page, press ▲ or ▼ key to enter sub menu.
2. Use ▲▼ keys to select the desired item and adjust the settings using ◀▶ key.
3. Select the next item to be adjusted in the sub menu and adjust as described above.
4. Press "Enter" to confirm, and the screen will return to the previous menu.
5. To exit, press "Menu" again. The OSD menu will return to the previous menu and the projector will automatically save the new settings.

Main Menu DISPLAY SETUP OPTIONS IMAGE IMAGE Picture Mode Blackboard Brightness 0 Contrast 0 Sharpness 0 Color 0 Tint 0 Advanced Settings Sub Menu UpDown Select Ex

Menu Tree

Main Menu Sub Menu Settings
IMAGE Picture	Picture Mode Present	ation/Bright/Movie	/sRGB/Blackboard/	User/3D
	Brightness -50~50
	Contrast -50~50
	Sharpness 1~15
	Color*1			-50~50
	Tint*1			-50~50
	Advanced Gam	ma Film/Video/Graphics	Standarid
		BrilliantColorTM		1~10
		Color Temp. Warm	Medium/Cold
		Color Settings Red	Green/Blue/Cyan/Magenta/Yellow	Hue/Saturation/Gain
			White Red/Green	Blue
			Reset
			Exit
		Color Space Anal	log AUTO/RGB/YUV
			HDMI AUTO/RGB	(0~255)/RGB(16~235)/YUV *2
		Signal*3	Automatic	On/Off
			Phase	0~31
			Frequency	-10~10
			H. Position	-5~5
			V. Position	-5~5
			Exit
		Exit
DISPLAY	Format			4:3, 16:9, LBX, Native, Auto
	Edge Mask			0~10
	Zoom			-5~25
	Image Shift	H		-100~100
		V		-100~100
	V Keystone			-40~40
	3D	3D Mode		Off/DLP-Link/IR
		3D->2D		3D/L/R
		3D Format*4		AUTO/SBS/Top and Bottom/Frame Sequential
		3D Sync.Invert*4		On/Off
		Exit

User Controls

Main Menu Sub Menu Settings

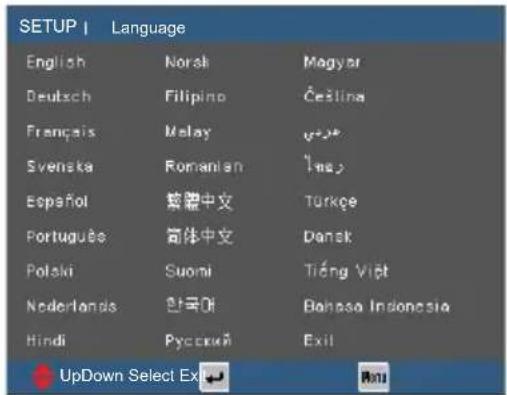

SETUP Language English / Deutsch / Français / Svenska /				Español / Português / Polski / Nederlands / Hindi / Norsk / Filipino / Malay / Romanian / 繁體中文 / 簡体中文 / Suomi / 한국어 / Русский / Magyar / Čeština / ʌmɪ / Türkçe / Dansk / Vietnamese / Indonesian
OPTIONS Input Source VGA/HDMI1/HDMI2
OPTIONS Advanced Sleep Timer(min)				0~990
		Quick Resume On/Off
		Power Mode(Standby)		Active/Eco.
		Exit
		Lamp Settings	Lamp Hours
			Lamp Reminder
			Brightness Mode
			Lamp Reset Yes/No
			Exit
		Optional Filter Settings	Optional Filter Installed
			Filter Usage Hours
			Filter Reminder Off/300Hr/500Hr/800Hr/1000Hr
			Filter Reset Yes/No
			Exit
		Reset Yes/No

Please note that the on-screen display (OSD) menus vary according to the signal type selected and the projector model you are using.

*1 Supported only for YUV sources.
*2 Supported only for HDMI sources.
*3 Supported only for Analog VGA sources.
*4 Only available when 3D is enabled.


IMAGE DISPLAY SETUP OPTIONS IMAGE Picture Mode Blackboard Brightness 0 Contrast 0 Sharpness 0 Color 0 Tint 0 Advanced UpDown Select Ext

Picture Mode

There are many factory presets optimized for various types of images.

Presentation: Good color and brightness from PC input.
Bright: Maximum brightness from PC input.
▶ Movie: For home theater.
sRGB: Standardized accurate color.
Blackboard: This mode should be selected to achieve optimum color settings when projecting onto a blackboard (green).
User: User's settings.
3D: Recommended setting for when 3D function is enabled.

Brightness

Adjust the brightness of the image.

Press ◀ to darken image.
Press ▶ to lighten the image.

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture.

Press to decrease the contrast.
▶ Press ▶ to increase the contrast.

"Color" and "Tint" are only supported for YUV sources.

Sharpness

Adjust the sharpness of the image.

Press ◀ to decrease the sharpness.
Press to increase the sharpness.

Color

Adjust a video image from black and white to fully saturated color.

Press ◀ to decrease the amount of saturation in the image.
Press to increase the amount of saturation in the image.

Tint

Adjust the color balance of red and green.

Press to increase the amount of green in the image.
Press to increase the amount of red in the image.

IMAGE | Advanced

IMAGE | Advanced Gamma BrilliantColor™ Color Temp. Color Settings Color Space Signal Exit Standard $ Medium AUTO UpDown Select Exit

Gamma

This allows you to choose a degamma table that has been fine-tuned to bring out the best image quality for the input.

Film: for home theater.
▶ Video: for video or TV source.
▶ Graphics: for image source.
Standard: for PC or computer source.

BrilliantColor™

This adjustment utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing true, more vibrant colors in the projected image. The range is from "1" to "10". If you prefer a stronger enhanced image, adjust toward the maximum setting. For a smoother, more natural image, adjust toward the minimum setting.

Color Temp

Select Cold for a bluer image.

Select Warm for a redder image.

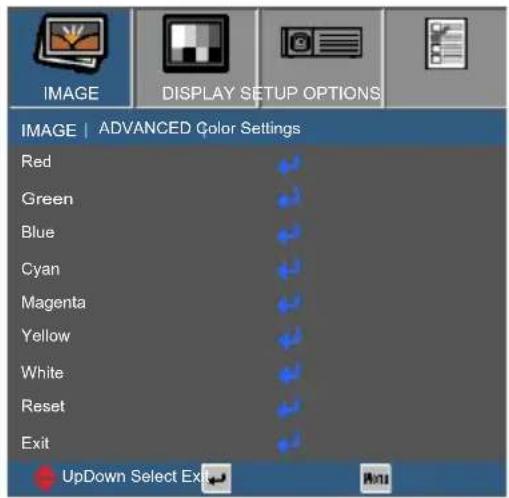

Color Settings

Press to enter the menu shown below. Use ▲ or ▼ to select the color to be adjusted.

IMAGE | ADVANCED Color Settings Red Green Blue Cyan Magenta Yellow White Reset Exit UpDown Select Exit

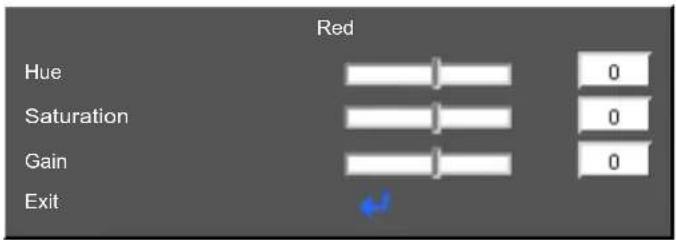

Red/Green/Blue/Cyan/Magenta/Yellow: Use ▲ or ▼ to select the function. Use ▲ or ▶ adjust.

Red Hue 0 Saturation 0 Gain 0 Exit

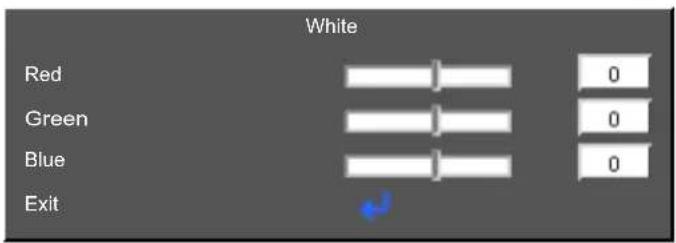

White: Use ▲ or ▼ to select the function. Use or ▶ to adjust.

White Red 0 Green 0 Blue 0 Exit

Reset: Choose "Yes" to return the factory default settings for color adjustments.

(*) For HDMI sources only.

Color Space

Select an appropriate color matrix type from AUTO, RGB, RGB(0-255) ^() , RGB(16-235) ^() or YUV.

IMAGE | Advanced | Signal

"Signal" adjustments are only available for Analog VGA (RGB) sources.

IMAGE | ADVANCED | Signal Automatic Off Phase 10 Frequency 10 H. Position 10 V. Position 10 Exit UpDown Select Exit

Automatic

Automatically selects the signal. If this function is turned on the manual phase and frequency controls will be disabled. When this option is disabled manual controls will be enabled and automatically saved when the device is power cycled.

Phase

Synchronize the signal timing of the display with the graphics card. If the image appears to be unstable or flickers, use this function to correct it.

Frequency

Change the display data frequency to match the frequency of your computer's graphics card. Use this function only if the image appears to flicker vertically.

H. Position

Press ◀ to move the image left.
Press ▶ to move the image right.

V. Position

Press ◀o move the image down.
Press ▶ to move the image up.

DISPLAY

IMAGE DISPLAY SETUP OPTIONS DISPLAY Format Edge Mask Zoom Image Shift V Keystone 3D Native 0 0 0 Exit UpDown Select Exit

Format

Use this function to choose your desired aspect ratio.

4:3: This format is for 4 × 3 input sources.
16:9: This format is for 16×9 input sources, like HDTV and DVD enhanced for Wide screen TV.
Native: This format displays the original image without any scaling.
LBX: This format is for non-16x9, letterbox sources.
▶ AUTO: Automatically selects the appropriate display format.

Each I/O has different setting of "Edge Mask".

Edge Mask

Edge mask function removes the noise in a video image. Edge mask the image to remove video encoding noise on the edge of video sources.

Zoom

Press ◀ to reduce the size of an image.
Press to magnify an image on the projection screen.

User Controls

Image Shift

Press ← to enter the menu then use ▲ or ▼ to select the function.

DISPLAY | Image Shift H V 0 0

H: Use ◀ or ▶ to shift the projected image position horizontally.

V: Use ◀ or ▶ to Shift the projected image position vertically.

V Keystone

Press ◀ or ▶ to adjust image distortion vertically. If the image looks trapezoidal, this option can help make the image rectangular.

DISPLAY | 3D

IMAGE DISPLAY SETUP OPTIONS DISPLAY | 3D 3D Mode Off 3D -> 2D 3D 3D Format Frame Sequential 3D Sync. Invert Off Exit UpDown Select Exit knu

Compatible 3D source, 3D content and active shutter glasses are required for 3D viewing.
"3D Sync Invert" is only available for DLP Link glasses.
See page 56 for supported 3D formats.

3D Mode

Off: Select to turn off 3D.
DLP Link: To turn on 3D settings and synchronize DLP Link 3D glasses.
IR: To turn on 3D settings and synchronize IR or RF 3D glasses.

3D -> 2D

3D: Display 3D signal.
L (Left): Display the left frame of 3D content.
R (Right): Display the right frame of 3D content.

3D Format

Auto : When a 3D identification signal is detected, the 3D format is selected automatically.
SBS: Use this mode for "Side-by-side" format 3D content.
Top and Bottom: Use this mode for "Top and Bottom" format 3D content.
Frame Sequential: Use this mode for "Frame Sequential" format 3D content.

3D Sync. Invert

Press "On" to invert left and right frame contents.
Press "Off" for default frame contents.

SETUP

IMAGE DISPLAY SETUP OPTIONS SETUP Language Projection Menu Location Audio Settings Advanced English UpDown Select Exit

Language

Choose the multilingual OSD menu. Press ▶ or ▶ to enter the "Language" menu then use ▶ or ▶ to select your preferred language. Press "Enter" to finalize the selection.

SETUP | Language English Norsk Magyar Deutsch Filipino Češlina Français Melay φ-φ Svenska Romanian 'lasa' Español 繁體中文 Turkçe Português 简体中文 Dansk Polski Suoni Tiếng Việt Nederlandes 한국Đ Bahasa Indonesia Hindi Pyccxià Exit UpDown Select Ex

Rear-Desktop and Rear-Ceiling are to be used with a translucent screen.

Projection

Front-Desktop

This is the default selection. The image is projected straight on the screen.

Rear-Desktop

When selected, the image will appear reversed.

Front-Ceiling

When selected, the image will turn upside down.

Rear-Ceiling

When selected, the image will appear reversed in upside down position.

Menu Location

Choose the menu location on the display screen.

SETUP | Audio Settings

IMAGE DISPLAY SETUP OPTIONS SETUP | Audio Settings Mute Volume Audio Input Off 5 Default Exit UpDown Select Exit Up

Mute

Choose "On" to turn mute on.
Choose "Off" to turn mute off.

Volume

Press ◀ to decrease the volume.
▶ Press ▶ to increase the volume.

Audio Input

Default: Set audio input according to the current input source.
▶ AUDIO1: Audio In becomes the audio source for VGA and video inputs.

SETUP | Advanced

IMAGE DISPLAY SETUP OPTIONS SETUP | Advanced Logo Default Exit UpDown Select Exit

Logo

Use this function to set the desired startup screen. If changes are made they will take effect the next time the projector is powered on.

Default: The default startup screen.
Neutral: Logo is not displayed on startup screen.

OPTIONS

IMAGE DISPLAY SETUP OPTIONS OPTIONS Input Source Source Lock High Altitude Information Hide Keypad Lock Test Pattern IR Function Background Color 12V Trigger Advanced Lamp Settings Optional Filter Settings Reset UpDown Select Ext

Input Source

Use this option to enable / disable input sources. Press ▶to enter the sub menu and select which sources you require. Press "Enter" to finalize the selection. The projector will not search for inputs that are not selected.

Source Lock

On: The projector will only search the current input selection.
Off: The projector will search for other signals if the current input signal is lost.

High Altitude

When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.

Information Hide

To turn off the keypad lock, press and hold "Enter" key on top of the projector for 5 seconds.

On: Choose "On" to hide source message.
Off: Choose "Off" to show source message.

Keypad Lock

When the keypad lock function is "On", the control panel will be locked however, the projector can be operated by the remote control. By selecting "Off", you will be able to use the control panel once more.

Test Pattern

Display a test pattern. There are grid and white patterns.

IR Function

On: The projector can be operated by the remote control. When you change the setting from "Off" to "On", it will display a warning message:

Apply IR Function? No Yes

Off: You will only be able to use the control panel keys. When you change the setting from "On" to "Off", it will display a warning message:

Turn off IR function? No Yes

Background Color

Use this feature to display a "Black", "Red", "Blue", "Green" or "White" screen when no signal is available.

12V Trigger

On: Choose "On" to trigger 12V output.
Off: Choose "Off" to stop 12V output.
Auto 3D: 12V Trigger output when the 3D Mode setting is set to DLP-Link or IR. Stop 12V output when the 3D Mode setting is set "Off".

Reset

Choose "Yes" to return the display parameters on all menus to the factory default settings.

OPTIONS | Advanced

IMAGE DISPLAY SETUP OPTIONS OPTIONS | Advanced Direct Power On On Auto Power Off (min) 90 Sleep Timer (min) 500 Quick Resume Off Power Mode (Standby) Eco. Exit UpDown Select Exit

Direct Power On

On: The projector will automatically power on when AC power is applied.
Off: The projector will turn on by pressing the ⏻ key on the remote or keypad.

Auto Power Off (min)

Sets the countdown time interval in minutes. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished.

Sleep Timer (min)

Sets the countdown time interval in minutes. The countdown timer will start, with or without a signal being sent to the projector. The projector will automatically power off when the countdown has finished.

Quick Resume

On: If the projector is accidentally turned off, this feature allows the projector to be instantly powered on again, if selected within a period of 100 seconds.
Off: The fan will start cooling the system immediately when the user turns off the projector.

Power Mode (Standby)

Eco.: Sets standby power to <0.5W.
Active: VGA output function available in standby.

OPTIONS | Lamp Settings

IMAGE DISPLAY SETUP OPTIONS OPTIONS | Lamp Settings Lamp Hours 1500 Lamp Reminder Off Brightness Mode Bright Lamp Reset Exit UpDown Select Exit

Lamp Hours

Displays the lamp hours of the current lamp.

Lamp Reminder

Choose this function to show or to hide the warning message when the changing lamp message is displayed.

The message will appear 30 hours before suggested replacement of the lamp.

When ambient temperature is over 40^ C in operating, the projector will switch to Eco automatically.

Brightness Mode

Bright: Sets lamp to highest power for maximum brightness.
Eco.: Decreases lamp power for less brightness and extended lamp life.
▶ Dynamic: Increases and decreases lamp power based on the video source. Power consumption will vary from maximum to 30%, extending lamp life.

Lamp Reset

Resets the Lamp Hours counter. Should be used after replacing the lamp.

OPTIONS | Optional Filter Settings

IMAGE DISPLAY SETUP OPTIONS OPTIONS | Optional Filter Settings Optional Filter Installed No Filter Usage Hours 250 Filter Reminder 500Hr Filter Reset Exit UpDown Select Exit

Optional Filter Installed

Select "Yes" to display warning message after a specified number of hours. Select "No" to turn off warning message.

The default setting for Filter is "No". After assembling filter, please turn on the projector then press "Menu", go to "Options -> Optional Filter Settings -> Optional Filter Installed" and select "Yes".

Filter Usage Hours

Displays the filter hours.

Filter Reminder

Select the number of hours until the filter message is displayed. (Factory default is 500Hr).

Filter Reset

Reset the dust filter counter after replacing or cleaning the dust filter.

Troubleshooting

If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center.

No image appears on-screen

▶ Ensure all the cables and power connections are correctly and securely connected as described in the “Installation” section.
▶ Ensure all the pins of connectors are not bent or broken.
▶ Ensure that the “AV Mute” feature is not turned on.
▶ Check if the projection lamp has been securely installed. Please refer to the “Replacing the lamp” section.

? Partial, scrolling or incorrectly displayed image

Press "Re-SYNC" on the remote control or control panel.
▶ If you are using a PC:

For Windows:

1. From the "Control Panel" select "Displays".
2. Select "Change Display Settings".
3. Verify that the display resolution is smaller than or equal to 1080p (1920 x 1080).

▶ If you are using a laptop:

1. First, follow the steps above to adjust resolution of the computer.
2. Press the appropriate keys listed below for your notebook manufacturer to send signal out from notebook to projector. Example: [Fn]+[F4]

Acer [Fn]+[F5] IBM/Lenovo [Fn]+[F5] Asus [Fn]+[F8] HP/Compaq [Fn]+[F5] Dell [Fn]+[F8] NEC [Fn]+[F5] Gateway [Fn]+[F4] Toshiba [Fn]+[F5]

Mac Apple:

System Preference Display Arrangement Mirror display

If you experience difficulty changing resolutions or your monitor freezes, restart all equipment including the projector.
The screen of the computer is not displaying your presentation
If you are using a Notebook PC

Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer's manual for detailed information.

? Image is unstable or flickering

Use "Phase" to correct it. See page 32 for more information.
Change the monitor color setting on your computer.

? Image has vertical flickering bar

Use “Frequency” to make an adjustment. See page 32 for more information.
▶ Check and re-configure the display mode of your graphic card to make it compatible with the projector.

? Image is out of focus

Rotate the focus ring until the image is clear. See page 16.
Make sure the projector screen is within the required distance for your model. See page 17.

The image is stretched when displaying 16:9 DVD title

When you play anamorphic DVD or 16:9 DVD, the projector will show the best image when the projector display mode is set to 16:9 in the OSD.
If you play 4:3 format DVD titles, please change the format to 4:3 in the projector OSD.
If the image is still stretched, you will also need to adjust the aspect ratio by referring to the following:
Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.

? Image is too small or too large

▶ Turn the zoom lever to zoom in or out. See page 16.
Move the projector closer to or further from the screen.
Press the "Menu" button on the remote control, go to "Display → Format" and try the different settings.

Use of Keystone is not recommended.

? Image has slanted sides

If possible, reposition the projector so that it is horizontally centered on the screen and below the bottom of the screen.
Press the "Keystone +/-" button on the remote control until the sides are vertical.
Use "Display → V Keystone" from the OSD to make an adjustment. Use the ▲ and keys to make the adjustment from the keypad.

? Image is reversed

Select "Setup → Projection" from the OSD and adjust the projection direction.

Appendices

The projector stops responding to all controls

▶ Check that "Keypad Lock" is not activated by trying to control the projector with the remote control.
If possible, turn off the projector, then unplug the power cord and wait at least 60 seconds before reconnecting power.

? Blurry double image

Enter the 3D control menu to switch "Off" the 3D feature if normal 2D images are blurry or double images.

Two images, side-by-side format

Change 3D settings to "SBS", see page 35.

? Image does not display in 3D

▶ Check if the 3D glasses are turned on.
Make sure the batteries of the 3D glasses are not exhausted.
▶ Verify that 3D is set to DLP LINK and the correct 3D format is selected, see page 35.

Lamp burns out or makes a popping sound

When the lamp reaches its end of life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the "Replacing the Lamp" section on pages 51-52.

? LED indicators

Not lighted ○

Lighted red ●

Lighted blue ●

Blinking red ○ ●

Blinking blue ○ ●

Message	On/Standby LED	Temp LED	Lam
	(Blue/Red) (Red) (Red)
Standby State		○	○
Power on (Warming)		○	○
Lamp lighting		○	○
Power off (Cooling)		○	○
Error (Over Temp.)			○
Error (Fan fail)		○	○
Error (Lamp fail)		○	●

On Screen Messages

Temperature warning:

Warning TEMPERATURE TOO HIGH

Please:

1. Make sure air in and outlets are not blocked.
2. Make sure the environment temperature is under 45 degree C.

If the problem persists in spite of the above.

Please contact a service centre for repair.

Fan failed:

Warning? FAN LOCKED

The projector will switch off automatically.

Please contact a service centre for repair.

Lamp warning:

Lamp Warning

Lamp life exceeded.

▶ Out of display range:

VGA Out of display range.

If the remote control does not work

▶ Verify that the angle of the remote to the IR receiver is within ±20 degrees.
Make sure there are not any obstructions between the remote control and the projector. Move to within 7m of the projector.
Make sure the batteries are inserted correctly.
Replace batteries if they are exhausted.
▶ Turn off any fluorescent lights that are illuminating the IR receiver.
Make sure that IR Function is turned "On" in the Options menu.

Replacing the Lamp

The projector automatically detects the lamp life. When the lamp life is nearing the end of use, you will receive a warning message.

Lamp Warning

Lamp life exceeded.

When you see this message, please contact your local reseller or service center to change the lamp as soon as possible. Make sure the projector has been cooled down for at least 30 minutes before changing the lamp.

CAUTION! HIGH TEMPERATURE COOL FOR 30 MINUTES. HIGH PRESSURE LAMP MAY EXPLODE IF IMPROPERLY HANDED. REFER TO LAMP REPLACEMENT INSTRUCTIONS. DISCONNECT POWER BEFORE CHANGING LAMP. ATTENTION: AHAUTES TEMPERATURES REFROIDISSEZ PENDANT 30 MINUTES. Les lampes à haute pression peuvent exploser si elles sont mal utilisées. Confier l'entretien à une personne qualifiée. COUPERLE COURANT AVANT DEREMPLACERLE LAMPES.

Warning: If ceiling mounted, please use caution when opening the lamp access panel. It is recommended to wear safety glasses if changing the bulb when ceiling mounted. "Caution must be used to prevent any loose parts from falling out of projector."

Warning: Lamp compartment may be hot! Allow it to cool down before changing the lamp!

Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.

Appendices

The screws on the lamp cover and the lamp cannot be removed.
The projector cannot be turned on if the lamp cover has not been placed back on the projector.
Do not touch the glass area of the lamp. Skin oils can cause the lamp to shatter. Use a dry cloth to clean the lamp module if it was accidentally touched.

1 2 3 4 5 6

Lamp Replacement Procedure:

1. Switch off the power to the projector by pressing the ⬤ button.
2. Allow the projector to cool down for at least 30 minutes.
3. Disconnect the power cord.
4. Unscrew the one screw on the cover. 1
5. Lift up and remove the cover. 2
6. Lift up the lamp handle. 3
7. Press on the both sides then lift up and remove the lamp cord. 4
8. Unscrew the one screw on the lamp module. 5

9. Remove the lamp module slowly and carefully. 6
   To replace the lamp module, reverse the previous steps.

10. Turn on the projector and reset the lamp timer.

Lamp Reset: (i) Press "Menu" → (ii) Select "Options" → (iii) Select "Lamp Settings" → (iv) Select "Lamp Reset" → (v) Select "Yes".

Installing and Cleaning the Optional Dust Filter

Installing the Dust Filter

Dust filters are only required/supplied in selected regions with excessive dust.

Procedure:

1. Place the dust filter onto its compartment on the filter cover.
2. Install the filter cover onto its slot on the projector.
3. Turn on the projector. Then press "Menu", go to "Options → Optional Filter Settings → Optional Filter Installed" and select "Yes".

Technical illustration of a projector with a close-up view showing its internal structure and component (no text or symbols present)

Cleaning the Dust Filter

We recommend cleaning the dust filter every three months; clean it more often if the projector is used in a dusty environment.

Procedure:

1. Switch off the power to the projector by pressing the "button."
2. Disconnect the power cord.
3. Remove the filter cover from the projector. 1
4. Remove the dust filter from the filter cover. 2
5. Clean or replace the dust filter. 3
6. To install the dust filter, reverse the previous steps.
7. Reset the dust filter counter after replacing or cleaning the dust filter. Press "Menu", go to "Options → Optional Filter Settings → Filter Reset".

Turn on the projector, then press "Menu", "Options → Optional Filter Settings → Optional Filter Installed" and select "No" when you pull out the dust filter and do not reinstall it.

Diagram illustrating the process of a projector with labeled parts and directional arrows indicating assembly steps.

Compatibility Modes

Computer/Video/HDMI/Mac Compatibility

For widescreen resolution, the compatibility support is dependent on Notebook/PC models.
Please note that using resolutions other than native 1080p (1920 × 1080), may result in some loss of image clarity.
120Hz input signals may be dependent on graphic card's support.

Signal Resolution		Refresh Rate (Hz)	Video Analog HDMI Mac
NTSC 720 x 480 60 O - - -
PAL/SECAM 720 x 576 50 O - - -
VGA	640 x 480 60	- O O O
	640 x 480 67	- O --
	640 x 480 72.8	- O - O
	640 x 480 85	- O - O
SVGA	800 x 600 56.3	- O --
	800 x 600 60.3	- O O O
	800 x 600 72.2	- O O O
	800 x 600 85.1	- O O O
	800 x 600 120	- O O -
XGA	1024 x 768 48	- O O
	1024 x 768 50	- O O
	1024 x 768 60	- O O O
	1024 x 768	70.1 - O O O
	1024 x 768 75	- O O O
	1024 x 768 85	- O O O
	1024 x 768	120	- O O -
WSVGA	1024 x 600 60	- O -
HDTV (720p)	1280 x 720 50	O O O -
	1280 x 720 60	O O O O
	1280 x 720	120	- O O -
SXGA	1280 x 1024	60 - O O O
	1280 x 1024	75 - O O O
	1280 x 1024	85 - O O -
SXGA+	1400 x 1050	60 - O O -
UXGA	1600 x1200 60	- O O -
HDTV (1080p)	1920 x 1080	24 O O O -
	1920 x 1080	30 - - O -
	1920 x 1080	50 O O O -
	1920 x 1080	60 O O O O
HDTV (1080i)	1920 x 1080	50 O - O -
	1920 x 1080	60 O - O -

Appendices

Signal Resolution		Refresh Rate (Hz)	Video Analog HDMI Mac
WUXGA	1920 x 1200 50 - O O -
	1920 x 1200 60 - O O O
SDTV (576i) 720 x 576		50	O - O -
SDTV (576p)	720 x 576	50	O	-	O	-
SDTV (480i) 720 x 480		60	O - O -
SDTV (480p)	720 x 480	60	O	-	O	-

3D Input Video Compatibility

Input Resolution	HDMI 1.4a 3D Input	Input Timing
		1280 x 720p @ 50Hz Top-and-Bottom
		1280 x 720p @ 60Hz Top-and-Bottom
		1280 x 720p @ 50Hz Frame packing
		1280 x 720p @ 60Hz Frame packing
		1920 x 1080i @ 50 Hz Side-by-Side (Half)
		1920 x 1080i @ 60 Hz Side-by-Side (Half)
		1920 x 1080p @ 24 Hz Top-and-Bottom
		1920 x 1080p @ 24 Hz Frame packing
	HDMI 1.3 3D Content	1920 x 1080i @ 50Hz	Side-by-Side (Half)	While 3D Format is “SBS”
		1920 x 1080i @ 60Hz
		1280 x 720p @ 50Hz
		1280 x 720p @ 60Hz
		1920 x 1080i @ 50Hz	Top-and-Bottom	While 3D Format is “Top and Bottom”
		1920 x 1080i @ 60Hz
		1280 x 720p @ 50Hz
		1280 x 720p @ 60Hz
		480i HQFS		While 3D Format is “Frame sequential”

RS232 Commands and Protocol Function List

RS232 Pin Assignments

Pin no.	Spec.(from projector side)
1 N/A
2 RXD
3 TXD
4 N/A
5 GND
6 N/A
7 N/A
8 N/A
9 N/A

Appendices

RS232 Protocol Function List

Baud Rate:19200

Parity Bit: None

Data Bit: 8

Stop Bit: 1

Lamp Ignition delay = 20s

Power Down delay = 10s

Source change delay = 8s

Intercommand delay minimum = 5ms

Intercharacter delay minimum = 2ms

Power return code (ok)
Status ? (PWR?) (0-1,n) n=0,1
ON	(PWR1)
OFF	(PWR0)
ON & return (PWR1!) (0-1,1)
OFF & return (PWR0!) (0-1,0)
Blank Key return code (ok)
Status ? (BLK?) (0-1,n) n=0,1
ON (BLK1)
OFF (BLK0)
ON & return (BLK1!) (0-1,1)
OFF & return (BLK0!) (0-1,0)
Source return code (ok)
Status ? (SRC?) (0-22,n) n=0-22
Computer1	(SRC0)
HDMI1	(SRC4)
HDMI2	(SRC5)
Computer1 & return	(SRC0!)	(0-22,0)
HDMI1 & return	(SRC4!)	(0-22,4)
HDMI2 & return	(SRC5!)	(0-22,5)
Aspect return code (ok)
Status ?	(ARZ?)	(0-6,n) n=0,1,2,3,4,6
Auto	(ARZ0)
Native	(ARZ1)
Aspect return code (ok)
4 X 3 (ARZ2)
16 X 9 (ARZ3)
Letterbox (ARZ4)
Auto & return (ARZ0!) (0-6,0)
Native & return (ARZ1!) (0-6,1)
4 X 3 & return (ARZ2!) (0-6,2)
16 X 9 & return (ARZ3!) (0-6,3)
Letterbox & return (ARZ4!) (0-6,4)
Lamp Low Power(ECO Mode) return code (ok)
Status ? (IPM?) (0-1,n) n=0,1
ON (IPM1)
OFF (IPM0)
ON & return (IPM1!)	(0-1,1)
OFF & return	(IPM0!)	(0-1,0)
Volume		return code (ok)
Status ?	(VOL?)	(0-10,nn) n=0~10
volume +	(VOL+)
volume -	(VOL-)
Set volume	(VOLnn) n=0 ~ 10
volume + & return	(VOL+!)	(0-10,nn) n=0~10
volume - & return	(VOL-!)	(0-10,nn) n=0~10
Set volume & return	(VOLnn!) n=0 ~ 10	(0-10,nn) n=0~10
Mute		return code (ok)
Status ?	(MTE?)	(0-1,n) n=0,1
ON	(MTE1)
OFF	(MTE0)
ON & return	(MTE1!)	(0-1,1)
OFF & return (MTE0!)	(0-1,0)
Firmware Version		return code (ok)
Status ?	(FVS?)	(nnnn) n=x.x.xx
Lamp ECO Hours		return code (ok)
Status ?	(LME?)	(0-65535,n) n=lamp hours
Lamp Normal Hours		return code (ok)
Status ?	(LMO?)	(0-65535,n) n=lamp hours
Lamp Dynamic Hours return code (ok)
Status ?	(LML?)	(0-65535,n) n=lamp hours

Appendices

Lamp Hours return code (ok)
Status ? (LMP?) (0-65535,n) n=lamp hours
Total ECO Hours return code (ok)
Status ? (LTE?) (0-65535,n) n=lamp hours
Total Normal Hours return code (ok)
Status ? (LTO?) (0-65535,n) n=lamp hours
Total Dynamic Hours return code (ok)
Status ? (LTL?) (0-65535,n) n=lamp hours
Total Hours return code (ok)
Status ? (LMT?) (0-65535,n) n=lamp hours
Lamp Hours Reset Times return code (ok)
Status ? (LMR?) (0-65535,n) n=lamp reset times
Lamp hours reset return code (ok)
Execute lamp hour reset	(LRT1)
Ceiling Set return code (ok)
Status ?	(CEL?)	(0-3,n) n=0,1,2,3
Front table	(CEL0)
Front ceiling	(CEL1)
rear table	(CEL2)
rear ceiling (CEL3)
Front table & return	(CEL0!)	(0-3,0)
Front ceiling & return	(CEL1!)	(0-3,1)
rear table & return	(CEL2!)	(0-3,2)
rear ceiling & return	(CEL3!)	(0-3,3)
Brightness return code (ok)
Status ?	(BRT?)	(0-100,nn) n=0~100
Brightness +	(BRT+)
Brightness -	(BRT-)
Set Brightness	(BRTnn) n=0 ~ 100
Brightness + & return	(BRT+!)	(0-100,nn) n=0~100
Brightness - & return	(BRT-!)	(0-100,nn) n=0~100
Set Brightness & return	(BRTnn!) n=0 ~ 100	(0-100,nn) n=0~100
Contrast		return code (ok)
Status ? (CON?) (0-100,nn) n=0~100
Contrast +	(CON+)
Contrast -	(CON-)
Set Contrast	(CONnn) n=0 ~ 100
Contrast + & return	(CON+!)	(0-100,nn) n=0~100
Contrast return code (ok)
Contrast - & return (CON-!) (0-100,nn) n=0~100
Set Contrast & return (CONnn!) n=0 ~ 100 (0-100,nn) n=0~100
Presets return code (ok)
Status ? (PST?) (0-13,n) n=0-13
User (PST1)
Presentation (PST5)
Movie (PST7)
Bright (PST10)
sRGB (PST11)
Blackboard (PST12)
User & return (PST1!) (0-13,1)
Presentation & return	(PST5!) (0-13,5)
Movie & return	(PST7!) (0-13,7)
Bright & return	(PST10!)	(0-13,10)
sRGB & return	(PST11!)	(0-13,11)
Blackboard & return	(PST12!)	(0-13,12)
Freeze		return code (ok)
Status ? (FRZ?) (0-1,n) n=0-1
Freeze ON	(FRZ1)
Freeze OFF	(FRZ0)
Freeze ON & return	(FRZ1!)	(0-1,1)
Freeze OFF & return	(FRZ0!)	(0-1,0)
Key Pad return code (ok)
Menu	(NAV0)
Up	(NAV1)
Down	(NAV2)
Select	(NAV3)
Left	(NAV4)
Right	(NAV5)
Menu & return	(NAV0!)	(0-5,0)
Up & return (NAV1!)	(0-5,1)
Down & return	(NAV2!)	(0-5,2)
Select & return	(NAV3!)	(0-5,3)
Left & return	(NAV4!)	(0-5,4)
Right & return	(NAV5!)	(0-5,5)

Ceiling Mount Installation

To prevent damage to your projector, please use only approved InFocus ceiling mounts: https://www.infocus.com/accessories/mounts

To use a ceiling mount, please ensure the screws used to attach a mount to the projector meet the following specifications:

Please note that damage resulting from incorrect installation will void the warranty.

Warning:

1. Please be sure to use the correct screw length. Screw length will vary based on the mount used.

2. Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.

3. Avoid installing the projector near a heat source.

Screw type: M4*3
▶ Minimum screw length: 10mm

Lens 20.51 136.71 20.29 59.49 80%

39.49 10.00 22.71 55.00 67.82 28.30 47.80

INSERT NUT: M4.0

Unit: mm

Regulation & Safety Notices

This appendix lists the general notices for your projector.

FCC Notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

◆ Reorient or relocate the receiving antenna.
- Increase the separation between the device and receiver.
- Connect the device into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.

Operation Conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Declaration of Conformity for EU countries

• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.
