Product Type	Video Projector
Brand	InFocus
Model	IN2134
Display Technology	DLP
Native Resolution	XGA (1024 x 768)
Brightness	3500 ANSI Lumens
Contrast Ratio	20000:1
Lamp Life	5000 hours (Normal), 10000 hours (Eco)
Lamp Type	240W UHP
Projection Distance	1.0 - 10.0 m
Image Size (Diagonal)	30 - 300 inches
Aspect Ratio	4:3 (Native), 16:9 Compatible
Keystone Correction	Vertical ±40°
Inputs	HDMI, VGA, Composite, S-Video, USB, Audio
Outputs	VGA, Audio
Built-in Speaker	1 x 3W Mono
Noise Level	32 dB (Normal), 28 dB (Eco)
Power Consumption	250W (Normal), <0.5W (Standby)
Power Supply	AC 100-240V, 50/60Hz
Dimensions (W x D x H)	31.5 x 22.4 x 9.5 cm
Weight	2.5 kg
Maintenance	Clean air filter monthly, replace lamp as needed
Safety Features	Overheat protection, Kensington lock slot
Spare Parts & Repairability	Replaceable lamp and filter; user accessible

Frequently Asked Questions - IN2134 INFOCUS

How do I connect my laptop to the InFocus IN2134 projector?

Use a VGA or HDMI cable to connect your laptop to the corresponding input port on the projector. Then select the correct input source using the Source button on the remote or projector.

How do I clean the air filter on the IN2134?

Turn off the projector and unplug it. Locate the filter cover on the side, remove the filter, and gently vacuum or wash it with mild soap and water. Allow it to dry completely before reinstalling.

What should I do if the projector lamp fails?

Replace the lamp with a genuine InFocus lamp module (model SP-LAMP-142). Allow the projector to cool for at least 30 minutes before opening the lamp cover. Follow the instructions in the manual for safe replacement.

How can I adjust the image size and focus?

Turn the zoom ring on the lens to adjust image size, and the focus ring to sharpen the image. For keystone correction, use the Keystone button on the remote or menu to correct trapezoid distortion.

Why is the projector not turning on?

Check that the power cable is securely connected and the outlet is working. Ensure the lamp cover and filter cover are properly closed. If the LED indicator blinks red, refer to the manual for troubleshooting codes.

Can I use the projector without a screen?

Yes, you can project onto any flat, light-colored surface. However, a proper projection screen improves brightness, contrast, and overall image quality.

How do I enable the eco mode to save lamp life?

Press the Menu button, navigate to Settings > Lamp Settings, and select Eco Mode. This reduces brightness and extends lamp life up to 10000 hours.

What is the recommended distance for a 100-inch screen?

For a 100-inch diagonal image, the projector should be placed approximately 3.0 to 3.5 meters away from the screen, depending on the zoom setting.

How do I reset the lamp timer after replacing the lamp?

After replacing the lamp, go to Menu > Settings > Lamp Settings and select Reset Lamp Timer. Confirm to clear the hours and restart tracking.

Can I use the projector for gaming?

Yes, the IN2134 has low input lag suitable for casual gaming. Connect your console via HDMI and enable Game Mode in the picture settings if available for reduced latency.

USER MANUAL IN2134 INFOCUS

Safety Information......2

Precautions....3

Eye Safety Warnings ....5

Product Features ....5

Introduction......6

Package Overview......6

Product Overview 7

Front View....7

Rear View 8

Control Panel....9

Input/Output Connections.... 10

Remote Control....11

Installation 12

Connecting the Projector....12

Connect to Computer/Notebook ...... 12

Connect to Video Sources.... 13

Powering the Projector On / Off......14

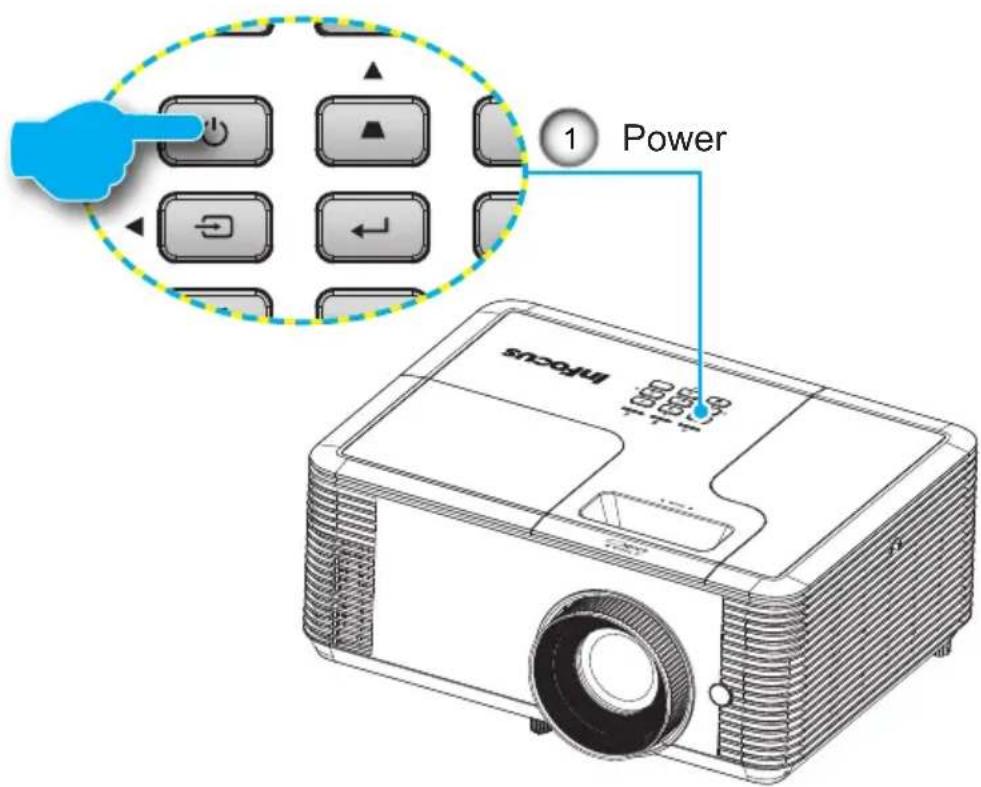

Powering On the Projector......14

Powering off the projector....15

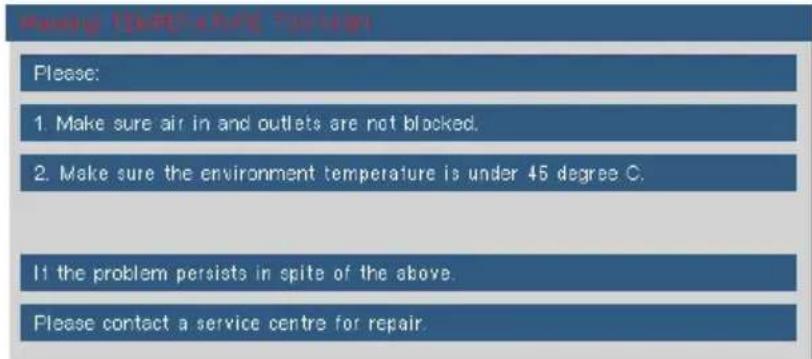

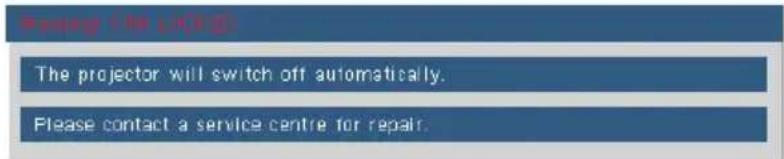

Warning Indicator....15

Adjusting the Projected Image......16

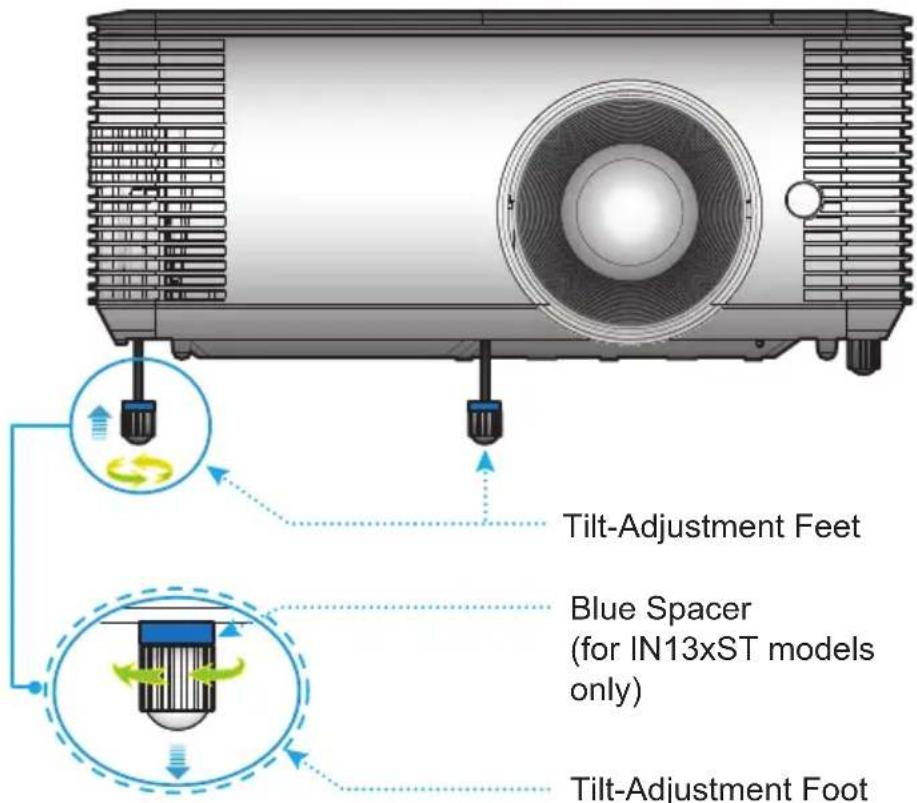

Adjusting the Projector's Height ..... 16

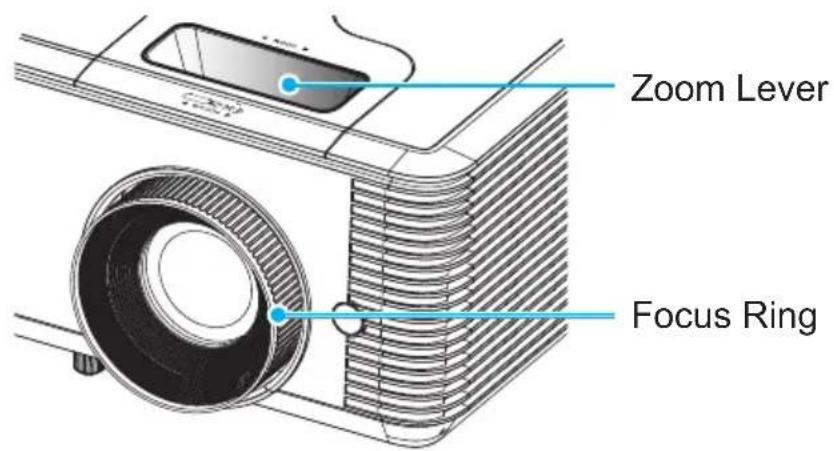

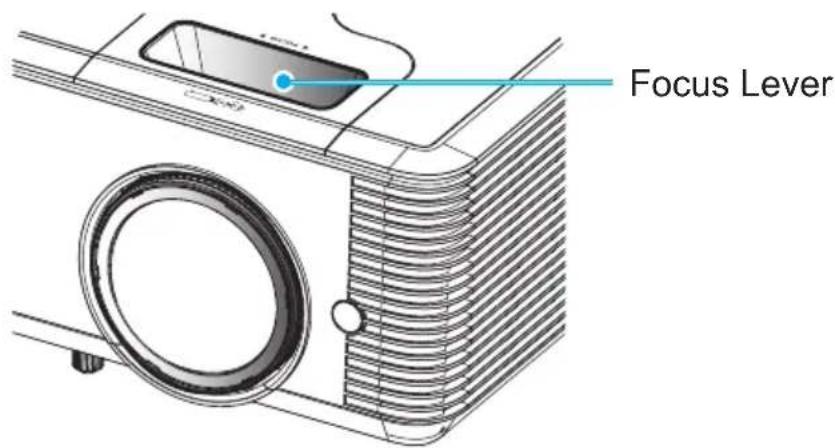

Adjusting the Projector's Focus / Zoom....17

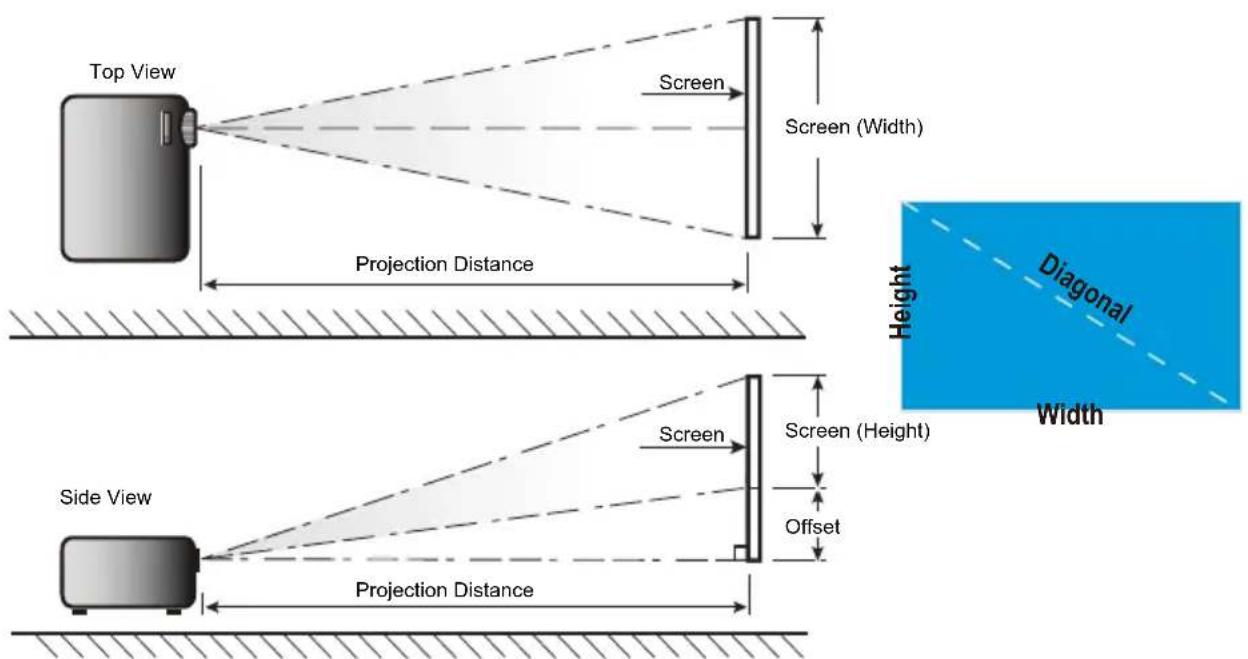

Adjusting Projection Image Size...... 18

User Controls ....24

Control Panel & Remote Control .....24

Control Panel 24

Remote Control Battery Installation... 25

Remote Control....26

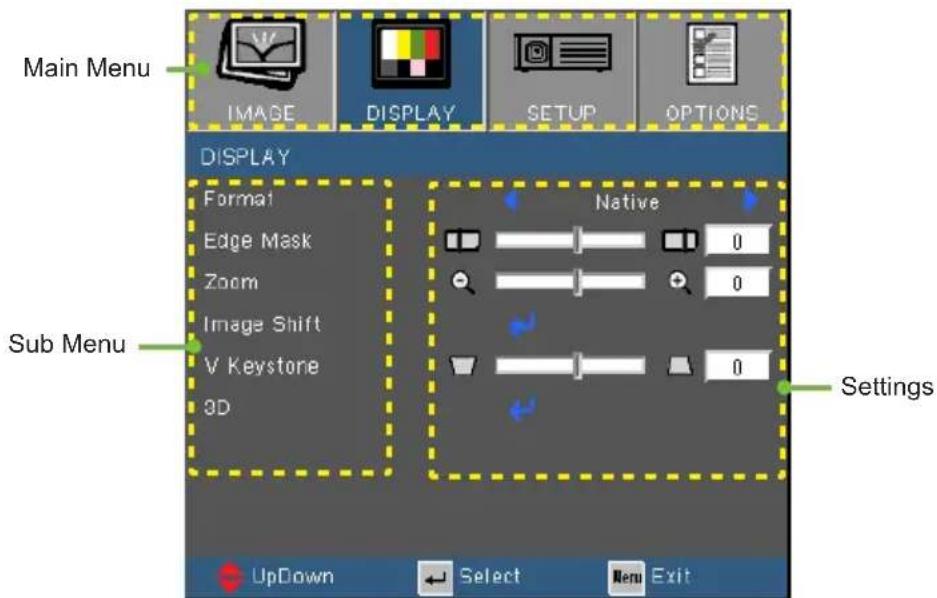

On-screen Display Menus ....30

How to operate 30

Menu Tree....31

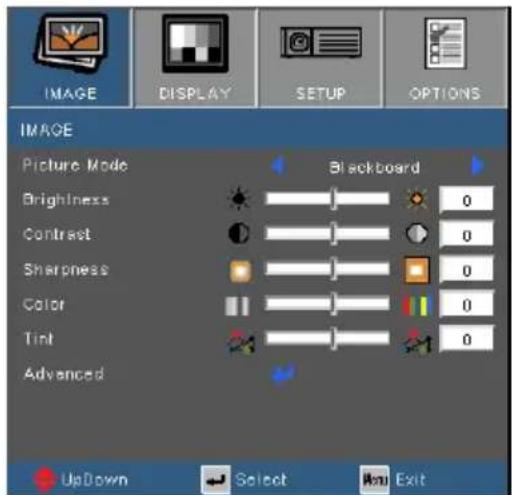

IMAGE 34

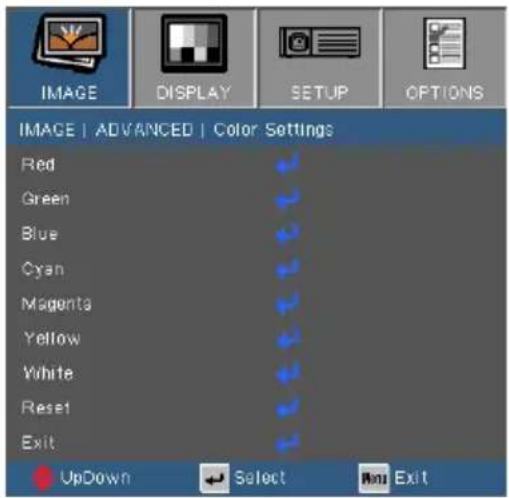

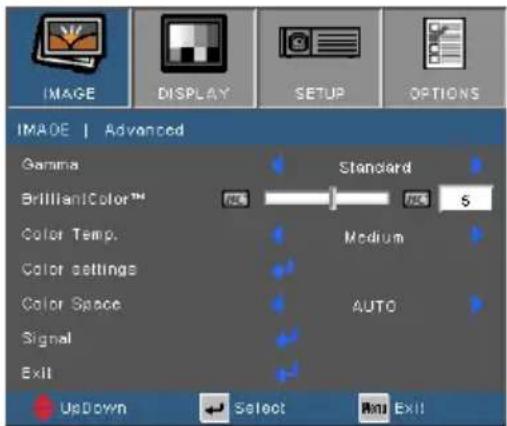

IMAGE | Advanced ....36

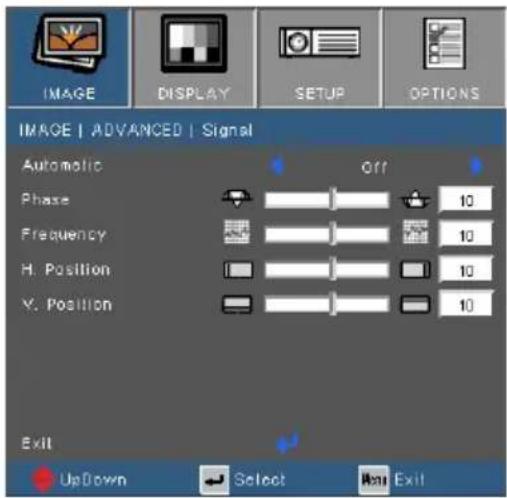

IMAGE | Advanced | Signal ...... 38

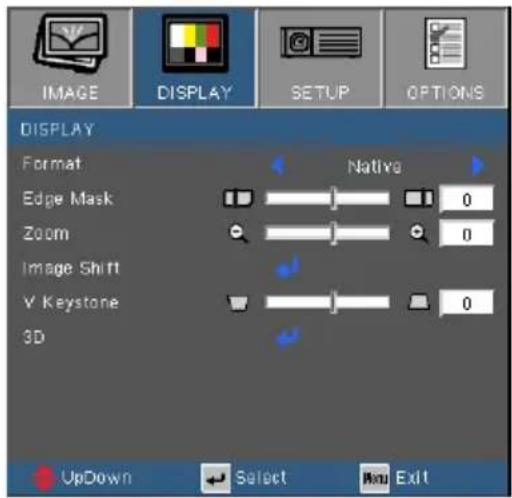

DISPLAY....39

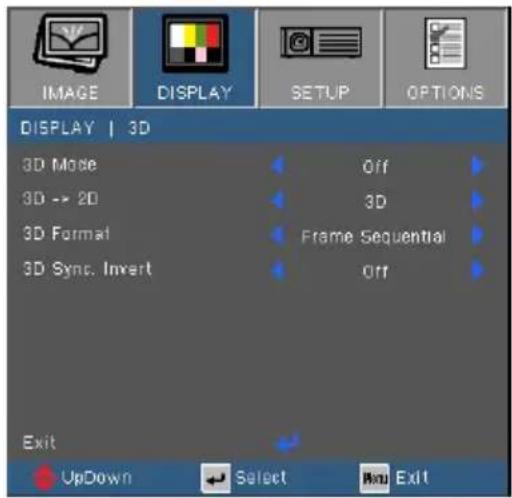

DISPLAY|3D 41

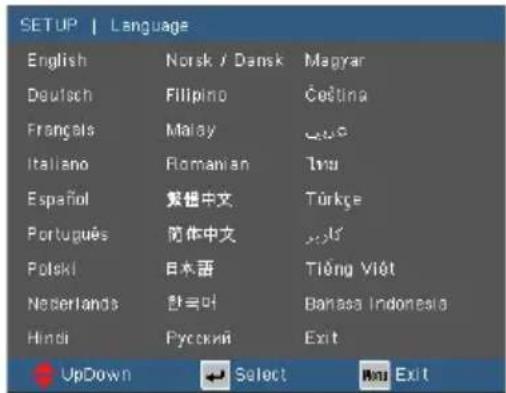

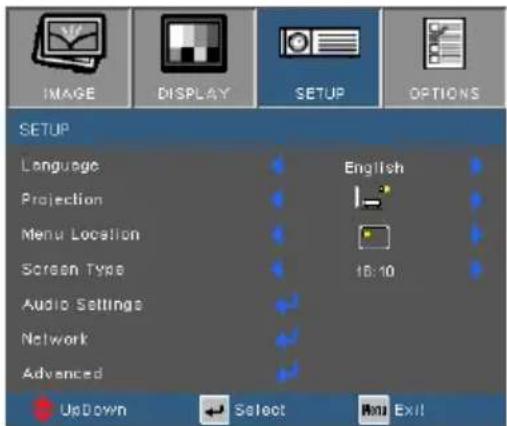

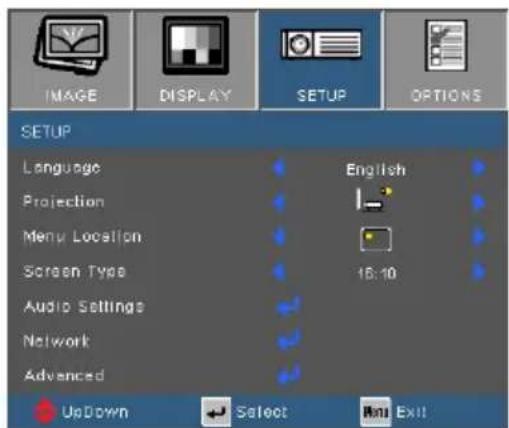

SETUP 42

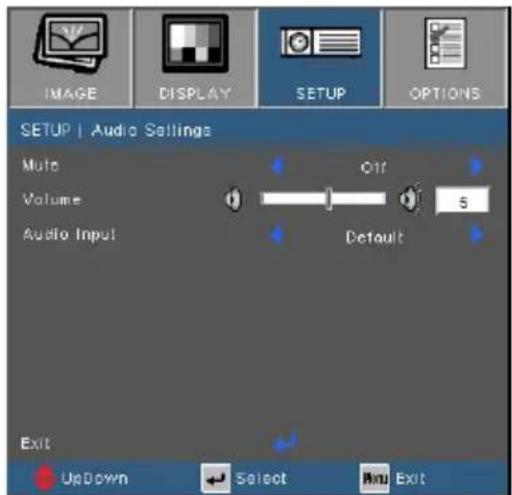

SETUP | Audio Settings...... 44

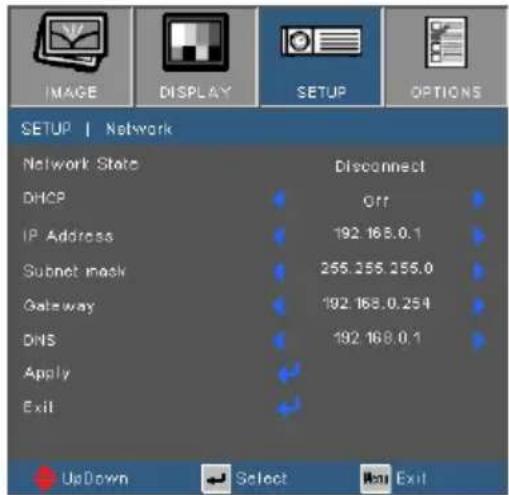

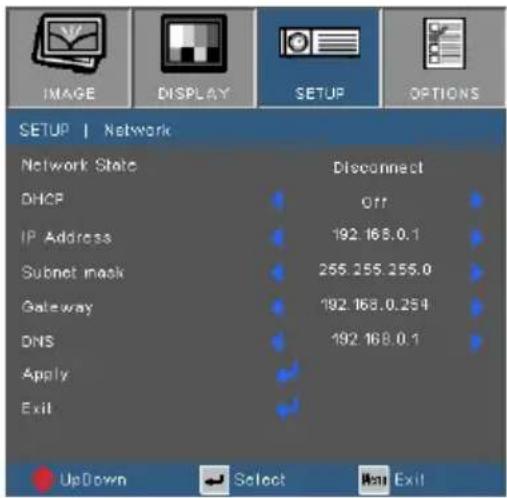

SETUP | Network......45

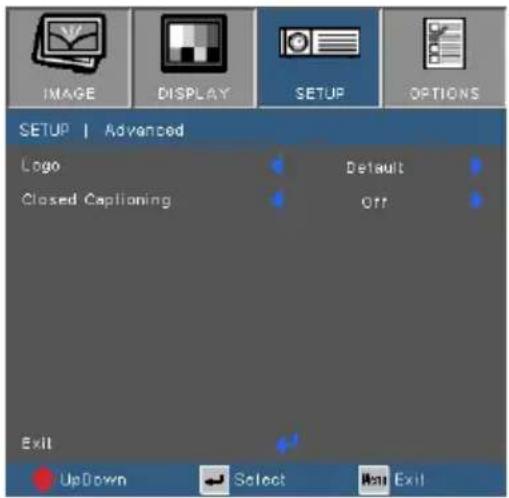

SETUP | Advanced 46

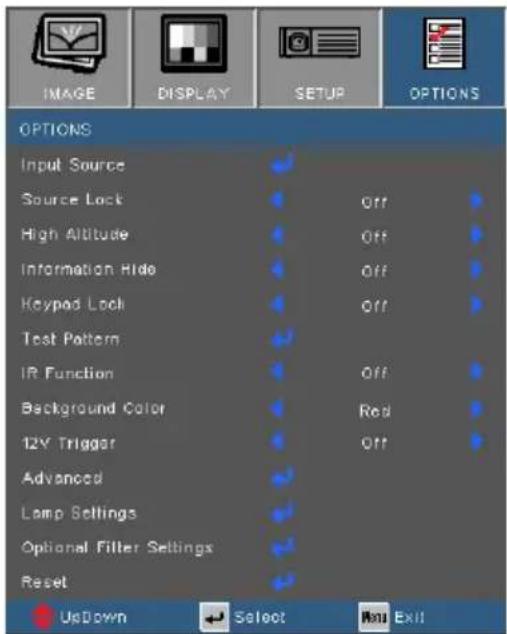

OPTIONS......47

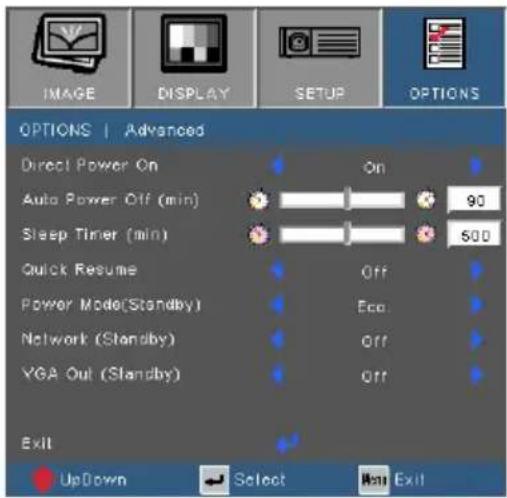

OPTIONS | Advanced....49

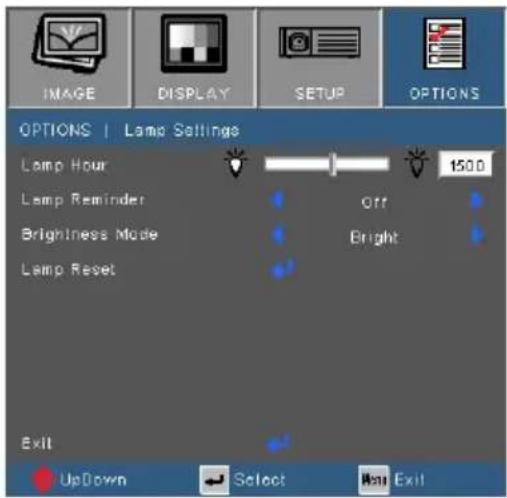

OPTIONS | Lamp Settings......51

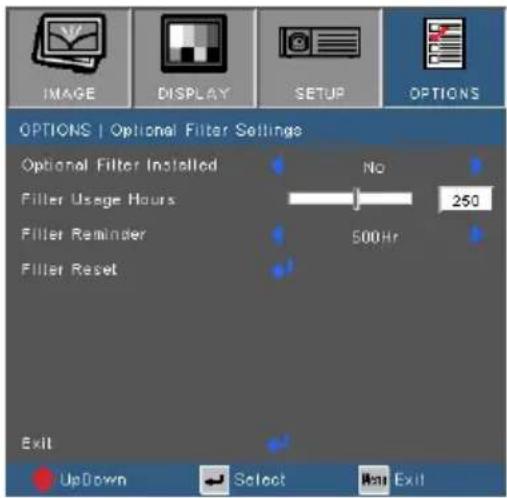

OPTIONS | Optional Filter Settings ... 52

Appendices....53

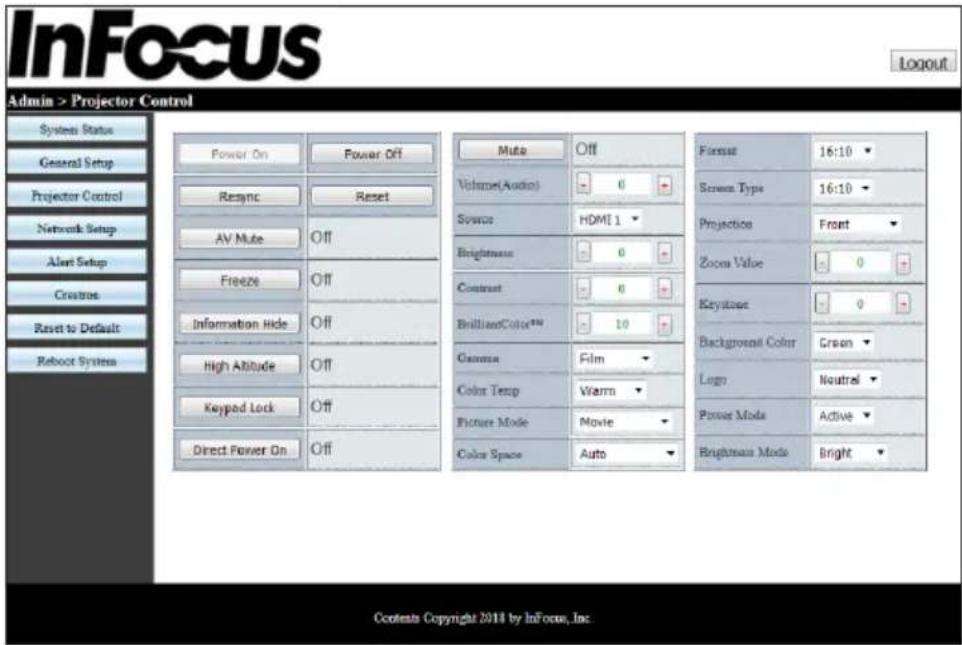

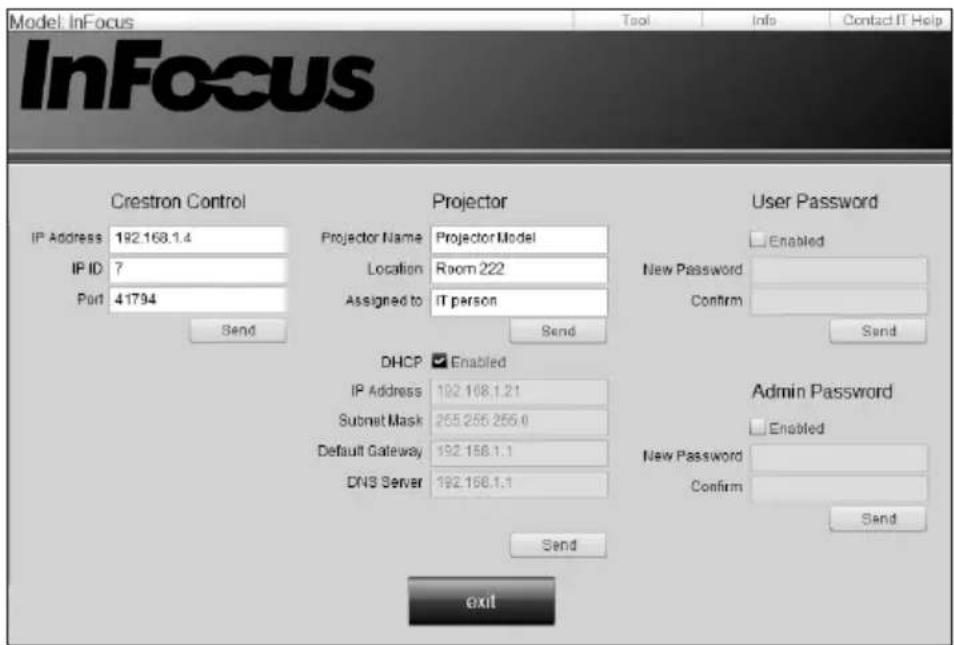

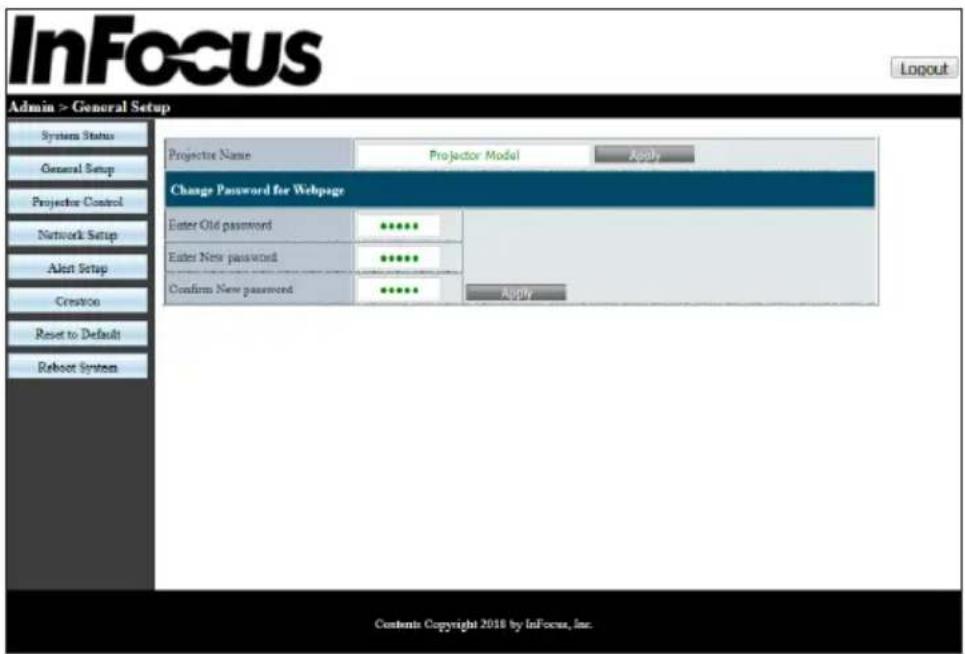

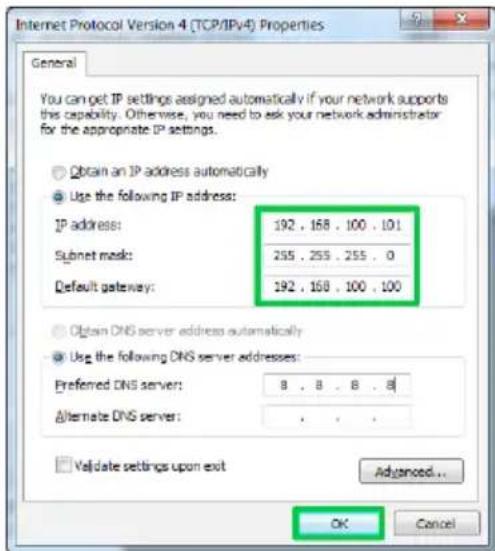

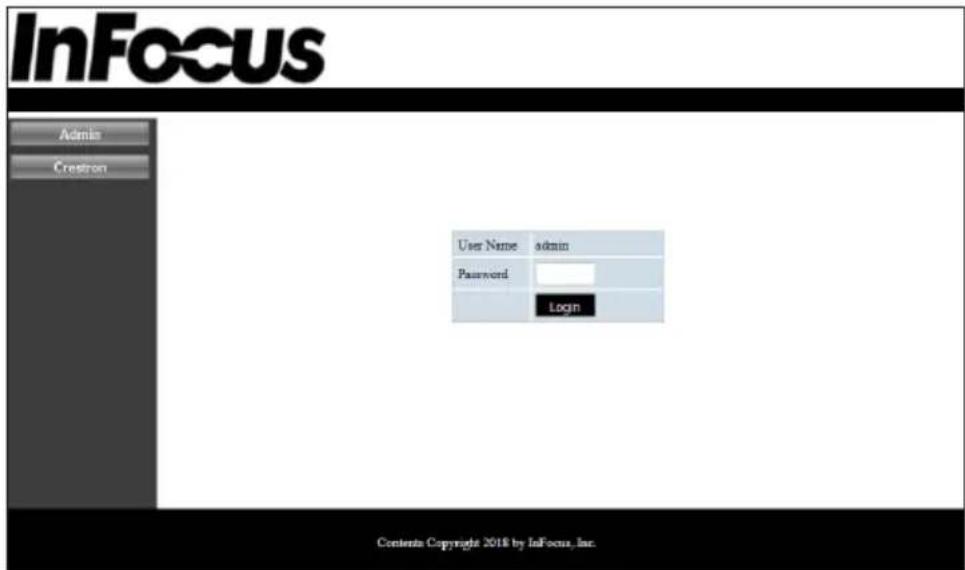

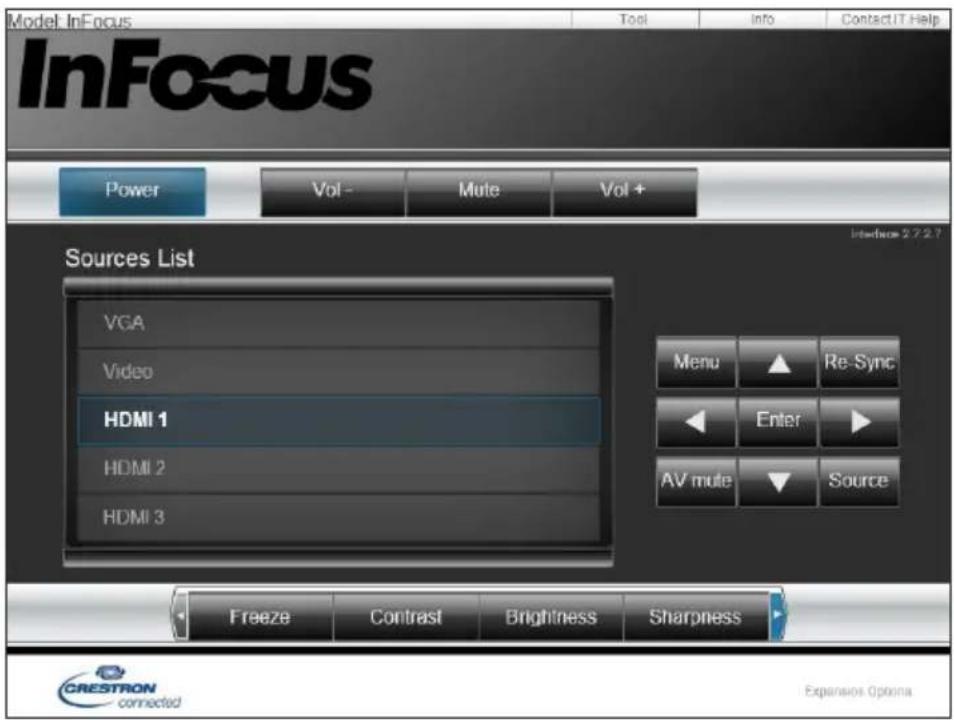

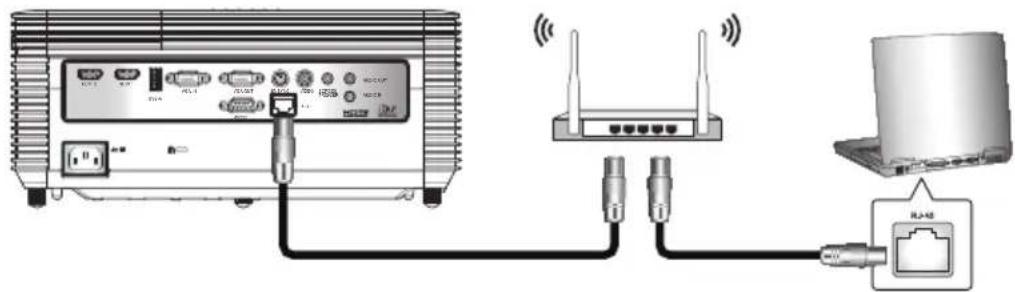

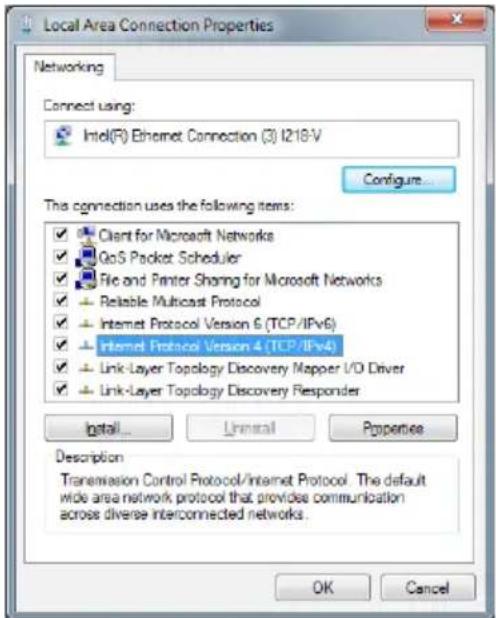

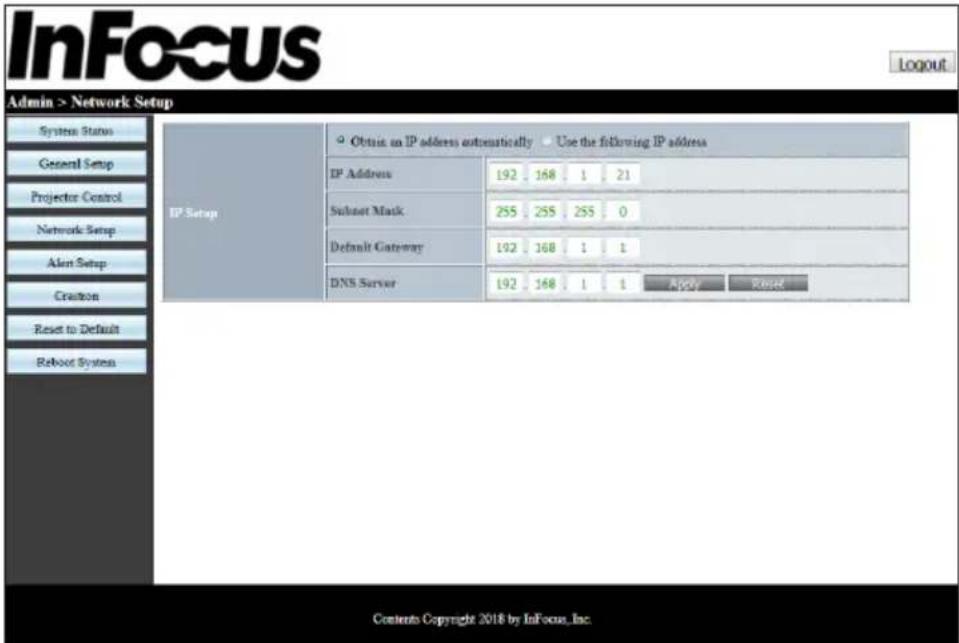

Network Control....53

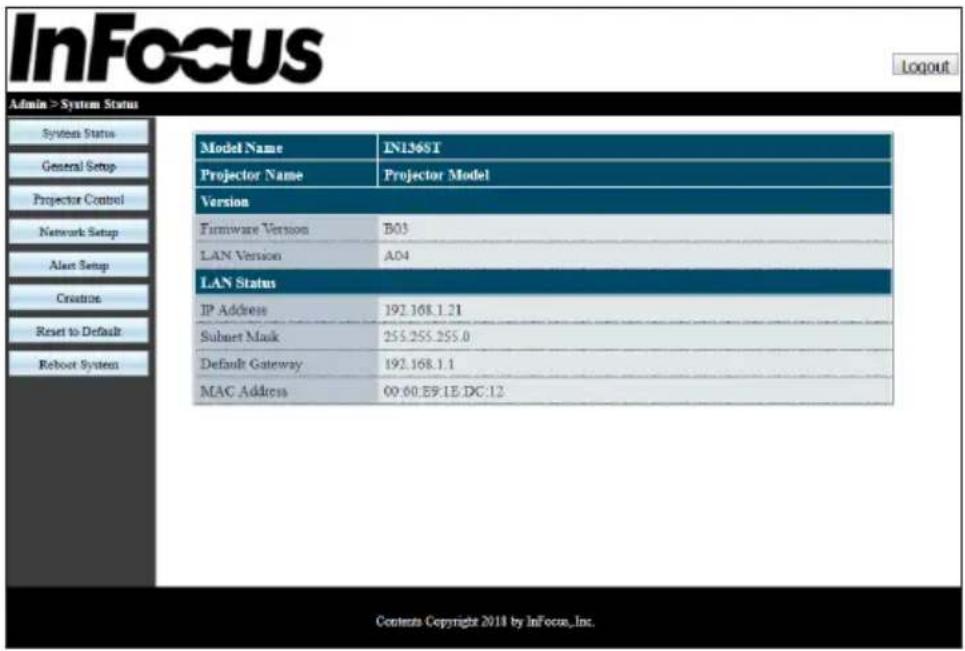

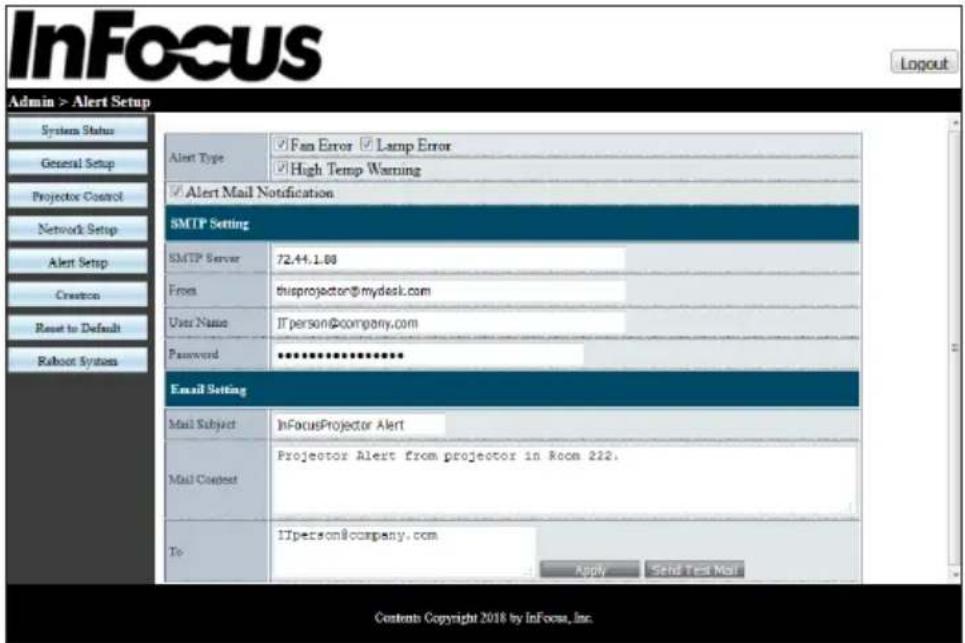

Network Menu....53

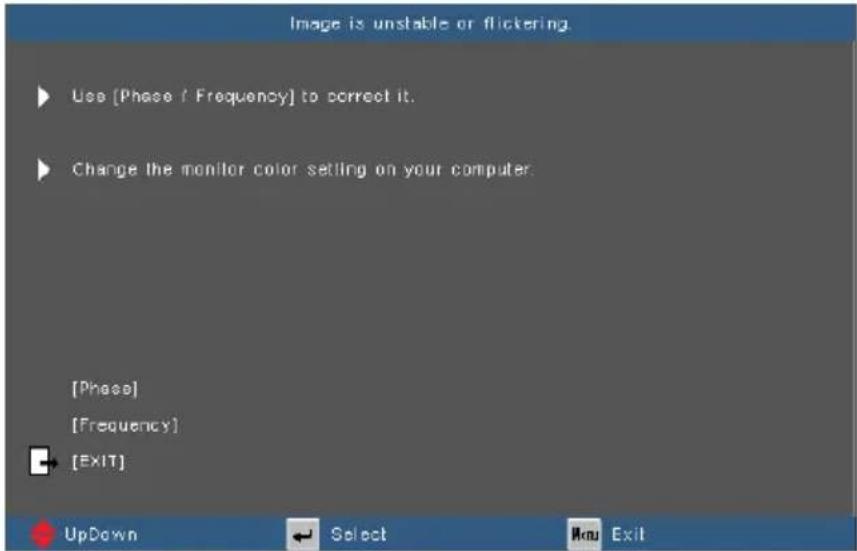

Troubleshooting 61

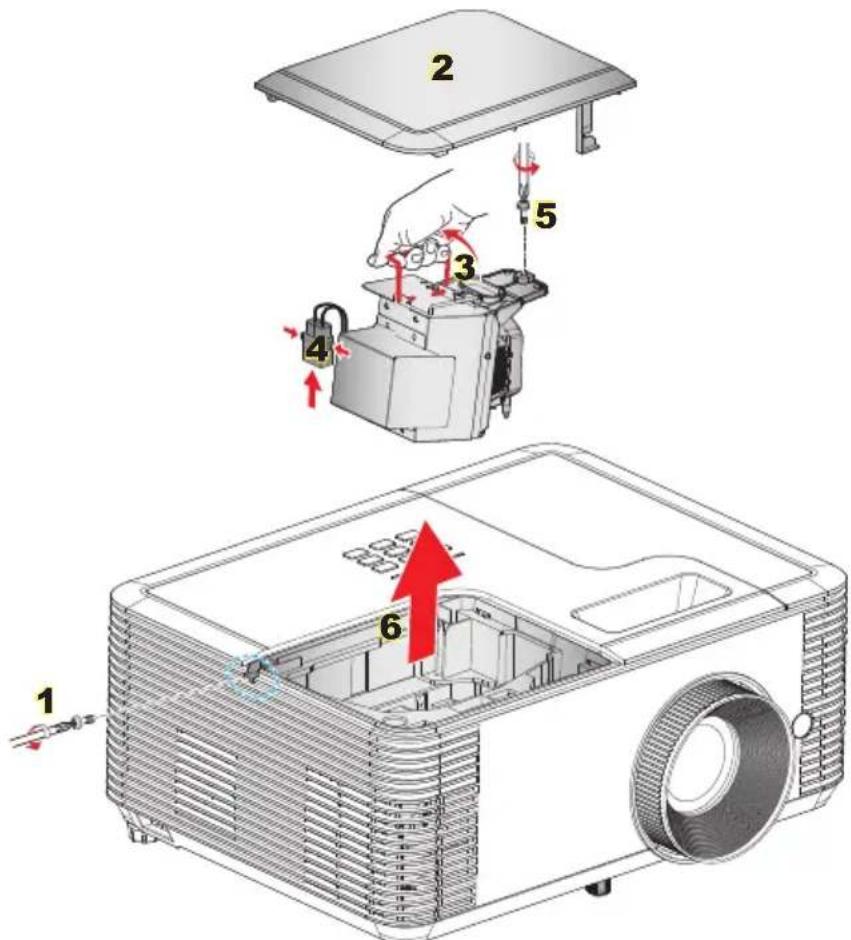

Replacing the Lamp....67

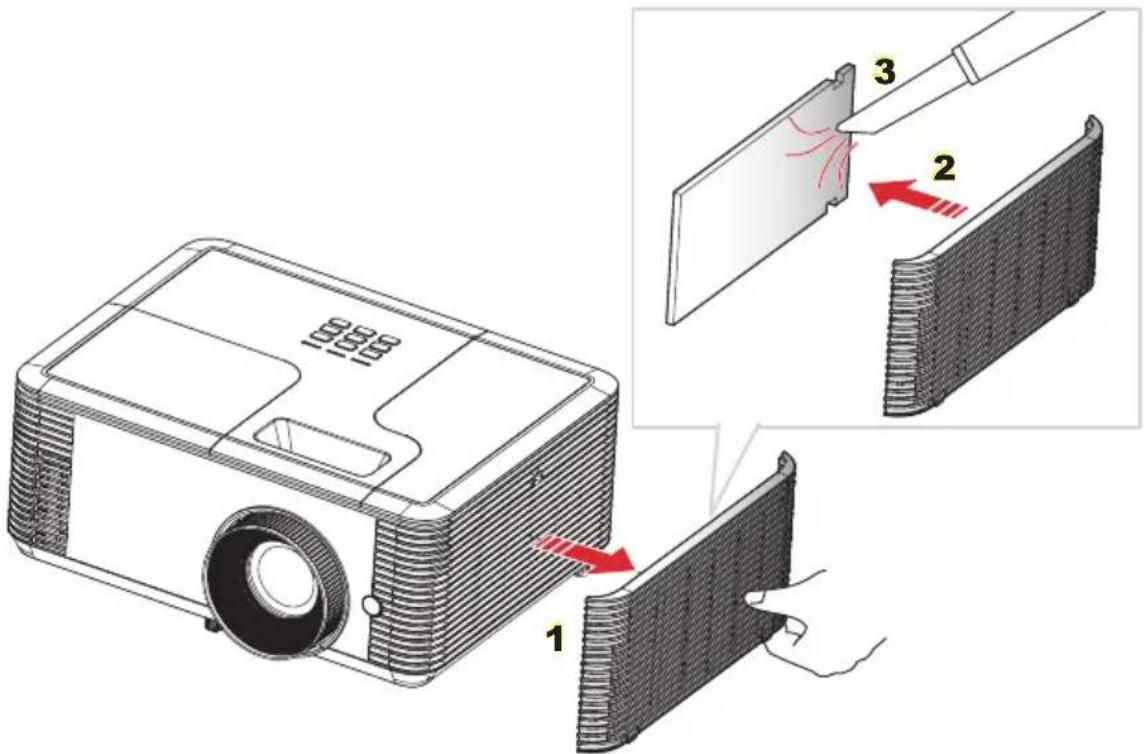

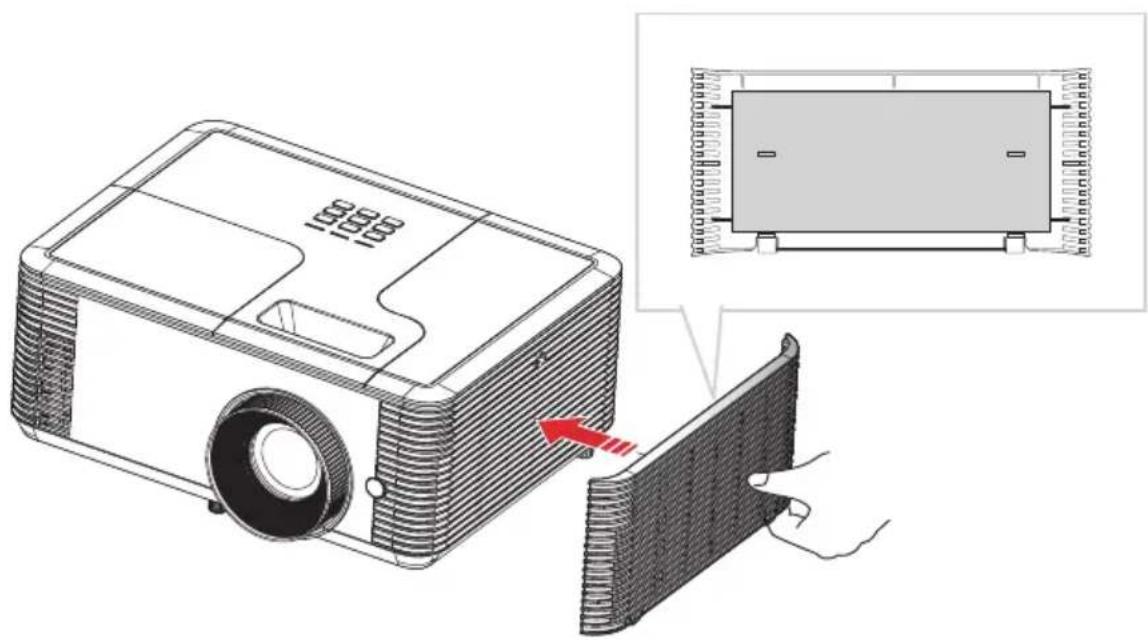

Installing and Cleaning the Optional

Dust Filter 69

Compatibility Modes ....71

Computer/Video/HDMI/Mac Compatibility .... 71

RS232 Commands and Protocol

Function List 73

RS232 Pin Assignments 73

RS232 Protocol Function List 74

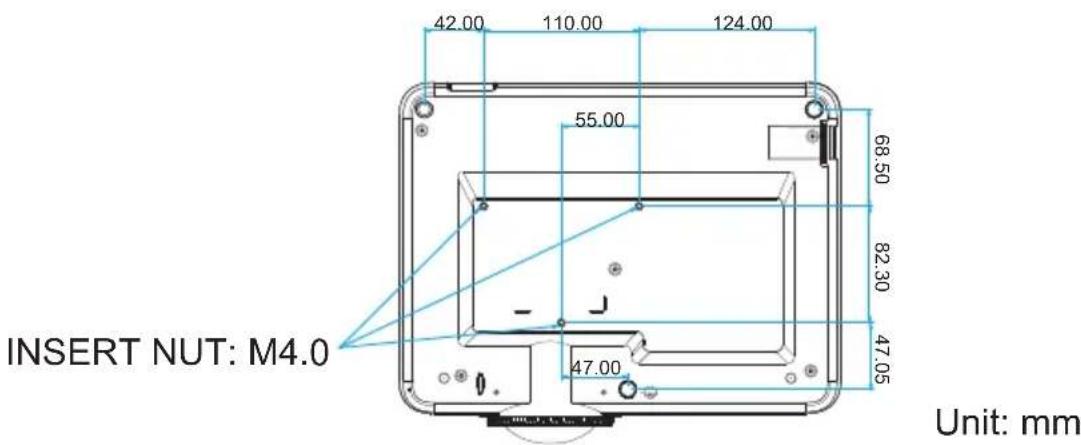

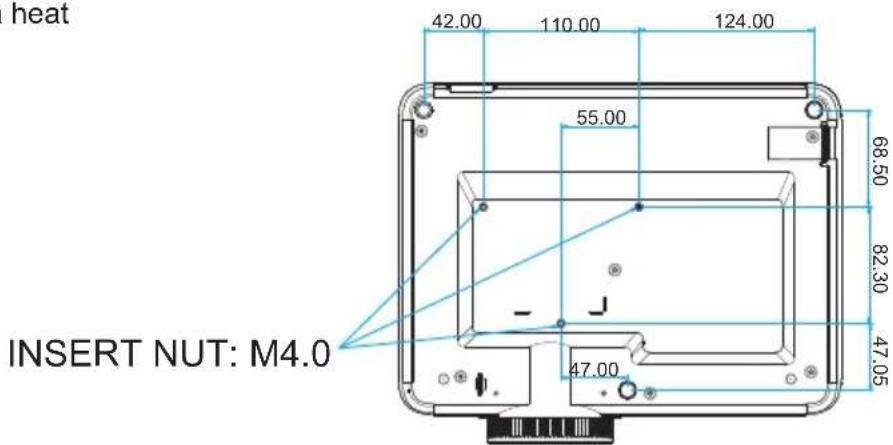

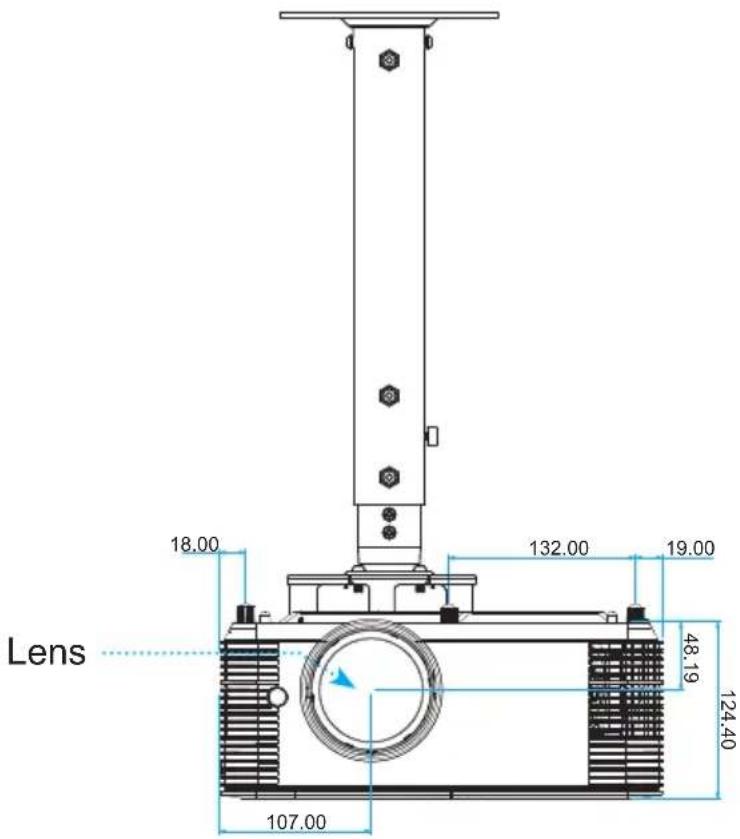

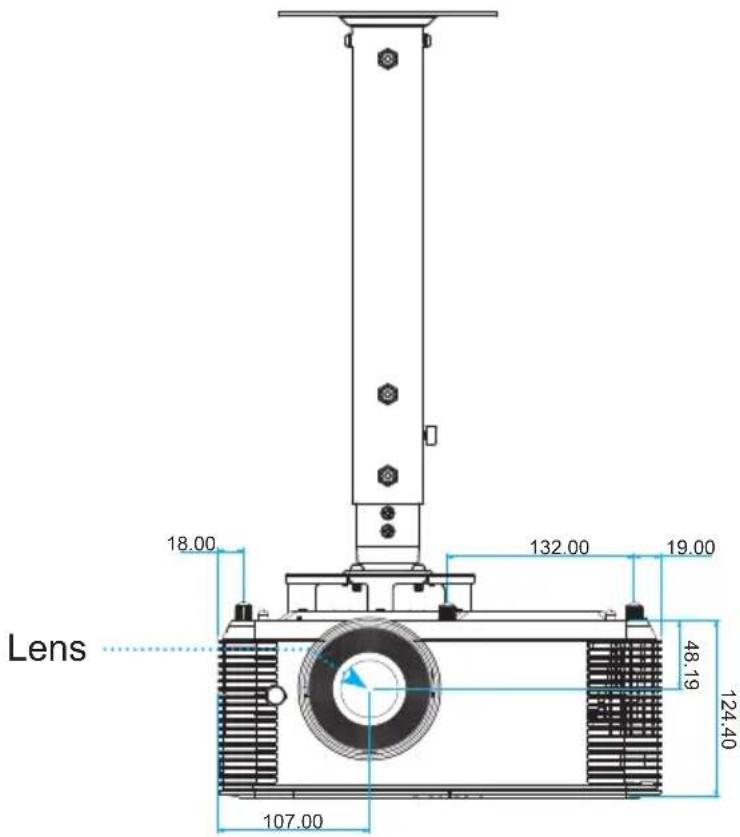

Ceiling Mount Installation....79

Regulation & Safety Notices......81

FCC Notice 81

Notice: Shielded cables 81

Caution 81

Operation Conditions....82

Notice: Canadian users 82

Declaration of Conformity for EU countries 82

Safety Information

	The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
	The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

Important Safety Instruction

1. Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from overheating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air flow.
2. Do not use the projector near water or moisture. To reduce the risk of fire and/or electric shock, do not expose the projector to rain or moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or any other apparatus such as amplifiers that emit heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories specified by the manufacturer.
6. Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric shock.
7. See projector enclosure for safety related markings.
8. The unit should only be repaired by appropriate service personnel.

Precautions

Please follow all warnings, precautions and maintenance as recommended in this user's guide.

Warning- Do not look into the projector's lens when the lamp is on. The bright light may hurt and damage your eyes.
Warning- To reduce the risk of fire or electric shock, do not expose this projector to rain or moisture.
Warning- Please do not open or disassemble the projector as this may cause electric shock.
Warning- When replacing the lamp, please allow the unit to cool down. Follow instructions as described on pages 67-68.
Warning- This projector detects lamp life. Please be sure to change the lamp when a warning message is displayed.
Warning- When switching the projector off, please ensure the cooling cycle has been completed before disconnecting power. Allow 90 seconds for the projector to cool down.
Warning- Not all projectors come with a lens cap. For your safety, if the projector is equipped with a lens cap please ensure to remove it before you turn on the projector.

When the lamp reaches the end of its life, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp” section on pages 67-68.

Usage Notice

Do:

Turn off and unplug the power plug from the AC outlet before cleaning the product.
Use a soft dry cloth with mild detergent to clean the display housing.
Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
Use room blinds to reduce ambient light in order to minimize lamp power.

Do not:

Block the projector inlet or outlet air vents.

Short-throw lens models

Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:
- In extremely hot, cold or humid environments.

▶ Ensure that the ambient room temperature is within 5 - 40°C.
▶ Relative Humidity is 5 - 40°C, 80% (Max.), non-condensing.
- In areas susceptible to excessive dust and dirt. - Near any appliance generating a strong magnetic field.

- In direct sunlight.

Eye Safety Warnings

Symbolic illustration of a computer monitor with a red X mark and eye inside, enclosed in an oval (no text or numbers present)

Avoid staring/facing directly into the projector beam at all times. Keep your back to the beam as much as possible.
When projector is used in a classroom, ensure students do not look into the beam when they are asked to point something out on screen.

Product Features

(*) For models with RJ-45.
Product features may vary depending on model.

XGA (1024x768) / WXGA (1280x800) / 1080p (1920 x1080) Native resolution
HD compatible – 720p and 1080p supported
BrilliantColor ^TM Technology
Kensington Lock
RS232 control
RJ-45 control*
Rapid shutdown
The Product Features shall be configured by the manufacturer as per practical conditions.

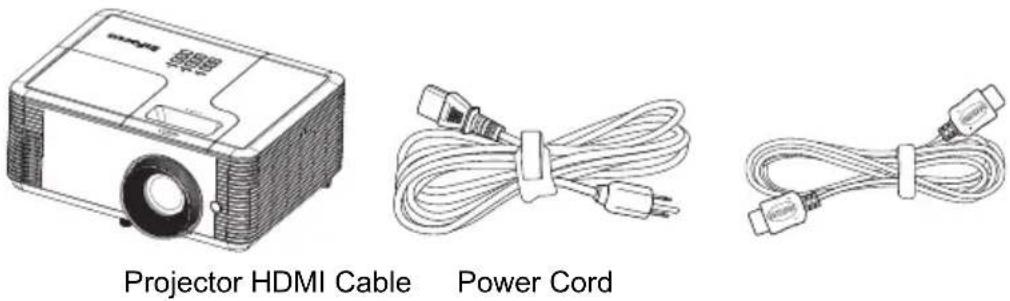

Package Overview

Unpack and inspect the contents to ensure all parts listed below are in the box. If something is missing, please contact your nearest customer service center.

Due to different applications in each country, some regions may have different accessories.

IR Remote Control

HDMI Extension Cable

Documentation:

User's Manual
Quick Start Card
Safety/Warranty Booklet

Product Overview

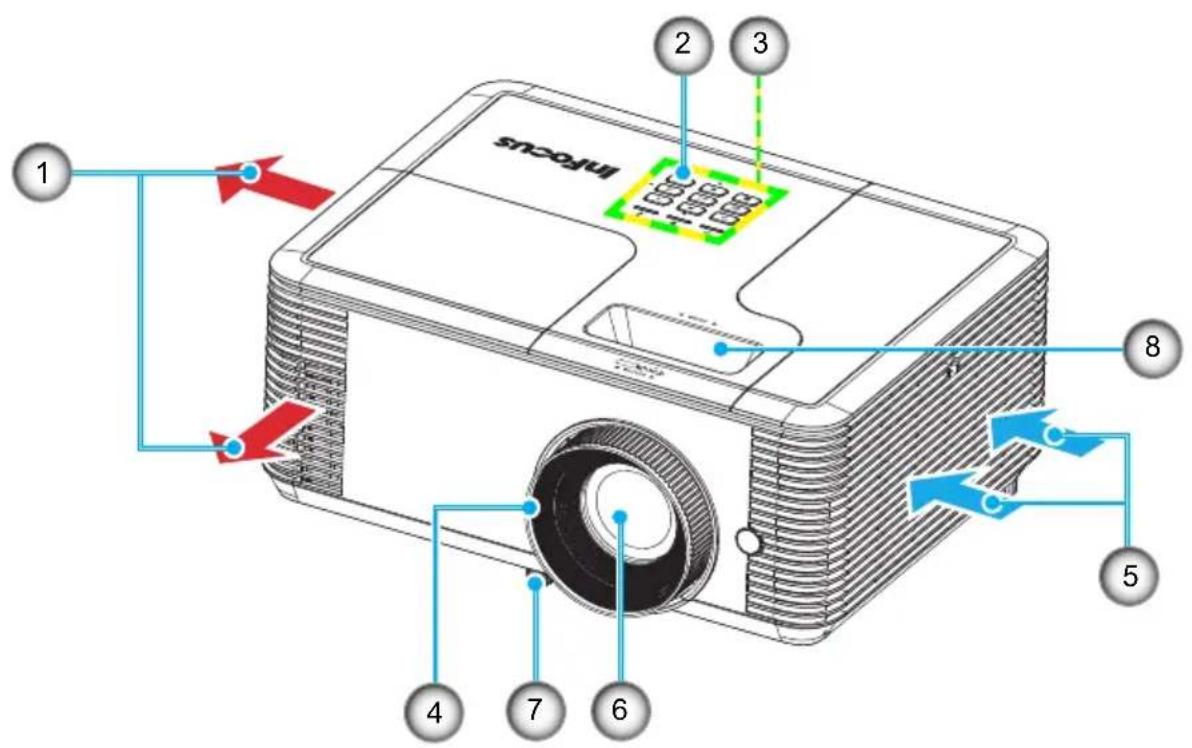

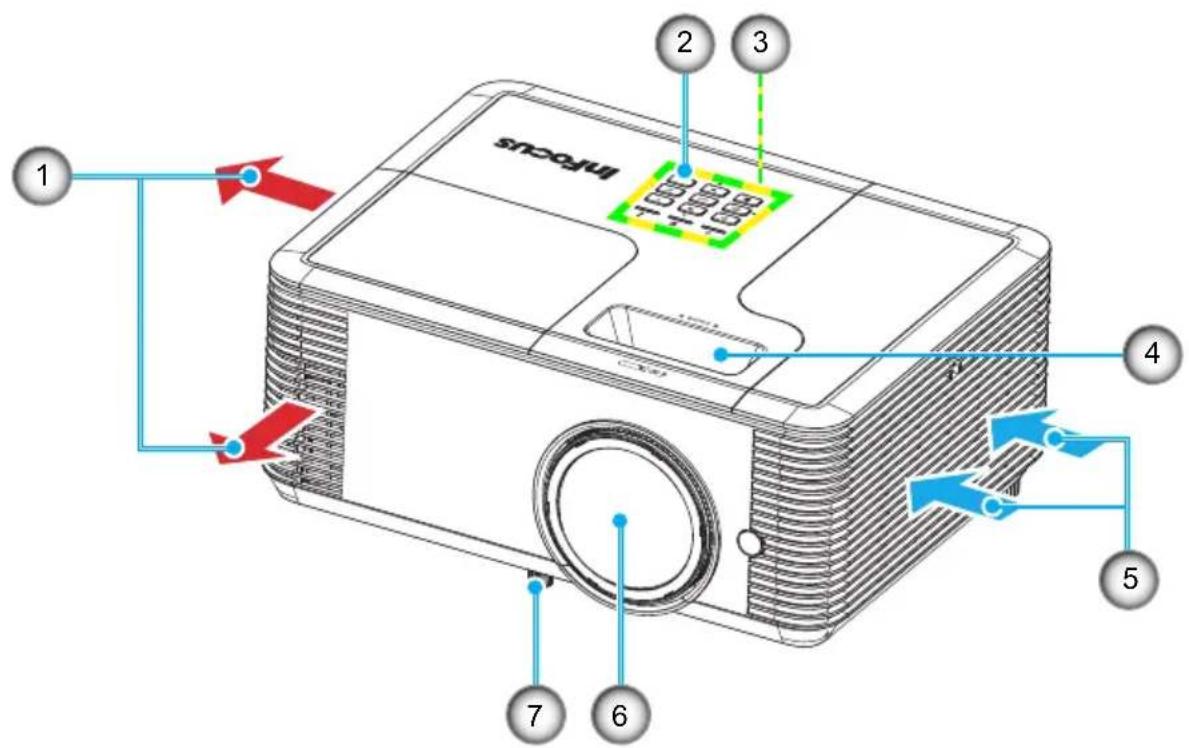

Front View

Short-throw lens models

Introduction

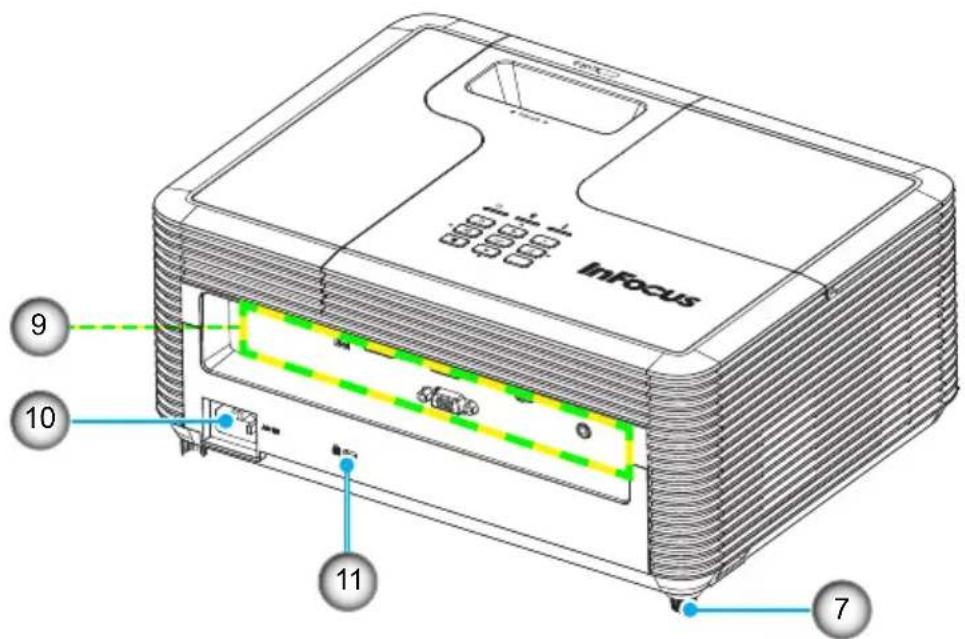

Rear View

The interface is subject to model's specifications.
Do not block projector in/out air vents.

1. Ventilation (outlet)
2. IR Receiver (remove protective film)
3. Control Panel
4. Focus Ring/Lever
5. Ventilation (inlet)
6. Lens
7. Tilt-Adjustment Feet
8. Zoom Lever
9. Input / Output Connections
10. Power Socket
11. Kensington™ Lock Port

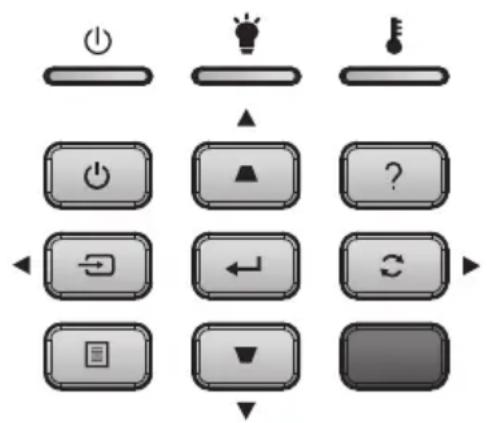

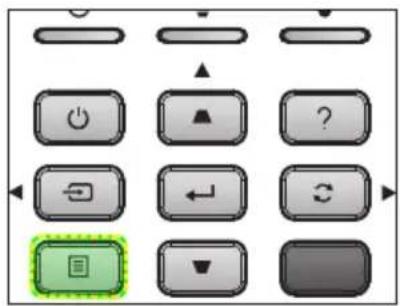

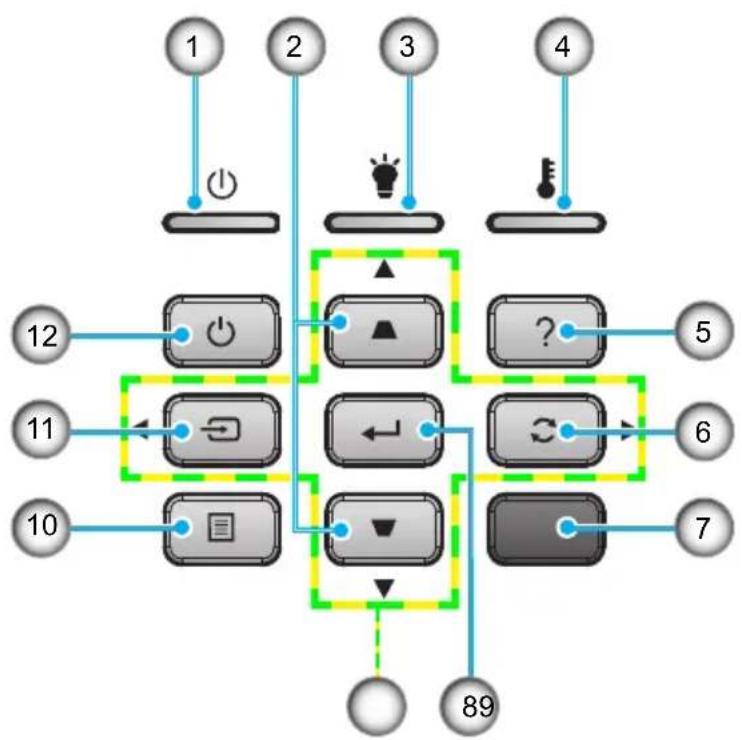

Control Panel

1. On/Standby LED
2. Keystone Correction
3. Lamp LED
4. Temp LED

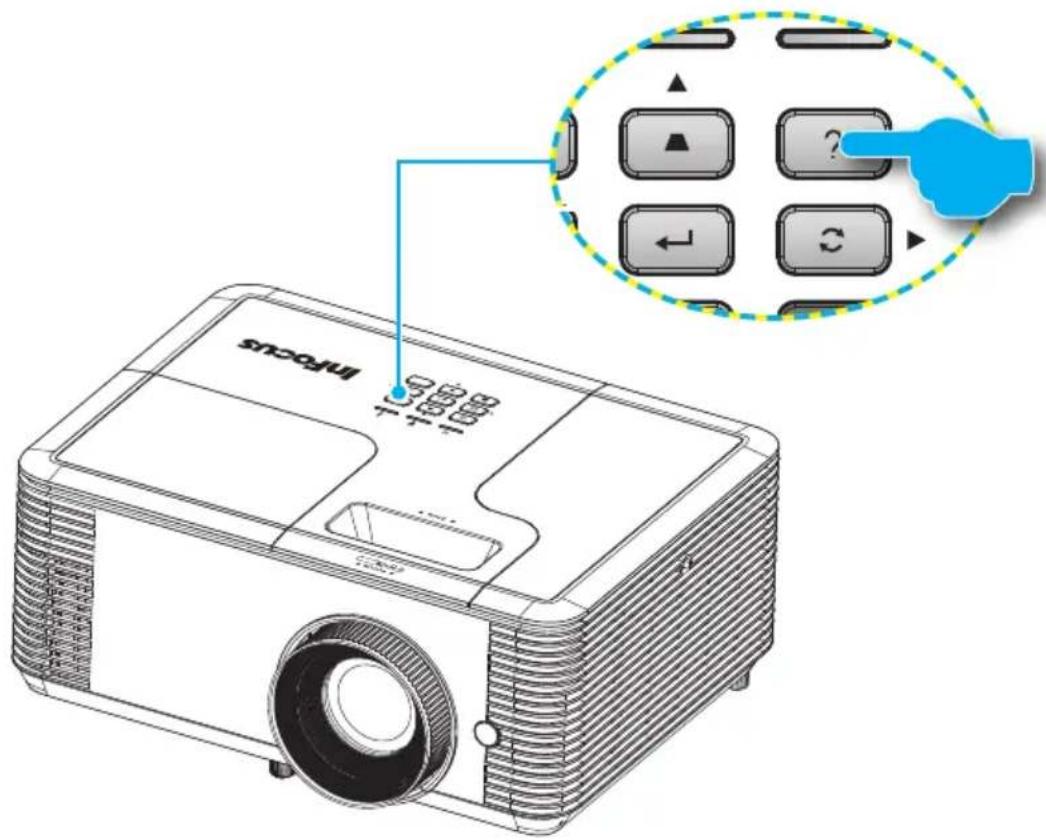

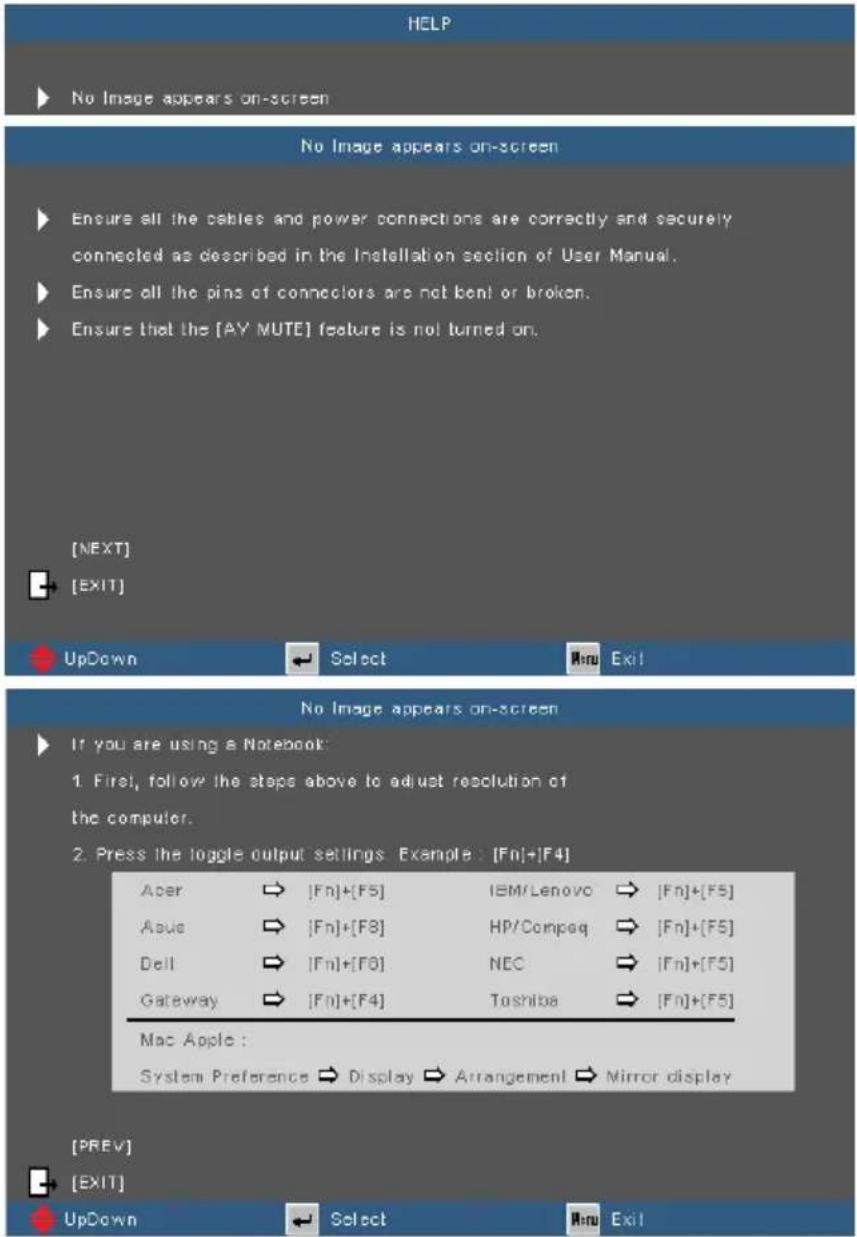

5. Help
6. Re-Sync
7. IR Receiver (remove protective film)
8. Enter
9. Four Directional Select Keys
10. Menu
11. Source
12. Power

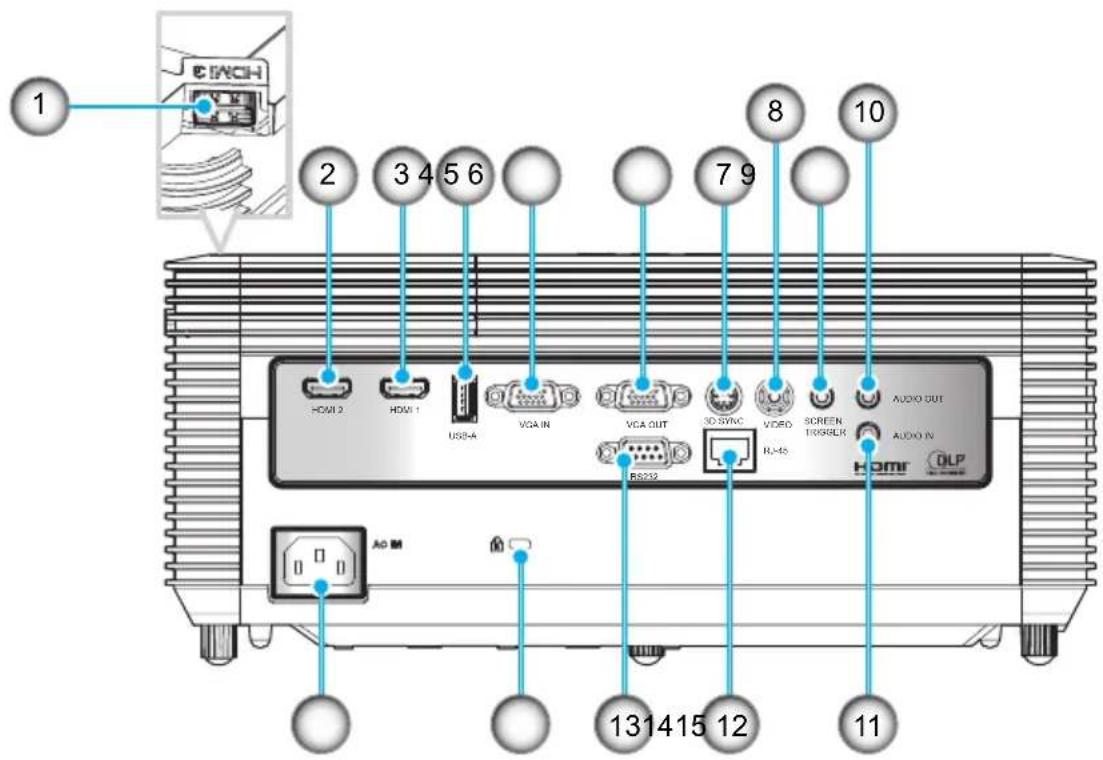

Input/Output Connections

The interface is subject to model's specifications.

1. HDMI3 Connector
2. HDMI2 Connector
3. HDMI1 Connector
4. USB Type A Connector
5. VGA IN Connector
6. VGA OUT Connector
7. 3D Sync Connector
8. Composite Video Connector
9. Screen Trigger Connector
10. Audio Output Connector (3.5mm mini jack)
11. Audio Input Connector (3.5mm mini jack)
12. RJ-45 Connector
13. RS232 Connector (9-pin)
14. Kensington Lock
15. Power Socket

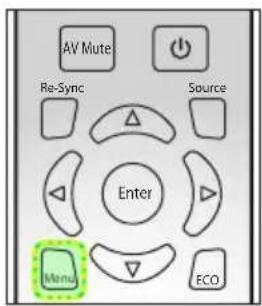

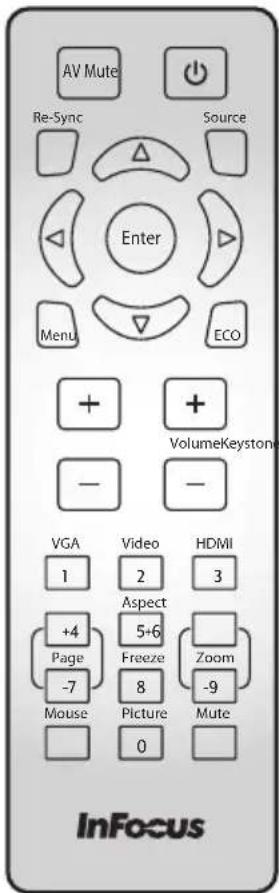

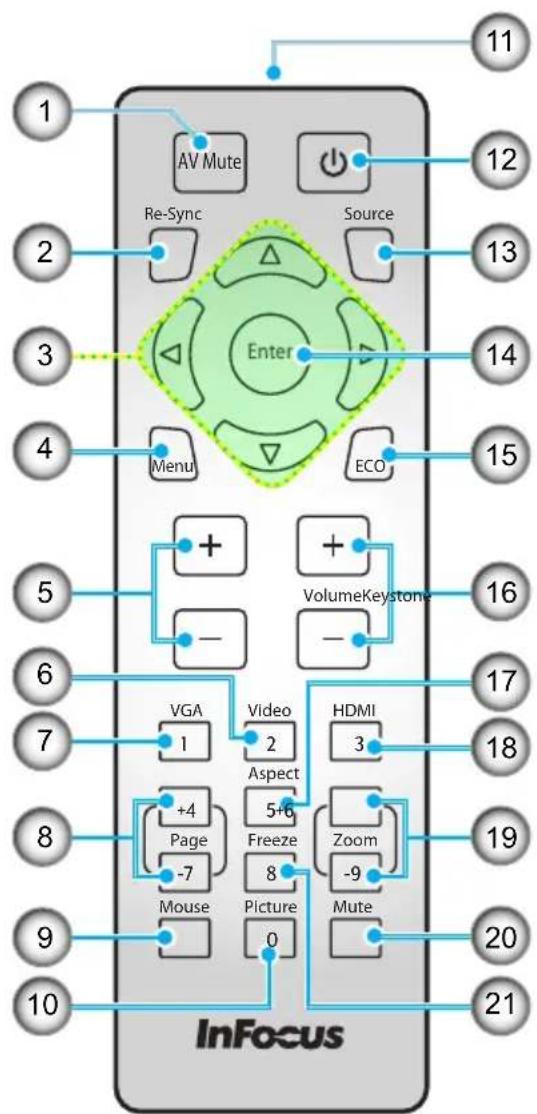

Remote Control

1. AV Mute

2. Re-Sync

3. Four Directional Select Keys

4. Menu

5. Keystone +/-

6. Video

7. VGA

8. Page +/-

9. Mouse

10. Picture

11. IR LED

12. Power

13. Source

14. Enter

15. ECO

16. Volume +/-

17. Aspect

18. HDMI

19. Zoom +/-

20. Mute

21. Freeze

Connecting the Projector

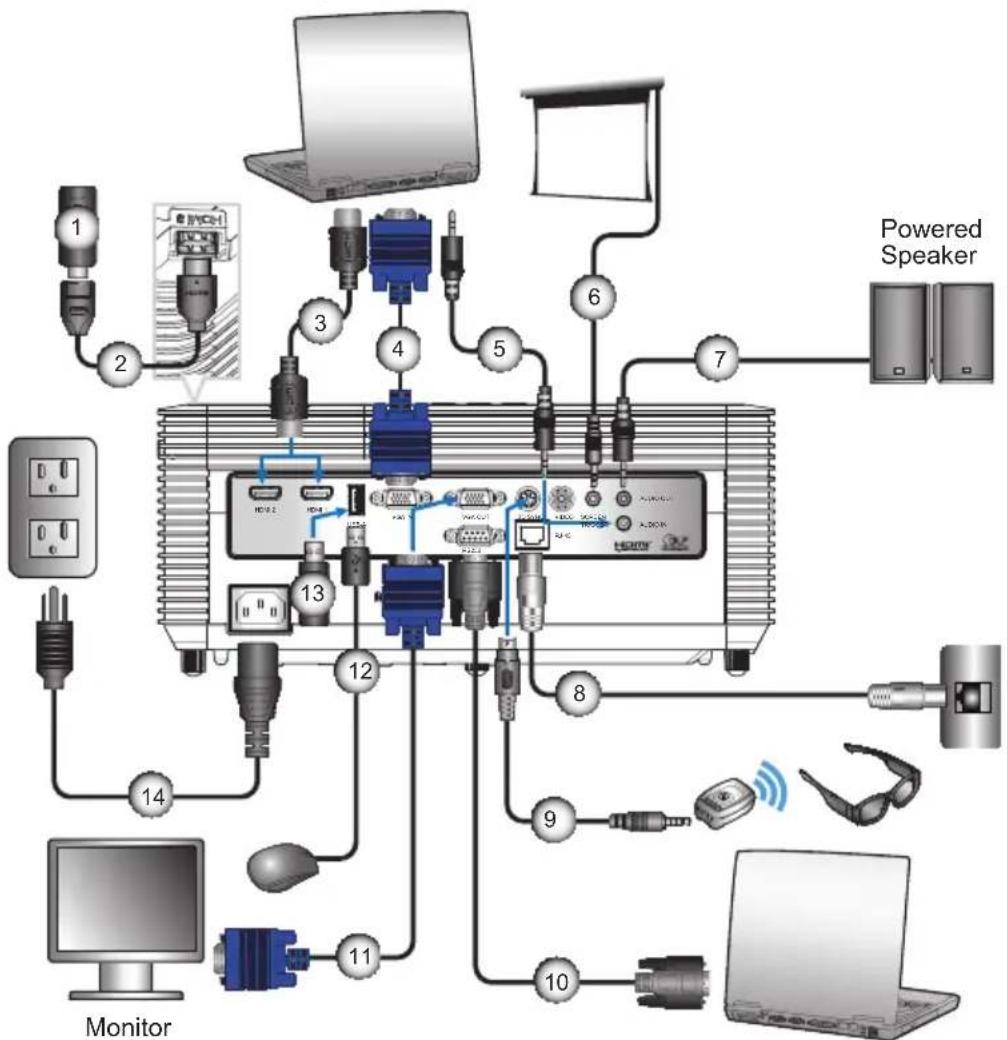

Connect to Computer/Notebook

Computer / Notebook

Computer / Notebook

Due to the difference in applications for each country, some regions may have different accessories.
(*) Optional accessory
(**) End user needs to purchase by themself.

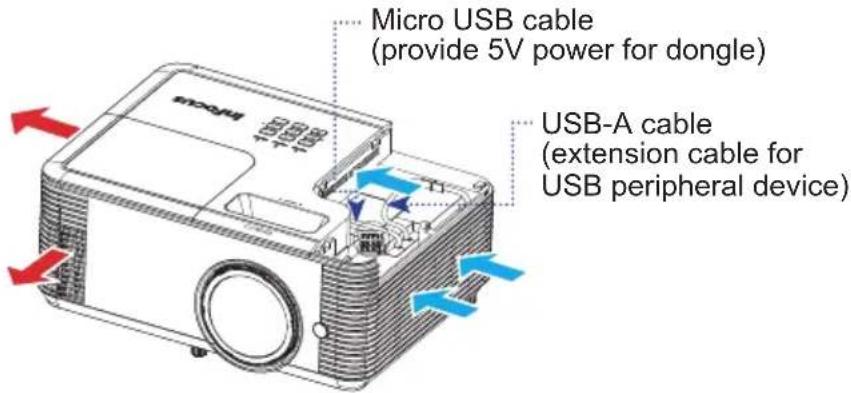

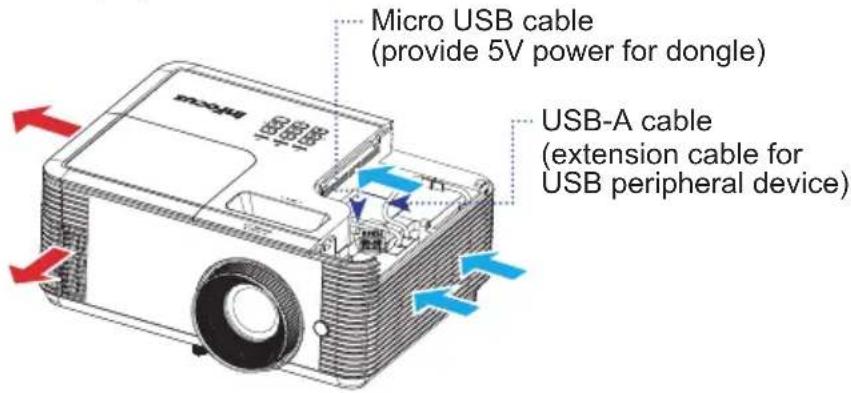

(***) USB has three functions: Service, Remote Mouse Control, and USB connection for HDMI device.
The interface is subject to model's specifications.

1......HDMI Device**
2. HDMI Extension Cable
3......HDMI Cable
4. VGA-In Cable*
5. Audio Input Cable*
6. 12V 200ma DC Jack*
7......Audio Output Cable*
8.... RJ-45 Cable*
9....3D Emitter Cable*
10....RS232 Cable*
11...... VGA-out Cable*
12....USB Cable***
13...... HDMI Dongle**
14Power Cord

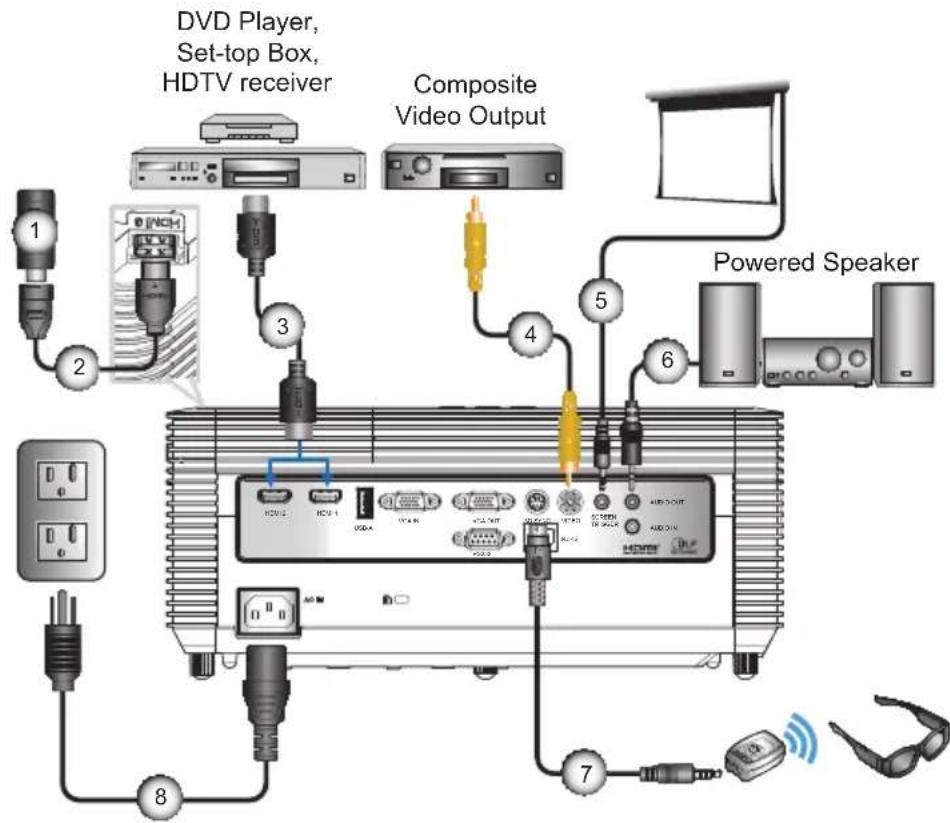

Connect to Video Sources

Due to the difference in applications for each country, some regions may have different accessories.

(*) Optional accessory
(**) End user needs to purchase by themself.
The interface is subject to model's specifications.

1......HDMI Device**
2......HDMI Extension Cable
3......HDMI Cable
4. Composite Video Cable*
5....12V 200ma DC Jack*
6. Audio Output Cable*
7....3D Emitter Cable*
8....Power Cord

Powering the Projector On / Off

Powering On the Projector

1. Securely connect the power cord and signal cable. When connected, the On/Standby LED will turn red.

2. Turn on the lamp by pressing the "button either on the remote control or the control panel. The On/Standby LED will now flash blue. 1

The startup screen will display in approximately 10 seconds. The first time you use the projector, you will be asked to select the preferred language and power saving mode.

1. Turn on and connect the source that you want to display on the screen (computer, notebook, video player, etc). The projector will detect the source automatically. If not, press the "Menu" button and go to "OPTIONS".

Make sure that the "Source Lock" has been set to "Off".

If you connect multiple sources at the same time, press the "Source" button on the control panel or direct source keys on the remote control to switch between inputs.

Powering off the projector

1. Press the "button on the remote control or the control panel to turn off the projector.

The following message will be displayed on the screen.

Press the “” button again to confirm otherwise the message will disappear after 10 seconds. The projector will shut down when the “” button is pressed for the second time.

1. The fans will continue to operate for 10 seconds and the On/Standby LED will flash blue. During this period, the projector cannot be turned back on and the projector should not be unplugged.

Once the cooling cycle is complete the On/Standby LED will turn to solid red (standby mode). At this point, the projector can be turned back on by pressing the "Button."

1. Disconnect the power cord from the electrical outlet and the projector.

Contact the nearest service center if the projector displays these symptoms. See page 65 for more information.

Warning Indicator

When the warning indicators (see below) come on, the projector will automatically shutdown:

Lamp LED indicator is lit red and if the On/Standby LED flashes red. This indicates the projector lamp has failed.
Temp LED indicator is lit red and if the On/Standby LED flashes red. This indicates the projector has overheated. Under normal conditions, the projector can be switched back on.
Temp LED indicator flashes red and if the On/Standby LED flashes red. This indicates a fan failure.

Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicators light up again, please contact your nearest service center for assistance.

Adjusting the Projected Image

Adjusting the Projector's Height

The projector is equipped with tilt-adjustment feet for adjusting the image height.

1. Locate the tilt-adjustment foot you wish to modify on the underside of the projector.
2. Rotate the adjustable ring clockwise to raise the projector or counter clockwise to lower it. Repeat with the remaining feet as needed.

The blue spacers are only applicable for IN13xST models. Do not remove them from the tilt-adjustment feet.

Adjusting the Projector's Focus / Zoom

To focus the image, rotate the focus ring or turn the focus lever (for short-throw lens models) until the image is clear. You may turn the zoom lever to zoom in or out.

For more information about the focus distance, please refer to the table below:

Model Type/Name Focus Distance

XGA (IN134 model) 1.20 to 12.02 meters

WXGA (IN136 model) 1 to 10 meters

1080p (IN138HD/SP2080HD model) 1 to 7.5 meters

XGA (IN134ST model) 0.4 to 3.81 meters

WXGA (IN136ST model) 0.4 to 3.4 meters

1080p (IN138HDST model) 0.4 to 3.4 meters

XGA (IN2134 model) 1.2 to 9.02 meters

WXGA (IN2136 model) 1 to 7.7 meters

1080p (IN2138HD model) 1 to 9.79 meters

Short-throw lens models

Adjusting Projection Image Size

For more information about the projection image size, please refer to the table below:

Model Type/Name Projection	Image Size
XGA (IN134 model) 27.3 to 30	4.4 inches
WXGA (IN136 model) 27 to 300	.7 inches
1080p (IN138HD/SP2080HD model) 30	.8 to 301.4 inches
XGA (IN134ST model) 31.9 to 303	.1 inches
WXGA (IN136ST model) 35.6 to	303 inches
1080p (IN138HDST model) 36.2 to 307	.8 inches
XGA (IN2134 model) 30.7 to 300	.3 inches
WXGA (IN2136 model) 30.1 to 303	inches
1080p (IN2138HD model) 30.8 to	301.4 inches

IN13x models

4:3 diagonal screen	Height	Width	Height Width		Projection Distance				Offset
					Min. Max. Min. Max.
	(inches)	(inches)	(meters)	(meters)	(feet)	(feet)	(meters)	(meters)	(cm)	(inches)
27.3	16.41	21.87	0.42	0.56	-	3.94	-	1.20	6.25	2.46
40.0 24	04 32.05	0.61 0.81	5.18 5.77	1.58 1.76	9.16 3.61
60.0 36	06 48.08	0.92 1.22	7.77 8.65	2.37 2.64	13.74 5.41
70.0	42.07	56.09	1.07	1.42	9.07	10.10	2.76	3.08	16.03	6.31
80.0 48	08 64.10	1.22 1.63	10.36 11	54 3.16 3	52 18.32	7.21
90.0	54.09	72.12	1.37	1.83	11.66	12.98	3.55	3.96	20.61	8.11
100.0 60	10 80.13	1.53 2.04	12.95 14	42 3.95	4.40 22.90	9.01
120.0 72	12 96.15	1.83 2.44	15.54 17	31 4.74	5.28 27.48	10.82
150.0	90.14	120.19	2.29	3.05	19.43	21.63	5.92	6.59	34.34	13.52
180.0	108.17	144.23	2.75	3.66	23.32	25.96	7.11	7.91	41.21	16.23
250.0	150.24	200.32	3.82	5.09	32.39	36.06	9.87	10.99	57.24	22.54
304.4	182.93	243.91	4.65	6.20	39.43	-	12.02	-	69.70	27.44

16:10 diagonal screen	Height	Width	Height Width		Projection Distance				Offset
					Min. Max. Min. Max.
	(inches)	(inches)	(meters)	(meters)	(feet)	(feet)	(meters)	(meters)	(cm)	(inches)
27.0	14.31	22.90	0.36	0.58	-	3.28	-	1.00	4.51	1.77
40.0 21.	20 33.92	0.54 0.86	4.36 4.86	1.33 1.48	6.68 2.63
60.0 31.	80 50.88	0.81 1.29	6.55 7.29	2.00 2.22	10.02 3.94
70.0 37.	10 59.36	0.94 1.51	7.64 8.51	2.33 2.59	11.69 4.60
80.0	42.40	67.84	1.08	1.72	8.73	9.72	2.66	2.96	13.35	5.26
90.0 47.	70 76.32	1.21 1.94	9.82 10.94	2.99 3.33	15.02 5.91
100.0	53.00	84.80	1.35	2.15	10.91	12.15	3.33	3.70	16.69	6.57
120.0	63.60	101.76	1.62	2.58	13.09	14.59	3.99	4.45	20.03	7.89
150.0	79.50	127.20	2.02	3.23	16.37	18.23	4.99	5.56	25.04	9.86
180.0	95.40	152.64	2.42	3.88	19.64	21.88	5.99	6.67	30.05	11.83
250.0	132.50	212.00	3.37	5.38	27.28	30.39	8.31	9.26	41.73	16.43
300.7	159.37	254.99	4.05	6.48	32.81	-	10.00	-	50.20	19.76

Installation

16:9 diagonal screen	Height	Width	Height Width		Projection Distance				Offset
					Min. Max. Min. Max.
	(inches)	(inches)	(meters)	(meters)	(feet)	(feet)	(meters)	(meters)	(cm)	(inches)
30.8	15.10	26.84	0.38	0.68	-	39.38	-	1.00	0.06	2.42
40.0	19.61	34.86	0.50	0.89	39.19	51.14	1.00	1.30	0.08	3.14
60.0 29.	42 52.29	0.75 1.33	58.78 76	72 1.49	1.95 0.12	4.71
70.0	34.32	61.01	0.87	1.55	68.58	89.50	1.74	2.27	0.14	5.49
80.0 39.	22 69.73	1.00 1.77	78.37 10	2.29 1.99	2.60 0.16	6.28
90.0	44.12	78.44	1.12	1.99	88.17	115.07	2.24	2.92	0.18	7.06
100.0	49.03	87.16	1.25	2.21	97.97	127.86	2.49	3.25	0.20	7.84
120.0	58.83	104.59	1.49	2.66	117.56	153.43	2.99	3.90	0.24	9.41
150.0	73.54	130.74	1.87	3.32	146.95	191.79	3.73	4.87	0.30	11.77
180.0	88.25	156.88	2.24	3.98	176.34	230.15	4.48	5.85	0.36	14.12
250.0	122.57	217.89	3.11	5.53	244.91	319.65	6.22	8.12	0.50	19.61
301.4	147.76	262.69	3.75	6.67	295.27	-	7.50	-	0.60	23.64

IN13xST models

4:3 diagonal screen	Height (inches)	Width (inches)	Height (meters)	Width (meters)	Projection Distance		Offset
					(feet)	(meters)	(cm)	(inches)
31.9	19.17	25.56	0.49	0.65	1.31	0.40	7.30	2.88
40.0	24.04	32.05	0.61	0.81	1.65	0.50	9.16	3.61
60.0	36.06	48.08	0.92	1.22	2.47	0.75	13.74	5.41
70.0	42.07	56.09	1.07	1.42	2.88	0.88	16.03	6.31
80.0	48.08	64.10	1.22	1.63	3.30	1.00	18.32	7.21
90.0	54.09	72.12	1.37	1.83	3.71	1.13	20.61	8.11
100.0	60.10	80.13	1.53	2.04	4.12	1.26	22.90	9.01
120.0	72.12	96.15	1.83	2.44	4.94	1.51	27.48	10.82
150.0	90.14	120.19	2.29	3.05	6.18	1.88	34.34	13.52
180.0	108.17	144.23	2.75	3.66	7.42	2.26	41.21	16.23
250.0	150.24	200.32	3.82	5.09	10.30	3.14	57.24	22.54
303.1	182.15	242.87	4.63	6.17	12.49	3.81	69.40	27.32

16:10 diagonal screen	Height (inches)	Width (inches)	Height (meters)	Width (meters)	Projection (feet)	Distance Offset (meters)	(meters)	(cm)	(inches)
35.6 18	87 30.19	0.48 0.77	1.31 0.40	5.94 2.34
40.0 21	20 33.92	0.54 0.86	1.47 0.45	6.68 2.63
60.0 31	80 50.88	0.81 1.29	2.21 0.67	10.02 3.94
70.0	37.10	59.36	0.94	1.51	2.58	0.79	11.69	4.60
80.0	42.40	67.84	1.08	1.72	2.95	0.90	13.35	5.26
90.0 47	70 76.32	1.21 1.94	3.31 1.01	15.02 5.91
100.0	53.00	84.80	1.35	2.15	3.68	1.12	16.69	6.57
120.0	63.60	101.76	1.62	2.58	4.42	1.35	20.03	7.89
150.0	79.50	127.20	2.02	3.23	5.52	1.68	25.04	9.86
180.0	95.40	152.64	2.42	3.88	6.63	2.02	30.05	11.83
250.0	132.50	212.00	3.37	5.38	9.20	2.81	41.73	16.43
303.0	160.59	256.94	4.08	6.53	11.16	3.40	50.58	19.91

16:9 diagonal screen	Height Width Height Projection Distance Offset
	(inches)	(inches)	(meters)	(meters)	(feet)	(meters)	(cm)	(inches)
36.2	17.75	31.55	0.45	0.80	15.74	0.40	0.07	2.84
40.0	19.61	34.86	0.50	0.89	17.40	0.44	0.08	3.14
60.0	29.42	52.29	0.75	1.33	26.09	0.66	0.12	4.71
70.0	34.32	61.01	0.87	1.55	30.44	0.77	0.14	5.49
80.0	39.22	69.73	1.00	1.77	34.79	0.88	0.16	6.28
90.0 44.	12 78.44	1.12 1.99	39.14		0.99 0.18 7.06
100.0	49.03	87.16	1.25	2.21	43.49	1.10	0.20	7.84
120.0	58.83	104.59	1.49	2.66	52.19	1.33	0.24	9.41
150.0	73.54	130.74	1.87	3.32	65.24	1.66	0.30	11.77
180.0	88.25	156.88	2.24	3.98	78.28	1.99	0.36	14.12
250.0	122.57	217.89	3.11	5.53	108.73	2.76	0.50	19.61
307.8	150.90	268.27	3.83	6.81	133.87	3.40	0.61	24.14

Installation

IN213x models

4:3 diagonal screen	Height	Width	Height	Width		Projection Distance				Offset
						Min. Max.	Min. Max.	Max.
	(inches)	(inches)	(meters)	(meters)	(feet)	(feet)	(meters)	(meters)	(cm)	(inches)
30.7	18.45	24.60	0.47	0.62	-	3.95	-	1.20	7.03	2.77
40.0	24.04	32.05	0.61	0.81	3.94	5.14	1.20	1.57	9.16	3.61
60.0	36.06	48.08	0.92	1.22	5.91	7.71	1.80	2.35	13.74	5.41
70.0	42.07	56.09	1.07	1.42	6.89	9.00	2.10	2.74	16.03	6.31
80.0 48	08 64.10	1.22 1.63	7.88 10.28	2.40 3.13	18.32	7.21
90.0	54.09	72.12	1.37	1.83	8.86	11.57	2.70	3.53	20.61	8.11
100.0 60	10 80.13	1.53 2.04	9.85 12.85	3.00 3.92	22.90	9.01
120.0	72.12	96.15	1.83	2.44	11.82	15.42	3.60	4.70	27.48	10.82
150.0	90.14	120.19	2.29	3.05	14.77	19.28	4.50	5.88	34.34	13.52
180.0	108.17	144.23	2.75	3.66	17.73	23.14	5.40	7.05	41.21	16.23
250.0	150.24	200.32	3.82	5.09	24.62	32.13	7.51	9.79	57.24	22.54
300.3	180.47	240.62	4.58	6.11	29.58	-	9.02	-	68.76	27.07

16:10 diagonal screen	Height	Width	Height	Width		Projection Distance				Offset
						Min. Max.	Min. Max.	Max.
	(inches)	(inches)	(meters)	(meters)	(feet)	(feet)	(meters)	(meters)	(cm)	(inches)
30.1 15	95 25.52	0.41 0.65	-3.28 - 1	.00 5.02	1.98
40.0 21	20 33.92	0.54 0.86	3.34 4.35	1.02 1.3	3 6.68 2.63
60.0 31	80 50.88	0.81 1.29	5.00 6.53	1.52 1.99	10.02 3	94
70.0 37	10 59.36	0.94 1.51	5.84 7.62	1.78 2.32	11.69 4	60
80.0	42.40	67.84	1.08	1.72	6.67	8.71	2.03	2.65	13.35	5.26
90.0 47	70 76.32	1.21 1.94	7.50 9.79	2.29 2.99	15.02 5	91
100.0	53.00	84.80	1.35	2.15	8.34	10.88	2.54	3.32	16.69	6.57
120.0 63	.60 10	1.76 1.62	2.58 10.0	1 13.06 3	.05 3.98	20.03 7.89
150.0 79	.50 12	7.20 2.02	3.23 12.5	1 16.32 3	.81 4.98	25.04 9.86
180.0	95.40	152.64	2.42	3.88	15.01	19.59	4.57	5.97	30.05	11.83
250.0	132.50	212.00	3.37	5.38	20.85	27.21	6.35	8.29	41.73	16.43
303.0	160.59	256.94	4.08	6.53	25.27	-	7.70	-	50.58	19.91
16:9 diagonal screen	Height	Width	Height	Width		Projection Distance				Offset
						Min. Max.	Min. Max.	Max.
	(inches)	(inches)	(meters)	(meters)	(feet)	(feet)	(meters)	(meters)	(cm)	(inches)
30.8	15.10	26.84	0.38	0.68	-	39.38	-	1.00	0.06	2.42
50.0	24.51	43.58	0.62	1.11	48.98	63.93	1.24	1.62	0.10	3.92
60.0 29	42 52.29	0.75 1.33	58.78 76	72 1.49	1.95 0.12	4.71
70.0	34.32	61.01	0.87	1.55	68.58	89.50	1.74	2.27	0.14	5.49
80.0	39.22	69.73	1.00	1.77	78.37	102.29	1.99	2.60	0.16	6.28
90.0	44.12	78.44	1.12	1.99	88.17	115.07	2.24	2.92	0.18	7.06
100.0	49.03	87.16	1.25	2.21	97.97	127.86	2.49	3.25	0.20	7.84
120.0	58.83	104.59	1.49	2.66	117.56	153.43	2.99	3.90	0.24	9.41
150.0	73.54	130.74	1.87	3.32	146.95	191.79	3.73	4.87	0.30	11.77
180.0	88.25	156.88	2.24	3.98	176.34	230.15	4.48	5.85	0.36	14.12
250.0	122.57	217.89	3.11	5.53	244.91	319.65	6.22	8.12	0.50	19.61
301.4	147.76	262.69	3.75	6.67	295.27	-	7.50	-	0.60	23.64

Control Panel & Remote Control

Control Panel

Using the Control Panel
Power	○	Refer to the “Powering the Projector On / Off” section on pages 14-15.
Source Select the input source.
Menu	□	Launch the on-screen display (OSD) menu. Press again to exit OSD menu.
Help	?	Help Menu (only available when OSD menu is not shown).
Re-Sync	≈	Automatically synchronize the projector to the input source.
Enter Confirm your item selection.
Four Directional Select Keys		Use ▲▼to select items or make adjustments to your selection.
Keystone /	▲▼	Use ▲▼adjust image distortion caused by tilting the projector.► ±20 degrees: IN134ST/IN136ST/IN138HDST model.► ±40 degrees: IN134/IN136/IN138HD/SP2080HD/IN2134/IN2136/IN2138HD model.
Lamp LED Indicates the projector's lamp status.
Temp LED Indicates the projector's temperature status.
On/Standby LED Indicates the projector's status.

Remote Control Battery Installation

1. Push the clip to release the battery cover.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

1. Install new batteries (AAA/R03). Ensure that you have the batteries' polarity (+/-) aligned correctly.

Diagram of a remote control panel with two buttons and a downward arrow indicating action (no text or symbols present)

1. Close the battery cover and press it down until it clicks into place. Do not mix different types of batteries or new and old batteries.

Line drawing of a mechanical component with a curved handle and arrow indicating rotation (no text or symbols)

To ensure safe operation, please observe the following precautions :

Use AAA/R03 type batteries.
Avoid contact with water or liquid.
Do not expose the remote control to moisture or heat.
Do not drop the remote control.
If the batteries have leaked in the remote control, carefully wipe the case clean and install new battery.
There is a risk of explosion if the batteries are replaced with the wrong type.
▶ Dispose of used batteries according to the instructions.
Remove the batteries from the remote control when not using for extended periods.
The remote control may fail to operate if the infrared remote sensor is exposed to bright sunlight or fluorescent lighting.

Remote Control

AV Mute Turns off audio and video until pressed again.

Re-Sync Automatically synchronizes the projector to the input source.

Four Directional Select Keys Use ▲▼ to navigate the menu and make selections. Can be used as computer mouse navigation from USB-A with Mouse Function enabled.

Menu Launch the on-screen display (OSD) menu. Press again to exit OSD menu.

Keystone +/- Adjust the image to compensate for distortion caused by tilting the projector.

VGA Press to choose VGA source.

Video Press to choose Video source.

HDMI Press to cycle through all HDMI sources.

Page +/- Use +- to switch pages.

Mouse Turn on and off the Mouse Function.

Picture Display the Picture Mode menu.

Power Refer to the "Powering the Projector On / Off" section on pages 14-15.

Source	Select the input source.
Enter	Confirm your OSD selection. Can be used as computer mouse left click from USB-A when Mouse Function is enabled.
ECO	Display the Lamp “Brightness Mode” menu.
Volume +/-	Increase and decrease audio volume.
Aspect	Display the Aspect Ratio menu.
Zoom +/-	Increase or decrease the image magnification ratio.
Mute	Turns off audio until pressed again.
Freeze Pauses the video source until pressed again.

Using the HELP button

The HELP function ensures easy setup and operation.

Press the ?button on the control panel to open the Help Menu.

User Controls

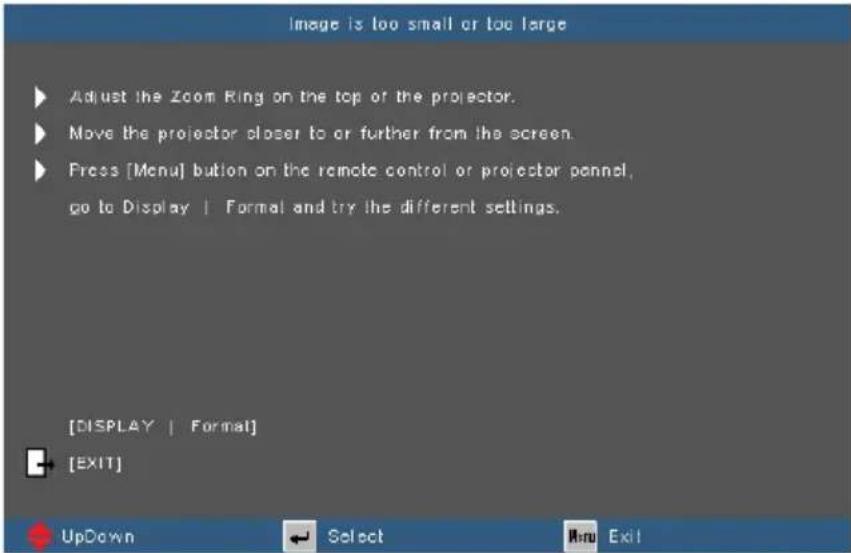

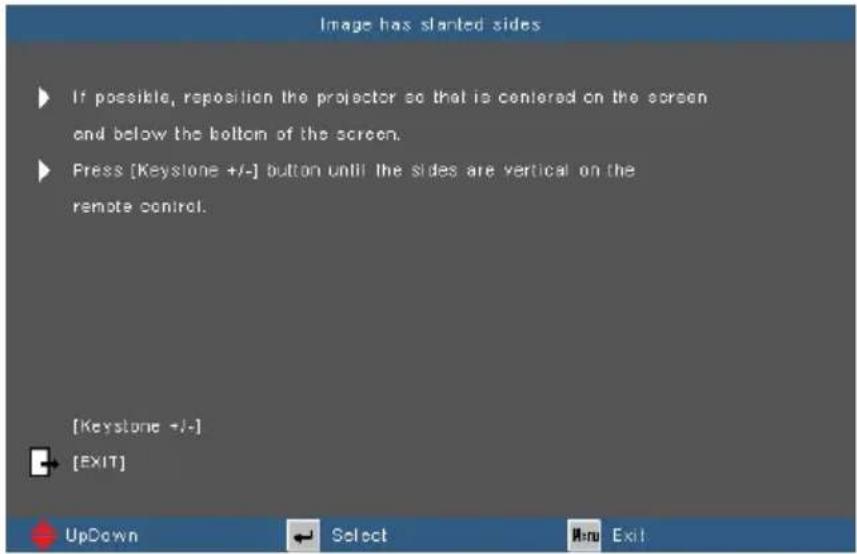

If no input source is detected, these Help menu screens are displayed.

Please refer to the "Troubleshooting" section on pages 61-64 for more details.

If an input source is detected, these Help menu screens are displayed.

VGA input signal:

Other signals (other than VGA input signal):

On-screen Display Menus

The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source.

How to operate

1. To open the OSD menu, press "Menu" on the remote control or the control panel.
   2 When the OSD is displayed, use ◀▶ keys to select any item in the main menu. While making a selection on a particular page, press ▲ or ▼key to enter sub menu.
2. Use ▲▼ keys to select the desired item and adjust the settings using ◀▶ key.
3. Select the next item to be adjusted in the sub menu and adjust as described above.
4. Press "Enter" to confirm, and the screen will return to the previous menu.
5. To exit, press "Menu" again. The OSD menu will return to the previous menu and the projector will automatically save the new settings.

Menu Tree

Main Menu Sub Menu Settings
IMAGE Picture	ure Mode Presentation	ation/Bright/Movie	/sRGB/Blackboard/	User/3D
	Brightness -50~50
	Contrast -50~50
	Sharpness 1~15
	Color*1			-50~50
	Tint*1			-50~50
	Advanced Gamma Film/Video/Graphics/Standard
				BrilliantColorTM
				Color Temp. Warm/Medium/Cold
				Color Settings Red/Green/Blue/Cyan/Magenta/Yellow
				White Red/Green/Blue
				Reset
				Exit
				Color Space Analog AUTO/RGB/YUV
				HDMI AUTO/RGB(0~255)/RGB(16~235)/YUV *2
				Signal3
				Automatic
				Phase
				Frequency
				H. Position
				V. Position
				Exit
				Exit
DISPLAY	Format4			4:3, 16:9, Native, Auto(for XGA models)4:3, 16:9 or 16:10, LBX, Native, Auto(for WXGA/1080p models)
	Edge Mask			0~10
	Zoom			-5~25
	Image Shift	H		-100~100
		V		-100~100
	V Keystone			-40~40-20~20*5
	3D	3D Mode		Off/DLP-Link/IR*6
		3D->2D		3D/L/R
		3D Format7		AUTO/SBS/Top and Bottom/Frame Sequential
		3D Sync.Invert7		On/Off
		Exit
SETUP Language English / Deutsch / Français / Italiano /				Español / Português / Polski / Nederlands / Hindi / Norsk / Dansk / Filipino / Malay / Romanian / 繁體中文 / 簡体中文 / 日本語 / 한국어 / Русский / Magyar / Čeština / عَرْمِي / ١١٢٥ / Türkçe / Farsi/ Vietnamese / Indonesian
OPTIONS Advanced Sleep Timer (min)			0~990
		Quick Resume On/Off
		Power Mode (Standby)		Active/Eco.
		Network (Standby) ^12		On/Off
		VGA Out (Standby) ^12		On/Off
		Exit
		Lamp Settings	Lamp Hours
			Lamp Reminder
			Brightness Mode
			Lamp Reset Yes/No
			Exit
		Optional Filter Settings	Optional Filter Installed
			Filter Usage Hours
			Filter Reminder Off/300Hr/500Hr/800Hr/1000Hr
			Filter Reset Yes/No
			Exit
		Reset Yes/No

Please note that the on-screen display (OSD) menus vary according to the signal type selected and the projector model you are using.

(*1) Supported only for Video sources.
(*2) Supported only for HDMI sources.
(*3) Supported only for Analog VGA sources.
(*4) 16:10 for WXGA models only, LBX for WXGA/1080p models only.
(*5) Supported only for ST models.
(*6) Supported on IN138HD/SP2080HD/IN138HDST/IN2138HD models only.
(*7) Only available when 3D is enabled using DLP Link glasses only.
(*8) Supported on WXGA models only.
(*9) Supported only for models with RJ-45.
(*10) The function depends on model's specifications.
(*11) Supported on IN138HD/SP2080HD/IN138HDST models only.
(*12) Supported on IN13xST and IN213x models only and only available when Power Mode(Standby) is Active.


Picture Mode

There are many factory presets optimized for various types of images.

Presentation: Good color and brightness from PC input.
Bright: Maximum brightness from PC input.
▶ Movie: For home theater.
sRGB: Standardized accurate color.
Blackboard: This mode should be selected to achieve optimum color settings when projecting onto a blackboard (green).
User: User's settings.
3D: Recommended setting for when 3D function is enabled.

Brightness

Adjust the brightness of the image.

Press ◀o darken image.
▶ Press ▶ to lighten the image.

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture.

Press to decrease the contrast.
▶ Press ▶ to increase the contrast.

“Sharpness”, “Color”, and “Tint” are only supported for Video sources.

Sharpness

Adjust the sharpness of the image.

Press ◀ to decrease the sharpness.
Press to increase the sharpness.

Color

Adjust a video image from black and white to fully saturated color.

Press ◀ to decrease the amount of saturation in the image.
Press to increase the amount of saturation in the image.

Tint

Adjust the color balance of red and green.

Press to increase the amount of green in the image.
Press to increase the amount of red in the image.

IMAGE | Advanced

Gamma

This allows you to choose a degamma table that has been fine-tuned to bring out the best image quality for the input.

Film: for home theater.
▶ Video: for video or TV source.
▶ Graphics: for image source.
Standard: for PC or computer source.

BrilliantColor™

This adjustment utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing true, more vibrant colors in the projected image. The range is from "1" to "10". If you prefer a stronger enhanced image, adjust toward the maximum setting. For a smoother, more natural image, adjust toward the minimum setting.

Color Temp

Select Cold for a bluer image.

Select Warm for a redder image.

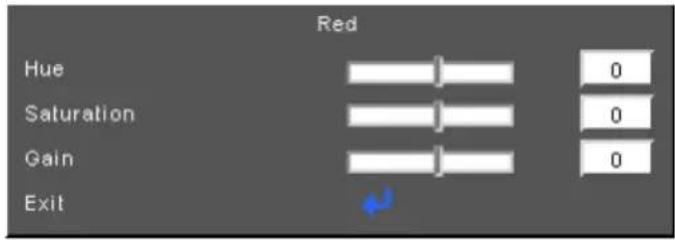

Color Settings

Press to enter the menu shown below. Use ▲ or ▼ to select the color to be adjusted.

Red/Green/Blue/Cyan/Magenta/Yellow: Use ▲ or ▼ to select the function. Use ▲ or ▼ adjust.

White: Use ▲ or ▼ to select the function. Use ▲ to adjust.

Reset: Choose "Yes" to return the factory default settings for color adjustments.

(*) For HDMI sources only.

Color Space

Select an appropriate color matrix type from AUTO, RGB, RGB(0-255) ^() , RGB(16-235) ^() or YUV.

IMAGE | Advanced | Signal

"Signal" adjustments are only available for Analog VGA (RGB) sources.

Automatic

Automatically selects the signal. If this function is turned on the manual phase and frequency controls will be disabled. When this option is disabled manual controls will be enabled and automatically saved when the device is powercycled.

Phase

Synchronize the signal timing of the display with the graphics card. If the image appears to be unstable or flickers, use this function to correct it.

Frequency

Change the display data frequency to match the frequency of your computer's graphics card. Use this function only if the image appears to flicker vertically.

H. Position

Press ◀ to move the image left.
Press ▶ to move the image right.

V. Position

Press ◀o move the image down.
Press ▶ to move the image up.

DISPLAY

Format

Use this function to choose your desired aspect ratio.

4:3: This format is for 4×3 input sources.
16:9: This format is for 16×9 input sources, like HDTV and DVD enhanced for Wide screen TV.
16:10 (only for WXGA models): This format is for 16:10 input sources, like widescreen laptops.
Native: This format displays the original image without any scaling.
LBX (for WXGA/1080p models): This format is for non-16x9, letterbox sources.
▶ AUTO: Automatically selects the appropriate display format.

Each I/O has different setting of "Edge Mask".

Edge Mask

Edge mask function removes the noise in a video image. Edge mask the image to remove video encoding noise on the edge of video sources.

User Controls

Zoom

Press ◀ to reduce the size of an image.
Press to magnify an image on the projection screen.

Image Shift

Press ← to enter the menu then use ▲ or ▼ to select the function.

H: Use ◀ or ▶ to shift the projected image position horizontally.
V: Use ◀ or ▶ to Shift the projected image position vertically.

V Keystone

Press ◄ or ▶ to adjust image distortion vertically. If the image looks trapezoidal, this option can help make the image rectangular.

DISPLAY | 3D

3D Mode

Compatible 3D source, 3D content and active shutter glasses are required for 3D viewing.
"3D Sync Invert" is only available for DLP Link glasses.
External "IR" sync is only available on IN138HD/SP2080HD, IN138HDST, and IN2138HD.
See page 72 for supported 3D formats.

Off: Select "Off" to turn 3D settings off for 3D images.
DLP Link: Select "DLP Link" to use optimized settings for DLP Link 3D images.
IR: Select "IR" to use optimized setting for IR 3D Glasses.

3D -> 2D

3D: Display 3D signal.
L (Left): Display the left frame of 3D content.
R (Right): Display the right frame of 3D content.

3D Format

Auto : When a 3D identification signal is detected, the 3D format is selected automatically.
SBS: Use this mode for "Side-by-side" format 3D content.
Top and Bottom: Use this mode for "Top and Bottom" format 3D content.
Frame Sequential: Use this mode for "Frame Sequential" format 3D content.

3D Sync. Invert

Press "On" to invert left and right frame contents.
Press "Off" for default frame contents.

SETUP

Language

Choose the multilingual OSD menu. Press ▶ or ▶ to enter the "Language" menu then use ▶ or ▶ to select your preferred language. Press "Enter" to finalize the selection.

Rear-Desktop and Rear-Ceiling are to be used with a translucent screen.

Projection

Front-Desktop

This is the default selection. The image is projected straight on the screen.

Rear-Desktop

When selected, the image will appear reversed.

Front-Ceiling

When selected, the image will turn upside down.

Rear-Ceiling

When selected, the image will appear reversed in upside down position.

"Screen Type" is available on WXGA models only.

Menu Location

Choose the menu location on the display screen.

Screen Type

Choose the screen type from 16:9 and 16:10.

SETUP | Audio Settings

Mute

Choose "On" to turn mute on.
Choose "Off" to turn mute off.

Volume

Press to decrease the volume.
Press to increase the volume.

Audio Input

Default: Set audio input according to the current input source.
▶ AUDIO1: Audio In becomes the audio source for all video inputs.

SETUP | Network

Available only on projectors equipped with an RJ45 network connector.

Network State

Display the network connection status (read-only).

DHCP

On: Projectors will obtain an IP address automatically from your network. DHCP is on by default.
Off: To assign IP, Subnet Mask, Gateway and DNS configuration manually.

IP Address

Display the IP address.

Subnet mask

Display Subnet mask number.

Gateway

Display the default gateway of the network connected to the projector.

DNS

Display DNS number.

Apply

Save network settings.

Exit

Choose "Exit" to exit the menu.

SETUP | Advanced

Logo

Use this function to set the desired startup screen. If changes are made they will take effect the next time the projector is powered on.

Default: The default startup screen.
Neutral: Logo is not displayed on startup screen.

Closed Captioning

Closed Captioning is a text version of the program sound or other information displayed on the screen. If the input signal contains closed captions, you can turn on the feature and watch the channels. Closed Captioning is only available for Video NTSC.

Off: Select "Off" to turn off the closed captioning feature.
CC1: Decodes American English captioning.
CC2: Decodes (depending on the TV channel) Spanish, French, Portuguese, German or Danish captioning.

OPTIONS

Input Source

Use this option to enable / disable input sources. Press ▶to enter the sub menu and select which sources you require. Press "Enter" to finalize the selection. The projector will not search for inputs that are not selected.

Source Lock

On: The projector will only search the current input selection.
Off: The projector will search for other signals if the current input signal is lost.

High Altitude

When "On" is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.

Information Hide

On: Choose "On" to hide the info message.
Off: Choose "Off" to show source message.

To turn off the keypad lock, press and hold "Enter" key on top of the projector for 5 seconds.

Keypad Lock

When the keypad lock function is "On", the control panel will be locked however, the projector can be operated by the remote control. By selecting "Off", you will be able to use the control panel once more.

User Controls

Test Pattern

Display a test pattern. There are grid and white patterns.

IR Function

On: The projector can be operated by the remote control. When you change the setting from "Off" to "On", it will display a warning message:

Off: You will only be able to use the control panel keys. When you change the setting from "On" to "Off", it will display a warning message:

Background Color

Use this feature to display a "Black", "Red", "Blue", "Green" or "White", screen when no signal is available.

12V Trigger

On: The 12V Trigger will turn on when the lamp is lighted.
Off: The 12V Trigger will not turn on in any state.
Auto 3D: 12V Trigger output when the 3D Mode setting is set to DLP-Link or IR. Stop 12V output when the 3D Mode setting is set Off.

Reset

Choose "Yes" to return the display parameters on all menus to the factory default settings.

OPTIONS | Advanced

Direct Power On

On: The projector will automatically power on when AC power is applied.
Off: The projector will turn on by pressing the ⏻ key on the remote or keypad.

Auto Power Off (min)

Sets the countdown time interval in minutes. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished.

Sleep Timer (min)

Sets the countdown time interval in minutes. The countdown timer will start, with or without a signal being sent to the projector. The projector will automatically power off when the countdown has finished.

Quick Resume

On: If the projector is accidentally turned off, this feature allows the projector to be instantly powered on again, if selected within a period of 100 seconds.
Off: The fan will start cooling the system immediately when the user turns off the projector.

User Controls

Power Mode (Standby)

Eco.: Sets standby power to <0.5W.
Active: Network and VGA output functions are available in standby.

Network (Standby)

On: Network is available in standby.
Off: Network is unavailable in standby.

VGA Out (Standby)

On: VGA Out is available in standby.
Off: VGA Out is unavailable in standby.

OPTIONS | Lamp Settings

Lamp Hours

Displays the lamp hours of the current lamp.

Lamp Reminder

Choose this function to show or to hide the warning message when the changing lamp message is displayed.

The message will appear 30 hours before suggested replacement of the lamp.

When ambient temperature is over 40^ C in operating, the projector will switch to Eco automatically.

Brightness Mode

Bright: Sets lamp to highest power for maximum brightness.
Eco.: Decreases lamp power for less brightness and extended lamp life.
▶ Dynamic: Increases and decreases lamp power based on the video source. Power consumption will vary from maximum to 30%, extending lamp life.

Lamp Reset

Resets the Lamp Hour counter. Should be used after replacing the lamp.

OPTIONS | Optional Filter Settings

Optional Filter Installed

Select "Yes" to display warning message after a specified number of hours. Select "No" to turn off warning message.

The default setting for Filter is "No". After assembling filter, please turn on the projector then press "Menu", go to "OPTIONS -> Optional Filter Settings -> Optional Filter Installed" and select "Yes".

Filter Usage Hours

Displays the filter hours.

Filter Reminder

Select the number of hours until the filter message is displayed. (Factory default is 500Hr).

Filter Reset

Reset the dust filter counter after replacing or cleaning the dust filter.

Network Control

Network Menu

How to enter the Network menu

1. Press the "Menu" button on the control panel or remote control.

1. Press the ◀ or ▶ key to select the SETUP main menu.

1. Press the ▲ key to select Network item.

Appendices

Network Menu Functions

Network State

Display the network connection status (read-only).

DHCP

On: Projector will obtain an IP address automatically from your network.
Off: To assign IP, Subnet Mask, Gateway and DNS configuration manually.

IP Address

Display and set the IP address.

Subnet mask

Display and set the Subnet mask.

Gateway

Display and set the Gateway IP address.

DNS

Display and set the DNS address.

Apply

Save network settings.

Exit

Choose "Exit" to exit the menu.

The steps in this section are based on Windows 7 operating system.

How to use web browser to control your projector via a router

1. Turn "On" the DHCP option on projector to allow a DHCP server to automatically assign an IP Address.
2. Open a web browser on your PC and enter the projector's IP address in the URL window. The projector's configuration web interface opens.
3. Enter the user name and password (default user name = admin, default password = admin) and click Login.

Making a direct connection from your computer to the projector

1. Turn "Off" the DHCP option on the projector.
2. Configure the IP address, Subnet Mask, Gateway, and DNS on the projector ("Network").
3. Open the Network and Sharing Center on your PC and assign an IP on the same subnet as the projector (first three numbers identical, fourth number different). Assign identical Subnet mask and gateway numbers. Click OK to save these parameters.

Appendices

Network Projector Control

1. Once the connection is configured and successful, open a browser on your computer and enter the projector IP address in the URL window. The projector IP address can be found in the Setup → Network section of the projector onscreen menu.

1. The Login page will be displayed. The projector can be controlled by the Crestron page without logging in. The default password is admin.

1. The System Status page will be displayed after log in. All network features are accessible from the buttons on the left. Reset to Default resets all projector settings. Reboot system reboots the network interface, not the projector.

1. The General Setup page allows changing the Projector Name and the admin password.

Appendices

1. On the Projector Control page, you can perform many common network control functions such as changing the source and adjusting volume.

1. Network settings can be configured on the Network Setup page. If the IP address is changed the new IP address will have to be put in the url window of the browser to access Projector Control.

1. Alert setup will send an email if there is a fault with the projector. Click the check boxes to enable notification and select which faults you want to have reported.

1. Crestron uses a standard interface for limited control of the projector. A new tab is opened in the browser when this function is selected.

Appendices

1. In the Crestron Tool window, you can configure Crestron Control to integrate into a Creston Control system. The IP address needs to be from the room control box or central network control. Both the User and Admin pages can be assigned a password.

Troubleshooting

If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center.

No image appears on-screen

▶ Ensure all the cables and power connections are correctly and securely connected as described in the “Installation” section.
▶ Ensure all the pins of connectors are not bent or broken.
▶ Ensure that the “AV Mute” feature is not turned on.
▶ Check if the projection lamp has been securely installed. Please refer to the “Replacing the lamp” section.

? Partial, scrolling or incorrectly displayed image

Press "Re-SYNC" on the remote control or control panel.
▶ If you are using a PC:

For Windows:

1. From the "Control Panel" select "Displays".
2. Select "Change Display Settings".
3. Verify that the display resolution is smaller than or equal to WUXGA (1920x1200).

▶ If you are using a laptop:

1. First, follow the steps above to adjust resolution of the computer.
2. Press the appropriate keys listed below for your notebook manufacturer to send signal out from notebook to projector. Example: [Fn]+[F4]

Acer [Fn]+[F5] IBM/Lenovo [Fn]+[F5] Asus [Fn]+[F8] HP/Compaq [Fn]+[F5] Dell [Fn]+[F8] NEC [Fn]+[F5] Gateway [Fn]+[F4] Toshiba [Fn]+[F5]

Mac Apple:

System Preference Display Arrangement Mirror display

If you experience difficulty changing resolutions or your monitor freezes, restart all equipment including the projector.
The screen of the computer is not displaying your presentation
If you are using a Notebook PC

Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer's manual for detailed information.

? Image is unstable or flickering

Use "Phase" to correct it. See page 38 for more information.
Change the monitor color setting on your computer.

? Image has vertical flickering bar

Use “Frequency” to make an adjustment. See page 38 for more information.
▶ Check and re-configure the display mode of your graphic card to make it compatible with the projector.

? Image is out of focus

Rotate the focus ring or turn the focus lever (for short-throw lens models) until the image is clear. See page 17.
Make sure the projector screen is within the required distance for your model. See pages 18-23.

The image is stretched when displaying 16:9 DVD title

When you play anamorphic DVD or 16:9 DVD, the projector will show the best image when the projector display mode is set to 16:9 in the OSD.
If you play 4:3 format DVD titles, please change the format to 4:3 in the projector OSD.
If the image is still stretched, you will also need to adjust the aspect ratio by referring to the following:
Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.

? Image is too small or too large

▶ Turn the zoom lever to zoom in or out. See page 17.
Move the projector closer to or further from the screen.
Press the "Menu" button on the remote control, go to "Display → Format" and try the different settings.

Use of Keystone is not recommended.

? Image has slanted sides

If possible, reposition the projector so that it is horizontally centered on the screen and below the bottom of the screen.
Press the "Keystone +/-" button on the remote control until the sides are vertical.
Use “Display → V Keystone” from the OSD to make an adjustment. Use the ▲ and keys to make the adjustment from the keypad.

? Image is reversed

Select "SETUP → Projection" from the OSD and adjust the projection direction.

The projector stops responding to all controls

Check that "Keypad Lock" is not activated by trying to control the projector with the remote control.
If possible, turn off the projector, then unplug the power cord and wait at least 60 seconds before reconnecting power.

? Blurry double image

Enter the 3D control menu to switch "Off" the 3D feature if normal 2D images are blurry or double images.

Two images, side-by-side format

Press "3D Format" button and switch to "SBS" for input signal is HDMI 1.3 3D 1080i side-by-side.

? Image does not display in 3D

▶ Check if the 3D glasses are turned on.
Make sure the batteries of the 3D glasses are not exhausted.
When the input signal is HDMI 1.3 3D (1080i side-by-side half), press "3D Format" button and switch to "SBS".

Lamp burns out or makes a popping sound

When the lamp reaches its end of life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the “Replacing the Lamp” section on pages 67-68.

? LED indicators

Not lighted ○

Lighted red ●

Lighted blue ●

Blinking red ○ ●

Blinking blue ○ ●

Message	On/Standby LED	Temp LED	Lam
	(Blue/Red) (Red) (Red)
Standby State	●	○	○
Power on (Warming)	○●	○	○
Lamp lighting	●	○	○
Power off (Cooling)	○●	○	○
Error (Over Temp.)	○●	●	○
Error (Fan fail)	○●	○●	○
Error (Lamp fail)	○●	○	●

On Screen Messages

▶ Temperature warning:

Fan failed:

Lamp warning:

▶ Out of display range:

If the remote control does not work

▶ Verify that the angle of the remote to the IR receiver is within ±20 degrees.
Make sure there are not any obstructions between the remote control and the projector. Move to within 7m of the projector.
Make sure the batteries are inserted correctly.
Replace batteries if they are exhausted.
▶ Turn off any fluorescent lights that are illuminating the IR receiver.
Make sure that IR Function is turned On in the Options menu.

Replacing the Lamp

The projector automatically detects the lamp life. When the lamp life is nearing the end of use, you will receive a warning message.

Lamp Warning

Lamp life exceeded.

When you see this message, please contact your local reseller or service center to change the lamp as soon as possible. Make sure the projector has been cooled down for at least 30 minutes before changing the lamp.

CAUTION!

HIGH TEMPERATURE COOL FOR 30 MINUTES. HIGH PRESSURE LAMP MAY EXPLODE IF IMPROPERLY HANDED. REFER TO LAMP REPLACEMENT INSTRUCTIONS DISCONNECT POWER BEFORE CHANGING LAMP.

Warning: If ceiling mounted, please use caution when opening the lamp access panel. It is recommended to wear safety glasses if changing the bulb when ceiling mounted. "Caution must be used to prevent any loose parts from falling out of projector."

Warning: Lamp compartment may be hot! Allow it to cool down before changing the lamp!

Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.

Appendices

The screws on the lamp cover and the lamp cannot be removed.
The projector cannot be turned on if the lamp cover has not been placed back on the projector.
Do not touch the glass area of the lamp. Skin oils can cause the lamp to shatter. Use a dry cloth to clean the lamp module if it was accidentally touched.

Lamp Replacement Procedure:

1. Switch off the power to the projector by pressing the ⬤ button.
2. Allow the projector to cool down for at least 30 minutes.
3. Disconnect the power cord.
4. Unscrew the one screw on the cover. 1
5. Lift up and remove the cover. 2
6. Lift up the lamp handle. 3
7. Press on the both sides then lift up and remove the lamp cord. 4
8. Unscrew the one screw on the lamp module. 5
9. Remove the lamp module slowly and carefully. 6
   To replace the lamp module, reverse the previous steps.
10. Turn on the projector and reset the lamp timer.
    Lamp Reset: (i) Press "Menu" → (ii) Select "OPTIONS" → (iii) Select "Lamp Settings" → (iv) Select "Lamp Reset" → (v) Select "Yes".

Installing and Cleaning the Optional Dust Filter

Installing the Dust Filter

Dust filters are only required/supplied in selected regions with excessive dust.

Procedure:

1. Place the dust filter onto its compartment on the filter cover.
2. Install the filter cover onto its slot on the projector.
3. Turn on the projector. Then press "Menu", go to "OPTIONS -> Optional Filter Settings -> Optional Filter Installed" and select "Yes".

Illustration of a projector with a slide being placed into a heat sink, showing internal components and a hand holding the blade (no text or symbols present)

Cleaning the Dust Filter

We recommend cleaning the dust filter every three months; clean it more often if the projector is used in a dusty environment.

Procedure:

1. Switch off the power to the projector by pressing the "button."
2. Disconnect the power cord.
3. Remove the filter cover from the projector. 1
4. Remove the dust filter from the filter cover. 2
5. Clean or replace the dust filter. 3
6. To install the dust filter, reverse the previous steps.
7. Reset the dust filter counter after replacing or cleaning the dust filter. Press "Menu", go to "OPTIONS -> Optional Filter Settings -> Filter Reset".

Turn on the projector, then press "Menu", "OPTIONS -> Optional Filter Settings -> Optional Filter Installed" and select "No" when you pull out the dust filter and do not reinstall it.

Compatibility Modes

Computer/Video/HDMI/Mac Compatibility

For widescreen resolution, the compatibility support is dependent on Notebook/PC models.
Please note that using resolutions other than native 800 x 600 (SVGA model), 1024 x 768 (XGA model), may result in some loss of image clarity.
120Hz input signals may be dependent on graphic card's support.

Signal Resolution		Refresh Rate (Hz)	Video Analog HDMI Mac
NTSC 720 x 480 60 O - - -
PAL/SECAM 720 x 576 50 O - - -
VGA	640 x 480 60	- O O O
	640 x 480 67	- O --
	640 x 480 72	8 - O - O
	640 x 480 85	- O - O
SVGA	800 x 600 56	3 - O --
	800 x 600 60	3 - O O O
	800 x 600 72	2 - O O O
	800 x 600 85	1 - O O O
	800 x 600 120	- O O -
XGA	1024 x 768 48	- O O
	1024 x 768 50	- O O
	1024 x 768 60	- O O O
	1024 x 768	70.1 - O O O
	1024 x 768 75	- O O O
	1024 x 768 85	- O O O
	1024 x 768	120	- O O -
WSVGA	1024 x 600 60	-- O -
HDTV (720p)	1280 x 720 50	O O O -
	1280 x 720 60	O O O O
	1280 x 720	120	- O O -
SXGA	1280 x 1024	60 - O O O
	1280 x 1024	75 - O O O
	1280 x 1024	85 - O O -
SXGA+	1400 x 1050	60 - O O -
UXGA	1600 x1200 60	- O O -
HDTV (1080p)	1920 x 1080	24 O O O -
	1920 x 1080	30 -- O -
	1920 x 1080	50 O O O -
	1920 x 1080	60 O O O O
HDTV (1080i)	1920 x 1080	50 O - O -
	1920 x 1080	60 O - O -

Appendices

Signal Resolution		Refresh Rate (Hz)	Video Analog HDMI Mac
WUXGA	1920 x 1200 50 - O O -
	1920 x 1200 60 - O O O
SDTV (576i) 720 x 576		50	O - O -
SDTV (576p)	720 x 576	50	O	-	O	-
SDTV (480i) 720 x 480		60	O - O -
SDTV (480p)	720 x 480	60	O	-	O	-

3D Input Video Compatibility

Input Resolution	HDMI 1.4a 3D Input	Input Timing
		1280 x 720p @ 50Hz Top-and-Bottom
		1280 x 720p @ 60Hz Top-and-Bottom
		1280 x 720p @ 50Hz Frame packing
		1280 x 720p @ 60Hz Frame packing
		1920 x 1080i @ 50 Hz Side-by-Side (Half)
		1920 x 1080i @ 60 Hz Side-by-Side (Half)
		1920 x 1080p @ 24 Hz Top-and-Bottom
		1920 x 1080p @ 24 Hz Frame packing
	HDMI 1.3 3D Content	1920 x 1080i @ 50Hz	Side-by-Side (Half)	While 3D Format is “SBS”
		1920 x 1080i @ 60Hz
		1280 x 720p @ 50Hz
		1280 x 720p @ 60Hz
		1920 x 1080i @ 50Hz	Top-and-Bottom	While 3D Format is “Top and Bottom”
		1920 x 1080i @ 60Hz
		1280 x 720p @ 50Hz
		1280 x 720p @ 60Hz
		480i HQFS		While 3D Format is “Frame sequential”

RS232 Commands and Protocol Function List

RS232 Pin Assignments

Pin no.	Spec.(from projector side)
1 N/A
2 RXD
3 TXD
4 N/A
5 GND
6 N/A
7 N/A
8 N/A
9 N/A

Appendices

RS232 Protocol Function List

Baud Rate:19200

Parity Bit: None

Data Bit: 8

Stop Bit: 1

Lamp Ignition delay = 20s

Power Down delay = 10s

Source change delay = 8s

Intercommand delay minimum = 5ms

Intercharacter delay minimum = 2ms

Power return code (ok)
Status ? (PWR?) (0-1,n) n=0,1
ON	(PWR1)
OFF	(PWR0)
ON & return (PWR1!) (0-1,1)
OFF & return (PWR0!) (0-1,0)
Blank Key return code (ok)
Status ? (BLK?) (0-1,n) n=0,1
ON (BLK1)
OFF (BLK0)
ON & return (BLK1!) (0-1,1)
OFF & return (BLK0!) (0-1,0)
Source return code (ok)
Status ? (SRC?) (0-22,n) n=0-22
Computer1	(SRC0)
VIDEO	(SRC11)
HDMI1	(SRC4)
HDMI2	(SRC5)
HDMI3	(SRC6)
Computer1 & return	(SRC0!)	(0-22,0)
VIDEO & return	(SRC11!)	(0-22,11)
HDMI1 (SRC4!)	(0-22,4)
HDMI2 & return	(SRC5!)	(0-22,5)
HDMI3 & return	(SRC6!)	(0-22,6)
Aspect return code (ok)
Status ? (ARZ?) (0-6,n) n=0,1,2,3,4,6
Auto (ARZ0)
Native (ARZ1)
4 X 3 (ARZ2)
16 X 9 (ARZ3)
Letterbox (ARZ4)
16 X 10 (ARZ6)
Auto & return (ARZ0!) (0-6,0)
Native & return (ARZ1!) (0-6,1)
4 X 3 & return (ARZ2!) (0-6,2)
16 X 9 & return (ARZ3!) (0-6,3)
Letterbox & return (ARZ4!) (0-6,4)
16 X 10 & return (ARZ6!) (0-6,6)
Lamp Low Power(ECO Mode)		return code (ok)
Status ?	(IPM?)	(0-1,n) n=0,1
ON	(IPM1)
OFF	(IPM0)
ON & return	(IPM1!)	(0-1,1)
OFF & return	(IPM0!)	(0-1,0)
Volume		return code (ok)
Status ? (VOL?) (0-10,nn) n=0~10
volume +	(VOL+)
volume -	(VOL-)
Set volume (VOLnn) n=0 ~ 10
volume + & return	(VOL+)	(0-10,nn) n=0~10
volume - & return	(VOL-)	(0-10,nn) n=0~10
Set volume & return	(VOLnn!) n=0 ~ 10	(0-10,nn) n=0~10
Mute return code (ok)
Status ?	(MTE?)	(0-1,n) n=0,1
ON	(MTE1)
OFF (MTE0)
ON & return	(MTE1!)	(0-1,1)
OFF & return (MTE0!)	(0-1,0)
Firmware Version		return code (ok)
Status ?	(FVS?)	(nnnn) n=x.x.xx

Appendices

Lamp ECO Hours return code (ok)
Status ? (LME?) (0-65535,n) n=lamp hours
Lamp Normal Hours return code (ok)
Status ? (LMO?) (0-65535,n) n=lamp hours
Lamp Dynamic Hours return code (ok)
Status ? (LML?) (0-65535,n) n=lamp hours
Lamp Hours return code (ok)
Status ? (LMP?) (0-65535,n) n=lamp hours
Total ECO Hours return code (ok)
Status ? (LTE?) (0-65535,n) n=lamp hours
Total Normal Hours return code (ok)
Status ? (LTO?) (0-65535,n) n=lamp hours
Total Dynamic Hours		return code (ok)
Status ?	(LTL?)	(0-65535,n) n=lamp hours
Total Hours return code (ok)
Status ? (LMT?) (0-65535,n) n=lamp hours
Lamp Hours Reset Times		return code (ok)
Status ? (LMR?) (0-65535,n) n=lamp reset times
Lamp hours reset		return code (ok)
Execute lamp hour reset	(LRT1)
Ceiling Set		return code (ok)
Status ? (CEL?) (0-3,n) n=0,1,2,3
Front table	(CEL0)
Front ceiling	(CEL1)
rear table	(CEL2)
rear ceiling (CEL3)
Front table & return	(CEL0!)	(0-3,0)
Front ceiling & return	(CEL1!)	(0-3,1)
rear table & return	(CEL2!)	(0-3,2)
rear ceiling & return	(CEL3!)	(0-3,3)
Brightness		return code (ok)
Status ? (BRT?) (0-100,nn) n=0~100
Brightness +	(BRT+)
Brightness -	(BRT-)
Set Brightness	(BRTnn) n=0 ~ 100
Brightness + & return	(BRT+)	(0-100,nn) n=0~100
Brightness - & return	(BRT-)	(0-100,nn) n=0~100
Set Brightness & return	(BRTnn!) n=0 ~ 100	(0-100,nn) n=0~100
Contrast return code (ok)
Status ? (CON?) (0-100,nn) n=0~100
Contrast + (CON+)
Contrast - (CON-)
Set Contrast (CONnn) n=0 ~ 100
Contrast + & return (CON+!) (0-100,nn) n=0~100
Contrast - & return (CON-!) (0-100,nn) n=0~100
Set Contrast & return (CONnn!) n=0 ~ 100 (0-100,nn) n=0~100
Presets return code (ok)
Status ? (PST?) (0-13,n) n=0-13
User (PST1)
Presentation (PST5)
Movie	(PST7)
Bright	(PST10)
sRGB	(PST11)
Blackboard	(PST12)
User & return	(PST1!)	(0-13,1)
Presentation & return	(PST5!)	(0-13,5)
Video & return	(PST7!)	(0-13,7)
Bright & return	(PST10!)	(0-13,10)
sRGB & return	(PST11!)	(0-13,11)
Blackboard & return	(PST12!)	(0-13,12)
Freeze		return code (ok)
Status ?	(FRZ?)	(0-1,n) n=0-1
Freeze ON	(FRZ1)
Freeze OFF	(FRZ0)
Freeze ON & return	(FRZ1!)	(0-1,1)
Freeze OFF & return	(FRZ0!)	(0-1,0)

Appendices

Key Pad return code (ok)
Menu (NAV0)
Up (NAV1)
Down (NAV2)
Select (NAV3)
Left (NAV4)
Right (NAV5)
Menu & return (NAV0!) (0-5,0)
Up & return (NAV1!) (0-5,1)
Down & return (NAV2!) (0-5,2)
Select & return (NAV3!) (0-5,3)
Left & return (NAV4!) (0-5,4)
Right & return (NAV5!) (0-5,5)

Ceiling Mount Installation

To prevent damage to your projector, please use only approved InFocus ceiling mounts:

https://www.infocus.com/accessories/mounts

To use a ceiling mount, please ensure the screws used to attach a mount to the projector meet the following specifications:

Please note that damage resulting from incorrect installation will void the warranty.

Warning:

1. Please be sure to use the correct screw length. Screw length will vary based on the mount used.

2. Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.

3. Avoid installing the projector near a heat source.

Screw type: M4*3
▶ Minimum screw length: 10mm

Unit: mm

Short-throw lens models

Regulation & Safety Notices

This appendix lists the general notices for your projector.

FCC Notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

◆ Reorient or relocate the receiving antenna.
- Increase the separation between the device and receiver.
- Connect the device into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.

Operation Conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Declaration of Conformity for EU countries

• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.
