USER MANUAL GR-469BSRA LG

Please read this User's Guide carefully before operating and keep it handy for reference at all times.

Abstract geometric design with a white circle containing an L-shaped symbol and a small circle in the center (no text or symbols present)

Important

(In the UK Only)

The wires in this mains lead are coloured in accordance with the following code:

GREEN AND YELLOW:EARTH

BLUE:NEUTRAL

BROWN: LIVE

This appliance must be earthed

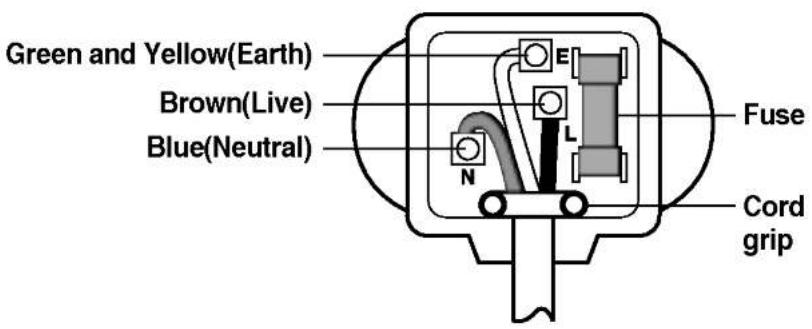

Green and Yellow(Earth) Brown(Live) Blue(Neutral) E L N Fuse Cord grip

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol( ± ) or coloured Green or Green and Yellow.

The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black.

The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Red.

If a 13 amp(BS 1363) plug is used, fit a 13 amp BS 1362 fuse.

Table of Contents

Introduction

Registration 4

Important Safety Instruction 4

Identification of Parts 9

Installation

Installation 10

Starting 10

Operation

Temperature Control 11

Miracle Zone 13

Super Freezer 14

Vacation 14

Self Test 15

Lock 15

Moving Basket 15

Door Alarm 16

Ice Making 16

Defrosting 16

Water Dispenser 17

Folding Shelf 19

Wine Rack 19

Suggestion On

Storing Food 20

Food storage

Care and

General Information 22

Maintenance

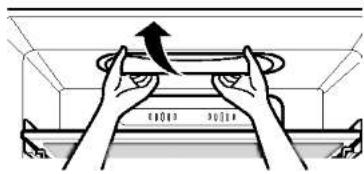

Lamp Replacement 23

To Reverse the Doors 23

Cleaning 24

Trouble Shooting

Trouble Shooting 26

Introduction

Registration

The model and serial number are found on the rear of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. Staple your receipt here.

Date of Purchase : ____

Dealer Purchased From : ____

Dealer Address :

Dealer Phone No. : ____

Model No. :

Serial No. :

Important Safety Instruction

To avoid any risk of personal injury, material damage or incorrect use of the appliance, be sure to observe the following safety precautions. (After reading these owner's instructions, please keep them in a safe place for reference). Remember to hand them over to any subsequent owner.

Warning

Indicates that a danger of death or serious injury exists

Caution

Indicates that a risk of personal injury or material damage exists

Important Safety Instruction

Precaution

⚠ Warning

• This fridge-freezer must be properly installed and located in accordance with the Installation Instruction before it is used.
• Never unplug your fridge-freezer by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.
• When moving your appliance away from the wall, be careful not to roll over or damage the power cord.
  • After your fridge-freezer is in operation, do not touch the cold surfaces in the freezer compartment, particularly when hands are damp or wet. Skin may adhere to these extremely cold surfaces.
• Pull out the power plug prior to cleaning the fridge-freezer.
  Never damage, serverely bend, pull out, or twist the power cord because power cord damage may cause a fire or electronic shock.
  Never place glass products in the freezer because they may be broken when their inner contents are frozen.
• Do not directly spray water inside or outside the fridge/freezer.
  There is a risk of explosion or fire.
• Do not insert the power plug with wet hands.
  You may receive an electric shock.
• Do not put a container filled with water on top of the appliance.
  If the water spills on to any electrical parts, it may lead to fire or electric shock.
• Do not install the fridge/freezer in a damp place, where it could be splashed with water.
  Incorrect insulation of the electrical parts may cause an electric shock or file.

Do not modify or extend the Power Cord length

Accessibility of Supply Plug

Supply Cord Replacement

Danger

Don't store

Grounding (Earthing)

Important Safety Instruction

• Do not disassemble, repair or alter the appliance. It may cause fire or abnormal operations, which may lead to injury.
• Pull the power plug out of the socket before replacing the interior light in the refrigerator. Otherwise, there is a risk of electric shock.
• If possible, connect the fridge-freezer to its own individual electrical outlet to prevent it and other appliances or household lights from causing an overload.

It will cause electric shock or fire.

The supply plug of the refrigerator-freezer should be placed in easy accessible position for quick disconnection in emergency.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Risk of child entrapment.

Before you throw away your old refrigerator or freezer: Take off the doors.

Leave the shelves in place so that children may not easily climb inside.

Don't store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current. In order to prevent possible electric shock, this appliance must be grounded. Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.

Important Safety Instruction

▲ Warning

⚠️ Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
⚠ Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. When disposal, please consult with service agent or a similarly qualified person.

This appliance contains a small amount of isobutane refrigerant (R600a), natural gas with high environmental compatibility, but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 1 m^2 in size for every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.

Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

Caution

Important Safety Instruction

- If the wall socket is loose, do not insert the power plug. It may cause electric shock or fire.

- Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull it straight out from the outlet.

You may disconnect a wire and cause a short circuit.

- Do not use a wet or damp cloth when cleaning the plug. Remove any foreign matter from the power plug pins.

Otherwise, there is a risk of fire.

- Do not put your hands into the bottom area of the appliance.

Any Sharp edges may cause personal injury.

• After unplugging the appliance, wait for at least five minutes before plugging it again to the wall socket.

Abnormal operation of the freezer may cause material damage.

- If the appliance is not to be used for a long time, pull out the power plug.

Any deterioration in the insulation may cause fire.

- Do not let children touch or play with the control panel on the front of the appliance.

- The refrigerant used in fridge/freezer and the gases in the insulation material require special disposal procedures. Ensure that none of the pipes on the back of the appliances are damaged prior to disposal.

Identification of Parts

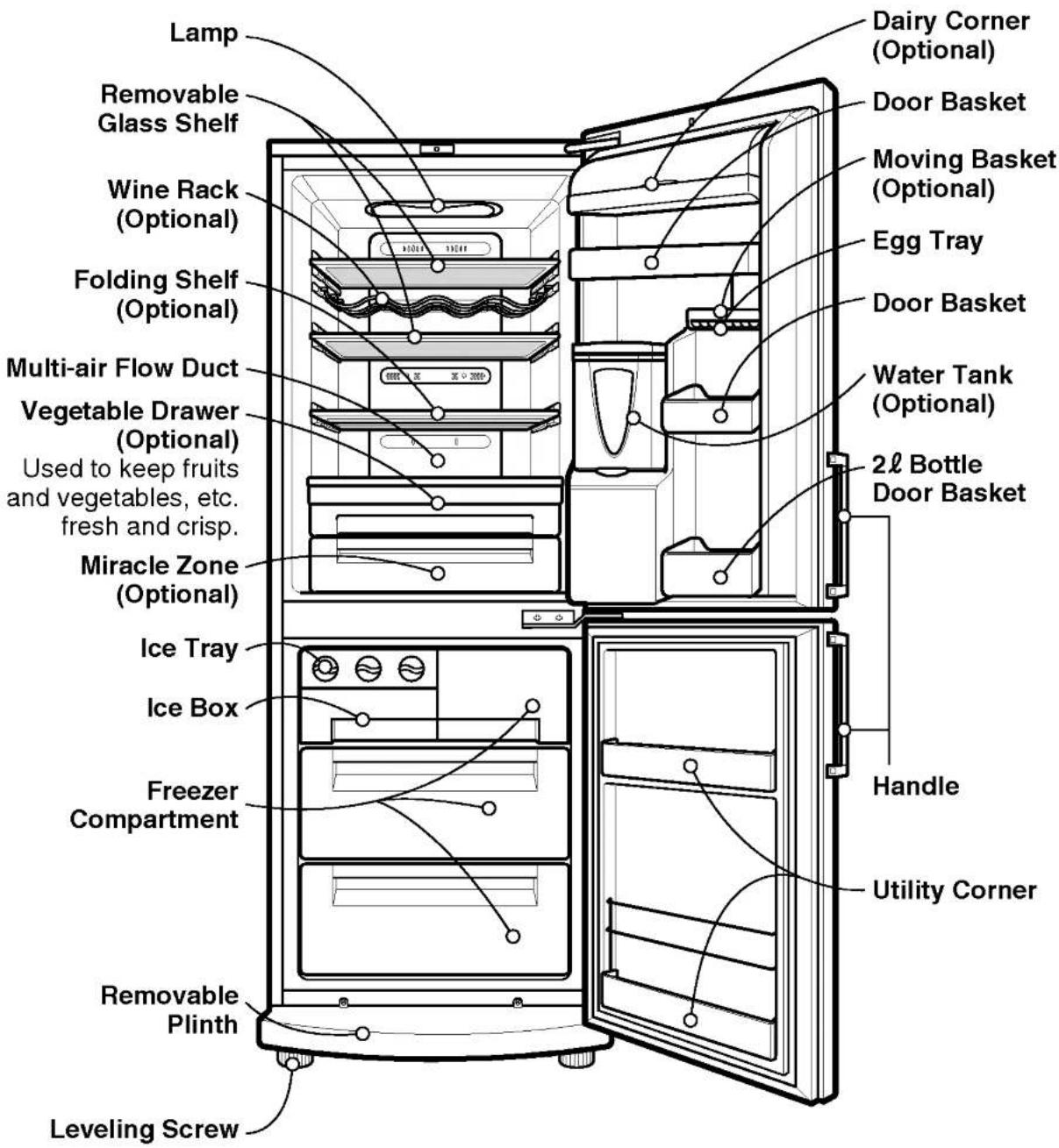

Lamp Removable Glass Shelf Wine Rack (Optional) Folding Shelf (Optional) Multi-air Flow Duct Vegetable Drawer (Optional) Used to keep fruits and vegetables, etc. fresh and crisp. Miracle Zone (Optional) Ice Tray Ice Box Freezer Compartment Removable Plinth Leveling Screw Dairy Corner (Optional) Door Basket Moving Basket (Optional) Egg Tray Door Basket Water Tank (Optional) 2 ℓ Bottle Door Basket Handle Utility Corner

Note

If you find some parts missing from your unit, they may be parts only used in other models. (i.e. the "Miracle Zone" is not included in all models)

Installation

1. Select a good location. Place your fridge-freezer where it is easy to use.
2. Avoid placing the unit near heat sources, direct sunlight or moisture.
3. There must be proper air circulation around your fridge-freezer to keep it operating efficiently. If your fridge-freezer is placed in a recessed area in the wall, allow at least 2 inches(5 cm) above.
4. To avoid vibration, the unit must be leveled. If required, adjust the leveling screws to compensate for the uneven floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws counterclockwise( ) to raise the unit, clockwise( ) to lower it.
5. Clean your fridge-freezer thoroughly and wipe off all dust accumulated during shipping.
6. Install accessories such as ice cube box, etc., in their proper places. They are packed together to prevent possible damage during shipment.
7. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.
   When your fridge-freezer is installed, allow it 2-3 hours to stabilize at normal operating temperature prior to filling it with fresh or frozen foods. If power plug is disconnected, allow 5 minutes delay before restarting. Your fridge-freezer is now ready for use.

Starting

Temperature Control

Your fridge-freezer has controls that let you regulate the temperature in the fridge and freezer compartments.

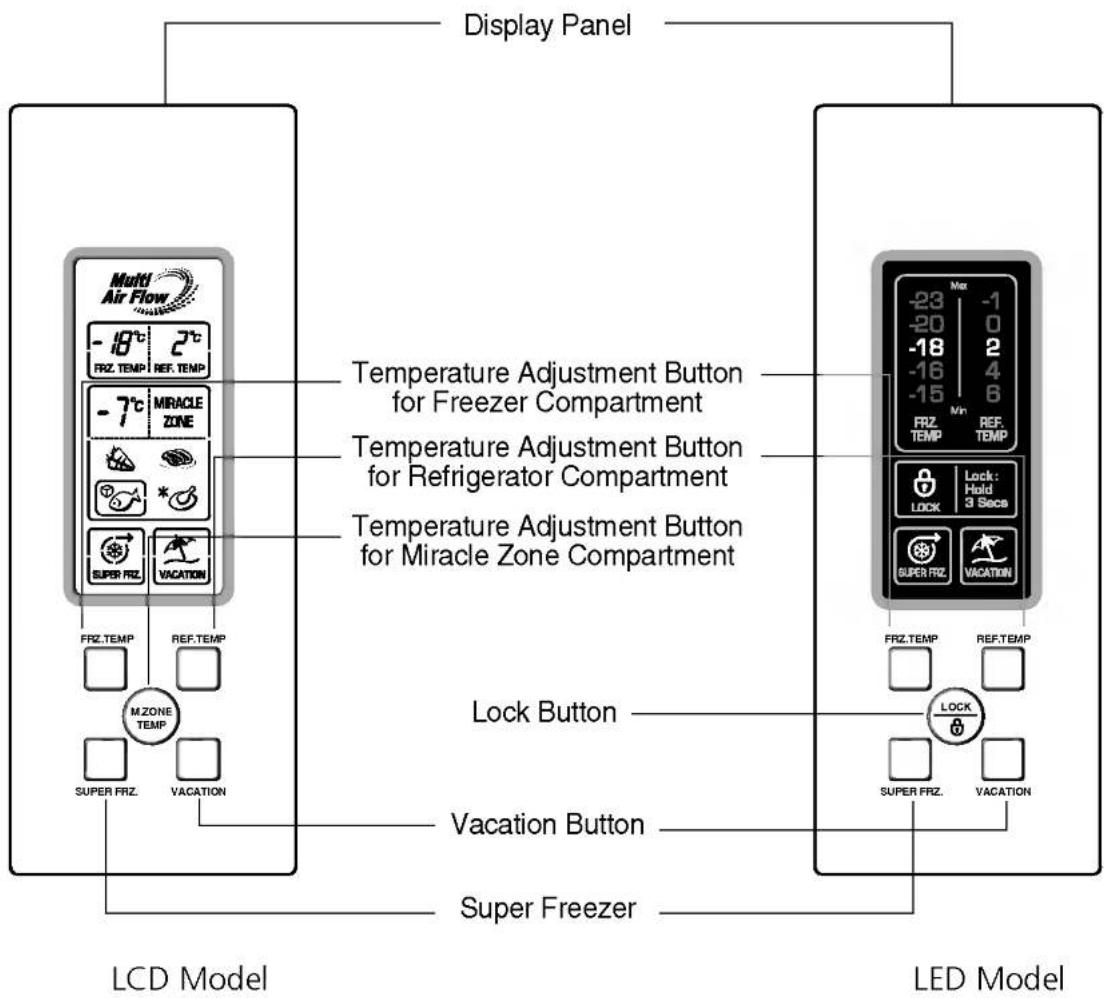

Display Panel For Temperature Control

Adjusting the temperatures and functions

Display Panel Multi Air Flow -18°C 2°C FRZ. TEMP REF. TEMP -7°C MIRACLE ZONE M. ZONE SUPER FRZ. VACATION FRZ. TEMP REF. TEMP Super FRZ. VACATION LCD Model Temperature Adjustment Button for Freezer Compartment Temperature Adjustment Button for Refrigerator Compartment Temperature Adjustment Button for Miracle Zone Compartment Lock Button Vacation Button Super Freezer LED Model -23 -1 -20 0 -18 2 -16 4 -15 6 FRZ. MAX TEMP REF. TEMP LOCK Lock: Hold 3 Secs SUPER FRZ. VACATION FRZ. TEMP REF. TEMP LOCK SUPER FRZ. VACATION

Note

How to adjust the temperature in the refrigerator and freezer compartment

All adjust function of LCD Model is operated after pressing any button.

- The initial Temperature of the Freezer and Refrigerator Compartment is -18°C and 2°C respectively. You can now adjust the temperature of the compartments as you want.

LCD Model

- When you press the temperature control button, the temperature of the Freezer or Refrigerator part is change by 1 degree.

LED Model

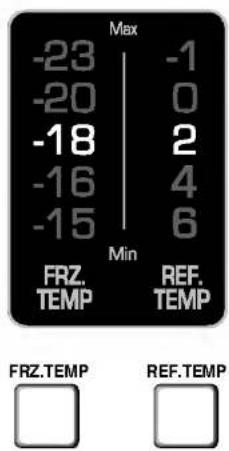

-23 -20 -18 -16 -15 Max -1 0 2 4 6 Min FRZ. TEMP REF. TEMP FRZ.TEMP REF.TEMP

- When you press the temperature control buttons, the temperature of Refrigerator and Freezer compartment is repeated in the following order. Refrigeration Compartment: 2^ 0^ -1^ 6^ 4^ Freezer Compartment: -18^ -20^ -23^ -15^ -16^

Note

The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target temperature, not actual temperature within refrigerator.

Refrigeration function is weak in the initial time. Please adjust temperature as above after using refrigerator for minimum 2\~3 days.

Miracle Zone Temperature Transition Corner (Optional)

- By pressing the button, store vegetables, fruits (at relatively low conservation temperature) or other types of food such as meat to be defrosted, raw fish, etc.

Method to Use

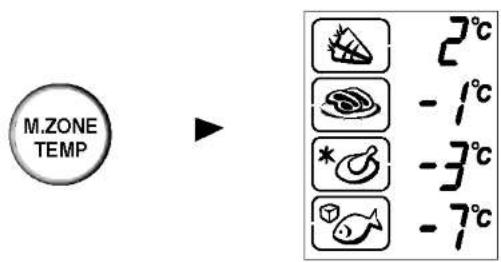

- You can select optimum temperature range depending on types of food stored.

M.ZONE TEMP 2°C -1°C -3°C -7°C

- 4 step of temperature selection including 2^ , -1^ , -3^ , and -7^ is available.

Vegetables/fruits and cold storage foods requiring humidity maintenance and meats/fishes can be more freshly stored depending on type of foods stored.

Operation

Super Feezer

• Please select this function for prompt freezer.
• This function is used when you want to freeze the foods quickly. Press the SUPER FRZ (Super Freezer) button once, and then the quick freeze operation starts with the lamp it.
• The Super Freeze operation takes about 3 hours. When its operation ends, it automatically returns to the previous temperature setting. If you want to stop the quick freeze operation, press the SUPER FRZ button once more, the lamp goes out, and the Super Freeze operation stops and the refrigerator returns to the previous temperature setting.

SUPER FRZ.

In selecting "On"

In selecting "Off"

Vacation

• The arrow mark graphic remains at the On status after flickering for 4 times when selecting Super Freezer is turned "On".
• This function makes the fridge-freezer work in a power saving mode which is useful for when you are away on holiday, by reducing energy consumption as much as possible.

Pressing 'VACATION' starts operation with lamp ON and pressing it again stops the operation.

VACATION

In selecting "On"

In selecting "Off"

Note

When the Vacation mode is "ON", the other buttons will not operate. When you come back from vacations, press the vacation mode off so that other buttons work and the refrigerator returns to previous temperature setting.

Operation

Self Test

Lock

• This function automatically detects failure when failure is found in product during the use of refrigerator.
• If the failure occurs at product and it does not operate by pressing any button and normal indication is not done, do not turn the power off and immediately contact with the local service center.
• A lot of time is needed for service engineer to detect the failed part by turning it off.

For LED Model

• Pressing this button stops operation of other buttons.
• "Locking" or "Un-Locking" is repeated whenever pressing the LOCK button.
  (For "Locking" or "Un-Locking" press the "LOCK" button for 3 secs.)
• When 'LOCK' is activated, pressing the other buttons would not work.

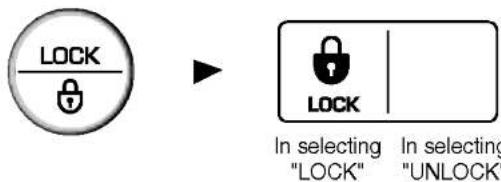

LOCK ↓ LOCK In selecting "LOCK" In selecting "UNLOCK"

Moving Basket (Optional)

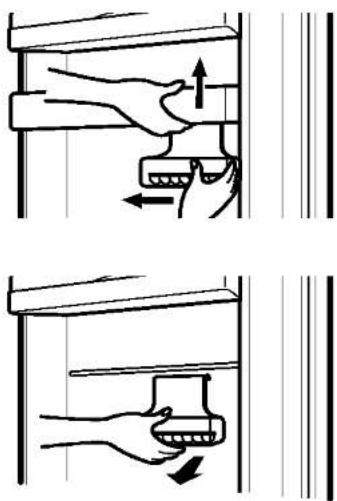

1. This Basket Door can be moved side to side by sliding right or left.
2. To remove the Moving Basket, first of all remove front Moving Basket, and lift until bin up bottom of basket unclicks and pull straight out.
3. Put back the Moving Basket by sliding it above the desired support slot and firmly bush down until it locks in place. Now put the front Moving Basket back to its support.

Diagram illustrating two steps of a hand holding a tool, with directional arrows indicating movement and force direction.

Note

When you move the basket, you had better push the basket bottom side. (like this drawing)

Operation

Door Alarm

Ice Making

Note

- When the door of the fridge is left opened for a while, the alarm sounds. Please contact with the local service center if warning continue to sound even after closing the door.

- Fill water in ice making box of the ice making corner. If water is fully filled the ice will not be separated well and water can be dropped to make ice lumped. - Ice will be dropped into the ice storage bin by rotating ice separation handle of ice making compartment.

- Rotating the ice separation handle before ice is fully frozen may cause the remaining water drop into the ice storage bin to lump the ice together.

Line drawing of an open refrigerator with a hand operating the refrigerator to clean the interior (no text or symbols present)

Tip

- To remove ice cubes easily, run water on the tray before twisting.

Defrosting

- Defrosting takes place automatically. - The defrosting water flows down to the evaporating tray and is evaporated automatically.

Water Dispenser (Optional)

Features

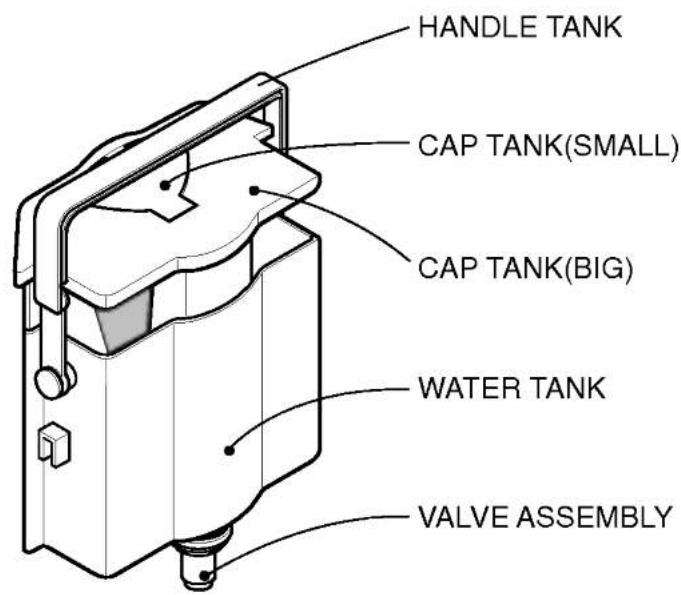

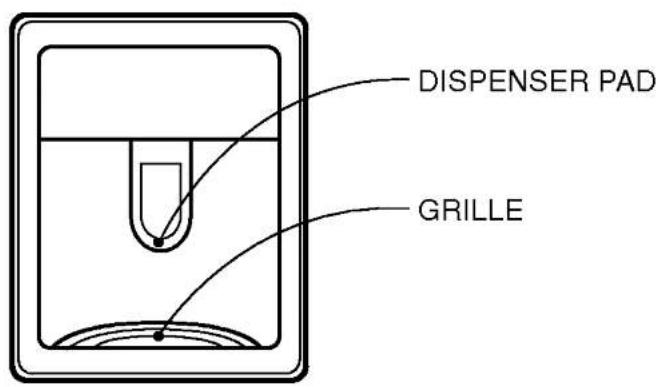

DISPENSER PAD GRILLE

HANDLE TANK CAP TANK(SMALL) CAP TANK(BIG) WATER TANK VALVE ASSEMBLY

Install

- Please assemble the VALVE ASSEMBLY after correctly adjusting it with a DOOR HOLE.

Operation

Filling of WATER TANK

1. After turning the HANDLE Tank backward with the WATER TANK installed at the DOOR, Open the CAP TANK (SMALL) and then fill water using a kettle etc.

* Fill water while watching a sight glass on the front of the WATER TANK.

* Water up to 4.5ℓ can be filled.

1. Press and fix the CAP TANK(SMALL).

2. After filling spring water, fix the HANDLE TANK at a proper position.

Drinking

1. Press the Dispenser Pad with a cup.
2. If pressing the Pad, water inside of the Dispenser is supplied.
3. If slowly removing a cup from the Pad, water will not fall down.

Caution

Do not use other beverage (milk, juice, carbonated beverage etc) than spring water. Especially beverage including grain must not be used (may result in failure).

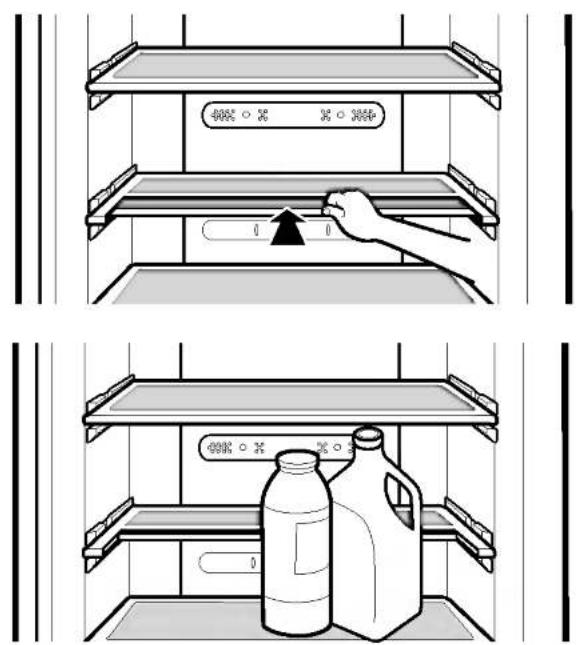

Folding Shelf (Optional)

- You can store taller items such as a gallon or bottles by simply pushing in front half of shelf underneath back half of shelf.

Pull toward you to return to a full shelf.

Diagram showing two steps of a kitchen appliance storage system: one with a hand adjusting a control panel, the other with a bottle and container.

Wine Rack (Optional)

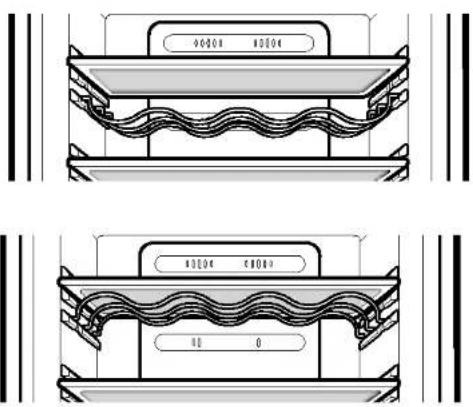

- Bottles can be stored laterally with this wine corner. Then you can invert the wine rack and place it on the shelf. This will enable more shelf-place.

Φ0004 Φ0004 Φ0004 Φ0004 10 0

ex) in using
ex) in not using

Caution

Storing Food

• Do not store food which goes bad easily at low temperature, such as banana, and melon.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• When storing the food, use a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.
• Never keep too many foods in door rack, as this may stop the door from fully closing.
• Do not store bottles in the freezer compartment - they may break when frozen.
• Do not refreeze food that has been thawed. This causes loss of taste and nutrition.
• Do not store pharmaceutical products, scientific materials or other temperature sensitive products in the refrigerator.
  Products that require strict temperature controls must not be stored in the refrigerator.

Suggestions on food storage

• Freezer Door Basket, marked is -12°C compartment, that is suitable for sort term storage of frozen food.
• If you want to quick freeze new food, you put it middle drawer of freezer compartment, and then press the Super Freezer button.

Note

If you keep the fridge-freezer in a hot, and humid place, frequently open its door or put a lot of vegetables in it, dew may form in it, which has no effect on its performance.

Remove the dew with dust cloth free from care.

Power Failure

If You Move

Anti Condensation Pipe

General Information

• 1\~2 hour power failure does no harm to the foods stores. Try to avoid opening and closing the door too frequently.
  • Take out foods from the fridge-freezer and firmly fix the loose items with tape.

• Turn the leveling screws until they stop before moving the fridge-freezer. Otherwise the screw may scratch the floor or the fridge-freezer cannot move.

• The Anti-Condensation pipe is installed around the front side of fridge-freezer as well as on the partition between fridge compartment and freezer compartment to prevent dewing.

• Especially after installation or when ambient temperature is high, the fridge-freezer may feel hot, which is quite normal.

Anti-Condensation Pipe

Pure diagram of a refrigerator with no text, numbers, or symbols

Care and Maintenance

Lamp Replacement

Illustration of hands operating a mechanical device with an upward arrow indicating motion (no text or symbols)

Caution

1. Unplug the power cord from the outlet.
2. Remove the room lamp lid by taking down while pulling its back projection.
3. Remove the lamp by turning it counterclockwise and replace new one.
4. Assemble in reverse order of disassembly. Replacement bulb must be the same specification as original.

- You must check the O-RING, which is made by rubber and prevent electric spark.

- Don't touch the lamp, in case of light on the long time. Because it can be very hot.

Note

• Lamp capacity is MAX 30W.
• The lamp will remain "ON" for 7 minutes if the door is left open and then it is "OFF" for safety. (If you reopen the door, the lamp is "On".)

To Reverse the Doors

- Your fridge-freezer is designed with reversible doors, do that they may open from either the left of right hand side to suit your kitchen design.

Caution

However, When you want to reverse the doors, you must be calling to service agent.

Cleaning

Before Cleaning

Exterior

Be sure to unplug the power.

Clean the outside of the fridge-freezer with a soft cloth soaked with hot water or liquid detergent. If you use a detergent, be sure to wipe it with a clean wet cloth.

Interior

As above.

After Cleaning

Check that the power cord is not damaged, power plug has not overheated, and that the power plug is tightly inserted into the outlet.

Warning

Be sure to dry the appliance with a cloth after washing it with water.

Do not use abrasive, petroleum, benzene, thinner, hydrochloride acid, boiling water, rough brush, etc, as they may damage parts of the fridge-freezer.

Care and Maintenance

GRILLE and DRIP TRAY

Exterior Dispenser

Water Tank

Cap Tank(Big & Small)

Valve Assembly

1. Remove the HOLE part of the GRILLE with the finger.
2. Wipe moisture out around the DOOR part and the DRIP TRAY using a clean cloth.

Wipe moisture etc out outside of Dispenser and on the Dispenser Pad using a cloth.

1. Lift the WATER TANK up by pressing the fixing LEVER on the bottom of WATER TANK and then remove it.
2. After removing the CAP TANK (BIG), clean and fully rinse the inside/outside part of the WATER TANK by using neutral cleansing agent.

Clean and fully rinse the Cap Tank (Big & Small) by using neutral cleansing agent.

Especially for the groove part of the CAP TANK, it is convenient to cleanse it by using a small brush.

Clean and fully rinse the VALVE ASSEMBLY by using a small brush. Rinse it while operating the bottom part of the valve assembly. Always fix the Sealing Rubber separated for cleansing at the existing position (may result in water leakage).

Trouble Shooting

	Before calling for service, check this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.
Problem	Possible Causes
Fridge-Freezer does not operate	Power plug may be unplugged from the electric outlet.Plug it in securely.House fuse has blown or circuit breaker has tripped.Check and/or replace fuse and reset circuit breaker.Power cut.Check house lights.
Fridge or Freezer Compartment Temperature too warm	Temperature control not set on proper position.Refer to Temperature Control section.Appliance is placed close to heat source.Warm weather-frequent door openings.Door left open for a long time.Package holding door open or blocking air duct in freezer compartment.
Vibration or Rattling or Abnormal Noise	The floor on which the fridge-freezer is installed may be uneven or the fridge-freezer may be unstable.Make it even by rotating the leveling screw.Unnecessary objects placed in the back side of the fridge-freezer.
Frost or Ice Crystals on frozen Food	Door may have been left ajar or package holding door open.Too frequent or too long door openings.Frost within package is normal.
Moisture forms on Cabinet Surface	This phenomenon is likely to occur in a wet space.Wipe it with a dry towel.

Problem

Moisture collects inside

Fridge has odor

Door not closing properly

Interior light does not work

Possible Causes

• Too frequent or too long door openings.
• In humid weather, air carries moisture into fridge when doors are opened.
• Foods with strong odors should be tightly covered or wrapped.
• Check for spoiled food.

• Interior needs cleaning. Refer to CLEANING section

• Food package is keeping door open. Move packages that keep door from closing.

• Fridge-freezer is not level. Adjust the leveling screws.

• The floor on which the fridge-freezer is installed may be uneven or the fridge-freezer may be unstable. Slightly raise the front side with the leveling screw.

• No power at outlet.
  • Light lamp needs replacing. Refer to the Lamp Replacement section

Prohibition sign with crossed-out trash bin and a black rectangular block below

DISPOSAL OF YOUR OLD APPLIANCE

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

Memo

LG Electronics Inc.

LG Twin Tower, 20, Yoido-Dong, Youngdungpo-Gu, Seoul, 150-721, Korea. http://www.lge.co.kr
