USER MANUAL A242HL LG

Please read this manual carefully before operating your set and retain it for future reference.

TYPE:WALL MOUNTED

MODELS

A122CL

NB1

A122CL

US1

A122HL

NB1

A122HL

US1

A182CL

NC1

A182CL

US1

A182HL

NC1

A182HL

JS1

A242CL

NC1 A242CL US1

A242HL

NC2

A242HL

JS2

A092CL

NBO A092CL USO

TABLE OF CONTENTS

A. Safety Precautions ......3
B. Electrical Safety......6

Temporary Use of an Adapter ......6

Temporary Use of an Extension Cord ...6

Symbols used in this Manual......6

C. Product Introduction......7

Indoor Units 7

Operation Indication Lamps .....7

Outdoor Unit 7

D. Operating Instructions......8

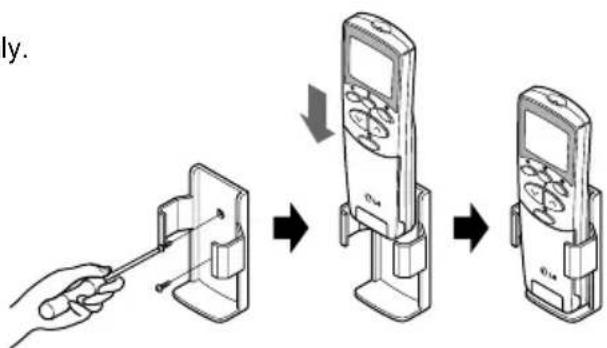

How to insert the Batteries 8

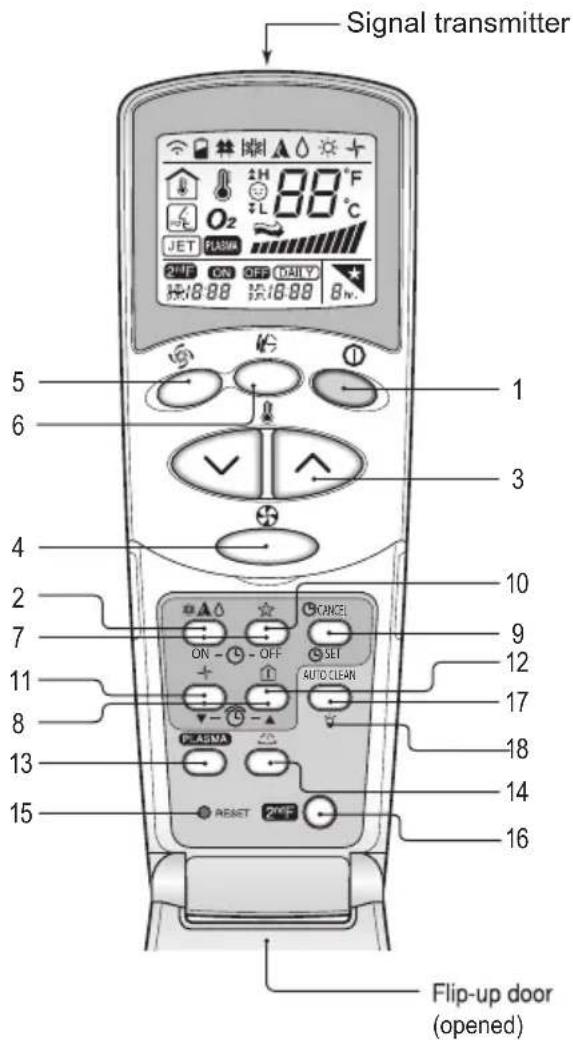

Wireless Remote Controller

Maintenance....8

Operating Method......8

Wireless Remote Controller

(Cooling Only Model)....9

Wireless Remote Controller

(Heat Pump Model)....10

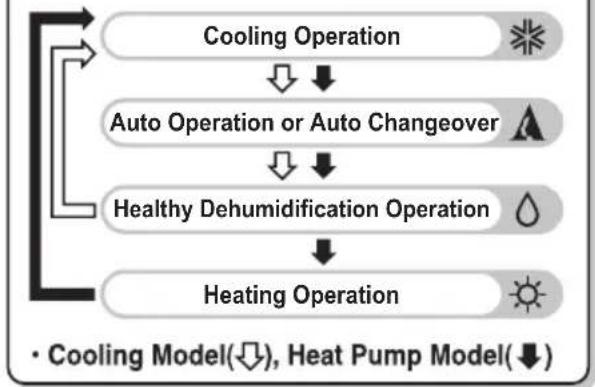

Operation Mode....11

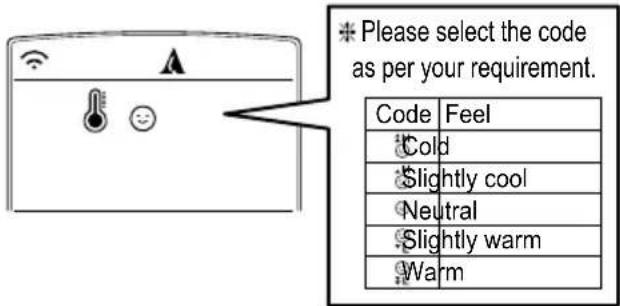

Auto Operation

(Cooling Only Model)....12

Healthy Dehumidification Operation.....12

Air Circulation Operation 13

Auto Clean Operation....13

NEO PLASMA Purification Operation

(Optional)....13

Display Luminosity 14

Timer Setting Operation....15

To Cancle The Timer Setting......15

Sleep Mode 15

Horizontal Vane Control....16

Vertical Louver Control....16

Jet Cool 17

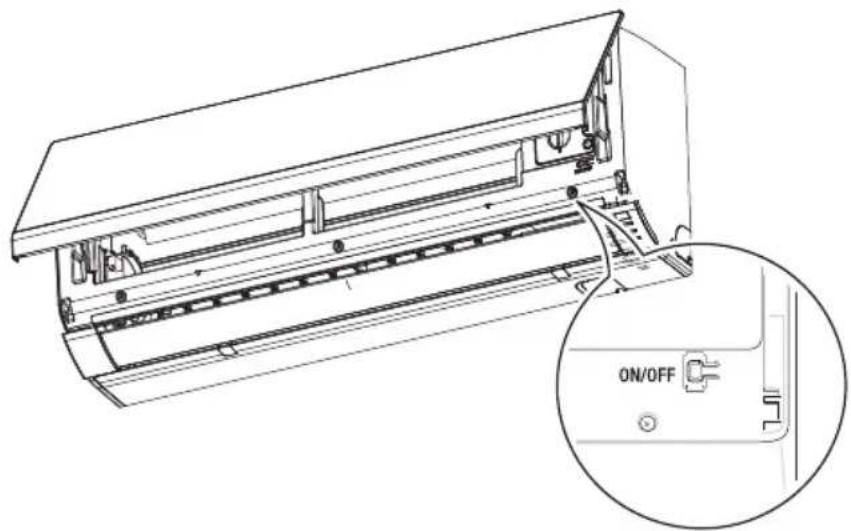

Forced Operation....17

E. Maintenance and Service......18

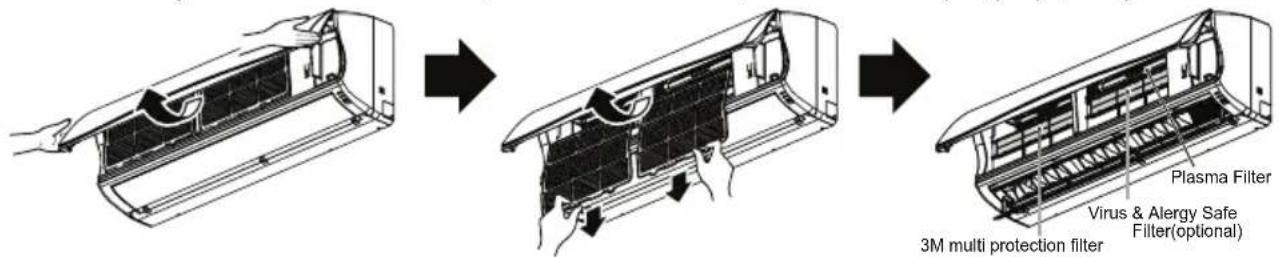

Indoor Unit....18

Outdoor Unit 19

Operation Tips!......19

Self-Diagnosis Function 19

Troubleshooting Tips!

Save time and money!......20

Call the service immediately in the

following situations 20

FOR YOUR RECORDS

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the side of each unit.

Dealer's Name

Date Purchased

■ Staple your receipt to this page in the event you need it to prove date of purchase or for warranty issues.

READ THIS MANUAL

Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner.

You'll find many answers to common problems in the chart of troubleshooting tips. If you review our chart of

Troubleshooting Tips first, you may not need to call for service at all.

PRECAUTION

• Contact the authorized service technician for repair or maintenance of this unit.
• Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young children or invalids without supervision.
• Young children should be supervised to ensure that they do not play with the air conditioner.
• When the power cord is to be replaced, replacement work shall be performed by authorized personnel only using only genuine replacement parts.

Simple line drawing of people enjoying a picnic at a table with sun and palm trees (no text or symbols)

Safety Precautions

To prevent injury to the user or other people and property damage, the following instructions must be followed.

■ Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the following indications.

WARNING

This symbol indicates the possibility of death or serious injury.

CAUTION

This symbol indicates the possibility of injury or damage.

■ Meanings of symbols used in this manual are as shown below.

Be sure not to do.

Be sure to follow the instruction.

WARNING

Always use a power plug and socket with a ground terminal.

• There is a risk of electric shock.

Do not use a defective or underrated circuit breaker. Use the correctly rated breaker and fuse.

• There is risk of fire or electric shock.

Do not use a multi consent. Always use this appliance on a dedicated circuit and breaker.

- Otherwise it can cause electric shock or fire.

For electrical work, contact the dealer, seller, a qualified electrician, or an Authorized Service Center. Do not disassemble or repair the product by yourself.

• There is risk of fire or electric shock.

Always ground the product as per the wiring diagram. Do not connect the ground wire to gas or water pipes lightening rod or telephone ground wire.

• There is risk of fire or electric shock.

Install the panel and the cover of control box securely.

- There is risk of fire or electric shock due to dust, water etc.

Use the correctly rated breaker or fuse.

• There is risk of fire or electric shock.

Do not modify or extend the power cable. If the power cable or cord has scrathes or skin peeled off or deteriorated then it must be replaced.

• There is risk of fire or electric shock.

For installation, removal or reinstall, always contact the dealer or an Authorized Service Center.

- There is risk of fire, electric shock, explosion, or injury.

Do not install the product on a defective installation stand. Be sure that the installation area does not deteriorate with age.

- It may cause product to fall.

Never install the outdoor unit on a moving base or a place from where it can fall down.

- The falling outdoor unit can cause damage or injury or even death of a person.

When the product is soaked (flooded or submerged) in water, contact an Authorized Service Center for repair before using it again.

• There is risk of fire or eletric shock.

In outdoor unit the step-up capacitor supplies high voltage electricity to the electrical components. Be sure to discharge the capacitor completely before conducting the repair work.

- An charged capacitor can cause electrical shock.

When installing the unit, use the installation kit provided with the product.

- Otherwise the unit may fall and cause severe injury.

Be sure to use only those parts which are listed in the svc parts list. Never attempt to modify the equipment.

- The use of inappropriate parts can cause an electrical shock, excessive heat generation or fire.

Indoor/outdoor wiring connections must be secured tightly and the cable should be routed properly so that there is no force pulling the cable from the connection terminals.

• Improper or loose connections can cause heat generation or fire.
  Safely dispose off the packing materials. Like screws, nails, batteries, broken things etc after installation or svc and then tear away and throw away the plastic packaging bags.
  • Children may play with them and cause injury.
  Make sure to check that the power cable plug is not dirty, loose or broken and then only insert the plug completely.
• Dirty, loose or broken power plug can cause electric shock or fire.
  Be sure to check the refrigerant to the used. Please read the label on the product.
• Incorrect refrigerant used can prevent the normal operation of the unit.
  Don't use a power cord, a plug or a loose socket which is damaged.
• Otherwise it may cause a fire or electrical shock.
  Do not touch, operate, or repair the product with wet hands. Hold the plug by hand when taking out
  • There is risk of electric shock or fire.
  Do not place a heater or other heating appliances near the power cable.
  • There is risk of fire and electric shock.
  Do not allow water to run into electric sources.
• There is risk of fire, failure of the product, or electric shock.
  Do not store or use or even allow flammable gas or combustibles near the product.
• There is risk of fire.
  Do not use the product in a tightly closed space for a long time. Perform ventilation regularly.
• Oxygen deficiency could occur and hence harm your health.
  Do not open the front grille of the product electrostatic filter, if the unit is so equipped.)
• There is risk of physical injury, electric shock, or product failure.
  If strange sounds, smell or smoke comes from product. Immediately turn the breaker off or disconnect the power supply cable.
• There is risk of electric shock or fire.
  Ventilate the product room from time to time when operating it together with a stove, or heating element etc.
• Oxygen deficiency can occur and hence harm your health.
  Turn the main power off and unplug the unit when cleaning or repairing the product.
  • There is risk of electric shock.
  When the product is not to be used for a long time, disconnect the power supply plug or turn off the breaker.
• There is risk of product damage or failure, or unintended operation.
  Take care to ensure that nobody especially kids could step on or fall onto the outdoor unit.
• This could result in personal injury and product damage.
  Take care to ensure that power cable could not be pulled out or damaged during operation.
  • There is risk of fire or electric shock.
  Do not place ANYTHING on the power cable.
  • There is risk of fire or electric shock.
  Do not plug or unplug the power supply plug to turn the unit ON/OFF.
  • There is risk of fire or electric shock.
  When flammable gas leaks, turn off the gas and open a window for ventilation before turn the product on.
• Do not use the telephone or turn switches on or off. There is risk of explosion or fire.

CAUTION

Two or more people must lift and transport the product.

- Avoid personal injury.

Do not install the product where it will be exposed to sea wind (salt spray) directly.

- It may cause corrosion on the product.

Install the drain hose to ensure that the condensed water is drained away properly.

• A bad connection may cause water leakage.

Keep level even when installing the product.

• To avoid vibration or noise.

Do not install the product where the noise damage or disturb the neighborhoods.

- It may cause a problem for your neighbors and hence dispute.

Always check for gas (refrigerant) leakage after installation or repair of product.

- Low refrigerant levels may cause failure of product.

Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a consumer air conditioner, not a precision refrigeration system.

• There is risk of damage or loss of property.

Do not block the inlet or outlet of air flow.

- It may cause product failure.

Use a soft cloth to clean. Do not use harsh detergents, solvents or splashing water etc.

- There is risk of fire, electric shock, or damage to the plastic parts of the product.

Do not touch the metal parts of the product when removing the air filter.

• There is risk of personal injury.

Do not step on or put anything on the product. (outdoor units)

• There is risk of personal injury and failure of

Always insert the filter securely after cleaning. Clean the filter every two weeks or more often if necessary.

• A dirty filter reduces the efficiency.

Do not insert hands or other objects through the air inlet or outlet while the product is operating.

• There are sharp and moving parts that could cause personal injury.

Be cautious when unpacking and installing the product.

• Sharp edges could cause injury.

If the refrigerant gas leaks during the repair, do not touch the leakaing refrigerant gas.

• The refrigernat gas can cause frostbite (cold burn)

Do not tilt the unit when removing or uninstalling it.

• The condensed water inside can spill.

Do not mix air or gas other than the specified refrigerant used in the system.

- If air enters the refrigerant system, an excessively high pressure results, causing equipment damage or injury.

If the refrigerant gas leaks during the installation, ventilate the area immediately.

- Otherwise it can be harmful for your health.

Dismantling the unit, treatment of the refrigerant oil and eventual parts should be done in accordance with local and national standards.

Replace the all batteries in the remote control with new ones of the same type. Do not mix old and new batteries or different types of batteries.

• There is risk of fire or product failure.

Do not recharge or disassemble the batteries. Do not dispose off batteries in a fire.

• They may burn or explode.

If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water. Do not use the remote if the batteries have leaked.

• The chemicals in batteries could cause burns or other health hazards.

Do not let the air conditioner run for a long time when the humidity is very high and a door or a window is left open.

• Moisture may condense and wet or damage furniture.

Do not expose your skin or kids or plants to the cool or hot air draft.

• This could harm to your health.

If you eat the liquid from the batteries, brush your teeth and see doctor. Do not use the remote if the batteries have leaked.

• The chemicals in batteries could cause burns or other health hazards.

Do not drink the water drained from the product.

- It is not sanitary and could cause serious health issues.

Use a firm stool or ladder when cleaning, maintaining or repairing the product at an height.

- Be careful and avoid personal injury.

Electrical Safety

▲ WARNING

• This appliance must be properly grounded.
To minimize the risk of electric shock, you must alway plug into a grounded outlet.
- Do not cut or remove the grounding prong from the power plug.
- Attaching the adapter ground terminal to the wall receptacle cover screw does not ground the appliance unless the cover screw is metal and not insulated, and the wall receptacle is grounded through the house wiring.
- If you have any doubt whether the air conditioner is properly grounded, have the wall receptacle and circuit checked by a qualified electrician.

Temporary Use of an Adapter

We strongly discourage the use of an adapter due to potential safety hazards. For temporary connections, use only a genuine adapter, available from most local hardware stores. Ensure that the large slot in the adapter is aligned with the large slot in the receptacle for a proper polarity connection.

To disconnect the power cord from the adapter, use one hand on each to avoid damaging the ground terminal. Avoid frequently unplugging the power cord as this can lead to eventual ground terminal damage.

WARNING

- Never use the appliance with a broken adapter.

Temporary Use of an Extension Cord

We strongly discourage the use of an extension cord due to potential safety hazards.

▲ WARNING

This appliance should be installed in accordance with national wiring regulations. This guide acts as a guide to help to explain product features.

Symbols used in this Manual

This symbol alerts you to the risk of electric shock.

This symbol alerts you to hazards that may cause harm to the air conditioner.

NOTE

This symbol indicates special notes.

Product Introduction

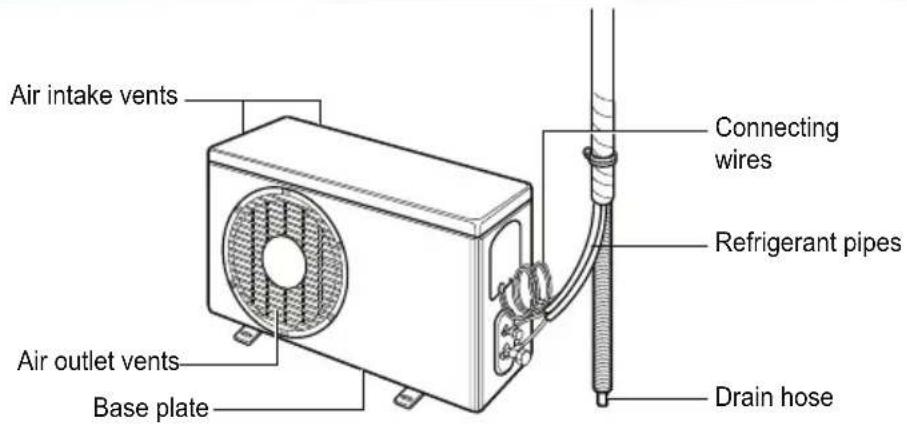

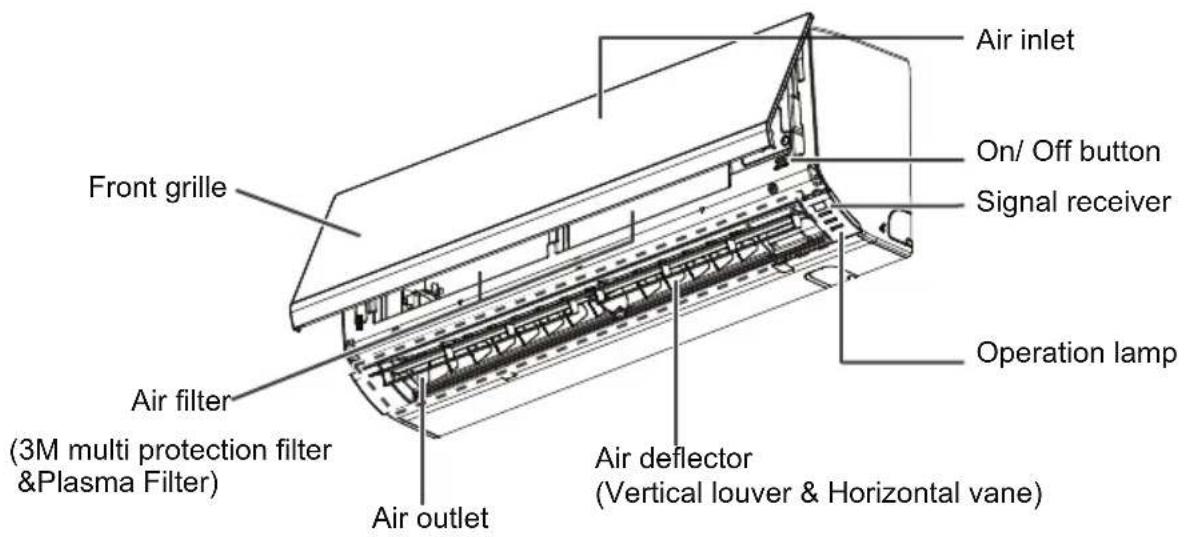

Here is a brief introduction of the indoor and outdoor units. Please see the information specific to your indoor unit type.

Indoor Units

Front grille Air filter (3M multi protection filter & Plasma Filter) Air outlet Air inlet On/ Off button Signal receiver Operation lamp Air deflector (Vertical louver & Horizontal vane)

Operation Indication Lamps

Cooling

Heating

Outdoor

Plasma

: 'Cooling' lamp lights up during cooling operation.

: 'Heating' lamp lights up during Heating operation. (For Heating Model)

: 'Outdoor' lamp lights up during cooling operation. (For Cooling Model)

: 'Plasma' lamp lights up during plasma purification operation.

Outdoor Unit

Air intake vents Connecting wires Refrigerant pipes Air outlet vents Base plate Drain hose

Operating Instructions

How to insert the Batteries

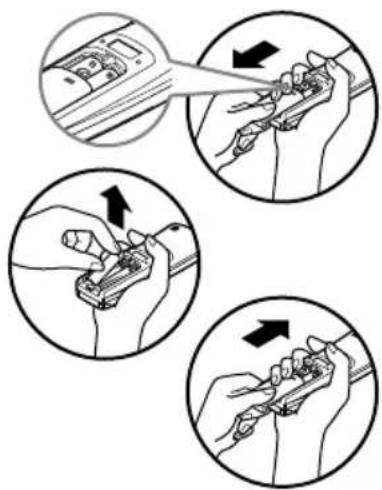

1. Remove the battery cover by pulling it according to the arrow direction.
2. Insert new batteries making sure that the (+) and (-) of battery are installed correctly.
3. Reattach the cover by sliding it back into position.

NOTE

1. Always use/replace both batteries of same type.
2. If the system is not to be used for a long time, remove the batteries to save their working life.
3. If the display screen of remote controller starts, fading replace both of the batteries.
4. Use 2 AAA(1.5 volt) batteries.

Diagram illustrating four steps of tool application: grip, press, tool path, and tool handle with directional arrows.

Wireless Remote Controlled Maintenance

1. Choose a suitable place where its safe & easy to reach.
2. Fix the holder to wall etc with the supplied screws firmly.
3. Slide the remote controller inside the holder.

NOTE

1. Remote controller should never be exposed to direct sunlight.

2. Signal transmitter & receiver should always be clean for proper communication. Use a soft cloth to clean them.

3. In case some other appliances also get operated with remote control, change their position or consult your serviceman.

ly.

Operating Method

1. The signal receiver is inside the unit.

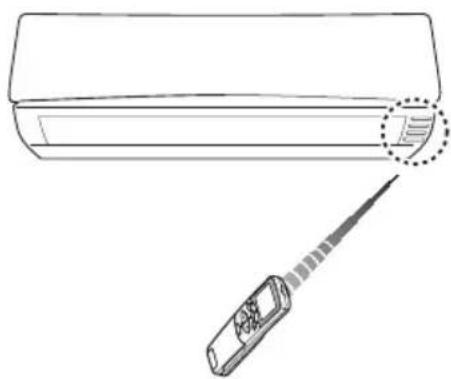

2. Aim the remote controller towards the unit to operate it. There should not be any blockage in between.

Line drawing of a car air conditioner with a screwdriver inserted, showing no text or symbols

Wireless Remote Controller (Cooling Only Model)

The controls will look like the following.

Signal transmitter 5 6 1 3 4 10 2 7 9 12 11 8 17 18 13 14 15 16 RESET ON OFF DAILY ON 18:88 ON 16:88 CANCE SET AUTO CLEAN FLASMA Flip-up door (opened)

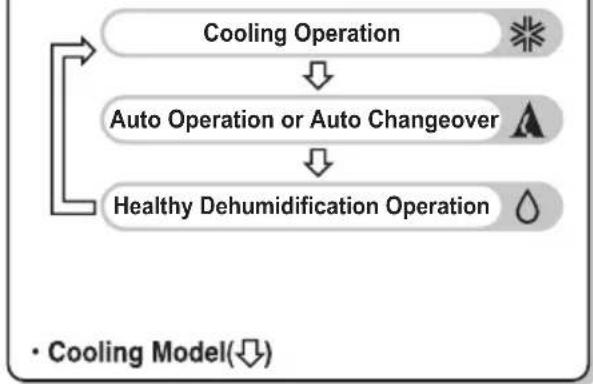

Operation Mode

ON/OFF BUTTON

Used to turn off/on the unit.

OPERATION MODE SELECTION BUTTON

Used to select the operation mode.

ROOM TEMPERATURE SETTING BUTTONS

Used to select the room temperature.

INDOOR FAN SPEED SELECTION BUTTON

Used to select fan speed in four steps low, medium, high and natural wind.

HORIZONTAL VANE CONTROL BUTTON

Used to set the desired vertical airflow direction.

VERTICAL LOUVER CONTROL BUTTON

Used to set the desired horizontal airflow direction.

AUTO CLEAN BUTTON

Used to set auto clean.

ROOM TEMPERATURE CHECKING BUTTON

Used to check the room temperature.

ON/OFF TIMER BUTTONS

Used to set the time of starting and stopping operation.

TIME SETTING BUTTONS

Used to adjust the time.

TIMER SET/CANCEL BUTTON

Used to set and to cancel the timer operation.

RESET BUTTON

Used prior to resetting time.

PLASMA BUTTON

Used to start or stop the plasma-purification.

LED LUMINOSITY BUTTON

Used to adjust LED luminosity.

SLEEP MODE AUTO BUTTON

Used to set sleep mode auto operation.

AIR CIRCULATION BUTTON

Used to circulate the room air without cooling or heating.

JET COOL BUTTON

Used to start or stop the speed cooling.

The Jet Cool operates fan in super high speed in cooling mode.

2nd F BUTTON

Used prior to using modes printed in blue at the bottom of buttons.

NOTE

To use the functions printed in blue at the bottom of the buttons press 2^nd F button first and then the required function button. Pressing the 2^nd F button activates the blue printed function of the respective button. To cancel the function press the 2nd F button again else it will automatically cancel if remains idle after 10 seconds.

Wireless Remote Controller (Heat Pump Model)

The controls will look like the following.

Signal transmitter 5 6 1 3 4 10 7 9 12 11 17 8 18 13 14 15 16 Flip-up door (opened)

Operation Mode

ON/OFF BUTTON

Used to turn off/on the unit.

OPERATION MODE SELECTION BUTTON

Used to select the operation mode.

ROOM TEMPERATURE SETTING BUTTONS

Used to select the room temperature.

INDOOR FAN SPEED SELECTION BUTTON

Used to select fan speed in four steps low, medium, high and natural wind.

HORIZONTAL VANE CONTROL BUTTON

Used to set the desired vertical airflow direction.

VERTICAL LOUVER CONTROL BUTTON

Used to set the desired horizontal airflow direction.

AUTO CLEAN BUTTON

Used to set auto clean.

ROOM TEMPERATURE CHECKING BUTTON

Used to check the room temperature.

ON/OFF TIMER BUTTONS

Used to set the time of starting and stopping operation.

TIME SETTING BUTTONS

Used to adjust the time.

TIMER SET/CANCEL BUTTON

Used to set and to cancel the timer operation.

RESET BUTTON

Used prior to resetting time.

PLASMA BUTTON

Used to start or stop the plasma-purification.

LED LUMINOSITY BUTTON

Used to adjust LED luminosity.

SLEEP MODE AUTO BUTTON

Used to set sleep mode auto operation.

AIR CIRCULATION BUTTON

Used to circulate the room air without cooling or heating.

JET COOL BUTTON

Used to start or stop the speed cooling.

The Jet Cool operates fan in super high speed in cooling mode.

2nd F BUTTON

Used prior to using modes printed in blue at the bottom of buttons.

NOTE

To use the functions printed in blue at the bottom of the buttons press 2^nd F button first and then the required function button. Pressing the 2^nd F button activates the blue printed function of the respective button. To cancel the function press the 2nd F button again else it will automatically cancel if remains idle after 10 seconds.

Operation Mode

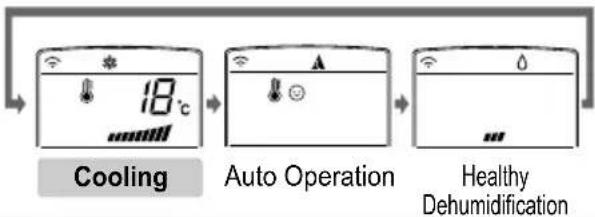

1 Press the ON/OFF BUTTON to Turn on the unit The unit will respond with a beep.

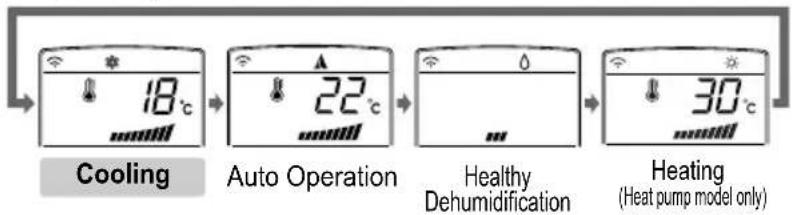

2 Open the cover of the remote controller and press the operation mode button. Each time the button is pressed, the operation mode is shifted in the direction of the arrow. (For Heating Model)

Open the cover of the remote controller and press the operation mode button. Each time the button is pressed, the operation mode is shifted in the direction of the arrow. (For Cooling Model)

3 For cooling or heating operation set the desired indoor temperature by pressing the ROOM TEMPERATURE SETTING BUTTONS.

For cooling the temperature can be set within 18°C\~30°C and for heating the temperature range is 16°C\~30°C.

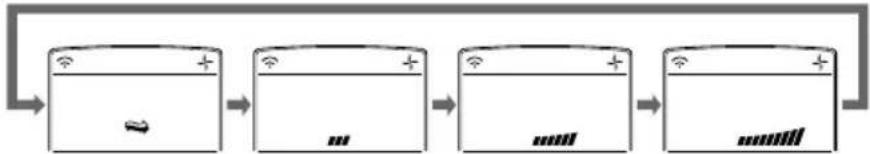

4 Set the fan speed with the remote controller.

You can select the fan speed in four steps: low, medium, high and natural wind by pressing the INDOOR FAN SPEED SELECTION BUTTON Each time the button is pressed, the fan speed mode is shifted in the direction of the arrow.

Step1(Low) Step2(Medium) Step3(High) Natural Wind

Natural wind

☐ For fresher feeling, press the INDOOR FAN SPEED SELECTION BUTTON and set to Natural wind mode. In this mode, the wind blows like a natural breeze by automatically changing fan speed.

Auto Operation

The temperature and fan speed are automatically set by the electronic controls based on the actual room temperature.

If you feel hot or cold, press TEMPERATURE SETTING buttons for more cooling or heating effect.

You cannot switch the indoor fan speed. It has already been set by the Auto Operation Mode rule.

* Please select the code as per your requirement. Code Feel Cold Slightly cool Neutral Slightly warm Warm

A 22°C

You can set desired temperature and indoor fan speed.

Setting Temp. Range : 18\~30°C.

NOTE

: You can not set the actual setting temperature and the fan speed in this operation mode. But you can use the Auto swing in this operation. If the system is not operating as desired, switch manually to another mode

Healthy Dehumidification Operation

Simple line drawing of a refrigerator with icons for Wi-Fi, water drop, and battery (no text or symbols)

During Healthy Dehumidification Operation

☐ If you select the dehumidification mode on the OPERATION MODE SELECTION BUTTON, the product starts to run the dehumidification function.

It automatically sets the room temperature and airflow volume to the best condition for dehumidification, based on the sensed current room temperature. In this case, however, the setting temperature is not displayed on the remote controller and you are not able to control the room temperature either.

During the healthy dehumidification function, the fan speed is automatically set according to the optimization algorithm responding to the current room temperature status, so that the room condition is kept healthy and comfortable even in the very humid season.

Air Circulation Operation

Simple line drawing of a device interface with Wi-Fi, battery, and waveform symbols (no text or labels)

This operation circulates the air without cooling or heating. It can be activated by pressing the AIR CIRCULATION BUTTON. Once the air circulation is activated you can select the fan speed by pressing the INDOOR FAN SPEED SELECTION BUTTON.

Auto Clean Operation

☐ During Auto Clean Operation, moistures left in indoor units after cooling operation or healthy dehumidification operation can be removed.

18℃

Select Auto Clean Operation by the function setting button( AUTO CLEAN ). Now whenever the unit is turned off, the indoor fan is still running for about 30 minutes internally without cooling or dehumidification operation. This function dries up any remains of moisture & cleans the unit internally. If you push the Auto Clean button again, this function is cancelled.

NOTE

☐ During Auto Clean function, only ON/OFF button, Plasma button, Auto Clean button is used. During this operation, 'Cooling Lamp' lights up.

PLASMA Purification Operation (Optional)

18°C PLASMA

Plasma filter is a technology developed by LG to get rid of microscopic contaminants in the intake air by generating a plasma of high charge electrons. This plasma kills and destroys the contaminants completely to provide clean and hygienic air.

Plasma purification operation can be started by pressing the PLASMA BUTTON on the remote controller.

Repressing it will deactivate the operation.

PLASMA

NOTE

• This features can be used in any operation mode and fan speed by pressing the plasma button.
• Separate plasma purification operation is possible in stop condition. It is cancelled by pressing plasma button or on/off button.

Display Luminosity

The unit display luminosity can be adjusted by using the remote controller.

Open the cover of the remote controller and press the LED LUMINOSITY BUTTON.

Display LED will be off. Press the button again to set bright display.

(The order of 100% → 50% 0% LUMINOSITY is repeated whenever you press the button.)

Setting the Current Time

1 Time can be set only when you press the RESET BUTTON. Having replacing the batteries, you should press the RESET BUTTON to reset the time. Press the ON/OFF BUTTON.

2 Press 2 ^nd F button and check if icon is on.

3 Press the TIME SETTING BUTTONS until the desired time is set.

4 Press the TIMER SET/CANCEL BUTTON.

NOTE

Check the indicator for a.m. and p.m.

Timer Setting Operation

Description	Button on the Remote Controller
1 Make sure to set current time correctly on the display of the remote controller..
2 Press 2nd F button.
3 Press the ON/OFF TIMER BUTTONS to turn timer on or off.
4 Press the TIME SETTING BUTTONS until the desired time is set.
5 To set the selected time, press the TIMER SET BUTTON aiming the remote controller at the signal receiver.

NOTE

Select one of the following four types of operation.

OFF a.m.12:00 ON a.m. 6:00 ON OFF a.m. 3:30 a.m. 3:00 ON OFF a.m. 3:00 a.m. 3:30

Delay off timer Delay on timer Delay off and on timer Delay on and off timer

To cancel the timer setting

Check if 2^ndF icon is off.

Press the TIMER CANCEL BUTTON aiming the remote controller at the signal receiver.

(The timer lamp on the air conditioner and the display will go off.)

Sleep Mode Operation

Press the SLEEP MODE AUTO BUTTON to set the time when you want the unit to stop automatically. The timer is programmed in one-hour increments by pressing the SLEEP MODE AUTO BUTTON 1 to 7 times. The sleep mode is available for 1 to 7 hours.

NOTE

- The sleep mode will operate indoor fan at super low speed in cooling mode and at low speed in heating mode for pleasant sleep.

In cooling mode or healthy dehumidification mode:

The setting temperature will rise automatically two times by 1^ C over next consecutive 30 minutes (Maximum 2^ C) for a comfortable sleep. This will be the final setting temperature as long as sleep mode is functioning.

Horizontal Vane Control

The Horizontal Vane can be adjusted by using the remote controller.

Auto Swing

1. Press the ON/OFF BUTTON to start the unit.
2. Press the HORIZONTAL VANE CONTROL BUTTON.
3. The horizontal vane will swing up&down automatically.
4. To stop the horizontal vane at a desired angle, press the HORIZONTAL VANE CONTROL BUTTON again.

Vertical Louver Control

The Vertical Louvers can be adjusted by using the remote controller.

Auto Swing

1. Press the ON/OFF BUTTON to start the unit.
2. Press the VERTICAL LOUVER CONTROL BUTTON.
3. The vertical louvers will swing left&right automatically.
4. To stop the vertical louvers at a desired angle, press the VERTICAL LOUVER CONTROL BUTTON again.

NOTE

• Manually moving the Horizontal Vane or Vertical Louvers by hand could damage the mechanism. When the unit is shut off, the the Horizontal Vane and Vertical Louvers will close the air outlet vent of the product.
  • Air conditioner memorizes the last operated angle.

So there is possibility of difference in the angle of remote controller and the unit after reoperation. In that case, angle can be adjusted by pressing the vane control button on the remote controller.

Jet Cool

Po JET

Jet cool function can be used to cool the room quickly in hot summer. When this function is turned on, the air conditioner runs in cooling operation mode with super high fan speed and 18°C setting temperature for 30 minutes for fast and effective cooling.

You can activate this operation by pressing the JET COOL BUTTON. To change from jet cool mode to high fan speed cooling mode, press the JET COOL BUTTON or INDOOR FAN SPEED SELECTOR BUTTON or the ROOM TERPERATURE SETTING BUTTON again.

Forced operation

Forced operation is used when the remote controller can't be used. The operation will be started if the ON/OFF button is pressed. If you want to stop the operation, re-press the button.

Technical line drawing of a wall-mounted air conditioner unit with an inset showing the ON/OFF switch (no text or symbols on the diagram itself)

	Cooling Model	Heat pump Model
		Room Temp.≥24°C 21°C > _Room Temp. < 24°C Room Temp. < 21°C
Operating mode	Cooling Cooling		Healthy Dehumidification Heating
Indoor FAN Speed	High	High	High High
Setting Temperature	22°C 22°C 23°C 24°C

Test operation

During the TEST OPERATION, the unit operates in cooling mode at high speed fan, regardless of room temperature and resets in 18 minutes. During test operation, if remote controller signal is received, the unit operates as remote controller sets. If you want to use this operation, Press and hold the ON/OFF button for 3\~5 seconds, then the buzzer sound 1 'beep'. If you want to stop the operation, re-press the button.

Maintenance and Service

▲ CAUTION

Before performing any maintenance, turn off the main power to the system, disconnect the circuit breaker and unplug the power cord.

Indoor Unit

Clean the unit with a soft dry cloth. Do not use bleach or abrasives.

▲ CAUTION

Never use any of these

• Water hotter than 40^ . It may cause deformation and discoloration.
• Volatile substances. They may damage the surface of the air conditioner.
• Do not washed the 3M filter with water, because the filter can be damaged.

Air Filters

The air filters behind the front panel / grill should be checked and cleaned once in every 2 weeks or more often if necessary. To remove the filters see the self

explanatory diagrams for each model type. Clean the filters with a vacuum cleaner or warm soapy water. If dirt is not easily removed, wash with a solution of detergent in luke warm water. Dry well in shade after washing and reinstall the filters back in place.

Plasma Filter

The plasma filters behind the air filter should be checked and cleaned once in every 3 months or more often if necessary. To remove the filters see the self explanatory diagrams for each model type. Clean the filters with a vacuum cleaner. If it is dirty, wash it with water and dry well in shade and install back in place.

3M multi protection Filter

The 3M multi protection filter behind the air filter should be checked and cleaned once in every 1 month or more often if necessary. To remove the filters see the self explanatory diagrams for each model type. Clean the filters with a vacuum cleaner. Do not wash the 3M multi protection filter with water, because the filter can be damaged.

And then insert the filter into original position.

• We suggest changing 3M multi protection filter every 6 months.
- The location of the filters may differ, depending on the model.
- If you need more filters, please contract the LG service center (refer to the warranty card,)

Installation of new 3M multi protection filter

• Pull out the 3M multi protection filter from the separately packed plastic bag.
• Insert the 3M multi protection filter into the case.
  • 3M multi protection filter is installed with 3M Mark front.

Removal of Filters

Open the front panel as shown.

Then pull the filter tab slightly forward to remove the air filter.

After removing the air filter remove the plasma and 3M multi protection filter by slightly pulling downwards.

Diagram illustrating the installation and cleaning process of an air conditioner, showing steps from cooling to plasma filtration.

Illustration of a solar panel being installed with a faucet (no text or symbols)

Illustration of hands using a tool to interact with a device (no text or symbols visible)

▲ CAUTION

Don't touch this plasma filter within 10 seconds after opening the inlet grille, it may cause an electric shock.

Outdoor Unit

The heat exchanger coils and panel vents of the outdoor unit should be checked regularly. If clogged with dirt or soot, the heat exchanger and panel vents may be professionally steam cleaned.

NOTE

Dirty or clogged coils will reduce the operating efficiency of the system and cause higher operating costs.

Operation Tips!

Do not overcool the room.

This is not good for the health and wastes electricity.

Keep blinds or curtains closed.

Do not let direct sunshine enter the room when the air conditioner is in operation.

Keep the room temperature uniform.

Adjust the vertical and horizontal airflow direction to ensure a uniform temperature in the room.

Make sure that the doors and windows are shut tight.

Avoid opening doors and windows as much as possible to keep the cool air in the room.

Clean the air filter regularly.

Blockages in the air filter reduce the airflow and lower cooling and dehumidifying effects. Clean at least once every two weeks.

Ventilate the room occasionally.

Since windows are kept closed, it is a good idea to open them and ventilate the room now and then.

Use high fan speed for effective and fast cooling.

The unit gives its rated cooling capacity when the fan speed is high.

Self-Diagnosis Function

This unit has an inbuilt error diagnosis capability. Unit LED(☐) will blink in case if thermistor fails. Please contact your serviceman/dealer in such a situation

Error Display LED (1)	Check Point
(once)	· Indoor room temperature thermistor open/short.· Indoor pipe temperature thermistor open/short.

Troubleshooting Tips! Save time and money!

The air conditioner may be operating abnormally when:

Problem		What To DoPossible Cause
Air conditioner does not start	■ The air conditioner is unplugged.	· Make sure the air conditioner plug is pushed completely into the outlet.
	■ The fuse is blown/circuit breaker is tripped.	· Check the house fuse/circuit breaker box and replace the fuse or reset the breaker.
	■ Power failure.	· If power failure occurs, turn the mode control to OFF.When power is restored, wait 3 minutes to restart the air conditioner to prevent tripping of the compressor overload.
	■ High voltage.	· If the voltage is unusually very high or low the circuit Breaker will trip.
Air conditioner does not cool as it should	■ Airflow is restricted.	· Make sure there are no curtains, blinds, or furniture blocking the front of the air conditioner.
	■ The air filter is dirty.	· Clean the filter at least every 2 weeks.See the Maintenance and Service section.
	■ The room may have been hot.	· When the air conditioner is first turned on, you need to allow time for the room to cool down.
	■ Cold air is escaping.	· Check for open furnace floor registers and cold air returns.
	■ Check the temperature settings.	· Make sure they are correct.
	■ There might be any heating source in the room.	· Check and remove such source or turn it off while using the air conditioner.

Call the service immediately in the following situations

1. Anything abnormal such as burning smell, loud noise etc. happen. Stop the unit and turn the breaker off. Never try to repair by yourself or restart the system in such cases.
2. Main power cord is too hot or damaged.
3. Error code is generated by self diagnosis.
4. Water leaks from indoor unit even if the humidity is low.
5. Any switch, breaker (safety, earth) or fuse fails to work properly

User must carry routine checkup & cleaning to avoid unit's poor performance. In case of special situation, the job must be carried out by service person only.

SPEC SHEET :

MODEL VOLTAGE		COOLING HEATING
		INPUT CURRENT INPUT CURRENT
A122CL NB1	220 V~	1 110W	5,2A --
A122CL US1	220 V~	1 110W	5,2A --
A122HL NB1	220 V~	1 120W	5,4A 1 170W	5,4A
A122HL US1	220 V~	1 120W	5,4A 1 170W	5,4A
A182CL NC1	220 V~	1 700W	8,4A --
A182CL US1	220 V~	1 700W	8,4A --
A182HL NC1	220 V~	1 650W	8,4A 1 745W	8,4A
A182HL US1	220 V~	1 650W	8,4A 1 745W	8,4A
A242CL NC1	220 V~	2 300W	11,2A --
A242CL US1	220 V~	2 300W	11,2A --
A242HL NC2	220 V~	2 250W	11,0A 2 390W	11,5A
A242HL US2	220 V~	2 250W	11,0A 2 390W	11,5A
A092CL NB0	220 V~	820W 3,9A --
A092CL US0	220 V~	820W 3,9A --

LG

Illustration showing three steps of tool application: cutting a tool, holding a tool, and using a tool to adjust the tool.

Line drawing of a car air conditioner with a screwdriver inserted (no text or symbols)

Simple line drawing of a refrigerator with icons for Wi-Fi, water drop, and battery (no text or symbols)

Simple line drawing of a device interface with Wi-Fi, battery, and waveform symbols (no text or labels)

18°C PLASMA

Col. San Lorenzo Industrial
