USER MANUAL GL-T372HPZL LG

Please read this manual carefully before operating your set and retain it for future reference

REFRIGERATOR MODEL

GL-*372/GL-*402

CONTENTS

विषय—वस्तु

IMPORTANT SAFETY INFORMATION ....3

Cartoon illustration of a smiling refrigerator character with arms and legs (no text or symbols)

SMART DIAGNOSIS 22

SUGGESTIONS ON FOOD STORAGE ....25

IMPORTANT WARNINGS ....28

महत्वपूर्ण चेतावनी

BEFORE CALLING FOR SERVICE ....30

IMPORTANT SAFETY INFORMATION

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can hurt or seriously injured or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:

IMPORTANT SAFETY INFORMATION

Disposal of your old appliance (as per e-waste Rules)

1. When this crossed out wheeled bin symbol is depicted on the product and its operator's manual, it means the product is covered by the e-waste Management and Handling Rules, 2011 and are meant to be recycled, dismantled, refurbished or disposed off.

2. Do's

a. The product is required be handed over only to the authorized recycler for disposal.

b. Keep the product in isolated area, after it becomes non-functional/un-repairable so as to prevent its accidental breakage.

Don'ts

a. The product should not be opened by the suer himself/herself, but only by authorized service personnel.
b. The product is not meant for re-sale to any unauthorized agencies/scrap dealer/kabariwalah.
c. The product is not meant for mixing into household waste stream.
d. Do not keep any replaced spare part(s) from the product in exposed area.

1. Any disposal through unauthorized agencies/person will attract action under Environment (Protection) Act 1986.

2. Hazards of improper handling or accidental breakage :

a. The refrigerant (R134a) used, if overexposed, might cause dizziness and loss of concentration. Liquid contact can cause irritation and frostbite. The refrigerant (R600a), squirting out of the pipes could ignite or cause eye injury.
b. The blowing agent cyclopentane is highly flammable liquid and vapor, harmful to aquatic life. Contact with liquid may cause cold burns/frost bites. Repeated exposure cause skin dryness.

1. To locate a nearest collection centre or call for pick-up (limited area only) for disposal of this appliance, please contact Toll Free No. 1800e21519999,c1800t180-9999

centre and pick up facilities are done by third parties with LG electronics India Pvt. Ltd. merely as a facilitator.

For more detailed information, please visit : http://www.lg.com/in

IMPORTANT SAFETY INFORMATION

To reduce the risk of fire, electric shock, or injury to persons while using your product, the following basic safety precautions should be followed. Read all instructions before using this appliance.

If gas used is R600a

This appliance contains a small amount of isobutane refrigerant (R600a), natural gas with high environmental compatibility, but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and ventilate the room in which the appliance is installed for several minutes.

In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be installed depends on the amount of refrigerant used. The room must be 1m^2 in size for every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the label on the back of the appliance.

Never start up an appliance showing any signs of damage. If any doubt, consult your dealer.

IMPORTANT SAFETY INFORMATION

1. When connecting the power

पाँवर से जोड़ते समय

Dedicated outlet should be used.

• Using several devices on one outlet may cause fire.

Do not allow the power plug to face upward or to be squeezed at the back of the refrigerator.

Plug may get damaged, which causes fire or electric shock.

Cartoon illustration of a refrigerator with a sad face and a broken refrigerator connected to its side (no text or symbols)

Do not allow the power cord to bend or pressed by heavy object.

It may damage the power cord and cause fire or electric shock.

Do not extend or modify the length of the power plug.

It damages the power cord and cause electric shock or fire.

Cartoon illustration of a distressed refrigerator with a person reacting in shock (no text or symbols)

Remove water or dust from the power plug and insert it with the ends of the pins securely connected.

Dust, water or unstable connection may cause fire or electric shock.

Illustration of a hand using a tool to clean or wear a cloth (no text or symbols)

Do not pull out the cord or touch the power plug with wet hands.

• It may cause electric shock or injury.

Illustration of two children cutting through a bandage with lightning bolts (no text or symbols)

When the power cord or the power plug is damaged or the holes of the outlet are loose, do not use them.

It may cause electric shock or short circuit.

Make sure of grounding.

IMPORTANT SAFETY INFORMATION

Do not place heavy objects, flower vas, cups, cosmetics or container with liquid on the refrigerator.

It may fall and cause injury, fire or electric shock while opening or closing the door.

Cartoon illustration of a child standing beside a large book with a cross on top (no text or symbols)

Do not install the refrigerator in wet place or place where water or rain splashes.

Deterioration of insulation of electric parts may cause electric leakage.

Cartoon illustration of a distressed refrigerator with a 'NO' sign, surrounded by a bottle and newspaper (no text or symbols on the main image)

Do not use drier to dry the inside, nor light a incense stick to remove odor

It may cause explosion or fire.

Do not use the combustible spray near the refrigerator.

Cartoon illustration of a refrigerator with a sad face and a bandaged bag (no text or symbols)

Do not cling on the door or baskets of the door.

It may cause the refrigerator to fall over or cause

injury to user. Especially, do not allow the children to do the above.

Do not use or store inflammable materials like ether, benzene, alcohol, medicine, LP gas, spray or cosmetics near in, or on the refrigerator.

It may cause explosion or fire.

Cartoon illustration showing a book character with a sad expression and a broken cup labeled 'Elder' and 'Timber'.

Do not store medicine or academic chemicals in the refrigerator.

When the material with strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction and cause any risk

NO TODOXIC BONIONA

Avoid placing refrigerator near heating devices.

Cartoon illustration of a distressed rectangular character and a gift box with steam (no text or symbols)

IMPORTANT SAFETY INFORMATION

When gas is leaked, do not touch the refrigerator or the outlet and ventilate the room immediately.

Natural Gas (isobutene, R600a) is an environment-friendly refrigerant, even a small amount (30\~90g) is combustible. When the gas is leaked due to severe damage during delivering, installing or using the refrigerator, an or burn.

Cartoon illustration of a smiling refrigerator and a child running away from a doorway (no text or symbols)

Do not allow any person except qualified engineer to disassemble, repair or alter the refrigerator.

When disposing the refrigerator, remove the packing materials from the door.

Cartoon illustration of a child cleaning a refrigerator with a broom (no text or symbols)

Use the submerged refrigerator only after checking it.

Cartoon illustration of a person standing beside a large refrigerator with steam clouds (no text or symbols)

Do not spray water on the outside or inside of the refrigerator or do not clean it with benzene or thinner.

When any strange smell or smoke is detected from the refrigerator, disconnect the power plug immediately and contact the service center.

Do not use the refrigerator for non-domestic purpose (storing Medicine, chemicals or using in the ship, etc.).

It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.

Cartoon illustration of a smiling rectangular object with arms and legs, standing on a cross symbol (no text or symbols present)

IMPORTANT SAFETY INFORMATION

Disconnect the power plug during thunder and lightning, or if not

in use for a long period of time.

Cartoon illustration of a smiling refrigerator with arms and legs, holding a package (no text or symbols)

There is a danger of electric shock or fire.

What to do with your old refrigerator,

Your refrigerator contains liquid (refrigerant, lubricant) made of recyclable materials. All these materials must be sent to a recycling waste disposal site as they can be reused after a specific recycling process.

Do not insert hand or metal stick into the cool air vents, cover, bottom of the refrigerator & heat proof grill (exhaust hole) at backside.

It may cause electric shock or injury.

Illustration of a distressed refrigerator with a child standing on the phone and a crossed-out X-shaped symbol, no text or symbols present.

Install the refrigerator on a solid and level floor.

好 1 door.

Do not remove the back cover.

cover. NO

Never leave lit candles on the refrigerator,

high risk of causing fire or product damage.

Completely empty inside before taking out the container from the door.

Illustration of hands holding a tray with bottles and arrows indicating movement (no text or symbols)

- Do not keep any other electrical appliance on top/inside of refrigerator such as TV, Cooler, Temple, Decoration Lighting, Harmful Chemicals, Cloth Top etc.

IMPORTANT SAFETY INFORMATION

Violating these directions may cause injury or damage to health, house or furniture.

Always be careful, please.

Do not touch food or containers in the freezer with wet hands.

It may cause frostbite.

Cartoon illustration of a child holding a sign with an open refrigerator, no text or symbols present

Do not put bottle in the freezer.

It may freeze the contents to break the bottle and cause injury.

Warning symbol showing a bottle crossed out with a broken glass, indicating chemical hazard or toxicity.

Carry the refrigerator with the handle bar provided at the bottom-front and top-rear of the refrigerator.

Otherwise, your hands may slip to causing injury.

Illustration of four workers in hard hats pulling a large rectangular object (no text or symbols)

Do not lean on the doors, Hinges may

deregulate themselves, causing air leak and performance deterioration

Cartoon illustration of a child holding a tool next to a large block with a smiling face and 'NO' label (no text or symbols on the main subject)

Wait for 5 minutes or longer when reconnecting the plug.

It may cause the operation of the freezer to fail.

Pull out the power plug not by grasping the cord. But by the plug of its end.

It may cause electric shock or short circuit which may lead to fire.

Do not insert hand into the bottom of the refrigerator.

The iron plate at the bottom may cause injury.

Cartoon illustration of a distressed refrigerator with a sad face and a person holding a cross (no text or symbols)

Please careful while opening or closing the door of the refrigerator, may cause injury to the person around it.

Opening or closing the door may cause feet or hands to be caught in the chink in door or child hand get hurt by the corner.

An empty refrigerator can be a dangerous attraction to children. Remove either gaskets, latches, lids or the entire door from your unused appliance, or take some other action to make it harmless.

This appliance must be grounded (earthed).

Do not store inflammable materials, explosives or chemicals in the refrigerator.

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Children should be supervised to ensure that they do not play with the appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

1. Select a good location.

Place your refrigerator where it is easy to use.

1. Avoid placing the unit near heat sources, direct sunlight or moisture.

1. To ensure proper air circulation around the fridge -freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.

1. To avoid vibrations, the unit must be level. If required, adjust the leveling screws to compensate for unevenness of the floor.

The front should be slightly higher than the rear for better performance and to aid in door closing.

Leveling screws can be turned easily by tipping the cabinet slightly.

Turn the leveling screws clockwise (☐) to raise the unit, counterclockwise (☐) to lower it.

1. Don't install this appliance below 5°. It may cause the debasement of the refrigerator.

1. Clean your refrigerator thoroughly and wipe off all dust accumulated during shipping.

1. Install accessories such as ice cube box, etc., in their proper places. They are packed together to prevent possible damage during shipment.

1. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.

Minimum Requirement: UPS / Inverter should be in ON condition having minimum 600 VA capacity along with minimum 120Ah capacity battery connected with the refrigerator's power supply socket.

• This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
• To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.
• Due to continuously development, model specifications subjected to change.

When your refrigerator is firstly installed, allow 24 hours for the temperature to stabilize prior to filling it with fresh or frozen foods.

If operation is interrupted, wait 5 minutes before restarting.

* * This refrigerator has one temperature control button for the refrigerator compartment and one temperature control dial for the freezer compartment.

* * This refrigerator has a temperature sensor in the refrigerator compartment. It will start and stop the compressor automatically as needed.

When the door of the refrigerator is open for 1 minute, an alarm will sound three times. If the door remains open for more than a minute, the alarm will repeat every 30 seconds.

* Applicable as per model variant.

OPERATIONS /प्रचालन

Illustration of a refrigerator with open lid and side door, showing interior airflow or ventilation (no text or symbols)

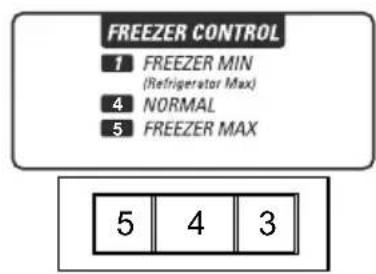

FREEZER CONTROL 1 FREEZER MIN (Refrigerator Max) 4 NORMAL 5 FREEZER MAX 5 4 3

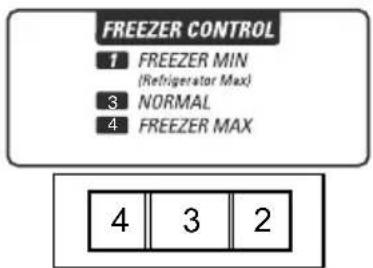

FREEZER CONTROL 1 FREEZER MIN (Refrigerator Max) 3 NORMAL 4 FREEZER MAX 4 3 2

For Power Cut EverCool models only

- Setting the Freezer Knob at NORMAL with sufficient freezing effect, so it is recommended to set the Knob at NORMAL.

The default setting of the temperature control button for the refrigerator compartment is NORMAL.

Whenever pressing the button, LED emitting the light. The temperature is set in 7 steps, from MIN to MAX cooling. (MIN = warmest, MAX = coldest temperature)

बटन दबानेपर LEDs प्रस्थापित होगा । टेम्परेचर को सात स्तर मे प्रस्थापित कर सकते हो – MIN से MAX तक ।

Display graphic can be different, depend on the type of your refrigerator.

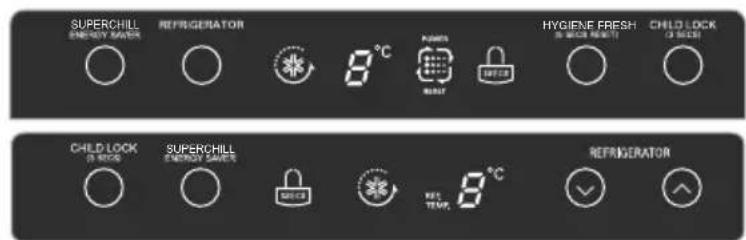

External Controller Model Internal Controller Model

SUPERCHILL ENERGY SAVER REFRIGERATOR HYGIENE FRESH IN WITH WIDTH CHILD LOCK IN WIDTH 8°C POINTS RIGHT 8°C 90000 90000 90000 90000 90000 90000 90000 90000 90000 90000 90000 90000 90000 90000 90000 90000 90000 90123 91234 91235 91236 91237 91238 91239 91240 91241 91242 91243 91244 91245 91246 91247 91248 91249 91250 91251 91252 91253 91254 91255 91256 91257 91258 91259 91260 91261 91262 91263 91264 91265 91266 91267 91268 91269 91270 91271 91272 91273 91274 91275 91276 91277 91278 91279 91280 91281 91282 91283 91284 91285 91286 91287 91288 91289 91290 91291 91292 91293 91294 91295 91296 91297 91298 91299 91300

SUPERCHILL OOLD > > > OLDEST REF TEMP

OPERATIONS /प्रचालन

- The SUPERCHILL feature operates when the refrigerator first turn on. The compressor and circulating fan operate at maximum cooling capacity to quickly lower the refrigerator temperature. It shuts out automatically.

- If warm food is placed into the refrigerator, SUPERCHILL can be started with the button on the control panel. SUPERCHILL will shut off when the temperature reaches the proper level or it can be shut off manually by pressing the SUPERCHILL button.

Press and hold the child lock button for 3 seconds to lock the child lock. When it is locked, the Lock LED will be on and the other button will not operate. To unlock, press and hold the CHILD LOCK button for 3 seconds again.

Note - This feature will be unlocked by itself if the refrigerator is switched off.

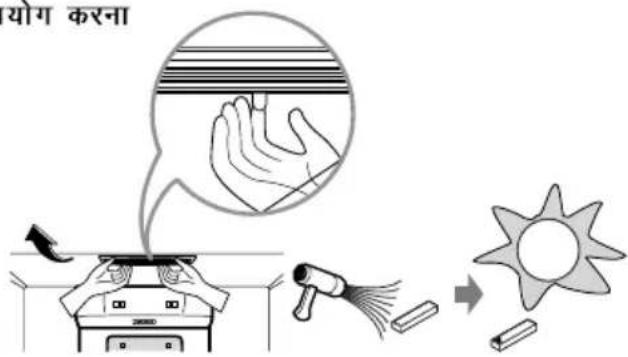

- The Tourmaline Pouch in the duct cover purifies the air and helps stored foods remain fresh longer.

- If water of foreign substances enter the cool air vent while cleaning, efficiency will be lowered.

Power Cut Ever Cool is a unique cooling retention function by removing heat from the freezer and the refrigerator compartment during the power off condition.

Power Cut

EverCool

This function is a patented technology of LG Electronics.

During "Power Cut Ever Cool" functioning, dew formation may happen on the inner walls of the refrigerator. This is a normal phenomena and will not harm the product functioning in anyway.

When the Power will resume, the dew on the inner walls will be automatically removed.

Incase, excess dew is formed. Please remove the same with the help of a soft cloth.

During Power ON/OFF, Valve gets activated and will make a onetime sound.

• Do not open the valve cover.
• Do not disassemble the PCM tank (mounted on the top side) in freezer compartment.
• When your refrigerator is firstly installed, allow 24 hours for the temperature to stabilize prior to filling it with fresh or frozen foods. In the event of power cut after stabilization, it must be powered for at least 8 hours after power cut to have the maximum cool air retention capability.

सुरक्षा सम्बन्धी

Important point for Better performance of Evercool Function.

1) Evercool's performance may be deteriorated if the PCM is not freezed properly.
2) In order to maintain Evercool performance don't keep freezer knob at warm setting (1-2).
3) Do not open the door frequently during power cut off to maintain long time retention (cooling effect).

• Defrosting takes place automatically.

- The defrosted water flows down to the evaporating tray which located in the lower back side of the refrigerator and is evaporated automatically.

- Unpleasant odor of food in fresh food compartment is deodorized with no harm to you and the food.

Cartoon illustration of a smiling rectangular character with arms and legs, pointing upward (no text or symbols)

Cartoon illustration of a distressed face with steam rising, held by hands near a small object (no text or symbols)

OPERATIONS /प्रचालन

- As Deodorizer is located in cooling air inlet for circulating air in fresh food compartment, there is no need for any handling.

- Do not prick the cooling air inlet with a sharp tip because Deodorizer may be damaged.

- When storing food with a strong odor, wrap it or store it in a container with a lid because odor may be passed on to other foods.

• Used some length and the odor is strong, Deodorizer can be revived and re-used.

- Separate Deodorizer in ceiling of refrigerator compartment, using hair drier to remove moisture or malodor and oxidize under sunlight to decomposing malodor by ultraviolet.

During the use of this feature you will find this pattern of LED running. It is a symbol that the product is running at basic energy requirement.

One can press the button "REF TEMP" to change the LED setting during power cuts, if needed. The LED will then show the setting as desired.

When the mode is changed from Normal supply to Inverter mode & vice versa, the LED pattern will take some time to display the change.

P °C Fridge

Interior view of a refrigerator showing the door, shelves, and casing (no text or symbols visible)

It is used for storing the eggs. It can also be used for making the ice.

Isometric line drawing of a rectangular tray with eight circular indentations (no text or symbols)

Ultra Cool / अल्ट्रा कूल\*

Keeps your items cooler even when there is power off condition in freezer compartment.

Close-up of a refrigerator interior showing the exterior and front panels (no text or symbols visible)

Spice Box specially designed to store daily use spices & dry fruits in freezer compartment.

3D diagram of a container with an arrow pointing to its side panel (no text or symbols present)

It keeps your vegetables fresh by holding moisture & prevents them from getting rotten.

Illustration of a food waste sorting system with upward arrows and grain (no text or symbols)

Absor b moisture

Overly humid

Illustration of a food waste sorting system with downward arrows indicating grain loss (no text or symbols)

Release moisture

Humid deficiency

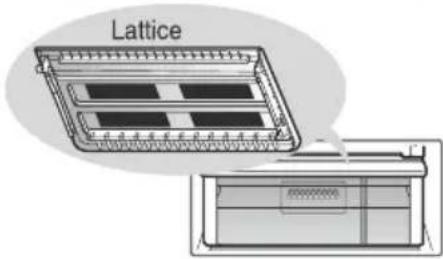

Lattice

When the door is opened, the warmer air can't incluence in the fresh zone. So you can store food more fresh in it.

जब दरवाजा खोला जाता है, तो गर्म हवा फ्रैश जोन को प्रभावित नहीं कर सकती। Inserted convertible room must be placed at its position. If drawer is opened, it can't fill the role of it.

Illustration of a refrigerator with doors open and a close-up of the interior showing shelves (no text or symbols)

Position of the knob to be adjusted as per type of food to be stored.

1. Close all refrigerator doors, and press and hold display lock button to make it locked state.

If the display is already in locked state, press and hold lock button to reset the lock and press and hold the lock button again to make it locked state.

Lock Hold 3sec.

CAUTION / सावधान

If it passes 5 minutes in locked state, smart diagnosis function will not be activated, so be careful.

Fridge 8°C Refrigerator ↑

< Model without Hygiene Fresh> Filter >

1. Open all refrigerator compartment and freezer compartment doors, and place the telephone near the speaker hole at the top right side.

Check if the speaking side(microphone) of the telephone is toward the speaker hole.

Illustration of a laptop connected to a device, enclosed in an oval frame (no text or symbols)

4. Do not take away the telephone while data is being transmitted.

During the data transmission for smart diagnosis, wait with the telephone placed near the speaker hole at the top right side. The remaining time for data transmission is displayed on the display screen.

The transmission sound may be irritating. Do not take away the telephone until the sound stops for good diagnosis.

5. After the completion of the data transmission, listen to the explanation of the consultant about the result of the smart diagnosis.

When the data transmission is completed, along with the display of the data transmission completion, the refrigerator will be automatically turned off and on a few seconds later. Listen to the explanation of the consultant about the result of the analyzed diagnosis and follow the instructions.

• Difference of the regional call qualities may have influence on the function.

• If you use home phone, better communication performance will enable much better service.

- Smart diagnosis data transmission may not be fluent due to call quality problem, and in such case, smart diagnosis service may be difficult.

SMART DIAGNOSIS (For Internal Controller Models)

Use this function when calling the Customer Call Centre and receive precise diagnosis when the Refrigerator malfunctions or fails.

Use it only when advised by the consultant and not otherwise.

How to use the function

First, call LG service center.

Only use the Smart Diagnosis feature when instructed to do so by the LG call center agent.

1. Open all the doors of the refrigerator.

1. Press the refrigerator control (REF TEMP) button for 3 sec or more.

1. If the buzzer sounds 4 times (Frequency of SDS Buzzer is 2000Hz, 0.2sec Off/ 0.2sec On 4 times) place the phone near the speaker hole in the top right hand side door hinge.

Diagram of a mechanical assembly with an inset showing a component (no text or symbols present)

1. Ensure the microphone of the telephone is towards the speaker hole.

1. Do not take away the telephone while data is being transmitted.

The transmission sound may be irritating.

Do not take away the telephone until the sound stops for good diagnosis.

1. During the data transmission for smart diagnosis, hold the telephone 10cm away from the speaker hole and avoid any background noises.

After inputting SDS, SDS buzzer will ring.

After completion of the data transmission, the consultant will explain the result of the smart diagnosis and advice accordingly.

When the data transmission is completed, the refrigerator will be automatically turned off and on a few seconds later.

Differences of regional call qualities may have influence on the function.

If you use a home phone, better communication performance will enable much better service.

Smart diagnosis data transmission may not be successful if the call is made from a mobile phone with

Poor network reception.

SUGGESTIONS ON FOOD STORAGE

- Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.

- Do not store food which goes bad easily at low temperatures, such as bananas, pineapples, and melons.

- Allow hot food to cool prior to storing. Placing hot food in the refrigerator could spoil other food, and lead to higher electric bills!

- When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.

- Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.

- Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise.

- Do not store bottles in the freezer compartment - they may break when frozen.

- Do not refreeze food that has been thawed. This causes loss of taste and nutrition.

- When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.

- Loading for Freezing - It is recommended to load newly introduced foods on the following position for freezing:

Diagram of a kitchen appliance interior with control panel and door (no text or labels)

Newly Introduced Food
नए रखे गए खाध-पदार्थ

SUGGESTIONS ON FOOD STORAGE

- Avoid placing moist food on deep interior refrigerator shelves, it could freeze upon direct contact with chilled air. To avoid this it is better to store food in the covered container.

- When storing eggs in their storage rack, ensure that they are fresh, and always store them in a upright position, which keeps them fresh longer.

It is important that your refrigerator is kept clean to prevent undesirable odors. Spilled food should be wiped immediately, since it may acidify and stain plastic surfaces if allowed to settle.

Never use metallic scouring pads, brushes, coarse abrasive cleaners or strong alkaline solutions on any surface.

EXTERIOR - Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

INTERIOR -Regular cleaning of the interior and interior parts is recommended. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

INTERIOR PARTS - Wash compartment shelves, door racks, storage trays and magnetic door seals etc. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

Always remove power cord from the wall outlet prior to cleaning. Wipe excess moisture preventwith a sponge or cloth to water or liquid from getting into any electrical part and causing electric shock. Do not use flammable or toxic cleaning liquids.

During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.

Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.

Remove or securely fasten down all loose items inside the refrigerator.

To avoid damaging the leveling screw(s), turn them all the way into the base.

The outside wall of the refrigerator cabinet may sometimes get warm, especially just after

installation.

Don't be alarmed.

This is due to the anti-condensation pipe, which pumps hot refrigerant to prevent "sweating" on the outer cabinet wall.

This product applies LED Lamp which can not be replaced by the user. Please contact authorized service centre for the lamp replacement.

If possible, connect the refrigerator to its own individual electrical outlet to prevent it and other appliances or household lights from causing an overload that could cause a power outage.

The refrigerator-freezer should be so positioned that the supply plug is accessible for quick disconnection when accident happens.

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.

In order to prevent possible electric shock, this appliance must be grounded.

Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.

It will cause electric shock or fire.

Please do not use a dishwasher to clean the lower drawers; the high temperature may cause damage to the baskets which make them unusable.

This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable.

All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.

IF YOU FEEL YOUR REFRIGERATOR IS NOT OPERATING PROPERLY, CHECK THESE POSSIBLE CAUSES FIRST :

Black and white barcode image with vertical lines and a small number '1' at the bottom right.

MFL67709208
