CONTENTS

IMPORTANT SAFETY INFORMATION ....3

INSTALLATION ....10

INNER PARTS 11

OPERATIONS 12

GL-549/529/479/478

Starting

Before Setting The Temperature

Door Alarm

Lamp Auto-Off Feature

Self Test

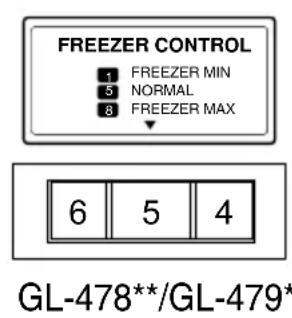

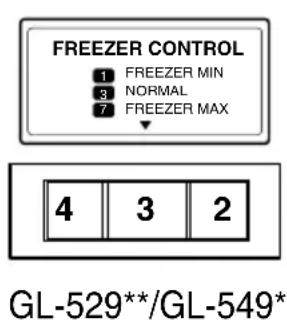

Controls For Freezer Compartment

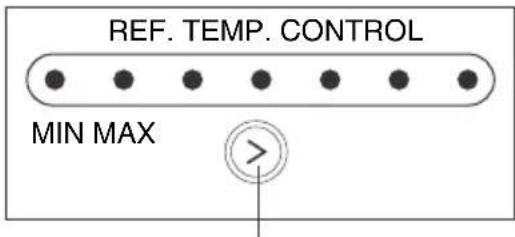

Controls For Refrigerator Compartment

Super Cool

Child Lock

Green Ion Door Cooling(Optional)

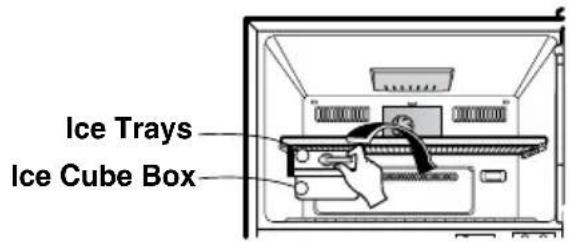

Ice Making(Optional)

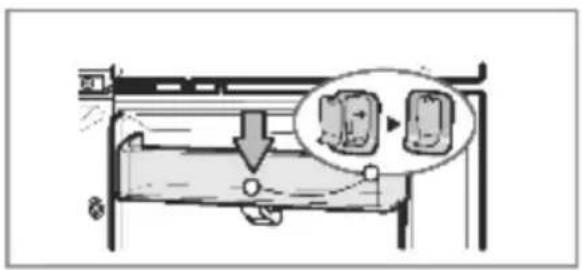

Convertible Corner/Fresh Zone

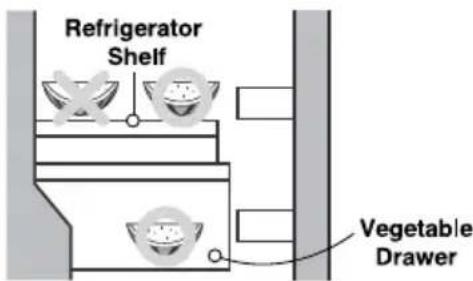

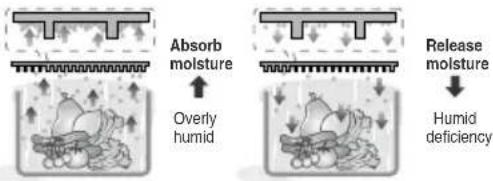

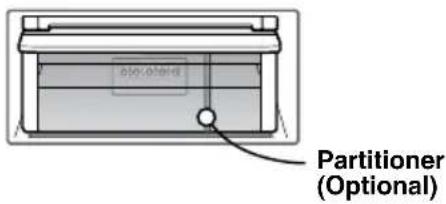

Vegetable Drawer

Defrosting

Deodorizer(Optional)

Dairy Corner(Optional)

Water Dispenser(Optional)

SUGGESTIONS ON FOOD STORAGE .....18

CLEANING 19

GENERAL INFORMATION ......21

IMPORTANT WARNINGS ....22

BEFORE CALLING FOR SERVICE .....23

Cartoon illustration of a smiling refrigerator character with arms and legs (no text or symbols)

IMPORTANT SAFETY INFORMATION

WARNING

Keep the air vents clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not use electrical appliances inside the food storage compartment, unless they are recommended by the manufacturer.

The refrigerant and insulation blowing gas used in the appliance requires special disposal procedures. When disposal, please consult with services agent or a similarly qualified person.

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can hurt or seriously injured or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:

DANGER

You will be hurt or seriously injured if you don't follow instructions.

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following. Read all instructions before using this appliance.

CAUTION

Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

If gas used is R600a

This appliance contains a small amount of isobutane refrigerant (R600a), natural gas with high environmental compatibility, but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 1m2 in size for every 9g of R600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.

Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

DISPOSAL OF YOUR OLD APPLIANCE

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the e-waste (Management and Handling) Rules, 2011.

2. All electrical & electronic products should be disposed of separately from the municipal waste steam via designated collection facilities appointed by the government or the local minorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.
5. This product does not contain any of the hazardous substances as specified in the rule 13 (1) and (2) of the e-waste (Management and Handling) Rules, 2011.

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following. Read all instructions before using this appliance.

IMPORTANT SAFETY INFORMATION

1. When connecting the power

Dedicated outlet should be used.

• Using several devices at one outlet may cause fire.

Diagram of a mechanical or electrical component with coiled wires and a labeled 'at fire' (no other text or symbols)

Do not allow the power plug to face

upward or to be squeezed at the back of the refrigerator.

Plug may get damaged, which causes fire or electric shock.

Illustration of a cartoon refrigerator with a sad face and two crossed arms, connected by a lightning bolt (no text or symbols)

Do not allow the power cord to bend or pressed by heavy object.

It may damage the power cord and cause fire or electric shock.

Cartoon illustration of a refrigerator with a surprised expression and a phone on the phone beside it (no text or symbols)

Do not extend or modify the length of the power plug.

It damages the power cord and cause electric shock or fire.

Cartoon illustration of a person holding a phone while another character reacts with surprise (no text or symbols)

Unplug the power plug while cleaning, handling or replacing the interior lamp of the refrigerator.

• It may cause electric shock or injury.
• When replacing the interior lamp

of the refrigerator, make sure that the rubber ring for preventing the electric spark within the socket is not taken off.

Illustration of a child standing beside a refrigerator with a smiling face (no text or symbols)

Do not pull out the cord or touch the power plug with wet hands.

- It may cause electric shock or injury.

Illustration of two children playing badminton, one passing a shuttlecock and the other standing on a pitchfork (no text or symbols)

IMPORTANT SAFETY INFORMATION

1. When connecting the power

Remove water or dust from the power plug and insert it with the ends of the pins securely connected.

Dust, water or unstable connection may cause fire or electric shock.

Illustration of a hand holding a tool next to a cloth, with no visible text or symbols

When the power cord or the power plug is damaged or the holes of the outlet are loosed, do not use them.

It may cause electric shock or short circuit.

2. When using the refrigerator

Do not place the heavy object or the dangerous object (container with liquid) on the refrigerator.

It may fall and cause injury, fire or electric shock when opening or closing the door.

Cartoon illustration of a child holding a large book with a cross on top, next to a small figure (no text or symbols present)

Do not install the refrigerator in wet place or place where water or rain splashes.

Deterioration of insulation of electric parts may cause electric leakage.

Cartoon illustration of a distressed book character and a distressed book with 'NO' signs, no text or symbols present.

Do not use drier to dry the inside, nor light a candle to remove odor

It may cause explosion or fire.

Cartoon illustration of a smiling cube with X-shaped marks and a 'NO' hand, no text or symbols present.

Make sure of grounding.

Incorrect grounding may cause breakdown and electric shock.

Ground Wire Copper Flat More than 30 Inches

Do not cling to the door or the shelves of the door or the home bar of the freezer or the cool chamber.

It may make the refrigerator fall over or damage the hands. Especially, do not allow the children to do the above.

Cartoon illustration of a person inside an open refrigerator with a 'NO' hand gesture (no text or symbols on the diagram itself)

Do not use or store inflammable materials like ether, benzene, alcohol, medicine, LP gas, spray or cosmetics near or in the refrigerator.

It may cause explosion or fire.

Cartoon illustration showing a distressed refrigerator with a broken handle labeled 'Balance' and 'Minner', symbolizing financial or ethical issues.

Do not store medicine or academic materials in the refrigerator.

When the material with strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk.

NO No Change

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not use the combustible spray near the refrigerator.

It may cause fire.

NO

Avoid the heating devices.

It may cause fire.

Cartoon illustration of a smiling refrigerator and a gift box with steam rising (no text or symbols)

Do not place flower vase, cup, cosmetics, medicine or any container with water on the refrigerator.

It may cause fire, electric shock or injury by dropping down.

Cartoon illustration of a smiling gift box character with arms and a 'NO' sign, no text or symbols present.

Use the submerged refrigerator only after checking it.

It may cause electric shock or fire.

Cartoon illustration of a smiling refrigerator with a person walking nearby (no text or symbols)

When gas is leaked, do not touch the refrigerator or the outlet and ventilate the room immediately.

During the handling / delivering, installation if used gas is (1) Tetrafluoroethane (R134a) - in spite of being Environment friendly & Non flammable, it may cause irritation to skin, eyes with small amount of vapor, hence proper ventilation across the Refrigerator area is must.

(2) Natural Gas (isobutene, R600a) - is an environment-friendly refrigerant, even a small amount (80\~90g) is combustible. When the gas is leaked

due to severe damage during delivering, installing or using the refrigerator, any spark may cause fire or burn.

GAS

Do not spray water at the outside or the inside of the refrigerator or do not clean it with benzene or thinner.

Deterioration of insulation of electric parts may cause electric shock or fire.

NO No

When any strange smell or smoke is detected from the refrigerator, disconnect

the power plug immediately and contact to the service center.

It may cause fire.

Service center

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not allow any person except the qualified engineer to disassemble, repair or alter the refrigerator.

It may cause injury, electric shock or fire.

Cartoon illustration of a child running with a wrench and holding a 'NO' sign next to a smiling refrigerator (no text or symbols on the main image)

When disposing the refrigerator, remove the packing materials from the door.

It may cause to lock out the child.

Cartoon illustration of a child holding a broom while standing beside an open refrigerator (no text or symbols)

Do not insert hand or metal stick into the exit of cool air, cover, bottom of the refrigerator, heat proof grill (exhaust hole) at backside.

It may cause electric shock or injury.

Illustration of a child standing in front of a refrigerator with a warning sign, next to a falling bar chart (no text or symbols present)

In case of thunder and lightning, or if not in use for a long period of time, detach the power plug.

There is a danger of electric shock or fire.

Cartoon illustration of a smiling refrigerator character with arms and legs, holding a small object (no text or symbols)

Do not remove the back cover.

Cartoon illustration of a sad battery character with a frowning face and a 'NO' sign, no text or symbols present.

Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).

It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.

Cartoon illustration of a smiling rectangular object with arms and legs, standing on a cross symbol (no text or symbols present)

Install the refrigerator on a solid and level floor.

Installing it on an unstable place may cause injury by falling down the refrigerator when opening or closing the door.

Cartoon illustration of a smiling refrigerator with arms crossed and waving (no text or symbols)

What to do with your old refrigerator,

Your refrigerator contains liquid (refrigerant, lubricant) made of recyclable materials. All these materials must be sent to a recycling waste disposal site as they can be reused after a specific recycling process.

Place all the components in the right places before connecting the power.

ents OK

Never leave lit candles on the fridge, at risk of causing fire or product damage.

Cartoon illustration of a distressed refrigerator with a 'NO' sign and a child running away (no text or symbols on the refrigerator itself)

IMPORTANT SAFETY INFORMATION

CAUTION

Violating these directions may cause injury or damage to health, house or furniture. Always be careful, please.

Do not touch food or containers at the freezer with wet hands.

It may cause frostbite.

Cartoon illustration of a girl holding a crossed-out refrigerator with a surprised expression (no text or symbols)

Wait for 5 minutes or longer when reconnecting the plug.

It may cause the operation of the freezer to fail.

NO After 5minutes

Do not put bottle in the freezer.

It may freeze the contents to break the bottle to cause injury.

Warning symbol showing a bottle crossed out with a broken glass and a broken bottle, indicating chemical hazard or toxicity.

Pull out the power plug not by grasping the cord. But by the plug of its end.

It may cause electric shock or short circuit to fire.

Carry the refrigerator with the handle bar provided at the bottom-front

and top-rear of the refrigerator.

Otherwise, your hands may be slipped to cause injury.

Illustration of three workers in hard hats pulling a large rectangular object (no text or symbols)

Do not insert hand into the bottom of the refrigerator.

The iron plate of the bottom may cause injury.

Cartoon illustration of a distressed refrigerator with a sad face and a person sitting on the floor (no text or symbols)

Opening or closing the door of the refrigerator may cause injury to the person around it, be careful. please

Opening or closing the door may cause feet or hands to be caught in the chink in door or child hand get hurt by the corner.

Illustration of a distressed refrigerator with a 'NO' sign and a person sitting on the floor (no text or symbols on the refrigerator itself)

IMPORTANT SAFETY INFORMATION

Do not put any living animal in the refrigerator.

Cartoon illustration of a smiling character with crossed arms and a child, no text or symbols present

Do not lean on the doors, Hinges may deregulate

Themselves, causing air leak and performance deterioration

Cartoon illustration of a child running with a book and a smiling refrigerator (no text or symbols)

Do not use the carbonated water. The gas

pressure may cause leakage.

Corrugated Water Water Tank

Clean the water tank according to the instruction.

Illustration of a water tank being compressed and submerged in a cylindrical container (no text or symbols)

Movable parts like shelf, basket, masala-box etc should be handled with care.

May get damaged or break if dropped.

3D rendered image of a rectangular container with a lid (no text or symbols)

Use only water. If any other liquid is used, the operation of the system may be deteriorated. If a problem occurs by using

any liquid other than water, the manufacturer will not be responsible.

n turer Only water Water Tank

WARNING

Please do not use a dishwasher to clean the lower drawers; the high temperature may cause damage to the baskets which make them unusable.

THIS REFRIGERATOR IS MANUFACTURED WITH GREAT CARE, AND UTILIZES THE LATEST IN TECHNOLOGY.
WE ARE CONFIDENT THAT YOU WILL BE FULLY SATISFIED WITH IT'S PERFORMANCE AND RELIABILITY.
BEFORE YOU START YOUR REFRIGERATOR, PLEASE READ THIS BOOKLET CAREFULLY IT PROVIDES EXACT INSTRUCTIONS FOR INSTALLATION, OPERATION AND MAINTENANCE, AND ALSO SUPPLIES SOME USEFUL HINTS.

INSTALLATION

1. Select a good location.
   Place your refrigerator where it is easy to use.
2. Avoid placing the unit near heat sources, direct sunlight or moisture.
3. To ensure proper air circulation around the fridge -freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.
4. To avoid vibrations, the unit must be level. If required, adjust the leveling screws to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing.
   Leveling screws can be turned easily by tipping the cabinet slightly.
   Turn the leveling screws clockwise( ) to raise the unit, counterclockwise( ) to lower it.
5. Don't install this appliance below 5 °C. It may cause the debasement of the refrigerator.

NEXT

1. Clean your refrigerator thoroughly and wipe off all dust accumulated during shipping.
2. Install accessories such as ice cube box, etc., in their proper places. They are packed together to prevent possible damage during shipment.
3. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.
4. Prior to storing food, leave your refrigerator on for 2 or 3 hours.
   Check the flow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.

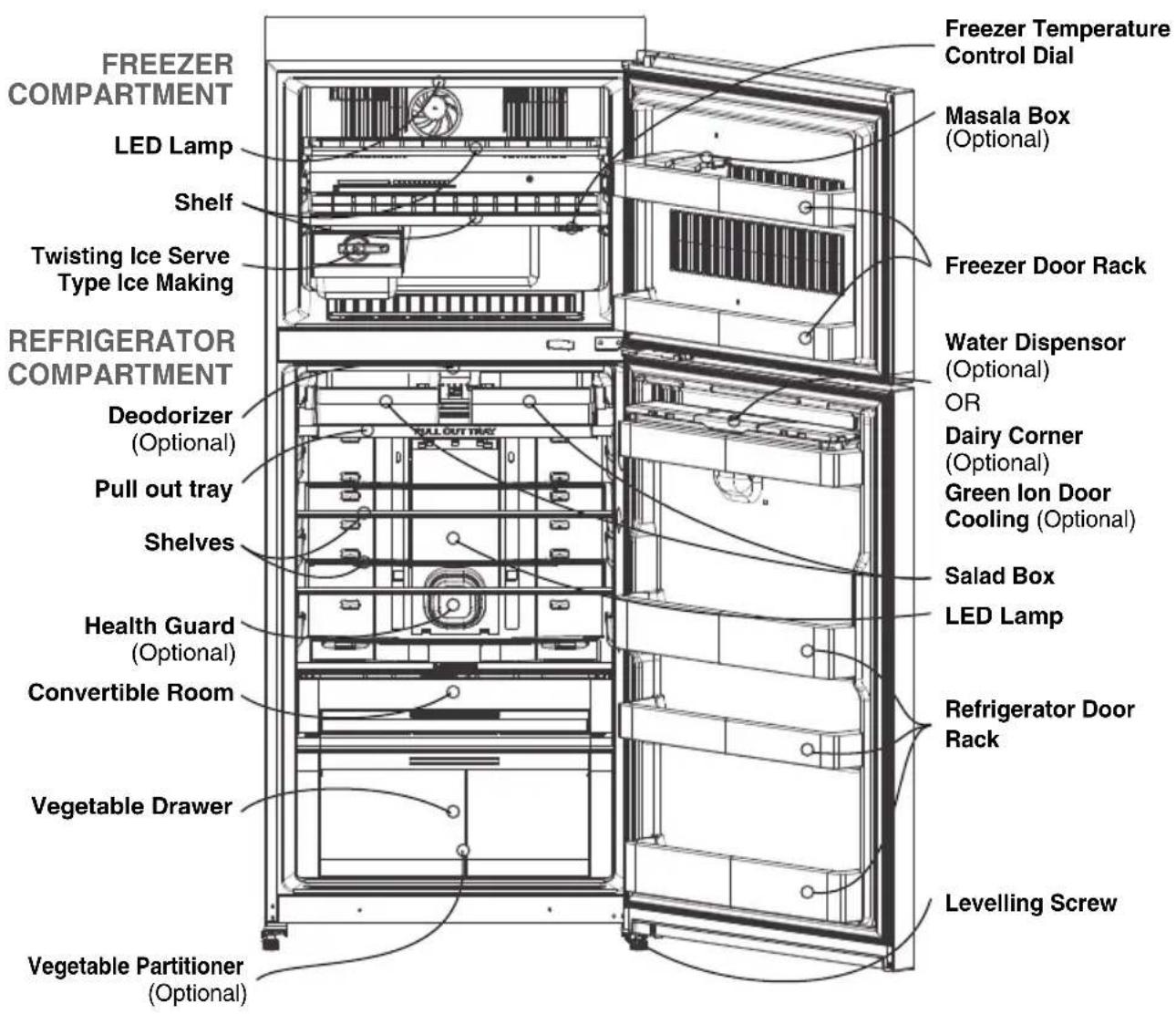

FREEZER COMPARTMENT LED Lamp Shelf Twisting Ice Serve Type Ice Making REFRIGERATOR COMPARTMENT Deodorizer (Optional) Pull out tray Shelves Health Guard (Optional) Convertible Room Vegetable Drawer Vegetable Partitioner (Optional) Freezer Temperature Control Dial Masala Box (Optional) Freezer Door Rack Water Dispensor (Optional) OR Dairy Corner (Optional) Green Ion Door Cooling (Optional) Salad Box LED Lamp Refrigerator Door Rack Levelling Screw

• This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
• To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.

SUGGESTION FOR ENERGY SAVING

• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in Enough space should be kept for cool air circulating freely.
• do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.

OPERATIONS

STARTING

When your refrigerator is first installed, allow it 7-8 hours to stabilize at normal operating temperatures prior to filling it with fresh or frozen foods.

If operation is interrupted, wait 5 minutes before restarting.

BEFORE SETTING THE TEMPERATURE

• The temperature of the refrigerator is kept constant regardless of changes in room temperature. It is recommended that, once set, the temperature settings(the controls for the refrigerator and freezer compartments) not be changed unless necessary.
• This refrigerator has one temperature control button for the refrigerator compartment and one temperature control dial for the freezer compartment.
• The default setting of the temperature control button for the refrigerator compartment is '3°C'.
• The default setting of the temperature control dial for the freezer compartment is '4'.
• This refrigerator has a temperature sensor in the refrigerator compartment. It will start and stop the compressor automatically as needed.

DOOR ALARM

When the door of the refrigerator or the freezer is open for 1 minute, an alarm will sound three times. It the door remains open, the alarm will repeat every 30 seconds.

LAMP AUTO OFF FEATURE

When the door is open for 7 minutes or longer, the lamp inside goes off automatically to save energy and prevent overheating. However, the alarm sound continues until the door is closed.

SELF TEST

• Your refrigerator contains a built in diagnostic capability. If it develops a malfunction in certain areas, it will display an error code to assist the repair technician. While an error code is displayed, other control and display functions will not operate.
• If an error code is displayed, contact a service center. Do not disconnect the power cord from the outlet.

CONTROLS FOR FREEZER COMPARTMENT

• The higher number the control setting is, the lower temperature of the freezer compartment becomes.
• Since the temperature of the refrigerator and freezer compartments is controlled with a fixed amount of cooled air, the refrigerator compartment will be warmer if the freezer compartment becomes colder.
• When the freezer compartment is not cold enough in winter, adjust the control for the freezer to High(4\~).

Line drawing of a refrigerator with open lid and side door, showing interior airflow or ventilation (no text or symbols)

FREEZER CONTROL 1 FREEZER MIN 3 NORMAL 7 FREEZER MAX 4 3 2 GL-529**/GL-549*

FREEZER CONTROL 1 FREEZER MIN 5 NORMAL 8 FREEZER MAX 6 5 4 GL-478**/GL-479*

- Setting the Freezer Knob at ☐☐☐ will satisfy 4/5 STAR. Setting the Freezer Knob at NORMAL will have sufficient freezing effect, so it is recommended to set the Knob at NORMAL.

OPERATIONS

CONTROLS FOR FREEZER COMPARTMENT

☐ FOR INTERNAL CONTROLLER MODEL

REF. TEMP. CONTROL MIN MAX >

Ref. Temp Control Button

The default setting of the temperature control button for the refrigerator compartment is NORMAL.

To control the refrigerator temperature, press the REF. TEMP CONTROL button.

Whenever pressing the button, LED emitting the light. The temperature is set in 7 steps, from MIN to MAX cooling. (MIN = warmest, MAX = coldest temperature)

FOR EXTERNAL CONTROLLER MODEL

Display graphic can be different, depend on the type of your refrigerator.

- Type a

12.00 H2C -400V 12.00 H2C -400V 12.00 H2C -400V 12.00 H2C -400V 12.00 H2C -400V 12.00 H2C -400V 12.00 H2C -400V 12.00 H2C 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12,

• Press 'REFRIGERATOR' button to control refrigerator temperature.
• Whenever pressing the button, the LED emits light.
• Press 'HEALTH GUARD' button to operate health guard motor (optional).
• The number showing up on the LED luminesce indicate the temperature of refrigerator compartment.

• You can select the desired setting point seven steps, from 'O ^0 C' to '6 ^0 C'.

• Type a

• Press (b) button, refrigerator temperature will be down each 1 C.
• Press (a) button, health guard motor will be on, power mode, off.

OPERATIONS

FAST FREEZING

- The FAST FREEZING feature operates when the refrigerator first turn on. The compressor and circulating fan operate at maximum cooling capacity to quickly lower the refrigerator temperature. It shuts off automatically.

CHILDLYS FAST FLOWING 8°C INTUCE SMALL INSTALLATION

- If warm food is placed into the refrigerator, FAST FREEZING can be started with the button on the control panel. FAST FREEZING will shut off when the temperature reaches the proper level or it can be shut of manually by pressing the FAST FREEZING button.

CHILD LOCK (OPTIONAL)

- CHILD LOCK

Press and hold the child lock button for 3 seconds to lock the child lock. When it is locked, the Lock LED will be on and the other button will not operate. To unlock, press and hold the CHILD LOCK button for 3 seconds again.

100.0 (24 MAX) HOLD (15000) RISK HIVR 8°C INCREASE ORDER LARGE 300V FAT/VEGETATOR

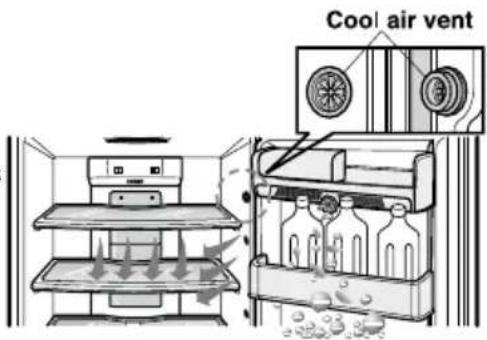

GREEN ION DOOR COOLING (OPTIONAL)

• The anion coating in the duct cover purifies the air and helps stored foods remain fresh longer.
• If water of foreign substances enter the cool air vent while cleaning, efficiency will be lowered. In addition, if gasket is damaged, efficiency may be lowered owing to the escape of cool air.

Cool air vent

Twisting Ice Serve Type

• To make ice cubes, fill the ice tray with water and insert in its position.

Ice Trays Ice Cube Box

- To remove ice cubes, hold the lever of the tray and pull turn gently. Then, ice cubes drop in to the ice cube box.

Line drawing of a griddle being poured into a tray (no text or symbols)

WARNING

• Do not use anything other than water.
• Fill the water up to the marked line.

OPERATIONS

CONVERTIBLE CORNER

• When the door is opened, the warmer air can't influence in the fresh zone. So you can store food more fresh in it.
• Inserted convertible room must be placed at its position. If door is opened, it can't fill the role of it.

How to use

• Vegetable Corner or Fresh Corner can be used through the control of knob.
• Check the position of knob prior to store the food.
• Do not locate the knob on the middle point.

ion.

VEGETABLE DRAWER

Magic Crispers

• Magic Crispers provide fresher-tasting fruit and vegetables by letting you easily keep humidity inside the drawer.
• A lattice on the underside of the cover to efficiently hold or release moisture.
• Sealing structure keep the humidity.

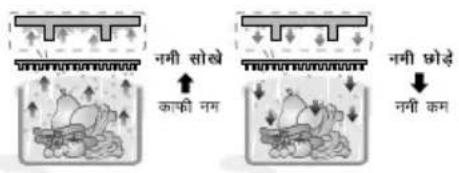

Absorb moisture Overly humid Release moisture Humid deficiency

Vegetable Partitioner(Optional)

- Fix the partitioner by inserting it at the rear side of vegetable box as shown in the figure.

Partitioner (Optional)

OPERATIONS

WATER DISPENSER

• Pour water after the water tank is in position. Necessarily separate the water tank to clean it or when not use it.
• When the water tank is not in position after filling it with water, water can leak out by the valve.

• Pouring water in the water tank

1. Open the cover cap and pour water into the water tank.

2. Close the cover cap.

3. The water tank is optional removable part which can be applied to enlarge the storage capacity. You can use the upper basket after removing the water tank and closing up the hole with a plug.

The plug is enclosed with the egg tray.

Caution

Do not use anything other then water, including hot water needs to be cooled before being put in the water tank.

- Drinking Water

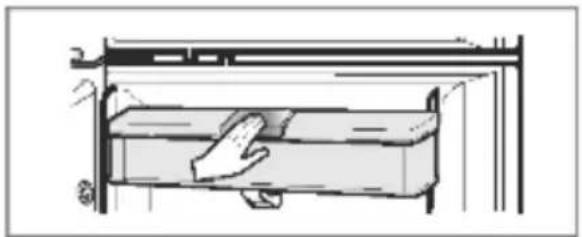

1. Press the dispenser pad with cup.
2. The water is released when the dispenser pad is pressed. The pad returns to its original position when the cup is removed and the water stops its flow.

Cover Cap

Diagram of a hand pressing down on a rectangular object inside a container (no text or symbols)

Diagram showing a device with a downward arrow and two circular insets of devices, one labeled '▶' pointing to a device.

Simple line drawing of a hand placing a cup into a tray (no text or symbols)

OPERATIONS

DEFROSTING

• Defrosting takes place automatically.
- The defrosted water flows down to the evaporating tray which located in the lower back side of the refrigerator and is evaporated automatically.

DEODORIZER (OPTIONAL)

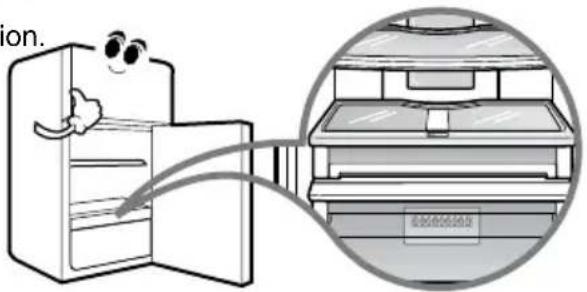

- Unpleasant odor of food in fresh food compartment is deodorized with no harm to you and the food.

Cartoon character giving a thumbs-up gesture, no text or symbols present

Cartoon illustration of a sad face emerging from a box, with steam rising (no text or symbols)

How to use

• As Deodorizer is located in cooling air inlet for circulating air in fresh food compartment, there is no need for any handling.
• Do not prick the cooling air inlet with a sharp tip because Deodorizer may be damaged.
• When storing food with a strong odor, wrap it or store it in a container with a lid because odor may be passed on to other foods.

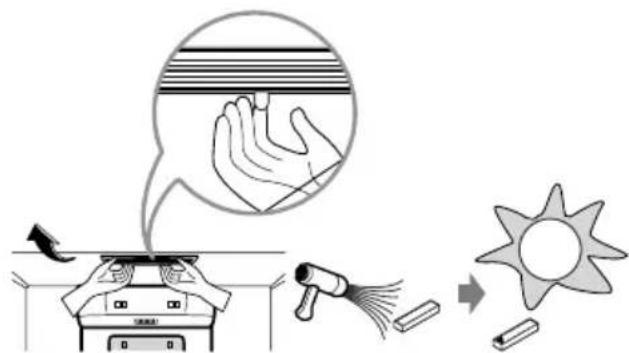

Re-Using of Deodorizer

• Used some length and the odor is strong, Deodorizer can be revived and re-used.
- Separate Deodorizer in ceiling of refrigerator compartment, using hair drier to remove moisture or malodor and oxidize under sunlight to decomposing malodor by ultraviolet.

Diagram illustrating a hand gesture and sun radiation experiment with labeled components and visual cues

DAIRY CORNER (OPTIONAL)

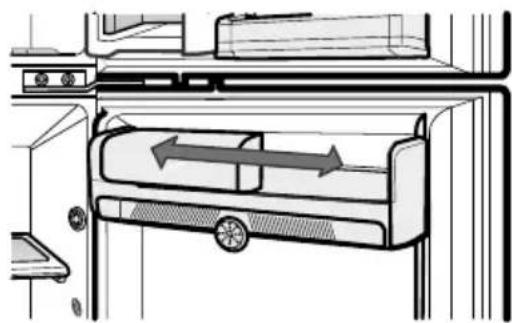

- Use the moving by pushing right the left with protruded handle.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

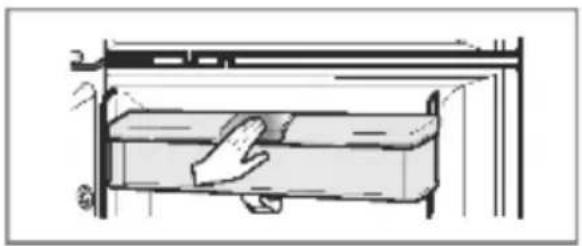

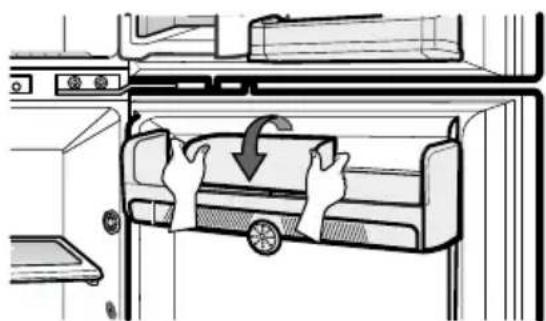

How to remove the cover when you clean

• Push the cover and move it to the center of basket
• Move the cover at the middle of basket and align the hole with bothsides of the basket
• After aligning, turn basket from back to front and pull out with both hands.

Diagram of a refrigerator interior showing hand positioning and airflow direction (no text or symbols)

SUGGESTIONS ON FOOD STORAGE

STORING FOOD

• Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.
• Do not store food which goes bad easily at low temperatures, such as bananas, pineapples, and melons.
• Allow hot food to cool prior to storing. Placing hot food in the refrigerator could spoil other food, and lead to higher electric bills!
• When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
  Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures
  • even.
• Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise.

FREEZER COMPARTMENT

• Do not store bottles in the freezer compartment - they may break when frozen.
• Do not refreeze food that has been thawed. This causes loss of taste and nutrition.
• When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.

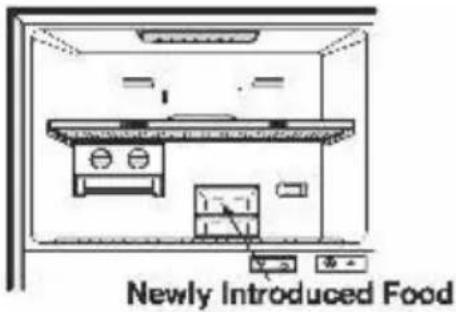

• Loading for Freezing - It is recommended to load newly introduced foods on the following position for freezing:

Newly Introduced Food

REFRIGERATOR COMPARTMENT

- Avoid placing moist food on deep interior refrigerator shelves, it could freeze upon direct contact with chilled air. To avoid this it is better to store food in the covered container.

- It is desirable to store moist food (especially vegetable and fruit) in the vegetable storage compartment. If it is necessary to store on a shelf of the refrigerator, put it close to the door away from the back wall of the refrigerator to avoid being frozen by the cool circulating

- Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped clean, to prevent adjacent food from spoiling.

- When storing eggs in their storage rack, ensure that they are fresh, and always store them in a upright position, which keeps them fresh longer.

Refrigerator Shelf Vegetable Drawer

CLEANING

It is important that you refrigerator be kept clean to prevent undesirable odors. Spilled food should be wipe up immediately, since it may acidify and stain plastic surfaces if allowed to settle.

Never use metallic scouring pads, brushes, coarse abrasive cleaners or strong alkaline solutions on any surface.

Before you clean, however, remember that damp objects will stick or adhere to extremely cold surfaces. Do not touch frozen surfaces with wet or damp hands.

EXTERIOR - Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

INTERIOR - Regular cleaning of the interior and interior parts is recommended. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

INTERIOR PARTS - Wash compartment shelves, door racks, storage trays and magnetic door seals etc. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

WARNING

Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts(lamps, switches, controls, etc.). Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing electric shock. Do not use flammable or toxic cleaning liquids.

• Caution for Cleaning Not in use: Surface active agent, Car wax, Anticorrosive, All sorts of oil, Gasoline, Acids, Wax.
• Usable Detergent Vegetable dish washable solution, Soapy water
• When careless using, it can occur a color change.

Caution

1. Use lukewarm water when cleaning.
2. Do not use anything other than water. If it is used with soft drinks, put water in the water tank and discharge three or four cups of water shortly.

CLEANING

WATER DISPENSER

Grille -

Clean with a wet cloth and then dry it using dry cloth.

Illustration of a hand holding a whiteboard with a small inset image (no text or symbols visible)

Water Tank -

1. Pouring Water

It is not necessary to remove the water tank in order to fill it (it could be filled like shown in fig. 1 pulling the tank gate).

• Before closing door, close the cap and clamp tightly.
• Do not use liquids containing sugar or carbonated drinks like soda.

2. Disassembly

Lift the water tank, gripping a side and bottom of water tank.

Before disassembly of water tank, use all water from the dispenser

3. Assembly

If by some cause the water tank is dislocated, place it again at its original position. Verify that the valve is assembled correctly in the hole of the door (fig. 3,4). Once assembled push down and check the tank position with line.

Diagram of a mechanical assembly with hands operating a component (no text or symbols visible)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Water Tank -

1. Remove the tank cover.

Line drawing of a hand holding a cylindrical object with a textured base (no text or symbols)

2. Clean th inside and outside of the water tank with diswashing detergent and rinse throughly under running water. Dry the water with a cloth.

3. Clean the inside and outside of the cap with diswashing detergent and rinse thoroughly under running water. Dry the water with a cloth.

Illustration of a faucet spraying water onto a cylindrical object, and a hand holding a cylindrical object (no text or symbols)

Technical line drawing showing two mechanical assembly steps: one with a tool inserted into a bracket, the other with a tool inserted into a workpiece (no text or symbols present)

GENERAL INFORMATION

VACATION TIME

During average length vacations, you will probably find it best to leave the refrigerator in operation.

Place freezable items in freezer for longer life. When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.

POWER FAILURE

Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures.

However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.

IF YOU MOVE

Remove or securely fasten down all loose items inside the refrigerator.

To avoid damaging the leveling screw(s), turn them all the way into the base.

ANTI-CONDENSATION PIPE

The outside wall of the refrigerator cabinet may sometimes get warm, especially just after

installation.

Don't be alarmed.

This is due to the anti-condensation pipe, which pumps hot refrigerant to prevent "sweating" on the outer cabinet wall.

Anti-Condensation Pipe

Caution

Electrical Shock Hazard

Before replacing a burned-out light bulb, either unplug the refrigerator or turn off power at the circuit breaker or fuse box.

NOTE: Moving the control to the OFF position does not remove power to the light circuit.

IMPORTANT WARNINGS

DO NOT USE AN EXTENSION CORD

If possible, connect the refrigerator to its own individual electrical outlet to prevent it and other appliances or household lights from causing an overload that could cause a power outage.

ACCESSIBILITY OF SUPPLY PLUG

The refrigerator-freezer should be so positioned that the supply plug is accessible for quick disconnection when accident happens.

SUPPLY CORD REPLACEMENT

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

ABOUT GROUNDING (EARTHING)

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.

In order to prevent possible electric shock, this appliance must be grounded.

Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.

DO NOT MODIFY OR EXTEND THE POWER CORD LENGTH.

It will cause electric shock or fire.

Safety warning illustration showing a hand holding a 'no' symbol above a refrigerator with an electric plug nearby.

An empty refrigerator can be a dangerous attraction to children. Remove either gaskets, latches, lids or the entire door from your unused appliance, or take some other action to make it harmless.

This appliance must be grounded (earthed). DON'T WAIT! DO IT NOW!

Do not store inflammable materials, explosives or chemicals in the refrigerator.

Disposal of the old appliance

This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable.

All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.

"This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance."

BEFORE CALLING FOR SERVICE

SERVICE CALLS CAN OFTEN BE AVOIDED!

IF YOU FEEL YOUR REFRIGERATOR IS NOT OPERATING PROPERLY, CHECK THESE POSSIBLE CAUSES FIRST :

PROBLEM POSSIBLE CAUSES
REFRIGERATOR DOES NOT OPERATE	Has a house fuse blown or circuit breaker tripped?Has the power cord plug been removed or loosened from the electrical wall outlet?
REFRIGERATOR OR FREEZER COMPARTMENT TEMPERATURE TOO WARM	Temperature control not set on proper position.Appliance is placed close to wall or heat source.Warm weather-frequent door openings.Door left open for a long time.Large amount of foods are kept in the refrigerator.
ABNORMAL NOISE(S)	Refrigerator is installed in a weak or uneven place, or leveling screw needs adjusting.Unnecessary objects placed in the back side of the refrigerator.
REFRIGERATOR HAS ODOR	Foods with strong odors should be tightly covered or wrapped.Interior needs cleaning.
DEW FORMS ON THE CABINET SURFACE	Not unusual during periods of high humidity.Door may have been left ajar.

विषय—वस्तु

Cartoon illustration of a smiling refrigerator character waving (no text or symbols)

Diagram of a rope knot with no text or symbols

Cartoon illustration of a refrigerator with a surprised expression and a fan beside it (no text or symbols)

Illustration of a refrigerator with a wavy face and a broken handle, connected to a crossed-out battery (no text or symbols)

Illustration of two children playing with a propeller, one holding a baton and the other looking down (no text or symbols)

Cartoon illustration of a sad rectangular character with a surprised expression and a broken pipe with steam (no text or symbols)

Cartoon illustration of a smiling refrigerator with open door and surprised expression (no text or symbols)

Cartoon illustration of a person inside an open refrigerator with steam rising (no text or symbols)

Cartoon illustration of a smiling refrigerator with arms and legs, accompanied by a hand holding a bottle (no text or symbols)

Cartoon illustration of a smiling refrigerator with arms raised and a child holding a megaphone (no text or symbols)

Cartoon illustration of a refrigerator with a sad face and a distressed expression, next to an open box (no text or symbols)

Cartoon illustration of a character holding a sign with hands, no text or symbols present

Cartoon illustration of a smiling refrigerator with a person walking nearby (no text or symbols)

Illustration of a smiling refrigerator and a child running with arms, next to an open door (no text or symbols)

Cartoon illustration of a book character and a girl, both waving (no text or symbols present)

Cartoon illustration of a smiling rectangular object with arms and legs, standing on a cross symbol (no text or symbols present)

Cartoon illustration of a smiling refrigerator with a child holding a knife (no text or symbols)

Cartoon illustration of a smiling refrigerator with arms and legs, showing an angry expression (no text or symbols)

Cartoon illustration of a distressed refrigerator with a child inside and a falling bar chart below (no text or symbols)

Cartoon illustration of a smiling refrigerator character holding a coin (no text or symbols)

Illustration of a refrigerator with a door and a hand gesture (no text or symbols)

Cartoon illustration of a smiling refrigerator with a sad face and a 'NO' sign, no text or symbols present.

Cartoon illustration of a child running away from an open refrigerator with a sad face, no text or symbols present.

⚠️ सावधानी

Illustration of a child standing in front of an open refrigerator with a crossed-out door (no text or symbols)

Illustration of three workers in hard hats pulling a large rectangular object (no text or symbols)

Cartoon illustration of a smiling refrigerator with a sad face and a person lying on the floor (no text or symbols)

Cartoon illustration of a distressed refrigerator with a person running away (no text or symbols)

Cartoon illustration of a character with crossed arms and a box, no text or symbols present

Carbonated Water Water Tank

Cartoon illustration of a child holding a book next to a refrigerator with a surprised expression (no text or symbols)

Illustration of a water tank with a faucet and a separate cylindrical object (no text or symbols)

3D rendered image of a rectangular container with a lid (no text or symbols)

Only water Water Tank

चेतावनी

Diagram of a refrigerator with open lid and side door, showing interior airflow or ventilation (no text or symbols)

FREEZER CONTROL 1 FREEZER MIN 3 NORMAL 7 FREEZER MAX 4 3 2

GL-529**/GL-549**

FREEZER CONTROL 1 FREEZER MIN 5 NORMAL 3 FREEZER MAX 6 5 4

GL-478**/GL-479**

REF. TEMP. CONTROL MIN MAX > > Ref. Temp Control Button

CHIC LOCK HOLD FAST CHECK LOCK POWER 8 °C INLETICS SHORT PRIME DATA

Illustration of a tray with a container being poured into it, no text or symbols present

कनवर्टिबल कॉर्नर

Illustration of a cartoon refrigerator with a magnified inset showing its interior shelf (no text or symbols)

नमी सोखे काफी नम नमी छोडे नमी कम

Cover Cap

Diagram of a hand pressing down on a rectangular object inside a container (no text or symbols)

Diagram showing a device with a downward arrow and two circular insets of devices, one labeled '1' and the other '2'.

Simple line drawing of a hand holding a cup over a tray, no text or symbols present

प्रचालन

डिफ्रॉस्टिंग

Cartoon character with a smiling face and raised finger, standing next to a vertical line (no text or symbols)

Cartoon illustration of a sad face with steam rising from the mouth, held by hands (no text or symbols)

प्रयोग कैसे करें

Diagram illustrating a hand holding a finger above an appliance, with a hand spraying the product and sunlight breaking down on batteries.

Technical diagram of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Diagram of a refrigerator interior showing hand positioning and airflow direction (no text or symbols)

Diagram of a refrigerator interior showing front panel, side view, and door (no text or labels)

Simple line drawing of a hand holding a rectangular object with a label (no text or symbols present)

बॉटर टैक

1. पानी भरने के लिए

Simple line drawing of a person opening a rectangular object with a handle, no text or symbols present

Simple line drawing of hands operating a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly or processing unit (no visible text or symbols)

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

बॉटर टैक

Illustration of a faucet spraying water onto a pipe with a hand holding a rod (no text or symbols)

Technical line drawing showing two mechanical assembly steps: one with a tool and the other with a tool inserted into a housing (no text or symbols)

छुढ्यियों के समय

Safety warning illustration showing a hand holding a 'no' symbol above a refrigerator with exhaust smoke.

बेहद खतरनाक आकर्षण

Regd Office : A-27, Mohan Cooperative Industrial Estate, Mathura Road, New Delhi-110044
