USER MANUAL GL-B282SSBM LG

Please read this manual carefully before operating your set and retain it for future reference

REFRIGERATOR MODEL

GL-*282**

CONTENTS / विषय—वस्तु

1. INNER PARTS....3
2. IMPORTANT SAFETY INFORMATION....4
3. IMPORTANT WARNING .... 10
4. FEATURES 11
5. OPERATIONS....12
6. SMART DIAGNOSIS....13
7. SUGGESTIONS ON FOOD STORAGE 14
8. SUGGESTIONS 15
9. BEFORE CALLING FOR SERVICE 16
10. WARRANTY CARD.... 19

Please store this manual in a place where it can be easily accessed whenever required. जरुरत पड़ने पर सहजतासे उपलब्ध हो ऐसी जगहपे यह निर्देशिका रखें ।

Disposal of your old appliance (as per e-waste Rules)

1. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

2. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health

3. To locate a nearest collection centre or call for pick-up (limited area only) for disposal of this appliance, please contact Toll Free No. 1800-180-9999 for details. All collection centre and pick up facilities are done by third parties with LG Electronics India Pvt. Ltd. Merely as a facilitator.

For more detailed information, please visit: http://www.lge.com/in.

★This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
- To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.
- Due to continuously development, model specifications subjected to change.

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can hurt or seriously injure the user or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:

IMPORTANT SAFETY INFORMATION

To reduce the risk of fire, electric shock, or injury to persons while using your product, the following basic safety precautions should be followed. Read all instructions before using this appliance.

If gas used is R600a

This appliance contains a small amount of isobutane refrigerant (R600a), natural gas with high environmental compatibility, but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and ventilate the room in which the appliance is installed for several minutes.

In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be installed depends on the amount of refrigerant used. The room must be 1m^2 in size for every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the label on the back of the appliance.

Never start up an appliance showing any signs of damage. If any doubt, consult your dealer.

IMPORTANT SAFETY INFORMATION

1. When connecting the power

पाँवर से जोड़ते समय

Dedicated outlet should be used.

• Using several devices on one outlet may cause fire.

Do not allow the power plug to face upward or to be squeezed at the back of the refrigerator.

Plug may get damaged, which causes fire or electric shock.

Cartoon illustration of a refrigerator with a sad face and a broken refrigerator connected to its side (no text or symbols)

Do not allow the power cord to bend or pressed by heavy object.

It may damage the power cord and cause fire or electric shock.

Do not extend or modify the length of the power plug.

It damages the power cord and cause electric shock or fire.

Cartoon illustration of a distressed refrigerator with a person holding a phone and waving (no text or symbols)

Remove water or dust from the power plug and insert it with the ends of the pins securely connected.

Dust, water or unstable connection may cause fire or electric shock.

Illustration of a hand using a tool to clean or brush the material (no text or symbols)

Do not pull out the cord or touch the power plug with wet hands.

• It may cause electric shock or injury.

Illustration of two children using a pinwheel to interact (no text or symbols present)

When the power cord or the power plug is damaged or the holes of the outlet are loose, do not use them.

It may cause electric shock or short circuit.

Make sure of grounding.

IMPORTANT SAFETY INFORMATION

Do not place heavy objects, flower vas, cups, cosmetics or container with liquid on the refrigerator.

It may fall and cause injury, fire or electric shock while opening or closing the door.

Cartoon illustration of a child holding a large book with a cross on top, next to a smiling girl (no text or symbols)

Do not install the refrigerator in wet place or place where water or rain splashes.

Deterioration of insulation of electric parts may cause electric leakage.

Do not use drier to dry the inside, nor light a incense stick to remove odor

It may cause explosion or fire.

Do not use the combustible spray near the refrigerator.

Cartoon illustration of a refrigerator with a sad face and a bandaged cup (no text or symbols)

Do not cling on the door or baskets of the door.

It may cause the refrigerator to fall over or cause

injury to user. Especially, do not allow the children to do the above.

Cartoon illustration of a person inside an open refrigerator with a 'NO' sign, no text or symbols present

Do not use or store inflammable materials like ether, benzene, alcohol, medicine, LP gas, spray or cosmetics near in, or on the refrigerator.

It may cause explosion or fire.

Cartoon illustration showing a book character with a sad face and a crossed-out bottle labeled 'Elmer' and 'Palmier'

Do not store medicine or academic chemicals in the refrigerator.

When the material with strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction and cause any risk

NO No Money

Avoid placing refrigerator near heating devices.

Cartoon illustration of a sad book character and a gift box with steam (no text or symbols)

IMPORTANT SAFETY INFORMATION

When gas is leaked, do not touch the refrigerator or the outlet and ventilate the room immediately.

Natural Gas (isobutene, R600a) is an environment-friendly refrigerant, even a small amount (30\~90g) is combustible. When the gas is leaked due to severe damage during delivering, installing or using the refrigerator, any spark may cause fire or burn.

Cartoon illustration of a smiling refrigerator and a child running away from a doorway (no text or symbols)

Do not allow any person except qualified engineer to disassemble, repair or alter the refrigerator.

When disposing the refrigerator, remove the packing materials from the door.

Cartoon illustration of a child holding a broom while standing beside an open refrigerator (no text or symbols)

Use the submerged refrigerator only after checking it.

It may cause electric shock or fire.

Cartoon illustration of a delivery person standing beside a smiling refrigerator with steam clouds (no text or symbols)

Do not spray water on the outside or inside of the refrigerator or do not clean it with benzene or thinner.

Deterioration of insulation of electric parts may cause electric shock or fire.

When any strange smell or smoke is detected from the refrigerator, disconnect the power plug immediately and contact the service center.

Do not use the refrigerator for non-domestic purpose (storing Medicine, chemicals or using in the ship, etc.).

It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.

Cartoon illustration of a smiling rectangular object with arms and legs, standing on a cross symbol (no text or symbols present)

IMPORTANT SAFETY INFORMATION

Disconnect the power plug during thunder and lightning, or if not

in use for a long period of time.

Cartoon illustration of a smiling refrigerator with arms and legs, holding a small card (no text or symbols)

What to do with your old refrigerator,

Your refrigerator contains liquid (refrigerant, lubricant) made of recyclable materials. All these materials must be sent to a recycling waste disposal site as they can be reused after a specific recycling process.

Do not insert hand or metal stick into the cool air vents, cover, bottom of the refrigerator & heat proof grill (exhaust hole) at backside.

It may cause electric shock or injury.

Illustration of a cartoon refrigerator with a child standing on the phone and a crossed-out X symbol, next to a falling bar chart (no text or symbols present)

Install the refrigerator on a solid and level floor.

我 1 door.

Do not remove the back cover.

cover. NO

Never leave lit candles on the refrigerator,

high risk of causing fire or product damage.

Cartoon illustration of a smiling refrigerator with a windmill symbol above its door (no text or symbols on the refrigerator itself)

Completely empty inside before taking out the container from the door.

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

- Do not keep any other electrical appliance on top/inside of refrigerator such as TV, Cooler, Temple, Decoration Lighting, Harmful Chemicals, Cloth Top etc.

IMPORTANT SAFETY INFORMATION

Violating these directions may cause injury or damage to health, house or furniture.

Always be careful, please.

Do not touch food or containers in the freezer with wet hands.

It may cause frostbite.

Cartoon illustration of a child holding a large 'X' sign next to an open refrigerator with a smiling face (no text or symbols present)

Do not put bottle in the freezer.

It may freeze the contents to break the bottle and cause injury.

Warning symbol showing a bottle crossed out with a broken glass and explosion effect, indicating chemical hazard or toxicity.

Carry the refrigerator with the handle bar provided at the bottom-front and top-rear of the refrigerator.

Otherwise, your hands may slip to causing injury.

Illustration of four workers in hard hats pulling a large rectangular object (no text or symbols)

Do not lean on the doors, Hinges may

deregulate themselves, causing air leak and performance deterioration

Cartoon illustration of a child holding a tool next to a large block with a smiling face and 'NO' label (no text or symbols on the main subject)

Wait for 5 minutes or longer when reconnecting the plug.

It may cause the operation of the freezer to fail.

Pull out the power plug not by grasping the cord. But by the plug of its end.

It may cause electric shock or short circuit which may lead to fire.

Do not insert hand into the bottom of the refrigerator.

The iron plate at the bottom may cause injury.

Cartoon illustration of a distressed refrigerator with a sad face and a child holding a cross (no text or symbols)

Please careful while opening or closing the door of the refrigerator, may cause injury to the person around it.

Opening or closing the door may cause feet or hands to be caught in the chink in door or child hand get hurt by the corner.

An empty refrigerator can be a dangerous attraction to children. Remove either gaskets, latches, lids or the entire door from your unused appliance, or take some other action to make it harmless.

This appliance must be grounded (earthed).

Do not store inflammable materials, explosives or chemicals in the refrigerator.

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Children should be supervised to ensure that they do not play with the appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Refrigerator should be located properly in ventilated area.

Do not install refrigerator where the front surface area is higher than back surface area by 2 deg.

Levelling of refrigerator should be done with front leg.

Refrigerator should be levelled with from to back inclination for base

Front Log

FEATURES

• Defrosting takes place automatically.

- The defrosted water flows down to the evaporation tray which is located on the lower back side of the refrigerator and is evaporated automatically.

- Unpleasant odor of food in fresh food compartment is deodorized with no harm to you and the food.

Cartoon illustration of a smiling rectangular character pointing with its finger (no text or symbols present)

Cartoon illustration of a distressed face with steam rising, held by hands with arms (no text or symbols)

- As Deodorizer is located in cooling air inlet for circulating air in fresh food compartment, there is no need for any handling.

- Do not prick the cooling air inlet with a sharp tip because Deodorizer may get damaged.

- When storing food with a strong odor, wrap it or store it in a container with a lid because odor may get passed on to other foods.

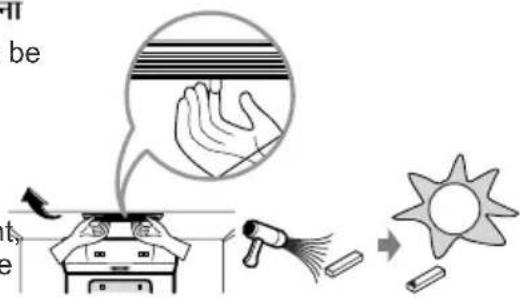

- Used some length and the odor is strong, Deodorizer can be revived and re-used.

- Separate Deodorizer in ceiling of refrigerator compartment, using hair drier to remove moisture or malodor and oxidize under sunlight to decomposing malodor by ultraviolet.

be t e

Keeps your items in the freezer cooler even when there power shut down.

Diagram showing a grid-like structure inside a server room, with an arrow pointing to the exterior panel (no text or symbols present)

It keeps your vegetables fresh by holding moisture & prevents them from getting rotten.

Humidity Controller

OPERATIONS /प्रचालन

STARTING/ चालू करना

When your refrigerator is firstly installed, allow 24 hours for the temperature to stabilize prior to filling it with fresh or frozen foods.

TEMPERATURE CONTROL

Dots on freezer knob can be used for testing and to control the temperature.

Use Bank Ice Only To Store Ice Cubes. Do Not Make Ice In It, As It May Break.

Remove ice bank carefully while removing Ice

Technical line drawing of a mechanical assembly with two circular components and directional arrows (no text or symbols)

SMART DIAGNOSIS (Only for applied models)

Smart diagnosis function is...

Use the function to contact the service center and receive precise diagnosis when the refrigerator malfunctions or fails. Use it only to connect to the consultant and do not use it in normal times.

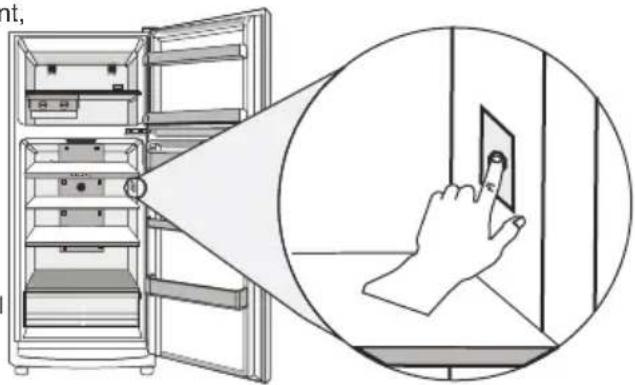

How to use the function

When the data transmission is completed, along with the display of the data transmission completion, the refrigerator will be automatically turned off and on a few seconds later listen to the explanation of the consultant about the result of the analyzed diagnosis and follow the instructions.

Simple line drawing of a computer monitor with an open lid, no text or symbols present

Diagram showing a refrigerator with doors and a hand interacting with a touchscreen device, illustrating the use of a home control system.

CAUTION / चेतावनी

The transmission sound may be irritating. Do not take away the telephone until the sound stops for good diagnosis.

This product applies LED Lamp which can not be replaced by the user. Please contact authorized service centre for the lamp replacement.

Suggestions on Food Storage

When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating and helps food to keep its taste and nutrients.

Simple line drawing of a bag, rolled cheese, and cheese slice (no text or symbols)

Don't keep hot milk or hot food in your refrigerator. This will result in an increased temperature and increase in power consumption.

Never overload your refrigerator or cover the shelves with paper or plastic sheets as it will reduce its efficiency.

Abstract geometric pattern with intersecting lines and grid (no text or symbols)

Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperature to rise.

Close the door properly, make sure that there is no gap between the gasket and the cabinet of your refrigerator.

Simple line drawing of a person pointing at a smiling rectangular object (no text or symbols)

Wipe excessive moisture on food or place it inside containers or plastic bags. This will help in retaining its freshness for a longer period of time.

Do not store food which goes bad easily at low temperatures. Such as bananas, pineapples, etc.

Suggestions on Food Storage

Loading for Freezing - It is recommended to load newly introduced foods on the following position for freezing.

Architectural floor plan showing room layouts and equipment (no text or labels)

Avoid placing moist food on deep interior refrigerator shelves. It could freeze upon direct contact with chilled air. To avoid this it is better to store food in the covered container.

It is desirable to store moist food (especially vegetable and fruit) in the vegetable storage compartment. If it is

necessary to store on a shelf of the refrigerator, put it close to the door away from the back wall of the refrigerator to avoid being frozen by the cool circulating in the refrigerator.

Refrigerator Shelf Vegetable Drawer

Feel free to call your LG Customer Information Centre (CIC) / Branch / LG Representative in case your refrigerator has suffered a damage in transit.

It is recommended to use Voltage Stabilizer (0.5KVA) if power fluctuations are frequent and out of specified voltage range (100-290V)**, Stabilizer usage increases the refrigerator life.

Cleaning of Interior Parts is recommended. Wash all compartments with a mild baking soda solution, then rinse and dry the compartment. Use a lukewarm solution of mild soap or detergent to clean the exterior finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odour formation. To operate again, let the refrigerator run for 6-8 hrs. for stabilization.

While shifting the refrigerator, two people should carry it for its safety. Fasten the door with tape or lock to prevent opening of the refrigerator.

Rising Paper

Before Calling for Service

Check for yourself

Type of Complaint	Probable Cause	Remedy
1. Refrigerator does not work.	-House fuse blown-Power Supply Off.-Stabilizer not working properly	Call an electrician and get it corrected.Check that the refrigerator main supply plug is connected to the wall socket and that the supply is on. Check that the fuse is intact in he supply line.Please plug power cord of refrigerator directly in the wall socket and then check, if it works then get the stabilizer checked by Stabilizer Repairing Centre.
2. Refrigerator attempts to start, but does not operate.	-Low Voltage.	Install a line-correcting transformer in the mains, or a Voltage Stabilizer.
3. Refrigerator compartment - Low Cooling	-Restriction of cold air circulation.-Improper thermostat setting of Freezer Temp. Control / Refrigerator Temp. Control.-Entry of hot air.	Provide space in between the dishes. If the shelves are covered with cloth or polythene, remove it.Set the Refrigerator Temp. Control Knob to colder (Max 5~7) position.Freezer Temp. Control Knob to be adjusted accordingly.Opening and closing of the doors too often will result in hot air from outside rushing into the refrigerator causing the temperature to go up. Reduce the frequency of opening of the doors.
	-Storing hot foods.	Avoid storing hot foods in the refrigerator, cool them to room temperature before placing them inside the refrigerator.
4. Formation of water drops on exterior of refrigerator.	-High humidity during monsoon season.	During the monsoon, when the humidity in the atmosphere reaches around 90% water droplets may form around the sides of the refrigerator cabinet, especially the top portion. This moisture should be wiped off periodically. Contact our serviceman to check the door seal or proper and uniform contact with the cabinet.
5. Refrigerator Compartment ? Ov ercooling	-Incorrect setting of Refrigerator Temp. Control Knob.	Lower the setting (1~3) of Refrigerator Temp. Control Knob to make the Refrigerator Compartment warmer.
6. Smell	-Improper covering and wrapping of food.	Wrap and cover food stuffs properly. Place caps on bottles and other liquid stores.
7. Difficulty in formation of ice and ice-cream.	-Incorrect setting of Freezer Temp. Control Knob.-Bowls used	For faster Ice & Ice-cream formation adjust the Freezer Temp.Use Ice trays for ice making
8. Noise	-Normal cut-of/ cut-in noise	Whenever refrigerator starts & stop there is noise of Thermostat cut-off/ cut-in & Compressor start/stop. This is a normal phenomenon.

स्वयं चैक करें

The LG Refrigerator comes with 1 + 4 or 9* (selected model) year warranty, from the date of purchase, that comprises of a 1 year warranty on all Parts (except Light Bulb, LED, Consumables, Loose Plastic Parts, Glass) in the first year and thereafter a 4 or 9* (selected model) year Additional warranty on the compressor, from the date of purchase of the product, provided always that the warranty card bears the rubber stamp, date and signature of our Authorised Dealer.

4 OR 9\* (SELECTED MODEL) YEAR ADDITIONAL WARRANTY ON COMPRESSOR

The 4 or 9^a (selected model) year warranty on Compressor will continue even after the expiry of 1 year period from the date of purchase. This warranty cover Compressor only. Gas/Gas Charging will be charged to the customer. Gas charging is included only when compressor is defective & inoperative. During the additional warranty period, it does not cover any part such as condenser, freezer, capillary, suction line, overload protector, relay, thermostat etc.. Standard visiting charges will be applicable within the municipal limit of town where LG Electronics India Pvt. Ltd. (LGEIL) has its Authorized Service centre, Service outside municipal limit will attract to and fro traveling, other incidental expenses in addition to standard visiting charges, as prevailing from time to time. During the warranty period, only the parts replaced or repaired shall be free of costs, but service charges shall always be payable by the customer.

TERMS & CONDITIONS

1. The warranty is confined to the first purchaser of the Refrigerator only & is non-transferable.
2. Repairs & replacements will be carried out by the dealer from whom the product has been purchased, or through the Authorized Service Centers of LGEIL. In case the customer shifts the place of residence during warranty period, it is advised to contact Authorized Service Centre directly or call our help line.
3. Repairs under warranty shall be carried out by an authorized service personnel only. The details of centralized help lines are attached.

4. For units installed beyond municipal limits of the jurisdiction of company's Authorized Service Center, it is responsibility of the purchaser to contact the nearest authorized service center and bring the unit to the authorized service center at its own cost and risk. All expenses incurred in collecting the units or parts thereof from the company's authorized service center, as well as expenses incurred with deputizing of service personnel/technicians towards conveyance and other incidentals etc. will be borne by the customer. Local Charges for transportation and handling charges may vary from location to location. Customers are advised to verify before. In case the customer desires to bring the unit on its own to the Authorized Service Centre, the same shall be at its own risks & consequences.

5. The concerned authorized service center will advise the customer whether to effect the repairs at site or at the authorized service center.

6. Call registered with the centralized helpline/Authorized service center, wherein only cleaning of the unit/parts in the unit due to dust accumulation on portions of the unit, general explanations/returning, are not to be considered as defects.

7. In case of repairs or replacement of any parts of the unit, this warranty will thereafter continue and remain in force only for the unexpired period of the warranty. Replacement of parts would be purely at the discretion of LGEIL alone. In case the replacement of the entire unit is being made, (subject to the sole discretion of LGEIL), the same model shall be replaced and in the event such model has been discontinued, it shall be replaced with the model of price equivalent at the time of purchase.

8. In case of any damage to the product / customer abuse/ repairs by un-authorised personnel/ misuse detected/ by the Authorized Service Center personnel, the warranty conditions are not applicable and repairs will be done subject to availability of parts and on a chargeable basis only.

9. This warranty shall not cover any consequential or resulting liability, damage or loss to property or life arising directly or indirectly out of any defect in the Refrigerator. The company's obligation under this warranty shall be limited to repair or providing replacement of defective parts only under the warranty period.

10. The company or its Authorized Service Center reserves the right to retain any part/s or component replaced at its discretion, in the event of a defect being noticed in the equipment during warranty period.

11. While the company will make every effort to carry out repairs at the earliest, it however is made expressly clear that the company is under no obligation to do so in a specified period of time.

12. Warranty does not cover accessories external to the equipment supplied by the dealer.

13. If any coloured internal or external components are replaced, there will be commitment to ensure that the shades match with the original or other components. The replaced shades, patterns, tints may vary from the customer's unit due to continuous usage of the unit. Any matching components changed at customer's request will be on chargeable basis except the component which actually needed.

Warranty is not applicable in any of the following cases :

1. The warranty card is not completed properly at the time of purchase. 2. The completed warranty card is not presented to authorized service personnel at the time of service of the product. 3. The product is not operated according to instructions given in the Operating Instruction Booklet. 4. Defects are caused by improper or reckless use, which shall be determined by the company personnel. 5. Any repair work is carried out by persons other than authorized service personnel. 6. Defects are caused by due to causes beyond control like lightening, abnormal voltage, acts of God or while in transit to service center or purchaser's residence. 7. The warranty is not valid in case, the serial number is deleted, defected or altered. 8. Damage to the product or any part's due to transportation or shifting is not covered by warranty. 9. a) This warranty will automatically terminate on the expiry of the warranty period of 12 months, even if the Refrigerator may not be in use for any time during the warranty period for any reason. b) The warranty on compressor will automatically terminate on expiry of 4 years (after 1 year warranty period) even if the Refrigerator may not be in use for any time during the said period for any reason. 10. Only courts in state of Delhi and places where LGEIL has its branch office shall have the jurisdiction for settling any claims, disputes arising under the warranty.

CUSTOMER'S COPY

MODEL No.: DATE OF PURCHASE :

UNIT SERIAL No.:

CUSTOMER'S NAME & ADDRESS

TEL.

DEALER'S NAME & ADDRESS

TEL.

LG

Life's Good

Barcode image with black and white vertical bars on white background

MFL68504101
