USER MANUAL GN-M352CLC LG

Please read this manual carefully before operating your set and retain it for future reference

CONTENTS

IMPORTANT SAFETY INFORMATION ....3

INSTALLATION 9

INNER PARTS ....10

OPERATIONS ....12

Starting

Before setting the temperature

Self test

Door alarm

Lamp auto off feature

Controls for refrigerator compartment

Super cool (for external controller model)

Child lock (for external controller model)

Green plasma (for external controller model)

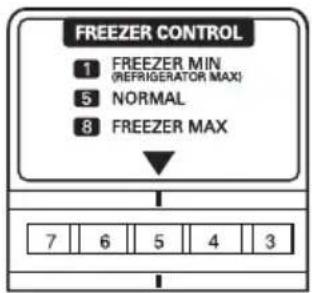

Controls for freezer compartment

Ice making

Vegetable Drawer

Vitamin kit (optional)

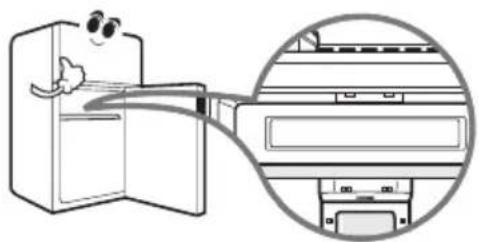

Fresh zone

Defrosting

Deodorizer (optional)

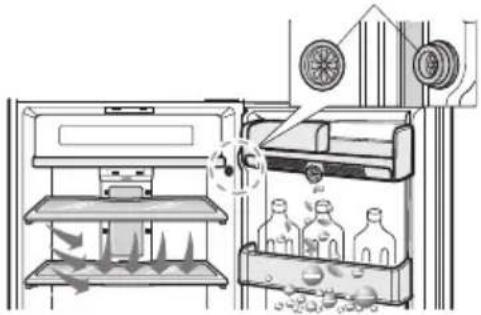

Green ion door cooling (for door cooling model)

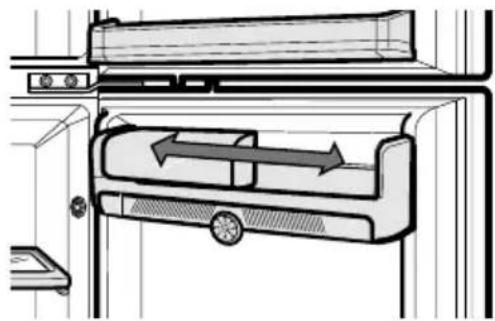

Dairy corner (for door cooling model)

SUGGESTIONS ON FOOD STORAGE 17

CLEANING ....18

GENERAL INFORMATION 18

LAMP REPLACEMENT ....19

IMPORTANT WARNINGS ....19

BEFORE CALLING FOR SERVICE ....20

Cartoon illustration of a smiling refrigerator character with arms and legs (no text or symbols)

IMPORTANT SAFETY INFORMATION

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazard that can kill or hurt you or others or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:

DANGER

You will be killed or seriously injured if you don't follow instructions.

WARNING

You will be killed or seriously injured if you don't follow instructions.

CAUTION

indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following.

Read all instructions before using this appliance.

1. When connecting the power

The dedicated outlet should be used.

• Using several devices at one outlet may cause fire.

• The electric leakage breaker may damage food and the dispenser may be leaked.

Diagram of a rope knot with two crossed loops (no text or symbols)

Do not allow the power plug to face upward

or to be squeezed at the back of the refrigerator.

Water may be flown into or the plug may be damaged, which causes fire or electric shock.

Illustration of a cartoon refrigerator with a sad face and crossed arms, connected to a broken door (no text or symbols)

Do not allow the power cord bent or pressed

by the heavy object to be damaged.

It may damage the power cord to cause fire or electric shock.

Cartoon illustration of a refrigerator with a 'NO' sign and a hand gesture, next to a refrigerator with a fan (no text or symbols on the refrigerator itself)

Do not extend or modify the length of the

power plug.

It causes electric shock or fire by the electric damage of the power cord or others.

Cartoon illustration of a person reacting to a ringing refrigerator with 'NO' signs (no text or symbols on the refrigerator itself)

IMPORTANT SAFETY INFORMATION

1. When connecting the power

Unplug the power plug when cleaning, handling or replacing the interior lamp of the refrigerator.

- It may cause electric shock or injury.

- When replacing the interior lamp of the refrigerator, make sure that the rubber ring for preventing the electric spark within the socket is not taken off.

Illustration of a child standing beside an open refrigerator with a smiling face (no text or symbols)

Do not pull out the cord or touch the power plug with wet hands.

• It may cause electric shock or injury.

Illustration of two children interacting with a large X-shaped object, no text or symbols present

Remove water or dust from the power plug and insert it with the ends of the pins securely connected.

Dust, water or unstable connection may fire or electric shock.

Illustration of a hand using a tool to clean or brush the cloth (no text or symbols)

Make sure of grounding.

The incorrect grounding may cause breakdown and electric shock.

Ground Wire Copper Flat More than 30 inches

When the power cord or the power plug is

damaged or the holes of the outlet are loosed, do not use them.

It may cause electric shock or short circuit to make fire.

2. When using the refrigerator

Do not place the heavy object or the

dangerous object (container with liquid) on the refrigerator.

It may be dropped to cause injury, fire or electric shock when opening or closing the door.

Cartoon illustration of a refrigerator with a child holding a tray (no text or symbols)

Do not cling to the door or the shelves of the door or the home bar of the freezer or the cool chamber.

It may make the refrigerator fallen down or damage the hands. Especially, do not allow the children to do the above.

Cartoon illustration of a person hanging from an open refrigerator with a 'NO' hand, no text or symbols present

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not install the refrigerator in the wet place or the place which water or rain splashes.

Deterioration of insulation of electric parts may cause electric leakage.

Cartoon illustration of a smiling refrigerator with a 'NO' sign and a bottle, no text or symbols present.

Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas,

spray or cosmetics near or in the refrigerator.

It may cause explosion or fire.

Cartoon illustration showing a smiling book character and a crossed-out 'Euron' sign with the word 'Humer'

Do not place the lit candle within the refrigerator to deodorize.

It may cause explosion or fire.

Cartoon illustration of a smiling refrigerator with a 'NO' sign and a 'X' symbol inside, no text or symbols on the main image.

Do not store the medicine or the academic materials at the refrigerator.

When the material with the strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk.

NO Yes/No

Do not use the combustible spray near the refrigerator.

It may cause fire.

NO

Avoid the heating devices.

It may cause fire.

Cartoon illustration of a smiling book character and a gift box with steam (no text or symbols)

Do not place flower vase, cup, cosmetics, medicine or any container

with water on the refrigerator.

It may cause fire, electric shock or injury by dropping down.

Cartoon illustration of a smiling gift box character with arms and legs, holding a 'NO' sign (no text or symbols on the character itself)

Use the submerged refrigerator after checking it.

It may cause electric shock or fire.

Cartoon illustration of a smiling refrigerator with a person standing beside it (no text or symbols)

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not spray water at the outside or the inside of the refrigerator or do not clean it with benzene or thinner.

Deterioration of insulation of electric parts may cause electric shock or fire.

Cartoon illustration of a smiling refrigerator and a girl holding a book (no text or symbols)

When any strange smell or smoke is detected from the refrigerator, disconnect

the power plug immediately and contact to the service center. It may cause fire.

Service center

Do not allow any person except the qualified engineer to disassemble, repair or alter the refrigerator.

It may cause injury, electric shock or fire.

Cartoon illustration of a girl running with a stethoscope and a smiling book, next to a rectangular device (no text or symbols)

Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).

It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.

Cartoon illustration of a smiling rectangular object with arms and legs, standing on a cross symbol (no text or symbols present)

When disposing the refrigerator, remove the packing materials from the door.

It may cause to lock out the child.

Cartoon illustration of a child holding a broom while standing beside an open refrigerator (no text or symbols)

Install the refrigerator on the solid and level floor.

Installing it on the unstable place may cause death by falling down the refrigerator when opening or closing the door.

Cartoon illustration of a distressed refrigerator with arms and legs crossed out, no text or symbols present.

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not insert the hands or the metal stick into the exit of cool air, the cover, the bottom of the refrigerator, the heatproof grill (exhaust hole) at the backside.

It may cause electric shock or injury.

Cartoon illustration of a child standing on a phone connected to a doorbell (no text or symbols present)

When you want to dispose the refrigerator, contact to the down-block office.

When you want to dispose the large living waste such as electric home appliance and furniture, you'd better contact the local down-block office.

Down-black office

CAUTION

Violating this direction may cause injury or damage house or furniture. Always be careful, please.

Do not touch food or containers at the freezer with wet

hands.

It may cause frostbite

NO

Wait for 5 minutes or longer when reconnecting the plug.

It may cause the operation of the freezer to fail.

NO After 5minutes

Do not put bottle in the freezer.

It may freeze the contents to break the bottle to cause injury.

Warning symbol with crossed-out bottles and a lightning bolt, indicating chemical hazard or toxicity warning

Pull out the power plug not by grasping the cord but the plug of its end.

It may cause electric shock or short circuit to fire.

IMPORTANT SAFETY INFORMATION

CAUTION

Violating this direction may cause injury or damage house or furniture. Always be careful, please.

Do not install the refrigerator in the wet place or the place which water or rain

splashes.

Deterioration of insulation of electric parts may cause electric leakage.

NO I II V

Do not insert the hands into the bottom of the refrigerator.

The iron plate of the bottom may cause injury.

Cartoon illustration of a distressed refrigerator with a sad face and a person lying on the floor (no text or symbols)

Carry the refrigerator with the handle bar at the bottom of the front and the top of the

rear.

Otherwise, your hands may be slipped to cause injury.

Illustration of three workers in hard hats pulling a large rectangular object (no text or symbols)

Because opening or closing the door of the refrigerator may cause injury to the person around it, be careful, please.

Opening or closing the door may cause feet or hands to be caught in the chink in door or the child to be get hurt by the corner.

Cartoon illustration of a distressed refrigerator with a 'NO' sign and a girl running away (no text or symbols on the main image)

Do not put any living animal in the refrigerator.

NO

THIS REFRIGERATOR IS MANUFACTURED WITH GREAT CARE, AND UTILIZES THE LATEST IN TECHNOLOGY.

WE ARE CONFIDENT THAT YOU WILL BE FULLY SATISFIED WITH IT'S PERFORMANCE AND RELIABILITY.

BEFORE YOU START YOUR REFRIGERATOR, PLEASE READ THIS BOOKLET CAREFULLY.

IT PROVIDES EXACT INSTRUCTIONS FOR INSTALLATION, OPERATION AND MAINTENANCE, AND ALSO SUPPLIES SOME USEFUL HINTS.

INSTALLATION

1. Select a good location.

Place your refrigerator where it is easy to use.

1. Avoid placing the unit near heat sources, direct sunlight or moisture.

2. To ensure proper air circulation around the fridge - freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.

3. To avoid vibrations, the unit must be level. If required, adjust the leveling screws to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly.

Turn the leveling screws clockwise( ) to raise the unit, counterclockwise( ) to lower it.

1. Don't install this appliance below 5^ C. It may cause the debasement of the refrigerator.

NEXT

1. Clean your refrigerator thoroughly and wipe off all dust accumulated during shipping.
2. Install accessories such as ice cube box, etc., in their proper places. They are packed together to prevent possible damage during shipment.
3. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.
4. Prior to storing food, leave your refrigerator on for 2 or 3 hours.
   Check the flow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.

INNER PARTS

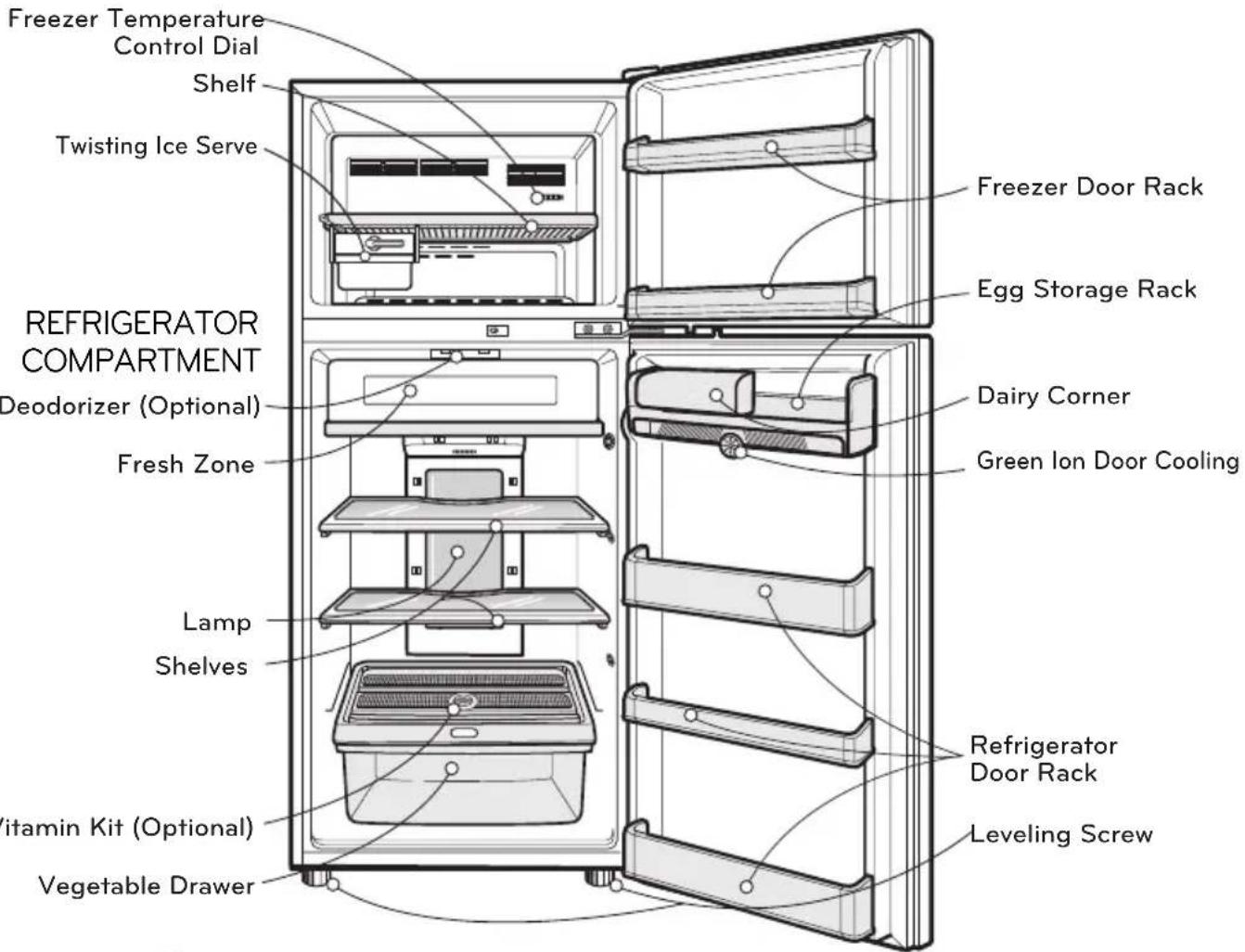

▶DOOR COOLING MODEL

FREEZER COMPARTMENT

Freezer Temperature Control Dial Shelf Twisting Ice Serve Refrigerator COMPARTMENT Deodorizer (Optional) Fresh Zone Lamp Shelves Vitamin Kit (Optional) Vegetable Drawer Freezer Door Rack Egg Storage Rack Dairy Corner Green Ion Door Cooling Refrigerator Door Rack Leveling Screw

●This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.

To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.

Suggestion for energy saving

• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.

INNER PARTS

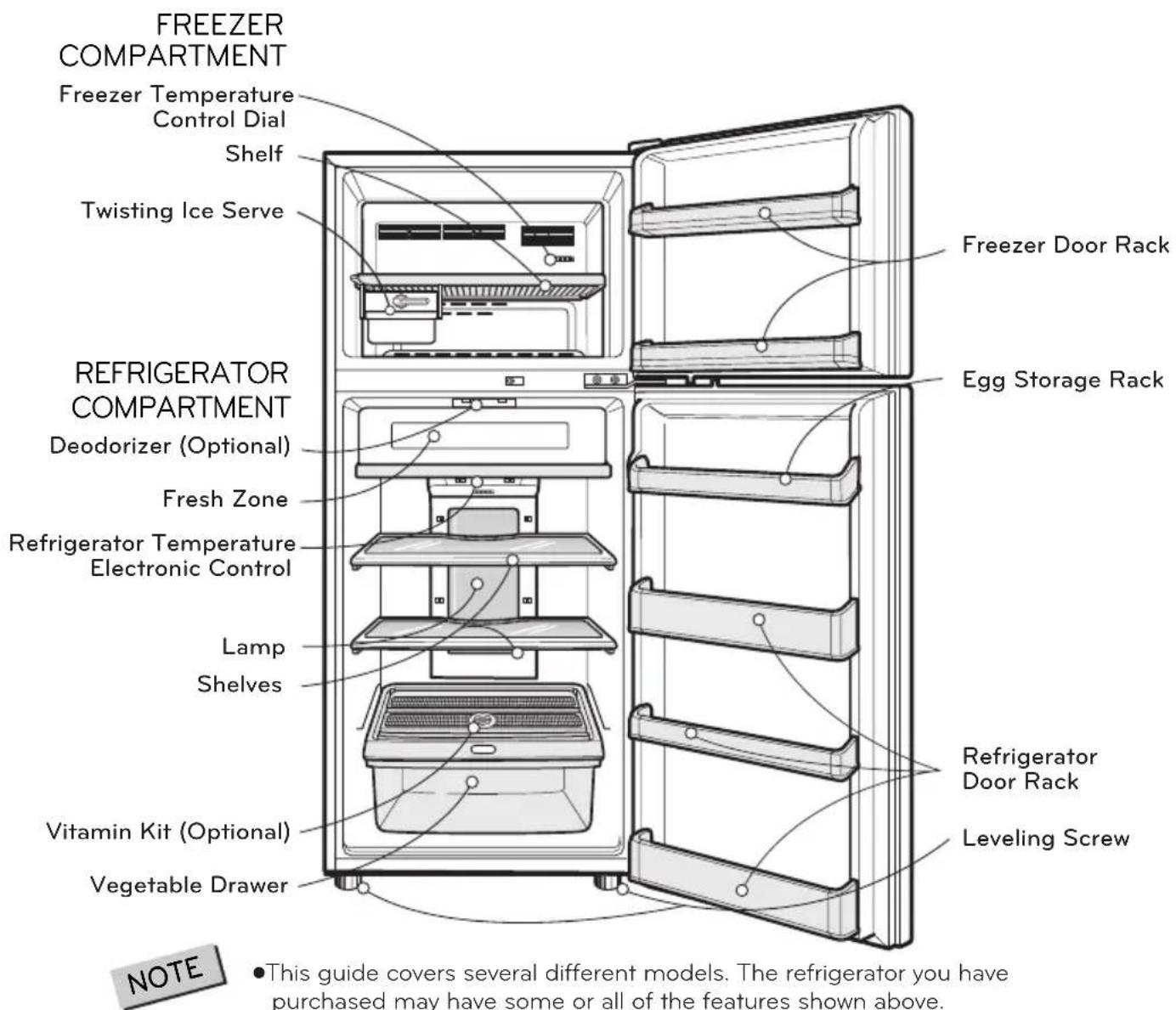

▶ NON DOOR COOLING MODEL

FREEZER COMPARTMENT Freezer Temperature Control Dial Shelf Twisting Ice Serve Refrigerator COMPARTMENT Deodorizer (Optional) Fresh Zone Refrigerator Temperature Electronic Control Lamp Shelves Vitamin Kit (Optional) Vegetable Drawer Freezer Door Rack Egg Storage Rack Refrigerator Door Rack Leveling Screw NOTE •This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.

To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.

Suggestion for energy saving

• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.

OPERATIONS

STARTING

When your refrigerator is first installed, allow it 2-3 hours to stabilize at normal operating temperatures prior to filling it with fresh or frozen foods.

If operation is interrupted, wait 5 minutes before restarting.

BEFORE SETTING THE TEMPERATURE

• The temperature of the refrigerator is kept constant regardless of changes in room temperature. It is recommended that, once set, the temperature setting (the controls for the refrigerator and freezer compartments) not be changed unless necessary.

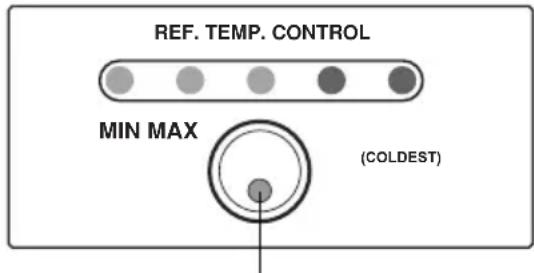

• This refrigerator has one temperature control button for the refrigerator compartment and one temperature control dial for the freezer compartment.
• The default setting of the temperature control button for the refrigerator compartment is '3°C'.
• The default setting of the temperature control dial for the freezer compartment is '5'.
• This refrigerator has a temperature sensor in the refrigerator compartment. It will start and stop the compressor automatically as needed.

SELF TEST

• Your refrigerator contains a built in diagnostic capability. If it develops a malfunction in certain areas, it will display an error code to assist the repair technician. While an error code is displayed, other control and display functions will not operate.
• If an error code is displayed, contact a service center. Do not disconnect the power cord from the outlet.

DOOR ALARM

When the door of the refrigerator is open 1 minute, an alarm will sound three times. If the door remains open, the alarm will repeat every 30 seconds.

LAMP AUTO OFF FEATURE

When the door is open for 7 minutes or longer, the lamp inside goes off automatically to save energy and prevent overheating. However, the alarm sound continues until the door is closed.

CONTROLS FOR REFRIGERATOR COMPARTMENT

☐ FOR INTERNAL CONTROLLER MODEL

REF. TEMP. CONTROL MIN MAX (COLDEST)

Ref. Temp Control Button

The default setting of the temperature control button for the refrigerator compartment is NORMAL.

To control the refrigerator temperature, press the REF. TEMP CONTROL button.

Whenever pressing the button, LED emitting the light. The temperature is set in 5 steps, from MIN to MAX. cooling.(MIN = warmest, MAX = coldest temperature)

OPERATIONS

☐ FOR EXTERNAL CONTROLLER MODEL

Display graphic can be different that you have which typw refrigerator.

TOTAL NO FROST CHILD LOCK ITEMS REFRIGERATOR SUPER COOL

GREEN ION DOOR COOLING CHILD LOCK SRECS 8°C REFRIGERATOR SUPER COOL

GREEN PLASMA GREEN PLASMA INPUT 8°C REL Temperature SUP

• Press 'REFRIGERATOR' button to control refrigerator temperature.
• Whenever pressing the button, LED emitting the light.
• The number showing up on the LED luminesce indicate the temperature of refrigerator compartment.
• You can select the desired setting point seven steps, from '0°C' to '6°C'.

SUPER COOL

• The Super Cool feature operates when the when the refrigerator first turn on. The compressor and circulating fan operate at maximum cooling capacity to quickly lower the refrigerator temperature. It shuts off automatically.
• If warm food is placed into the refrigerator, Super Cool can be started with the button on the control panel. Super Cool will shut off when the temperature reaches the proper level or it can be shut off manually by pressing the Super Cool button.

CHILD LOCK (OPTIONAL)

GREEN PLASMA GREEN PLASMA subsidy 8°C REFRICE RATOR

GREEN ION DOOR COOLING CHIP LOCK REFR SUPER COOL

- CHILD LOCK

Press and hold the CHILD LOCK button for 3 seconds to lock the child lock.

When it is locked, the Lock LED will be on and the other button will not operate. To unlock, press and hold the CHILD LOCK button for 3 seconds again.

OPERATIONS

GREEN PLASMA (OPTIONAL)

GREEN PLASMA CREE REFR SUPER COOL

- GREEN PLASMA

Green Plasma feature generates active cluster ions which demolish bacteria in refrigerator compartment. It will keep your refrigerator always hygienic.

CONTROL FOR FREEZER COMPARTMENT

FREEZER CONTROL 1 FREEZER MIN (REFRIGERATOR MAX) 5 NORMAL 8 FREEZER MAX 7 6 5 4 3

• FREEZER CONTROL- 1, 2, 3, 4, 5, 6, 7, 8

Setting at "8", the freezer compartment becomes colder.

But the refrigerator compartment becomes warmer because less cold air flows into the refrigerator compartment.

- In cold weather the unit operates less and the freezer compartment has a tendency to warm up.

For colder freezer, turn the FREEZER CONTROL to "7"\~"8".

• If you take a lot of foods in the freezer or open its door frequently its temperature is apt to be somewhat higher. In this case, set the FREEZER CONTROL dial between 7 and 8 to cool it. Return the FREEZER CONTROL dial to the original position to cut down the consumption
• In hot weather or to put much foods in the refrigerator compartment, the refrigerator compartment has a tendency to warm up. For colder refrigerator, turn the FREEZER CONTROL to "2"\~"4" to direct more cold air into the refrigerator compartment, and the REFRIGERATOR TEMP. CONTROL to "MAX" or "O". Setting at "7"\~"8" of the FREEZER CONTROL, the refrigerator compartment will not be cold enough.
• Setting the Freezer Knob at will satisfy 4 STAR. Setting the Freezer Knob at NORMAL will have sufficient freezing effect, so it is recommended to set the Knob at NORMAL.

ICE MAKING

Twisting Ice Serve Type

• To make ice cubes, fill the ice tray with water and insert in its position.
• To remove ice cubes, hold the lever of the tray and pull turn gently. Then, ice cubes drop into the ice cube box.

Ice Trays Ice Cube Box

Diagram of a device interior showing a hand inserting a cable into a rack (no text or symbols visible)

Line drawing of a tray with a container and a pitcher pouring liquid from a glass (no text or symbols)

OPERATIONS

VEGETABLE DRAWER

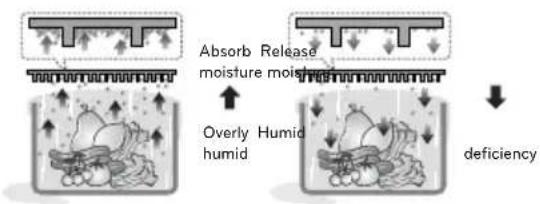

MAGIC CRISPERS

• Magic Crispers provide fresher-tasting fruit and vegetables by letting you easily keep humidity inside the vegetable drawer.
• A lattice on the underside of the cover to efficiently hold or release moisture.
  • Sealing structure keep the humidity.

Absorb Release moisture moisture ↑ Overly Humid humid deficiency

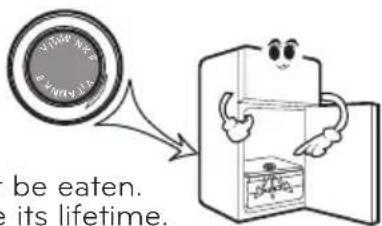

VITAMIN KIT (OPTIONAL)

It contains anti-oxydant that is able to avoid oxidation process in order to make the fruits and vegetables fresh for longer time.

be eaten. its lifetime.

This part contains anti-oxydant substance that should not be eaten. Opening and closing the door too much often can reduce its lifetime.

FRESH ZONE

- When the door is opened, the warmer air doesn't influence in the fresh zone. So you can keep food fresher in it.

Illustration of a refrigerator with a cartoon face and a magnified inset showing the exterior view (no text or symbols)

DEFROSTING

• Defrosting takes place automatically.
- The defrosted water flows down to the evaporating tray which located in the lower back side of the refrigerator and is evaporated automatically.

DEODORIZER (OPTIONAL)

- Unpleasant odor of food in fresh food compartment is deodorized with no harm to you and the food.

Cartoon illustration of a smiling rectangular character with arms and legs, pointing upward (no text or symbols)

Cartoon illustration of a sad face with steam rising, holding a small object (no text or symbols)

How to use

• As Deodorizer is located in cooling air inlet for circulating air in fresh food compartment, there is no need for any handling.
• Do not prick the cooling air inlet with a sharp tip because Deodorizer may be damaged.
• When storing food with a strong odor, wrap it or store it in a container with a lid because odor may be passed on to other foods.

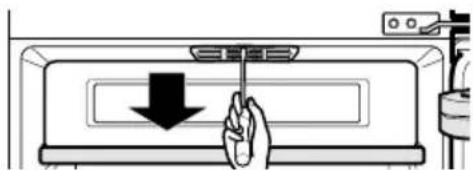

- To remove the deodorizer, take down while pulling it forward after inserting type driver into the inside hole as shown in the figure at right.

Diagram showing a hand inserting a component into a device panel with a downward arrow (no text or symbols)

OPERATIONS

GREEN ION DOOR COOLING (FOR DOOR COOLING MODEL)

• The anion coating in the duct cover purifies the air and helps stored foods remain fresh longer.
• If water of foreign substances enter the cool air vent while cleaning, efficiency will be lowered. In addition, if gasket is damaged, efficiency may be lowered owing to the escape of cool air.

Cool Air Vent

Illustration of a laboratory filtration machine with bottles and pulleys (no text or symbols)

DAIRY CORNER (FOR DOOR COOLING MODEL)

- Use the moving by pushing right the left with protruded handle.

Technical diagram of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols)

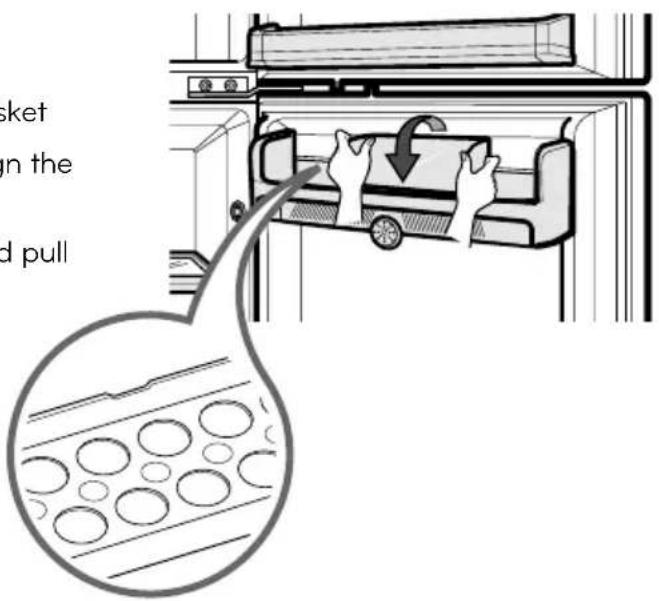

How to remove the cover when you clean

• Push the cover and move it to the center of basket
• Move the cover at the middle of basket and align the hole with bothsides of the basket
• After aligning, turn basket from back to front and pull out with both hands.

asket in the and pull

SUGGESTIONS ON FOOD STORAGE

STORING FOOD

• Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.
• Do not store food which goes bad easily at low temperatures, such as bananas, pineapples, and melons.
• Allow hot food to cool prior to storing. Placing hot food in the refrigerator could spoil other food, and lead to higher electric bills!
• When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
• Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even
• Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise.

FREEZER COMPARTMENT

• Do not store bottles in the freezer compartment - they may break when frozen.
• Do not refreeze food that has been thawed. This causes loss of taste and nutrition.
• When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.
• It is recommended to load food at least 15mm against freezer wall, it will keep good air circulation in the freezer compartment.

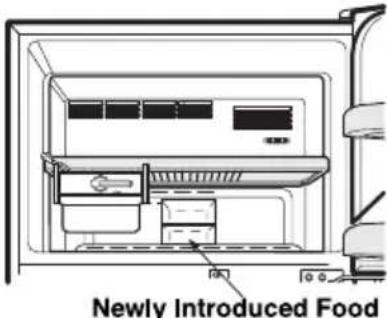

• Loading for Freezing - It is recommended to load newly introduced foods on the following position for freezing:

Newly Introduced Food

- Freezer Door Basket, marked ( ^** ) is -12^ C compartment, that is suitable for short term storage of frozen food (optional).

REFRIGERATOR COMPARTMENT

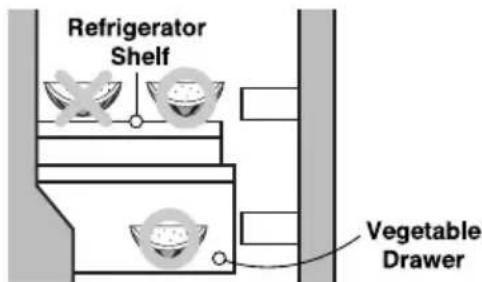

• Avoid placing moist food on deep interior refrigerator shelves, it could freeze upon direct contact with chilled air. To avoid this it is better to store food in the covered container.
• It is desirable to store moist food (especially vegetable and fruit) in the vegetable storage compartment. If it is necessary to store on a shelf of the refrigerator, put it close to the door away from the back wall of the

Refrigerator Shelf Vegetable Drawer

refrigerator to avoid being frozen by the cool circulating in the refrigerator.

- Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped clean, to prevent adjacent food from spoiling.

- When storing eggs in their storage rack, ensure that they are fresh, and always store them in a up-right position, which keeps them fresh longer.

CLEANING

It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled food should be wipe up immediately, since it may acidify and stain plastic surfaces if allowed to settle.

Never use metallic scouring pads, brushes, coarse abrasive cleaners or strong alkaline solutions on any surface.

Before you clean, however, remember that damp objects will stick or adhere to extremely cold surfaces. Do not touch frozen surfaces with wet or damp hands.

EXTERIOR - Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

INTERIOR - Regular cleaning of the interior and interior parts is recommended. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

INTERIOR PARTS - Wash compartment shelves, door racks, storage trays and magnetic door seals etc. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

WARNING

Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts(lamps, switches, controls, etc.). Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing electric shock. Do not use flammable or toxic cleaning liquids.

• Caution for Cleaning Not in use: Surface active agent, Car wax, Anticorrosive, All sorts of oil, Gasoline, Acids, Wax.
• Usable Detergent Vegetable dish washable solution, Soapy water.
• When careless using, it can occur a color change.

GENERAL INFORMATION

VACATION TIME

During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life.

When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.

POWER FAILURE

Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures.

However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.

IF YOU MOVE

Remove or securely fasten down all loose items inside the refrigerator.

To avoid damaging the leveling screw(s), turn them all the way into the base.

ANTI-CONDENSATION PIPE

The outside wall of the refrigerator cabinet may

sometimes get warm, especially just after installation.

Don't be alarmed.

This is due to the anti-condensation pipe, which pumps hot refrigerant to prevent "sweating" on the outer cabinet wall.

Anti - Condensation Pipe

Caution

Electrical Shock Hazard

Before replacing a burned-out light bulb, either unplug the refrigerator or turn off power at the circuit breaker or fuse box.

NOTE : Moving the control to the OFF position does not remove power to the light circuit.

LAMP REPLACEMENT

REFRIGERATOR LAMP

1. Unplug the power cord from the outlet.
2. Remove refrigerator shelves.
3. To remove the lamp cover insert ⊖ type driver at the corner of under hole of the lamp cover and pull it out forwards

4. Turn the lamp counterclockwise.

5. Assemble in reverse order of diassembly. Replacement bulb must be the same specification as original.

Illustration of hands holding a rectangular object with arrows indicating motion or force direction (no text or symbols)

IMPORTANT WARNINGS

DO NOT USE AN EXTENSION CORD

If possible, connect the refrigerator to its own In the event of an electric short circuit, grounding individual electrical outlet to prevent it and other (earthing) reduces the risk of electric shock by

appliances or household lights from causing an overload that could cause a power outage.

ACCESSIBILITY OF SUPPLY PLUG

The refrigerator-freezer should be so positioned that the supply plug is accessible for quick disconnection when accident happens.

SUPPLY CORD REPLACEMENT

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

ABOUT GROUNDING (EARTHING)

providing an escape wire for the electric current. In order to prevent possible electric shock, this appliance must be grounded. Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly

DO NOT MODIFY OR EXTEND THE POWER CORD LENGTH.

It will cause electric shock or fire.

GTH.

An empty refrigerator can be a dangerous attraction to children. Remove either gaskets, latches, lids or the entire door from your unused appliance, or take some other action to make it harmless.

This appliance must be grounded (earthed).

DON'T WAIT! DO IT NOW!

Do not store inflammable materials, explosives or chemicals in the refrigerator.

WARNING

This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

DISPOSAL OF THE OLD APPLIANCE

This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable.

All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.

BEFORE CALLING FOR SERVICE

SERVICE CALLS CAN OFTEN BE AVOIDED!

IF YOU FEEL YOUR REFRIGERATOR IS NOT OPERATING PROPERLY, CHECK THESE POSSIBLE CAUSES FIRST :

PROBLEM	POSSIBLECAUSES
REFRIGERATOR DOES NOT OPERATE	Has a house fuse blown or circuit breaker tripped?Has the power cord plug been removed or loosened from the electrical wall outlet?
REFRIGERATOR OR FREEZER COMPARTMENT TEMPERATURE TOO WARM	Temperature control not set on proper position.Appliance is placed close to wall or heat source.Warm weather-frequent door openings.Door left open for a long time.Large amount of foods are kept in the refrigerator.
ABNORMAL NOISE(S)	Refrigerator is installed in a weak or uneven place, or leveling screw needs adjusting.Unnecessary objects placed in the back side of the refrigerator.
REFRIGERATOR HAS ODOR	Foods with strong odors should be tightly covered or wrapped.Interior needs cleaning.
DEW FORMS ON THE CABINET SURFACE	Not unusual during periods of high humidity.Door may have been left ajar.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

DISPOSAL OF YOUR OLD APPLIANCE

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

• Information of fluorinated greenhouse gases used as refrigerant of this refrigerator.

Chemical Name	Composition of Gases	Total GWP (kg CO2-eq)
R-134a	100% HFC-134a	1300
