VT4WD950 - Washing machine LG - Free user manual and instructions

USER MANUAL VT4WD950 LG

Smart Diagnosis ....45

WARTUNG

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Entsorgung

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

12 AUFSTELLEN

AUFSTELLEN

Technical diagram of a mechanical device with numbered components and an inset close-up view labeled 6-7.

Technical diagram of a mechanical or electrical component with labeled parts 1, 2, and 3

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Zubehör

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

14 AUFSTELLEN

Technical line drawing of a mechanical component with two views: top shows circular grooves and a threaded bolt, bottom shows hexagonal base (no text or symbols)

Diagram showing a device component with labeled parts and directional arrows indicating movement or assembly.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

16 AUFSTELLEN

Technical diagram showing a pipe wrench inside a container with directional arrows indicating flow or movement, labeled with number 1.

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including a magnified inset showing a circular component.

HINWEIS

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Two diagrams showing a mechanical lever mechanism with rotational arrows, no text or symbols present

HINWEIS

Simple diagram showing a component labeled '1' above a curved line, with no text or symbols present.

Mechanical diagram showing a bolt securing a nut with a curved arrow indicating motion (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

18 AUFSTELLEN

Illustration of a hand holding a card with a triangular clip, no text or symbols present

Technical diagram showing two mechanical assembly steps with labeled component 1

Technical diagram showing a mechanical assembly with labeled component 1 and a close-up view of a flanged component.

Illustration of a faucet with a valve and pipe fitting, showing fluid flow direction (no text or symbols)

HINWEIS

Illustration showing a hand using a tool to insert a component, with a magnified inset of the device (no text or symbols present)

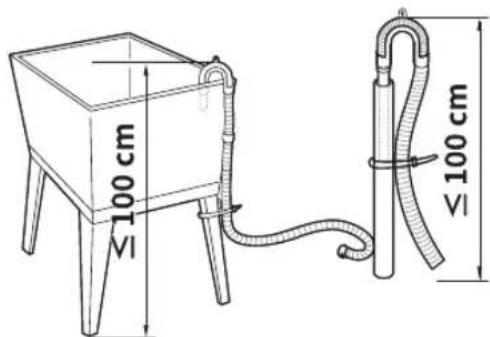

≤100 cm ≤145 cm ≤100 cm ≤105 cm

100 cm VI 100 cm VI

Pure geometric lines and symbols without any text, numbers, or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure electrical circuit lines without any symbols

de_main.book.book Page 20 Tuesday, September 22, 2020 3:20 PM

20 AUFSTELLEN

Line drawing of a kitchen sink with faucet and plate (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

BETRIEB

Cross-sectional diagram of a biological structure inside a circular chamber, showing internal tissue and a marked region (no text or labels)

Medical illustration showing a hand holding a device near the car and a close-up of a medical device inside a vehicle (no text or symbols present)

Line drawing of a cabinet interior with shelves and doors (no text or symbols)

Pure electrical circuit lines without any symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

22 BETRIEB

Simple circular diagram with two curved arrows indicating rotational or bidirectional motion (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

24 BETRIEB

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

26 BETRIEB

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows indicating motion or assembly.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

28 BETRIEB

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

HINWEIS

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

30 BETRIEB

Programmtabelle

Waschprogramm

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

32 BETRIEB

Pure geometric lines and symbols without any text, numbers, or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure technical drawing lines and geometric shapes without any text or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

34 BETRIEB

Programm	kg	h:mm	kWh	°C	Litern	U/Min.	%
Eco 40-60 (Voll)*1	9	3:47 1	280	49 63,0		1350	53,0
Eco 40-60 (Halb)*1	4,5	2:51	0, 730	41	46,0	1360	53,0
Eco 40-60 (Viertel)*1	2,25	2:41	0,340	28	41,0	1360	53,0
Mix	3	1:21	0,376	31	54,0	1000	62,5
Kurz 30	2	0:30	0,167	21	49,0	800	89,1
Koch-/Buntwäsche + Intensiv	9	3:58	0,901	33	111,0	1350	50,2
Eco 40-60 + 2 (Voll)*3	5	6:45	3,74	42	85,0	1360	53,0
Eco 40-60 + 2 (Halb)*3	2,5 5:00		2,14 34		60,0	1360	53,0

Pure geometric lines and circular shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

36 BETRIEB

Trocknungsprogramme

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

38 BETRIEB

Pure electrical circuit lines without any symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

40 BETRIEB

Vorwäsche

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

42 INTELLIGENTE FUNKTIONEN

INTELLIGENTE FUNKTIONEN

LG ThinQ-App

Diagram showing hand finger pressing up and clicking a circle with directional arrows, next to a circular button with downward arrow.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

INTELLIGENTE FUNKTIONEN

43

Diagram showing a hand interacting with wireless signals to form a Wi-Fi symbol, indicating signal transmission or interaction.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

44 INTELLIGENTE FUNKTIONEN

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

INTELLIGENTE FUNKTIONEN

45

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure electrical circuit lines without any symbols

de_main.book.book Page 46 Tuesday, September 22, 2020 3:20 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

46 INTELLIGENTE FUNKTIONEN

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

WARTUNG

⚠️ WARNUNG

Illustration of hands cleaning a circular object with arrows indicating direction (no text or symbols)

⚠️ WARNING

Diagram showing a cable being inserted into a wire with an arrow indicating direction (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Illustration of a tool being cut with scissors, showing motion and assembly (no text or symbols)

Diagram illustrating food preparation steps with labeled components and a magnified view of raw food items

Illustration of a hand holding a folder with arrows indicating direction (no text or symbols)

Pure electrical circuit lines without any symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

50 WARTUNG

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

FEHLERBEHEBUNG

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

52 FEHLERBEHEBUNG

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

58 FEHLERBEHEBUNG

Geruch

it_main.book.book Page 60 Tuesday, September 22, 2020 3:57 PM

LG

Life's Good
