USER MANUAL P2720DC DELL

Dell 27 USB-C Monitor - P2720DC

User's Guide

NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Copyright © 2019 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

2019 - 11

Rev. A00

Contents

About your monitor 6

Package contents 6

Product features....8

Identifying parts and controls .....9

Front view 9

Back view 10

Side view. 11

Bottom view 12

Monitor specifications ..... 13

Resolution specifications ..... 14

Supported video modes....15

Preset display modes 15

MST Multi-Stream Transport (MST) Modes ..... 16

Electrical specifications. 16

Physical characteristics. 17

Environmental characteristics 18

Power management modes 19

Plug and play capability 25

LCD monitor quality and pixel policy 25

Maintenance guidelines 25

Cleaning your monitor. 25

Setting up the monitor.... 26

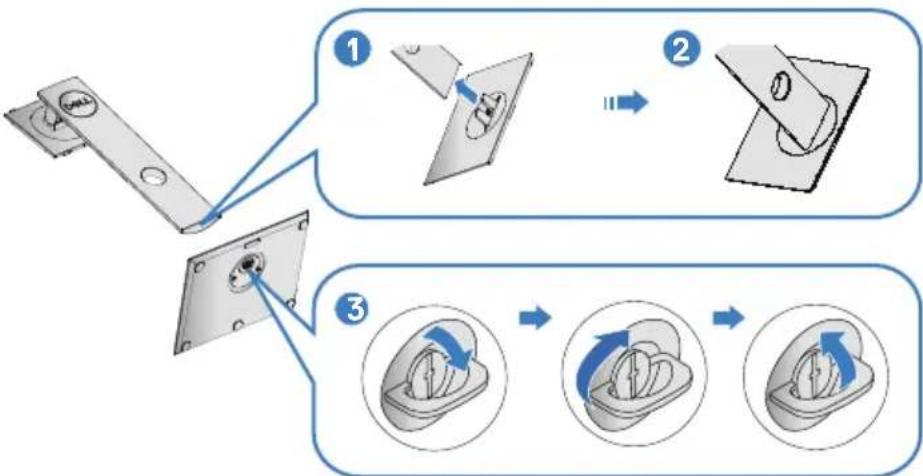

Attaching the stand 26

Connecting your monitor 28

Connecting the DP cable 28

Connecting the monitor for DP Multi-Stream Transport (MST) function 28

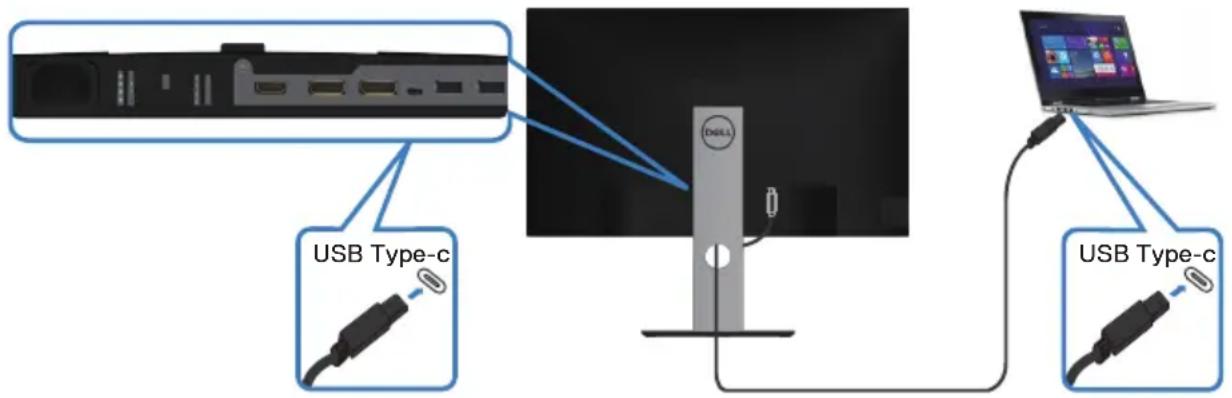

Connecting the USB Type-C cable 29

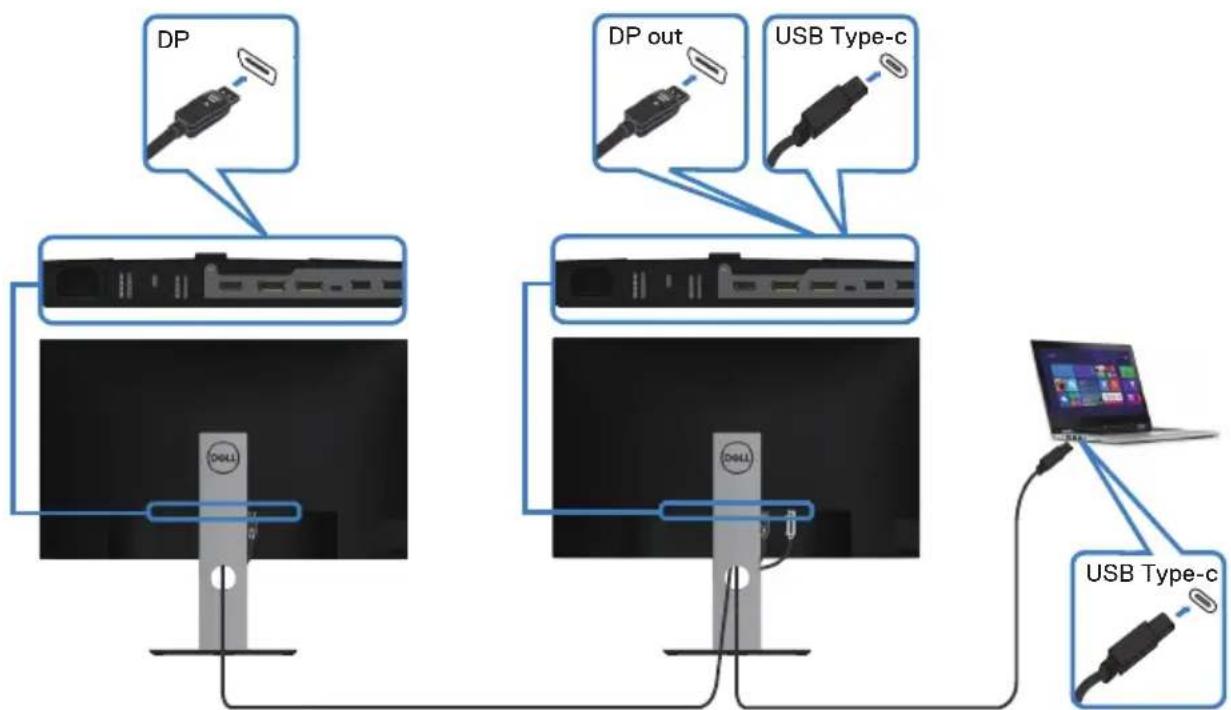

Connecting the monitor for USB-C Multi-Stream Transport (MST) function. 30

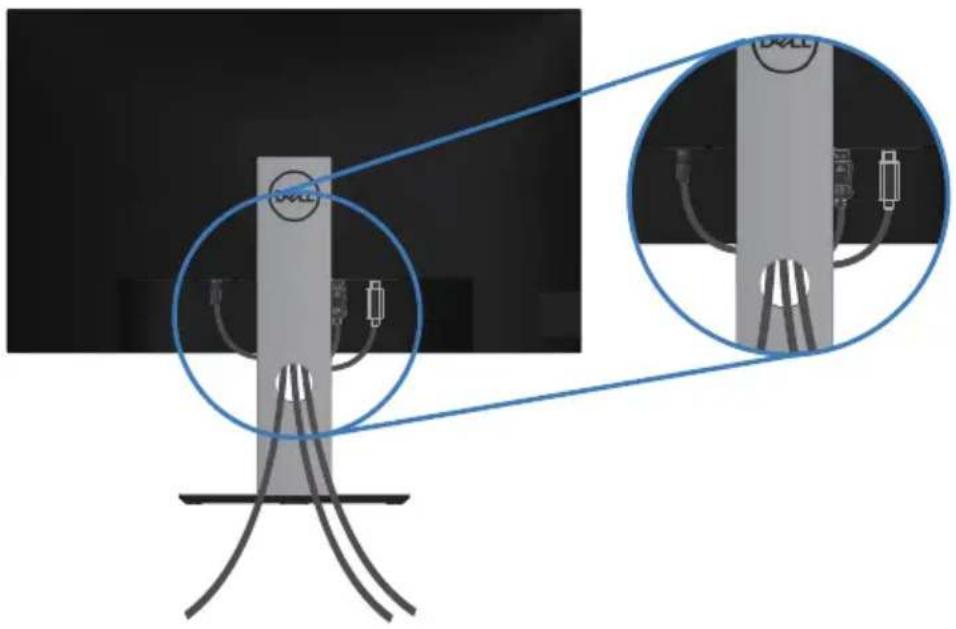

Organizing cables 31

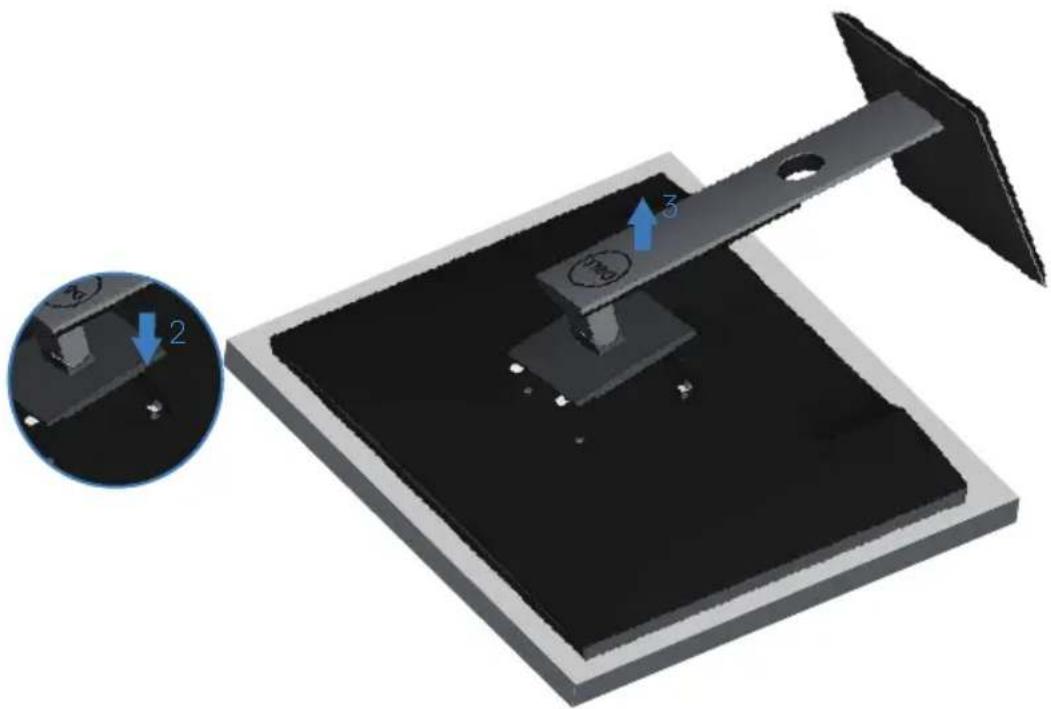

Removing the stand 32

Wall mounting (optional) 33

Operating your monitor 34

Power on the monitor 34

USB-C charging options 35

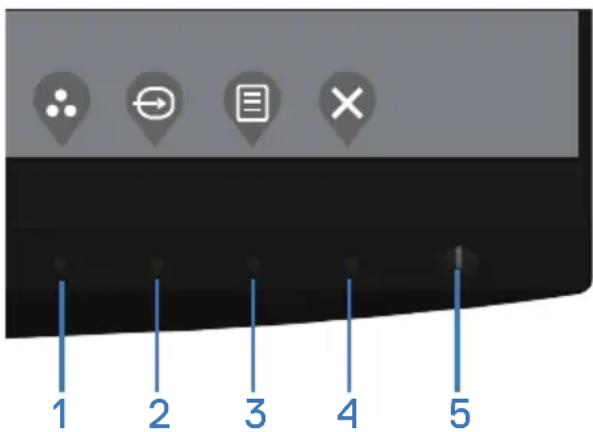

Using the control buttons 35

OSD controls 36

Using the On-Screen Display (OSD) menu ..... 37

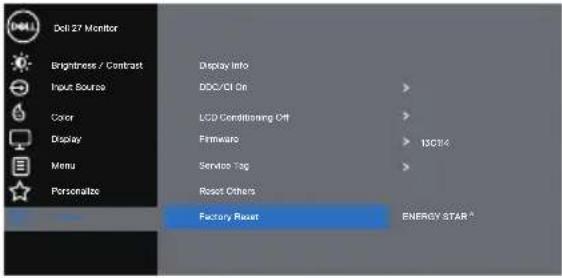

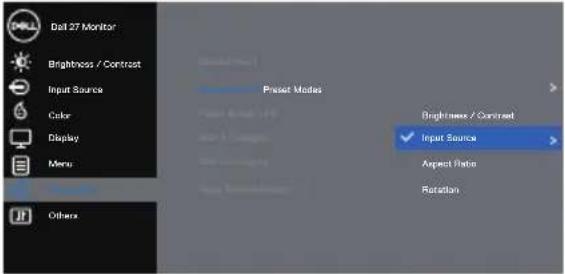

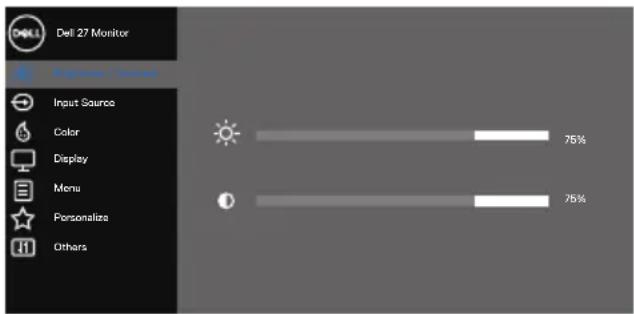

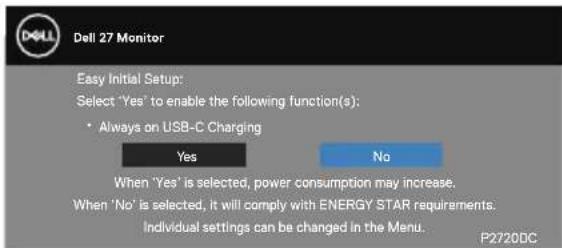

Accessing the OSD menu 37

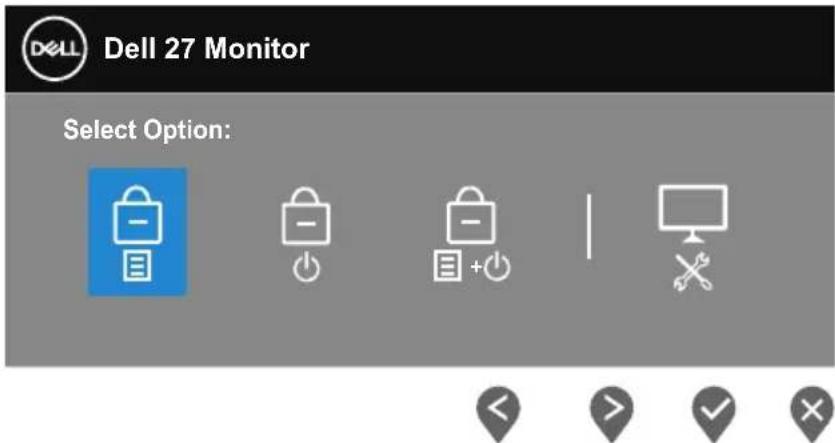

Menu and Power button lock 48

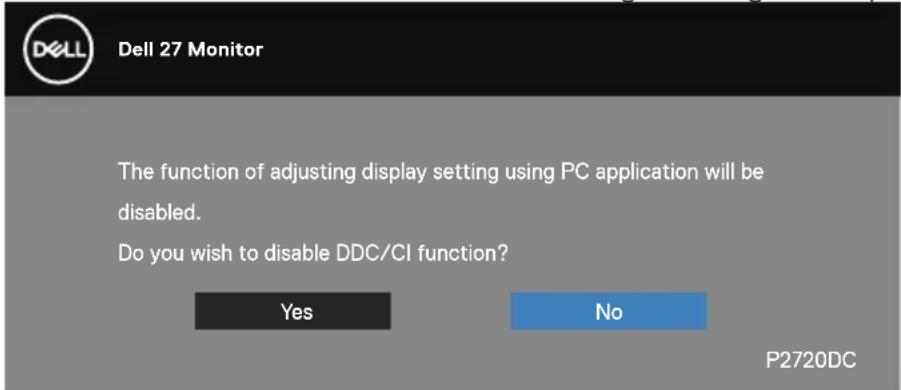

OSD warning messages ..... 50

Setting up your monitor 53

Setting the maximum resolution 53

If you have a Dell desktop or a Dell portable computer with internet access 53

If you have a non Dell desktop, portable computer, or graphics card 54

Using the tilt, swivel, and vertical extension ..... 55

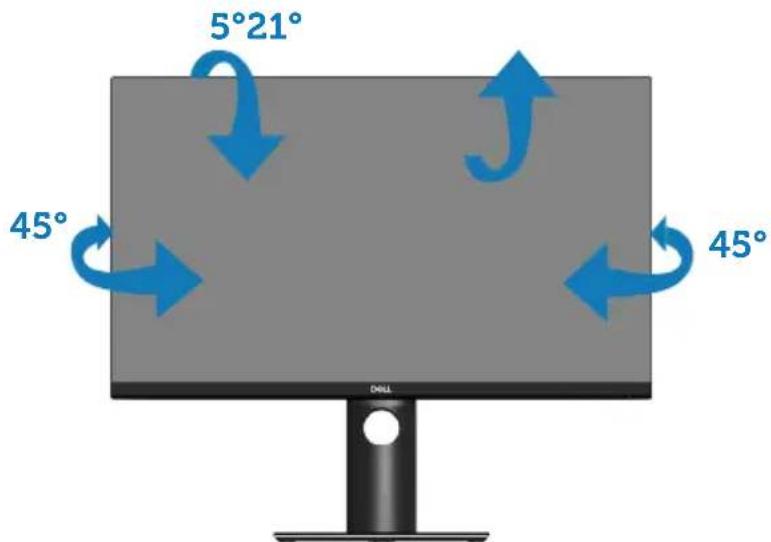

Tilt, Swivel. 55

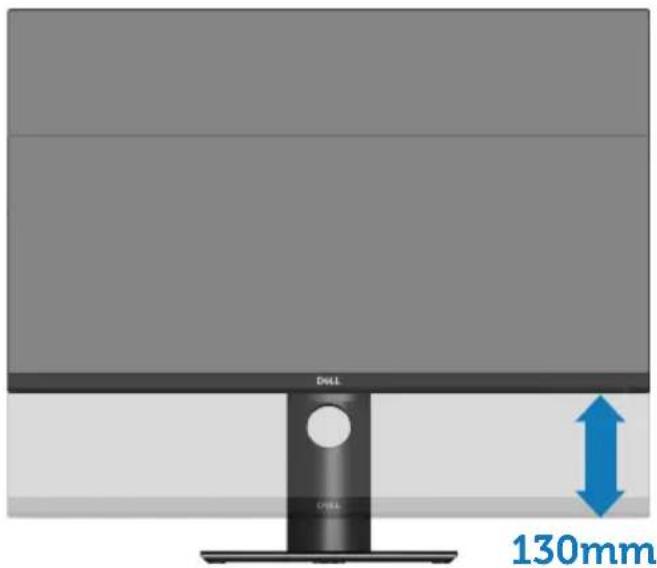

Vertical Extension 55

Rotating the Monitor 56

Troubleshooting 58

Self-Test 58

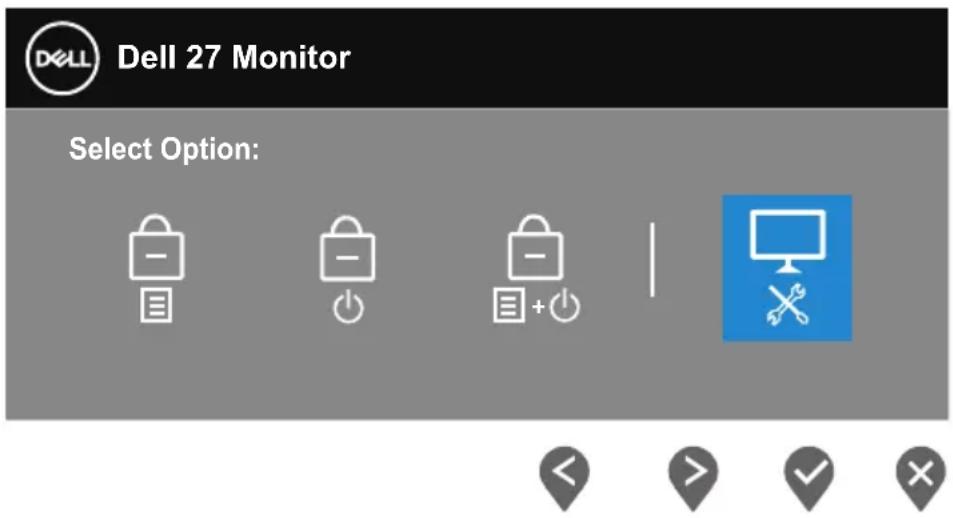

Built-in diagnostics 60

Common problems 62

Product-specific problems 65

Appendix. 67

Safety Instructions. 67

FCC notices (U.S. Only) and other regulatory information 67

Contacting Dell. 68

About your monitor

Package contents

Your monitor ships with the components shown below. Ensure that you have received all the components and see Contacting Dell for more information if something is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some features or media may not be available in certain countries.

	Monitor
	Stand riser
	Stand base
	Power cable (varies by countries)
	DP 1.2 cable
	USB Type-C cable (C to C)
	Cable Tie

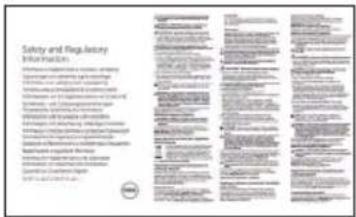

	Quick Setup GuideSafety and Regulatory Information

Product features

The Dell P2720DC monitor has an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD), anti-static, and LED backlight. The monitor features include:

68.47 cm (27.0 in.) viewable area display (measured diagonally). 2560 x 1440 resolution, with full-screen support for lower resolutions.

- Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.

•Color gamut of 99% sRGB.

•High Dynamic Contrast Ratio.

- Tilt, swivel, height, and rotate adjustment capabilities.

- Removable stand and Video Electronics Standards Association (VESA™) 100 mm mounting holes for flexible mounting solutions.

- Digital connectivity with DisplayPort and HDMI.

•Equipped with 4 USB downstream ports.

- Single USB Type-C to supply power to compatible notebook while receiving video signal.

- Plug and play capability if supported by your system.

- On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

- Software and documentation media includes an Information File (INF), Image Color Matching File (ICM), and product documentation.

•Security lock slot.

- Stand lock.

- Capability to switch from wide aspect to standard aspect ratio while maintaining the image quality.

- 0.3 W standby power when in the sleep mode.

Optimize eye comfort with a flicker-free screen.

WARNING: The possible long-term effects of blue light emission from the monitor may cause damage to the eyes, including eye fatigue, digital eye strain, and so on. ComfortView feature is designed to reduce the amount of blue light emitted from the monitor to optimize eye comfort.

Identifying parts and controls

Front view

Side-by-side comparison of a desktop monitor and its rear panel, both shown with blue measurement lines (no text or symbols)

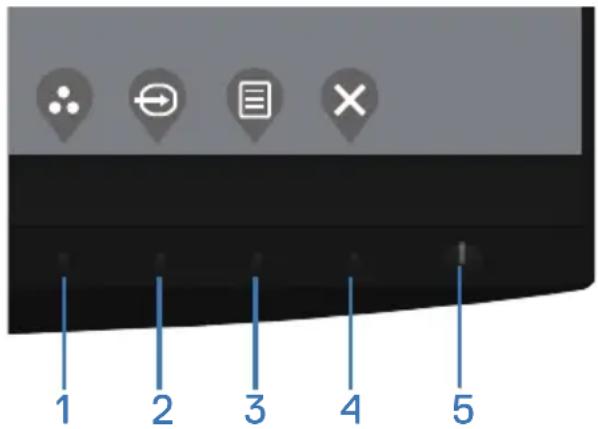

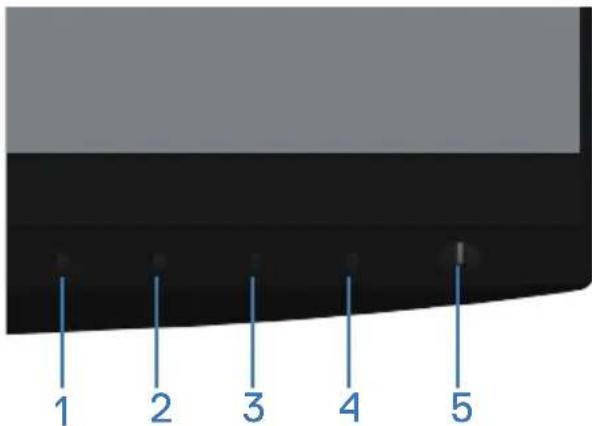

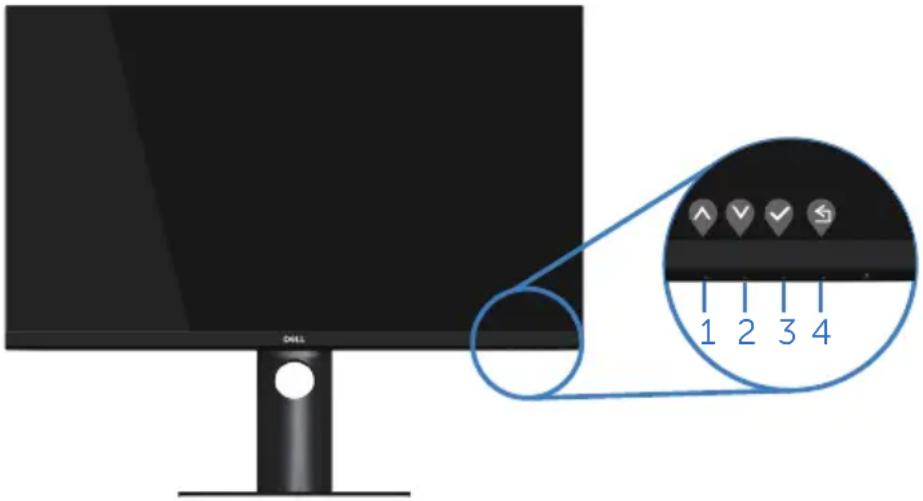

Control buttons

Label	Description Use
1	Function buttons Use the function buttons	items in the OSD menu. (For more information, see Using the control buttons)
2	Power On/Off button Use the power button	to turn the monitor On and Off.

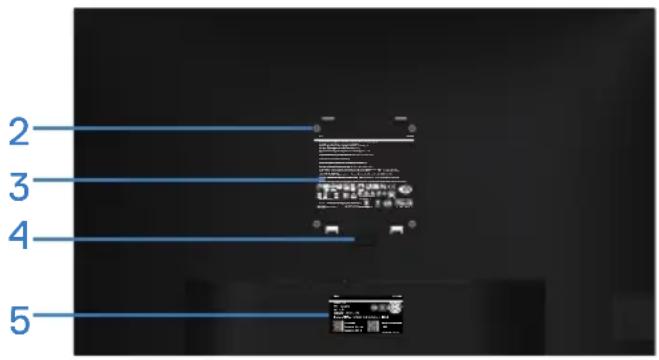

Back view

D&LL 1

2 3 4 5

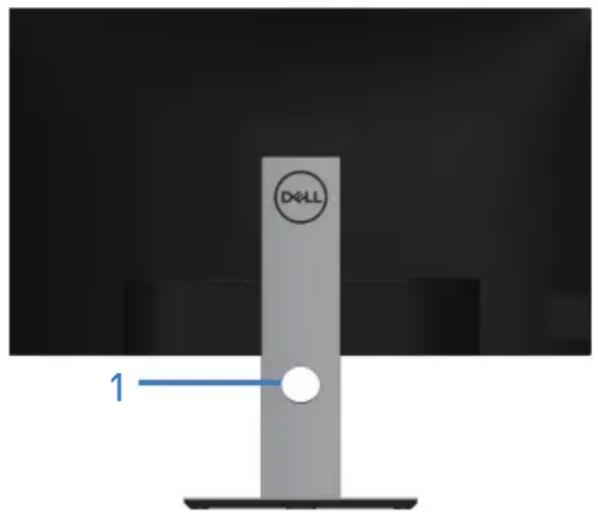

Back View with monitor stand

Label	Description Use
1	Cable management slot Use to organize	cables by routing them through the slot.
2	VESA mounting holes (behind VESA cover)	VESA mounting holes (100 mm x 100 mm). Use for Wall mounting the monitor through a VESA-compatible wall mount kit.
3	Regulatory information label Lists the regulatory approvals.
4	Stand release button Releases stand from monitor.
5	Regulatory label (including Barcode serial number and Service Tag label)	Lists the regulatory approvals. Refer to this label if you need to contact Dell for technical support.The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.

Side view

Side view of a computer monitor with a cable, showing the front panel and base (no text or symbols visible)

Label	Description Use
1 USB	3.0 downstream port x 2	Connect your USB device. NOTE: You can only use this port after you have connected the USB Type-C cable to the computer and USB Type-C port on the monitor.

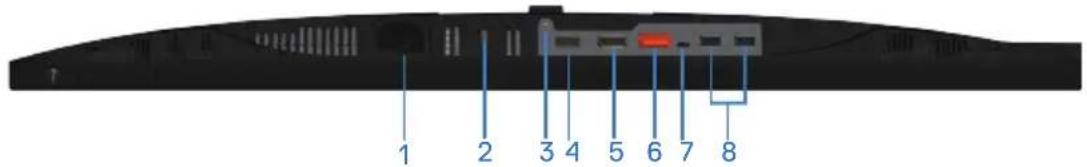

Bottom view

1 2 3 4 5 6 7 8

Bottom view without monitor stand

Label	Description Use
1 Power connector Connect the power cable (shipped with your monitor).
2 Security-lock slot Secure your monitor using a security lock (purchased separately) to prevent unauthorized movement of your monitor.
3 Stand lock feature	To lock the stand to the monitor using a M3 x 6 mm screw (screw not included).
4 HDMI port Connect your computer with HDMI cable.
5 DisplayPort (in) Connect your computer with DisplayPort cable (shipped with your monitor).
6 DisplayPort (out) DP output for MST (multi-stream transport) capable monitor. DP 1.1 monitor can only be connected as the last monitor in the MST chain. To enable MST, refer to instruction on section “Connecting the monitor for DP Multi-Stream Transport (MST) function”.NOTE: Remove the rubber plug when use DP out port.
7 USB Type-C port You can attach the monitor to PC using a USB type C cable (shipped with your monitor), to get the monitor experience as below: support data transmission speed up to USB 3.1. Display resolution up to 2560 x 1440@60 Hz on Display PortTM 1.2 alternate mode. Power delivery of 20 V/3.25 A, 15 V/3 A, 9 V/3 A, 5 V/3 A.[2CT3] NOTE: USB Type-C is not supported on versions of Windows prior to Windows 10.
8 USB	2.0 downstream ports x 2	Connect your USB device.[3WZD] NOTE: You can only use this port after you have connected the USB Type-C cable to the computer and USB Type-C port on the monitor.

NOTE: Remove the rubber plug when use DP out port.
NOTE: USB Type-C is not supported on versions of Windows prior to Windows 10.

Monitor specifications

Model P2720DC
Screen type Active matrix-	TFT LCD
Panel type In-Plane Switching Technology
Viewable image
Diagonal	684.70 mm (27.0 in.)
Horizontal, Active Area	596.74 mm (23.49 in.)
Vertical, Active Area	335.66 mm (13.76 in.)
Area	200,301.75 mm^2 (323.22 in. ^2 )
Pixel pitch 0.233 mm x 0.233 mm
Pixel per inch (PPI) 108
Viewing angle
Horizontal	178° (typical)
Vertical	178° (typical)
Luminance output 350 cd/ m^2 (typical)
Contrast ratio 1000 to 1 (typical)
Faceplate coating Anti-glare with 3H hardness, Haze 25%
Backlight LED edgelight system
Response time (Gray to Gray)	8 ms (Normal)
	5 ms (Fast)
Color depth 1.67 billion colors
Color gamut 99% sRGB
Connectivity 1 x HDMI 1.4	1 x DP 1.2 (in)1 x DP 1.2 (out)1 x USB Type-C port2 x USB 3.0 port - Side2 x USB 2.0 port - Bottom
Bezel width (edge of monitor to active area)
Top	7.4 mm
Left/Right	7.4 mm
Bottom	21.1 mm
Adjustability
Height adjustable stand	130 mm
Tilt	-5° to 21°
Swivel	-45° to 45°
Pivot	-90° to 90°
Dell display manager compatibility	Easy Arrange and other key features
Security Security-lock slot	(cable lock optional purchase)

Resolution specifications

Model P2720DC
Horizontal scan range 29 kHz to 113 kHz
Vertical scan range 49 Hz to 75 Hz (automatic)
Maximum preset resolution	2560 x 1440 at 60 Hz

Supported video modes

Model P2720DC
Video display capabilities (HDMI/DP)	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1440p

Preset display modes

Display Mode	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (Horizontal / Vertical)
VESA, 720 x 400 31.5	70.1 28.3 -/+
VESA, 640 x 480 31.5	59.9 25.2 -/-
VESA, 640 x 480 37.5	75.0 31.5 -/-
VESA, 800 x 600 37.9	60.3 40.0 +/+
VESA, 800 x 600 46.9	75.0 49.5 +/+
VESA, 1024 x 768 48.4	60.0 65.0 -/-
VESA, 1024 x 768 60.0	75.0 78.8 +/+
VESA, 1152 x 864	67.5 75.0	108.0	+/+
VESA, 1280 x 768	47.8	59.9 79.5 -/+
VESA, 1280 x 1024	64.0 60.0	108.0	+/+
VESA, 1280 x 1024	79.9 75.0	135.0	+/+
VESA, 1600 x 1200	75.0 60.0	162.0	+/+
VESA, 1680 x 1050	65.3	60.0	146.3 -/+
VESA, 1920 x 1080	67.5	60.0	148.5	+/+
VESA, 1920 x 1200	74.6	59.9	193.3	-/+
VESA, 2048 x 1080	66.6	60.0	147.2	+/-
VESA, 2560 x 1440	88.8	60.0	241.5	+/-

MST Multi-Stream Transport (MST) Modes

MST Source Monitor Max	Maximum number of external monitor that can be supported
	2560 x 1440/60 Hz
2560 x 1440/60 Hz 2

NOTE: Maximum external monitor resolution supported is 2560 x 1440 60Hz only.

Electrical specifications

Model P2720DC
Video input signals HDMI 1.4	4, 600 mV for each differential line, 100 ohm input impedance per differential pairDP 1.2, 600 mV for each differential line, 100 ohm input impedance per differential pairUSB Type-C, 600 mV for each differential line, 90 ohm input impedance per differential pair
AC input voltage/frequency/current	100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 2.5 A (typical)
Inrush current 120 V: 30 A	(Max.) at 0 °C (cold start)240 V: 60 A (Max.) at 0 °C (cold start)

Physical characteristics

Model P2720DC
Signal cable type	Digital: DP, 20 pinsDigital: USB Type-C, 24 pins
Dimensions (with stand)
Height (extended) 525.3 mm (20.68 in.)
Height (compressed) 395.3 mm (15.56 in.)
Width 611.6 mm (24.08 in.)
Depth 185.0 mm (7.28 in.)
Dimensions (without stand)
Height 364.1 mm (14.34 in.)
Width 611.6 mm (24.08 in.)
Depth 43.6 mm (1.72 in.)
Stand dimensions
Height (extended) 418.4 mm (16.47 in.)
Height (compressed) 371.0 mm (14.61 in.)
Width 245.0 mm (9.65 in.)
Depth 185.0 mm (7.28 in.)
Weight
Weight with packaging 9.53 kg (21.01 lb)
Weight with stand assembly and cables	7.27 kg (16.03 lb)
Weight without stand assembly (no cables)	4.97 kg (10.96 lb)
Weight of stand assembly 1.85 kg (4.08 lb)
Front-frame gloss Black frame	2-4 gloss units

Environmental characteristics

Model P2720DC
Compliant Standards
•ENERGY STAR certified monitor•EPEAT registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by country.•TCO-certified display.•RoHS-compliant•BFR/PVC free monitor (excluding external cables)•Meets NFPA 99 leakage current requirements.•Arsenic-free glass and Mercury-free for the panel onlyEnergy Gauge shows the energy level being consumed by the monitor in real time.
Temperature
Operating 0 °C to 40 °C (32 °F to 104 °F)
Non-operating	Storage: -20 °C to 60 °C (-4 °F to 140 °F)Shipping: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity
Operating 10% to 80% (non-condensing)
Non-operating	Storage 10% to 90% (non-condensing)Shipping 10% to 90% (non-condensing)
Altitude
Operating (maximum) 5,000 m (16,400 ft)
Non-operating (maximum) 12,192 m (40,000 ft)
Thermal dissipation	444.60 BTU/hour (maximum)83.79 BTU/hour (typical)

Power management modes

If you have VESA's DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. This is referred to as Power Save Mode*. If the computer detects input from the keyboard, mouse or other input devices, the monitor automatically resumes functioning. The following table shows the power consumption and signaling of this automatic power saving feature.

* Zero power consumption in off mode can only be achieved by disconnecting the power cable from the monitor.

VESA Modes	Horizontal Sync	Vertical Sync	Video Power Indicator	Power Consumption
Normal operation	Active Active	Active White	130 W	(maximum)**24.5 W (typical)
Active-off mode	Inactive Inactive	Blanked	White	Less than 0.3 W***
Switch off -	-- Off Less than 0.3 W

Power Consumption P_on19.2 W
Total Energy Consumption (TEC)	63 kWh

** Maximum power consumption with max luminance, and USB active.
*** Test data is measured based on no USB-C cable attached condition.

This document is informational only and reflects laboratory performance. Your product may perform differently, depending on the software, components and peripherals you ordered and shall have no obligation to update such information. Accordingly, the customer should not rely upon this information in making decisions about electrical tolerances or otherwise. No warranty as to accuracy or completeness is expressed or implied.

NOTE: This monitor is ENERGY STAR certified.

This product qualifies for ENERGY STAR in the factory default settings which can be restored by “Factory Reset” function in the OSD menu. Changing the factory default settings or enabling other features may increase power consumption that could exceed the ENERGY STAR specified limit.

NOTE:

P_ON : Power consumption of On Mode as defined in Energy Star 8.0 version.

TEC: Total energy consumption in KWh as defined in Energy Star 8.0 version.

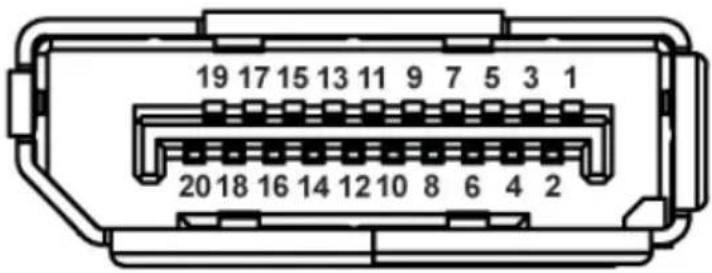

DisplayPort connector

19 17 15 13 11 9 7 5 3 1 20 18 16 14 12 10 8 6 4 2

Pin Number 20-pin	Side of the Connected Signal Cable
1 ML0 (p)
2 GND
3 ML0 (n)
4 ML1 (p)
5 GND
6 ML1 (n)
7 ML2 (p)
8 GND
9 ML2 (n)
10 ML3 (p)
11 GND
12 ML3 (n)
13 GND
14 GND
15 AUX (p)
16 GND
17 AUX (n)
18 Hot Plug	Detect
19 Re-PWR
20 +3.3 V	DP_PWR

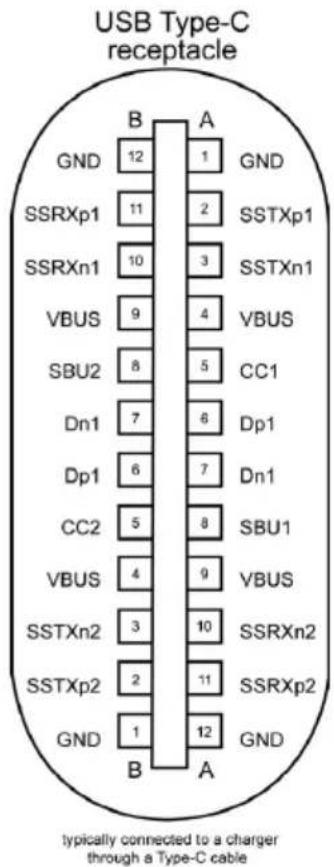

USB Type-C connector

Pin Signal Pin Signal
A1 GND B12 GND
A2 SSTXp1 B11 SSTXp1
A3 SSTXn1 B10 SSTXn1
A4 VBUS B9 VBUS
A5 CC1 B8 SBU2
A6 Dp1 B7 Dn1
A7	Dn1	B6	Dp1
A8 SBU1	B5 CC2
A9 VBUS B4 VBUS
A10	SSRXn2	B3	SSRXp2
A10	SSRXp2	B2	SSRXp2
A12 GND B1	GND

Universal serial bus (USB) interface

This section gives you information about the USB ports that are available on the monitor.

NOTE: This monitor is Super-Speed USB 3.0 and High-Speed USB 2.0 compatible.

Transfer Speed Data Rate Power Consumption*
Super-speed 5 Gbps 4.5 W (Max, each port)
High speed 480 Mbps 4.5 W (Max, each port)
Full speed 12 Mbps 4.5 W (Max, each port)

Transfer Speed Data Rate Power Consumption*
High speed 480 Mbps 2.5 W (Max, each port)
Full speed 12 Mbps 2.5 W (Max, each port)
Low speed 1.5 Mbps 2.5 W (Max, each port)

USB 3.0 downstream connector

Pin Number 9-p	in Side of the Connector
1 VCC
2	D-
3	D+
4	GND
5	SSRX-
6	SSRX+
7	GND
8	SSTX-
9	SSTX+

USB 2.0 downstream connector

1 2 3 4

Pin Number 4-pin Side of the Connector
1 VCC
2 DMD
3 DPD
4 GND

USB ports

• 2 x USB 2.0 downstream - bottom
• 2 x USB 3.0 downstream - side

NOTE: USB 3.0 functionality requires a USB 3.0-capable computer.
NOTE: The monitor's USB interface works only when the monitor is On or in the power save mode. If you turn Off the monitor and then turn it On, the attached peripherals may take a few seconds to resume normal functionality.

Plug and play capability

You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display Identification Data (EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. Most monitor installations are automatic, you can select different settings if desired. For more information about changing the monitor settings, see Operating your monitor.

LCD monitor quality and pixel policy

During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state which are hard to see and do not affect the display quality or usability. For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at www.dell.com/support/monitors.

Maintenance guidelines

Cleaning your monitor

WARNING: Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.

CAUTION: Read and follow the Safety Instructions before cleaning the monitor.

For best practices, follow the instructions in the list below while unpacking, cleaning or handling your monitor:

• To clean your screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the anti-static coating. Do not use benzene, thinner, ammonia, abrasive cleaners or compressed air.
• Use a lightly-dampened cloth to clean the monitor. Avoid using detergent of any kind as some detergents leave a milky film on the monitor.
• If you notice white powder when you unpack your monitor, wipe it off with a cloth.
• Handle your monitor with care as the black-colored monitor may get scratched and show white scuff marks.
• To help maintain the best image quality on your monitor, use a dynamically changing screen saver and turn off your monitor when not in use.

Setting up the monitor

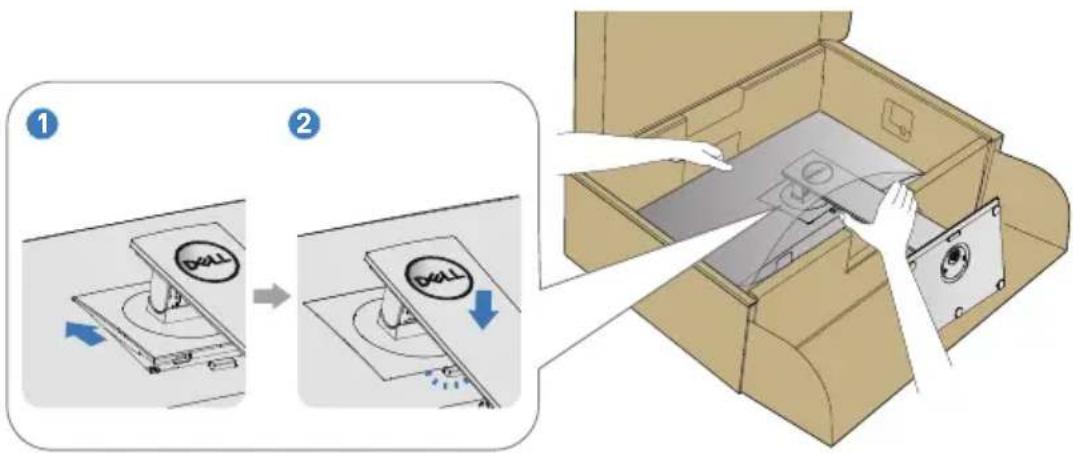

Attaching the stand

NOTE: The stand is detached when the monitor is shipped from the factory.

NOTE: This is applicable for a monitor with a stand. If you have purchased a third-party stand refer to the respective stand setup guide for the set up instructions.

To attach the monitor stand.

1. Follow the instructions on the flaps of carton to remove the stand from the top cushion that secures it.
2. Insert the stand base blocks fully into the stand slot.
3. Lift the screw handle and turn the screw clockwise.
4. After fully tightening the screw, fold the screw handle flat within the recess.

1. Lift the cover to expose the VESA area for stand assembly.
2. Attach the stand assembly to the monitor.

a. Fit the two tabs on the upper part of the stand to the groove on the back of the monitor.

b. Press the stand down till it snaps into place.

Diagram illustrating the step-by-step installation of a D4L printer into a box, with labeled steps and directional arrows.

1. Place the monitor upright.

Connecting your monitor

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

NOTE: Do not connect all cables to the computer at the same time. It is recommend to route the cables through the cable-management slot before you connect them to the monitor.

To connect your monitor to the computer:

1. Turn Off your computer and disconnect the power cable.
2. Connect the DP/USB Type-C cable from your monitor to the computer.

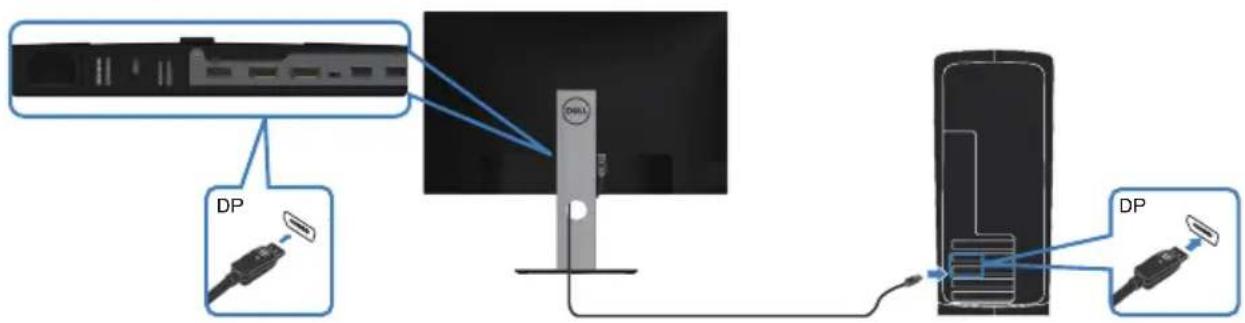

Connecting the DP cable

Diagram showing connection between a device via network packet (DP) to a monitor, with labeled components and cable connections.

Connecting the monitor for DP Multi-Stream Transport (MST) function

NOTE: Supports the DP MST feature. To make use of this feature, your PC Graphics Card must be certified to DP1.2 with MST option.
NOTE: Remove the rubber plug when using DP out port.

Connecting the USB Type-C cable

USB Type-c INTEL USB Type-c

The USB Type-C port on your monitor:

Can be used as USB Type-C or DisplayPort 1.2, alternatively.
Supports USB Power Delivery (PD), with profiles up to 65 W.

NOTE: Regardless of the power requirement/actual power consumption of your laptop, or the remaining power runtime in your battery, the monitor is designed to supply power delivery of up to 65 W to your laptop.

Rated power (on laptops that have USB Type-C with PowerDelivery)	Maximum charging power
45 W 45 W
65 W 65 W
90 W Not supported
130 W Not supported

Connecting the monitor for USB-C Multi-Stream Transport (MST) function

NOTE: The maximum number of supported monitor via MST is subjected to the bandwidth of the USB-C source.
NOTE: Remove the rubber plug when using DP out port.

Organizing cables

Use the cable-management slot to route the cables connected to your monitor.

Diagram showing cable routing between two TV monitors, with magnified views of cable connections (no text or symbols)

Removing the stand

NOTE: To prevent scratches on the screen when removing the stand, ensure that the monitor is placed on a soft and clean surface.
NOTE: The following procedure is applicable only for the stand that shipped with your monitor. If you are connecting a third-party stand, see the documentation that shipped with the stand.

1. Place the monitor on a soft cloth or cushion.
2. Press and hold the stand release button.
3. Lift the stand up and away from the monitor.

3D mechanical assembly diagram showing a component with labeled parts and a magnified inset (no text or symbols)

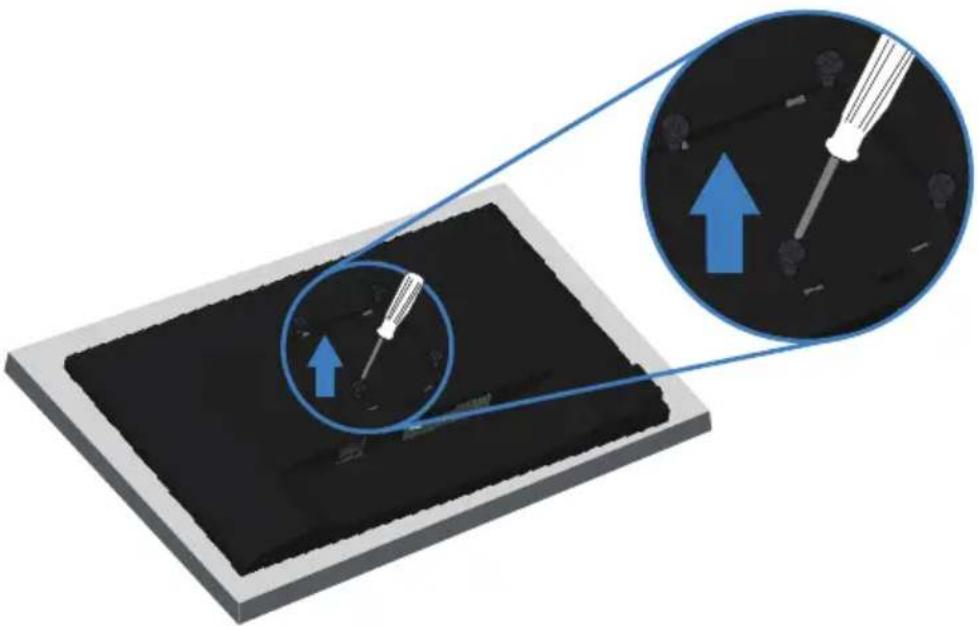

Wall mounting (optional)

Diagram showing a device with a screwdriver interacting with a black surface, with an inset magnified view highlighting the process (no text or symbols present)

(Screw dimension: M4 x 10 mm).

See the documentation that shipped with the VESA-compatible wall mounting kit.

1. Lay the monitor on a soft cloth or cushion at the edge of the desk.
2. Remove the stand. See Removing the stand for details.
3. Remove the four screws that secure the panel to the monitor.
4. Attach the mounting bracket from the wall mounting kit to the monitor.
5. To mount the monitor on the wall, see the documentation that shipped with the wall mounting kit.

NOTE: For use only with UL or CSA or GS-listed wall mount bracket with minimum weight/load bearing capacity of 19.72 kg.

Operating your monitor

Power on the monitor

Press the button to turn on the monitor.

Illustration of a finger pointing at a numbered finger on a curved surface (no text or symbols)

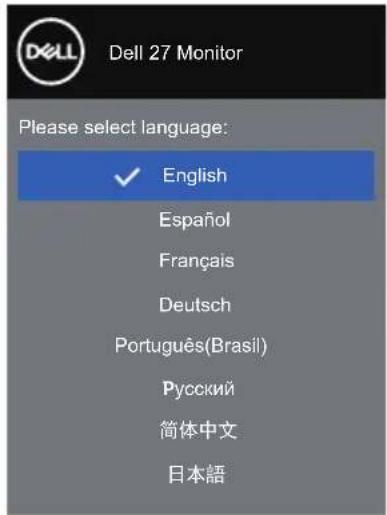

Language options

Dell 27 Monitor Please select language: ✓ English Español Français Deutsch Português(Brasil) Русский 简体中文 日本語

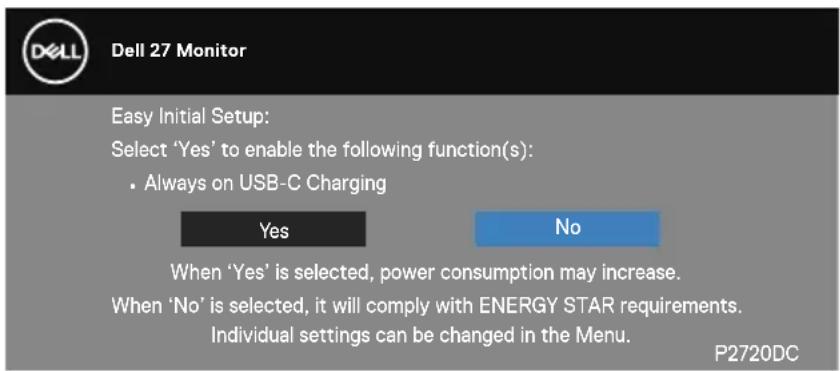

USB-C charging options

Dell 27 Monitor Easy Initial Setup: Select 'Yes' to enable the following function(s): • Always on USB-C Charging Yes No When 'Yes' is selected, power consumption may increase. When 'No' is selected, it will comply with ENERGY STAR requirements. Individual settings can be changed in the Menu. P2720DC

Using the control buttons

Use the control buttons at the front of the monitor to adjust the settings on your monitor.

1 2 3 4 5

Control buttons

The following table describes the control buttons

Control Buttons Description
1		Use this button for choose from a list of preset modes.
	Shortcut key/Preset Modes
2		Use the input source menu to select between the different video signals that may be connected to your monitor.
	Shortcut key/Input Source

3	Menu	Use the Menu button at launch your on-screen display (OSD) and select the OSD menu. See Accessing the OSD menu.
4	Exit	Use this button to go back to the main menu or exit the OSD main menu.
5	Power On/Off button (with LED indicator)	Use the power button to turn the monitor on and off.Solid white light indicates the monitor is turned on. Blinking white light indicates it is in power-save mode.

OSD controls

Use the buttons on the front of the monitor to adjust the image settings.

DILL 1 2 3 4

Control Buttons Description
1	Up	Use the Up button to increase values or move up in a menu.
2	Down	Use the Down button to decrease values or move down in a menu.
3	OK	Use the OK button to confirm your selection in a menu.

Using the On-Screen Display (OSD) menu

Accessing the OSD menu

NOTE: Any changes you make are automatically saved when you move to another menu, exit the OSD menu, or wait for the OSD menu to automatically close.

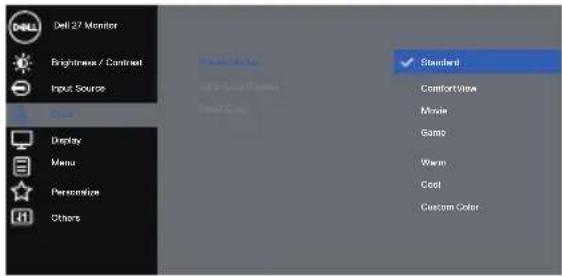

1. Press the button to display the OSD main menu.

Dell 27 Monitor Brightness / Contrast Input Source Color Display Menu Personalize Others 75% 75%

1. Press the 🔊 and ♥ buttons to move between the setting options. As you move from one icon to another, the option is highlighted.
2. Press the ➤ or √ or ◊ button once to activate the highlighted option.
3. Press and button to select the desired parameter.
4. Press ➤ and then use the ∧ and √ buttons, according to the indicators on the menu, to make your changes.
5. Select the ↩ to return to previous menu or √ to accept and return to previous menu.

Icon	Menu and Sub-menus	Description
	Brightness/Contrast	Use this menu to activate Brightness/Contrast adjustment.
	Brightness	Brightness adjusts the luminance of the backlight. Press the button to increase the brightness and press the button to decrease the brightness (min. 0 / max. 100).
	Contrast	Adjust the brightness first, and then adjust the contrast only if further adjustment is necessary. Press the button to increase the contrast and press the button to decrease the contrast (min. 0 / max. 100).The contrast function adjusts the degree of difference between darkness and lightness on the monitor screen.

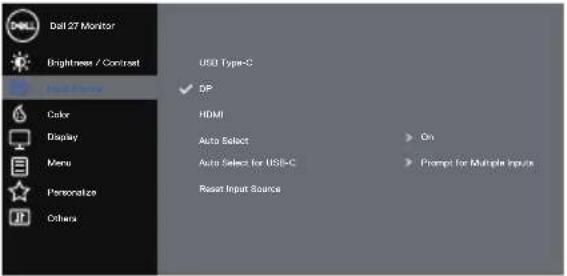

	Input Source Use the input source menu to select between the different video signals that may be connected to your monitor.
	USB Type-C Select the USB Type-C input when you are using the USB Type-C connector.Push to select the USB Type-C input source.
	DP Select DP input when you are using the DP connector.Push to select the DP input source.
	HDMI Select HDMI input when you are using the HDMI connector.Push to select the HDMI input source.
	Auto Select Select auto select to scan for available input signals.
	Auto Select for USB-C	Allows you to set Auto Select for USB-C to:Prompt for Multiple Inputs: always show Switch to USB-C Video Input message for user to choose whether to switch or not.Yes: The monitor always switch to USB-C video without asking while USB-C connected.No: The monitor will not auto switch to USB-C video from another available input.
	Reset Input Source	Select this option to restore default Input Source.
	Color Use color to adjust the color setting mode.
	Preset Modes	When you select preset modes, you can choose Standard, Comfortview, Movie, Game, Warm, Cool, or Custom color from the list.Standard: Loads the monitor's default color settings. This is the default preset mode.ComfortView: Decreases the level of blue light emitted from the screen to make viewing more comfortable for your eyes.NOTE: To reduce the risk of eye strain and neck/arm/back/shoulders pain from using the monitor for long periods of time, we suggest you to:Set the screen about 20 to 28 in. (50-70 cm) from your eyes.Blink frequently to moisten or rewet your eyes when working with the monitor.Take regular and frequent breaks for 20 minutes every two hours.Look away from your monitor and gaze at a distant object at 20 feet away for at least 20 seconds during the breaks.Perform stretches to relieve tension in the neck/arm/back/ shoulders during the breaks.Movie: Loads color settings ideal for movies.Game: Loads color settings ideal for most gaming applications.Warm: Increases the color temperature. The screen appears warmer with a red/yellow tint.Cool: Decreases the color temperature. The screen appears cooler with a blue tint.Custom Color: Allows you to manually adjust the color settings.Press the 🔊 and buttons to adjust the three colors (R, G, B) values and create your own preset color mode.
	Input Color Format	Allows you to set the video input mode to:RGB: Select this option if your monitor is connected to a computer or DVD player using the HDMI cable.YPbPr: Select this option if your DVD player supports only YPbPr output.
	Hue This feature can shift the color of the video image to green or purple. This is used to adjust the desired flesh tone color. Use 🔊 or 🔊 to adjust the hue from 0 to 100.Press 🔊 to increase the green shade of the video image.Press 🔊 to increase the purple shade of the video image.NOTE: Hue adjustment is available only when you select Movie and Game mode.
	Saturation This feature can adjust the color saturation of the video image. Use for to adjust the saturation from 0 to 100.Press to increase the monochrome appearance of the video image.Press to increase the colorful appearance of the video image.NOTE: Saturation adjustment is available only when you select Movie and Game mode.
	Reset Color Allows your monitor color settings to the factory settings.
	Display Use the display to adjust image.
	Aspect Ratio Adjusts the image ratio to wide 16:9, 4:3 or 5:4
	Sharpness This feature can make the image look sharper or softer.Use for to adjust the sharpness from 0 to 100.
	Response Time User can select between fast or normal.
	MST DP Multi Stream Transport, Set to On enables MST(DP out), Set to Off disables MST function.NOTE: When DP/USB-C upstream cable and DP downstream cable is connected, monitor will set MST = On automatically, this action will only be done once after Factory Reset or Display Reset.
	Reset Display Select this option to restore default display settings.

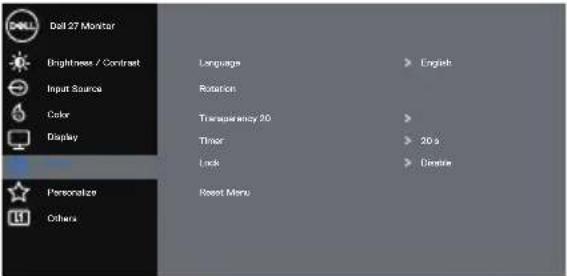

	Menu Select this option to adjust the settings of the OSD, such as, the languages of the OSD, the amount of time the menu remains on screen and so on.
	Language Language options set the OSD display to one of the eight languages (English, Spanish, French, German, Brazilian Portuguese, Russian, Simplified Chinese, or Japanese).
	Rotation Rotates the OSD by 90 degrees counter-clockwise. You can adjust the menu according to your display rotation.
	Transparency Select this option to change the menu transparency by pressing the and buttons from 0 to 100.
	Timer OSD hold time: sets the length of time the OSD will remain active after the last time you pressed a button. Use for to adjust the slider in 1 second increments, from 5 to 60 seconds.
	Lock Controls user access to adjustments. User can select one of the following: Menu Buttons, Power Button, Menu + Power Buttons, Disable. (For more information, see Menu and Power button lock).
	Reset Menu Reset all OSD settings to the factory preset values.

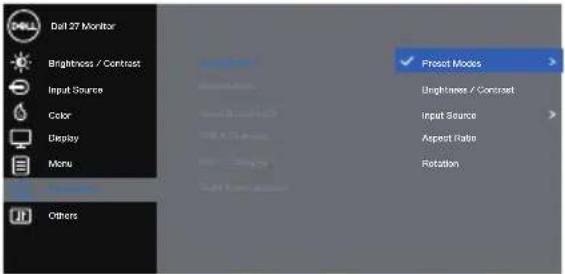

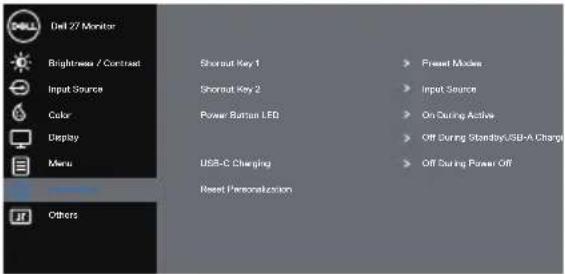

	Personalize Select this option to adjust the settings of the personalization.
	Shortcut Key 1	User can select one of the following: Preset Modes, Brightness/Contrast, Input Source, Aspect Ratio, Rotation to set the shortcut key 1.
	Shortcut Key 2	User can select one of the following: Preset Modes, Brightness/Contrast, Input Source, Aspect Ratio, Rotation to set the shortcut key 2.
	Power Button LED	Allows you to set the power LED indicator On During Active or Off During Active to save energy.
	USB-A Charging	Allows you to enable or disable USB-A Charging function during monitor standby mode.
	USB-C Charging	Allows you to enable or disable USB-C Charging function during monitor power off mode.
	Reset Personalization	Reset all settings under the personalize menu to the default setting.

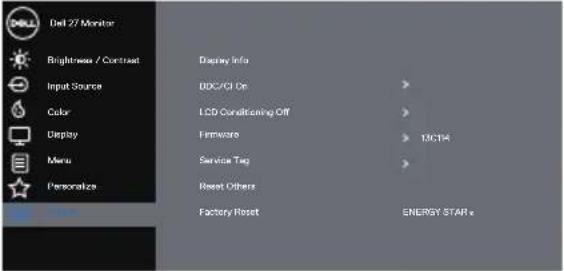

It	Others Select this option to adjust the OSD settings, such as the DDC/CI, LCD conditioning, and so on.

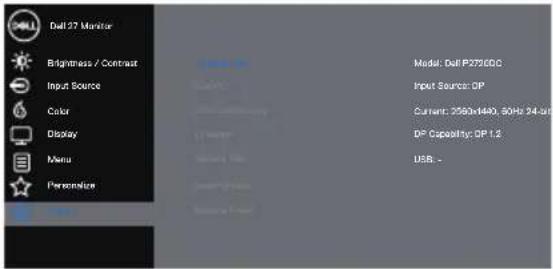

	Display Info Displays the monitor's current settings.
	DDC/CI DDC/CI (display data channel/command interface) allows your monitor parameters (brightness, color balance and etc.) to be adjustable via the software on your computer.You can disable this feature by selecting off.Enable this feature by selecting on for best user experience and optimum performance of your monitor.
	LCD ConditioningHelps reduce minor cases of image retention. Depending on the degree of image retention, the program may take some time to run. To start LCD conditioning, select on.Firmware Display the version of the firmware about the display. NOTE: For firmware update, see Dell Support site at www.dell.com/support/monitors
	Service Tag Display the service tag number of the display. The Service Tag is a unique alphanumeric identifier that allows Dell to identify the product specifications and access warranty information. NOTE: The Service Tag is also printed on a label located at the back of the cover.
	Reset Others Reset all settings under the others setting menu to the factory preset values.
	Factory Reset Restore all preset values to the factory default settings. These are also the settings for ENERGY STAR® tests.

NOTE: Your monitor has a built-in feature to automatically calibrate the brightness to compensate for LED aging.

Menu and Power button lock

Controls user access to adjustments.

The default setting of Menu and Power buttons lock is Disable.

1 2 3 4 5

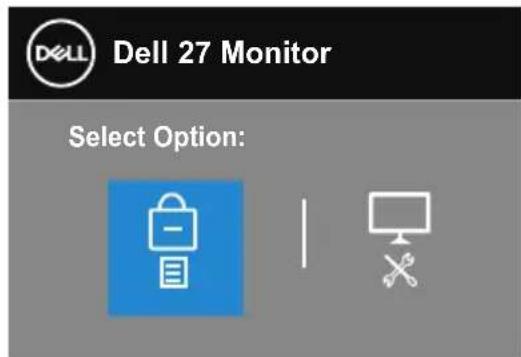

To enter the lock menu: Hold the Exit key (button 4) for 4 seconds to display the lock menu (when Menu and Power buttons unlocked), A lock menu appears and is shown on the bottom right corner of display screen.

Dell 27 Monitor Select Option: < > ✓ ×

To enter the unlock menu: Hold the Exit key (button 4) for 4 seconds to display the lock menu (when Menu and Power buttons locked), A unlock menu appears and is shown on the bottom right corner of display screen.

Dell 27 Monitor Select Option:

There are three levels of lock.

	Menu Description
1	Menu Buttons When “	“Menu Buttons” is selected, no user adjustments are allowed. All buttons are locked except Power button.
2	Power Button When “	“Power Button” is selected, user is now not able to turn off the display via Power button.
3	Menu + Power Buttons	“When “Menu + Power Buttons” is selected, no user adjustments are allowed and the Power button is locked.
4	Built-in Diagnostics See	Built-in diagnostics for more information.

NOTE: To get into the Lock or Unlock menu – Press and hold the Exit key (button 4) for 4 seconds.

The icon will appear on center of display screen when in the following conditions which mean Menu and Power buttons is in lock state.

1. Press the Up key (button 1), Down key (button 2), Menu key (button 3) or Exit key (button 4) when in "Menu Buttons" lock state.
2. Press the Power key (button 5) when in "Power Button" lock state.
3. Press any button of the monitor when in "Menu + Power Buttons" lock state.

When Menu and Power buttons is in lock state, hold the Exit key (button 4) for 4 seconds to enter the unlock menu.

And then choose and apply to the unlock icon 📋 to release the Menu and Power buttons lock.

OSD warning messages

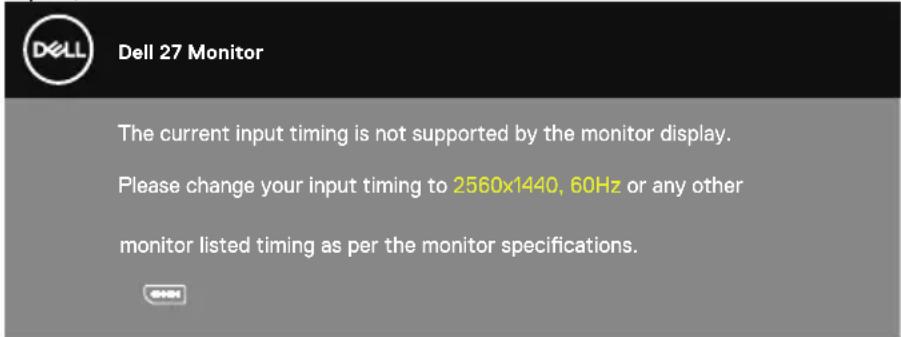

When the monitor does not support a particular resolution mode, the following message is displayed:

Dell 27 Monitor The current input timing is not supported by the monitor display. Please change your input timing to 2560x1440, 60Hz or any other monitor listed timing as per the monitor specifications.

This means that the monitor cannot synchronize with the signal that it is receiving from the computer. See Monitor specifications for the Horizontal and Vertical frequency ranges addressable by this monitor. Recommended mode is 2560 x 1440.

Before the DDC/CI function is disabled, the following message is displayed:

Dell 27 Monitor The function of adjusting display setting using PC application will be disabled. Do you wish to disable DDC/CI function? Yes No P2720DC

When the monitor enters the Power Save Mode, the following message appears:

Dell 27 Monitor Entering Power Save Mode. P2720DC

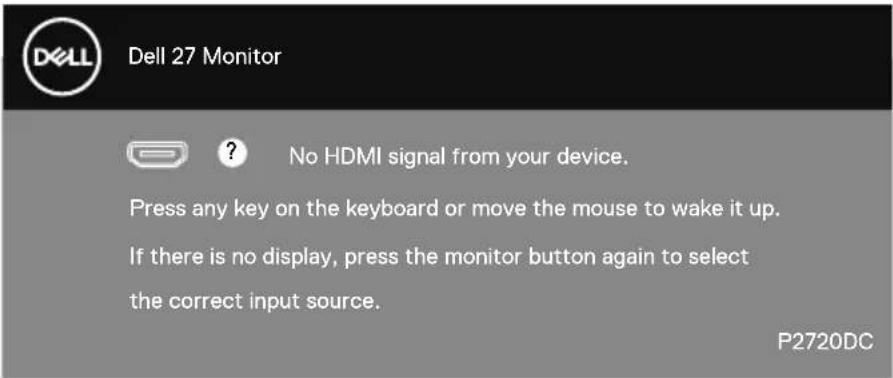

If you press any button other than the power button, the following messages will appear depending on the selected input:

Dell 27 Monitor No HDMI signal from your device. Press any key on the keyboard or move the mouse to wake it up. If there is no display, press the monitor button again to select the correct input source. P2720DC

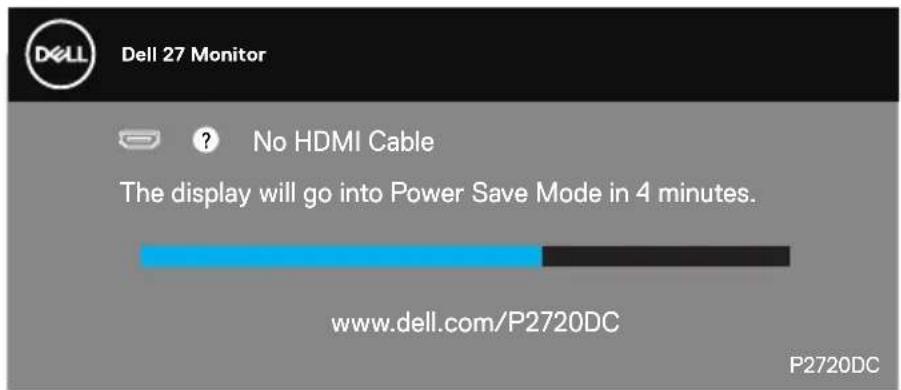

If HDMI, DP or USB Type-C cable is not connected, a floating dialog box as shown below appears. The monitor will enter Power Save Mode after 4 minutes if left at this state.

Dell 27 Monitor No HDMI Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/P2720DC P2720DC

or

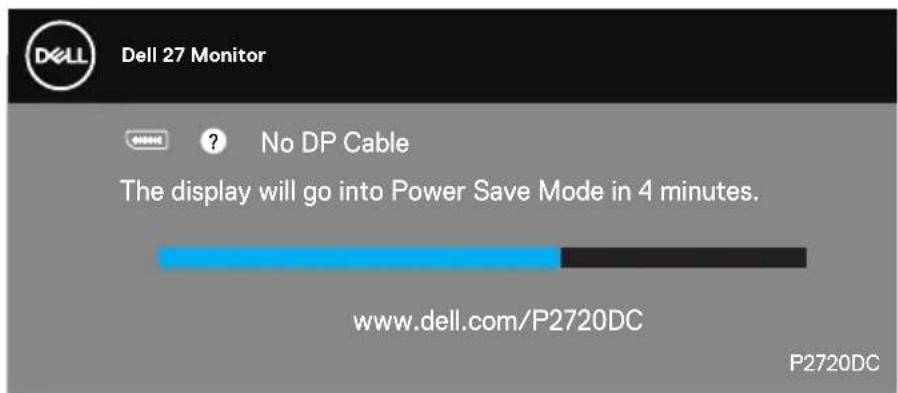

Dell 27 Monitor No DP Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/P2720DC P2720DC

or

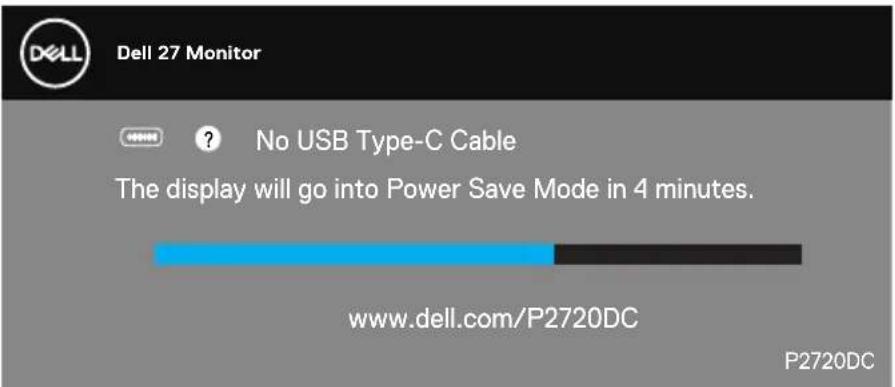

Dell 27 Monitor No USB Type-C Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/P2720DC P2720DC

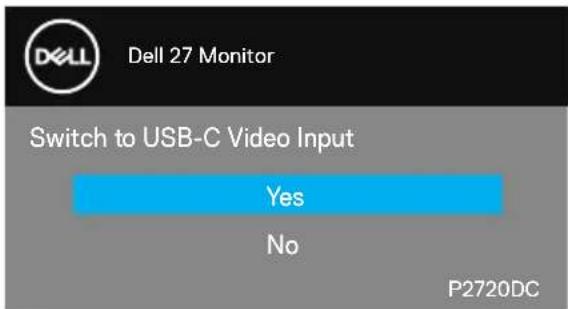

A message is displayed while the cable supporting DP alternate mode is connected to the monitor under the following conditions:

When Auto Select for USB-C is set to Prompt for Multiple Inputs.
When the DP cable is connected to the monitor.

Dell 27 Monitor Switch to USB-C Video Input Yes No P2720DC

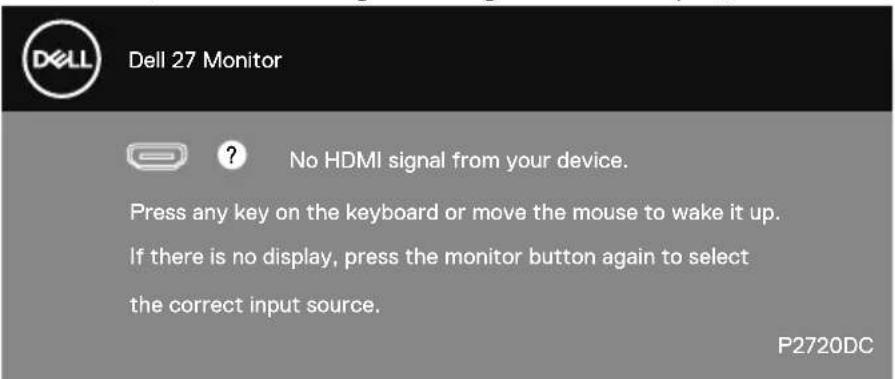

The OSD functions only in the normal operation mode. When any button is pressed in the Active-off mode, the following message will be displayed:

Dell 27 Monitor No HDMI signal from your device. Press any key on the keyboard or move the mouse to wake it up. If there is no display, press the monitor button again to select the correct input source. P2720DC

Activate the computer and the monitor to gain access to the OSD. See Troubleshooting for more information.

Setting up your monitor

Setting the maximum resolution

To set the maximum resolution for the monitor:

In Windows 7, Windows 8, Windows 8.1 and Windows 10:

1. For Windows 8 and Windows 8.1 only, select the Desktop tile to switch to classic desktop.
2. Right-click on the desktop and click Screen Resolution.
3. Click the Dropdown list of the Screen Resolution and select 2560 x 1440.
4. Click OK.

If you do not see 2560 × 1440 as an option, you may need to update your graphics driver. Depending on your computer, complete one of the following procedures:

If you have a Dell desktop or portable computer:

- Go to www.dell.com/support, enter your computer's Service Tag, and download the latest driver for your graphics card.

If you are using a non-Dell computer (portable or desktop):

• Go to the support site for your computer and download the latest graphic drivers.
• Go to your graphics card website and download the latest graphic drivers.

If you have a Dell desktop or a Dell portable computer with internet access

• Go to www.dell.com/support, enter your service tag, and download the latest driver for your graphics card.
• After installing the drivers for your graphics adapter, attempt to set the resolution to 2560 x 1440 again.

NOTE: If you are unable to set the resolution to 2560 x 1440, please contact Dell to inquire about a graphics adapter that supports these resolutions.

If you have a non Dell desktop, portable computer, or graphics card In Windows 7, Windows 8, Windows 8.1 and Windows 10:

1. For Windows 8 and Windows 8.1 only, select the Desktop tile to switch to classic desktop.
2. Right-click on the desktop and click Personalization.
3. Click Change Display Settings.
4. Click Advanced Settings.
5. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel, and so on).
6. Refer to the graphic card provider website for updated driver (for example, www.ATI.com OR www.AMD.com).
7. After installing the drivers for your graphics adapter, attempt to set the resolution to 2560 × 1440 again.

Using the tilt, swivel, and vertical extension

NOTE: These values are applicable to the stand that was shipped with your monitor. To set up with any other stand, see the documentation that shipped with the stand.

Tilt, Swivel

With the stand attached to the monitor, you can tilt and swivel the monitor for the most comfortable viewing angle.

5°21° 45° 45°

NOTE: The stand is detached when the monitor is shipped from the factory.

Vertical Extension

NOTE: The stand can be extended vertically up to 130 mm.

DLL 130mm

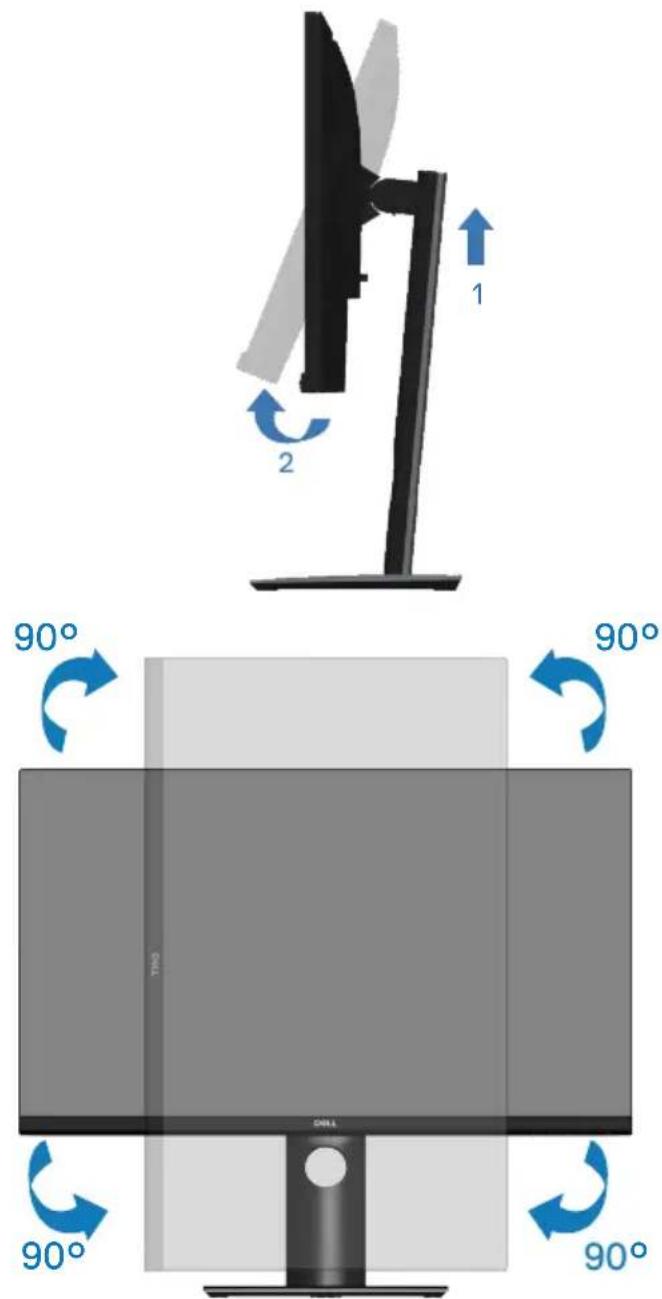

Rotating the Monitor

Before you rotate the monitor, your monitor should be fully vertically extended (Vertical Extension) and fully tilted up to avoid hitting the bottom edge of the monitor.

1 2 90° 90° 90° 90°

NOTE: To use the Display Rotation function (Landscape versus Portrait view) with your Dell computer, you require an updated graphics driver that is not included with this monitor. To download the graphics driver, go to www.dell.com/support and see the Download section for Video Drivers for latest driver updates.

NOTE: When in the Portrait View Mode, you may experience performance degradation in graphic-intensive applications (3D Gaming and etc.).

Adjusting the Rotation Display Settings of Your System

After you have rotated your monitor, you need to complete the procedure below to adjust the Rotation Display Settings of your system.

NOTE: If you are using the monitor with a non-Dell computer, you need to go the graphics driver website or your computer manufacturer website for information on rotating the ‘contents’ on your display.

To adjust the Rotation Display Settings:

1. Right-click on the desktop and click Properties.
2. Select the Settings tab and click Advanced.
3. If you have an ATI graphics card, select the Rotation tab and set the preferred rotation.
4. If you have an nVidia graphics card, click the nVidia tab, in the left-hand column select NVRotate, and then select the preferred rotation.
5. If you have an Intel® graphics card, select the Intel graphics tab, click Graphic Properties, select the Rotation tab, and then set the preferred rotation.

NOTE: If you do not see the rotation option or it is not working correctly, go to www.dell.com/support and download the latest driver for your graphics card.

Troubleshooting

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

Self-Test

Your monitor provides a self-test feature that allows you to check if your monitor is functioning properly. If your monitor and computer are properly connected but the monitor screen remains dark, run the monitor self-test by performing the following steps:

1. Turn off both your computer and the monitor.
2. Disconnect all video cables from the monitor. This way, the computer doesn't have to be involved.
3. Turn on the monitor.

If the monitor is working correctly, it detects that there is no signal and one of the following message appears. While in self-test mode, the power LED remains white.

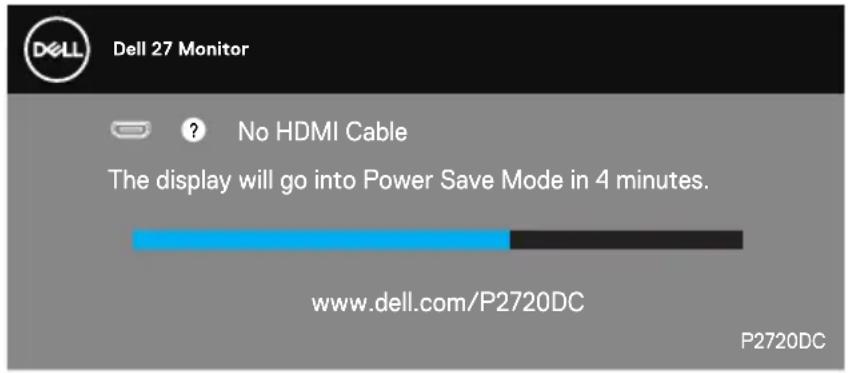

Dell 27 Monitor No HDMI Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/P2720DC P2720DC

or

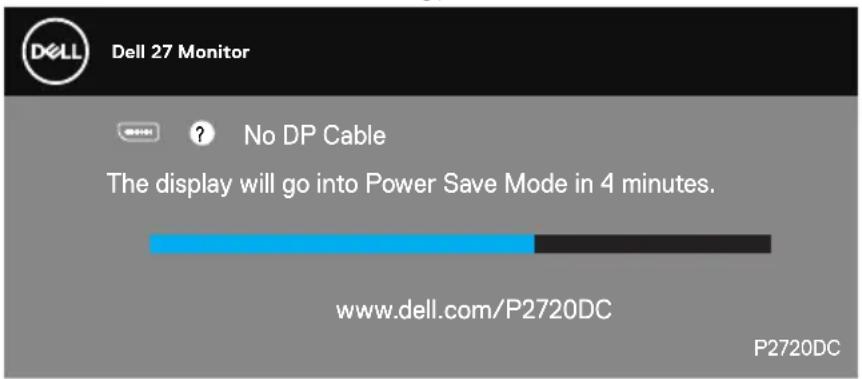

Dell 27 Monitor No DP Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/P2720DC P2720DC

or

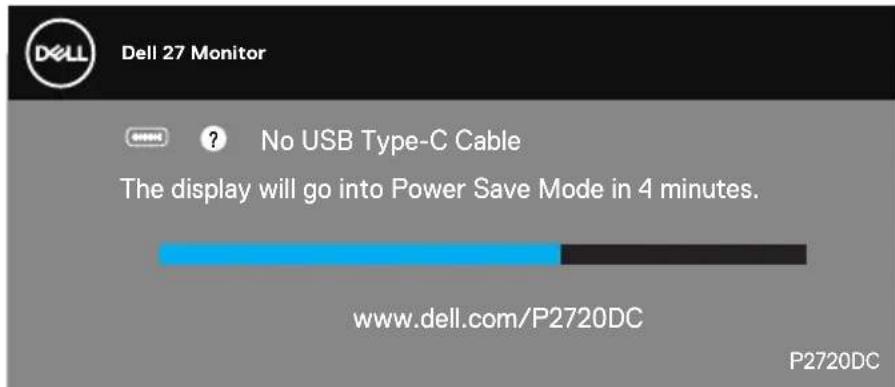

Dell 27 Monitor No USB Type-C Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/P2720DC P2720DC

NOTE: This box also appears during normal system operation, if the video cable is disconnected or damaged.

1. Turn Off your monitor and reconnect the video cable; then turn on your computer and the monitor.

If your monitor remains dark after you reconnect the cables, check your video controller and computer.

Built-in diagnostics

Your monitor has a built-in diagnostic tool that helps you determine if any screen abnormality you experience is an inherent problem with your monitor, or with your computer and video card.

NOTE: You can run the built-in diagnostics only when the video cable is unplugged and the monitor is in self-test mode.

1 2 3 4 5

To run the built-in diagnostics:

1. Ensure that the screen is clean (no dust particles on the surface of the screen).
2. Unplug the video cable (s) from the back of the computer or monitor. The monitor then goes into the self-test mode.
3. Press and hold the Exit key (button 4) for 4 seconds to enter the OSD lock/unlock menu.

DELL 27 Monitor Select Option: - - - + + < > ✓ ✗

Dell 27 Monitor Select Option: < > ✓ ×

1. Select the icon to enable the built-in diagnostics.

2. Carefully inspect the screen for abnormalities.

3. Press the Up key (button 1) on the back cover again. The color of the screen changes to grey.

4. Inspect the display for any abnormalities.

5. Repeat step 6 and 7 to inspect the display in red, green, blue, black, white and text pattern screens.

The test is complete when the text pattern screen appears. To exit, press the Up key (button 1) again.

If you do not detect any screen abnormalities upon using the built-in diagnostic tool, the monitor is functioning properly. Check the video card and computer.

Common problems

The following table contains general information about common monitor problems you might encounter and the possible solutions:

Common Symptoms	Possible Solutions
No Video/Power LED off	Ensure that the video cable connecting the monitor and the computer is properly connected and secure.Verify that the power outlet is functioning properly using any other electrical equipment.Ensure that the power button is pressed.Ensure that the correct input source is selected via the Input Source menu.
No Video/Power LED on	Increase brightness and contrast controls using the OSD.Perform monitor self-test feature check.Check for bent or broken pins in the video cable connector.Run the built-in diagnostics.Ensure that the correct input source is selected via the Input Source menu.
Poor Focus	Eliminate video extension cables.Reset the monitor to Factory Settings (Factory Reset).Change the video resolution to the correct aspect ratio.
Shaky/Jittery Video	Reset the monitor to Factory Settings (Factory Reset).Check environmental factors.Relocate the monitor and test in another room.
Missing Pixels	Cycle power On-Off.Pixel that is permanently Off is a natural defect that can occur in LCD technology.For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at:www.dell.com/support/monitors.
Stuck-on Pixels	Cycle power On-Off.Pixel that is permanently off is a natural defect that can occur in LCD technology.For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at:www.dell.com/support/monitors.
Brightness Problems	Reset the monitor to Factory Settings (Factory Reset).Adjust brightness & contrast controls via OSD.
Geometric Distortion	Reset the monitor to Factory Settings (Factory Reset).Adjust horizontal & vertical controls via OSD.
Horizontal/Vertical Lines	Reset the monitor to Factory Settings (Factory Reset).Perform monitor self-test feature check and determine if these lines are also in self-test mode.Check for bent or broken pins in the video cable connector.Run the built-in diagnostics.
Synchronization Problems	Reset the monitor to Factory Settings (Factory Reset).Perform monitor self-test feature check to determine if the scrambled screen appears in self-test mode.Check for bent or broken pins in the video cable connector.Restart the computer in the safe mode.
Safety Related Issues	Do not perform any troubleshooting steps.Contact Dell immediately.
Intermittent Problems	Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.Reset the monitor to Factory Settings (Factory Reset).Perform monitor self-test feature check to determine if the intermittent problem occurs in self-test mode.
Missing Color	Perform monitor self-test feature check.Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.Check for bent or broken pins in the video cable connector.
Wrong Color	Change theColor Setting Modein theColor Settings OSD to Graphics or Videodepending on the application.Try differentPreset ModesinColorsettings OSD.Adjust R/G/B value inCustom Color inColorsettings OSD.Change theInput Color Formatto RGBor YPbPrin theColorsettings OSD.Run the built-in diagnostics.
Image retention from a static image left on the monitor for a long period of time	Use the Power Management feature to turn off the monitor at all times when not in use (for more information, seePower management modes).Alternatively, use a dynamically changing screensaver.
Video Ghosting or Overshooting	Change theResponse Timein theDisplayOSD to Fast or Normaldepending on your application and usage.

Product-specific problems

Specific Symptoms	Possible Solutions
Screen image is too small	Check the Aspect Ratio setting in the Display settings OSD.Reset the monitor to Factory Settings (Factory Reset).
Cannot adjust the monitor with the buttons on the bottom of the panel	Turn Off the monitor, unplug the power cord, plug it back, and then turn On the monitor.Check if the OSD menu is locked. If yes, press and hold the menu button for 4 seconds to unlock.
No Input Signal when user controls are pressed	Check the signal source. Ensure the computer is not in standby or sleep mode by moving the mouse or pressing any key on the keyboard.Check if the video cable is plugged in properly. Disconnect and reconnect the video cable if necessary.Reset the computer or video player.
The picture does not fill the entire screen	Due to different video formats (aspect ratio) of DVDs, the monitor may display in full screen.Run the built-in diagnostics.
No image when using USB Type C connection to PC or Notebook.	Verify if the PC or Notebook USB Type C interface can support Alternate mode DP1.2.USB Type C interface of PC or Notebook can not support Alternate mode DP1.2.
No charging when using USB Type C connection to the Notebook	Verify if the Notebook required >65W power charging.The Notebook required >65W power charging.
USB interface is not working	Check that your monitor is turned ON.Reconnect the USB-C upstream cable to your computer.Reconnect the USB peripherals (downstream connector).Switch off and then turn on the monitor again.Reboot the computer.Some USB devices like external portable HDD require higher electric current; connect the device directly to the computer system.
Supre Speed USB 3.0 interface is slow.	Check that your computer is USB 3.0-capable.Some computers have USB 3.0, USB 2.0, and USB 1.1 ports. Ensure that the correct USB port is used.Reconnect the USB-C upstream cable to your computer.Reconnect the USB peripherals (downstream connector).Reboot the computer.
Wireless USB peripherals stop working when a USB 3.0 device is plugged in	Increase the distance between the USB 3.0 peripherals and the wireless USB receiver.Position your wireless USB receiver as close as possible to the wireless USB peripherals.Use a USB-extender cable to position the wireless USB receiver as far away as possible from the USB 3.0 port.
No Video when connected to some docking device at HDMI/DP/Type C port. There is no video when unplug/ plug docking Type C cable from the notebook.	Unplug the HDMI/DP/Type C cable from docking device.Plug the docking Type C cable to Notebook.Plug the DP/HDMI/Type C cable 7 seconds later.

Appendix

Safety Instructions

WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards.

For information on safety instructions, see the Safety Environment and Regulatory Information (SERI).

FCC notices (U.S. Only) and other regulatory information

For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com/regulatory_compliance.

Please follow these safety instructions for best performance, and long life for your monitor:

1. The socket-outlet shall be installed near the equipment and shall be easily accessible.
2. The equipment can be installed on wall or ceiling mounting in horizontal position.
3. The monitor is equipped with a three-pronged grounded plug, a plug with a third (Grounding) pin.
4. Do not use this product near water.
5. Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on product.
6. Excessive sound pressure from earphones and headphones can cause hearing loss. Adjustment of the equalizer to maximum increases the earphones and headphones output voltage and therefore the sound pressure level.

Contacting Dell

For customers in the United States, call 800-WWW-DELL (800-999-3355).

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area.

To get online Monitor support content:

1. Visit www.dell.com/support/monitors.

To contact Dell for sales, technical support, or customer service issues:

1. Visit www.dell.com/support.
2. Verify your country or region in the Choose A Country/Region drop-down menu at the bottom of the page.
3. Click Contact Us on the left side of the page.
4. Select the appropriate service or support link based on your need.
5. Choose the method of contacting Dell that is convenient for you.
