USER MANUAL LM75SGS LG

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

TABLE OF CONTENTS

This manual may contain images or content different from the model you purchased.

This manual is subject to revision by the manufacturer.

SAFETY INSTRUCTIONS ....3

IMPORTANT SAFETY INSTRUCTIONS....3

INSTALLATION ....11

Before Installation....11

Removing the Doors and Drawer 12

Refitting the Doors and Drawer 15

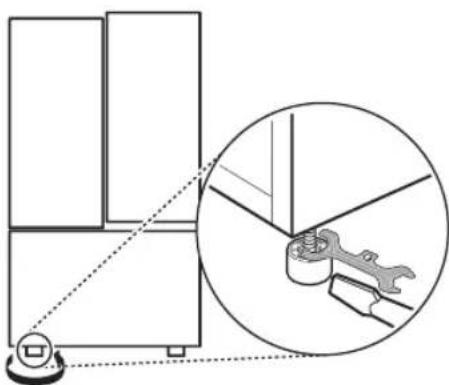

Leveling the appliance....15

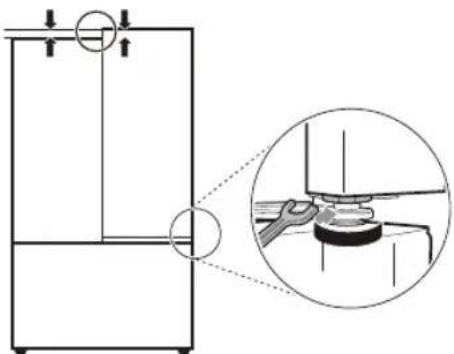

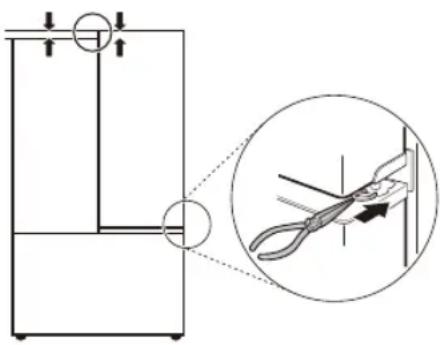

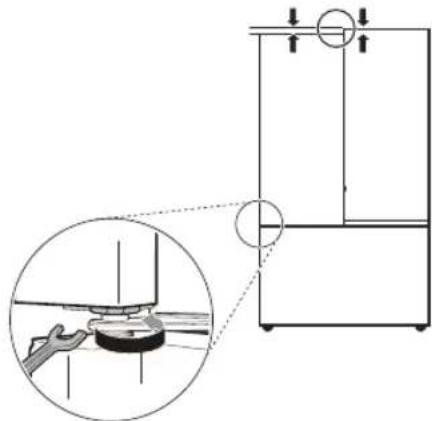

Aligning the Doors 15

Connecting the Water Line 16

Connecting the Appliance....17

Moving the Appliance 17

Earth (Grounding) Construction (Optional)....18

OPERATION ....19

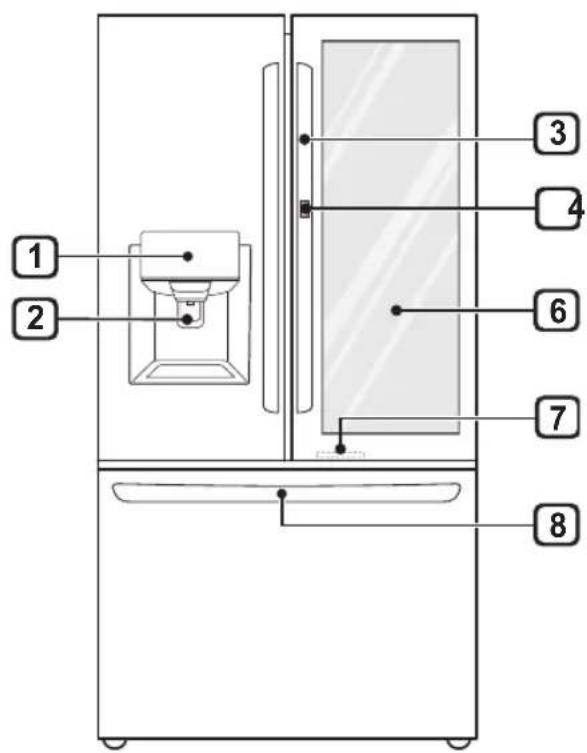

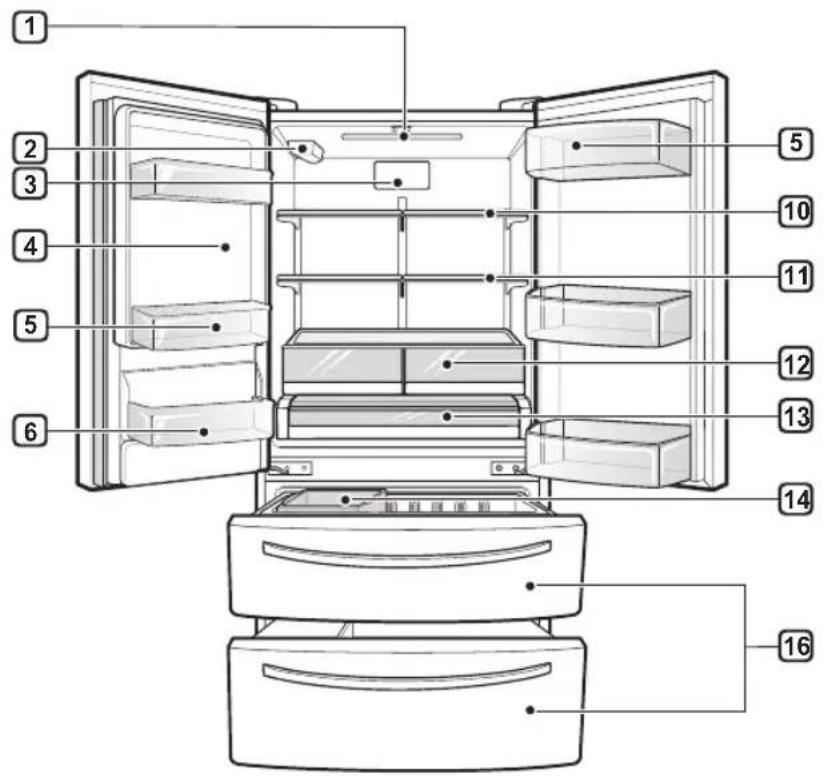

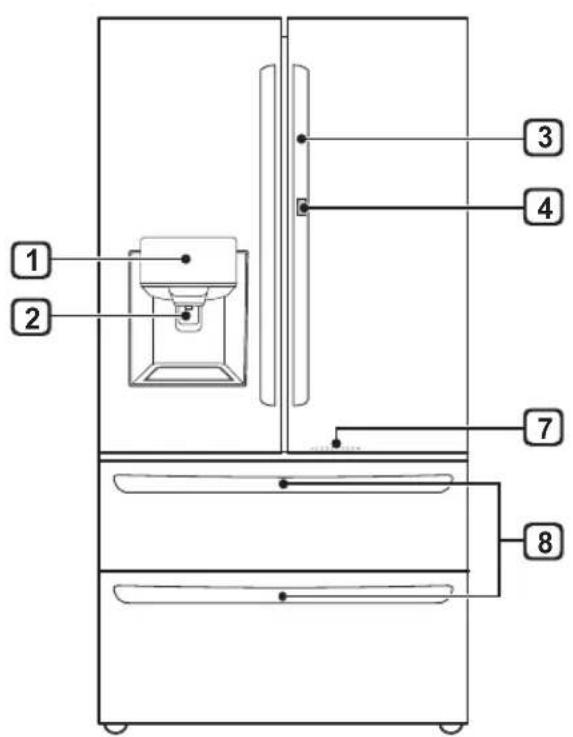

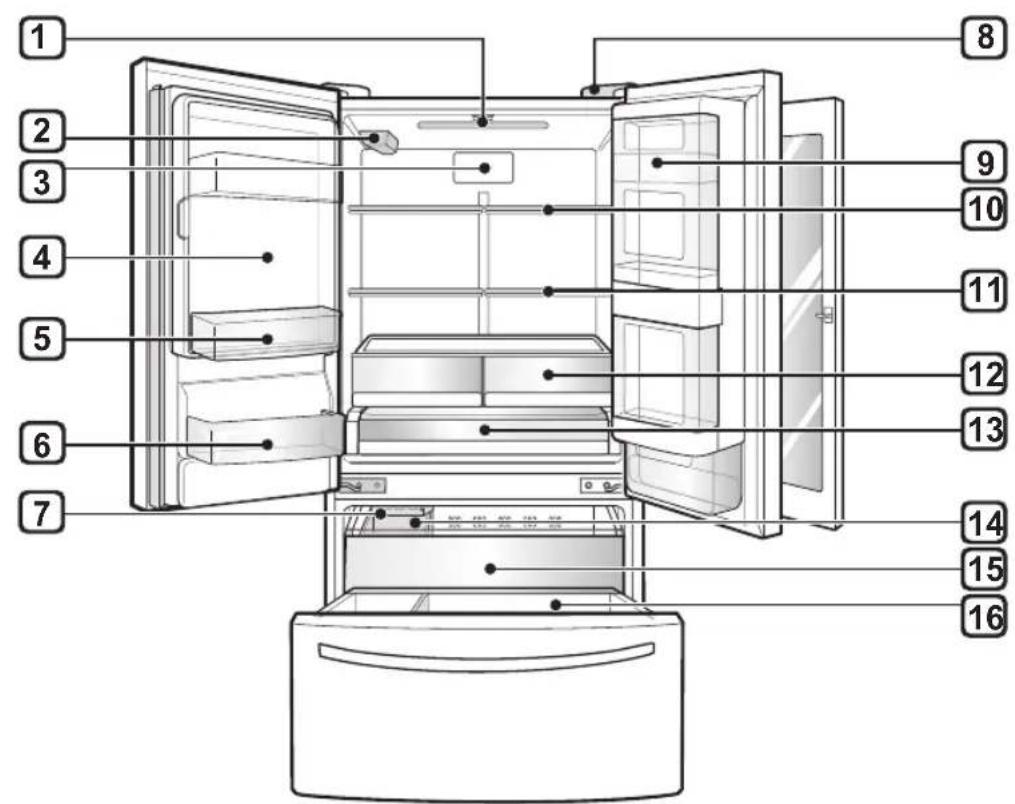

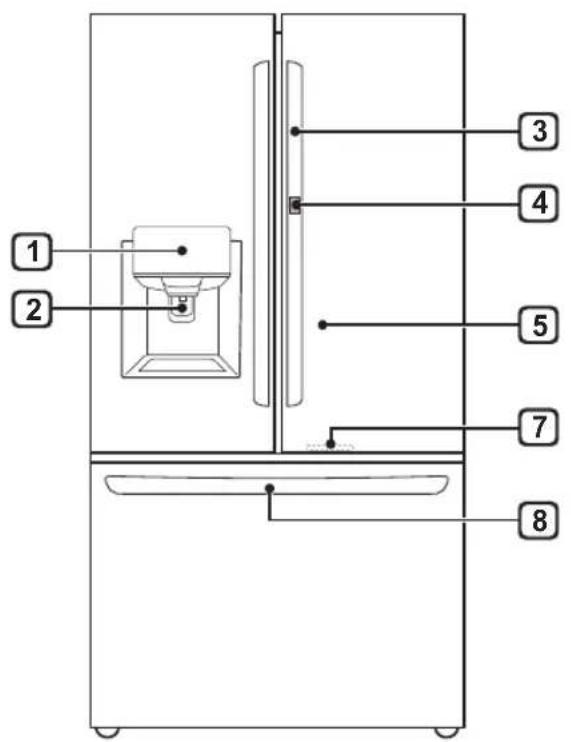

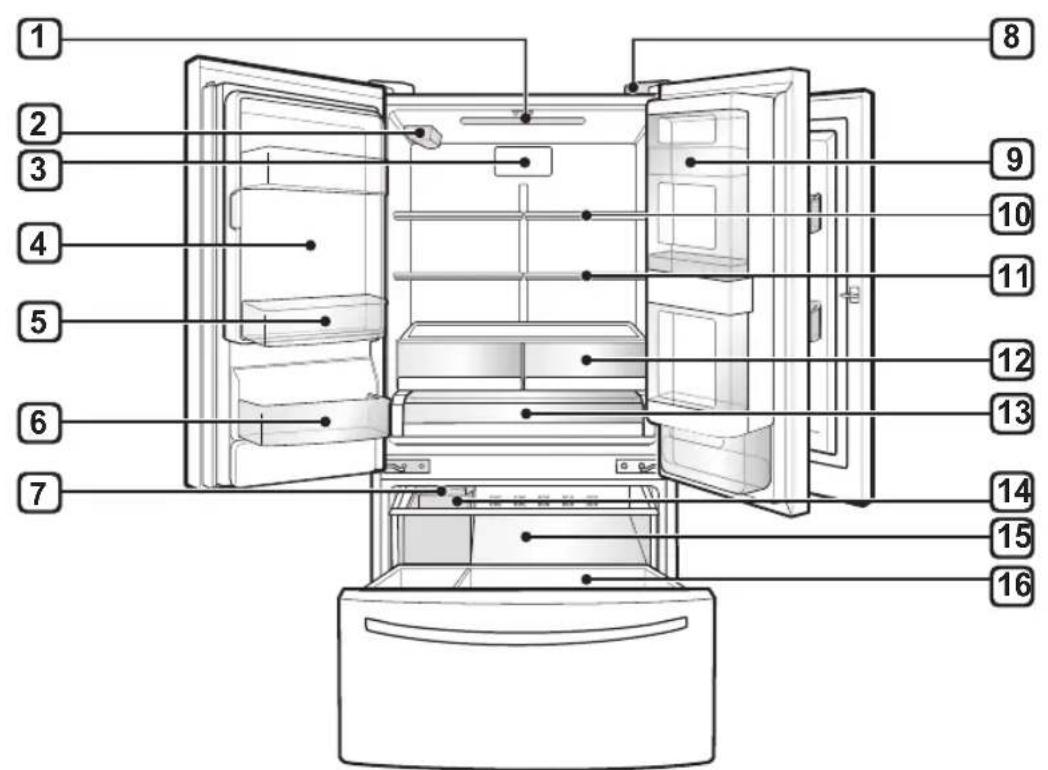

Parts and Functions....19

Notes for Operation 24

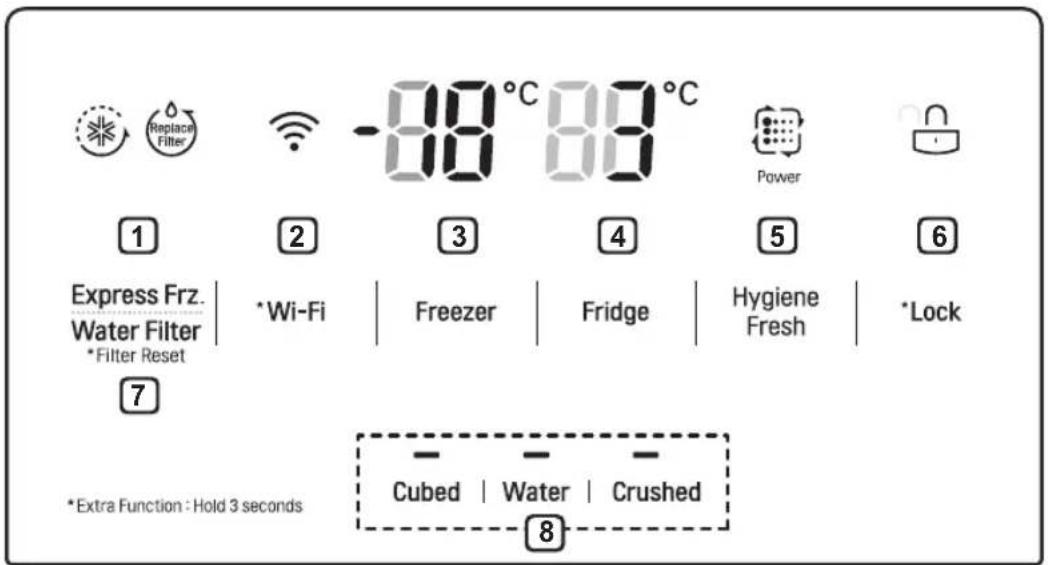

Using Control Panel....26

Water and Ice Dispenser 28

Automatic Icemaker 28

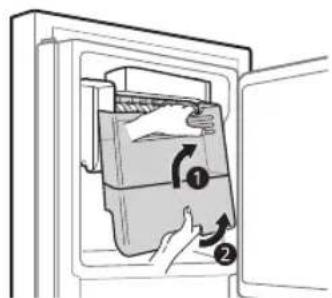

Removing the Ice Storage Bin....29

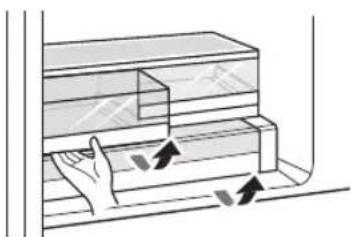

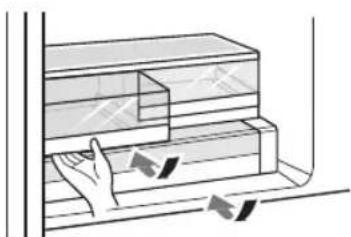

Vegetable Drawer 30

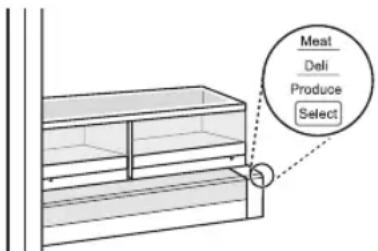

Glide'N'Serve (*) 30

Door Mullion 31

Door-in-Door (*) 31

InstaView Function (*) 31

Using the Folding Shelf (*) 32

Other Functions....32

SMART FUNCTIONS....33

LG ThinQ Application....33

Smart Diagnosis 35

MAINTENANCE....36

Notes for Cleaning....36

Cleaning the Condenser Cover 36

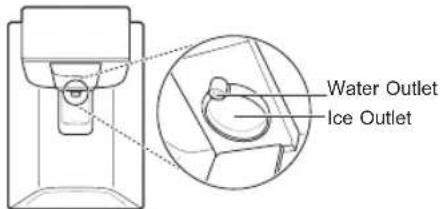

Cleaning the Water Dispenser....37

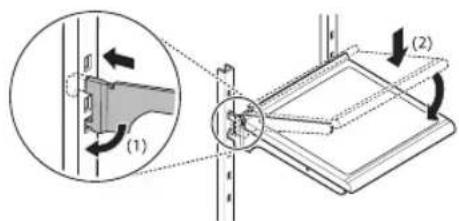

Cleaning the Fridge Shelf 37

Cleaning the Vegetable Drawer....38

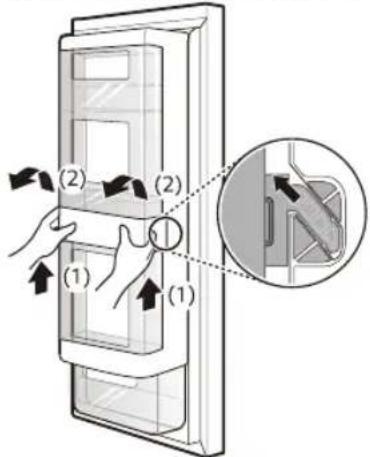

Cleaning the Door-in-Door (*) 38

Replacing the Water Filter 39

TROUBLESHOOTING 40

SAFETY INSTRUCTIONS

EN

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance.

The guidelines are separated into 'WARNING' and 'CAUTION' as described below.

This symbol is displayed to indicate matters and operations that can cause risk. Read the part with this symbol carefully and follow the instructions in order to avoid risk.

WARNING

This indicates that the failure to follow the instructions can cause serious injury or death.

CAUTION

This indicates that the failure to follow the instructions can cause the minor injury or damage to the product.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of explosion, fire, death, electric shock, injury or scalding to persons when using this product, follow basic precautions, including the following:

Children in the Household

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• If the appliance is equipped with a lock (some models only), keep the key out of reach of children.

Installation

• This appliance should only be transported by two or more people holding the appliance securely.
• Ensure that the socket outlet is properly grounded, and that the earth pin on the power cord is not damaged or removed from the power plug. For more details on grounding, inquire at an LG Electronics customer information centre.
• This appliance is equipped with a power cord having an equipment-grounding conductor and a grounding power plug. The power plug must be plugged into an appropriate socket outlet that is installed and grounded in accordance with all local codes and ordinances.
• If the power cord is damaged or the hole of the socket outlet is loose, do not use the power cord and contact an authorized service centre.
• Do not plug the appliance into a multi socket adapter which does not have a power cable (mounted).
• Do not modify or extend the power cable.
• The appliance should be connected to a dedicated power line which is separately fused.
• Do not use a multi socket outlet which is not properly grounded (portable). In case of using a properly-grounded multi socket outlet (portable), use the multi socket outlet with the current capacity of the power code rating or higher and use the multi socket outlet only for the appliance.
  • Install the appliance in a place where is easy to unplug the power plug of the appliance.

• Be careful not to point the power plug up or let the appliance lean against the power plug.
  •Install the appliance on a firm and level floor.

• Do not install the appliance in a damp and dusty place. Do not install or store the appliance in any outdoor area, or any area that is subject to weathering conditions such as direct sunlight, wind, rain, or temperatures below freezing.

• Do not place the appliance in direct sunlight or expose it to the heat from heating appliances such as stoves or heaters.
• Be careful not to expose the rear of the appliance when installing.
• Be careful not to let the appliance door fall during assembly or disassembly.
• Be careful not to pinch, crush, or damage the power cable during assembly or disassembly of the appliance door.
• Do not connect a plug adapter or other accessories to the power plug.

Operation

• Do not use the appliance for any purpose (storage of medical or experimental materials or shipping) other than any domestic household food storage use.
• Unplug the power plug during a severe thunderstorm or lightening or when not in use for a long period of time.
• Do not touch the power plug or the appliance controls with wet hands.
• Do not bend the power cable excessively or place a heavy object on it.
• If water penetrates electrical parts of the appliance, disconnect power plug and contact an LG Electronics customer information centre.

• Do not place hands or metallic objects inside the area emitting the cold air, cover or heat releasing grille on the back.

• Do not apply excessive force or impact to the back cover of the appliance.

• Do not put animals, such as pets into the appliance.
• Be careful of nearby children when you open or close the appliance door. The door may bump the child and cause injury.
• Avoid the danger of children getting trapped inside the appliance. A child trapped inside the appliance can cause suffocation.
• Do not place heavy or fragile objects, containers filled with liquid, combustible substances, flammable objects (such candles, lamps, etc.), or heating devices (such as stoves, heaters, etc.) on the appliance.
• If there is a gas leakage (isobutane, propane, natural gas, etc.), do not touch the appliance or power plug and ventilate the area immediately. This appliance uses a refrigerant gas (isobutane,R600a). Although it uses a small amount of the gas, it is still combustible gas. Gas leakage during appliance transport, installation or operation can cause fire, explosion or injury if sparks are caused.
• Do not use or store flammable or combustible substances (ether, benzene, alcohol, chemical, LPG, combustible spray, insecticide, air freshener, cosmetics, etc.) near the appliance.
• Immediately unplug the power plug and contact an LG Electronics customer information centre if you detect a strange sound, odour, or smoke coming from the appliance.
• Fill with potable water only into icemaker or dispenser water tank.
• Do not damage the refrigerant circuit.
• Do not place any electronic appliance (such as heater and mobile phone) inside the appliance.

Maintenance

• Disconnect the power cord before cleaning the appliance or replacing the inside lamp (where fitted).
• Securely plug the power plug in the socket outlet after completely removing any moisture and dust.
• Never unplug the appliance by pulling on the power cable. Always grip the power plug firmly and pull straight out from the socket outlet.
• Do not spray water or inflammable substances (toothpaste, alcohol, thinner, benzene, flammable liquid, abrasive, etc.) over the interior or exterior of the appliance to clean it.
• Do not clean the appliance with brushes, cloths or sponges with rough surfaces or which are made of metallic material.
• Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the appliance in a different location.
• Do not use a hair drier to dry the inside of the appliance or place a candle inside to remove the odours.
• Do not use mechanical devices or other means to accelerate the defrosting process.
• Connect the water supply line (for plumbed models only) to a potable water source only. Otherwise, impurities in the water may cause illness.

Disposal

- When discarding the appliance, remove the door gasket while leaving the shelves and baskets in place and keep children away from the appliance.

- Dispose of all packaging materials (such as plastic bags and styrofoam) away from children. The packaging materials can cause suffocation.

Technical Safety

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use electrical appliances inside the refrigerator.

- The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. Consult with service agent or a similarly qualified person before disposing of them.

- Refrigerant leaking out of the pipes could ignite or cause an explosion.

- The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.

- Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

- This appliance is intended to be used in household and similar applications only. It should not be used for commercial, or catering purposes, or in any mobile application such as a caravan or boat.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Risk of Fire and Flammable Materials

This symbol alerts you to flammable materials that can ignite and cause a fire if you do not take care.

- This appliance contains a small amount of isobutane refrigerant (R600a), but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

- If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes. In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance is used should correspond to the amount of refrigerant used. The room must be 1m^2 in size for every 8 g of R600a refrigerant inside the appliance.

- When positioning the appliance, ensure the supply cord is not trapped or damaged.

- Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

CAUTION

To reduce the risk of minor injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following:

Installation

- Do not tilt the appliance to pull or push it when transporting.

- Make sure not to get a body part such as a hand or foot stuck while moving the appliance.

Operation

- Do not touch frozen food or the metal parts in the freezer compartment with wet or damp hands. It may cause frostbite.

- Do not place glass containers, bottles or cans (especially those containing carbonated drinks) in the freezer compartment, shelves or ice bin that will be exposed to temperatures below freezing.

- The tempered glass on the front side of the appliance door or the shelves can be damaged by an impact. If it is broken, do not touch it with hands.

- Do not place heavy objects on top of the door in door.

- Do not use the door in door as a chopping board and ensure it is not scratched by a sharp tool, as this may cause appliance damage.

- Do not hang from the appliance door, storage room, shelf or fridge door in door or climb up into it.

• Do not store an excessive amount of water bottles or containers for side dishes on the door baskets.
• Prevent animals from nibbling on the power cable or water hose.
• Do not open or close the appliance door with excessive force.
• If the hinge of the appliance door is damaged or operates improperly, stop using the appliance and contact an authorized service centre.
• Do not clean glass shelves or covers with warm water when they are cold.
• Never eat frozen foods immediately after they have been taken out in the freezer compartment.
• Do not insert your hands into the mechanical part of the automatic icemaker such as the ice bin or the ice dispenser.
• Do not use a thin crystal cup or chinaware when dispensing.
• Do not remove the cover of the automatic icemaker. Touching any mechanical part of the automatic icemaker. It may result in injury.
• Do not open the door of the appliance with the door in door open, or do not open the door in door while the door of the appliance is open. The door in door may be struck by the edge of the appliance and damaged.
• Make sure not to get a hand or foot stuck upon opening or closing the appliance door or door in door.

Maintenance

• Do not insert the shelves upside down. The shelves may fall.
• To remove frost from the appliance, contact an LG Electronics customer information centre.

INSTALLATION

EN

Before Installation

Dimensions and Clearances

- Too small of a distance from adjacent items may result in the degradation of freezing capability and increased electricity costs. Allow over 50 mm of clearance from each adjacent wall when installing the appliance.

A B C

D E F G H

- Type (a) Type (b)
A 908 mm 908 mm
B 1772 mm 1772 mm
C 921 mm 886 mm
D 763 mm 728 mm
E 805 mm 770 mm
F 857 mm 822 mm
G 1232 mm 1197 mm
H 1713 mm 1713 mm

NOTE

- You can determine what type of appliance it is by looking at the label inside the appliance.

Ambient Temperature

- The appliance is designed to operate within a limited range of ambient temperatures, depending on the climate zone. Do not use the appliance at a temperature exceeding the limit.

- The internal temperature could be affected by the location of the appliance, the ambient temperature, the frequency of door opening and so on.

- The climate class can be found on the rating label.

Climate Class	Ambient Temperature Range °C
SN (Extended Temperate)	+10 - +32
N (Temperate) +16 - +32
ST (Subtropical) +16 -	+38
T (Tropical) +16 - +43 /	+10 - +43*

*Australia, India, Kenya

** Argentina

NOTE

- The appliances rated from SN to T are intended to be used at an ambient temperature between 10 °C and 43 °C.

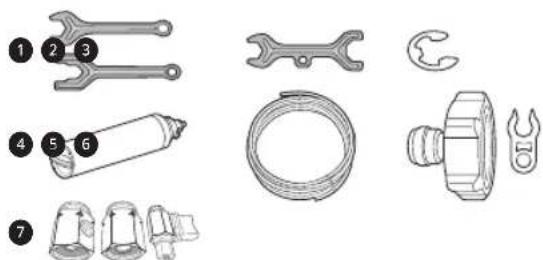

Accessories

*1: This feature is only available on some models.

Technical diagram showing seven types of wrenches and mechanical components with numbered labels

1 Spanner A*1

2 Spanner B*1

3 C-Clip (Snap Ring)*1

4 Water Filter

5 Water Tube*1

6 Tube Connector and Clip*1

7 Tube Connector and Valve*1

EN

Removing the Doors and Drawer

When it is necessary to move the appliance through a narrow opening, removing the doors is the recommended procedure.

WARNING

- Disconnect the power cord, house fuse or circuit breaker before installing or servicing the appliance. Failure to follow these instructions may result in death, fire or electric shock.

Removing the Fridge Doors

1 Remove the ring in the joint area. Hold the water supply connection and gently push the collet to detach the water supply line as shown.

2 Remove the screw from the hinge cover at the top of the appliance. Lift the hook, located at the bottom of the front side of the cover with a flat-head screwdriver.

Technical diagram showing a mechanical assembly with a magnified inset of a component detail (no text or symbols)

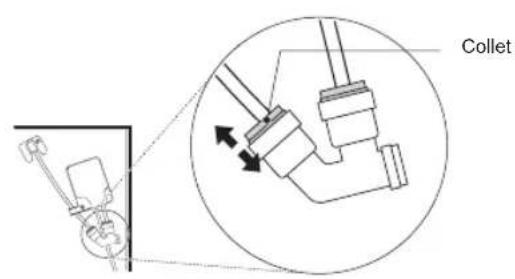

3 Pull out the tube. Disconnect all wire harnesses. Unscrew the ground wire.

Type 1

Collet

Diagram of a mechanical assembly with zoomed-in views showing internal components (no text or symbols)

Type 2

Type 2

Collet

Diagram of a robotic arm with directional arrows indicating movement, showing mechanical components and cable assembly (no text or symbols)

EN

4 Rotate hinge lever counterclockwise. Lift the top hinge free of the hinge lever latch.

Hinge Lever Latch

5 Lift the door from the middle hinge pin and remove the door.

Technical diagram showing a mechanical assembly with labeled parts and an arrow indicating direction

CAUTION

• When removing the upper hinge, be sure to support the door as it will fall forwards. It is recommended that two or more people carry out the door removal and refitting.
• When lifting the hinge free of the latch, be careful that the door does not fall forward.
• Place the door on a non-scratching surface with the inner side facing up.

NOTE

• When moving the left fridge door, be careful not to damage the water tubes. The doors should be laid down on a blanket in a safe area once they have been removed.
• If the water tube end is damaged, it should be trimmed to ensure it does not leak when refitted.

Not straight Damaged Stretched

- While pressing the collet toward the tube connector, gently insert the water tube until only one line is visible. Pull on the water tube to make sure that the tube is tightly fastened.

Collet Water tube Insert line

EN

Removing the Freezer Drawers

For models with two freezer drawers, remove both drawers in the same way.

The Pullout Drawer located above the freezer drawer is not shown for clarity.

WARNING

To reduce the risk of electric shock, injury to persons, and death, follow basic precautions, including the following:

• Use two or more people to remove and install the refrigerator doors and freezer drawer.
• Be careful of sharp hinges on both sides of the drawer.
• When you lay the drawer down, be careful not to damage the floor.
• Do not sit or stand on the freezer drawer.
• To prevent accidents, keep children and pets away from the drawer. Do not leave the drawer open. If the Durabase® storage bin is removed from the freezer drawer, there is sufficient space for a small child or pet to crawl inside.

Line drawing of a plastic container with side compartments and ventilation slots (no text or symbols)

1 Pull the drawer open to full extension.
2 Gently lift and pull out the ice bin.

Isometric line drawing of a refrigerator drawer with an open drawer and internal compartments (no text or symbols)

3 Lift the front of the drawer up, then pull it straight out.

Isometric line drawing of a refrigerator with an open drawer and internal compartments (no text or symbols)

4 Remove the screws from the rails at both ends.

Technical line drawing of a mechanical assembly with an inset magnified detail (no text or symbols)

5 Grip both sides of the drawer and pull it up to remove it from the rails.

Diagram of a door frame with arrows indicating force or movement (no text or symbols)

CAUTION

- Do not hold the handle when removing or replacing the drawer. The handle may come off, causing personal injury.

EN

6 Hold both rails and push them in simultaneously.

Diagram showing two hands holding a tool inside a device frame, with arrows indicating direction (no text or symbols)

Refitting the Doors and Drawer

Mount the doors in the reverse sequence of their removal once the appliance has been passed through all access doors.

Leveling the appliance

If the door of the appliance is not level, adjust the difference in the height of appliance door using the following method.

Open the door and use the supplied spanner to adjust the level of the lower side, using the nut on the adjustable round foot as per the below diagram.

Diagram showing a mechanical device connected to a toolbar and a magnified view of a wrench tool (no text or symbols present)

NOTE

- Because the hinge pin may fall out, do not adjust the height of the appliance door more than 3 mm.

Aligning the Doors

If the door is too low, lift the door up and screw on a door hinge bolt in the manner shown below using a spanner and a pair of long nose pliers.

Adjusting the Left Fridge Door

Open the fridge door and use the spanner to rotate the door hinge bolt as shown below.

Diagram showing a mechanical setup with a magnified inset of a tool interacting with a circular component (no text or symbols present)

Adjusting the Right Fridge Door

If the door is too low, use the spanner to rotate the door hinge bolt as shown below.

Technical diagram showing a mechanical assembly with labeled components and an inset close-up of a component detail.

If the door is too low, lift the right door up and insert use a pair of long nose pliers to insert ring sheets until both doors are level.

Diagram showing a mechanical setup with force indicators and a magnified view of a tool tip cutting through a vertical line.

Connecting the Water Line

Water Supply Requirements

A cold water supply with water pressure between 138 kPa and 827 kPa (1.4-8.4 kgf/cm ^2 ) is required to operate the water dispenser. If the refrigerator is installed in an area with low water pressure (below 138 kPa), you can install a booster pump to compensate for the low pressure.

If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 138 kPa to 827 kPa (1.4-8.4 kgf/cm²)

WARNING

• Unplug the appliance before carrying out any work on connecting the water line. Failure to do so may cause electric shock.
• Only connect the water line to a cold water supply. Failure to do so may cause the water filter to malfunction. Water hammer (water banging in the pipes) in house plumbing can cause damage to appliance parts and can lead to water leakage or flooding.
• Connecting the water line must only be installed by a qualified plumber and in accordance with local legislation and regulations governing water quality.

NOTE

- This water line installation is not covered by the appliance warranty.

Connecting to the Appliance

1 Unscrew the metal threaded collar nut at the back of the appliance and place it over one end of the water tube.
2 Firmly push the water tube onto the water inlet valve and tighten up the collar nut.

Diagram showing a hand inserting a component into a device, with an arrow indicating the process.

Checking the Water Connection

1 Turn on the water supply and switch on the appliance. Carefully check all fittings for possible leaks due to poorly fitted hoses.
2 Press and hold the Water Filter button for three seconds. That resets the Replacement Filter icon. The new water filter has been activated.
3 Place a cup under the water dispenser to verify that water is flowing through the appliance.
4 Check the connecting tube and joints for leaks once again.
5 The water filter should be fixed at a appropriate place where it is easy to reach for replacement purposes.

Connecting the Appliance

After installing the appliance, connect the power plug into a socket outlet.

NOTE

- After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you put food into the appliance. If you add food before the appliance has cooled completely, your food may spoil.

Moving the Appliance

1 Remove all food from inside the appliance.
2 Pull the power plug out, insert and fix it into the power plug hook at the rear or on top of the appliance.
3 Tape parts such as shelves and the door handle to prevent from falling off while moving the appliance.
4 Move the appliance with more than two people carefully. When transporting the appliance over a long distance, keep the appliance upright.
5 After installing the appliance, connect the power plug into a socket out to switch on the appliance.

Earth (Grounding) Construction (Optional)

*Applicable to some models only

Assemble (Install) the earth firmly (Applicable to some models only)

When the earth connection is unstable, it can cause a problem or an electric shock in case of electricity leakage.

When installing and using the product in the following location, you must do an earth construction by requesting to your retailer. (Earth construction is not free.)

- Unfloored or dirt floored (room with dirt and no floor), concrete floor etc., and location where leakage and dew drops can occur including locations where water can drip such as near the sink, basement etc. Connect the earth wire to the earth connecting screw on the rear side of the product.

Do not connect the earth wire to the following locations.

• Water pipe and gas pipe have the possibility of explosion and flammable danger.
- Telephone line earth and lightning rod are dangerous with high current in case of lightning.

When installing near wet locations, you are obligated to install the circuit breaker in addition to the earth wire. Consult with your retailer.

Diagram showing a hand using a power switch to adjust a wall-mounted electrical outlet, with an inset magnified view highlighting the circular structure.

Earth (grounding) construction (Applicable to some models only)

It is recommended to install the earth to prevent electric shock in case of electricity leakage.

About connection :

- Connect the earth line to the earth wire assembly screw on the back of the refrigerator.

- Do not connect the earth wire to the following locations.

• Gas pipe
• It can cause an explosion and can be flammable.
• Telephone earth wire and lightning rod It is dangerous during lighting.
  • Water pipe and water tap

- The earth wire connection will not work when the middle of the water pipe is made of plastic.

When installing the product in a humid or wet location, you must install the earth wire.

Ex)

• Unfloored or dirt floored room (Room with dirt and no floor), concrete floor
• Location where it can get wet such as near the sink
• Location where water can leak or is humid such as basement
• Other wet or humid location

Especially, for locations where it always get wet such as near the restaurant sink, you are obligated by the law to install a circuit breaker in addition to the earth wire.

After consulting with your retailer or electric construction company, you must do the earth wire construction (Type 3 earth construction).

Earth construction is not done for free.

OPERATION

EN

Parts and Functions

Exterior

1 2 3 4 7 8

1 2 3 4 5 7 8

1 2 3 4 6 7 8

EN

1 Control Panel

Sets the fridge and freezer temperatures, the water filter condition and the dispenser mode.

2 Filtered Water and Ice Dispenser

Dispenses purified water and ice.

3 Handle

Opens and closes the refrigerator door.

4 Door button (\*)

Opens the Door-in-Door Compartment.

5 Door-in-Door (\*)

The Door in Door is a double layered door system. It can be opened individually or together with the main door. You can conveniently locate and access your favourite snacks or food items.

6 InstaView Door in Door (\*)

The InstaView Door in Door compartment allows for easy access to commonly used food items.

7 LED Light

LED lights up when the freezer door is opened.

8 EZ Handle (\*)

Easily opens the freezer door.

NOTE

- (*) means that this feature varies depending on the model purchased.

EN

Interior

Labeled diagram of a refrigerator interior with numbered parts for identification

Labeled diagram of a refrigerator interior with numbered parts for identification

EN

Interior

Labeled diagram of a refrigerator interior with numbered parts for identification

1 LED Lamp

Light up the inside of the refrigerator.

② Water Filter

This filter purifies water.

- The filter should be replaced every 6 months. See the Replacing the Water Filter section in this manual for details.

③ Hygiene Fresh

This function minimizes bacteria and odor inside the appliance.

4 Fridge Icemaker

Produces and stores ice automatically in fridge compartment.

5 Fridge Door Basket

This is where small packages of refrigerated foods, drinks and sauce containers are stored.

6 Fixed Door Bin

Store chilled food or drinks.

EN

7 Freezer Icemaker (\*)

Produces and stores ice automatically in freezer compartment.

8 Smart Diagnosis Unit

Using this function when contacting LG Electronics customer information centre to help make an accurate diagnosis when the appliance operates abnormally or a failure occurs.

9 Door-in-Door (\*)

A convenient storage area for frequently-used items that require easy access.

10 Fridge Shelf

This is where refrigerated foods and other items are stored.

• The shelf height can be adjusted by inserting the shelf in another groove of different height.
• Store the foods with higher moisture content at the front of the shelf.
• The actual number of shelves will differ from model to model.

11 Folding Shelf (\*)

Shelf is adjustable to meet individual storage needs.

12 Vegetable Box

This is where fruits and vegetables are stored to remain fresh for as long as possible.

13 Glide'N'Serve

Store food items at a different temperature than the regular refrigerator area.

14 In-Door Ice Bin

If a large amount of ice is needed, transfer the ice in the in-door ice bin to an ice storage bin in the freezer.

15 Pullout Drawer

Provide extra storage within the freezer compartment.

16 Freezer Drawer

This is for long-term storage of frozen items.

NOTE

- (*) means that this feature varies depending on the model purchased.

Notes for Operation

- Do not use the ice water dispenser tank for beverages other than drinking water.

- Users should keep in mind that frost can form. If the door is not closed completely, if the humidity is high during the summer, or if the freezer door is opened frequently.

- Ensure there is sufficient space between food stored on the shelf or door basket to allow the door to close completely.

- Opening the door lets warm air enter the appliance, and may cause the internal temperature to rise.

- If you are leaving the appliance turned off for an extended period of time, remove all food and unplug the power cord. Clean the interior, and leave the doors slightly ajar to prevent mold from growing in the appliance.

- If there are chill compartments in the appliance, do not store vegetables and fruits with higher moisture content in the chill compartments as they may freeze due to the lower temperature.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Suggestion for Energy Saving

- Ensure there is sufficient space between stored foods. This allows cold air to be circulated evenly and lowers electricity bills.

- Store hot food only after it has cooled in order to prevent dew or frost.

- When storing food in the freezer compartment, set the freezer temperature lower than the temperature indicated on the food.

- Do not put food near the temperature sensor of the fridge compartment. Keep a distance of at least 3 cm from the sensor.

- Note that a temperature rise after defrosting has a permissible range in the appliance specifications. If you wish to minimise the impact this may have on the food storage due to a temperature rise, seal or wrap the stored food in several layers.

- The automatic defrosting system in the appliance ensures that the compartment remains free of ice buildup under normal operating conditions.

EN

Storing Foods Effectively

- Store frozen food or refrigerated food inside sealed containers.

- Check the expiration date and label (storage instructions) before storing food in the appliance.

- Do not store food for a long period of time (more than four weeks) if it spoils easily at a low temperature.

- Place the refrigerated food or frozen food in each fridge or freezer compartment immediately after purchasing.

- Avoid refreezing any food which has been completely thawed. Freezing any food which has been completely thawed again will lower its taste and nutrition.

- Do not wrap and store vegetables with newspaper. Printing material of newspaper or other foreign substances may smear and contaminate food.

- Do not overfill the appliance. Cold air can not circulate properly if the appliance is overfilled.

- If you set an excessively low temperature for food, it may become frozen. Do not set a temperature lower than the required temperature for the food to be stored correctly.

- If there are chill compartments in the appliance, do not store vegetables and fruits with higher moisture content in the chill compartments as they may freeze due to the lower temperature.

• In the event of a blackout, call the electricity company and ask how long it is going to last.

- You should avoid door openings while the power is off.

- When the power supply gets back to normal, check the condition of the food.

Max Freezing Capacity

• The Express Freeze function will set the freezer to its maximum freezing capacity.

• This generally takes up to 24 hours and automatically switches off.

- If the maximum freezing capacity is to be used, Express Freeze must be switched on for seven hours before fresh produce is placed in the freezer compartment.

Maximum Storage

• To get better air circulation, insert all drawers.

- If large quantities of food are to be stored, all the freezer drawers shall be taken out of the appliance except the bottom one and the food shall be stacked directly on the freezer compartment.

NOTE

- To remove the drawers, first pick the food out of drawers. Then use the handle of drawers, pull out the drawers carefully. It may cause injury.

• The shape of each drawer may be different, insert in the right position.

Using Control Panel

Units and Functions

Replace Filter -88°C 88°C Power Express Frz. Water Filter *Wi-Fi Freezer Fridge Hygiene Fresh *Lock *Filter Reset 7 Extra Function : Hold 3 seconds Cubed | Water | Crushed 8

1 Express Frz. (Express Freeze)

• This sets Express Freeze functions.

2 \* Wi-Fi

- This sets the appliance to connect to your home's Wi-Fi network.

③ Freezer Temperature

• This sets the freezer target temperature.

4 Fridge Temperature

• This sets the fridge target temperature.

⑤ Hygiene Fresh

- This sets the Hygiene Fresh function. - This function reduces and removes odors inside the fridge compartment.

6 \*Lock

- This locks the buttons on the control panel.

7 Water Filter

• After changing the filter, push and hold the Water Filter button for three seconds to reset the filter.

8 Water Dispenser

- This sets the function of Cubed ice, Water, Crushed ice.

NOTE

• The actual control panel may differ from model to model.
• The control panel will turn off automatically for energy saving.
• If there is any finger or skin contacts to the control panel while cleaning it, the button function may operate.

Setting Express Freeze

The function can quickly freeze a large amount of ice or frozen foods.

- When you press the Express Freeze button, the Express Freeze icon lights on the control panel.

- The function is enabled and disabled in turn each time you press the button.

- The Express Freeze function automatically terminates after a specific period has passed.

Setting the Temperature

This sets the fridge temperature or freezer temperature.

- Press the Fridge button or Freezer button to adjust the temperature.

• The initial temperature is set.

- Fridge : 3 °C

- Freezer : -18 °C

• The temperature can be adjusted.

- Fridge : from 1 °C to 8 °C

- Freezer : from -13°C to -21 °C

- The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target temperature, not actual temperature within the appliance.

NOTE

- The default temperature setting may vary depending on the appliance.

- Wait until two or three hours have passed after connecting the appliance to the outlet before storing food in the appliance.

- For ice making in normal climates, the freezer temperatures should be set to -18 °C or colder.

Setting Hygiene Fresh

Bacteria and odor inside the appliance can be minimized with the Hygiene Fresh function. However, the function is only effective for bacteria floating in the appliance, not bacteria adsorbed onto food.

- Each time you press the Hygiene Fresh button, the Hygiene Fresh function mode will change to Auto → Power → Off → Auto alternatively.

Setting and Resetting Lock

This locks the buttons on the control panel.

- Press and hold the Lock button for 3 seconds. When the Lock function is set, all buttons are locked.

- When you press the Lock button for 3 seconds, the Lock/Unlock icon on the control panel lights. The function is enabled and disabled in turn each time you press the button.

- If you press a button other than lock when the lock is set, the button will not function.

- When you press a button other than lock when the lock is set, the Lock/Unlock icon on the control panel will flash 3 times.

- To change a setting, first press the Lock button for three seconds to disable the function.

Water and Ice Dispenser

You can dispense cubed ice, water and crushed ice by pressing the respective button for the desired mode.

• When you press the Cubed, Water or Crushed button on the control panel, the lamp on the control panel will turn on and the desired mode will be set. At this time, when you press the dispenser lever, the selected function (cubed ice, water and crushed ice) will be dispensed.
• The function is enabled and disabled in turn each time you press the button on the control panel.

Cubed | Water | Crushed

CAUTION

• Keep children away from the dispenser to prevent children playing with or damaging the controls.
• Throw away the first few batches of ice (about 20 cubes and 7 cups of water). This is also necessary if the appliance has not been used for a long time.

NOTE

• If you open the freezer door while water is being dispensed, the water supply will stop and the control panel will return to the initial screen.
• If you open the fridge door while water, cubed ice or crushed ice is being dispensed, dispensing will be paused. When you close the door, the selected item for the previously set mode will continue to be dispensed.
• If the cup rim is small, water may splash out of the glass or miss it completely.
• Use a cup with a rim of over 68 mm in diameter when dispensing water, cubed ice or crushed ice.
• When the ice maker produces smaller ice cubes, or the cubes become lumped together, the amount of water supplied to the ice maker may be low due to insufficient water in the water tank. If ice is not used frequently, it may also lump together.

Automatic Icemaker

Fridge Icemaker

The automatic icemaker can automatically make 70-182 cubes at a time, within a 24hr period if conditions are favorable. This amount may vary according to the environment (ambient temperature around the appliance, frequency of the door being opened, amount of food stored in the appliance, etc.).

• If the ice bin is completely filled with ice, ice production will stop.
• Sound of ice dropping into the ice bin is normal.
• The icemaker produces ice normally when approximately 48 hours have passed after the appliance is initially installed.
• Discard ice produced for the first time without using it.
• While the automatic icemaker is operating, do not touch it with your hands directly.
• If ice cubes are stored in the ice bin for a long period of time, they may clump together and may not be separated easily. In such a case, clean the ice bin before using it.

Freezer Icemaker ( \* )

The automatic freezer icemaker produces 12 cubes at a time, 50-110 pieces within a 24 hour period if conditions are favorable. This amount may vary according to the environment (ambient temperature around the appliance, frequency of the door being opened, amount of food stored in the appliance, etc.).

• If the ice bin is completely filled with ice, ice production will stop.
• Sound of ice dropping into the ice bin is normal.
• The icemaker produces ice once approximately 48 hours have passed after the appliance is initially installed.

- Discard the first ice cubes produced after initial install.

- Ice cubes which are stored in the ice bin for a long time may clump together and be difficult to separate. If this happens, empty the ice bin completely and clean it before reinstalling it.

NOTE

• (*) means that this feature varies depending on the model purchased.

Turning the Automatic Icemaker On or Off

To turn off the automatic icemaker, set the icemaker switch to OFF (O). To turn on the automatic icemaker, set the switch to ON (I).

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

Auto shutoff (feeler arm) Power Switch

Keeping the power turned on to the icemaker before the water line is connected can damage the icemaker.

The icemaker water valve will buzz as the icemaker fills with water. If the power switch is in the ON (I) position, it will buzz even if it has not yet been hooked up to water. To stop the buzzing, move the power switch to OFF (O).

NOTE

- Do not keep the power turned on to the icemakers if the water line is not connected. Doing so can damage the icemakers.

Preparing for Vacation

If the ambient temperature will drop below freezing, have a qualified technician drain the water supply system to prevent serious property damage due to flooding caused by ruptured water lines or connections.

Set the icemaker power switch to OFF (O) and shut off the water supply to the appliance.

NOTE

- The ice bin should be emptied any time the icemaker on/off switch is turned to the OFF (O) position.

Removing the Ice Storage Bin

1 Gently pull the handle to open the ice compartment.

Illustration of a hand holding a tool inside a device (no text or symbols visible)

2 To remove the in-door ice bin, grip the front handle, lift up slightly while holding both the top and bottom parts (1), and slowly pull out the bin as shown (2).

Diagram showing a hand placing a box into a refrigerator with two arrows indicating rotation or movement steps.

WARNING

- Do not touch the automatic icemaker's mechanical parts with your hand or a tool. Otherwise, appliance damage or injury may occur.

- Caution should be taken, as the automatic icemaker operates continuously after the freezer door is opened when the automatic icemaker switch is set to the on position.

- Do not disassemble, repair or alter the automatic icemaker. These tasks should only be done by a service technician.

CAUTION

• Throwawaythefirstfewbatchesofice(about 20 cubes and 7 cups of water). This is also necessary if the appliance has not been used foralongtime.
• The firstice and water dispensed may include particles or odor from the water supply line or the watertank.
• Keepchildrenawayfromthedispenser. Children may play with or damage the controls.
• Theicepassagemaybecomeblockedwith frost if only crushed ice is used. Remove the frost that accumulates by removing the ice bin and clearing the passage with a rubber spatula. Dispensing cubed ice periodically can also help prevent frost buildup.
• Ifdiscolorediceisdispensed,checkthewater tank and the water supply for a possible source. If the problem continues, contact the LG Electronics customer information centre. Do not use the ice or water until the problem iscorrected.
• Dispenseiceintoaglassbeforefillingitwith water or other beverages. Splashing may occur if ice is dispensed into a glass that alreadycontainsliquid.
• Donottouchtheiceoutletortheautomatic icemaker with your hand or a tool. Otherwise, appliance damage or injury may occur.
• When refitting the icebin, ensure that it is placed correctly. If it is tilted or unlevel, it may not continue to make ice due to sensor disruption.
• Neveruseaglassthatisexceptionallynarrow or deep. Ice may jam in the ice passage, affecting the performance of the appliance.
• Keep the glass at a proper distance from the ice outlet. A glass held too close to the outlet may prevent ice from dispensing.
• Disposeoftheiceinsidetheicebinifyougo on vacation or if an extended power outage occurs. Water from melting ice may drop from thedispenserontothefloor.

VegetableDrawer

You can control the amount of humidity in the moisture-sealed crispers. Store vegetables or fruits requiring more or less humidity in separate crispers. Adjust the control to any setting between Vegetables and Fruit.

• Fruit lets moist air out of the crisper for best storageoffruits.
• Vegetableskeepsmoistairinthecrisperfor best storage of fresh, leafy vegetables.

Tak1 Taka Tak2 Taka

CAUTION

- Theglassshelfoverthecrispermaynotbe firmly secured. Be careful when tilting.

Glide'N'Serve(\*)

TheGlide'N'Serveprovidesstoragespacewith available temperature. This drawer can be used for large party trays, deliitems, or beverages. (this drawer should not be used for vegetables astheywillfreeze.).

PresstheSelect button to choose between Produce (Cold), Deli (Colder) and Meat (Coldest).

Meat Deli Produce Select

NOTE

- (*)meansthatthisfeaturevariesdepending onthemodelpurchased.

DoorMullion

Thisdoormullionpreventscoldairfromleaking fromtheappliance.

CAUTION

- Thedooralarmwillsoundevery30secondsif the door remains open longer than one minute. Ensure that the folding mullion is folded in before closing the left-hand door.

Diagram showing two vertical panels with a central component and a prohibition symbol (no text or labels)

- Toreducetheriskofdoorscratchesand breaking the centre door mullion, make sure that the appliance door mullion is always foldedin.

Door-in-Door(\*)

ToaccesstheDoor-in-Doorcompartment, lightly press the button on the right fridge door handle.

Diagram of a hand holding a tool near a vertical bar, with an inset showing the same tool (no text or symbols present)

NOTE

- (*)meansthatthisfeaturevariesdepending onthemodelpurchased.

RemovingtheCasefromtheDoor inDoor

Holdthecasefrominsidethedoorindoorwith both hands and remove it by lifting it upward.

(1) (2) (1) (2) (1)

RefittingtheDoorinDoorCase

Mounttheminthereverseorderoftheremoval process.

InstaViewFunction(\*)

TheInstaViewfunctionontheDoor-in-Doorlets you see if you're running low on frequently used items like beverages and snacks, without openingtherefrigeratordoor.

Isometric illustration of a hand holding a small object on a screen (no text or symbols)

1 KnocktwiceontheglasstoturntheLED light inside the Door-in-Door on or off.

2 TheLEDlightturnsoffautomaticallyafter tenseconds.

- The InstaView Door-in-Door function is disabled when the right refrigerator door and the left freezer door are open, for two seconds after closing the door, and when the ice dispenser is in use.

- Knock near the center of the glass. Knocking near the edges of the glass may not activate the InstaView Door-in-Door function properly.

- Knock hard enough that the knocking sound is audible.

- The InstaView Door-in-Door function may activate if a loud noise occurs near the refrigerator.

NOTE

• (*) means that this feature varies depending on the model purchased.

Using the Folding Shelf ( \* )

Store taller items, such as a gallon container or bottles, by pushing the front half of the shelf underneath the back half the shelf. Pull the front of the shelf forward to return to a full shelf.

(1) (2)

CAUTION

• Glass shelves are heavy. Use special care when removing them.

- Do not clean glass shelves with warm water while they are cold. Shelves may break if exposed to sudden temperature changes or impact.

NOTE

• (*) means that this feature varies depending on the model purchased.

Other Functions

Door Open Alarm

The alarm sounds 3 times in 30 second intervals if the door (fridge compartment, freezer compartment) is left open or not completely closed for one minute.

- Contact the LG Electronics customer information centre if the alarm sound continues even after closing the door.

Failure Detection

The appliance can automatically detect problems during the operation.

- If a problem is detected, the appliance may not operate and an error code is displayed even when any button is pressed.

- When this occurs, do not turn off the power and immediately contact the LG Electronics customer information centre. If you turn off the power, the repair technician from the LG Electronics customer information centre may have difficulty finding the problem.

SMART FUNCTIONS

EN

LG ThinQ Application

This feature is only available on models with Wi-Fi. The LG ThinQ application allows you to communicate with the appliance using a smartphone.

LG ThinQ Application Features

Communicate with the appliance from a smart phone using the convenient smart features.

Smart Diagnosis

- If you experience a problem while using the appliance, this smart diagnosis feature will help you diagnose the problem.

Settings

- Allows you to set various options on the appliance and in the application.

NOTE

• If you change your wireless router, Internet service provider, or password, delete the registered appliance from the LG ThinQ application and register it again.
• The application is subject to change for appliance improvement purposes without notice to users.
  • Functions may vary by model.

Before Using LG ThinQ Application

1 Check the distance between the appliance and the wireless router (Wi-Fi network).

- If the distance between the appliance and the wireless router is too far, the signal strength becomes weak. It may take a long time to register or installation may fail.

2 Turn off the Mobile data or Cellular Data on your smartphone.

Diagram showing hand finger pressing a circle with directional arrows, next to a circular arrow pointing right.

3 Connect your smartphone to the wireless router.

Diagram showing a hand interacting with wireless signals to form a Wi-Fi symbol, indicating wireless signal transformation.

NOTE

• To verify the Wi-Fi connection, check that WiFi 📋 icon on the control panel is lit.
• The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency, contact your Internet service provider or refer to your wireless router manual.
• LG ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.
• If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.
• The Wi-Fi connection may not connect or may be interrupted because of the home network environment.
• The network connection may not work properly depending on the Internet service provider.
• The surrounding wireless environment can make the wireless network service run slowly.
• The appliance cannot be registered due to problems with the wireless signal transmission. Unplug the appliance and wait about a minute before trying again.
• If the firewall on your wireless router is enabled, disable the firewall or add an exception to it.
• The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
• Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer.
• If the security protocol of the router is set to WEP, you may fail to set up the network. Please change it to other security protocols (WPA2 is recommended) and register the product again.

EN

Installing the LG ThinQ Application

Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smart phone. Follow instructions to download and install the application.

Connecting to Wi-Fi

The Wi-Fi button, when used with the LG ThinQ application, allows the appliance to connect to a home Wi-Fi network. The 📋 icon shows the status of the appliance's network connection. The icon illuminates when the appliance is connected to the Wi-Fi network.

Initial Appliance Registration

Run the LG ThinQ application and follow the instructions in the application to register the appliance.

Re-registering the Appliance or Registering Another User

Press and hold the Wi-Fi button for 3 seconds to temporarily turn it off. Run the LG ThinQ application and follow the instructions in the application to register the appliance.

NOTE

- To disable the Wi-Fi function, press and hold the Wi-Fi button for 3 seconds. The 🔺 icon will be turned off.

Open Source Software Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

EN

Smart Diagnosis

This feature is only available on models with the 🎨 or 🔊 logo.

Use this feature to help you diagnose and solve problems with your appliance.

NOTE

- For reasons not attributable to LGE's negligence, the service may not operate due to external factors such as, but not limited to, Wi-Fi unavailability, Wi-Fi disconnection, local app store policy, or app unavailability.

- The feature may be subject to change without prior notice and may have a different form depending on where you are located.

Using LG ThinQ to Diagnose Issues

If you experience a problem with your Wi-Fi equipped appliance, it can transmit troubleshooting data to a smartphone using the LG ThinQ application.

- Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions provided in the LG ThinQ application.

Using Audible Diagnosis to Diagnose Issues

Follow the instructions below to use the audible diagnosis method.

- Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions for audible diagnosis provided in the LG ThinQ application.

1 Press the Lock button to activate the lock function.

- If the display has been locked for over 5 minutes, you must deactivate the lock and then reactivate it.

2 Open the fridge door and then hold the phone on the upper right speaker hole.

Diagram showing a smartphone mounted on a table with an inset magnified view of its screen (no text or symbols present)

3 Press and hold the Freezer button for three seconds or longer while continuing to hold your phone to the speaker.

4 After the data transfer is complete, the diagnosis will be displayed in the application.

NOTE

- For best results, do not move the phone while the tones are being transmitted.

MAINTENANCE

EN

Notes for Cleaning

• When removing a shelf or drawer from inside the appliance, remove all stored foods from the shelf or drawer to prevent injury or damage to the appliance.
• Otherwise, injury may occur due to the weight of stored foods.
• If cleaning the outside air vents of the appliance by means of vacuuming, then the power cord should be unplugged from the outlet to avoid any static discharge that can damage the electronics or cause an electric shock.
• Detach the shelves and drawers and clean them with water, and then dry them sufficiently, before replacing them.
• Regularly wipe the door gaskets with a wet soft towel.
• Door basket spills and stains should be cleaned as they can compromise storage ability of the basket and could even be damaged.
• After cleaning, check if the power cable is damaged, warm or improperly plugged.
• Keep the air vents on the exterior of the appliance clean.

- Blocked air vents can cause fire or appliance damage.

- When cleaning the inside or outside of the appliance, do not wipe it with a rough brush, toothpaste, or flammable materials. Do not use cleaning agents containing flammable substances.

• This may cause discoloration or damage to the appliance.

• Flammable substances: alcohol (ethanol, methanol, isopropyl alcohol, isobutyl alcohol, etc.), thinner, bleach, benzene, flammable liquid, abrasive, etc.

• For the appliance exterior, use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Dry thoroughly with a soft cloth.

• Never clean the shelves or containers in the dishwasher.

- The parts may become deformed due to the heat.

- If the appliance is equipped with an LED lamp, do not remove lamp cover and LED lamp in any attempt to repair or service it. Please, contact the LG Electronics customer information centre.

Cleaning the Condenser Cover

Use a vacuum cleaner with a brush to clean the condenser cover and vents. Do not remove the panel covering the condenser coil area.

Hand inserting a cable into a computer monitor (no text or symbols visible)

EN

Cleaning the Water Dispenser Cleaning the Dispenser Tray

The dispenser tray may become wet easily due to spilled ice or water. Wipe the entire area with a damp cloth.

Simple line drawing of a device with a funnel and a falling object (no text or symbols)

Cleaning the Water and Ice Outlet

Wipe the water or ice outlet frequently with a clean cloth as it may get dirty easily. Please note that lint from a cloth may adhere to the outlet.

Water Outlet Ice Outlet

Cleaning the Fridge Shelf Removing the Fridge Shelf

1 Tilt the front of the shelf up and then lift the shelf straight up.

2 Lower the front of the shelf so that the hooks into the holes.

Diagram of a mechanical assembly with rotating components and directional arrows (no text or symbols)

Refitting the Fridge Shelf

1 Tilt the front of the shelf up and guide the shelf hooks into the holes at the desired height.

2 Lower the front of the shelf so that the hooks into the holes.

(1) (2)

CAUTION

• Make sure that shelves are level from one side to the other. Failure to do so may result in the shelf falling or food spilling.
- Do not clean glass shelves with warm water while they are cold. Shelves may break if exposed to sudden temperature changes or impact.
• Glass shelves are heavy. Use special care when removing them.

CleaningtheVegetable Drawer

RemovingtheVegetableDrawer

1 Openthedoorscompletelyandremovethe contents of the Door-in-Door cases and baskets. Remove the Door-in-Door case fromtheappliance.

Illustration of two hand-drawn panels with arrows indicating movement or change, no text or symbols present

2 Removethecontentsofthedrawer. Hold the handle of the drawer and gently pull it out completely until it stops.

Diagram of a hand pressing down on stacked rectangular blocks with directional arrows indicating motion (no text or symbols)

3 Liftthevegetabledrawerupandremoveit bypullingitout.

Diagram of a hand interacting with stacked rectangular blocks, showing directional arrows (no text or symbols)

5 Tiltthecoverslightlyandsupportitwith both hands while pulling it out.

Two-step diagram showing a panel being held, with arrows indicating direction (no text or symbols)

RefittingtheVegetableDrawer

1 Openthefridgedoorscomletely.
2 Insertthebottomofthevegetabledrawer into its original position and ently push it back in while lowering it.

CleaningtheDoor-in-Door(\*)

RemovingtheDoor-in-Door

1 LiftthecasefromDoor-in-Doorupandtake it out with both hands.

Illustration of two hand-drawn panels with arrows indicating movement or change, no text or symbols present

2 Holdbothendsofonebinandliftupthe remaining door bins, repeat with second bin.

EN

RefittingtheDoor-in-Door

Mounttheminthereverseorderoftheremoval process.

ReplacingtheWaterFilter

Togiveyouenoughttimetogetanewfilter, the light will come on just before the capacity of the current filter runs out. Changing the filter on time ensures that you always get fresh and clean water from the appliance.

1 Unplugtheappliance.
2 Turnoffthewatersupplytotheappliance.
3 OpentheWaterfiltercover.

Hand holding a cup with arrows indicating motion or force direction (no text or symbols)

4 Removethedisposablewaterfilter.

Technical line drawing of a mechanical device with no visible text or symbols

5 Replace with an new water filter. Insert the new filter into the filter head and rotate it clockwise until the arrow on the new filter lines up with the arrow on the filter head. Swing the filter back into the compartment.

Line drawing of a device with a handle and internal components (no text or symbols)

6 ClosetheWaterfiltercoverd.

Illustration of a hand holding a cup with arrows indicating motion (no text or symbols)

7 Turnonthewatersupplyandswitchonthe appliance.
8 PressandholdtheWater Filter button for three seconds. That resets the Replacement Filter icon. The new water filter has been activated.

NOTE

Replacethedisposablewaterfilterwhen indicated on the Replacement Filter icon or at leastevery6months.

TROUBLESHOOTING

EN

Symptoms Reason & Solution
There is no refrigeration or freezing.	Is there a power interruption?Check the power of other appliances.
	If the power plug unplugged from the outlet?Plug the power plug in the outlet properly.
There is poor refrigeration or freezing.	Is the fridge or freezer temperature set to its warmest setting?Set the fridge or freezer temperature to 'Medium'.
	Is the appliance in direct sunlight, or is it near a heat generating object such as cooking oven or heater?Check the installation area and reinstall it away from heat generating objects.
	Did you store hot food without cooling it first?Cool the hot food first before putting it in the fridge or freezer compartment.
	Did you put in too much food?Maintain an appropriate space between food.
	Are the appliance doors completely closed?Completely close the door and make sure that stored food is not obstructing in the door.
	Is there enough space around the appliance?Adjust the installation position to make enough space around the appliance.
The appliance contains a bad smell.	Is the fridge or freezer temperature set to 'Warm'?Set the fridge or freezer temperature to 'Medium'.
	Did you put in food with a strong smell?Store foods with strong smells in a sealed containers.
	Vegetables or fruit may have spoiled in the drawer?Throw away rotten vegetables and clean the vegetable drawer. Do not store vegetables too long in the vegetable drawer.
The inside lamp in the appliance does not turn on.	Does the inside lamp in the appliance turn off?It is not possible for customers to replace the inside lamp in the appliance as they are not serviceable. If the inside lamp does not turn on, please contact the LG Electronics customer information centre.

EN

Symptoms Reason & Solution
The appliance door is not closed tightly.	Is the appliance leaning forward?Adjust the front feet to raise the front side slightly.
	Were the shelves properly assembled?Refit the shelves if needed.
	Did you close the door with excessive force?If you apply too much force or speed when closing the door, it may remain briefly open before closing. Make sure that you do not slam the door closed. Close without force.
It is difficult to open the appliance door.	Did you open the door right after you closed it?If you try to open the appliance door within one minute after you closed it, you may have difficulties because of the pressure inside the appliance. Try to open the appliance door again in a few minutes so that the internal pressure stabilizes.
Door mullion does not fold in and out properly.	Are front leveling legs extended, appliance level, and doors aligned?Once the door baskets are filled, the doors may become misaligned, preventing the door mullion or the Auto Open Door function from working properly. Extend both front leveling legs fully so they are in firm contact with the floor. Follow the instruction in the Door Alignment section to raise the left appliance door until the door mullion is once again working properly. Adjust the right appliance door so it aligns with the left appliance door.
There is condensation inside the appliance or on the bottom of the vegetable drawer cover.	Did you store hot food without cooling it first?Cool the hot food first before putting it inside the fridge or freezer.
	Did you leave the appliance door open?Although the condensation will disappear soon after you close the appliance door, you can wipe it with a dry cloth.
	Do you open and close the appliance door too frequently?Condensation can form due to the temperature difference from the outside. Wipe out the dampness with a dry cloth.
	Did you put warm or moist food inside without sealing it in a container?Store food in a covered or sealed container.

EN

Symptoms Reason & Solution
Frost has formed in the freezer compartment.	Doors may not be closed properly?Check if the food item inside the appliance is blocking the door and make sure that the door is tightly closed.
	Did you store hot food without cooling it first?Cool the hot food first before putting it in the fridge or freezer compartment.
	Is the air entry or exit of the freezer compartment blocked?Make sure that air entry or exit is not blocked so that the air can circulate inside.
	Is the freezer compartment overfilled?Maintain an appropriate space between items.
Frost or condensation has formed inside or outside the appliance.	Did you open and close the appliance door frequently or is the appliance door improperly closed?Frost or condensation can form if the outside air penetrates inside the appliance.
	Is the installation environment humid?Condensation can appear on the exterior of the appliance if the installation area is too humid or on a humid day such as a rainy day.Wipe off any moisture with a dry cloth.
The appliance is noisy and generates abnormal sounds.	Is the appliance installed on a weak floor or improperly leveled?Install the appliance on a solid and flat area.
	Does the rear of the appliance touch the wall?Adjust the installation position to allow enough clearance around the appliance.
	Are objects scattered behind the appliance?Remove the scattered objects from behind the appliance.
	Is there an object on top of the appliance?Remove the object on top of the appliance.
The side or front of the appliance is warm.	There are anti condensation pipes fitted to these areas of the appliance to reduce condensation forming from around the door area.The heat releasing pipe to prevent condensation is installed on the front and side of the appliance. You may feel it particularly hot right after the appliance is installed or during the summer. You can be assured that this is not a problem and is quite normal.
There is water inside or outside of the appliance.	Is there water leakage around the appliance?Check if the water has leaked from a sink or another place.
	Is there water on the bottom of the appliance?Check if the water is from the thawed frozen food or a broken or dropped container.

EN

Symptoms Reason & Solution
The automatic icemaker does not produce ice or produces a small amount of ice.	Did you install the appliance recently?• The ice maker produces ice normally when approximately 48 hours have passed after the appliance is installed.
	Did you connect the water supply pipe to the appliance and open the supply valve?• Connect the water supply pipe to the appliance and open the supply valve completely.
	Is the water supply hose bent?• If the water supply hose is bent, the water flow could be compromised.
	Have you dispensed a large amount of ice recently?• It takes approximately 24 hours to produce more ice in the automatic icemaker. Please wait.
	Did you set the ice maker switch or the automatic icemaker button on the control panel to ON?• Press I on the automatic icemaker switch or set ON for the automatic icemaker button on the control panel. (For more details on how to use, visit LG electronics website or use your smart device.)
	Is the temperature of the freezer compartment set too high?• If the set temperature is too warm, ice will be produced slowly or not at all. Set the Freezer temperature to -18 °C for normal operation of the automatic icemaker.
	Have you been opening the appliance door frequently?• If you open the appliance door frequently, cold air will escape, lowering the speed of ice production. Do not open and close the appliance door frequently.
	Is the appliance door completely closed?• If the appliance door is not completely closed, the temperature of the freezer compartment will increase, slowing down the ice production speed. Close the appliance door completely.
Ice is not dispensed.	Unable to hear the sound of ice coming out?• In the control panel, select the modes for cubed ice and crushed ice alternately to dispense the ice.
	Is the ice path blocked? (You can check the ice passage by separating the ice bin.)• Ice may not be dispensed properly if the ice passage is blocked. Check the ice and clean the ice path regularly.

EN

Symptoms Reason & Solution
Ice is not dispensed.	Unable to hear the sound of ice coming out?In the control panel, select the modes for cubed ice and crushed ice alternately to dispense the ice.
	Is the ice path blocked? (You can check the ice passage by separating the ice bin.)Ice may not be dispensed properly if the ice passage is blocked. Check the ice and clean the ice path regularly.
Water does not come out.	Are you using unfiltered water?Unfiltered water can contain a large amount of various heavy metals or foreign substances, so the filter may be clogged in the early stage regardless of the life of the filter.
	The water dispenser tank may be empty? (For non plumbed models only)Fill the water dispenser tank.
	Water does not come out when the water tube is filled with air. (For non plumbed models only)Remove the water dispenser tank by pulling it out while holding the handle. Fill the water dispenser tank with water and refit it on the fridge shelf.
	Is the water supply valve closed? (For plumbed models only)Open the water supply valve.
Water tastes strange.	Is the taste of water different when comparing it with the taste of water from the previous water purifier?Has the purified water or cold water not been used for an extended period of time?
	Has it been a long time since you installed and replaced the filter?If an expired filter is used, the purification performance may decline. It is recommended to replace the filter according to the filter replacement period.
	Have you flushed out the filter properly in the initial stage after installing it?When you install or replace the filter for the first time, you need to remove air and activated carbon residue from inside the filter. Use the appliance after dispensing and discharging approximately 5 litres of purified water from the dispenser by pressing the water dispensing lever. (Activated carbon is harmless to humans.)
	Has the purified water or cold water not been used for an extended period of time?The taste of old water may change due to bacterial growth. Use the product after dispensing and discharging approximately 5 litres (approximately three minutes) from the water dispenser.

EN

Symptoms Reason & Solution
Clicking noises	The defrost control will click when the automatic defrost cycle begins and ends. The thermostat control (or appliance control on some models) will also click when cycling on and off.· Normal Operation
Rattling noises	Rattling noises may come from the flow of appliance, the water line on the back of the unit (for plumbed models only), or items stored on top of or around the appliance.· Normal Operation
	Appliance is not resting evenly on the floor.· Floor is weak or uneven or leveling legs need to be adjusted. See the Door Alignment section.
	Appliance with linear compressor was moved while operating.· Normal operation. If the compressor does not stop rattling after three minutes, turn the power to the appliance off and then on again.
Whooshing noises	Evaporator fan motor is circulating air through the fridge and freezer compartments.· Normal Operation
	Air is being forced over the condenser by the condenser fan.· Normal Operation
Gurgling noises	Appliance flowing through the cooling system· Normal Operation
Popping noises	Contraction and expansion of the inside walls due to changes in temperature.· Normal Operation
Vibrating	If the side or back of the appliance is touching a cabinet or wall, some of the normal vibrations may make an audible sound.· To eliminate the noise, make sure that the sides and back do not make any contact with any wall or cabinet.

EN

Symptoms Reason & Solution
Your home appliance and smartphone is not connected to the Wi-Fi network.	The password for the Wi-Fi that you are trying to connect to is incorrect.Find the Wi-Fi network connected to your smartphone and remove it, then register your appliance on LG ThinQ.
	Mobile data for your smartphone is turned on.Turn off the Mobile data of your smartphone and register the appliance using the Wi-Fi network.
	The wireless network name (SSID) is set incorrectly.The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
	The router frequency is not 2.4 GHz.Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and connect the appliance to the wireless router. To check the router frequency, check with your Internet service provider or the router manufacturer.
	The distance between the appliance and the router is too far.If the distance between the appliance and the router is too far, the signal may be weak and the connection may not be configured correctly. Move the location of the router so that it is closer to the appliance.

Memo

Memo

Memo

Memo

Memo

Memo

Memo

LG Life's Good
