Product Type	Microwave oven with grill and combination cooking
Model	MG30T5018CN
Brand	Samsung
Outside Dimensions (W x H x D)	517 x 297.3 x 425.3 mm
Oven Cavity Dimensions (W x H x D)	357 x 255 x 357 mm
Capacity	30 liters
Net Weight	15.9 kg approx.
Power Source	230 V ~ 50 Hz AC
Maximum Power Consumption	2900 W
Microwave Power Consumption	1400 W
Grill Power Consumption	1500 W
Microwave Output Power	100 W - 900 W (6 levels)
Operating Frequency	2450 MHz
Control Panel	LED display, buttons for Microwave, Grill, Auto Cook, Power Defrost, Grill Fry, Start/+30s, Stop/Eco
Main Functions	Microwave only, Grill only, Microwave+Grill (3 levels), Power Defrost, Grill Fry (15 presets), Auto Cook (33 presets), Child Lock, Energy Save
Turntable	Yes, glass turntable with roller ring
Included Accessories	Roller ring, turntable, grill rack, crusty plate
Cleaning	Wipe interior and door seals with damp cloth. Use mild detergent. Do not use abrasive cleaners or steam cleaners.
Safety Features	Safety interlock door latches, Child Lock, auto shut-off when empty, overheat protection, energy save mode
Repair Policy	No user-serviceable parts. Contact Samsung service center for repairs or replacement of light bulb or other components.

Frequently Asked Questions - MG30T5018CN SAMSUNG

How do I set the clock on my Samsung MG30T5018CN microwave?

Press OK to enter clock setting. Use < or > to choose 24-hour or 12-hour format, then press OK. Set hours and minutes using < or >, pressing OK after each.

What is the maximum cooking time for microwave mode?

The maximum cooking time for microwave mode is 99 minutes and 99 seconds. For grill and combination modes, the limit is 60 minutes.

How do I use the Power Defrost function?

Press Power Defrost. Select food type (meat, poultry, fish, bread/cake) using < or >, then press OK. Enter weight and press START/+30s. When the oven beeps, turn food over and press START/+30s to continue.

Can I use metal containers in this microwave?

No, metal containers are not allowed in microwave mode as they can cause arcing. Only microwave-safe utensils (glass, ceramic, plastic) should be used. However, the grill rack and crusty plate provided are safe for grill and combination modes.

How do I clean the crusty plate?

Clean the crusty plate with warm water and mild detergent. Rinse with clean water. Do not use abrasive sponges or scrubbers as the non-stick coating can be damaged. It is not dishwasher safe.

How do I activate and deactivate Child Lock?

To activate Child Lock, press and hold START/+30s for 3 seconds. The display shows L. To deactivate, press and hold START/+30s again for 3 seconds.

What should I do if the microwave doesn't start?

Check if the door is fully closed. Ensure the power cord is plugged in and the socket is working. If Child Lock is active, deactivate it. Also make sure the time is set if it's the first use.

How do I use the Grill Fry function?

Press Grill Fry. Use < or > to select the desired food (e.g., frozen French fries, chicken nuggets) from 15 presets, then press OK. Press START/+30s to start. Some programs require turning food when beeping.

Why is steam coming out of the door during cooking?

This is normal. Steam may escape through door gaps when cooking high-moisture foods. It is not a malfunction. Wipe the door and interior after each use to keep seals clean.

How do I change the beeper sound or turn it off?

Press the < and > buttons at the same time to toggle the beeper off or on. The beeper will sound when turned on, and remain silent when turned off.

USER MANUAL MG30T5018CN SAMSUNG

ARAHAN KESELAMATAN PENTING

BACA DENGAN TELITI DAN SIMPAN UNTUK RUJUKAN PADA MASA HADAPAN.

Technical line drawing of a circular mechanical component with a central hub and mounting base (no text or symbols)

Line drawing of a roasted chicken inside a rectangular frame (no text or symbols)

1. Tekan OK

Simple line drawing of a circular object with internal structure and a handle, no text or symbols present.

Line drawing of a microwave oven with open doors and a circular vent (no text or symbols)

Simple line drawing of a circular mechanical component with a central hub and a base, no text or symbols present.

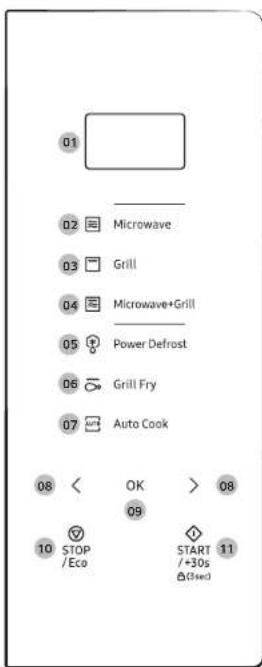

01 显示屏
02 Microwave (微波)
03 Grill (烤)
04 Microwave+Grill (微波+烤)
05 Power Defrost (解冻)
06 Grill Fry (烤炸)
07 Auto Cock (自动烹调)
08 减少/增加（重量/份量/时间）
09 OK (确定) (时钟)
10 STOP/Eco (停止/环保)
11 START/+30s（开始/+30秒）（儿童安全锁）

01 显示屏

02 Microwave (微波)

03 Grill (烤)

04 Microwave+Grill (微波+烤)

微波炉使用

微波炉的工作原理

Simple line drawing of a roasted chicken inside a rectangular frame (no text or symbols)

STOP/Eco

START/+30s(3 sec)

1. 按 START/+30s（开始/+30秒）开始自动烹调。

Line drawing of a circular mechanical component with internal structure and mounting base (no text or symbols)

Line drawing of a microwave oven with doors and a central circular vent (no text or symbols)

Safety instructions 3

Important safety instructions 3

General safety 6

Microwave operation precautions 8

Limited warranty 8

Installation 9

Accessories 9

Installation site 9

Turntable 9

Maintenance 10

Cleaning 10

Replacement (repair) 10

Care against an extended period of disuse 10

Microwave oven features 11

Microwave oven 11

Control panel 11

Microwave oven use 12

How a microwave oven works 12

Checking that your microwave oven is operating correctly 12

Cooking/Reheating 13

Setting the time 14

Power levels and time variations 14

Adjusting the cooking time 15

Stopping the cooking 15

Setting the energy save mode 16

Using Power Defrost 16

Using Grill Fry 18

Using Auto Cook 20

Grilling 27

Combining microwaves and grill 27

Using the crusty plate 28

Using Child Lock 30

Switching the beeper off 30

Cookware guide 31

Cooking guide 32

Troubleshooting and information code 40

Troubleshooting 40

Information code 44

Technical specifications 44

2 English

Safety instructions

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

This appliance is intended to be used in household only and it is not intended to be used such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential environments;
  • bed and breakfast type environments.

Only use utensils that are suitable for use in microwave ovens.

When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

If smoke is observed (emitted), switch off or unplug the appliance and keep the door closed in order to stifle any flames.

Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

Safety instructions

The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

The oven should be cleaned regularly and any food deposits removed.

Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

The microwave oven is intended to be used on the counter top (freestanding) use only, the microwave oven shall not be placed in a cabinet.

Metallic containers for food and beverages are not allowed during microwave cooking.

The care should be taken not to displace the turntable when removing containers from the appliance.

The appliance shall not be cleaned with a steam cleaner.

The appliance should not be cleaned with a water jet.

The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This oven should be positioned proper direction and height permitting easy access to cavity and control area.

Before using the oven first time, oven should be operated with the water during 10 minute and then used.

If the oven generates a strange noise, a burning smell, or smoke is emitted, unplug the power plug immediately and contact your nearest service center.

The microwave oven has to be positioned so that plug is accessible.

WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

WARNING: Accessible parts may become hot during use. Young children should be kept away.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

A steam cleaner is not to be used.

WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

The appliance must not be installed behind a decorative door in order to avoid overheating.

WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements.

Children less than 8 years of age shall be kept away unless continuously supervised.

CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

The door or the outer surface may get hot when the appliance is operating.

The temperature of accessible surfaces may be high when the appliance is operating.

The surfaces are liable to get hot during use.

The appliances are not intended to be operated by means of an external timer or separate remote-control system.

Safety instructions

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.

General safety

Any modifications or repairs must be performed by qualified personnel only. Do not heat food or liquids sealed in containers for the microwave function. Do not use benzene, thinner, alcohol, or steam or high-pressure cleaners to clean the oven. Do not install the oven: near a heater or flammable material; locations that are humid, oily, dusty or exposed to direct sunlight or water; or where gas may leak; or an uneven surface. This oven must be properly grounded in accordance with local and national codes. Regularly use a dry cloth to remove foreign substances from the power plug terminals and contacts. Do not pull, excessively bend, or place heavy objects on the power cord. If there is a gas leak (propane, LP, etc) ventilate immediately. Do not touch the power cord. Do not touch the power cord with wet hands. While the oven is operating, do not turn it off by unplugging the power cord. Do not insert fingers or foreign substances. If foreign substances enter the oven, unplug the power cord and contact a local Samsung service centre. Do not apply excessive pressure or impact to the oven. Do not place the oven over fragile objects. Ensure the power voltage, frequency, and current matches the product specifications. Firmly plug the power plug into the wall socket. Do not use multiple plug adapters extension cords, or electric transformers. Do not hook the power cord on metal objects. Make sure the cord is between objects or behind the oven. Do not use a damaged power plug, power cord, or loose wall socket. For damaged power plugs or cords, contact a local Samsung service centre. Do not pour or directly spray water onto the oven. Do not place objects on the oven, inside, or on the oven door. Do not spray volatile materials such as insecticide on the oven. Do not store flammable materials in the oven. Because alcohol vapours can contact hot parts of the oven, use caution when heating food or drinks containing alcohol. Children may bump themselves or catch their fingers on the door. When opening/closing the door, keep children away.

Microwave warning

Microwave heating of beverages may result in delayed eruptive boiling: always use caution when handling the container. Always allow beverages to stand at least 20 seconds before handling. If necessary, stir during heating. Always stir after heating.

In the event of scalding, follow these First Aid instructions:

1. Immerse the scalded area in cold water for at least 10 minutes.

2. Cover with a clean, dry dressing.

3. Do not apply any creams, oils, or lotions.

To avoid damaging the tray or rack, do not put the tray or rack in water shortly after cooking.

Do not use the oven for deep fat frying because the oil temperature cannot be controlled. This could result in a sudden boil over of hot oils.

Microwave oven precautions

Only use microwave-safe utensils. Do not use metallic containers, gold or silver trimmed dinnerware, skewers, etc.

Remove wire twist ties. Electric arcing may occur.

Do not use the oven to dry papers or clothes.

Use shorter times for small amounts of food to prevent overheating or burning. Keep the power cord and power plug away from water and heat sources.

To avoid the risk of explosion, do not heat eggs with shells or hard-boiled eggs. Do not heat airtight or vacuum-sealed containers, nuts, tomatoes, etc.

Do not cover the ventilation slots with cloth or paper. This is a fire hazard. The oven may overheat and turn off automatically and will remain off until it cools sufficiently.

Always use oven mitts when removing a dish.

Stir liquids halfway during heating or after heating ends and allow the liquid stand at least 20 seconds after heating to prevent eruptive boiling.

Stand at arms length from the oven when opening the door to avoid getting scalded by escaping hot air or steam.

Do not operate the oven when it is empty. The oven will automatically shut down for 30 minutes for safety purposes. We recommend placing a glass of water inside the oven at all times to absorb microwave energy in case the oven is started accidentally.

Install the oven in compliance with the clearances in this manual. (See Installing your microwave oven.)

Use caution when connecting other electrical appliances to sockets near the oven.

Safety instructions

Microwave operation precautions

Failure to observe the following safety precautions may result in harmful exposure to microwave energy.

• Do not operate the oven with the door open. Do not tamper with the safety interlocks (door latches). Do not insert anything into the safety interlock holes.
• Do not place any object between the oven door and front face or allow food or cleaner residue to accumulate on sealing surfaces. Keep the door and door sealing surfaces clean by wiping with a damp cloth and then with a soft, dry cloth after each use.
• Do not operate the oven if it is damaged. Only operate after it has been repaired by a qualified technician.
  Important: the oven door must close properly. The door must not be bent; the door hinges must not be broken or loose; the door seals and sealing surfaces must not be damaged.
• All adjustments or repairs must be done by a qualified technician.

Limited warranty

Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit or accessory was caused by the customer. Items this stipulation covers include:

- Door, handles, out-panel, or control panel that are dented, scratched, or broken.

- A broken or missing tray, guide roller, coupler, or wire rack. Use this oven only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your oven.

Because these following operating instructions cover various models, the characteristics of your microwave oven may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact a local Samsung service centre or find help and information online at www.samsung.com.

Use this oven for heating food only. It is intended for domestic use only. Do not heat any type of textiles or cushions filled with grains. The manufacturer cannot be held liable for damage caused by improper or incorrect use of the oven.

To avoid deterioration of the oven surface and hazardous situations, always keep the oven clean and well maintained.

Installation

Accessories

Depending on the model that you have purchased, you are supplied with several accessories that can be used in a variety of ways.

01 Roller ring, to be placed in the centre of the microwave oven. The roller ring supports the turntable.

02 Turntable, to be placed on the roller ring with the centre fitting to the coupler. The turntable serves as the main cooking surface; it can be easily removed for cleaning.

03 Grill rack, to be placed on the turntable. The metal rack can be used in grill and combination cooking.

04 Crusty plate, see pages 28 to 30. The crusty plate is used to brown food better in the microwave or grill combination cooking modes. It helps keep pastry and pizza dough criso

CAUTION

Do not operate the microwave oven without the roller ring and turntable.

Installation site

A. 20 cm above
B. 10 cm behind
C. 10 cm on the side
D. 85 cm above the floor

• Select a flat, level surface approximately 85 cm above the floor. The surface must support the weight of the microwave oven.
• For ventilation, secure 20 cm above and 10 cm at the left/right/rear side of the microwave oven.
• Do not install the microwave oven in hot or damp surroundings, such as next to other microwave ovens or radiators.
• Conform to the power supply specifications of this microwave oven. Use only approved extension cables if you need to use.
• Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time.

Turntable

Simple line drawing of a circular mechanical component with a central hub and an arrow indicating direction (no text or symbols)

Remove all packing materials inside the microwave oven. Install the roller ring and turntable. Check that the turntable rotates freely.

Maintenance

Cleaning

Clean the microwave oven regularly to prevent impurities from building up on or inside the microwave oven. Also pay special attention to the door, door sealing, and turntable and roller ring (applicable models only).

If the door won't open or close smoothly, first check if the door seals have built up impurities. Use a soft cloth in soapy water to clean both the inner and outer sides of the microwave oven. Rinse and dry well.

To remove stubborn impurities with bad smells from inside the microwave oven

1. With an empty microwave oven, put a cup of diluted lemon juice on the centre of the turntable.

2. Heat the microwave oven for 10 minutes at max power.

3. When the cycle is complete, wait until the microwave oven cools down. Then, open the door and clean the cooking chamber.

CAUTION

• Keep the door and door sealing clean and ensure the door opens and closes smoothly. Otherwise, the microwave oven's lifecycle may be shortened.
  • Take caution not to spill water into the microwave oven vents.
• Do not use any abrasive or chemical substances for cleaning.
  • After each use of the microwave oven, use a mild detergent to clean the cooking chamber after waiting for the microwave oven to cool down.

Replacement (repair)

WARNING

This microwave oven has no user removable parts inside. Do not try to replace or repair the microwave oven yourself.

• If you encounter a problem with hinges, sealing, and/or the door, contact a qualified technician or a local Samsung service centre for technical assistance.
• If you want to replace the light bulb, contact a local Samsung service centre. Do not replace it yourself.
• If you encounter a problem with the outer housing of the microwave oven, first unplug the power cord from the power source, and then contact a local Samsung service centre.

Care against an extended period of disuse

If you don't use the microwave oven for an extended period of time, unplug the power cord and move the microwave oven to a dry, dust-free location. Dust and moisture that builds up inside the microwave oven may affect the performance of the microwave oven.

10 English

Microwave oven features

Microwave oven

01 Door handle
02 Door
03 Ventilation holes
04 Heating element
05 Light
06 Door latches
07 Turntable
08 Coupler
09 Roller ring
10 Safety interlock holes

Control panel

01 Display
02 Microwave
03 Grill
04 Microwave+Grill
05 Power Defrost
06 Grill Fry
07 Auto Cook
08 Decrease/Increase (Weight/Serving/Time)
09 OK (Clock)
10 STOP/Eco
11 START/+30s (Child Lock)

English 11

Microwave oven use

How a microwave oven works

Microwaves are high-frequency electromagnetic waves; the energy released enables food to be cooked or reheated without changing either the form or the colour.

You can use your microwave oven to:

• Defrost
• Reheat
  • Cook

Cooking principle

Line drawing of a roasted chicken inside a rectangular frame (no text or symbols)

1. The microwaves generated by the magnetron reflected at cavity and are distributed uniformly as the food rotates on the turntable. The food is thus cooked evenly.
2. The microwaves are absorbed by the food up to a depth of about 1 inch (2.5 cm). Cooking then continues as the heat is dissipated within the food.
3. Cooking times vary according to the container used and the properties of the food:

• Quantity and density
- Water content
- Initial temperature (refrigerated or not)

NOTE

As the centre of the food is cooked by heat dissipation, cooking continues even when you have taken the food out of the microwave oven. Standing times specified in recipes and in this booklet must therefore be respected to ensure:

• Even cooking of the food right to the centre.
• The same temperature throughout the food.

12 English

Checking that your microwave oven is operating correctly

The following simple procedure enables you to check that your microwave oven is working correctly at all times.

If you have any problems, see the "Troubleshooting" section on pages 40 to 44.

NOTE

The microwave oven must be plugged into an appropriate wall socket. The turntable must be placed in the microwave oven. If a power level other than the maximum (100% - 900 W) is used, the water takes longer to boil.

1. Pull the handle to open the microwave oven door.
2. Place a glass of water on the turntable, and then close the door.
3. Press Microwave.
4. Press START/+30s repeatedly to set the time to 4 or 5 minutes.
5. The microwave oven heats the water for the set time. Check and make sure the water is boiling.

Cooking/Reheating

The following procedure explains how to cook or reheat food.

CAUTION

Always check your cooking settings before leaving the microwave oven unattended.

1. Pull the handle to open the microwave oven door.
2. Place the food on the centre of the turntable, and then close the door.

CAUTION

Do not operate the microwave oven when it is empty.
3. Press Microwave

- The control panel display shows the corresponding icon (1) and the maximum power level (900 W).

1. Press < or > (Decrease/Increase) to select the desired power level, and then press OK.
2. Refer to the "Power levels and time variations" section on page 14 for the appropriate power level.

1. Press < or > (Decrease/Increase) to set the desired cooking time.

- The control panel display shows the cooking time.

1. Press START/+30s to start cooking

2. The light turns on and the turntable starts to rotate.

3. When the cooking is complete, the microwave oven beeps 4 times and the control panel display shows the current time. Then, the end reminder signal beeps once every minute for 3 times.

Microwave oven use

Setting the time

When power is supplied, "88:88" and then "12:00" is automatically displayed on the display. Please set the current time. The time can be displayed in either the 24-hour or 12-hour clock. You must set the clock:

- When you first install your microwave oven

• After a power failure

NOTE

You must manually change the time to apply daylight saving time.

1. Press OK.

2. Press < or > (Decrease/Increase) to select 24 hour or 12 hour clock, and then press OK

3. Press < or > (Decrease/Increase) to set the hour, and then press OK.
4. Press < or > (Decrease/Increase) to set the minute, and then press OK.

NOTE

The control panel display shows the time when the microwave is not in use.

Power levels and time variations

The power level function enables you to adapt the amount of energy dissipated and thus the time required to cook or reheat your food, according to its type and quantity. You can choose between six power levels.

Power level Percentage Output
HIGH 100 % 900 W
MEDIUM HIGH 67 % 600 W
MEDIUM 50 % 450 W
MEDIUM LOW 33 % 300 W
DEFROST 20 % 180 W
LOW 11 % 100 W

The cooking times given in recipes and in this booklet correspond to the specific power level indicated.

• The cooking time decreases if you select a higher power level.
- The cooking time increases if you select a lower power level.

14 English

Adjusting the cooking time

You can increase or decrease the cooking time while the microwave oven is cooking.

- Check how cooking is progressing at any time simply by opening the door, and then increase or decrease the cooking time if necessary.

Method 1

Press START/+30s to increase the cooking time by 30 seconds.

• Example: To add three minutes, press START/+30s six times.

NOTE

You can only increase the cooking time.

Method 2

Press < or > (Decrease/Increase) to adjust the cooking time.

Stopping the cooking

You can stop cooking at any time so that you can:

• Check the food
• Turn the food over or stir it
• Leave it to stand

To stop the cooking temporarily

1. Open the door or press STOP/Eco once.
   • Cooking stops temporarily.
2. To resume cooking, close the door and press START/+30s.

To stop the cooking completely

1. Open the door or press STOP/Eco once.
   • Cooking stops temporarily.
2. Press STOP/Eco button again.

Microwave oven use

Setting the energy save mode

The microwave oven has an energy save mode.

• Press STOP/Eco. The control panel display turns off.
• To cancel the energy save mode, open the door or press STOP/Eco. The control panel display shows the current time.

NOTE

Auto energy saving function

The product returns to standby status if there is no input for 25 minutes in the middle of setting or while the operation has been paused. Also, if you leave the door open, the interior lamp automatically turns off after 5 minutes.

Using Power Defrost

Power Defrost enable you to defrost meat, poultry, fish, bread and cake. The defrost time and power level are set automatically. You simply select the programme and the weight.

CAUTION

Use only containers that are microwave safe.

1. Pull the handle to open the microwave oven door.
2. Place the food on the centre of the turntable, and then close the door

3. Press Power Defrost.

4. Press < or > (Decrease/Increase) to select the type of food, and then press OK.

- For more information, see the "Power defrost programme description" section on page 17.

1. Press < or > (Decrease/Increase) to set the serving size, and then press OK.

2. Press START/+30s to start defrosting.

3. When the microwave oven beeps, open the door and turn the food over.

4. Close the door, and then press START/+30s to resume defrosting

- When the defrosting is complete, the microwave oven beeps 4 times and the control panel display shows the current time. Then, the end reminder signal beeps once every minute for 3 times.

Power defrost programme description

The following table presents the various Power Defrost programmes, quantities, standing times and appropriate recommendations.

Remove all kind of package material before defrosting. Place meat, poultry and fish on a flat glass dish or ceramic plate.

Code	Food Serving Size	Instructions
1	Meat 200-1500 g	Shield the edges	with aluminium foil. Turn the meat over, when the microwave oven beeps.This programme is suitable for beef, lamb, pork, steaks, chops, minced meat. Stand for 20-60 minutes.
2	Poultry 200-1500 g	Shield the leg	and wing tips with aluminium foil. Turn the poultry over, when the microwave oven beeps.This programme is suitable for whole chicken as well as for chicken portions. Stand for 20-60 minutes.
3	Fish 200-1500 g	Shield the tail of a whole fish with aluminium foil. Turn the fish over, when the microwave oven beeps.This programme is suitable for whole fishes as well as for fish fillets. Stand for 20-50 minutes.

Code Food Serving Size Instructions
4 Bread/Cake 125-1000 g Put bread		on a piece of kitchen paperand turn over, as soon as the microwave oven beeps. Place cake on a ceramic plate and if possible, turn over, as soon as the microwave oven beeps.This programme is suitable for all kinds of bread, sliced or whole, as well as for bread rolls and baguettes. Arrange bread rolls in a circle.This programme is suitable for all kinds of yeast cake, biscuit, cheese cake and puff pastry. It is not suitable for short/crust pastry, fruit and cream cakes as well as for cake with chocolate topping. Stand for 5-20 minutes.

Microwave oven use

Using Grill Fry

Grill Fry has 15 pre-programmed cook settings. You do not need to set either the cooking times or the power level.

CAUTION

Use only containers that are microwave-safe.

1. Pull the handle to open the microwave oven door.

2. Place the food on the centre of the turntable, and then close the door.

3. Press Grill Fry

4. Press < or > (Decrease/Increase) to select the type of food, and then press OK.

- For more information, see the "Grill Fry programme description" section on pages 18 to 20.

1. Press START/+30s to start Grill Fry.

- The microwave oven cooks the food according to the selected pre-programmed setting.

- When the cooking is complete, the microwave oven beeps 4 times and the control panel display shows the current time. Then, the end reminder signal beeps once every minute for 3 times.

Grill Fry programme description

Code	Food Serving Size	Instructions
1	Frozen French Fries	400 Place	frozen French fries on the crusty plate with the rack. Put them in the microwave oven. Select the Grill Fry program [1] and press START/+30s button. After cooking, stand for 2-3 minutes.
2	Frozen Pork Cutlet	500 Place	frozen pork cutlet on the crusty plate with the rack. Put them in the microwave oven. Select the Grill Fry program [2] and press START/+30s button. When the beeps, turn the food and then press the START/+30s to continue. After cooking, stand for 2-3 minutes.
3	Frozen Chicken Nuggets	350 Place	frozen chicken nuggets on the crusty plate with the rack. Put them in the microwave oven. Select the Grill Fry program [3] and press START/+30s button. After cooking, stand for 2-3 minutes.
4	Frozen Potato Croquettes	350 Place	frozen potato croquettes on the crusty plate with the rack. Put them in the microwave oven. Select the Grill Fry program [4] and press START/+30s button. After cooking, stand for 2-3 minutes.
5	Frozen CornDogs	450-500 Place frozen corn dogs on the crustyplate with the rack. Put them inthe microwave oven. Select theGrill Fry program [5] and pressSTART/+30s button. After cooking, standfor 2-3 minutes.
6	Frozen FishCutlets	300 Place frozen fish cutlets on thecrusty plate with the rack. Put themin the microwave oven. Select theGrill Fry program [6] and pressSTART/+30s button. After cooking, standfor 2-3 minutes.
7	Frozen BuffaloWings	500 Place frozen buffalo wings on thecrusty plate with the rack. Put themin the microwave oven. Select theGrill Fry program [7] and pressSTART/+30s button. After cooking, standfor 2-3 minutes.
8	Frozen CheeseCutlets	400 Place frozen cheese cutlets on thecrusty plate with the rack. Put themin the microwave oven. Select theGrill Fry program [8] and pressSTART/+30s button. After cooking, standfor 2-3 minutes.

Code	Food Serving Size	Instructions
9	Frozen Cheese Sticks	300 Place	frozen cheese sticks on the crusty plate with the rack. Put them in the microwave oven. Select the Grill Fry program [9] and press START/+30s button. After cooking, stand for 2-3 minutes.
10	Frozen Spring Rolls	300 Slightly oil the frozen spring rolls on the surface. Place frozen spring rolls on the crusty plate with the rack. Put them in the microwave oven. Select the Grill Fry program [10] and press START/+30s button. When the beeps, turn the food and then press the START/+30s to continue. After cooking, stand for 2-3 minutes.
11	Frozen Breaded Shrimps	300 Slightly oil the frozen breaded shrimps on the surface. Place frozen breaded shrimps on the crusty plate with the rack. Put them in the microwave oven. Select the Grill Fry program [11] and press START/+30s button. When the beeps, turn the food and then press the START/+30s to continue. After cooking, stand for 2-3 minutes.
12	Frozen Onion Rings	300 Place	frozen onion rings on the crusty plate with the rack. Put them in the microwave oven. Select the Grill Fry program [12] and press START/+30s button. After cooking, stand for 2-3 minutes.

Microwave oven use

Code	Food Serving Size	Instructions
13	Frozen Wedge Potatoes	350 Place	frozen wedge potatoes on the crusty plate with the rack. Put them in the microwave oven. Select the Grill Fry program [13] and press START/+30s button. After cooking, stand for 2-3 minutes.
14	Chicken Drum Sticks	500 Slightly oil the chicken drums sticks on the surface. Add seasoning them according to your preference. Place chicken drums sticks on the crusty plate with the rack. Put them in the microwave oven. Select the Grill Fry program [14] and press START/+30s button. After cooking, stand for 2-3 minutes.
15	Chicken Wings 500	Slightly oil the chicken wings on the surface. Add seasoning them according to your preference. Place chicken wings on the crusty plate with the rack. Put them in the microwave oven. Select the Grill Fry program [15] and press START/+30s button. After cooking, stand for 2-3 minutes.

Using Auto Cook

Auto Cook has 33 pre-programmed cook settings. You do not need to set either the cooking times or the power level.

CAUTION

Use only containers that are microwave-safe.

1. Pull the handle to open the microwave oven door.
2. Place the food on the centre of the turntable, and then close the door.
3. Press Auto Cook.
4. Press < or > (Decrease/Increase) to select the desired category, and then press OK.

• 1. Healthy Cooking
• 2. Home Dessert
• 3. Bread Defrost

1. Press < or > (Decrease/Increase) to select the type of food, and then press OK.

- For more information, see the "Auto Cook programme description" section on pages 21 to 26.

1. Press < or > (Decrease/Increase) to select the weight of food, and then press OK.

- For more information, see the "Auto Cook programme description" section on pages 21 to 26.

• Depending on the selected menu, you may have only one weight option available to select.

- You do not have to select a weight for Home Dessert.

1. Press START/+30s to start Auto Cook.

- The microwave oven cooks the food according to the selected pre-programmed setting.

- When the cooking is complete, the microwave oven beeps 4 times and the control panel display shows the current time. Then, the end reminder signal beeps once every minute for 3 times.

The following table presents quantities and appropriate instructions about 33 pre-programmed cooking options. The pre-programmes are categorized into Healthy Cooking and Home Dessert.

CAUTION

Use oven gloves when taking out food.

Auto Cook programme description

1. Healthy Cooking

Code	Food Serving Size Instructions
1-1	Ready Meal(chilled)	350 g450 gPut meal on a ceramic plate and cover with microwave cling film.This programme is suitable for meals consisting of 3 components (e.g. meat with sauce, vegetables and a side dish like potatoes, rice or pasta).Stand for 2-3 minutes.
1-2	Vegetarian Meal(chilled)	350 g450 gPut meal on a ceramic plate and cover with microwave cling film.This programme is suitable for meals consisting of 2 components (e.g. spaghetti with sauce or rice with vegetables). Stand for 2-3 minutes.

Microwave oven use

Code	Food Serving Size	Instructions
1-3	Broccoli Florets 250 g	500 g	Rinse and clean broccoli florets. Put them evenly into a glass bowl with lid. Add 30-45 ml water. (2-3 tbsp.) Put bowl in the centre of turntable. Cook covered. Stir after cooking. This programme is suitable for broccoli as well as sliced courgette, egg plant, pumpkin or pepper. Stand for 1-2 minutes.
1-4	Sliced Carrots 250 g	Rinse and clean	carrots cut into round slices evenly. Put them into a glass bowl with lid. Add 30-45 ml water. (2-3 tbsp.) Put bowl in the centre of turntable. Cook covered. Stir after cooking. This programme is suitable for sliced carrots as well as cauliflower florets or turnip cabbage. Stand for 1-2 minutes.
1-5	Green Beans 250 g	Rinse and clean	green beans. Put them evenly into a glass bowl with lid. Add 30 ml (1 tbsp.) water when cooking 250 g. Put bowl in the centre of turntable. Cook covered. Stir after cooking. Stand for 1-2 minutes.

Code	Food Serving Size Instructions
1-6	Spinach 150 g Rinse	and clean spinach	Put into a glass bowl with lid. Do not add water. Put bowl in the centre of turntable. Cook covered. Stir after cooking. Stand for 1-2 minutes.
1-7	Corn on the Cob 500 g	(2 pcs.)	Rinse and clean corn on the cobs and put into an oval glass dish. Cover with microwave cling film and pierce film. Stand for 1-2 minutes.
1-8	Peciled Potatoes 250 g	500 g	Wash and peel the potatoes and cut into a similar size. Put them into a glass bowl with lid. Add 45-60 ml (3-4 tbsp.) water. Put bowl in the centre of turntable. Cook covered. Stand for 2-3 minutes.
1-9	Brown Rice (parboiled)	250 g Use	a large glass ovenware dish with lid. Add double quantity of cold water (500 ml). Cook covered. Stir before standing time and add salt and herbs. Stand for 5-10 minutes.
1-10	Wholemeal Macaroni	250 g Use	a large glass ovenware dish with lid. Add 1 L hot boiling water, a pinch of salt and stir well. Cook uncovered. Stir before standing time and drain thoroughly afterwards. Stand for 1 minutes.
Code	Food Serving Size	Instructions
1-11	Quinoa 250 g Use a	large glass oven	ware dish with lid. Add double quantity of cold water (500 ml). Cook covered. Stir before standing time and add salt and herbs. Stand for 1-3 minutes.
1-12	Bulgur 250 g Usc a	large glass oven	ware dish with lid. Add double quantity of cold water (500 ml). Cook covered. Stir before standing time and add salt and herbs. Stand for 2-5 minutes.
1-13	Vegetable Cratin 500 g	Put the vegetables, such as precooked potato slices, courgette slices and tomatoes and sauce into a suitable sized glass pyrox dish. Add grated cheese on top. Put dish on the grill rack. Stand for 2-3 minutes.
1-14	Grilled Tomatoes 400 g	Rinse and clean tomatoes, cut them into halves and put in an ovenware dish. Add grated cheese on top. Put dish on grill rack. Stand for 1-2 minutes.
1-15	Chicken Breasts	300 g(2 pcs.)	Rinse pieces and put on a ceramic plate. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 2 minutes.

Code	Food Serving Size	Instructions
1-16	Turkey Breasts 300 g	(2 pcs.)	Rinse pieces and put on a ceramic plate. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 2 minutes.
1-17	Fresh Fish Fillets 300 g	(2 pcs.)	Rinse fish and put on a ceramic plate, add 1 tbsp. lemon juice. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 1-2 minutes.
1-18	Fresh Salmon Filets	300 g(2 pcs.)	Rinse fish and put on a ceramic plate, add 1 tbsp. lemon juice. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 1-2 minutes.
1-19	Fresh Prawns 250 g	Rinse prawns on	a ceramic plate, add 1 tbsp. lemon juice. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 1-2 minutes.
1-20	Fresh Trout 400 g	(1-2 fish)	Put 1-2 fresh whole fish into an microwave oven proof dish. Add a pinch salt, 1 tbsp. lemon juice and herbs. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 2 minutes.

English 23

Microwave oven use

Code	Food Serving Size Instructions
1-21	Grilled Fish 400 g(1-2 fish)	Brush skin of whole fish (trout or gilthead) with oil and add herbs and spices. Put fish side by side, head to tail on the grill rack. Turnover, as soon as the beep sounds. Stand for 3 minutes.
1-22	Grilled Salmon Steaks300 g(2 steaks)	Put fish steaks evenly on the grill rack. Turnover, as soon as the beep sounds. Stand for 2 minutes.

1. Home Dessert

Code	Food Serving Size	Instructions
2-1	Walnut Pound Cake	1 serving IngredientsFlour 120 g, Butter 150 g, Black sugar 100 g, Egg 2 pcs., Walnut (Chopped) 50 g, Baking powder 4 g
		1. Combine a butter and black sugar in bowl.2. Add egg and mix well.3. Add a flour, baking powder and keep stirring.4. Add a walnut and mix well.5. Pour a mixture in greased glass or plastic bowl.6. Put the bowl in the microwave oven and select the Auto Cook [2-1].7. After cooking, stand for 2-3 minutes.

Code	Food Serving Size	Instructions
2-2	Banana Bread	1 serving(6 pcs.)	IngredientsBanana 3 pcs. Pancake mix 120 g, Milk 120 g, Egg 1 pc., Malt syrup 2 tbsp.
		1. Chop the banana.2. Combine a pancake mix, milk, egg, malt syrup in bowl.3. Add banana and mix well.4. Pour a mixture in 6 paper cups.5. Put paper cups in the microwave oven and select the Auto Cook [2-2].6. After cooking, stand for 2-3 minutes.
2-3	Sponge Cake 1	serving Ingredients
		1. Combine a butter and sugar in bowl.2. Add egg and mix well.3. Add a flour, baking powder and keep stirring.4. Pour a mixture in greased glass or plastic bowl.5. Put the bowl in the microwave oven and select the Auto Cook [2-3].6. After cooking, stand for 2-3 minutes.
2-4	Brownie 1 serving Ingredients		Flour 90 g, Butter(Melted) 1⁄2 cup, Sugar 230 g, Egg 2 pcs., Cocoa power 40 g
			1. Combine a butter, beaten eggs, sugar in bowl.2. Add a flour, cocoa powder and keep stirring.3. Pour a mixture in greased glass or plastic bowl.4. Put the bowl in the microwave oven and select the Auto Cook [2-4].5. After cooking, stand for 20-30 minutes.

24 English

Code	Food Serving Size	Instructions
2-5	Egg Pudding 1	serving(3 pcs.)	IngredientsMilk 250 g, Sugar 40 g, Egg 2 pcs.
		1.Crack the two eggs into a bowl. Lightly beat the egg with a balloon whisk. Don't let the tip of the whisk leave the bottom of the bowl to avoid creating too much foam.2.Combine milk, sugar in other bowl.3.Add the milk to the beaten egg while whisking the mixture.4.Sieve the egg mixture with a fine mesh strainer. Scrape off the bottom of the strainer with a spatula. Remove any foam on the surface with a spoon.5.Pour the mixture into custard cups.6.Put the cups in the microwave oven and select the Auto Cook [2-5].7.After cooking, refrigerate and serve.
2-6	Chocolate Mug Cake	1 serving Ingredients
		1.Combine the butter, egg and cream together in a mug until well combined.2.Add the flour, sugar and keep stirring.3.Add the cocoa, vanilla and stir until just combined.4.Stir in the chocolate chips.5.Put the mug in the microwave oven and select the Auto Cook [2-6].6.After cooking, stand for 2-3 minutes.

Code	Food Serving Size	Instructions
2-7	Mug Cake 1 serving Ingredients		Butter 30 g, Sugar 60 g, Egg 1 pc., Flour 50 g, Milk 30 g, Vanilla 6 g, Almond powder 3 g, Baking powder 1.5 g
			1. Combine the butter, egg together in a mug until well combined.2. Add the flour, sugar, baking powder and keep stirring.3. Add the almond powder, vanilla and stir until just combined.4. Put the mug in the microwave oven and select the Auto Cook [2-7].5. After cooking, stand for 2-3 minutes.
2-8	Café Latte 1 serving Ingredients		Instant coffee powder 2 g, Water 50 g. Milk 125 g
			1. Mix the coffee powder and water in mug.2. Pour milk in other mug.3. Put the milk in the microwave oven and select the Auto Cook [2-8].4. When the beeps, take mug out.5. Put the coffee mixture in the microwave oven and press the START/+30s button.6. After cooking, mix all well and serve.

English 25

Microwave oven use

Code	Food Serving Size Instructions
2-9	Green Tea Latte	1 serving IngredientsGreen tea powder 6 g, Sugar 15 g, Milk 250 g
		1. Mix all Ingredients in mug.2. Put the mug in the microwave oven and select the Auto Cook [2-9].3. After cooking, mix well and serve.
2-10	Milk Tea	1 serving IngredientsBlack tea bag 2 pcs., Water 60 g, Milk 125 g
		1. Mix the black tea bag and water in mug.2. Pour milk in other mug.3. Put the tea mixture in the microwave oven and select the Auto Cook [2-10].4. When the beeps, take mug out.5. Put the milk in the microwave oven and press the START/+30s button.6. After cooking, mix all well and serve.

3. Bread Defrost

This function is defrosting and reheating for frozen bread. Frozen bread will have crisp outside like fresh bread. This program is suitable for baguettes, croissants, bagels and so on.

CAUTION

• This program is suitable for frozen bread which is baked. It is Not suitable for frozen dough.
• Crusty plate Must be preheated. Please follow the instructions.

Code	Food Serving Size Instructions
3	Bread Defrost 100-600 g Put the crusty plate on the turntable.Select auto cook program and press the START/+30s button. Display will show "HEAT" for preheating the crusty plate. When the beep, preheating is done. Place frozen bread on the crusty plate and put them in the microwave oven. Press the START/+30s button again. After cooking, stand for 2-3 minutes.

26 English

Grilling

The grill enables you to heat and brown food quickly, without using microwaves.

• Always use oven gloves when touching the cookware in the microwave oven, as they will be very hot.
- You can get better cooking and grilling results, if you use the grill rack.

Simple line drawing of a circular mechanical component with a central curved feature (no text or symbols)

1. Pull the handle to open the microwave oven door

2. Place the food on the grill rack, and then close the door.

3. Press Grill.

• The control panel display shows the corresponding icon (T)
- You cannot set the temperature of the grill.

1. Press < or > (Decrease/Increase) to set the desired grilling time.

- The maximum grilling time is 60 minutes.

1. Press START/+30s to start grilling.

- When the grilling is complete, the microwave oven beeps 4 times and the control panel display shows the current time. Then, the end reminder signal beeps once every minute for 3 times.

Combining microwaves and grill

You can also combine microwave cooking with the grill, to cook quickly and brown at the same time.

CAUTION

• Always use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly.
• Always use oven gloves when touching the cookware in the microwave oven, as they will be very hot.
• You can improve cooking and grilling, if you use the grill rack.

1. Pull the handle to open the microwave oven door.

2. Place the food on the grill rack, and then close the door.

3. Press Microwave+Grill

4. The control panel display shows the default power level (600 W).

5. The control panel display shows the corresponding icon (单).

6. Press < or > (Decrease/Increase) to select the desired power level, and then press OK.

7. You can select the power level from 600 W, 450 W, or 300 W.

8. You cannot set the temperature of the grill.

Microwave oven use

1. Press < or > (Decrease/Increase) to set the desired cooking time.

• The maximum cooking time is 60 minutes.

1. Press START/+30s to start cooking.

- When the cooking is complete, the microwave oven beeps 4 times and the control panel display shows the current time. Then, the end reminder signal beeps once every minute for 3 times.

Using the crusty plate

This crusty plate allows you to brown food not only on the top with the grill, but also the bottom of the food turns crispy and brown due to the high temperature of the crusty plate. Several items which you can prepare on the crusty plate can be found in the chart (see next page). The crusty plate can also be used for bacon, eggs, sausages, etc.

Line drawing of a microwave oven with doors open and one lid placed inside (no text or symbols)

1. Place the crusty plate directly on the turntable and preheat it with highest Microwave-Grill Combination (600 W - Grill) by following the times and instructions in the chart.
2. Brush the plate with oil if you are cooking food, such as bacon and eggs, in order to brown the food nicely.

1. Place the food on the crusty plate.
2. Place the crusty plate on the metal rack (or turntable) in the microwave.
3. Select the appropriate cooking time and power. (Refer to the table on the side)

CAUTION

• Always use oven gloves to take out the crusty plate, as will become very hot.
• Do not place any objects on the crusty plate that are not heat-resistant.
• Never place the crusty plate in the oven without turntable.
• Please note that the crust plate is not dish washer-safe.

NOTE

• Please note that the crusty plate has a teflon layer which is not scratch-resistant. Do not use any sharp objects like a knife to cut on the crusty plate.
• Clean the crusty plate with warm water and detergent and rinse off with clean water.
• Do not use a scrubbing brush or a hard sponge otherwise the top layer will be damaged.

We recommend to preheat the crusty plate directly on the turntable. Preheat crusty plate with 600 W + Grill function for 3-4 minutes. Follow the times and instructions in the table.

Food Serving Size Power			Cooking time (min.)
Bacon 4 slices (80 g) 600 W + Grill 3-3 12
InstructionsPreheat crust plate for 3 minutes. Put slices side by side on crust plate. Put crust plate on rack. Stand for 3 minutes
Grilled Tomatoes	200 g (2 pcs.) 450 W + Grill 2 12 -3
	InstructionsPreheat crust plate for 3 minutes. Cut tomatoes in halves. Put some cheese on top. Arrange in a circle on crust plate. Put crust plate on rack. Stand for 3 minutes.
Burger (Frozen) 2	pieces (125 g) 600 W + Grill 6-6 12
	InstructionsPreheat crust plate for 3 minutes. Put frozen burger on the crust plate. Put crust plate on rack. Turn over after 3-4 min. Stand for 3 minutes.
Baguettes (Frozen)	200-250 g (2 pcs.)	450 W + Grill 6-7
	InstructionsPreheat crust plate for 3 minutes. Put baguettes with topping (e.g. tomato-cheese) side by side on the plate. Put crust plate on rack. Stand for 3 minutes.
Pizza (Frozen) 300-350 g 450 W+Grill 11-12

Food Serving Size Power			Cooking time (min.)
Mini Pizza-Snack (Frozen)	9 X 30 g (270 g) 300 W + Grill 9-10
	InstructionsPreheat crust plate for 3 minutes. Distribute pizza snacks evenly on crust plate. Put the plate on the Turntable. Stand for 3 minutes.
Pizza (Chilled) 300-350 g 450 W + Grill 5%-6%
			InstructionsPreheat crust plate for 5 minutes. Put the chilled pizza on the plate. Put crust plate on the Turntable. Stand for 3 minutes.
Fish Fingers (Frozen)	150 g (5 pcs.)300 g (10 pcs.)	600 W + Grill 6-7	8-9
	InstructionsPreheat crust plate for 4 minutes. Brush plate with 1 tbsp oil. Put fish fingers in a circle on the plate. Turn over after 3 min (5 pcs.) or after 5 min. (10 pcs.). Stand for 3 minutes.
Chicken Nuggets (Frozen)	125 g250 g	600 W + Grill 4-5	6-7
	InstructionsPreheat crust plate for 4 minutes. Brush plate with 1 tbsp oil. Put chicken nuggets on the plate. Put crust plate on rack. Turn over after 2 min (125 g) or 4 min. (250 g). Stand for 3 minutes.

English 29

Microwave oven use

Food Serving Size Power		Cooking time (min.)
Baked Potatoes 250 g500 g	600 W + Grill 4 5	7.8
InstructionsPreheat crust plate for 3 minutes. Cut potatoes in halves.Put them on the crust plate with the cut-side to the bottom.Arrange in a circle. Put the plate on the rack. Stand for 3 minutes.

Using Child Lock

Your microwave oven is fitted with a special child lock programme, which enables the microwave oven to be "locked" so that children or anyone unfamiliar with it cannot operate it accidentally.

• To activate Child Lock, press and hold START/+30s for 3 seconds.
- The control panel is locked, and the control panel display shows "L".
• To deactivate Child Lock, press and hold START/+30s again for 3 seconds.

Switching the beeper off

You can switch the beeper off whenever you want.

- To turn the beeping sound off, press < and > (Decrease/Increase) at the same time.

- To turn the boeping sound back on, press < and > (Decrease/Increase) at the same time again.

30 English

MG2012016X_SP_D188-34591M-00_EN.in### 20 2020-01-06 国11:89:34

Cookware guide

To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used.

Care must therefore be taken when choosing the cookware. If the cookware is marked microwave safe, you do not need to worry.

The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven.

Cookware	Microwave-safe	Comments
Alunimium foil	√✗	Can be used in small quantities to protect areas against overcooking. Arcing can occur if the foil is too close to the microwave oven wall or if too much foil is used.
Crust plate	√	Do not preheat for more than 8 minutes.
China and earthenware	√	Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless decorated with a metal trim.
Disposable polyester cardboard dishes	√	Some frozen foods are packaged in these dishes.
Fast-food packaging• Polystyrene cups containers• Paper bags or newspaper• Recycled paper or metal trims	√✗✗	Can be used to warm food. Overheating may cause the polystyrene to melt.May catch fire.May cause arcing.
Glassware• Oven-to-tableware• Fine glassware	√√	Can be used, unless decorated with a metal trim.Can be used to warm foods or liquids.Delicate glass may break or crack if heated suddenly.

Cookware	Microwave-safe	Comments
Glass jars	√	Must remove the lid. Suitable for warming only.
MetalDishesFreezer bag twist tics	✗✗	May cause arcing or fire.
PaperPlates, cups, napkins and kitchen paperRecycled paper	√✗	For short cooking times and warming. Also to absorb excess moisture.May cause arcing.
PlasticContainersCling filmFreezer bags	√√√✗	Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures.Do not use Melamine plastic.Can be used to retain moisture. Should not touch the food. Take care when removing the film as hot steam will escape.Only if boilable or oven-proof. Should not be airtight. Prick with a fork, if necessary.
Wax or grease-proof paper	√	Can be used to retain moisture and prevent spattering.

√ : Recommended

√X : Use caution

x : Unsafe

English 31

Cooking guide

Microwaves

Microwave energy actually penetrates food, attracted and absorbed by its water, fat and sugar content.

The microwaves cause the molecules in the food to move rapidly. The rapid movement of these molecules creates friction and the resulting heat cooks the food.

Cooking

Cookware for microwave cooking

Cookware must allow microwave energy to pass through it for maximum efficiency. Microwaves are reflected by metal, such as stainless steel, aluminium and copper, but they can penetrate through ceramic, glass, porcelain and plastic as well as paper and wood. So food must never be cooked in metal containers.

Food suitable for microwave cooking

Many kinds of food are suitable for microwave cooking, including fresh or frozen vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups, steamed puddings, preserves, and chutneys can also be cooked in a microwave oven. Generally speaking, microwave cooking is ideal for any food that would normally be prepared on a hob. Melting butter or chocolate, for example (see the chapter with tips, techniques and hints).

Covering during cooking

To cover the food during cooking is very important, as the evaporated water rises as steam and contributes to cooking process. Food can be covered in different ways: e.g. with a ceramic plate, plastic cover or microwave suitable cling film.

Standing times

After cooking is over food the standing time is important to allow the temperature to even out within the food.

Cooking guide for frozen vegetables

Use a suitable glass pyrex bowl with lid. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer.

Stir twice during cooking and once after cooking. Add salt, herbs or butter after cooking. Cover during standing time.

Food Serving	Size Power Time (min.)
Spinach 150 g 600	W 5-6
	InstructionsAdd 15 ml (1 tbsp.) cold water. Stand for 2-3 minutes.
Broccoli 300 g 600	W 8-9
	InstructionsAdd 30 ml (2 tbsp.) cold water. Stand for 2-3 minutes.
Peas 300 g 600 W	7-8
	InstructionsAdd 15 ml (1 tbsp.) cold water. Stand for 2-3 minutes.
Green Beans 300 g	600 W 712 - 812
	InstructionsAdd 30 ml (2 tbsp.) cold water. Stand for 2-3 minutes.
Mixed Vegetables(Carrots/Peas/Corn)	300 g 600 W	7-8
	InstructionsAdd 15 ml (1 tbsp.) cold water. Stand for 2-3 minutes.
Mixed Vegetables(Chinese Style)	300 g 600 W	712 812
	InstructionsAdd 15 ml (1 tbsp.) cold water. Stand for 2-3 minutes.

Cooking guide for fresh vegetables

Use a suitable glass pyrex bowl with lid. Add 30-45 ml cold water (2-3 tbsp.) for every 250 g unless another water quantity is recommended – see table. Cook covered for the minimum time – see table. Continue cooking to get the result you prefer. Stir once during and once after cooking. Add salt, herbs or butter after cooking. Cover during a standing time of 3 minutes.

Hint: Cut the fresh vegetables into even sized pieces. The smaller they are cut, the quicker they will cook.

Food Serving Size Power Time (min.)
Broccoli 250 g	500 g	900 W 41⁄2-5	7-8
	InstructionsPrepare even sized florets. Arrange the stems to the centre.Stand for 3 minutes.
Brussels Sprouts	250 g 900 W	6 61⁄2
	InstructionsAdd 60-75 ml (4 5 tbsp.) water. Stand for 3 minutes.
Carrots 250 g 900	W 41⁄2-5
	InstructionsCut carrots into even sized slices. Stand for 3 minutes.
Cauliflower 250 g	500 g	900 W 5-51⁄2	71⁄2-81⁄2
	InstructionsPrepare even sized florets. Cut big florets into halves.Arrange stems to the centre. Stand for 3 minutes.
Courgettes 250 g	900 W 4 41⁄2
	InstructionsCut courgettes into slices. Add 30 ml (2 tbsp.) water or a knob of butter. Cook until just tender. Stand for 3 minutes.

Food Serving Size Power Time (min.)
Eggplants 250 g	900 W 312 -4
	InstructionsCut eggplants into small slices and sprinkle with 1 tbsp. lemon juice. Stand for 3 minutes.
Leeks 250 g 900	W 4 - 412
	InstructionsCut leeks into thick slices. Stand for 3 minutes.
Mushrooms 125 g	250 g	900 W 112 -2	212 -3
	InstructionsPrepare small whole or sliced mushrooms. Do not add any water. Sprinkle with lemon juice. Spice with salt and pepper.Drain before serving. Stand for 3 minutes.
Onions	250 g 900 W	5 - 512
	InstructionsCut onions into slices or halves. Add only 15 ml (1 tbsp.) water. Stand for 3 minutes.
Pepper	250 g 900 W	412 -5
	InstructionsCut pepper into small slices. Stand for 3 minutes.
Potatoes	250 g500 g	900 W	4-57-8
	InstructionsWeigh the peeled potatoes and cut them into similar sized halves or quarters. Stand for 3 minutes.
Turnip Cabbage	250 g 900 W	512 -6
	InstructionsCut turnip cabbage into small cubes. Stand for 3 minutes.

Cooking guide

Cooking guide for rice and pasta

Rice: Use a large glass pyrex bowl with lid - rice doubles in volume during cooking. Cook covered. After the cooking time is over, stir before standing time and salt or add herbs and butter. Remark the rice may not have absorbed all water after the cooking time is finished.

Pasta: Use a large glass pyrex bowl. Add boiling water, a pinch of salt and stir well. Cook uncovered. Stir occasionally during and after cooking. Cover during standing time and drain thoroughly afterwards.

Food Serving Size Power Time (min.)
White Rice (Parboiled)	250 g375 g	900 W 15-16	17 12 -18 12
	InstructionsAdd 500 ml cold water. (250 g), Add 750 ml cold water. (375 g)Stand for 5 minutes.
Brown Rice (Parboiled)	250 g375 g	900 W 20-21	22-23
	InstructionsAdd 500 ml cold water. (250 g), Add 750 ml cold water. (375 g)Stand for 5 minutes.
Mixed Rice (Rice + Wild Rice)	250 g 900 W	16-17
	InstructionsAdd 500 ml cold water. Stand for 5 minutes.
Mixed Corn (Rice + Crain)	250 g 900 W	17-18
	InstructionsAdd 400 ml cold water. Stand for 5 minutes.
Pasta 250 g 900	W 10-11
	InstructionsAdd 1000 ml hot water. Stand for 5 minutes.

Reheating

Your microwave oven will reheat food in a fraction of the time that conventional ovens and hobs normally take. Use the power levels and reheating times in the following chart as a guide. The times in the chart consider liquids with a room temperature of about +18 to +20 °C or a chilled food with a temperature of about +5 to +7 °C.

Arranging and covering

Avoid reheating large items such as joint of meat - they tend to overcook and dry out before the centre is piping hot. Reheating small pieces will be more successful.

Power levels and stirring

Some foods can be reheated using 900 W power while others should be reheated using 600 W, 450 W or even 300 W.

Check the tables for guidance. In general, it is better to reheat food using a lower power level, if the food is delicate, in large quantities, or if it is likely to heat up very quickly (mince pies, for example).

Stir well or turn food over during reheating for best results. When possible, stir again before serving.

Take particular care when heating liquids and baby foods. To prevent eruptive boiling of liquids and possible scalding, stir before, during and after heating.

Keep them in the microwave oven during standing time. We recommend putting a plastic spoon or glass stick into the liquids. Avoid overheating (and therefore spoiling) the food.

It is preferable to underestimate cooking time and add extra heating time, if necessary.

Heating and standing times

When reheating food for the first time, it is helpful to make a note of the time taken - for future reference.

Always make sure that the reheated food is piping hot throughout.

Allow food to stand for a short time after reheating - to let the temperature even out.

The recommended standing time after reheating is 2-4 minutes, unless another time is recommended in the chart.

Take particular care when heating liquids and baby food. See also the chapter with the safety precautions.

Reheating liquids

Always allow a standing time of at least 20 seconds after the microwave oven has been switched off to allow the temperature to even out. Stir during heating, if necessary, and ALWAYS stir after heating.

To prevent eruptive boiling and possible scalding, you should put a spoon or glass stick into the beverages and stir before, during and after heating.

Reheating baby food

Baby food

Empty into a deep ceramic plate. Cover with plastic lid. Stir well after reheating! Let stand for 2-3 minutes before serving. Stir again and check the temperature. Recommended serving temperature: between 30-40 °C.

Baby milk

Pour milk into a sterilised glass bottle. Reheat uncovered. Never heat a baby's bottle with teat on, as the bottle may explode if overheated. Shake well before standing time and again before serving! Always carefully check the temperature of baby milk or food before giving it to the baby. Recommended serving temperature; ca. 37 °C.

Remark

Baby food particularly needs to be checked carefully before serving to prevent burns. Use the power levels and times in the next table as a guide lines for reheating.

Reheating liquids and food

Use the power levels and times in this table as a guide lines for reheating.

Food Serving Size Power Time (min.)
Drinks (Coffee, Tea and Water)	150 ml (1 cup)300 ml (2 cups)450 ml (3 cups)600 ml (4 cups)	900 W 1-1 12	2-2 12 3-3 12 3 12 -4
	InstructionsPour into cups and reheat uncovered:1 cup in the centre, 2 cups opposite of each other, 3 cups in a circle. Keep in microwave oven during standing time and stir well. Stand for 1-2 minutes.
Soup (Chilled) 250 g	350 g450 g550 g	900 W 2 12 -3	3-3 12 3 12 -44 12 -5
	InstructionsPour into a deep ceramic plate or deep ceramic bowl.Cover with plastic lid. Stir well after reheating. Stir again before serving. Stand for 2-3 minutes.
Stew (Chilled) 350 g 600 W 4 12 -5 12
	InstructionsPut stew in a deep ceramic plate. Cover with plastic lid.Stir occasionally during reheating and again before standing and serving. Stand for 2-3 minutes.

Cooking guide

Food Serving Size Power Time (min.)
Pasta with Sauce (Chilled)	350 g 600 W	312 -412
	InstructionsPut pasta (e.g. spaghetti or egg noodles) on a flat ceramic plate. Cover with microwave cling film. Stir before serving. Stand for 3 minutes.
Filled Pasta with Sauce (Chilled)	350 g 600 W	4-5
	InstructionsPut filled pasta (e.g. ravioli, tortellini) in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving. Stand for 3 minutes.
Plated Meal (Chilled)	350 g450 g	600 W 412 -512	512 -612
	InstructionsPlate a meal of 2-3 chilled components on a ceramic dish. Cover with microwave cling-film. Stand for 3 minutes.
Cheese Fondue Ready-To-Serve (Chilled)	400 g 600 W	6-7
	InstructionsPut the ready-to-serve cheese fondue in a suitable sized glass pyrex bowl with lid. Stir occasionally during and after reheating. Stir well before serving. Stand for 1-2 minutes.

Reheating baby food and milk

Use the power levels and times in this table as guide lines for reheating.

Food Serving	Size Power Time
Baby Food (Vegetables + Meat)	190 g 600 W	30 sec.
	InstructionsEmpty into ceramic deep plate. Cook covered. Stir after cooking time. Before serving, stir well and check the temperature carefully. Stand for 2-3 minutes.
Baby Porridge (Grain + Milk + Fruit)	190 g 600 W	20 sec.
	InstructionsEmpty into ceramic deep plate. Cook covered.Stir after cooking time. Before serving, stir well and check the temperature carefully. Stand for 2-3 minutes.
Baby Milk 100 ml	300 W 30-40 sec.200 ml 1 min	to	1 min. 10 sec.
	InstructionsStir or shake well and pour into a sterilised glass bottle.Place into the centre of turntable. Cook uncovered.Shake well and stand for at least 3 minutes.Before serving, shake well and check the temperature carefully.

36 English

Defrosting

Microwaves are an excellent way of defrosting frozen food. Microwaves gently defrost frozen food in a short period of time. This can be of great advantage, if unexpected guests suddenly show up.

Frozen poultry must be thoroughly thawed before cooking. Remove any metal ties and take it out of any wrapping to allow thawed liquid to drain away. Put the frozen food on a dish without cover. Turn over half way, drain off any liquid and remove any giblets as soon as possible. Check the food occasionally to make sure that it does not feel warm.

If smaller and thinner parts of the frozen food start to warm up, they can be shield by wrapping very small strips of aluminium foil around them during defrosting. Should poultry start to warm up on the outer surface, stop thawing and allow it to stand for 20 minutes before continuing. Leave the fish, meat and poultry to stand in order to complete defrosting. The standing time for complete defrosting will vary depending on the quantity defrosted. Please refer to the table below.

Hint: Flat food defrosts better than thick and smaller quantities need less time than bigger ones. Remember this hint while freezing and defrosting food.

For defrosting of frozen food with a temperature of about 18 to 20 °C, use the following table as a guide.

Food Serving	Size Power Time (min.)
MeatMinced Meat 250gPork Steaks 250 g	500 g180 W 5-7	180 W 6-7	9-12
	InstructionsPlace the meat on turntable. Shield thinner edges with aluminium foil. Turn over after half of defrosting time!Stand for 15-30 minutes.

Food Serving Size Power Time (min.)
PoultryChicken Pieces 500 g (2 pcs.) 180 W 14-15Whole Chicken 1200 g 180 W 32-34
FishFish Fillets 200 g180 W 6-7Whole Fish 400 g180 W 11-13
FruitBerries 300 g 180 W 6-7

English 37

Cooking guide

Food Serving Size Power Time (min.)
Bread
Bread Rolls(Each ca. 50 g)Toast/Sandwich2German Bread(Wheat + Rye Flour)	2 pcs.4 pcs.50 g 180 W 4-4%500 g 180 W 7-9	180 W 1-1%	2%-3
	InstructionsArrange rolls in a circle or bread horizontally on kitchen paper in the middle of turntable. Turn over after half of defrosting time! Stand for 5-20 minutes.

Grill

The grill heating element is located underneath the ceiling of the cavity. It operates while the door is closed and the turntable is rotating. The turntable's rotation makes the food brown more evenly. Preheating the grill for 3-5 minutes will make the food brown more quickly.

Cookware for grilling

Should be flameproof and may include metal. Do not use any type of plastic cookware, as it can melt.

Food suitable for grilling

Chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin fish portions, sandwiches and all kinds of toast with toppings.

Important remark

Whenever the grill only mode is used, please remember that food must be placed on the grill rack, unless another instruction is recommended.

Microwave + grill

This cooking mode combines the radiant heat that is coming from the grill with the speed of microwave cooking. It operates only while the door is closed and the turntable is rotating. Due to the rotation of the turntable, the food browns evenly. Three combination modes are available with this model: 600 W + Grill, 450 W + Grill and 300 W + Grill.

Cookware for cooking with microwaves + grill

Please use cookware that microwaves can pass through. Cookware should be flameproof. Do not use metal cookware with combination mode. Do not use any type of plastic cookware, as it can melt.

Food suitable for microwaves + grill cooking

Food suitable for combination mode cooking include all kinds of cooked food which need reheating and browning (e.g. baked pasta), as well as foods which require a short cooking time to brown the top of the food. Also, this mode can be used for thick food portions that benefit from a browned and crispy top (e.g. chicken pieces, turning them over half way through cooking). Please refer to the grill table for further details.

Important remark

Whenever the combination mode (microwave + grill) is used, the food should be placed on the grill rack, unless another instruction is recommended. Please refer to the instructions in the following chart.

The food must be turned over, if it is to be browned on both sides.

38 English

Grill guide for fresh and frozen foods

Preheat the grill with the grill-function for 3 minutes.

Use the power levels and times in this table as guide lines for grilling.

CAUTION

Use oven gloves when taking out.

Fresh food Serving Size Power 1 step (min.) 2 step (min.)
Toast Slices	4 pcs. (each 25 g)	Grill only	3 4	2 3
	InstructionsPut toast slices side by side on the grill rack.
Grilled Tomatoes	400 g (2 pcs.) 300 W + Grill 5-6 -
	InstructionsCut tomatoes into halves. Put some cheese on top. Arrange in a circle in a flat glass pyrex dish. Place it on the grill rack.Stand for 2-3 minutes.
Tomato-Cheese Toast	4 pcs. (300 g) 300 W + Grill 4-5 -
	InstructionsToast the bread slices first. Put the toast with topping on the grill rack. Stand for 2-3 minutes.
Baked Potatoes	500 g	600 W + Grill 7-8 -
	InstructionsCut potatoes into halves. Put them in a circle on the grill rack with the cut side to the grill.
Frozen Lasagne	400 g	300 W + GrillGrill only	1812 - 1912 1 2	-
	InstructionsPut the fresh gratin into a small microwave oven proof dish. Put the dish on the turntable. After cooking stand for 2-3 minutes.

Fresh food Serving Size Power 1 step (min.) 2 step (min.)
Baked Apples	2 apples(ca. 400 g)	300 W + Grill 7	8-
	InstructionsCore the apples and fill them with raisins and jam. Put some almond slices on top. Put apples on a flat glass pyrex dish.Place the dish directly on the grill rack.
Chicken Pieces	500 g (2 pcs.) 300 W + Grill 8-10	6-8
	InstructionsBrush chicken pieces with oil and spices. Put them in a circle on the grill rack. After grilling stand for 2-3 minutes.
Roast Chicken	1200 g 450 W + Grillturnover300 W + Grill 2	21.22
	InstructionsBrush the chicken oil and spices. Put in an microwave oven proof dish and place on turntable. After grilling stand for 5 minutes.
Roast Fish 400-500 g 300 W + Grill 5-7 51⁄2-61⁄2
InstructionsBrush skin of whole fish with oil and add herbs and spices.Put two fish side by side (head to tail) on the grill rack.After grilling stand for 2-3 minutes.
Frozen Pizza	300-350 g 450 W + Grill 11-12
	InstructionsPut the frozen pizza on the circle on the grill rack. Put the grill rack on the turntable. Stand for 1-2 minutes.

English 39

Cooking guide

Tips and tricks

Melting crystallized honey

Put 20 g crystallized honey into a small deep glass dish. Heat for 20-30 seconds using 300 W, until honey is melted.

Melting gelatine

Lay dry gelatine sheets (10 g) for 5 minutes into cold water. Put drained gelatine into a small glass pyrex bowl. Heat for 1 minute using 300 W. Stir after melting.

Cooking glaze/icing (for cake and gateaux)

Mix instant glaze (approximately 14 g) with 40 g sugar and 250 ml cold water. Cook uncovered in a glass pyrex bowl for 3½ to 4½ minutes using 900 W, until glaze/icing is transparent. Stir twice during cooking.

Cooking jam

Put 600 g fruits (for example mixed berries) in a suitable sized glass pyrex bowl with lid. Add 300 g preserving sugar and stir well. Cook covered for 10-12 minutes using 900 W. Stir several times during cooking. Empty directly into small jam glasses with twist-off lids. Stand on lid for 5 minutes.

Cooking pudding/custard

Mix pudding powder with sugar and milk (500 ml) by following the manufacturers instructions and stir well. Use a suitable sized glass pyrex bowl with lid. Cook covered for 6½ to 7½ minutes using 900 W. Stir several times well during cooking.

Browning almond slices

Spread 30 g sliced almonds evenly on a medium sized ceramic plate. Stir several times during browning for 3½ to 4½ minutes using 600 W. Let it stand for 2-3 minutes in the microwave oven. Use oven gloves while taking out!

Troubleshooting and information code

Troubleshooting

If you have any of the problems listed below try the solutions given.

Problem Cause	Action
General
The buttons cannot be pressed properly.	Foreign matter may be caught between the buttons.	Remove the foreign matter and try again.
	For touch models: Moisture is on the exterior.	Wipe the moisture from the exterior.
	Child lock is activated. Deactivate Child lock.
The time is not displayed.	The Eco (power-saving) function is set.	Turn off the Eco function.
The microwave oven does not work.	Power is not supplied. Make sure power is supplied.
	The door is open. Close the door and try again.
	The door open safety mechanisms are covered in foreign matter.	Remove the foreign matter and try again.
The microwave oven stops while in operation.	The user has opened the door to turn food over.	After turning over the food, press the START/+30s button again to start operation.

40 English

Problem Cause	Action
The power turns off during operation.	The microwave oven has been cooking for an extended period of time.	After cooking for an extended period of time, let the microwave oven cool.
	The cooling fan is not working.	Listen for the sound of the cooling fan.
	Trying to operate the microwave oven without food inside.	Put food in the microwave oven.
	There is not sufficient ventilation space for the microwave oven.	There are intake/exhaust outlets on the front and rear of the microwave oven for ventilation.Keep the gaps specified in the product installation guide.
	Several power plugs are being used in the same socket.	Designate only one socket to be used for the microwave oven.
There is a popping sound during operation, and the microwave oven doesn't work.	Cooking sealed food or using a container with a lid may causes popping sounds.	Do not use sealed containers as they may burst during cooking due to expansion of the contents.

Problem Cause	Action
The microwave oven exterior is too hot during operation.	There is not sufficient ventilation space for the microwave oven.	There are intake/exhaust outlets on the front and rear of the microwave oven for ventilation. Keep the gaps specified in the product installation guide.
	Objects are on top of the microwave oven.	Remove all objects on the top of the microwave oven.
The door cannot be opened properly.	Food residue is stuck between the door and microwave oven interior.	Clean the microwave oven and then open the door.
Heating including the Warm function does not work properly.	The microwave oven may not work, too much food is being cooked, or improper cookware is being used.	Put one cup of water in a microwave-safe container and run the microwave for 1-2 minutes to check whether the water is heated. Reduce the amount of food and start the function again. Use a cooking container with a flat bottom.
The thaw function does not work.	Too much food is being cooked.	Reduce the amount of food and start the function again.
The interior light is dim or does not turn on.	The door has been left open for a long time.	The interior light may automatically turn off when the Eco function operates. Close and reopen the door or press the STOP/Eco button.
	The interior light is covered by foreign matter.	Clean the inside of the microwave oven and check again.

Troubleshooting and information code

Problem Cause	Action
A beeping sound occurs during cooking.	If the Auto Cook function is being used, this beeping sound means it's time to turn over the food during thawing.	After turning over the food, press the START/+30s button again to restart operation.
The microwave oven is not level.	The microwave oven is installed on an uneven surface.	Make sure the microwave oven is installed on flat, stable surface.
There are sparks during cooking.	Metal containers are used during the microwave oven/thawing functions.	Do not use metal containers.
When power is connected, the microwave oven immediately starts to work.	The door is not properly closed.	Close the door and check again.
There is electricity coming from the microwave oven.	The power or power socket is not properly grounded.	Make sure the power and power socket are properly grounded.
1. Water drips.2. Steam emits through a door crack.3. Water remains in the microwave oven.	There may be water or steam in some cases depending on the food. This is not an microwave oven malfunction.	Let the microwave oven cool and then wipe with a dry dish towel.

Problem Cause	Action
The brightness inside the microwave oven varies.	Brightness changes depending on power output changes according to function.	Power output changes during cooking are not malfunctions. This is not an microwave oven malfunction.
Cooking is finished, but the cooling fan is still running.	To ventilate the microwave oven, the cooling fan continues to run for about 3 minutes after cooking is complete.	This is not an microwave oven malfunction.
Turntable
While turning, the turntable comes out of place or stops turning.	There is no roller ring, or the roller ring is not properly in place.	Install the roller ring and then try again.
The turntable drags while turning.	The roller ring is not properly in place, there is too much food, or the container is too large and touches the inside of the microwave.	Adjust the amount of food and do not use containers that are too large.
The turntable rattles while turning and is noisy.	Food residue is stuck to the bottom of the microwave oven.	Remove any food residue stuck to the bottom of the microwave oven.
Grill
Smoke comes out during operation.	During initial operation, smoke may come from the heating elements when you first use the microwave oven.	This is not a malfunction, and if you run the microwave oven 2-3 times, it should stop.
	Food is on the heating elements.	Let the microwave oven cool and then remove the food from the heating elements.
	Food is too close to the grill. Put the food a suitable distance away while cooking.
	Food is not properly prepared and/or arranged.	Make sure food is properly prepared and arranged.
Microwave oven
The microwave oven does not heat.	The door is open. Close the door and try again.
Smoke comes out during proheating.	During initial operation, smoke may come from the heating elements when you first use the microwave oven.	This is not a malfunction, and if you run the microwave oven 2-3 times, it should stop.
	Food is on the heating elements.	Let the microwave oven cool and then remove the food from the heating elements.
There is a burning or plastic smell when using the microwave oven.	Plastic or non heat-resistant cookware is used.	Use glass cookware suitable for high temperatures.

Problem Cause	Action
There is a bad smell coming from inside the microwave oven.	Food residue or plastic has melted and stuck to the interior.	Use the steam function and then wipe with a dry cloth. You can put a lemon slice inside and run the microwave oven to remove the odour more quickly.
The microwave oven does not cook properly.	The microwave oven door is frequently opened during cooking.	If you open the door often, the interior temperature will be lowered and this may affect the results of your cooking.
	The microwave oven controls are not correctly set.	Correctly set the microwave oven controls and try again.
	The grill or other accessories are not correctly inserted.	Correctly insert the accessories.
	The wrong type or size of cookware is used.	Use suitable cookware with flat bottoms.

Troubleshooting and information code

Information code

Information code	Cause Action
C-d0	Control buttons are pressed over 10 seconds.	Clean the keys and check if there is water on the surface around key. If it occurs again, turn off the microwave oven over 30 seconds and try setting again. If it appears again, call your local SAMSUNG Customer Care Centre.

NOTE

if the suggested solution does not solve the problem, contact your local SAMSUNG Customer Care Centre.

Technical specifications

SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice.

Model MG30T5018C*
Power source 230 V	~ 50 Hz AC
Power consumptionMaximum powerMicrowaveGrill (heating element)	2900 W1400 W1500 W
Output power 100 W / 900 W - 6 levels (IEC-705)
Operating frequency 2450 MHz
Dimensions (W x H x D)Outside (Include Handle)Oven cavity	517 x 297.3 x 425.3 mm357 x 255 x 357 mm
Volume 30 liter
WeightNet	15.9 kg approx.

44 English

Memo

Memo

Memo

SAMSUNG

Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance.

QUESTIONS OR COMMENTS?

COUNTRY CALL OR VISIT US ONLINE AT
AUSTRALIA 1300 362 603 www.samsung.com/au/support
NEW ZEALAND 0800 726 786 www.samsung.com/hz/support
CHINA 400-B 0-5858 www.samsung.com/cn/support
HONG XONG 3698 4698		www.samsung.com/nk/support (Chinese)www.samsung.com/nk_cn/support (Eng isn)
INDIA	1800 40 SAMSUNG (1800 40 7267864)(Toll-Free)1800.5 SAMSUNG (1800 5 7267864)(Toll-Free)	www.samsung.com/in/support
BANGLADESH	0961230030008000300300 (Toll free)	www.samsung.com/in/support
INDONESIA	021-5899-77770800-112-8888 (All Product: Toll Free)	www.samsung.com/id/support
JAPAN 0120-363-905 www.galaxymobile.jp/jp/support
MALAYSIA	1800-86-9099+603-7713 7420 (Overseas contact)	www.samsung.com/my/support
PHILIPPINES	1-800-10-726-7864 [ PLDT Toll Free ]1-800-8-726-7864 | Globe Landline and Mobile ]02 8 422 2111 [ Standard Landline ]	www.samsung.com/oh/support

COUNTRY CALL OR VISIT US ONLINE AT
SINCAPORE 1600	7267654 | 1600-SAMSUNG www.samsung.com/sg/support
THAILAND	Hotline no: 1262 (For a I Product)0-2689-3232 (For CTH products)1800-29-3232 (Toll Free for all product)	www.samsung.com/th/support
TAIWAN 0800	32-3909 www.samsung.com/tw/support
VIETNAM 1800	588-889 www.samsung.com/vn/support
MYANMAR [phone] www.samsung.com/mm/support
MACAU 0800	333	www.samsung.com/hk/support (Chinese)www.samsung.com/hk_en/support (English)
SRI LANKA	011 SAMSUNG (011-7267654)	www.samsung.com/in/support
CAMBODIA	[phone]-20-3232 (Toll free)	www.samsung.com/th/support
LAOS	[phone]	www.samsung.com/th/support
NEPAL	16800172667 (Toll Free for NTC Only)9801572667 (Toll Free for Ncell users)	www.samsung.com/in/support

DE68-04591M-00
