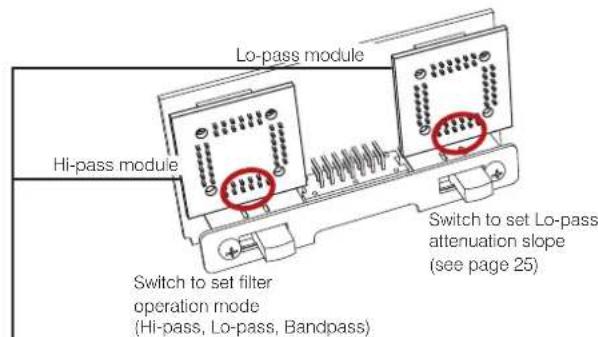

Electronic Crossover 23

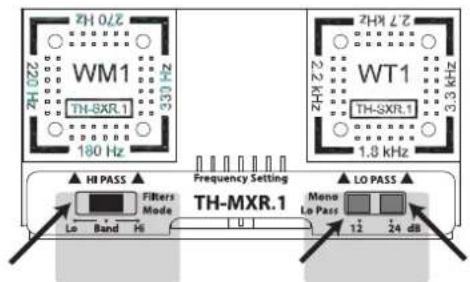

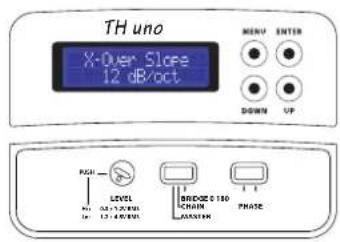

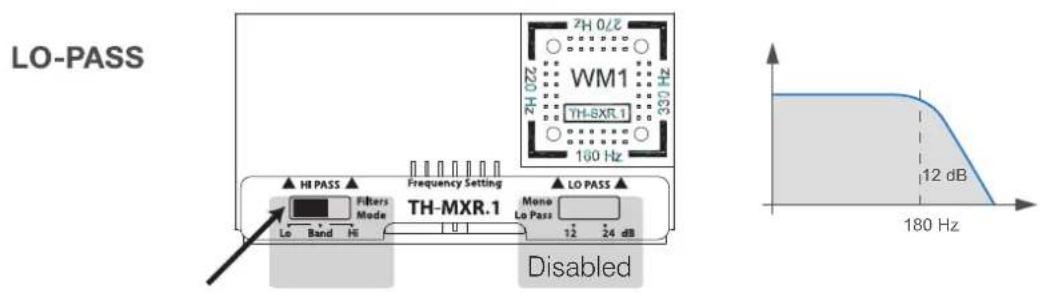

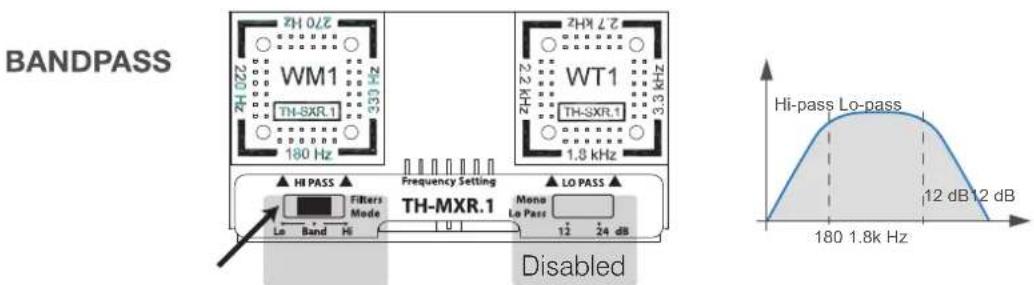

X-Over Slope 12 dB 24

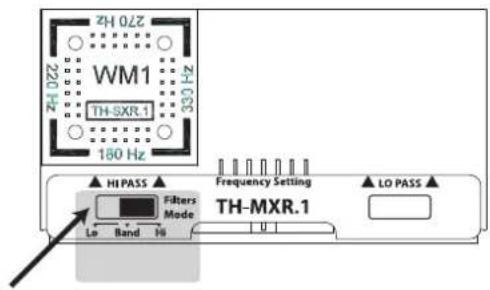

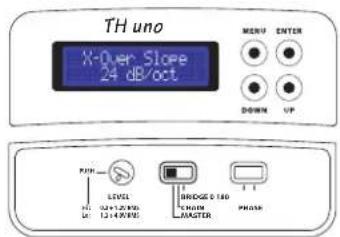

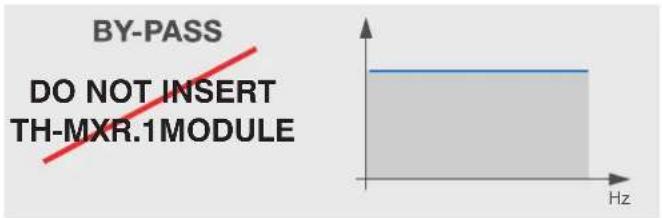

X-Over Slope 24 dB 25

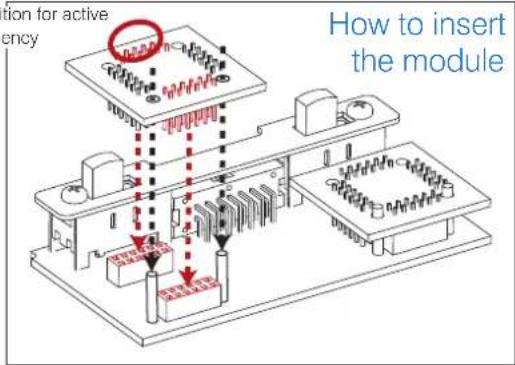

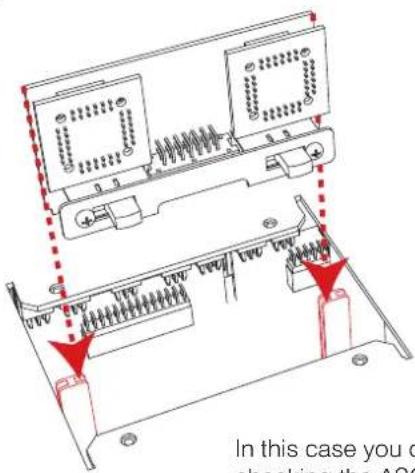

How to insert 26

Examples 27

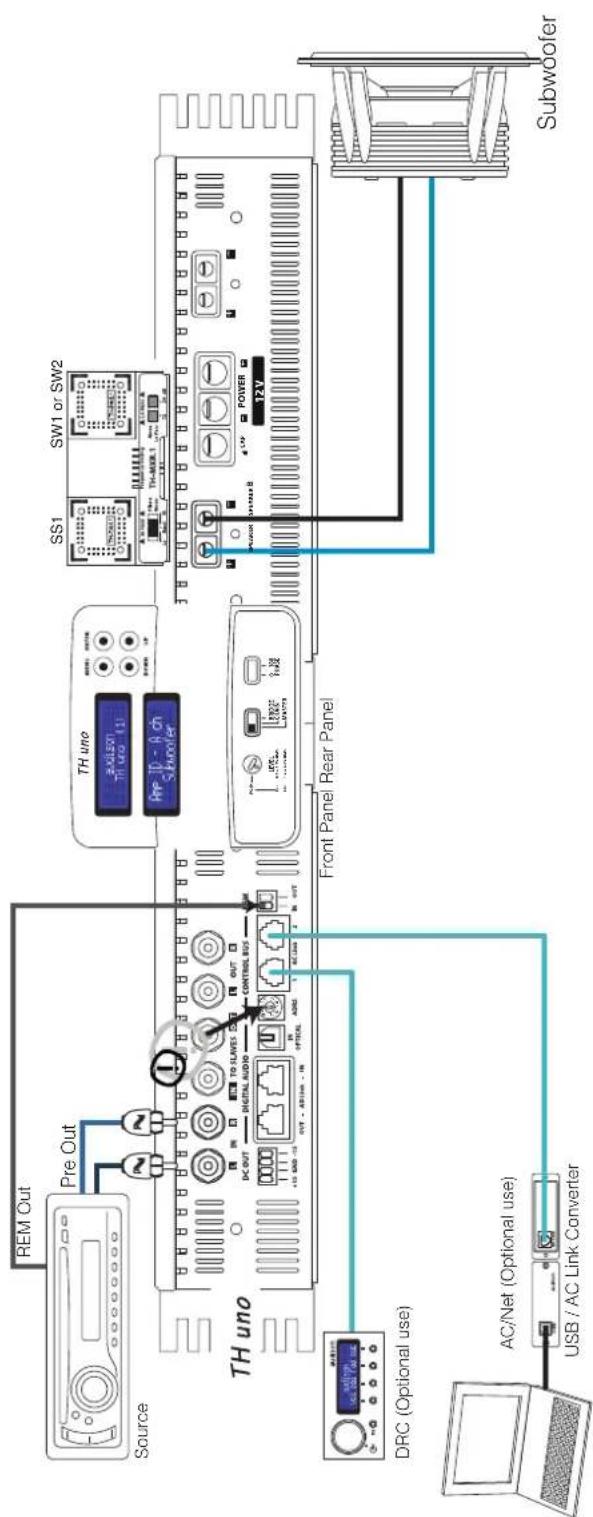

TH amplifier on Subwoofer, Analog Input 27

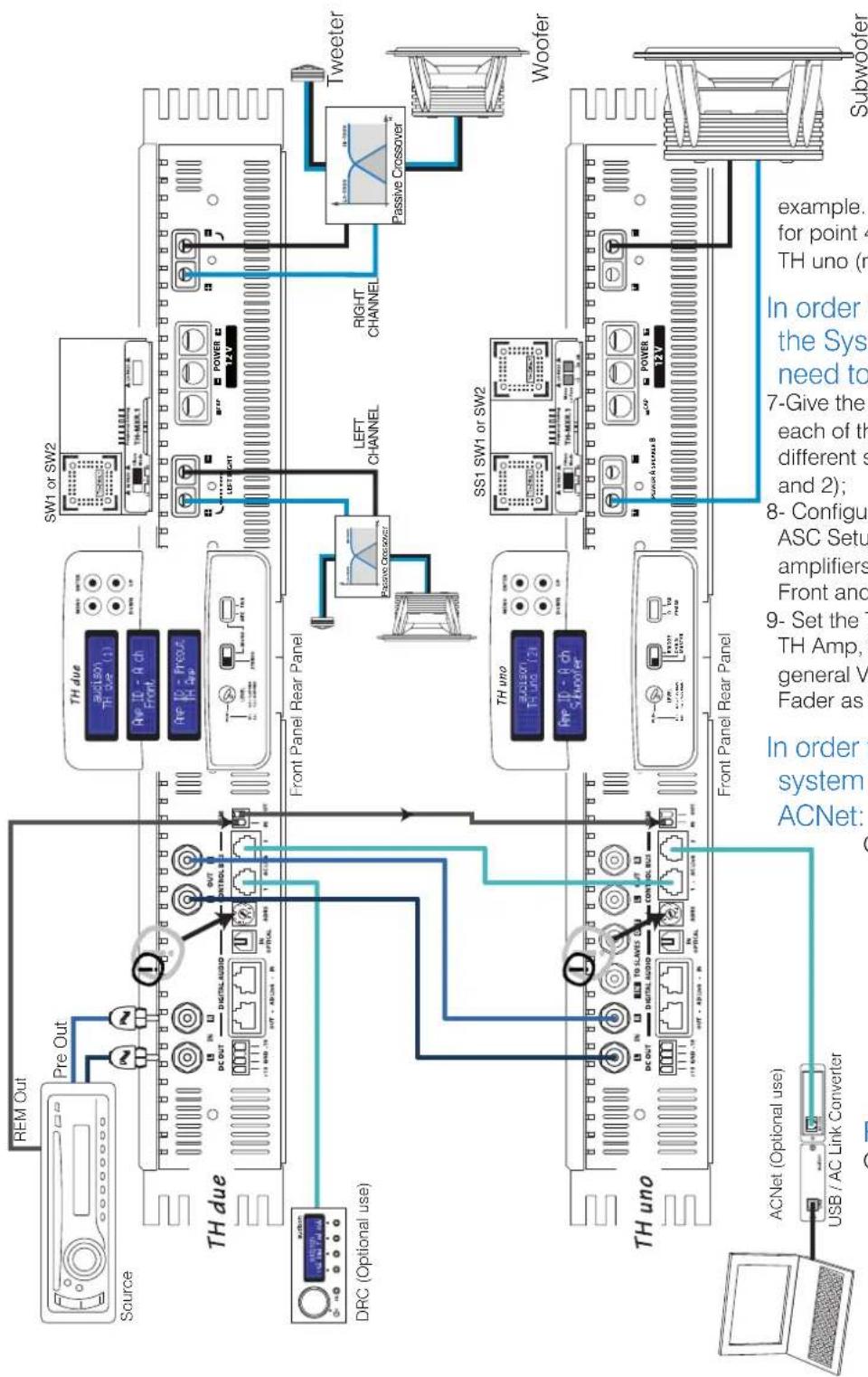

Two Way + Sub, bi-amplified, TH amplifier, Analog Input 28

Three Way + Sub, multi-amplified, TH amplifier, Analog Input 29

Two Way + Sub, bi-amplified, with and without TH amplifiers, Analog Input 30

Three Way + Sub, multi-amplified, with and without TH amplifiers, Analog Input 31

THESIS 32

ASC (AMPLIFIER STATUS CONTROLLER) 32

INPUTS AND PRE-AMPLIFIER 32

ASC - Amplifier Status Controller 33

Functions Description 33

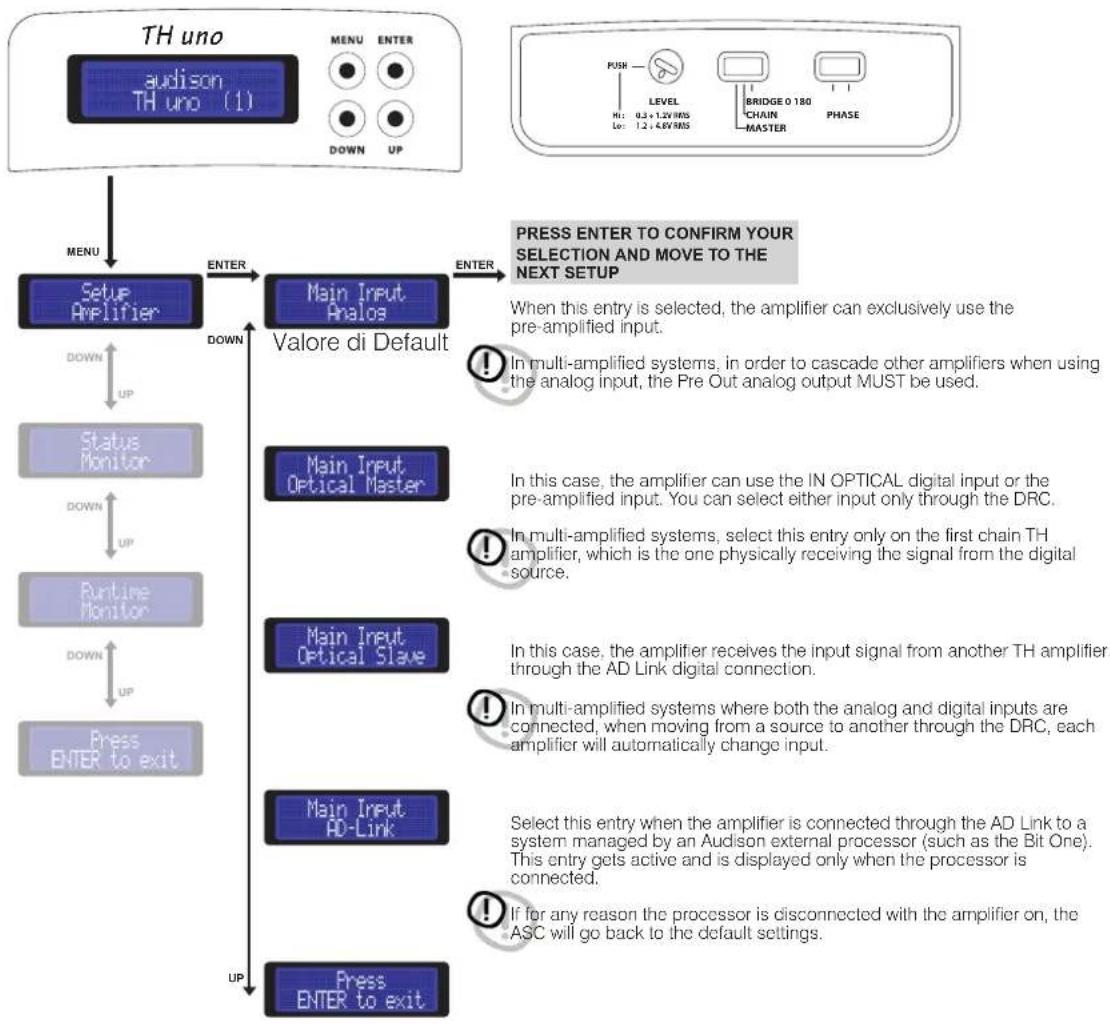

Setup Amplifier: Main Input 34

Digital Inputs 35

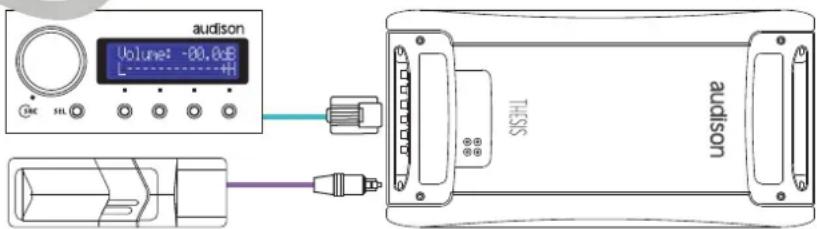

How to adjust the volume control and input selector using a digital source 35

Front Panel 36

How to achieve same output volume level using an analog source

(with its own volume control) and a digital source 36

How to connect a source through the optical digital input

in a system featuring more then one TH amplifier 37

How to connect a source through the optical digital input

in a system featuring other non-TH amplifiers 38

How to connect an analog and a digital source in a system

featuring more than one amplifier 39

How to connect an analog and a digital source in a system

featuring other non-TH amplifiers 40

THESIS

INDEX

How to connect an analog and a digital source in a system

featuring more than one TH amplifier (IN R or IN L) 41

How to connect an analog and a digital source in a system

featuring other non-TH amplifiers (IN R o IN L) 42

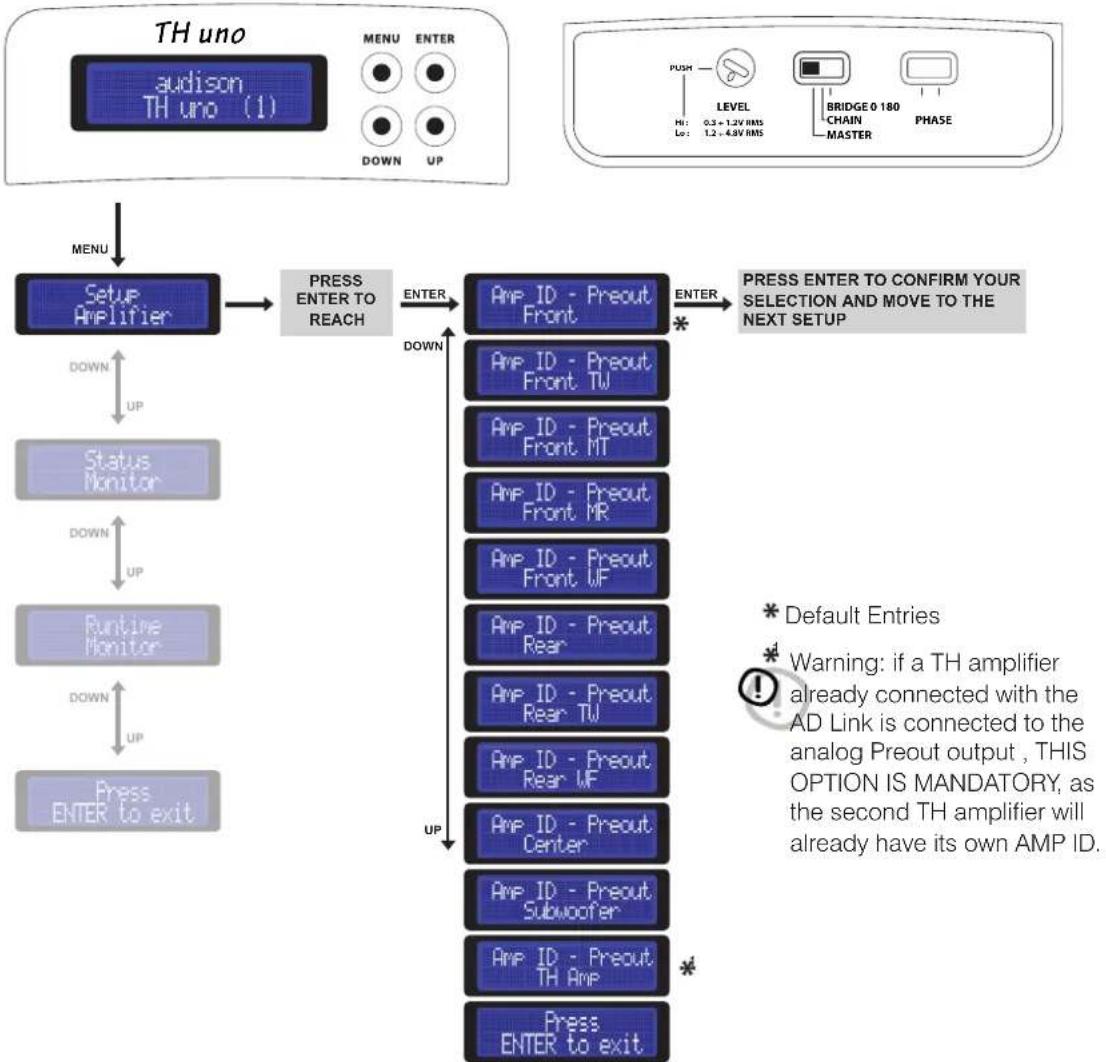

ASC - Amplifier Status Controller 43

Setup Amplifier: Amp ID 43

Setup Amplifier: Amp ID-Preout 44

Front Panel 45

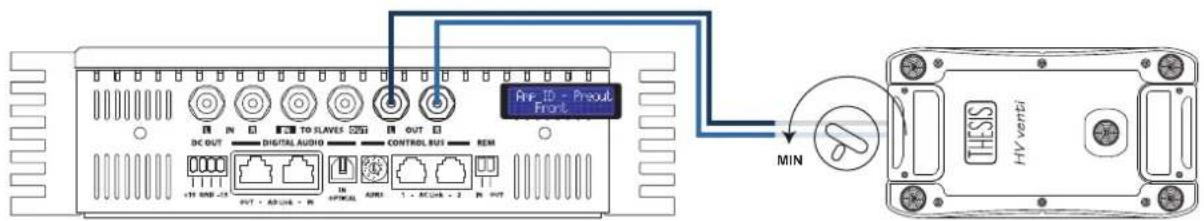

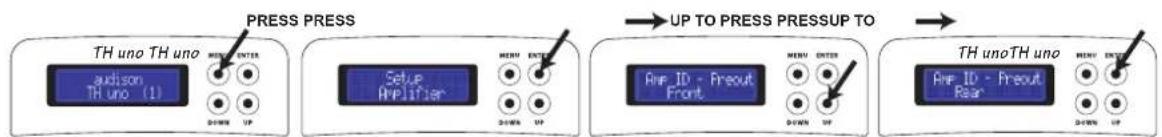

How to adjust the PRE OUT analog output 45

ASC - Amplifier Status Controller 46

Setup Amplifier: X-Over Slope 46

DUAL POWER & BIAS CONTROL 47

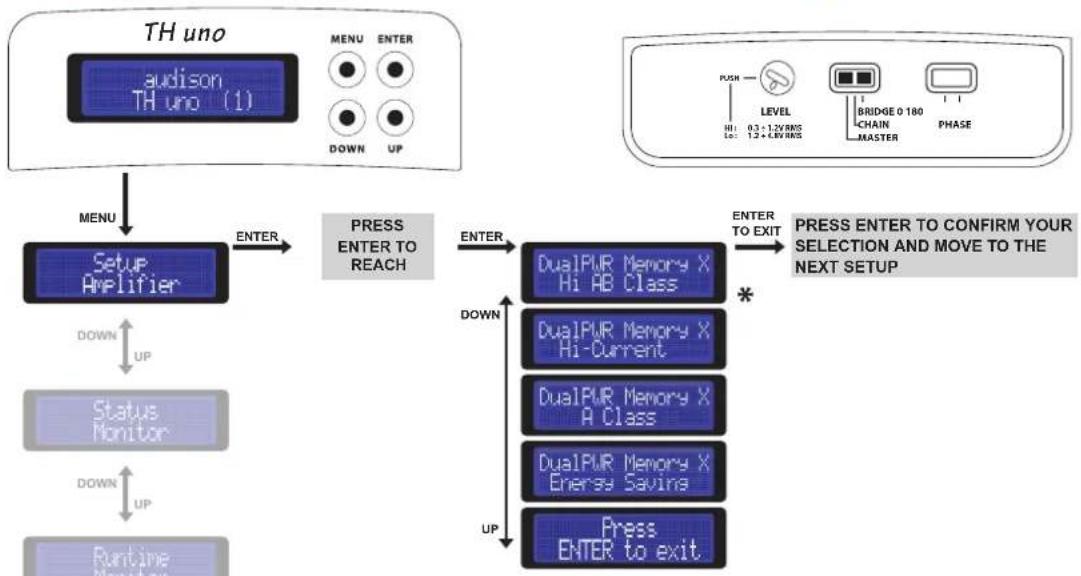

Setup Amplifier: DUAL POWER Settings 47

DUAL POWER Values 48

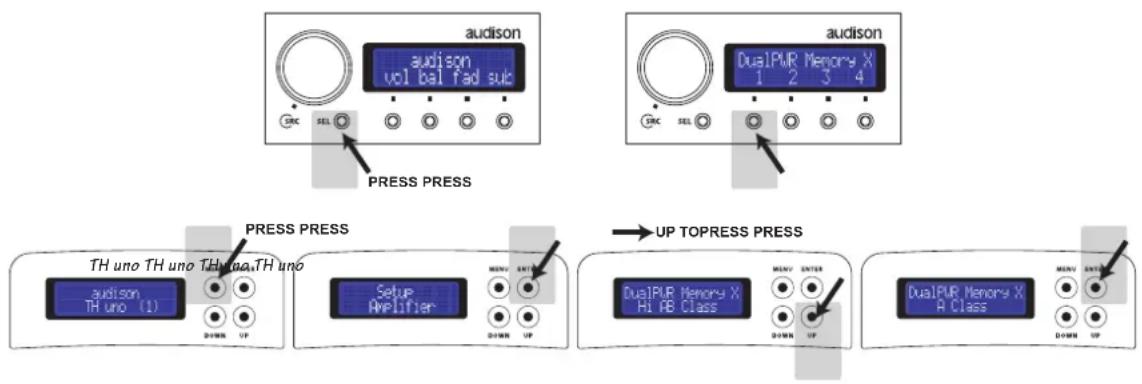

How to change presets on the Memory 49

Examples 50

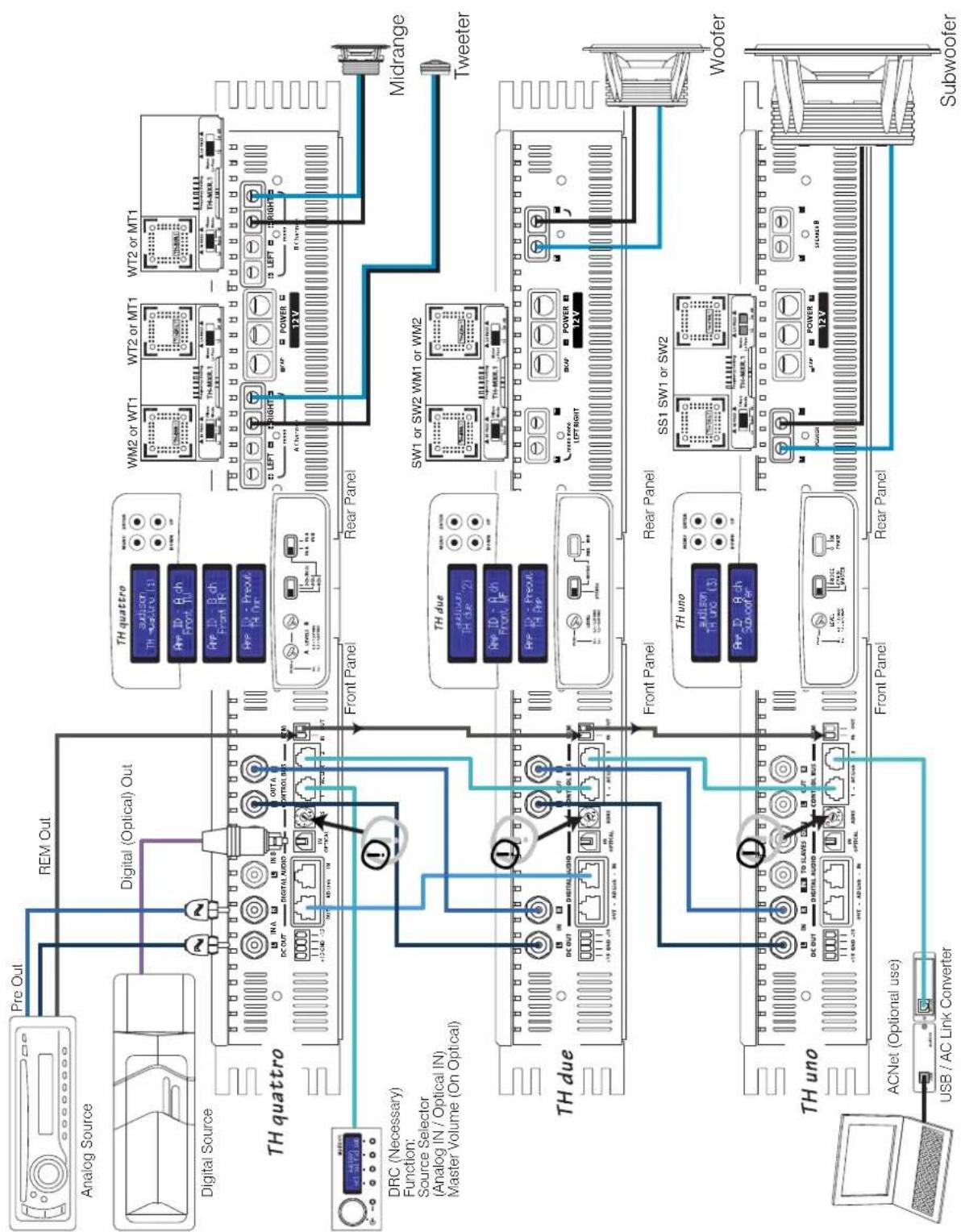

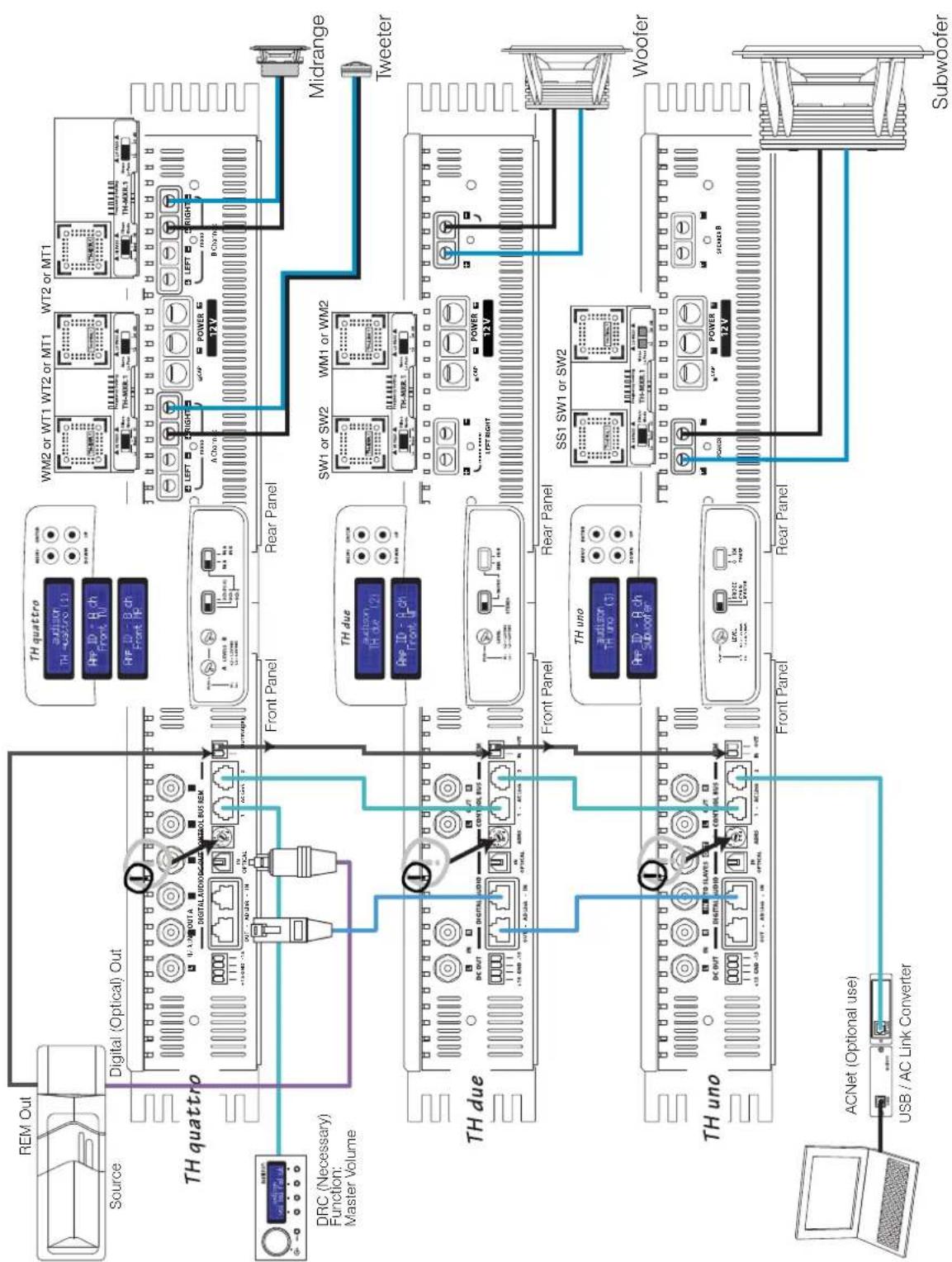

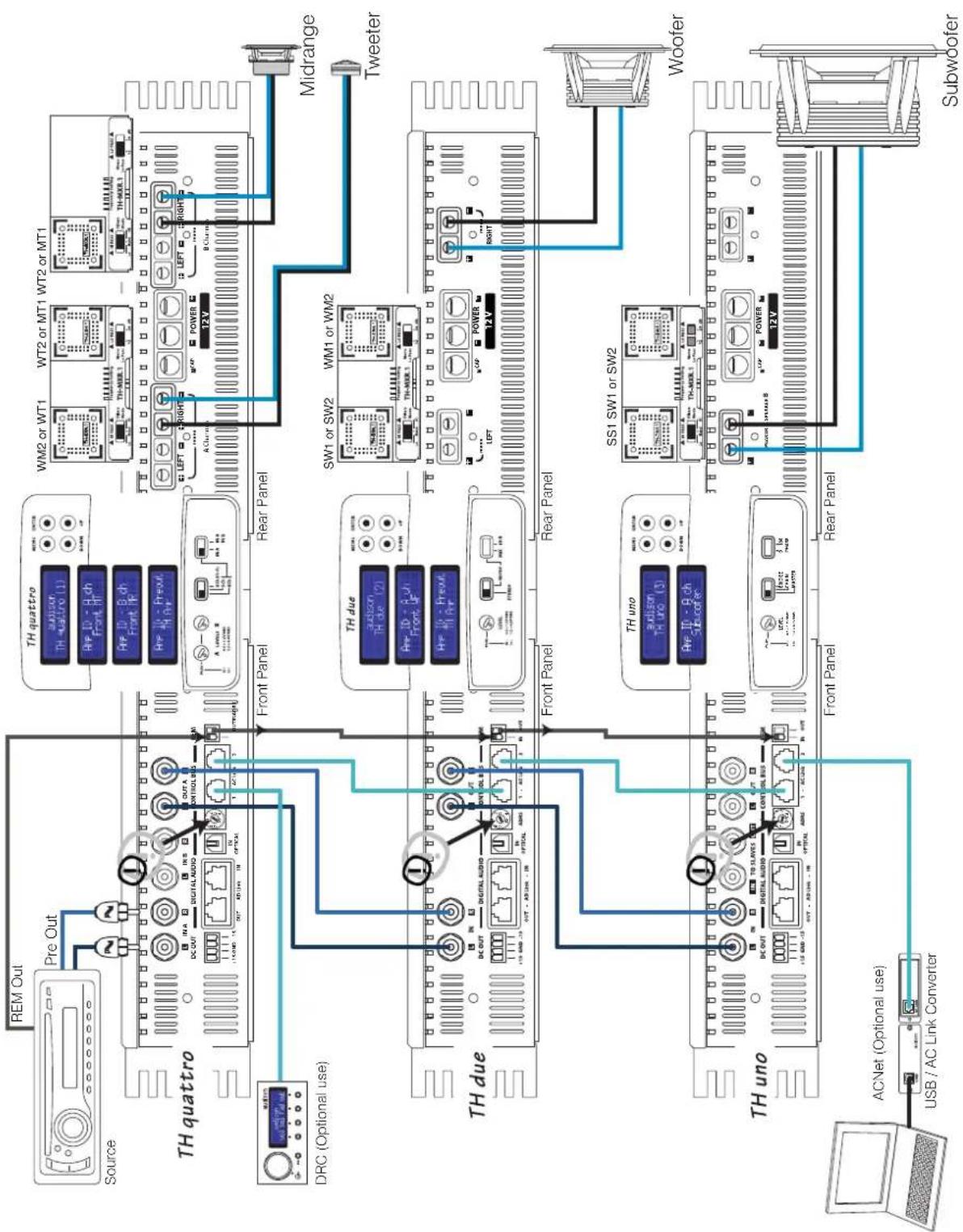

Three Way + Sub, multi-amplified, TH amplifiers, Digital Input 50

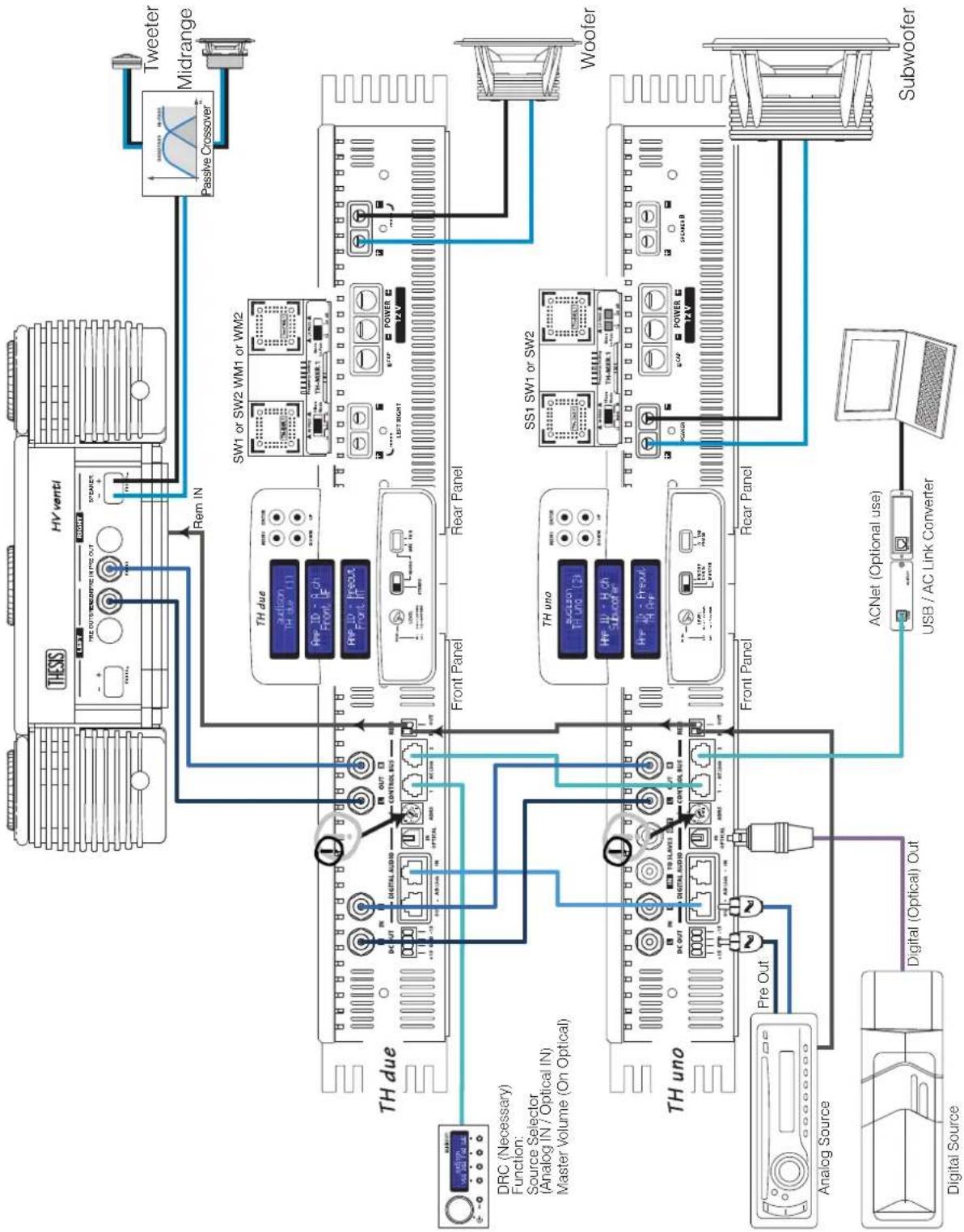

Three Way + Sub, multi-amplified, TH amplifiers, Analog + Digital Input 51

Three Way + Sub, multi-amplified, with both TH and non-TH amplifiers, Analog + Digital Input 52

ASC - Amplifier Status Controller 53

Status Monitor 53

Runtime Monitor 54

Info and Alert sentences 55

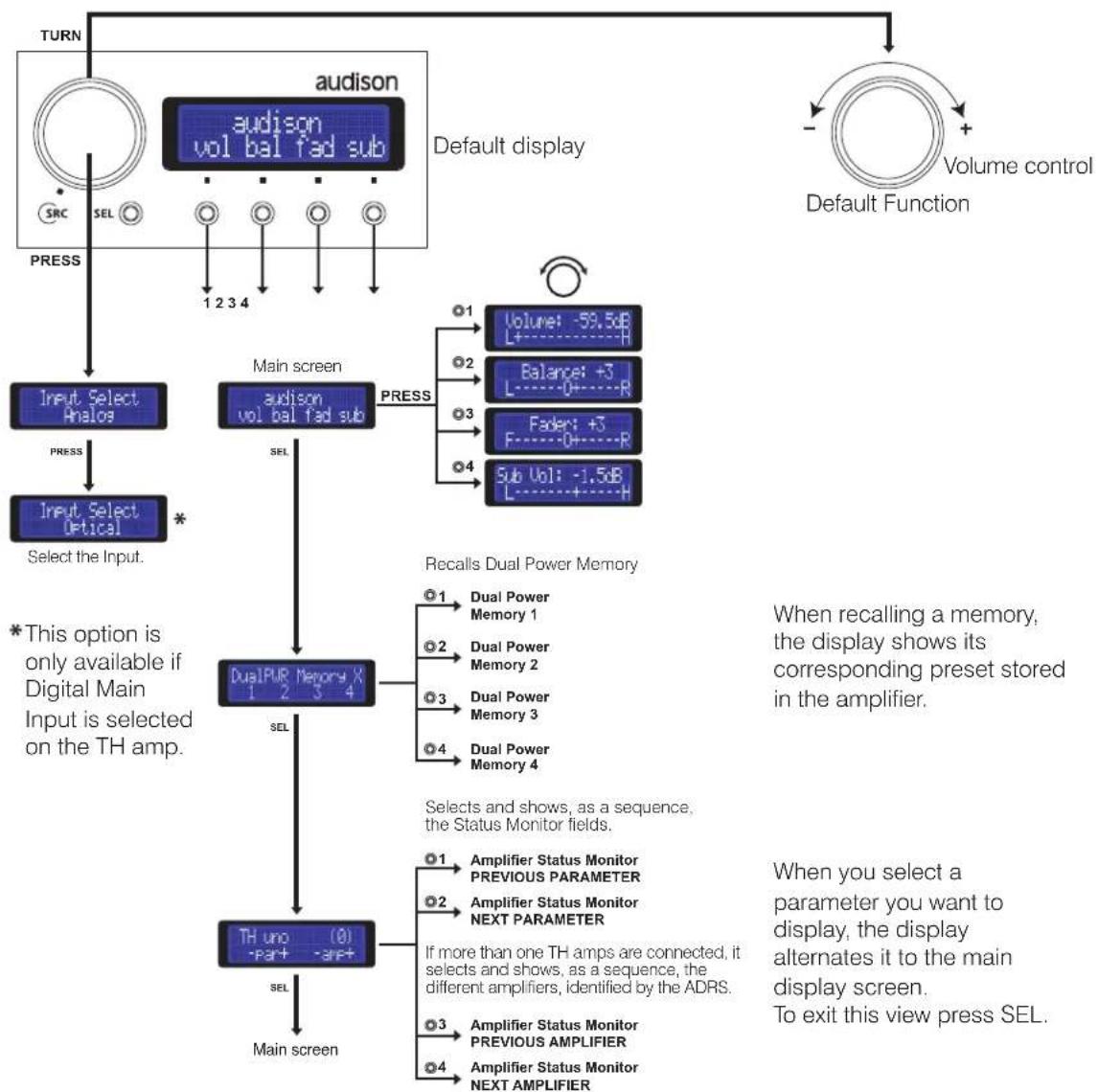

DRC - Digital Remote Control 56

Info and Alert sentences 57

How to connect 58

How to install 58

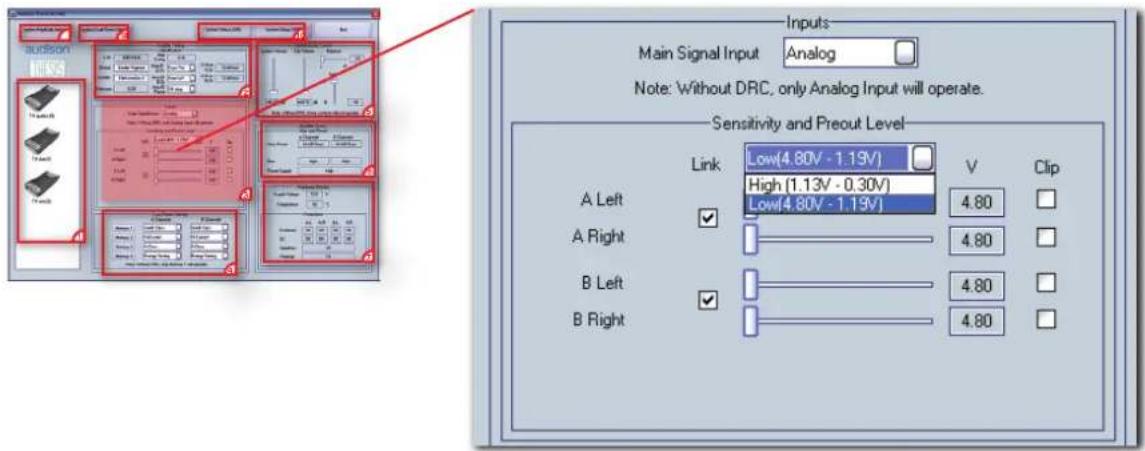

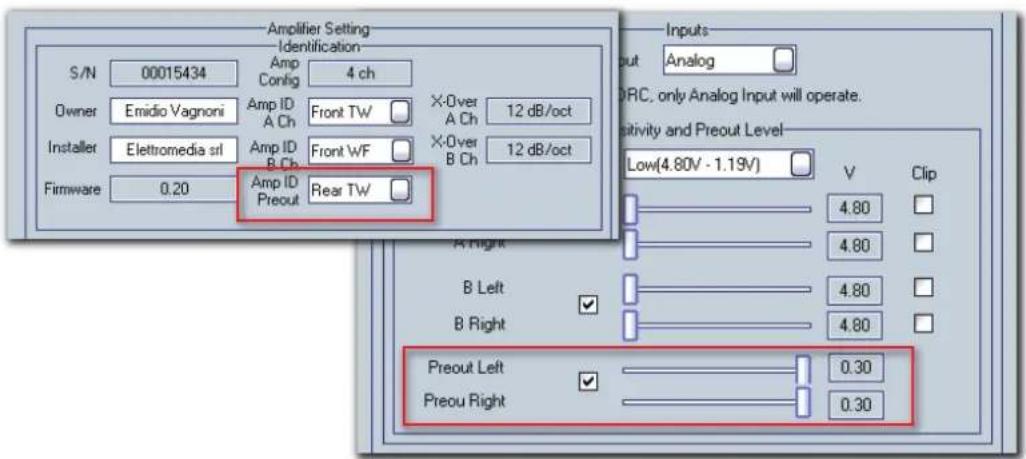

ACNet - Audison Control Network 59

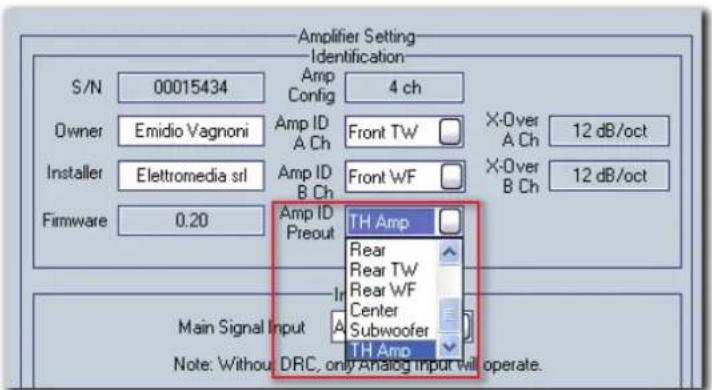

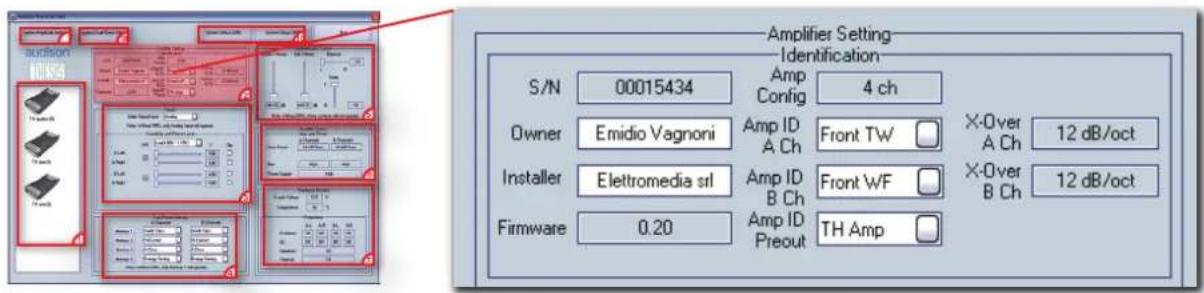

Amplifier Setting: Identification 62

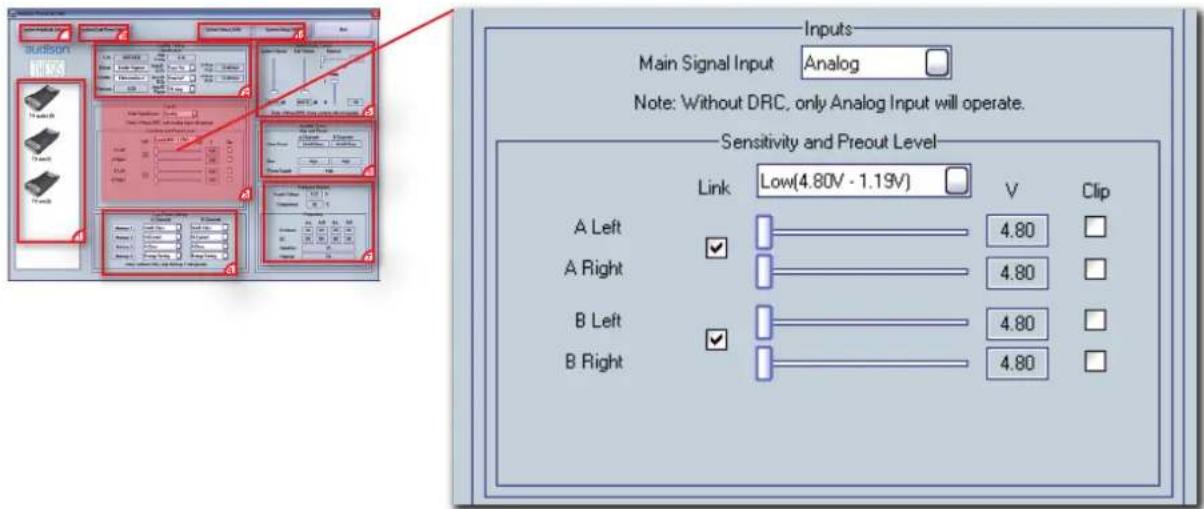

Amplifier Setting: Inputs 63

Amplifier Setting: Sensitivity and Preout Level 64

Amplifier Setting: Dual Power Memory 65

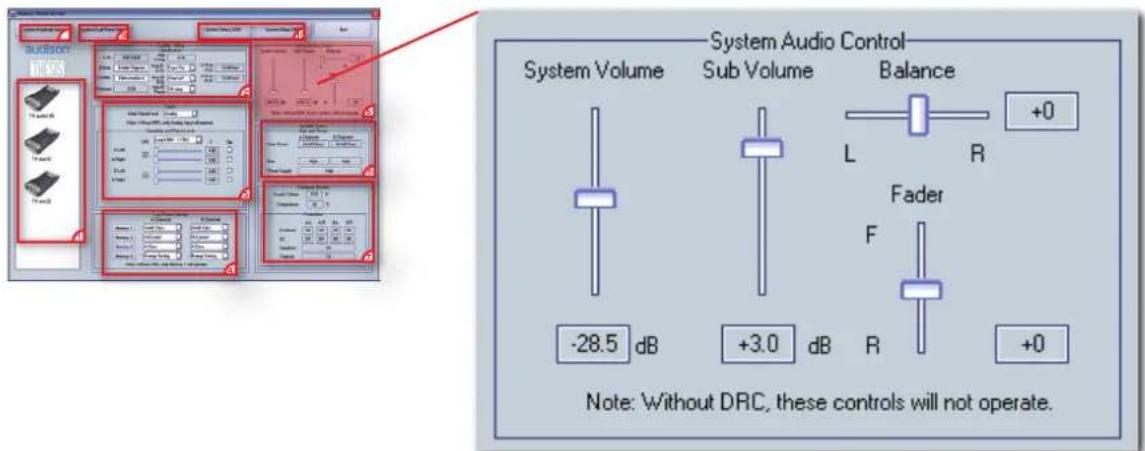

System Audio Control 66

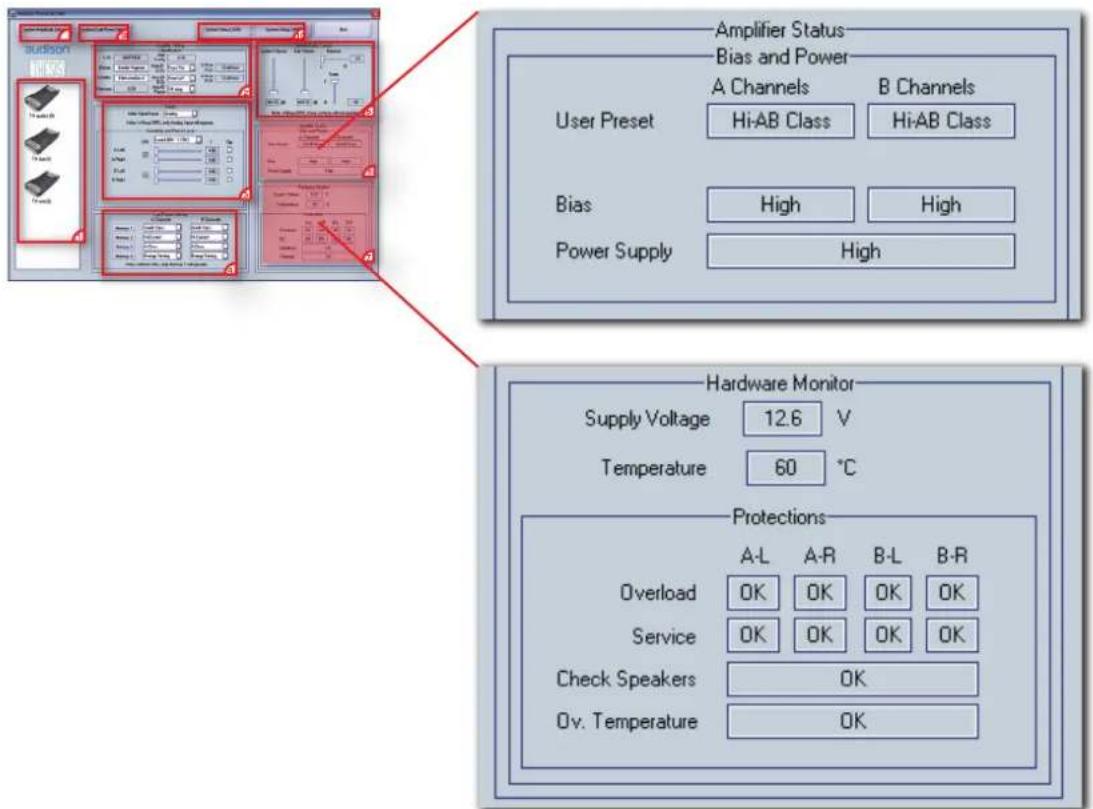

Amplifier Status 67

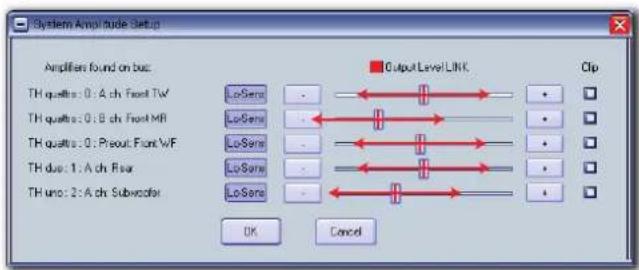

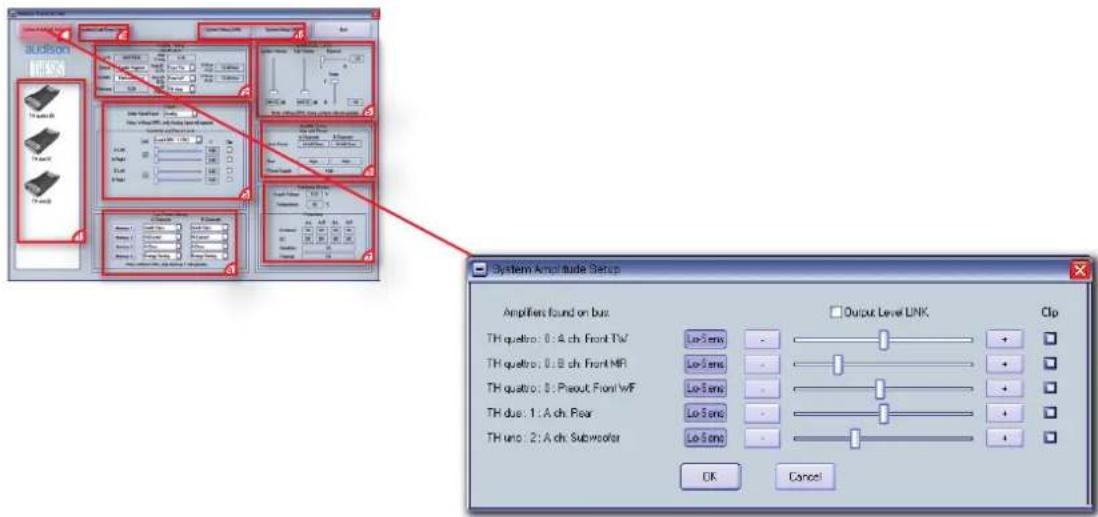

System Amplitude Setup 68

System Dual Power Setup 69

Technical Specifications 70

THESIS

The Project

The roads travelled to reach “the Sound” have created a conceptual cross-road, where state of the art digital technology and traditional techniques have gone their separate ways.

They both have benefits of a different nature, yet are capable of merging together to achieve much higher Sound quality levels.

The Thesis amplifiers are born from these considerations. The parts related to signal amplification are manufactured using the highest level of analog technology while, at the same time, the input section along with the processing and monitoring functions of the amplifier are the result of the most advanced digital technology.

The TH uno is a mono power amplifier, designed for use in car. It is technologically progressive, featuring original circuitry, with extraordinary sound, consistent with Audison tradition.

Sections:

This manual is divided into sections allowing the use of the TH amplifier in standard settings or using its specific features in "digital" settings. Each section is marked by its corresponding bookmark.

General Part:

The TH amplifiers need to be connected like any other amplifier, in compliance with safe working conditions. Installation as well as power supply and speaker connections have to be made properly, following the standard methods a specialty store normally follows.

Classic Domain:

Despite the endless settings and customising possibilities ASC (Amplifier Status Controller) offers, the TH amplifiers can also be used in a traditional way, taking advantage of the analog inputs and of the controls which provide the signal to the final stages.

The setting of the sensitivity, stereo or bridged mono configuration, the inputs sensitivity, the electronic crossovers on slide-through boards as well as the PRE bypass out, anyway let to include the TH within the traditional systems or to build amplifying chains with absolute audiophile quality.

Digital Domain:

The TH amplifiers feature ASC (Amplifier Status Controller) which provides several factory functions for the complete control of all the amplifier's functions.

Heart of the system is a digital power microprocessor. It manages the amplifier functions and communicates with the user through a control panel as well as the Display Monitor, featuring the DRC remote control or, in a more complete and direct way, through the ACNet Audison Controller Network software.

The ASC menu allows the amplifier set up, monitors the working conditions, viewable through a Status Monitor feature, also making the data available on the display intermittently. A USB connector enables the connection of the system to a computer, while the AC Link (Audison Control Link) allows the creation of communication network. The software will take care of the functional operations for all the amplifiers within the whole chain (system), providing a simple and complete interface. A revolutionary method for configuration which, up to know, were impossible to achieve with traditional designs.

Packaging Contents

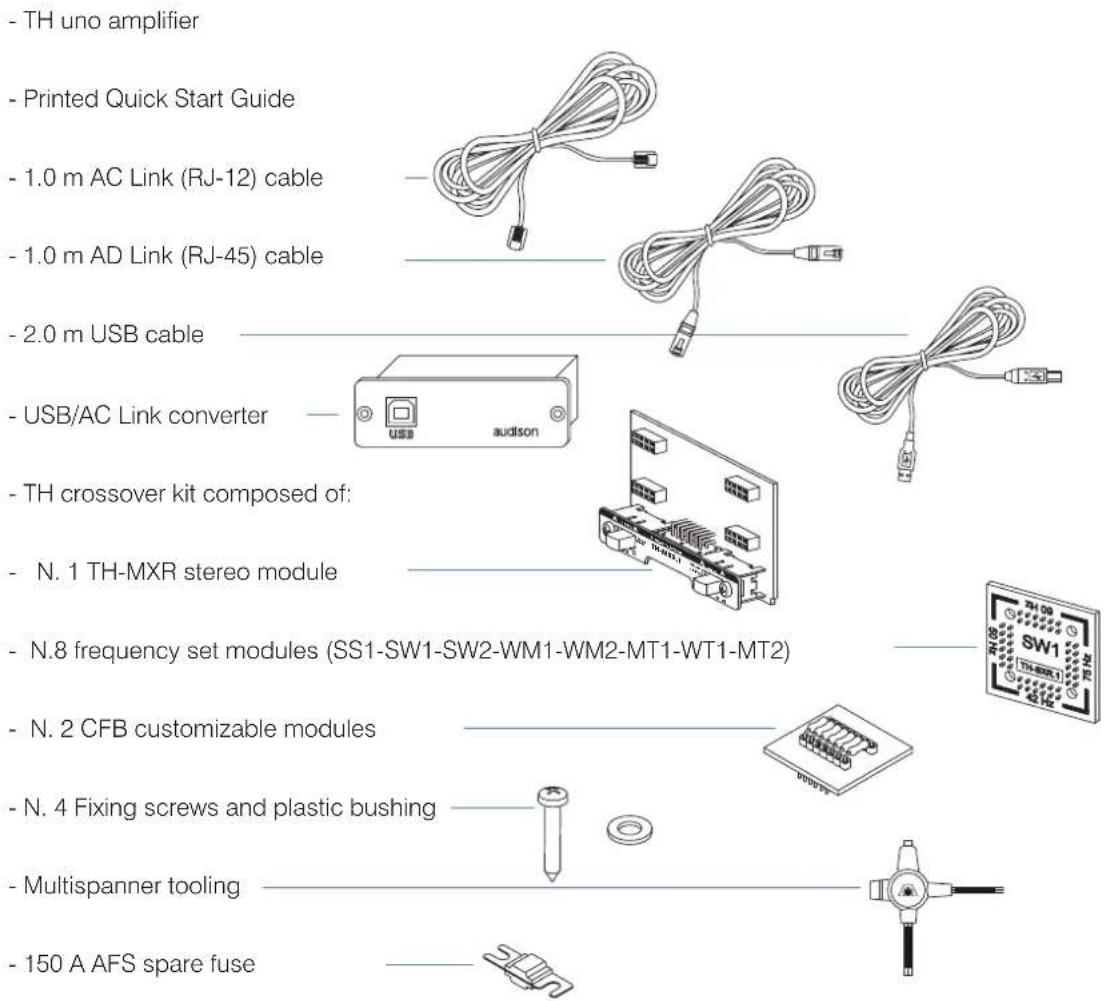

• TH uno amplifier
• Printed Quick Start Guide
• 1.0 m AC Link (RJ-12) cable
• 1.0 m AD Link (RJ-45) cable
• 2.0 m USB cable
• USB/AC Link converter
• TH crossover kit composed of:
• N. 1 TH-MXR stereo module
• N.8 frequency set modules (SS1-SW1-SW2-WM1-WM2-MT1-WT1-MT2)
• N. 2 CFB customizable modules
• N. 4 Fixing screws and plastic bushing
• Multispanner tooling
• 150 A AFS spare fuse
• INSTALLATION CD with: CD ROM TEST SIGNALS

ACNet Software Track 01. sine sweep (0 dB) - 10 min

This Advanced Manual (.pdf) Track 02. white noise (-12 dB) - 15 min

AC Link Drivers Track 03. pink noise (0 dB) - 10 min

USB-ACNet Drivers Track 04. sine wave 50 Hz (0 dB) - 2 min

Track 05. sine wave 1 kHz (0 dB) - 2 min

Available accessories (not included):

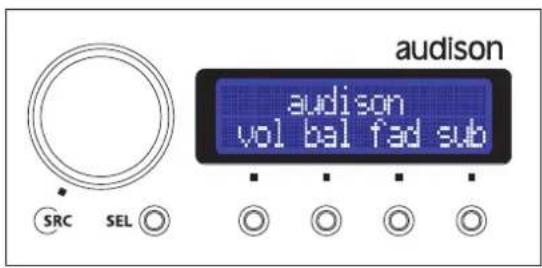

DRC - Digital Remote Control

• DRC control panel
• 4.5 m DRC/AC Link cable

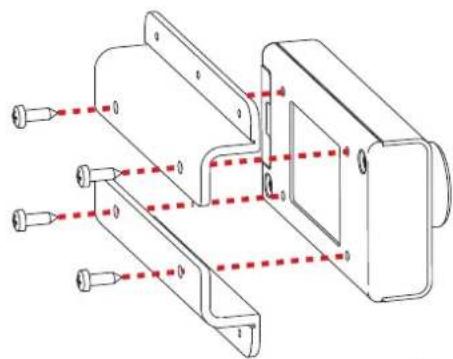

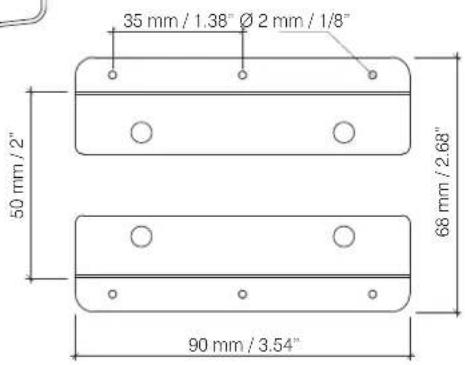

• N.2 fixing brackets

Coiled cable with connectors, no text or symbols visible

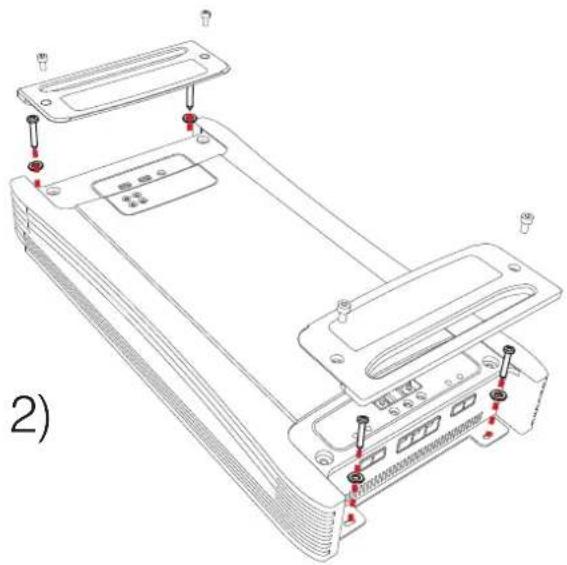

Installation

External size

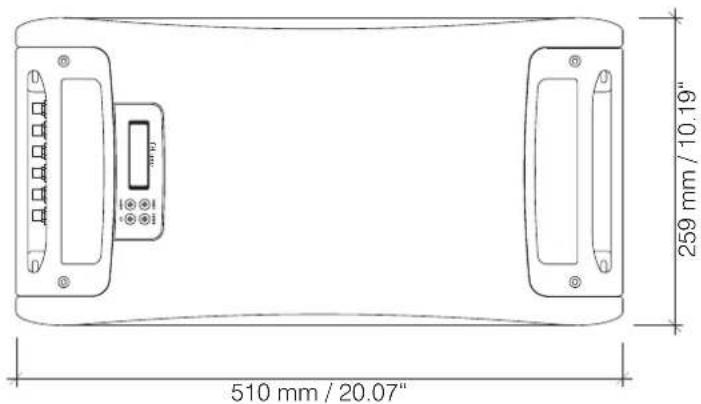

510 mm / 20.07" 259 mm / 10.19"

How to fix

Technical line drawing of a server rack with mounting holes and ventilation slots (no text or symbols)

2)

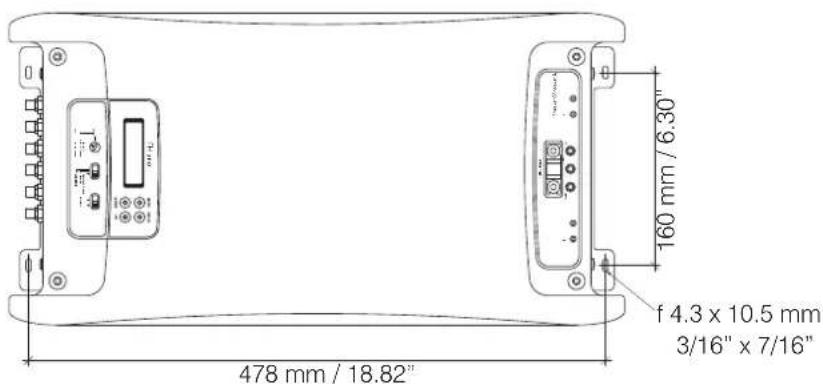

Fixing size

478 mm / 18.82" f 4.3 x 10.5 mm 3/16" x 7/16" 160 mm / 6.30"

THES

Fixing te

Warning: to properly print the template at the real size, select the "None" option into the "Page Scaling" setup. After printing, cut the sheets along the blue reference line and then glue them.

Architectural floor plan showing wall and floor structures with no text or labels

THESIS

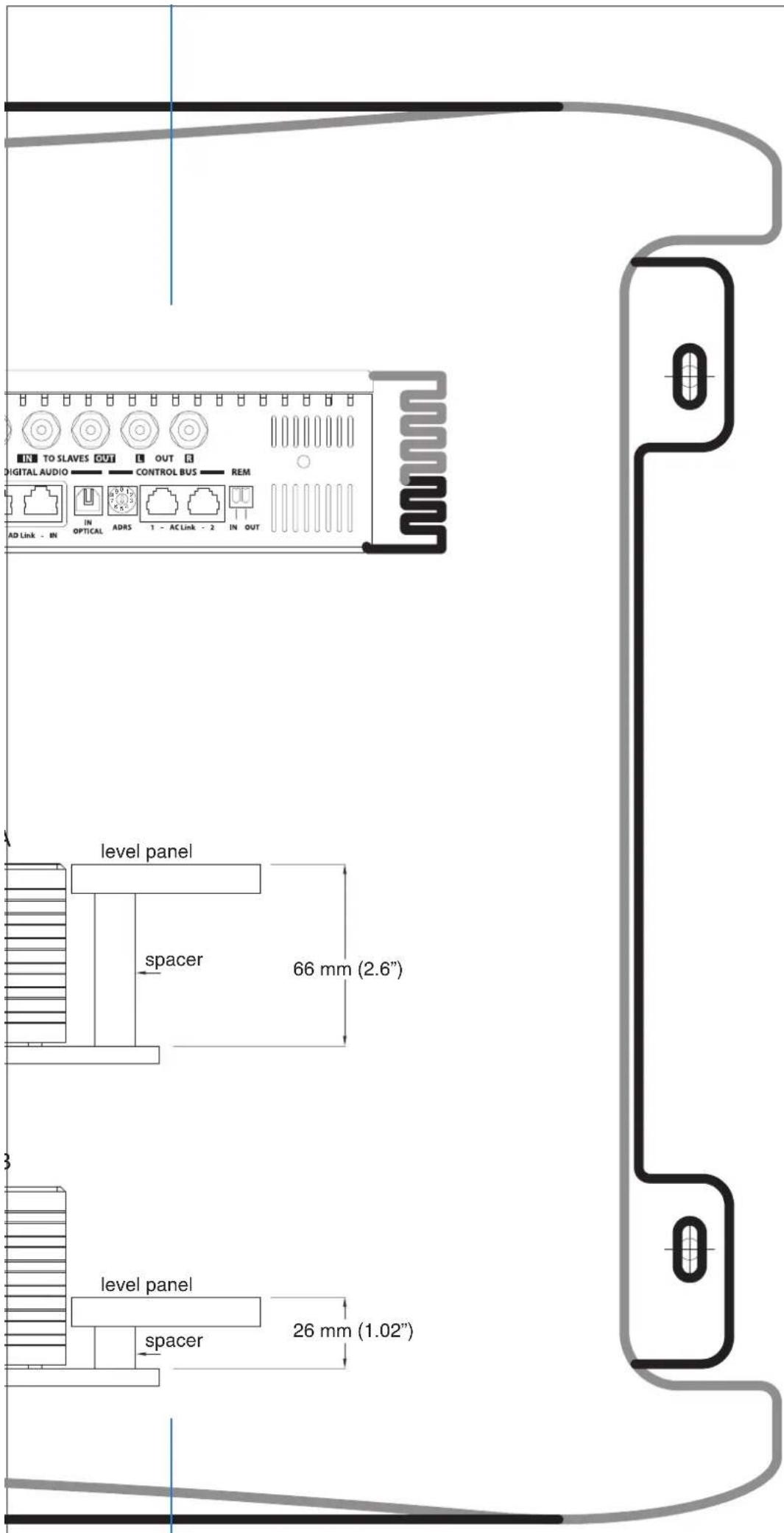

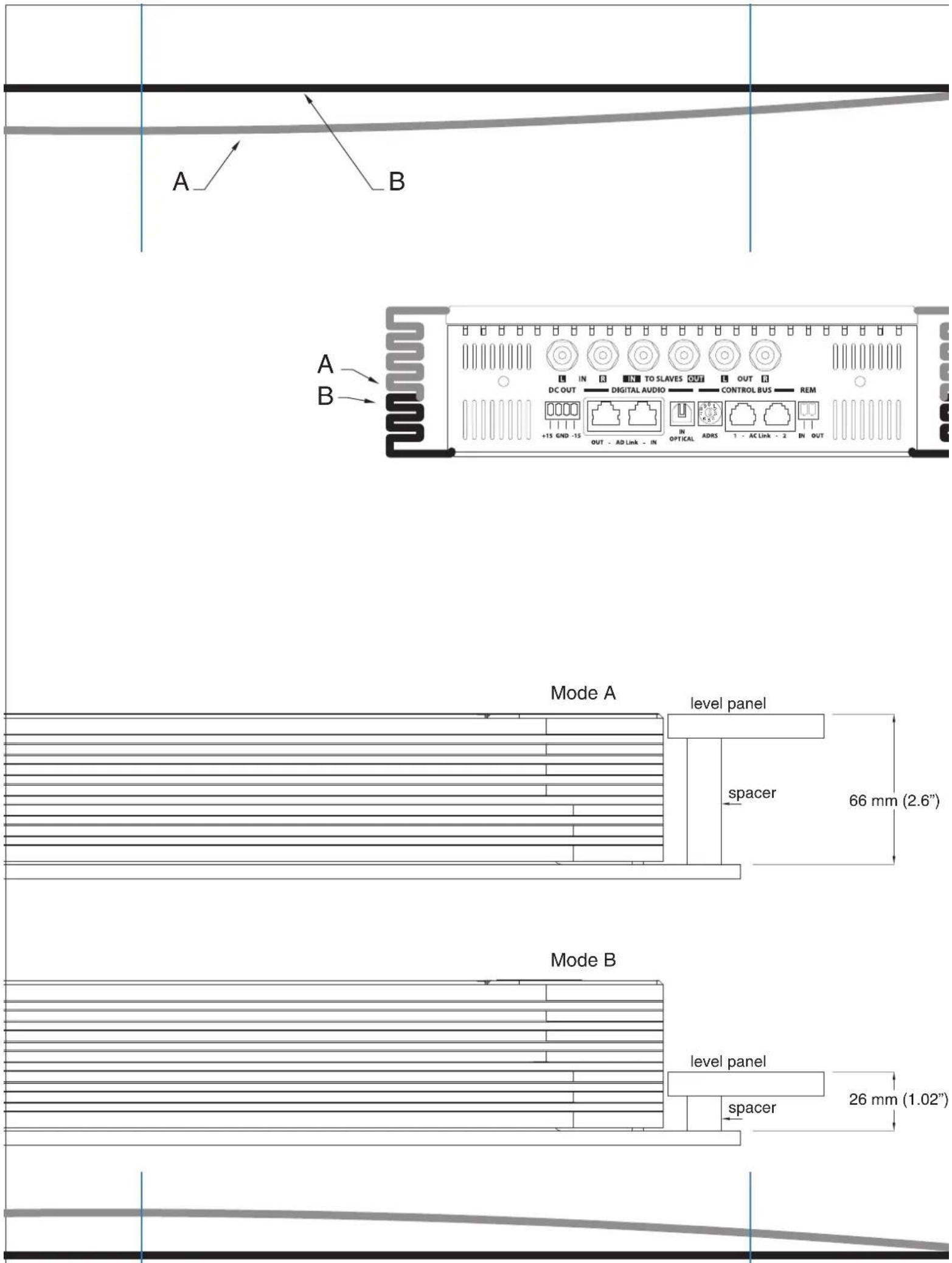

Fixing template

A B

A B A B DC OUT DIGITAL AUDIO TO SLAVES OUT CONTROL BUS REM +15 END -15 OUT - AD Link - IN IN OPTICAL ADRS 1 - AC Link - 2 IN OUT Mode A level panel spacer 66 mm (2.6") Mode B level panel spacer 26 mm (1.02")

DIGITAL AUDIO IN TO SLAVES OUT CONTROL BUS REM AD Link - IN OPTICAL ADRS 1 - AC Link - 2 IN OUT level panel spacer 66 mm (2.6") level panel spacer 26 mm (1.02")

Rear Panel

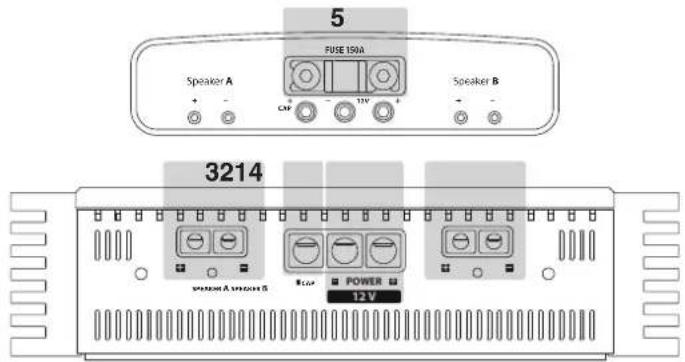

Functions Description

5 FUSE 190A Speaker A Speaker B 3214 sension A version B BLGR POWER 12 V

1 • POWER: Positive and negative terminals for 12 V car voltage supply. Size of connectors is 10 mm diameter (2 AWG). Warning: connect positive and negative (GND) with polarity as indicated in the terminal. A wrong connection cause an amplifier damage.
2 • +CAP: Terminal to connect positive pole of external capacitor.
3 • SPEAKER A: Terminals to connect speakers. Size of connectors is 6 mm (6 AWG). Pay attention to connect speaker with polarity as indicated, wrong polarity causes a phase problem in the audio system.
4 • SPEAKER B: Terminals to connect speakers. This output is connected in parallel with SPEAKER A to allow the connection of several speakers.
5 • FUSE: Protection Fuse Connection Audison AFS 150 A.

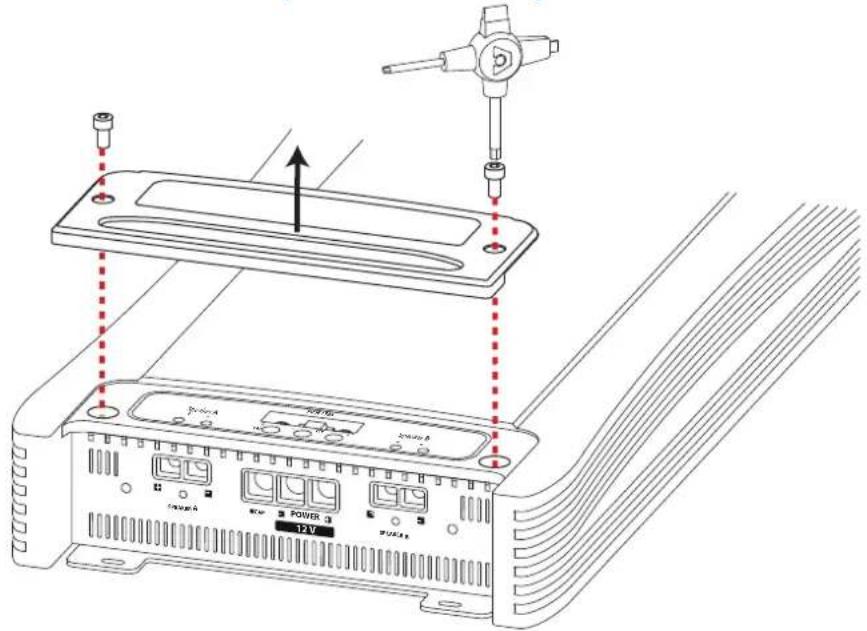

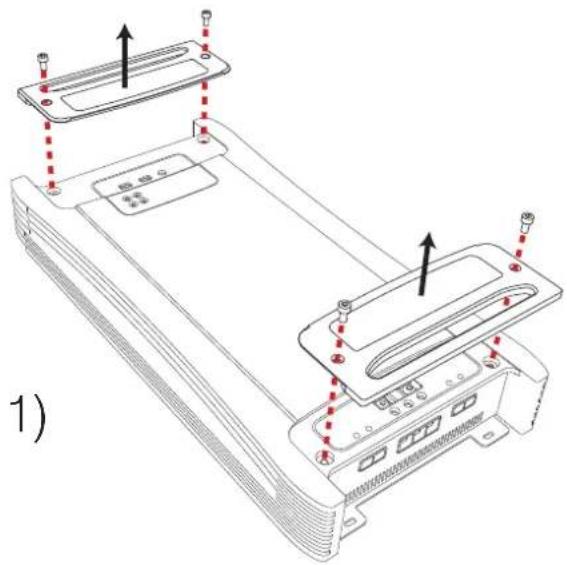

How to remove the panel / the protection knob

Technical diagram showing cable port connections with labeled ports and a 12V power indicator

Rear Panel

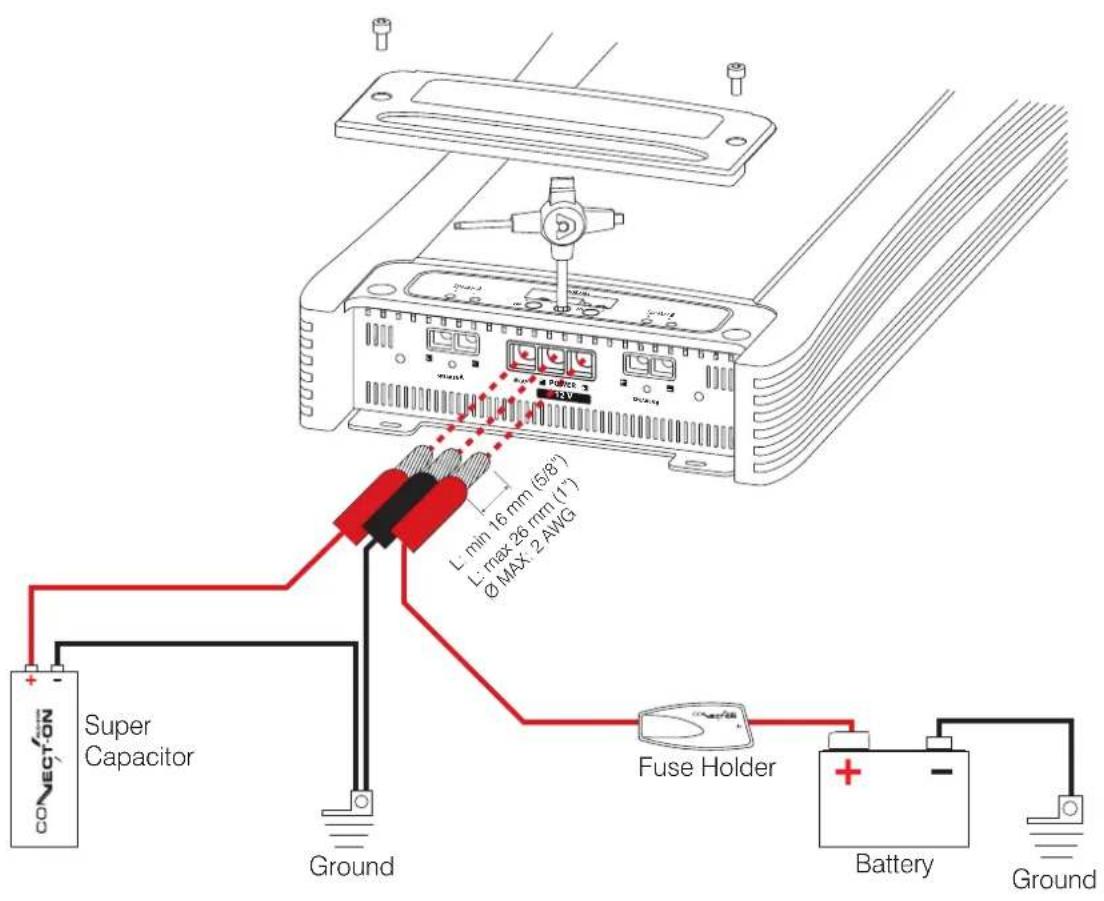

How to connect the power supply

Super Capacitor Ground L min 16 mm (5/8") L max 26 mm (1") Ø MAX 2 AWG Fuse Holder Battery Ground

Rear Panel

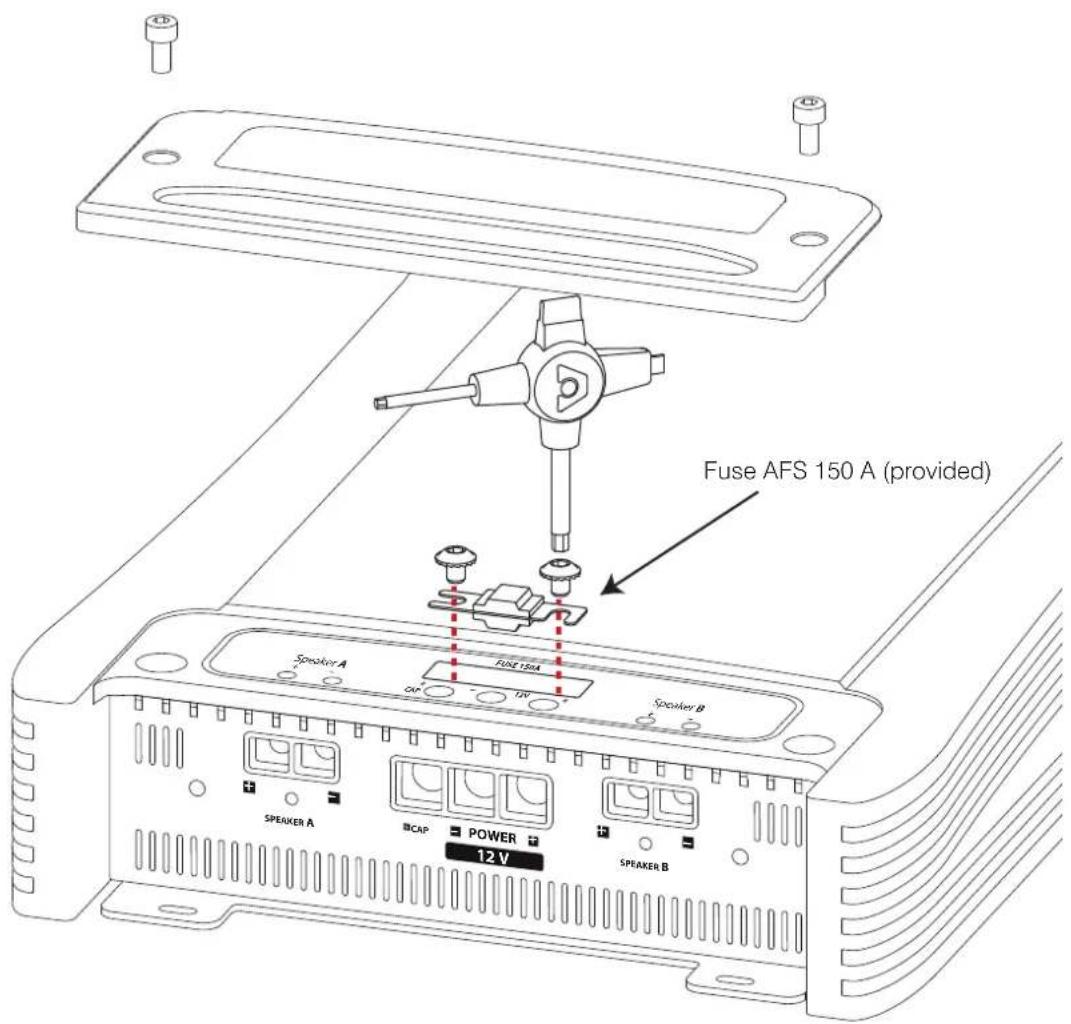

How to replace the fuse

Fuse AFS 150 A (provided) Speaker A Speaker B Speaker A Speaker B 12 V

Rear Panel

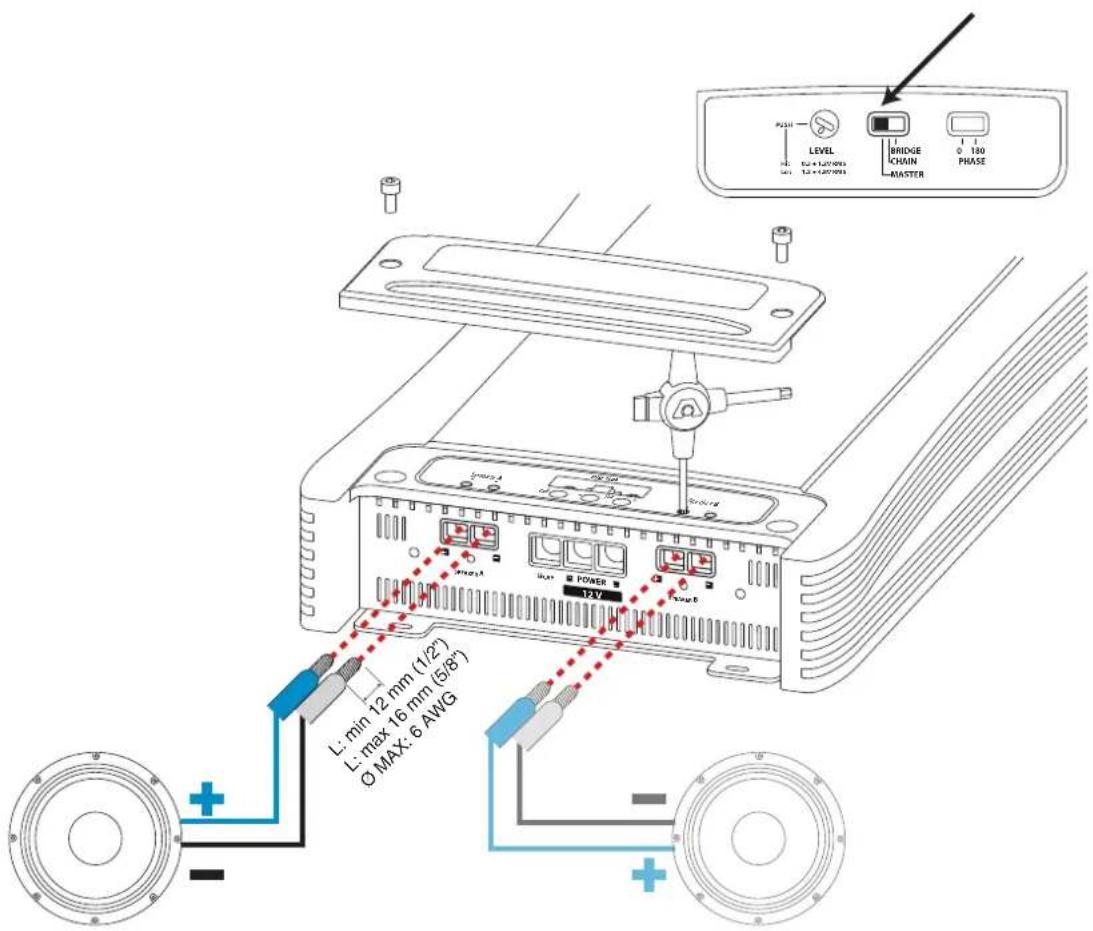

How to connect the speakers using one amplifier (MASTER)

LEVEL BRIDGE CHAIN 0 180 PHASE L: min 12 mm (1/2") L: max 16 mm (5/8") O MAX: 6 AWG

Speaker A Speaker B
connected in parallel with Speaker A

Rear Panel

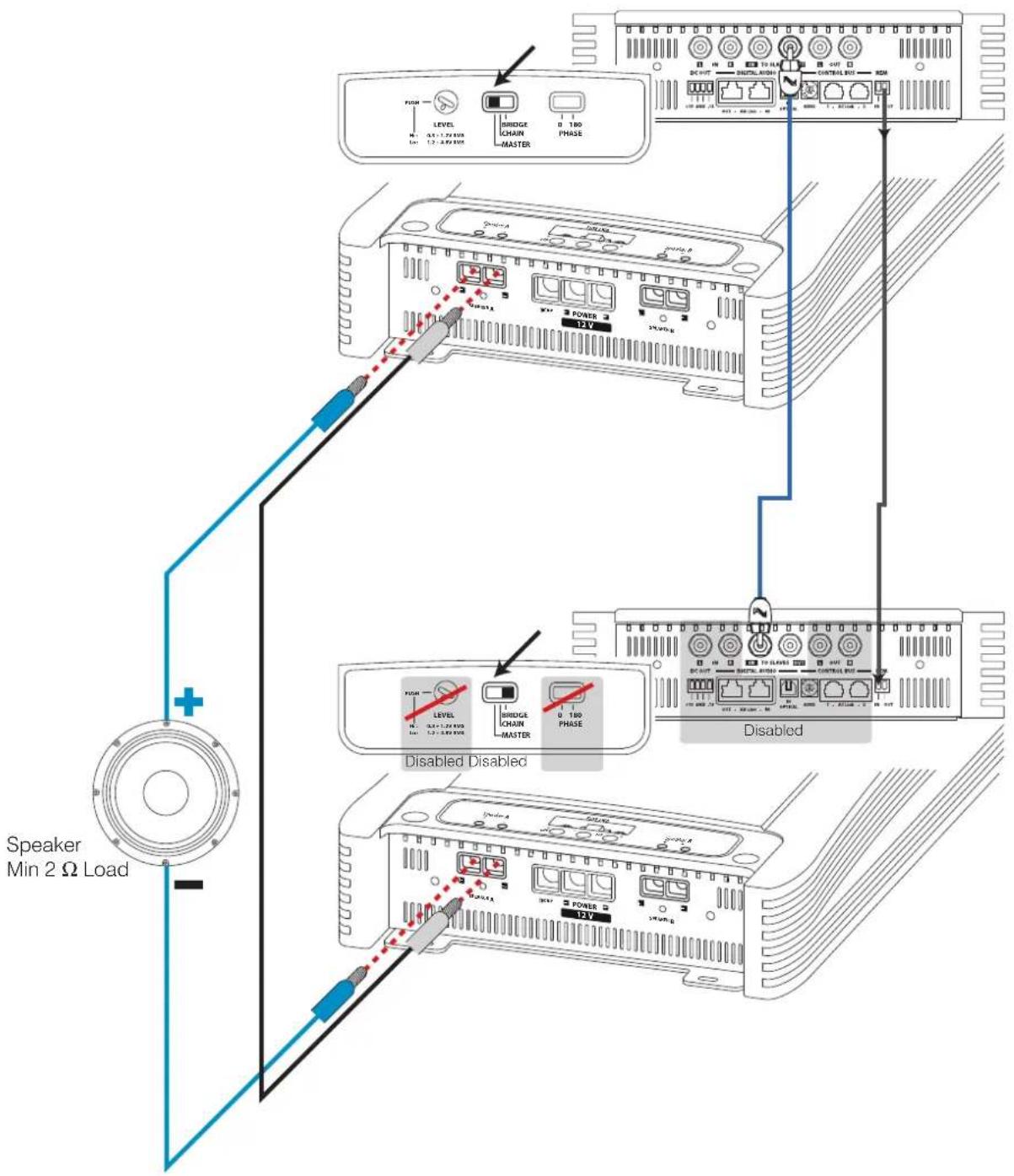

How to connect the speakers using two amplifiers in BRIDGE mode (MASTER + BRIDGE)

Speaker Min 2 Ω Load + - LEVEL 0.5-1.2V/100 Max 1.2-2.8V/100 BRIDGE CHAIN MASTER PHASE POWER 12V CONTROLLED DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT DC OUT

Rear Panel

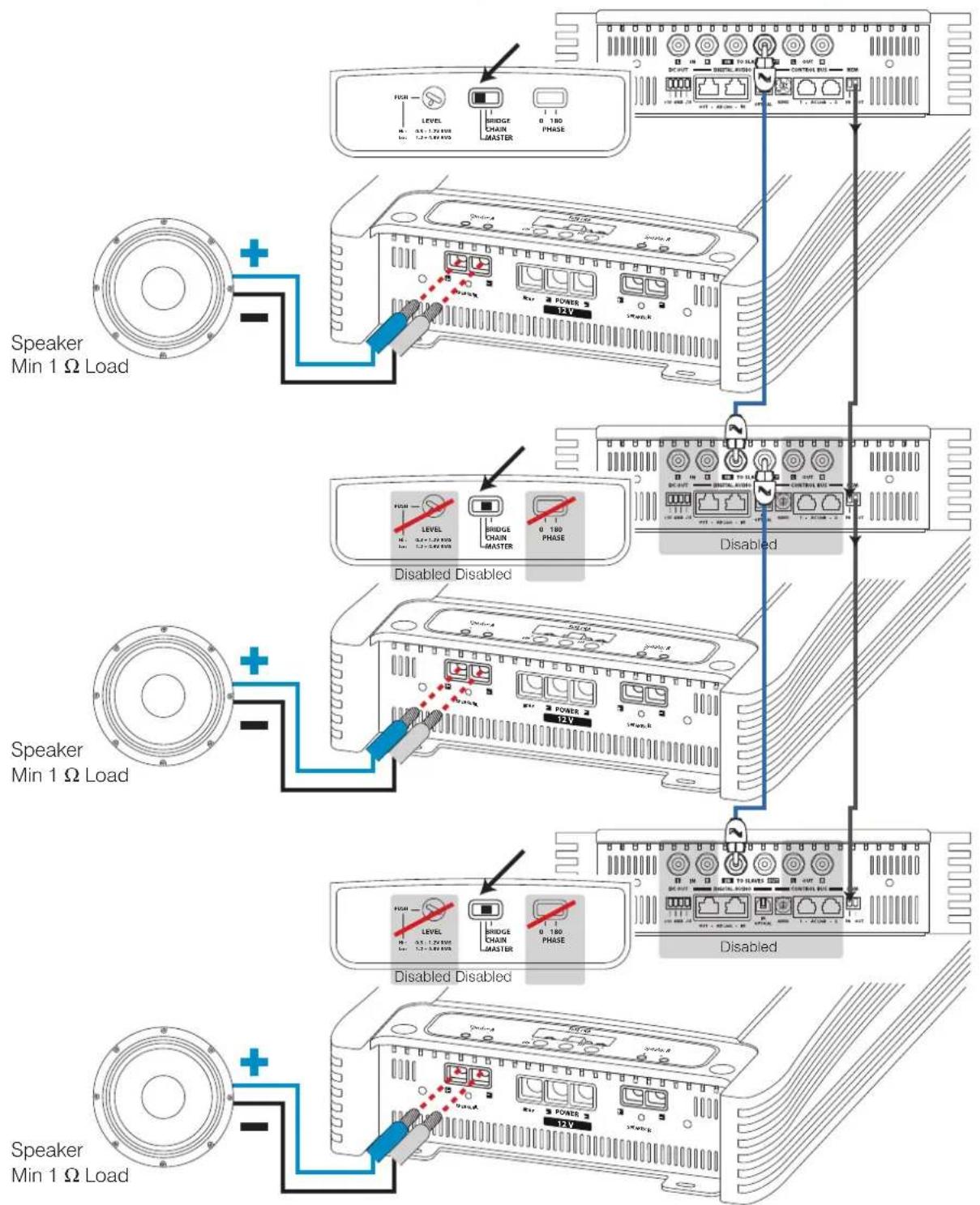

How to connect the speakers using more than one amplifier in CHAIN mode (MASTER + CHAIN)

Input controls

Functions Description

123 PUSH — LEVEL Hi : 0.3 ± 1.2V RMS Lo : 1.2 ± 4.8V RMS BRIDGE 0 180 CHAIN MASTER PHASE

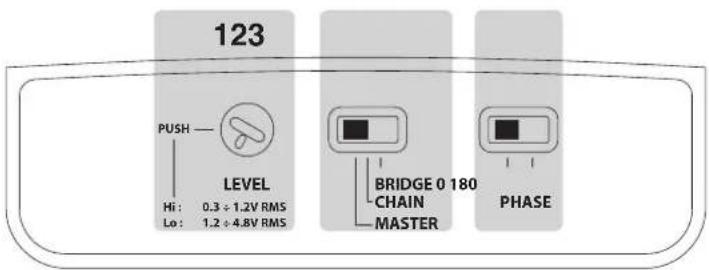

1 • LEVEL: Input sensitivity adjustment. It features 2 ranges, Hi from .3 to 1.2 VRMS and Low from 1.2 to 4.8 VRMS. By pushing for three seconds on the knob you can change the range. To see voltage value and range check the ASC display. Those controls are also available if ACNet software is used.
2 • AMP MODE: This switch sets the working mode of the amplifier (see pages 14 - 15 - 16).
3 • PHASE: This switch regulates the absolute acoustic phase of the amplifier.

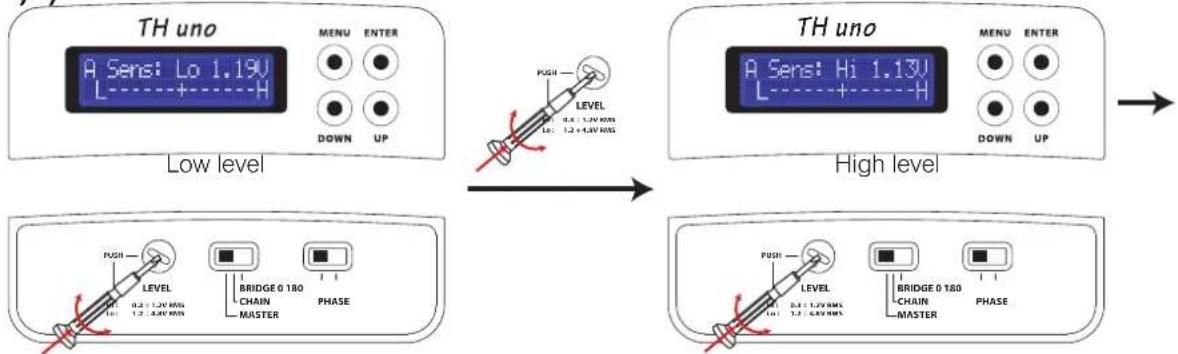

How to move from one sensitivity range to another

1)2)

TURN THE KNOB TO REGULATE THE LEVEL PRESS THE KNOB FOR 3" TO CHANGE THE RANGE FROM LO TO HI
TURN THE KNOB TO REGULATE THE LEVEL PRESS THE KNOB FOR 3" TO CHANGE THE RANGE FROM HI TO LO

WARNING: be careful when passing from LO to HI level!

NOTE: sensitivity is automatically set on the lowest value of Hi Level range, but the difference between the two levels could be dangerous for your system.

Front Panel

Functions Description

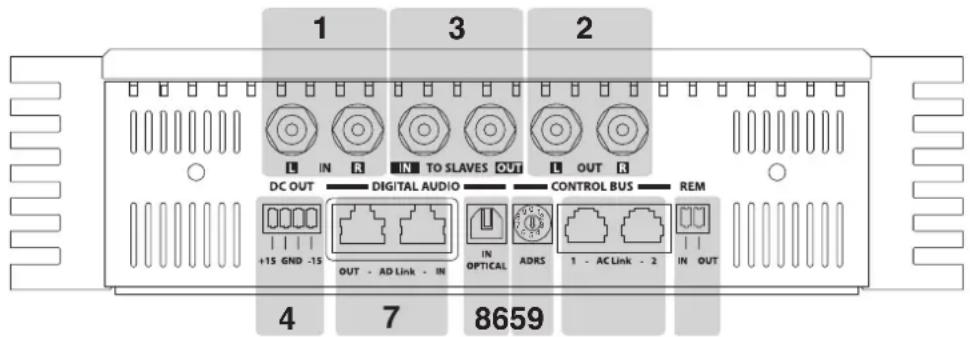

1 3 2 L IN R IN TO SLAVES OUT L OUT R DC OUT DIGITAL AUDIO CONTROL BUS REM +15 GND -15 OUT - AD Link - IN IN OPTICAL ADRS 1 - AC Link - 2 IN OUT 4 7 8659

1 • IN L/R: Analog Input Left / Right
2 • OUT L/R: Bypass Analog Output Left / Right. To check out how they work see page 20 ÷ 22 / 37 ÷ 42
3 • IN/OUT TO SLAVES: Analog Input and Output to control the amplifier in BRIDGE or CHAIN Mode
4 • DC OUT: 15 V supply for external devices

CONTROL BUS

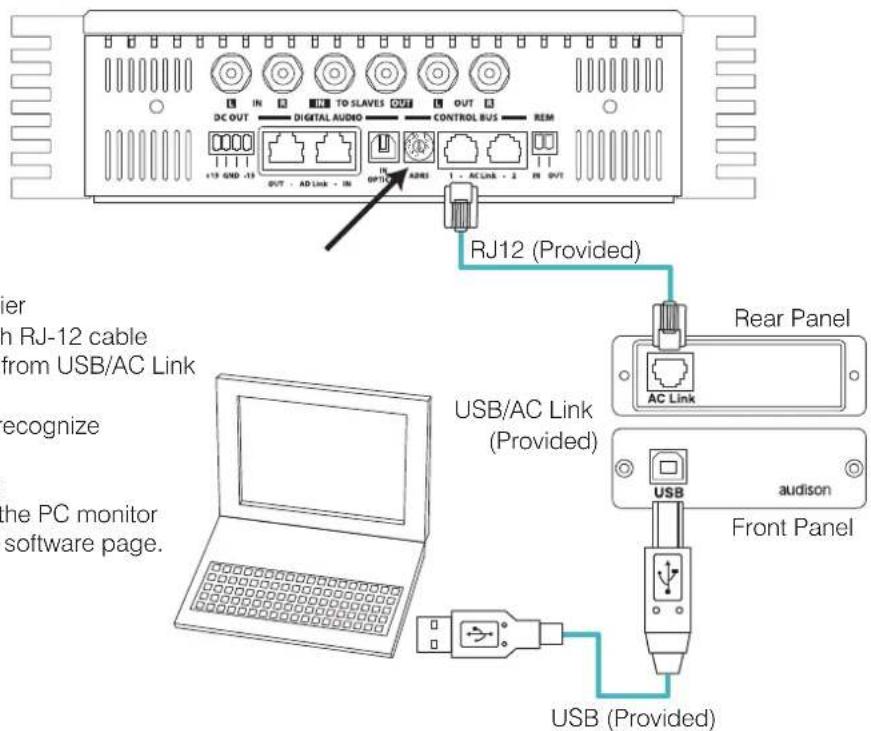

5 • AC Link 1 and 2: RJ-12 terminals to connect other provided ACLink devices such as TH amplifiers, DRC (Digital Remote Control), Audio Digital Processors, ACLink/USB Adapter for Personal Computer connection. The use of connector 1 or 2 is interchangeable. The RJ-12 connectors provided cable is normally used for digital telephone connection, but is not compatible with digital telephone technology. It features 6-way connectors. The AC Link connection can give power supply to the amplifier external devices.

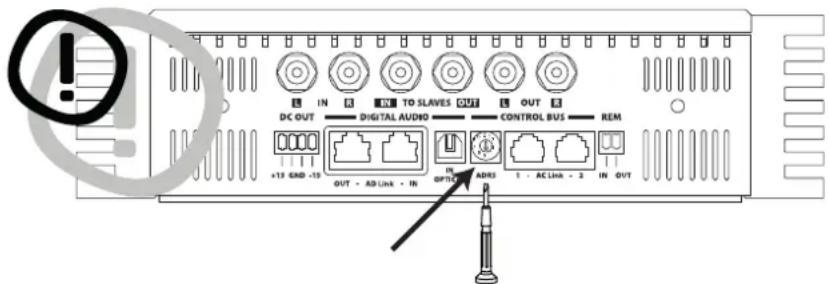

6 • ADRS: ADRS: It's the digital address of the amplifier when you want to realize a system with more than one TH. Switch selector from 0 to 9 to set in a different number on each TH amplifier of the AC Link network. Maximum allowed chain amplifiers number is 10.

Warning: a different number has to be assigned to each amplifier starting from number zero, otherwise the ACLink network will not work properly. The selected number is shown on the Status display between brackets.

IN TO SLAVES OUT OUT DC OUT DIGITAL AUDIO CONTROL BUS REM +15 END -15 OUT - AD Link - IN GPS/AC ADC 1 - AC Link - 2 IN OUT

DIGITAL AUDIO

7 • AD Link: is an Audio Digital Bus that can carry 8 channels. It employs a Class 5 or 6 shielded Ethernet LAN cable with the provided shielded connectors, normally used in computers network.

• AD Link IN: RJ-45 terminal input to connect digital audio coming from previous TH amplifier or the provided external device AD Link such as Digital Audio Processor (bit One / bit Ten D).
• AD Link OUT: RJ-45 terminal output to connect to the next TH amplifier.

8 • OPTICAL IN: Input to connect the provided optical cable with TOSLINK connectors. The optical audio digital signal in S/PDIF standard is supplied from provided sources such as CD/DVD players. Accetta in ingresso segnali stereo PCM fino a 192 kHz / 24 bit.

9 • REM IN/OUT: Turn On Remote Input and Output for other devices.

Front Panel

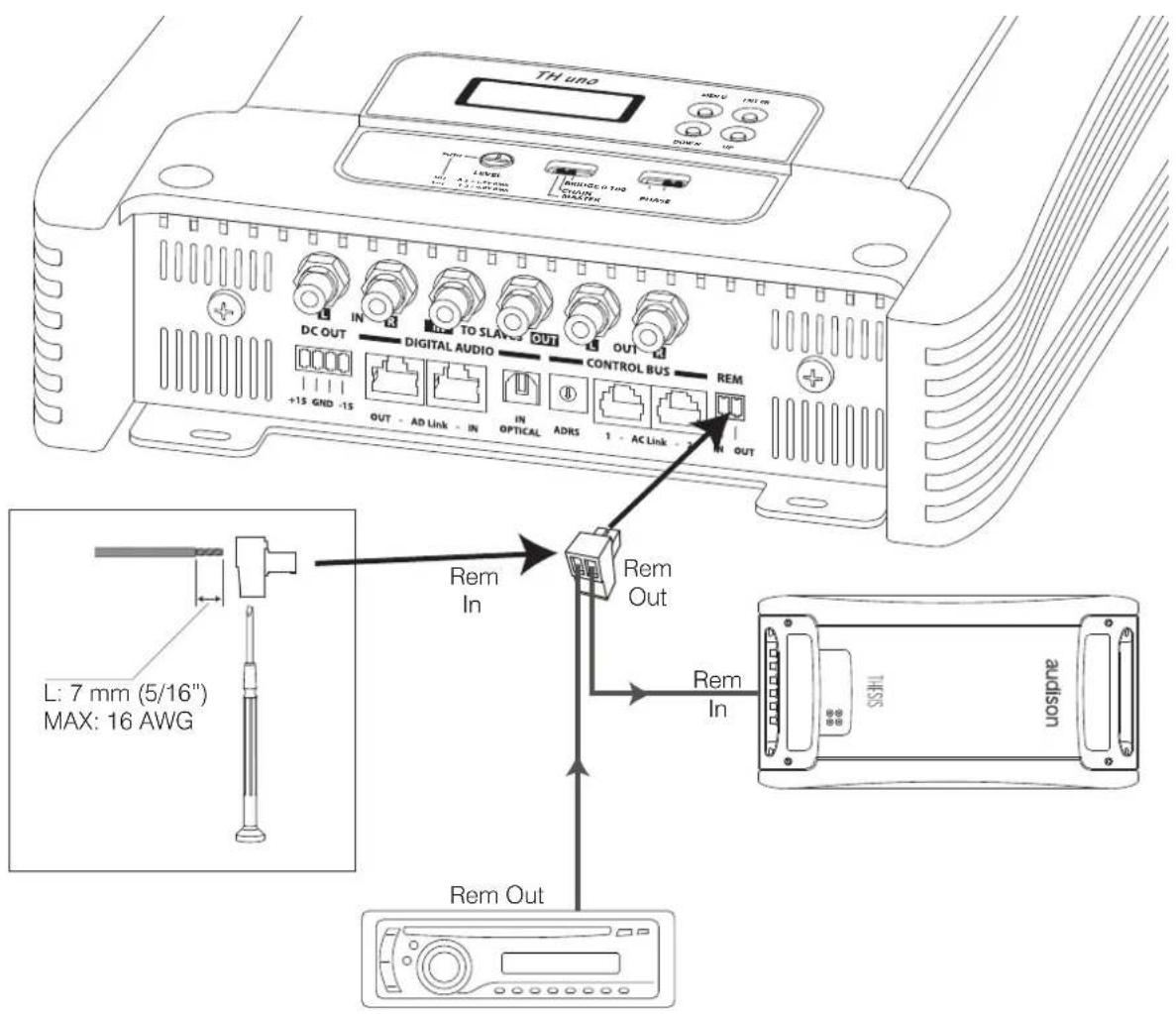

How to connect the remote

TH uno L: 7 mm (5/16") MAX: 16 AWG IN TO SLAV OUT DC OUT DIGITAL AUDIO CONTROL BUS REM +15 GND -15 OUT - AD Link - IN IN OPTICAL ADRS 1 - AC Link - OUT Rem In Rem Out Rem In Rem Out

Front Panel

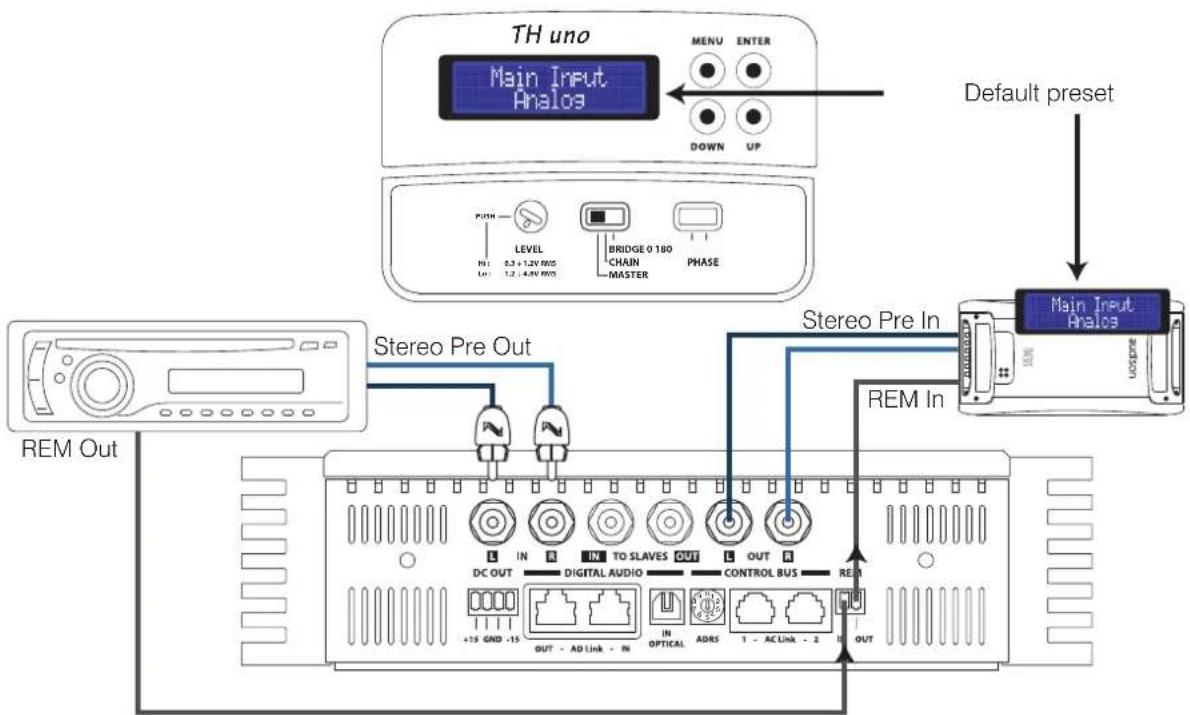

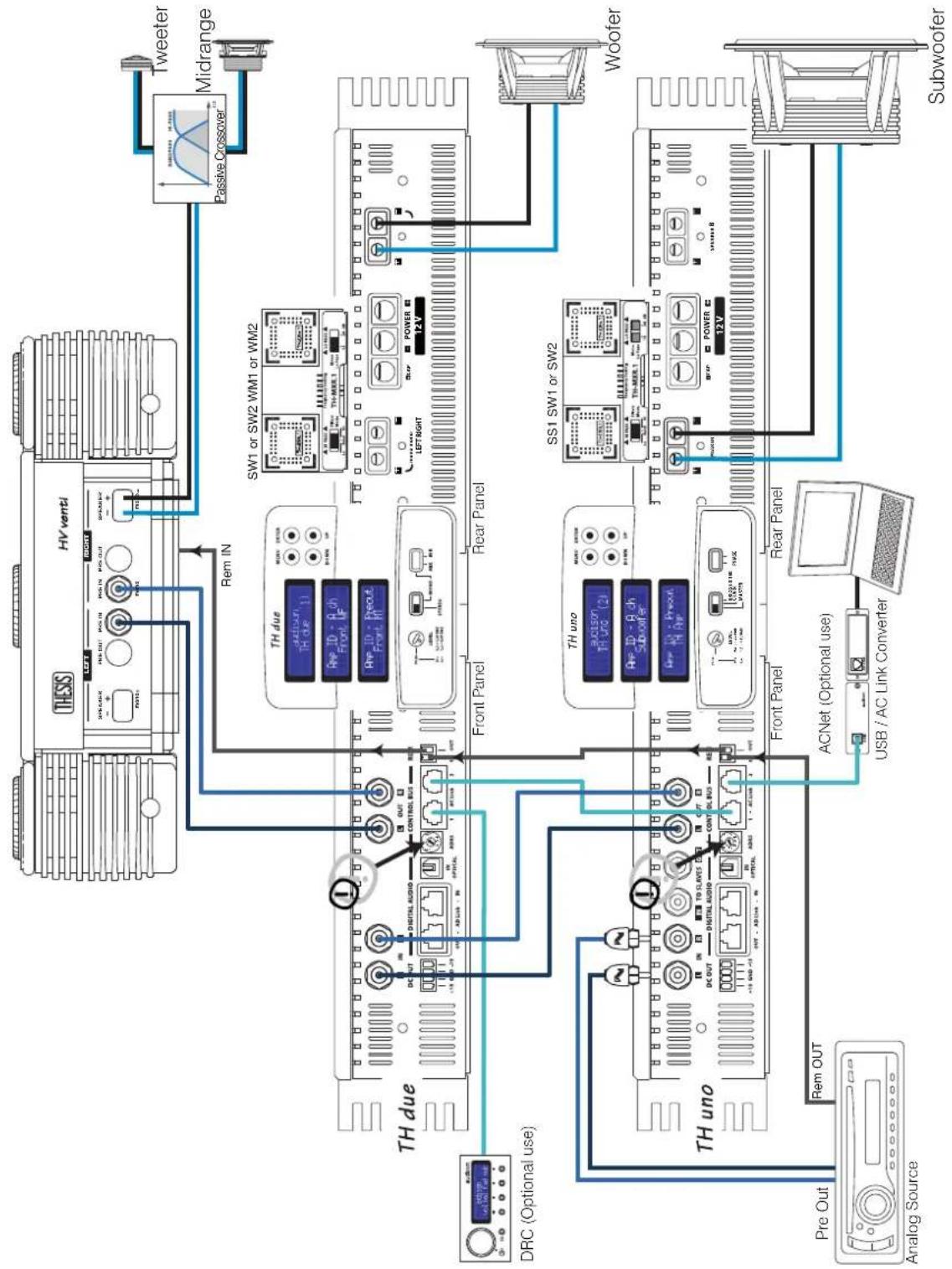

How to connect the source through the preamplified analog input (standard mode)

TH configured in MASTER mode

Input: Stereo Analog

Pre Out: Stereo Analog

Power Output: Mono Mix L+R

Power Output: to carry out connections, check page 14 ÷ 16

DRC: not required

PRE OUT: To cascade-connect other amplifiers when using the analog input you MUST use the Pre Out analog output.

Front Panel

How to connect the source through the IN R preamplified analog input (standard mode)

TH configured in MASTER mode

Input: Mono IN R Analog

Pre Out: Mono Analog = IN R

Power Output: Mono = IN R

TH uno Main Input Analog MENU ENTER DOWN UP Default preset PUSH LEVEL R1: 0.3 + 1.2V RMS L0: 1.2 - 4.8V RMS BRIDGE 0 180 CHAIN MASTER PHASE Main Input Analog REM In Mono Pre In REEM Out Mono Pre Out +15 GND -15 OUT - AD Link - IN TO SLAVES OUT OUT + DC OUT DIGITAL AUDIO CONTROL BUS REM OUT OUT

Power Output: to carry out connections, check page 14 ÷ 16

DRC: not required

PRE OUT: To cascade-connect other amplifiers when using the analog input you MUST use the Pre Out analog output.

Front Panel

How to connect the source through the IN L preamplified analog input (standard mode)

TH configured in MASTER mode

Input: Mono IN L Analog

Pre Out: Mono Analog = IN L

Power Output: Mono = IN L

TH uno Main Input Analos MENU ENTER DOWN UP Default preset PUSH LEVEL IN: 0.3 +12V RMS IN: 1.2 -6kV RMS BRIDGE 0 180 CHAIN MASTER PHASE Mono Pre In Main Input Analos REM In REEM Out Mono Pre Out DC OUT +15 GND -15 OUT - AD Link - IN DIGITAL AUDIO IN TO SLAVES OUT OPTICAL ADRS 1 - AC Link - 2 OUT

Power Output: to carry out connections, check page 14 ÷ 16

DRC: not required

PRE OUT: To cascade-connect other amplifiers when using the analog input you MUST use the Pre Out analog output.

Electronic Crossover

Representing a high-end solution, the simplicity and power of the analog system found in the HV venti is thrust forward again in the TH, making use of the amplifiers versatility.

The crossover ONLY acts on the amplifier power output, not on the PRE OUT output which is always a bypass.

The alignment is a Butterworth type as, when either of the TH amplifiers is set up in a mono configuration, the slope of the filter can be set for 24 dB Oct operation.

Each TH uno is factory provided with:

• a TH-MXR.1 crossover board, containing the electronics required to set, through selectors, the operation mode as well as the Low-Pass filter slope.
• eight crossover modules, featuring high-precision resistor packs corresponding to 32 cut-off frequencies placed at equal distance from 18Hz thru 7.5kHz.
• two customisable crossover modules (to build them, see the "Custom Module" section in this manual).

Modules

Lo-pass module Hi-pass module Switch to set filter operation mode (Hi-pass, Lo-pass, Bandpass) Switch to set Lo-pass attenuation slope (see page 25)

Module position for active cut-off frequency

tion for active ency How to insert the module

Frequency set modules: settable both in Hi-pass and Lo-pass mode

SS1: 18-22-27-33 Hz
SW1: 42-50-60-75 Hz
SW2: 90-110-130-150 Hz
WM1: 180-220-270-330 Hz

WM2: 420-500-600-750 Hz
WT1: 880-1k1-1k3-1k5 Hz
WT2: 1k8-2k2-2k7-3k3 Hz
MT1: 4k2-5k0-6k0-7k5 Hz

Custom Module

Res (kΩ) = 5000Freq(Hz)
Example: Desired cut-off frequency = 2.5 kHz 5000 2500 - 2 kΩ Resistor's value to use

n.7 resistor x 2 kΩ Use 1 % tolerance 0.25 W resistors

Electronic Crossover

Crossover Slope 12 dB (default configuration)

It is possible to set the crossover slope at 12 or 24 dB/Oct.

• The TH-MXR.1 board must be inserted;
• You need to operate on the ASC specific Setup Amplifier step. (See page 46).
  Through the Status Monitor it is possible to check anytime the presence of the filter as well as the set slope.

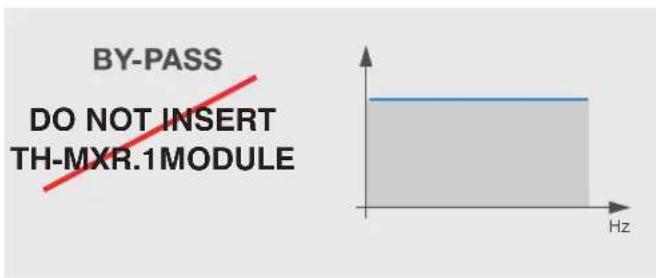

BY-PASS DO NOT INSERT TH-MXR.1MODULE

TH uno X-Over Slope 12 dB/oct MENU ENTER DOWN OP RICH — LEVEL 0.5/1.3/2000 0.5/1.3/2000 BROGUE 0.100 CHAIN PHASE

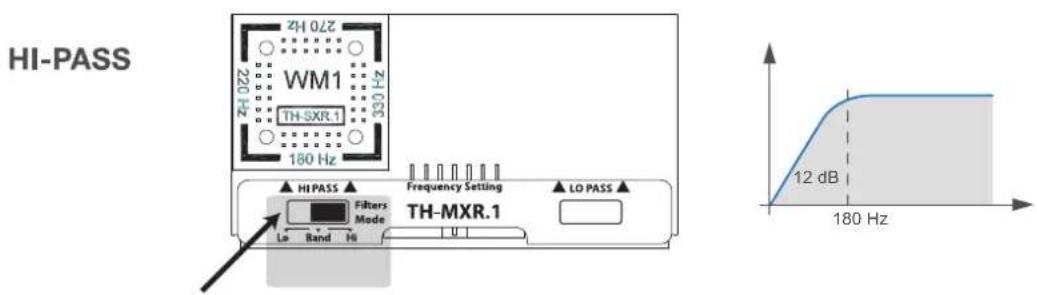

HI-PASS 270 Hz 220 Hz WM1 330 Hz TH-SXR.1 180 Hz HIPASS Filters Mode Frequency Setting TH-MXR.1 Lo Band Hi LO PASS 12 dB 180 Hz

LO-PASS TH-MXR.1 Hi PASS Filters Mode TH-MXR.1 Frequency Setting Lo Band Hi Mone Lo Pass 12 24 dB LO PASS 270 Hz 220 Hz WM1 TH-SXR.1 180 Hz Disabled 12 dB 180 Hz

BANDPASS WM1 270 Hz 200 Hz TH-SXR.1 180 Hz 27 kHz 22 kHz 27 kHz WT1 1.3 kHz TH-SXR.1 Frequency Setting TH-MXR.1 Lo PASS LO PASS TH-MXR.1 Controls Mode Th-MXR.1 Disabled Hi PASS Lo-pass 12 dB 12 dB 180 1.8k Hz

Electronic Crossover

Crossover Slope 24 dB

If ASC is set at 24 dB Oct., it is anyway possible to set the crossover Low-pass at 12 or 24 dB Oct.

• The TH-MXR.1 board must be inserted;

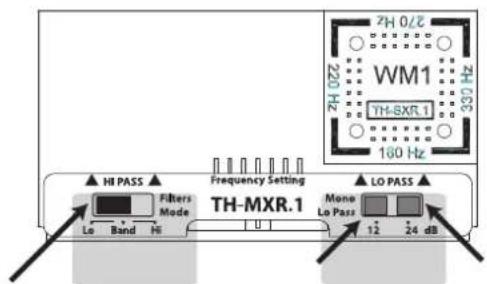

• You need to operate on the TH-MXR.1 switch (see page 46). Through the Status Monitor it is possible to check anytime the presence of the filter as well as the set slope.

BY-PASS DO NOT INSERT TH-MXR.1MODULE

TH uno X-Over Slope 24 dB/oct MENU ENTER DOWN VP RICH LEVEL 10A/2.5V/80Hz 13A/4.5V/80Hz BRIDGE 0.160 MAGNET PHOOR

HI-PASS

270 Hz WM1 TH-SXR.1 220 Hz 22 Hz 108 Hz TH-MXR.1 ▲ HI PASS ▲ Filters ▲ LO PASS ▲ Frequency Setting ▲ Lo Band Hi Mode TH-MXR.1

LO-PASS

VVM1 270 Hz TH-SXR.1 160 Hz Frequency Setting TH-MXR.1 Lo PASS Filters Mode Lo Band Hi Mono Lo Pass LO PASS 12 24 dB

BANDPASS

270 Hz 200 Hz WM1 TH-SXR.1 180 Hz 27 kHz 220 Hz 27 kHz 1.8 kHz WT1 TH-SXR.1 3.3 kHz 220 Hz TH-MXR.1 Hi PASS Filters Mode TH-MXR.1 Mono Lo Pass LO PASS Lo Band Hi 12 24 dB

Electronic Crossover

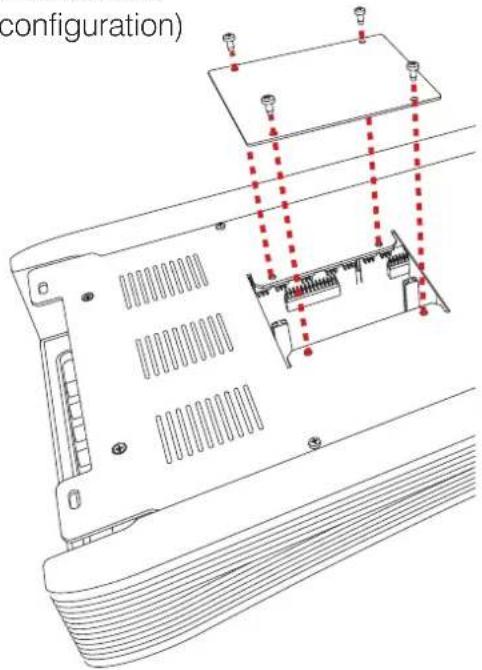

How to insert

Not inserted module (default configuration)

(configuration)

TH uno X-Over No MENU ENTER DOWN UP

You can verify the crossover presence by checking the ASC Status Monitor. See page 53

Inserting module

In this case you checking the AS6

TH uno X-Over Slope 12 dB oct MENU ENTER DOWN UP PHASE LEVEL 8.5x17.0Hz 12x17.0Hz BRIDGE 0.180 DRINK MASTER PHASE

In this case you can verify both presence and slope of the crossover by checking the ASC Status Monitor, however it is not possible to modify its slope. See page 53.

Example: TH amplifier on Subwoofer Analog Input

SW1 or SW2 SS1 TH uno Pre Out DC-OUT TH uno TRI - 9 on Subwoofer Front Panel Rear Panel AC/Net (Optional use) USB / AC Link Converter DRC (Optional use) REM Out Source

In order to build a Standard System you have to:

1- Insert the TH-MXR.1 board with its relative filter module;
2- Connect power supply;
3- Connect the subwoofer;
4- Connect signal inputs and remote turn on;
5- Select working mode on the Input Controls Panel;
6- Adjust sensitivity on the Input Controls Panel "LEVEL";

In order to add DRC to the System you also need to:

7- Set ADRS on the Front Panel (in position 1 for instance);
8- Set Amp ID (on SUBWOOFER for instance) in the ASC Setup Amplifier; this way DRC will be enabled to adjust general Volume, Balance and Fader.

In order to adjust the system through the ACNet:

Into the amplifier ASC, the Dual Power and Runtime Monitor functions will anyway stay active (by default) and ready to change it directly (see page 52 and following pages).

Example: Two Way + Sub, bi-amplified, TH amplifier Analog Input

SW1 or SW2 TH due Pre Out Source TH due DRC (Optional use) TH uno TOP OUT RIGHT CHANNEL LEFT CHANNEL Front Panel Rear Panel Tweeter Passive Crossover Woofer SS1 SW1 or SW2 TH uno TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT TOP OUT

Subwoofer

In order to build a Standard System:

You have to follow same steps as per the above

example. The only difference is for point 4, the second TH is a TH uno (mono);

In order to add DRC to the System you also need to:

7-Give the Front Panel ADRS of each of the two amplifiers a different setting (Example: 1 and 2);
8- Configure the Amp ID on the ASC Setup Amplifier of the two amplifiers by setting TH (1) as Front and TH (2) as Sub;
9- Set the TH (1) ID Preout as TH Amp, to let DRC adjust general Volume, Balance, Fader as well as Sub Volume.

In order to adjust the system through the ACNet:

Once the steps 1, 2, 3, 4, 5 and 7 have been performed, the Software will temporarily bypass the DRC in order to manage in a more direct and easier way all of the system functions.

REMARK:

On ASC Dual Power and Runtime Monitor will anyway stay active (by default) and ready for changes (see page 47 and following pages).

Example: Three Way + Sub, multi-amplified, TH amplifier Analog Input

Classic domain

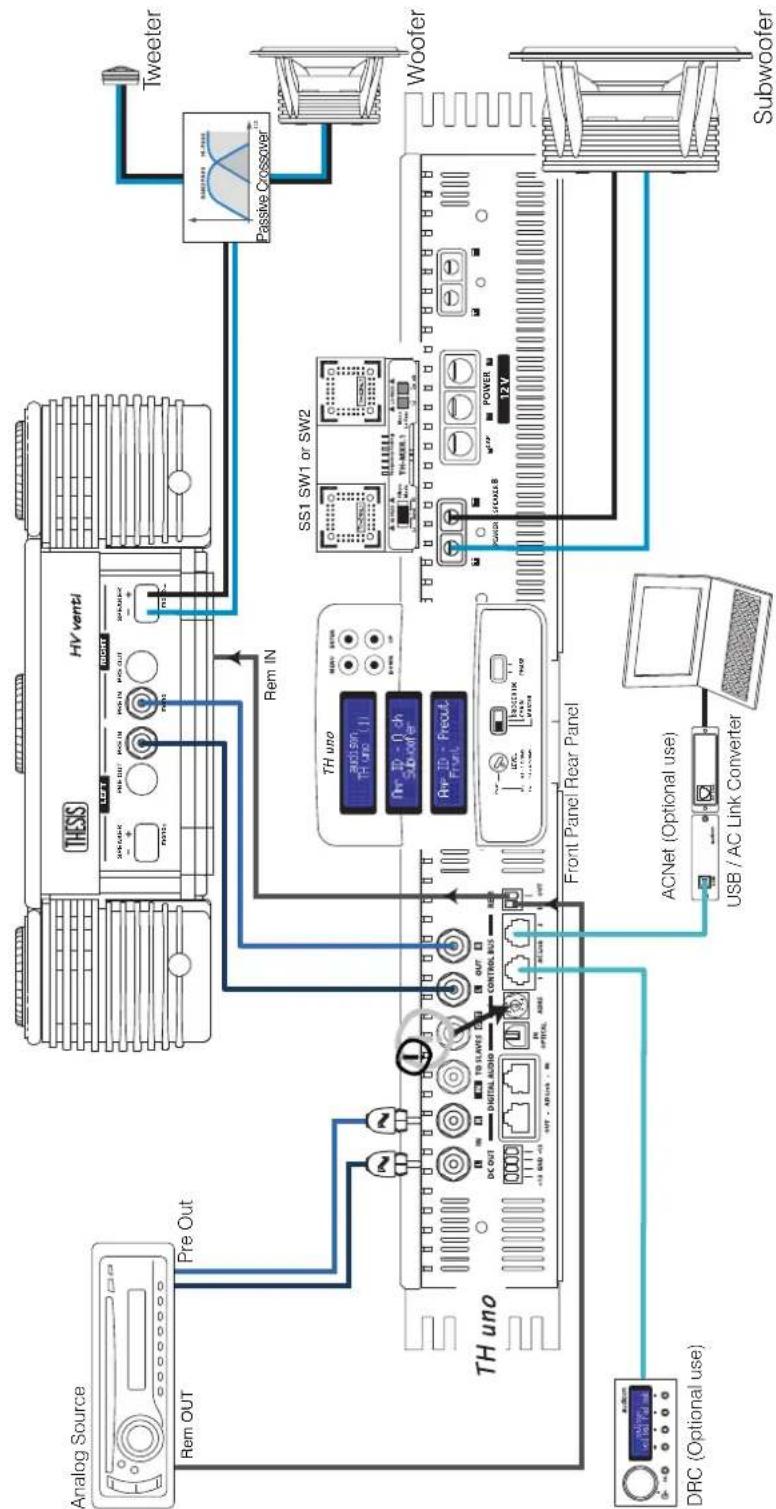

Example: Two Way + Sub, bi-amplified, with and without TH amplifiers. Analog Input

In order to build a Standard System:

You have to follow same steps as per the above example. The only difference is that TH uno becomes the audio chain first amplifier, thus being able to manage the whole system;

In order to add DRC:

7- Set ADRS on the Front Panel;

8- Set the Amp ID in the ASC Setup Amplifier as Sub.

9- Set the ID Preout as Front, to let DRC adjust general Volume, Balance, Fader as well as Sub Volume.

In order to adjust the system through the ACNet:

Once the above listed steps have been performed, the Software will temporarily bypass the DRC in order to manage in a more direct and easier way all of the system functions.

REMARK: On ASC Dual Power and Runtime Monitor will anyway stay active (by default) and ready for changes (see page 47 and following pages).

Example: Three Way + Sub, multi-amplified, with and without TH amplifiers. Analog Input
    subgraph_TH_due["TH due"]
        A["DC OUT"] --> B["CONTROL BUS"]
        C["OUT"] --> B
        D["CONTROL BUS"] --> B
        E["CONTROL BUS"] --> B
        F["CONTROL BUS"] --> B
    end

    subgraph_TH_duo["TH uno"]
        G["DC OUT"] --> H["ACNET (Optional use)"]
        I["DC OUT"] --> H
        J["DC OUT"] --> H
        K["DC OUT"] --> H
        L["DC OUT"] --> H
        M["DC OUT"] --> H
        N["DC OUT"] --> H
        O["DC OUT"] --> H
        P["DC OUT"] --> H
        Q["DC OUT"] --> H
        R["DC OUT"] --> H
        S["DC OUT"] --> H
        T["DC OUT"] --> H
        U["DC OUT"] --> H
        V["DC OUT"] --> H
        W["DC OUT"] --> H
        X["DC OUT"] --> H
        Y["DC OUT"] --> H
        Z["DC OUT"] --> H
        AA["DC OUT"] --> H
        AB["DC OUT"] --> H
        AC["DC OUT"] --> H
        AD["DC OUT"] --> H
        AE["DC OUT"] --> H
        AF["DC OUT"] --> H
        AG["DC OUT"] --> H
        AH["DC OUT"] --> H
        AI["DC OUT"] --> H
        AJ["DC OUT"] --> H
        AK["DC OUT"] --> H
        AL["DC OUT"] --> H
    end

    subgraph TH_duo_Rear_Panel
        AM["TH due"] --> AN["SW1 or SW2 WM1 or WM2"]
        AO["Power 12V"] --> AP["Left/right"]
    end

    subgraph TH_duo_Rear_Panel_Rear_Panel
        AQ["TH uno"] --> AR["ACNET (Optional use)"]
        AS["Power 12V"] --> AT["Subwoofer"]
    end

    subgraph TH_duo_D Ecuador_Options
        AU["DRC (Optional use)"] --> AV["Pre Out"]
        AW["Analog Source"] --> AX["Rem OUT"]
    end

    subgraph TH_duo_Accison_Options
        AY["Accison 12V"] --> AZ["Pre ID - Ach Front_LF"]
        BA["Accison 12V"] --> BB["Amp_ID - Preout Front_MI"]
    end

    subgraph TH_duo_SS1_SW1_or_SW2
        BC["S51 SW1 or SW2"] --> BD["Amp_ID - Ach Subwoofer"]
        BE["S51 SW1 or SW2"] --> BF["Amp_ID - Preout_MI"]
    end

    subgraph TH_duo_Woofer
        BG["Woofer"] --> BH["Amp_ID - Ach Subwoofer"]
        BI["Woofer"] --> BJ["Amp_ID - Preout_MI"]
    end

    subgraph TH_duo_Subwoofer
        BK["Subwoofer"] --> BL["Amp_ID - Ach Subwoofer"]
        BM["Subwoofer"] --> BN["Amp_ID - Preout_MI"]
    end

    subgraph TH_duo_Dereclics
        BO["Dereclics 12V"] --> BP["Amp_ID - Ach Subwoofer"]
        BQ["Dereclics 12V"] --> BR["Amp_ID - Preout_MI"]
    end

    subgraph TH_duo_Democable_Series
        BS["Democable 12V"] --> BT["Amp_ID - Ach Subwoofer"]
        BU["Democable 12V"] --> BV["Amp_ID - Preout_MI"]
    end

    subgraph TH_duo_Democable_Series
        BW["Democable 12V"] --> BX["Amp_ID - Ach Subwoofer"]
        BYD["Democable 12V"] --> BYD["Amp_ID - Preout_MI"]
    end

    subgraph TH_duo_Dereclics_Oncology_Series
        BZ["Dereclics 12V"] --> CA["Amp_ID - Ach Subwoofer"]
        CBD["Dereclics 12V"] --> CBD["Amp_ID - Preout_MI"]
    end

    subgraph TH_duo_Dereclics_Fire_Series
        DA["Dereclics 12V"] --> DB["Amp_ID - Ach Subwoofer"]
        DC["Dereclics 12V"] --> DC["Amp_ID - Preout_MI"]
    end

    subgraph TH_duo_Dereclics_Hop_Traffic_Options_Series
        DA --> DC
    end

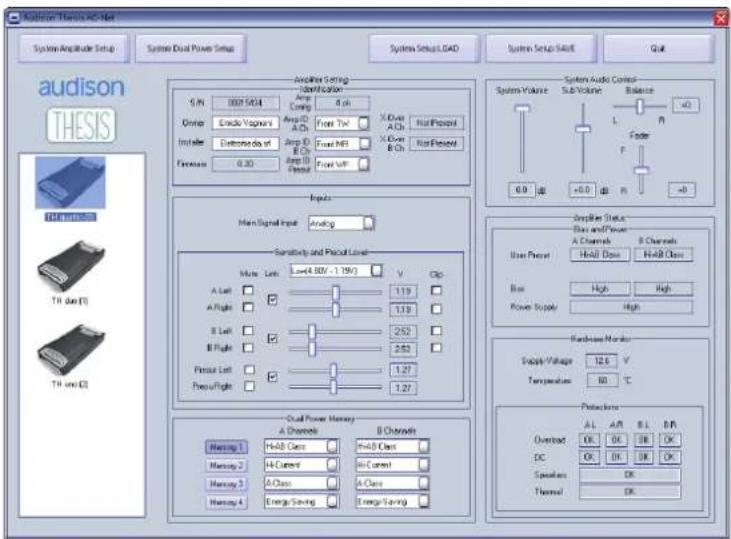

THESIS

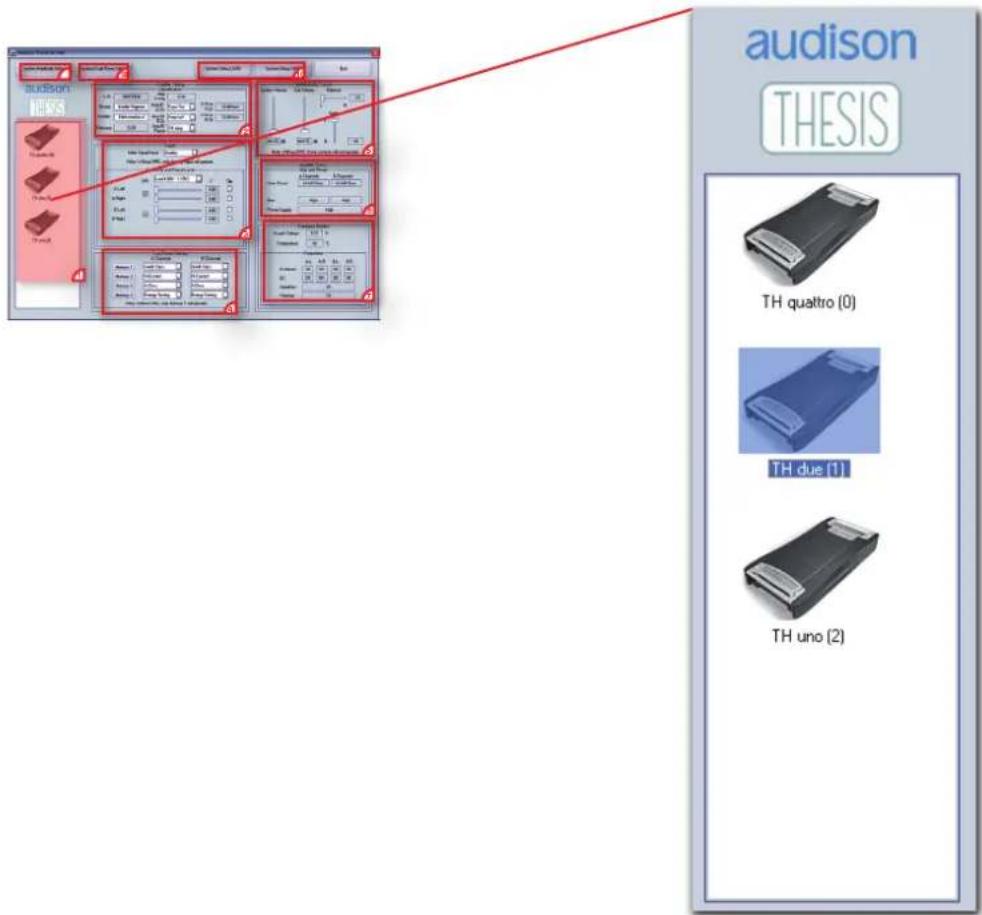

ASC (AMPLIFIER STATUS CONTROLLER)

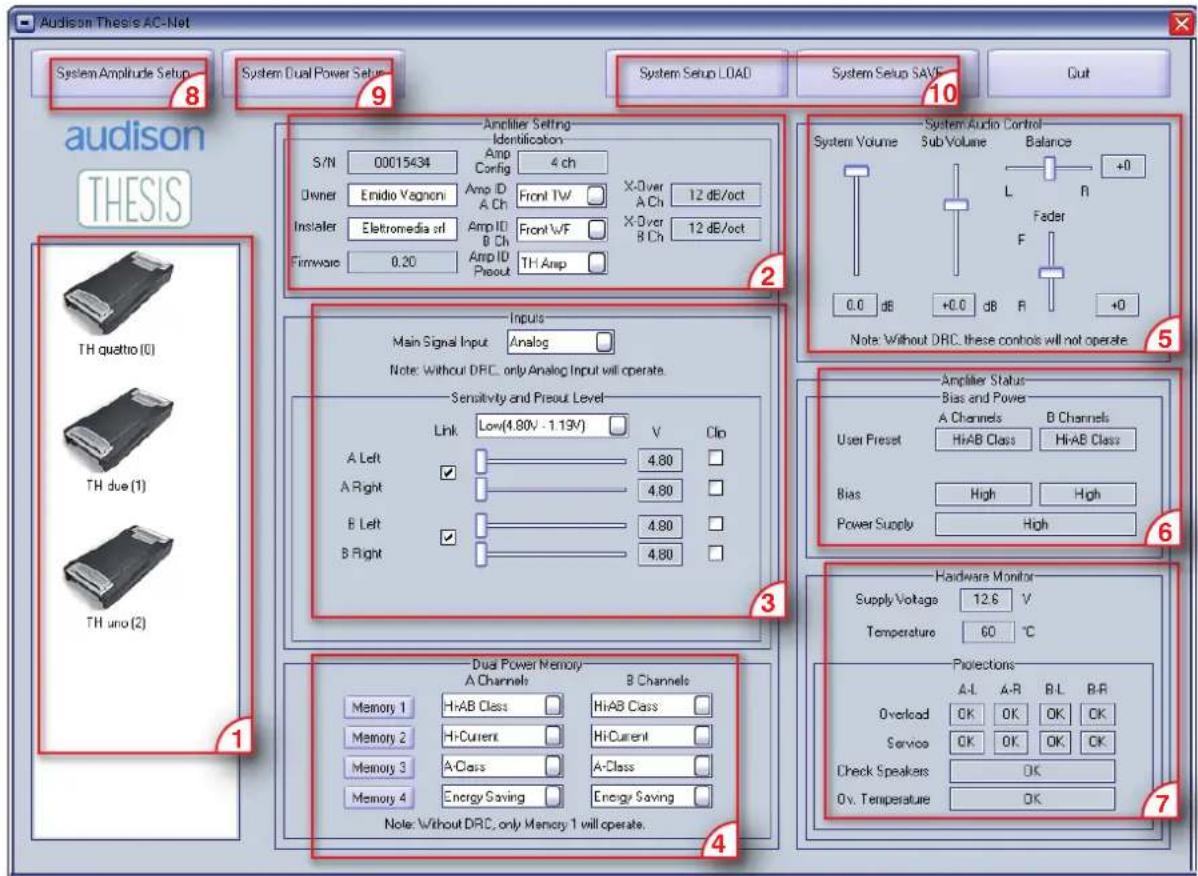

The TH amplifiers ASC unit is the operational interface, programmed to control all of the amplifier's functions. The user can interact with the microprocessor which, without interfering with the sound, will provide control for any possible adjustments. This manual section is especially thought for those who want to get the most of these amplifiers exclusive features.

Some functions are automatic and transparent to the user, others require support during the installing, adjusting or modifying phase. By accessing the ASC a set of menus will show, offering specific entries which the user can operate on:

- Setup Amplifier:

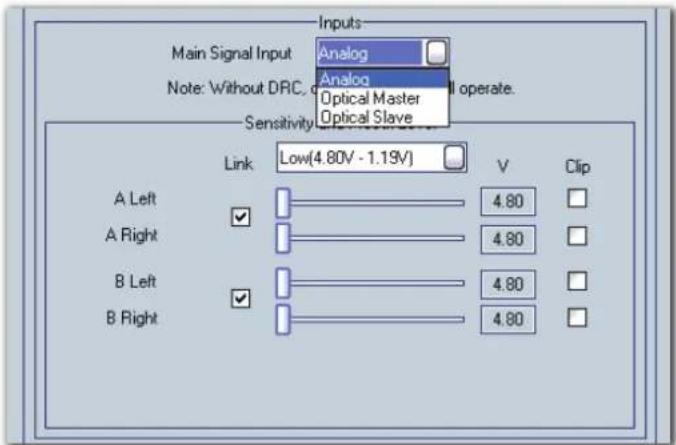

Main Input: the user can decide what kind of source the amplifier has to drive;

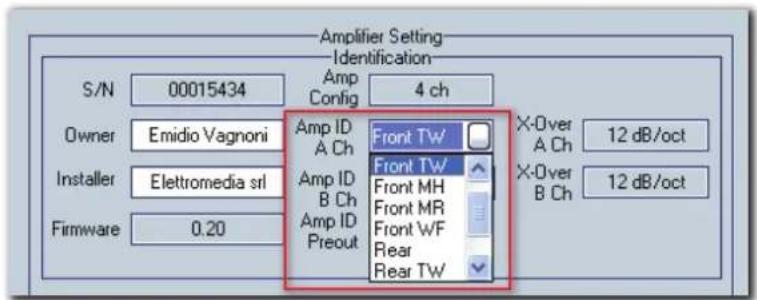

Amp ID: the user can name the amplifier identifying the function the amplifier performs inside the system;

ID Preout: the user can name the pre-amplified section so it is possible to manage it inside the system;

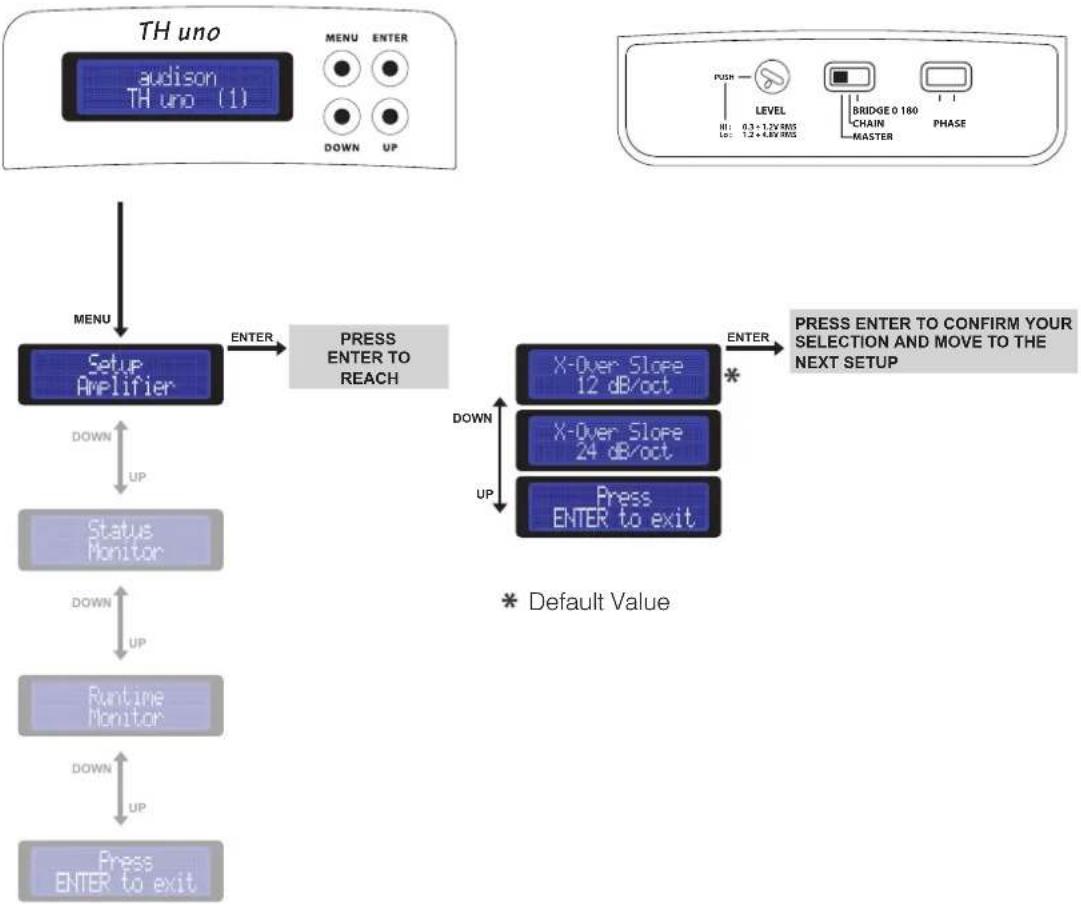

X-Over Slope: the user can select the Low-bass filter slope (only in Mono mode);

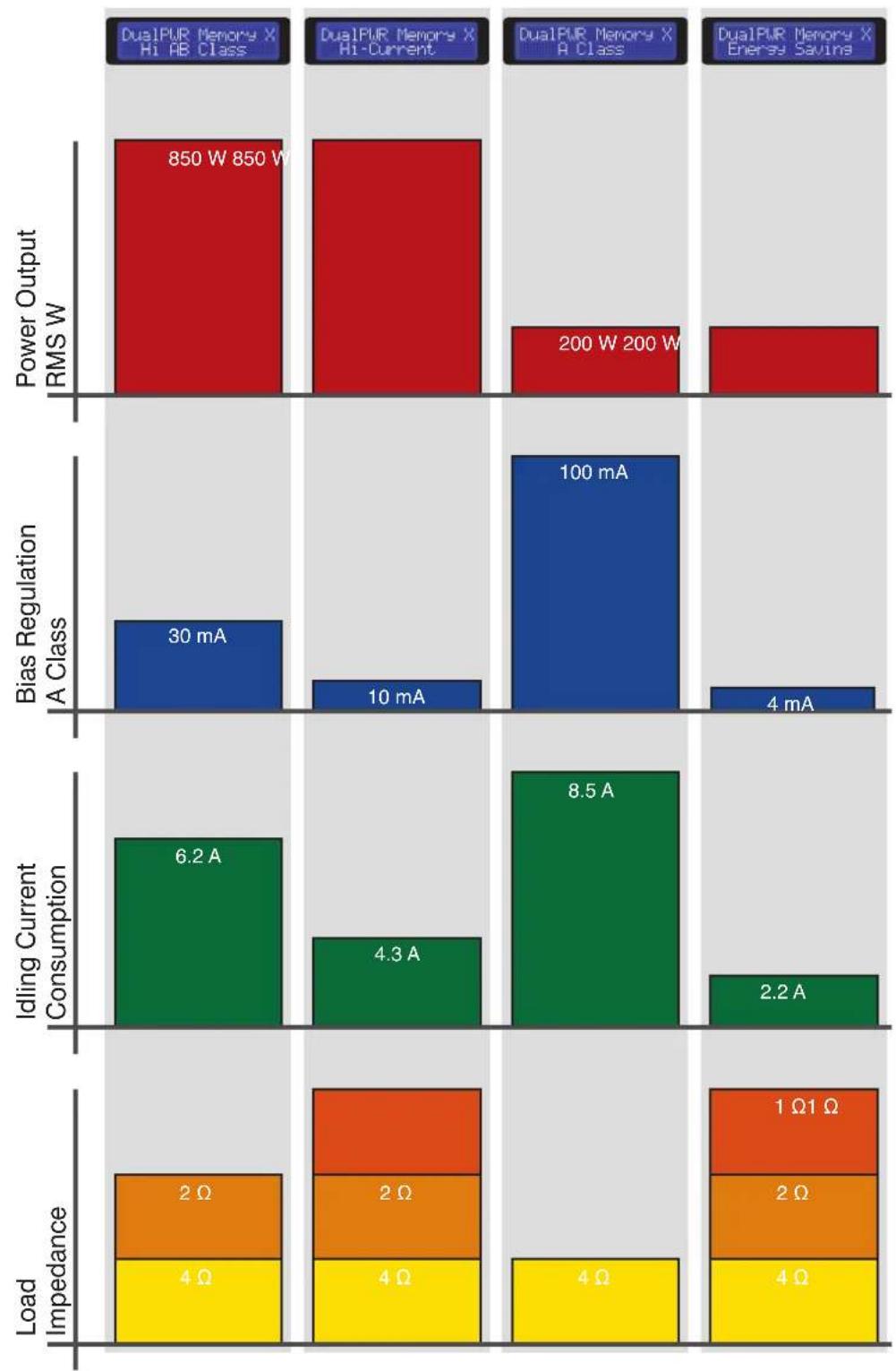

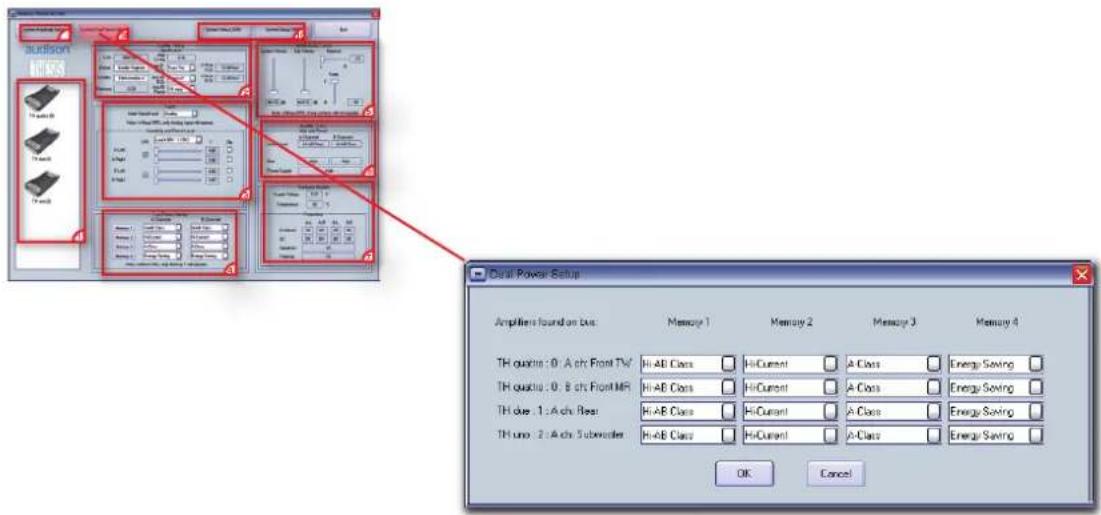

Dual Power: the user can choose the sound quality and the power the amplifier has to work at;

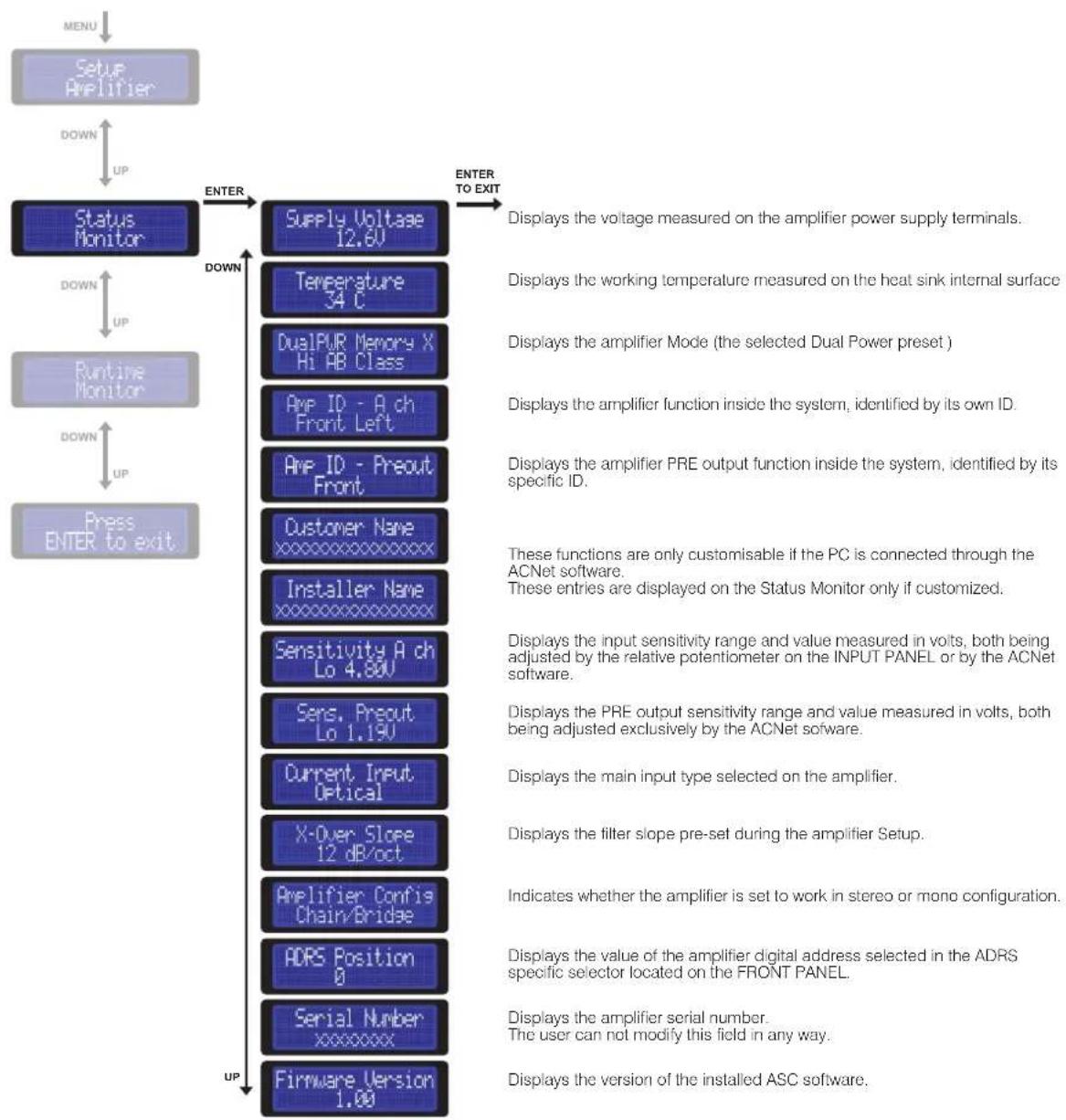

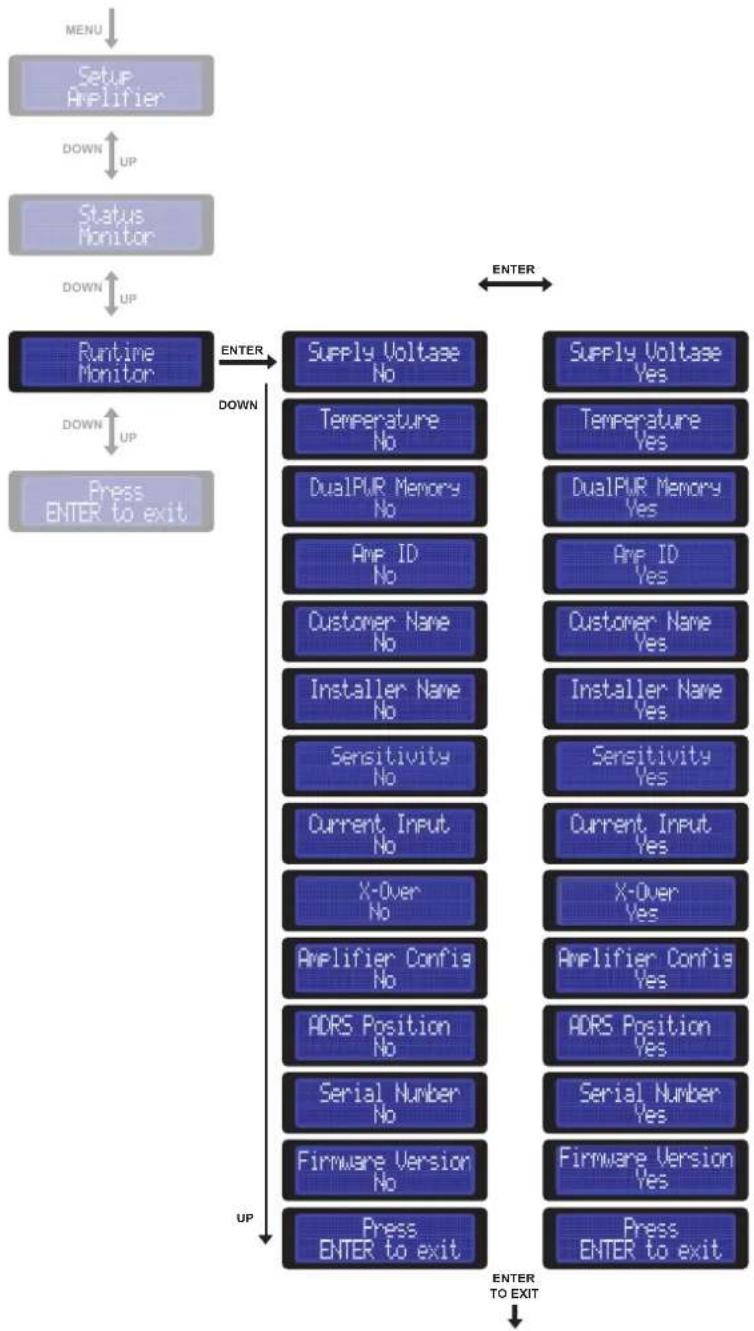

- Status Monitor: the user can monitor the amplifier working status;

- Runtime Monitor: the user can select it on the Display to intermittently have information on the amplifier status shown.

Some of these functions need a remote control communicating with the microprocessor. Inside this manual, where necessary, the presence of the DRC (Digital Remote Control) is underlined. The DRC also adds some specific functions which you can read on their relative section from page 56 on.

INPUTS AND PRE-AMPLIFIER

The TH amplifiers combine an analog and digital section in one device; keeping the two sections on separate PCBs, although mounted within the same sub chassis.

Each amplifier features a state-of-the-art digital encoding section as well as a 24 bit 192 kHz converter. The S/PDIF optical input accepts PCM stereo signals; also, the innovation consists in the fact the TH amplifier can be driven in digital directly and, as a consequence, the whole system too, if a system in multi-amplification configuration with the re-launch of this digital signal to other Thesis TH amplifiers through the AD Link system (Audison Digital Link). Each amplifier independently takes care of the D/A conversion. While in the Digital Input mode the DRC needs to be connected, so it works as an actual general volume and source selector control, capable of repeating all the low frequency controls (Master Volume, Balance, Fader, Sub Volume).

The AD Link connectors on the TH input panel can receive the digital signal from sources or multi-channel processors featuring the afore-mentioned outputs (Audison Bit One) and re-launching the digital signal to the amplifiers chain through a Cat.5 certified shielded cable equipped with an RJ45 connector (provided).

In the following pages of this manual we will explain how to perform the amplifier setup and how to connect it in all THESIS or mixed chains.

ASC - Amplifier Status Controller

Functions Description

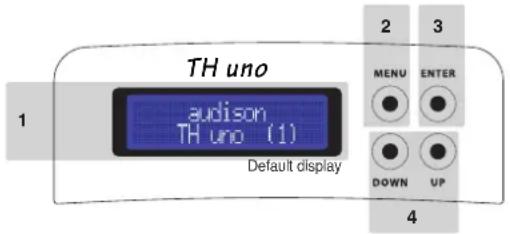

TH uno audison TH uno (1) Default display 2 3 MENU ENTER DOWN UP 1 4

1 • TH due STATUS DISPLAY: it is the visual element of the ASC system, a back-lit two line 32 character LCD display; While working, it can relate all of the configuration parameters memorised by the amplifier during the installation, as well as the operational status of the amplifier.
The following pages address all the messages and information which from time to time the display can show. In case of protection intervention, the state of protection is permanently displayed, until the problem is resolved or until the amplifier is reset;
2 • MENU: this switch enables the ASC and shows the first available entry. Each time this switch is pushed while the amplifier is normally working, the ASC displays the first available entry, not the last you worked on. No matter which step of the management you are at, if you push the MENU button, you exit the ASC management and you are automatically taken back to the first display screen (Default display) without saving any changes.
Remark: No matter which step you are at of the management software, if you don't operate on the switches for 5 seconds, the ASC automatically goes back to the first display screen (Default display) without saving any changes.
3 • ENTER: this switch is to:

- confirm the selected entry,

- store it in the memory,

- move to the following menu entry.

The ASC performs these three activities automatically. If you modify the menu entry you are working on and then you push “enter”, the display will show:

then the display will show the next entry. The changes will only be made once ENTER is pushed.

4 • UP - DOWN: through these switches the user can browse through the entries available inside the different menus. According to the function you are checking, they allow you to modify your choice which, then, will have to be confirmed by pushing ENTER.

ASC - Amplifier Status Controller

Setup Amplifier: Main Input

The first step to set the amplifier up is to select the main input the TH will use to get the signal. As soon as you turn the amplifier on, the PRE analog input is selected by default. By changing this entry the user can also take advantage of the other operational modes. From next time you turn the TH on, it will use the last selected entry.

If another input is used, the DRC is required. In that case, if for any reasons it is disconnected, all the setup settings and low level controls will reset back to the default settings, unless the DRC is re-connected, in which case they restore. (See page 35)

How to change: Main Input

Digital Inputs

How to adjust the volume control and input selector using a digital source

In the following pages you will find examples of how to connect the TH to a system driven by head units using the digital input. In order to use the TH IN OPTICAL digital input and therefore its D/A internal converter the DRC Digital Remote Control MUST be connected to the TH amplifier.

The DRC will perform the function of selecting the head unit by selecting between Analog Input and Optical Input, thus allowing the control of Main Volume, Subwoofer Volume, Balance and Fader.

If the last setup working conditions are no more valid, that is if you disconnect the DRC and you had changed the default conditions, the ASC will automatically go back to use the PRE Analog Input. In this case Fader and Balance will go back to central position, while general Volume and Sub Volume will go back to 0 dB (maximum value). The TH display will show the following information:

DRC not found: defaults loaded

Warning symbol with exclamation mark inside a circle, likely indicating alert or warning

DRC Vol: 00.0dB = TH MAX Power Output

audison Volume: -80.0dB L: -4H TUSGS audison

Warning:

When using the optical digital input you have to use the DRC as main volume control. If the DRC volume control is at 0 dB it equals to the amplifier undistorted maximum output power.

To check all the functions and the DRC connection, see pages 56 ÷ 58

Front Panel

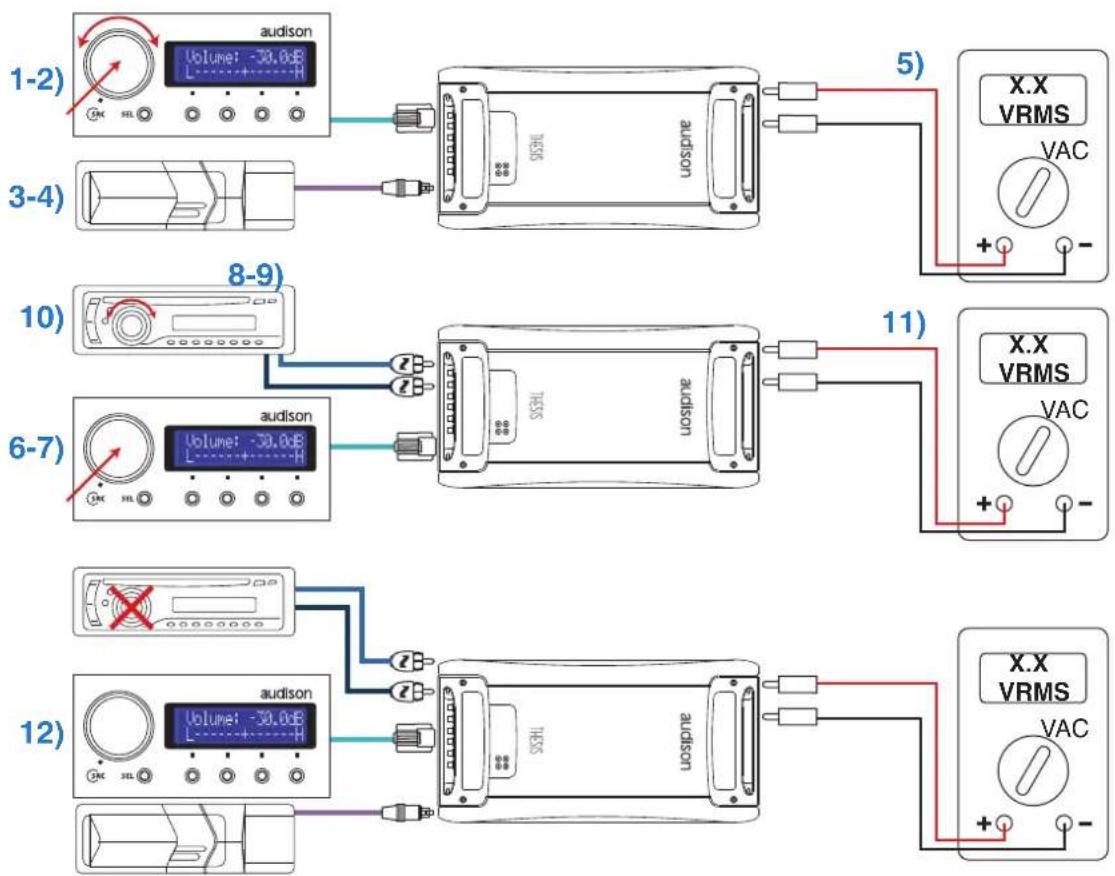

How to achieve same output volume level using an analog source (with its own volume control) and a digital source

Once you have adjusted the system, therefore once the amplifiers input sensitivity has been adjusted, you can adjust the digital source volume level so that when selecting the analog or the digital source no difference in sound is perceptible while listening. Once performed this adjustment, we would recommend that you use the DRC volume control as general volume control.

1) On the DRC select the source: Optical Input
2) On the DRC adjust volume until you can read -30.0 dB
3) Insert the Test CD provided with the amplifier into the source connected to the digital input
4) Select track # 04 (sinusoidal signal 50 Hz / 0 dB)
5) Using a multimeter (True RMS) measure the voltage on the speaker terminals
6) On the DRC select the source: Analog Input
7) Do not change the set volume (-30.0 dB)
8) Insert the Test CD provided with the amplifier into the source connected to the digital input
9) Select track # 04 (sinusoidal signal 50 Hz / 0 dB)
10) Adjust the volume of the source connected to the analog input until, using a multimeter (True RMS),
11) you measure the same voltage on the speaker terminals
12) Use the DRC as main volume control

Front Panel

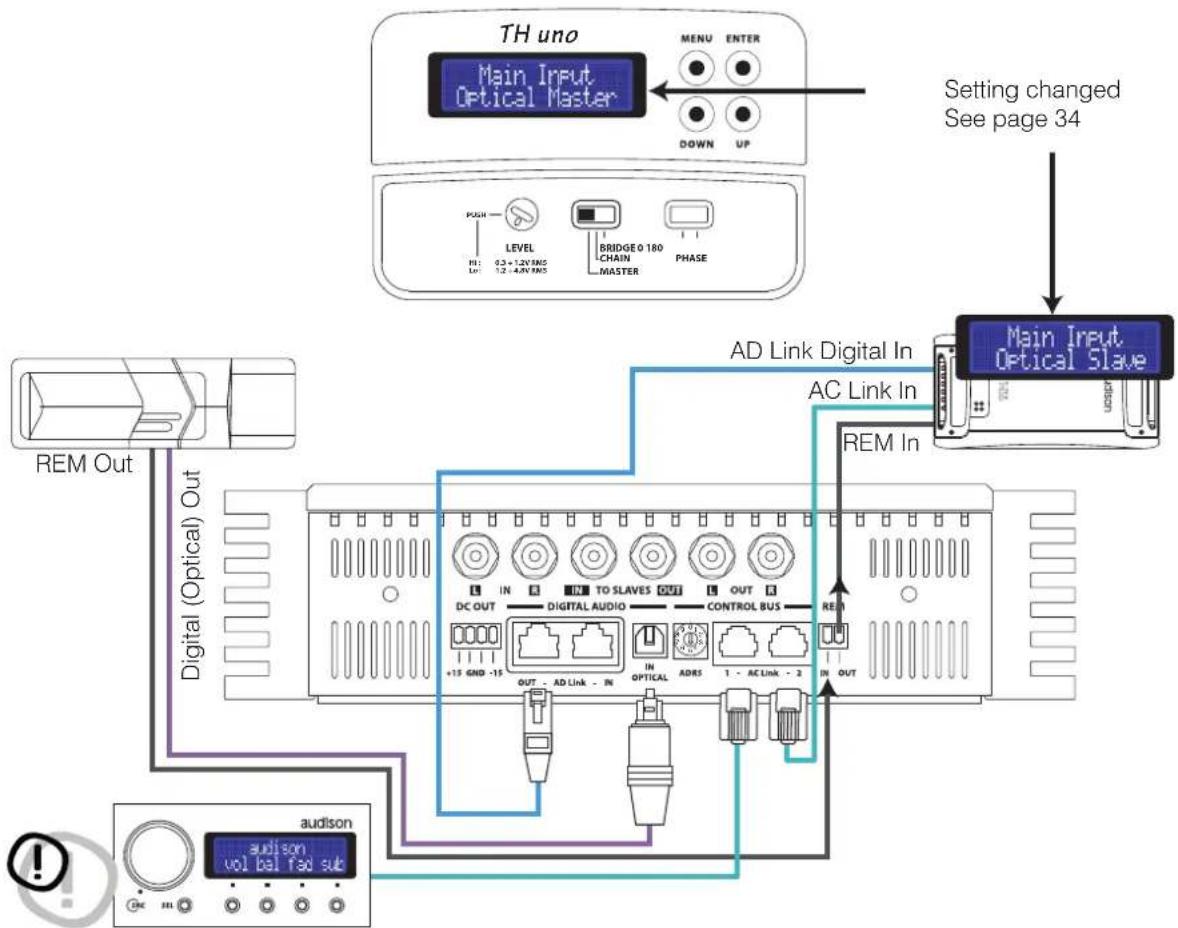

How to connect a source through the optical digital input in a system featuring more than one TH amplifier

TH configured in MASTER mode

Input: Digital Optical S/P DIF

Pre Out: Digital AD Link

Power Output: Mono

(Repeats the IN OPTICAL signal)

In this case the DRC is REQUIRED to:
- Adjust the general volume
- Select the optical input
PRE OUT:
anyway available, see page 38

Front Panel

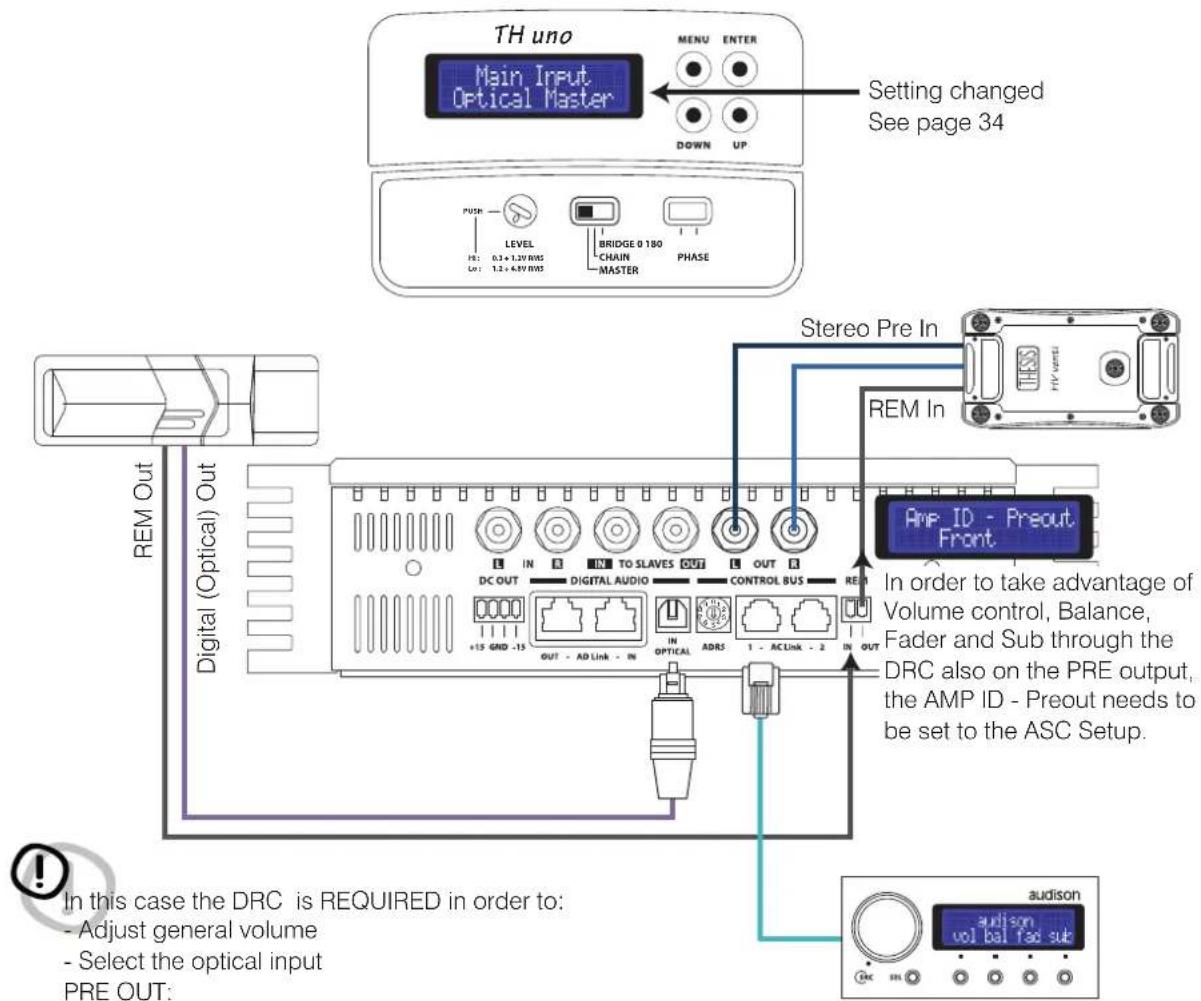

How to connect a source through an optical digital input in a system featuring other non-TH amplifiers

TH configured in MASTER mode

Input:

Pre Out:

Power Output:

Digital Optical S/P DIF

Stereo Analog (R and L Ch of Digital Input)

Mono

TH uno Main Input Optical Master MENU ENTER DOWN UP Setting changed See page 34 PUSH LEVEL PR: 0.3 + 1.2V RMS Lo: 1.2 + 4.8V RMS BRIDGE 0 180 CHAIN MASTER PHASE Stereo Pre In REM In AMP ID - Precout Front Digital (Optical) Out REM Out Digital (Optical) Out IN TO SLAVES OUT OUT DC OUT DIGITAL AUDIO CONTROL BUS RE +15 GND -15 OUT - AD Link - IN IN OPTICAL ADRS 1 - AC Link - 2 IN OUT In this case the DRC is REQUIRED in order to: - Adjust general volume - Select the optical input PRE OUT. audison vol bal fed sub

see page 44 to check how to manage it

Front Panel

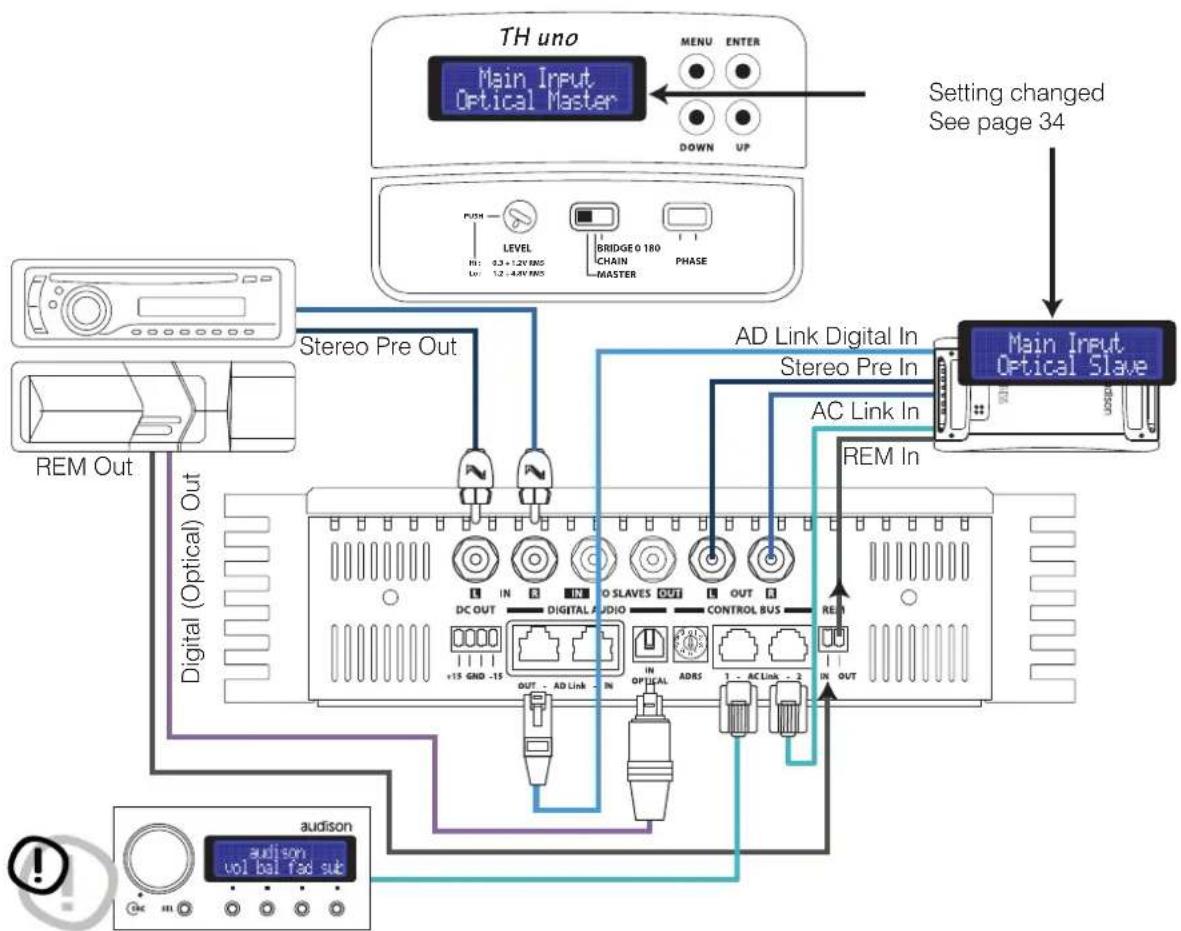

How to connect an analog and a digital source in a system featuring more than one TH amplifier

TH configured in MASTER mode

Input: Analog/Digital Optical S/P DIF

Pre Out: Analog/Digital AD Link

Power Output: Mono

In this case the DRC is REQUIRED to:
- Adjust general volume
- Select the optical input
PRE OUT:
anyway available, see page 40

Front Panel

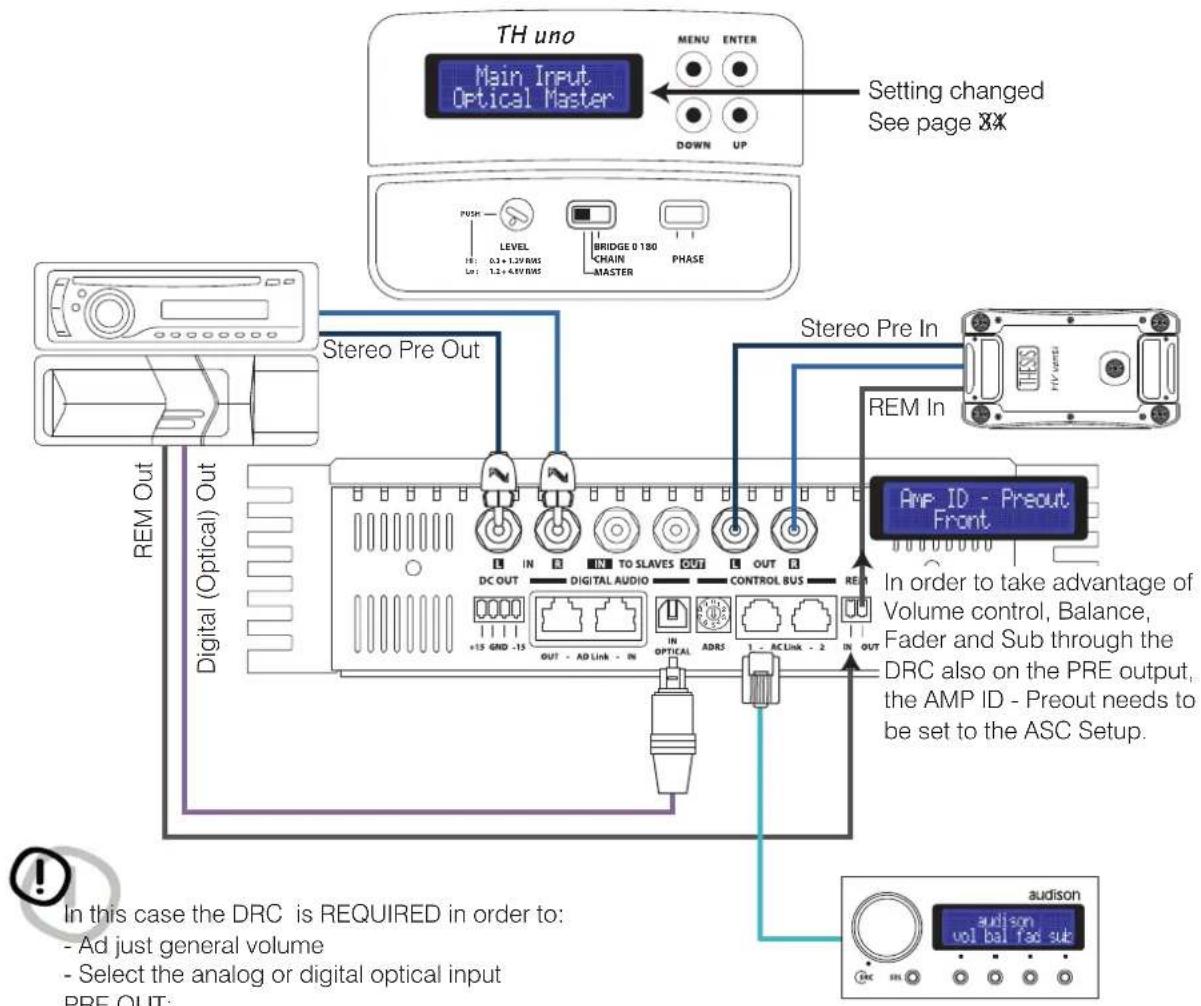

How to connect an analog and a digital source in a system featuring other non-TH amplifiers

TH configured in MASTER mode

Input:

Pre Out:

Power Output:

Analog/Digital Optical S/P DIF

Stereo Analog

Mono

In this case the DRC is REQUIRED in order to:
- Ad just general volume
- Select the analog or digital optical input
PRE OUT:
see page 44 to check how to manage it

Front Panel

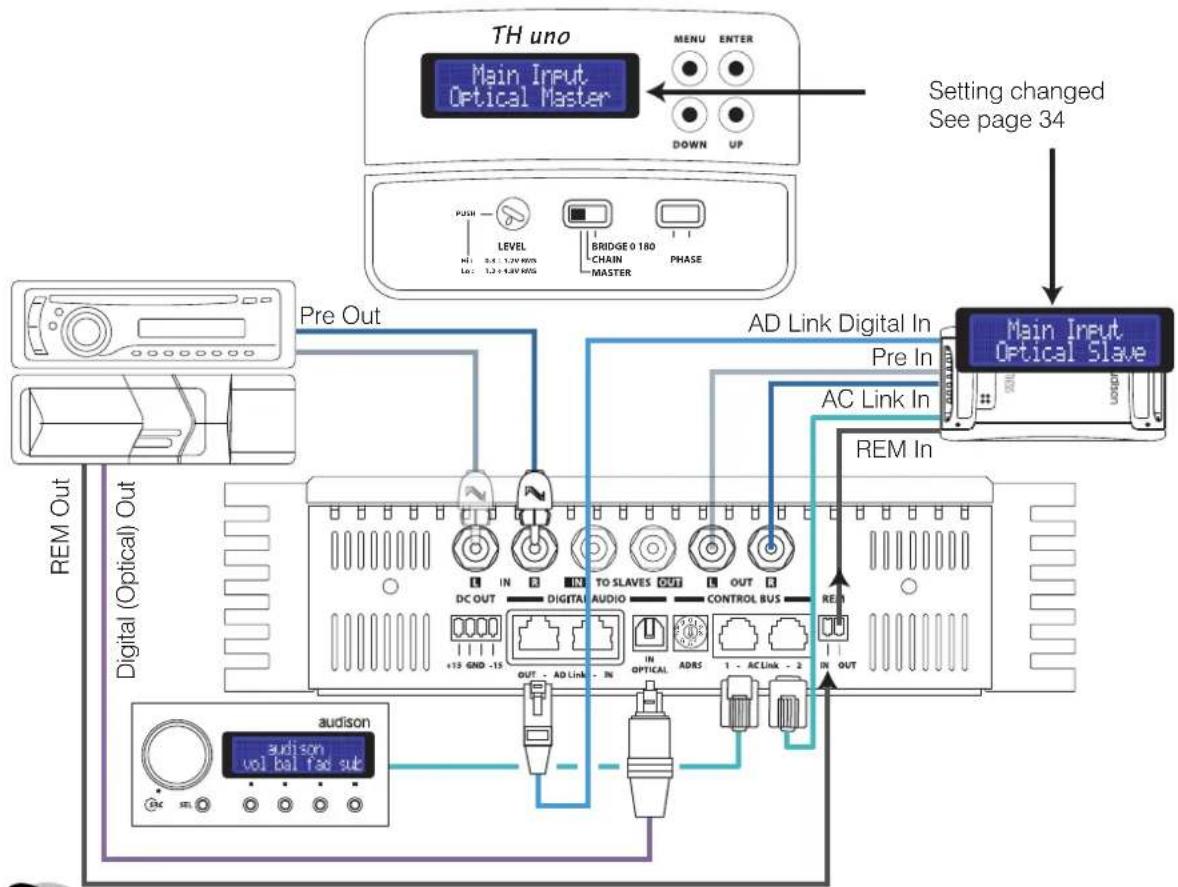

How to connect an analog and digital source in a system featuring more than one TH amplifier

TH configured in MASTER mode

Input:

Pre Out:

Power Output:

IN R or IN L Analog/Digital Optical S/P DIF

Analog (=IN R or IN L) /Digital AD Link

In Analog: Mono (=IN R or IN L)

In Digital: Mono (=MIX L+R)

In this case the DRC is REQUIRED in order to:

- Adjust general volume

- Select the optical input

PRE OUT:

anyway available, see page 42

Front Panel

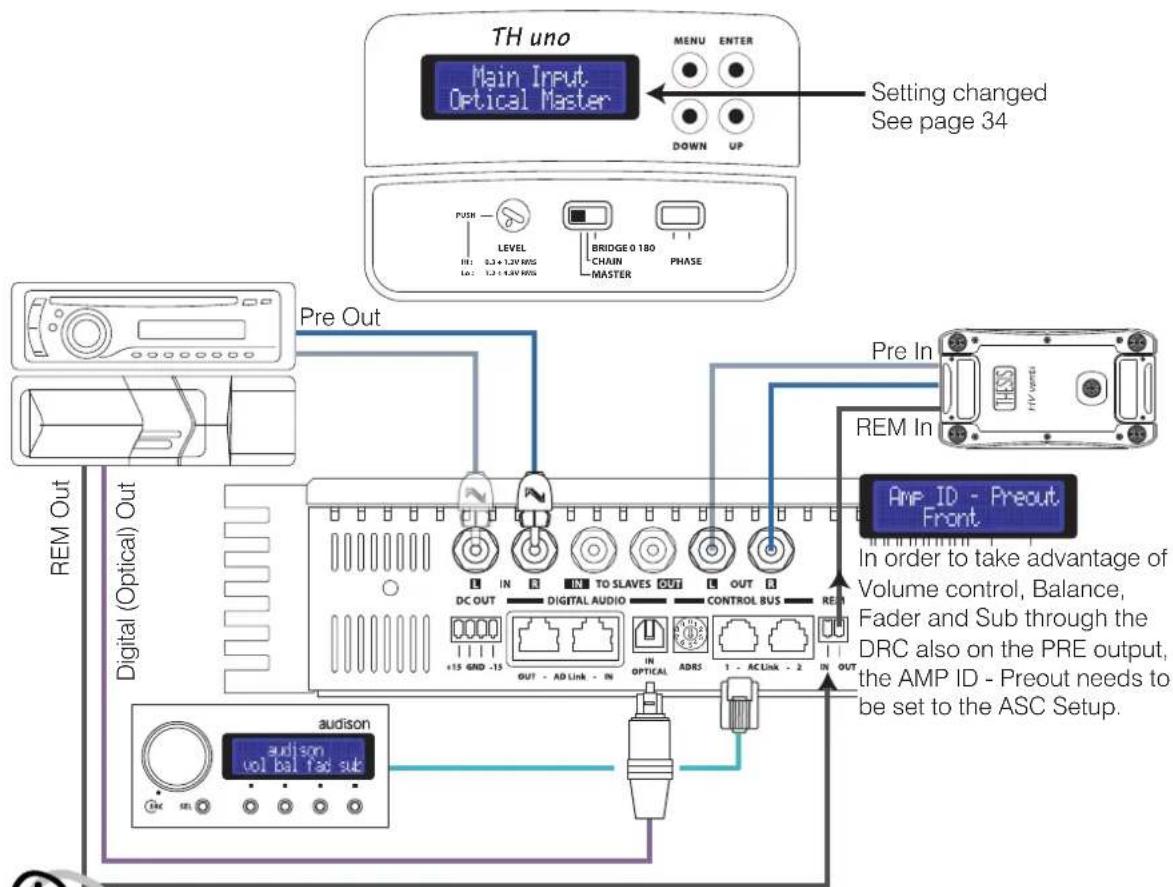

How to connect an analog and a digital source in a system featuring other non-TH amplifiers

TH configured in MASTER mode

Input:

Pre Out:

Power Output:

IN R or IN L Analog/Digital Optical S/P DIF

Analog (=IN R or IN L)

In Analog: Mono (=IN R or IN L)

In Digital: Mono (=MIX L+R)

In this case the DRC is REQUIRED in order to:

- Adjust general volume

- Select the optical input

PRE OUT:

See page 44. to check how to manage it.

ASC - Amplifier Status Controller

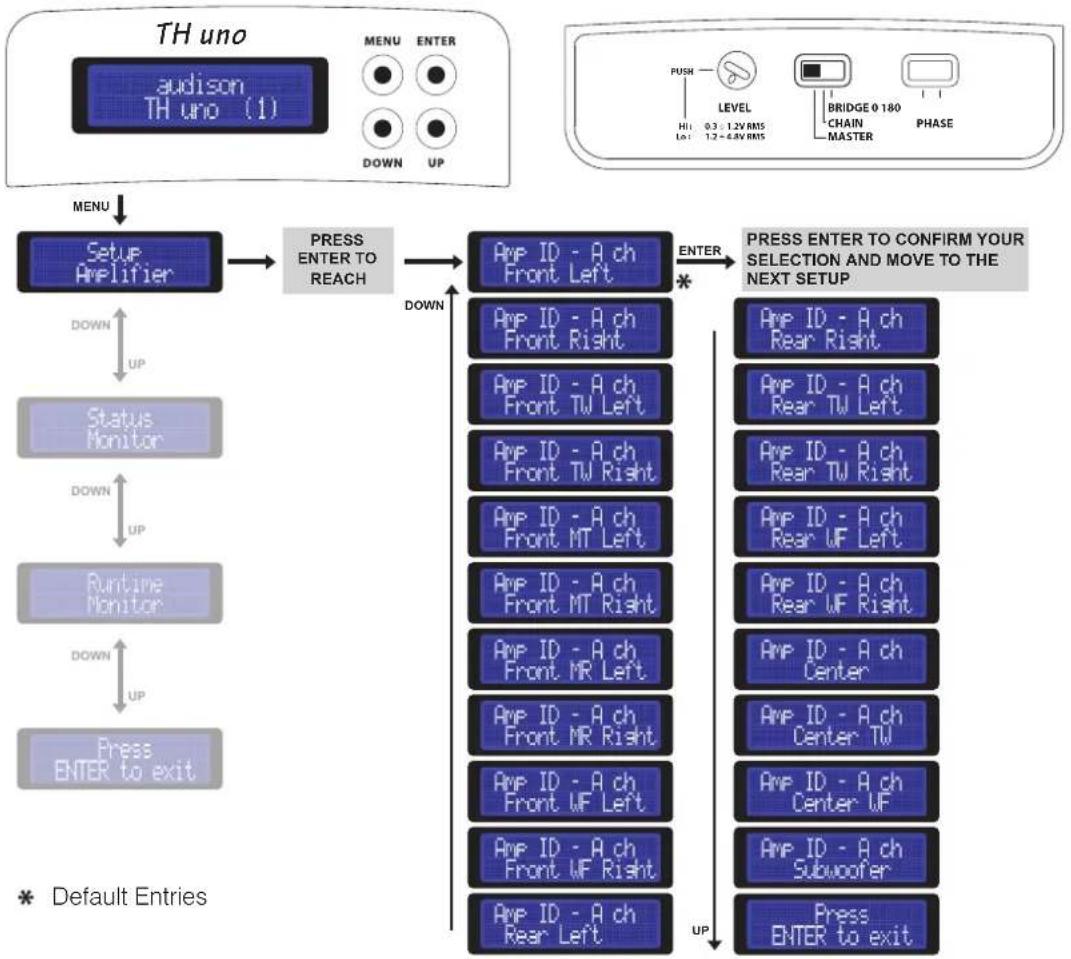

Setup Amplifier: Amp ID

AMP ID stands for Amplifier IDentification. The AMP ID is a way to identify the task the amplifier performs inside the system. The AMP ID does not affect the electric functioning and does not act on the amplifier electronic crossover. The AMP ID is fundamental to adjust Volume, Balance, Fader as well as Sub Volume when the DRC is connected. The ASC recognises the function the amplifier has been given through the ID. By acting on the DRC and adjusting Volume, Balance, Fader as well as Sub Volume, as a consequence also the signal to the amplifiers will be managed.

Example:

If the AMP ID-Front is assigned to the TH amplifier, by operating on the DRC its general volume, as well as the right/left balance, will change. Also, by setting the Fader on Rear you will hear the volume diminishing; however, no change will be perceived if you operate on the DRC Sub volume.

Vice versa, if the AMP ID – Subwoofer is assigned to the TH amplifier, by operating on the DRC its general volume, more specifically the Sub volume, will change; however, no change will be perceived if you operate on the right/left balance or moving the Fader.

In order to avoid errors, you should assign the ID according to the speakers connected to the amplifier.

ASC - Amplifier Status Controller

The AMP ID can also be assigned to the PRE OUT output. This function is extremely useful in case the TH amplifier is added to a pre-existing system featuring not only TH amplifiers or if you want to add to the TH system a non-TH amplifier. This way you can anyway know the non-TH amplifier function as well as adjust its volume. The AMP ID - Preout provides the ability to expand the system endlessly, keeping the low level parameters management functions through the DRC.

As the AMP ID – Preout does not operate on the electronic crossover, it does not put in any filters on the output signal! The signal on the PRE OUT output will always be exactly the same as the one on the selected input.

Front Panel

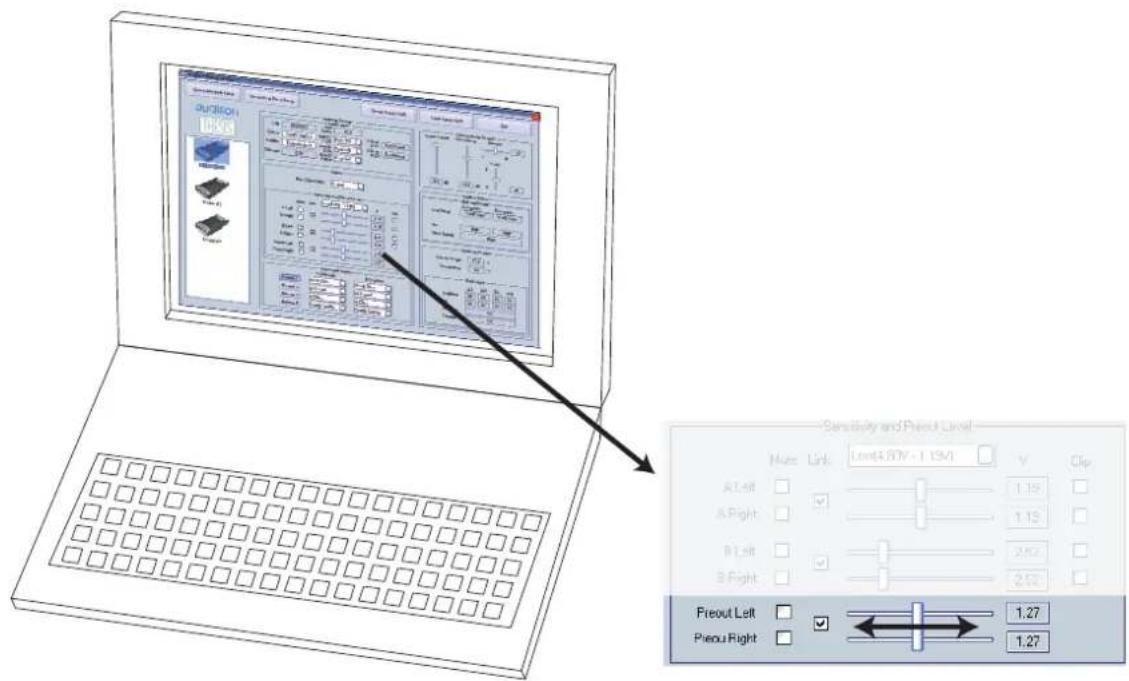

How to adjust the PRE OUT analog output

As already said, the AMP ID can also be assigned to the PRE OUT output, but not only to it. Through the ACNet software also the PRE OUT sensitivity can be adjusted to align the gain of the amplifier connected to that output, thus adapting sensitivity according to the system general volume increase and decrease.

The procedure to perform this operation is the following:

1- Connect the (non-TH) amplifier to the PRE output.
2- Assign the ID - Preout.
3- Set the non-TH amplifier sensitivity to the minimum.
4- Through the AC Net slider, increase the output sensitivity until you get the desired volume.
5- Should it not be enough, increase the non-TH amplifier input sensitivity

TH uno TH uno AUDISON TH uno (1) PRESS PRESS Setup Amplifier UP TO PRESS PRESSUP TO AMF ID - Freqout Front TH unoTH uno AMF ID - Freqout Rear

AVF ID - Preout Front MIN THESIS HV venti

Sensitivity and Pecout Level Muse Link: Limit(4.80V - 1.13V) V Clip A Left A Right B Left B Right Pecout Left Pecou Right 1.27 1.27

ASC - Amplifier Status Controller

Setup Amplifier : X-Over Slope

You can choose the crossover filter slope.

Select 1-12 dB/oct: in this case, the Low-pass slope switch on the TH-MXR module will not be active.

Select 2-24 dB/oct: when this option is selected, the Low-pass slope switch on the TH-MXR module will anyway be active, thus providing the ability to mechanically choosing between 12 and 24 dB/oct.

For further information see page 23 ÷ 26

ASC - Amplifier Status Controller DUAL POWER & BIAS CONTROL

A revolutionary function called Dual Power was introduced for the first time in the HV venti.

Controlling the amplifier's output power configuration, this function allowed the predetermination of the amplifiers output power and of the grade of the outputs operational class. The digital interface enables expedient intervention by the user, setting up the amplifier's operational modes by operating on the power and bias current settings, all in real-time. In any case the result is a clear "sound customisation".

In this Setup section you can set the amplifier operational mode.

There are four possible presets:

Class A: to intensify the musical performance; you can not expect the amplifier to drive loads under 4 Ω under these conditions;

Hi-AB Class: it is the default mode, combining the characteristics of high class functioning, great capability of driving difficult loads and high power.

Hi-Current: Pure power, on any loads

Energy Saving: it sets the power emission to the minimum, allowing musical enjoyment for extended periods of time with the vehicles engine off.

When changing mode, you have to wait a few seconds to perceive the acoustic variations. The Dual Power is absolutely independent from the other settings selections. It will work both in Mono and in Stereo configurations, both with and without the crossover, both connecting a subwoofer and a tweeter to it. So we recommend you pay attention to select a functioning mode accepting the impedance load you applied to the amplifier. Check the following page for comparative charts with reference values. WARNING: Using two TH uno in BRIDGE mode, you must setup both with the same Dual Power setting.

Setup Amplifier: DUAL POWER Settings

When changing mode, you need to wait a few seconds to perceive the acoustic changes.

ASC - Amplifier Status Controller

DUAL POWER Values

ASC - Amplifier Status Controller

Setup Amplifier: DUAL POWER Settings

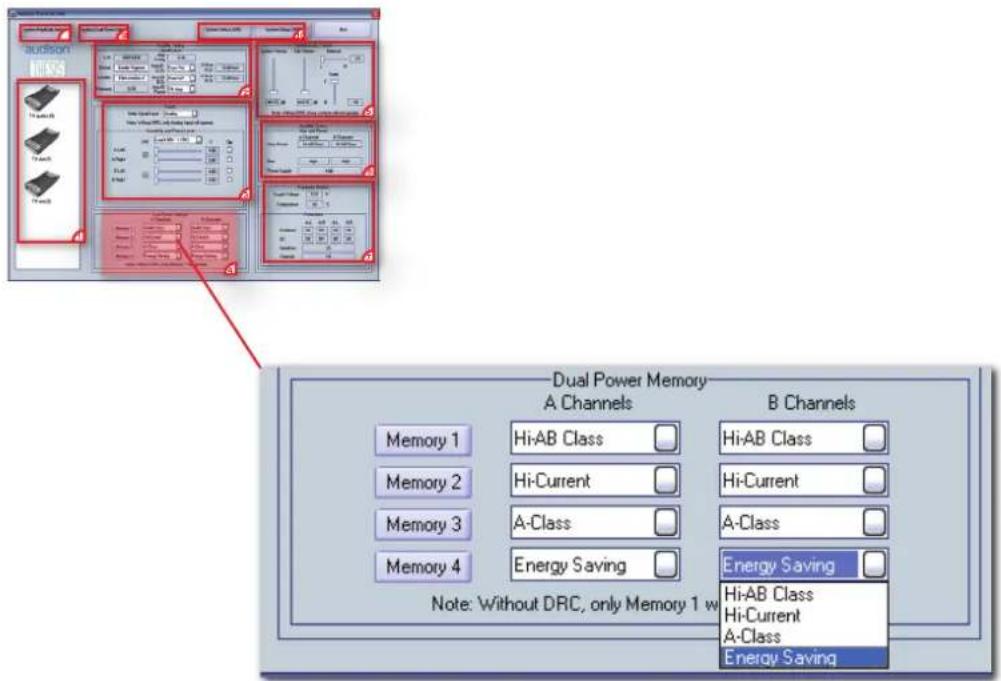

How to change presets on the Memory (DRC required)

The TH due can be set with only one operational mode at a time, while the DRC can manage four customisable memories.

1- Default: In standard configuration, without making any changes, if memory 1 is recalled from the DRC, all the TH amplifiers connected to the system will be working in Hi-AB Class mode (as it is the default setting), while selecting memory 2 they will be workin in Hi-Current mode and so on.
2- Customizing: by acting on both the DRC memories and the ASC control panel of the amplifier, you can create custom setups. For instance, if you want the TH amplifiers to anyway work in A-Class mode, you will have to act on the setup as follows:

• Select memory 1 on the DRC by pressing first SEL and then 1
• Select the A-Class preset on the ASC by accessing to its corresponding setup
• Repeat this operation for each DRC memory
• Repeat this operation for each TH present in the system

audison audison vol bal fad sub DRC SEL PRESS PRESS audison DualPUR Memory X 1 2 3 4 DRC SEL PRESS PRESS UP TOPRESS PRESS TH uno TH uno TH uno TH uno audison TH uno (1) DOWN UP Setup Amplifier MENU ENTER DOWN UP DualPUR Memory X Hi AB Class DOWN UP DualPUR Memory X A Class DOWN UP

Example: In a three-way + Sub system, multi-amplified with TH quattro on TW and MID, TH due on WF and TH uno on SUB, in default setting if you recall memory 1 all of the TH's would work in Hi-AB Class mode. It is possible to create custom memories, see for instance the example below, to store in memory 1 a system especially designed to ensure top quality for each way or to store in memory 2 a system especially designed for the best power/quality ratio, to store in memory 3 a system set to obtain maximum quality and in memory 4 a system best optimizing the current consumption.

Default configuration Modified configuration

DRC Memory
	1	2		3
TH quattro	Hi-AB Class	Hi-Current A	Class Energy Saving
TH due	Hi-AB Class	Hi-Current A	Class Energy Saving
TH uno	Hi-AB Class	Hi-Current A	Class Energy Saving

Example: Three Way + Sub, multi-amplified, TH amplifiers Digital Input

REM Out Source Digital (Optical) Out TH quattro DRC (Necessary) Function: Master Volume TH due TH uno ACNet (Optional use) USB / AC Link Converter TH quattro audison TH quattro (1) Ape ID - 8 ch Front UP Ape ID - 8 ch Front PR WM2 or WT1 WT2 or MT1 WT2 or MT1 TH-NOUR 1 TH-NOUR 2 TH-NOUR 3 TH-NOUR 4 TH-NOUR 5 TH-NOUR 6 TH-NOUR 7 TH-NOUR 8 TH-NOUR 9 TH-NOUR 10 TH-NOUR 11 TH-NOUR 12 TH-NOUR 13 TH-NOUR 14 TH-NOUR 15 TH-NOUR 16 TH-NOUR 17 TH-NOUR 18 TH-NOUR 19 TH-NOUR 20 TH-NOUR 21 TH-NOUR 22 TH-NOUR 23 TH-NOUR 24 TH-NOUR 25 TH-NOUR 26 TH-NOUR 27 TH-NOUR 28 TH-NOUR 29 TH-NOUR 30 TH-NOUR 31 TH-NOUR 32 TH-NOUR 33 TH-NOUR 34 TH-NOUR 35 TH-NOUR 36 TH-NOUR 37 TH-NOUR 38 TH-NOUR 39 TH-NOUR 40 TH-NOUR 41 TH-NOUR 42 TH-NOUR 43 TH-NOUR 44 TH-NOUR 45 TH-NOUR 46 TH-NOUR 47 TH-NOUR 48 TH-NOUR 49 TH-NOUR 50 TH-NOUR 51 TH-NOUR 52 TH-NOUR 53 TH-NOUR 54 TH-NOUR 55 TH-NOUR 56 TH-NOUR 57 TH-NOUR 58 TH-NOUR 59 TH-NOUR 60 TH-NOUR 61 TH-NOUR 62 TH-NOUR 63 TH-NOUR 64 TH-NOUR 65 TH-NOUR 66 TH-NOUR 67 TH-NOUR 68 TH-NOUR 69 TH-NOUR 70 TH-NOUR 71 TH-NOUR 72 TH-NOUR 73 TH-NOUR 74 TH-NOUR 75 TH-NOUR 76 TH-NOUR 77 TH-NOUR 78 TH-NOUR 79 TH-NOUR 80 TH-NOUR 81 TH-NOUR 82 TH-NOUR 83 TH-NOUR 84 TH-NOUR 85 TH-NOUR 86 TH-NOUR 87 TH-NOUR 88 TH-NOUR 89 TH-NOUR 90 TH-NOUR 91 TH-NOUR 92 TH-NOUR 93 TH-NOUR 94 TH-NOUR 95 TH-NOUR 96 TH-NOUR 97 TH-NOUR 98 TH-NOUR 99 TH-NEUTRAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUAL/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUA/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUB/ANNUC/AUANA/ DC OUT Digital Audio Control Bus REM Front Panel Rear Panel SW1 or SW2 WM1 or WM2 SW1 or SW2 WOOFER WOOFER WOOFER WOOFER WOOFER WOOFER WOOFER WOOFER WOOFER WOOFER WOOFER WOOFER WOOFER WOOFER WOOFER WOOFER WOOFER WOOFER WOOFER WOOFER WOOFER WOOFER WOOFER WOOFER WOOFER WOOFEERWOOFERWOOFERWOOFERWOOFERWOOFERWOOFERWOOFERWOOFERWOOFERWOOFERWOOFERWOOFERWOOFERWOOFERWOOFERWOOFERWOOFERWOOFERWOOFERWOOFERWOOFERWOOFERWOOFERWOOFERWOOFERWOAFR/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFER/WOOFEERWQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFVWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYWYTWOONFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWATWSFOONFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFLWSFOONFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFWOTFLWSFOONFWOTFLWSFOONFWOTFLWSFOONFWOTFLWSFOONFWOTFLWSFOONFWOTFLWSFOONFWOTFLWSFOONFWOTFLWSFOONFWOTFLWSFOONFWOTFLWSFOONFWOTFLWSFOONFWOTFLWSFOONFWOTFLWSFOONFWOTFLWSFOONFWOTFLWSFOONFWOTFLWSFOONFWOTFLWSFOONFWOTFLSFSFOONSWFTFSFOONSWFTFSFOONSWFTFSFOONSWFTFSFOONSWFTFSFOONSWFTFSFOONSWFTFSFOONSWFTFSFOONSWFTFSFOONSWFTFSFOONSWFTFSFOONSWFTFSFOONSWFTFSFOONSWFTFSFOONSWFTFSFOONSWFTFSFOONSWFTFSFOONSWFTFSFOONSWFTFSFOONSWFTFSFOONSWTFSFOONSWTFSFOONSWTFSFOONSWTFSFOONSWTFSFOONSWTFSFOONSWTFSFOONSWTFSFOONSWTFSFOONSWTFSFOONSWTFSFOONSWTFSFOONSWTFSFOONSWTFSFOONSWTFSFOONSWTFSFOONSWTFSFOONSWTFSFOONSWTFSFOONSWTFSFOONSW TFEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTTEETRWTDEEETRWTDEEETRWTDEEETRWTDEEETRWTDEEETRWTDEEETRWTDEEETRWTDEEETRWTDEEETRWTDEEETRWTDEEETRWTDEEETRWTDEEETRWTDEEETRWTDEEETRWTDEEETRWTDEEETRWTDEEETRWTDEEETRWTDEEETRWTDEeETRWTDEeETRWTDEeETRWTDEeETRWTDEeETRWTDEeETRWTDEeETRWTDEeETRWTDEeETRWTDEeETRWTDEeETRWTDEeETRWTDEeETRWTDEeETRWTDEeETRWTDEeETRWTDEeETRWTDEeETRWTDEeETRWTDEeETRWTDEdTRSTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRETTRENTRTSTVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVT STVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTSTVITTSVTCTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSFTSMTSTVITTSMTSTVITTSMTSTVITTSMTSTVITTSMTSTVITTSMTSTVITTSMTSTVITTSMTSTVITTSMTSTVITTSMTSTVITTSMTSTVITTSMTSTVITTSMTSTVITTSMTSTVITTSMTSTVITTSMTSTVITTSMTSTVITTSMTSTVITTSMTSTVITTSMTSTVITTSMTSTVITTCMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTMSTRMSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLSSLss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Lss Hs HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT no HT NOHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NoHT NOHT NoHT NoHT NoHT NoHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NOHT NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH NUTH SNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLTNSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLSNTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINT LA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA SINTLA AUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTA USDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSDTAUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT AUSGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USGT A USG TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI TAVI UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAU UTAT UTAU UTAT UTAU UTAT UTAU UTAT UTAU UTAT UTAU UTAT UTAU UTAT UTAU UTAT UTAU UTAT UTAU UTAT UTAU UTAT UTAU UTAT UTAU UTAT UTAU UTAT UTAU UTAT UTAU UTAT UTAU UTAT UTAU UTAT UTAU UTAT UTAU UTAT UTAU UT AT UTAU UT AT UTAU UT AT UTAU UT AT UTAU UT AT UTAU UT AT UTAU UT AT UTAU UT AT UTAU UT AT UTAU UT AT UTAU UT AT UTAU UT AT UTAU UT AT UTAU UT AT UTAU UT AT UTAU UT AT UTAU UT AT UTAU UT AT UTAU UT AT UTAU UT AT UTAU UT At U TAU UT AT U TAU UT AT U TAU UT AT U TAU UT AT U TAU UT AT U TAU UT AT U TAU UT AT U TAU UT AT U TAU UT AT U TAU UT AT U TAU UT AT U TAU UT AT U TAU UT AT U TAU UT AT U TAU UT AT U TAU UT AT U TAU UT AT U TAU UT AT U TAU UT AT U TAU UT AT U TAU UT At U TAU UT At U TAU UT At U TAU UT At U TAU UT At U TAU UT At U TAU UT At U TAU UT At U TAU UT At U TAU UT At U TAU UT At U TAU UT At U TAU UT At U TAU UT At U TAU UT At U TAU UT At U TAU UT At U TAU UT At U TAU UT At U TAU UT At U TAU UT AT U TAUCNAT ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND ANGND IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDD IN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN GDDIN CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSNAT CDSN

Example: Three Way + Sub, multi-amplified, TH amplifiers Analog + Digital Input

Example: Three Way + Sub, multi-amplified, with both TH and non-TH amplifiers. Analog + Digital Input
        AP["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
    end
    subgraph TH_due
        AQ["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        AR["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        AS["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
    end
    subgraph TH_due
        AT["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        AU["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        AV["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        AW["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
    end
    subgraph TH_due
        AX["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        AY["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        AZ["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
    end
    subgraph TH_due
        BA["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        BB["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        BC["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
    end
    subgraph TH_due
        BD["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        BE["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        BF["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
    end
    subgraph TH_due
        BG["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        BH["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        BI["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
    end
    subgraph TH_due
        BJ["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        BK["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        BL["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
    end
    subgraph TH_due
        BM["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        BN["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        BO["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
    end
    subgraph TH_due
        BP["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        BQ["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        BR["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
    end
    subgraph TH_due
        BS["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        BT["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
    end
    subgraph TH_due
        BU["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        BV["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
    end
    subgraph TH_due
        BW["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        BX["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
    end
    subgraph TH_due
        BYD["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        BFI["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
    end
    subgraph TH_due
        BWD["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
        BXD["DRC (Necessary) Function: Source Selector (Analog IN / Optical IN) Master Volume (On Optical)"]
    end
    subgraph TH_due
        BYD(DRC, Digital Audio)
        BWD(DRC, Digital Audio)
    end

ASC - Amplifier Status Controller Status Monitor

This feature of the ASC provides the ability to monitor the amplifier working status by moving through the different entries the data regarding the working TH amplifier will show. When displaying a value, if you do not act on any of the buttons for 5 seconds, the ASC automatically goes back to the default display screen.

    D --> I["ENTER"]
    I --> J["Supply Voltage 12.6V"]
    J --> K["Temperature 34°C"]
    K --> L["DualPUR Memory X Hi AB Class"]
    L --> M["Amp ID - A ch Front Left"]
    M --> N["Amp ID - Preout Front"]
    N --> O["Customer Name xxxxxxxxxxxxxxxxx"]
    O --> P["Installer Name xxxxxxxxxxxxxxxxx"]
    P --> Q["Sensitivity A ch Lo 4.80V"]
    Q --> R["Sens. Preout Lo 1.19V"]
    R --> S["Current, Input Optical"]
    S --> T["X-Dover Slope 12 dB/oct"]
    T --> U["Ampifier Config Chain/Bridge"]
    U --> V["ADRS Position 0"]
    V --> W["Serial Number xxxxxxxxx"]
    W --> X["Firmware Version 1.00"]

    J --> Y["ENTER TO EXIT"]
    Y --> Z["Displays the voltage measured on the amplifier power supply terminals."]
    Y --> AA["Displays the working temperature measured on the heat sink internal surface"]
    Y --> AB["Displays the amplifier Mode (the selected Dual Power preset .)"]
    Y --> AC["Displays the amplifier function inside the system, identified by its own ID."]
    Y --> AD["Displays the amplifier PRE output function inside the system, identified by its specific ID."]
    Y --> AE["These functions are only customisable if the PC is connected through the ACNet software. These entries are displayed on the Status Monitor only if customized."]
    Y --> AF["Displays the input sensitivity range and value measured in volts, both being adjusted by the relative potentiometer on the INPUT PANEL or by the ACNet software."]
    Y --> AG["Displays the PRE output sensitivity range and value measured in volts, both being adjusted exclusively by the ACNet software."]
    Y --> AH["Displays the main input type selected on the amplifier."]
    Y --> AI["Displays the filter slope pre-set during the amplifier Setup."]
    Y --> AJ["Indicates whether the amplifier is set to work in stereo or mono configuration."]
    Y --> AK["Displays the value of the amplifier digital address selected in the ADRS specific selector located on the FRONT PANEL."]
    Y --> AL["Displays the amplifier serial number. The user can not modify this field in any way."]
    Y --> AM["Displays the version of the installed ASC software."]

ASC - Amplifier Status Controller Runtime Monitor

This function of the ASC provides the ability to alternately show on the amplifier display the information on its operational status. Through this setup you can select the fields you want to be visible when the amplifier is on. For each field you can select YES to have the entry show on the display. If all NO are selected, the display will always show the default display screen. You will only have to select even just one entry to see it appear alternately on the display while the amplifier is working. By default all the fields are pre-set on NO.

    I["ENTER"] --> J["Supply Voltage No"]
    I --> K["Temperature No"]
    I --> L["DualPUR Memory No"]
    I --> M["Amp ID No"]
    I --> N["Customer Name No"]
    I --> O["Installer Name No"]
    I --> P["Sensitivity No"]
    I --> Q["Current Input No"]
    I --> R["X-Over No"]
    I --> S["Ampifier Config No"]
    I --> T["ADRS Position No"]
    I --> U["Serial Number No"]
    I --> V["Firmware Version No"]
    I --> W["Press ENTER to exit"]

    X["ENTER"] --> Y["Supply Voltage Yes"]
    X --> Z["Temperature Yes"]
    X --> AA["DualPUR Memory Yes"]
    X --> AB["Amp ID Yes"]
    X --> AC["Customer Name Yes"]
    X --> AD["Installer Name Yes"]
    X --> AE["Sensitivity Yes"]
    X --> AF["Current Input Yes"]
    X --> AG["X-Over Yes"]
    X --> AH["Ampifier Config Yes"]
    X --> AI["ADRS Position Yes"]
    X --> AJ["Serial Number Yes"]
    X --> AK["Firmware Version Yes"]
    X --> AL["Press ENTER to exit"]

    M --> J
    N --> K
    O --> L
    P --> M
    Q --> N
    R --> S
    S --> T
    T --> U
    U --> V
    V --> W

    style I fill:#4A90E2,stroke:#333
    style X fill:#4A90E2,stroke:#333

ASC - Amplifier Status Controller

Info and Alert sentences

What the TH is doing

1 Amp in default

2 Amp in muting

3 Amp in muting

4 Amp off

5 Autoreset

6 Event's alert

7 Event's alert

8 Autoreset

9 Event's alert

10 Autoreset

11 Event's alert

What the display is showing

DRC not found: defaults loaded

Set Master or setup amplifier

Set Chn/Brds or setup amplifier

Protection Service

Protection Overload

Prot. Memory Overload

Warning Clip

Protection Ov. Temperature

Prot. Memory Ov. Temperature

Protection Check Speakers

Prot. Memory Check Speakers

What it means

The previously found connection with DRC has been lost. This information is also displayed when the amplifier is on and the DRC gets disconnected. Volume goes back to 0 dB (the set sensitivity is not modified). Balance and Fader are set back to their centre position (0). The Sub volume is set back to 0 dB. The ANALOG input is automatically selected.

AMP MODE switch position is different from the original position acquired during the Amplifier Setup (MASTER). You have to access to the ASC and at least set the AMP ID.

AMP MODE switch position is different from the original position acquired during the Amplifier Setup (CHAIN or BRIDGE). You have to access to the ASC and at least set the AMP ID.

General protection. The amplifier will try to restart 5 times. Contact Audison Technical Support.

Overload protection. Check speaker load. This message is displayed when an overload occurs.

Rare overload occurs. Check speaker load. This message is displayed when an overload has already occurred but the amplifier restarted.

Output is reaching distortion threshold. The information is immediate and stays displayed only while distortion is still present.

Thermal protection. Check environmental temperature and/or use a low bias Dual Power setting.

Rare thermal protection occurs. Check environmental temperature and/or use a low bias Dual Power setting.

Contact with ground. Stop listening and check speaker cables.

Rare contact with ground occurs. Stop listening and check speaker cables.

* These messages appear also on the DRC display. The DRC will display amplifier name and ADRS on the first row.

DRC - Digital Remote Control

(not included with TH amplifier)

The DRC is a microprocessor digital system providing remote control and monitoring of the TH amplifiers. Once connected it performs important functions such as:

• Source selection (it also provides the ability to use the optical digital input as main source, checking its main volume)
• Main volume control
• Subwoofer volume control
• Right/ left balance control
• Front/rear Fader control
• Dual Power working memory Manager
• Status Monitor for all the amplifiers in the system

    M["Pressure"] --> N["Input Select Optical"]
    N --> O["Select the Input."]

    P["OK"] --> Q["Volume: -59.5dB L+----H"]
    P --> R["Balance: +3 L----0----R"]
    P --> S["Fader: +3 F----0----R"]
    P --> T["Sub Vol: -1.5dB L----+----H"]

    U["OK"] --> V["Dual Power Memory 1"]
    U --> W["Dual Power Memory 2"]
    U --> X["Dual Power Memory 3"]
    U --> Y["Dual Power Memory 4"]

    Z["OK"] --> AA["Amplifier Status Monitor PREVIOUS PARAMETER"]
    Z --> AB["Amplifier Status Monitor NEXT PARAMETER"]

    AC["OK"] --> AD["If more than one TH amps are connected, it selects and shows, as a sequence, the different amplifiers, identified by the ADRS."]
    AE["OK"] --> AF["Amplifier Status Monitor PREVIOUS AMPLIFIER"]
    AE --> AG["Amplifier Status Monitor NEXT AMPLIFIER"]

    AH["OK"] --> AI["When recalling a memory, the display shows its corresponding preset stored in the amplifier."]
    AJ["When you select a parameter you want to display, the display alternates it to the main display screen. To exit this view press SEL."]
    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333
    style E fill:#cff,stroke:#333
    style F fill:#ffc,stroke:#333
    style G fill:#cfc,stroke:#333
    style H fill:#fcc,stroke:#333
    style I fill:#ffc,stroke:#333
    style J fill:#cfc,stroke:#333
    style K fill:#cfc,stroke:#333
    style L fill:#fcc,stroke:#333
    style M fill:#cfc,stroke:#333
    style N fill:#cfc,stroke:#333
    style O fill:#cfc,stroke:#333
    style P fill:#cfc,stroke:#333
    style Q fill:#cfc,stroke:#333
    style R fill:#cfc,stroke:#333
    style S fill:#cfc,stroke:#333
    style T fill:#cfc,stroke:#333
    style U fill:#cfc,stroke:#333
    style V fill:#cfc,stroke:#333
    style W fill:#cfc,stroke:#333
    style X fill:#cfc,stroke:#333
    style Y fill:#cfc,stroke:#333

DRC - Digital Remote Control

Info and Alert sentences

audison audison vol bal fad sub SRC SEL

TH AMPLIFIER MODEL AMPLIFIER ADDRESS (ADRS) TH uno (0) Service PROTECTION TYPE

Amp off

Service general protection. Call Audison Technical Support.

Autoreset

Overload protection. Check speaker load.

Event's alert

Clip output is reaching distortion threshold.

Autoreset

Thermal protection. Check environmental temperature and/or use a low bias AMC setting.

Autoreset

Rare contact with ground occurs. Stop listening and check speaker cables.

Event's alert

The PC is connected and ACNet software is running. The DRC is disabled.

DRC - Digital Remote Control

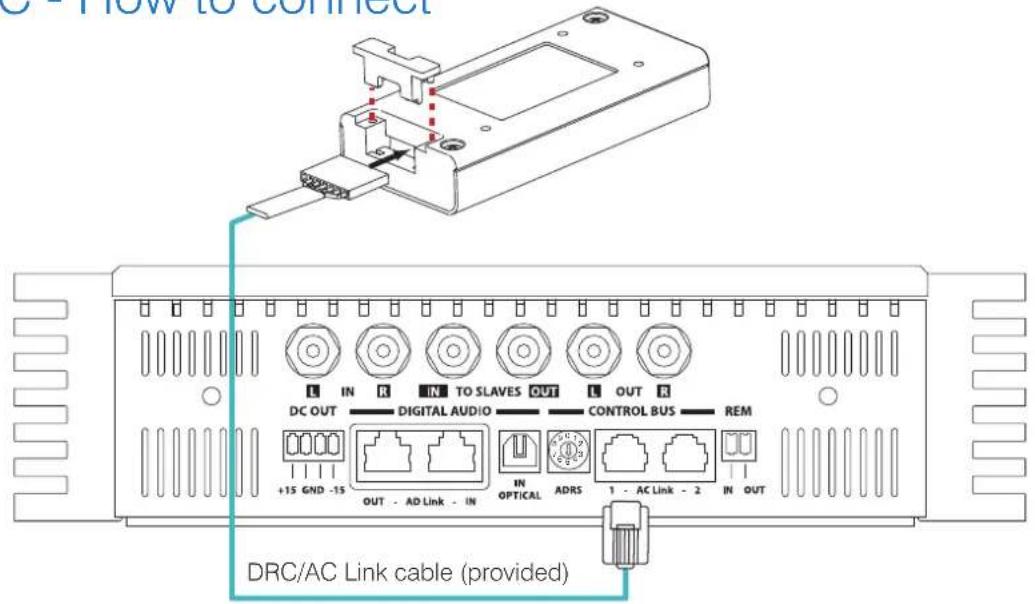

DRC - How to connect

S - HOW TO CONNECT L IN R IN TO SLAVES OUT L OUT R DC OUT DIGITAL AUDIO CONTROL BUS REM +15 GND -15 OUT - AD Link - IN OPTICAL ADRS 1 - AC Link - 2 IN OUT DRC/AC Link cable (provided)

DRC - How to install

Technical diagram of a mechanical assembly with labeled components and red dashed lines indicating alignment or measurement points.

Technical line drawing of a mechanical assembly with mounting holes and a bracket (no text or symbols)

External mountingFlush mounting

13.5 mm / 0.53" 3.5 mm / 0.14" 6 mm / 0.23" 43.5 mm / 1.71"

35 mm / 1.38" Ø 2 mm / 1/8" 50 mm / 2" 68 mm / 2.68" 90 mm / 3.54"

16 mm / 0.63" 17 mm / 0.67" 12.5 mm / 0.49"

ACNet - Audison Control Network

Software to control Audison amplifier

audison Thesis AD Net System-Aquitude Setup System-Dual Power Setup Systems Setup:CAD Systems Setup:SLAD Quit audison THESIS TH-10000 TH-10000 TH-10000 TH-10000 TH-10000 TH-10000 TH-10000 TH-10000 TH-10000 TH-10000 TH-10000 TH-10000 TH-10000 TH-25 TH-25 TH-25 TH-25 TH-25 TH-25 TH-25 TH-25 TH-25 TH-25 TH-25 TH-25 TH-25 TH-25 TH-25 TH-25 TH-25 TH-25 TH-25 TH-25 TH-26 TH-26 TH-26 TH-26 TH-26 TH-26 TH-26 TH-26 TH-26 TH-26 TH-26 TH-26 TH-26 TH-26 TH-26 TH-26 TH-26 TH-26 TH-26 TH-26 TH-27 TH-27 TH-27 TH-27 TH-27 TH-27 TH-27 TH-27 TH-27 TH-27 TH-27 TH-27 TH-27 TH-27 TH-27 TH-27 TH-27 TH-27 TH-27 TH-27 TH-28 TH-28 TH-28 TH-28 TH-28 TH-28 TH-28 TH-28 TH-28 TH-28 TH-28 TH-28 TH-28 TH-28 TH-28 TH-28 TH-28 TH-28 TH-28 TH-28 TH-29 TH-29 TH-29 TH-29 TH-29 TH-29 TH-29 TH-29 TH-30 TH-30 TH-30 TH-30 TH-30 TH-30 TH-30 TH-30 TH-30 TH-30 TH-30 TH-30 TH-30 TH-31 TH-31 TH-31 TH-31 TH-31 TH-31 TH-31 TH-31 TH-31 TH-31 TH-31 TH-31 TH-31 Therms: Therms 1 H=4B Class B Channel High=0 Class Medium=1 High=Current Medium=4 Class Medium=6 High=Current Medium=8 High=Current Medium=10 High=Current Medium=12 High=Current Medium=14 High=Current Medium=16 High=Current Medium=18 High=Current Medium=20 High=Current Medium=22 High=Current Medium=24 High=Current Medium=26 High=Current Medium=28 High=Current Medium=30 High=Current Medium=32 High=Current Medium=34 High=Current Medium=36 High=Current Medium=38 High=Current Medium=40 High=Current Medium=42 High=Current Medium=44 High=Current Medium=46 High=Current Medium=48 High=Current Medium=50 High=Current Medium=52 High=Current Medium=54 High=Current Medium=56 High=Current Medium=58 High=Current Medium=60 High=Current Medium=62 High=Current Medium=64 High=Current Medium=66 High=Current Medium=68 High=Current Medium=70 High=Current Medium=72 High=Current Medium=74 High=Current Medium=76 High=Current Medium=78 High=Current Medium=80 High=Current Medium=82 High=Current Medium=84 High=Current Medium=86 High=Current Medium=88 High=Current Medium=90 High=Current Medium=92 High=Current Medium=94 High=Current Medium=96 High=Current Medium=98 High=Current Medium=100 High=Current Medium=102 High=Current Medium=104 High=Current Medium=106 High=Current Medium=108 High=Current Medium=110 High=Current Medium=112 High=Current Medium=114 High=Current Medium=116 High=Current Medium=118 High=Current Medium=120 High=Current Medium=122 High=Current Medium=124 High=Current Medium=126 High=Current Medium=128 High=Current Medium=130 High=Current Medium=132 High=Current Medium=134 High=Current Medium=136 High=Current Medium=138 High=Current Medium=140 High=Current Medium=142 High=Current Medium=144 High=Current Medium=146 High=Current Medium=148 High=Current Medium=150 High=Current Medium=152 High=Current Medium=154 High=Current Medium=156 High=Current Medium=158 High=Current Medium=160 High=Current Medium=162 High=Current Medium=164 High=Current Medium=166 High=Current Medium=168 High=Current Medium=170 High=Current Medium

Hardware Requirements:

1024x768 Display Optimized - 96 dpi Font size - 1 x USB port (1.1 compliant)

DJ12 (Provided) Rear Panel AC Link USB/AC Link (Provided) USB audison Front Panel USB (Provided) user from RJ-12 cable from USB/AC Link recognize the PC monitor software page.

1 - Switch on the PC
2 - Switch on the amplifier
3 - Connect AC Link with RJ-12 cable
4 - Connect USB cable from USB/AC Link converter to PC
5 - Wait 5/10 s, the PC recognize the USB connection
6 - Launch the software
7 - If everything it's OK the PC monitor displays the complete software page.

ACNet - Audison Control Network

Functions Description

Audison Thesis AC-Net System Amplitude Setup System Dual Power Setup System Setup LOAD System Setup SAVE Out audison THESIS 8 9 Amplifier Setting Identification S/N 00015434 Amp Config 4 ch Owner Emidio Vagnoni Amp ID Front TW/ X-Over A Ch 12 dB/oct Installer Elettronedia url Amp ID Front WF X-Over B Ch 12 dB/oct Firmware 0.20 Amp ID TH Amp 10 System Audio Control System Volume Sub Volume Balance +0 L R Fader F 0.0 dB +0.0 dB R +0 Note: Without DRC, these controls will not operate Inputs Main Signal Input Analog Note: Without DRC, only Analog Input will operate. Sensitivity and Preset Level Link Low(4.80V - 1.19V) V Cln A Left 4.80 A Right 4.80 B Left 4.80 B Right 4.80 3 Amplifier Status Bias and Power User Preset A Channels B Channels HiAB Class HiAB Class Bias High High Power Supply High Hardware Monitor Supply Voltage 12.6 V Temperature 60 °C Dual Power Memory - A Channels B Channels Memory 1 HiAB Class HiAB Class Memory 2 HiCurrent HiCurrent Memory 3 A-Class A-Class Memory 4 Energy Saving Energy Saving Note: Without DRC, only Memory 1 will operate. Projections A-L A-R B-L B-R Overload OK OK OK OK Service OK OK OK OK Check Speakers OK Ov. Temperature OK

1 • SYSTEM DISPLAY: on this area the TH amplifiers connected to the system through the ACLink will be displayed. This screen will show the TH amplifier model name and its ADRS.
2 • IDENTIFICATION: This area shows report boxes and active fields, which enable the identification of each single amplifier.
3 • INPUTS: In this section it's possible to adjust each feature relating to the TH amplifier inputs
4 • DUAL POWER MEMORY: This menus allow the function setting for each amplifier separately.
5 • SYSTEM AUDIO CONTROL: The sliders in this area operate on the low level audio controls of the whole system.
6 / 7 • AMPLIFIER STATUS: This section is the real monitor of the amplifier's vital functions.
8 • SYSTEM AMPLITUDE SETUP: This function enables the input sensitivity of the amplifiers in the system.
9 • SYSTEM DUAL POWER SETUP: This function enables the function setting of all the amplifiers in the system.
10 • SYSTEM SETUP LOAD/SAVE: It guarantees the saving of the whole system setup or the loading of setups previously saved.

ACNet - Audison Control Network

System Display

When installing a system composed by TH amplifiers it's possible to create a network between them by using ACLink series connection.

It is fundamental that a different ADRS starting from zero is assigned to each amplifier (see page 18).

In this way, when the software is turned on, the system will be able to automatically recognize which amplifier is present in the network.

This display will show all the "linked" amplifiers creating an icon corresponding to the model, the model name and the ADRS set during the installation.

The ACNet software allows the user to work either on one single amplifier or on the whole system.

In order to understand the use of the software we will work on a three way system + sub, multi-amplified, using a TH quattro on Tweeter and Midrange, TH due on Woofer and TH uno on Subwoofer.

For example, to work on a TH due double click on its dedicated icon. The name will be highlighted and its corresponding data will be displayed in the specific fields.

ACNet - Audison Control Network

Amplifier Setting: Identification

Amplifier Setting Identification S/N 00015434 Amp Config 4 ch Owner Emidio Vagnoni Amp ID Front TW X-Over A Ch 12 dB/oct Installer Elettromedia srl Amp ID Front WF X-Over B Ch 12 dB/oct Firmware 0.20 Amp ID TH Amp

The amplifier identification provides its S/N - serial number (fixed), the owner name (free-text), the installer name (free-text) and the Firmware release included in the microprocessor inside the TH amplifier.

The ACNet area shows the amplifier configuration (mechanically set in the TH Input Panel) and allows the Amp ID and AmpPreout setting through a drop-down menu.

The report boxes on the right confirm if any crossover modules have been used inside the amplifier and which slope setting has been given.

Amplifier Setting Identification S/N 00015434 Amp Config 4 ch Owner Emidio Vagnoni Amp ID Front TW A Ch A Ch Front TW Front MH Front MR Front WF Rear Rear TW X-Over A Ch 12 dB/oct X-Over B Ch 12 dB/oct Installer Elettromedia srl Amp ID B Ch Amp ID Prewout Firmware 0.20

The drop-down menu displays the available values to be assigned to the amplifier depending on its configuration / functioning modes.

For example, if the amplifier it's mono set, the available ID will be the specific ones for the mono setting.

Amplifier Setting Identification S/N 00015434 Amp Config 4 ch Owner Emidio Vagnoni Amp ID Front TW X-Over A Ch 12 dB/oct Installer Elettromedia srl Amp ID Front WF X-Over B Ch 12 dB/oct Firmware 0.20 Amp ID TH Amp Preout Rear Rear TW Rear WF Center Subwoofer TH Amp Main Signal Input A Note: Without DRC, only Analog input will operate.

If the system is also composed by non-TH amplifiers, they can be managed by attributing an ID to the Pre Out connected to them. The menu default option is "TH AMP", because generally a TH amp (provided with its specific Amp ID already) is connected to the Pre Out.

ACNet - Audison Control Network

Amplifier Setting: Inputs

AudiSonic Main Signal Input Analog Note: Without DRC, only Analog Input will operate. Sensitivity and Preout Level Link Low(4.80V - 1.19V) V Clip A Left 4.80 A Right 4.80 B Left 4.80 B Right 4.80

As for the ASC Setup Amplifier, it is necessary to set the system whenever wanting to use the digital input. In this area it is necessary to select the Main Signal Input for each amplifier connected to the system Example:

• If the amplifier being set is the first of the network to receive the signal from an external source, it is necessary to specify if it is an analog or digital one, by selecting Analog or Optical Master.
• If it is connected to both an analog and a digital source, select Optical Master and manage the sources switch through the DRC.
• If the amplifier being set receives the signal from another TH amp, connected in analog and digital AD Link, select Optical Slave.
• If the amplifier being set receives the signal from an external audio processor (Ex: Audison Bit One) select AD Link.

Main Signal Input Analog Note: Without DRC. Sensitivity Inputs Analog Analog Optical Master Optical Slave Operate. Link Low(4.80V - 1.19V) V Clip A Left ✓ 4.80 A Right ✓ 4.80 B Left ✓ 4.80 B Right ✓ 4.80

The note warns that if the DRC is not connected to the system, even selecting a digital input, when ACNet software will be switched off, only the Analog Input will operate.

ACNet - Audison Control Network

Amplifier Setting: Sensitivity and Preout Level

Audiion Main Signal Input Analog Inputs Main Signal Input Analog Note: Without DRC, only Analog Input will operate. Sensitivity and Preout Level Link Low(4.80V - 1.19V) V Clip High (1.13V - 0.30V) Low(4.80V - 1.19V) A Left ✓ 4.80 ✓ A Right ✓ 4.80 ✓ B Left ✓ 4.80 ✓ B Right ✓ 4.80 ✓

From this section featuring drop down menus, it is possible to regulate each amplifier's input sensitivity, acting also on the High/Low Level.

There are sliders for each channel which can work singularly or together if "linked". The software enables the fine tuning between right and left, acting on the corresponding slider. The software will show the level measured in V.

The LED Clip flashes when the max level is reached during tuning or playing.

Amplifier Setting Identification S/N 00015434 Amp Config 4 ch Owner Emidio Vagnoni Amp ID Front TW X-Over A Ch 12 dB/oct Installer Elettromedia srl Amp ID Front WF X-Over B Ch 12 dB/oct Firmware 0.20 Amp ID Rear TW Inputs Output Analog DRC, only Analog Input will operate. Positivity and Preout Level Low(4.80V - 1.19V) V Clip A Right 4.80 B Left 4.80 B Right 4.80 Preout Left 0.30 Preou Right 0.30

When using a non-TH amplifier to be controlled by DRC, an ID must be assigned to the Pre Out where it is connected. In this way it is still possible to manage the TH Preout sensitivity.

The specific sliders will come into view only when a name which is not TH Amp is given to the active field.

ACNet - Audison Control Network

Amplifier Setting: Dual Power Memory

Dual Power Memory A Channels B Channels Memory 1 Hi-AB Class Hi-AB Class Memory 2 Hi-Current Hi-Current Memory 3 A-Class A-Class Memory 4 Energy Saving Energy Saving Note: Without DRC, only Memory 1 w

In this section the TH amps operating modes memories can be selected.

The available preset are: Hi-AB Class (default), Hi-Current, A-Class, Energy Saving. They can be assigned to each single memory by using the drop down menus.

The memories can be recalled through the Memory keys 1 / 2 / 3 / 4 but when ACNet software is switched off, if the DRC is not connected to the system, the function selected on Memory 1 will be operating.

TH uno and TH due can only work with one preset, while TH quattro can work with one preset on A Channels and one on B Channels.

Note: When the preset A-Class or Energy Saving is assigned to A Channels, this will be automatically applied to B Channels. Please refer to the following table:

TH quattro

	1	2	3	4	5	6
Channels A	Hi-AB Class	Hi-Current	Hi-AB Class	Hi-Current	A Class	En.Saving
Channels B	Hi-AB Class	Hi-Current	Hi-Current	Hi-AB Class	A Class	En.Saving

ACNet - Audison Control Network

System Audio Control

System Audio Control System Volume Sub Volume Balance -28.5 dB +3.0 dB R Fader +0 Note: Without DRC, these controls will not operate.

These controls act on the whole system:

• System Volume: it's the main volume control of the system, the slider on Min position switches on the muting and shows "MUTE" in the specific box. The adjustment starts from -60 dB (muting) up to 0 dB Max, 0.5 dB steps.
• Sub Volume: it's the specific volume control for the subwoofer, the slider on Min position switches on the muting and shows "MUTE" in the specific box. The adjustment starts from -12 dB (muting) up to +6 dB Max, 0,5 dB steps.
• Balance: it's the control that allows the left and right balancing. When in central position (+0) the output volume between left and right it's identical. It's possible to unbalance the output volume of one channel compared to the other.
• Fader: t's the control that allows the Front and Rear balancing. When in central position (+0) the output volume between Front and Rear it's identical. It's possible to unbalance the output volume of one zone compared to the other.

The Amp ID of each single amplifier inside the system must be set correctly in order to operate the audio controls. The Sub Volume control, for example, will only operate on the amplifiers identified on the Amp ID as Subwoofer. The Balance control will operate on all the amplifiers characterized by the presence of a right and left channel (it will not operate on Central and Subwoofer).

The note warns that if the DRC is not connected to the system, when ACNet software is switched off, these controls will not operate.

ACNet - Audison Control Network

Amplifier Status

Amplifier Status Bias and Power A Channels B Channels User Preset Hi-AB Class Hi-AB Class Bias High High Power Supply High Hardware Monitor Supply Voltage 12.6 V Temperature 60 °C Protections A-L A-R B-L B-R Overload OK OK OK OK Service OK OK OK OK Check Speakers OK Ov. Temperature OK

The ACNet software performs a real-time check-up of the amplifiers operating conditions.

Once an amplifier is selected, the parameters monitored by the ASC microprocessor are shown on the specific boxes.

Bias and Power

• User preset: displays the operating modes selected in the Dual Power Setting. For the TH quattro the operating modes of both channels A and B are shown.
• Bias: displays the bias current value corresponding to the preset in use.
• Power Supply: displays the power supply value corresponding to the preset in use.

Hardware Monitor

• Supply Voltage: displays the power supply voltage (V) measured on the amplifier terminals.
• Temperature: displays the amplifier working temperature measured in °C.
• Protections: the protection conditions are provided for each channel.

Overload: warns when an extremely low load has been connected to the amplifier speaker terminals or when a temporary overload has occurred;

Service: warns when DC current is coming out of the speaker terminals;

Speakers: warns when a short-circuit has occurred in the connection between amplifier and speakers;

Ov. Temperature: warns when an operating temperature, dangerous for the amplifier, has been reached.

ACNet - Audison Control Network

System Amplitude Setup

audison Amplifiers found on bus Output Level UNK Clip TH quattro: 0: A ch. Front T/F Lo-5 sec - TH quattro: 0: B ch. Front MR Lo-5 sec - TH quattro: 0: Peout Front wF Lo-5 sec - TH due: 1: A ch. Rear Lo-5 sec - TH uno: 2: A ch. Subwoofer Lo-5 sec - OK Cancel

Once each single amplifier in the system has been set, it is possible to use the setup window above, which allows the sensitivity adjustment of all amplifiers of the entire system.

Using this section, it's possible to operate in an even mode on the amplifiers level tuning.

Sliders will work singularly on each amplifier and, selecting the Output Level LINK key, it's possible to tie all the sliders together and modify the main system level. The LED Clip flashes, when the max level is reached during tuning or playing.

Single level adjustment

System Amplitude Setup Amplifiers found on bus: TH quatts: 0: A ch Front TW TH quatts: 0: B ch Front MR TH quatts: 0: Preout Front WF TH due: 1: A ch Floor TH unc: 2: A ch Subwodes Output Level LINK Op OK Cancel

Whole system level adjustment

System Amplitude Setup Amplifiers found on bus Output Level LINK Ctp TH quatts: 0: A ch Front TW LoSens - - - - - TH quatts: 0: B ch Front MB LoSens - - - TH quatts: 0: Prcout Front WF LoSens - - - TH due: 1: A ch Rear LoSens - - - TH unc: 2: A ch Subvector LoSens - - OK Cancel

ACNet - Audison Control Network

System Dual Power Setup

Dual Power Setup Amplifies found on bus: Th quitts : 0 : A ch: Front TV Th quitts : 0 : B ch: Front MR TH due : 1 : A ch: Res: TH uni : 2 : A ch: Subscribers OK Cancel

This setup enables the complete management of the operating mode of the amplifiers in the systems. The chart above presents in one window all the amplifier names and channels being used.

The fields are provided by default as in the example above. When wanting to achieve peculiar operating modes, depending on the acoustics results requested to the system, it is possible to modify the preset sequence.

Examples:

• To achieve the best quality/performance ratio system, select A-Class for TH quattro, Hi-AB Class for TH due and Hi-Current for TH uno.
• To achieve the best power/performance ratio system, select Hi-AB Class for TH quattro, Hi-Current for TH due and Hi-Current for TH uno.
• To achieve the highest audio quality system, use Memory 3.
• To achieve an unextended listening time while the car is parked, use Memory 4.

Technical Specifications

Power supply

Voltage 11 ÷ 15 VDC

Idling current:

A-Class 8.5 A

Hi-AB Class 6.2 A

Hi-Current 4.3 A

Energy Saving 2.2 A

Switched off 0.04 mA

Consumption @ 14.4 VDC, 1 Ω, Max musical power 132 A

Remote IN voltage 7 ÷ 15 VDC (1 mA)

Remote OUT voltage 12 VDC (50 mA)

Internal fuse (AFS) 150 A

Amplifier stage

Distortion - THD @ 1 kHz, 4 Ω, 90% Power 0.01 %

Bandwidth @ -3 dB, 2 VRMS, 4 Ω 5 ÷ 40k Hz

S/N ratio @ A weighted, 1 V, Max Power 106 dBA

Damping factor @ 1 kHz, 2 VRMS, 4 Ω

Input sensitivity (two ranges)

Input impedance (PRE IN)

Load impedance (Min @ Dual Power Mode - Hi-Current)

• 1 Ch

500

0.3 ÷ 1.2 / 1.2 ÷ 4.8 VRMS

15 kΩ

1 Ω

Output power (RMS) @ 14.4 VDC, 1% THD

Dual Power Mode - Hi-Current:

• 1 Ch @ 4 Ω

• 1 Ch @ 2 Ω

• 1 Ch @ 1 Ω

Dual Power Mode - A Class:

• 1 Ch @ 4 Ω

Amp Chain Mode (Two Linked Amplifiers)

Output power (RMS) @ 14.4 VDC, 1% THD

• 1 Ch @ 4 Ω

• 1 Ch @ 2 Ω

850 W × 1

1500 W x 1

2300 W × 1

200 W × 1

3000 W

4500 W

CEA Specifications

Output power @ 4 Ω, ≤ 1% THD+N, 14.4 V:

SN ratio (ref. 1 W output)

700 W x 1 Ch

75 dBA

Inputs / Outputs / Filters

Inputs

Outputs

Filters

PRE / SP-DIF (Max 192 kHz/24 bit) OPTICAL and AD Link

PRE Bypass / AD link

Removable kit (Hi-pass / Lo-pass / Band-pass 12/24 dB/oct)

32 steps 18 ÷ 7.5k Hz with 8 standard & 2 customizable modules

Master / Slave Bridge, Slave Chain

Special Function (Linked Amplifiers)

Size

B (Base) x L (Lenght) x H (Height) mm/inch

Weight kg/lb

259×510×67/10"1/4×20"1/8×2"11/16

10.3 / 22.71

audison

www.audison.eu
