Product Type	Digital Personal Assistant (PDA)
Brand	Toshiba
Model	e570
Operating System	Microsoft Pocket PC 2002
Processor	Intel StrongARM 206 MHz
Memory	32 MB RAM, 32 MB ROM
Display	3.5-inch TFT touchscreen, 240x320 pixels
Dimensions	125 x 80 x 15 mm
Weight	150 g
Power Supply	Rechargeable Lithium-Ion battery, 3.7V
Battery Life	Up to 12 hours typical usage
Main Functions	Calendar, Contacts, Tasks, Notes, Calculator, Pocket Word, Pocket Excel
Connectivity	USB 1.1, Infrared (IrDA), Serial
Expansion Slot	CompactFlash Type II
Audio	Built-in speaker, microphone, 3.5mm headphone jack
Maintenance and Cleaning	Clean with soft, dry cloth; avoid solvents and moisture
Safety	Keep away from water and extreme temperatures; use provided charger only
Spare Parts and Repairability	Battery and stylus replaceable; other repairs by authorized service
General Information	User manual available for free download in PDF format

Frequently Asked Questions - e570 TOSHIBA

How do I perform a soft reset on my Toshiba e570?

To perform a soft reset, use the stylus to press the reset button located on the back or bottom of the device. This will restart the PDA without erasing data.

How can I synchronize my e570 with a computer?

Install Microsoft ActiveSync on your computer, connect the PDA using the USB cable, and follow the setup wizard to sync contacts, calendar, and files.

What type of memory card does the e570 support?

The Toshiba e570 has a CompactFlash Type II slot for memory expansion. You can use CF cards for additional storage.

How do I replace the battery in my Toshiba e570?

Turn off the device, remove the back cover, and gently lift out the battery. Insert a new compatible Lithium-Ion battery and replace the cover.

Why is my e570 screen unresponsive?

First, perform a soft reset. If the issue persists, the screen may need recalibration. Go to Settings > System > Screen and run the align screen tool.

Can I use the e570 as a GPS navigator?

The e570 does not have built-in GPS, but you can use a compatible CompactFlash GPS receiver with navigation software.

How do I transfer files to my e570?

Connect via USB and use ActiveSync to transfer files. Alternatively, you can use a CompactFlash card reader to copy files directly.

What should I do if my e570 won't turn on?

Check if the battery is charged. Press and hold the power button for 10 seconds. If no response, try a soft reset. If still off, recharge for at least 30 minutes.

How do I install new software on my e570?

Download software designed for Pocket PC 2002. Transfer the .cab or .exe file to the device via ActiveSync and run the installer from File Explorer.

Can I use Wi-Fi on my e570?

The e570 does not have built-in Wi-Fi. However, you can use a CompactFlash Wi-Fi card to connect to wireless networks.

USER MANUAL e570 TOSHIBA

It is important you read this Instruction Manual before using your Pocket PC to ensure its proper operation.

It is recommended that important data stored in your Pocket PC should be saved to a memory card (sold separately) or your personal computer (data transfer with ActiveSync) on a regular basis. Before returning for service, be sure to back up your data and remove any confidential, proprietary or personal information. Toshiba Corporation is not responsible for damage to or loss of any programs, data or removable storage media.

The purpose of the Safety Instructions in this manual is to provide you with warnings and safety instructions that will assist in preventing the misuse of your Pocket PC.

All of the Safety Instructions that are contained in this manual must be read carefully and must be fully understood before you attempt to use your Pocket PC in order to avoid potential hazards that could cause bodily injury or property damage or could damage the Pocket PC.

■ Always store this manual in a convenient place for future reference.

Copyright

© 2001 by Toshiba Corporation. All rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of Toshiba. No patent liability is assumed, with respect to the use of the information contained herein.

Toshiba Pocket PC e570 Instruction Manual

First edition September 2001

Trademarks

Microsoft, ActiveSync, Outlook, Pocket Outlook, Windows, Windows NT, and the Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Microsoft products are licensed to OEMs by Microsoft Licensing, Inc., a wholly owned subsidiary of Microsoft Corporation.

Safety instructions

There are two categories of Safety Instructions included in this manual:

■ Product Warnings, (i.e., what must never be done to assure avoiding those hazards that could cause bodily injury or property damage); and
■ User Directions (i.e., what must always be done to assure the safe use of your Pocket PC).

The Safety Instructions contained in this manual have been categorized in accordance with the seriousness of the potential hazards through the use of Signal Words.

Those Signal Words, and their intended meanings, are as follows:

Signal Word Meaning

DANGER	Indicates that a failure to observe the Safety Instructions could result in serious bodily injury.
CAUTION	Indicates that a failure to observe the Safety Instructions could result in minor bodily injury or property damage.
WARNING	Designates important information that relates to the safe use of your Pocket PC.

Your Pocket PC produces low levels of RF energy due to the generation of digital timing pulses by its clock oscillator circuits. Your Pocket PC has been equipped with internal shielding to minimize any stray emissions of RF energy.

Airlines may nevertheless prohibit the on-board use of all portable PCs (and all other portable electronic devices that could potentially emit stray RF energy), particularly during take-offs and landings, to prevent any possible interference with the reception of signals by airborne electronic navigational devices.

WARNING

■ Always request and obtain prior consent and approval of an authorized airline representative before using your Pocket PC aboard an aircraft.
■ Always follow the instructions of the airline representative whenever using your Pocket PC aboard an aircraft, to prevent any possible interference with airborne electronic equipment.

WARNING

Certain locations, such as hospitals, may restrict the use of Pocket PCs and other devices that emit low-level RF energy.

■ Always comply was posted prohibitions of the use of RF-emitting devices, such as in hospitals. Failure to follow such directives could result in the interference with medical equipment and/or devices.
Never come closer than 16cm(6inches) to a person with a heart pacemaker implant when using this Pocket PC in combination with a mobile cellular telephone. Failure to do so could result in interference with the function of the pacemaker.

WARNING

■ Never use a Pocket PC while driving an automobile or any other moving vehicle. Always pull out of traffic and come to a stop in a legally permissible and safe location before using your Pocket PC. Failure to do so could result in serious bodily injury in a traffic accident.
■ Never use your Pocket PC while walking. Usage while walking could result in bodily injury caused by inattention to automobile traffic or other pedestrian hazards.

WARNING

■ Never allow metallic objects, such as staples and paper clips, to enter inside your Pocket PC. Metallic objects, such as staples and paper clips, if allowed to enter your Pocket PC, could cause the generation of excess heat or fire.
■ Never connect terminals (metal parts) to metallic objects (such as wires). Connecting terminals to metal objects could cause excessive heat or fire.
Always immediately turn the battery switch to the "off" position and disconnect the AC Adaptor from the power outlet in the event the Pocket PC emits an unusual odor or sound or generates smoke.

WARNING

■ Never use or store your Pocket PC in the following locations:

■ Anywhere it may be exposed to water, such as a bathroom or sauna;
In conditions of high humidity, such as in the rain or fog;
Where your Pocket PC will be exposed to high temperatures, such as near a fire or equipment that emits high temperatures;
In direct sunlight; or
In a sealed automobile left in the sun and subject to high temperatures.

■ Never drop your Pocket PC or subject it to severe shock. Dropping your Pocket PC or subjecting it to severe shock could cause the built-in battery to leak, ignite and/or rupture.
■ Always immediately remove your Pocket PC and its battery from the vicinity of any open flame in the event the built-in battery leaks liquid or emits an unusual odor. Continued use of your Pocket PC under either of these conditions could cause ignition (i.e., fire) of the leaked battery liquid, or rupture.
■ Never touch any fluid that might leak from the built-in battery. Such liquid when in contact with the eyes or skin, could cause injury to the skin or eyes. Should the liquid come into contact with the eyes, irrigate the eyes thoroughly with clean water and immediately seek medical attention. In the event the liquid comes into contact with the skin or clothing, wash it away immediately with clean water.
■ Never attempt to disassemble, repair or make any modification to your Pocket PC. Disassembly, modification or any attempt at repair could cause bodily injury or property damage, as well as damage to the Pocket PC itself.

Failure to follow the above directions concerning use and storage could result in damage to your Pocket PC or bodily injury and property damage due to battery liquid leakage, fire or rupture.

CAUTION

■ Never raise the sound volume level to high when using your Pocket PC with earphones. An excessive sound volume level could cause damage to your hearing.
■ Never touch the liquid that might leak from a broken liquid crystal display. Contact with this liquid could cause a skin rash. If the crystal display liquid should come into contact with the skin or clothing, wash it immediately with clean water.
■ Never allow infants or small children within reach of your Pocket PC. Infants or small children could injure themselves if allowed access to your Pocket PC.

DANGER

■ Never attempt to disassemble or repair an AC Adaptor, and never alter their Power Supply Cables or plugs as exposure to electric shock hazards could result.

Always contact an authorized service provider, if repair or replacement is required.

WARNING

■ Always use the AC Adaptor and the Battery Charger that have been provided with your Pocket PC.

Bodily injury or property damage could occur as a result of the use of an unauthorized and incompatible AC Adaptor or Battery Charger in violation of this Warning.

■ Never connect or disconnect the AC Adaptor with wet hands. Connecting or disconnecting the AC Adaptor to a power source with wet hands could cause electric shock.

CAUTION

Never place an AC Adaptor on a wooden surface (or any other surface that could be marred by exposure to heat) while it is in use, since its surface temperature increases during normal use. Always rest it on a suitable heat-insulating material.

■ Never cover the AC Adaptor with any object while it is in use, and never place it adjacent to a heat source. An excessive temperature increase could detrimentally affect its performance.

■ Never place a Power Supply Cable near a heat source, as damage to the cord or to its insulation could result.

■ Always use a surge protector when utilizing the AC Adaptor during an electrical storm. Otherwise, a power surge could result in the loss of stored data.

■ Insert the power plug to a household electric outlet.

When travelling abroad, never plug the AC Adaptor into a power source that does not correspond to both the voltage and the frequency specified on the rating plate of the unit, as equipment damage will result.

■ Never attempt to connect or disconnect the power plug with damp or wet hands. Connecting or disconnecting the power plug with damp or wet hands could result in an electric shock.

■ Never leave an open container, such as a cup or glass, containing a liquid near the AC Adaptor. Spilled liquid coming in contact with the AC Adaptor could cause a fire or electric shock.

Always ensure the power plug pins are clean and free of dust or other foreign material by wiping the pins with a clean dry cloth. Dust or other foreign material accumulation on the power plug pins could cause fire.

Always unplug the power plug from an outlet by grasping the power plug itself. Never pull on the Power Supply Cable to disconnect the Power Supply Cable from an outlet. Pulling on the Power Supply Cable could cause a fire or electric shock as a result of damage to the Power Supply Cable.

■ Never use a worn or damaged AC Adaptor Power Supply Cable or plug, or a worn or damaged extension cord or plug. The use of a worn or damaged Power Supply Cable or plug could result in electric shock or fire. Always contact an authorized service provider immediately to obtain a suitable Power Supply Cable replacement.

■ Never bend or twist a Power Supply Cable, and never pull on a Power Supply Cable in an attempt to remove a plug from an outlet. Always grasp the plug directly when unplugging a Power Supply Cable to avoid causing any damage to the cord.

■ Never plug the AC Adaptor into an overloaded multiple outlet, power strip or surge protector to prevent blowing a fuse or tripping a circuit breaker.

■ Never place heavy objects on a Power Supply Cable, as that could result in damage to the cord.

■ Always confirm that the AC Adaptor plug (and the extension cord and plug, if any) have been fully inserted into the receptacle, to assure a secure electrical connection.

NOTE

■ Under certain conditions, data may be lost, including:

■ Misuse of your Pocket PC;

■ Subjecting the main unit of your Pocket PC to static electricity and/or noise;

■ Total loss of electric charge in the built-in battery; and

Servicing of your Pocket PC.

■ Use your Pocket PC only in locations with the following ambient environmental conditions:

Under normal operational use with temperatures between 0°C and 40°C (32°F and 104°F);

■ With humidity of 30% to 80%; and

When charging the battery with temperatures between 5°C and 35°C (41°F and 95°F).

- Do not store or use your Pocket PC in the following locations:

■ Those subject to extremely high or low temperatures;

Dusty locations; and

■ Locations or sites subject to strong vibration.

Use or storage in these location, sites or areas can result in product failure, malfunction or loss of data.

Do not subject your Pocket PC to sudden and severe temperature changes. This could result in moisture condensation in the Pocket PC that could cause damage to your Pocket PC, computer function loss, and/or the loss of data. In the event of moisture condensation, allow your Pocket PC to dry out completely.

It is normal for the AC Adaptor to become warm when charging.

■ Disconnect the power plug from the outlet when not in use.

Take care not to sit on your Pocket PC when it is located in the back pocket of trousers, etc. This could cause damage to your Pocket PC or malfunction of the Pocket PC functions.

Do not place objects on top of your Pocket PC or drop them on top of your Pocket PC. This could cause damage to your Pocket PC and/or malfunction.

■ Clean terminals (metallic parts) on a regular basis with a cotton swab. Dirty terminals could affect battery charging.

- Never use organic solvents such as benzene or paint thinner to clean your Pocket PC. Use of these solvents can cause deformation or discoloration.

Do not wipe the display with a damp or wet cloth or touch the display with damp or wet hands. Wiping or touching the display under this condition can cause product failure or malfunction. Always use a soft dry cloth to wipe the display.

When using the optional "SD memory card" or "Compact flash memory card" (sold separately), be sure to read the relevant instruction manual and ensure that you know the proper procedures for their use.

Never subject the card to any severe shock while connected to your Pocket PC. Such a shock can cause damage to the card and a malfunction.

Do not carry your Pocket PC with the card connected to it. This can result in the damage or loss of the card.

■ Never connect cradle terminals with metallic objects, such as wires. Connecting these terminals with metallic objects may cause the production of excess heat, burns and damage to the charger and/or your Pocket PC.

A lithium ion battery is used in this Pocket PC. When a replacement is needed, please request the dealer from whom the PC was purchased to assist you.

Lithium ion batteries are recyclable. Never dispose of the battery with ordinary waste.

Table of Contents

Chapter 1 Getting Started .... 1-1

Welcome.... 1-1

Where to Find Information.... 1-2

Chapter 2 Basic Skills ...... 2-1

Parts Names and Function 2-1

Battery Charging 2-5

Initial Setup 2-7

Setup Method of Options.... 2-8

Today Screen 2-13

Programs.... 2-14

Navigation Bar and Command Bar 2-16

Pop-up Menus.... 2-17

Notifications.... 2-17

Enter Information on Your Pocket PC 2-18

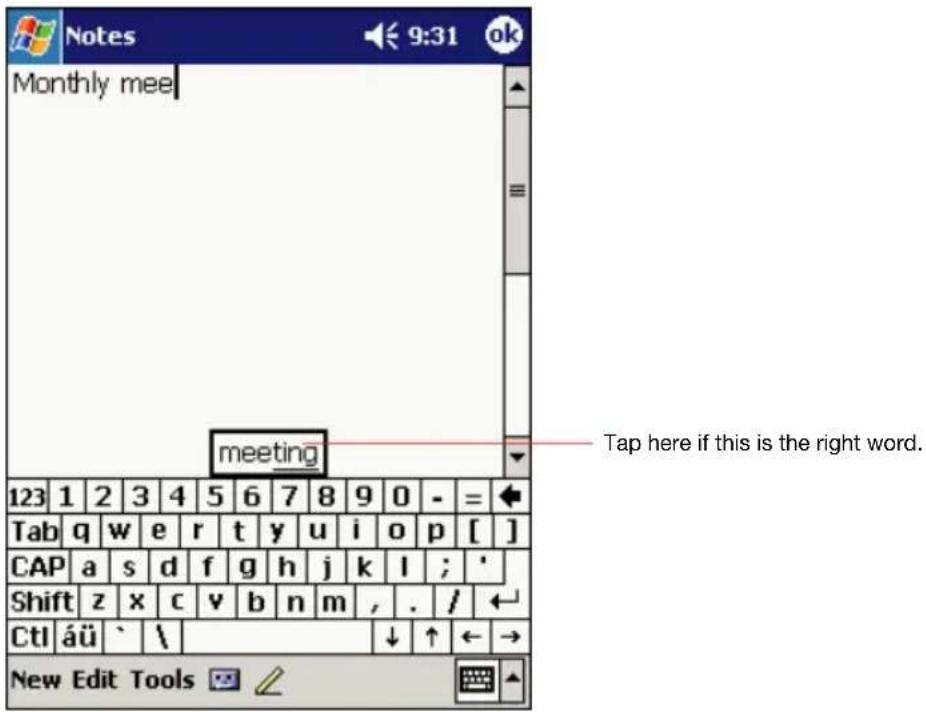

Entering Text Using the Input Panel 2-18

Find and Organize Information 2-27

Customize Your Pocket PC 2-28

Chapter 3 Microsoft ActiveSync .... 3-1

Chapter 4 Microsoft Pocket Outlook.... 4-1

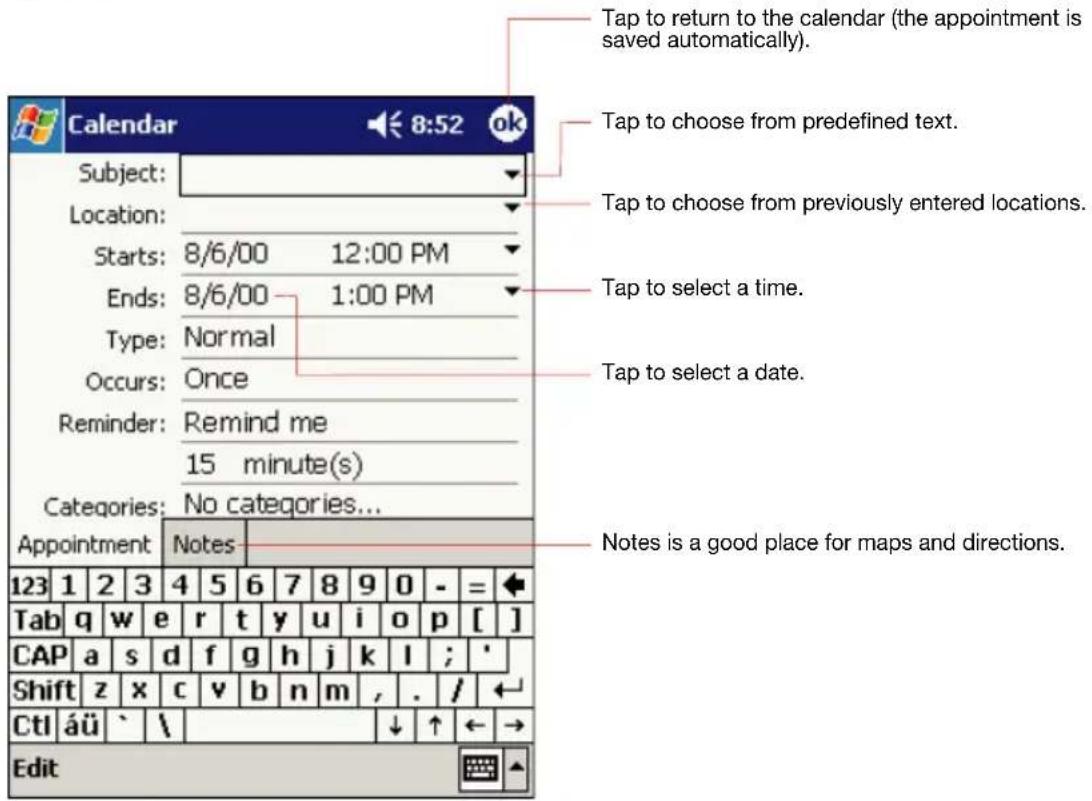

Calendar: Scheduling Appointments and Meetings 4-2

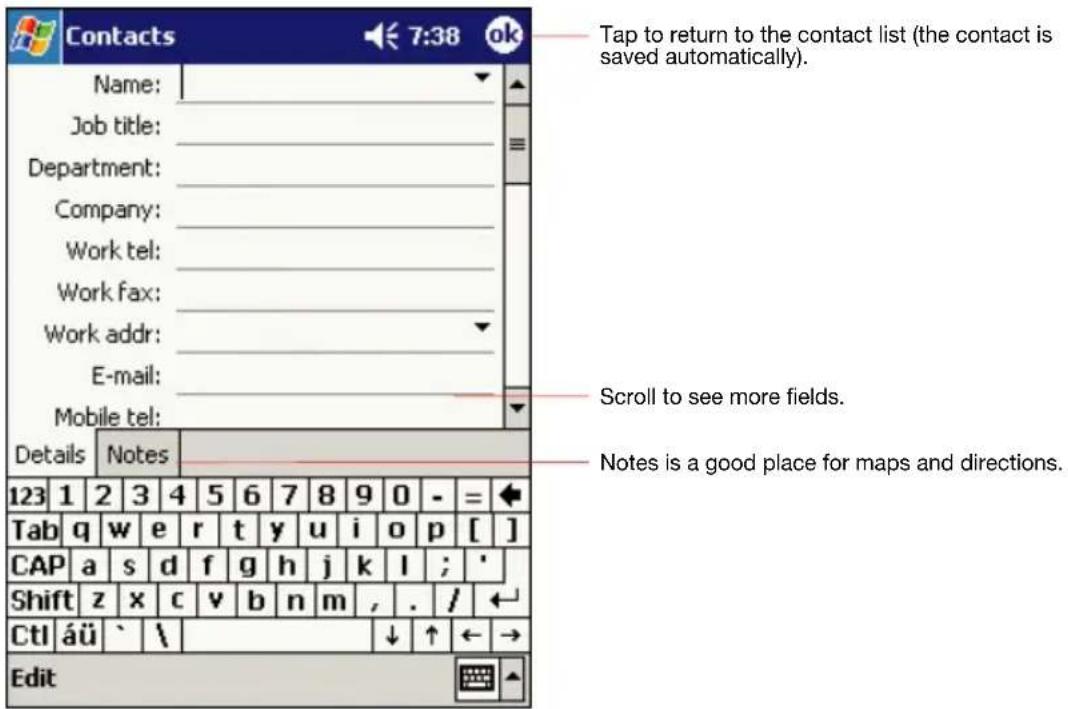

Contacts: Tracking Friends and Colleagues.... 4-5

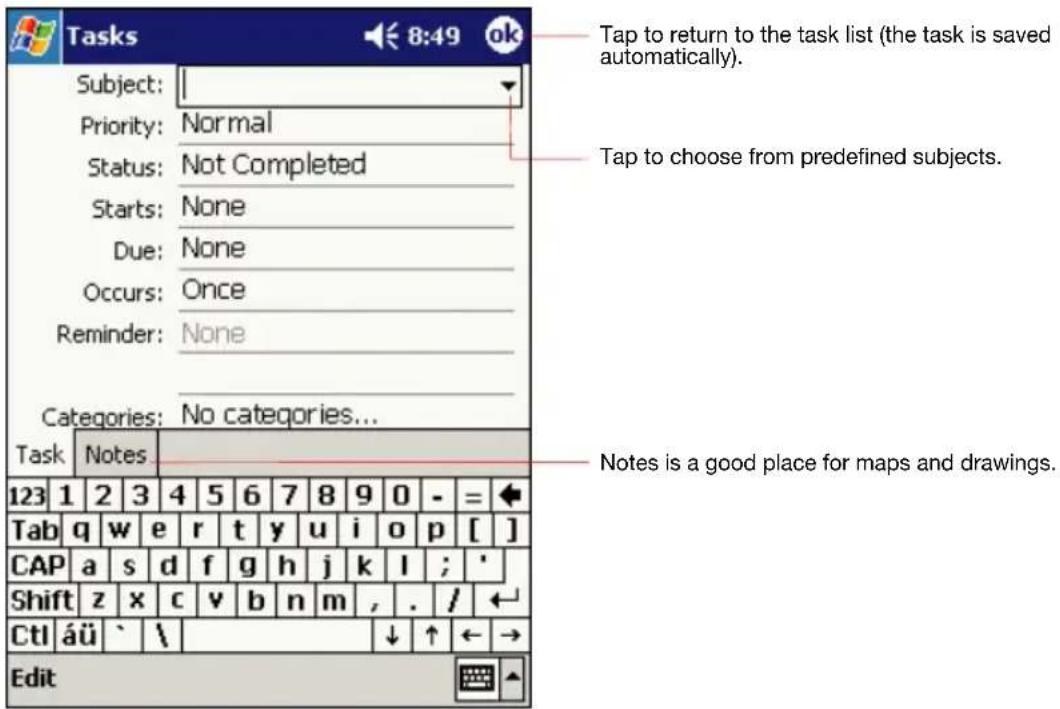

Tasks: Keeping a To Do List 4-8

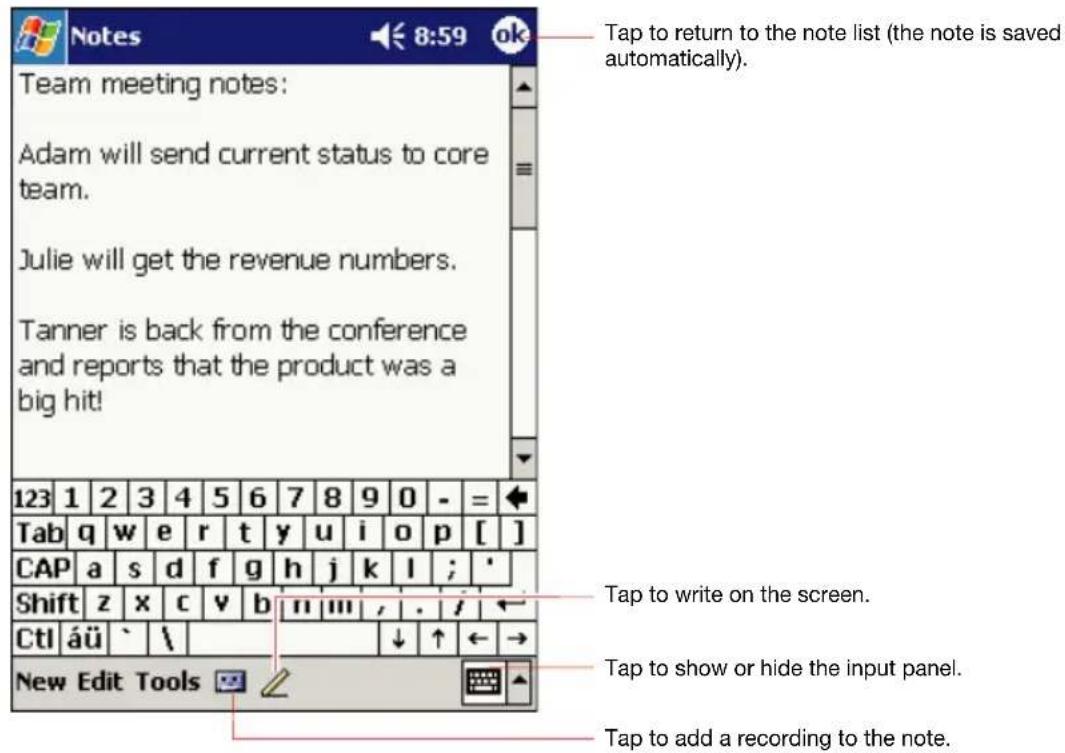

Notes: Capturing Thoughts and Ideas 4-11

Inbox: Sending and Receiving E-mail Messages 4-12

Chapter 5 Companion Programs .... 5-1

Pocket Word.... 5-1

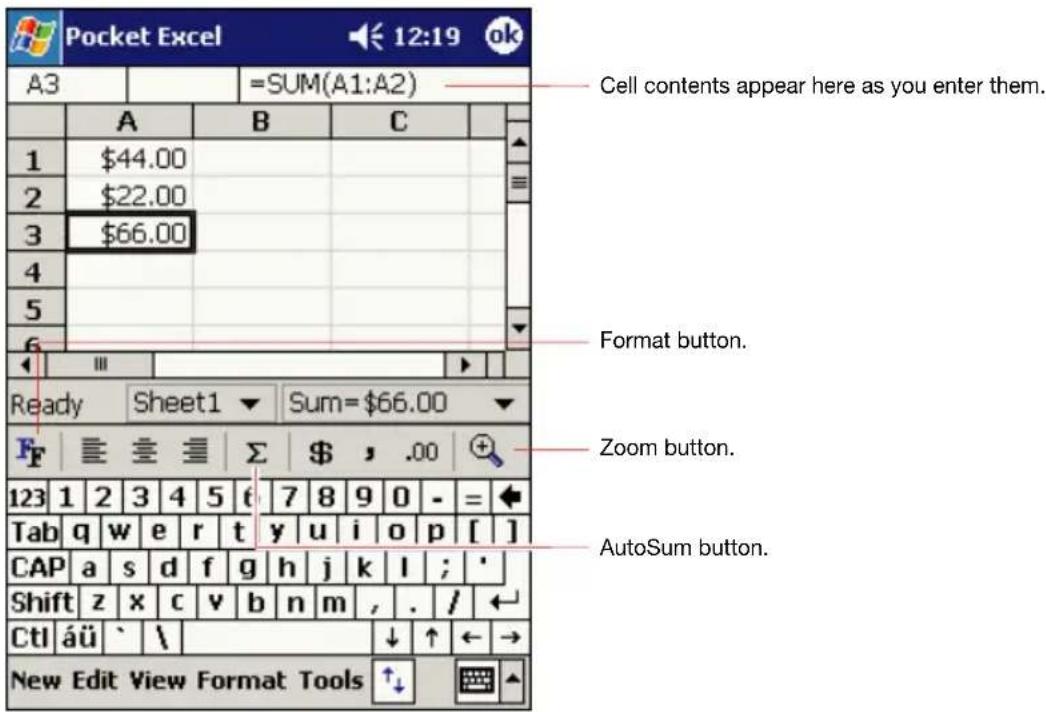

Pocket Excel 5-6

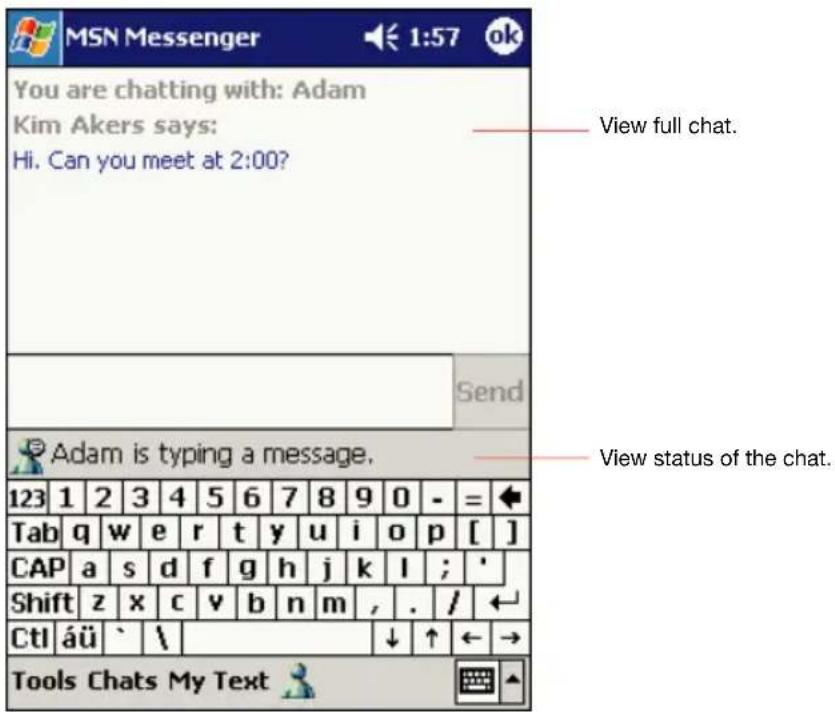

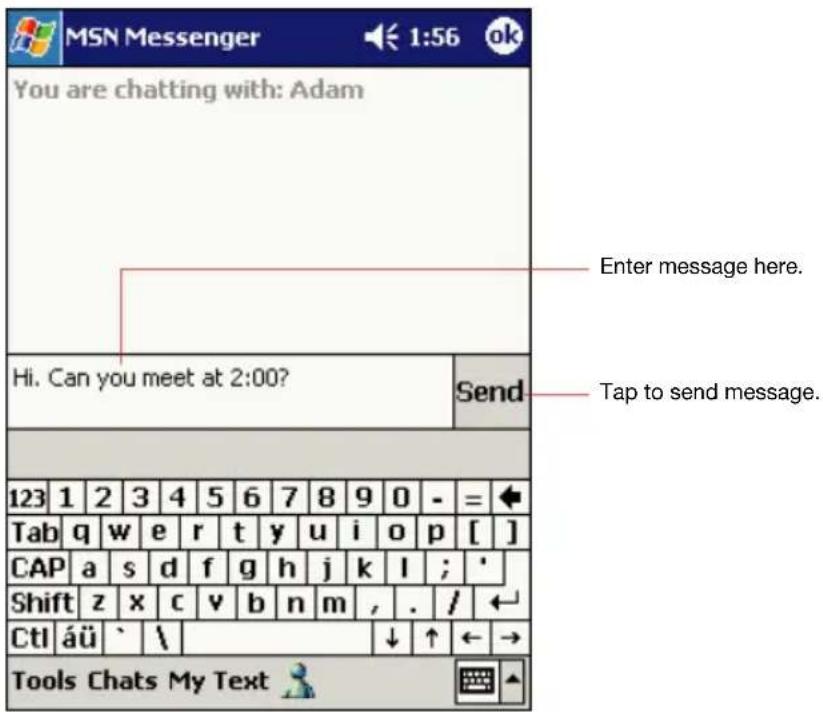

MSN Messenger 5-7

Windows Media Player for Pocket PC.... 5-11

Microsoft Reader.... 5-12

Chapter 6 Pocket Internet Explorer.... 6-1

The Mobile Favorites Folder.... 6-1

Mobile Favorites 6-2

Using AvantGo Channels.... 6-3

Using Pocket Internet Explorer.... 6-3

Chapter 7 Getting Connected .... 7-1

Transfer Items Using Infrared.... 7-1

Connect to the Internet.... 7-2

Connect to Work....7-4

End a Connection 7-5

Connect Directly to an E-mail Server 7-6

Get Help on Connecting.... 7-6

Chapter 8 Optional Functions .... 8-1

Home 8-1

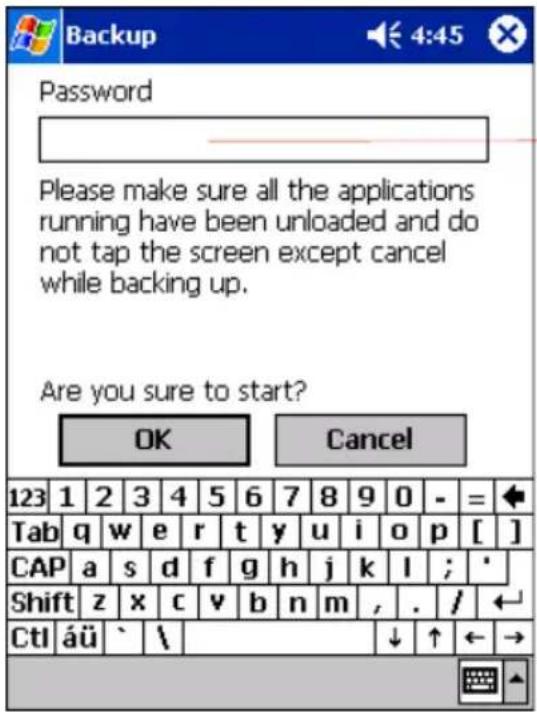

How to Make a Backup.... 8-6

Chapter 9 Additional Information.... 9-1

Trouble Shooting 9-1

Resetting 9-3

Clear Memory 9-3

Specifications 9-4

Chapter 1

Getting Started

Welcome

Congratulations on purchasing a TOSHIBA Pocket PC. Due to the size and capabilities of this Pocket PC, you can keep your most important business and personal information up-to-date and close at hand. Microsoft® ActiveSync® increases the power of your Pocket PC by allowing you to synchronize the information on your desktop or laptop computer with your Pocket PC. Picture yourself in the following situations:

While walking with a colleague, your cellular phone rings and your manager asks if you two are free this afternoon for an emergency meeting. While your colleague fumbles through his paper organizer, you press a button on your Pocket PC and instantly see a list of today's appointments and meetings. You are quickly able to tell your manager your available times. For more information on scheduling appointments and meetings, see Chapter 4.
You're meeting your friends tonight for dinner and a movie. You download the latest movie information from the Internet to your desktop computer and then synchronize it with your Pocket PC. At dinner, you pull out your Pocket PC and review your movie options with your friends. For more information on downloading Web pages to your Pocket PC, see Chapter 6.
A Calendar reminder alerts you that it is time to catch the bus. You grab your Pocket PC and catch the bus just in time. Because ActiveSync keeps the information on your Pocket PC up-to-date, you leisurely review your task list, make notes about the new books and CDs you want to buy, and read and respond to e-mail messages. When you get back to the office, ActiveSync transfers any task changes you made, your notes, and your e-mail message responses to your desktop computer. For more information on ActiveSync, see Chapter 3.

Where to Find Information

This book describes your Pocket PC hardware, provides an overview of the programs on your Pocket PC, and explains how to connect your Pocket PC to a desktop computer, a network, or the Internet. For instructions on setting up your Pocket PC and installing ActiveSync, see the Quick Start card. The following table is a guide to additional information to help you use your Pocket PC.

For information on: See this source:

Programs on your Pocket PC	This Instruction Manual and device Help. To view Help, tap and then Help.
Additional programs that can be installed on the Pocket PC	The Pocket PC Companion CD.
Connecting to and synchronizing with a desktop computer	The Quick Start card or ActiveSync Help on your desktop computer. To view Help, click Help and then Microsoft ActiveSync Help.
Last-minute updates and detailed technical information	The Read Me files, located in the Microsoft ActiveSync folder on the desktop computer and on the Pocket PC Companion CD.
Up-to-date information on your Pocket PC	http://www.microsoft.com/mobile/pocketpc

Chapter 2

Basic Skills

You can easily learn to use your Pocket PC. This chapter describes the use and customization of your Pocket PC.

Parts Names and Function

Main unit (front view)

The USB Cradle

Line drawing of a computer monitor with an attached cable (no text or symbols)

Initial Setting of Program Button

Program button 1 = Calendar

Program button 2 = Tasks

Program button 3 = Home

Program button 4 = Contacts

Program button 5 = Voice recorder

Main unit (back view)

Power Button

The power button turns the unit and the front light on and off.

Power button When the power is off	When the power is on
Press it for some time. The power turns on. The front light alternately turns on/off.
Press it quickly. The power turns on. The power turns off.

Battery Switch and Battery Switch Lock

The battery switch supplies/cuts off the battery power to the Pocket PC. The setting of this switch at shipment is “stop”. When using the Pocket PC for the first time, slide this switch to the left (the “supply” side) with the stylus. This switch should be on the “supply” side.

The battery switch lock secures the battery switch to the “supply” side. Set the battery switch from the “supply” side to the “stop” side while sliding the battery switch lock to the “release” side with the stylus.

Alarm Lamp LED

The alarm lamp indicates the machine condition.

Flashing orange When the preset alarm time, which was set through Calendar or Tasks, goes off, the lamp starts flashing.

Steady orange Indicates charging of the built-in battery.

Flashing yellow The built-in battery charging process is stopped due to the ambient temperature being too high or low. Charge the built-in battery in an ambient temperature of approx. 5°C to 35°C.

Steady green Indicates full charge of the built-in battery.

How to Use the Stylus

The stylus is used for menu selection or data input on the touch-screen of the Pocket PC.

Tap: Touch the screen once with the stylus to open items and select options.
Drag: Hold the stylus on the screen and drag it across to select text and images. Drag in a list to select multiple items.
Tap and hold: Tap and hold the stylus on an item to see a list of actions available for that item. On the pop-up menu that appears, tap the action you want to perform.

When you operate the touch screen of the Pocket PC, use the supplied stylus.

If the tip of the stylus is damaged, do not use it. If you operate the touch screen with a damaged stylus or a ballpoint pen, the touch screen may be damaged.

The stylus is expendable. When the stylus is damaged, please purchase a new one.

About the Cursor Button

You can move a cursor (selection display) on the screen by pressing the upper, lower, right or left part of the cursor button.

You can select a program to launch by pressing the center part of the cursor button.

The cursor movement is different depending on the screen. When the cursor is at the right or the left side of the screen, it may not move.

Battery Charging

A built-in battery is installed in the Pocket PC. When using the Pocket PC for the first time, set the battery switch to the supply side, then charge the built-in battery with the supplied AC adaptor.

How to Charge the Battery

You can use two charging methods.

When you connect the AC adaptor and the Pocket PC, turn the unit off.

1. Connect the supplied AC adaptor and the cradle as shown in the figure below, and then insert the Pocket PC into the cradle.

1. Connect the supplied AC adaptor and the Pocket PC as shown in the figure below.

Diagram showing connections between a power adapter, connected to an analog multimeter (no text or symbols present)

For charging the built-in battery, maintain an ambient temperature from approx. 5°C to 35°C.

When the lamp is lit in orange during the built-in battery charging, you can use the Pocket PC.

When the built-in battery is completely charged, the LED alarm lamp color will change to green.

Carging time to fully charge the built-in battery for the first time or when completely drained is approximately 3 hours.

How to Prolong Battery Life

■ Use the Pocket PC with the AC adaptor.

When you use the Pocket PC under the following conditions, the power consumption will be large. Please use the AC adaptor when:

The Pocket PC is operated while connected to your computer.

The Pocket PC is operated with storage card or with any other optional equipment.

- Select the short power-off time in the setting menu. This will shorten the time the unit will remain on if not used. For more information, see "Customize Your Pocket PC" in Chapter 2.

■ Turn off the front light.

Set the screen brightness to power saving mode. Also shorten the light turn-off time. For more information, see “Customize Your Pocket PC” in Chapter 2.

Use the Pocket PC with an ambient temperature between 15°C and 25°C. This temperature range is the most effective for the built-in battery.

When you use the Pocket PC in high or low temperature environments, the operable time is shortened due to the decrease of the built-in battery capacity.

Battery Life

The built-in battery has a limited life. Repeated charging/discharging of the built-in battery gradually decreases operable time. When the operable time has been extremely shortened it is time to replace the built-in battery with a new one. The built-in battery life is altered depend on use conditions.

Do not leave the Pocket PC in a place of high or low temperature. It may shorten battery life.

Battery Charge Level and Stored Data Protection

If the battery charge level becomes extremely low, or is completely discharged, the memory data stored in the Pocket PC will be deleted.

When the low battery status icon or the alarm message appears, immediately connect the AC adaptor to the Pocket PC and charge the built-in battery.

The built-in battery gradually discharges even if the device is not being used. When the Pocket PC is left for a long time, the built-in battery of the Pocket PC may completely discharge.

It is recommended to save the Pocket PC's memory data to your desktop computer or to a storage card.

The manufacturer is not responsible for data change or clearance due to battery discharge. Please acknowledge that.

Initial Setup

When using the Pocket PC for the first time, carry out initial setup according to the procedures below after a built-in battery has been charged.

1. Press the power button to turn the power on. The Welcome screen appears. Tap the screen to start the following setup.
2. Execute touch screen correction.

When the align screen appears, tap the center of the cross target with the stylus. The next target position changes upon tapping the target. Five taps completes the positioning correction. The screen then changes to the Stylus screen.

If a finger or any other object touches the screen during correction, the correction will be canceled. Repeat the correction procedure.

1. Read how to use the stylus.

Read and understand the stylus operation, and then tap NEXT.

For more information on stylus operation, see “How to Use the Stylus” in Chapter 2.

1. Learn the pop-up menu operation.

Read the on-screen explanation and then operate the screen.
Display the pop-up menu, and cut and paste the data according to the screen instructions.
When you finished the paste operation, this stage is completed. TapNEXT.

1. Set the ZONE.

When tapping the right ▼ mark, the city and the time zone lists appear. Tap the desired city and time zone.
■ When the setup is completed, tap NEXT.

1. To complete the initial setup.

When the Complete screen appears, the initial setup is completed.
■ After tapping the screen, you can use the Pocket PC.

When you tap the Complete screen, the Today screen appears. For more information on the Today screen, see “Today screen” in Chapter 2.

Setup Method of Options

Method of Setting Card into CF Card Slot

To insert a card:

1. Turn off the power.

2. Open the card cover.

3. Insert the CF card confirming the direction of the card. Line up side groove of the card and the groove edge of the card slot.

Insert the card smoothly and completely to the end.

When the card is inserted, the power turns on.

Technical line drawing of a mechanical assembly with no visible text or symbols

To remove a card:

1. Turn off the power.

2. Open the card cover.

3. Hook your fingers over the protrusion edge of the card, and then pull the card straight out.

When the card is removed, the power turns on.

Technical line drawing of a mechanical assembly with mounting brackets and a central component (no text or symbols)

Method of Setting Card into SD Card Slot

To insert a card:

1. Turn off the power.
2. Open the card cover.
3. Insert the card with its contact surface (metal contact surface) facing backward into the Pocket PC.

Technical line drawing of a mechanical assembly with no visible text or symbols

To remove a card:

1. Turn off the power.
2. Open the card cover.
3. Lightly press down the card until a clicking sound is heard. The card will pop out slightly from the slot.
4. Pull the card straight up tp remove.

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

When storage cards are inserted in both the CF and SD card slots, one of them may only be accessible depending on the application or the Settings operation (typically, the first storage card inserted is accessed).

Typical examples:

• Notes of Pocket Outlook
• Saving the destination selection of the Options item of the Tools menu of Pocket Word

To connect Remote Control-Fitted Earphone Microphone

You can listen to the sound output from your Pocket PC by connecting the optional remote control-fitted earphone microphone. (See Quick Start Card.)

Insert the remote control-fitted earphone plug into the stereo headphone jack as shown in the figure below.

Line drawing of a handheld electronic device with a cable inserted, showing a screen and control buttons (no text or symbols)

Use the specified remote control-fitted earphone. If you use a different type of earphone, it may result malfunction.

The connectable pin size of the headphone/earphone is 3.5 mm mini plug type.

How to Change the Colour Panel

To remove the Colour Panel, unlock in the direction of the arrow, as shown below, then detach the Colour Panel by pulling it upward.

Technical line drawing of two mechanical components with mounting holes and a directional arrow indicating movement (no text or symbols)

To attach a new Colour Panel, insert it along the groove until locked.

Connecting to a Desktop Computer

Before connecting your Pocket PC to a desktop computer, check the follows.

■ ActiveSync has been installed on your desktop. (See Chapter 3.)
■ Make sure that the Pocket PC and the desktop computer are both turned off.
The position of connecting port on the computer may differ according to the computer type.

To Connect Using The Supplied USB Cradle:

1. Connect the USB cradle to your desktop computer as shown in the illustration below.

Line drawing of a device rear panel with cable and connector (no text or symbols)

1. Insert the Pocket PC into the USB cradle.

Line drawings of two electronic devices with ports and cables, no text or symbols present

Make sure that the connector on the cradle is inserted into the port on the bottom of the Pocket PC. Data cannot be transferred if the connection is not made.
When your Pocket PC is properly inserted into the cradle, your Pocket PC will turn on automatically and ActiveSync will open on your PC automatically.

To connect using a separately sold serial cradle:

1. Connect the serial cradle to the serial port of the desktop computer.

Diagram of a computer monitor rear panel connected to a cable and a separate device (no text or symbols visible)

1. Connect the Pocket PC to the serial cradle.

To connect directly using a connection cable:

Connect the Pocket PC directly to your desktop computer using a USB cable (sold separately).

Diagram showing a device connected to a computer via cable, with no visible text or symbols

Connect the Pocket PC directly to your desktop computer using a serial cable (sold separately).

Diagram showing a device connected to a computer monitor via cable, with no visible text or symbols

Today Screen

When you turn on your Pocket PC for the first time each day (or after 4 hours of inactivity), you'll see the Today screen. You can also display it by tapping 📁 and then Today. On the Today screen, you can see at a glance important information for the day.

Following are some of the status icons you may see.

Status Icon Meaning
	Turns all sounds on and off and changes the volume level
	Batteries are charging
	Batteries are low
	Batteries are very low
	Batteries are full
	Connection is active
	Synchronization is beginning or ending

Status Icon Meaning

	Synchronization is occurring
	Notification that one or more instant messages were received
	Notification that one or more e-mail messages were received

If more notification icons need to be displayed than there is room to display them, the Notification icon, will display. Tap the icon to view all notification icons.

Programs

You can switch from one program to another by selecting it from the menu. (You can customize which programs you see on this menu. For information, see “Adjusting Settings,” later in this chapter.) To access programs, not listed on the drop down menu, tap Programs, then the program name.

You can also switch to certain programs by pressing a program button. Your Pocket PC has 5 program buttons located on the front or the side of the Pocket PC. The icons on the buttons on the front of the unit identify the programs they activate. Factory set programs are (from left to right) Calendar, Tasks, Home and Contacts. The program button on the side is Notes for voice recording.

Some programs have abbreviated labels for check boxes and drop-down menus. To see the full spelling of an abbreviated label, tap and hold the stylus on the label. Drag the stylus off the label so that the command is not carried out.

The 5 program buttons on your Pocket PC are programmable to activate other programs than the preset programs.

The following table contains a partial list of programs that are on your Pocket PC. Look on the Pocket PC Companion CD for additional programs that you can install onto your Pocket PC.

Icon Program Description

	ActiveSync Synchronize information between your Pocket PC and desktop computer.
	Calendar Keep track of your appointments and create meeting requests.
	Contacts Keep track of your friends and colleagues.
	Inbox Send and receive e-mail messages.
	Pocket Internet Explorer Browse Web and WAP sites, and download new programs and files from the Internet.
	Notes Create handwritten or typed notes, drawings, and recordings.
	Tasks Keep track of your tasks.
	Pocket Excel Create Excel spreadsheet or view and edit Excel spreadsheet created on your desktop computer.
	MSN Messenger Send and receive instant messages with your MSN Messenger contacts.
	Pocket Word Create new documents or view and edit Word documents created on your desktop computer.

Navigation Bar and Command Bar

The navigation bar is located at the top of the screen. It displays the active program and current time, and allows you to switch to programs and close screens.

Use the command bar at the bottom of the screen to perform tasks in the open program. The command bar includes menu names, buttons, and the Input Panel button. To create a new item in the current program, tap New. To see the name of a button, tap and hold the stylus on the button. Drag the stylus off the button so that the command is not carried out.

Pop-up Menus

With pop-up menus, you can quickly choose an action for an item. For example, you can use the pop-up menu in the contact list to quickly delete a contact, make a copy of a contact, or send an e-mail message to a contact. The actions in the pop-up menus vary from program to program. To access a pop-up menu, tap and hold the stylus on the item name that you want to perform the action on. You will see red circle from a circle around the spot you are holding the stylus to on this screen, then the pop-up menu will appear. When the menu appears, lift the stylus, and tap the action you want to perform. Or tap anywhere outside the menu to close the menu without performing an action.

Notifications

Your Pocket PC reminds you in a variety of ways when you have something to do. For example, if you've set up an appointment in Calendar, a task with a due date in Tasks, or an alarm in Clock, you'll be notified in any of the following ways:

A message box appears on the screen.
A sound, which you can specify, is played.
A light flashes on your Pocket PC.

To choose reminder types and sounds for your Pocket PC, tap 📋 and then Settings. In the Personal tab, tap Sounds & Notifications. The options you choose here apply throughout the Pocket PC.

Enter Information on Your Pocket PC

You have several options for entering new information:

Use the input panel to enter typed text by using the soft keyboard or other input method.
■ Write directly on the screen.
■ Draw pictures on the screen.
Speak into your Pocket PC microphone to record a message.
Use Microsoft ^® ActiveSync ^® to synchronize or copy information from your desktop computer to your Pocket PC. For more information on ActiveSync, see ActiveSync Help on your desktop computer.

Entering Text Using the Input Panel

Use the input panel to enter information in any program on your Pocket PC. You can either type using the soft keyboard or write using Letter Recognizer, Block Recognizer, or Transcriber. In either case, the characters appear as typed text on the screen.

To show or hide the input panel, tap the Input Panel button. Tap the arrow next to the Input Panel button to see your choices.

When you use the input panel, your Pocket PC anticipates the word you are typing or writing and displays it above the input panel. When you tap the displayed word, it is inserted into your text at the insertion point. The more you use your Pocket PC, the more words it learns to anticipate.

To change word suggestion options, such as the number of words suggested at one time, tap 📋, Settings, Personal tab, Input, and then the Word Completion tab.

To type with the soft keyboard:

1. Tap the arrow next to the Input Panel button and then Keyboard.
2. On the soft keyboard that is displayed, tap the keys with your stylus.

To use Letter Recognizer:

With Letter Recognizer you can write letters using the stylus just as you would on paper.

1. Tap the arrow next to the Input Panel button and then Letter Recognizer.
2. Write a letter in the box.

When you write a letter, it is converted to typed text that appears on the screen. For specific instructions on using Letter Recognizer, with Letter Recognizer open, tap the question mark next to the writing area.

To use Block Recognizer:

With Block Recognizer you can input character strokes using the stylus that are similar to those used on other devices.

1. Tap the arrow next to the Input Panel button and then Block Recognizer.

2. Write a letter in the box.

When you write a letter, it is converted to typed text that appears on the screen. For specific instructions on using Block Recognizer, with Block Recognizer open, tap the question mark next to the writing area.

To use Transcriber:

With Transcriber you can write anywhere on the screen using the stylus just as you would on paper. Unlike Letter Recognizer and Block Recognizer, you can write a sentence or more of information. Then, pause and let Transcriber change the written characters to typed characters.

1. Tap the arrow next to the Input Panel button and then Transcriber.

2. Write anywhere on the screen.

For specific instructions on using Transcriber, with Transcriber open, tap the question mark in the lower right hand corner of the screen.

To select typed text:

If you want to edit or format typed text, you must select it first.

Drag the stylus across the text you want to select.

You can cut, copy, and paste text by tapping and holding the selected words and then tapping an editing command on the pop-up menu, or by tapping the command on the Edit menu.

Writing on the Screen

In any program that accepts writing, such as the Notes program and the Notes tab in Calendar, Contacts, and Tasks, you can use your stylus to write directly on the screen. Write the way you do on paper. You can edit and format what you've written and convert the information to text at a later time.

To write on the screen:

Tap the Pen button to switch to writing mode. This action displays lines on the screen to help you write.

Tap the Pen button and use your stylus like a pen.

Some programs that accept writing may not have the Pen button. See the documentation for that program to find out how to switch to writing mode.

To select writing:

If you want to edit or format writing, you must select it first.

1. Tap and hold the stylus next to the text you want to select until the insertion point appears.
2. Without lifting, drag the stylus across the text you want to select.

If you accidentally write on the screen, tap Tools, then Undo and try again. You can also select text by tapping the Pen button to deselect it and then dragging the stylus across the screen.

You can cut, copy, and paste written text in the same way you work with typed text: tap and hold the selected words and then tap an editing command on the pop-up menu, or tap the command on the Edit menu.

To convert writing to text:

Tap Tools and then Recognize.

If you want to convert only certain words, select them before tapping Recognize on the Tools menu (or tap and hold the selected words and then tap Recognize on the pop-up menu). If a word is not recognized, it is left as writing.

Select the text you want to convert and Tap Recognize on the pop-up menu.

The writing is turned into text.

If the conversion is incorrect, you can select different words from a list of alternates or return to the original writing. To do so, tap and hold the incorrect word (tap one word at a time). On the pop-up menu, tap

Alternates. A menu with a list of alternate words appears. Tap the word you want to use, or tap the writing at the top of the menu to return to the original writing.

Tips for getting good recognition:

Write neatly.
Write on the lines and draw descendants below the line. Write the cross of the "t" and apostrophes below the top line so that they are not confused with the word above. Write periods and commas above the line.
For better recognition, try increasing the zoom level to 300% using the Tools menu.
Write the letters of a word closely and leave big gaps between words so that the Pocket PC can easily tell where words begin and end.
■ Hyphenated words, foreign words that use special characters such as accents, and some punctuation cannot be converted.
If you add writing to a word to change it (such as changing a "3" to an "8") after you attempt to recognize the word, the writing you add will not be included if you attempt to recognize the writing again.

Drawing on the Screen

You can draw on the screen in the same way that you write on the screen. The difference between writing and drawing on the screen is how you select items and how they can be edited. For example, selected drawings can be resized, while writing cannot.

To create a drawing:

Cross three ruled lines on your first stroke. A drawing box appears. Subsequent strokes in or touching the drawing box become part of the drawing. Drawings that do not cross three ruled lines will be treated as writing.

You may want to change the zoom level so that you can more easily work on or view your drawing. Tap Tools and then a zoom level.

To select a drawing:

If you want to edit or format a drawing, you must select it first.

Tap and hold the stylus on the drawing until the selection handle appears. To select multiple drawings, deselect the Pen button and then drag to select the drawings you want.

You can cut, copy, and paste selected drawings by tapping and holding the selected drawing and then tapping an editing command on the pop-up menu, or by tapping the command on the Edit menu. To resize a drawing, make sure the Pen button is not selected, and drag a selection handle.

Recording a Message

In any program where you can write or draw on the screen, you can also quickly capture thoughts, reminders, and phone numbers by recording a message. In Calendar, Tasks, and Contacts, you can include a recording in the Notes tab. In the Notes program, you can either create a stand-alone recording or include a recording in a written note. If you want to include the recording in a note, open the note first. In the Inbox program, you can add a recording to an e-mail message.

To create a recording:

1. Hold your Pocket PC's microphone near your mouth or other source of sound.
2. Press and hold the Record hardware button on your Pocket PC until you hear a beep.
3. While holding down the Record button, make your recording.
4. To stop recording, release the Record button. Two beeps will sound. The new recording appears in the note list or as an embedded icon.

You can also make a recording by tapping the Record button on the Recording toolbar.

To play a recording, tap it in the list or tap its icon in the note.

Using My Text

When using Inbox or MSN Messenger, use My Text to quickly insert preset or frequently used messages into the text entry area. To insert a message, tap My Text and tap a message.

Tap to select a prewritten message.

You can add text after inserting a My Text message before sending it.

To edit a My Text message, in the Tools menu, tap Edit and then tap My Text Messages. Select the message you wish to edit and make desired changes.

Find and Organize Information

The Find feature on your Pocket PC helps you quickly locate information.

On the menu, tap Find. Enter the text you want to find, select a data type, and then tap Go to start the search.

To quickly find information that is taking up storage space on your Pocket PC, select Larger than 64 KB in Type.

You can also use the File Explorer to find files on your Pocket PC and to organize these files into folders. On the menu, tap Programs, and then File Explorer.

You can move files in File Explorer by tapping and holding the item you want to move, and then tapping Cut or Copy and Paste on the pop-up menu.

Customize Your Pocket PC

You can customize your Pocket PC by adjusting the settings and installing additional software.

Adjusting Settings

You can adjust device settings to suit your preferences. To see available options, tap 📁, Settings, then the Personal or System tab located at the bottom of the screen.

You might want to adjust the following:

■ Adding or Removing Programs
Password
Front Light
Power
Memory

Adding or Removing Programs

Programs added to your Pocket PC at the factory are stored in ROM (read-only memory). You cannot remove this software, and you'll never accidentally lose ROM contents. ROM programs can be updated using special installation programs with a *.zip extension. All other programs and data files added to your Pocket PC after factory installation are stored in RAM (random access memory).

You can install any program created for your Pocket PC, as long as your Pocket PC has enough memory. The most popular place to find software for your Pocket PC is on the Pocket PC Web site (http://www.microsoft.com/mobile/pocketpc).

If you update ROM programs using special installation programs with a *.zip extension, do not use the backup data which you made before updating ROM programs.

To add programs using ActiveSync:

You'll need to install the appropriate software for your Pocket PC on your desktop computer before installing it on your Pocket PC.

1. Determine your Pocket PC and processor type so that you know which version of the software to install. Tap 📋 and then Settings. On the System tab, tap About. In the Version tab, make a note of the information in Processor.

2. Download the program to your desktop computer (or insert the CD or disk that contains the program into your desktop computer). You may see a single *.zip, *.exe, or *.zip file, a Setup.exe file, or several versions of files for different Pocket PC types and processors. Be sure to select the program designed for the Pocket PC and your Pocket PC processor type.

3. Read any installation instructions, Read Me files, or documentation that comes with the program. Many programs provide special installation instructions.

4. Connect your Pocket PC and desktop computer.
5. Double-click the *.exe file.

If the file is an installer, the installation wizard will begin. Follow the directions on the screen. Once the software has been installed on your desktop computer, the installer will automatically transfer the software to your Pocket PC.

If the file is not an installer, you will see an error message stating that the program is valid but it is designed for a different type of computer. You will need to move this file to your Pocket PC. If you cannot find any installation instructions for the program in the Read Me file or documentation, use ActiveSync Explore to copy the program file to the Program Files folder on your Pocket PC. For more information on copying files using ActiveSync, see ActiveSync Help.

Once installation is complete, tap 📄, Programs, and then the program icon to switch to it.

To add a program directly from the Internet:

1. Determine your Pocket PC and processor type so that you know which version of the software to install.

Tap 📋 and then Settings. On the System tab, tap About. In the Version tab, make a note of the information in Processor.

1. Download the program to your Pocket PC straight from the Internet using Pocket Internet Explorer. You may see a single *.zip, *.exe or *.zip file, a Setup.exe file, or several versions of files for different device types and processors. Be sure to select the program designed for the Pocket PC and your Pocket PC processor type.
2. Read any installation instructions, Read Me files, or documentation that comes with the program. Many programs provide special installation instructions.
3. Tap the file, such as a *.xip or *.exe file. The installation wizard will begin. Follow the directions on the screen.

To add a program to the Start menu:

Tap 📄, Settings, Menus, the Start Menu tab, and then the check box for the program. If you do not see the program listed, you can either use File Explorer on the Pocket PC to move the program to the Start Menu folder or use ActiveSync on the desktop computer to create a shortcut to the program and place the shortcut in the Start Menu folder.

Using File Explorer on the Pocket PC: Tap 📁, Programs, File Explorer, and locate the program (tap the folder list, labeled My Documents by default, and then My Device to see a list of all folders on the Pocket PC). Tap and hold the program and tap Cut on the popup menu. Open the Start Menu folder located in the Windows folder, tap and hold a blank area of the window, and tap Paste on the popup menu.

The program will now appear on the menu. For more information on using File Explorer, see “Find and Organize Information,” earlier in this chapter.

Using ActiveSync on the desktop computer: Use the Explorer in ActiveSync to explore your Pocket PC files and locate the program. Right-click the program, and then click Create Shortcut. Move the shortcut to the Start Menu folder in the Windows folder. The shortcut now appears on the menu. For more information, see ActiveSync Help.

To remove programs

Tap and then Settings. On the System tab, tap Remove Programs.

If the program does not appear in the list of installed programs, use File Explorer on your Pocket PC to locate the program, tap and hold the program, and then tap Delete on the pop-up menu.

Setting Password

You can protect data or settings from a third person by setting a password which is requested when turning power on.

1. Tap 📋 and then Settings. On the Personal tab, tap Password.
2. Select the type of password you would like to use.
3. Enter a password and tap OK.
4. Tap YES on the confirmation screen. The password is saved and the screen returns to the Personal tab screen

If you tap YES on the confirmation screen to return to the Personal tab screen, it becomes necessary to enter the password even for displaying the Password setting screen.

In case you forget the password, it is necessary to initialize the Pocket PC. Please note that when initialization is executed, data or settings stored in the Pocket PC are all deleted.

To Set Front Light

You can set the screen brightness for better sight according to a place of use. You can also set the time that elapses until the front light turns off automatically after the last operation.

1. Tap and then Settings. On the System tab, tap Front Light.
2. Set the Front Light.

1. When finished, tap OK to return to the System tab screen.

Setting Power

You can set to confirm the built-in battery remaining power and the time that elapses until the power turns off after the last operation.

1. Tap and then Settings. On the System tab, tap Power.
2. Set the Power.

1. When finished, tap OK to return to the System tab screen.

Setting Memory

You can adjust the data storing memory and the program running memory. You can also confirm the free space of a storage card and so on. Memory for the Pocket PC is managed automatically.

To change Memory allocation:

1. Tap 📋 and then Settings. On the System tab, tap Memory to display the Memory setting screen.
2. Drag the knob widthwise to adjust the memory allocation between Storage and Program.
3. When finished, tap OK to return to the System tab screen.

To confirm usage status of a storage card:

1. Tap Storage card tab on the Memory setting screen.

2. When finished, tap OK to return to the System tab screen.

If storage cards are inserted both in the CF card slot and the SD card slot, the usage status is displayed only for one (basically, the firstly inserted one) of these cards.

To release memory:

If memory is running short of its capacity, i.e., error message display, the following methods are available to release the memory.

Transfer data to a storage card and the like and delete them from the Pocket PC.
- Delete unnecessary files.
■ Quit a program in execution.
- Delete a program not in use.

For more information on detailed operation method or the memory release method other than the above, see online help.

Microsoft ActiveSync

Using Microsoft® ActiveSync®, you can synchronize the information on your desktop computer with the information on your Pocket PC. Synchronization compares the data on your Pocket PC with your desktop computer and updates both computers with the most recent information. For example:

• Keep Pocket Outlook data up-to-date by synchronizing your Pocket PC with Microsoft Outlook data on your desktop computer.
  ■ Synchronize Microsoft Word and Microsoft Excel files between your Pocket PC and desktop computer. Your files are automatically converted to the correct format.

By default, ActiveSync does not automatically synchronize all types of information. Use ActiveSync options to turn synchronization on and off for specific information types.

With ActiveSync, you can also:

■ Back up and restore your Pocket PC data.
- Copy (rather than synchronize) files between your Pocket PC and desktop computer.
Control when synchronization occurs by selecting a synchronization mode. For example, you can synchronize continually while connected to your desktop computer or only when you choose the synchronize command.
- Select which information types are synchronized and control how much data is synchronized. For example, you can choose how many weeks of past appointments you want synchronized.

Before you begin synchronization, install ActiveSync on your desktop computer from the Pocket PC Companion CD. For more information on installing ActiveSync, see your Quick Start card. ActiveSync is already installed on your Pocket PC.

After installation is complete, the ActiveSync Setup Wizard helps you connect your Pocket PC to your desktop computer, set up a partnership so you can synchronize information between your Pocket PC and your desktop computer, and customize your synchronization settings. Your first synchronization process will automatically begin when you finish using the wizard.

After your first synchronization, take a look at Calendar, Contacts, and Tasks on your Pocket PC. You'll notice that information you've stored in Microsoft Outlook on your desktop computer has been copied to your Pocket PC and you didn't have to type a word. Disconnect your Pocket PC from your computer and you're ready to go!

Once you have set up ActiveSync and completed the first synchronization process, you can initiate synchronization from your Pocket PC. To switch to ActiveSync on your Pocket PC, tap, and then tap ActiveSync.

Note that if you have a wireless LAN card, you can synchronize remotely from your Pocket PC.

For information about using ActiveSync on your desktop computer, start ActiveSync on your desktop computer, and then see ActiveSync Help.

For more information about ActiveSync on your Pocket PC, switch to ActiveSync, tap, and then tap Help.

Microsoft Pocket Outlook

Microsoft® Pocket Outlook includes Calendar, Contacts, Tasks, Inbox, and Notes. You can use these programs individually or together. For example, e-mail addresses stored in Contacts can be used to address e-mail messages in Inbox.

Using ActiveSync ^® , you can synchronize information in Microsoft Outlook or Microsoft Exchange on your desktop computer with your Pocket PC. You can also synchronize this information directly with a Microsoft Exchange server. Each time you synchronize, ActiveSync compares the changes you made on your Pocket PC and desktop computer or server and updates both computers with the latest information. For information on using ActiveSync, see ActiveSync Help on the desktop computer.

You can switch to any of these programs by tapping them on the menu.

Calendar: Scheduling Appointments and Meetings

Use Calendar to schedule appointments, including meetings and other events. You can check your appointments in one of several views (Agenda, Day, Week, Month, and Year) and easily switch views by tapping one of the 5 view icons at the bottom of the screen or by pressing the Calendar Program (button #1 on front of Pocket PC).

You can customize the Calendar display, such as changing the first day of the week, by tapping Options on the Tools menu.

To create an appointment:

If you are in Day or Week view, tap the desired date and time for the appointment.

1. Tap New.

1. Using the input panel, enter a description and a location. Tap first to select the field.
2. If needed, tap the date and time to change them.
3. Enter other desired information. You will need to hide the input panel to see all available fields.
4. To add notes, tap the Notes tab. You can enter text, draw, or create a recording. For more information on creating notes, see “Notes: Capturing Thoughts and Ideas,” later in this chapter.
5. When finished, tap OK to return to the calendar.

If you select Remind me in an appointment, your Pocket PC will remind you according to the options set in, Settings, Personal tab, Sounds & Notifications.

Using the Summary Screen

When you tap an appointment in Calendar, a summary screen is displayed. To change the appointment, tap Edit.

Creating Meeting Requests

You can use Calendar to set up meetings with users of Outlook or Pocket Outlook. The meeting request will be created automatically and sent either when you synchronize Inbox or when you connect to your e-mail server. Indicate how you want meeting requests sent by tapping Tools and then Options. If you send and receive e-mail messages through ActiveSync, select ActiveSync.

To schedule a meeting:

1. Create an appointment.
2. In the appointment details, hide the input panel, and then tap Attendees.
3. From the list of e-mail addresses you've entered in Contacts, select the meeting attendees.

The meeting notice is created automatically and placed in the Outbox folder.

For more information on sending and receiving meeting requests, see Calendar Help and Inbox Help on the Pocket PC.

Contacts: Tracking Friends and Colleagues

Contacts maintains a list of your friends and colleagues so that you can easily find the information you're looking for, whether you're at home or on the road. Using the Pocket PC infrared (IR) port, you can quickly share Contacts information with other device users.

To change the way information is displayed in the list, tap Tools and then Options.

To create a contact:

1. Tap New.

1. Using the input panel, enter a name and other contact information. You will need to scroll down to see all available fields.
2. To assign the contact to a category, scroll to and tap Categories and select a category from the list. In the contact list, you can display contacts by category.
3. To add notes, tap the Notes tab. You can enter text, draw, or create a recording. For more information on creating notes, see “Notes: Capturing Thoughts and Ideas,” later in this chapter.
4. When finished, tap OK to return to the contact list.

Finding a contact

There are four ways to find a contact:

In the contact list, enter a contact name in the box under the navigation bar. To show all contacts again, clear text from the box or tap the button to the right of the box.
In the contact list, tap the category list (labeled All Contacts by default) and select the type of contact that you want displayed. To show all contacts again, select All Contacts. To view a contact not assigned to a category, select None.
To view the names of companies your contacts work for, in the contact list, tap View > By Company. The number of contacts that work for that company will be displayed to the right of the company name.
Tap Find, enter the contact name, select Contacts for the type, and then tap Go.

Using the Summary Screen

When you tap a contact in the contact list, a summary screen is displayed. To change the contact information, tap Edit.

Tasks: Keeping a To Do List

Use Tasks to keep track of what you have to do.

To change the way information is displayed in the list, tap Tools and then Options.

To create a task:

1. Tap New.

1. Using the input panel, enter a description.
2. You can enter a start date and due date or enter other information by first tapping the field. If the input panel is open, you will need to hide it to see all available fields.
3. To assign the task to a category, tap Categories and select a category from the list. In the task list, you can display tasks by category.
4. To add notes, tap the Notes tab. You can enter text, draw, or create a recording. For more information on creating notes, see “Notes: Capturing Thoughts and Ideas,” later in this chapter.
5. When finished, tap OK to return to the task list.

To quickly create a task with only a subject, tap Entry Bar on the Tools menu. Then, tap Tap here to add a new task and enter your task information.

Using the Summary Screen

When you tap a task in the task list, a summary screen is displayed. To change the task, tap Edit.

Notes: Capturing Thoughts and Ideas

Quickly capture thoughts, reminders, ideas, drawings, and phone numbers with Notes. You can create a written note or a recording. You can also include a recording in a note. If a note is open when you create the recording, it will be included in the note as an icon. If the note list is displayed, it will be created as a stand-alone recording.

To create a note:

1. Tap New.

1. Create your note by writing, drawing, typing, and recording. For more information about using the input panel, writing and drawing on the screen, and creating recordings, see Chapter 2.

Inbox: Sending and Receiving E-mail Messages

Use Inbox to send and receive e-mail messages in either of these ways:

■ Synchronize e-mail messages with Microsoft Exchange or Microsoft Outlook on your desktop computer.
- Send and receive e-mail messages by connecting directly to an e-mail server through an Internet service provider (ISP) or a network.

Synchronizing E-mail Messages

E-mail messages can be synchronized as part of the general synchronization process. You will need to enable Inbox synchronization in ActiveSync. For information on enabling Inbox synchronization, see ActiveSync Help on the desktop computer.

During synchronization:

Messages are copied from the mail folders of Exchange or Outlook on your desktop computer to the ActiveSync folder in Inbox on your Pocket PC. By default, you will receive messages from the past three days only, the first 100 lines of each message, and file attachments of less than 100 KB in size.

E-mail messages in the Outbox folder on your Pocket PC are transferred to Exchange or Outlook, and then sent from those programs.
E-mail messages in subfolders must be selected in ActiveSync on your desktop computer in order to be transferred.

You can also synchronize e-mail messages with your desktop computer from a remote location. For more information, see Chapter 7.

Connecting Directly to an E-mail Server

In addition to synchronizing e-mail messages with your desktop computer, you can send and receive e-mail messages by connecting to an e-mail server using a modem or your wireless phone connected to your Pocket PC. You'll need to set up a remote connection to a network or an ISP, and a connection to your e-mail server. For more information, see Chapter 7.

When you connect to the e-mail server, new messages are downloaded to the Pocket PC Inbox folder, messages in the Pocket PC Outbox folder are sent, and messages that have been deleted on the e-mail server are removed from the Pocket PC Inbox folder.

Messages that you receive directly from an e-mail server are linked to your e-mail server rather than your desktop computer. When you delete a message on your Pocket PC, it is also deleted from the e-mail server the next time you connect based on the settings you selected in ActiveSync.

You can work online or offline. When working online, you read and respond to messages while connected to the e-mail server. Messages are sent as soon as you tap Send, which saves space on your Pocket PC.

When working offline, once you've downloaded new message headers or partial messages, you can disconnect from the e-mail server and then decide which messages to download completely. The next time you connect, Inbox downloads the complete messages you've marked for retrieval and sends the messages you've composed.

Using the Message List

Messages you receive are displayed in the message list. By default, the most recently received messages are displayed first in the list.

When you receive a message, tap it to open it. Unread messages are displayed in bold.

When you connect to your e-mail server or synchronize with your desktop computer, by default, you'll receive messages from the last five days only, the first 100 lines of each new message, and file attachments of less than 100 KB in size. The original messages remain on the e-mail server or your desktop computer.

You can mark the messages that you want to retrieve in full during your next synchronization or

e-mail server connection. In the message list, tap and hold the message you want to retrieve. On the pop-up menu, tap Mark for Download. The icons in the Inbox message list give you visual indications of message status.

You specify your downloading preferences when you set up the service or select your synchronization options. You can change them at any time:

• Change options for Inbox synchronization using ActiveSync options. For more information, see ActiveSync Help.
  Change options for direct e-mail server connections in Inbox on your Pocket PC. Tap Tools and then tap Options. On the Service tab, tap the service you want to change. Tap and hold the service and select Delete to remove a service.

Composing Messages

To compose a message:

1. Tap New.
2. In the To field, enter an e-mail address of one or more recipients, separating them with a semicolon, or select a name from the contact list by tapping the Address Book button.

All e-mail addresses entered in the e-mail fields in Contacts appear in the Address Book.

1. Compose your message. To enter preset or frequently used messages, tap My Text and select a message.

2. Tap Send when you've finished the message. If you are working offline, the message is moved to the Outbox folder and will be sent the next time you connect.

Managing E-mail Messages and Folders

By default, messages are displayed in one of five folders for each service you have created: Inbox, Deleted Items, Drafts, Outbox, and Sent Items. The Deleted Items folder contains messages that have been deleted on the Pocket PC. The behavior of the Deleted and Sent Items folders depends on the options you have chosen. In the message list, tap Tools and then Options. On the Message tab, select your options.

If you want to organize messages into additional folders, tap Tools, and then Manage Folders to create new folders. To move a message to another folder, in the message list, tap and hold the message and then tap Move to on the pop-up menu.

Folder behavior with a direct connection to an e-mail server

The behavior of the folders you create depends on whether you are using ActiveSync, POP3, or IMAP4:

If you use ActiveSync, e-mail messages in the Inbox folder in Outlook will automatically be synchronized with your Pocket PC. You can select to synchronize additional folders by designating them for ActiveSync. The folders you create and the messages you move will then be mirrored on the server. For example, if you move two messages from the Inbox folder to a folder named Family, and you have designated Family for synchronization, the server creates a copy of the Family folder and copies the messages into that folder. You can then read the messages while away from your desktop computer.

If you use POP3 and you move e-mail messages to a folder you created, the link is broken between the messages on the Pocket PC and their copies on the mail server. The next time you connect, the mail server will see that the messages are missing from the Pocket PC Inbox and delete them from the server. This prevents you from having duplicate copies of a message, but it also means that you will no longer have access to messages that you move to folders created from anywhere except the Pocket PC.

If you use IMAP4, the folders you create and the e-mail messages you move are mirrored on the server. Therefore, messages are available to you anytime you connect to your mail server, whether it is from your Pocket PC or desktop computer. This synchronization of folders occurs whenever you connect to your mail server, create new folders, or rename/delete folders when connected.

Companion Programs

The companion programs consist of Microsoft® Pocket Word, Microsoft® Pocket Excel, Microsoft® Money, Windows Media™ Player for Pocket PC, and Microsoft® Reader.

To switch to a companion program on your Pocket PC, tap Programs on the menu, and then tap the program name.

Pocket Word

Pocket Word works with Microsoft Word on your desktop computer to give you easy access to copies of your documents. You can create new documents on your Pocket PC, or you can copy documents from your desktop computer to your Pocket PC. Synchronize documents between your desktop computer and your Pocket PC so that you have the most up-to-date content in both locations.

Use Pocket Word to create documents, such as letters, meeting minutes, and trip reports. To create a new file, tap, Programs, Pocket Word, and then New. A blank document appears. Or, if you've selected a template for new documents in the Options dialog box, that template appears with appropriate text and formatting already provided. You can open only one document at a time; when you open a second document, you'll be asked to save the first. You can save a document you create or edit in a variety of formats, including Word (.doc), Pocket Word (.psw), Rich Text Format (.rtf), and Plain Text (.txt).

Pocket Word contains a list of the files stored on your Pocket PC. Tap a file in the list to open it. To delete, make copies of, and send files, tap and hold a file in the list. Then, select the appropriate action on the pop-up menu.

You can enter information in Pocket Word in one of four modes (typing, writing, drawing, and recording), which are displayed on the View menu. Each mode has its own toolbar, which you can show and hide by tapping the Show/Hide Toolbar button on the command bar.

You can change the zoom magnification by tapping View and then Zoom. Then select the percentage you want. Select a higher percentage to enter text and a lower one to see more of your document.

If you're opening a Word document created on a desktop computer, select Wrap to Window on the View menu so that you can see the entire document.

Typing Mode

Using the input panel, enter typed text into the document. For more information on entering typed text, see Chapter 2.

To format existing text and to edit text, first select the text. You can select text as you do in a Word document, using your stylus instead of the mouse to drag through the text you want to select. You can search a document to find text by tapping Edit and then Find/Replace.

Writing Mode

In writing mode, use your stylus to write directly on the screen. Ruled lines are displayed as a guide, and the zoom magnification is greater than in typing mode to allow you to write more easily. For more information on writing and selecting writing, see Chapter 2.

If you cross three ruled lines in a single stylus stroke, the writing becomes a drawing, and can be edited and manipulated as described in the following section.

Written words are converted to graphics (metafiles) when a Pocket Word document is converted to a Word document on your desktop computer.

Drawing Mode

In drawing mode, use your stylus to draw on the screen. Gridlines appear as a guide. When you lift your stylus off the screen after the first stroke, you'll see a drawing box indicating the boundaries of the drawing. Every subsequent stroke within or touching the drawing box becomes part of the drawing. For more information on drawing and selecting drawings, see Chapter 2.

Recording Mode

In recording mode, you can embed a recording into your document. Recordings are saved as.wav files. For more information on recording, see Chapter 2.

For more information on using Pocket Word, tap 📋 and then Help.

Pocket Excel

Pocket Excel works with Microsoft Excel on your desktop computer to give you easy access to copies of your spreadsheets. You can create new spreadsheet on your Pocket PC, or you can copy spreadsheets from your desktop computer to your Pocket PC. Synchronize spreadsheets between your desktop computer and your Pocket PC so that you have the most up-to-date content in both locations.

Use Pocket Excel to create spreadsheets, such as expense reports and mileage logs. To create a new file, tap, Programs, Pocket Excel, and then New. A blank spreadsheet appears. Or, if you've selected a template for new spreadsheets in the Options dialog box, that template appears with appropriate text and formatting already provided. You can open only one file at a time; when you open a second file, you'll be asked to save the first. You can save a spreadsheet you create or edit in a variety of formats, including Pocket Excel (.pxl) and Excel (.xls).

Pocket Excel contains a list of the files stored on your Pocket PC. Tap a file in the list to open it. To delete, make copies of, and send files, tap and hold a file in the list. Then select the appropriate action from the pop-up menu.

Pocket Excel provides fundamental spreadsheet tools, such as formulas, functions, sorting, and filtering. To display the toolbar, tap View and then Toolbar.

If your spreadsheet contains sensitive information, you can protect it with a password. To do so, open the file, tap Edit, and then Password. Every time you open that file, you will need to enter the password. Be sure to choose on that is easy for you to remember but hard for others to guess.

Tips for Working in Pocket Excel

Note the following when work in large spreadsheets in Pocket Excel:

View in full-screen mode to see as much of your spreadsheet as possible. Tap View and then Full Screen. To exit full-screen mode, tap Restore.
Show and hide window elements. Tap View and then tap the elements you want to show or hide.
■ Freeze panes on a spreadsheet. First select the cell where you want to freeze panes. Tap View and then Freeze Panes. You might want to freeze the top and leftmost panes in a spreadsheet to keep row and column labels visible as you scroll through a sheet.
Split panes to view different areas of a large spreadsheet. Tap View and then Split. Then drag the split bar to where you want it. To remove the split, tap View and then Remove Split.
Show and hide rows and columns. To hide a hidden row or column, select a cell in the row or column you want to hide. Then tap Format, then Row or Column, then Hide. To show a hidden row or column, tap Tools, then Go To, and then type a reference that is in the hidden row or column. Then tap Format, then Row or Column, and then Unhide.

For more information on using Pocket Excel, tap 📄 and then Help.

MSN Messenger

MSN® Messenger on your mobile Pocket PC is an instant messaging program that lets you:

• View a list of Instant messaging contacts who are online.
• Send and receive instant messages.
  ■ Have instant message conversations with groups of contacts.

To use MSN Messenger, you must have a Microsoft Passport™ account or a Microsoft Exchange e-mail account. If you have a Hotmail® or MSN account, you already have a Passport. Once you have obtained either a Microsoft Passport or a Microsoft Exchange account, you are ready to set up your account.

Sign up for a Microsoft Passport account at http://www.passport.com. Get a free Microsoft Hotmail e-mail address at http://www.hotmail.com.

To switch to MSN Messenger, tap 📄, Programs, and then tap MSN Messenger.

Setting Up

Before you can connect, you must enter Passport or Exchange account information.

To set up an account and sign in:

1. In the Tools menu, tap Options.
2. On the Accounts tab, enter your Passport or Exchange account information.
3. To sign in, tap the sign-in screen and enter your e-mail address and password.

If you already use MSN Messenger on your desktop computer, your contacts will show up on your Pocket PC without having to be added again.

Working with Contacts

The MSN Messenger window shows all of your messenger contacts at a glance, divided into Online and Not Online categories. From this view, while connected, you can chat, send a e-mail, block the contact from chatting with you, or delete contacts from your list using the pop-up menu.

Tap a contact to start a chat.

Tap and hold to see a pop-up menu of actions.

To see others online without being seen, in the Tools menu, tap My Status and select Appear Offline.

If you block a contact, you will appear offline but will remain on the blocked contact's list. To unblock a contact, tap and hold the contact, then tap Unblock on the pop-up menu.

Chatting with Contacts

Tap a contact name to open a chat window. Enter your message in the text entry area at the bottom of the screen, or tap My Text to enter a preset message, and tap Send. To invite another contact to a multi-user chat, in the Tools menu, tap Invite and tap the contact you wish to invite.

To switch back to the main window without closing a chat, tap the Contacts button. To revert back to your chat window, tap Chats and select the person whom you were chatting with.

To know if the contact you are chatting with is responding, look for the message under the text entry area.

For more information on using MSN Messenger, tap 📁 and then Help.

Windows Media Player for Pocket PC

Use Microsoft Windows Media Player for Pocket PC to play digital audio and video files that are stored on your Pocket PC or on a network. To switch to Windows Media Player for Pocket PC, tap, Programs, and then tap Windows Media.

Use Microsoft Windows Media Player on your desktop computer to copy digital audio and video files to your Pocket PC. You can play Windows Media and MP3 files on your Pocket PC.

For more information about using Windows Media Player for Pocket PC, tap 📄, and then tap Help.

Microsoft Reader

Use Microsoft Reader to read eBooks on your Pocket PC. Download books to your desktop computer from your favorite eBook Website. Then, use ActiveSync to copy the book files to your Pocket PC. The books appear in the Reader Library.

Each book consists of a cover page, an optional table of contents, and the pages of the book. You can:

Page through the book by using the Up/Down control on your Pocket PC or by tapping the page number on each page.
■ Annotate the book with highlighting, bookmarks, notes, and drawings.
■ Search for text and look up definitions for words.

The Guidebook contains all the information you'll need to use the software. To open the Guidebook, tap Help on the Reader command bar. Or, on a book page, tap and hold on the book title, and then tap Help on the pop-up menu.

To switch to Microsoft Reader, tap#, Programs, and then Microsoft Reader.

Getting Books on Your Pocket PC

You can download book files from the Web. Just visit your favorite eBook retailer and follow the instructions to download the book files.

Sample books and a dictionary are also included in the MSReader folder in the Extras folder on the Pocket PC Companion CD.

Use ActiveSync to download the files from your desktop computer to your activated Pocket PC as described in the Read Me file in the MSReader folder.

Using the Library

The Library is your Reader home page; it displays a list of all books stored on your Pocket PC or storage card.

To open the Library:

On the Reader command bar, tap Library.
On a book page, tap the book title, and then tap Library on the pop-up menu.

To open a book, tap its title in the Library list.

Reading a Book

Each book consists of a cover page, an optional table of contents, and the pages of the book. Navigation options are listed in the bottom portion of the cover page.

The first time you open a book, you'll probably want to go to the first page or to the table of contents, if there is one. Subsequently, whenever you open the book, you'll be automatically taken to the last page read.

In addition to the text, each book page includes a page number and book title.

You can also page through a book by using the Up/Down control on your Pocket PC.

Using Reader Features

Reading a book electronically gives you several options not available with paper books. These options are available from any book page.

Select text by dragging across the text on the page. Then, tap an option on the pop-up menu, as described here:

• Search for Text. Find text in a book by tapping Find on the pop-up menu. Enter the word you want to search for, and tap the desired Find option. Reader highlights found text on the page. To close Find, tap outside the box. To return to your original page, tap the title and then tap Return on the pop-up menu.
  Copy Text. You can copy text from books that support this feature into any program that accepts text. On a book page, select the text you want to copy. Then, tap Copy Text on the pop-up menu. The text can be pasted into the program of your choice.
  Bookmarks. When you add a bookmark to a book, a color-coded bookmark icon appears in the right margin. You can add multiple bookmarks to a book. Then, from anywhere in the book, tap the bookmark icon to go to the bookmarked page.
  ■ Highlights. When you highlight text, it appears with a colored background.
  Notes. When you attach a note to text, you enter the text in a note pad that appears on top of the book page. A Note icon will display in the left margin. To show or hide the note, tap the icon.

Drawings. When you add a drawing, a Drawing icon appears in the bottom-left corner of the page, and drawing tools appear across the bottom of the page. Draw by dragging your stylus.

To see a list of a book's annotations, including bookmarks, highlights, text notes, and drawings, tap Annotations Index on the book's cover page. You can tap an entry in the list to go to the annotated page.

Removing a Book

When you finish reading a book, you can delete it to conserve space on your Pocket PC. If a copy of the book is stored on your desktop computer, you can download it again at any time.

To remove a book from your Pocket PC, tap and hold the title in the Library list, and then tap Delete on the pop-up menu.

Pocket Internet Explorer

Use Microsoft® Pocket Internet Explorer to view Web or WAP pages in either of these ways:

During synchronization with your desktop computer, download your favorite links and mobile favorites that are stored in the Mobile Favorites subfolder in Internet Explorer on the desktop computer.
Connect to an Internet service provider (ISP) or network and browse the Web. To do this, you'll need to create the connection first, as described in Chapter 7.

When connected to an ISP or network, you can also download files and programs from the Internet or intranet.

To switch to Pocket Internet Explorer, tap and then Internet Explorer.

The Mobile Favorites Folder

Only items stored in the Mobile Favorites subfolder in the Favorites folder in Internet Explorer on your desktop computer will be synchronized with your Pocket PC. This folder was created automatically when you installed ActiveSync.

Favorite Links

During synchronization, the list of favorite links in the Mobile Favorites folder on your desktop computer is synchronized with Pocket Internet Explorer on your Pocket PC. Both computers are updated with changes made to either list each time you synchronize. Unless you mark the favorite link as a mobile favorite, only the link will be downloaded to your Pocket PC, and you will need to connect to your ISP or network to view the content. For more information on synchronization, see ActiveSync Help on the desktop computer.

Mobile Favorites

If you are using Microsoft Internet Explorer 5.0 or later on your desktop computer, you can download mobile favorites to your Pocket PC. Synchronize the web content of your mobile favorites downloads your Pocket PC so that you can view pages while you are disconnected from your ISP and desktop computer.

Use the Internet Explorer plug-in installed with ActiveSync to create mobile favorites quickly.

To create a mobile favorite:

1. In Internet Explorer on your desktop computer, click Tools and then Create Mobile Favorite.
2. To change the link name, enter a new name in the Name box.
3. Optionally, in Update, select a desired update schedule.
4. Click OK. Internet Explorer downloads the latest version of the page to your desktop computer.
5. If you want to download the pages that are linked to the mobile favorites you just created, right-click the mobile favorite and then click Properties. In the Download tab, specify the number of links deep you want to download. To conserve Pocket PC memory, go only one level deep.
6. Synchronize your Pocket PC and desktop computer. Mobile favorites that are stored in the Mobile Favorites folder in Internet Explorer are downloaded to your Pocket PC.

If you did not specify an update schedule in step 3, you will need to manually download content to keep the information updated on your desktop computer and Pocket PC. Before synchronizing with your Pocket PC, in Internet Explorer on your desktop computer, click Tools and then Synchronize. You will see the last time content was downloaded to the desktop computer, and you can manually download content if needed. You can add a button to the Internet Explorer toolbar for creating mobile favorites. In Internet Explorer on your desktop computer, click View, Toolbars, and then Customize.

To save Pocket PC memory

Mobile favorites take up storage memory on your Pocket PC. To minimize the amount of memory used:

In the settings for the Favorites information type in ActiveSync options, turn off pictures and sounds, or stop some mobile favorites from being downloaded to the Pocket PC. For more information, see ActiveSync Help.
Limit the number of downloaded linked pages. In Internet Explorer on the desktop computer, right-click the mobile favorite you want to change and then Properties. In the Download tab, specify 0 or 1 for the number of linked pages you want to download.

Using AvantGo Channels

AvantGo is a free interactive service that gives you access to personalized content and thousands of popular Web sites. You subscribe to AvantGo channels directly from your Pocket PC. Then, you synchronize your Pocket PC and desktop computer, or connect to the Internet to download the content. For more information, visit the AvantGo Web site.

To sign up for AvantGo:

1. In ActiveSync options on the desktop computer, turn on synchronization for the AvantGo information type.
2. In Pocket Internet Explorer on your Pocket PC, tap the Favorites button to display your list of favorites.
3. Tap the AvantGo Channels link.
4. Tap the Activate button.
5. Follow the directions on the screen. You will need to synchronize your Pocket PC with your desktop computer and then tap the My Channels button to complete the AvantGo setup.

When synchronization is complete, tap the AvantGo Channels link in your list of favorites to see a few of the most popular channels. To add or remove channels, tap the Add or Remove link.

Using Pocket Internet Explorer

You can use Pocket Internet Explorer to browse mobile favorites and channels that have been downloaded to your Pocket PC without connecting to the Internet. You can also connect to the Internet through an ISP or a network connection and browse the Web.

To view mobile favorites and channels:

1. Tap the Favorites button to display your list of favorites.

1. Tap the page you want to view.

You'll see the page that was downloaded the last time you synchronized with your desktop computer. If the page is not on your Pocket PC, the favorite will be dimmed. You will need to synchronize with your desktop computer again to download the page to your Pocket PC, or connect to the Internet to view the page.

To browse the Internet:

1. Set up a connection to your ISP or corporate network using Connections, as described in Chapter 7.
2. To connect and start browsing, do one of the following:

Tap the Favorites button, and then tap the favorite you want to view.
Tap View and then Address Bar. In the address bar that appears at the top of the screen, enter the Web address you want to visit and then tap Go. Tap the arrow to choose from previously entered addresses.

To add a favorite link while using the Pocket PC, go to the page you want to add, tap and hold on the page, and tap Add to Favorites.

Getting Connected

You can use your Pocket PC to exchange information with other mobile devices as well as your desktop computer, a network, or the Internet. You have the following connection options:

Use the infrared (IR) port on your Pocket PC to send and receive files between two devices. If this is the method you want to use, see the following section “Transfer Items Using Infrared.”
Connect to your network. Once connected, you can send and receive e-mail messages by using Inbox and view Web or WAP pages by using Microsoft® Pocket Internet Explorer. The communication software for creating an ISP connection is already installed on your Pocket PC. Your service provider will provide software needed to install other services, such as paging and fax services. If this is the method you want to use, see “Connect to the Internet” later in this chapter.
Connect to the network at your company or organization where you work. Once connected, you can send and receive e-mail messages by using Inbox, view Web or WAP pages by using Pocket Internet Explorer, and synchronize with your desktop computer. If this is the method you want to use, see “Connect to Work” later in this chapter.
Connect to your desktop computer to synchronize remotely. Once connected, you can synchronize information such as your Pocket Outlook information. If this is the method you want to use, see ActiveSync Help on your desktop computer or Connections Help on the Pocket PC.

Transfer Items Using Infrared

Using infrared (IR), you can send and receive information, such as contacts and appointments, between two devices.

To send information:

1. Switch to the program where you created the item you want to send and locate the item in the list.
2. Align the IR ports so that they are unobstructed and within a close range.

1. Tap and hold the item, and tap Beam Item on the pop-up menu.

You can also send items, but not folders, from File Explorer. Tap and hold the item you want to send, and then tap Beam File on the pop-up menu.

To receive information:

1. Align the IR ports so that they are unobstructed and within a close range.
2. Have the owner of the other device send the information to you. Your Pocket PC will automatically receive it.

Connect to the Internet

You can connect to your ISP, and use the connection to send and receive e-mail messages and view Web or WAP pages.

You can connect to work in one of two ways:

• Create a modem connection. If this is the method you want to use, see “To create a modem connection to an ISP.”
  Use an Ethernet card and a net tap to connect to the network. If this is the method you want to use, see “To create an Ethernet connection to an ISP.”

To create a modem connection to an ISP:

1. Obtain the following information from your ISP: ISP dial-up access telephone number, user name, password, and TCP/IP settings. Some ISPs require information in front of the user name, such as MSN/username.
2. Connect your Pocket PC to a modem. You can use a connector cable to hook up to your wireless phone, with data capabilities.
3. Tap 📋 and then Settings. In the Connections tab, tap Connections. Under The Internet settings, select Internet Settings and tap Modify.
4. In the Modem tab, tap New.
5. Enter a name for the connection, such as "ISP Connection."
6. In the Select a modem list, select your modem type. If your modem type does not appear, try re-inserting the modem card. If you are using an external modem that is connected to your Pocket PC with a cable, select Hayes Compatible on COM1.
7. You should not need to change any settings in Advanced. Most ISPs now use a dynamically-assigned address. If the ISP you are connecting to does not use a dynamically-assigned address, tap Advanced and then the TCP/IP tab, and enter the address. When finished, tap OK and then Next.
8. Enter the access phone number, and tap Next.

9. Select other desired options, and tap Finish.

10. In the Dialing Locations tab, specify your current location and phone type (most phone lines are tone). These settings will apply to all connections you create.

To start the connection, simply start using one of the following programs. Your Pocket PC will automatically begin connecting. Once connected, you can:

Send and receive e-mail messages by using Inbox. Before you can use Inbox, you need to provide the information it needs to communicate with the e-mail server. For specific instructions, see "Connecting Directly to an E-mail Server," later in this chapter.
- Visit Web and WAP pages by using Pocket Internet Explorer. For more information, see Chapter 6.
- Send and receive instant messages with MSN Messenger. For more information, see “MSN Messenger”, in Chapter 5.

To create an Ethernet connection to an ISP:

1. You do not need to create a new connection on your Pocket PC. Instead, you must purchase and configure an Ethernet card that is compatible with your Pocket PC.
2. Obtain the following information from your ISP: user name, password, and domain name.
3. Insert the Ethernet card into your Pocket PC. For instructions on inserting and using the Ethernet card, see the owner's manual for the card.
4. The first time you insert the card, Network Settings will appear automatically so that you can configure the ethernet card. Most networks use DHCQ, so you should not have to change these settings unless your network administrator instructs you to do so. Tap OK. (If it does not appear or to change settings later, tap 📄 and then Settings. In the Connections tab, tap Network, tap the adaptor you want to change, and then tap Properties.)
5. Connect the Ethernet card to the network by using a network cable. For information, see your owner's manual.
6. Tap 📄, Settings, Connections tab, and then Connections. From the My network card connects to list, select Internet.

To start the connection, simply start using one of the programs listed in the preceding section. Once connected, you can perform the same activities as listed in the preceding section.

Connect to Work

If you have access to a network at work, you can send e-mail messages, view intranet pages, synchronize your Pocket PC, and possibly access the Internet. You can connect to work in one of two ways:

• Create a modem connection by using a RAS account. Before you can create this modem connection, your network administrator will need to set up a RAS account for you. If this is the method you want to use, see “To create a modem connection to a network.” Your network administrator may also give you VPN settings.
  Use an Ethernet card and a net tap to connect to the network. If this is the method you want to use, see “To create an Ethernet connection to a network.”

To create a modem connection to a network:

1. Get the following information from your network administrator: dial-up access telephone number, user name, password, domain name, and TCP/IP settings.
2. Connect your Pocket PC to a modem, like your data capable wireless phone.
3. Tap 📋 and then Settings. In the Connections tab, tap Connections. Under The Internet settings, select Internet Settings and tap Modify.
4. In the Modem tab, tap New.
5. Enter a name for the connection, such as "Company Connection."
6. In the Select a modem list, select your modem type. If your modem type does not appear, try reinserting the modem card. If you are using an external modem that is connected to your Pocket PC with a cable, select Hayes Compatible on COM1.
7. You should not need to change any settings in Advanced. Most servers now use a dynamically-assigned address. If the server you are connecting to does not use a dynamically-assigned address, tap Advanced and then the TCP/IP tab and enter the address. When finished, tap OK and then Next.
8. Enter the access phone number, and tap Next.
9. Select other desired options, and tap Finish.
10. In the Dialing Locations tab, specify your current location and phone type (most phone lines are tone). These settings will apply to all connections you create.

To start the connection, simply start using one of the following programs. Your Pocket PC will automatically begin connecting. Once connected, you can:

Send and receive e-mail messages by using Inbox. Before you can use Inbox, you need to provide the information it needs to communicate with the e-mail server. For specific instructions, see “Connecting Directly to an E-mail Server,” later in this chapter.
- Visit Internet or intranet Web or WAP pages by using Pocket Internet Explorer.

• Send and receive instant messages with MSN Messenger. For more information, see “MSN Messenger”, in Chapter 5.
  ■ Synchronize. For more information, see ActiveSync Help on the desktop computer.

To create an Ethernet connection to a network:

1. You do not need to create a new connection on your Pocket PC. Instead, you must purchase and configure an Ethernet card that is compatible with your Pocket PC.
2. Get the following information from your network administrator: user name, password, and domain name.
3. Insert the Ethernet card into your Pocket PC. For instructions on inserting and using the Ethernet card, see the owner's manual for the card.
4. The first time you insert the card, Network Settings will appear automatically so that you can configure the Ethernet card. Most networks use DHCP, so you should not have to change these settings unless your network administrator instructs you to do so.

Tap OK. (If it does not appear or to change settings later, tap 📋 and then Settings. On the Connections tab, tap Network, tap the adaptor you want to change and then tap properties.)

1. Connect the Ethernet card to the network by using a network cable. For information, see your owner's manual.
2. Tap 📄, Settings, Connections tab, and then Connections. From the My network card connects to list, select Work.
3. If you want to synchronize your Pocket PC, tap, and then ActiveSync. In the Tools menu, tap Options. In the PC tab, select Include PC when synchronizing remotely and connect to, and select your computer's name. Remote synchronization with a desktop computer will work only if you have set up a partnership with that computer through ActiveSync and have set ActiveSync to allow remote connections. Other restrictions apply. For more information on synchronizing remotely, see ActiveSync Help on the desktop computer.

To start the connection, simply start using one of the programs listed in the preceding section. Once connected, you can perform the same activities as listed in the preceding section.

End a Connection

To disconnect, do one of the following:

• When connected via dial-up or VPN, tap the Connection icon,, on your navigation bar, and tap End.
• When connected via cable or cradle, detach your Pocket PC from the cable or cradle.
• When connected via Infrared, move the Pocket PC away from the PC.
• When connected via a network (Ethernet) card, remove the card from your Pocket PC.

Connect Directly to an E-mail Server

You can set up a connection to an e-mail server so that you can send and receive e-mail messages by using a modem or network connection and Inbox on your Pocket PC.

The ISP or network must use a POP3 or IMAP4 e-mail server and an SMTP gateway.

You can use multiple e-mail services to receive your messages. For each e-mail service you intend to use, first set up and name the e-mail service. If you use the same service to connect to different mailboxes, set up and name each mailbox connection.

To set up an e-mail service:

In Inbox on your Pocket PC, tap Services, and then New Service. Follow the directions in the New Service wizard.

For an explanation of a screen, tap 📋 and then Help. When finished, to connect to your e-mail server, tap Services and then Connect. For more information on using the Inbox program, see “Inbox: Sending and Receiving E-mail Messages” in Chapter 4.

Get Help on Connecting

More information on the procedures described here, as well as information on additional procedures, can be found in the following locations:

• Inbox: Sending and Receiving E-mail Messages in Chapter 4.
  ■ Online Help on the Pocket PC. Tap 📋 and then Help. Tap View, All Installed Help, and then Inbox or Connections.
  ■ ActiveSync Help on the desktop computer. In ActiveSync, click Microsoft ActiveSync Help on the Help menu.
  For troubleshooting information, see the Pocket PC Web site at: http://www.microsoft.com/mobile/pocketpc.

Chapter 8

Optional Functions

Home

You can launch the built-in or installed applications easily by tapping the icon displayed on the Home screen. You can also set to display a desired bitmap image on your screen background.

Launching an Application From the Home

1. Tap Programs, and then Home to display the Home screen. You can also launch the Home by pressing the Pocket PC Home button.

1. Tap the desired tab, and then tap the application icon you want to launch. The selected application starts up.

Also, you can launch an application by moving the cursor button to select and pressing the center of the cursor button to confirm.

You can add tabs up to a maximum of 10 kinds and icons up to 18 in a tab.

About Running

In the Running tab, the active application names are displayed.

The icons do not appear.

Application Activate/Stop:

Tap the application name you want to activate. You can also activate the application from the pop-up menu displayed by tapping and holding the application name.

Tap to activate the selected application.

Tap to quit the selected application. When finished, the applicatin name disappears.

Tap to quit all running applications displayed in the Running tab.

You can select the View menu or the Tools menu on the Running tab screen. You can select Text color... from the View menu, the Tab Settings... or About from the Tools menu respectively.

You can show a pop-up menu by tapping and holding any portion other than the application names displayed in the Running tab. In this case, only the Stop All is selectable.

Display Icon List

The following list shows the tabs and icons for the initial setup.

Tabs Icons Applications
Running	—	—
Main		Pocket Internet Explorer
		Windows Media Player
		Notes
	[A5SX]	Tasks
		Inbox
		Calendar
		Contacts
		Pocket Word
		Pocket Excel
		Calculator
Programs		File Explorer
		Backup
		Infrared Receive
Games		Solitaire

Moving an Application Icon into Another Tab

The moved icon is placed next to the last icon on the tab screen.

You cannot move the icon into the tab which already contains 18 icons.

To move using pop-up menu:

1. Tap and hold the icon you want to move to display the pop-up menu.
2. Tap Cut on the pop-up menu.
3. Tap the destination tab, and then tap Paste on Edit menu. The selected icon is pasted on the screen.

You can also select Paste from the pop-up menu displayed by tapping and holding any portion other than the icon.

To move using drag and drop:

Tap the icon you want to move and drag it to the destination tab, and then drop it.

The icon is transferred and that icon in the original tab screen is deleted.

If the icon is dragged and dropped in the same tab, it will return to its original position on the tab screen.

Deleting an Icon

1. Tap and hold the icon you want to delete to display the pop-up menu.
2. Tap Drop on the pop-up menu. The icon is deleted and the next icon positioned after the deleted icon automatically shifts to fill the deleted icon position. And all icons after the deleted icon likewise shift to fill the previous icon position.

Adding an Icon

You can add the application and your file icons to the Home screen.

1. Tap Edit and then Add to display the Add Application screen.
   You can also select Add from the pop-up menu displayed by tapping and holding any portion other than the icon.
2. Tap ▼ of Application file to show the file list. If there is no desired file on the file list, you can find it by tapping Browse. To refer to all folders and files, tap Browse to show the Browse Dialog screen. When the file is selected, its name is displayed in the Application file box.

1. Enter an icon name in the Application name box, which is to be displayed on the Home screen.

You can enter up to a maximum of 32 characters.

1. When finished, tap OK to close the Add Application screen, and the new icon is added to the Home screen.

If the Application file is not designated, or if the Application name is not entered, you can not add a new icon.

You cannot launch the icon added from the storage card, if the same card is not inserted in the Pocket PC.

Tab Setting

You can set to add, delete or rename the tab on the Tab Settings screen. You can also set to display a desired bitmap image on your screen background.

To add a tab:

1. Tap Tools and then Tab Settings to display the Tab Settings screen.
2. Tap Tab Settings and then New to display a box to enter the new tab name.
3. Enter a new tab name. When finished, tap OK to return to the Tab Settings screen. You can enter up to a maximum of 10 characters.
4. Tap OK on the Tab Settings screen to return to the Home screen.

To delete a tab:

1. Tap Tools and then Tab Settings.
2. Select the tab name to delete, and then tap Delete, the Delete tab dialog for confirming appears. Please note that all the icons contained in the same tab will also be deleted.
3. Tap OK on the Delete tab dialog to delete the tab. When finished, the screen returns to Tab Settings screen.
4. Tap OK on the Tab Settings screen to return to the Home screen.

You cannot delete the Running tab.

To change the name of a tab:

1. Tap Tools and then Tab Settings to display the Tab Settings screen.
2. Select the tab name you want to change, and then tap Rename.
3. Enter a new tab name. When finished, tap OK to return to the Tab Settings screen. You can enter up to a maximum of 10 characters.
4. Tap OK on the Tab Settings screen to return to the Home screen.

You cannot rename the Running tab.

To change a background:

1. Select the background setup tab on the Tab Settings menu, and then tap Browse to display the Browse Dialog screen.
2. Even if a storage card is inserted, the files in the storage card will not be displayed.
3. Tap the desired bitmap file from the list to return to the Tab Settings screen.
4. Tap OK on the Tab Settings screen to return to the Home screen.

If the selected file is not a bitmap file, you cannot set it on your screen background.

The displayable range of the bitmap image on the Home screen is 240(W) × 246(H) .

Text Color Setting:

You can set the color of application name for each tab using Text Color.

1. Tap the tab whose color you want to set to display the selected tab screen.
2. Tap View and then Text Color to display the color list.
   You can set the color of the application name as desired.
3. Tap the color you want to set, and the color of the application name changes.

How to Make a Backup

You can make a backup of the Pocket PC data in an SD memory card or a Compactflash card. If you have backed up your data on an SD or Compactflash card, you can restore that data in your Pocket PC. You can also delete backup file data from the storage card. Periodical data backup is recommended.

Data of the following three types can be backed up:

File: Includes a file created by Pocket Word, Pocket Excel, Notes, etc. or an additionally installed program and so on.
■ Registry: Setting information on Windows CE or Built-in Program.
Database: Database information of Microsoft Pocket Outlook.

Data on password and so on from the setup menu cannot be restored. When attempting to make, restore or delete a backup, connect an AC adaptor to the Pocket PC before operation.

If you update ROM programs using special installation programs with a *.zip extension, do not use the backup data which you made before updating ROM programs.

Making a Backup

1. Insert a storage card.
2. Tap 📄, Programs, and then Backup to display the Backup screen.
3. Select Backup from Functionality, then select and tap Storage Card 1 or Storage Card 2 from Media.

Select Backup from Functionality.

When an SD memory card and a CompactFlash card are inserted in the slots, check which one is Storage Card 1 or Storage Card 2 by looking at the storage capacity of the card.

1. Tap OK to display the Backup password input screen.

5. Input password.

Enter a password.

You can enter a password up to a maximum of 16 characters.

A backup can be made even without entry of a password. If a password is entered, that password is required at the time of restore.

If you forget the password, you cannot restore the backup data.

Do not forget your password. Write down the password and keep it in a safe place where only you know.

1. When finished, tap OK. The Proceeding message is displayed during the backup process.

When the backup is completed, a backup finished message appears.

1. Tap OK to return to the previous screen.

If the remaining storage card capacity becomes short during backup, the backup process stops. Check the storage capacity before starting the backup.

If the storage card is write protected, you cannot save the backup data.

Cancel the write protection before starting the backup.

Carrying Out Restore Operation

To restore is to overwrite the backed up data from the storage card onto the main memory of your Pocket PC.

If the same file name exists in the main memory of your Pocket PC, the file data is replaced with the backup data from the storage card.
If files exist in the main memory but not in the backup file, they will not be overwritten.

1. Insert the storage card, which contains backup data into your Pocket PC.

2. Tap Programs, and then Backup to display the Backup screen.

3. Select Restore from Functionality, then select and tap Storage Card 1 or Storage Card 2 from Media.

1. Tap OK to display the Restore password input screen.
2. Enter a password, which was set up for this data backed up.

If you made a backup file without entry of a password, you don't need to enter a password.

1. When finished, tap OK. The restore message appears, and then the restore process starts.

When the restore process is completed, a restore finish message appears.

1. Tap OK. Your Pocket PC is reset and restarts automatically.

If your Pocket PC memory becomes short of its capacity during restore, the restore process stops. Increase the memory allocation of the main memory of your Pocket PC (see Chapter 2. "Customize Your Pocket PC"), and then restart the restore procedure.

Deleting a Backup File.

1. Insert the storage card, which contains backup data to delete.
2. Tap 📋, Programs, and then Backup to display the Backup screen.
3. Select Delete Backup File from Functionality, then select and tap Storage Card 1 or Storage Card 2 from Media.

1. Tap OK to display the Delete Backup File check screen.
2. Tap OK to delete the backup file.

Additional Information

Trouble Shooting

Check the following guide for the possible cause of a problem and how to correct it.

Symptom Cause Correction
Even if the power button is pressed and the power does not turn on.	The built-in battery power is exhausted.	Charge the battery.
The power was suddenly cut off.	The built-in battery power is exhausted.	Charge the battery.
Automatic suspend is	active.	Select Settings, System, Power to set to alter the power shut down time.
Even if the built-in battery is completely charged, it discharges after a short period of time.	The built in battery is extinct.	Replace the main battery with a new one.
The screen was tapped, but no correct action was not executed.	Touch screen adjustment is incorrect.	Select Settings, System, Align Screen to adjust the touch screen.

Symptom Cause Correction

The operation is slow in response.	Insufficient memory Secure the free memory. Quit the application if it is not in use.
Some malfunction Reset the system. If no		action is observed after resetting the system, initialize the system. (However, the data will be deleted.)
The screen was tapped, but there is no response. The operation button does not work either.	Some malfunction Reset the system. If no action is observed after resetting the system, initialize the system. (However, the data will be deleted.)
The screen is dark. The front light is off. Press and hold the power button until the front light is turned on.
The screen is hard to see. Brightness setting is incorrect.		Select Settings, System, Front Light to adjust the screen brightness for better sight.
Can not connect to your computer.	— See Help of ActiveSync.
ActiveSync does not function when your Pocket PC is connected to your computer with a USB cradle or USB cable.	“USB SETUP TOOL” was not executed. It should be performed after execution of ActiveSync.	Install “USB SETUP TOOL” contained in the Companion CD.
The USB driver of your computer may not be compatible.		Reselect the USB driver.
Can not access the Internet.	The connecting using a specified cellular phone connection cable was not correct.	Check whether the connecting using a specified cellular phone connection cable is correct.
Radio waves of a connected cellular phone are getting worse.		Carry out communications where radio wave conditions are satisfactory.
Setting is incorrect.	Carry out correct setting.

Resetting

Reset is equal to "Restart" of a desktop computer. Carry out the reset in such unusual case as when a button or tapping the scrfeen does not respond. When your Pocket PC is reset, all data that was not stored during operation will be deleted.

If the function cannot be restored even if the reset button is pressed, initialize your Pocket PC.

When the power is on, press the reset switch with the stylus, then release.

Line drawing of a handheld electronic device with a cable inserted, showing the screen and control buttons (no text or symbols)

Clear Memory

When you initialize your Pocket PC, it returns to the status when it was purchased.

When you initialize your Pocket PC, all data stored in the memory isdeleted. Your Pocket PC's initially installed programs are not deleted. Before initialization, remove all storage cards.

1. Turn off the power.
2. Press the power button while pressing and holding the reset switch with the stylus, and then release the power button.
3. When a screen appears, release the reset switch.

When initialization is completed, the Welcome screen appears. Set up the system according to the screen as in the case of startup procedure.

Specifications

External dimensions	77.5(W) x 17.5(D) x 125(H)mm (excluding protrusion part)
Operating conditions	Temperature: 0°C to 40°C, Humidity: 30 to 80% RH, when only the Pocket PC is operating Temperature capable of charging: 5°C to 35°C
Built-in battery
Type Advanced Lithium Ion battery
Continuing operating time	Approx. 8 hours.For continuous indication of the Today screen, front light: OFF, ambient temperature: 25°C
Memory keeping time	Approx. 30 hours.If left at ambient temperature of 25°C after the power has become unable to turn on Note: Continuing operating time and memory keeping time vary according to the charging condition, ambient temperature, operating condition, etc.
Processor Strong ARM SA-1110
Action clock 206MHz
Memory 64MB SDRAM
Display Reflection color TFT, 240x320 pixels, 65,536 colors

Interfaces

CF card slot Possible to insert CompactFlash card or CF+Card. Applicable only to Type I/Type II, 3.3V

SD card slot Possible to insert SD memory card or SDI/O card Note: The security function of the SD memory card is not usable. Data encrypted by the SD memory card security function-compatible equipment is not usable.

Infrared port Based on IrDA Ver.1.2 Maximum data transmission speed: 115 kbps Stereo headphone jack ∅3.5mm, stereo mini plug compatible Remote control earphone (option) usable Cradle connection port AC adaptor jack

AC adaptor Input power supply: 100–240VAC Rated output: DC 5V, 3A

Although the display is manufactured using an extremely high order of technology, there may be a case that some dots do not light or always light. It is not a malfunction.
