Brand	Vestel
Model	KVF562W1
Product Type	Refrigerator (fresh food storage only)
Energy Class	A+
Annual Energy Consumption	127 kWh
Total Net Volume	250 L
Total Gross Volume	253 L
Refrigeration System	Static
Climate Class	N (16 °C – 32 °C)
Noise Emission	42 dB(A)
Power Supply	220–240 V, 50 Hz
Plug Requirement	Grounded socket, 16 A
Refrigerant	R600a (flammable)
Temperature Control	Thermostat knob (positions 1 to 5)
Defrosting	Automatic (refrigerator compartment)
Light Bulb (max)	15 W (screw type)
Interior Components	Adjustable glass shelves, crisper drawer, bottle shelves, door shelves, egg holder
Levelling Feet	Yes (adjustable front legs)
Door Reversibility	Not possible on models with handles
Cleaning Recommendation	Bicarbonate of soda and lukewarm water

Frequently Asked Questions - KVF562W1 VESTEL

How do I set the temperature on my Vestel KVF562W1 refrigerator?

Turn the thermostat knob inside the fridge to a position between 1 and 5. Higher numbers give colder temperatures. For short-term storage, use a low/medium setting (up to 3). For long-term storage, use a medium setting (3 or 4) or maximum (4-5) for very cold conditions.

Why is my fridge making a bubbling or noise?

Bubbling or splashing sounds are normal and caused by refrigerant flowing through the system. Motor noise indicates the compressor is operating. Air blowing noise is from air circulation. If noises become excessive, check that the fridge is level and not touching walls or cabinets.

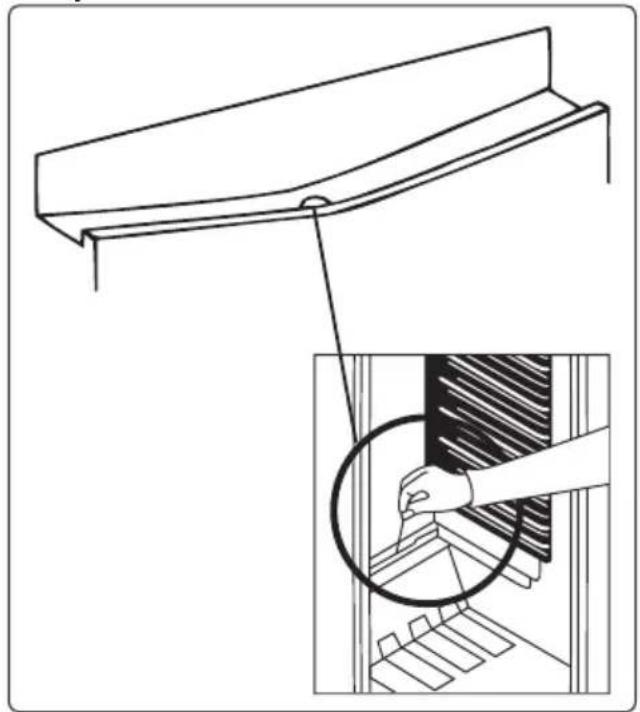

How does the automatic defrost work?

The refrigerator compartment defrosts automatically. Water is collected in an evaporation tray and evaporates. Periodically clean the drain hole and evaporation tray to prevent water from pooling at the bottom. You can pour half a glass of water down the drain hole to clean it.

Can I change the door opening direction?

If your model has door handles installed on the front, the door opening direction cannot be changed. For models without handles, it may be possible. Contact an Authorised Service Centre to change the door opening direction.

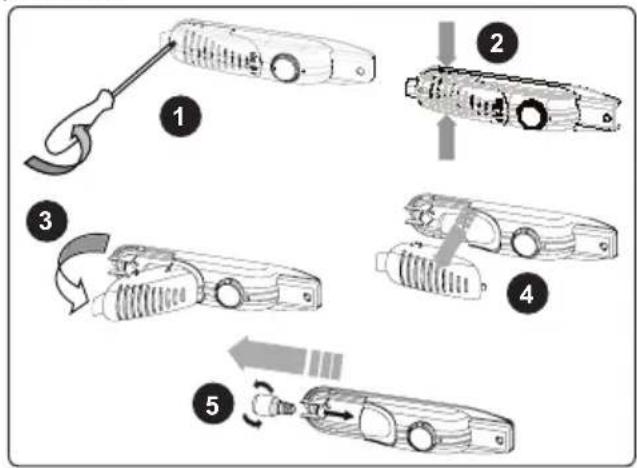

How do I replace the light bulb?

Unplug the refrigerator. Remove the screw on the light cover, press the hooks, and pull off the cover. Unscrew the old bulb counterclockwise and replace with a new bulb of max 15 W (screw type). Reassemble in reverse order and wait 5 minutes before plugging in.

What should I do during a power cut?

Unplug the appliance to prevent compressor damage. After power returns, wait 5-10 minutes before plugging in again. Keep the door closed to maintain cold temperature. Avoid opening the door frequently.

How should I store food for best results?

Store meat and fish on the glass shelf above the vegetable bin. Keep fruits and vegetables in the crisper separately to prevent ethylene damage. Always cover liquids and wrap meat to avoid cross-contamination. Do not store warm food; let it cool first.

What are the energy-saving tips for this fridge?

Place the fridge in a cool, well-ventilated room away from heat sources and direct sunlight. Allow warm food to cool before storing. Keep doors closed and open only briefly. Clean the condenser with a brush at least twice a year.

How do I clean my Vestel KVF562W1?

Unplug the appliance before cleaning. Use a solution of bicarbonate of soda and lukewarm water. Do not use abrasive products or pour water on the appliance. Clean the condenser with a brush twice a year. Dry all parts before reconnecting.

What should I do if my fridge is not cooling properly?

Check if the power is on and the plug is secure. Ensure the thermostat is set correctly. Verify the door is closing fully and the door gasket is clean. Make sure there is enough space for air circulation (min 150 mm top, 75 mm back). If problem persists, contact an authorised service centre.

USER MANUAL KVF562W1 VESTEL

Simple line drawing of a door with a vertical slot on the left pan (no text or symbols)

KVF562IL1

KVF562W1

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

1.3 Im Betrieb

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols present)

Thank you for choosing this product.

This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this user manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT Operating the system correctly

CONTENTS

1 SAFETY INSTRUCTIONS ....20

1.1 General Safety Warnings ....20

1.2 Installation warnings....24

1.3 During Usage....24

2 DESCRIPTION OF THE APPLIANCE 26

3 USING THE APPLIANCE 26

3.1 Thermostat Setting 26

3.2 Temperature Settings Warnings ....26

4 FOOD STORAGE 27

5 CLEANING AND MAINTENANCE 28

5.1 Defrosting....29

5.2 Replacing the Light Bulb....29

6 SHIPMENT AND REPOSITIONING....30

6.1 Transportation and Changing Positioning ....30

6.2 Repositioning the Door 30

7 BEFORE CALLING AFTER-SALES SERVICE....30

8 TIPS FOR SAVING ENERGY .... 31

1 SAFETY INSTRUCTIONS

1.1 General Safety Warnings

Read this user manual carefully.

⚠ WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
⚠ WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
⚠ WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
⚠ WARNING: Do not damage the refrigerant circuit.
⚠ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
⚠ WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
⚠ WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the instructions.
⚠️ If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and

natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and domestic applications such as:

-staff kitchen areas in shops, offices and other working environments.

-farm houses and by clients in hotels, motels and other residential type environments.

-bed and breakfast type environments;

-catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

1.2 Installation warnings

Before using your fridge for the first time, please pay attention to the following points:

• The operating voltage for your fridge is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• Your fridge may have an odour when it is operated for the first time. This is normal and the odour will fade when your fridge starts to cool.
• Before connecting your fridge, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.
• Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance.
• The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your fridge where it will not be exposed to direct sunlight.
• Your fridge must never be used outdoors or exposed to rain.
• Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.
• If your fridge is placed next to a deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.

• Do not cover the body or top of fridge with lace. This will affect the performance of your fridge.

• Clearance of at least 150 mm is required at the top of your appliance. Do not place anything on top of your appliance.

• Do not place heavy items on the appliance.
• Clean the appliance thoroughly before use (see Cleaning and Maintenance).
• Before using your fridge, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge after cleaning.
• Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This must be done before placing food in the appliance.
  • Install the two plastic distance guides (the

parts on the black vanes -condenser- at the rear) by turning it 90° (as shown in the figure) to prevent the condenser from touching the wall.

- The distance between the appliance and back wall must be a maximum of 75 mm.

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

1.3 During Usage

• Do not connect your fridge to the mains electricity supply using an extension lead.
• Do not use damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• Do not use plug adapter.
• This appliance is designed for use by adults. Do not allow children to play with the appliance or hang off the door.
• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.
• Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure their tops are tightly closed.

Old and Out-of-order Fridges

• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

CE Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of your old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Packaging and the Environment

Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for any losses incurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for any losses incurred by inappropriate usage of the appliance.

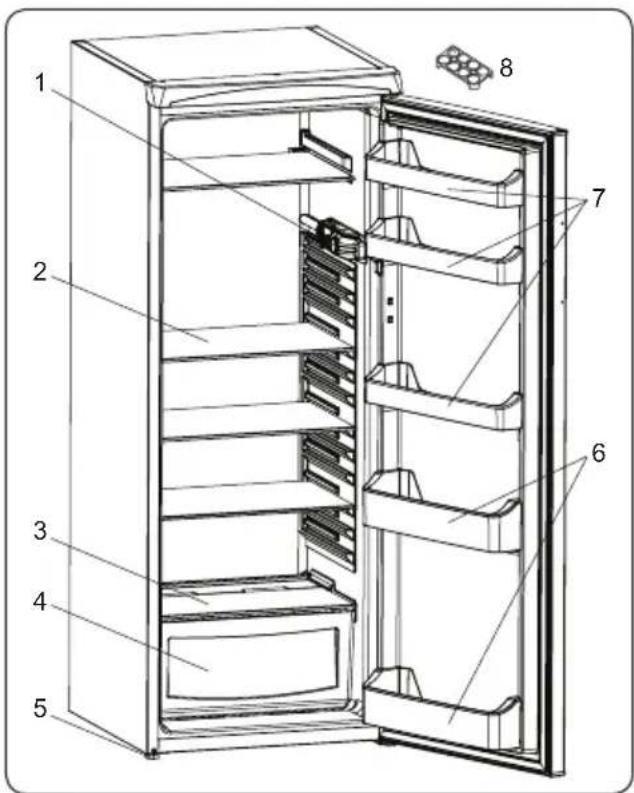

2 DESCRIPTION OF THE APPLIANCE

This presentation is only for information about the parts of the

appliance. Parts may vary according to the appliance model.

1) Thermostat knob
2) Refrigerator shelves
3) Crisper cover
4) Crisper
5) Levelling feet
6) Bottle shelves
7) Door shelves
8) Egg holder

3 USING THE APPLIANCE

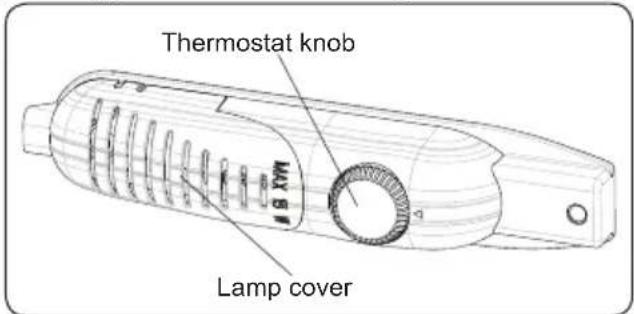

3.1 Thermostat Setting

The fridge thermostat automatically regulates the temperature of the compartment. Fridge temperatures can be obtained by rotating the knob to higher numbers, 1 to 5.

Important note: Do not try to rotate the knob beyond position 1, it will stop appliance from working.

Thermostat Settings

• Set the knob to a low/medium position, up to 3, for short-term storage of food in the appliance.
• Set the knob to a medium position, 3 or 4, for long-term storage of food in the appliance.
• For long-term storage of food in the refrigerator, you can set knop maximum position (4 - 5).

Larders (coolers) have not any freezer compartment but can cool up to °C.

3.2 Temperature Settings Warnings

• The ambient temperature, temperature of the freshly stored food and how often the door is opened affects the temperature in the fridge. If required, change the temperature setting.

• It is not recommended that you operate your fridge in environments colder than 10^ C in terms of its efficiency.

• When setting the thermostat, take into consideration how often the appliance door is opened and closed, how much food is stored in the refrigerator, and the environment in which the refrigerator is located.

• When the appliance is first switched on, allow it to run for 24 hours in order to reach operating temperature. During this time, do not open the door and do not keep a large quantity of food inside.
• Unplug your appliance during a power cut to prevent damage to the compressor. Once power is restored, delay plugging in your appliance for 5 to 10 minutes. This will help prevent damage to the appliance's components.
• Your appliance is designed to operate in the ambient temperature ranges stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are outside of the stated temperature ranges. This will reduce the cooling efficiency of the appliance.
• Your appliance is designed to operate in the ambient temperature (N = 16°C - 32°C) intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your appliance out of the stated temperature limits in terms of cooling effectiveness.

Climate Class	Ambient Temperature °C
T Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N Between 16 and 32 (°C)
SN Between 10 and 32 (°C)

4 FOOD STORAGE

• To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.
• We recommend that meat and clean fish are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.
• Store loose fruit and vegetable items in the crisper containers.
• Store loose fruit and vegetables in the crisper.
• Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables (green leaves, broccoli, carrot, etc.) being affected by ethylene-releaser fruits (banana, peach, apricot, fig etc.).
• Do not put wet vegetables into the refrigerator.
• Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.

• To avoid cross-contamination do not store meat products with fruit and vegetables. Water leaking from meat may contaminate other products in the refrigerator. You should package meat products and clean any leakages on the shelves.

• Do not put food in front of the air flow passage.

• Consume packaged foods before the recommended expiry date.

NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.

The table below is a quick guide to show you the most efficient way to store the major food groups in your refrigerator compartment.

Food	Maximum storage time	How and where to store
Vegetables and fruits	1 week Vegetable bin
Meat and fish	2 - 3 Days	Wrap in plastic foil, bags, or in a meat container and store on the glass shelf
Fresh cheese	3 - 4 Days	On the designated door shelf
Butter and margarine	1 week	On the designated door shelf
Bottled products e.g. milk and yoghurt	Until the expiry date recommended by the producer	On the designated door shelf
Eggs 1 month		On the designated egg shelf
Cooked food	All shelves

5 CLEANING AND MAINTENANCE

Disconnect the unit from the power supply before cleaning.

Do not wash your appliance by pouring water on it.

Do not use abrasive products, detergents or soaps for cleaning the flance. After washing, rinse with cleaner and dry carefully. When you have shed cleaning, reconnect the plug to the hands supply with dry hands.

• Make sure that no water enters the lamp housing and other electrical components.
• The appliance should be cleaned regularly using a solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately by hand with soap and water. Do not wash accessories in a dish washer.
• Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase productivity.

The power supply must be disconnected during cleaning.

5.1 Defrosting

Defrosting the Refrigerator Compartment

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols present)

• Defrosting occurs automatically in the refrigerator compartment during operation. The water is collected by the evaporation tray and evaporates automatically.
• The evaporation tray and the water drain hole should be cleaned periodically with the defrost drain plug to prevent the water from collecting at the bottom of the refrigerator instead of flowing out.
• You can also clean the drain hole by pouring half a glass of water down it.

5.2 Replacing the Light Bulb

Important note: Unplug the unit from the power supply before start the process.

1. Remove the screw on the light cover by screw driver. (Fig.1)
2. Press the hooks on light cover. (Fig. 2)
3. Open the light cover towards arrow when top hooks pull out from housing. (Fig. 3)
4. Pull out the cover towards arrow remove it. (Fig. 4)
5. Turn the light bulb counter clockwise and remove it. (Fig. 5)
6. Change the present light bulb with a new one of not more than 15 W. (Fig. 5)
7. Implement the steps in reverse order.
8. After waiting 5 minutes, plug the unit.

Replacing LED Lighting

If your appliance has LED lighting contact the help desk as this should be changed by authorized personnel only.

6 SHIPMENT AND REPOSITIONING

6.1 Transportation and Changing Positioning

• The original packaging and foam may be kept for re-transportation (optional).
• Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging.
• Remove all movable parts (shelves, accessories, vegetable bins, and so on) or fix them into the appliance against shocks using bands when re-positioning or transporting.

Always carry your appliance in the upright position.

6.2 Repositioning the Door

• It is not possible to change the opening direction of your appliance door if door handles are installed on the front surface of the appliance door.
• It is possible to change the opening direction of the door on models without handles.
• If the door-opening direction of your appliance can be changed, contact the nearest Authorised Service Centre to change the opening direction.

7 BEFORECALLINGAFTER- SALES SERVICE

Your fridge is not operating

Check if:

• There is power
• The plug is correctly connected to the socket
• The plug or mains fuse has blown
• The socket is faulty. Examine this by plugging your fridge into a working socket.

The appliance performs poorly

Check if:

• The appliance is overloaded
• The doors are closed properly
• There is any dust on the condenser
- There is enough space near the rear and side walls.

Your fridge is operating noisily

Motor noise: Indicates the compressor is operating normally. The compressor may cause more noise for a short time when it is first activated.

Bubbling noise and splash: Due to the flow of the refrigerant in the tubes of the system.

Air blowing noise: Indicates normal operation of the system due to the circulation of air.

There is a build-up of humidity inside the cooler

Check if:

• All food is packed properly. Containers must be dry before being placed in the fridge.
• The fridge door is opened frequently. Humidity of the room enters the fridge when the doors are opened. Humidity increases faster when the doors are opened more frequently, especially if the humidity of the room is high.

The door is not opening and closing properly

Check if:

• There is food or packaging preventing the door from closing
• The door compartments, shelves and drawers are placed properly
  • The door joints are broken or torn
• Your fridge is level.

Recommendations

• If the appliance is switched off or unplugged, wait at least 5 minutes before plugging the appliance in or restarting it in order to prevent damage to the compressor.
• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to chapter cleaning and leave the door open to prevent humidity and smell.
• If a problem persists after you have followed all the above instructions, please consult the nearest authorised service centre.
• The appliance you have purchased is designed for domestic use only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with this, we emphasise that the manufacturer and the dealer will not be responsible for any repair and failure within the guarantee period.

8 TIPS FOR SAVING ENERGY

1. Install the appliance in a cool, well-ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.
2. Allow warm food and drinks to cool before placing them inside the appliance.
3. Drinks or other liquids should be covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.
4. Avoid keeping the doors open for long periods and opening the doors too frequently as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.
5. Keep the covers of the different temperature compartments (such as the crisper and chiller) closed.
6. The door gasket must be clean and pliable. In case of wear, if your gasket is detachable, replace the gasket. If not detachable, you have to replace the door.

PRODUCT FICHE
Brand VESTEL
Model KVF562IL1 / KVF562W1
Product category 1 (Refrigerator with one or more fresh -food storage compartments)
Energy class A+
Annual energy consumption * 127 kWh
Total gross volume 253 l
Total net volume 250 l
Refrigerator gross volume 253 l
Refrigerator net volume 250 l
Chiller compartment net volume -
Freezer gross volume -
Freezer net volume -
Star rating -
Refrigeration system STATIC
Temperature rise time (-18°C/-9°C) -
Freezing capacity -
Climate class **	N (16 °C - 32 °C)
Noise emission	42 dB(A) re 1pW
* Energy consumption of 127 kWh kWh per year, calculated on the basis of results obtained in 24 hours under normalised test conditions. Real energy consumption depends on the conditions in which the equipment is used as well as where it is placed.
** This appliance is designed for use at an ambient temperature within the 16 °C - 32 °C range.

1 VEILIGHEIDSWAARSCHUWINGEN....35

1 VEILIGHEIDSWAARSCHUWINGEN

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

Technical line drawing of a structural component with an inset showing a hand holding a bracket (no text or symbols present)

Diagram of two heat exchangers with cooling fins and a valve, no text or symbols present

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols present)

Illustration of four hands performing a manual tool manipulation (no text or symbols present)

Cartoon illustration of a character peeking out of a door, with arms and legs visible (no text or symbols)

Cartoon illustration of a distressed container with a label 'KG' on top, showing a sad face and dynamic motion (no text or symbols beyond the label)

Cartoon illustration of a smiling rectangular character with arms and legs, accompanied by two smaller figures (no text or symbols)

Diagram of a multi-tiered appliance with red crosshair lines indicating internal structure (no text or symbols)

Illustration of a hand cleaning a mesh fence (no text or symbols)

Simple line drawing of a structural beam or support component (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Pure mechanical diagram showing a trash bin with no text or symbols

Simple line drawing of a three chasing recycling symbol (no text or labels)
