Type	Refrigerator
Brand	Vestel
Model	CF-33-100-B
Energy Class	A+
Annual Energy Consumption	113 kWh
Total Net Volume	88 L
Refrigerator Net Volume	88 L
Freezer Volume	None
Cooling System	Static
Climate Class	T/SN (10°C - 43°C)
Noise Level	43 dB(A)
Power Supply	220-240 V, 50 Hz
Refrigerant	R600a
Thermostat Settings	Positions 1 to 5
Summer/Winter Mode	Yes (Mode 1 and Mode 2)
Light Bulb	Up to 15 W, replaceable
Defrosting	Manual (ice >7 mm)
Cleaning	Bicarbonate of soda solution
Condenser Cleaning	Brush at least twice a year
Door Reversibility	Possible on models without handles, contact service center
Safety	Grounded plug, keep ventilation clear, keep away from heat sources
Accessories	Ice box tray, plastic ice scraper, drain tray, shelves, crisper, egg holder

Frequently Asked Questions - CF-33-100-B VESTEL

What should I do before using the refrigerator for the first time?

Before first use, clean all parts with warm water and a teaspoon of sodium bicarbonate, rinse, and dry. Ensure the appliance is level using the adjustable front legs. Install the two plastic distance guides at the rear by turning them 90° to keep the condenser at least 75 mm from the wall. Allow the fridge to run for 24 hours before adding food.

How do I set the thermostat correctly?

The thermostat automatically regulates temperature. Turn the knob to higher numbers (1 to 5) for cooler temperatures. For short-term storage, use a low/medium setting (up to 3). For long-term storage, use a medium setting (3 or 4). Avoid setting beyond position 1 as it stops the appliance. The coldest area is below the ice-making compartment.

What is the difference between Summer Mode and Winter Mode?

Summer Mode (Mode 1) makes the bottom compartment cooler. Winter Mode (Mode 2) keeps the bottom compartment less cool and is recommended during defrosting. Adjust the drain tray flap to switch modes according to ambient temperature.

How often should I defrost the refrigerator?

Defrost the ice-making compartment at least twice a year or when ice exceeds 7 mm thickness. To defrost, activate Winter mode, set thermostat to '5' the day before, switch off the appliance, leave the door open, and place bowls of warm water to speed up the process. Dry thoroughly and reset to previous mode.

How do I clean the refrigerator?

Disconnect the power before cleaning. Do not pour water on the appliance. Use a solution of bicarbonate of soda and lukewarm water. Clean accessories separately by hand with soap and water. Do not use abrasive products or detergents. Clean the condenser with a brush at least twice a year to save energy.

Why is my refrigerator making noise?

Normal noises include cracking (ice cracking during defrosting), clicking (thermostat switching compressor), motor hum (compressor running), bubbling (refrigerant flow), and water flowing (defrost water). Ensure the appliance is level and nothing is touching the rear. If unusual noise persists, check for vibrations or contact service.

What should I do if the refrigerator is not cooling properly?

Check that the mains is connected, thermostat is not on '•' position, and the socket works. Ensure doors close properly, condenser is dust-free, and there is enough space around the appliance. Avoid overloading and opening doors frequently. If problem persists, call an authorized service center.

How can I save energy with my refrigerator?

Install the appliance in a cool, well-ventilated room away from direct sunlight and heat sources. Let warm food cool before storing. Cover drinks and liquids. Avoid leaving the door open for long periods. Keep gaskets clean and pliable. Thaw frozen food in the refrigerator compartment to help cool it.

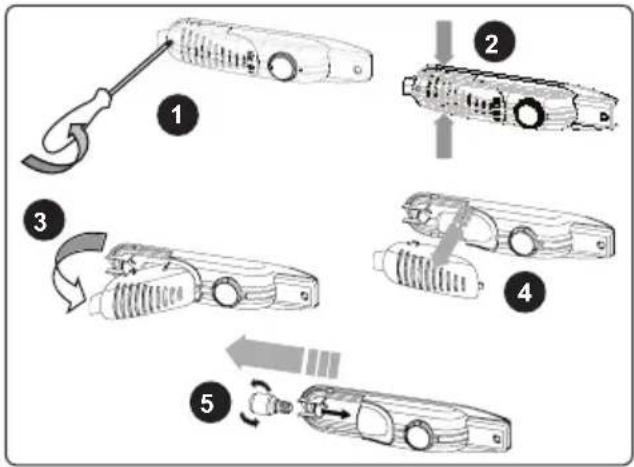

How do I replace the light bulb?

Unplug the appliance. Remove the screw on the light cover, press the hooks, and pull off the cover. Turn the old bulb counterclockwise and replace with a new one of max 15 W. Reassemble in reverse order. For LED lighting, contact authorized personnel only.

Is it safe for children to use this refrigerator?

Children aged 8+ can use the appliance with supervision. Children 3-8 can load/unload but not clean or maintain. Very young children (0-3) should not use it. Always supervise children and ensure they do not play with the appliance or hang on the door.

USER MANUAL CF-33-100-B VESTEL

Simple line drawing of a rectangular door with a vertical slot on the left side (no text or symbols)

CF-33-100-B

Diagram of two coiled heat exchangers with heat transfer symbols (no text or labels)

Line drawing of a refrigerator interior showing the door, shelves, and drawer (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating rotation, no text or symbols present

Line drawing of an open refrigerator with a black arrow pointing to the door panel (no text or symbols)

Sommermodus (Modus 1)

Diagram of a modular air duct system with directional arrows indicating flow or movement (no text labels)

Wintermodus (Modus 2)

Technical line drawing of a mechanical device with internal channels and motion arrows, labeled Modus 2 (no text or symbols on the diagram itself)

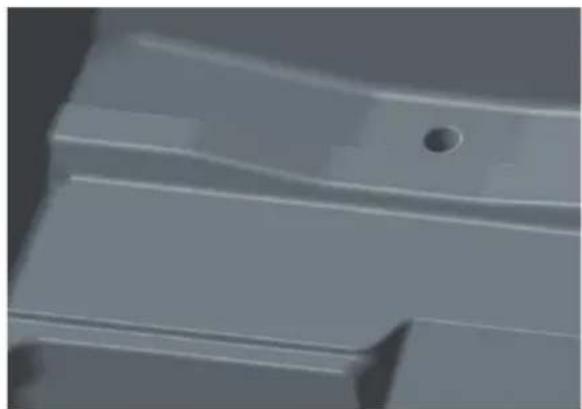

Close-up of a metallic mechanical component with a hole and stepped base (no text or symbols visible)

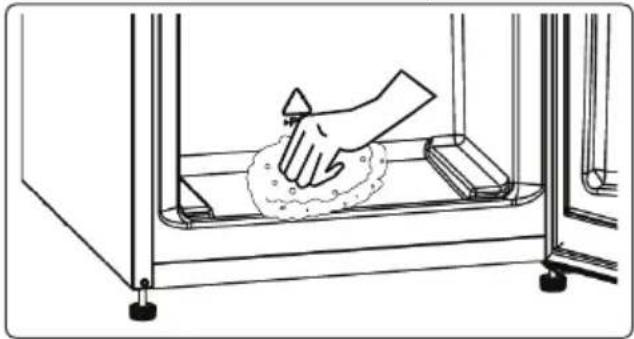

Line drawing of a hand cleaning a surface with a cloth, inside a container (no text or symbols)

Thank you for choosing this product.

This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this user manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT Operating the system correctly

CONTENTS

1 SAFETY INSTRUCTIONS ...... 21

1.1 General Safety Warnings ....21

1.2 Installation warnings....25

1.3 During Usage....25

2 DESCRIPTION OF THE APPLIANCE 27

3 USING THE APPLIANCE 27

3.1 Thermostat Setting 27

3.2 Temperature Settings Warnings ....28

3.3 Summer / Winter Mode....29

4 FOOD STORAGE 30

5 CLEANING AND MAINTENANCE .... 30

5.1 Defrosting ....30

5.2 Replacing the Light Bulb....31

6 SHIPMENT AND REPOSITIONING....31

6.1 Transportation and Changing Positioning ....31

6.2 Repositioning the Door....31

7 BEFORE CALLING AFTER-SALES SERVICE....32

8 TIPS FOR SAVING ENERGY .... 33

1 SAFETY INSTRUCTIONS

1.1 General Safety Warnings

Read this user manual carefully.

⚠ WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
⚠ WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
⚠ WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
⚠ WARNING: Do not damage the refrigerant circuit.
⚠ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
⚠ WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
⚠ WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the instructions.
⚠️ If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and

natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and domestic applications such as:

-staff kitchen areas in shops, offices and other working environments.

-farm houses and by clients in hotels, motels and other residential type environments.

-bed and breakfast type environments;

-catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.
• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

- If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.

- This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

1.2 Installation warnings

Before using your fridge freezer for the first time, please pay attention to the following points:

• The operating voltage for your fridge freezer is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• Your fridge freezer may have an odour when it is operated for the first time. This is normal and the odour will fade when your fridge freezer starts to cool.
• Before connecting your fridge freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.
• Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance.
• The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your fridge freezer where it will not be exposed to direct sunlight.
• Your fridge freezer must never be used outdoors or exposed to rain.
• Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.
• If your fridge freezer is placed next to a deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.
• Do not cover the body or top of fridge freezer with lace. This will affect the performance of your fridge freezer.

- Clearance of at least 150 mm is required at the top of your appliance. Do not place anything on top of your appliance.

- Do not place heavy items on the appliance.

- Clean the appliance thoroughly before use (see Cleaning and Maintenance).

- Before using your fridge freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge freezer after cleaning.

- Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This must be done before placing food in the appliance.

• Install the two plastic distance guides (the

parts on the black vanes -condenser- at the rear) by turning it 90° (as shown in the figure) to prevent the condenser from touching the wall.

- The distance between the appliance and back wall must be a maximum of 75 mm.

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

1.3 During Usage

• Do not connect your fridge freezer to the mains electricity supply using an extension lead.
• Do not use damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• Do not use plug adapter.
• This appliance is designed for use by adults. Do not allow children to play with the appliance or hang off the door.
• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.
• Do not place glass bottles or cans in the ice-making compartment as they will burst when the contents freeze.

• Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure their tops are tightly closed.

• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.

• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after they are removed from the ice-making compartment.
• Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning.

Old and Out-of-order Fridges

• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

CE Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of your old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Packaging and the Environment

Packaging materials protect your machine from damage that may occur during transportation.

The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for any losses incurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for any losses incurred by inappropriate usage of the appliance.

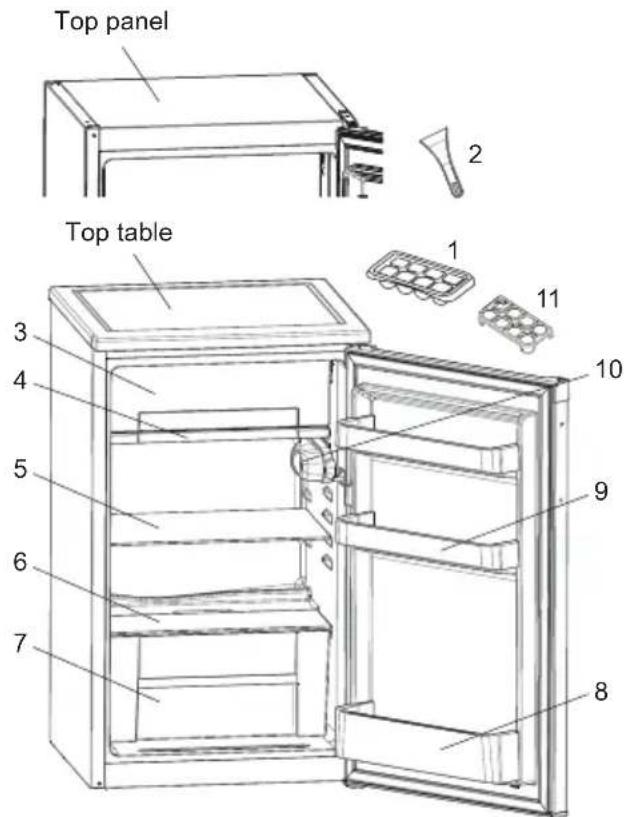

2 DESCRIPTION OF THE APPLIANCE

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) Ice box tray
2) Plastic ice scraper *
3) Ice-making compartment
4) Drain tray
5) Refrigerator shelf
6) Crisper cover
7) Crisper
8) Bottle shelf
9) Door shelves
10) Thermostat box
11) Egg holder

* In some models

3 USING THE APPLIANCE

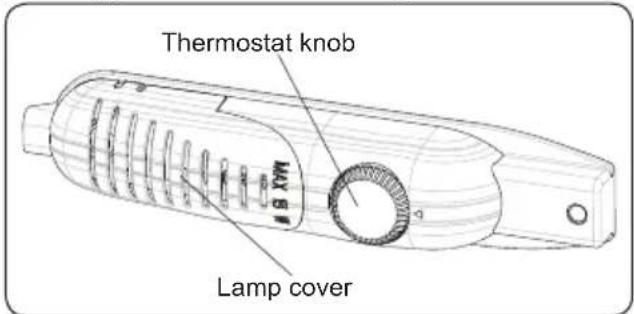

3.1 Thermostat Setting

The thermostat automatically regulates the temperature inside the refrigerator and freezer compartments. Cooler temperatures can be obtained by rotating the knob to higher numbers, 1 to 5.

Important note: Do not try to rotate the knob beyond position 1, it will stop your appliance from working.

Important note: The coolest area inside the appliance is immediately below the ice making compartment. There may be ondensation in this area, and icing, frosting and condensation may occur in the ice-making compartment and other compartments. This is normal and does not affect cooling. It can be wiped with a dry cloth according to the safety instructions.

Thermostat Settings

• Set the knob to a low/medium position, up to 3, for short-term storage of food in the appliance.
• Set the knob to a medium position, 3 or 4, for long-term storage of food in the appliance.
  Note that: The ambient temperature, the temperature of freshly stored food, and how often the door is opened all affect the temperature in the appliance. If required, change the temperature setting.

3.2 Temperature Settings Warnings

• The ambient temperature, temperature of the freshly stored food and how often the door is opened affects the temperature in the refrigerator compartment. If required, change the temperature setting.
• It is not recommended that you operate your fridge in environments colder than 10^ C in terms of its efficiency.
• When setting the thermostat, take into consideration how often the appliance doors are opened and closed, how much food is stored in the refrigerator, and the environment in which the refrigerator is located.
• When the appliance is first switched on, allow it to run for 24 hours in order to reach operating temperature. During this time, do not open the door and do not keep a large quantity of food inside.
• Unplug your appliance during a power cut to prevent damage to the compressor. Once power is restored, delay plugging in your appliance for 5 to 10 minutes. This will help prevent damage to the appliance's components.
• Your appliance is designed to operate in the ambient temperature ranges stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are outside of the stated temperature ranges. This will reduce the cooling efficiency of the appliance.

- Your appliance is designed to operate in the ambient temperature (T/SN = 10°C - 43°C) intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your appliance out of the stated temperature limits in terms of cooling effectiveness.

Climate Class	Ambient Temperature °C
T Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N Between 16 and 32 (°C)
SN Between 10 and 32 (°C)

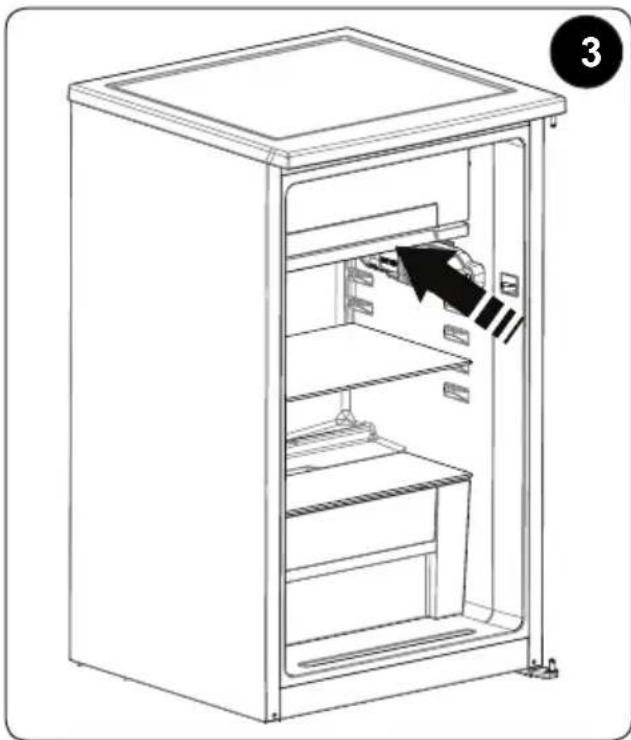

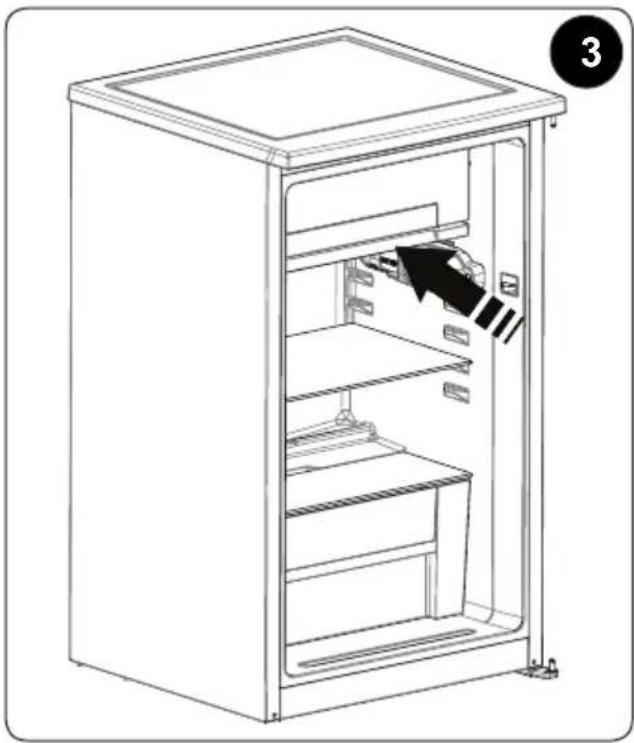

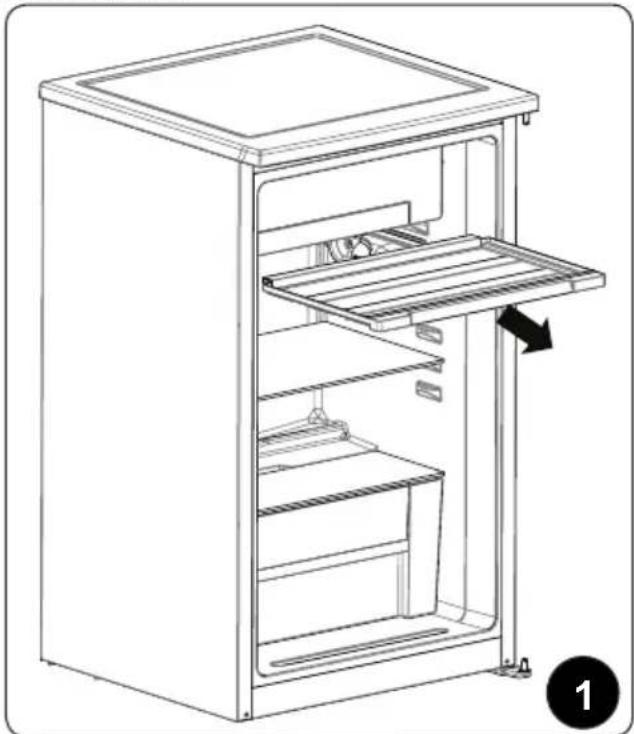

3.3 Summer / Winter Mode

The drain tray flap allows the cold air flow inside your refrigerator to be adjusted according to a high or low ambient temperature.

Line drawing of a refrigerator interior showing the door, shelves, and drawer (no text or symbols)

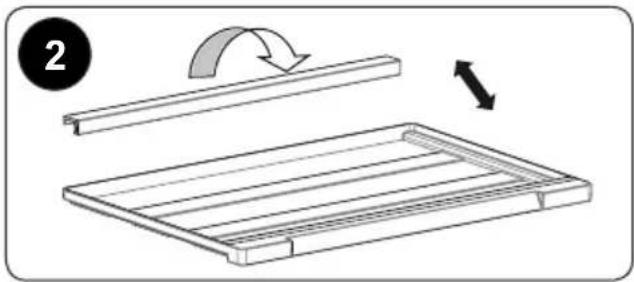

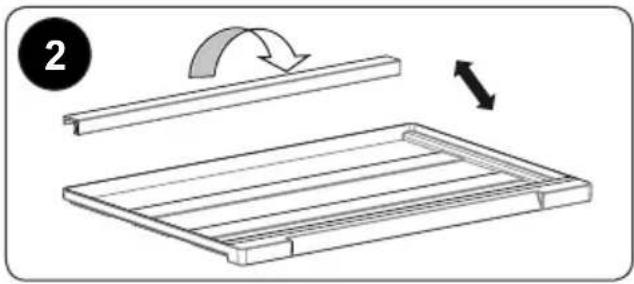

Diagram showing a wooden shelf with an arrow indicating rotation and change direction (no text or symbols)

Line drawing of a refrigerator interior showing the door, shelves, and storage compartments (no text or symbols)

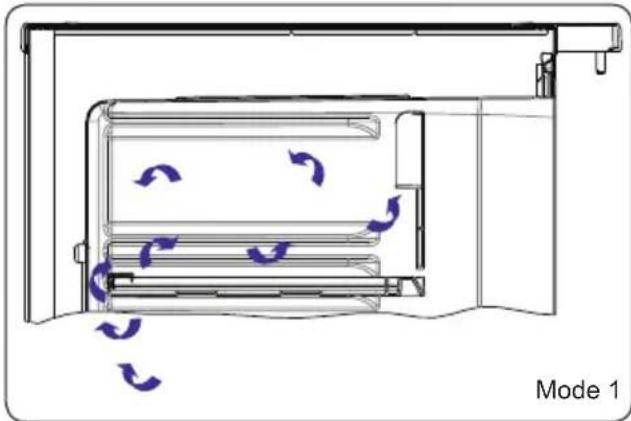

Summer Mode (Mode 1)

The bottom compartment in the refrigerator will be much cooler.

Diagram of a mechanical or electrical component with directional arrows indicating flow or movement, labeled 'Mode 1' at bottom (no text or symbols on diagram itself)

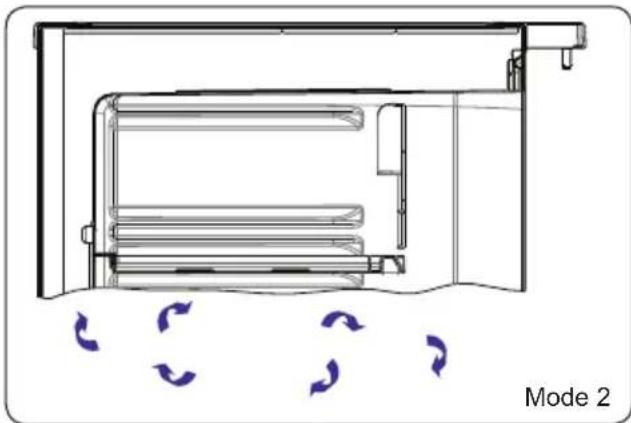

Winter Mode (Mode 2)

The bottom compartment in the refrigerator will not be as cool as Mode 1.

While defrosting, winter mode should be used.

Technical line drawing of a mechanical component with directional arrows indicating motion or flow (no text or symbols)

4 FOOD STORAGE

The fridge compartment is used for the short-term storage of fresh food and drinks. The ice-making compartment is not suitable for storing frozen food. Do not freeze food in this area. Bottles can be stored in the bottle holder or bottle rack in the door. Raw meat must be stored on the shelf close to the ice-making compartment in a polyethylene bag.

Warm food and drink must be allowed to cool at room temperature before being placed in the refrigerator.

5 CLEANING AND MAINTENANCE

Disconnect the unit from the power supply before cleaning.

Do not wash your appliance by pouring water on it.

Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands.

• Make sure that no water enters the lamp housing and other electrical components.
- The appliance should be cleaned regularly using a solution of bicarbonate of soda and lukewarm water.
- Clean the accessories separately by hand with soap and water. Do not wash accessories in a dish washer.
- Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase productivity.

The power supply must be disconnected during cleaning.

5.1 Defrosting

Note: The hole at the bottom of the refrigerator at the back is closed and no effect on the cooling system.

Close-up of a metallic mechanical component with a circular hole (no text or symbols visible)

Defrosting the Refrigerator Compartment

Excessive frost will affect the performance of the refrigerator. The ice-making compartment must be defrosted at least twice a year, or when ice exceeds 7 mm thick.

For this:

• Make sure the Drain Tray Flap is in place.
- Activate the Winter mode. At the end of defrosting set the previous mode depending on the ambient temperature.
- The day before you defrost the freezer, set the thermostat dial to position '5' to freeze the food completely.
- During defrosting, the frozen food must be well wrapped and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Consume these foods within a short period of time.
- Switch the refrigerator off at the socket outlet and disconnect the mains plug.
- Leave the door open. To accelerate the defrosting process, one or more bowls of warm water can be placed in the freezer compartment.

- Dry the inside of the unit and the Dripping Tray with a sponge or a clean cloth and set the thermostat knob to position '5'.

Line drawing of a hand cleaning a surface with a sponge, inside a container (no text or symbols)

5.2 Replacing the Light Bulb

Important note: Unplug the unit from the power supply before start the process.

1. Remove the screw on the light cover by screw driver. (Fig.1)
2. Press the hooks on light cover. (Fig. 2)
3. Open the light cover towards arrow when top hooks pull out from housing. (Fig. 3)
4. Pull out the cover towards arrow remove it. (Fig. 4)
5. Turn the light bulb counter clockwise and remove it. (Fig. 5)
6. Change the present light bulb with a new one of not more than 15 W. (Fig. 5)
7. Implement the steps in reverse order.
8. After waiting 5 minutes, plug the unit.

Replacing LED Lighting

If your appliance has LED lighting contact the help desk as this should

be changed by authorized personnel only.

6 SHIPMENTAND REPOSITIONING

6.1 Transportation and Changing Positioning

• The original packaging and foam may be kept for re-transportation (optional).
• Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging.
• Remove all movable parts (shelves, accessories, vegetable bins, and so on) or fix them into the appliance against shocks using bands when re-positioning or transporting.

Always carry your appliance in the upright position.

6.2 Repositioning the Door

• It is not possible to change the opening direction of your appliance door if door handles are installed on the front surface of the appliance door.
• It is possible to change the opening direction of the door on models without handles.
• If the door-opening direction of your appliance can be changed, contact the nearest Authorised Service Centre to change the opening direction.

7 BEFORECALLINGAFTER- SALES SERVICE

If your refrigerator is not working properly, there may be a minor problem. Check the following.

The appliance does not operate

Check if:

• There is power
  • The mains is connected
• The thermostat setting is on the “•” position
• The socket is defective. To check this, plug another working appliance into the same socket.

The appliance performs poorly

Check if:

• The appliance is overloaded
• The doors are closed properly
• There is any dust on the condenser
- There is enough space near the rear and side walls.

The appliance is noisy

The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is normal. If you hear a different sound, check whether: • The appliance is level • Anything is touching the rear of the appliance • Objects in the appliance are vibrating.

Your refrigerator is operating noisily

The following noises can be heard during normal operation of the appliance.

Cracking (ice cracking) noise occurs:

• During automatic defrosting.
- When the appliance is cooled or warmed (due to expansion of appliance material).

Clicking noise occurs: When the thermostat switches the compressor on/off.

Motor noise: Indicates the compressor is operating normally. The compressor

may cause more noise for a short time when it is first activated.

Bubbling noise and splashing occurs: Due to the flow of the refrigerant in the tubes of the system.

Water flowing noise occurs: Due to water flowing to the evaporation container. This noise is normal during defrosting.

There is water in the lower part of the refrigerator

Check if:

The drain hole for the water is not clogged (use defrost drain plug to clean the drain hole).

Recommendations

• If the appliance is switched off or unplugged, wait at least 5 minutes before plugging the appliance in or restarting it in order to prevent damage to the compressor.
• The cooling unit of your refrigerator is located at the rear of the appliance. Therefore, water droplets or ice may form on the rear surface of your fridge due to the operation of the compressor at specified intervals. This is normal, there is no need to perform a defrosting operation unless there is excessive ice.
• If you do not intend to use your fridge for a long period of time (such as during the summer holidays), set the thermostat to “•” position, defrost and clean your fridge, leaving the door open to prevent the formation of mildew and odour.
• If a problem persists after you have followed all the above instructions, please consult the nearest authorised service centre.
• The appliance you have purchased is designed for domestic use only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with this, we emphasise that the manufacturer and the dealer will not be responsible for any repair and failure within the guarantee period.

8 TIPS FOR SAVING ENERGY

1. Install the appliance in a cool, well-ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.
2. Allow warm food and drinks to cool before placing them inside the appliance.
3. Place thawing food in the refrigerator compartment. The low temperature of the frozen food will help cool the refrigerator compartment while the food is thawing. This will save energy. Frozen food left to thaw outside of the appliance will result in a waste of energy.
4. Drinks or other liquids should be covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.
5. Avoid keeping the doors open for long periods and opening the doors too frequently as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.
6. Keep the covers of the different temperature compartments (such as the crisper and chiller) closed.
7. The door gasket must be clean and pliable. In case of wear, if your gasket is detachable, replace the gasket. If not detachable, you have to replace the door.
8. The product can be used without icemaker flap. Energy consumption is declared according to this option.

PRODUCT FICHE
Brand TELEFUNKEN
Model CF-33-100-B
Product category 1 (Refrigerator with one or more fresh -food storage compartments)
Energy class A+
Annual energy consumption * 113 kWh
Total gross volume 91 l
Total net volume 88 l
Refrigerator gross volume 91 l
Refrigerator net volume 88 l
Chiller compartment net volume -
Freezer gross volume -
Freezer net volume -
Star rating -
Refrigeration system STATIC
Temperature rise time (-18°C/-9°C) -
Freezing capacity -
Climate class **	T/SN (10°C - 43°C)
Noise emission	43 dB(A) re 1pW
Build-in	No
* Energy consumption of 113 kWh kWh per year, calculated on the basis of results obtained in 24 hours under normalised test conditions. Real energy consumption depends on the conditions in which the equipment is used as well as where it is placed.
** This appliance is designed for use at an ambient temperature within the 10 °C - 43 °C range.

52300636
