PS1-213 - Loudspeaker MB QUART - Free user manual and instructions

Product Type	Bookshelf Speaker
Brand	MB Quart
Model	PS1-213
Dimensions (W x H x D)	7.1 x 12.6 x 8.7 in (18 x 32 x 22 cm)
Weight	11.5 lbs (5.2 kg)
Power Handling (RMS)	60 W
Impedance	8 ohms
Sensitivity	88 dB
Frequency Response	50 Hz - 20 kHz
Driver Configuration	1 x 1" tweeter, 1 x 5.25" woofer
Enclosure Type	Bass reflex with front port
Inputs	Binding posts (bi-wirable)
Mounting Options	Shelf or wall mount (bracket not included)
Recommended Amplifier	20 - 100 W per channel
Cleaning	Wipe with a dry cloth; do not use liquids or cleaners
Safety	Place on a stable surface; avoid extreme temperatures and moisture
Spare Parts & Repairability	Contact MB Quart customer service for spare parts; not user-serviceable
General Information	Designed for high-quality audio reproduction in home stereo systems

Frequently Asked Questions - PS1-213 MB QUART

How do I connect the PS1-213 speakers to my amplifier?

Use speaker wire to connect the binding posts. Ensure proper polarity (+ to +, - to -) for optimal sound.

Can I use these speakers for surround sound?

Yes, the PS1-213 can be used as front, rear, or surround speakers in a home theater setup.

What is the recommended amplifier power?

An amplifier with 20 to 100 watts per channel is recommended.

How do I clean the speakers?

Wipe the cabinet with a soft, dry cloth. Do not use any liquids or cleaning agents.

Can I mount the PS1-213 on the wall?

Yes, they have keyhole slots for wall mounting. Use appropriate screws and anchors (not included).

What is the impedance of these speakers?

The impedance is 8 ohms, compatible with most amplifiers.

Are they magnetically shielded?

No, they are not magnetically shielded. Keep them away from CRT TVs and sensitive equipment.

How do I break in the speakers?

Play music at moderate volume for 20-30 hours to allow the drivers to reach optimal performance.

What if the sound is distorted?

Check amplifier settings, speaker wire connections, and ensure the amplifier is not clipping. Reduce volume if needed.

Where can I find the user manual?

The manual is available for free download on notice-facile.com in PDF format.

USER MANUAL PS1-213 MB QUART

Two black speaker speakers with visible sound waves and mounting holes (no text or symbols)

PK1-113 PK1-116

PK1-168 PK1-169

PS1-213 PS1-216

PS1-316

Congratulations on your choice of a MBQuart speaker. This “Quick Start Installation” guide is meant to help you “hook up” and play music. For more detailed information on system setting, speaker and subwoofer configuration, and full specifications by model, visit the website at MBQuart.com

CAUTION

Always consider consulting a professional audio installer before installing new speakers. Many car manufacturers locate speakers behind interior panels that require special tools to remove those panels to access the speakers. Some panels will be screwed in, some will use plastic fasteners, many will have both. Be careful and take your time.

If you are using the speaker wire supplied with your new speakers make sure that you run the speaker wires through the factory boot. Do not let speaker wire make contact with metal edges of doors or other access holes.

Speaker dimensions

	A	B	C	D	E	F
PK1-113	6.3"(161)	2.5"(63)	3.3"(84)	2.9"(74)	4.5"(114)	5.0"(128)
PK1-116	6.8"(173)	2.5"(64)	3.3"(84)	3.5"(89)	5.6"(142)	6.6"(167)
PK1-168		2.6"(66)	3.3"(84)	3.5"(89)	5"/7.1"(127/181)	5.5"/8.7"(139.7/221)
PK1-169	6.9"/9.7"(175/246.9)	3.0"(77)	3.5"(88)	3.6"(91)	5.9"/8.7"(150/222)	6.6"/9.4"(167/239)
PS1-213	6.3"(161)	2.5"(63)	3.3"(84)	2.9"(74)	4.5"(114)	5.0"(128)
PS1-216	6.8"(173)	2.5"(64)	3.4"(86)	3.5"(89)	5.6"(142)	6.6"(167)
PS1-316		2.0"(52)	2.4"(60)	2.8"(70)	3.6"(91)	4.0"(102)

Before you start

It's a good idea to confirm that you have purchased the correct size speakers to fit your vehicle. If you have any reservations about being able to complete the installation yourself, we recommend contacting a professional. The removal of interior panels can be tricky and may require special tools. Be careful as you go.

Factory speaker removal

Access and remove factory door speakers

Most modern vehicles have speakers that are mounted directly to the structure of the door. Access is achieved by the removal of the door panel. Some vehicles may only require the removal of a small panel around the speaker itself.

Line drawing of a car door with side panels and a close-up view showing the interior door (no text or symbols)

Line drawing of a car door frame with two circular components and a separate ring (no text or symbols)

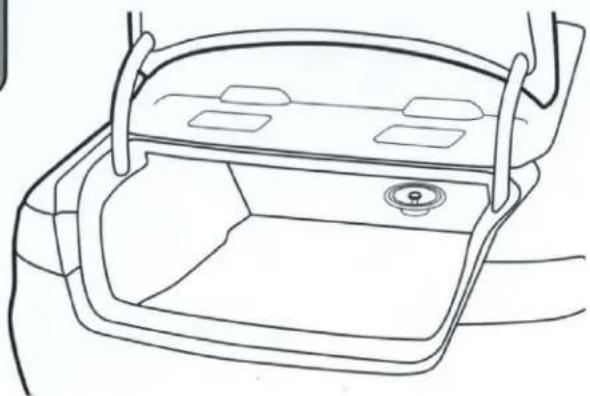

Access and removal of rear factory speakers

Most rear speakers are accessed from within the trunk. Some may require the removal of the rear package tray. Hatchbacks and SUV's will usually require the removal of a side panel.

Line drawing of a car interior showing the dashboard and seat area (no text or symbols)

Fit and Wiring

Once the factory speakers are removed, check the fit and determine if there is enough depth clearance for the new speaker. A good way to do this is to roll the window down and back up while holding the speaker in place. If you decide to run wires, make sure to use factory harness boots and grommets where ever possible.

Line drawing of a car interior showing the door, dashboard, and side view (no text or symbols)

Coax installation

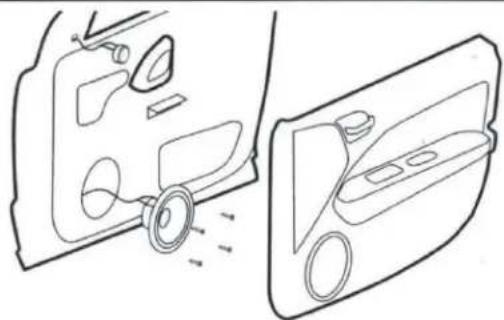

Factory location behind door panel

Once you are sure the speaker fits and has adequate clearance, connect the positive and negative wires to the proper terminals. Securely screw the speaker into place. Replace door panel.

Diagram showing car interior components with arrows indicating movement or force (no text or symbols)

Factory location behind small panel

Once you are sure the speaker fits and has adequate clearance, connect the positive and negative wires to the proper terminals. Securely screw the speaker into place. Replace speaker cover panel.

Technical line drawing of a car interior showing wheel assembly and mounting bracket (no text or symbols)

Custom location

Some vehicles may not have a door speaker location. While it is possible to install the speakers in this situation, it is more difficult. Consider using a professional for custom installations.

Line drawing of a car interior showing wheel and seat components (no text or symbols)

Rear factory locations

Mount the speakers in same way that the factory speaker was mounted. Attach the positive and negative wires to the proper terminals. Make sure any wires are secured properly.

Line drawing of a car interior showing the seat, dashboard, and exhaust pipe (no text or symbols)

Component installation

Factory location behind door panel

Vehicles that have premium sound systems will often have separate tweeters in a dash or door location. Try to use this location for mounting the component tweeter if possible.

Diagram showing two views of a car door handle and side panel, no text or symbols present

Custom location

If there is not a suitable factory location for woofer or tweeter to be mounted, custom mounting may be necessary. Before making any permanent changes to your vehicle make sure there is adequate mounting depth.

Diagram of a car interior showing wheel and seat components with directional arrows indicating motion (no text or labels)

Crossover wiring

The crossover is necessary for the proper operation of the component speaker system. Make sure the wires are securely attached and that there are no stray strands of wire contacting other terminals. Mount the crossover to a secure surface that is free of interference from window mechanisms and excessive moisture. You have the option of three tweeter attenuation settings. Connect the positive tweeter wire to the terminal that best fits your system or personal preference.

MBQuart.com

MUSIC DEFINED

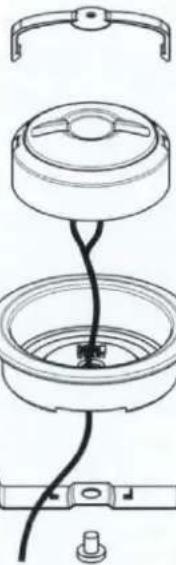

Tweeter mounting

There are two primary ways the tweeter can be mounted. Surface and Flush mounting. Make sure to check for any obstructions before cutting into any panel.

Surface Mount

Technical line drawing of a mechanical assembly with no visible text or symbols

Flush Mount

Technical line drawing of a mechanical assembly with no visible text or symbols

Dispersion tuning

The phase lens can be removed to fine tune the sound characteristics. Narrow is better when the tweeter is pointed at the listener. Wide is better when the tweeter is off-axis.

Narrow Dispersion

Wide Dispersion

Simple diagram of a fan-shaped object above a rectangular base with internal lines (no text or symbols)

WARRANTY

Maxxsonics USA Inc. warrants this product, to the original consumer purchaser, to be free from defects in material and workmanship for a period of one (1) year from the date of purchase. Maxxsonics USA Inc. will, at its discretion, repair or replace defective products during the warranty period. Components that prove to be defective in materials and workmanship under proper installation and use must be returned to the original authorized Maxxsonics USA Inc. retailer from where it was purchased. A photocopy of the original receipt must accompany the product being returned. The costs associated with removal, re-installation and freight are not the responsibility of Maxxsonics USA Inc. This warranty is limited to defective parts and specifically excludes any incidental or consequential damages connected therewith. To view the full warranty, please visit the website.

MBQuart products are designed and engineered in the USA by

MAXXSONICS®
