Product Type	Tower Fan
Brand	Black & Decker
Model	BXEFT46E
Colour	White (typical)
Height	Approx. 80 cm
Width	Approx. 25 cm
Depth	Approx. 25 cm
Weight	Approx. 4 kg
Power Supply	220-240 V ~ 50/60 Hz (typical)
Power Input	36.8 W
Maximum Airflow	23.7 m³/min
Sound Level	52 dB(A)
Oscillation Angle	75°
Timer Range	1 to 120 minutes
Speed Settings	Multiple (via speed button)
Control Type	Buttons and knob
Base Assembly Required	Yes, with screws
Carry Handle	Yes, on top
Cleaning Method	Damp cloth with mild detergent
Safety Features	Overheat protection, stable base
Warranty	Legal guarantee (contact support)

Frequently Asked Questions - BXEFT46E BLACK & DECKER

How do I assemble the base of the BXEFT46E tower fan?

Place the fan face down, fit the base onto the column, and secure it with the provided screws. Then stand the fan upright to ensure the base works properly.

How do I set the timer on the fan?

Turn the Timer control knob (C) to select the desired operating time from 1 to 120 minutes. The fan will automatically switch off after the set time.

How do I activate the oscillation function?

Press the Oscillation button (A) to start automatic left-right oscillation over a 75° range. Press again to stop.

What should I do if the fan does not turn on?

First, ensure the fan is plugged into a working mains socket and the power cord is fully unrolled. Check that the on/off button is pressed. If it still doesn't work, contact authorized technical support.

How do I clean the tower fan?

Disconnect the fan from the mains and let it cool. Wipe the exterior with a damp cloth and a few drops of mild detergent, then dry. Do not use solvents, bleach, or abrasive products, and never submerge the fan in water.

Can I use the fan outdoors?

No, the fan is for indoor household use only. Do not use or store it outdoors, in rain, or in moist conditions to avoid electric shock.

What are the safety precautions for using the fan?

Always place the fan on a flat, stable surface. Do not use if the cord or plug is damaged. Keep children supervised, and do not allow them to clean or maintain the fan. Disconnect when not in use.

How many speed settings does the fan have?

The fan has multiple speed settings, selected using the Speed selection button (B). The exact number is not specified in the manual but typically 3 speeds.

What is the maximum airflow and sound level?

The maximum airflow is 23.7 m³/min and the sound power level is 52 dB(A).

Where can I find technical support or warranty service?

Visit www.2helpu.com to find the nearest authorized technical assistance service. You can also download the manual and updates from that site.

USER MANUAL BXEFT46E BLACK & DECKER

Line drawing of a vertical cylindrical device with a top-mounted knob and base, showing internal grid structure (no text or symbols)

Technical diagram of a mechanical component with two downward arrows indicating assembly or force direction (no text or symbols)

Line drawing of a hand placing food into a tray with a lid, labeled Fig.2 (no text or symbols on the diagram itself)

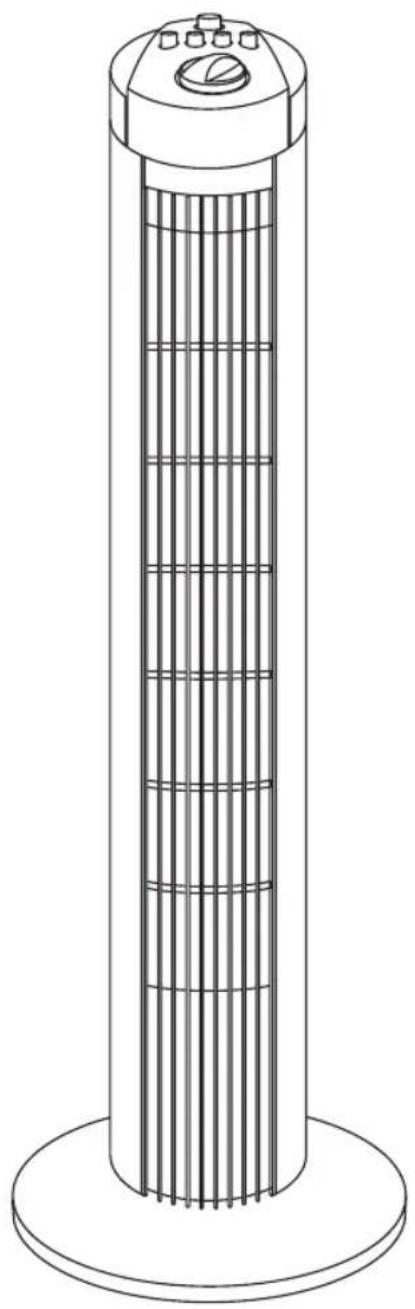

Tower Fan BXEFT46E

Dear customer,

Many thanks for choosing to purchase a BLACK+DECKER brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured. Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WARNINGS

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  ◆ Cleaning and user maintenance shall not be made by children unless they are supervised.
  ◆ This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
  If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

◆ This appliance is for household use only, not professional, industrial use.

◆ Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
◆ Connect the appliance to a socket that can supply a minimum of 10 amperes.
◆ The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.

◆ The appliance must be used and placed on a flat, stable surface.

◆ Do not use the appliance if the cable or plug is damaged.
If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

◆ Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
◆ Do not wrap the power cord around the appliance.

◆ Do not clip or crease the power cord.

◆ Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
◆ The appliance is not suitable for outdoor use.
Supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.

◆ Do not use or store the appliance outdoors.

Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
◆ Do not touch the plug with wet hands.
- Do not touch any of the appliance's moving parts while it is operating.

Use and care:

◆ Fully unroll the appliance's power cable before each use.
- Do not use the appliance if the on/off switch does not work.
◆ Use the appliance handle/s, to catch it or move it.
- Do not use the appliance if it is tipped up and do not turn it over.
Do not turn the appliance over while it is in use or connected to the mains.
◆ Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
◆ Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack

of experience and knowledge.

◆ Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.
- Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.
- Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

Service:

◆ Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

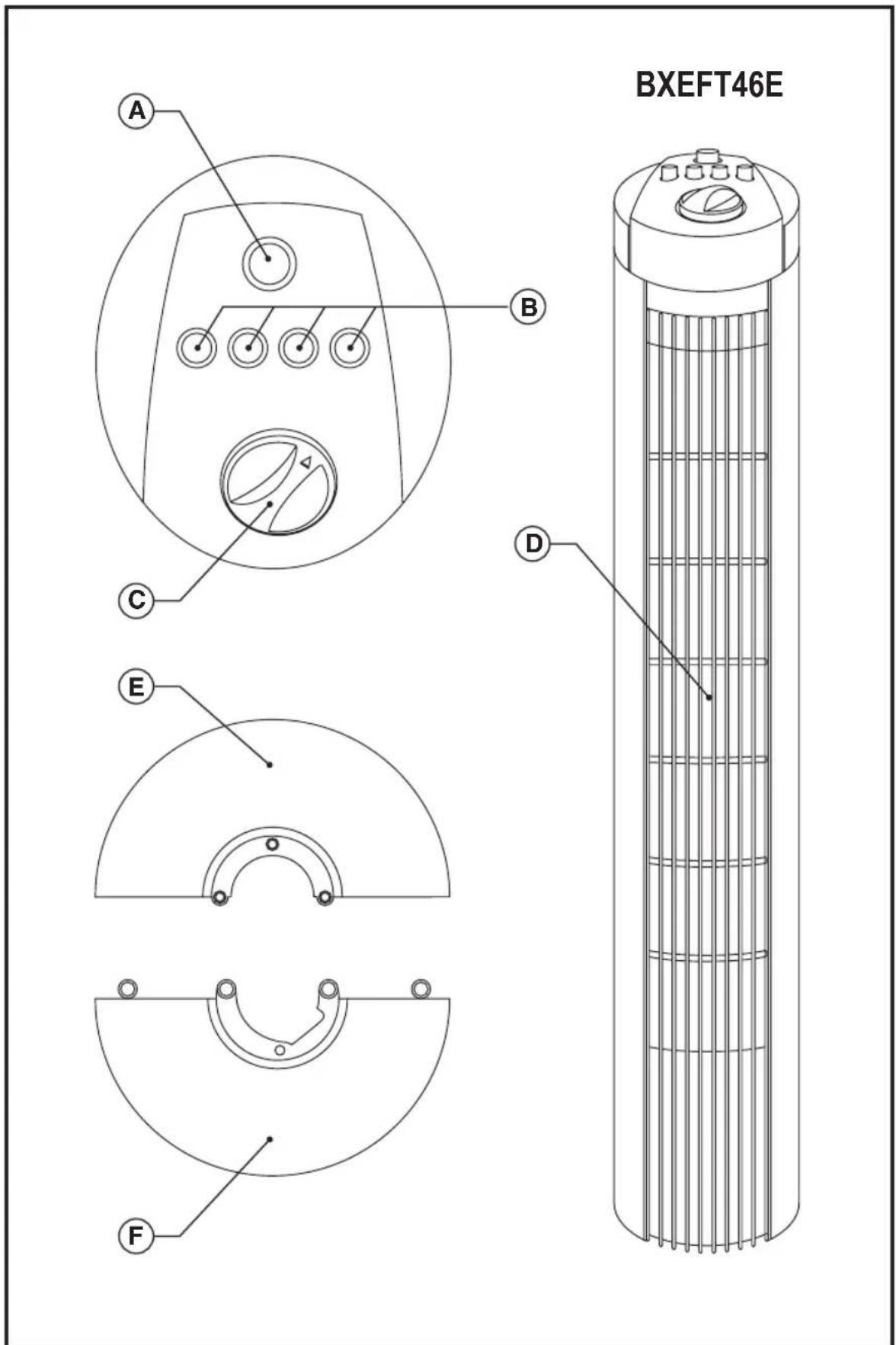

DESCRIPTION

A Oscillation button

B Speed selection button

C Timer control knob

D Ventilation grill

E Front base

F Back base

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

INSTALLATION

• Be sure to remove all packaging material from inside the appliance.
  ◆ Ensure that the fan is switched off from the supply mains before start any installation or assembly operation.
  ◆ The appliance should be used with its base fitted.

Assembling the base:

◆ To fix the base into the appliance, place the appliance face down.

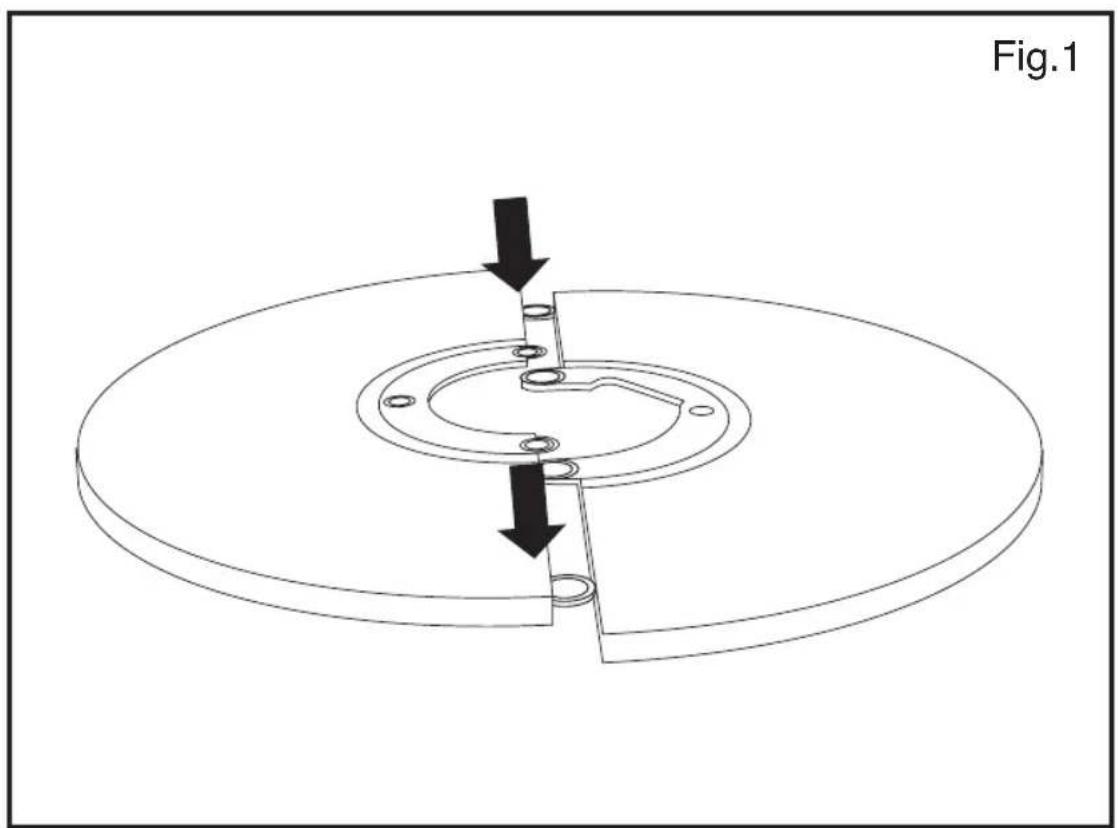

◆ Fit the base with the column and secure it with the screws provided (Fig.1).
◆ Stand the appliance up again so as to check that the base works properly.

INSTRUCTIONS FOR USE

Before use:

◆ Make sure that all products' packaging has been removed.

Use:

◆ Unroll the cable completely before plugging it in.
◆ Connect the appliance to the mains.
◆ Guide the appliance to direct the flow of air in the desired direction.
♦ Turn the appliance on, by using the on/off button.
◆ Select the desired ventilation speed.

Timer function:

◆ The appliance's operating time can be controlled.
◆ To program the operating time simply select it using the (C) knob (from 1min to 120min).
◆ After the selected time the appliance will switch off automatically.

Oscillation function:

The oscillation function makes it possible to direct the flow from the apparatus so that it automatically alternates over a range of 75^ .
◆ To activate this function, press the (A) button.
◆ To deactivate this function, follow the procedure for switching it on in reverse.

◆

Once you have finished using the appli- ance:

♦ Turn the appliance off, using the on/off button.
◆ Unplug the appliance from the mains.
◆ Clean the appliance.

Carry handle/s:

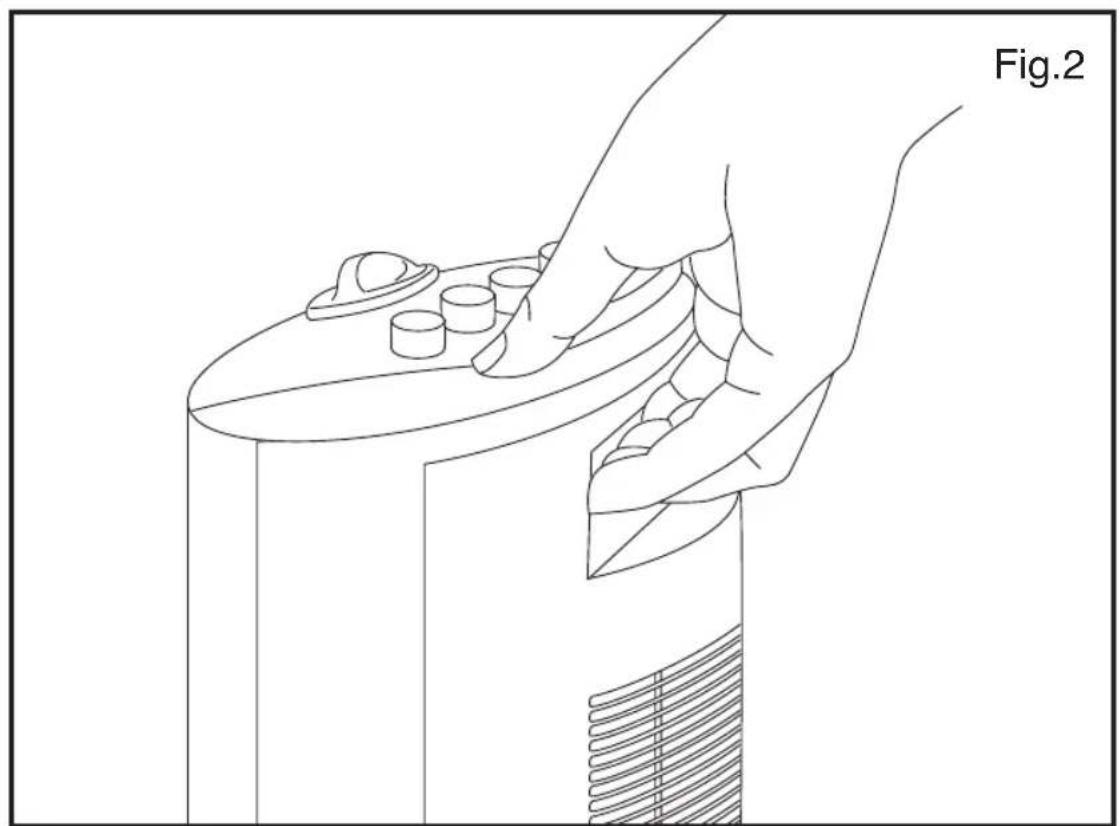

- This appliance has a handle on the upper part of the body, which facilitates comfortable transportation (Fig.2).

CLEANING

◆ Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
◆ Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

ENGLISH

(Original instructions)

Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
- Never submerge the appliance in water or any other liquid or place it under running water.

ANOMALIES AND REPAIR

Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
- The product does not contain concentrations of substances that could be considered harmful to the environment.

- This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

- The following information details the features related to ecodesign.

BXEFT46E
Maximum fan flow rate (F) 23	7 m ^3 /min
Fan power input(P) 36,8 W
Service value (SV) (according to IEC 60879)	0,6 ( m^3 /min)/W
Standby power consumption (PSB)	N/A
Fan sound power level (LWA)	52 dB(A)
Maximum air velocity( c ) 3,1	metres/sec

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

Warranty and technical assistance

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services. You can find the closest one by accessing the following web link: http://www.2helpu.com/ You can also request related information, by contacting us (see the last page of the manual). You can download this instruction manual and its updates at http://www.2helpu.com/
