USER MANUAL Phonitor One d SPL

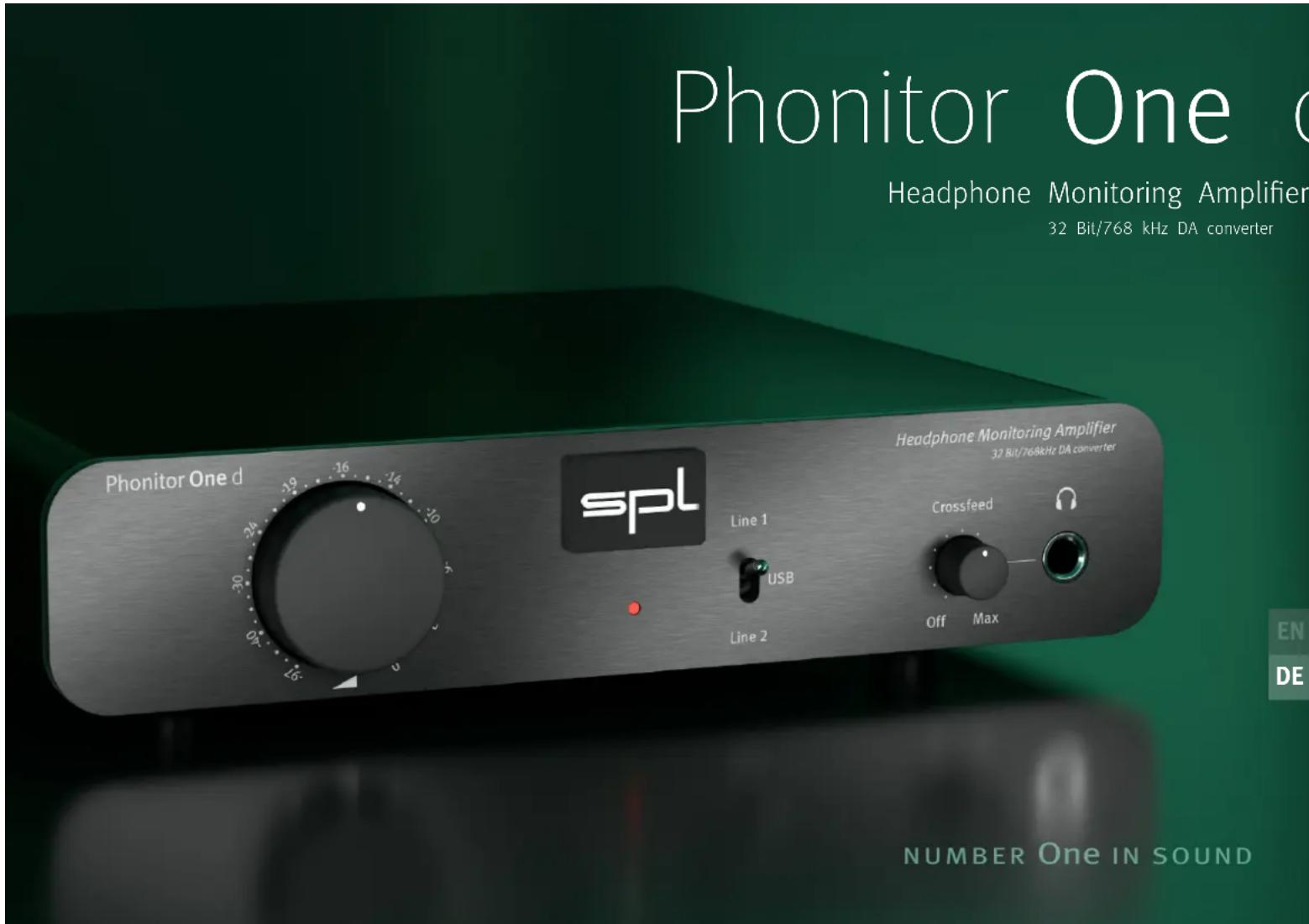

Phonitor One d Headphone Monitoring Amplifier 32 Bit/768 kHz DA converter spl Headphone Monitoring Amplifier 32 Bit/768kHz DA converter Line 1 USB Line 2 Crossfeed Off Max NUMBER One IN SOUND

1 Read the security advices on page 6!
2 Read the installation instructions of the included external power supply on page 8.
3 Make sure that the power switch on the rear is set to Off (Off = out position / ON = in position).
4 Connect the included power supply to the DC input and an appropriate mains socket outlet.
5 Turn down volume.
6 Connect your headphone to the headphone output.
7 Connect your analog sources to the line inputs.
8 Connect your computer or mobile device to the USB input.

9 Connect the line out to the inputs of your analog audio device to benefit from the 32-bit Velvet Sound™ DA converter.
The Line Out has always unity gain - it is not controlled by the volum knob.
10 Switch the Phonitor One d on by pressing the power button.
11 Choose an input.
12 Set the volume and the crossfeed to taste.
13 Have fun!

More information: SeriesOne.spl.audio

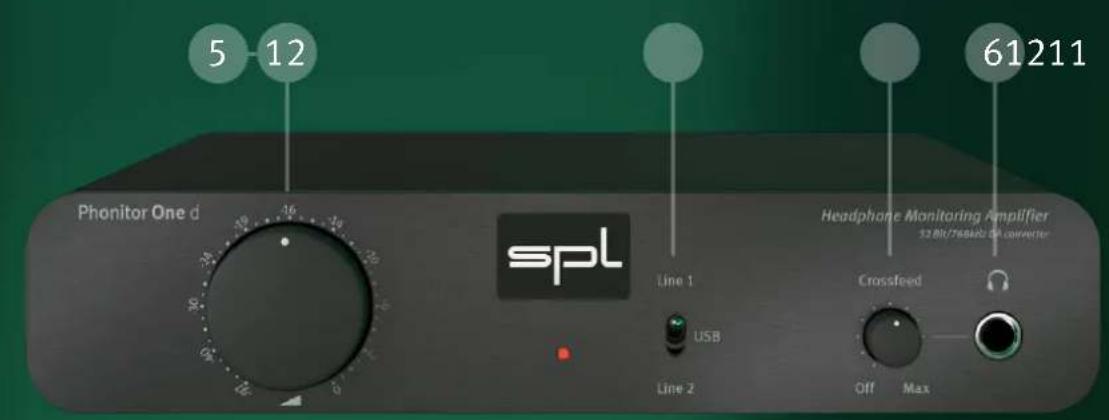

5 12 Phonitor One d spl Line 1 USB Line 2 Headphone Monitoring Amplifier 12 Bit/768kHz Off converter Crossfeed Off Max

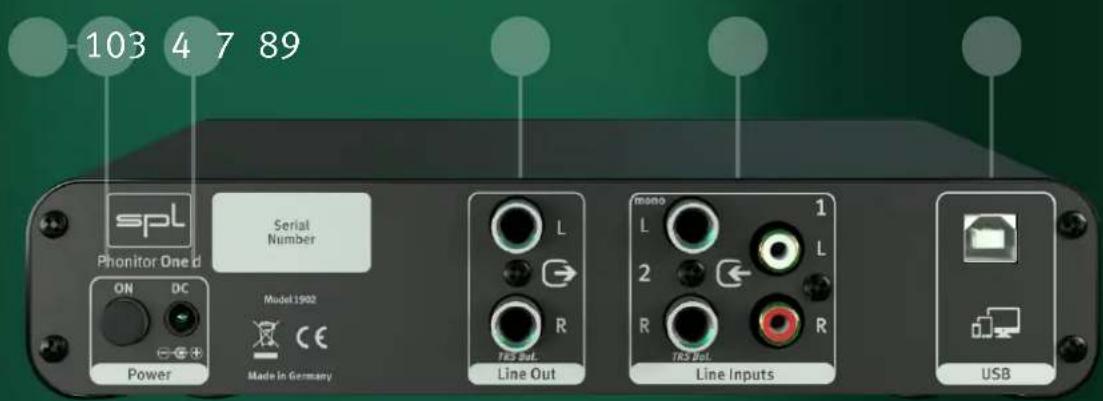

103 4 7 89 spl Phonitor One d ON DC Serial Number Model 1902 Made in Germany Power Line Out mono L L 2 R TRS Out. Line Inputs USB

Phonitor One d

Specifications

Analog inputs & outputs; 6.35 mm (1/4") TRS Jack (balanced), RCA

Input gain (max.) +22.5 dBu

Input impedance Line In 2 (balanced) 20 kΩ

Common mode rejection < 60 dB

Input impedance Line In 1 (unbalanced) 47 kΩ

Output gain (max.) +22 dBu

Output impedance Speaker Out (balanced) 150 Ω

Output impedance Line Out (unbalanced) 75 Ω

Frequency range (-3dB) 10 Hz - 200 kHz

Noise (A-weighted, 0 dBu, 600 Ω load) - 99 dB

THD + N (0 dBu, 10 Hz - 22 kHz, 600 Ω) 0.002 %

THD + N (0 dBu, 10 Hz - 22 kHz, 32 Ω) 0.013 %

Crosstalk (1 kHz) < 75 dB

Dynamic range 121.5 dB

USB, 32-Bit AD/DA

USB (B), PCM sample rates 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz

USB (B), DSD over PCM (DoP), 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz sample rates

0 dBFS calibrated to 15 dBu

Noise (A-weighted, 44.1/48 kHz -113 dBFS sample rate)

THD + N (-1 dBFS, 10 Hz - 22 kHz) 0.0012 %

Dynamic range (44,1/48 kHz sample rate) 113 dBFS

Headphones Output; 6.35 mm (1/4") TRS Jack

Wiring	Tip = Left, Ring = Right,Sleeve = GND
Source impedance 20 Ω
Frequency range (-3 dB)	10 Hz - 200 kHz
Noise (A-weighted, 600 Ω)	-97 dBu
THD + N (0 dBu, 10 Hz - 22 kHz, 600 Ω)	0,002 %
THD + N (0 dBu, 10 Hz - 22 kHz, 32 Ω)	0,013 %
Max output power (600 Ω)	2 x 190 mW
Max output power (250 Ω)	2 x 330 mW
Max output power (47 Ω)	2 x 400 mW
Fade-out attenuation (600 Ω)	-99 dB
Crosstalk (1 kHz, 600 Ω)	-75 dB

Reference: 0 dBu = 0.775V. All specifications are subject to change without notice.

Phonitor One d

Internal Power Supply

Operating voltage for analog audio +/- 17 V

Operating voltage for headphone amplifier +/- 19 V

Operating voltage for relays +12 V

Operating voltage for digital audio +3.3 V, +5 V

External Power Supply

AC/DC switching adapter Mean Well GE18/12-SC

DC plug (+) pin 2.1mm; (-) outside ring 5.5mm

Input 100 - 240 V AC; 50 - 60 Hz; 0.7 A

Output 12 V DC; 1.5 A

Dimensions & Weight

W x H x D (width x height incl. feet x depth) 210 x 49,6 x 220 mm / 8,23 x 1,95 x 8,66 inch

Unit weight 1,45 kg / 3,2 lb

Shipping weight (incl. packaging) 2 kg / 4,4 lb

Security Advices

Before starting up the device:

• Read thoroughly and follow the security advices.
• Read thoroughly and follow the manual.
• Observe all warning instructions on the device.
• Please keep the manual as well as the security advices in a safe place for future reference.

Warning

Always follow the security advices listed below to avoid serious injuries or even deadly accidents due to electric shocks, short circuit, fire or other dangers. The following are examples of such risks and do not represent an exhaustive list:

External power supply/Power cord

Do not place the power cord near heat sources such as heaters or radiators and do notcessively bend or otherwise damage the cord, do not place heavy objects on it, or place in a position where anyone could walk on, trip over, or roll anything over it. Only use the voltage indicated on the device. Only use the supplied power supply. If you intend to use the device in an area other than in the one you purchased it, the included power supply may not be compatible. In this case please contact your dealer.

Do not open

This device contains no user-serviceable parts. Do not open the device or attempt to disassemble the internal parts or modify them in any way. If it should appear to be malfunctioning, turn off the power immediately, unplug the power supply from the mains socket outlet and have it inspected by a qualified professional.

Water warning

Do not expose the device to rain, or use it near water or in damp or wet conditions, or anything on it (such as vases, bottles or glasses) containing liquids which might spill into any openings. If any liquid such as water seeps into the device, turn off the power immediately and unplug the power supply from the mains socket outlet. Then have the device inspected by a qualified professional. Never insert or remove the power supply with wet hands.

Fire warning

Do not put burning items, such as candles, on the unit. A burning item may fall over and cause a fire.

Lightning

Before thunderstorms or other severe weather, disconnect the power supply from the mains socket outlet; do not do this during a storm in order to avoid life threatening lightning strikes. Similarly, disconnect all the power connections of other devices, antenna and phone/network cables which may be interconnected so that no damage results from such secondary connections.

If you notice any abnormality

When one of the following problems occur, immediately turn off the power switch and disconnect the power supply from the mains socket outlet. Then have the device inspected by a qualified professional.
• The power cord or power supply gets frayed or damaged.
• The device emits unusual smells or smoke.
• An object has fallen into the unit.
- There is a sudden loss of sound during the use of the the device.

Caution

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the device or other property. These precautions include, but are not limited to, the following:

External power supply/Power cord

When removing the power cord from the device or the power supply from a mains socket outlet, always pull on the plug/power supply itself and not the cord. Pulling the cord may damage it. Unplug the power supply from the mains socket outlet when the device is not used for a while.

Location

Do not place the device in an unstable position where it might accidentally fall over. Do not block the vents. This device has ventilation holes to prevent the internal temperature from rising too high. In particular, do not place the device on its side or upside down inadequate ventilation can result in overheating, possibly causing damage to the device or even fire.

Do not place the device in a location where it may come into contact with corrosive gases Cleaning

or salty air. This may result in malfunction.

Before moving the device, remove all connected cables.

When setting up the device, make sure that the mains socket outlet you are using is easier accessible. If some trouble or malfunction occurs, immediately turn off the power switch and disconnect the power supply from the mains socket outlet. Even when the power switch is turned off, electricity is still flowing to the product at a minimum rate. When it are not using the device for a long time, make sure to unplug the power supply from wall mains socket outlet.

Connections

Before connecting the device to other devices, power down all devices. Before power on off the devices, set all volume levels to minimum.

Only use appropriate cables to connect the device with other devices. Make sure that the cables you use are intact and comply with the electrical specifications of the connection. Other connections can lead to health risks and damage the equipment.

Handling

Operate the controls and switches only as described in the manual. Incorrect adjustments outside safe parameters can lead to damage. Never use excessive force on the switches of controls.

Do not insert your fingers or hands in any gaps or openings of the device.

Avoid inserting or dropping foreign objects (paper, plastic, metal, etc.) into any gaps or openings of the device. If this happens, power down immediately and unplug the power supply from the mains socket outlet. Then have the device inspected by a qualified professional.

Do not expose the device to excessive dust or vibrations or extreme cold or heat (such as

direct sunlight, near a heater or in a car during the day) to prevent the possibility of cau damage to the housing, the internal components or unstable operation.

If the ambient temperature of the device suddenly changes, condensation can occur (if for example the device is relocated or is affected by a heater or air conditioning).

Using the device while condensation is present may result in malfunction. Do not power onWEEE-Reg No.: 973 349 88

the device for a few hours until the condensation is gone. Only then it is safe to power on.

Disconnect the power cord from the device before cleaning.

Do not use any solvents, as these can damage the chassis finish. Use a dry cloth, if necessary, with an acid-free cleaning oil.

Disclaimer

Windows® is a registered trademark of Microsoft® Corporation in the United States and other countries.

Apple, Mac and Macintosh are trademarks of Apple Inc., registered in the U.S. and other countries.

The company names and product names in this manual are the trademarks or registered trademarks of their respective companies.

SPL and the SPL Logo are registered trademarks of SPL electronics GmbH.

SPL cannot be held responsible for damage caused by improper use or modification of the device or data that is lost or destroyed.

Notes on Environmental Protection

At the end of its operating life, this product must not be disposed with regular household waste but must be returned to a collection point for the recycling of electrical and electronic equipment.

The wheelie bin symbol on the product, user manual and packaging indicates that. For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation and the Directives 2012/19/EU.

The materials can be reused in accordance with their markings. Through reuse, recycling of raw materials, or other forms of recycling of old products, you are making an important

contribution to the protection of our environment.

Your local administrative office can advise you of the responsible waste disposal point. This directive only applies to countries inside the EU. If you wish to discard devices outside the EU, please contact your local authorities or dealer and ask for the correct method of disposal.

EN

Installation Instructions External Switching Power Supply

Installation

• Before attaching the DC plug of an adapter to equipment, please unplug the adapter from the AC power and verify the unit is within the voltage and current rating on the equipment.
• Keep the linkage between the adapter and its power cord tightly as well as connecting the DC plug to equipment properly.
• Protect the power cord from being trodden on or being squashed.
• Keep good ventilation for the unit in use to prevent it from overheating. Also a 10-15 clearance must be kept when the adjacent device is a heat source.
• An approved power cord should greater or equal to SVT, 3G×18AWG or H03VV-F, 3G×0.75mm.
• If the final equipment is not used for long period of time, disconnect the equipment from power supply to avoid being damaged by voltage peaks or lightning strike.
• For other information about the products, please refer to www.meanwell.com for details.

Warning / Caution !!

• Risk of electrical shock and energy hazard. All failure should be examined by a qualified technician. Please do not remove the case of the adapter by yourself!

• Risk of fire or electrical shock. The openings should be protected from foreign objects or dripping liquids.

• Using wrong DC plug or forcing a DC plug into an electronic device may damage the device or cause to malfunction. Please refer to DC plug compatibility information shown in specification sheets.

• Adapters should be placed on a reliable surface. A drop or fall could cause damage.
• Please do not put adapters in places with high moisture or near the water.
• Please do not put adapters in places with high ambient temperature or near fire source. About the maximum ambient temperature, please refer to their specifications.
• Output current and output wattage must not exceed the rated values on specifications.
• Disconnect the unit from the AC power before cleaning. Do not use any liquid or aerosol cleaner. Only use a damp cloth to wipe it.
• Warning:
  For equipments that are using accompany with BSMI certified adapters, the enclosure of surrounding equipments shall comply with V1 of above flammability capability.
• Operation of this equipment in a residential environment could cause radio interference.
• Please contact your local qualified recyclers when you want to dispose this product.
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
  • This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation.

Phonitor One d Headphone Monitoring Amplifier 32 Bit/768 kHz DA converter spl Headphone Monitoring Amplifier 32 Bit/768kHz DA converter Line 1 USB Line 2 Crossfeed Off Max NUMBER One IN SOUND

5 12 Phonitor One d spl Line 1 USB Line 2 Headphone Monitoring Amplifier 12 Bit/768kHz Off converter Crossfeed Off Max

103 4 7 89 spl Phonitor One d ON DC Serial Number Model 1902 Made in Germany Power Line Out mono L L 2 R Line Inputs USB

Phonitor One d
