Product Type	Digital Video Baby Monitor
Brand	Motorola
Model	MBP36SC (also MBP36S, MBP36S-2, MBP36S-3, MBP36S-4)
Display	3.5-inch diagonal TFT LCD, 16.7M colors
Image Sensor	Color CMOS, 0.3M pixels
Infrared LEDs	8 pcs for night vision
Frequency	2.4 GHz to 2.48 GHz
Power Supply - Baby Unit	Input: 100-240V AC, 50/60Hz, 200mA; Output: 6V DC, 800mA
Power Supply - Parent Unit	Input: 100-240V AC, 50/60Hz, 150mA; Output: 6V DC, 600mA
Battery (Parent Unit)	Rechargeable Ni-MH 3.6V, 800mAh
Pan/Tilt	Remote control via parent unit buttons
Zoom	1X and 2X digital zoom
Volume Control	5 levels + off
Brightness Control	5 levels
Lullabies	5 built-in sounds
Temperature Sensor	Yes, with high/low alarm limits
Alarm	Timer alarm (2h, 3h, 4h, 5h, 6h)
Talk Mode	Two-way communication (press and hold)
Video On/Off	Separate button to turn off display while audio remains
Power Saving Mode	Auto video off after 5, 30, or 60 minutes of inactivity
Multi-Camera Support	Up to 4 cameras (scan, single, or split screen)
Cleaning	Clean with slightly damp or anti-static cloth; do not use solvents
Safety	Keep unit and cords >1m from baby; never place in cot; adult supervision required; not a toy
Spare Parts	Rechargeable battery pack (3.6V, 800mAh), power adapters (6V DC)
Warranty	1 year for product, 90 days for accessories

Frequently Asked Questions - MBP36SC MOTOROLA

How do I pair a new camera to the parent unit?

Press the ≡ (Menu) button on the parent unit, navigate to the camera icon using left/right arrows, press OK, select Add, choose a camera number (e.g., cam 2), then press and hold the PAIR button on the bottom of the baby unit until the parent unit beeps and displays the video.

What should I do if the baby monitor is out of range or loses connection?

Move the parent unit closer to the baby unit. Ensure antennas are lifted. Check for interference from large metal objects, walls, or other 2.4 GHz devices (Wi-Fi, Bluetooth, microwaves). Reset by unplugging both units and removing the parent unit battery for 15 seconds, then reconnecting.

How does night vision work?

The baby unit has 8 infrared LEDs that automatically activate in low light. The parent unit screen will switch to black and white, and a night vision icon appears. This allows clear viewing even in complete darkness.

Can I play lullabies to my baby?

Yes. Press the ≡ button, navigate to the music note icon (♪), press OK, then select one of 5 lullabies. The selected lullaby will repeat until you stop it. The default is off.

How do I set the temperature alert?

Press ≡ Menu, go to the temperature icon, press OK. You can set the temperature format (°C/°F), define high (25-37°C) and low (10-24°C) limits, and turn the alert On. When the temperature exceeds limits, the parent unit beeps and displays 'Temperature High' or 'Temperature Low'.

How do I set an alarm on the parent unit?

Press ≡ Menu, navigate to the alarm clock icon, press OK. Select Alarm ON, then choose a duration (2h, 3h, 4h, 5h, or 6h). When the time elapses, the unit beeps every 10 seconds until any button is pressed.

What is the power saving mode?

In Power Saving mode, the video screen turns off after 5, 30, or 60 minutes if no buttons are pressed. The audio remains active. Press any button to wake the screen. To set it, press ≡ Menu, go to the power saving icon, and choose the timeout.

How should I clean the baby monitor?

Use a slightly damp cloth or an anti-static cloth. Never use cleaning agents, thinners, or abrasive solvents, as they may cause permanent damage. Keep the device away from hot, humid areas or direct sunlight.

How do I dispose of the baby monitor or batteries?

Do not dispose of the product with household waste. Take it to a local recycling point for electrical and electronic equipment. Dispose of the battery pack in an environmentally-friendly manner according to local regulations. The symbol on the product indicates separate collection.

What is covered under the warranty?

The product is covered for 1 year from the original purchase date for defects in materials and workmanship. Accessories are covered for 90 days. Batteries are covered only if capacity falls below 80% or they leak. Warranty does not cover normal wear, abuse, unauthorized modifications, or non-Motorola accessories.

USER MANUAL MBP36SC MOTOROLA

Abstract black and white geometric logo resembling a stylized letter 'M' (no text or symbols)

motorola

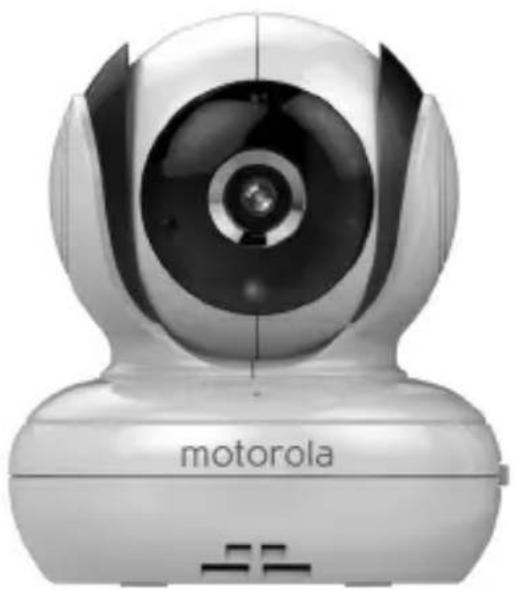

Front view of a white Motorola 3D camera with black lens and control panel (no visible text or symbols on device body)

Motorola smartphone displaying a grayscale photo of a sleeping baby on a pillow, with no visible text or symbols on the device screen.

User's Guide

Digital Video Baby Monitor

Models: MBP36S, MBP36S-2, MBP36S-3, MBP36S-4

The features described in this User's Guide are subject to modifications without prior notice.

Welcome...

to your new Motorola Digital Video Baby Monitor!

Thank you for purchasing your new Motorola Digital Video Baby Monitor. Now you can see and hear your baby sleeping in another room or you can monitor your older children in their playroom.

Please retain your original dated sales receipt for your records.

For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.

For product related questions, please call:

[phone] (UK only - Calls cost 7p per minute plus your telephone company's access charge.) [phone] (ROI) Email: [e-mail]

This User's Guide provides you with all the information you need to get the most from your product.

Before you use the Baby Monitor, we recommend you fully charge the batteries in the Baby Unit and Parent Unit, so that they continue to work if you disconnect them from the power supplies to carry to other locations. Please read the Safety Instructions on pages 7-9 before you install the units.

Got everything?

• 1 x Parent unit
• 1 x Baby unit (Camera)
• 1 x Rechargeable Ni-MH battery pack
• 1 x Power adapter for the Parent unit
• 1 x Power adapter for the Baby unit

In multi-camera packs, you will find one or more additional camera units with power adapter units.

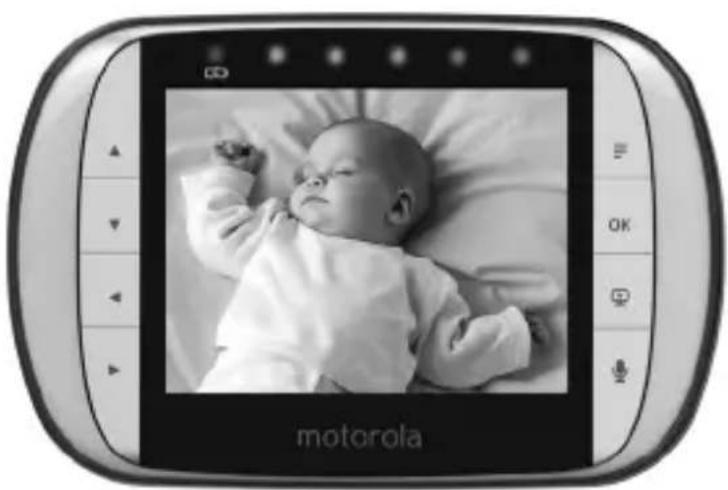

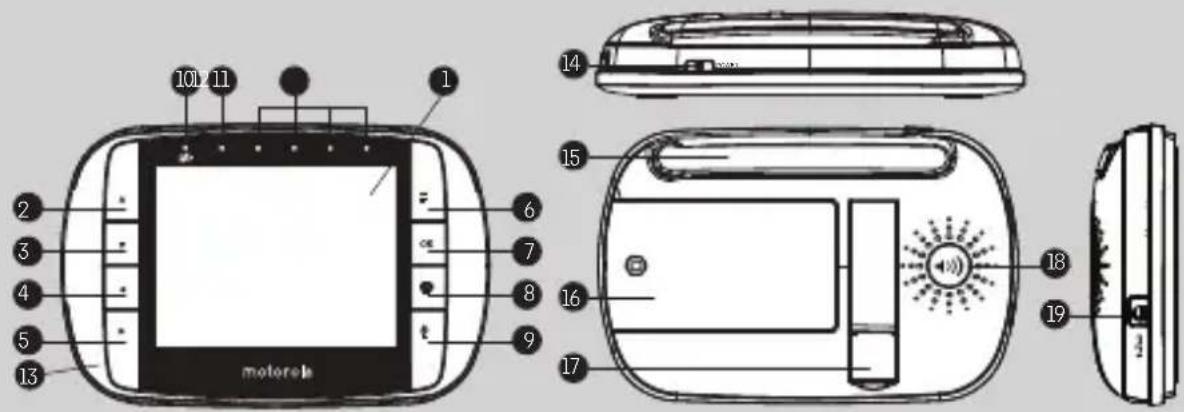

Overview of the Parent Unit

1. Display (LCD screen)

2. Up Key ▲ Normal Mode: Tilt Up Menu Mode: Up

3. Down Key ▼ Normal Mode: Tilt Down Menu Mode: Down

4. Left Key ▶ Normal Mode: Pan Left Menu Mode: Left

5. Right Key ▶ Normal Mode: Pan Right Menu Mode: Right

6. Menu Key ≡ Press to open the Menu options

7. OK KEY OK Press to confirm a selection or to select the viewing mode if more than one camera is registered (Camera Number, Scan Mode or Split Screen Mode).

8. Video ON/OFF Key ☐ Press to turn OFF the LCD display Press any key to turn ON the LCD display

9. Talk Key ⚙ Press and hold to speak to your baby

10. Power Indicator LED RED when mains adapter power on. Flashes RED when battery low.

11. Unit ON/OFF LED (Green)

12. Audio Level LED (Green, Green, Orange, Red)

13. Microphone

14. Power Key ⏻ Press and Hold to turn the unit ON/OFF

15. Antenna Lift the antenna for optimal reception

16. Battery compartment cover

17. Stand
18. Speaker
19. Power adapter socket

Parent unit menu and display icons

Till	Signal Level (4 Levels)
[0HWS]	Night Vision Mode (Screen changes to Black/White)
	Talk Mode
	Battery Level Control (5 Levels)
	Pan Left
	Pan Right
[C0ST]	Tilt Up
[70C0]	Tilt Down
	Volume Level Control (5 Levels + OFF)
[YDSK]	Zoom Level Control (1X, 2X)
	Brightness Level Control (5 Levels)
[W3ZZ]	Lullaby Control (5 Sound Selections)
[K028]	Alarm Setting (6h, 5h, 4h, 3h, 2h or OFF).Also appears at the top of the display when set, and in the middle of the display when the alarm time is reached.
[0TW5]	Temperature Alert On/Off, Limit Setting and °C/°F Selection.To give a warning if the temperature at the Baby unit is above or below the limits set
	Warning that temperature is above the maximum limit set.
[0CTW]	Warning that temperature is below the minimum limit set.
[65DS]	To set the temperature format to °C or °F.
[36TH]	To set the maximum and minimum temperature limits for the alarm.(Max: 25-37°C/77-99°F. Min: 10-24°C/50-76°F).
[90A2]	To turn the alarm function On or Off.
	Camera Control (to add (+) or delete (x))
[077D]	Set Video On Timer (5 min, 30 min, 60 min or OFF)

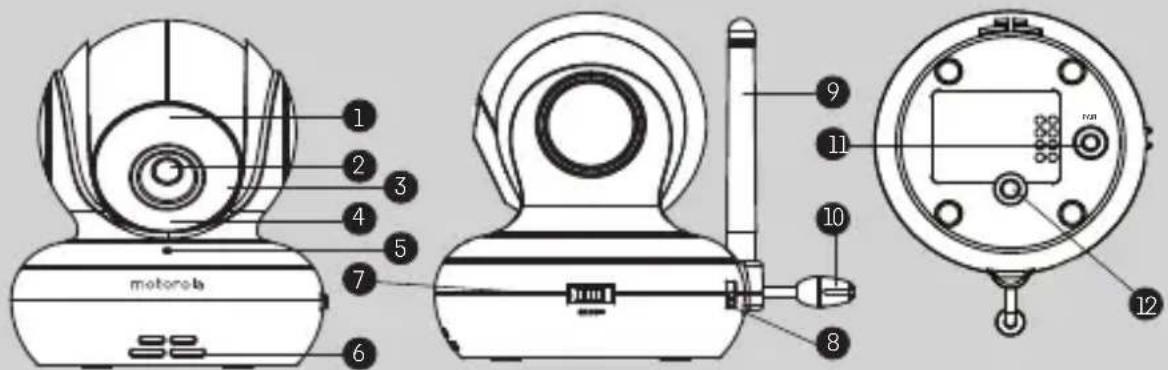

Overview of Your Baby Unit

1. Photo Sensor (Night Vision Mode)
2. Camera Lens
3. Infrared LEDs
4. Power LED
5. Microphone
6. Speaker

7. Power Switch ON/OFF

8. Power Adapter Socket

9. Antenna
10. Temperature Sensor
11. Pair Key
12. Screw mounting hole (To install a StarGrip accessory for flexible mounting options.)

Important guidelines for installing your Baby Monitor

• To use your Video Monitor Baby and Parent Units together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions.
- Any large metal object, like a refrigerator, a mirror, a filing cabinet, metallic doors or reinforced concrete between the Baby and Parent Unit may block the radio signal.
- The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches.
- Use of other 2.4 GHz products, such as wireless networks (Wi-Fi ^ routers), Bluetooth ^TM systems, or microwave ovens, may cause interference with this product, so keep the baby monitor away at least 5ft (1.5m) from these types of products, or turn them off if they appear to be causing interference.
- If the signal is weak, try lifting up the Parent Unit Antenna, moving the Parent and/or the Baby Unit to different positions in the rooms.

Table of contents

1. Safety Instructions....7
2. Getting Started....10

2.1 Baby Unit Power Supply.... 10
2.2 Parent Unit Battery Installation....10
2.3 Parent Unit Power Supply 11
2.4 Registration (Pairing) 12

1. Using the Baby Monitor....13

3.1 Setting up 13
3.2 Pan and Tilt....13
3.3 Night Vision Mode 13
3.4 Talk Mode....13
3.5 Video ON/OFF 13
3.6 Temperature Display 14

1. Parent Unit Menu Options ....15

4.1 Volume 15
4.2 Brightness....15
4.3 Lullaby 15
4.4 Zoom 15
4.5 Alarm 16
4.6 Camera Control 16

4.6.1 Add (pair) a camera 16
4.6.2 Delete a camera 17
4.6.3 View multiple cameras on screen 17

4.7 Temperature Setting....18
4.8 Power Saving mode....18

1. Disposal of The Device (environment) 19
2. Cleaning 20
3. Help....21
4. General Information ......23

1. Safety Instructions

WARNING:

Strangulation Hazard: Children have STRANGLED in cords. Keep the unit and adapter cord more than 1 metre from the cot and out of the baby's reach. Never use extension cords with AC Adapters. Only use the AC Adapters provided.

CAMERA SET UP & USE:

● Determine a location for the Baby Unit that will provide the best view of your baby in his/her cot.
- Place the BABY UNIT on a flat surface, such as a dresser, bureau or shelf.
- NEVER place the Baby Unit or cords within the cot or within reach of the baby (the unit and cords should be more than 1 metre away).

WARNING

This digital video baby monitor is compliant with all relevant standards regarding electromagnetic fields and is, when handled as described in the User's Guide, safe to use. Therefore, always read the instructions in this User's Guide carefully before using the device.

• Adult assembly is required. Keep small parts away from children when assembling.
• This product is not a toy. Do not allow children to play with it.
• This baby monitor is not a substitute for responsible adult supervision.
• Keep this user's guide for future reference.
• Do not place the baby unit or cords in the cot or within reach of the baby (the unit and cords should be more than 1 metre away)
• Keep the cords out of reach of children.
• Do not cover the baby monitor with a towel or blanket.
• Never use extension cords with power adapters. Only use the power adapters provided.
• Test this monitor and all its functions so that you are familiar with it prior to actual use.
• Do not use the baby monitor near water.

• Do not install the baby monitor in extreme cold or heat, direct sunlight or close to a heat source.

• Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and battery pack.

• Only insert a battery pack of the same type.
• Do not touch the plug contacts with sharp or metal objects.

CAUTION

There is a risk of fire or explosion if the parent unit battery is replaced by an incorrect type.

Only use a Ni-MH rechargeable battery pack with rating: 3.6V, 800mAh.

Dispose of used batteries according to their instructions.

2. Getting Started

2.1 Baby Unit Power Supply

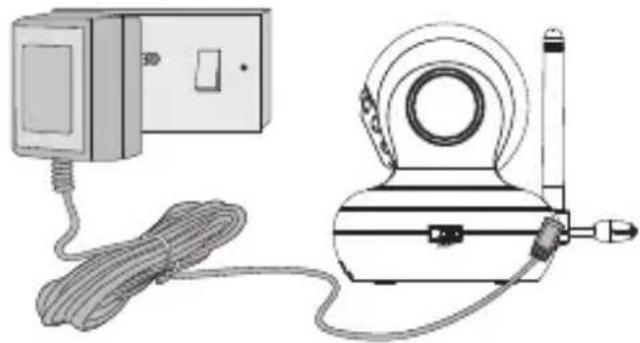

Illustration of a portable electronic device connected to a cable and a handheld device (no text or symbols visible)

1. Connect the small plug of the power adapter to the baby unit (camera) and the other end to a suitable mains power socket.

NOTE

Only use the enclosed power adapter (6V DC / 0.8A).

1. Slide the ON/OFF switch to the ON position. The power LED will light up in green.

2. Slide the ON/OFF switch to the OFF position to turn the Baby Unit off.

2.2 Parent Unit Battery Installation

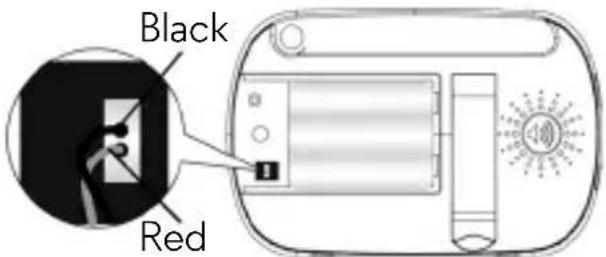

1. Insert the wire tab of the rechargeable battery pack into the contact slot as shown above and fit the battery pack into the compartment.

1. Replace the battery cover over the compartment and gently tighten the screw in a clockwise direction using a Small cross head or Flat end screw drivers.

2.3 Parent Unit Power Supply

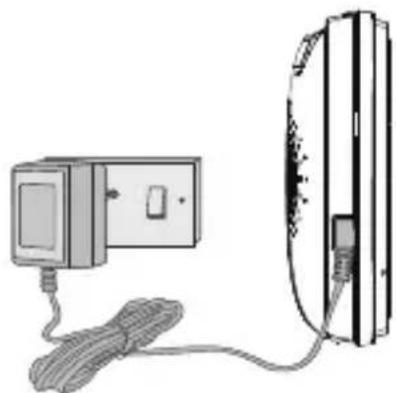

Illustration of a cable being connected to a wall-mounted device (no text or symbols visible)

IMPORTANT

Installing the rechargeable battery pack and charging it fully before use is recommended, to allow temporary operation of the parent unit in the event of a power failure or if the parent unit is moved.

1. Connect the small plug of the power adapter to the parent unit and the other end to a suitable mains power socket. Only use the enclosed power adapter (6V DC / 600mA) with the slightly smaller DC plug.

2. Press and hold the ⏻ POWER ON/OFF button to turn ON the parent unit.

3. Once the baby and parent units are switched on, the display on the parent unit will show the video captured by the baby unit.

4. If there is no connection or you are out of range, the video display will change to the Motorola screen with a flashing icon and the unit will beep about every 10 seconds. Move the parent unit closer to the baby unit until the link is re-established.

5. Press and hold the ☐ POWER ON/OFF button to turn OFF the parent unit.

NOTE

The battery icon turns RED, the Power Indicator LED flashes RED and the unit emits a beep about every 10 seconds to indicate that the battery is low and needs to be recharged. The battery pack takes about 16 hours to charge fully.

2.4 Registration (Pairing)

The Baby monitor is pre-registered to your Parent Unit. You do not need to register it again unless the Baby Unit loses its link with the Parent Unit.

To re-register your Baby Unit, or register a new Baby Unit, follow the procedure below:

1. Press the ≡ button of the parent unit and the menu bar will pop up.
2. Press the ◀ LEFT button or ▶ RIGHT button until 🔒 is highlighted and then press the OK button so the 🔒 Add/ 🔒 Delete menu will pop up.
3. Press the ▲ UP button or ▼ DOWN button to select 🎨 Add, and press the OK button to confirm.
4. cam 1 / cam 2 / cam 3 / cam 4 will pop up, press the ▲ UP button or ▼ DOWN button to select the desired Camera and press the OK button to start searching for a camera unit. The green ON / OFF LED will flash rapidly while searching.
5. Press and hold the PAIR button underneath the baby unit until the parent unit finds the camera, beeps and the video from the camera appears.

NOTE:

You can only register a new camera to a camera number that is not already paired.

Paired camera numbers are indicated by a *, such as cam*1.

If the camera being paired was registered previously, it will lose the old registration when it is paired again.

3. Using the Baby Monitor

3.1 Setting up

• Place the baby unit in a convenient location (e.g. on a table) and point the camera lens towards the area you want to monitor.
• Adjust the baby unit's head angle with pan and tilt until you are satisfied with the image in the parent unit.

NOTE

Do not place the baby unit within the baby's reach! If there is interference with the picture or sound, try moving the units to different locations, and ensure they are not close to other electrical equipment.

3.2 Pan and Tilt

The camera can be remotely controlled from the parent unit.

1. Press the ▲ UP button or ▼ DOWN button to tilt upward or downward.
2. Press the ◀ LEFT button or ▶ RIGHT button to pan left or right.

3.3 Night Vision Mode

The baby unit has 8 high-intensity infrared LEDs for picking up clear images in the dark. When the built-in photo sensor near the top of the unit detects a low level of ambient light, the LEDs will automatically activate and the screen on the parent unit will display in black and white. The icon will be displayed at the top of the screen.

3.4 Talk Mode

Press and hold the 🎯 TALK button on the parent unit to talk to your baby through the baby unit's loudspeaker. The 🔔 icon will be displayed at the top of the LCD screen.

3.5 Video ON/OFF

Press 📋 VIDEO ON/OFF key to turn the LCD display on or off, but still leave the audio monitor on.

3.6 Temperature Display

The temperature reading from the temperature sensor at the back of the Baby Unit will be displayed at the top of the LCD screen, or at the bottom in split screen mode.

If the temperature alarm is turned on, the Parent Unit will beep and display Temperature High or Temperature Low when the temperature at the Baby Unit is above or below the maximum or minimum temperature limits set for the alarm. (Max: 25-37°C/77-99°F. Min: 10-24°C/50-76°F).

4. Parent Unit Menu Options

4.1 Volume

1. Press the ≡ button and the menu bar will appear with 🔊 highlighted.
2. Press the OK button to show the volume set level.
3. Press the ▲ UP button or ▼ DOWN button to select the desired volume level from level 0 \~ 5. (The default volume level setting is level 3.)

4.2 Brightness

1. Press the ≡ button and the menu bar will pop up.
2. Press the ◀ LEFT button or ▶ RIGHT button until ⚙ is highlighted.
3. Press the OK button to show the brightness set level.
4. Press the ▲ UP button or ▼ DOWN button to select the desired brightness level from level 1 \~ 5. (The default brightness level setting is level 3.)

4.3 Lullaby

1. Press the ≡ button and the menu bar will pop up.
2. Press the ◀ LEFT button or ▶ RIGHT button until ♪ is highlighted.
3. Press the OK button to show the choices 1-5 or stop.
4. Press the ▲ UP button or ▼ DOWN button to select from the 5 sounds available. If a sound is selected it will repeat continuously until it is deselected. (The default setting is stop with the sounds off.)

4.4 Zoom

1. Press the ≡ button and the menu bar will pop up.
2. Press the ◀ LEFT button or ▶ RIGHT button until 🔒 is highlighted.
3. Press the OK button to show the zoom set level.
4. Press the ▲ UP button or ▼ DOWN button to select the 1X or 2X Zoom. (The default setting is 1X.)

4.5 Alarm

1. Press the ≡ button and the menu bar will pop up.
2. Press the ◀ LEFT button or ▶ RIGHT button until 🔒 is highlighted.
3. Press the OK button to show the alarm Off / On setting.
4. Press the ▲ UP button or ▼ DOWN button to select Alarm ON, then press OK and ▲ UP or ▼ DOWN to select the alarm time 6h, 5h, 4h, 3h, 2h. (The default setting is Alarm OFF.)
5. If an alarm time is selected with appear on the display and, after the alarm time is reached, the parent unit will beep about every 10 seconds and flash the alarm icon, until any button is pressed.

4.6 Camera Control

4.6.1 Add (pair) a camera

1. Press the ≡ button of the parent unit and the menu bar will pop up.
2. Press the ◀ LEFT button or ▶ RIGHT button until 🔒 is highlighted, and then press OK for the 🔒 Add / 🔒 Delete menu to appear.
3. Press the ▲ UP button or ▼ DOWN button to select 🎨 Add, and press the OK button to confirm.
4. cam 1 / cam 2 / cam 3 / cam 4 will pop up, press the ▲ UP button or ▼ DOWN button to select the desired Camera and press the OK button to start searching for a camera unit. The green ON / OFF LED will flash rapidly while searching.
5. Press and hold the PAIR button underneath the baby unit until the parent unit finds the camera, beeps and the video from the camera appears.

NOTE

You can only register a new camera to a camera number that is not already paired.

Paired camera numbers are indicated by a *, such as cam*1.

If the camera being paired was registered previously, it will lose the old registration when it is paired again.

4.6.2 Delete a camera

1. Press the ≡ button and the menu bar will pop up.
2. Press the ◀ LEFT button or ▶ RIGHT button until 🔒 is highlighted.
3. Press the OK button to confirm.
4. The Add / Delete menus will pop up.
5. Press the ▲ UP button or ▼ DOWN button to select 📄 Delete, and press the OK button to confirm.
6. cam 1/ cam 2/ cam 3/ cam 4 will pop up, press the ▲ UP button or ▼ DOWN button to select the Camera to delete and press the OK button to delete that registration.

Note:

You are not allowed to delete the camera if there is only one registered camera in the system.

4.6.3 View multiple cameras on screen

This function is only available when you have more than 1 Baby Unit (Camera). While viewing a camera picture, press the OK button repeatedly to select Scan mode, Desired Camera or Multi-cameras, the icons will display on the status bar.

Scan mode

the screen will display images from different registered cameras in a loop of cam 1/ cam 2 / cam 3 / cam 4, changing about every 10 seconds.

Desired Camera

cam 1 / cam 2 / cam 3 / cam 4 - to view the picture from that camera.

Multi-cameras

you can view multiple cameras on a split screen and press the ◀ LEFT button/▶ RIGHT button/▲ UP button /▼ DOWN button to switch between cameras, so you can listen to the audio from the selected one indicated by a red frame around its picture.

Note:

With multiple cameras, the parent unit will only hear the sound from the selected camera.

4.7 Temperature Setting

1. Press the ≡ button and the menu bar will pop up.

2. Press the ◀ LEFT button or ▶ RIGHT button until 🔒 is highlighted.

3. Press the OK button to show the temperature options.

4. The temperature setting / ʌwi pop jp.

Temperature Format to select either Centigrage or Fahrenheit °F.

Temperature Limit 13 to define the High temperature limit (25 MAX °C/77-99°F) and Low temperature limit MIN-24 °C/50-76°F).

Temperature Alert 🖱️ - Turn the temperature alert ON, the Parent Unit will beep and display Temperature High 🖱️ or Temperature Low when the temperature at the Baby Unit is detected above or below the maximum or minimum temperature limits you set.

1. Press the ▲ UP button or ▼ DOWN button to select your setting and confirm by pressing the OK button.

4.8 Power Saving mode

1. Press the ≡ button and the menu bar will pop up.

2. Press the ◀ LEFT button or ▶ RIGHT button until 🔒 is highlighted.

3. Press the OK button to show the power saving options.

4. Press the ▲ UP button or ▼ DOWN button to select for the parent unit video to turn off after 5 mins, 30 mins or 60 mins if no buttons have been pressed.

5. The audio will remain on, and you can press any button to turn the video screen back on.

Note:

If there are multiple cameras in scan mode, the audio will switch about every 30 seconds.

5. Disposal of The Device (environment)

At the end of the product lifecycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user's guide and/or box indicates this.

Some of the product materials can be reused if you take them to a recycling point. By reusing some parts or raw materials from used products you make an important contribution to the protection of the environment.

Please contact your local authorities in case you need more information on the collection points in your area.

Dispose of the battery pack in an environmentally-friendly manner according to your local regulations.

6. Cleaning

Clean the baby monitor with a slightly damp cloth or with an anti-static cloth.

Never use cleaning agents or abrasive solvents.

Cleaning and care

• Do not clean any part of the product with thinners or other solvents and chemicals -- this may cause permanent damage to the product which is not covered by the warranty.
• Keep your baby monitor away from hot, humid areas or strong sunlight, and don't let it get wet.
• Every effort has been made to ensure high standards of reliability for your baby monitor. However, if something does go wrong, please do not try to repair it yourself -- contact Customer Service for assistance.

7. Help

Display

No display

• Try recharging or replacing the battery pack.
• Reset the units. Disconnect the battery pack of the parent unit and unplug both the units' electrical power, then plug them back in.
  • Is the unit turned on?
  Press and hold the ON/OFF button ⏻ on the parent unit to turn it ON.

- Slide the ON/OFF switch on the Baby Unit (Camera) to ON.

• Is the correct camera selected?

Change the camera number, if necessary.

• Is the video display turned on?

Press the VIDEO ON/OFF button 🔒 to turn it on.

- If the power save mode is set, the Display will go blank after 5 minutes or 30 minutes or 60 minutes to save power (depending on video on setting). The unit is still active and will give you audio alerts. You can reactivate the screen by pressing any button.

Registration

If the Baby Unit has lost its link with the Parent Unit

• Try recharging or replacing the battery pack.
• If the Baby Unit is too far away it may be going out of range, so move the Baby Unit closer to the Parent Unit.
• Reset the units by disconnecting them from the battery and electrical power. Wait about 15 seconds before reconnecting. Allow up to one minute for the Baby Unit and the Parent Unit to synchronise.
  • See 2.4 Registration (Pairing), if there is a need to re-register the units.

Interference

Noise interference on your parent unit

• Your baby and parent units may be too close. Move them farther apart.
• Make sure there is at least 1m to 2m (3 to 6 feet) between the 2 units to avoid audio feedback, and reduce the volume of the Parent Unit.
• If the baby unit is too far away it may be out of range, so move the baby unit closer to the parent unit.
• Make sure the baby and parent units are not near other electrical equipment, such as a television, computer or cordless/mobile telephone.
• Use of other 2.4 GHz products, such as wireless networks (Wi-Fi ^ routers), Bluetooth ^TM systems, or microwave ovens, may cause interference with this product, so keep the baby monitor away at least 5ft (1.5m) from these types of products, or turn them off if they appear to be causing interference.
• If the signal is weak, try moving the Parent and/or Baby Unit to different positions in the rooms.

8. General Information

If your product is not working properly....

1. Read this User's Guide or the Quick Start Guide.
2. Contact Customer Service:

[phone] (UK only - Calls cost 7p per minute plus your telephone company's access charge.)

[phone] (ROI)

Email: [e-mail]

To order a replacement battery pack, contact customer service.

Consumer Products and Accessories Limited Warranty ("Warranty")

Thank you for purchasing this Motorola branded product manufactured under license by Binatone Electronics International LTD ("BINATONE").

What Does this Warranty Cover?

Subject to the exclusions contained below, BINATONE warrants that this Motorola branded product ("Product") or certified accessory ("Accessory") sold for use with this product that it manufactured to be free from defects in materials and workmanship under normal consumer usage for the period outlined below. This Warranty is your exclusive warranty and is not transferable.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY BY STATE, PROVINCE OR COUNTRY. FOR CONSUMERS WHO ARE COVERED BY CONSUMER PROTECTION LAWS OR REGULATIONS IN THEIR COUNTRY OF PURCHASE OR, IF DIFFERENT, THEIR COUNTRY OF RESIDENCE, THE BENEFITS CONFERRED BY THIS LIMITED WARRANTY ARE IN ADDITION TO ALL RIGHTS AND REMEDIES CONVEYED BY SUCH CONSUMER PROTECTION LAWS AND REGULATIONS. FOR A FULL UNDERSTANDING OF YOUR RIGHTS YOU SHOULD CONSULT THE LAWS OF YOUR COUNTRY, PROVINCE OR STATE.

Who is covered?

This Warranty extends only to the first consumer purchaser, and is not transferable.

What will BINATONE do?

BINATONE or its authorised distributor at its option and within a commercially reasonable time, will at no charge repair or replace any Products or Accessories that do not conform to this Warranty. We may use functionally equivalent reconditioned/ refurbished/ pre-owned or new Products, Accessories or parts.

What Other Limitations Are There?

ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE REPAIR OR REPLACEMENT PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA OR BINATONE BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT OR ACCESSORY, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS OR ACCESSORIES TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.

Some jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, or limitation on the length of an implied warranty, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights that vary from one jurisdiction to another.

Products Covered Length of Coverage
Consumer Products	One (1) year from the date of the products original purchase by the first consumer purchaser of the product.
Consumer Accessories	Ninety (90) days from the date of the accessories original purchase by the first consumer purchaser of the product.
Consumer Products and Accessories that are Repaired or Replaced	The balance of the original warranty or for Ninety (90) days from the date returned to the consumer, whichever is longer.

Exclusions

Normal Wear and Tear. Periodic maintenance, repair and replacement of parts due to normal wear and tear are excluded from coverage.

Batteries. Only batteries whose fully charged capacity falls below 80% of their rated capacity and batteries that leak are covered by this Warranty.

Abuse & Misuse. Defects or damage that result from: (a) improper operation, storage, misuse or abuse, accident or neglect, such as physical damage (cracks, scratches, etc.) to the surface of the product resulting from misuse; (b) contact with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like, extreme heat, or food; (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of MOTOROLA or BINATONE, are excluded from coverage.

Use of Non-Motorola branded Products and Accessories. Defects or damage that result from the use of Non-Motorola branded or certified Products or Accessories or other peripheral equipment are excluded from coverage.

Unauthorised Service or Modification. Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, or modification in any way by someone other than MOTOROLA, BINATONE or its authorised service centres, are excluded from coverage.

Altered Products. Products or Accessories with (a) serial numbers or date tags that have been removed, altered or obliterated; (b) broken seals or that show evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming or non-Motorola branded housings, or parts, are excluded from coverage.

Communication Services. Defects, damages, or the failure of Products or Accessories due to any communication service or signal you may subscribe to or use with the Products or Accessories is excluded from coverage.

How to Obtain Warranty Service or Other Information?

To obtain service or information, please call:

[phone] (UK only - Calls cost 7p per minute plus your telephone company's access charge.)

[phone] (ROI)

Email: [e-mail]

You will receive instructions on how to ship the Products or Accessories at your expense and risk, to a BINATONE authorised Repair centre.

To obtain service, you must include: (a) the Product or Accessory; (b) the original proof of purchase (receipt) which includes the date, place and seller of the Product; (c) if a warranty card was included in your box, a completed warranty card showing the serial number of the Product; (d) a written description of the problem; and, most importantly; (e) your address and telephone number.

These terms and conditions constitute the complete warranty agreement between you and BINATONE regarding the Products or Accessories purchased by you, and supersede any prior agreement or representations, including representations made in any literature publications or promotional materials issued by BINATONE or representations made by any agent, employee or staff of BINATONE, that may have been made in connection with the said purchase.

BINATONE TELECOM PLC

1 Apsley Way London NW2 7HF, United Kingdom.

Tel: [phone] Fax: [phone]

e-mail: [e-mail]

EC Declaration of Conformity

We the manufacturer / Importer : Binatone Telecom Plc

1 Apsley Way London

NW2 7HF, United Kingdom.

Declare under our sole responsibility that the following product

Type of equipment:

Digital Video Baby Monitor

Model Name:

MBP36S, MBP36S-2, MBP36S-3, MBP36S-4

Country of Origin: China

Brand: Motorola

二

complies with the essential protection requirements of R&TTE Directive 1999/5/EC on the approximation of the laws of the Member States relating to Radio Spectrum Matters, the Directive 2011/65/EC on the restriction of use of hazardous substances (RoHS) and Commission Regulation (EC) No.801/2013 of 22 August 2013 amending Regulation (EC) No.1275/2008 for Energy-Related Products (ErP).

Assessment of compliance of the product with the requirements relating to the essential requirements according to Article 3 R&TTE was based on Annex III of the Directive 1999/5/EC and the following standard:

Radio Spectrum: EN 300328 V1.9.1 : 2015

EMC: EN 301489 V1.9.2 : 2011

EN 301489-1 V2.2.1:2012

Electrical Safety: EN 60950-1:2006 + A11+A1+A12+A2

RF Safety: EN62311: 2008

ErP: EN50564:2011

The product is labelled with the European Approval Marking CE as show. Any Unauthorised modification of the product voids this Declaration.

Manufacturer / Importer

(Signature of authorised person)

London, 10 May, 2017

Karl Heinz Mueller / Chief Technical Officer Place & Date

Technical Specifications

Baby unit

Frequency 2.4 GHz to 2.48 GHz

Image sensor color CMOS 0.3M Pixels

IR LED 8 pcs

Power Adapter: Ten Pao International Ltd.

S008ACB0600080

Input 100-240V AC, 50/60Hz 200mA;

Output 6V DC, 800mA

WARNING

Use only with supplied power supply.

Parent unit

Frequency 2.4 GHz to 2.48 GHz

Display 3.5" diagonal TFT LCD

Display colors 16.7M color LCD

Brightness control 5 steps

Volume control 5 steps + OFF

Power Adapter: Ten Pao International Ltd.

S006AKB0600060

Input 100-240V AC, 50/60Hz 150mA;

Output 6V DC, 600mA

WARNING

Use only with provided power supply.

Battery: GP80AAAHC3BMXZ Ni-MH AAA 3.6V

800mAh Ni-MH rechargeable battery pack

WARNING

Do not use non-rechargeable batteries for the Parent Unit. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

motorola

Manufactured, distributed or sold by Binatone Electronics International LTD., official licensee for this product. MOTOROLA and the Stylized M Logo, are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners. © 2017 Motorola Mobility LLC. All rights reserved.

EN_UK Version 15.0

Printed in China
