Brand	Inventum
Model	HNK347
Product type	Heating pad for stomach and back
Dimensions	69 x 28 cm
Material	Fleece
Power	100 W
Supply voltage	220-240 V ~ 50 Hz
Number of temperature levels	3 (1: min, 2: medium, 3: max)
Automatic shut-off	After 90 minutes
Rapid heating	Yes (first 10 minutes)
Detachable cord	Yes
Cleaning	Machine washable at 30°C, wool cycle (delicate)
Safety	INVENTUM Safety System (ISS) – overheat protection
Recommended use	Adults and children over 8 years old (under supervision)
Usage	Body (stomach/back) – with elastic band
Included accessories	Elastic band with hook-and-loop closure
Warranty	2-year manufacturer warranty

Frequently Asked Questions - HNK347 INVENTUM

How to turn on the HNK347 heating pad?

Set the sliding switch to position 1, 2 or 3 to turn it on. The temperature levels then light up.

How long does it take for the pad to heat up?

The pad has rapid heating: it heats faster during the first 10 minutes. For immediate warmth, set to level 3.

Can I machine wash the heating pad?

Yes, it is machine washable at 30°C, wool cycle (very gentle). Use a delicate laundry detergent. Do not use bleach, do not tumble dry, and do not iron.

Does the pad turn off automatically?

Yes, after approximately 90 minutes of use, the automatic shut-off deactivates the heating. The indicators then flash. To reuse, set the switch back to 0, wait 5 seconds, then select a level again.

Is this pad safe for children?

Not suitable for children under 3 years. For ages 3-8, use only under adult supervision after setting the switch. From age 8, autonomous use is allowed if the child understands the safety instructions.

What does the ISS safety system mean?

The INVENTUM Safety System (ISS) prevents overheating. In case of failure, it irreversibly cuts off the heating. The indicators turn off. The pad must then be sent to customer service.

Can I use the heating pad with a pacemaker?

Electromagnetic fields are low (≤ 5,000 V/m, ≤ 0.1 mT), but they may interfere with some pacemakers. Consult your doctor and the pacemaker manufacturer before use.

How to attach the pad to the body?

Place the pad against your stomach or back, wrap the elastic band around your body, and adjust the hook-and-loop closure for a comfortable fit.

What if the indicators do not light up?

Check that the switch is properly connected to the pad and that the outlet works. If the switch is on 1, 2 or 3 and nothing lights up, the ISS system may have deactivated the device. Contact customer service.

How to store the heating pad?

Unplug the cord and let it cool completely. Store in its original packaging, flat, without sharp folding and without placing objects on top.

USER MANUAL HNK347 INVENTUM

Medical device with a white IVENTUM device attached to a dark textured cylindrical device (no visible text or symbols on the device itself)

explanation of symbols page 10
1. safety instructions page 11
2. appliance description page 13
3. intended use page 13
4. operation page 13
5. cleaning & maintenance page 14
6. storage page 15
7.disposal page 15
8. problems & solutions page 15
guarantee & after sales service page 29

Deutsch

Technical illustration of a mechanical component with a shaft and bearing assembly (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

4.3 Inschakelen

	Read the instructions!	Woolen!	programme 30°C.
			Do not bleach.
	Do not pierce with needles!		Do not tumble dry.
			Do not iron.
	Do not use when folded or creased!		Do not clean chemically.
			The textiles used for this device meet stringent human ecological requirements of Oeko -Tex Standard 100, as verified by Hohenstein Research Institute.
	Not to be used with very young children (0-3 years).
	WARNING; Warning of risk of injury or danger to your health.
	CAUTION; Safety information about possible damage to the device/accessories.
	NOTE; Refers to important information.

1 safety instructions

Important safety instructions - read carefully and keep for later use!

WARNING

• Non-observance of the following notes may result in personal injury or material damage (electric shock, skin burns, fire). The following safety and hazard information is not only intended to protect your health and the health of others, it should also protect the product. For this reason, pay attention to these safety notes and include these instructions when handing over the product to others.
• This heating pad must not be used by people who are not sensitive to heat or by vulnerable people who may not be able to react to overheating (e.g. diabetics, persons with skin changes related to illness or persons with scarred skin in the area where the pad is to be applied, after taking any pain-relieving medication or alcohol).
• This heating pad may not be used by very young children (0-3 years old) due to their inability to react to overheating.
• This heating pad may not be used by young children (3-8 years old) unless the controller has been pre-set by a parent or guardian and unless the child has been adequately instructed how to operate the heating pad safely.
• This heating pad may be used by children over the age of 8 and by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the heating pad.
• Cleaning and user maintenance shall not be made by children without supervision.
• This heating pad is not intended for use in hospitals.
• Do not insert needles.
• Do not use folded or bunched up.
• Do not use if wet.
• This heating pad must be used in conjunction with the controller that specified on the label.
• The electrical and magnetic fields emitted by this heating pad may

interfere with the function of a pacemaker. However, they are still well within the limits: electrical field strength: max. 5000 V/m, magnetic field strength: max. 80 A/m, magnetic flux density: max. 0.1 millitesla. Please consult your doctor and the manufacturer of your pacemaker before using this heating pad.

• Do not pull, twist or make sharp bends in the cables.
• Please check this heating pad frequently for signs of wear and tear or damage. If any such signs are evident, if the heating pad has been used incorrectly or if it no longer heats up, it must be checked by the manufacturer before being switched on again.
• If the mains connection cable of the heating pad is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons to avoid any risk.
• While this heating pad is switched on, the following conditions must be observed:
• objects must not be placed on the pad (e.g. suitcase or washing basket)
• heat sources, such as hot water bottles, heating pads or similar, must not be placed on the pad.
• The electronic components in the controller warm up when the heating pad is in use. For this reason, the controller must never be covered or placed on the heating pad when it is in use.
• If you should have any questions about using our devices, please contact Customer Services.
  • Always observe the notes on operation (section 4), cleaning and maintenance (section 5) and storage (section 6).

2 appliance description

HNK347

Electric abdominal and back heating pad

Dimensions: 69 x 28 cm

3 illuminated settings

Turbo heating

Automatic switch-off after 90 minutes

Detachable cord

Machine washable, 30°C

100 Watt

Material: fleece

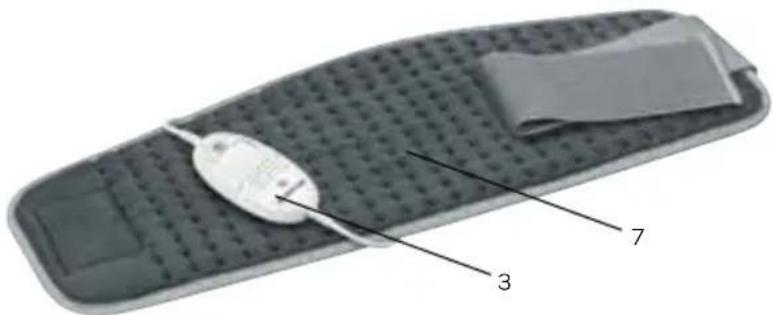

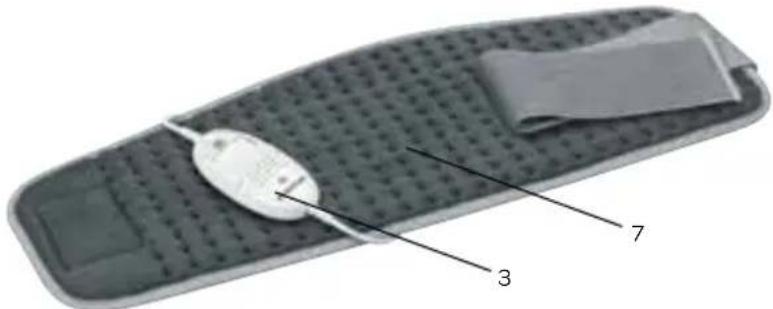

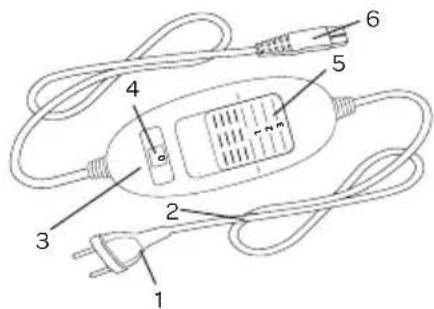

1. Mains plug
2. Mains cable
3. Controller
4. Illuminated display for temperature settings
5. Sliding switch for ON/OFF and temperature settings
6. Plug-in coupling
7. Heating pad

3 intended use

CAUTION

This heating pad is only designed to warm up the human body.

4 operation

4.1 Safety

CAUTION

This heating pad is fitted with the INVENTUM SAFETY SYSTEM (ISS). This electronic sensor technology prevents the entire surface of the heating pad from overheating by automatically switching off in the event of a fault. If the safety system switches off the heating pad automatically as a result of a fault, the display for the temperature settings is no longer illuminated even when the heating pad is switched on.

Please note that, after a fault has occurred, the heating pad can no longer be used for safety reasons and must be sent to the service address indicated.

4.2 Initial use

CAUTION

Ensure that the heating pad will not bunch up or become folded during use.

• First, connect the controller to the heating pad by inserting the plug-in coupling.
• Then plug the mains plug into the socket.
• Place the heating pad on your stomach or back. Subsequently guide the long, elastic rubber strap around the body and secure the heating pad by closing the hook-and-loop fastener.

Simple line drawing of a mechanical component with no text or symbols

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

Technical illustration of a mechanical component with a cylindrical housing and threaded shaft (no text or symbols)

4.3 Switching on

To switch the heating pad on, set the sliding switch for ON/OFF and temperature settings to setting 1, 2 or 3. The temperature setting is illuminated when switched on.

4.4 Setting the temperature

Setting 0: OFF

Setting 1: minimum heat

Setting 2: medium heat

Setting 3: maximum heat

NOTE

The fastest way to warm up the heating pad is to initially set the highest temperature setting of the controller, first.

NOTE

This heating pad has a turbo function, which allows the heating pad to warm up faster in the first 10 minutes.

CAUTION

If the heating pad is being used over several hours it is recommended to set the lowest temperature setting (1) on the controller to avoid overheating the heated body part, which may lead to burns to the skin.

4.5 Automatic switch-off

This heating pad is equipped with an automatic switch-off function. This turns off the heat supply approx. 90 minutes after the initial use of the heating pad. The temperature setting display then starts to flash. So that the heating pad can be switched back on, the sliding switch for ON/OFF and temperature settings must first be set to setting 0 (OFF). After about 5 seconds it is possible to switch it on again.

4.6 Switching off

To switch the heating pad off, set the sliding switch for ON/OFF to setting 0 (OFF) position. The temperature settings are then no longer illuminated.

NOTE

If the heating pad is not in use, switch the side sliding switch for ON/OFF and temperature settings to the OFF (0) position and remove the mains plug from the socket. Then disconnect the controller from the heating pad by unplugging the plug-in coupling.

5 cleaning & maintenance

WARNING

Before cleaning, always remove the mains plug from the socket first. Then disconnect the controller from the heating pad by unplugging the plug-in coupling. Otherwise there is a risk of electric shock.

CAUTION

- The controller must never come into contact with water or other liquids. Otherwise, the controller may be damaged.

To clean the controller, use a dry, lint-free cloth. Do not use any chemical or abrasive cleaning agents.

Small marks on the heating pad can be removed with a damp cloth or sponge, or if necessary, with a little liquid detergent for delicate laundry.

CAUTION

- Please note the heating pad must not be chemically cleaned, wrung out, tumble dried, put through a mangle or ironed.

In case of heavier soiling, this heating pad can be washed in a washing machine. Set the washing machine to a particularly gentle, 30^ C cycle (woolens programme). Use a wool laundry detergent and follow the manufacturer's instructions.

CAUTION

- Please note that excessive washing will wear out the heating pad. For this reason, the heating pad should only be machine-washed a maximum of 10 times throughout its entire life.

Immediately after washing, reshape the heating pad to its original dimensions while it is still damp and spread it out flat over a clothes drying rack to dry.

CAUTION

• Do not attach the heating pad to washing lines with washing pegs or similar. Otherwise the heating pad may be damaged.
• Do not reconnect the switch to the heating pad until the plug-in connection and the heating pad are completely dry.

Otherwise the heating pad may be damaged.

WARNING

- Never switch the heating pad on to dry it! Otherwise there is a risk of electric shock.

6

storage

If you do not plan to use the heating pad for a long period of time, we recommend that you store it in the original packaging. For this purpose, disconnect the controller from the heating pad by unplugging the plug-in coupling.

CAUTION

Please allow the heating pad to cool down first. Otherwise, the heating pad may be damaged. To avoid sharp folds in the heating pad, do not place any objects on top of it while it is being stored.

7

disposal

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

8

problems & solutions

Problem Cause Remedy
The temperature settings are not illuminated while- the controller is fully connected to the heating pad;- the supply plug is connected to the mains outlet with correct function;- the setting is 1, 2 or 3.	The safety system switched off the heating pad irreversible.	Send the heating pad together with the controller to the service department.

Technical illustration of a mechanical component with arrows indicating motion or force (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

Simple line drawing of a mechanical clamp or bracket with a black arrow indicating direction (no text or symbols)

4.3 Einschalten

Technical illustration of a mechanical component with a threaded shaft and circular housing (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

Simple line drawing of a mechanical clamp or bracket with a black arrow indicating direction (no text or symbols)

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

• normal wear and tear;
- improper use or misuse;
• insufficient maintenance;
- failure to comply with the operating and maintenance instructions;
- unprofessional installation or repairs by third parties or the customer himself;
• non-original parts used by the customer;
- use for commercial or business purposes;
- removal of the serial number and/or rating label.

1. In addition, the warranty does not apply to normal consumer goods, such as:

2. dough hooks, baking tins, (carbon) filters, etc.;

3. batteries, bulbs, carbon filters, fat filters etc.;
   • external connection cables;

4. glass accessories and glass parts such as oven doors;
   • and similar items.

5. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

6. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
3. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
4. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.
5. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.
