LP32 - Hi-Fi System MOTU - Free user manual and instructions

USER MANUAL LP32 MOTU

1280 Massachusetts Avenue

Cambridge, MA 02138

Business voice: [phone]

Business fax: [phone]

Web site: www.motu.com

Tech support: www.motu.com/support

SAFETY PRECAUTIONS AND ELECTRICAL REQUIREMENTS FOR THE 1248, 8M, 16A, and MOTU AVB SWITCH ("PRODUCT")

CAUTION! READ THIS SAFETY GUIDE BEFORE YOU BEGIN INSTALLATION OR OPERATION. FAILURE TO COMPLY WITH SAFETY INSTRUCTIONS COULD RESULT IN BODILY INJURY OR EQUIPMENT DAMAGE.

HAZARDOUS VOLAGES: CONTACT MAY CAUSE ELECTRIC SHOCK OR BURN. TURN OFF UNIT BEFORE SERVICING.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR OTHER MOISTURE.

CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING: DO NOT PERMIT FINGERS TO TOUCH THE TERMINALS OF PLUGS WHEN INSTALLING OR REMOVING THE PLUG TO OR FROM THE OUTLET.

WARNING: IF NOT PROPERLY GROUNDED THE MOTU PRODUCT COULD CAUSE AN ELECTRICAL SHOCK.

The MOTU product is equipped with a three-conductor cord and grounding type plug which has a grounding prong, approved by Underwriters' Laboratories and the Canadian Standards Association. This plug requires a mating three-conductor grounded type outlet as shown in Figure A below. If the outlet you are planning to use for the MOTU product is of the two prong type, DO NOT REMOVE OR ALTER THE GROUNDING PRONG IN ANY MANNER. Use an adapter as shown below and always connect the grounding lug to a known ground. It is recommended that you have a qualified electrician replace the TWO prong outlet with a properly grounded THREE prong outlet. An adapter as illustrated below in Figure B is available for connecting plugs to two-prong receptacles.

Figure A Figure B

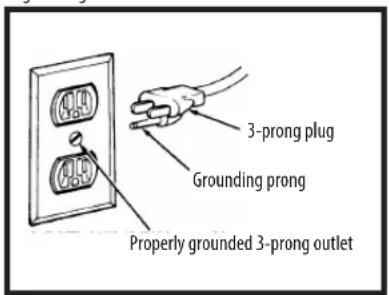

3-prong plug Grounding prong Properly grounded 3-prong outlet

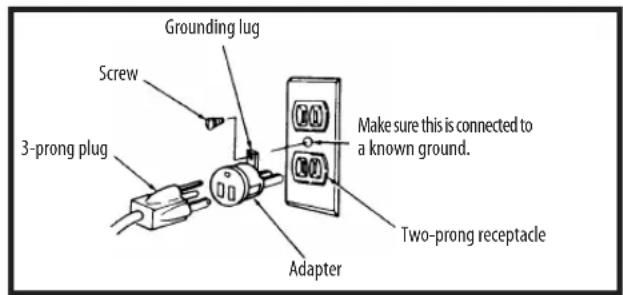

Grounding lug Screw 3-prong plug Adapter Make sure this is connected to a known ground. Two-prong receptacle

WARNING: THE GREEN GROUNDING LUG EXTENDING FROM THE ADAPTER MUST BE CONNECTED TO A PERMANENT GROUND SUCH AS TO A PROPERLY GROUNDED OUTLET BOX. NOT ALL OUTLET BOXES ARE PROPERLY GROUNDED.

If you are not sure that your outlet box is properly grounded, have it checked by a qualified electrician. NOTE: The adapter illustrated is for use only if you already have a properly grounded two-prong receptacle. Adapter is not allowed in Canada by the Canadian Electrical Code. Use only three wire extension cords which have three-prong grounding type plugs and three-prong receptacles which will accept the MOTU product plug.

IMPORTANT SAFEGUARDS

1. Read these instructions. All the safety and operating instructions should be read before operating the product.
2. Keep these instructions. These safety instructions and the product owner's manual should be retained for future reference.
3. Heed all warnings. All warnings on the product and in the owner's manual should be adhered to.
4. Follow all Instructions. All operating and use instructions should be followed.
5. Do not use the product near water.
6. Cleaning - Unplug the product from the computer and clean only with a dry cloth. Do not use liquid or aerosol cleaners.
7. Ventilation - Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Overloading - Do not overload wall outlets and extension cords as this can result in a risk of fire or electrical shock.
9. Power switch - Install the product so that the power switch can be accessed and operated at all times.
10. Disconnect - The main plug is considered to be the disconnect device for the product and shall remain readily operable.
11. Accessories - Only use attachments/accessories specified by the manufacturer.
12. Surge protection - Unplug the product during lightning storms or when unused for long periods of time.

13. Power amplifiers- Never attach audio power amplifier outputs directly to any of the unit's connectors.

14. Heat - Do not install the product near any heat sources such as radiators, heat registers, stoves, or another apparatus (including an amplifier) that produces heat.

15. Grounding - Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult and electrician for replacement of the obsolete outlet.

16. Power cord - Protect the product power cord from being walked on or pinched by items placed upon or against them. Pay particular attention to cords and plugs, convenience receptacles, and the point where they exit from the unit.

17. Placement - Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the product. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

18. Servicing - Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as when a power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

19. Power Sources - Refer to the manufacturer's operating instructions for power requirements. Be advised that different operating voltages may require the use of a different line cord and/or attachment plug.

20. Installation - Do not install the product in an unventilated rack, or directly above heat-producing equipment such as power amplifiers. Observe the maximum ambient operating temperature listed below.

21. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

22. Safety Check - Upon completion of any service or repairs to this MOTU product, ask the service technician to perform safety checks to determine that the product is in safe operating conditions.

ENVIRONMENT, HEAT AND VENTILATION

Operating Temperature: 10°C to 40°C (50°F to 104°). The product should be situated away from heat sources or other equipment that produces heat. When installing the product in a rack or any other location, be sure there is adequate space around the product to ensure proper ventilation. Improper ventilation will cause overheating and can damage the unit.

TO REDUCE THE RISK OF ELECTRICAL SHOCK OR FIRE

Do not handle the power cord with wet hands. Do not pull on the power cord when disconnecting it from an AC wall outlet. Grasp it by the plug. Do not expose this apparatus to rain or moisture. Do not place objects containing liquids on it.

AC INPUT

100 - 240VAC \~ • 50 / 60Hz • 0.5A max

Contents

Part 1: Getting Started

7 Quick Start Guide
9 1248 Front Panel
10 1248 Rear Panel
11 8M Front Panel
12 8M Rear Panel
13 16A Front Panel
14 16A Rear Panel
15 MOTU AVB Switch
17 MOTU Pro Audio Control Web App
29 About Your MOTU AVB Audio Interface
33 Packing List and System Requirements
35 Software Installation
39 Hardware Installation

Part 2: Using your MOTU interface

61 Presets
65 The Front Panel LCD
69 Working with Host Audio Software
77 Mixer Effects
85 MOTU Audio Tools
101 Networking

Part 3: Appendices

109 Troubleshooting
111 Audio Specifications
117 Mixer Schematics
121 Updating Firmware
123 OSC Support
125 Index

About the Mark of the Unicorn License Agreement and Limited Warranty on Software

TO PERSONS WHO PURCHASE OR USE THIS PRODUCT: carefully read all the terms and conditions of the "click-wrap" license agreement presented to you when you install the software. Using the software or this documentation indicates your acceptance of the terms and conditions of that license agreement.

Mark of the Unicorn, Inc. ("MOTU") owns both this program and its documentation. Both the program and the documentation are protected under applicable copyright, trademark, and trade-secret laws. Your right to use the program and the documentation are limited to the terms and conditions described in the license agreement.

Reminder of the terms of your license

This summary is not your license agreement, just a reminder of its terms. The actual license can be read and printed by running the installation program for the software. That license agreement is a contract, and clicking "Accept" binds you and MOTU to all its terms and conditions. In the event anything contained in this summary is incomplete or in conflict with the actual click-wrap license agreement, the terms of the click-wrap agreement prevail.

YOU MAY: (a) use the enclosed program on a single computer; (b) physically transfer the program from one computer to another provided that the program is used on only one computer at a time and that you remove any copies of the program from the computer from which the program is being transferred; (c) make copies of the program solely for backup purposes. You must reproduce and include the copyright notice on a label on any backup copy.

YOU MAY NOT: (a) distribute copies of the program or the documentation to others; (b) rent, lease or grant sublicenses or other rights to the program; (c) provide use of the program in a computer service business, network, time-sharing, multiple CPU or multiple user arrangement without the prior written consent of MOTU; (d) translate, adapt, reverse engineer, decompile, disassemble, or otherwise alter the program or related documentation without the prior written consent of MOTU.

MOTU warrants to the original licensee that the disk(s) on which the program is recorded be free from defects in materials and workmanship under normal use for a period of ninety (90) days from the date of purchase as evidenced by a copy of your receipt. If failure of the disk has resulted from accident, abuse or misapplication of the product, then MOTU shall have no responsibility to replace the disk(s) under this Limited Warranty.

THIS LIMITED WARRANTY AND RIGHT OF REPLACEMENT IS IN LIEU OF, AND YOU HEREBY WAIVE, ANY AND ALL OTHER WARRANTIES, BOTH EXPRESS AND IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE LIABILITY OF MOTU PURSUANT TO THIS LIMITED WARRANTY SHALL BE LIMITED TO THE REPLACEMENT OF THE DEFECTIVE DISK(S), AND IN NO EVENT SHALL MOTU OR ITS SUPPLIERS, LICENSORS, OR AFFILIATES BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO LOSS OF USE, LOSS OF PROFITS, LOSS OF DATA OR DATA BEING RENDERED INACCURATE, OR LOSSES SUSTAINED BY THIRD PARTIES EVEN IF MOTU HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS WHICH MAY VARY FROM STATE TO STATE. SOME STATES DO NOT ALLOW THE LIMITATION OR EXCLUSION OF LIABILITY FOR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

Update Policy

In order to be eligible to obtain updates of the program, you must complete and return the attached Mark of the Unicom Purchaser Registration Card to MOTU.

Copyright Notice

Copyright © 2016, 2015, 2014 by Mark of the Unicorn, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language, in any form or by any means whatsoever, without express written permission of Mark of the Unicorn, Inc., 1280 Massachusetts Avenue, Cambridge, MA, 02138, U.S.A.

Limited Warranty on Hardware

Mark of the Unicorn, Inc. and S&S Research ("MOTU/S&S") warrant this equipment against defects in materials and workmanship for a period of TWO (2) YEARS from the date of original retail purchase. This warranty applies only to hardware products; MOTU software is licensed and warranted pursuant to separate written statements.

If you discover a defect, first write or call Mark of the Unicorn at [phone] to obtain a Return Merchandise Authorization Number. No service will be performed on any product returned without prior authorization. MOTU will, at its option, repair or replace the product at no charge to you, provided you return it during the warranty period, with transportation charges prepaid, to Mark of the Unicorn, Inc., 1280 Massachusetts Avenue, MA 02138. You must use the product's original packing material for in shipment, and insure the shipment for the value of the product. Please include your name, address, telephone number, a description of the problem, and the original, dated bill of sale with the returned unit and print the Return Merchandise Authorization Number on the outside of the box below the shipping address.

This warranty does not apply if the equipment has been damaged by accident, abuse, misuse, or misapplication; has been modified without the written permission of MOTU, or if the product serial number has been removed or defaced.

ALL IMPLIED WARRANTIES, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO TWO (2) YEARS FROM THE DATE OF THE ORIGINAL RETAIL PURCHASE OF THIS PRODUCT.

THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHERS, ORAL OR WRITTEN, EXPRESS OR IMPLIED. No MOTU/S&S dealer, agent, or employee is authorized to make any modification, extension, or addition to this warranty.

MOTU/S&S ARE NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY, OR UNDER ANY LEGAL THEORY, INCLUDING LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE OR REPLACEMENT OF EQUIPMENT AND PROPERTY AND COST OF RECOVERING REPROGRAMMING, OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH MOTU/S&S PRODUCTS.

Some states do not allow the exclusion or limitation of implied warranties or liability for incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state.

MOTU, AudioDesk, Mark of the Unicom and the unicorn silhouette logo are trademarks of Mark of the Unicorn, Inc.

Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S. and/or other countries.

This equipment has been type tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by any combination of the following measures:

• Relocate or reorient the receiving antenna

- Increase the separation between the equipment and the receiver

• Plug the equipment into an outlet on a circuit different from that to which the receiver is connected

If necessary, you can consult a dealer or experienced radio-television technician for additional assistance.

PLEASE NOTE: only equipment certified to comply with Class B (computer input/output devices, terminals, printers, etc.) should be attached to this equipment, and it must have shielded interface cables in order to comply with the Class B FCC limits on RF emissions.

WARNING: changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Part 1

Getting Started

Quick Start Guide

Thank you for purchasing a MOTU AVB interface! Follow these easy steps to get started quickly.

1 Download and run the MOTU Pro Audio Installer found here:

http://www.motu.com/avb

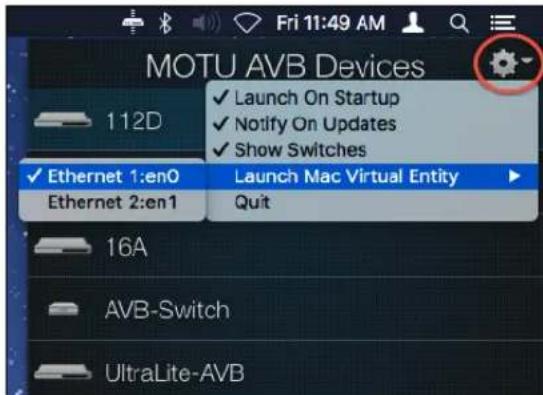

2 (Optional) For access to your MOTU interface from your iPad or iPhone, download the MOTU Discovery app from the Apple App Store.

Your iPhone and iPad must be on the same WiFi network as your computer.

3 Connect your MOTU interface to your computer with a USB cable (included) or Thunderbolt cable (sold separately). If you have a Thunderbolt-equipped Mac running OS X El Capitan (10.11) or later, you can alternately connect your MOTU interface to the Mac's Ethernet port with a standard CAT-5e or CAT-6 Ethernet cable (sold separately).

4 Switch on your MOTU interface.

5 Open the MOTU Pro Audio Controlweb app by doing one of the following:

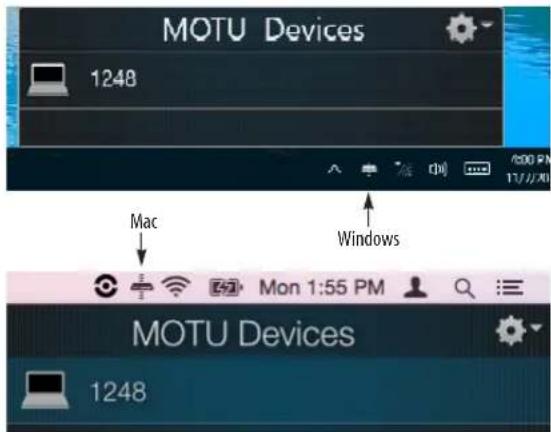

- Choose your interface from the MOTU Discovery app menu (found in the Mac menu bar or Windows taskbar).

■ Alternately, you can launch theMOTU Pro Audio WebUI Setup shortcut found on the Windows desktop or in Start menu> All Programs> MOTU.

■ From your iPad or iPhone, launch the MOTU Discovery app, and tap your interface.

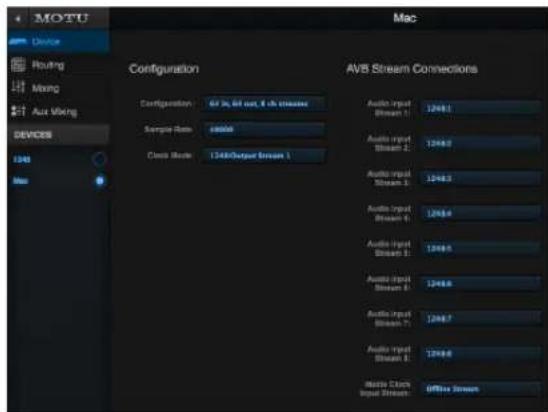

• You should now see theMOTU Pro Audio Control web app in your browser, as shown on page 18. If not, visit Appendix A, “Troubleshooting” (page 109).
  ■ For advanced network options, and device discovery from any modern browser, see chapter 10, “Networking” (page 101).

MOTU Devices 1248 Mac Windows Mon 1:55 PM MOTU Devices 1248

6 Click Quick Setup and choose a preset.

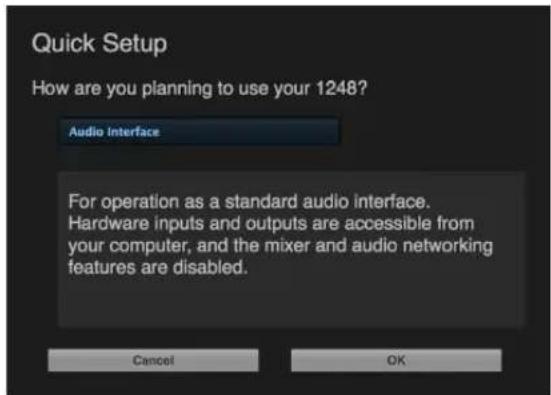

Quick Setup How are you planning to use your 1248? Audio Interface For operation as a standard audio interface. Hardware inputs and outputs are accessible from your computer, and the mixer and audio networking features are disabled. Cancel OK

1248 Front Panel

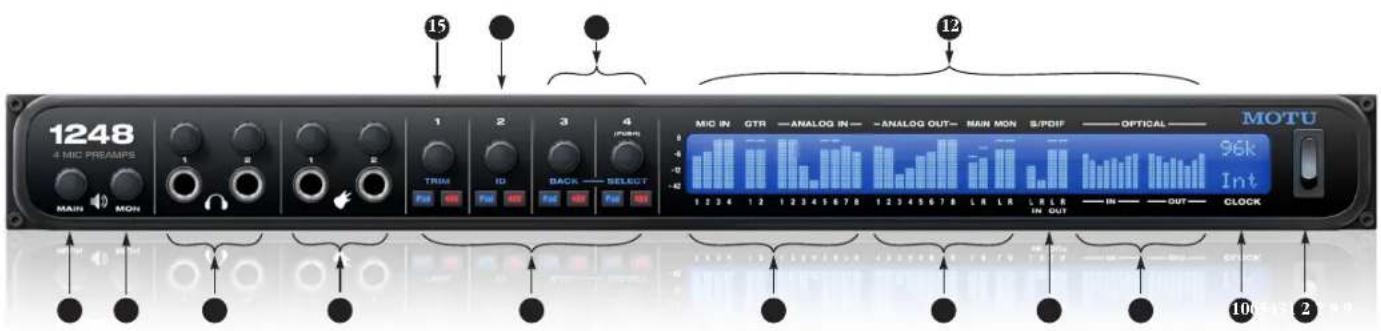

1248 4 MIC PREAMS MAIN MON 1 2 3 4 (PUBR) TRIM ID BACK SELECT F50 F51 F52 F53 F54 F55 F56 F57 F58 F59 F60 F61 F62 F63 F64 F65 F66 F67 F68 F69 F70 F71 F72 F73 F74 F75 F76 F77 F78 F79 F80 F81 F82 F83 F84 F85 F86 F87 F88 F89 F90 F91 F92 F93 F94 F95 F96 F97 F98 F99 F100 MOTU 96k Int IN OUT IN OUT CLOCK

1. MAIN OUT volume control. This setting, along with all front panel settings, can also be adjusted from the MOTU Pro Audio Control web app.
2. MONITOR OUT volume control.
3. PHONE OUTPUTS with volume control.

4. GUITAR INPUTS with trim control. These are high-impedance guitar inputs that provide authentic guitar amp volume response and feel.

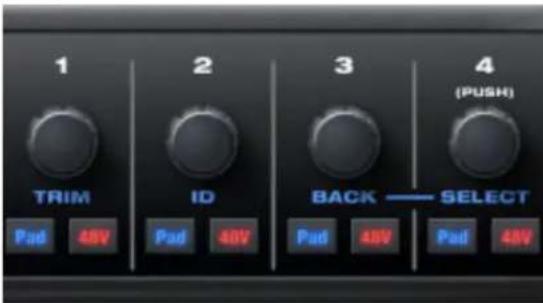

5. MIC INPUT preamp gain, switchable 48V phantom power, and optional -20 dB pad switches for each mic input. The Precision Digital Trim™ knob provides 63 dB of preamp gain. Turn the knob to see the gain adjustments on a large-scale, horizontal meter.

6. ANALOG INPUT METERS for the four mic inputs, two guitar inputs, and eight balanced (TRS) quarter-inch inputs on the rear panel.
7. ANALOG OUTPUT METERS for the eight balanced (TRS) quarter-inch outputs, main outs, and monitor outs.

8. S/PDIF DIGITAL METERS (stereo input and output).

9. ADAT OPTICAL METERS. At 1x sample rates (44.1 or 48 kHz), there are sixteen channels of input and output. At 2x (88.2 or 96 kHz), there are eight channels.

10. The CLOCK section displays the current operating sample rate and clock mode (source) for the unit.
11. POWER SWITCH: Thunderbolt, AVB, and USB are "plug-and-play" protocols. That means you can turn the 1248 off and back on without restarting your computer.

12. The multi-purpose backlit LCD displays level meters for all inputs and outputs. It can also show device settings and network information, using the knobs to the left.

13. Push SELECT to enter the LCD menu. Turn SELECT to scroll through menu options. Push again to descend into the submenus, if applicable. To choose the current setting, push SELECT a third time. Push BACK to return to the previous menu level, and do so repeatedly to exit the menu altogether.

14. Push ID to display network settings for the device, including its IP address.
15. Push TRIM to enter trim mode. In this mode, the LCD numerically displays gain settings for eight channels at a time. Use the front panel knobs to adjust each channel, from left to right, starting with the MAIN volume knob.

1248 Rear Panel

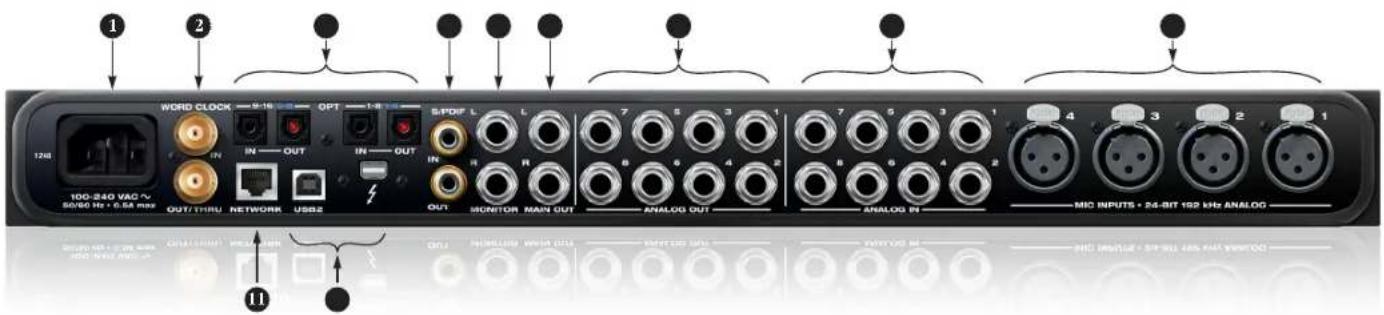

1 2 WORD CLOCK IN IN OUT IN OUT S/PDF L L 7 5 3 1 7 5 3 1 4 3 2 1 100-240 VAC~ 50/60 Hz · 0.5A max OUT/TRU NETWORK USB2 OUT MONITOR MAIN OUT ANALOG OUT ANALOG IN MIC INPUTS • R4-BIT 192 kHz ANALOG 11

1. The 1248 is equipped with an auto-switching international power supply.

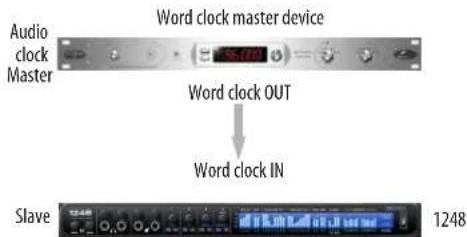

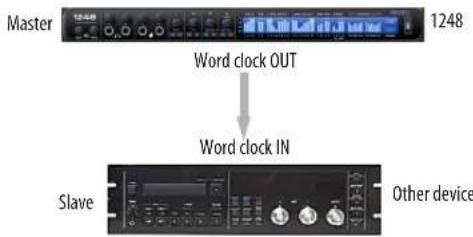

2. BNC word clock jacks. Use them for a variety of applications, such as digital transfers with devices that cannot slave to the clock supplied by their digital I/O connection with the 1248.
3. These ADAT optical "lightpipe" jacks provide 16 channels of 24-bit ADAT optical digital I/O at 1x sample rates (44.1 or 48 kHz) and 8 channels at 2x sample rates (88.2 or 96 kHz). They are disabled at higher sample rates. The IN and OUT ports on the right provide channels 1-8 (or 1-4 at 2x sample rates), and the left-hand ports provide channels 9-16 (or 5-8 at 2x sample rates).

4. These jacks provide stereo, 24-bit S/PDIF digital input and output at all supported sample rates (up to 96 kHz). The input provides sample rate conversion, as explained in "S/PDIF with sample rate conversion" on page 51.

5. The MONITOR OUT pair provides auxiliary stereo analog output for secondary studio monitors, or any other desired destination. These connectors are balanced (TRS) quarter-inch connectors that can also accept an unbalanced plug (with the ring disconnected). Control volume from the MOTU Pro Audio Control web app or from the front panel volume control.

6. The MAIN OUT pair provides stereo analog output for primary (powered) studio monitors or PA speakers, or any other desired destination. These connectors are balanced (TRS) quarter-inch connectors that can also accept an unbalanced plug (with the ring disconnected). Control volume from the web app or from the front panel volume control.

7. The 1248's eight analog outputs are balanced (TRS) quarter-inch connectors that can also accept an unbalanced plug (with the ring disconnected). The output trim can be adjusted from the Output Setting section of the Device Tab in the MOTU Pro Audio Control web app software.

8. These eight analog inputs are balanced (TRS) quarter-inch connectors that can also accept an unbalanced plug. Use with line level signals up to +24 dBu, including synthesizers, drum machines, effects processors, etc. These inputs are also equipped with the 1248's Precision Digital Trim™ feature: digitally controlled analog trims that let you adjust input level in 1 dB increments from the included MOTU Pro Audio Control web app software.

9. Connect up to four microphones here. Each input provides individual preamp gain (63 dB), switchable 48V phantom power, and an optional -20 dB pad.

10. Connect the 1248 to the computer here via either Thunderbolt or USB 2.0, using a standard Thunderbolt or USB cable. For details, see "Setup for multiple Thunderbolt and USB interfaces" on page 44.

11. This AVB Ethernet port provides industry standard IEEE 802.1 network connectivity to other network devices. Examples include:

■ Another 1248 or any other MOTU AVB-equipped audio interface, such as the 1248, 8M, 16A, 24Ai, 24Ao, 112D, Monitor 8, etc.

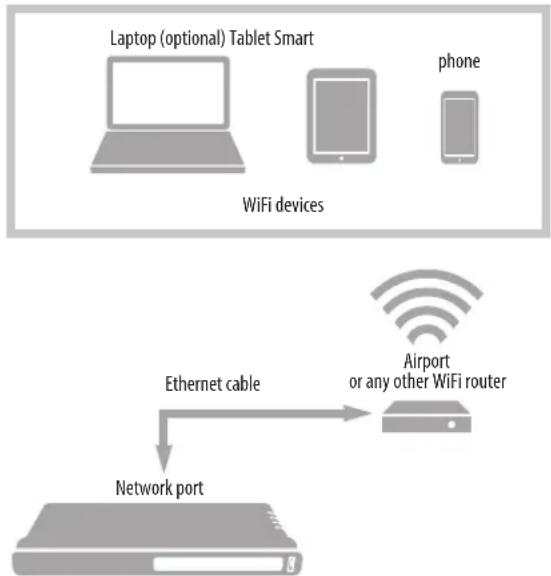

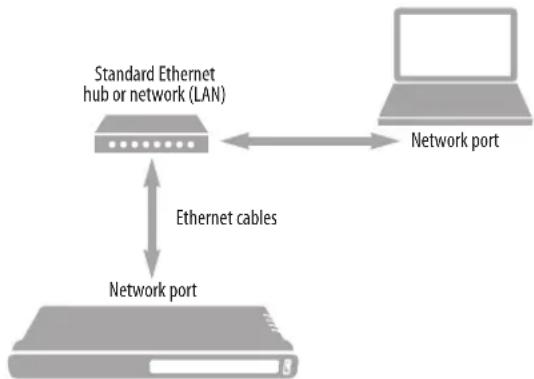

■ A standard Ethernet hub or Wi-Fi router (for internet connection and communication with the MOTU Pro Audio Control web app software).
■ A standard AVB Ethernet switch for high-speed, low-latency, high-capacity audio connectivity to an AVB audio network.
A recent-generation Mac (any Mac with a Thunderbolt port) running OS X El Capitan (10.11) or later. This allows you to operate the 1248 as an audio interface over Ethernet.

8M Front Panel

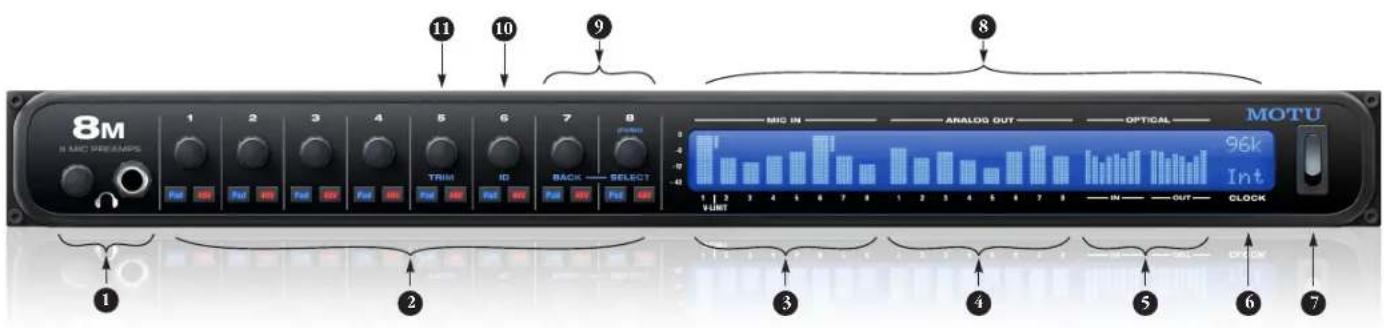

8M IN MIO DREAMPS 1 2 3 4 5 6 7 8 Put IN Put IR Put OK Put OK Put OK Put OK TRIM ID BACK SELECT MIC IN ANALOG OUT OPTICAL MOTU 96k Int VUNT OUT CLOCK 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 - IN - OUT - ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑩ ⑪ ⑫

1. HEADPHONE JACK with volume control.
2. MIC INPUT preamp gain, switchable 48V phantom power, and optional -20 dB pad for each mic input. The Precision Digital Trim™ knob provides 53 dB of preamp gain. Turn the knob to see the gain adjustments on a large-scale, horizontal meter.

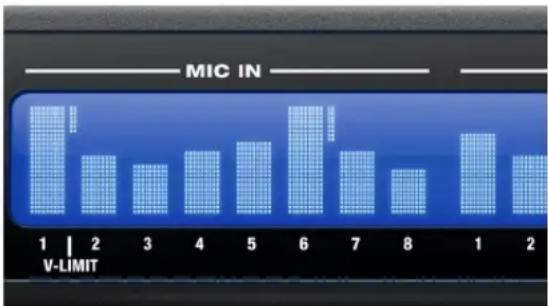

3. INPUT METERS for the eight mic inputs. If the 8M's V-Limit™ feature is engaged for a mic input, and V-Limit kicks in, you'll see a compression meter extend downwards from the top right of the meter, as shown on channels 1 and 6 in the illustration above. For more information, see "8M mic/guitar input meters with V-Limit™ compressor" on page 65. Also see "Soft Clip™" on page 50.

4. OUTPUT METERS for the eight balanced TRS analog outputs.

5. ADAT OPTICAL input and output metering. At 1x sample rates (44.1 or 48 kHz), there are sixteen channels of input and output. At 2x (88.2 or 96 kHz), there are eight channels.
6. The CLOCK section displays the current operating sample rate and clock mode (source) for the unit.

7. POWER SWITCH: Thunderbolt, AVB, and USB are "plug-and-play" protocols. That means you can turn the 8M off and back on without restarting your computer.

8. The multi-purpose backlit LCD displays level meters for all inputs and outputs. It can also show device settings and network information, using the knobs to the left.

9. Push SELECT to enter the LCD menu. Turn SELECT to scroll through menu options. Push again to descend into the submenus, if applicable. To choose the current setting, push SELECT a third time. Push BACK to return to the previous menu level, and do so repeatedly to exit the menu altogether.

10. Push ID to display network settings for the device, including its IP address.

11. Push TRIM to enter trim mode. In this mode, the LCD numerically displays gain settings for eight channels at a time. Use the front panel knobs to adjust each channel.

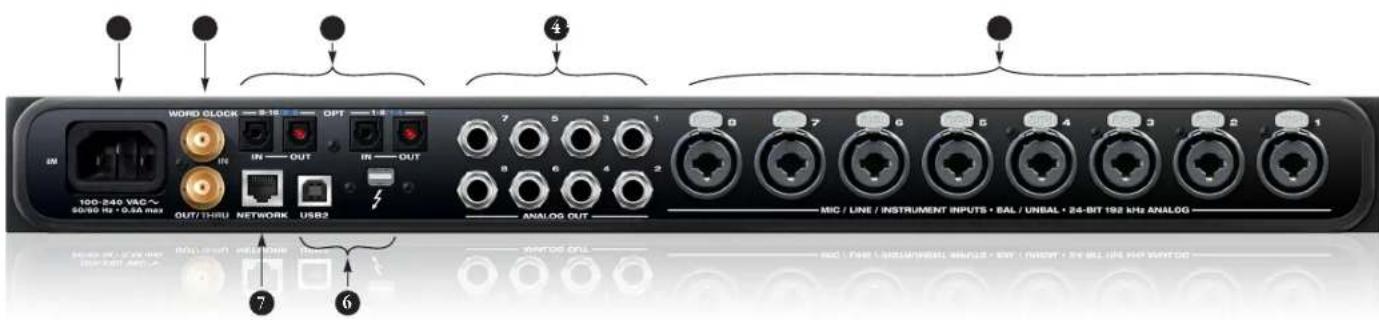

8M Rear Panel

WORD CLOCK 9-16 DPT 1.8 IN OUT IN OUT OUT/THRU NETWORK USB2 ANALOG OUT MIC / LINE / INSTRUMENT INPUTS • BAL / UNSAL • 24-BIT 192 KHz ANALOG 100-240 VAC~ $0.50 Hz • 0.5A max 7 6 4 3 2 1 8 7 6 5 4 3 2 1 7 6 5 4 3 2 1 B IN OUT IN OUT WNTDO OPL RIO / TIME / WELAM/WELL INPUTS • KEY / WENT • KEY BILL USE MAY NOT DO

1. The 8M is equipped with an auto-switching international power supply.
2. BNC word clock jacks. Use them for a variety of applications, such as digital transfers with devices that cannot slave to the clock supplied by their digital I/O connection with the 8M.

3. These ADAT optical "lightpipe" jacks provide 16 channels of 24-bit ADAT optical digital I/O at 1x sample rates (44.1 or 48 kHz) and 8 channels at 2x sample rates (88.2 or 96 kHz). They are disabled at higher sample rates. The IN and OUT ports on the right provide channels 1-8 (or 1-4), and the left-hand ports provide channels 9-16 (or 5-8).

4. The 8M's eight analog outputs are balanced TRS quarter-inch connectors that can also accept an unbalanced plug (with the ring disconnected). They are equipped with very high quality 24-bit 192 kHz converters. The output trim can be adjusted from the Output Setting section of the Device Tab in the MOTU Pro Audio Control web app software.

5. These XLR/TRS combo jacks accept either a mic cable or a quarter-inch cable, balanced or unbalanced, from a guitar or line input. Use the front panel controls to adjust individual preamp gain, 48V phantom power, and an optional -20 dB pad for each mic input. The quarter-inch plug is equipped with a high-impedance circuit for guitar input.

6. Connect the 8M to the computer here via either Thunderbolt or USB 2.0, using a standard Thunderbolt or USB cable. For details, see "Setup for multiple Thunderbolt and USB interfaces" on page 44.

7. This AVB Ethernet port provides industry standard IEEE 802.1 network connectivity to other network devices. Examples include:

■ Another 8M or any other MOTU AVB-equipped audio interface, such as the 1248, 8M, 16A, 24Ai, 24Ao, 112D, Monitor 8, etc.
■ A standard Ethernet hub or Wi-Fi router (for internet connection and communication with the MOTU Pro Audio Control web app software).
■ A standard AVB Ethernet switch for high-speed, low-latency, high-capacity audio connectivity to an AVB audio network.
■ A recent-generation Mac (any Mac with a Thunderbolt port) running OS X El Capitan (10.11) or later. This allows you to operate the 8M as an audio interface over Ethernet.

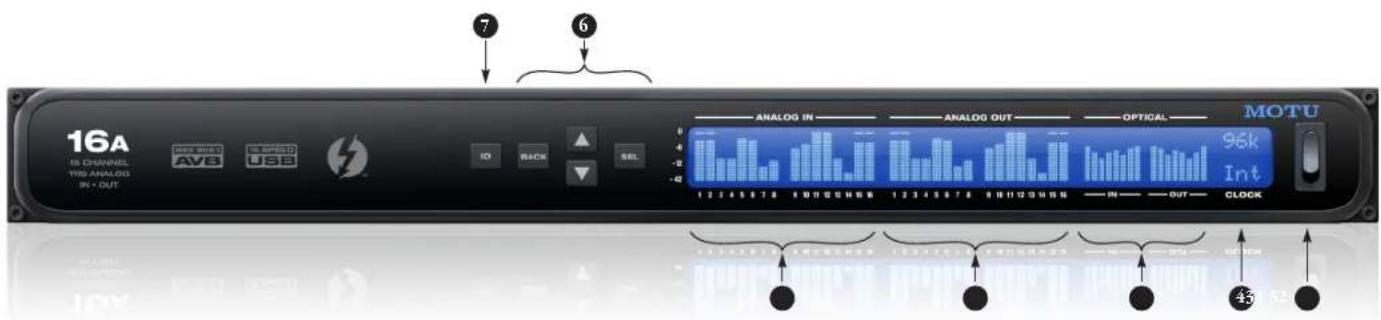

16A Front Panel

16A IS CANCE TRG ANALOG IN • OUT AVB USB IO BACK SEL ANALOG IN ANALOG OUT OPTICAL MOTU 95k Int OUT CLOCK 7 6 43

1. ANALOG INPUT METERS for the sixteen balanced (TRS) quarter-inch inputs.
2. ANALOG OUTPUT METERS for the sixteen balanced (TRS) quarter-inch outputs.

3. ADAT OPTICAL input and output metering. At 1x sample rates (44.1 or 48 kHz), there are sixteen channels of input and output. At 2x (88.2 or 96 kHz), there are eight channels.

4. The CLOCK section displays the current operating sample rate and clock mode (source) for the unit.

5. POWER SWITCH: Thunderbolt, AVB, and USB are "plug-and-play" protocols. That means you can turn the 16A off and back on without restarting your computer.

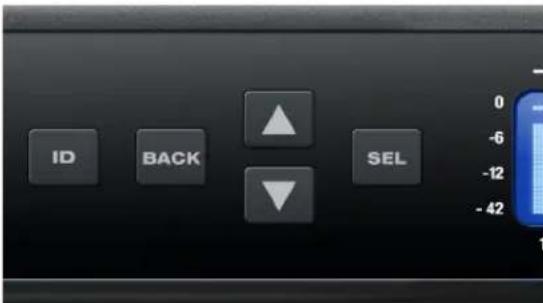

6. Push SEL (select) to enter the LCD menu. Push the ARROW buttons to scroll through menu options. Push again to descend into the submenus, if applicable. To choose the current setting, push SELECT a third time. Push BACK to return to the previous menu level, and do so repeatedly to exit the menu altogether.

7. Push ID to display network settings for the device, including its IP address.

16A Rear Panel

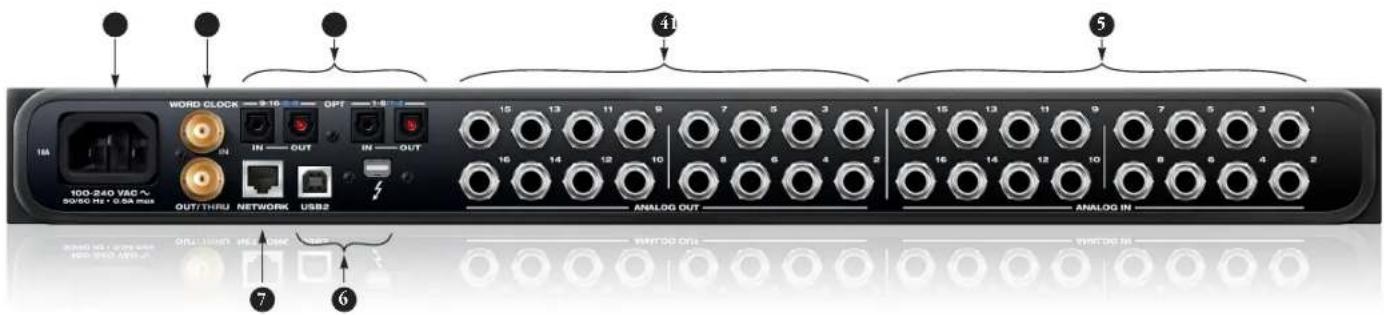

WORD CLOCK — 9.10 2.0 — OPT — 1.8 3.4 IN — OUT IN — OUT 100-240 VAC 30/DC HZ • 6.5A mini OUT/THRU NETWORK USB2 ANALOG OUT ANALOG IN 41 5 7 6 5 4 3 2 1 15 13 11 9 7 5 3 1 16 14 12 10 8 6 4 2 16 14 12 10 8 6 4 2 7 6 5 4 3 2 1

1. The 16A is equipped with an auto-switching international power supply.
2. BNC word clock jacks. Use them for a variety of applications, such as digital transfers with devices that cannot slave to the clock supplied by their digital I/O connection with the 16A.

3. These ADAT optical "lightpipe" jacks provide 16 channels of 24-bit ADAT optical digital I/O at 1x sample rates (44.1 or 48 kHz) and 8 channels at 2x sample rates (88.2 or 96 kHz). They are disabled at higher sample rates. The IN and OUT ports on the right provide channels 1-8 (or 1-4), and the left-hand ports provide channels 9-16 (or 5-8).

4. The 16A's sixteen analog outputs are balanced TRS quarter-inch connectors that can also accept an unbalanced plug (with the ring disconnected). The output trim can be adjusted from the Output Setting section of the Device Tab in the MOTU Pro Audio Control web app software.

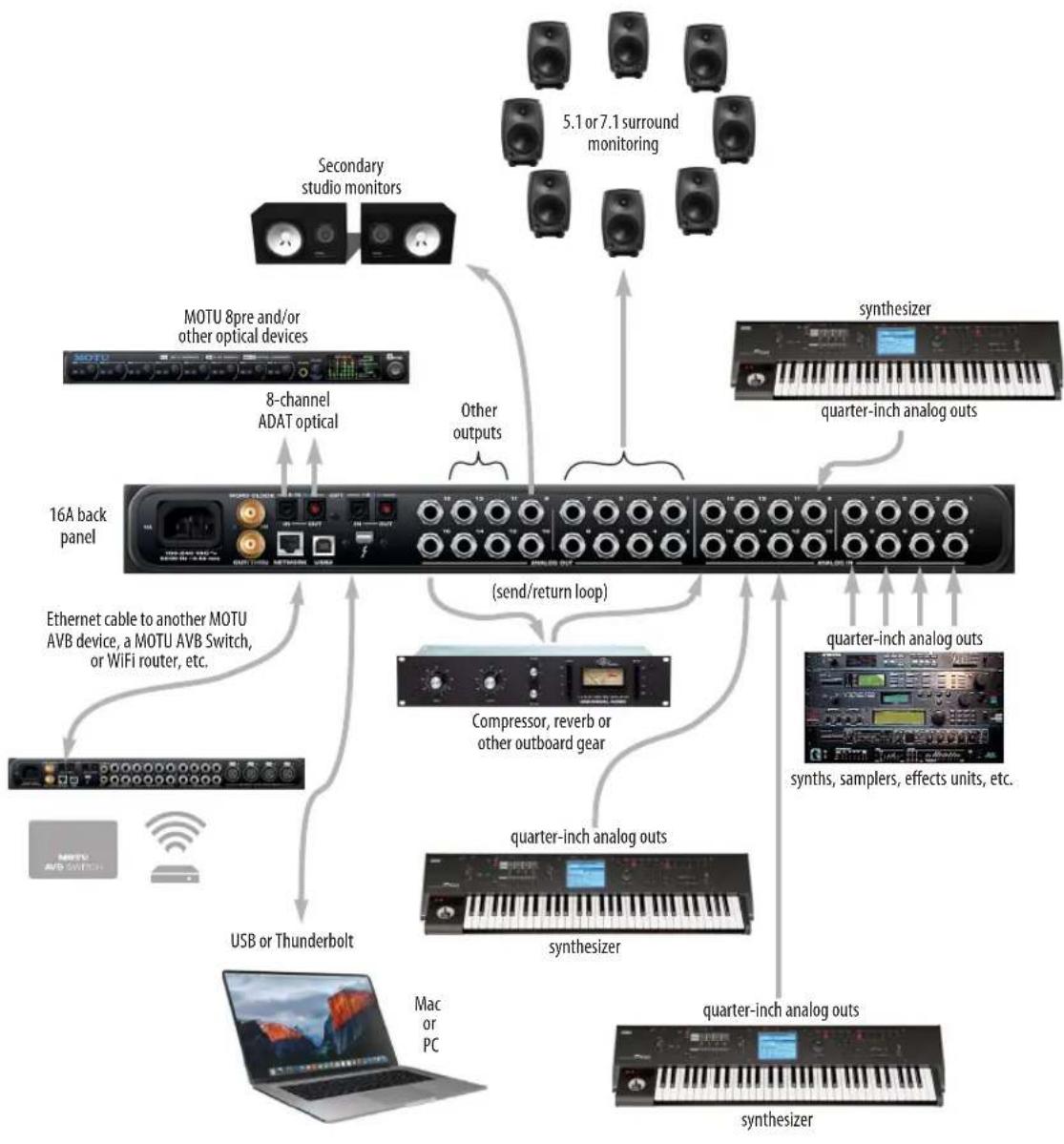

5. These sixteen analog inputs are balanced TRS quarter-inch connectors that can also accept an unbalanced plug. Use with line level signals up to +24 dBu, including synthesizers, drum machines, effects processors, etc. These inputs are also equipped with the 16A's Precision Digital Trim™ feature: digitally controlled analog trims that let you adjust input level in 1 dB increments from the included MOTU Pro Audio Control web app software.

6. Connect the 16A to the computer here via either Thunderbolt or USB 2.0, using a standard Thunderbolt or USB cable. For details, see "Setup for multiple Thunderbolt and USB interfaces" on page 44.

7. This AVB Ethernet port provides industry standard IEEE 802.1 network connectivity to other network devices. Examples include:

■ Another 16A or any other MOTU AVB-equipped audio interface, such as the 1248, 8M, 16A, 24Ai, 24Ao, 112D, Monitor 8, etc.
■ A standard Ethernet hub or Wi-Fi router (for internet connection and communication with the MOTU Pro Audio Control web app software).
■ A standard AVB Ethernet switch for high-speed, low-latency, high-capacity audio connectivity to an AVB audio network.
A recent-generation Mac (any Mac with a Thunderbolt port) running OS X El Capitan (10.11) or later. This allows you to operate the 16A as an audio interface over Ethernet.

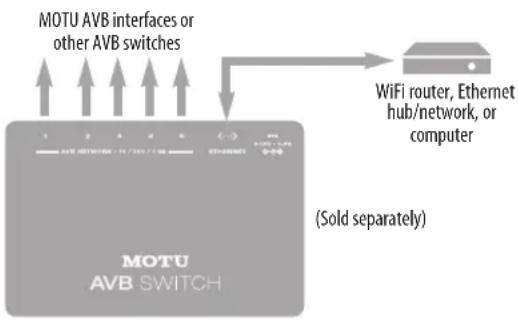

MOTU AVB Switch

1 2 3 1 2 3 4 5 AVB NETWORK • 10 / 100 / 1 Gb MOTU AVB SWITCH ETHERNET 8-18V • 0.5A E 1 Gb ACTIVITY 1 2 3 4 5 E ④

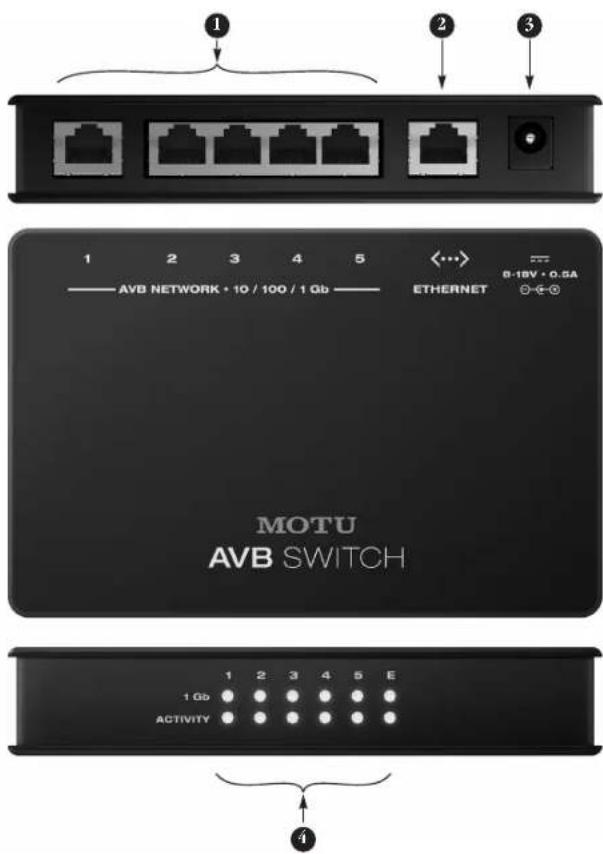

1. Use these 1 gigabit AVB NETWORK ports to connect any of the following:

■ MOTU AVB interfaces (1248, 8M and 16A)
■ Another MOTU AVB Switch (to extend the network)
■ A 3rd-party AVB switch
■ An Ethernet device, Wi-Fi router or Ethernet network
■ A third-party AVB device

1. This standard Ethernet port can be used to connect a standard 10/100/1Gb Ethernet device, Wi-Fi router or Ethernet network. DO NOT connect AVB devices to this port; it does not support AVB.
2. Connect the included 15V DC power supply here. Alternately, you can use any power supply that conforms to the indicated specifications.
3. The front panel LEDs indicate signal activity for each port. When a 1 gigabit device is connected to a port, the 1 Gb LED illuminates.

NOTE: When making network connections, use shielded CAT-5e or CAT-6 cables (a higher grade cable). For local connections, patch cables can be used, but will reduce the maximum total cable run length.

The MOTU AVB Switch provides deep functionality that goes beyond a standard Ethernet switch.

■ No configuration is necessary. The switch configures itself and manages all device discovery, configuration, and system resource allocation.
■ The switch establishes and maintains extremely accurate timing and synchronization among all connected devices.
■ The switch negotiates audio routing throughout the network and guarantees that audio integrity is maintained, regardless of external (non AVB) network traffic.
■ The switch consolidates audio, synchronization, and control together.

For more information, see chapter 10, "Networking" (page 101).

MOTU Pro Audio Control Web App

OVERVIEW

MOTU Pro Audio Controls a web app that gives you complete control over your MOTU audio interface. If you have several MOTU AVB interfaces networked together, such as the 1248, 16A and 8M, you can control them all. If you are working with a large-scale network of many MOTU AVB interfaces, you can access and control any device on the network.

IT'S NOT ON YOUR HARD DRIVE

The MOTU Pro Audio Control web app is served from the MOTU interface hardware itself, therefore it is not an application on your computer's hard drive. Instead, access it from the MOTU Discovery app (in the Mac menu bar or Windows taskbar), the MOTU Pro Audio WebUI Setup shortcut (Windows only) or through your web browser.

USE YOUR FAVORITE WEB BROWSER

The MOTU Pro Audio Control web app runs in any modern web browser on any device connected to your MOTU interface, either directly or wirelessly through a WiFi network. You can use any device you wish: a desktop computer, laptop, iPad, tablet, iPhone or smart phone. If it can run a web browser, it can run the web app. You can use any browser you prefer: Chrome, Firefox, Safari, etc. The latest versions are strongly recommended.

CONTROL FROM MULTIPLE DEVICES

You can run the web app on multiple host devices simultaneously.

RUN THE INSTALLER, GET THE APP

Visit www.motu.com/avb to get the latest MOTU Pro Audio Installer and run it on your computer to install the MOTU Discovery app, MOTU Pro Audio WebUI Setupshortcut (Windows only) and other software elements. Visit the Apple App Store to install the discovery app on your iPad or iPhone.

MAKE HARDWARE AND NETWORK CONNECTIONS

Connect your MOTU interface to your computer or laptop with a Thunderbolt or USB cable. Make sure your iPad, iPhone, tablet or smartphone is connected to the same WiFi network as your computer or device. You can use any network connection scenario explained in “Setup for web app control” on page 45.

LAUNCHING THE WEB APP

To launch the web app, do any of the following:

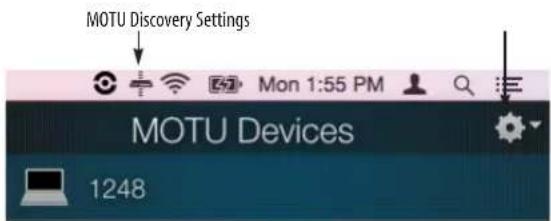

• Choose your interface from the MOTU Discovery app menu (in the Mac menu bar or Windows taskbar, as shown on page 7) or launch the MOTU Pro Audio WebUI Setupshortcut (Windows only).
  ■ From your iPad or iPhone, launch the MOTU Discovery app.
  ■ In your favorite web browser, type this URL: localhost:1280. (This URL requires a Thunderbolt or USB connection to your MOTU interface.)
• If the Ethernet port on your interface is connected to your Ethernet or Wi-Fi network, type the unit's IP address (see below) into your browser.

You should now see the MOTU Pro Audio Control web app in your browser, as shown on page 18. If not visit Appendix A, “Troubleshooting” (page 109).

Obtaining your MOTU device's IP address

On the front panel of the interface, push the ID knob or button once. The LCD now displays the unit's IP address, which should look something like this: "IP: 192.168.1.209".

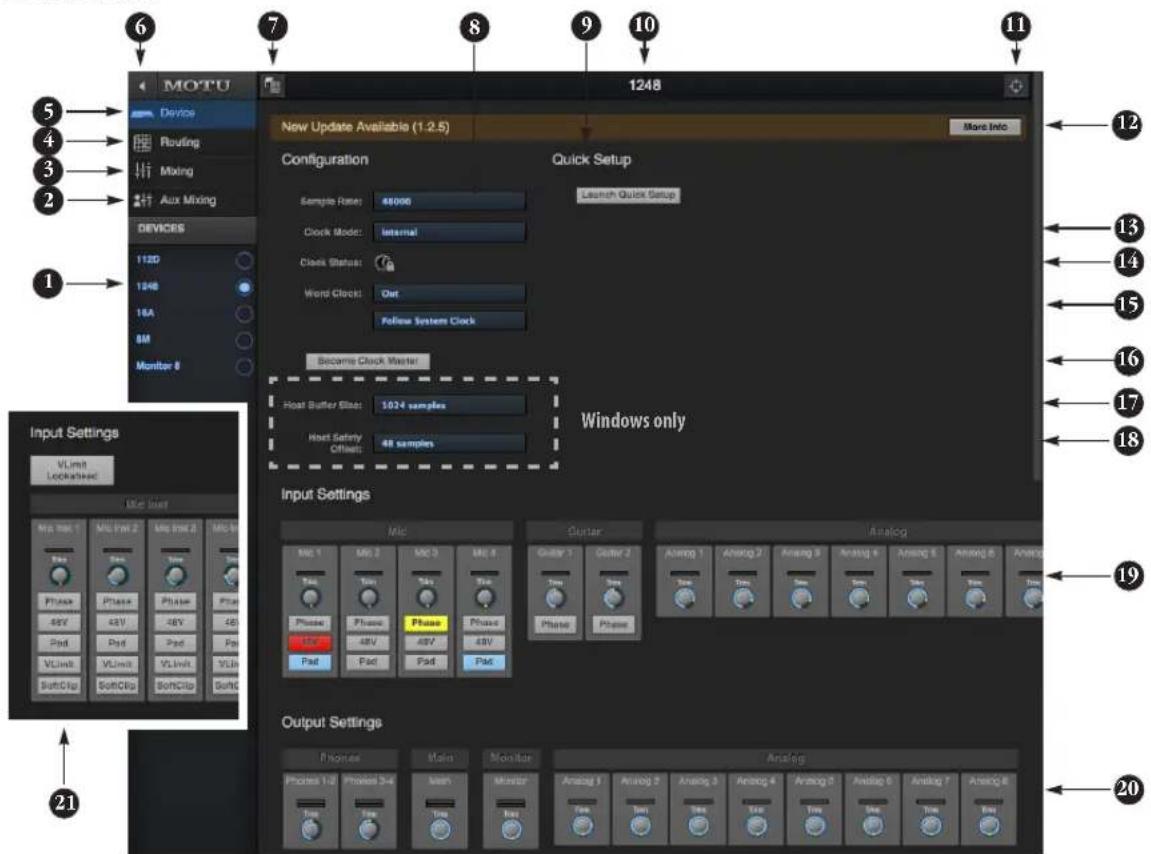

DEVICE TAB

MOTU Device Routing Mixing Aux Mixing 1248 New Update Available (1.2.5) More Info Configuration Quick Setup Sample Rate: 45000 Clock Mode: Internal Clock Status: Word Clock: Out Follow System Clock Become Clock Master Host Buffer Size: 5024 samples Host Safety Offset: 48 samples Windows only Input Settings VLimit LocksHAC File User Micro 1 Micro 2 Micro 3 Micro Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Micro 1 Micro 2 Micro 3 Micro 4 Micro 5 Micro 6 Micro 7 Micro 8 Micro 9 Micro 10 Micro 11 Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase Phase 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48W Pod VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit VLimit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V Limit V limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit v limit u Output Settings Phases Main Monitor Analog Photo Train Main Monitor Analog 1 Analog 2 Analog 3 Analog 4 Analog 5 Analog 6 Analog 7 Analog 8 Photo Train Main Monitor Analog 1 Analog 2 Analog 3 Analog 4 Analog 5 Analog 6 Analog 7 Analog 8 Photo Train Main Monitor Analog 1 Analog 2 Analog 3 Analog 4 Analog 5 Analog 6 Analog 7 Analog 8 Photo Train Main Monitor Analog 1 Analog 2 Analog 3 Analog 4 Analog 5 Analog 6 Analog 7 Analog 8 Photo Train Main Monitor Analog 1 Analog 2 Analog 3 Analog 4 Analog.5 Analog.7 Analog.8 Photo Train Main Monitor Analog 1 Analog.2 Analog.3 Analog.4 Analog.5 Analog.6 Analog.7 Analog.8 Photo Train Main Monitor Analog 1 Analog.2 Analog.3 Analog.4 Analog.5 Analog.6 Analog.7 Analog.8 Photo Train Main Monitor Analog 1 Analog.2 Analog.3 Analog.4 Analog.5 Analog.6 Analog.7 Analog.8 Photo Train Main Monitor Analog 1 Analog.2 Analog.3Analog.4Analog.5Analog.6Analog.7Analog.821

1. If you have two or more MOTU AVB interfaces, the Devices list lets you choose the one you are currently controlling with the web app.
2. The Aux Mixing tab lets you view each Aux bus in the mixer, by itself.
3. The Mixing tab gives you access to the mixing and DSP in the interface.
4. The Routing tab displays a grid matrix, where you can make direct connections between inputs and outputs, your computer, the mixer, and network audio streams, if networked interfaces are connected.
5. The Device tab has settings for the hardware itself, such as mic input phantom power and preamp gain.
6. Expands and collapses the sidebar.

7. Lets you create, save, recall and manage presets for your MOTU AVB interface. These presets capture and recall the complete state of the device (all settings in all tabs).

8. Choose the desired sample rate. Make sure your host audio software is set to the same rate.]

9. The Quick Setup button prompts factory presets used to configure your interface for a specific application. See Chapter 6 for details.
10. Click to rename the interface. To restore the default name, delete the current name.
11. Click this device ID button to identify the unit you are currently viewing and controlling with the web app software. The front panel LCD on the hardware itself will flash the name of the device, and its name will also flash in the Device list (1).

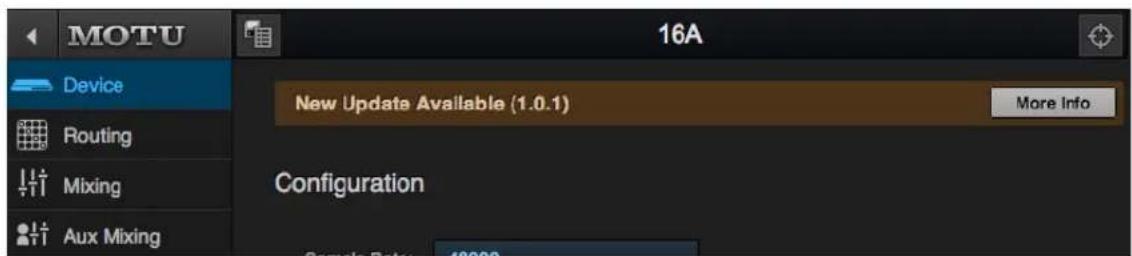

12. If an update is available for your device, and the computer you are viewing it from is connected to the internet, you'll be notified here. Click More Info to learn what's new and start the update process. Firmware updating requires a network connection. See Appendix D, "Updating Firmware" (page 121).

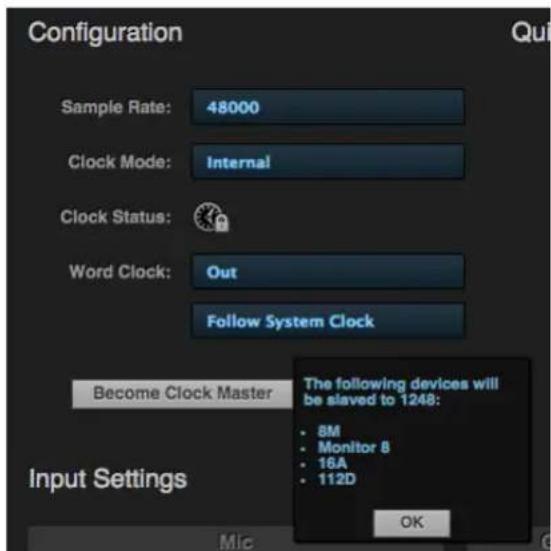

13. Choose the clock source from the Clock Mode menu. Your MOTU device will resolve its digital clock to this master source. See "Synchronization" on page 55 and other clock-related topics on pages 55-58.

14. Indicates that the current device (1) is successfully resolved to its chosen Clock Mode source (13). If it cannot lock for some reason, this icon flashes red. Check your chosen clock source, cables, etc.
15. The Word Clock output on the your MOTU interface can operate as an OUT or a THRU. In addition, at higher sample rates, it can either follow the system clock or operate at the corresponding 1x sample rate. For details, see "Daisy-chaining word clock" on page 56.

16. If you have multiple MOTU AVB interfaces, one of them may serve as a master clock source for the network. Click this button to choose the current interface (1) as the master clock source.

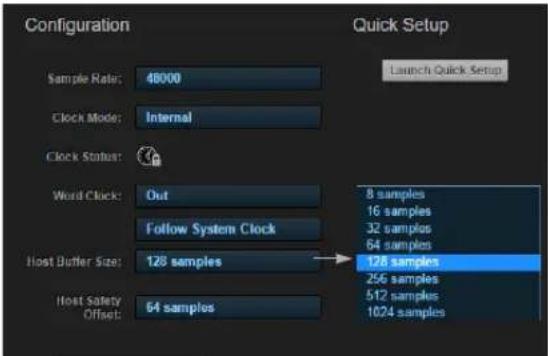

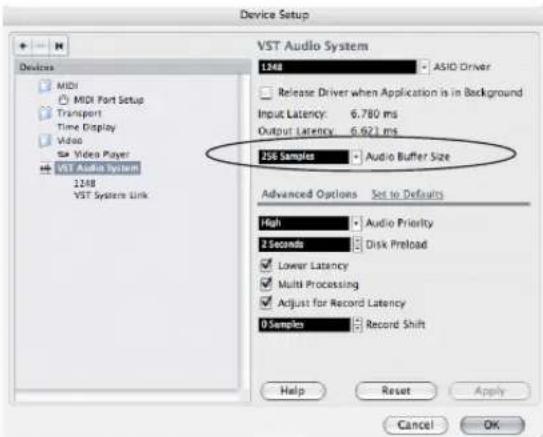

17. (Windows only) Choose the Host Buffer Size. Smaller values reduce latency but increase your computer's CPU load. See "Host Buffer Size" on page 36.

18. (Windows only) Choose a Host Safety Offset to fine tune host buffer latency. See "Host Safety Offset" on page 37.
19. The Input Settings section provides gain settings for inputs, plus phase invert for mic and guitar inputs, if any. You can also toggle the 48V phantom power and -20 dB pad for the mic inputs.
20. The Output Settings section lets you adjust the trim for any output or output pair which supports it. Phones, Main, and Monitor outputs provide full volume control. Analog outputs provide calibration control (-24 to 0 dB).
21. The 8M mic inputs have these additional input settings. See "8M mic/guitar input meters with V-Limit™ compressor" on page 65 and "Soft Clip™" on page 50.

DEVICE TAB (CONTINUED)

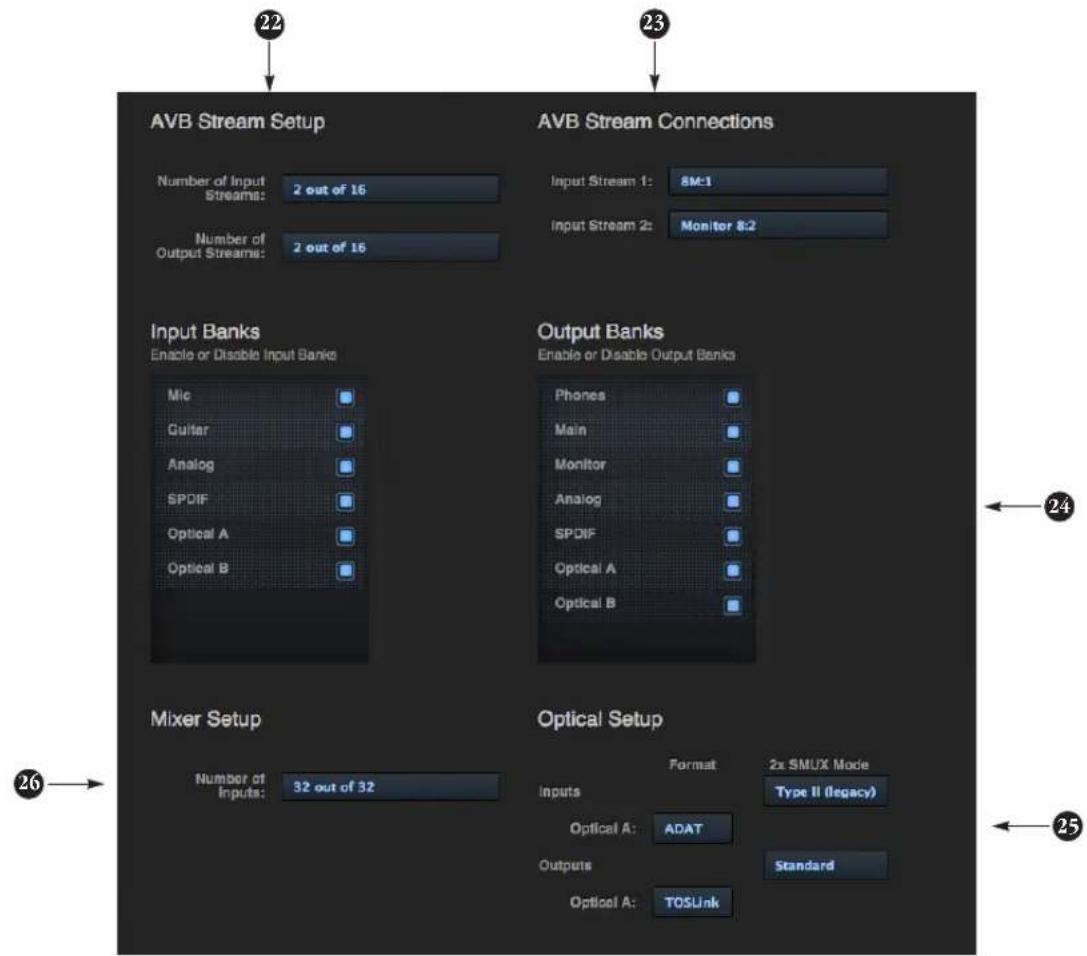

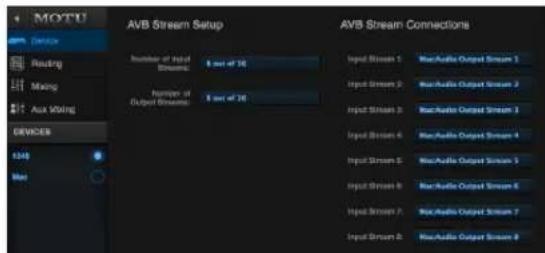

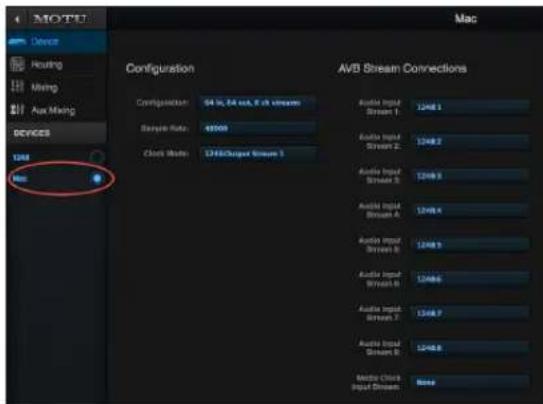

22 AVB Stream Setup Number of Input Streams: 2 out of 16 Number of Output Streams: 2 out of 16 AVB Stream Connections Input Stream 1: 8M:1 Input Stream 2: Monitor 8:2 Input Banks Enable or Disable Input Banks Mic Guitar Analog SPDIF Optical A Optical B Output Banks Enable or Disable Output Banks Phones Main Monitor Analog SPDIF Optical A Optical B Mixer Setup Number of Inputs: 32 out of 32 Optical Setup Format 2x SMUX Mode Type II (legacy) Inputs Optical A: ADAT Outputs Optical A: TOSLink Standard 24 25

Scroll down to view these additional Device tab settings.

1. AVB is IEEE's Audio Video Bridging Ethernet standard for high-bandwidth, low-latency audio streaming over Ethernet. If your 1248, 8M or 16A is connected to a 2nd MOTU AVB interface through its network port, or to an AVB switch for access to an extended AVB network, you can stream audio channels to other destinations on the network. See chapter 10, "Networking" (page 101).

2. If you have AVB network input streams enabled (22), connect them to the output streams of other devices on the network here. This is how you route audio from the other devices to your MOTU interface.

3. In the Input/Output Banks sections, you can disable banks that you are not using. This hides them from the routing tab and mixer to simplify operation and conserve DSP power.

4. In the Optical Setup section, you can choose between 8-channel ADAT or stereo TOSLink formats for bank A input and output, independently. At 88.2 or 96 kHz, the ADAT setting supports 4-channel SMUX format. See "Optical" on page 50.

5. The digital mixer in your MOTU AVB interface supports up to 48 channels at 44.1 or 48kHz . At higher sample rates, the maximum number of supported channels is lower, due to finite DSP resources. If you don't need 48 inputs (or the maximum available), you can lower the number here to simplify mixer and routing operation and conserve DSP bandwidth for effects processing.

DEVICE TAB (CONTINUED)

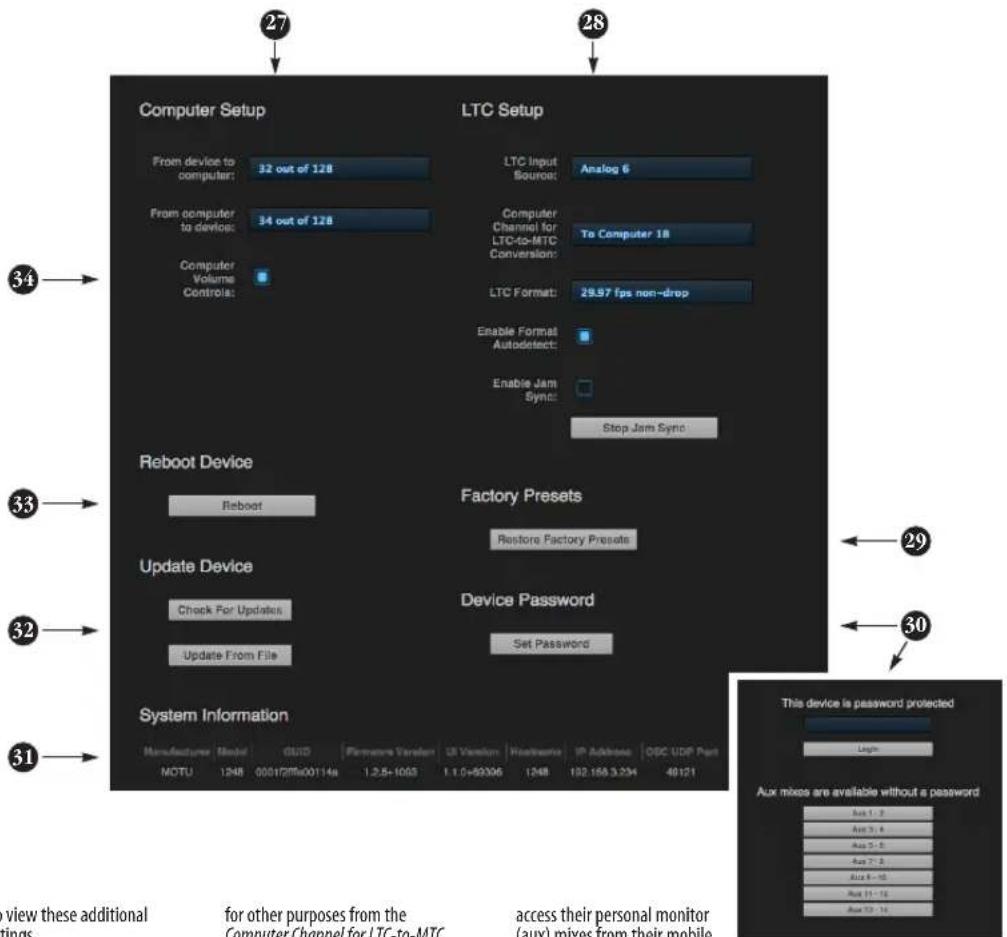

27 28 Computer Setup LTC Setup From device to computer: 32 out of 128 From computer to devices: 34 out of 128 Computer Volume Controls: LTC Input Source: Analog 6 Computer Channel for LTD-to-MTC Conversion: To Computer 18 LTC Format: 29.97 fps non-drop Enable Format Autodetect: Enable Jam Sync: Stop Jam Sync: 34 33 Reboot Device Reboot Factory Presets Restore Factory Presets Update Device Check For Updates Update From File Device Password Set Password 32 31 System Information Manufacturer Model OUDI Firmware Version UR Version Hostswana IP Address OBC UDP Part MOTU 1248 0001720000114s 1.2.5-1005 1.1.0+9306 1248 192.158.3.234 40121 This device is password protected Login Aux mixes are available without a password Aux 1 - 2 Aux 5 - 4 Aux 5 - 5 Aux 7 - 5 Aux 8 - 10 Aux 11 - 12 Aux 12 - 14 29 30 review these additional things for other purposes from the Computer Channel for LTC-to-MTC access their personal monitor (aux) mixes from their mobile

Scroll down to view these additional Device tab settings.

1. In the Computer Setup section, you can specify how many audio channels you would like to be able to stream to and from your computer, up to 64 channels each way, simultaneously, over USB or 128 over Thunderbolt. Map them as desired in the Routing tab (page 21).

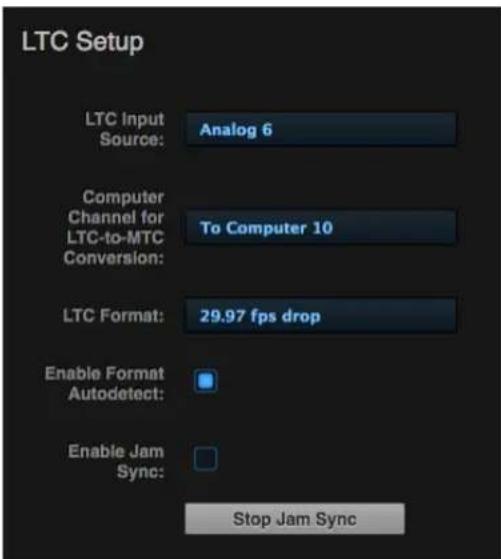

2. Your MOTU interface can resolve to SMPTE time code, also referred to as LTC (Longitudinal Time Code), by choosing LTC from the Clock Mode menu (item 13 on page 18). From the LTC Input Source menu (28 above), choose the analog or digital input that is receiving the time code. If you would also like to send time code (LTC) to the computer, where it will be converted to MIDI Time Code (MTC) for resolving your DAW or other software to MTC via OS X Core Audio (a Mac-only feature), choose an audio channel you are not using

for other purposes from the Computer Channel for LTC-to-MTC Conversion menu; otherwise, leave it set to None. Choose the desired frame format, or use the Enable Format Autodetect to automatically detect the frame format of the incoming time code. When Enable Jam Sync is turned on, your interface will continue to operate under its own clock and continue LTC-to-MTC conversion, even after it stops receiving time code. Click Stop Jam Sync to exit this mode. For further details about time code sync, see "Syncing to SMPTE time code (LTC)" on page 57 and "LTC-to-MTC conversion" on page 76.

1. Use Restore Factory Presets to restore the factory presets.
2. Use Set Password to password-protect the interface on the network. All settings are blocked, except for aux bus mixing, as shown above (30). This allows musicians to

access their personal monitor (aux) mixes from their mobile devices, while all other device settings remain blocked. To clear the password, log in and then click Clear Password. If you forget the password, you can clear it in the Settings menu in the front panel LCD (see page 67) with either the Clear Password setting or by doing a factory reset with the Factory Default setting.

1. The System Information section displays information about your MOTU device, including the firmware version and network IP address.

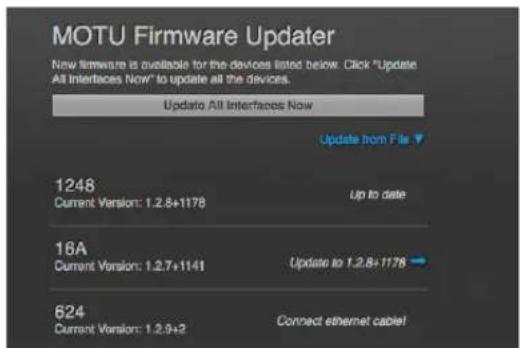

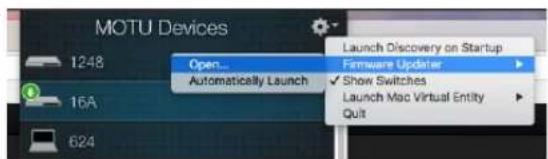

2. Use these buttons to manually check for and install updates for your MOTU AVB device. For complete details, see Appendix D, "Updating Firmware" (page 121). Updating from a file can be done offline from your computer, using an update you've obtained through MOTU's

web site or tech support department. The Check For Updates button requires that the computer (or device) you are using to view your MOTU AVB interface is connected to the internet through a local network or WiFi.

1. Click Reboot to restart the interface.
2. When the Computer Volume Controls option is enabled (a Mac only feature), the Audio MIDI Setup utility in OS X provides volume control for each output channel to your MOTU audio interface. In addition, the volume controls for your Mac (on your computer keyboard) will control the channels you've designated for computer output in Audio MIDI Setup, if any. Be careful when toggling this setting because sudden changes in your computer volume can result.

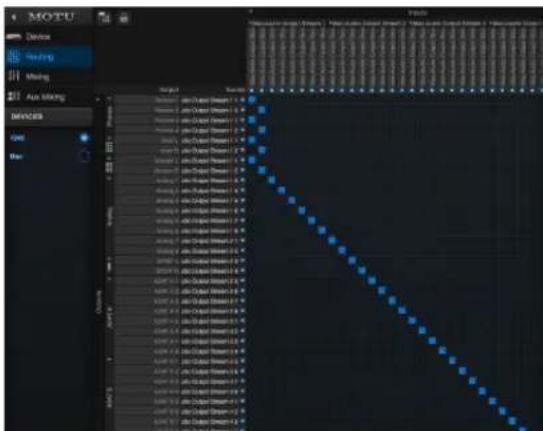

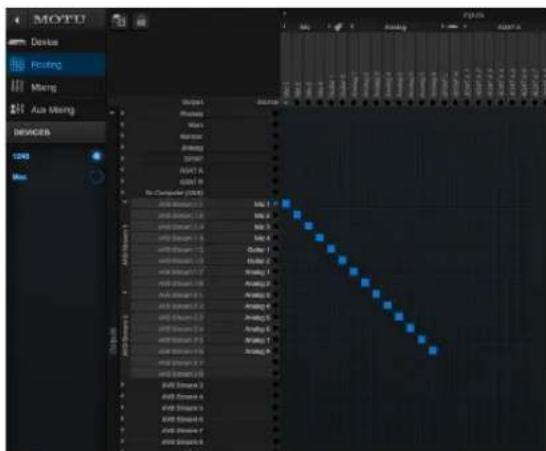

ROUTING TAB

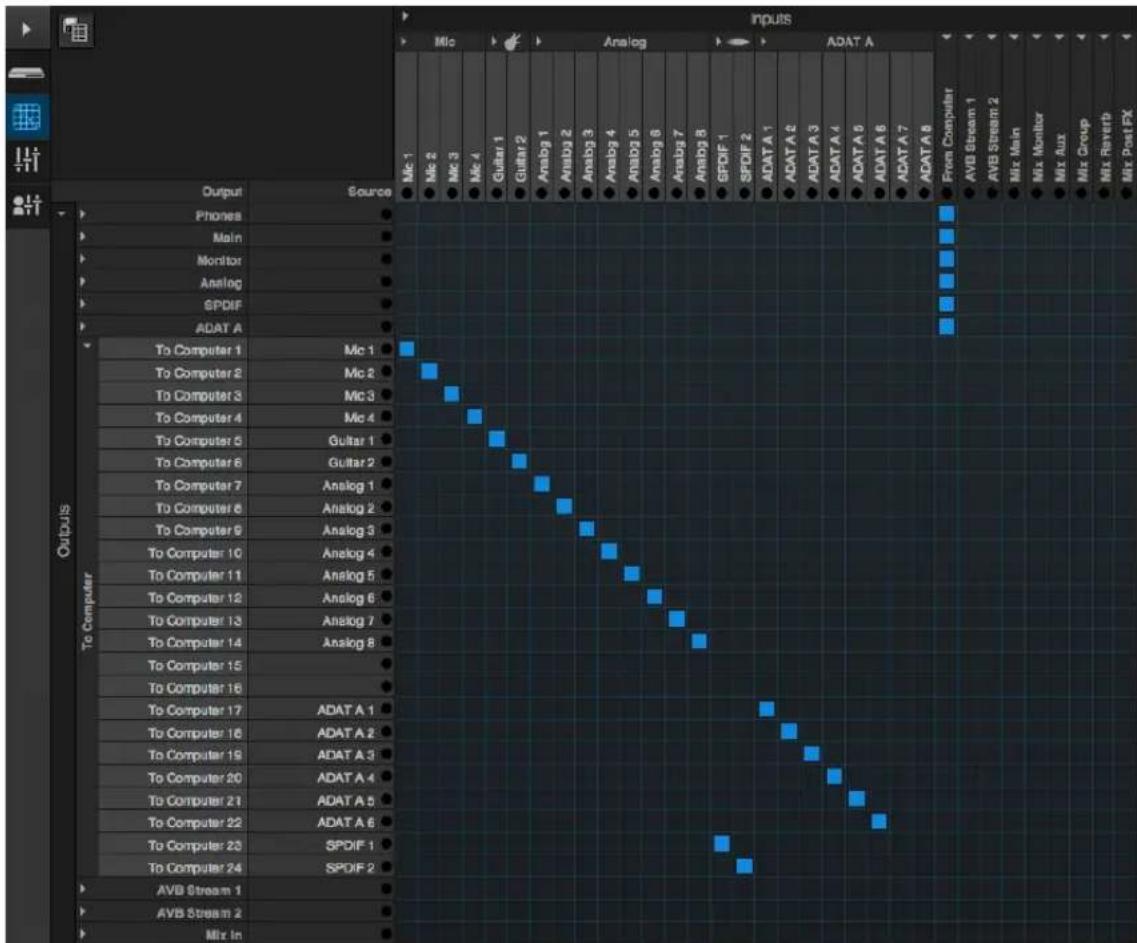

4 5 6 7 8 9 10 11 3 2 1 Output Source Mlc Analog Mlc 1 Mlc 2 Mlc 3 Mlc 4 Guitar 1 Guitar 2 Analog 1 Analog 2 Analog 3 Analog 4 Analog 5 Analog 6 Analog 7 Analog 8 SPOF 1 SPOF 2 ADAT A ADAT B From Computer AVB Stream 1 AVB Stream 2 Mix Film Mix Monitor Mix Aux Mix Group Mix Review Mix Post FX 12 13 14 15 16 21 Phones 1 From Computer 1 Phones 2 From Computer 2 Phones 3 From Computer 1 Phones 4 From Computer 2 Main 1 From Computer 3 Main 2 From Computer 4 Monitor 1 From Computer 5 Monitor 2 From Computer 6 Analog 1 From Computer 7 Analog 2 From Computer 8 Analog 3 From Computer 7 Analog 4 From Computer 8 Analog 5 Analog 7 Analog 6 Analog 8 Analog 7 From Computer 11 Analog 8 From Computer 12 SPDIF 1 From Computer 17 SPDIF 2 From Computer 18 ADAT A ADAT B To Computer AVB Stream 1 AVB Stream 2 Mix In

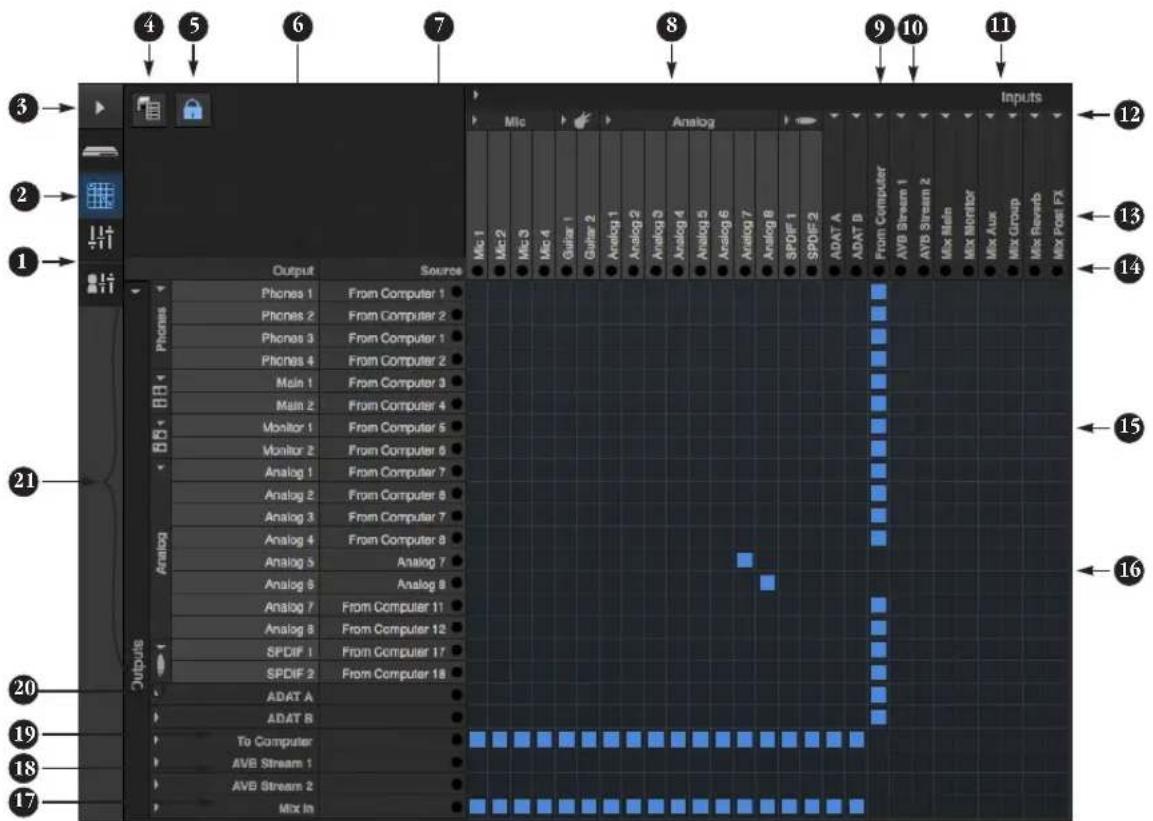

The Routing Tab lets you route inputs to outputs. Outputs are listed by row on the left; inputs are listed in columns across the top. Simply click in the grid to make a single connection. Click and drag to make multiple connections in one gesture. To route a single input to multiple outputs, make multiple connections vertically in the same column below the input. To mix multiple inputs to the same output, you'll need to use the mixer (page 22) and the Mix In bank in the routing tab (17).

1. In its collapsed form, the sidebar displays icons for each tab.
2. Click this icon to view the Routing tab, shown on this page.
3. Click here to show or hide the sidebar.
4. Create, save, recall and manage routing presets.
5. Locks the grid to prevent accidental changes. Unlock to make changes to the grid.

6. Outputs are listed in rows on the left.

7. When you make a connection, the source (input) signal is listed by name here in the Source column, just to the right of the output it is being routed to.

8. Inputs are listed in columns across the top of the grid, starting with the physical inputs on the hardware itself. In this example, each 1248 input bank is expanded to reveal individual input channels, except for the 8-channel ADAT A and B banks, which are currently collapsed.

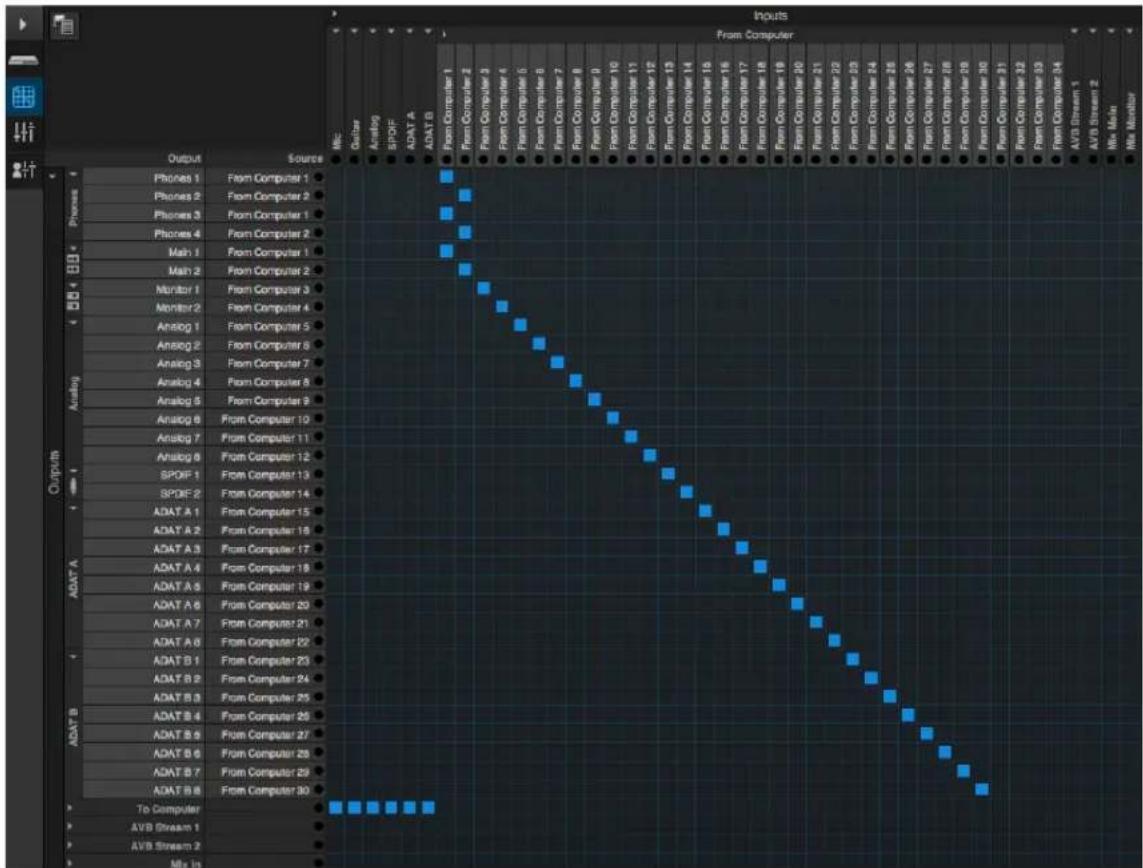

9. The From Computer input bank lets you route audio channels from your host audio software to any output, including AVB network streams or the mixer. In this example, the column is collapsed to save space. Use the Device tab to choose how many computer channels are available.
10. AVB streams are 8-channel banks that let you route audio to or from other devices on the AVB network (if any are connected) to local hardware outputs. Use the Device

tab (page 19) to configure how many AVB streams you wish to work with. If you aren't working with network audio, you can set the number of streams to zero.

1. These input streams are busses that originate from the mixer, which supply the main mix bus, monitor mix bus, seven stereo aux busses, three stereo group busses, a reverb return bus and postFX channel sends (for sending processed inputs to the computer or elsewhere). You can route these mixer busses to any outputs you wish (5), including physical outputs, host software on your computer, other devices on the AVB network, or even back in to the mixer (beware of feedback loops!)
2. Use these triangles to expand or collapse groups of inputs. For example, it might be convenient to collapse banks that you are not using at the moment.
3. Click a channel label to rename it.

4. Audio activity indicators.

5. Click the grid to make a connection. Click a connection to remove it. Click and drag to make or break multiple connections in one gesture.

6. In this example, analog inputs 7-8 are being routed directly to analog outputs 5-6. Also, hardware inputs and outputs are being routed to and from the computer channels, which are shown collapsed in this example.
7. The Mix In group lets you route audio to the 48-channel mixer.
8. These AVB output streams let you route any audio to other devices on the AVB network.
9. The To Computer output bank routes any input to host audio software running on your computer. Use the Device tab to choose how many computer channels are available.
10. Use these triangles to expand or collapse groups of outputs.
11. These are the physical outputs on the interface itself.

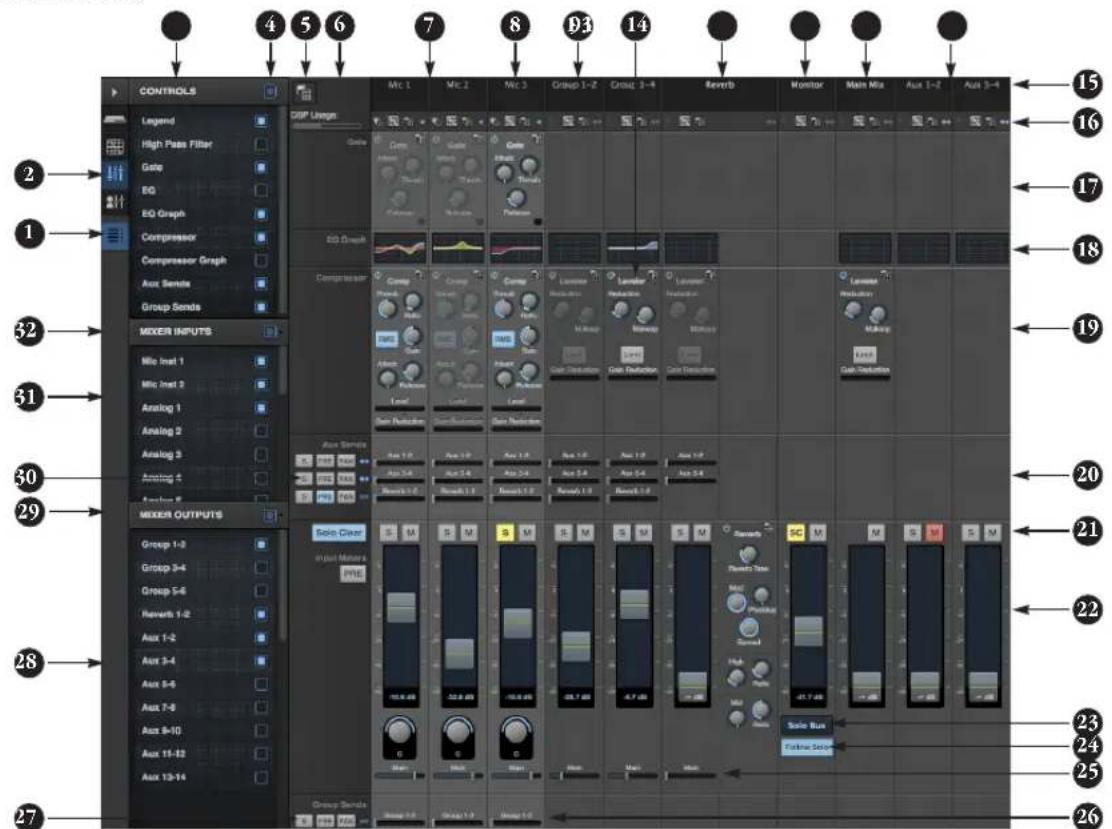

MIXING TAB

CONTROLS Legend High Pass Filter Gap EQ EQ Graph Compressor Compressor Graph Aux Sends Group Sends MIXER INPUTS Mix Inst 1 Mix Inst 2 Analog 1 Analog 2 Analog 3 Analog 4 Analog 5 MIXER OUTPUTS Group 1-0 Group 3-4 Group 5-6 Rewert 1-2 Aux 1-2 Aux 3-4 Aux 5-6 Aux 7-8 Aux 9-10 Aux 11-12 Aux 13-14 Grip Usage: Grid Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip Grip

The Mixing tab gives you full access to the 48-channel mixer, which provides a main mix bus, monitor bus, three group busses, seven aux busses, and a dedicated reverb bus. Use the Device tab to configure how many inputs you wish to work with (up to 48). Use the Routing tab (page 21) to route channels to the mixer inputs. Channels can come from any source, such as the physical inputs on the interface or channels from the computer or AVB network.

1. Shows and hides the Mixer Setup sidebar (3), which lets you show and hide channels, channel strip settings, effects, and the Legend (6).
2. The Mixing tab selects the mixer.
3. Use the Mixer Setup sidebar to show and hide elements in the mixer.
4. Shows and hides all elements in the section with one click.
5. Create, save, recall and manage mixer presets.
6. This column is the Legend. It provides labels and controls for channel strip sections. The menu at

the top lets you create, name, save and manage entire mixer presets.

1. Mixer input channels.
2. This input channel has its Gate and Compressor enabled. Disabled effects are grayed out.
3. This is Group bus 1-2. You can send inputs to this group with their Group send fader (26). Groups are sent to the Main Mix with its Main send fader (25) or aux busses (20).

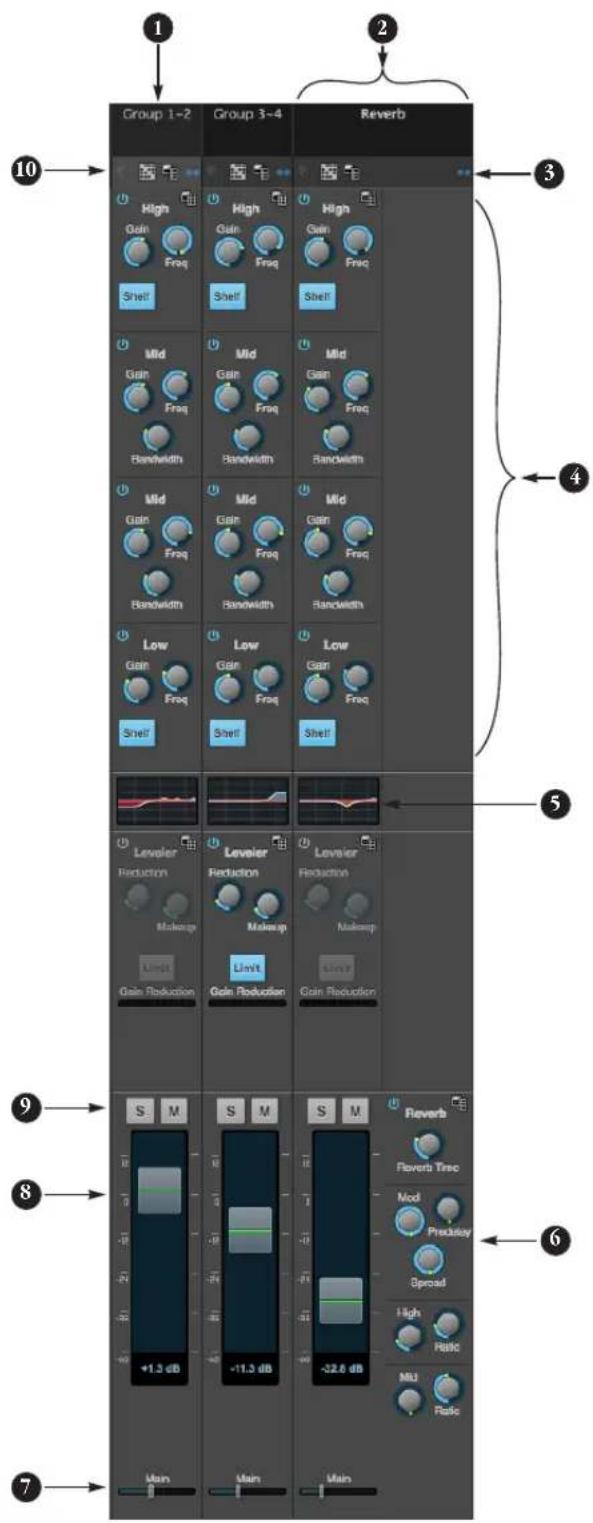

4. Group buses, the main mix bus, and the reverb return bus are equipped with the Leveler, a vintage compressor modeled after the Teletronix LA-2A leveling amplifier.
5. The reverb channel strip controls the reverb processor. Use the reverb send on inputs or groups to route them to the reverb bus, which can then be mixed in with the main mix or aux busses. Disable the reverb processor to use it as an extra group.

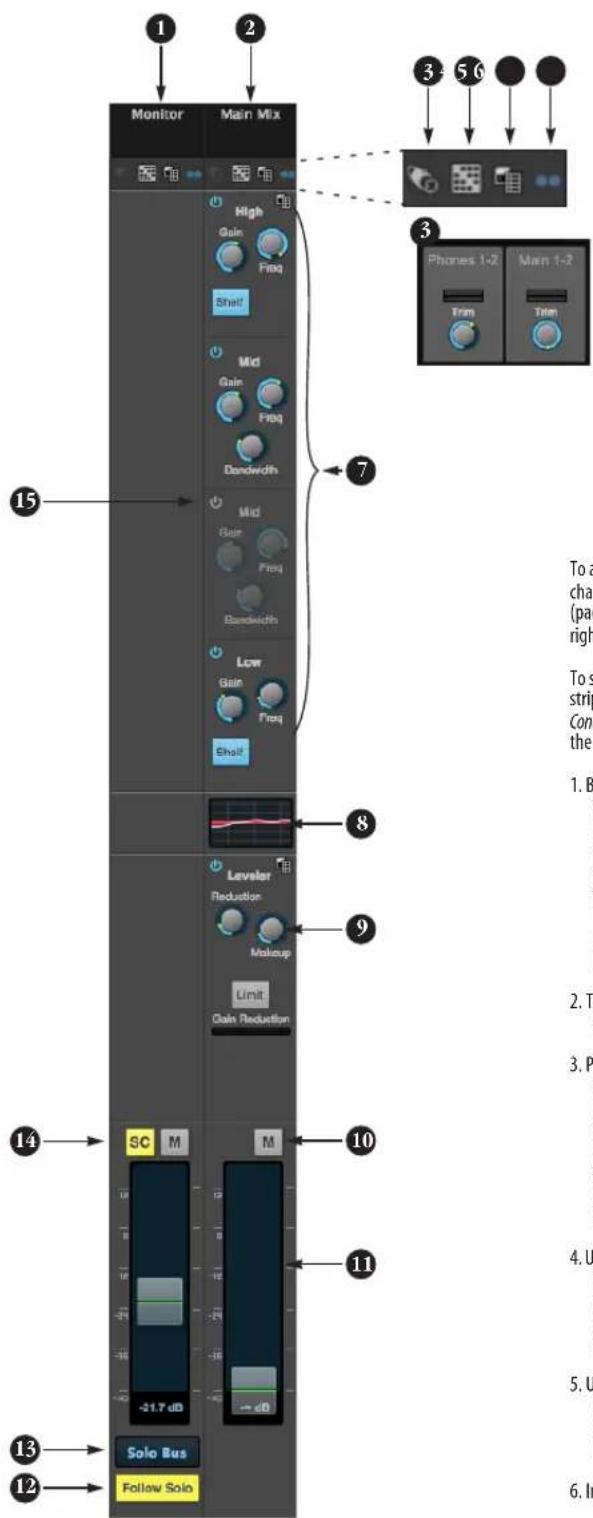

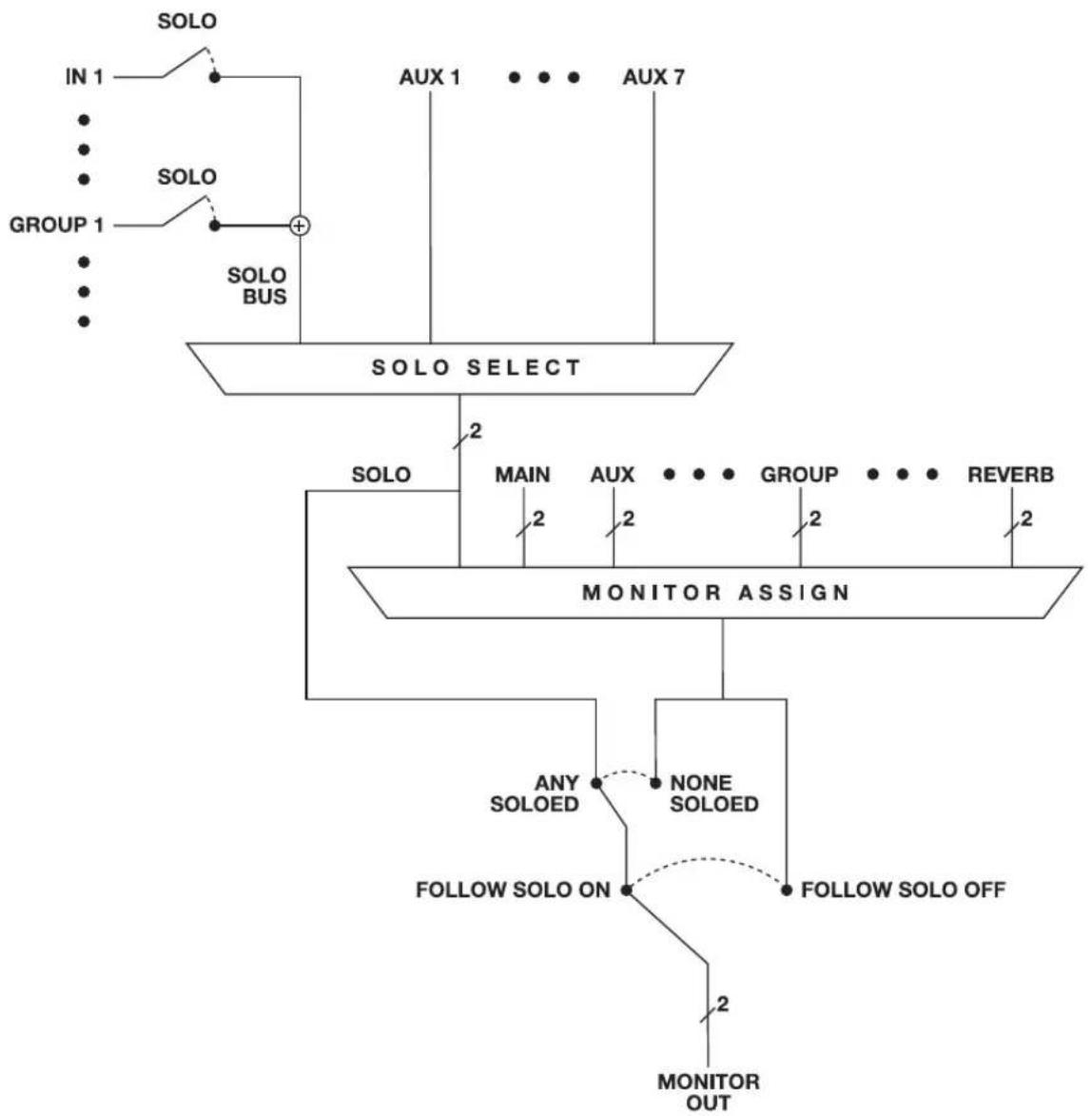

6. The Monitor Bus can mirror the output of any other bus, or it can act as a separate Solo bus. See page 25.

7. The Main Mix bus is the master fader for the entire mixer. You can add EQ and Leveler compression.

8. You can adjust Aux bus output levels here, or in the Aux Mixing tab shown on page 23.
9. Click a name to change it, except for the Main Mix, Monitor, and Reverb busses, which cannot be changed.
10. Stereo toggle to switch channel pairs between mono or stereo. Use the other menus to manage channel strip presets and to choose audio sources and destinations for mixer inputs and bus outputs.
11. Gate processing for inputs.

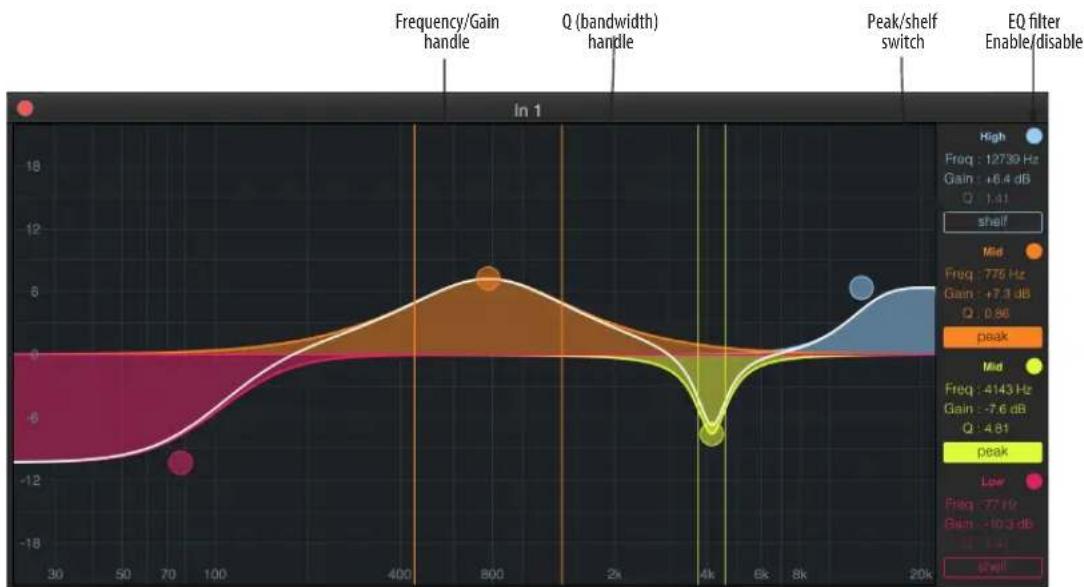

12. Click the thumbnail EQ graph to open the full-size, editable EQ graph (Figure 8-4 on page 67).

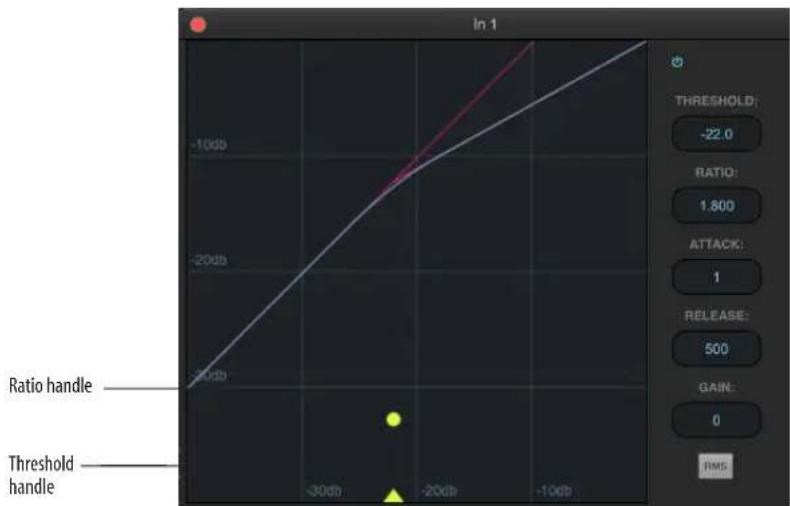

13. The Dynamics section provides a conventional compressor for inputs and the Leveler for output busses.

14. Reverb and aux sends.

15. Solo and mute. On the Monitor bus, the SC button clears all solos.

16. Channel faders.
17. Choose the source for the Monitor bus from this menu. It can mirror any output bus or the Solo Bus.
18. When Follow Solo is enabled, the Monitor bus temporarily switches to the solo bus when any channel is soloed.
19. Main Mix sends.
20. Group sends.
21. 'S' lets you solo the group. 'PRE' toggles the sends between pre- and post-fader routing, i.e. before or after the channel fader.
22. Show and hide output busses here.
23. Show/hide all busses with one click.
24. Same as (27) above.
25. Show and hide inputs here.
26. Show/hide all inputs with one click.

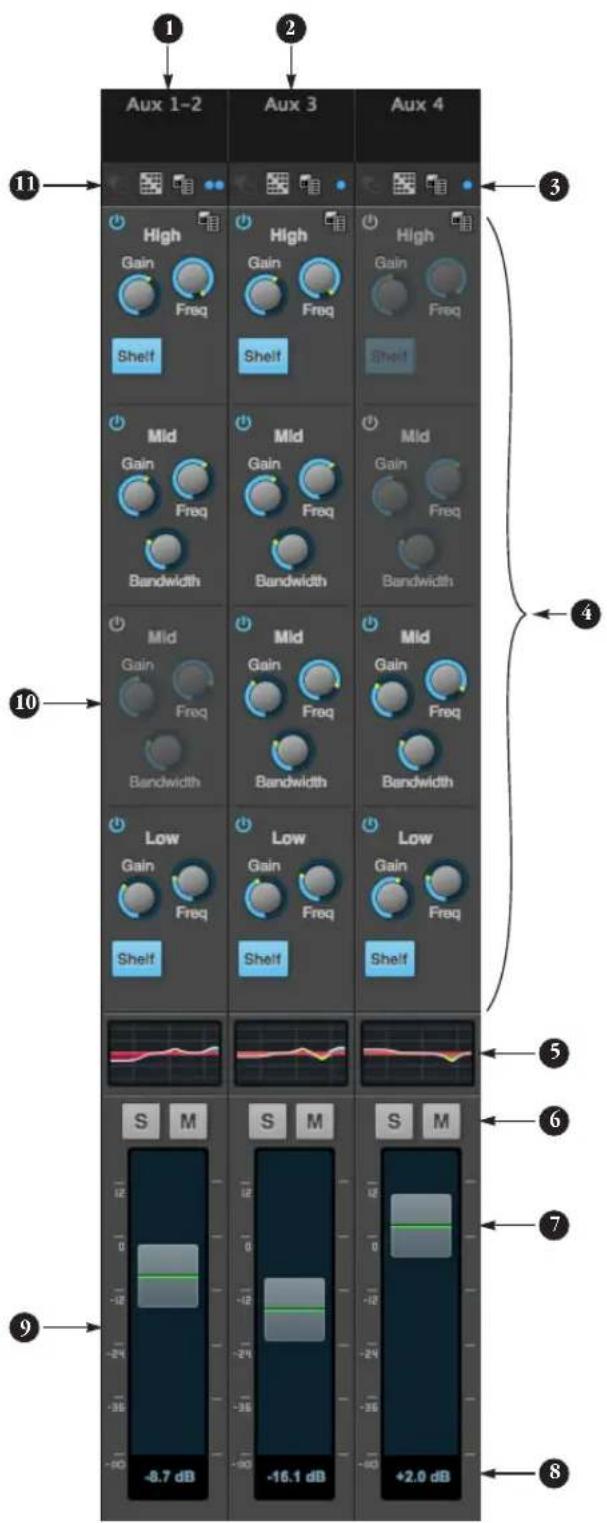

AUX MIXING TAB

AUX MIX TARGET Mic 1 Mic 2 Guitar 1 Guitar 2 Group 1-2 Group 3-4 Mixer INPUTS Mic 1 Mic 2 Guitar 1 Guitar 2 Analog 1 Analog 2 GROUPS Group 1-2 Group 3-4 Group 5-6 Reverb Pin PreGender View Personal Mix

The Aux Mixing tab provides quick access to your MOTU AVB interface's mix busses (aux busses, groups and reverb bus), viewed one at a time. Choose a bus in the Aux Mix Target section and then use the faders to directly mix the send levels from all mixer inputs, groups, and the reverb bus.

1. Shows and hides the Mixer Setup sidebar (3), which lets you show and hide channels.

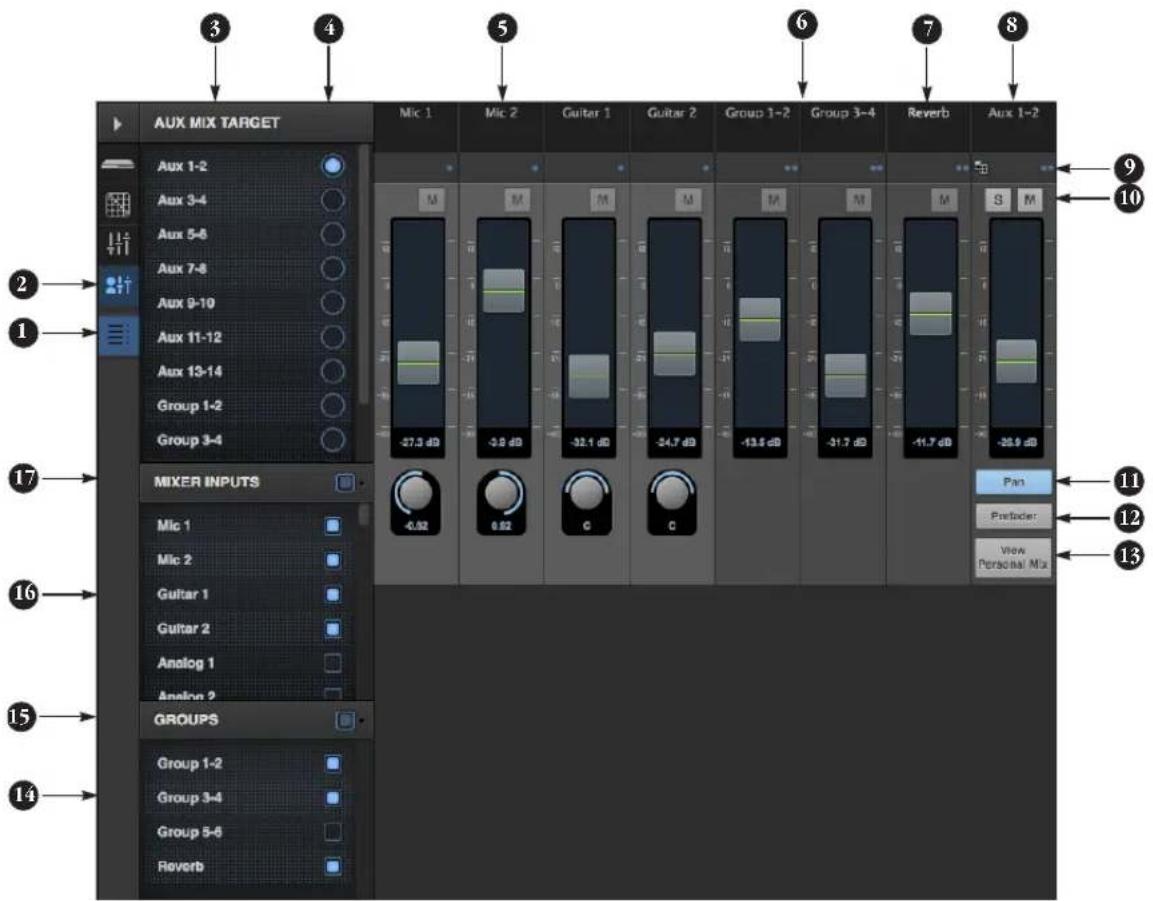

2. The Aux Mixing tab (shown on this page) gives you access to the Aux busses and groups in the mixer.

3. Use the Aux Mix Target sidebar to control which aux bus or group you are currently viewing. You can also show/hide inputs and group sends.

4. Click the aux bus or group you wish to view in the window. In this example, Aux bus 1-2 is being displayed.

5. These are mixer inputs (aux sends from each mixer channel). To include an input in the aux bus mix, simply bring up its fader.
6. These are group bus faders.
7. This is the mixer's reverb bus fader.
8. This is the master fader for the current aux bus being viewed (4).

9. Indicates if the input or group is stereo or mono. This indicator is for display purposes only. To toggle between mono and stereo operation, use the toggle switch in the Mixing tab (item #16 on page 22).

10. Solo and mute for the aux bus master fader. The mute buttons for the input channels and other buses are for display purposes only, so that you can see if they are muted or not (in the mixer).

11. Shows and hides the pan controls for aux bus inputs.
12. When Prefader is enabled, all send levels to the aux bus are independent of the main fader for each channel. In other words, changing an individual channel's main fader in the Mixing tab won't affect its send level to the aux bus.

13. Click the View Personal Mix button to open a new web page that displays only that specific Aux Mix or Group.

14. Show and hide mix groups and the reverb bus here.

15. Use the Groups button here to show or hide all groups with one click. Drag this section divider vertically to resize the list.
16. Show and hide mixer inputs (channel sends) here.
17. Show and hide all mixer inputs with one click here. Drag this section divider vertically to resize the list.

MIXER INPUT CHANNEL STRIPS

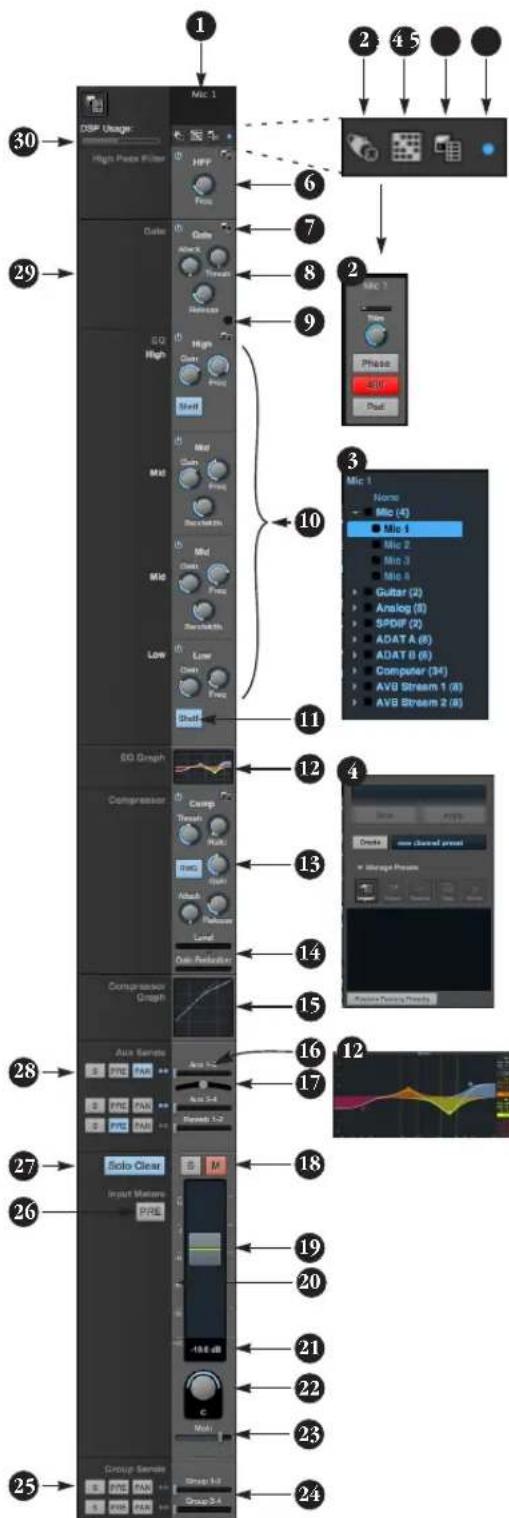

1 2 4 5 30 High Power Filter HPF Push 6 29 Cutout Close Flush Remove High Close Push Push 10 Mio Clush Push Back/Left Mid Clush Push Mio Low Lower Close Push Shelf 11 SD Graph Compressor Casp Throat Push Hot Albush Pakasson Level One Retrolator 12 4 Concrete Closed press Storage Preset Continuous Press 13 14 15 16 17 18 28 Auto Serents Auto 3-4 Auto 3-4 Flashbox 1-2 27 Solo Clear Input Matens PRO -10.8 dB C 20 21 22 23 24 25 Group Sensor Group 1-4 Group 2-4

To access a mixer input channel strip, go to the Mixing tab (page 22), reveal the side bar (item #3 on page 22), and then show the input channel you want in the Mixer Inputs section (31).

To show and hide sections of the channel strip, such as EQ or the compressor, use the Controls section of the side bar (item #3 in the Mixing tab on page 22).

1. Click the input channel name to change it. Delete the current name to restore the default name.

2. Provides hardware settings for the input. For example, if the input is a mic input, you'll see settings for preamp gain, 48V phantom power and so on. If the channel has been assigned to an input on another AVB device on the audio network, you can use these settings to control it remotely.

3. Choose the source for the input channel. You can also make this setting directly on the Routing grid (page 21).

4. Create, name, save and recall channel strip presets.

5. Toggles the input between mono and a stereo pair.

6. High Pass Filter with cutoff frequency.

7. Each effect in the channel strip (High Pass Filter, Gate, EQ, etc.) has an on/off button on the left and a preset menu on the right, for managing presets that apply only to that processing module. For example, you can create your own EQ presets for the EQ modules.

8. The Gate processor provides standard attack, threshold and release controls.

9. The Gate indicator turns red when the gate is engaged.

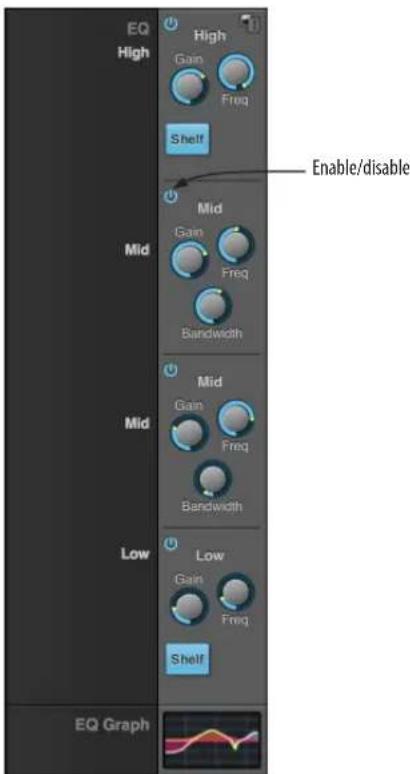

10. The EQ section provides four bands of parametric EQ, each with standard Gain, Frequency, and Bandwidth settings.

11. The High and Low EQ bands provide a Shelf filter button for standard high and low shelf filtering.

12. The thumbnail EQ Graph displays the currently enabled EQ filters, if any. Click it to open the full-size, editable EQ Graph (Figure 8-3 on page 79).

13. The Compressor provides standard controls for Threshold, Ratio, Attack, Release and Gain. Normally, the compressor operates in Peak mode, where signal peaks determine the input level. Engage the RMS button to uses RMS values (a computational method for determining overall loudness) to measure the input level.

14. Input level and gain reduction meters for the compressor.

15. The thumbnail Compressor Graph provides a graphic representation of the compressor, when enabled. Click it to open the full-size, editable Compressor Graph (Figure 8-5 on page 80).

16. Aux 1-2 send.

17. Pan for the Aux 1-2 send. This is enabled in the Aux mix tab (item #11 on page 23).

18. Solo/Mute. Mute affects all sends as well as the main channel. Pre-fader sends are not affected by Mute.

19. Move the fader to adjust level. Double-click to return to zero (unity gain) or -∞.

20. Click the dB scale numbers to make the fader jump exactly to that level. Click and drag horizontally to jump consecutive faders to the same level.

21. Click to type in an exact dB level.

22. Channel pan. For mono inputs, double-click to center.

23. Main Mix Slider is used to feed signal to the Main Mix. Slider is set to 0 dB by default, so all channel strips are pre-routed to the Main Mix bus. If a channel is being sent to a Group (which will eventually be fed to the Main Mix), drag the slider to -∞ so it is not sent to Main Mix directly.

24. Group sends.

25. 'S' lets you solo the group. 'PRE' toggles the sends between pre- and post-fader routing, i.e. before or after the channel fader.

26. The input level meter (behind the fader handle, 19) can display either pre- or post-fader levels. Toggle here.

27. Clears all solos.

28. 'S' lets you solo the Aux bus. 'PRE' toggles the sends between pre- and post-fader routing, i.e. before or after the channel fader. The dots let you toggle the Aux bus between mono and stereo.

29. This side bar, with the section labels in it, can be shown or hidden using the Legend switch in the Controls section of the side bar (item #3 in the Mixing tab on page 22).

30. Shows how much DSP power is being used by the mixer hardware. To free up DSP bandwidth, try reducing the number of mixer ins, disabling channel effects, reverb, etc. See "DSP Usage" on page 83 for more info.

MAIN MIX AND MONITOR CHANNEL STRIPS

Monitor Main Mix High Gain Freq Shelf Mid Gain Freq Bandwidth Mid Gain Freq Bandwidth Low Gain Freq Shelf Laveler Reduction Makeup Limit Gain Reduction SC M M -21.7 dB -40 Solo Bus Follow Solo To a char (page right) To s strip Conl the 1. B 2. Tl 3. P 4. U 5. U 6. In

Main None + Phones (2) ● Phones 1-2 + Phones 3-4 - Main (1) + Main 1-2 + Monitor (1) + Analog (4) + Analog 1-2 + Analog 3-4 + Analog 5-6 + Analog 7-8 + SPOFIF (1) + SPOFIF 1-2

5 Save Delete Create new channel press + Manage Presses Import Remove Remove Presses Remove Factory Presses

To access the Main Mix and Monitor channel strips, go to the Mixing tab (page 22) and scroll the display to the right, beyond the inputs and groups.

To show and hide sections of the channel strip, such as EQ or the Leveler, use the Controls section of the side bar (item #3 in the Mixing tab on page 22).

1. By default, the Monitor bus serves as a solo bus. However, it can be set to mirror the main mix bus, or any other aux bus, group, or the reverb bus, in addition to monitoring solo. Make this choice in the source menu (13). Use the Routing grid (page 21) to specify the output for the Monitor bus.
2. The Main Mix bus is the primary stereo mix.
3. Provides hardware settings for any assigned outputs that have them. For example, if the Main Out bus is assigned to the Phones and Main Outs (physical outputs on the interface), you'll see trim settings for both pairs. Grayed out if there are no settings for output.
4. Use this output assignment widget to choose the destination — or multiple destinations — for the bus. You can also make this setting directly on the Routing grid (page 21).
5. Use the preset menus to create save, recall, and otherwise manage channel strip presets for the Monitor bus and Main Mix bus.

6. Indicates that the bus is stereo.

7. The four-band parametric EQ for the Main Mix bus operates the same as described for input channels (items 10 and 11 on page 24), including High and Low Shelf filter options.

8. The thumbnail EQ Graph displays the currently enabled EQ filters, if any. Click it to open the full-size, editable EQ Graph (Figure 8-3 on page 79).
9. The Leveler provides specialized gain reduction modeled after the legendary Teletronix LA-2A Leveling Amplifier. For complete details, see "Leveler" on page 81.
10. Mutes for the Main Mix bus and Monitor bus.
11. Master faders for the Main Mix bus and Monitor bus. Use the same techniques described for input channel faders (items 19, 20 and 21 on page 24).
12. When Follow Solo is enabled, the Monitor bus switches to the solo bus when any channel is soloed. NOTE: if an aux bus is soloed, then the Monitor bus carries only the soloed aux bus (any current channel solos are excluded).
13. Choose the source for the Monitor bus from this menu. It can mirror the main mix, any aux bus, group, the reverb bus, or it can serve only as a Solo bus.
14. The SC button clears all solos.
15. This mid-band EQ is currently disabled (and therefore grayed out).

AUX BUS CHANNEL STRIPS

Aux 1-2 Aux 3 Aux 4 High Gain Freq Shelf High Gain Freq Shelf Mid Gain Freq Bandwidth Mid Gain Freq Bandwidth Mid Gain Freq Bandwidth Mid Gain Freq Bandwidth Low Gain Freq Shelf Low Gain Freq Shelf Low Gain Freq Shelf S M S M S M +2.0 dB -8.7 dB -16.1 dB

Aux busses can be used to create sub-mixes. An aux bus can be assigned to any output in the Routing grid (page 21).

To access an Aux bus channel strip, go to the Mixing tab (page 22), reveal the side bar (item #3 on page 22), and then show the aux busses you want in the Mixer Outputs section (28).

To show and hide the four-band EQ section of the channel strip, use the Controls section of the side bar (item #3 in the Mixing tab on page 22).

1. A stereo aux bus.
2. A mono aux bus.
3. Click this dot to toggle an aux bus between mono and stereo.
4. The four-band parametric EQ module for Aux busses operates the same as described for input channels (items 10 and 11 on page 24), including High and Low Shelf filter options.
5. The thumbnail EQ Graph displays the currently enabled EQ filters, if any. Click it to open the full-size, editable EQ Graph (Figure 8-3 on page 79).
6. Aux bus solo and mute.
7. Aux bus master fader.
8. Click to type specific value manually.
9. Click the dB scale numbers to make the fader jump exactly to that level. Click and drag horizontally to jump consecutive faders to the same level.
10. A disabled EQ band.
11. Use these menus (hardware settings, output assignment, and presets) in a similar fashion as described for the Main Out bus (items 3-5 on page 25).

GROUP AND REVERB CHANNEL STRIPS

Group 1-2 Group 3-4 Reverb High Gain Freq High Gain Freq High Gain Freq Shelf Shelf Mid Gain Freq Mid Gain Freq Mid Gain Freq Mid Gain Freq Mid Gain Freq Mid Gain Freq Mid Gain Freq Mid Gain Freq Mid Gain Freq Mid Gain Freq Mid Gain Freq Mid Gain Freq Mid Gain Freq Mid Gain Freq Mid Gain Freq Mid Gain Freq Mid Gain Freq Mid Reverb Trec Mod Predelay Spread High Basic MU Basic Main Main Main

Group busses can be used to create a mix sub-group, which is a set of inputs you wish to control together as a group. Groups differ from aux busses in that they have aux sends, a reverb send, as well as a main mix send. In addition, group busses are equipped with the Leveler.

The Reverb bus is a special group bus that provides a reverb processor. If you disable the reverb, the reverb bus functions as a (fourth) regular group bus.

To access the Group and Reverb bus channel strips, go to the Mixing tab (page 22), reveal the side bar (item #3 on page 22), and then show the desired Group busses or Reverb bus in the Mixer Outputs section (28).

To show and hide the four-band EQ section of the channel strip, use the Controls section of the side bar (item #3 in the Mixing tab on page 22).

1. A Group bus channel strip. Click the name to rename it. Delete the current name to return to its default.
2. The Reverb bus. If you disable the Reverb processor, it can be used as a fourth Group bus. The Reverb channel strip is twice as wide as other mixer channel strips to accommodate the Reverb processor controls.
3. Group busses and the Reverb bus are always stereo.
4. The four-band parametric EQ module for Group busses and the Reverb bus operates the same as described for input channels (items 10 and 11 on page 24), including High and Low Shelf filter options.
5. The thumbnail EQ Graph displays the currently enabled EQ filters, if any. Click it to open the full-size, editable EQ Graph (Figure 8-3 on page 79).
6. The Reverb processor. For complete information, see "Reverb" on page 82.
7. Main Mix sends.
8. Master faders for the Group and Reverb busses.
9. Mute and Solo.
10. Use these menus (hardware settings, output assignment, and presets) in a similar fashion as described for the Main Out bus (items 3-5 on page 25).

CHAPTER 1 About Your MOTU AVB Audio Interface

The 1248, 8M, and 16A are hybrid Thunderbolt™/USB2 audio interfaces with 48-channel digital mixers and AVB Ethernet networking capability. They can operate as audio interfaces for a computer, as stand-alone digital mixers, as gateways to an expanded studio system, as components of an extended AVB audio network, or as capable hybrid devices performing all of these roles simultaneously.

Together, they are designed to be a central component of a modern, high performance recording studio or live mixing platform. The following sections provide a brief overview of their main features and characteristics.

State-of-the-art A/D and D/A conversion

The analog section of each interface employs state-of-the-art 24-bit DACs and ADCs, which deliver analog recording and playback with remarkably high dynamic range at sample rates from 44.1 to 192 kHz.

Complementary I/O configurations

Each interface delivers an exceptional array of analog and digital audio. In addition, the interfaces are designed to complement one another in terms of delivering a wide range of I/O options; you can mix and match several interfaces and operate them as a unified I/O and mixing system. The following sections provide a bird's-eye glance of the I/O configurations offered by each interface in the MOTU AVB family.

Each interface provides a variety of analog and digital interconnects, all active simultaneously, designed to provide everything you need for a well-equipped recording studio.

1248

66 simultaneous audio channels

Connection Input Output

Quarter-inch analog on bal/unbal TRS 8 12
Mic inputs with individual preamps on XLR 4 -
Hi-Z guitar inputs 2 -
Headphone output - 2 x stereo
ADAT optical digital (at 44.1 or 48 kHz) 16	16
RCA S/PDIF digital up to 96 kHz with SRC	stereo	stereo
Total	32	34

8M

50 simultaneous audio channels

Connection Input Output

Quarter-inch analog on bal/unbal TRS - 8
Mic/guitar inputs on combo XLR/TRS 8 -
Headphone output - stereo
ADAT optical digital (at 44.1 or 48 kHz) 16	16
Total	24	26

16A

64 simultaneous audio channels

Connection Input Output

Quarter-inch analog on bal/unbal TRS 16	16
ADAT optical digital (at 44.1 or 48 kHz) 16	16
Total	32	32

Network I/O

Each interface is also capable of handling 128 channels of network audio input and output for an additional 256 simultaneous audio channels.

Other MOTU AVB interfaces

The 1248, 8M and 16A are part of a larger family of audio interfaces, summarized below, with complementary I/O configurations.

24Ai

72 simultaneous audio channels

Connection Input Output

Balanced analog on 3x D-sub or 6x Phoenix 24 -

ADAT optical digital (at 44.1 or 48 kHz) 24 24

Total 48 24

24Ao

72 simultaneous audio channels

Connection Input Output

Balanced analog on 3x D-sub or 6x Phoenix - 24

ADAT optical digital (at 44.1 or 48 kHz) 24 24

Total 24 48

Monitor 8

40 simultaneous audio channels (54 connections)

Connection Input Output

Quarter-inch analog on bal/unbal TRS 8	10
XLR main out - 2
Summed mono quarter-inch out - 6
Headphone outs - 12
ADAT optical digital (at 44.1 or 48 kHz) 16 -
Total I/O connections	24 30
Total I/O channels (discrete channels)	24 16

112D

224 simultaneous audio channels

Connection Input Output

ADAT optical digital (up to 96 kHz)	24	24
AES/EBU on 8-ch DB25 D-sub	24 24
MADI on coaxial BNC	64 64
Total I/O connections	112	112

Stage-B16

28 simultaneous audio channels (two rack-space enclosure)

Connection Input Output

Mic inputs with individual preamps on XLR 16 -
Balanced analog on XLR	-8
AES/EBU digital - 4

Total 16 12

UltraLite AVB

36 simultaneous audio channels (half-rack enclosure)

Connection Input Output

Quarter-inch analog on bal/unbal TRS 6	8
Mic inputs with individual preamps on XLR 2		-
Hi-Z guitar inputs	2	-
Headphone output	-1 x stereo
ADAT optical digital (at 44.1 or 48 kHz) 8	8

Total 18 18

Universal connectivity

The 1248, 16A, and 8M can connect to a computer with Thunderbolt or high-speed USB 2.0 (which is compatible with USB 3.0). They are USB audio class-compliant, which means that they are iPad compatible (with a camera connection kit) and do not require driver installation for USB connection to a computer. Industry standard audio drivers for both Thunderbolt and USB operation provide universal compatibility with any audio software.

Alternately, the 1248, 16A, and 8M can be connected to the Ethernet port on a recent-generation Mac (any Mac with Thunderbolt on it) running Mac OS X El Capitan (10.11) or later for audio interface operation through AVB Ethernet.

On-board DSP with mixing and effects

Each interface is equipped with a powerful DSP engine that drives both an extensive routing matrix and a 48-input digital mixer with 12 stereo busses and effects. The mixer offers familiar operation modeled after large format mixing consoles.

32-bit floating point processing

All of the mixing and effects processing in the DSP engine is handled with 32-bit floating point calculations, to maintain and deliver virtually unlimited headroom and the utmost in sound quality.

Modeled vintage effects processing

Effects include “classic” reverb, compression modeled after the legendary Teletronix LA-2A compressor, and 4-band EQ modeled after British analog console EQs.

AVB/TSN system expansion and audio networking

AVBstands for the IEEE 802.1 Audio Video Bridging Ethernet standard for high-bandwidth, low-latency audio streaming over Ethernet. You may also hear AVB referred to as AVBTSNor simply TSN because the IEEE is in the process of renaming the standard to Time Sensitive Networking to accommodate the expanding scope of the specification to applications beyond audio and video.

The AVB Ethernet network port on each MOTU interface lets you add a second AVB-equipped MOTU interface using any standard CAT-5e Ethernet cable. You can network up to five MOTU interfaces together using a MOTU AVB Switch ^™ (sold separately), and then run them as a standalone network or as an extended bank of I/Os for your computer-based production system (or both). You can even connect multiple computers, each with full access to all devices on the network (including the other computers). With additional standard AVB switches (from MOTU or other brands) and standard Ethernet cabling, you can build an extensive AVB audio network. The entire network operates with near-zero network latency, even over very long cable runs. MOTU's AVB implementation allows you to stream hundreds of audio channels among devices and computers on the network with guaranteed Quality of Service (QoS), prioritizing audio streams over less important traffic.

Matrix routing and multing

Each MOTU interface provides completely flexible matrix-style audio routing and multing. You can route any analog or digital input, computer channel, or network stream to any other output, computer, or network device. You can also mult any single input to unlimited multiple output destinations.

256 channels of network audio I/O for your host computer

The 1248, 8M, and 16A interfaces let you stream up to 128 audio channels in and out, simultaneously, through their Thunderbolt connection to a host computer. Sources and destinations can include inputs and outputs on the device, inputs and outputs on other interfaces on the network, and even audio software apps running on other computers connected to other devices on the network.

Web app control

You can control your MOTU interface's on-board DSP, mixing, device settings, clock/sync settings and network audio routing from the MOTU Pro Audio Control web app software running in your favorite browser on a laptop, tablet or smart phone. Multiple devices can be used simultaneously on a shared Wi-Fi network to access any audio interface settings. Optional password protection prevents unauthorized access from the network.

Stand-alone mixing with wireless control

If you connect your MOTU interface to an Apple Airport or other WiFi router with a standard Ethernet cable, you can control its powerful mixing and DSP effects from your smart phone or tablet, without a computer — great for live sound mixing from your iPad, tablet, or other wireless device.

ADAT digital I/O

The 1248, 8M and 16A interfaces each provide two 8-channel banks of optical digital I/O. Connect outboard digital processors, digital mixers or other gear: 16 channels at 44.1/48 kHz or 8 channels at 88.2/96 kHz.

S/PDIF digital I/O with SRC

The 1248 provides S/PDIF digital input and output on standard RCA “coax” connectors. The input is equipped with Sample Rate Conversion (SRC), allowing you to input a digital signal running at a different sample rate than the 1248. See “S/PDIF with sample rate conversion” on page 51.

Word clock

Each MOTU interface supports standard word clock synchronization at any supported sample rate. When the interface is operating at 96 kHz, it can generate word clock output at either 96 or 48 kHz; the 1x equivalence is available as an option for word clock output when running at high sample rates (from 88.2 to 192 kHz). The word clock OUT port can alternately be used as a THRU port for word clock daisy-chaining. To configure, use the LCD menu to navigate to Settings -> Word Clock Thru Mode.

Comprehensive metering

The large backlit LCD displays all signal activity at a glance with detailed metering for all analog and digital I/O. You can access many hardware settings directly from the front panel.

Headphone outputs

The 1248 front panel provides two independent headphone jacks with separate volume controls. You can program the outputs to mirror another set of 1248 outputs or act as their own independent outputs. The 8M also offers a single headphone output.

Precision Digital Trim™

On each interface, all of the analog inputs are equipped with digitally controlled analog trims, adjustable in 1 dB increments. The input trims for mic inputs and guitar inputs can be adjusted from the knobs on the front panel. You can save your trim configurations as a preset for instant recall.

Rack mount or desktop operation

Each interface is housed in a sturdy, metal-alloy, 19-inch, rack-mountable unit. The rack mounting brackets can be removed using a 7/64" hex wrench for desktop operation.

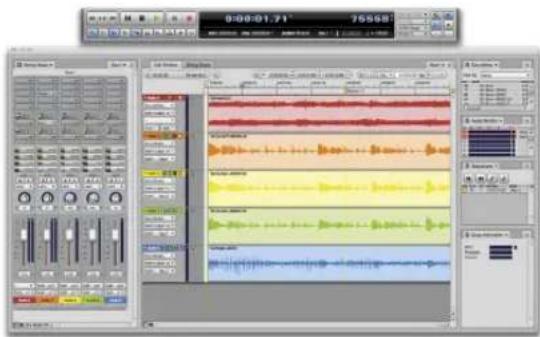

AudioDesk

AudioDesk is a full-featured audio workstation software package for Mac and Windows that is available as a free download for you as a 1248, 8M or 16A owner. Visit motu.com/avb to obtain your copy. AudioDesk provides multi-channel waveform editing, automated virtual mixing, graphic editing of ramp automation, real-time effects plug-ins with crossfades, support for many third-party audio plug-ins, sample-accurate editing and placement of audio, and more.

CHAPTER 2 Packing List and System Requirements

PACKING LIST

Your MOTU interface ships with the items listed below. If any of these items are not present in the box when you first open it, please immediately contact your dealer or MOTU.

■One audio interface
■One USB cable
■One power cord
■One manual
■ Product registration card

SYSTEM REQUIREMENTS

■ A 1 GHz Intel-based Mac or Pentium-based PC (or compatible). Faster CPUs are recommended for best performance.

■ 2 GB RAM; 4 GB or more recommended.

■ OS X 10.8 or later; Windows 7 or later; for operation as an AVB Ethernet audio interface, Mac OS X 10.11 or later is required, running on a recent-generation Mac (any Mac with a Thunderbolt port on it).

■ Available Thunderbolt or high-speed USB 2.0 (or 3.0) port

■ A large hard drive (preferably at least 500 GB)

PLEASE REGISTER TODAY!

Please register your MOTU interface today. There are two ways to register.

■ Visit www.motu.com/register

OR

■ Fill out and mail the included product registration card

As a registered user, you will be eligible to receive technical support and announcements about product enhancements as soon as they become available. Only registered users receive these special update notices, so please register today.

Thank you for taking the time to register your new MOTU products!

CHAPTER 3 Software Installation

OVERVIEW

USB 2.0 Audio class-compliant operation.... 35

Software installation.... 35

Audio drivers 36

MOTU Discovery app 37

MOTU Pro Audio WebUI Setup for Windows.... 37

AudioDesk workstation software 37

Working with host audio software 37

USB 2.0 AUDIO CLASS-COMPLIANT OPERATION

Your MOTU interface is a USB 2.0 audio class-compliant device. This means that you can connect it to your Mac (running OS X 10.8 or higher) with a USB cable and use it without installing any software drivers. The Mac recognizes your MOTU interface as a USB audio device and makes its inputs and outputs available to your host audio software. Basic settings, such as the hardware's sample rate, are made in either your host software (Mac) or your system settings (Windows).

In this scenario, your MOTU interface provides basic audio input and output, and no software driver installation is necessary.

Connection to iOS devices (iPad and iPhone)

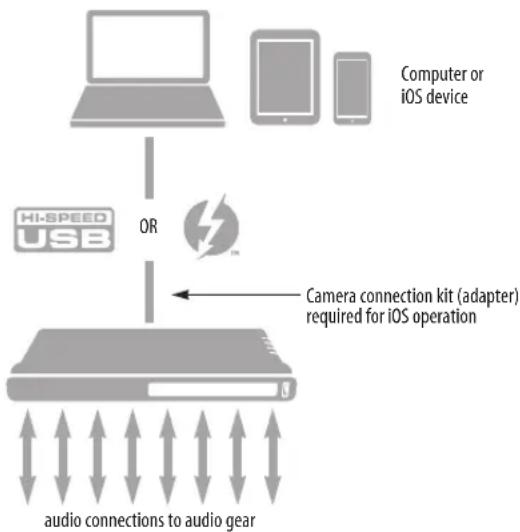

Audio-class compliant operation allows you to connect your MOTU interface to any iOS device with a standard camera connection kit adapter. Your MOTU interface then provides multi-channel audio I/O to your audio apps. Use your audio app to configure the number of available audio channels.

Web app control

As explained earlier in this guide, the MOTU Pro Audio Control web app provides full access to all settings in the device, including the extensive onboard routing, mixing, and effects processing

features. Since the web app is served from the audio interface hardware itself, it does not require any software installation on your computer; all it requires is a network connection between your computer and your MOTU interface with a standard Ethernet cable, Ethernet hub, or shared Wi-Fi network. For details about accessing the web app through the network port, see “MOTU Pro Audio Control Web App” on page 17.

SOFTWARE INSTALLATION

Software installation is required for any of the following scenarios:

■ You are using a PC running Windows 7 or later.
■ You will use your MOTU interface as a Thunderbolt audio interface with your laptop or desktop computer.
■ You will use your MOTU interface as a USB audio interface, and you want to access the web app without using the network port.
■ You will be using multiple MOTU interfaces.

If none of the above scenarios apply to you, then you can skip software installation if you wish, and proceed to details about accessing the web app through the network port, see “MOTU Pro Audio Control Web App” on page 17.

Download and run the MOTU Pro Audio Installer

To download the latest MOTU Pro Audio installer for Mac or Windows, visit www.motu.com/avb. Follow the directions that the installer gives you.

We recommend that you run the software installer before you connect your MOTU interface to your computer and power it on. This ensures that all driver components are properly installed in your system.

The latest Pro Audio drivers for your MOTU interface require firmware version 1.2.7 or later. If your interface is connected to a computer with internet access, visit the Device tab in the web app and scroll to the bottom of the page to view the current firmware version installed in your interface (item #31 in the Device tab on page 20). Also look for the firmware update banner across the top of the page (item #12 in the Device tab on page 18), which includes one-click access to the firmware update. You can also visit motu.com/avb to download the firmware update file for off-line updating.

AUDIO DRIVERS

The installer provides Thunderbolt and USB audio drivers for Mac (CoreAudio) and Windows (ASIO and Wave).

Thunderbolt support for Mac and Windows

You can connect your MOTU interface to a Thunderbolt-equipped PC and access up to 128 channels of simultaneous audio input and output using the MOTU Pro Audio ASIO driver. On OS X, the MOTU Pro Audio Core Audio driver provides similar high-bandwidth Thunderbolt I/O for Mac audio applications. On both Mac and Windows, you will enjoy access to very low buffer settings and extremely low I/O latency performance from your host audio software.

Check motu.com/support for the latest information regarding PC Thunderbolt compatibility, as some PC products are not yet qualified for use with MOTU Thunderbolt-equipped audio interfaces.

Industry-leading I/O latency performance

On OS X and Windows, the MOTU Pro Audio driver provides exceptionally low I/O latency performance for both Thunderbolt and USB operation. For example, with a 32-sample buffer size, a 1248 interface operating at 96 kHz produces round trip latency (RTL) performance of 1.9 milliseconds (ms) over Thunderbolt on Windows and 1.6 ms on OS X. RTL is the measurement of the time it takes audio to pass from an analog input, through a high-performance DAW host such as Digital Performer, to an analog output.

MOTU Pro Audio ASIO Driver

On Windows, to enable your MOTU interface in your ASIO host software, choose the MOTU Pro Audio ASIO driver.

Device Setup VST Audio System MOTU Pro Audio ASIO Driver ■ Release Driver/whouse Application is in Background Input Latency: 1.451 ms Output Latency: 2.177 ms HW Sample Rate: 48.000 kHz HW Pull Up/Down: Off Advanced Options Set to Defaults

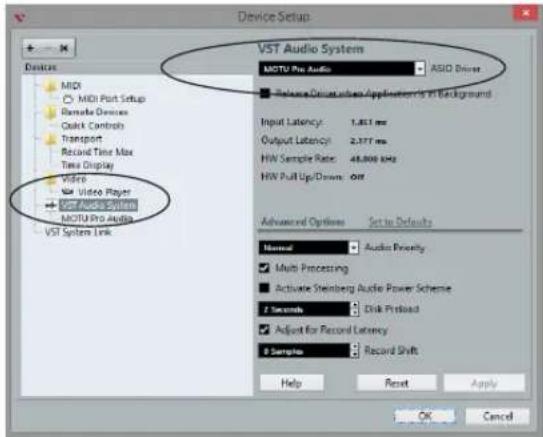

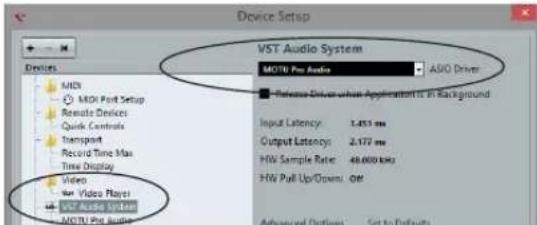

Figure 3-1: Choosing the MOTU Pro Audio ASIO driver in Cubase.

WDM / Wave driver support

On Windows, the MOTU Pro Audio driver includes stereo and multi-channel support (up to 24 channels) for WDM (Wave) compatible audio software.

Host Buffer Size

When connected to a Windows host, the Host Buffer Size menu (Figure 3-2) is available in the Device tab (page 18). This setting determines the amount of latency (delay) you may hear when live audio is patched through your Windows audio software. Smaller buffer sizes produce lower latency, with sizes of 256 samples or less producing virtually imperceptible delay. Many host applications report audio hardware I/O latency, so you can see what happens to the reported latency when making adjustments to this setting.

Configuration Sample Rate: 48000 Clock Mode: Internal Clock Status: Word Clock: Out Follow System Clock Host Buffer Size: 128 samples Host Safety Offset: 64 samples Quick Setup Launch Quick Setup 8 samples 16 samples 32 samples 64 samples 128 samples 256 samples 512 samples 1024 samples

Figure 3-2: Access the 'Host Buffer Size' and 'Host Safety Offset' settings in the web app Device tab for your MOTU interface.

Be careful with very small buffer sizes, as they can cause performance issues from your host software or PC.

At sea level, audio travels approximately one foot (30 cm) per millisecond. A latency of ten milliseconds is about the same as being ten feet (three meters) from an audio source.

Host Safety Offset

When connected to a Windows host, the Host Safety Offset menu (Figure 3-2) also becomes available. This setting allows you to fine tune host latency. Larger offsets allow the driver more time to process audio as it transfers to and from the hardware. Lower settings produce lower latency, but if you go too low, your host software may experience performance issues. Generally speaking, 48 samples should serve as a good baseline setting. You can then experiment with lower settings from there. Be mindful, however, when reducing the safety offset, as this parameter can have a significant impact on your computer system's performance.

MOTU DISCOVERY APP

The MOTU Discovery app (found in the Mac menu bar or Windows taskbar) locates all MOTU AVB interfaces connected to the computer, either directly through USB or Thunderbolt or indirectly through your network, and displays them in a list. Choose an interface to access its settings through the web app (“MOTU Pro Audio Control Web App” on page 17).

MOTU PRO AUDIO WEBUI SETUP FOR WINDOWS

On Windows, the installer provides a MOTU Pro Audio WebUI Setup shortcut found on the Windows desktop or in Start menu> All Programs> MOTU. Use this shortcut to access the MOTU Pro Audio Control web app directly in your favorite web browser.

AUDIODESK WORKSTATION SOFTWARE

AudioDesk is an advanced workstation software package for Mac and Windows that lets you record, edit, mix, process, bounce and master multi-track digital audio recording projects. Advanced features include real-time effects processing, recording, and much more.

See the AudioDesk User Guide, available on your computer hard drive as a PDF document.

Screenshot of a audio editing software interface showing audio waveform and playback controls with track labels and timecode.

Figure 3-3: AudioDesk.

WORKING WITH HOST AUDIO SOFTWARE

For further information about using your MOTU interface with host audio software, see “Working with Host Audio Software” on page 69.

CHAPTER 4 Hardware Installation

OVERVIEW

Rack installation and heat 39

Thunderbolt audio interface setup 39

USB audio interface setup 40

iOS audio interface setup 40

AVB Ethernet audio interface setup.... 41

Setup for two interfaces 41

Setup for three to five interfaces 42

Setup for a multi-switch network.... 43

Setup for multiple Thunderbolt and USB interfaces . 44

Setup for web app control 45

Setup for AVB Ethernet audio interface operation ... 47

Audio connections.... 49

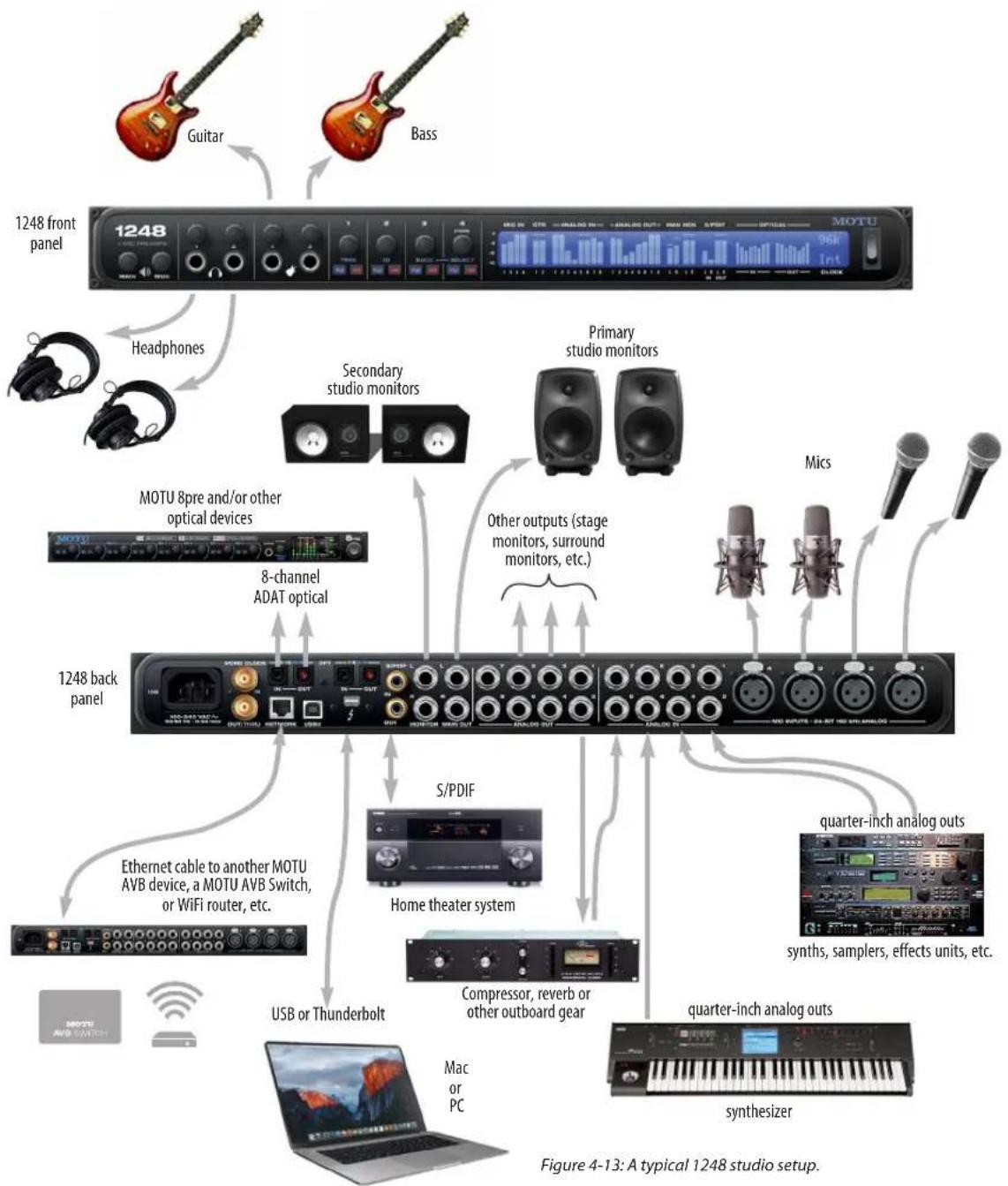

A typical 1248 setup....52

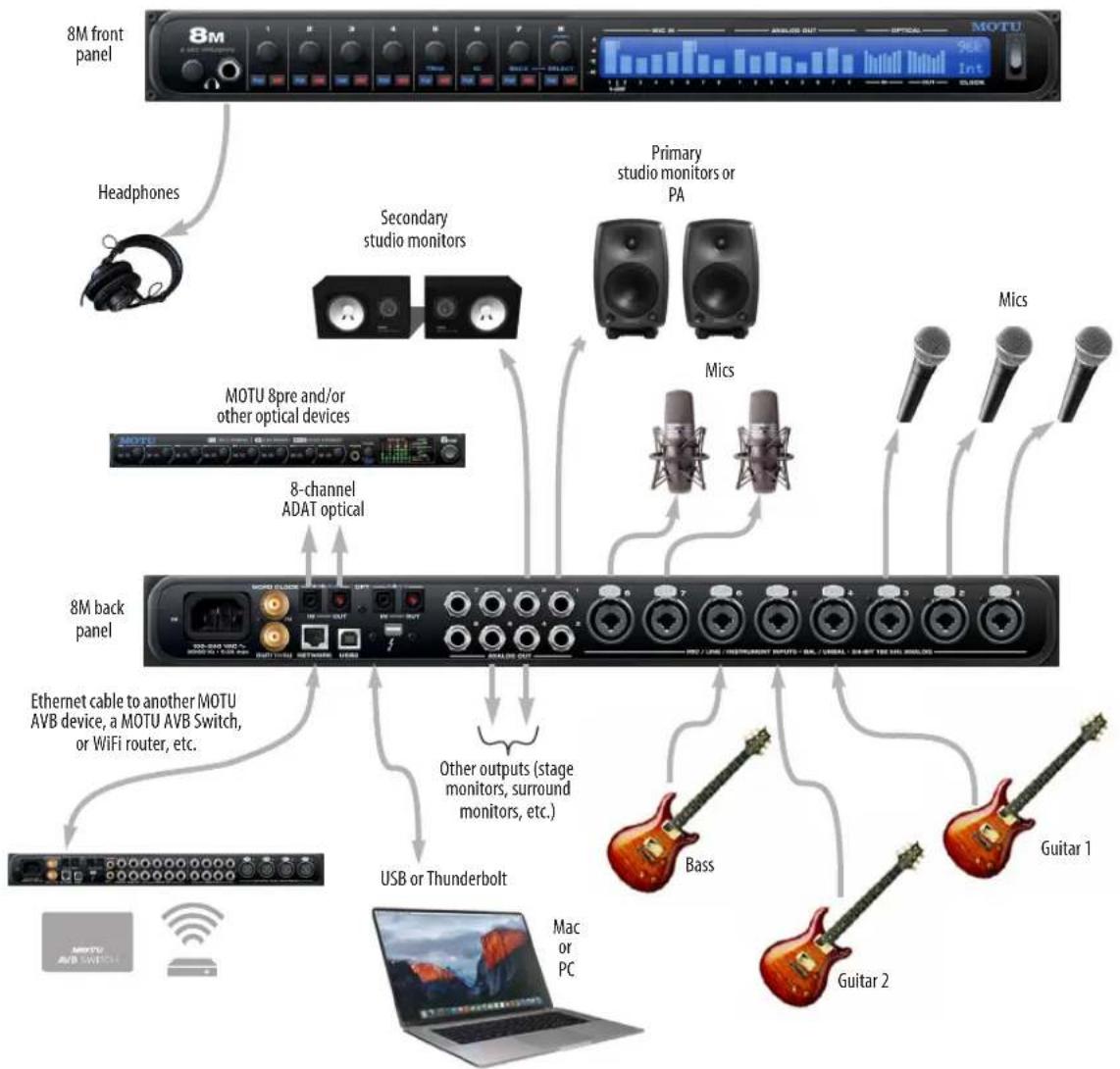

A typical 8M setup....53

A typical 16A setup .... 54

Synchronization 55

Syncing S/PDIF devices 55

Syncing word clock devices.... 56

Syncing to SMPTE time code (LTC) 57

Syncing an AVB network.... 58

Syncing multiple AVB audio interfaces connected to a Mac ....58

RACK INSTALLATION AND HEAT

When installing your MOTU audio interface in a 19-inch rack, leave extra space above, below, behind and on either side of the unit to provide adequate ventilation and heat dispersion. Do not install it near other gear that generates excessive heat.

THUNDERBOLT AUDIO INTERFACE SETUP

Diagram showing a laptop connected to a server with a battery symbol (no text or labels)

Use this setup if you want to use your MOTU device as an audio interface, and your computer has Thunderbolt ^™ .

■ Use a standard Thunderbolt cable.

- Place it at the end of the Thunderbolt chain (up to six devices in the chain, not including the computer).

■ See “Software installation” on page 35.

USB AUDIO INTERFACE SETUP

HI-SPEED USB

Use this setup if you want to use your MOTU device as an audio interface, and your computer doesn't have Thunderbolt.

■ Use a standard USB cable.
■ Connect to any USB port (USB2.0 or 3.0).
■ See "USB 2.0 Audio class-compliant operation" on page 35.
■ No driver installation is necessary, (unless you want to use the web app).

iOS AUDIO INTERFACE SETUP

Use this setup if you want to use the your MOTU interface as an iOS audio interface.

■ Use a standard iOS camera connection kit (adapter).
■ Use any standard USB cable.
■ See "USB 2.0 Audio class-compliant operation" on page 35.

AVB ETHERNET AUDIO INTERFACE SETUP

As an alternative to Thunderbolt or USB, use this setup if you want to use the your MOTU interface as an AVB Ethernet audio interface for a recent-generation Mac (i.e. any Mac with a Thunderbolt port on it). OS X El Capitan (10.11) or later is required for AVB audio I/O.

■ Use a standard CAT-5e or CAT-6 cable.
■ Connect to the computer's Ethernet port.
■ See "Setup for AVB Ethernet audio interface operation" on page 47.

About CAT-5e cables

Close-up of two white Ethernet cables with port headers (no text or symbols visible)

Use shielded CAT-5e or CAT-6 cables, which are a higher grade version of a standard Ethernet patch cable. They are available wherever network cables are sold.

SETUP FOR TWO INTERFACES


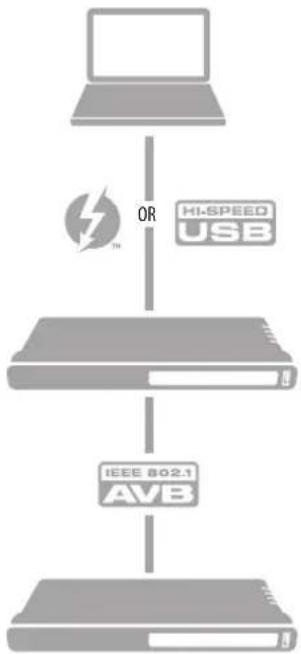

Use this setup if you want to connect two MOTU interfaces to your computer.

■ The connection to the computer should be Thunderbolt, if possible, to support all the I/O for the networked interfaces.
■ Use a standard Thunderbolt cable. Place it at the end of the Thunderbolt chain.
■ Use any standard CAT-5e Ethernet network cable to connect the two interfaces together using their NETWORK ports.
■ As an alternative, see "Setup for multiple Thunderbolt and USB interfaces" on page 44.

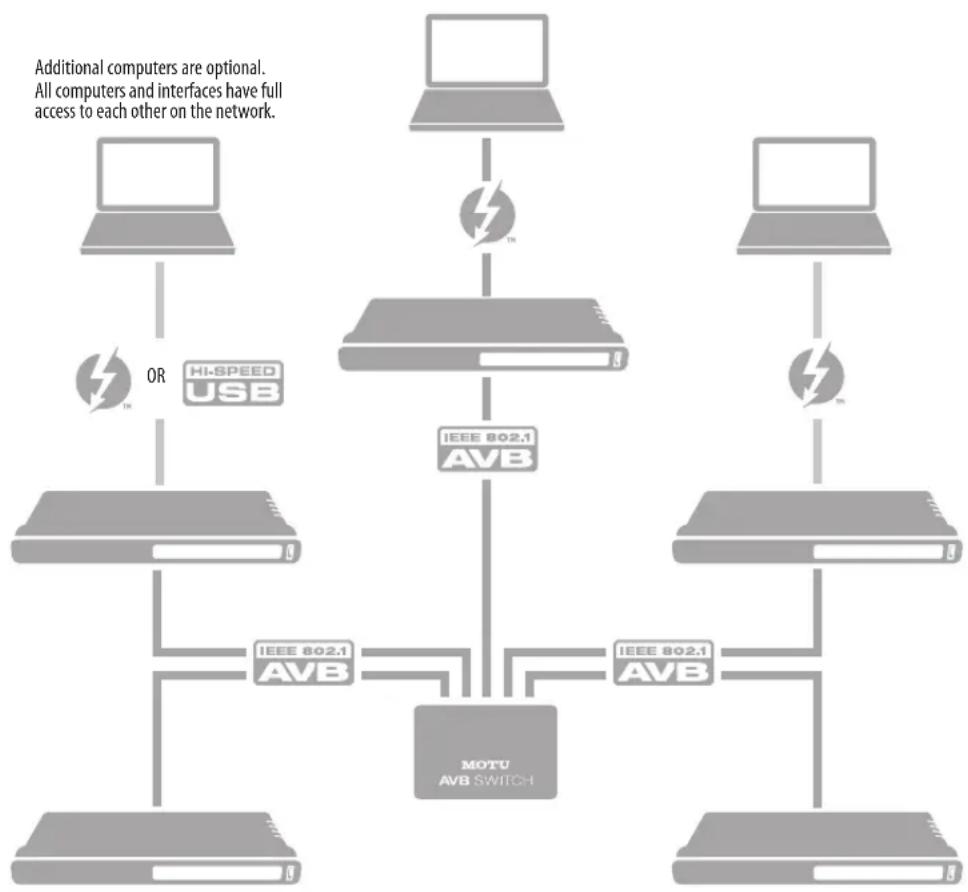

SETUP FOR THREE TO FIVE INTERFACES

Use this setup if you want to connect three to five MOTU interfaces to your computer using a MOTU AVB Switch ^™ (sold separately).

■The connection to the computer should be Thunderbolt, to support a large number of audio streams to and from the networked interfaces. A single Thunderbolt connection supports 128 channels in and out, simultaneously.
■ Use a standard Thunderbolt cable. Place it at the end of the Thunderbolt chain.
■ Use standard CAT-5e Ethernet network cables to connect the interfaces to the MOTU AVB Switch using their NETWORK ports.

■ Use the five AVB NETWORK ports on the switch (not the Ethernet port).
■ Network cable lengths can be long: 100 meters with standard copper wire cables; much longer with fiber-optic network cables.
■ See “About CAT-5e cables” on page 41.
■ As an alternative, see “Setup for multiple Thunderbolt and USB interfaces” on page 44.
■ To add more computers to the network, connect them to any interface, as shown. All computers and interfaces have full access to each other.
■ See chapter 10, “Networking” (page 101).


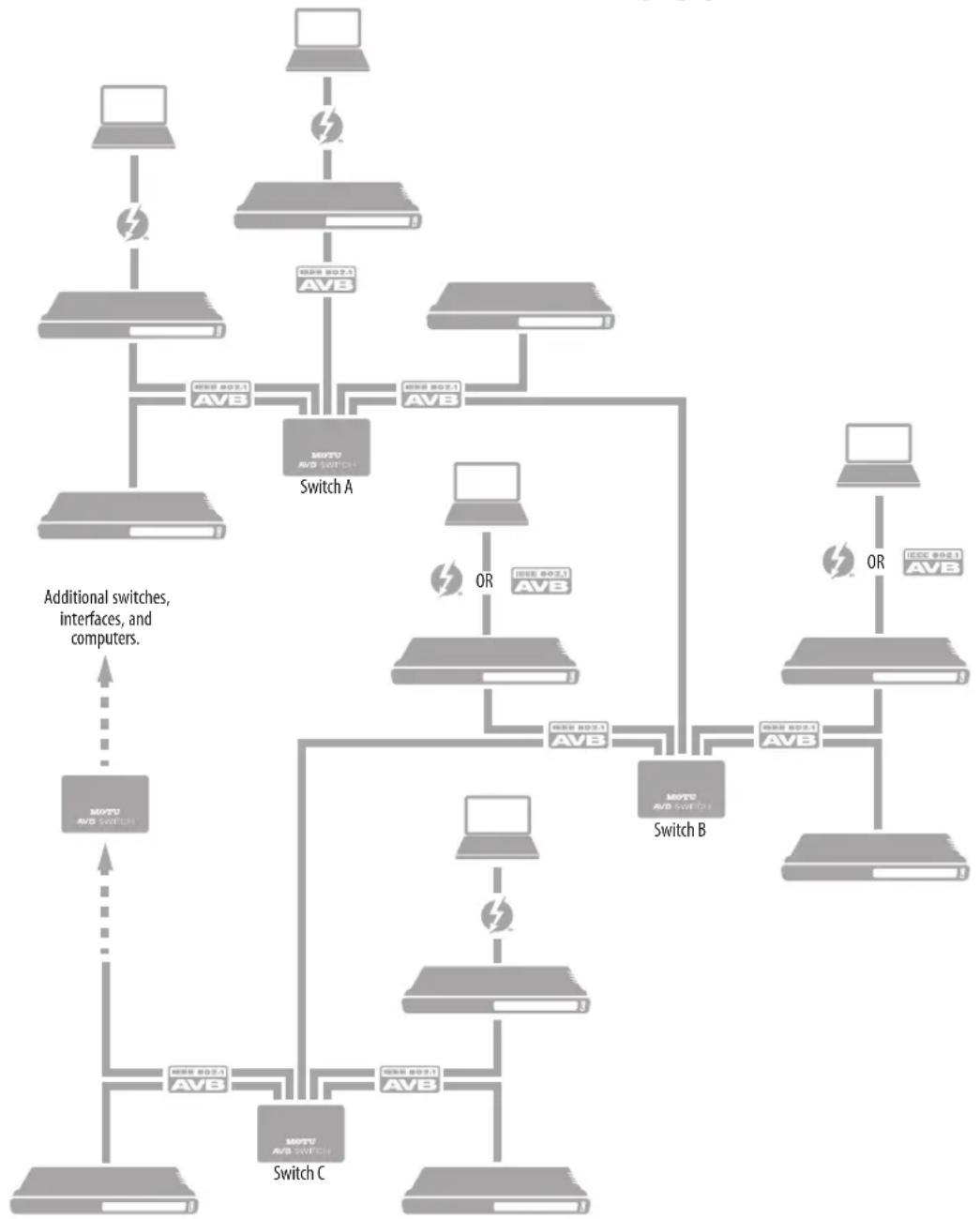

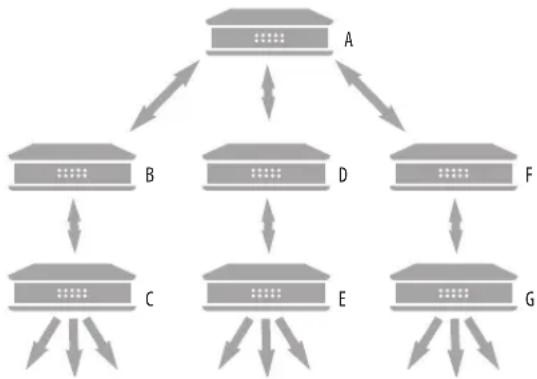

SETUP FOR A MULTI-SWITCH NETWORK

Use this setup if you want to connect more than five MOTU interfaces to an extended network that employs multiple AVB switches. AVB Ethernet is an industry standard, so you can use MOTU AVB Switches or 3rd-party AVB switches.

- You can daisy-chain switches in serial fashion, but don't create loops. For example, switches A, B, and C below are chained properly, but don't connect C back to A. Alternately, you could connect both Switches B and C to Switch A.

■ For further information, see chapter 10, "Networking" (page 101).
    Switcha10["Additional switches, interfaces, and computers."]

SETUP FOR MULTIPLE THUNDERBOLT AND USB INTERFACES

It is possible to connect multiple MOTU interfaces directly to your host computer through multiple Thunderbolt and USB ports. However, there are several disadvantages to using any of these direct connection schemes:

■ The audio interfaces will not be clocked to one another and may be susceptible to drift, unless you use external word clock connections (if available). You are better off using the AVB network connections shown on pages 41-43. In this setup, the interfaces are very tightly synchronized with each other (measured in pico seconds) through their network connections.
■ You will not be able to route audio directly from one audio interface to another. You are better off using the AVB network connections shown on pages 41-43, which allows you to route audio streams (hundreds at a time) directly among interfaces with near-zero latency.

Connecting multiple interfaces using Thunderbolt

If you have multiple MOTU AVB interfaces with Thunderbolt connectivity (1248, 8M, 16A or 112D) and your host computer has two or more Thunderbolt ports, you can connect one interface to each port, either directly or at the end of a Thunderbolt daisy chain (on either port or both ports).

Connecting multiple interfaces using Thunderbolt and USB

Another way to operate multiple interfaces on the same host computer is to connect the first interface to a Thunderbolt port and the second to a USB 2.0 (or 3.0) port.

Multiple interfaces and USB

When connected through USB, your MOTU interface operates as a USB 2.0 device, even when connected to a USB 3.0 port. USB 2.0 provides enough bus speed for several USB 2.0 devices, but due to your MOTU interface's high-performance requirements for real-time operation and low latency timing, we recommend the following:

• Do not connect more than two units to your computer's USB 2.0 or 3.0 port(s).
• When two units are connected with USB 2.0, don't connect other USB 2.0 or 3.0 devices, such as external hard drives.
  ■ For best results, establish clock synchronization with other interfaces connected to the same computer. You can use word clock, S/PDIF, optical, or AVB to achieve clock synchronization.

Multiple AVB Ethernet audio interfaces

When operating as an AVB Ethernet audio interface (“AVB Ethernet audio interface setup” on page 41), multiple AVB audio interfaces can be connected using a MOTU AVB Switch (or any 3rd-party AVB switch), and the Mac can see all of them through their AVB connection. For example, you could connect an Avid S3 console to the Mac, and then connect a MOTU interface to the S3’s extra network port (which is a built-in switch). The Mac can see both for audio I/O. For best results in this scenario, be sure to use OS X 10.11 (El Capitan) or later. See “Syncing multiple AVB audio interfaces connected to a Mac” on page 58.

Mixing and matching audio interfaces

You can mix and match MOTU audio interfaces. For example, you could connect a 1248 through Thunderbolt and another MOTU audio interface, such as a 24Ao, through USB 2.0.

SETUP FOR WEB APP CONTROL

The MOTU Pro Audio Control web app gives you access to all settings, routing, mixing, and effects processing in your audio interface, and each interface on the AVB network, if applicable. For more info, see “MOTU Pro Audio Control Web App” on page 17.

The web app is a web application served by the hardware. All you need to run it is a web browser running on a device that has a connection to your audio interface through Thunderbolt, USB or a shared network.

Figure 4-1: The web app is served from the hardware, and accessed through any web browser on any device connected to the interface.

Web app control can be set up independently of audio connections

The connections in this section, especially the network scenarios, can be set up independently of USB, Thunderbolt, or AVB networking connections you make for audio routing (as shown in the setup diagrams earlier in this chapter). In addition, connections for web app control can be made over standard Ethernet and do not require AVB Ethernet connections. Think of web app control as being separate from audio. Doing so opens up a lot of possibilities for control of your MOTU interface, independent of the connections you make for audio.

Mixing and matching web app control scenarios

The web app connection scenarios shown in the following sections are not exclusive from one another. You can set up as many web app connections as you wish and control your MOTU device from many web app hosts simultaneously.

Launching the web app

Once you've made any of the connections shown in the following sections, launch the web app as explained in “Make hardware and network connections” on page 17.

Web app control over USB or Thunderbolt

If your audio interface is connected a computer with internet access through Thunderbolt or USB (as shown on page 39 and 40), you can access the web app from the computer, or any other device on the network. In this case, make sure you've run the software installer (page 35), which installs drivers that allow your computer to properly communicate with the device.

Web app control through standard Ethernet

Your MOTU interface can also be controlled by the web app running on any device that has a standard Ethernet connection to the interface, either directly with a network cable, through an Ethernet hub, or through WiFi on your local network. The sections on the opposite page show you how to set up each of these connection scenarios.

Ethernet cable

A simple Ethernet cable connection can be used for web app control, even without a USB or Thunderbolt connection to your computer. For example, if you are using your MOTU device as a mixer or audio router, you could control the on-board routing, mixing and effects from the web app through a standard Ethernet connection.

Figure 4-2: Web app control through a simple Ethernet cable.

Ethernet hub or network (LAN)

In this scenario, both your laptop and your MOTU device are connected to a standard Ethernet hub or home/office network (LAN). You can run the web app on multiple computers simultaneously.

Figure 4-3: Web app control through a standard Ethernet hub or network (LAN).

WiFi

When using standard WiFi as shown, you can control your MOTU interface from multiple WiFi devices simultaneously.

Figure 4-4: Web app control through WiFi.

Ethernet network + WiFi

You can, of course, combine the setups shown in Figure 4-3 and Figure 4-4, with WiFi connected to the Ethernet hub or network.

MOTU AVB Switch

The MOTU AVB Switch provides five AVB

Ethernet ports, plus one standard Ethernet port.

Use the AVB ports for MOTU audio interfaces, and use the Ethernet port for WiFi, Ethernet, etc.

MOTU AVB interfaces WiFi router or Ethernet hub/network (Sold separately) MOTU AVB SWITCH

Figure 4-5: Using the Ethernet port on the MOTU AVB Switch.

SETUP FOR AVB ETHERNET AUDIO INTERFACE OPERATION

Your MOTU hardware can serve as an Ethernet audio interface when connected to a recent generation AVB-equipped Mac. You can then use your MOTU interface as a standard multi-channel audio interface with any Core Audio compatible host software running on the Mac.

For Ethernet audio interface operation, you need:

■ A recent Mac (any Mac that has a Thunderbolt port on it)
■ OS X El Capitan (10.11) or later
■ Firmware version 1.2.5 or later in your MOTU interface

Ethernet connection to the Mac

As shown on page 41, connect the network port on your MOTU interface to the Ethernet port on the Mac using a standard, high-grade (CAT-5e or CAT-6) network cable up to 100 meters in length.

If your Mac doesn't have an Ethernet port, you can connect your MOTU interface via Ethernet using a Thunderbolt-to-Ethernet adapter. Ethernet might be preferable over Thunderbolt because the Ethernet cable can be up to 100 meters long, using standard Ethernet cabling (which is very affordable).

USB-to-Ethernet adapters cannot be used because the Mac's USB chip set does not support AVB Ethernet.

Alternately, you can connect both the Mac and the interface to an AVB-compatible Ethernet switch.

Web app setup

To set up your MOTU device as an AVB Ethernet audio interface:

1 Launch the MOTU Discovery app. From the Settings menu (circled in red below), choose Launch Mac Virtual Entity, and from the sub-menu choose the Ethernet port to which your MOTU AVB interface is connected. It should now be checked.

MOTU AVB Devices 112D ✓ Launch On Startup ✓ Notify On Updates ✓ Show Switches ✓ Ethernet 1:en0 Ethernet 2:en1 Launch Mac Virtual Entity Quit 16A AVB-Switch UltraLite-AVB

Figure 4-6: Enabling AVB connectivity to the Mac.

2 After completing step #1 above, the Mac will appear in the AVB device list in the MOTU AVB web app, as shown below. PLEASE NOTE: it may take several minutes for the Mac to appear in the list, the first time you set this up. After the first time, though, you won't experience any delays.

MAC MOTU Device Housing Mixing Aux Mixing DEVICES 100 Configuration Configuration: 54 in, 64 in, 74 in Stream Sample Rate: 48009 Check Mode: 52000/Output Stream 1 AVB Stream Connections Audio Input Stream 1: 1248.1 Audio Input Stream 2: 1248.2 Audio Input Stream 3: 1248.3 Audio Input Stream A: 1248.4 Audio Input Stream B: 1248.5 Audio Input Stream S: 1248.6 Audio Input Stream T: 1248.7 Audio Input Stream B: 1248.8 Audio Cross Input Stream Note

Figure 4-7: Accessing the AVB settings for the Mac in the MOTU web app.

3 From the Configuration menu (Figure 4-7), choose the channel mode for the Mac that best fits your workflow.

MOTU interfaces currently only support 8-channel streams (or less) so be sure to avoid configurations with streams that have more than eight channels.

Configuration 8 in, 8 out, 8 ch streams 16 in, 16 out, 8 ch streams 32 in, 32 out, 8 ch streams Configuration: ✓ 64 in, 64 out, 8 ch streams 16 in, 16 out, 16 ch streams 32 in, 32 out, 16 ch streams 64 in, 64 out, 16 ch streams 32 in, 32 out, 32 ch streams Clock Mode: 64 in, 64 out, 32 ch streams

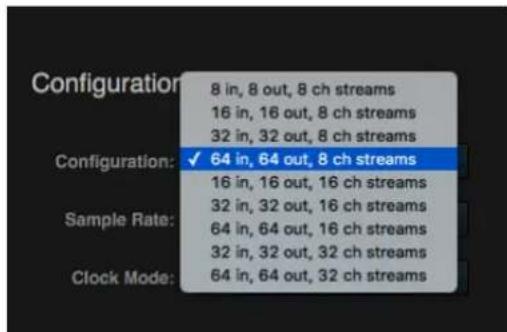

Figure 4-8: Choosing an AVB configuration for the Mac.

4 From the Sample Rate menu (Figure 4-7), choose the desired sample rate. Currently, the Mac only supports 48, 96 and 192 kHz sample rates.

5 For Playback from the Mac, go to the Device tab for your MOTU interface (the 1248 in the example below), and connect the input streams to the Mac's output streams.

MOTU AVB Stream Setup Number of Input Streams: 8 out of 26 Number of Output Streams: 8 out of 26 AVB Stream Connections Input Streams 1: MacAudio Output Streams 1 Input Streams 2: MacAudio Output Streams 2 Input Streams 3: MacAudio Output Streams 3 Input Streams 4: MacAudio Output Streams 4 Input Streams 5: MacAudio Output Streams 5 Input Streams 6: MacAudio Output Streams 6 Input Streams 7: MacAudio Output Streams 7 Input Streams 8: MacAudio Output Streams 8

Figure 4-9: Routing computer streams to the interface for playback from the Mac.

6 In the Routing tab, route the Mac's output streams to desired physical outputs on your MOTU interface.

MOTU Device Winning Winning Auto Moving WINNER Auto Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win Win WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN W10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Figure 4-10: Routing Mac channels to physical outputs.

7 For Recording to the Mac, route desired physical inputs on your MOTU interface to output streams.

MOTU Denius Rouing Mixing Aus Mixing DEGREES 1243 Max Wave 1 Wave 2 Wave 3 Wave 4 Wave 5 Wave 6 Wave 7 Wave 8 Wave 9 Wave 10 Wave 11 Wave 12 Wave 13 Wave 14 Wave 15 Wave 16 Wave 17 Wave 18 Wave 19 Wave 20 Wave 21 Wave 22 Wave 23 Wave 24 Wave 25 Wave 26 Wave 27 Wave 28 Wave 29 Wave 30 Wave 31 Wave 32 Wave 33 Wave 34 Wave 35 Wave 36 Wave 37 Wave 38 Wave 39 Wave 40 Wave 41 Wave 42 Wave 43 Wave 44 Wave 45 Wave 46 Wave 47 Wave 48 Wave 49 Wave 50 Wave 51 Wave 52 Wave 53 Wave 54 Wave 55 Wave 56 Wave 57 Wave 58 Wave 59 Wave 60 Wave 61 Wave 62 Wave 63 Wave 64 Wave 65 Wave 66 Wave 67 Wave 68 Wave 69 Wave 70 Wave 71 Wave 72 Wave 73 Wave 74 Wave 75 Wave 76 Wave 77 Wave 78 Wave 79 Wave 80 Wave 81 Wave 82 Wave 83 Wave 84 Wave 85 Wave 86 Wave 87 Wave 88 Wave 89 Wave 90 Wave 91 Wave 92 Wave 93 Wave 94 Wave 95 Wave 96 Wave 97 Wave 98 Wave 99 Wave 100

Figure 4-11: Routing physical inputs to the Mac.

8 On the Mac's Device tab, connect the Mac's input streams to the MOTU interface's output streams.

MAC Device Routing Mixing Aux Mixing DEVICES 1248 Max Configuration 64.3x, 64 out, 6 ch stream Sample Rate: 60000 Check Mode: 1248/Output Stream 1 AVB Stream Connections Audio Input Stream 1: 1248.1 Audio input Stream 2: 1248.0 Audio input Stream 3: 1248.3 Audio input Stream 4: 1248.4 Audio input Stream 5: 1248.5 Audio input Stream 6: 1248.6 Audio input Stream 7: 1248.7 Audio input Stream 8: 1248.8 Audio input Stream 9: 1248.9 Audio Input Stream 10: 1248.0 Audio Input Stream 11: 1248.6 Audio Input Stream 12: 1248.7 Audio Input Stream 13: 1248.8 Audio Input Stream 14: 1248.9 Audio Input Stream 15: 1248.0 Audio Input Stream 16: 1248.1 Audio Input Stream 17: 1248.2 Audio Input Stream 18: 1248.3 Audio Input Stream 19: 1248.4 Audio Input Stream 20: 1248.5 Audio Input Stream 21: 1248.6 Audio Input Stream 22: 1248.7 Audio Input Stream 23: 1248.8 Audio Input Stream 24: 1248.9 Audio Input Stream 25: 1248.0

Figure 4-12: Routing streams from your MOTU interface to the Mac.

Leave Media Clock Input Stream set to None. (This setting can be used to sync the Mac to certain 3rd-party AVB devices that support Media Clock. This setting is not needed for MOTU devices.)

Clocking

In the example in Figure 4-12, the 1248 is the clock master and the Mac is clocking to the 1248's Output Stream 1. You can also reverse this scenario, where the Mac becomes the master and the 1248 clocks to Mac's Output Stream 1. The Mac does not follow the web app's Become Clock Master button, so you must set the Mac's Clock Mode manually.

AVB stream and channel counts

Each MOTU AVB stream is a group of eight audio channels. While testing is on-going, OS X AVB performance varies with different Mac models. Models such as the Mac Pro (late 2013) are able to handle eight streams (64 channels) in and out simultaneously, for MOTU interface models that support eight streams. (Check motu.com/avb for a summary of supported stream counts for each MOTU interface model.) For older Macs, we recommend one or two streams in each direction. Generally speaking, it is best to enable only as many streams as you need.

AUDIO CONNECTIONS

Here are a few things to keep in mind as you are making audio connections to your MOTU interface.

Mic inputs with preamps

Connect a microphone using a standard mic cable.

Do not connect a +4 dBu (line level) signal to the mic inputs without using the -20dB Pad. It is recommended you connect line level signals to the quarter-inch inputs instead.

Phantom power

If you are connecting a condenser microphone or another device that requires phantom power, engage the mic input's corresponding front-panel phantom power button.

Preamp gain

The 1248's preamp provides 63 dB of gain. Use the front panel detented trim knobs to adjust gain as needed for each input. The LCD provides visual feedback as you turn the trim knob. Preamp gain is digitally controlled, so you can make fine-tuned adjustments in 1dB increments. You can also adjust preamp gain in the web app. See “Device tab” on page 18.

-20 dB pad

Each mic input (XLR jack) is equipped with a -20 dB pad switch, to accommodate input signals that could overdrive the input.

Guitar inputs

The 1248 provides two dedicated guitar inputs on its front panel. These inputs are specially designed for guitar or bass instruments, with a high-impedance load of 1 megaohm. Use the knob to adjust input trim.

Mic/line/instrument combo inputs

The 8M provides XLR/TRS combo jacks that accept an XLR mic plug or a quarter-inch plug from a line level source or guitar. Each input

provides individual preamp gain, pad and 48V phantom power. (Phantom power is supplied to the XLR connector only.) Use these general guidelines for the 48V phantom power, pad and gain settings on these combo input jacks:

Input	48V		Pad
Condenser mic On As needed As needed
Dynamic mic Off As needed As needed
Guitar n/a n/a As needed
-10 dBV Line level via TRS n/a n/a As needed
-10 dBV Line level via XLR	Off -20 dB	+12dB
+4 dBu Line level (XLR only)	Off -20 dB	Zero

V-Limit™

Each 8M mic input is individually equipped with V-Limit (page 18), which help prevent digital clipping from overloaded input signals. For details, see “8M mic/guitar input meters with V-Limit ^™ compressor” on page 65.

Soft Clip™

Additional or alternative protection can be applied individually to 8M mic/guitar inputs by enabling Soft Clip (page 18). When enabled, Soft Clip engages just before clipping occurs and helps further reduce perceptible distortion.

TRS quarter-inch analog inputs and outputs

Quarter-inch analog inputs and outputs are balanced (TRS) connectors that can also accept an unbalanced plug.

Quarter-inch analog outputs are not cross-coupled. Therefore, when connecting them to an unbalanced input, use a TRS plug with the ring disconnected. Not floating the negative terminal will short it to the sleeve ground and cause distortion.

Dedicated main outs and monitor outs

Like all I/O on the 1248, the main outputs and monitor outputs operate as independent pairs (they don't share signal with any other output pair). In a standard studio configuration, these outputs are intended for pairs of studio monitors, but they can also be used as regular outputs for any purpose. With adjustable converter trim, they support a wide range of industry-standard reference levels. Volume is controlled by the MAIN and MON (Monitor) volume knobs on the front panel.

TRS quarter-inch analog trims

All quarter-inch analog inputs and outputs can be trimmed. This allows them to support a variety of standards, including EBU-R68, SMPTE RP-155, +4dBu, -10dBV, 2vRMS, 1vRMS.

Quarter-inch analog inputs are equipped with high-quality, digitally controlled analog trim that provides a range from -96 to +22 dB in 1dB steps.

Quarter-inch outputs can be trimmed in the DAC itself. Range is 24 dB. The Main Outs, Monitor Outs and Phones provide full trim range from 0 dB to - (-127).

Trim controls are most easily accessed in the web app. See “Device tab” on page 18. Trim settings can also be accessed in the LCD menu.

Optical

Your MOTU audio interface provides two banks of ADAT optical (“lightpipe”) connectors. Each bank provides an input and output connector. Together, they provide 16 channels of ADAT optical digital I/O at 44.1 or 48 kHz, or 8 channels at 88.2 or 96 kHz. The optical ports are disabled when the interface is operating at a 176.4 or 192 kHz. At the high sample rates (88.2 or 96 kHz), 4-channel SMUX operation supports two modes (item #25 on page 19):

■ Standard — for 2x optical connection to 3rd-party SMUX-compatible hardware products.
■ Type II (Legacy) — for 2x optical connection to legacy MOTU products that are equipped with optical ports and support 2x operation.

The optical ports are disabled when the interface is operating at a 176.4 or 192 kHz.

TOSLink (optical S/PDIF)

Alternately, the optical ports can be configured for stereo TOSLink (optical S/PDIF) in the web app (item #25 on page 19). The optical IN and OUT banks can be configured independently.

Choosing a clock source for optical connections When connecting an optical device, make sure that its digital audio clock is phase-locked (in sync with) your MOTU interface, as explained in "Synchronization" on page 55. There are two ways to do this:

A. Resolve the optical device to your MOTU interface
B. Resolve your MOTU interface to the optical device

For A, choose Internal (or anything other than ADAT A or B) as the clock source in the Device tab (page 18).

For B, choose either ADAT A or ADAT B as the clock source (page 18). Be sure to choose the optical port that the device is connected to. Using word clock to resolve optical devices If the optical device has word clock connectors on it, you can use them to synchronize the device with your MOTU interface. See “Syncing word clock devices” on page 56.

S/PDIF with sample rate conversion

The 1248 provides S/PDIF digital audio input and output. Be sure to review the digital audio clocking issues, as explained in “Syncing S/PDIF devices” on page 55. The S/PDIF input is also equipped with sample rate conversion, which allows you to capture digital input without digital audio sync. You can even record S/PDIF input that is running at a completely different sample rate than the 1248’s current sample rate.

When the 1248 clock mode (item #13 on page 18) is set to S/PDIF, the 1248 resolves to the incoming S/PDIF signal and no sample rate conversion occurs. In this scenario, an exact bit-for-bit digital audio transfer is accomplished.

When the 1248 clock mode is set to any other source besides S/PDIF, then sample rate conversion is automatically enabled for the input, which can record any S/PDIF signal up to 96 kHz. This is not an exact bit-for-bit digital transfer, but sophisticated filtering is applied to ensure the highest possible audio quality.

The S/PDIF output is not equipped with sample rate conversion, so it always outputs at the 1248's current operational sample rate (item #13 on page 18).

A TYPICAL 1248 SETUP

Here is a typical 1248 studio setup. This rig can be operated without an external mixer. All mixing and effects processing can be done in the 1248 itself, on the computer with audio software, or both. During recording, you can use the 1248's on-board mixing to listen to what you are recording via the main outs, headphone outs, or any other output pair. You can control all mixing and effects processing from your laptop, tablet, or smart phone.

A TYPICAL 8M SETUP

Here is a typical 8M studio setup. Like the 1248, this rig can be operated without an external mixer. All mixing and effects processing can be done in the 8M itself, on the computer with audio software, or both. During recording, you can use the 8M's

on-board mixer to listen to what you are recording via the headphone out or any output pair. You can control all mixing and effects processing from your laptop, tablet or smart phone.

Figure 4-14: A typical 8M studio setup.

A TYPICAL 16A SETUP

Here is a typical 16A studio setup, although the 16A is certainly flexible and supports many operational configurations not shown here. This diagram is meant to give you just a few ideas of

what is possible. The 16A can be used as an audio interface, mixer, effects processor, or even as a patch bay. You can control all mixing, effects processing, and routing from your laptop, tablet or smart phone.

Figure 4-15: A typical 16A studio setup.

SYNCHRONIZATION

If you connect devices digitally to your MOTU device, or if you need to synchronize your MOTU device with an outside time reference such as word clock, you must pay careful attention to the synchronization connections and clock source issues discussed in the next few sections.

Do you need to sync?

If you will be using only your MOTU device's analog inputs and outputs (and none of its digital I/O), and you don't need to resolve your system to external word clock, you don't need to make any sync connections. You can skip this section.

Situations that require synchronization

There are two general cases in which you will need to resolve you MOTU device with other devices:

■ Synchronizing with other digital audio devices so that their digital audio clocks are phase-locked (as shown in Figure 4-16)
■ Resolving your MOTU device to an external clock source
■ Networking multiple MOTU AVB interfaces together

Synchronization is critical for clean digital I/O

Synchronization is critical in any audio system, but it is especially important when you are transferring audio between digital audio devices. Your success in using the digital I/O features on your MOTU device depends almost entirely on proper synchronization. The following sections guide you through several recommended scenarios.

Be sure to choose a digital audio clock master

When you transfer digital audio between two devices, their audio clocks must be in phase with one another — or phase-locked. Otherwise, you'll hear clicks, pops, and distortion in the audio — or perhaps no audio at all.

Not phase-locked Phase-locked Device A Device B

Figure 4-16: When transferring audio, two devices must have phase-locked audio clocks to prevent clicks, pops or other artifacts.

There are two ways to achieve phase lock: slave one device to the other, or slave both devices to a third master clock. If you have three or more digital audio devices, you need to slave them all to a single master audio clock.

Figure 4-17: To keep the your MOTU interface phased-locked with other digital audio devices connected to it, choose a clock master.

Also remember that audio phase lock can be achieved independently of timecode (location). For example, one device can be the timecode master while another is the audio clock master, but only one device can be the audio clock master. If you set things up with this rule in mind, you'll have trouble-free audio transfers with your MOTU hardware.

SYNCING S/PDIF DEVICES

The 1248 provides RCA (coax) S/PDIF digital input and output. Your 1248 and the other S/PDIF device will sync to each other by way of the S/PDIF connection itself. One device is the master, and the other device is the slave.

Syncing the 1248 to its S/PDIF input

When you transfer audio from the S/PDIF device into the 1248, choose S/PDIF as the clock source (item #13 on page 18) to resolve the 1248 to its S/PDIF input.

S/PDIF input with sample rate conversion

The 1248 S/PDIF input provides sample rate conversion, which allows you to record any S/PDIF signal up to 96 kHz, even when the 1248 is resolved to other clock sources besides S/PDIF. See “S/PDIF with sample rate conversion” on page 51 for more information.

Syncing another S/PDIF device to the 1248

When transferring audio from the 1248 to another S/PDIF device, set the 1248's clock mode (item #13 on page 18) to any source other than S/PDIF.

Doing so makes the 1248 the clock master. When the other device records (or receives) S/PDIF audio (from the 1248), it will simply synchronize to the clock provided by the 1248 S/PDIF signal.

SYNCING OPTICAL DEVICES

There are several ways to sync an optical device with your MOTU interface:

A. Resolve the other device to your MOTU interface

B. Resolve your MOTU interface to the other device

C. Resolve both devices to a word clock source

For A, choose Internal (or anything other than Optical) as the clock mode in the Device tab (item #13 on page 18). Then configure the other device to resolve to its optical input.

For B, choose Optical as the clock mode (item #13 on page 18), and configure the other device to resolve to its own internal clock.

For C, choose Word Clock as the clock mode for the 24Ai or 24Ao (item #13 on page 18), and resolve the other device to its word clock input.

SYNCING WORD CLOCK DEVICES

The word clock connectors on your MOTU device allow you to synchronize it with a wide variety of other word clock-equipped devices.

For standard word clock sync, you need to choose an audio clock master (as explained in “Be sure to choose a digital audio clock master” on page 55). In the simplest case, you have two devices and one is the word clock master and the other is the slave as shown below in Figure 4-18 and Figure 4-19.

Master 1248 Word clock OUT Word clock IN Slave Other devices

Figure 4-18: Slaving another digital audio device to your MOTU device (a 1248 in this example) via word clock. For the 1248 clock source, choose any source besides word clock, as it is not advisable to chain word clock.

Audio clock Master Word clock master device Word clock OUT Word clock IN Slave 1248

Figure 4-19: Slaving your MOTU device (a 1248 in this example) to word clock. For the 1248 clock source, choose 'Word Clock In'.

Daisy-chaining word clock

If necessary, you can daisy-chain several word clock devices together. When doing so, connect WORD CLOCK OUT from the first (master) device to the WORD CLOCK IN on the second device. Then connect its WORD CLOCK THRU port to the next device's WORD CLOCK IN port, and so on. On your MOTU interface, use its WORD CLOCK OUT port and change its operation from OUT to THRU in the Device tab of the MOTU Pro Audio Control web app (item #15 on 18).

If you have more than four word clock devices that you need to synchronize, avoid chaining their word clock connections. Instead, use a word clock distribution device of some kind.

Word clock is not needed for AVB networking

When working with multiple MOTU AVB interfaces on an AVB network, synchronization is handled by AVB, so no word clock connections are necessary. See the next section for details.

SYNCING TO SMPTE TIME CODE (LTC)

The Clock Mode menu (item #13 on page 18) provides the ability to resolve to SMPTE time code (Longitudinal Time Code, referred to as LTC) from any specified analog or digital input.

When you choose the LTC clock mode setting, the audio phase lock engine in your MOTU interface resolves to the incoming time code. (See below for how to specify the time code input.) This ensures that audio passing through the interface remains resolved to time code and won't drift over time, as long as the audio is coming from other sources that are also resolved to the same time code. This also ensures that audio recorded by DAW host software on a connected computer, or audio playing back from the DAW, will remain resolved to time code and won't drift over time, even when restarting or cueing the source time code.

Depending on the stability of the incoming time code, it may take a few seconds for your interface to lock to the time code. The more stable the incoming time code, the faster the lock-up time.

SMPTE time code (LTC) settings

There are several settings for the time code features in your MOTU interface. In the web app, go to the Device tab (page 20) and scroll to the LTC Setup section, shown below.

LTC Setup LTC Input Source: Analog 6 Computer Channel for LTC-to-MTC Conversion: To Computer 10 LTC Format: 29.97 fps drop Enable Format Autodetect: Enable Jam Sync: Stop Jam Sync

Figure 4-20: Settings for SMPTE time code sync.

LTC Input Source

Choose the input on your interface that is receiving the time code (LTC). Any input can be used, including an analog input, digital input or even an AVB network channel.

Computer Channel for LTC-to-MTC Conversion Choose a computer channel that you aren't using for anything else here. It will be used to transmit LTC from the interface to the computer. If all of your computer channels are being used, you can add extra channels using the To computer setting in the Routing tab. See “LTC-to-MTC conversion” on page 76 for further info about LTC-to-MTC conversion.

LTC For m at

Choose the frame format that matches the incoming time code.

Enable Format Autodetect

If you would like your MOTU interface to automatically detect the frame format of the incoming time code, check this box.

Enable Jam Sync

When this option is checked, your MOTU interface will continue to convert LTC to MTC even after incoming time code stops being received. Once Jam Sync kicks in, it will continue generating until you click Stop Jam Sync.

SYNCING AN AVB NETWORK

The AVB protocol provides sophisticated and accurate timing, synchronization, and clocking features for AVB device networks of any size as shown on pages 42-43, including:

■ Low latency
■ Network-wide time base
■ Better-than-sample-accurate phase lock across all connected devices
■ Timing accuracy down to the nanosecond

Choosing a master clock

The web app provides an easy way to choose one device as the master clock for your whole MOTU AVB network.

1 Go to the Devices tab (page 18).

2 In the device list (item #1 on page 18), choose the MOTU interface you wish to use as the clock master.

3 Click the Become Clock Master button (Figure 4-21).

Now, all other MOTU AVB devices on the network are resolved to this device.

Alternately, you can go to the clock mode menu for each individual device separately and choose the master clock device by hand. For example, you may be in a situation where at least one MOTU device on the network must remain resolved to its own clock (or another clock source). Just know that in this case, audio cannot be streamed between MOTU AVB devices that don't share the same master clock.

Configuration Sample Rate: 48000 Clock Mode: Internal Clock Status: Word Clock: Out Follow System Clock Become Clock Master The following devices will be slaved to 1248: • 8M • Monitor 8 • 16A • 112D OK Input Settings Mic

Figure 4-21: Choosing a clock master.

Resolving the master clock device to an external clock source

The MOTU device you've specified as the AVB network clock master can itself be resolved to an external time base such as word clock or optical. Just choose the desired clock source from its Clock Mode menu (in the Device tab). Doing so effectively resolves the entire AVB network to the external clock source.

SYNCING MULTIPLE AVB AUDIO INTERFACES CONNECTED TO A MAC

There are several options for clocking multiple AVB audio devices connected to the Mac:

■ You can resolve them to an external clock source (like word clock, if available).
■ You can create an aggregate device, as usual. The aggregate device setup panel has a check box called Drift Correction, which sample-rate converts devices that are not synchronized.

Part 2

Using your

MOTU interface

CHAPTER 5 Presets

OVERVIEW

Because of its advanced, extensive feature set, your MOTU AVB interface can be used for many different purposes. This chapter discusses common use cases and their corresponding device presets, to help you use the hardware for your needs.

Preset menu

The preset menu (item #7 on page 18) contains a number of presets specifically designed for common use cases. By loading the corresponding preset, your MOTU AVB interface routing tab and mixer will be reconfigured accordingly. You can visit the Routing and Mixing tabs to inspect settings and adjust them as needed.

Audio interface....61

Stand-alone mixer 62

Interface + mixer.... 62

Live recording with monitor mixing 63

Stage I/O....63

Studio Input expander.... 63

Studio Output expander.... 64

Optical converter 64

Create your own presets

You can create presets to suit your specific needs. Your MOTU device is highly capable and configurable, allowing it to perform many tasks simultaneously.

Video tutorials

To view several excellent video tutorials for the presets described in this chapter, visit:

www.motu.com/avb

AUDIO INTERFACE

Choose the Audio Interface preset to use your MOTU device as a standard Thunderbolt, USB or iOS audio interface. Hardware inputs and outputs are accessible from your computer or iOS device, and the mixer and audio networking features are disabled.

Figure 5-1: Using your MOTU AVB device as an audio interface.

STAND-ALONE MIXER

Choose the Stand-alone mixer preset to use your MOTU AVB device as a mixer. Doing so routes all physical inputs to the mixer with the mixer main out and monitor out going to two hardware output pairs.

To control the mixer (with the AVB Control web app), you have several options. You can connect a computer to your MOTU AVB device using USB, Thunderbolt, Ethernet, or Wi-Fi, as explained in "Setup for web app control" on page 45. Figure 5-2 below shows the WiFi scenario. Note that you can control the mix from multiple WiFi devices.

Figure 5-2: Using your MOTU AVB device as a stand-alone mixer. This example demonstrates how you can control the mixer from several Wi-Fi devices.

INTERFACE + MIXER

Choose the Interface + Mixer preset to use your MOTU AVB device as both an audio interface and mixer, simultaneously. Doing so routes all physical inputs and outputs to and from the computer, connected through USB or Thunderbolt. In addition, all MOTU AVB device inputs are routed to the mixer, which mixes them to the Main Mix bus. The Monitor bus is set up as a solo bus.

In this scenario, you would control the mixer from the MOTU Pro Audio Control web app running on the computer. You can also run the web app from wireless devices on the same WiFi network as the laptop.

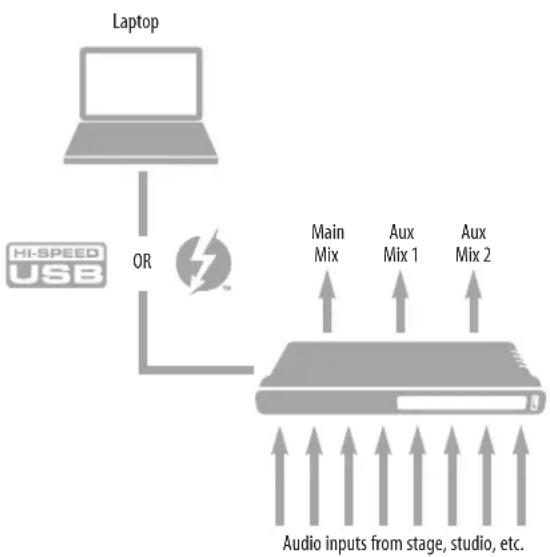

Figure 5-3: Using your MOTU AVB device as an audio interface and mixer, simultaneously.

LIVE RECORDING WITH MONITOR MIXING

Choose the Live recording with monitor mixing preset when you are tracking in the studio. The setup is pretty much the same as for the “Interface + mixer” preset discussed in the previous section, shown in Figure 5-3 on page 62. All physical inputs on the interface are routed to both the computer (for recording) and the Main Mix and Monitor busses in the mixer (for near-zero latency monitoring).

STAGE I/O

Use the Stage I/O preset when you want to route audio inputs from musicians and instruments on stage to another location over Ethernet cabling. This preset routes all inputs and outputs on the MOTU AVB interface to 8-channel AVB network streams in the routing grid, which are then broadcast to any/all other devices on the same AVB Ethernet network.

Single AVB Ethernet "snake"

For example, you could have a single Ethernet cable running from the unit on stage to a 2nd unit at the Front of House (FOH) mixer.

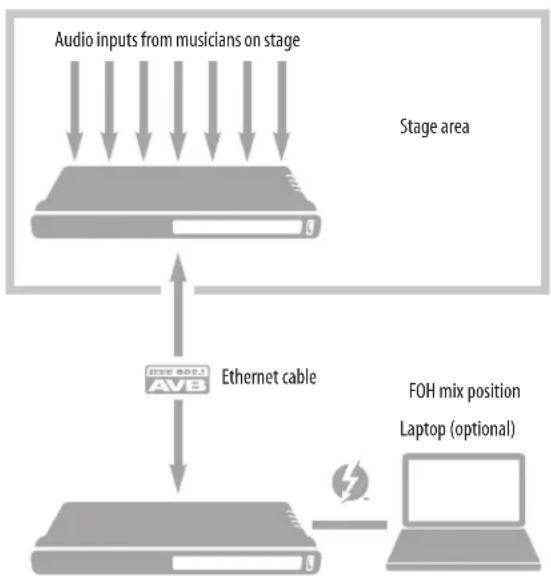

Figure 5-4: Use the Stage I/O preset to connect audio inputs and outputs to other AVB devices on the rest of the network.

Stage I/O to network

As another example, you could run an Ethernet cable from the stage unit to a MOTU AVB Switch, with a host of other MOTU AVB interfaces and computers on a multi-device network.

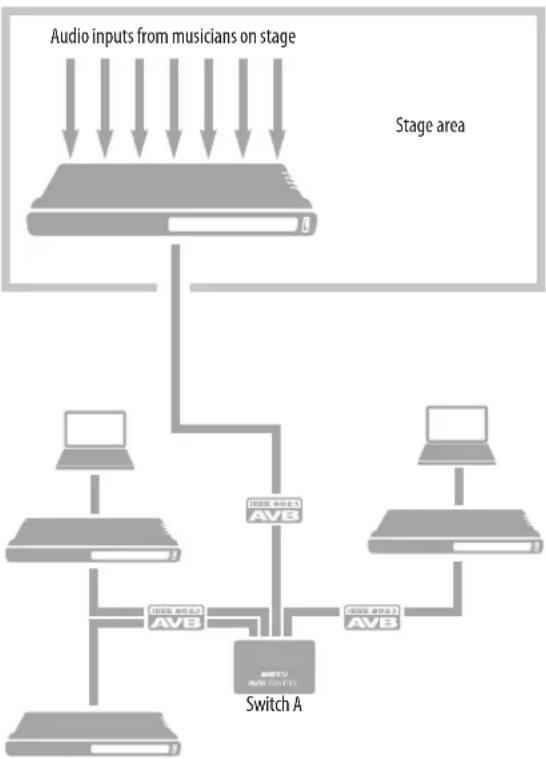

Figure 5-5: Use the Stage I/O preset to connect audio inputs and outputs to other AVB devices on the rest of the network.

Use the Studio Input Expander preset when you already have a main system set up, but you want to add additional inputs. This preset routes all physical inputs on the expansion MOTU AVB interface to AVB network streams. You can connect to these expansion streams in AVB Stream Connections section of the Device tab of the main MOTU AVB interface.

Use the Studio Output Expander preset when you already have a main system set up, but you want to add additional outputs. This preset routes AVB network streams to all physical outputs on the expansion MOTU AVB interface. You must choose which network streams are used in the AVB Stream Connections section of the Device tab of the expansion MOTU AVB interface.

OPTICAL CONVERTER

Choose the Optical converter preset if you would like your MOTU AVB device to serve as a multi-channel analog-to-digital converter connected to another device equipped with an ADAT optical port.

For example, if you have a 1248, you could connect the 1248 optical output to the optical input on another non-AVB MOTU audio interface, such as an 828mk3 or 896mk3. The 1248 then serves as a multi-channel expander that adds additional mic, analog TRS and digital inputs to your setup. The benefit of connecting the 1248 optically is that you can seamlessly integrate the 1248's inputs into the on-board no-latency monitor mixing in the other device, such as the CueMix mixing environment in MOTU mk3 interfaces.

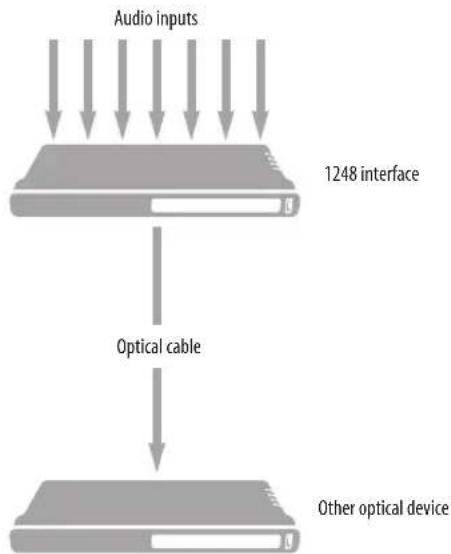

Figure 5-6: Use the Optical converter preset to connect additional audio inputs and outputs to another optical device. This example shows 1248 interface inputs being routed to the other optical device, but you could also do the same thing for outputs, even simultaneously.

CHAPTER 6 The Front Panel LCD

OVERVIEW

The front panel LCD displays level meters for all inputs and outputs (except the phones). On the 1248 and 8M, the LCD also provides horizontal “long-throw” input metering when adjusting preamp gain.

On all models, the LCD provides several menus that provide status information and basic hardware settings.

Level meters....65

Push-button Knobs 66

16A buttons 66

Automatic channel focus 58

Trim....66

ID....66

Menu Navigation 66

Device menu.... 66

Network menu.... 67

Settings menu 67

Presets menu....67

Version menu 67

Clock....67

Stand-alone operation.... 67

LEVEL METERS

In its default state when the unit is first powered on, the LCD displays level meter activity for all physical audio inputs and outputs on the device. Inputs and outputs are labeled by channel number or left/right stereo configuration, if applicable.

The meters display from -42dBFS to 0dBFS, as shown by the labels to the left of the LCD display (Figure 6-1).

8M mic/guitar input meters with V-Limit™ compressor

On the 8M interface, all eight mic/line/instrument inputs are individually equipped with V-Limit ^™ (page 18), a hardware limiter that helps prevent digital clipping from overloaded input signals.

With the limiter turned off, signals that hit 0dBFS or above will clip (a hard digital clip). However, with V-Limit turned on, signals can go as high as +9 dBFS with no distortion due to digital clipping. If the signal goes above +9 dBFS, it will clip, even with V-Limit engaged. The small downward meter to the right of the channel's meter indicates how much V-Limit is limiting the signal. Lookahead (page 18) enhances performance by anticipating peaks, but adds compensated delay (16 samples) to all inputs. Also see “Soft Clip™” on page 50.

Figure 6-1: V-Limit compressor on the 8M interface.

PUSH-BUTTON KNOBS

On the 1248 and 8M, the knobs (Figure 6-2) are push-button digital rotary encoders. Push the knob for the function labeled in blue.

1 TRIM 2 ID 3 BACK —— SELECT (PUSH) Pad 45V Pad 45V Pad 45V Pad 45V

Figure 6-2: Push the knob to activate the functions labeled in blue.

16A BUTTONS

Instead of knobs, the 16A interface has equivalent buttons. Use the up/down arrow buttons to scroll through menus or settings.

ID BACK SEL 0 -6 -12 -42

Figure 6-3: Buttons on the 16A front panel.

AUTOMATIC CHANNEL FOCUS

When turning the knobs (on the 1248 or 8M) to adjust the preamp gain on a mic channel, the display switches to a larger, horizontal meter with numeric readouts for precise setup. A few seconds after you stop turning the knob, the display returns to the default view.

"PIN" CHANNEL FOCUS

When viewing a channel's horizontal meter, push its knob (on the 1248 or 8M) to "pin" the LCD's focus on the large meter view. The view is "pinned" to show the horizontal meter until the active channel's knob is pushed again. Switch directly to another channel's horizontal meter by pushing or turning its knob. Push the selected channel's knob again to unpin.

TRIM

On the 1248 and 8M, push TRIM (Figure 6-2) to display the preamp gain settings for all mic inputs simultaneously, instead of viewing only the channel you are adjusting. You can then use the channel knobs to adjust each channel while viewing its setting relative to the other channels being displayed.

ID

Push ID (Figure 6-2) to immediately view the device's network information, including its IP Address. Push back to return to the meters.

MENU NAVIGATION

Push SELECT (or SEL) to access the main menu, which provides settings and status information.

Main Menu

On the 1248 or 8M, turn the SELECT knob to scroll through the menu settings on the left side of the LCD. On the 16A, push the up/down arrow buttons to scroll through the equivalent menus and settings.

Push SELECT (or SEL) to enter the selected sub-menu (column of options to the right) or to select the currently highlighted parameter.

Push BACK to go to the parent menu.

To exit the menu entirely, push BACK repeatedly until the menu disappears from the display.

Device menu

The Device menu provides information about the device, such as its name and connection mode (Thunderbolt, USB, or AVB).

Network menu

The Network menu displays the following network-related information:

Setting Explanation

Serial/UID Unique AVB network identifier and serial number that can be used for trouble-shooting and registering your device at motu.com/register.

IP address The unique network address for the unit.Type this address into your web browser to access the unit's settings in the MOTU Pro Audio Control web app.

AVB Indicates whether AVB networking is currently enabled or disabled. For example, AVB could be disabled because a non-AVB switch is being used. When AVB is disabled, audio streaming over the network is disabled.

Settings menu

The Settings menu provides access to basic hardware settings, such as Clock Mode, Sample Rate, and so on.

Setting What it does

Clock Mode Sets the digital audio clock source for the device.

Sample Rate Sets the sample rate for the device.

Word Clock Thru Sets the word clock output to OUT or THRU

Optical Specifies the SMUX format when operating at 88.2 or 96 kHz. See “Optical” on page 50.

Configure IP Chooses between DHCP and a manually assigned IP Address.

LCD Contrast Adjusts the contrast of the LCD.

Clear Password Removes password protection in the web app.

Factory Defaults Restores factory default settings.

Presets menu

The Presets menu lets you recall settings that have been saved as a device preset. Use the web app to create and save presets (item #7 in the “Device tab” on page 18).

Version menu

The Version menu displays firmware version information.

CLOCK

The Clock section of the LCD displays the sample rate at which the unit is currently operating, and the current Clock Mode setting (item #13 in the Devices tab on page 18). The Clock Mode setting can also be found (and changed) in the Settings Menu.

All settings, including mix settings and device settings, are saved in your MOTU interface's memory. They remain in effect even when the interface is not connected to a computer. This allows you to use your MOTU device as a standalone mixer. You can make adjustments to any setting at any time from the web app running on a device that has a network connection to your MOTU interface, as explained in “Setup for web app control” on page 45.

CHAPTER 7 Working with Host Audio Software

OVERVIEW

Your MOTU interface provides multi-channel audio input and output for Core Audio compatible audio applications on the Mac and ASIO or Wave compatible applications on Windows, including MOTU's Digital Performer and AudioDesk, Apple's Logic Pro and GarageBand, and other third-party software applications such as Ableton Live, Avid Pro Tools, Cockos Reaper, Propellerhead Reason, Steinberg Cubase and Nuendo, Cakewalk SONAR, PreSonus Studio One, Bitwig, and others.

AudioDesk is available as a free download for MOTU interface owners at motu.com/avb. For complete information about all of AudioDesk's powerful workstation features, refer to the AudioDesk User Guide.pdf found in the Help menu of the AudioDesk application.

Digital Performer, MOTU's state-of-the-art digital audio workstation software, is available separately; for details about upgrading from AudioDesk to Digital Performer, talk to your authorized MOTU dealer or visit motu.com.

Preparation 69

Run the web app.... 69

Choose the MOTU Pro Audio driver.... 70

Reducing monitoring latency.... 70

Working with the Routing grid 73

Working with on-board mixing and effects.... 75

Synchronization 76

LTC-to-MTC conversion 76

PREPARATION

Install your host audio software and complete these chapters before proceeding:

■ chapter 3, "Software Installation" (page 35)

■ chapter 4, “Hardware Installation” (page 39)

RUN THE WEB APP

Before you run your host audio software, launch the web app to configure your MOTU hardware.

The web app lets you configure important settings in your audio interface, enable the desired inputs and outputs, and set up audio streams to and from the computer.

Sample Rate

Choose the desired sample rate for your interface (item #8 in the Device tab on page 19) and your host audio software. Make sure the sample rates for the hardware and software match. Newly recorded audio will have this sample rate.

Clock Mode

The Clock Mode setting (item #13 in the Device tab on page 19) is important because it determines the master digital audio clock for your system.

If you do not have any digital audio connections to your MOTU device (you are using the analog inputs and outputs only), and you will not be resolving your host software to word clock or another external clock source, choose Internal.

If you have devices connected to the optical ports, see “Choosing a clock source for optical connections” on page 51.

If you are slaving your MOTU device and your host software to word clock, follow the directions in "Syncing word clock devices" on page 56.

Audio Interface preset

Click Launch Quick Setup (item #9 in the Device tab on page 19) and choose the Audio Interface preset. Your MOTU interface is now set up for operation as an audio interface with any host audio

software. For details about customizing the audio routing to and from the computer, see “Working with the Routing grid” on page 73.

CHOOSE THE MOTU PRO AUDIO DRIVER

Once you've made the preparations described so far in this chapter, you're ready to run your audio software and enable the MOTU Pro Audio driver, which allows your host software to use your MOTU interface.

For Mac OS X audio software

For audio software running under Mac OS X, go to the menu item or preference where you choose the audio device (Core Audio driver) you wish to use, and then select your MOTU interface by name.

For Windows audio software

For audio software running under Windows, go to the menu item or preference where you choose the ASIO driver you wish to use, and then choose MOTU Pro Audio. If your host audio software doesn't support ASIO, choose the MOTU Pro Audio Wave driver instead.

Device Setup MIDI MIDI Port Setup Remote Devices Quick Controls Transport Record Time Max Time Display VISTA Video Player VST Audio System MOTU Pro Audio VST System Link VST Audio System MOTU Pro Audio ASIO Driver Release Output Units / Applicators in Background Input Latency: 1.857 mm Output Latency: 2.377 mm HW Sample Rate: 48,000 kHz HW Pull Up/Down: Off Advanced Options Set to Defaults Normal Audio Density Multi Processing Activate Steinberg Audio Power Scheme 2 Seconds Disk Printout Adjust for Record Latency 0 Samples Record Shift Help Reset Apply OK Cancel

Figure 7-1: Choosing the MOTU Pro Audio ASIO driver in Cubase.

Where to go in popular audio hosts

Here is the location for this setting in various popular audio software host applications:

Host software Location for choosing your MOTU interface

Digital Performer and AudioDesk	Setup menu > Configure Audio System > Configure Hardware Driver
Pro Tools 9 or later Setup menu > Playback Engine or Current Engine
Logic Pro Preferences > Audio tab > Devices tab > Core Audio tab
Garage Band Garage Band menu > Preferences > Audio/ MIDI > Audio Output/Input menus
Cubase and Nuendo	Device Setup > Devices list > VST Audio System menu
Live Preferences > Audio tab
Reason Preferences > Audio preferences

Reaper Preferences > Audio prefs > Devices

Other audio software

Consult your software's manual for further information.

REDUCING MONITORING LATENCY

Monitoring latency is a slight delay caused by running an input signal through your host audio software and back out. For example, you might hear it when you drive a live guitar input signal through an amp modeling plug-in running in your audio sequencer.

This delay is caused by the amount of time it takes for audio to make the entire round trip through your computer, from when it first enters an input on your MOTU interface, passes through the interface hardware into the computer, through your host audio software, and then back out to an output.

Monitoring through your MOTU interface

If you don't need to process a live input with plug-ins, the easiest way to avoid monitoring latency is to disable your DAW's live monitoring feature and instead use the digital mixer in your

MOTU interface to route the input directly to your outputs. For details, see “Mixing tab” on page 22. The mixer in your MOTU interface even provides zero latency effects processing (EQ, compression and reverb), which can be applied to the signal.

Direct hardware playthrough / Direct ASIO monitoring

When managing your live monitor mix through your MOTU interface mixer, remember to disable your DAW's live monitoring features, so that you won't hear record-enabled tracks in your DAW. Also note that your MOTU AVB interface does not support Direct Hardware Playthrough in Digital Performer, or the Direct ASIO Monitoring feature (or similar) offered and other DAWs, which lets you control no-latency hardware monitoring from within the host application. Instead, you can use the MOTU Pro Audio Control web app mixer ("Mixing tab" on page 22) to make these live monitoring connections manually.

If you don't require any effects processing on the input signal (no reverb or compression, for example), all this takes is one click in the routing grid to route the input being recorded to the output you are using for monitoring.

If you are recording a mono input that you'd like to monitor in stereo, or if you need to apply effects to the monitored signal, you can simply route the input to the mixer in your MOTU interface. This is done by opening the Mix In group in the Outputs column along the left side of the grid (Figure 7-7 on page 75), and clicking the tile at the intersection of the input's column and the desired mixer input's row. Once routed to the mixer, use the input channel, reverb bus, and monitor bus in the mixer to apply effects as desired, and perhaps include other channels to the mix, and then assign the monitor bus output in the routing grid to the output you are using for monitoring. In either case (routing directly in the grid or routing through the mixer), be sure to maintain the input's connection to the computer as well, so the input signal can be recorded in your host software. In other words, you'll want to make sure there are two tiles enabled in the input's column in the grid: one tile for the connection to the computer and another tile for your monitoring output (or a mixer input, if you are using the mixer to apply effects). If you need to route the input signal to other destinations, too, you can certainly do so (you can route the input to multiple destinations).

Monitoring through your host audio software

If you do need to process a live input with host software plug-ins, or if you are playing virtual instruments live through your MOTU audio hardware, you can significantly reduce latency by adjusting the audio buffer setting in your host audio software, as explained in the next section.

It is important to note that monitoring delay has no effect on the recording, or playback, of audio data from disk. The actual recording and playback is extremely precise, it is only the monitoring of your live input signal which may be delayed.

Adjusting your host software audio buffer

Buffers are small bundles of audio data. Your interface “speaks” to your computer in buffers, rather than one sample at a time. The size of these buffers determine how much delay you hear when monitoring live inputs through your audio software: larger buffers produce more delay; smaller buffers produce less.

Adjusting buffer size on Mac OS X

Under Mac OS X, audio I/O buffer size is handled by the host audio application (not by your MOTU interface's Core Audio driver). Most audio software applications provide an adjustable audio buffer setting that lets you control the amount of delay

you'll hear when monitoring live inputs or processing them with software plug-ins. Here are a few examples.

Configure Hardware Driver CoreAudio Built-in Microphone Built-in Output Pro Tools Aggregate I/O 1248 Master Device: 1248 Sample Rate: 44100 Clock Modes: 1248 Buffer Size: 512 Work Priority: High Cancel OK

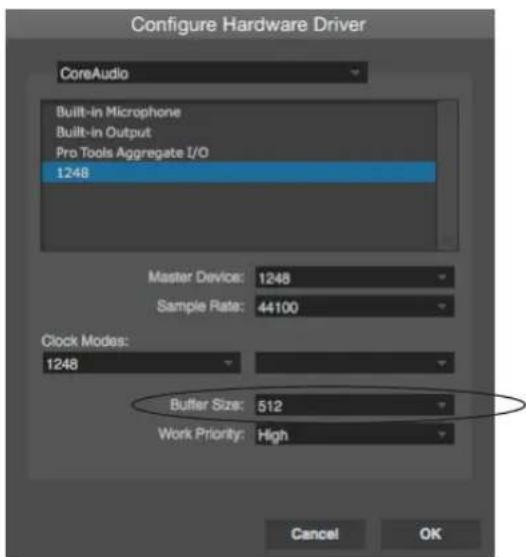

Figure 7-2: In Digital Performer and AudioDesk, choose Setup menu> Configure Audio System> Configure Hardware Driver to open the dialog shown above and access the Buffer Size setting.

Device Setup VST Audio System 1348 ASIO Driver Release Driver when Application is in Background Input Latency: 6.780 ms Output Latency: 6.921 ms 250 Samples Audio Buffer Size Advanced Options Set to Defaults High Audio Priority 2 Seconds Disk Preload Lower Latency Multi Processing Adjust for Record Latency 0 Samples Record Shift Help Reset Apply Cancel OK

Figure 7-3: In Cubase or Nuendo, choose Devices menu > Device Setup. Select your interface (1248, 8M or 16A), then click the Control Panel button to access the window above and the Buffer Size setting.

Controls General VCS Parameters MPI Power Com Audio Enema Output Device: 12.8 Input Language: 12.8 I/O Buffer Level: 128 Samples Hemodialysis: 7.1 Hz (Hemodialysis) [0.1 Hz (Hemodialysis)] Hemodialysis Delay: 31-Bit Recording Temporary Monitoring Intricate monitoring only for forward tracks and record-walled tracks Indesubject monitoring based for record-walled channel stiles Processing Threshold: Minimum Maximum Number Angles: Medium Particle Number Angles: Cold Maximum Label Angle: Normal Noise Response: Normal Apply Shingles

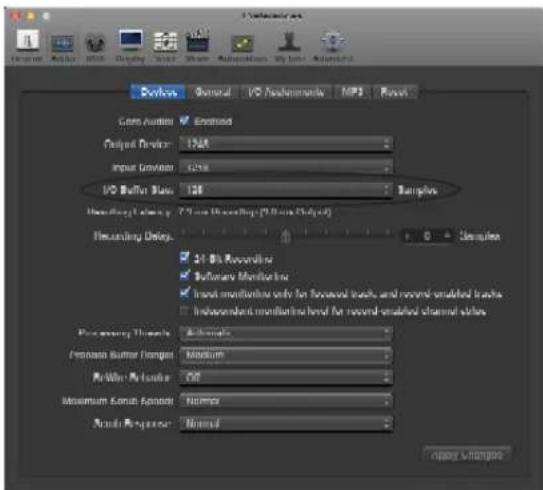

Figure 7-4: In Logic Pro, go to the Audio Driver preferences to access the Buffer Size option shown above.

Adjusting buffer size on Windows

On Windows, the buffer size is adjusted in the web app Device tab (page 19). See "Host Buffer Size" and "Host Safety Offset" on page 37.

Lower latency versus higher CPU overhead Buffer size has a large impact on the following:

■ Monitoring latency
■ The load on your computer's CPU
■ Responsiveness of transport controls and effect knobs in AudioDesk, Digital Performer or other audio software.
■ Real-time virtual instrument latency.

The buffer setting presents you with a trade-off between the processing power of your computer and the delay of live audio as it is being patched through your software. If you reduce the size, you reduce monitoring latency, but significantly increase the overall processing load on your computer, leaving less CPU bandwidth for things like real-time effects processing. On the other hand, if you increase the buffer size, you reduce the load on your computer, freeing up bandwidth for effects, mixing and other real-time operations.

Audio Performance Audio Performance Processing Playback

Figure 7-5: When adjusting the buffer size to reduce monitoring latency, watch the 'processor' meter in Digital Performer or AudioDesk's Performance Monitor. If you hear distortion, or if the Performance meter is peaking, try raising the buffer size.

If you are at a point in your recording project where you are not currently working with live, patched-thru material (e.g. you're not recording vocals), or if you have a way of externally processing inputs, choose a higher buffer size. Depending on your computer's CPU speed, you might find that settings in the middle work best (256 to 1024).

Transport responsiveness

Buffer size also impacts how quickly your audio software will respond when you begin playback, although not by amounts that are very noticeable. Lowering the buffer size will make your software respond faster; raising the buffer size will make it a little bit slower.

Effects processing and automated mixing

Reducing latency with the buffer size setting has another benefit: it lets you route live inputs through the real-time effects processing and mix automation of your audio software.

WORKING WITH THE ROUTING GRID

The Routing grid (Figure 7-6) gives you a lot of control over the audio routing to and from your computer, as explained in the following sections.

Enabling and disabling input/output banks

In the web app Routing tab (page 21), you can enable all input and output banks on your MOTU device that you wish to make available to your host audio software. You can disable banks you are not using to simplify operation. Be sure to keep at least one input and output bank enabled, though.

Specifying the number of computer channels

In the web app Device tab (item 27 on page 20), you can specify the number of computer channels for streaming audio to and from your host audio software. You might want enough channels to cover the following:

■ Physical inputs you want to record on your computer.
■ The physical outputs you want to send audio playback to.
■ Any audio streams going to and from the on-board mixer in your MOTU device
■ Any audio streams going to and from the AVB network, if you have multiple networked MOTU AVB devices

If you aren't sure how many channels you'll need, visit the Routing tab, as explained below.

Making inputs and outputs available to your host software

In the web app, use the Routing tab (page 21) to map inputs and outputs to computer channels, as demonstrated in Figure 7-6 and Figure 7-7.

Configuration presets

The presets menu (item #7 in the Devices tab on page 18) provides many useful presets for various host routing scenarios. These presets are a convenient shortcut for the routing grid setups discussed in the next few sections.

Naming computer input and output channels

Click on any computer input or output name in the routing grid (Figure 7-6) to change its name. These names appear in your host audio software.

Streaming computer audio to and from the on-board mixer

In Figure 7-6, you'll see "mix" inputs across the top of the grid (Main, Monitor, Aux, etc.) These are output busses from the your interface's on-board mixer. To route one of these mix busses to your

host computer software, click the grid at the intersection of the mix column and desired computer channel row. Now, the mix bus output will be routed to the computer via the channel you selected.

Conversely, you can stream audio from the computer into the mixer. Channels coming from the computer are represented across the top of the routing grid as inputs. To route a computer channel to the mixer, click the grid at the intersection of the computer channel column and the desired mix input row. Now, that computer channel will be routed to the mixer input.

Working with AVB network streams

Audio channels going to networked AVB interfaces can be streamed to and from your host audio software through the MOTU interface connected directly to the computer. For information about how to set this up, see “Mapping computer channels to network streams” on page 105.

Mirroring computer channels to multiple outputs

Figure 7-6 shows an example of mirroring one stereo audio stream from your host audio software to several outputs. In the example, computer channels 1-2 are being sent to the main outs, plus

Figure 7-6: An example of routing computer channels (from host audio software) to physical outputs on a 1248. The two headphone outs are mirroring the main outs (channels 1-2 from the computer). In this example, 30 channels are being used for streaming from the host computer, but more can be added for streaming to the AVB network or the on-board 48-channel mixer in the 1248.

phones 1-2 and phones 3-4. To route an input to multiple outputs, click multiple boxes in its column, (see computer channels 1-2 in Figure 7-6).

Combining multiple inputs to one output

To merge (mix) any channels in the grid (computer streams or otherwise), route them to mixer inputs and then use the on-board mixer (“Mixing tab” on page 22).

Routing grid tutorials

For further information about using the routing grid, including many useful tips and techniques, visit:

www.motu.com/techsupport/technotes/avbrouting and

www.motu.com/avb

WORKING WITH ON-BOARD MIXING AND EFFECTS

Your MOTU interface provides powerful mixing, EQ, compression and reverb, which can operate hand-in-hand with your host's mixing environment. For example, your MOTU interface can serve as a monitor mixer, routing channels to musicians, or it can serve as an integrated

Figure 7-7: An example of routing physical inputs on the 1248 to computer channels (for host audio software). In this example, S/PDIF input is on channels 23-24 going to the computer, and 24 channels total are being used for streaming to the host computer, but more can be added for other inputs from the mixer or AVB network, if any.

extension of your host's mixing environment. You can even save a particular mixing configuration as a preset for future recall. For details, see “Mixing tab” on page 22.

SYNCHRONIZATION

You may encounter situations in which you need to synchronize your audio software and your MOTU interface to other components of your system. For details, see “Synchronization” on page 55.

LTC-TO-MTC CONVERSION

When connected to a Mac, your MOTU interface can convert SMPTE time code (LTC) to MIDI Time Code (MTC), allowing any MTC-compatible host audio software to resolve to MTC.

LTC-to-MTC conversion can be done even when the Clock Mode setting for the MOTU interface is set to Internal (or any other setting). Note that the Clock Mode setting does NOT have to be set to LTC. In other words, the interface can convert LTC to MTC even when it is not resolving its audio engine to the incoming time code. This allows your DAW host software to resolve to time code with fast lockup response.

To set up LTC-to-MTC conversion:

1 Set the interface Clock Mode to Internal (or any other desired setting).
2 Set the other LTC settings as needed, as discussed in "Syncing to SMPTE time code (LTC)" on page 57, including the Computer Channel for LTC-to-MTC Conversion setting.
3 If you would like MIDI Time Code to continue to be generated, even after LTC stops being received, check Enable Jam Sync (Figure 4-20 on page 57). Otherwise, leave it unchecked.
4 Follow the directions for MTC (SMPTE) sync in your DAW software.

Your MOTU interface driver automatically communicates with OS X, creating a device in the computer's Audio MIDI Setup configuration that reports its time code port to any MTC-compatible host software. If your host software requires that you specify the port, you should see your MOTU interface SMPTE Sync port as an available option in the list. In Digital Performer, this is the Sync to port menu in the Receive Sync settings (Setup menu), which is set to Any by default (so it should just work). Here's a summary for a few popular DAW hosts:

Host software Sync settings

Digital Performer and AudioDesk	Settings menu >Receive Sync >Sync to port menu
Pro Tools Setup >Peripherals >Synchronization
Logic File >Project Settings >Synchronization>General
Live Preferences >MIDI Sync

Cubase Transport > Project Synchronization Setup

CHAPTER 8 Mixer Effects

OVERVIEW

This chapter provides further information about the effects processors available in the DSP mixer in your MOTU AVB interface. For basic mixer operation, see:

Mixing tab 22

Aux Mixing tab 23

Mixer input channel strips 24

Main Mix and Monitor channel strips 25

Aux bus channel strips.... 26

Group and Reverb channel strips.... 27

Powerful DSP-driven mixing and effects

The mixer is driven by a powerful DSP that delivers 32-bit floating point precision and plenty of processing bandwidth for no-latency effects, including parametric EQ, dynamics, and reverb. Effects can be applied when operating as an audio interface or as a stand-alone mixer without a computer. Input signals to the computer can be recorded wet and/or dry, or recorded dry while a real-time wet monitor mix is sent to musicians. Effects include:

High Pass Filter 77

A conventional high pass filter

Gate 78

A standard gate with threshold/attack/release controls

Four-band parametric EQ.... 78

Multi-band parametric EQ modeled after British analog consoles

Compressor....79

A standard compressor with threshold/ratio/attack/release/gain controls

Leveler 81

The Leveler™, an accurate model of the legendary LA-2A optical compressor, which provides vintage, musical automatic gain control

Reverb 82

Classic reverb with tail lengths up to 60 seconds

Advantages over host-based mixing and processing

The hardware mixer in your MOTU AVB interface provides several major advantages over mixing and processing in your host audio software:

• No buffer latency. The DSP-mixer provides the same near-zero latency throughput performance as a conventional digital mixer. Effects processing doesn't impact your computer's CPU.
  ■ DSP mixing and routing can be maintained independently of individual software applications or projects.
  ■ DSP-driven mixing can function without the computer, allowing your MOTU AVB device to operate as a portable, stand-alone mixer with effects.
  Effects are disabled when operating at 4x sample rates (176.4 or 192 kHz).

HIGH PASS FILTER

All input channel strips provide a 12 dB per octave high pass filter. High Pass filters are often used to remove unwanted mic rumble, for example.

Figure 9-1: The High Pass Filter

GATE

All input channel strips provide a Gate module.

Gate Gate Attack Thresh Release

Figure 8-1: The Gate module.

The gate silences the signal when the input signal's level drops below the Threshold.

The rate at which the gate responds, (opens to let signal through) is determined by the Attack parameter. With a short Attack time, the gate will open as soon as the signal crosses the Threshold; with longer Attack times, the gate will gradually open, much like a fade-in.

When the input level falls back below the Threshold, the time it takes for the gate to close (how quickly the signal is attenuated), is determined by the Release parameter. Short Release times will close the gate quickly, abruptly attenuating your signal, versus longer release times, which will gradually attenuate your signal, like a natural fade-out.

FOUR-BAND PARAMETRIC EQ

All mixer channel strips, (except for the Monitor bus), provide modeled, four-band parametric EQ.

Vintage EQ

Inspired by legendary British large console EQs, the EQ section (Figure 8-2) models the sound of the most sought-after classic equalizers. Four bands of center frequency parametric EQ filtering are provided, each with a bandwidth control. The High and Low bands include a shelf filtering option. With 32-bit floating point precision, the vintage EQ has been carefully crafted and meticulously engineered to produce musical results in a wide variety of applications.

Enabling EQ

Each band has an enable/disable button (Figure 8-2), allowing you to enable as few or as many bands as needed for the channel strip.

EQ High Gain Freq Shelf Mid Gain Freq Bandwidth Mid Gain Freq Bandwidth Low Gain Freq Shelf EQ Graph Enable/disable

Figure 8-2: The Four-band parametric EQ module.

EQ filter controls

The EQ filters have three controls:

Control unit range

Gain dB -20.00 to +20.00

Frequency Hertz 20 to 20,000

Bandwidth Octaves 0.01 to 3.00

Double-click a knob to return to its default position.

EQ filter characteristics

EQ is one of the most widely used processing tools and can be applied to many different situations, from minor corrective tasks to creative tone

sculpting. The four-band EQ has been designed to be flexible enough to cover a broad range of applications. By adjusting Gain and Bandwidth together, you can emulate the smooth and musical character of classic analog EQ circuits, in which the Gain/Bandwidth dependency was dictated by the actual circuit design and electrical components used.

Low and high shelf filters

The Low and High bands offer a shelf option that is similar to those found in most conventional parametric EQs.

EQ graph

The EQ graph below the EQ section (Figure 8-2) provides a thumbnail visual indication of the current EQ settings for the input channel. It is for visual reference only and cannot be edited directly. However, you can click it to open the full-size EQ graph in a separate window (Figure 8-3), which is fully editable.

COMPRESSOR

All mixer input channel strips provide a compressor module.

Compressor Comp Thresh Ratio RMS Gain Attack Release Level Gain Reduction Compressor Graph

Figure 8-4: The Compressor module.

The Compressor (Figure 8-4) lowers the level of the input when amplitude of the signal is above the Threshold. The amount of attenuation is determined by the Ratio and the input level. For example, if the input is 6 dB above the Threshold and the Ratio is 3:1, the compressor will attenuate

Figure 8-3: The full-size EQ graph.

the signal to 2 dB above the Threshold. When the input level goes above the threshold, the attenuation is added gradually to reduce distortion. The rate at which the attenuation is added is determined by the Attack parameter. Likewise, when the input level falls below the Threshold, the attenuation is removed gradually. The rate at which the attenuation is removed is determined by the Release parameter. Long Release times may cause the audio to drop out briefly when a soft passage follows a loud passage. Short Release times may cause the attenuation to "pump", a term used to describe the sound of the compressor when the average input level quickly fluctuates above and below the Threshold. These types of issues can be addressed by adjusting the compressor's parameters, or applying the Leveler instead. Gain adjusts the overall output level of the compressor, post processing. The Level meter (Figure 8-4) shows the level of the input signal entering the compressor. It shows either the Peak envelope or the RMS level, if enabled.

Gain reduction meter

The Gain reduction meter (Figure 8-4) displays the current amount of attenuation applied by the compressor, before the makeup gain stage.

RMS mode

By default, the compressor operates in Peak mode, which uses signal peaks to determine the input level. In RMS mode, the compressor measures the input signal's loudness, using the root-mean-square computational method. When RMS is disabled, RMS mode will let brief peaks through because the detector sidechain is only looking at the average signal level. By contrast, peak mode will catch those brief peaks. Peak mode is generally used for drums, percussion and other source material with strong transients, while RMS mode is mostly used for everything else.

The level meter shows either the peak level or the RMS level, depending on the mode.

Compressor graph

The Compressor graph below the Compressor section (Figure 8-4) provides a thumbnail visual indication of the current compressor settings for the input channel. It is for visual reference only and cannot be edited directly. However, you can click it to open the full-size Compressor graph in a separate window (Figure 8-5), which provides graphic editing of the Ratio and Threshold controls.

In 1 Ratio handle Threshold handle -30db -20db -10db -30db -20db -10db THRESHOLD: -22.0 RATIO: 1.800 ATTACK: 1 RELEASE: 500 GAIN: 0 RMS:

Figure 8-5: The full-size Compressor graph.

LEVELER

The Leveler ^™ (Figure 8-6) provides an accurate model of the legendary Teletronix ^™ LA-2A ^® optical compressor, known for its unique and highly sought-after Automatic Gain Control (AGC) characteristics.

Figure 8-6: The Leveler module.

The Leveler is available on the Main Mix bus and all Group busses, including the Reverb bus.

A model of an optical compressor

An optical leveling amplifier works by shining a light on a photoresistor. The intensity of the light source is proportional to the audio signal, and the resistance of the photoresistor is in turn inversely proportional to the intensity of the light. Photoresistors respond quite quickly to increases in light intensity, yet return to their dark resistance very slowly. Thus, incorporation of the photoresistor into an attenuator followed by an amplifier which provides make-up gain produces a signal which maintains a constant overall loudness.

Automatic gain control using light

The AGC circuit of the LA-2A uses a vintage optocoupler known by its model number T4. The T4 contains an electroluminescent-panel (ELP) and photoresistor mounted so that the emission of the panel modulates the resistance. An ELP consists of a thin layer of phosphorescent material sandwiched between two insulated electrodes to form a capacitor. Making one of the electrodes transparent allows the light to escape. These devices are essentially glow-in-the-dark paint on a piece of foil covered by metalized glass or plastic, and are the same devices used in low-power night lights. Unfortunately, these devices need high voltages to operate, and are best driven by tube circuits which can supply voltage swings of several hundred volts.

Response characteristics

Once the light has faded away, the photoresistor then decays back to its dark state. The shape of the decay curve varies depending on how bright the light was, and how long the light lasted. A general rule of thumb is that the louder the program, the slower the release. Typically, the release can take up to and over one minute. One thing to keep in mind when using these types of devices is that the typical concepts of compression ratio, attack, release, and threshold do not apply. The light intensity is determined by the highly non-linear interactions of the input signal, AGC circuit, and ELP, and thus exhibit a strong program dependence that is impossible to describe without the mind-numbing mathematics of statistical mechanics. The actual results, however, can be almost mystical: even when you feed the same material (a loop perhaps) through the Leveler twice, you'll often see a new response the second time through a loop, complete with unique attack times, release times and compression ratios. Furthermore, two different input signals with the same RMS levels may be leveled in a drastically different manner.

It is precisely this self-adjusting behavior that makes optical compressors the tool of choice for smoothing out vocals, bass guitar and full-program mixes without destroying perceived dynamics.

Enabling or disabling the Leveler

The Leveler models the LA-2A so closely, it also models the time it takes for an actual LA-2A to "warm up" after it is turned on. Therefore, when you enable the Leveler, give it a moment to "settle" before you begin processing signals with it.

Gain Reduction

Gain Reduction (Figure 8-6) sets the strength of the signal sent to the AGC model.

Makeup Gain

Makeup gain (Figure 8-6) amplifies the output signal to make up for gain reduction.

Limit button

The Limit button (Figure 8-6) models the original LA-2A Limit/Compress mode switch. The effect is very subtle, with the Limit option behaving only slightly more like a limiter than a compressor. The switch increases the level of the input to the AGC model and runs the attenuator at a slightly lower level. The Leveler then responds more strongly to transients, but otherwise still behaves like a leveling amplifier.

REVERB

Use the enable/disable button (Figure 8-7) to turn the reverb processor on or off. Since reverb uses considerable DSP resources, it is best to leave it off when you are not using it.

Reverb Reverb Time Mod Predelay Spread High Ratio Mid Ratio

Figure 8-7: The Reverb processor.

Routing inputs and groups to the reverb processor

The reverb processor is a single, independent unit that provides stereo reverb. You can route any input channel or Group bus to the Reverb processor with the Reverb send on its channel strip. All incoming signals to the reverb processor are merged and processed together. The resulting stereo output from the reverb can then be merged into the Main Mix bus with the Main send on the Reverb channel strip (item #7 on page 27).

Reverb Time

Reverb time (Figure 8-7) determines the length of decay, or tail, of the reverb. The knob's range is from 100 milliseconds to 60 seconds.

Predelay

Predelay is the amount of time before the acoustic energy from the source returns to the listener, after reflecting off the surfaces of the listening space. The very first reflections helps you perceive information about the listening space, (size, distance, surface type, etc.). In large rooms, it takes a while (on the order of milliseconds) before the first reflections return to the listener. Predelay is useful for adding clarity, as it delays these reflections, before the onset of full reverberation. For example, with pre-delay added to vocals, the reflections won't start until after the initial sound of a word has been sung.

Spread

Spread controls stereo imaging. A position of 12 o'clock produces essentially a mono image. Turning the control all the way to the left completely swaps the stereo image.

High and Mid frequency bands

The High and Mid frequency bands let you independently control the reverb time for separate frequency bands, relative to the low frequency reverb time. The High setting represents the bottom frequency of the High band; the Mid

setting represents the bottom frequency of the Mid band. The Ratio determines the length for each band specified in a percentage of the low frequency reverb time.

DSP USAGE

The DSP Usage meter (item #30 on page 24) shows how much of the available DSP processing power is currently being used by the mixer for the mix and for effects processing. If there aren't enough DSP resources for all effects to be enabled on a channel, effects are disabled for that channel and all subsequent channels.

Unlike other effects, HPF and EQ on a stereo channel requires approximately twice the DSP resources as on a mono channel.

CHAPTER 9 MOTU Audio Tools

The MOTU Audio Tools application provides advanced audio analysis tools, which can be applied to a left channel input, right channel input, or both.

Installation....85

Device menu....85

Analysis menu 86

Left/right input 86

FFT and Spectrogram display.... 86

Oscilloscope 88

X-Y Plot....93

Phase Analysis 96

INSTALLATION

MOTU Audio Tools is a standard software application installed on your Mac or PC when you run the MOTU Pro Audio installer or setup app. It can be found in the Applications folder (Mac) or Start menu under MOTU (Windows).

DEVICE MENU

If you are working with more than one MOTU audio interface, the Device menu (Figure 9-1) displays all interfaces that are currently connected to your host computer. Choose the device you wish to work with.

Audio Tools - Setup Scope Channel Selection Device 1246 Left Input Computer 1 Analysis FFT Analysis Right Input Computer 2 MOTC View Max Show FFT Show Spectrogram Color Logarithmic Area 100% Horizontal Min +10 Max +Z2558 Vertical Max +0 Min -144 Spectrogram Flower -80 dB Alpha 100%

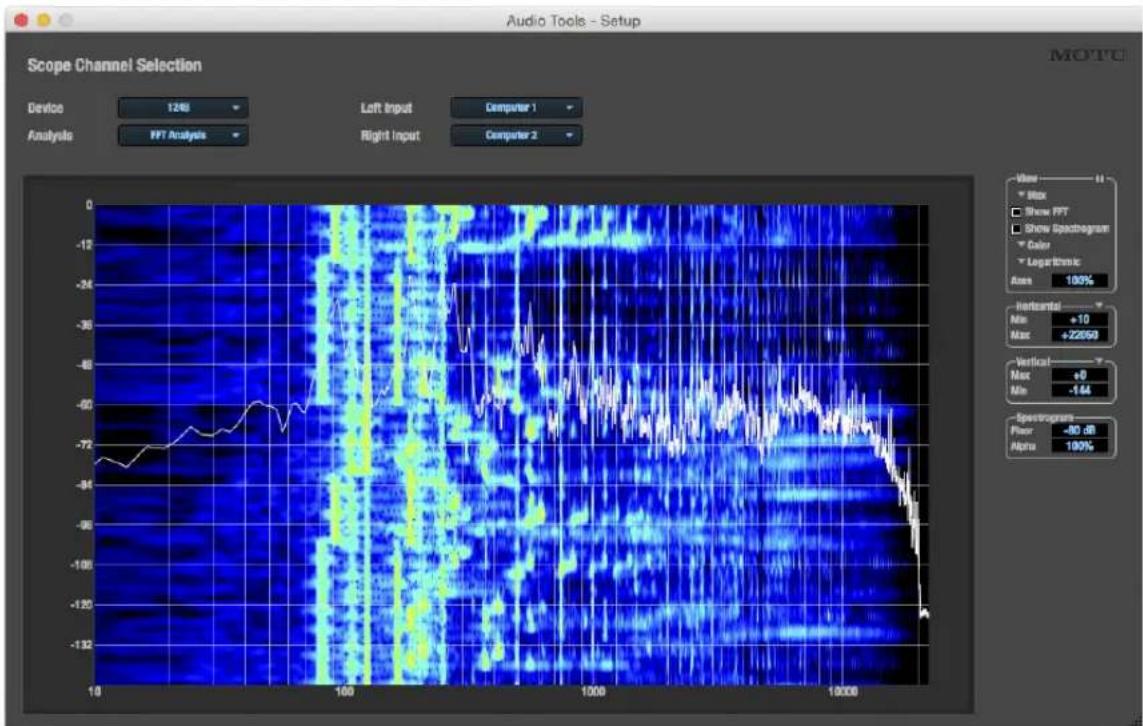

Figure 9-1: The MOTU Audio Tools window with the FFT and Spectrogram Analysis.

ANALYSIS MENU

Choose the desired form of audio analysis from the Analysis menu (Figure 9-1). For details on each analysis pane, see the following sections of this guide.

LEFT/RIGHT INPUT

Choose the desired channel(s) you wish to scope from the Left Input and Right Input menus (Figure 9-1). These menus display the To Computer channels configured in the MOTU Pro Audio Control web app. The number of channels shown is controlled by the From device to computer setting in the Device tab. For example, if 18 channels are specified, you'll see 18 channels in the Left/Right Input menus. Use the Routing tab to map desired audio sources (listed across the top of the grid) to the To Computer audio channels, as demonstrated in Figure 7-7 on page 75.

Computer Setup From device to computer: 16 out of 128 From computer to device: 16 out of 128

Figure 9-2: The 'From device to computer' setting determines how many channels you see in the Left Input and Right Input menus.

FFT AND SPECTROGRAM DISPLAY

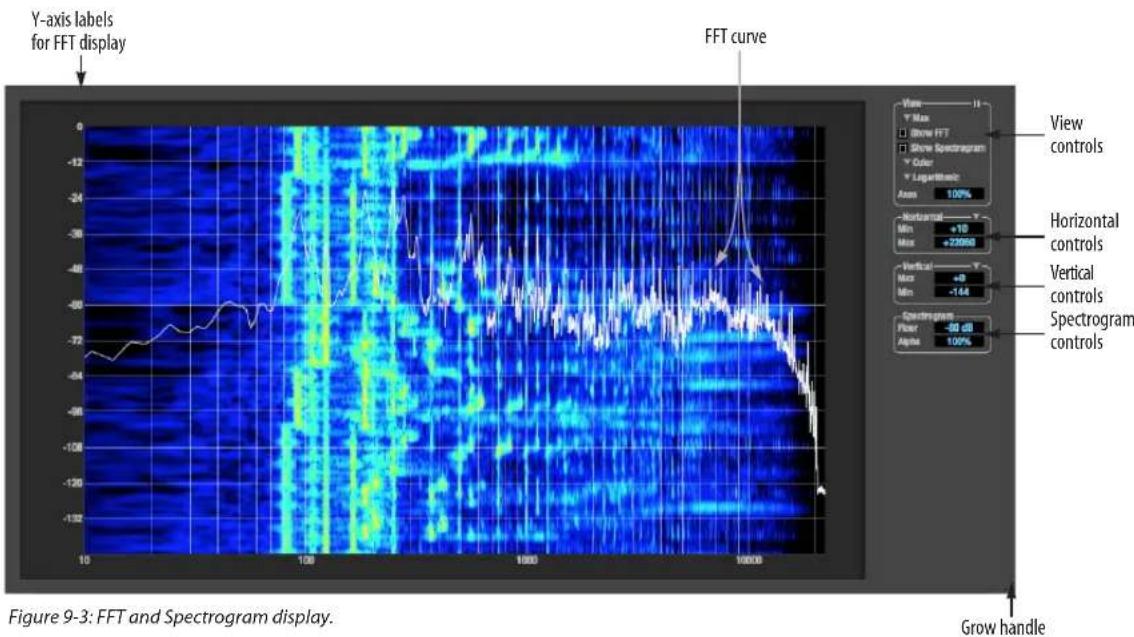

The FFT analysis pane displays a real-time Fast Fourier Transform (FFT) frequency measurement and spectrogram “waterfall”, as shown in Figure 9-3.

Spectrogram

The spectrogram scrolls from top to bottom, where the top edge of the display represents what you are hearing “now”. Color represents amplitude along the left/right frequency spectrum. The amplitude color scale runs from black (silence) to red (full scale) as follows:

Figure 9-4: Spectrogram color-to-amplitude spectrum.

View controls

You can show and hide the FFT display and spectrogram as desired using the View controls (Figure 9-5).

View Max Show FFT Show Spectrogram Color Logarithmic Axes 100% Pause button View menu Display options

Figure 9-5: FFT view controls.

View menu

This menu provides various options for displaying the two input channels.

View menu setting What it does

Left Displays the left channel only.

Right Displays the right channel only.

Split Screen H Shows both channels side by side, with the screen split horizontally.

Split Screen V Shows both channels side by side, with the screen split vertically.

Shared Displays both FFTs (left is green and right is red), and the spectrogram waterfall shows the maximum level of either the left or right channel (whichever is greater).

Max The FFT and spectrogram shows the maximum level of either the left or right channel.

Subtract L - R Subtracts the right channel from the left channel and displays the results.

Logarithmic or Linear X-Axis Scale

The x-axis defaults to a logarithmic scale, but it can be changed to a linear scale if desired. In the View controls (Figure 9-5), click Logarithmic to access the x-axis scale options menu. With a linear scale selected, frequency is constant, but the width of each octave along the x-axis is different. With a logarithmic scale selected, octaves are displayed with a constant width, but frequency is displayed logarithmically within each octave.

Axes display

The Axes control (Figure 9-5) sets the opacity of the grid displayed in the graph, from 100% (fully visible) down to 0% (fully hidden).

Pausing the display

The Pause button in the upper right corner of the View section (Figure 9-5) allows you to freeze the display at any time. To resume, click the button again.

Horizontal controls (frequency axis)

The Horizontal controls (Figure 9-6) configure the value range of the x-axis (frequency). Click and drag the values up or down to set them, or double-click to return to the default value.

Horizontal Min +10 Max +22050 Horizontal controls menu

Figure 9-6: The Horizontal controls.

There are two modes for the controls: Zoom/Offset and Min/Max. To change the mode, use the Horizontal control menu (Figure 9-6).

In Zoom/Offset mode, Zoom sets the display zoom from 1x to 100x, where the number represents the zoom factor relative to the entire frequency range. For example, when the horizontal zoom value is 1x, the entire frequency range from 10 to 24000 Hertz is displayed; when the horizontal zoom value is 2x, one half of the entire frequency range is displayed. Pos determines which frequency is displayed at the center of the graph.

In Min/Max mode, Min and Max set the lowest and highest displayed frequencies (in Hertz).

Vertical controls (amplitude axis)

The Vertical controls (Figure 9-7) operate similarly to the Horizontal controls, except that they configure the y-axis (amplitude).

Vertical Max +0 Min -144 Vertical controls menu

Figure 9-7: The Vertical controls.

In Zoom/Offset mode, Zoom sets the display zoom from 1x to 100x, and Pos sets the center amplitude of the graph. In Min/Max mode, Min and Max set the smallest and largest displayed amplitude.

Spectrogram controls

The Floor control (Figure 9-8) sets the amplitude threshold for the spectrogram display, from -144 dB up to 0 dB.

Figure 9-8: The Spectrogram controls.

The Alpha control (Figure 9-8) sets the opacity of the spectrogram information displayed in the graph, from 100% (fully visible) to 0% (hidden).

OSCILLOSCOPE

The Oscilloscope (Figure 9-9) graphs the amplitude of an audio signal over time.

Amplitude is displayed on the y-axis and time is displayed on the x-axis. A thick white vertical line marks where time equals zero; a thick white horizontal line marks where amplitude equals zero (Figure 9-9, below).

Level meters are displayed to the right of the graph. One or two meters are shown, depending on the current view mode (see "View controls").

View controls

The View controls (Figure 9-10) provide several options for the oscilloscope display.

View Shared Show Ruler Axes 100% Pause button View menu

Figure 9-10: View controls.

Figure 9-9: Oscilloscope.

View menu

The View menu (Figure 9-10) lets you choose how to display the audio channel(s) being displayed.

View menu setting What it displays

Left Left channel only

Right Right channel only

Split screen Left channel on top; right channel on the bot-tom

Shared Left and right on top of each other; left is green, right is red

Add Left and right channels' amplitudes are added together

Subtract L-R The right channel's amplitude is subtracted from the left channel's amplitude

Display options

The Axes control (Figure 9-10) sets the opacity of the grid displayed in the graph, from 100% (fully visible) down to 0% (fully hidden). The Show Ruler option toggles the measurement items (see “Measurement information” on page 91).

Pausing the display

The Pause button in the upper right corner of the View section (Figure 9-10) allows you to freeze the display at any time. To resume, click the button again. The level meters will remain active while the display is paused.

Horizontal controls (time axis)

The Horizontal controls (Figure 9-11) configure the value range of the x-axis (time). Click and drag the values up or down to set them, or double-click to return to the default value.

There are two modes for the controls: Zoom/Offset and Min/Max. To change the mode, use the Horizontal control menu (Figure 9-11).

Horizontal controls menu
Figure 9-11: Horizontal controls.

In Zoom/Offset mode, Zoom sets the display zoom from 1/1000x to 10x, where the number represents the number of pixels per sample. For example, when the horizontal zoom value is 10x, 10 samples are displayed in 100 pixels; when the horizontal zoom value is 1/10x, 100 samples are displayed in 10 pixels. Pos moves the line marking time equals zero left or right.

In Min/Max mode, Min and Max set the earliest and most recent displayed time.

Time Units

The Time Units sub-menu (Figure 9-11) provides the option to view the X axis in Seconds or Samples.

Vertical controls (amplitude axis)

The Vertical controls (Figure 9-9) operate similarly to the Horizontal controls, except that they configure the y-axis (amplitude).

In Zoom/Offset mode, Zoom sets the display zoom from 1/2 to 100x, and Pos moves the line marking amplitude equals zero line up or down.

In Min/Max mode, Min and Max set the smallest and largest displayed amplitude.

Waveform Recognition

The Waveform Recognition option (Figure 9-9) searches through new audio data looking for a waveform which most resembles that which was previously displayed. The region where this takes place is a small window around the line marking time equals zero, denoted by the extra vertical graph lines surrounding it. There are two kinds of waveform recognition available: Type I and Type II.

Type I recognition provides the most stable display of the waveform. It is the most resistant to change. Louder transients, such as those produced by a snare drum, are not displayed inside of the waveform window. Type I is best for observing the shape of a signal produced by a synthesizer or observing the tone of a guitar through a chain of pedals.

Type II recognition is less resistant to change. It will include loud transients within the waveform recognition window. Type II is better for observing percussive music where the beat itself is to be centered within the waveform window.

Trigger

When the Trigger (Figure 9-12) is not enabled (the Trigger menu is set to None), the graph updates based on time: after every n samples of the monitored audio signal, the most recent samples are displayed. When the Trigger is enabled (set to any mode other than None), the graph updates in response to specific conditions in the signal. The Trigger section defines that criteria and how the graph will display the events that match.

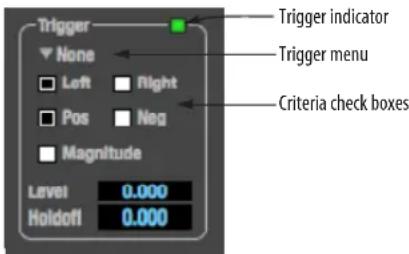

Trigger None Left Right Pos Neg Magnitude Level 0.000 Holdoff 0.000 Trigger indicator Trigger menu Criteria check boxes

Figure 9-12: Trigger settings.

Criteria

The criteria checkboxes (Figure 9-12) determine the conditions that the trigger is looking for and where it will look for them.

The Left checkbox causes the condition to be looked for in the left channel of the signal; likewise, the Right checkbox looks for the condition in the right channel. One or both of these can be enabled simultaneously. If neither is enabled, the criteria will not be found because the trigger is not looking at any audio signal.

The Pos and Neg checkboxes determine the slope of the event. When the Pos checkbox is enabled, the trigger will look for an event where amplitude is increasing; likewise, enabling the Neg checkbox tells the trigger to look for an event where amplitude is decreasing. One or both of these can be enabled simultaneously. If neither is enabled, the criteria will not be found because the trigger is not looking for any particular kind of event.

The Level setting defines the amplitude threshold that the trigger is looking for. The Level is indicated on the graph by a blue horizontal line (or two blue horizontal lines, if Magnitude is enabled). Events which cross this threshold using the enabled slope(s) in the enabled channel(s) will activate the trigger. The response of the trigger is set by the Trigger mode (see “Trigger modes”, below).

Enabling the Magnitude checkbox tells the trigger to look for both positive and negative Level values, regardless of whether the Level value is positive or negative. For example, if Level is set to +0.500 and Magnitude is enabled, the trigger will look for both +0.500 and -0.500. You will see a second blue line appear in the display when Magnitude is enabled to denote the second value.

Holdoff

Holdoff defines a time interval during which the oscilloscope does not trigger. The most recent trace will be displayed during that period. When the period is over, the trigger is “re-armed”, i.e. it will begin looking for the criteria again.

Click and drag this value up or down to set it, or double-click to return to the default value.

Trigger modes

The Trigger menu (Figure 9-12) provides four modes:

Trigger mode What it does

None The Trigger is not active; this is the default mode.The incoming audio signal will be displayed continuously as audio is received.
Auto The display is always updating, but when the condition is met, the trigger event will be displayed centered around the line marking time equals zero.
Normal The display updates only when the condition is met; the last trace will be displayed until the next matching event is found.
Single Sweep	Similar to Normal mode, but the last trace will be displayed until you manually arm the trigger by clicking the Trigger indicator (Figure 9-12 on page 90) or by pressing the spacebar.

Trigger indicator

The Trigger indicator (Figure 9-12) displays the state of the trigger, and also provides a way to manually interact with it. The Trigger indicator always displays one of three colors:

Color Status

Green When the current Trigger criteria has been met (including when the Trigger mode is None).
Yellow	When the Trigger is armed, but has not yet found an event which matches its criteria. Yellow can also indicate that the graph has been manually paused using the Pause button in the View section (see “Pausing the display” on page 89).

Red When the Trigger is being held off, either because the Trigger mode is set to Single Sweep or the Holdoff time is not set to zero.

You can also click on the Trigger indicator to force certain actions, depending on the Trigger mode. In Auto and Normal modes, clicking on the Trigger indicator causes the display to run freely; you may click & hold to force this to occur for as long as you'd like. In Single Sweep mode, clicking on the Trigger indicator re-arms the trigger. When the Trigger mode is None, clicking on the Trigger indicator has no effect.

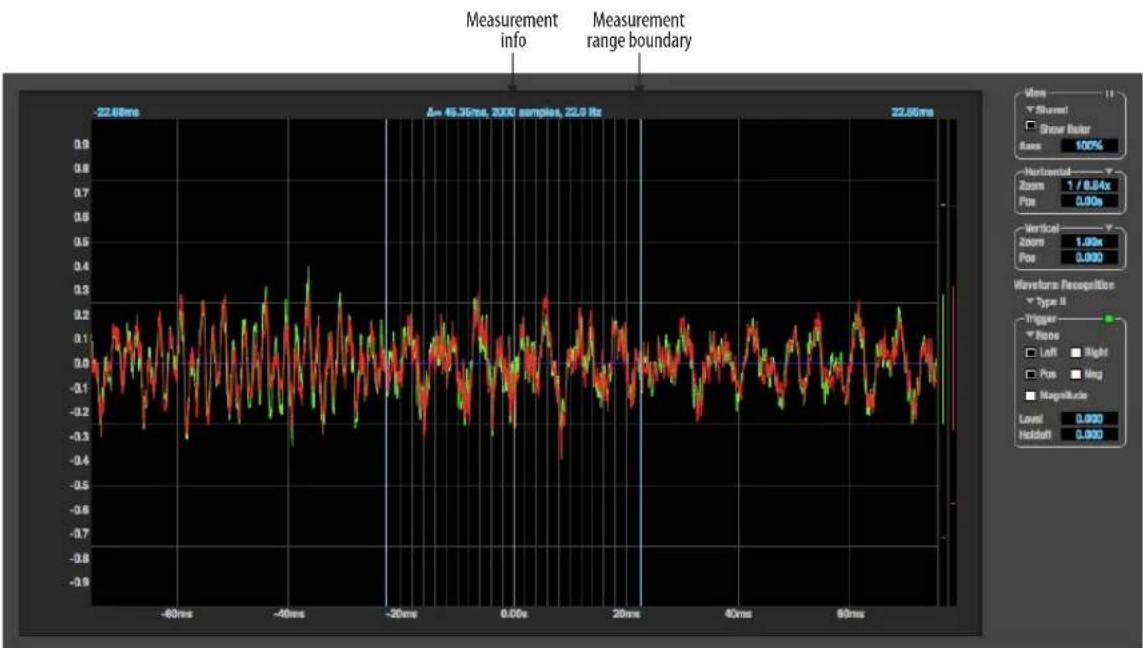

Measurement information

You can view detailed information about a particular time range by using the measurement bars (Figure 9-9).

To adjust the left and right edges of the measurement area, click and drag the blue bars in the graph (Figure 9-9), or click and drag the blue numbers in the upper left or right corners. To reset them to the default value, double-click the numbers.

Information about the measured area is displayed at the center of the top ruler: the duration (in seconds and samples), the approximate frequency, and the scientific note name. If the measured area is long enough, the approximate beats per minute (bpm) is displayed.

Ideas for using the Oscilloscope

The Oscilloscope can be used in many useful ways during the routine operation of your recording studio. Here are just a few examples.

Analyzing and comparing harmonic content The oscilloscope lets you “see” the nature of the harmonic profile in any audio material. You can also view two signals side by side (in stereo mode) to compare their profiles and, if necessary, make adjustments to the source of each signal and view your changes in real time.

Viewing transients such as drum hits

If you loop a snare hit or other similar transient audio clip and feed it through the oscilloscope, you can more or less “freeze” the transient waveform in the oscilloscope frame. This can be useful, for example, for viewing the results of real-time compression that you are applying with an effects plug-in. For example, when you are compressing a

snare hit, as you make adjustment the compressor, you can see the transient waveform change the next time the Oscilloscope triggers. For compression, this can be particularly useful for balancing the effect of the attack on the transient, relative to the decay portion of the waveform. Conversely, you can see the effect of the threshold setting directly on the decay portion, relative to the attack. In effect, you can see as well as hear the results of your compression adjustments.

To view a transient waveform in the Oscilloscope display, turn off Waveform Recognition and use the Normal Trigger mode. Adjust the level high enough to encompass the vertical amplitude of most of the transient. If the transient pulse sweeps across the screen, try raising the Holdoff level. Once the transient is settled in the display and fairly stable, you may need to adjust the horizontal position to center it in the display. You can also pause the display at any time and adjust the horizontal bounds to locate a transient.

Clip detection

You can use the Oscilloscope to detect clipping in a digital audio signal. To do so, enable all criteria (Figure 9-12), choose Single Sweep from the trigger menu (Figure 9-12), set the level to 0.999 and click the trigger indicator (Figure 9-12) to arm it (yellow). As soon as the signal clips, the trigger indicator will turn red, and the display will show the offending clip at the line marking time equals zero.

Viewing timing pulses

If you have two audio signals with recognizable, timed pulses in them, and you wish to compare their timing with respect to each other, you can use Split Screen or Shared view to visually compare the timing of the two signals. You can zoom in to the sample level for sample accurate viewing.

Building synthesizer patches

If you are building a synth patch on a synthesizer (or forming similar highly periodic audio material), you can run the audio signal through the Oscilloscope as you adjust its sound to check in real time for undesirable (and possibly inaudible) characteristics, which are easily seen in the Oscilloscope display. A good example is DC offset. If a signal develops DC offset, the apparent vertical center of its overall waveform will drift above or below the line marking amplitude equals zero. Try setting Waveform Recognition to Type I and setting Trigger to None.

Another example is waveform polarity. If you are combining several raw waveforms, polarity is a critical, yet not always obvious, factor in determining the resulting sound. You can use the Oscilloscope to easily view and compare polarities to see if they are inverted from one another or not. The Add and Subtract L - R View menu settings are particularly useful here.

You can also use the Oscilloscope to help you apply waveform modulation and keep it “in bounds”. For example, you could easily see if pulse width modulation is collapsing in on itself to choke the sound, an effect that is readily seen in the Oscilloscope display but not necessarily easy to determine by ear when using multiple modulation sources.

Guitarists can also visually observe the effects of their pedals and processing, while playing. With the Trigger mode set to None and Waveform Recognition set to Type I, the waveform will be tracked automatically.

When applying filters and filter resonance, the visual effect on the waveform can be invaluable in reinforcing what you are hearing as you make adjustments.

X-Y PLOT

The X-Y Plot window (Figure 9-13) graphs the amplitude of a stereo audio signal on a two-dimensional grid.

For each unit of time (i.e., each sample), the amplitude of the left channel is displayed on the x-axis and the amplitude of the right channel is displayed on the y-axis. A thick white vertical line marks where left channel amplitude equals zero; a thick white horizontal line marks where right channel amplitude equals zero (Figure 9-13). There are also thick white diagonal lines for y = x and

$$ \mathrm{y} = - \mathrm{x}. $$

Metering

Level meters are displayed above and to the right of the graph for the left (green) and right (red) channels, respectively. An additional Correlation meter (blue) is displayed on the right. This meter displays the correlation between the two channels.

The higher the meter, the higher the correlation between the two channels. Below are a few examples:

Situation Meter level X-Y Plot graph Mathematical
relationship

Perfect correla-tion	+1 Diagonal line going from lower left to upper right:	y = x
Zero correlation 0 No discern-ible pattern		None
Perfectly out of phase	-1 Diagonal line going from upper left to lower right:	y = -x

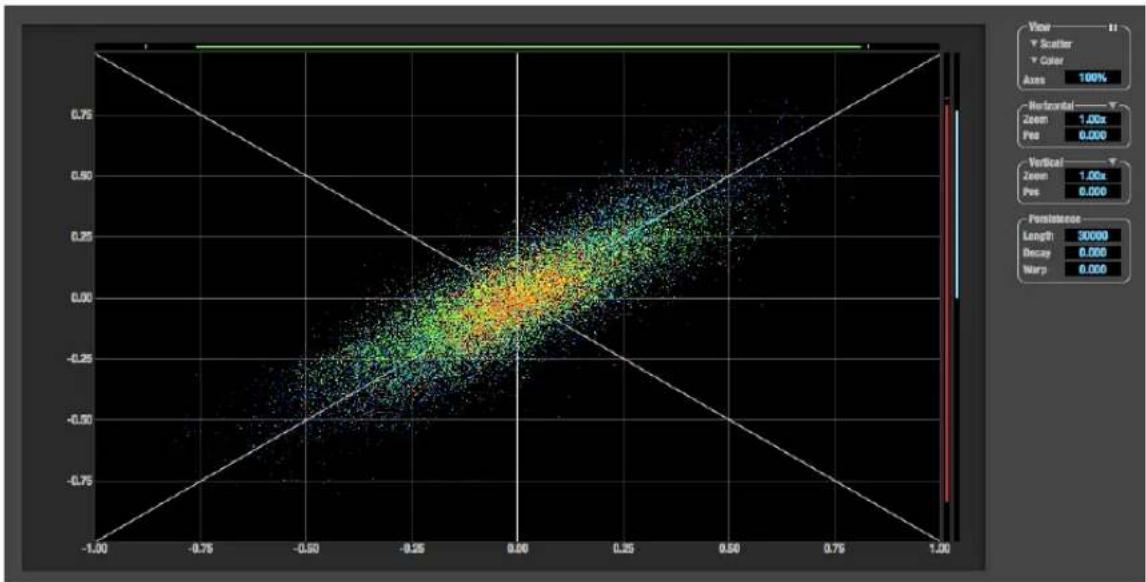

Figure 9-13: X-Y Plot.

View controls

The View controls (Figure 9-14) provide several options for the X-Y Plot display.

View ▼ Scatter ▼ Color Axes 100% Pause button

Figure 9-14: View controls.

Pausing the display

The Pause button in the upper right corner of the View section (Figure 9-14) allows you to freeze the display at any time. To resume, click the button again. The level meters will remain active while the display is paused.

Line/Scatter

Choose either Line or Scatter from the menu in the View section (Figure 9-14) to plot each point (sample) as either a single pixel or as a continuous line that connects each plot point to the next, as shown below in Figure 9-15.

Figure 9-15: The same X-Y Plot displayed in Line versus Scatter mode.

Line mode is significantly more CPU intensive than Scatter. You can reduce Line mode CPU overhead on the X-Y Plot by reducing the Length parameter (described below).

Color/Grayscale

In Color mode (Figure 9-14) the most recently displayed audio data is shown in red, which fades to yellow, green and then finally blue, before disappearing. In Grayscale mode, data is first shown in white and then fades to gray. To adjust the scale of this color/brightness change, see “Decay” on page 95.

Axes

The Axes control (Figure 9-14) sets the opacity of the grid displayed in the graph, from 100% (fully visible) down to 0% (fully hidden).

Horizontal and vertical controls

The Horizontal and Vertical controls (Figure 9-16) configure the value range of the x-axis (left channel amplitude), and y-axis (right channel amplitude), respectively. Click and drag the values up or down to set them, or double-click to return to the default value.

There are two modes for the controls: Zoom/Offset and Min/Max. To change the mode, use the menu shown in Figure 9-16.

Horizontal Zoom 1.00x Pos 0.000 Vertical Zoom 1.00x Pos 0.000

Figure 9-16: Setting the Horizontal or Vertical control modes.

In Zoom/Offset mode, Zoom scales the axis. Pos moves the lines marking x = 0 left and right, or y = 0 up and down.

In Min/Max mode, Min and Max let you scale the grid by moving the -1.0 and +1.0 points along the axis. Min/Max mode lets you control the graph boundaries directly.

Persistence

The Persistence controls (Figure 9-17) affect the appearance of data from when it is first displayed until it disappears from the grid.

Figure 9-17: The Persistence controls.

Length

Length (Figure 9-17) sets the number of recent samples to show on the plot. For example, when Length is set to 10,000, the 10,000 most recent samples are shown.

Decay

The brightness (in Grayscale mode) or hue (in Color mode) of each sample on the plot is determined by a linear scale, with the most recent sample displayed at the maximum value and the oldest sample displayed at the minimum value. Decay (Figure 9-17 on page 95) determines the brightness or hue of the minimum value. When Decay is zero, the oldest sample is black. When Decay is +1.000, the oldest sample is fully opaque (in Grayscale mode) or red (in Color mode).

Warp

Warp (Figure 9-17) determines the position of data points after they are first drawn. When warp is zero, data points remain in the same position.

When warp is positive, they contract towards the origin (center of the grid). When warp is negative, they expand away from the origin. The further the warp value is from zero, the greater the effect.

Using the X-Y Plot

The X-Y Plot helps you “see” the width of the stereo field of a mix (Figure 9-18). It also helps you determine if a mix has issues with polarity, as follows:

Activity on the X-Y Plot What it indicates

Signal activity occurs mostly along the x = y axis (lower left to upper right) and the Correlation meter reading is high	Left and right channels are predominantly in polarity (the stereo field is relatively narrow)
Signal activity occurs mostly along the y = -x axis (upper left to lower right) and the Correlation meter reading is low (near -1)	Left and right channels are predominantly out of polarity (not in phase)
Signal activity occurs in a seemingly random fashion throughout the grid	No phase relationship exists (i.e. it is probably a wide stereo field)

If a stereo signal is out of phase, it is not mono compatible because it can cancel itself out, either partially or nearly completely, when collapsed to mono.

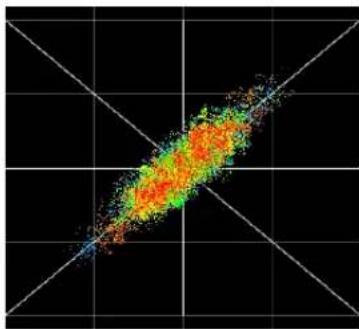

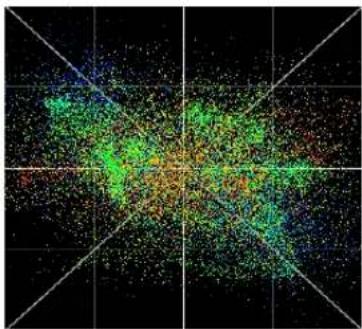

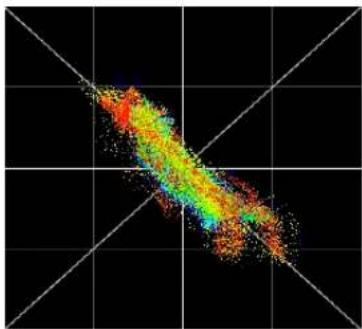

In polarity Out of polarity No polarity

Figure 9-18: Checking polarity in a stereo signal with the X-Y Plot.

PHASE ANALYSIS

The Phase Analysis window (Figure 9-19) graphs frequency versus phase difference versus amplitude of a stereo signal on either rectangular or polar coordinates.

In rectangular coordinates, the vertical axis represents frequency, and the horizontal axis represents the phase of the left channel minus the phase of the right channel (measured in radians).

In polar coordinates, the radius represents frequency and the angle (theta) from the +y vertical axis represents the phase difference of left channel minus the right channel.

Correlation Meter

The blue Correlation Meter to the right of the display shows the correlation between the two channels. The higher the meter, the higher the correlation between the two channels.

View controls

The View controls (Figure 9-20) provide several options for the Phase Analysis display.

View ✓ Scatter ✓ Color ✓ Logarithmic ✓ Rectangular Axes 100% Pause button

Figure 9-20: View controls.

Pausing the display

The Pause button in the upper right corner of the View section (Figure 9-20) allows you to freeze the display at any time. To resume, click the button again. The correlation meter will remain active while the display is paused.

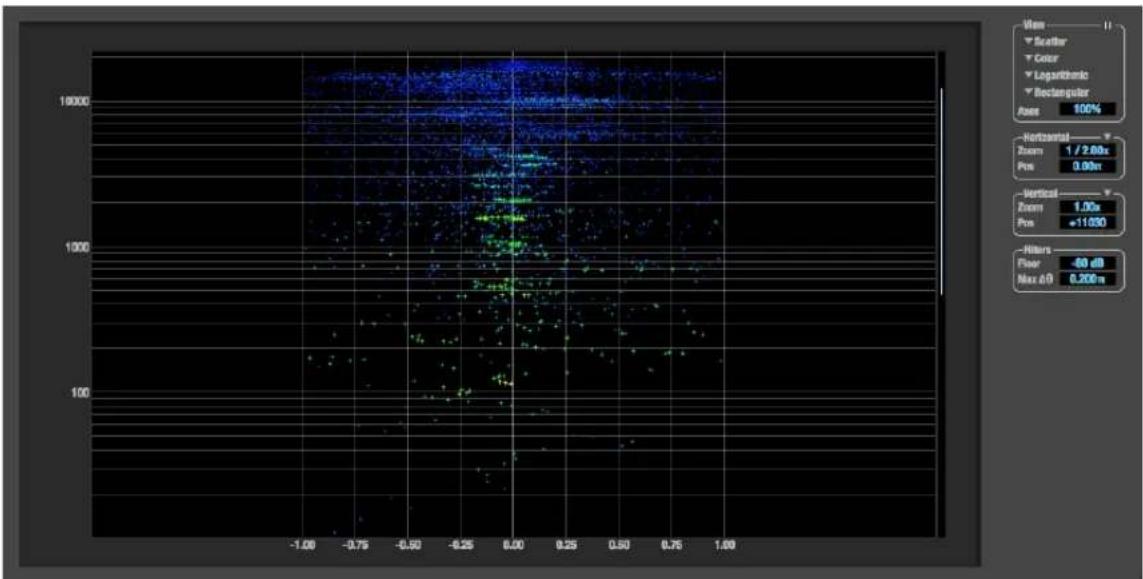

Figure 9-19: Phase Analysis.

Line/Scatter

Choose either Line or Scatter from the menu in the View section (Figure 9-20) to plot each data point as either a single pixel or as a continuous line that connects each frequency data point to the next, as shown below in Figure 9-15.

Abstract green and blue vertical gradient pattern on black background (no text or symbols)

Abstract green and yellow vertical gradient pattern on black background (no text or symbols)

Figure 9-21: The same Phase Analysis displayed in Line versus Scatter mode.

Line mode is significantly more CPU intensive than Scatter. You can reduce Line mode CPU overhead for the Phase Analysis display by increasing the Floor filter and reducing the Max Delta Theta filters (see “Filters” on page 98).

Color/Grayscale

In Color mode (Figure 9-20) signal amplitude is indicated by color as follows: red is loud and blue is soft. In grayscale mode, white is loud and gray is soft.

Linear/Logarithmic

Choose either Linear or Logarithmic from the menu in the View section (Figure 9-20) to change the scale of the frequency axis. In rectangular coordinates, the vertical axis represents frequency, and in polar coordinates, the radius from the center is frequency. With a linear scale, frequencies are spaced evenly; in a logarithmic scale, each octave is spaced evenly (frequencies are scaled logarithmically within each octave).

Linear is better for viewing high frequencies; logarithmic is better for viewing low frequencies.

Rectangular/Polar

Choose either Rectangular or Polar from the menu in the View section (Figure 9-20) to control how audio is plotted on the Phase Analysis grid. Rectangular plots the audio on an X-Y grid, with frequency along the vertical axis and phase difference on the horizontal axis. Polar plots the data on a polar grid with zero Hertz at its center. The length of the radius (distance from the center) represents frequency, and the angle (theta) measured from the +y (vertical) axis represents the phase difference in degrees.

Figure 9-22: Rectangular versus Polar display (with a linear plot).

Above, Figure 9-22 shows Rectangular versus Polar display with a Linear plot. Below, Figure 9-23 shows the same displays (and the same data) with a Logarithmic plot:

Circular abstract pattern with green and orange dots on black background, no text or symbols visible

Figure 9-23: Rectangular versus Polar display with a logarithmic plot.

Axes

The Axes control (Figure 9-20) sets the opacity of the grid displayed in the graph, from 100% (fully visible) down to 0% (fully hidden).

Horizontal and vertical controls

The Horizontal and Vertical controls (Figure 9-24) let you scale each axis of the grid and offset its zero point. Click and drag the values up or down to set them, or double-click to return to the default value.

There are two modes for the controls: Zoom/Offset and Min/Max. To change the mode, use the menu shown in Figure 9-24.

Horizontal Zoom 1 / 2.00x Pos 0.00π Vertical Zoom 1.00x Pos +11030

Figure 9-24: Setting the Horizontal or Vertical control modes.

In Zoom/Offset mode, Zoom scales the axis. Pos moves the zero line.

In Min/Max mode, Min and Max let you scale the grid by moving the end points along the axis. Min/Max mode lets you set the boundaries of the graph directly.

Filters

The Filters section (Figure 9-25) lets you control the density of the Phase Analysis display.

Figure 9-25: Filters.

Floor

Floor (Figure 9-25) determines the amplitude threshold for the display. When the amplitude of both channels drops below this threshold, the signal is not shown.

Max delta theta

Max delta theta (Figure 9-25) only affects Line view (see “Line/Scatter” on page 97) and sets the maximum difference in frequency between plot points in the line plot. For two adjacent frequencies, if the distance (phase difference) between the two frequencies is greater than the Max delta theta, then the line is not drawn.

Using the Phase Analysis

In the polar display (top row of Figure 9-26 on page 99), stereo material that is predominantly phase-aligned (correlated) appears along the vertical axis, as demonstrated in the first column (Perfectly in phase) in Figure 9-26. If the vertical line tilts left or right, this indicates general differences in phase; the more the tilt (delta theta), the more the phase difference. If the vertical line points downwards in the polar display, this indicates that the stereo image is predominantly out of polarity, as demonstrated by the fourth column (Inverted) in Figure 9-26. Delays appear as spirals in the polar display.

The rectangular display (bottom row of Figure 9-26) also shows a predominantly phase-aligned stereo image along the vertical axis, and tilt (or left-right offset) from the center vertical axis represents differences in phase. If a signal is predominantly out of polarity, it appears along the theta = -1.0 or theta = +1.0 lines in the rectangular display, as demonstrated in the fourth column (Inverted) in Figure 9-26 on page 99.

Using Phase Analysis for multiple mic placement The polar display can be very useful when recording drums or another instrument with multiple microphones. The slight delays caused by the differences in distance to the source can often create a comb filtering (delay) effect between two mic signals, due to phase cancellation. These comb filter effects appear as spirals in the polar display. If you arrange the mics so that the null points (where the spiral pattern meets the negative y axis) are

outside the critical frequency range of the instrument being recorded, you can avoid phase problems among the mic signals.

Tuning PA systems

The Phase Analysis window can also be used to troubleshoot and tune PAs and sound reinforcement systems by placing microphones in strategic locations, comparing the two signals in the Phase Analysis grid and looking for phase issues at various locations.

Summing to mono

The Phase Analysis window is ideal for checking stereo audio that needs to be summed to mono. The Phase Analysis lets you see what frequencies will be canceled out when summed.

In the rectangular view, any lines in the signal that touch the +1.0 or -1.0 vertical lines in the grid will be canceled out at the frequency where they touch, when the signal is summed to mono.

In the polar view, any signal that falls on the negative y axis (below zero) will be canceled out when the signal is summed to mono.

Checking for phase issues in stereo tracks

You can use the Phase Analysis window to check the overall polarity of a stereo mix. Figure 9-27 is an example of a full stereo mix that has phase issues, as indicated by the majority of the signal's energy, which is predominantly skewed to the left side of the rectangular view (left) and spread along the -y axis in the polar view (right).

Abstract digital artwork with glowing green and blue patterns on black grid background (no text or symbols)

Abstract glowing green and blue circular pattern on black grid background (no text or symbols)

Figure 9-27: A stereo mix with phase issues.

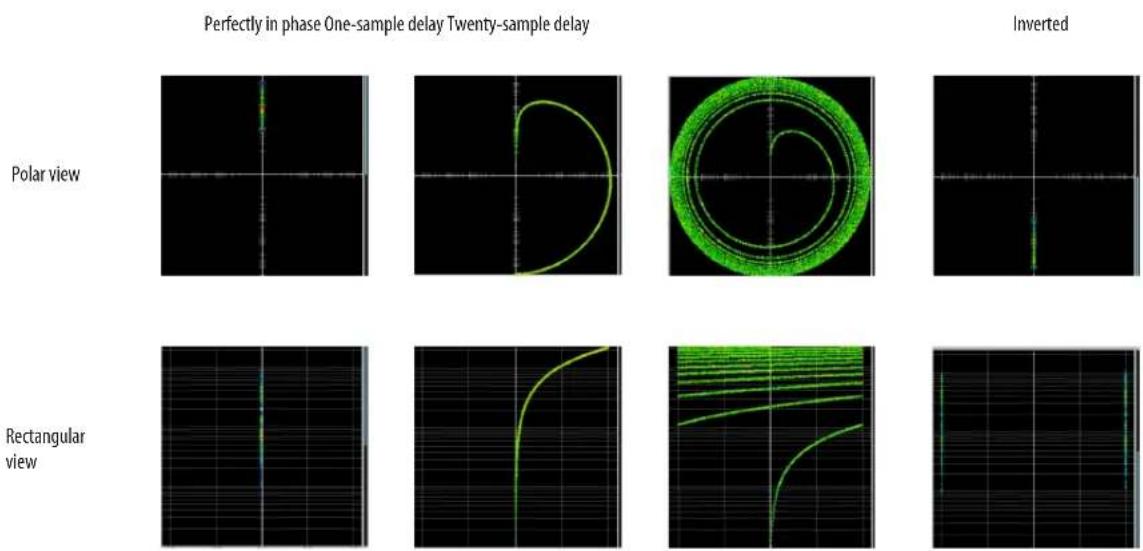

Perfectly in phase One-sample delay Twenty-sample delay Inverted Polar view Rectangular view

Figure 9-26: Two identical audio streams in the Phase Analysis.

CHAPTER 10 Networking

OVERVIEW

The Audio Video Bridging (AVB) network port on your MOTU interface opens up a world of possibilities for creating expanded, customized audio network systems.

About AVB....101

MOTU's AVB implementation....102

Networking examples....102

A quick guide to networking ....104

Setting up a MOTU AVB interface for networking... 105

Mapping audio to network streams .... 105

Mapping computer channels to network streams .. 105

Device presets and AVB stream connections.....106

Bridging to Ethernet....106

The MOTU AVB Switch....106

ABOUT AVB

Audio Video Bridging (AVB) is an extension of the Ethernet standard developed by the IEEE (802.1 standards committee) specifically to add high-performance audio and video networking.

You may also hear AVB referred to as AVB/TSN or simply TSN because the IEEE is in the process of renaming the standard to Time Sensitive Networking to accommodate the expanding scope of the specification to applications beyond audio and video.

AVB brings together the worlds of networking technology and high-end audio. Here is a brief summary of some of the immediate benefits of AVB for you, as a MOTU AVB interface user:

■ An open industry standard — AVB has been developed by the IEEE as an international standard specification. It is not proprietary or controlled by one company.

■ High channel counts — AVB provides hundreds of network channels.

■ Extremely low latency — AVB guarantees low-latency, real-time performance.

■Guaranteed Quality of Service (QoS) — AVB's Stream Reservation Protocol provides Guaranteed Quality of Service for each and every audio stream. If the network cannot continuously maintain every bit of every sample in the audio stream, it will not allow you to make the network connection in the first place. AVB streams are prioritized over other network traffic to ensure high performance.

■ Network-wide clocking and sync — AVB devices all clock together over your network for better-than-sample-accurate phase lock across all connected devices. Timing accuracy is down to the nanosecond.

- True plug-and-play operation — AVB has been designed from the ground up to provide automatic device discovery, enumeration, and connection management. Just plug your MOTU AVB interfaces into a standard AVB switch and go. If you wish to make stream connections and have the ability to select media clock, you must use the web app, or some other AVB controller. You don’t need an IT professional to configure the network. AVB is a self-managing network protocol.

■ Bridging to standard Ethernet — AVB cooperates with standard Ethernet networks, for connecting traditional Ethernet devices like wireless routers, switches, or any other non-AVB-aware device.

■ Support for existing network infrastructure — Replace your existing switches with standard AVB-compatible switches, and your CAT-5e or CAT-6 wired infrastructure now supports AVB.

■ Long cable runs — a single AVB network connection can run up to 100 meters with a standard copper wire CAT-5e or CAT-6 cable. Fiber-optic cable runs can be much longer. With multiple switches, you can create a network that covers very large distances, if necessary. You can use up to seven “hops” (switch-to-switch connections).
■ AVB is already shipping on current Macs — Apple supports AVB on all current shipping Macs, and your MOTU interface can operate as a standard AVB audio interface when connected to your Mac's AVB-equipped Ethernet port.

MOTU'S AVB IMPLEMENTATION

MOTU engineering has faithfully implemented the IEEE 802.1 AVB standard for the MOTU AVB products. This means that MOTU devices are fully interoperable with any 3rd party AVB-compatible device. In addition, MOTU has fine-tuned AVB operation among MOTU AVB devices for optimum performance, within the AVB specification. Here is a brief summary of advantages you will enjoy when using MOTU AVB devices together in a network:

■ Up to 256 channels of host I/O — MOTU AVB interfaces (depending on the model) can support up to 256 simultaneous channels of audio I/O (128 in, 128 out) to and from the entire network through Thunderbolt or USB 3.0.
■Support for multiple computer hosts — All computers and all network devices run in sync with each other, resolved to the network's master clock.
■ Gigabit Ethernet — The MOTU AVB Switch delivers 1 Gbit Ethernet performance, which provides substantially higher bandwidth than 100 Mbit Ethernet. This allows you to have many more devices on the AVB network.

• Over 500 channels of network audio — MOTU's AVB network can stream over 500 channels of audio throughout the network. Depending on the model, some MOTU AVB devices can broadcast sixteen 8-channel network streams and simultaneously listen to sixteen 8-channel network streams.
  ■ Exceptionally low network latency — Standard AVB network latency is 2 ms. MOTU AVB network latency is an astonishing 0.6 ms, even over seven “hops” (switches) and hundreds of meters of cable. By comparison, other commercially available, proprietary audio network protocols have variable (unpredictable) network latency in the range of 2-5 ms.
  ■ Star configuration — MOTU AVB supports a star network configuration, which is much more flexible than daisy-chain scenarios, which depends on all devices in the chain.
  ■ Web interface — MOTU AVB devices can be controlled from the MOTU Pro Audio Control web app, which runs within any web browser on any networked laptop, tablet, or smart phone. Although the web app shares the network with AVB, AVB audio streams are never compromised because AVB streams over the network traffic.
  ■ Bridging to standard Ethernet — the MOTU AVB Switch provides an extra standard Ethernet port for bridging to your local Ethernet network, Wi-Fi, etc. for command and control, internet access, and other standard network traffic. All ports allow connection to standard (non-AVB) network devices, however, the “Ethernet” port is suggested because it does not support AVB.

NETWORKING EXAMPLES

Networking comes into play as soon as you hook up a second MOTU interface to your first one, as explained in “Setup for two interfaces” on page 41, to add more I/O to your studio. Here are just a few examples of what is possible.

Personal studio expansion

Let's say you have a 1248 mounted in a rack next to your computer. You could add an 8M interface and position it across the room, near your drum kit, for placing up to 8 mics on the drums. All the mic cabling is kept near the drums, and you have one simple, clean network cable running back to your computer system. Despite the distance, the two interfaces operate as a seamless system, controlled from your computer or iPad.

Studio installation

A studio installation of three to five interfaces can be handled with a single MOTU AVB Switch. See "Setup for three to five interfaces" on page 42.

Networking is ideal for studio installation because you can position interfaces at strategic locations. Running cables becomes much simpler and more cost effective. Not only does a setup like this give you access to all I/O from your computer, even multiple computers, you can also route audio from any input to any output across devices with near zero latency. You can also route audio from one computer to another with very low latency. As a simple example, you could deploy several interfaces in a studio as follows:

Interface Location Purpose

1248 Control room General I/O in control room, outputs to main speakers, etc.
1248 Iso booth Local mic and instrumentI/O in the iso booth.
1248 Studio room General purpose I/O for studio A
8M Studio room More mic inputs, or additionalmic inputs for drum kit
8M Studio roormdrum kit	8 more mics on the drum kit

16A Machine room Analog I/O and patch bay for rack mounted gear

Large studio facility

In a larger studio facility, you could build audio network neighborhoods similar to the studio installation described earlier in multiple rooms, even multiple floors, with multiple computers and WiFi control from anywhere in the facility. All computers and devices can see each other and you can stream audio anywhere on the network with near-zero latency, as if any two devices were connected directly to each other.

Concert systems

Concert systems must be flexible so they can adapt to each new venue while on tour. Because of its modular nature, AVB networking allows you to design systems that are scalable and easy to adapt to each venue. You can easily bring devices on and offline, rerouting audio stems as needed.

Because MOTU AVB networking employs a star configuration, instead of daisy-chaining, you can set up backup computer playback systems on a shared network. For example, in a concert setting, if one computer system goes down, the backup system can be brought on line instantly through the same network infrastructure.

Traditionally, live performance setups often have separate domains for front of house mixing, monitor mixing, computer backline, and other systems. With MOTU AVB networking, these systems can be unified on the same network, opening up many possibilities for shared resources and mixing/routing responsibilities, especially from multiple sources (laptops, iPads, tablets, etc.) MOTU AVB networking handles audio in convenient 8-channel stems, making large-scale network management more manageable. MOTU AVB's very low latency makes it particularly suitable for line arrays and sound reinforcement.

Large-scale venues

With long cable runs and industry standard networking infrastructure, MOTU AVB systems are well-suited for large-scale commercial installations such as arenas, stadiums, theme parks, clubs, casinos, houses of worship, broadcast facilities, schools, universities, and so on. Audio streams can travel long distances with sub-millisecond latency through as many as seven switches. Audio can be distributed from a centralized location to anywhere in the venue.

A QUICK GUIDE TO NETWORKING

MOTU AVB networking has been designed to be powerful, yet straightforward to set up and use. Here are a few things that are useful to know.

Networking basics

■ Before proceeding below, review the networking connection diagrams on pages 41-43.
■ To make network connections, use shielded CAT-5e or CAT-6 cables (a higher grade cable).
■ Network cable lengths can be long: 100 meters with standard copper wire cables; much longer with fiber-optic network cables.

Working with AVB switches

■ Networks of three or more interfaces require an AVB-compatible switch. You can use any standard AVB switch on the market. MOTU offers the five-port MOTU AVB Switch™ (sold separately).

A non-AVB compatible switch will not work.
■ Connect MOTU AVB interfaces to any AVB Switch using their NETWORK ports.
■ On the MOTU AVB Switch, connect MOTU interfaces to the five AVB NETWORK ports (not the Ethernet port). Connect the Ethernet port to a WiFi router, your Local Area Network (LAN) or your computer (for running web app only).
    B["WiFi router, Ethernet hub/network, or computer"]
    C["(Sold separately)"]

■ Expand the network by adding more switches. Make a single connection from one switch to the other. On MOTU AVB Switches, use their AVB NETWORK ports, NOT the Ethernet port.
- You can daisy-chain switches in serial fashion, but don't create loops. For example, in the network below, do not make any additional connections between any two switches.

■AVB audio can't pass through more than seven switches. However, you can daisy-chain more than seven switches and route audio freely among them. You just won't be able to create point-to-point connects that span more than seven switches.

Working with computers on a network

■ Computers are not required for network operation, as you can control the network from iPads, tablets and smart phones.

■ To add computers to the network, connect them to any interface using Thunderbolt (which offers the highest possible channel counts). If Thunderbolt is not available, use USB.
- A computer can be connected to the network through its Ethernet port, but only for the purposes of running the web app on the computer for command and control over the network. (In this scenario, you won't be able to stream audio to/from the network from the computer.)
■ All computers and interfaces on the network have full access to each other.
■ MOTU employs a 1 Gbit AVB implementation in the MOTU AVB Switch. The switch allows routing of many audio channels on the network.

SETTING UP A MOTU AVB INTERFACE FOR NETWORKING

Depending on the model, MOTU AVB interfaces have the ability to broadcast up to sixteen 8-channel streams to the rest of the network. Conversely, it can “listen” to as many as sixteen 8-channel streams from anywhere else in the network. The specific number of streams supported depends on the model.

For each device on the network, set it up for network operation as follows:

1 In the MOTU Pro Audio Control web app, choose the device (item #1 on page 18).
2 Go to the Device tab (item #5 on page 18), go to the AVB Stream Setup section (item #22 on page 19), and type in the number of 8-channel input and output streams you want for that device.
3 Go to the AVB Stream Connections section (item #23 on page 19), and choose the network stream you want the device to listen to for each bank.

4 Use the Routing tab to map specific I/O channels within each MOTU AVB interface to its network input and output streams, as explained in the next section.

MAPPING AUDIO TO NETWORK STREAMS

Once you've configured a device's AVB streams, as explained above, use the Routing tab (page 21) to map audio channels to network input and output streams.

Input streams (coming from the rest of the network) are listed across the top of the routing grid. Expand the stream and click on the grid to map incoming network channels to local destinations, including physical outputs on the device, computer channels (to a connected computer), or mixer channels.

Output streams being broadcast to the rest of the network are listed in rows along the left side of the grid. Expand each stream bank and map individual network output channels to local sources, such as physical inputs on the interface, channels coming from the computer, or channels coming from the device's mixer.

MAPPING COMPUTER CHANNELS TO NETWORK STREAMS

If a host computer is connected to an interface (through Thunderbolt or USB), mapping network input and output streams is accomplished as described in the previous two sections. Simply enable AVB streams as desired, and map them to computer channels in the Routing grid.

If, while mapping, you run out of computer channels, enable more in the Computer Setup section of the Device tab (item #27 on page 21). If the computer is connected with Thunderbolt or USB 3.0 (to a MOTU interface that supports it), you can enable a maximum of 128 channels in and

out. If the computer is connected with USB 2.0, performance will vary, depending on the sample rate and other factors.

DEVICE PRESETS AND AVB STREAM CONNECTIONS

When you save a preset for a MOTU device (item 7 on page 18), any AVB stream connections that it has established with other devices on the network are now included with the saved preset. When you recall the preset, those saved stream connections are restored, as long as the other devices are still present on the network and broadcasting the same streams. If the other device is not present (or perhaps turned off), its streams will be reported as “offline”.

In general, if you have multiple devices on a network with interconnecting AVB streams, and you wish to preserve the state of the network, it is recommended that you save a device preset for each device on the network. Doing so will allow you to faithfully restore the entire network stream configuration by recalling each device's saved preset.

BRIDGING TO ETHERNET

The Ethernet port on the MOTU AVB Switch allows you to connect standard network devices, such as:

■ A WiFi router
■ An Ethernet hub or switch connected to a local home, studio, or office network
■ Any other standard networking device

THE MOTU AVB SWITCH

The heart of a MOTU AVB network is the MOTU AVB Switch (sold separately). For a brief overview of the switch and its features, see “MOTU AVB Switch” on page 15.

Part 3

Appendices

APPENDIX A Troubleshooting

Some or all of my MOTU interface inputs and outputs are not available in my host audio software.

Make sure that the inputs and outputs are enabled in the Device tab (“Device tab” on page 18) and routed to and from the computer in the Routing tab (“Routing tab” on page 21). For details, see “Making inputs and outputs available to your host software” on page 73. A quick and easy way to do this is to choose the Audio Interface preset from Quick Setup (item 9 on page 18).

I have absolutely no audio input or output happening to or from my interface. Why?

Make sure that the unit has a stable sample rate (the sample rate will flash if the clock hasn't settled yet). Try setting the unit's clock source to Internal if you can't sync to any external clock sources. Check that audio is working with Internal sync, and if so, then work on establishing a stable external clock.

I can't hear computer audio output through my MOTU AVB interface.

In the Sound panel of System Preferences, your MOTU AVB interface should be selected as the output device. Almost all applications will use just the first two output channels, so make sure that From Computer 1 and From Computer 2 are routed to the physical outputs that you are listening to in the Routing tab (e.g. Phones 1-2 or Analog 1-2).

How do I monitor live inputs?

Please refer to the documentation for the audio application that you are using. If your application does not support input monitoring, you will need to use the mixer in your MOTU interface. Please see “Monitoring through your MOTU interface” on page 70.

How do I control monitoring latency?

See "Reducing monitoring latency" on page 70.

The Routing tab (page 21) doesn't display some of the inputs or outputs on my interface.

The Routing tab only displays input and output banks that are enabled in the Device tab (page 18), so be sure any banks you wish to work with are enabled there. However, to conserve DSP resources and help consolidate screen-space in the other tabs, it is efficient practice to disable unused input or output banks (optical banks, for example, when only working with analog banks, or all output banks when only working with Phones).

I'm getting a "Could not enable this effect because DSP is overloaded" error. What should I do?

Disable other effects or reduce the number of mixer inputs to conserve DSP resources. If there are audio input and output banks on your interface that you are not using (such as the optical banks), disable them in the Device tab (page 18).

I accidentally deleted my factory presets. How do I restore them?

In the Device tab (page 18), click the Restore Factory Presets button to restore all factory presets.

How do I factory reset my device?

Push the SELECT knob/button to enter the main menu. Navigate to Settings > Factory Default and push the SELECT knob/button twice to reset.

I hear clicks and pops under word clock sync.

Many problems result from incorrect word clocking. It is essential that all digital devices in the system be word locked. Consult “Synchronization” on page 55 for detailed information on how to word clock your gear. Whenever there is any unexpected noise or distortion, suspect incorrect word lock.

Clicks and pops due to hard drive problems... If you have checked your clock settings and you are still getting clicks and pops in your audio, you may have a drive related problem. Set your Clock Source to Internal and try recording just using the analog inputs and outputs on your MOTU interface. If you encounter the same artifacts you may want try using another drive in your computer. Clicks and pops can also occur when the drive is severely fragmented or there are other drive-related issues.

Connecting or powering gear during operation... It is not recommended that you connect/ disconnect, or power on/off devices connected to your MOTU interface while recording or playing back audio. Doing so may cause a brief glitch in the audio.

CUSTOMER SUPPORT

We are happy to provide complimentary customer support to our registered users. If you haven't already done so, please take a moment to register online at MOTU.com, or fill out and mail the included registration card. Doing so entitles you to technical support and notices about new products and software updates.

TECHNICAL SUPPORT

If you are unable, with your dealer's help, to solve problems you encounter with your MOTU device, you may contact our technical support department in one of the following ways:

■ Tech support hotline: [phone] (Monday through Friday, 9 a.m. to 6 p.m. EST)
■ Online support: www.motu.com/support

Please provide the following information to help us solve your problem as quickly as possible:

■ The serial number of your MOTU device. This is printed on a label placed on the bottom of the rack unit. You must be able to supply this number to receive technical support.
■ A brief explanation of the problem, including the exact sequence of actions which cause it, and the contents of any error messages which appear on the screen.
■ The pages in the manual that refer to the features or operation of your MOTU AVB Device or AudioDesk with which you are having trouble.
- The version of your computer's operating system.

We're not able to solve every problem immediately, but a quick call to us may yield a suggestion for a problem which you might otherwise spend hours trying to track down.

If you have features or ideas you would like to see implemented, we'd like to hear from you. Please write to the Development Team, MOTU Inc., 1280 Massachusetts Avenue, Cambridge, MA 02138, or use our online suggestion box at www.motu.com/suggestions.

APPENDIX B Audio Specifications

1248

Line Out

Connector Type 1/4" Female, TRS Balanced, tip hot

Output Impedance 100 ohm Per leg

Dynamic Range 123 dB A-weighted

THD+N -110 dB (0.0003%) -1 dBFS, Unweighted, 1 kHz

Frequency Response +0, -0.1 dB, 20 Hz/20 kHz Ref. 1 kHz

Max Level Out +20 dBu

Trim Range 24 dB -4 dBu to +20 dBu in 1 dB steps

Guitar In

Connector Type 1/4" Female, TS Unbalanced
Impedance	1 megohm
Dynamic Range	103 dB	A-weighted
THD+N -93 dB	-1 dBFS, Unweighted
Frequency Response +0.05, -0.1 dB	Ref. 1 kHz
Max Level In	-2 dBu with trim down, +10 dBu with trim up	0.615v to 2.45v
Trim Range 12dB	-2 dBu to +10 dBu in 1 dB steps

Line In

Connector Type 1/4" Female, TRS Balanced/unbalanced, Tip hot
Specification	Complies with EBU-R68 / SMPTE RP-155
Impedance Load	10 k ohm
Dynamic Range	117 dB A-weighted
THD+N -110 dB (0.0003%) -1 dBFS, Unweighted
Frequency Response +0, -0.1 dB, 20 Hz/20 kHz Ref. 1 kHz
Max Level In	+24 dBu
Trim Range 22 dB	+2 dBu to +24 dBu in 1 dB steps

MIC In

Connector Type XLR Male, Balanced	Pin 2 hot
Impedance Load	3k ohm, 4.5k with Pad
Pad	-20 dB, Switchable per channel
Phantom Power	+48v, Switchable per channel	DIN 45596 / IEC 61938-P48
EIN	-128 dBu, 20 - 20 kHz	Rs = 150 ohm
Dynamic Range	117 dB	A-weighted
THD + N -110 dB (0.0003%) -1 dBFS, Unweighted, 1 kHz
Frequency Response +0, -0.1 dB, 20 Hz/20 kHz Ref. 1 kHz
Max Level In	+24 dBu	With pad

Trim Range 63 dB

0 to +63 dB in 1dB steps

S/PDIF
Includes Sample Rate Conversion (SRC) on input

Connector Type RCA

Termination 75 ohm I/O

Lock Range 44.1k/48k, +/- 0.5% 1x, 2x

Input Voltage Range 0.2 Vpp/1Vpp With termination

Output Drive 0.5.0 Vpp With termination DC coupled

THD+N In (SRC) -122 dB Unweighted, With SRC

Specification IEC-958/60968-3

Phones

Connector Type 1/4" Female, TRS Stereo Tip Left, Ring Right
Dynamic Range 108 dB A-Weighted
THD+N -100 dB Unweighted
Frequency Response +0 -0.15 dB, 22 Hz/20 kHz	Ref. 1 kHz
Drive	Max. 80 mw	16/32/55 ohms
Trim Range	128 dB 0 to -128 dB (muted) in 1 dB steps

Word Clock In/Out/Thru

Specification AES-11 2009 Annex B
Connector Type BNC
Termination 75 ohm (in/out)	THRU is unterminated
Lock Range	44.1 kHz / 48kHz, +- 0.5%	x1/x2/x4
Input	1 vpp to 3 v p-p (with termination)	AC coupled
Output 5.0 vpp, (2.5 v p-p terminated)	DC coupled
Jitter	complies with AES3-4-2009	< 0.025 UI

Power Supply

Connector Type IEC 3-conductor receptacle	For AC mains connection
Configuration	Internal, Universal
Power Input	100 V to 240 V, 50 Hz or 60 Hz

Power Usage 35 watts

8M

Line Out

Connector Type 1/4” Female, TRS Balanced, Tip hot

Output Impedance 100 ohm Per leg

Dynamic Range 123 dB A-weighted

THD+N -110 dB (0.0003%) -1 dBFS, Unweighted, 1 kHz

Frequency Response +0 -0.1 dB, 20 Hz/20 kHz Ref. 1 kHz

Max Level Out +20 dBu

Trim Range 24 dB in 1 dB steps -4 dBu to +20 dBu

MIC in

Connector Type Combo-style, XLR / TRS Pin 2 hot, tip hot
XLR
Impedance load	3 k ohm, 4.5 k with Pad
Pad	-20 dB, Switchable per channel
Phantom power	+48 v, switchable per channel	DIN 45596 / IEC 61938-P48
EIN	-128 dBu XLR Terminated
Dynamic Range	112 dB A-weighted
THD+N -104 dB	Unweighted
Frequency Response +0 -0.1 dB, 20 Hz/20 kHz Ref. 1 kHz
Max Level In with Pad	+24 dBu V-Limit starts at 17 dBu
Max Level In without Pad	+5 dBu	V-Limit starts at 4 dBu
Trim range	0 to +53 dB in 1 dB steps
TRS
Description Balanced or single ended Suitable for line or instrument (guitar)
Impedance Load	1 meg ohm	differential
Pad	-20 dB, Switchable per channel
Phantom power	No
Dynamic Range	112 dB A-weighted
THD+N -102 dB	-1 dBFS, Unweighted
Frequency Response +0 -0.1 dB, 20 Hz/20 kHz Ref. 1 kHz
Max Level in with Pad	+17 dBu V-Limit starts at +7 dBu
Max Level in without Pad	+5 dBu	V-Limit starts at -3 dBu
Trim range	0 to +53 dB in 1 dB steps
V-Limit Compressor Range	9 dB

Phones

Connector Type 1/4” Female, TRS Stereo	Tip Left, Ring Right
Dynamic Range	102 dB A-Weighted
THD+N -92 dB	Unweighted
Drive	Max. 80 mw 16/32/55 ohms
Frequency Response +0 -0.27 dB, 20 Hz/20 kHz	Ref. 1 kHz

Trim Range -128 dB (muted) to 0, in 1 dB steps

Word Clock In/Out/Thru

Specification AES-11 2009 Annex B
Jack Type BNC
Termination 75 ohm (in/out) THRU is unterminated
Lock Range 44.1 kHz / 48 kHz, +- 0.5% x1/x2/x4
Input	1 vpp to 3 vp-p (with termination)	AC coupled
Output 5.0 vpp, (2.5 v p-p terminated)	DC coupled
Jitter Complies with AES3-4-2009 < 0.025UI

Power Supply

Configuration	Internal, universal
Power Input	100 V to 240 V, 50 Hz or 60 Hz
Connector Type	IEC 3-conductor receptacle For AC mains connection

Power Usage 35 watts

16A

Line Out

Connector Type 1/4" Female, TRS Balanced, Tip hot

Output Impedance 100 ohm Per leg

Dynamic Range 123 dB A-weighted

THD+N -110 dB (0.0003%) -1 dBFS, Unweighted, 1 kHz

Frequency Response +0 -0.1 dB, 20 Hz/20 kHz Ref. 1 kHz

Max Level Out +20 dBu

Trim Range 16 dB in 1 dB steps +4 dBu to +20 dBu

Line In

Specification Complies with EBU-R68 / SMPTE RP-155
Connector Type 1/4" Female, TRS		Balanced/Unbalanced, Tip hot
Impedance Load	10 k ohm
Dynamic Range	117 dB A-weighted
THD+N -110 dB (0.0003%) -1 dBFS, Unweighted, 1 kHz
Frequency Response +0 -0.1 dB, 20 Hz/20 kHz Ref. 1 kHz
Max Level In +24 dBu
Trim Range	22 dB (+2 dBu to +24 dBu) in 1 dB steps	Compatible with: EBU-R68 , SMPTE RP-155,+4,-10,2vRMS,1vRMS

Word Clock In/Out/Thru

Specification Complices with AES-11 2009 Annex B
Jack Type	BNC
Termination	75 ohm (in/out)	THRU is unterminated
Lock Range	44.1 kHz / 48 kHz, +- 0.5%	x1/x2/x4
Input	1 vpp to 3 vp-p (with termination)	AC coupled
Output	5.0 vpp, (2.5 v p-p terminated)	DC coupled
Jitter	complies with AES3-4-2009	< 0.025UI

Power supply

Configuration	Internal, universal
Power input	100 V to 240 V, 50 Hz or 60 Hz
Connector Type IEC 3-conductor receptacle	For AC mains connection
Power usage	35 watts

APPENDIX c Mixer Schematics

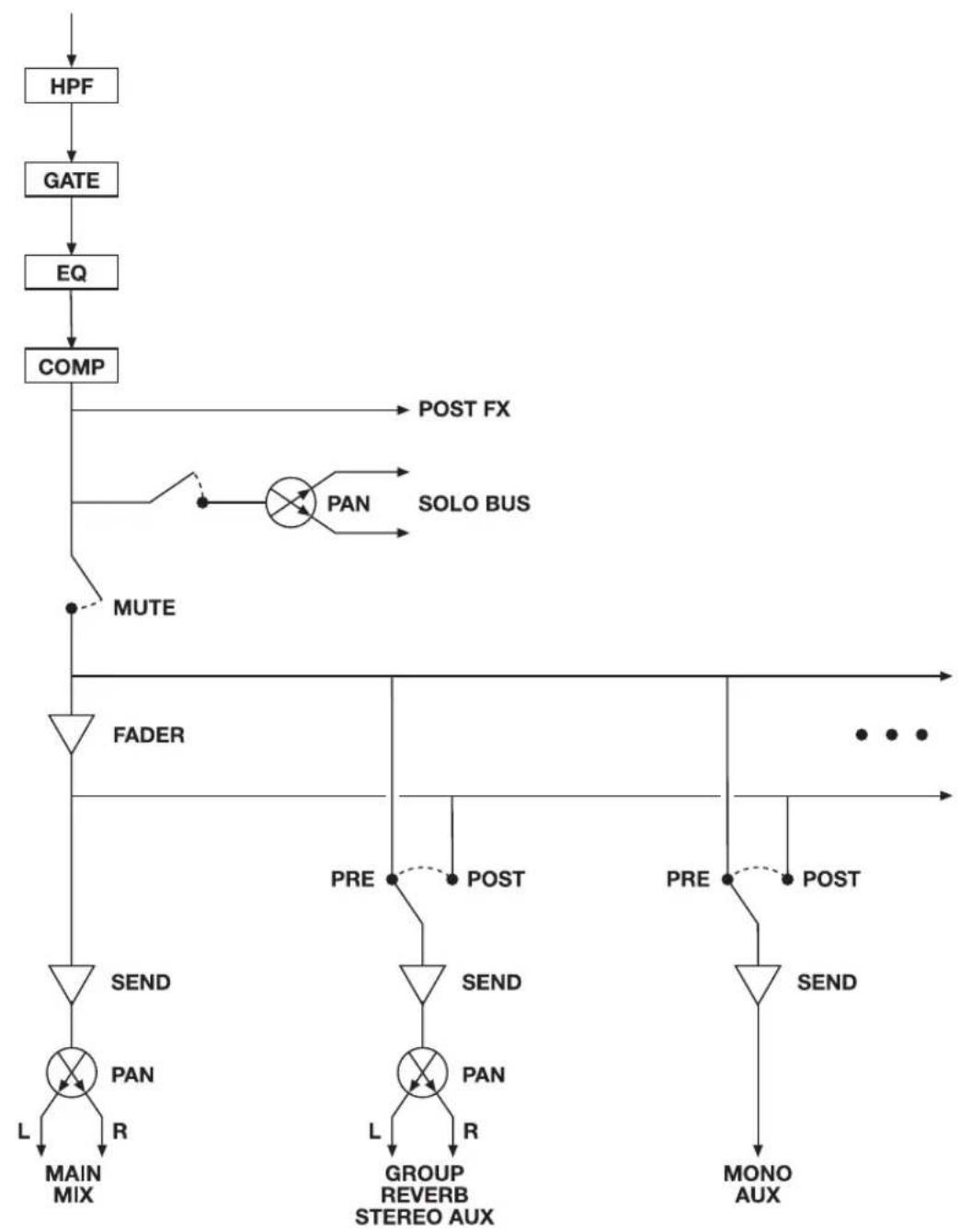

MONO INPUT CHANNEL

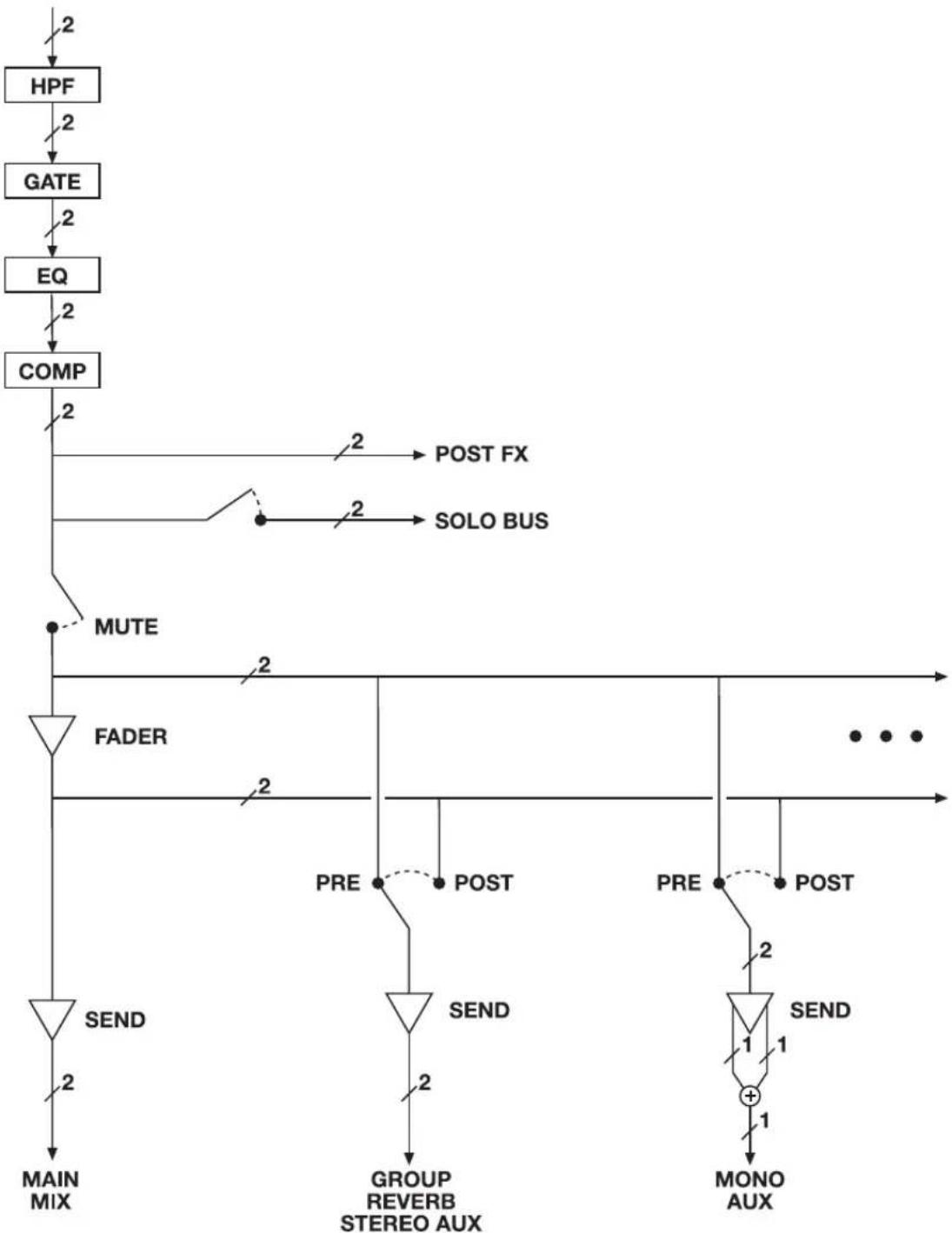

STEREO INPUT CHANNEL

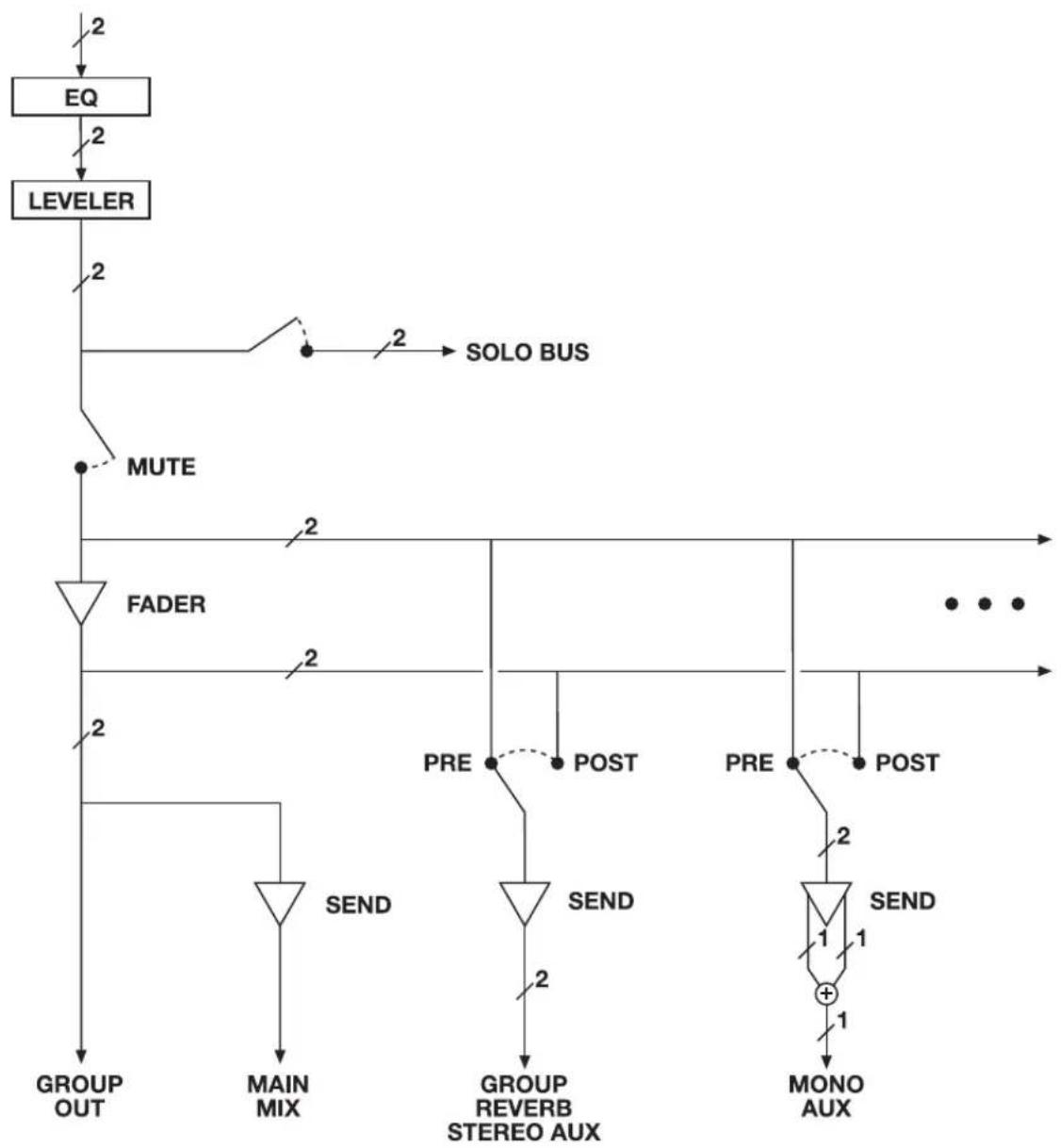

GROUP BUS

MONITOR BUS

APPENDIX D Updating Firmware

MOTU periodically posts firmware updates for your MOTU AVB interface. These updates may include bug fixes, enhancements, and new features.

Updates are posted on MOTU's servers. If your computer or Wi-Fi device has access to the internet, the MOTU Pro Audio Control app notifies you as soon as an update is made available. Otherwise, you can check motu.com/avb periodically for the latest firmware update.

A network cable connection is required

Firmware updating requires a network cable connection, so before you begin, connect a standard CAT-5 or CAT-6 network cable from the network port on your MOTU interface to one of the following:

• Your computer's network port (or a Thunderbolt-to-Ethernet adapter)
  ■ Your home, studio, or office network (with internet access)
  ■An AVB port on a MOTU AVB switch (connected to your office network through the Ethernet port)

Updating with internet access

You are now ready to update:

1 Launch the MOTU Pro Audio Control web app on your computer, iPad, or iPhone, as usual.

2 Go to the Device tab.

3 In the New Update Available banner (Figure D-1), click More Info.

4 After reviewing the list of enhancements, click OK to start the update.

5 Follow the on-screen instructions.

6 IMPORTANT: disconnect the Ethernet cable from your MOTU interface after you complete the update, unless it is connected to a MOTU AVB switch or other AVB-aware switch. If so, you can leave it connected.

Updating off-line, without internet access

If your MOTU AVB interface (and the computer it is connected to) has no internet access, you can download a firmware update file from another computer that does have internet, and then use the file to update your MOTU interface, as follows:

1 Download the firmware file from motu.com/avb.

2 Transfer the file to a computer with a network cable connection to your MOTU interface.

MOTU 16A Device Routing Mixing Aux Mixing New Update Available (1.0.1) More Info Configuration Sample Rate: 48000

Figure D-1: The firmware update banner appears across the Device tab when your web host has internet access and MOTU posts an update.

3 Launch the MOTU Pro Audio Control web app on the computer, as usual.
4 Go to the Device tab.
5 Scroll down to the bottom and click Update from File.
6 Locate the file on your hard drive and click OK to start the update.
7 Follow the on-screen instructions.
8 IMPORTANT: disconnect the Ethernet cable from your MOTU interface after you complete the update, unless it's connected to a MOTU AVB switch or other AVB-aware switch. If so, you can leave it connected.

Updating multiple interfaces on a network If you have two or more MOTU interfaces on a network, you can update their firmware all at once.

1 Go to the MOTU Discovery Settings menu.

MOTU Discovery Settings Mon 1:55 PM MOTU Devices 1248

Figure D-2: MOTU Discovery Settings menu.

2 Choose Firmware Updater > Open...

MOTU Devices 1248 Open... Automatically Launch Launch Discovery on Startup Firmware Updater ✓ Show Switches Launch Mac Virtual Entity Quit

Figure D-3: Launching the Firmware Updater.

3 Connect Ethernet cables, if necessary, or click the Update from File option.
4 Click Update All Interfaces Now.

MOTU Firmware Updater New firmware is available for the devices listed below. Click "Update All Interfaces Now" to update all the devices. Update All Interfaces Now Update from File ▼ 1248 Current Version: 1.2.8+1178 Up to date 16A Current Version: 1.2.7+1141 Update to 1.2.8+1178 → 624 Current Version: 1.2.9+2 Connect ethernet cable

Figure D-4: Updating multiple interfaces in one operation.

Viewing the latest firmware version information

You can confirm the firmware version at the bottom of the Device tab (Figure D-5).

Why does the firmware update require a network cable?

Firmware updating was designed to use Ethernet mostly for convenience. If you have lots of networked devices, you can upgrade them all from a distance (even over Wi-Fi) without having to plug in directly and without having to download or run an updater application.

This approach was also taken for engineering reasons, with reliability foremost in mind. When installing an update, the device reboots into a stripped-down recovery partition to guarantee that the update process can always be completed, even if the power goes out mid-update. Since updates can also affect the Thunderbolt or USB chips, they cannot be used during the update.

System Information
Manufacturer	Model	GUID	Firmware Version	UI Version	Hostname	Driver Version
MOTU	1248	0001f2ffe0008b3	1.2.8+1178	1.1.0+71169	1248	Windows 4.0.7.1199

Figure D-5: The currently installed firmware version is displayed at the bottom of the Device tab.

APPENDIX E OSC Support

Open Sound Control (OSC) is a protocol for communication among computers and other multimedia devices that is optimized for modern networking technology.

MOTU AVB audio interfaces support OSC, which provides remote control of all device settings and mixer controls from any OSC-enabled controller.

For further details about remote control through OSC, along with complete documentation for the MOTU AVB OSC API, visit:

http://www.motu.com/avb#avb-osc-support

+4dB analog input 50

-10dB analog input 50

1248

expansion 41

front panel 9

installing 39

rear panel 10

summary of features 29

16A

expansion 41

front panel 13

installing 39

rear panel 14

summary of features 29

24-bit

optical 10, 12, 14

2x SMUX mode 19, 50

8M

expansion 41

front panel 11

installing 39

rear panel 12

Soft Clip 50

summary of features 29

V-Limit 50,65

A

Ableton Live 69, 70

ADAT optical 10, 12, 14

connecting 50

Analog inputs/outputs 10, 12, 14, 50

making connections to 50

Apple

Garage Band 70

Logic Pro 70

ASIO driver 70

ASIO monitoring 71

Attack

Compressor 78, 80

Audio interface preset 61

Audio specifications 111

Audio Tools 85

AudioDesk 32, 37, 69, 70

Aux Mix Target 23

Aux Mixing tab 23

AVB

audio interface operation 30

Ethernet explained 101

Input/Output Banks 19

networking 101-106

overview 101

Stream Connections 19

Stream Setup 19

streams (Routing tab) 21

Switch

setup 42, 46

AVB interface operation 41, 47

AVB Switch 15

Avid

Pro Tools 70

B

Balanced analog 50

Become Clock Master 18, 58

Buffer Size 18, 36

C

CAT-5e/6 cables 15, 41

Check for Updates 20

Chrome 17

Class compliance 35

Clear Password 20, 67

Clock Mode 18

Clock section (LCD) 9, 67

Clock source 55

Coax 32

Cockos Reaper 70

Compressor effect 22, 79

Computer Channel for LTC-to-MTC

Conversion 20

Computer Setup 20

Computer Volume Controls option 20

Condenser mic input 50

Connecting multiple interfaces 41

Control surface support (through OSC) 123

Converter mode

setup/example 64

Core Audio driver 70

Correlation Meter 96

Cubase 69, 70

clock source 69

sample rate 69

CueMix FX

Devices menu 85

installation 85

Customer

support 110

D

DAT

connecting 52, 53, 54

Device tab 18, 19

Devices menu 85

Digital converter (see Optical converter)

Digital Performer 69, 70

Direct hardware playthrough 71

Direct ASIO monitoring 71

Direct hardware playthrough 71

Discovery app 7, 37

Driver installation 7, 17, 35

Drivers

installing USB drivers 35

DSP

effects 77

meter 83

resources 83

DSP Usage 24, 83

Dynamic mic 50

E

Effects 77

Enable Jam Sync 20

EQ 78

enabling 78

filter types 78

frequency 78

gain 78

Q 78

Ethernet

cables 15

connecting 46

Ethernet interface operation 41, 47

Expansion 41

F

Factory Defaults 67

Firefox 17

Firmware

version 20

Firmware updates 18

Follow Solo 22, 25

Four-band EQ 78

Frequency

EQ 78

From Computer 21

Front panel 65

menu navigation 66

metering 65

G

Gain

EQ 78

reduction 80

reduction (Leveler) 82

Garage Band 69, 70

GarageBand

clock source 69

sample rate 69

Gate effect 22, 78

GR (gain reduction) 80

Guitar

connecting 50

Guitar inputs 9, 49

Guitar/mic inputs

connecting 52, 53, 54

H

Headphone outputs 9

Headphones

connecting 52, 53, 54

High pass filter 77

Host

Buffer Size 18, 36

Safety Offset 18, 37

Host audio software

3rd party software sync 76

1

ID knob/button 17, 18, 66

IEEE 802.1 101

Input banks 19

Input settings 18

Inputs

analog 10, 12, 14

optical 10, 12, 14

prefader metering 24

S/PDIF (RCA) 10

Installation

AVB audio interface 41, 47

hardware 39

iOS connection 40

network 42, 43

QuickStart Guide 7

software 35

Thunderbolt interface 39, 40

two interfaces networked 41

Interface + mixer preset 62

iOS operation 35, 40

IP address 17, 20

iPad

QuickStart 7

iPad/iPhone support 35

J

Jam sync 20, 58

L

Latency 18, 36, 70, 72

Launch Mac Virtual Entity 47

LCD

menu 66

Level meters 9

Leveler 22, 81

Limit button 82

Live 70

Live recording with monitor mixing preset 63

Lock button 21

Logic Pro 70

Logic Pro/Express 69

clock source 69

sample rate 69

Lookahead 65

LTC

Input Source 20

Setup 57

to MTC conversion 76

M

Mac OS X 69

input and output names 73

software installation 35

system requirements 33

USB class compliant operation 35

Mac Virtual Entity 47

Main outs

front panel volume control 50

making connections to 50

Makeup gain 82

Meters

prefader 24

Mic inputs 49

preamp gain/pad/48V 9

Mic/guitar inputs 49

connecting 52, 53, 54

Soft Clip 50

V-Limit 50,65

MIDI Time Code 20, 76

Mixer

accessing 22

aux bus 26

effects 77

group bus 27

input channel strip 24

main mix channel strip 25

Monitor channel strip 25

overview 22

Reverb bus 27

schematics 117

Setup 19

stand-alone operation 77

Mixing tab 22

Monitor output

volume control 9

Monitoring

thru main outs 50

MOTU

Audio Tools 85

AudioDesk 70

AVB Switch

setup 42, 46

Digital Performer 70

Discovery app 7, 17, 37, 122

Pro Audio ASIO driver 70

Pro Audio Control web app 7, 17-??, 17,??-27

Aux Mixing tab 23

Device tab 18, 19

Mixing tab 22

Routing tab 21

Pro Audio Installer 7, 17, 35

Pro Audio WebUI Setup 17, 37

MTC 20,76

N

Networking 101-106

installation 42, 43

MOTU AVB Switch 15

Nuendo 69,70

clock source 69

sample rate 69

0

Optical

connectors 10, 12, 14, 50

S/PDIF 51

setup 19

Optical converter mode

preset 64

setup/example 64

Optimization 72

OS X audio software

clock source 69

sample rate 69

OSC support 123

Oscilloscope 88

Output banks 19

Output settings 18

Outputs

analog 10, 12, 14

optical 10, 12, 14

S/PDIF (TOSLink) 10

P

Packing list 33

Pad 49

Password protection 20

Patch thru

latency 72

Performance 72

Phantom power 49, 50

Phase Analysis 96

Phase-lock 55

Phone outputs 9

Power switch 9

PRE button 22, 24

PreDelay 82

Prefader button 23

Presets 7, 18

Mixer tab 22

overview 61

Routing tab 21

Pro Audio Control web app 7, 17-27

Aux Mixing tab 23

Device tab 18, 19

Mixing tab 22

Routing tab 21

Pro Tools 69, 70

Processing 77

Q

Q78

Quick Setup window 7

QuickStart Guide 7

R

Ratio

Compressor 79

Reaper 69, 70

Reason 69

Propellerhead Reason 70

Reboot 20

Registration 33

Release

Compressor 78, 80

Remote control (through OSC) 123

Restore Factory Presets 20

Reverb 82-83

design section 82

enabling/disabling 82

predelay 82

routing to/from 82

time 82, 83

width 83

RMS mode 80

Routing tab 21

S

S/PDIF 32

connection 51

optical 10, 12, 14, 51

RCA 10

sync 55

Safari 17

Sample rate 18

conversion 51

Samplers

connecting 52, 53, 54

SC button 25

Schematics 117

Set password 20

SMPTE

sync 57

time code 20

Soft Clip 50

Software installer 7, 17, 35

Solo bus 25

Solo Clear button 24

SONAR 69

Soundtrack Pro

clock source 69

sample rate 69

Specifications 111

SRC 51

Stage I/O preset 63

Stand-alone mixer preset 62

Stand-alone operation 65, 67

Standard (optical setting) 51

Steinberg

Cubase 70

Nuendo 70

Stop Jam Sync 20

Studio Input Expander preset 63

Studio Output Expander preset 64

Studio setup (example) 52, 53, 54

Synchronization 55

Become Clock Master 58

host software 76

SMPTE time code 57

Synths

connecting 52, 53, 54

System Information 20

System requirements

minimum 33

recommended computer 33

T

Technical support 110

Threshold

Compressor 79

Thru (word clock) 56

Thunderbolt 39

Time code sync 20, 57

Time Sensitive Networking (TSN) 31, 101

To Computer 21

TOSLink 10, 12, 14, 32, 51

Trim 49

'Troubleshooting 109

TRS analog inputs/outputs 50

TRS connectors 50

TSN 31, 101

Type II (Legacy) optical setting 51

U

Unbalanced analog 50

Update From File 20, 122

USB

class compliance 35

installing drivers 35

V

View Personal Mix 23

V-Limit 50,65

Lookahead 65

W

Wave driver 70

WDM (Wave) Driver 36

Width

reverb 83

WiFi

setup 46

Windows

driver installation 35

shortcut 37

system requirements 33

WDM (Wave) driver 36

Word clock 10, 12, 55

Thru 56

X

X-Y Plot 93
