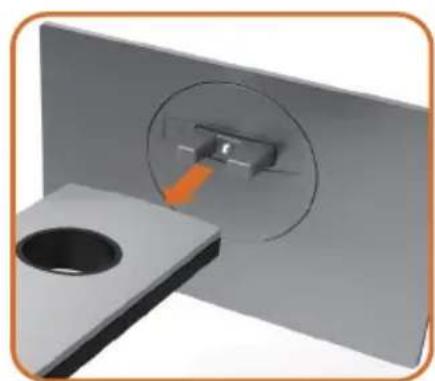

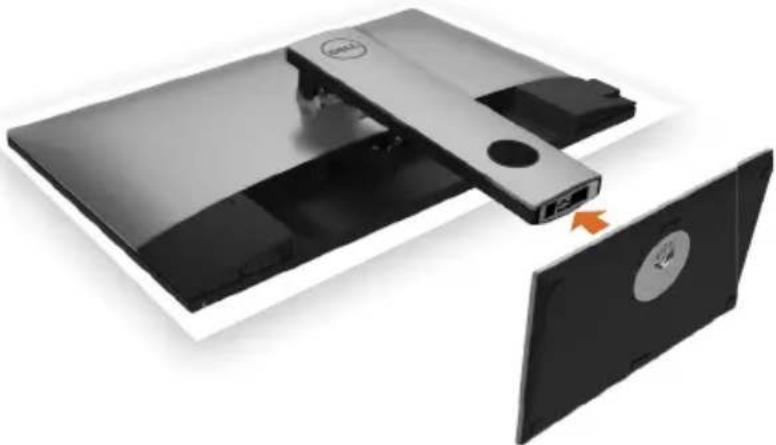

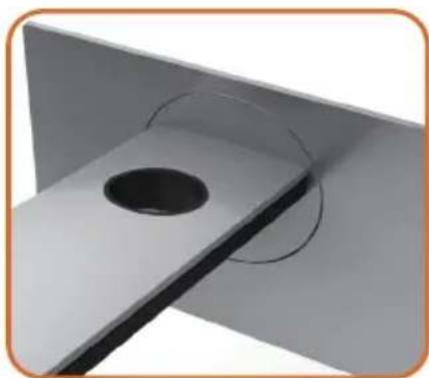

Attaching the Stand 22

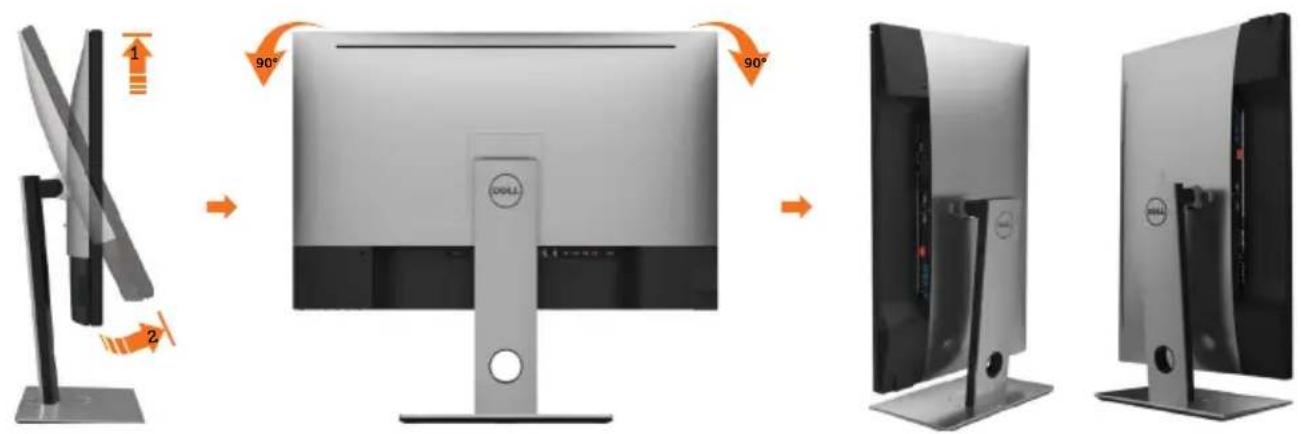

Using the Tilt, Swivel, and Vertical Extension ..... 25

Adjusting the Rotation Display Settings of Your System ..... 26

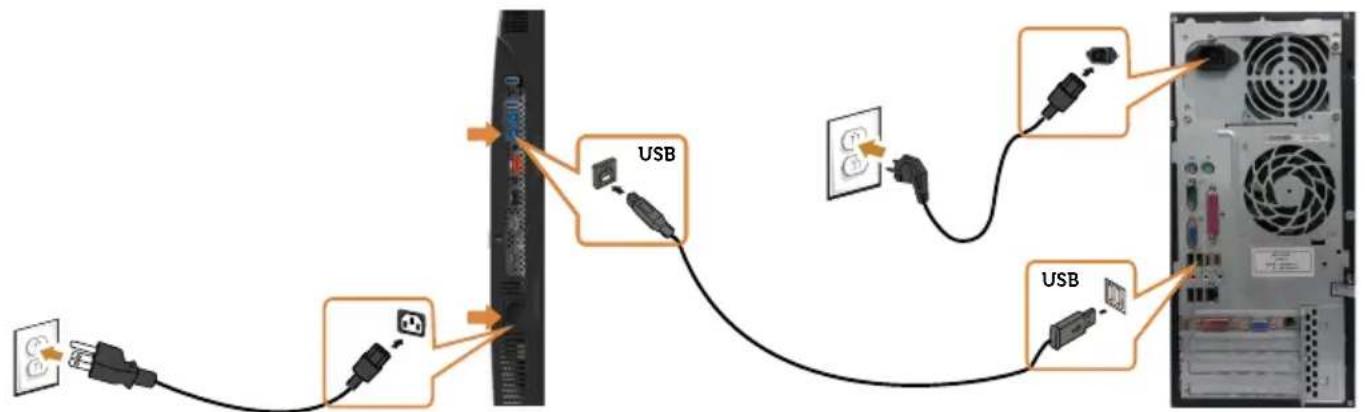

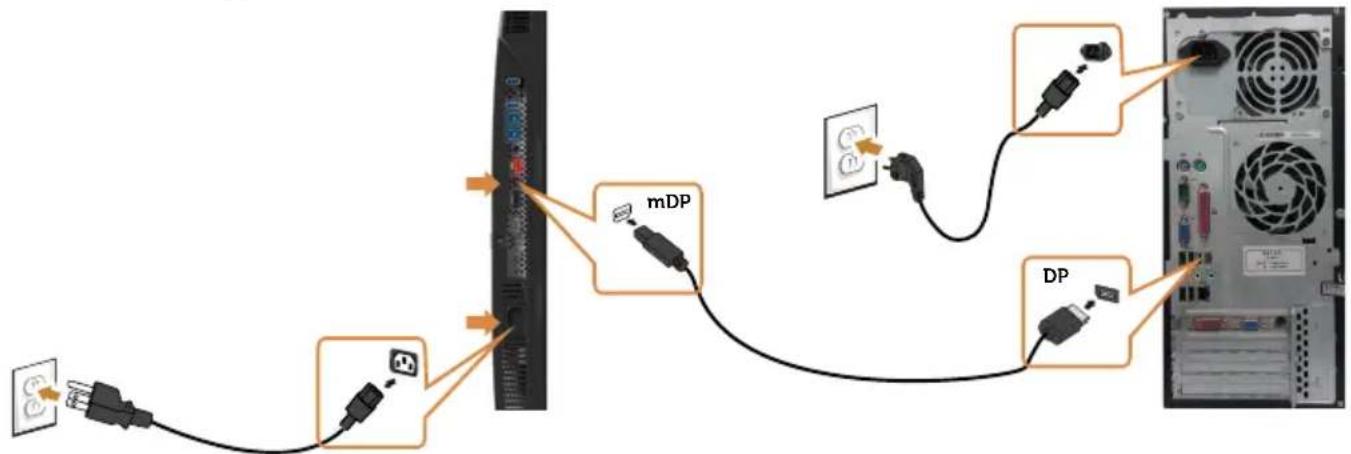

Connecting Your Monitor 26

Organizing Your Cables 29

Removing the Monitor Stand 29

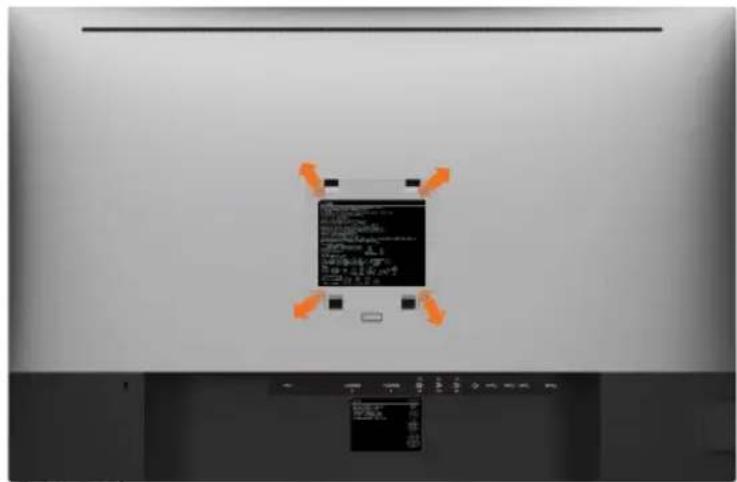

Wall Mounting (Optional). 30

Operating the Monitor 31

Turning on the Monitor 31

Using the Front Panel Controls 31

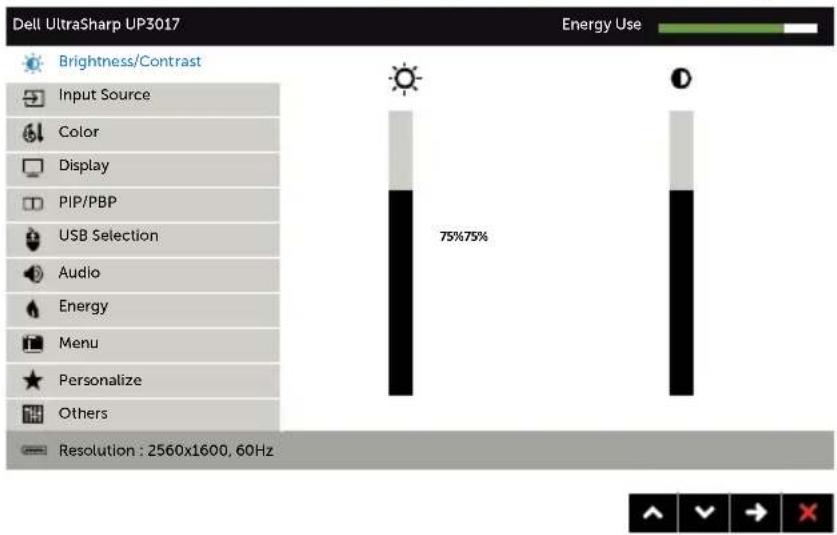

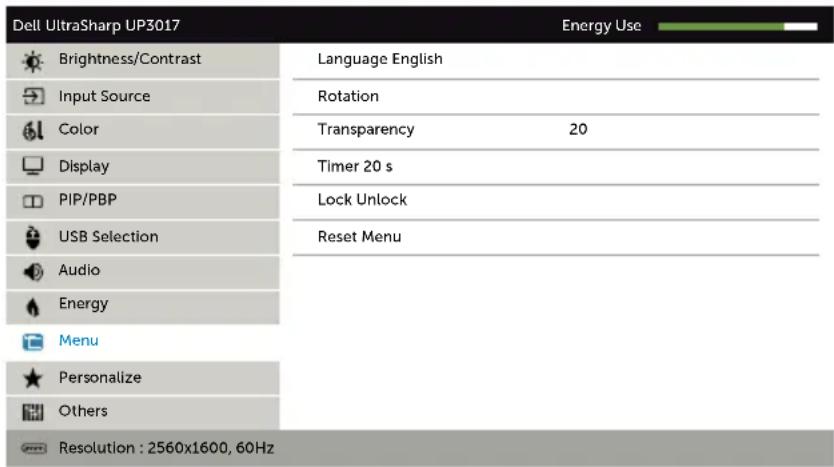

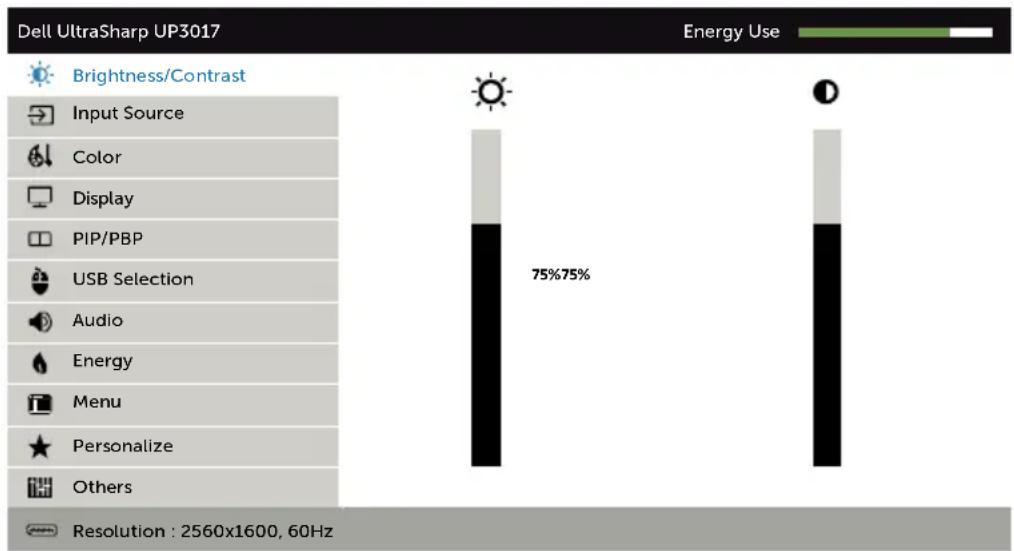

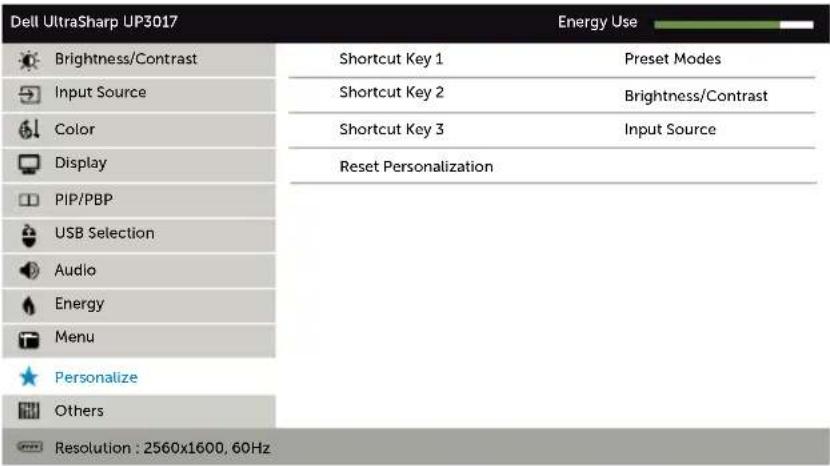

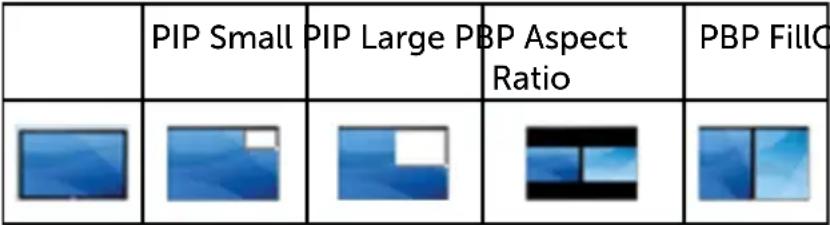

Using the On-Screen Display (OSD) Menu. 34

Troubleshooting 52

Self-Test 52

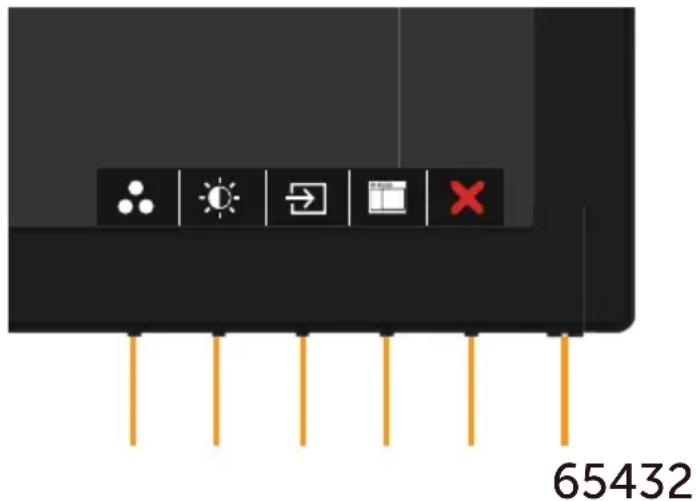

Built-in Diagnostics 54

Common Problems 55

Product Specific Problems 56

Universal Serial Bus (USB) Specific Problems ..... 57

Appendix 58

Safety Instructions 58

FCC Notices (U.S. only) and Other Regulatory Information ..... 58

Contacting Dell. 58

Setting Up Your Monitor 59

Maintenance Guidelines 61

Package Contents

Your monitor ships with the components shown below. Make sure that you have received all the components and contact Dell if something is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some features or media may not be available in certain countries.

	Monitor
	Stand riser
	Stand base
	Power cable (varies by country)
	USB 3.0 upstream cable (enables the USB ports on the monitor)
	DP cable (DP to mDP)

• Drivers and documentation media
• Quick Setup Guide
  • Safety, Environmental, and Regulatory Information
  • Factory Calibration Report

Product Features

The Dell UltraSharp UP3017 monitor has an active matrix, thinfilm transistor (TFT), liquid crystal display (LCD), and LED backlight. The monitor features include:

• 75.62 cm (30-inch) active area display (Measured diagonally) 2560 x 1600 (16:10 aspect ratio) resolution, plus full-screen support for lower resolutions.
• Tilt, swivel, pivot and vertical extension adjustment capabilities.
• Removable pedestal and Video Electronics Standards Association (VESA™) 100 mm mounting holes for flexible mounting solutions.
• Extensive digital connectivity with DP, mDP, HDMI, and USB 3.0 helps future-proof your monitor.
  • Supports major color space standards for Adobe RGB, sRGB, REC709 and DCI-P3.
  • Plug and play capability if supported by your system.
• Optimize eye comfort with a flicker-free screen and ComfortView feature which minimizes blue light emission.
• On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
• Software and documentation media includes an information file (INF), Image color Matching File (ICM), Dell Display Manager software application and product documentation.
  • Supports DP 1.2 MST (also known as DP Daisy Chain) for multiple monitor setup.
  • Security lock slot.
  • Supports Asset Management Capability.
  • Arsenic-Free glass and Mercury-Free for Panel only.
  • Energy Gauge shows the energy level being consumed by the monitor in real time.
  • 0.3 W standby power when in the sleep mode.

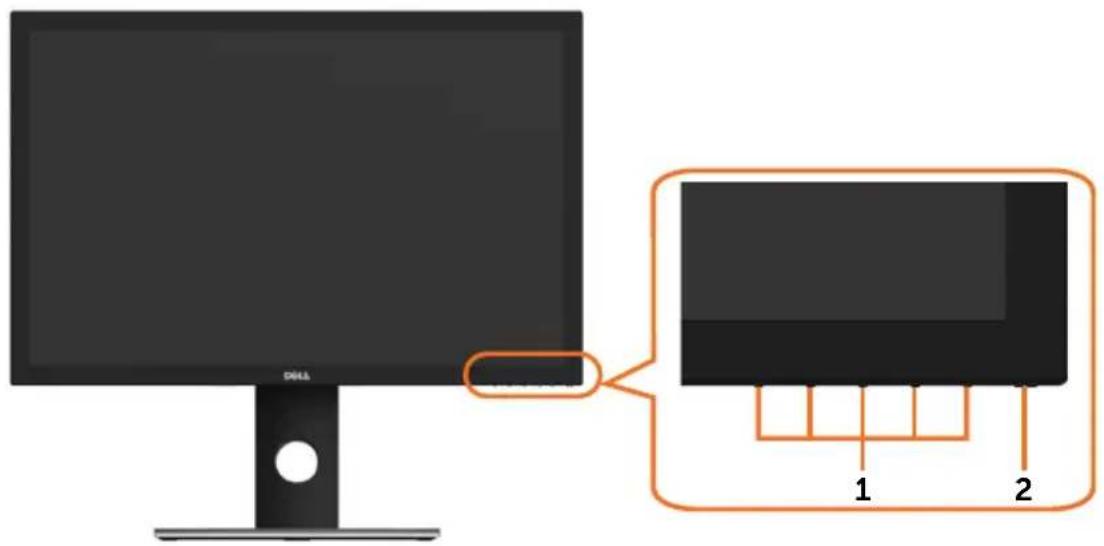

Identifying Parts and Controls Front view

DILL 1 2

Label Description

1 Function buttons (For more information, see Operating the Monitor)

2 Power on/off button (with LED indicator)

Back View

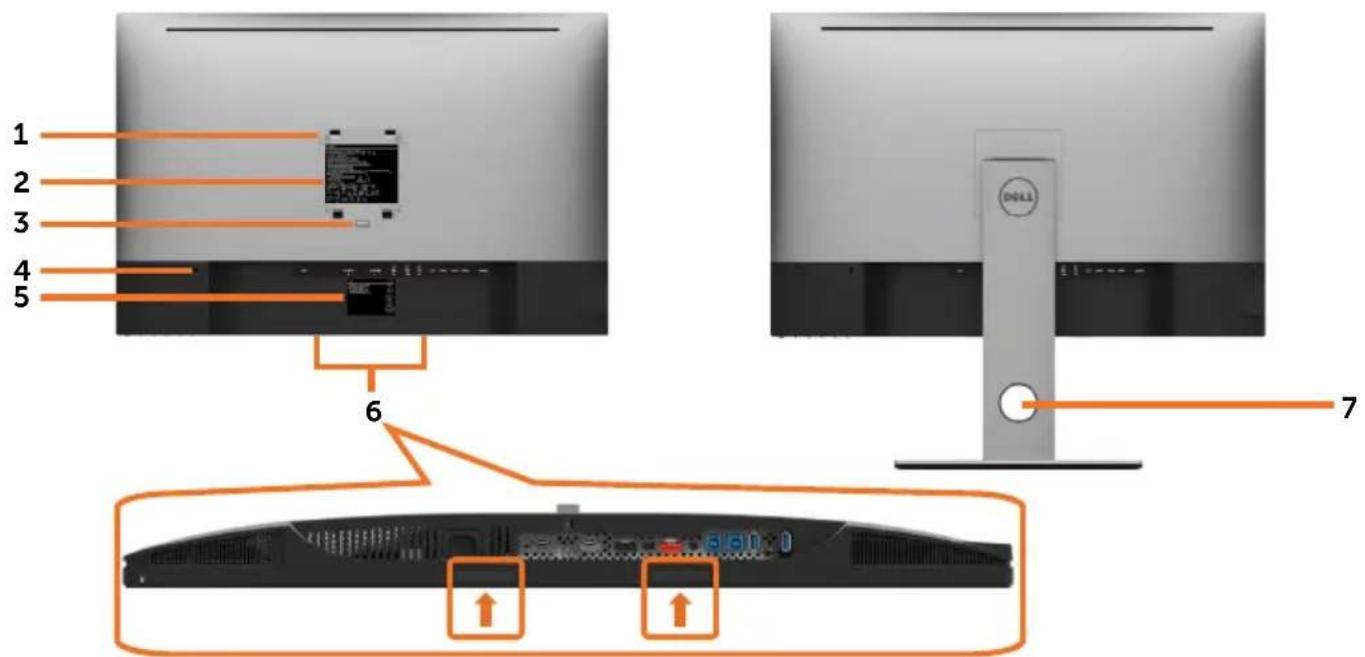

1 2 3 4 5 6 7

Label	Description Use
1 VESA	mounting holes (100 mm x 100 mm-behind attached VESA cover)	Wall mount monitor using VESA-compatible wall mount kit (100 mm x 100 mm).
2 Regulatory label Lists the regulatory approvals.
3 Stand	release button Release stand from monitor.
4 Security lock slot Secures monitor with security cable lock (sold separately).
5 Barcode, serial number, and Service Tag label		Refer to this label if you need to contact Dell for technical support.
6 Dell soundbar mounting slots Attaches the optional Dell soundbar.
			NOTE: Please remove the plastic strip covering the mounting slots before affixing the Dell Soundbar.Dell soundbar is sold separately.
7 Cable management slot Use to organize		cables by placing them through the slot.

Side View

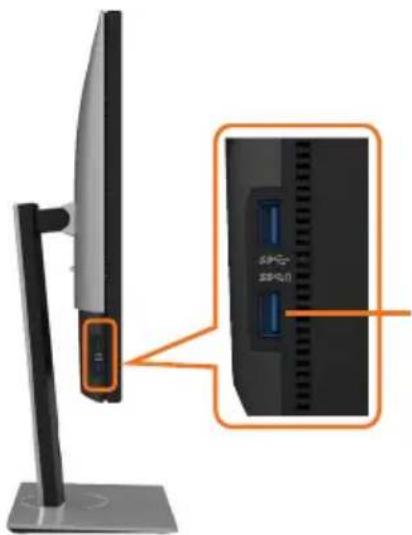

Diagram showing a computer monitor with an attached device labeled in Chinese, highlighting the front panel and internal ports.

USB downstream port

Port with Security icon supports BC 1.2.

Bottom View

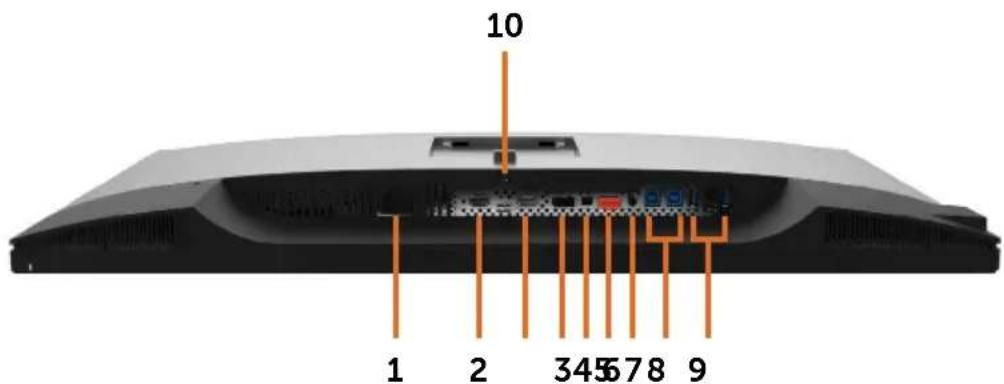

10 1 2 345 578 9

Label	Description Use
1 AC power connector To connect the monitor power cable.
2 HDMI	1 connector	Connect your computer with HDMI cable (optional).
3 HDMI	2 connector
4 DP connector (in) Connect your computer with DP cable.
5 mDP connector (in) Connect your computer with DP to mDP cable.
6	DP connector (out)	DP output for MST (multi-stream transport) capable monitor. DP 1.1 monitor can only be connected as the last monitor in the MST chain. To enable MST, refer to instruction on section “Connecting the Monitor for DP MST Function”.NOTE: Remove the rubber plug when using the DP out connector.
7	Audio line-out port	Connect speakers to playback audio coming through HDMI or DP audio channels.Only supports 2-channel audio.NOTE: The audio line-out port does not support headphones.⚠ WARNING: Excessive sound pressure from earphones or headphones can cause hearing damage or loss.
8	USB upstream ports	Connect the USB cable that comes with your monitor to the computer. Once this cable is connected, you can use the USB downstream connectors on the monitor.
9	USB downstream ports	Connect your USB device. You can only use this connector after you have connected the USB cable to the computer and USB upstream connector on the monitor. Port with b-iron supports BC 1.2.
10 Stand	lock Lock the stand to the monitor using a M3 x 6 mm screw (screw not included).

Monitor Specifications

Screen type Active matrix - TFT LCD
Panel type In-plane switching	Technology
Aspect ratio 16:10
Viewable image dimensions
Diagonal 75.62 cm (30 inches)
Active Area
Horizontal 641.3 mm (25.2 inches)
Vertical	400.8 mm (15.8 inches)
Area	257025.0 mm^2 (398.2 inches^2 )
Pixel pitch	0.251 mm x 0.251 mm
Pixel per inch (PPI) 101
Viewing angle
Horizontal 178° (typical)
Vertical	178° (typical)
Brightness 350 cd/m^2 (typical)
Contrast ratio	1000 to 1 (typical)
Display screen coating	Anti-glare treatment of the front polarizer (3H) hard coating
Backlight	White LED, EDGELIGHT system
Response Time (Gray to Gray)	6 ms (FAST mode)8 ms (NORMAL mode)
Color depth 1.07 Billion colors
Color gamut* 99% Adobe	RGB99% sRGB99% REC 70999% DCI-P3
Calibration accuracy	Delta E < 2 (average)
Connectivity • 1 x DP 1.2 (HDCP 1.4)• 1 x mDP 1.2 (HDCP 1.4)• 1 x DP 1.2 (out) with MST (HDCP 1.4)• 2 x HDMI 1.4 (HDCP 1.4)• 2 x USB 3.0 downstream port• 2 x USB 3.0 with BC1.2 charging capability at 2A (max)• 2 x USB 3.0 upstream port• 1 x Analog 2.0 audio line out (3.5mm jack)
Border width (edge of monitor to active area)	22.71 mm (Top/Left/Right)23.48 mm (Bottom)
Adjustability
Height adjustable stand 150 mm
Tilt	-5° to 21°
Swivel -30° to 30°
Pivot -90° to 90°
Cable management Yes
Dell Display Manager (DDM) Compatibility	Easy Arrange and other key features
Security Security lock slot (cable lock sold separately) Anti-theft stand lock slot (to panel)

NOTE *: at panel native only, under Custom Mode preset.

Resolution Specifications

Horizontal scan range 30 kHz to 113 kHz (DP/HDMI)
Vertical scan range 50 Hz to 86	Hz (DP/HDMI)
Maximum preset resolution 2560 x 1600 at 60 Hz
Video display capabilities (DP & HDMI playback)	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, QHD

Preset Display Modes

Display Mode	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (Horizontal/ Vertical)
720 x 400 31.5 70.0	28.3 -/+
VESA, 640 x 480 31.5	60.0 25.2 -/-
VESA, 640 x 480 37.5	75.0 31.5 -/-
VESA, 800 x 600	37.9	60.0	40.0	+/+
VESA, 800 x 600	46.9	75.0	49.5	+/+
VESA, 1024 x 768	48.4	60.0	65.0	-/-
VESA, 1024 x 768	60.0	75.0	78.8	+/+
VESA, 1152 x 864	67.5	75.0	108.0	+/+
VESA, 1280 x 1024	64.0	60.0	108.0	+/+
VESA, 1280 x 1024	80.0	75.0	135.0	+/+
VESA, 1600 x 1200	75.0	60.0	162.0	+/+
VESA, 1920 x 1200	74.04	59.95	154.0	+/-
VESA, 2048 x 1080	26.27	24	58.22	+/-
VESA, 2048 x 1280 - R	78.918	59.922	174.25	+/-
VESA, 2560 x 1600	98.71	59.97	268.5	+/-

MST Multi-Stream Transport (MST) Modes

MST Source Monitor	Maximum number of external Monitors that can be supported
	2560 x 1600/60 Hz	1920 x 1200/60 Hz
2560 x 1600/60 Hz	1	2

NOTE: Maximum external monitor resolution supported is 2560 x 1600 60Hz only.

Electrical Specifications

Video input signals	• Digital video signal for each differential line. Per differential line at 100 ohm impedance.• DP/HDMI signal input support
Input voltage/ frequency/current	100-240 VAC / 50 or 60 Hz ± 3 Hz / 1.6 A (maximum)
Inrush current	120 V: 30 A (Max.)240 V: 60 A (Max.)

Physical Characteristics

Connector type • DP connector (include DP in and DP out)
	• mDP connector• HDMI connector• Audio line-out• USB 3.0 connector(Port with 📋️ icon supports BC 1.2)
Signal cable type (in-box)	DP to mDP, 1.8 M cableUSB 3.0, 1.8 M cable
Dimensions (with stand)
Height (extended) 632.3 mm (24.89 inches)
Height (compressed) 482.3 mm (18.99 inches)
Width 686.9 mm (27.04 inches)
Depth 217.0 mm (8.54 inches)
Dimensions (without stand)
Height 447.1 mm (17.60 inches)
Width	686.9 mm (27.04 inches)
Depth 58.0 mm (2.28 inches)
Stand dimensions
Height (extended) 478.2 mm (18.83 inches)
Height (compressed)	430.5 mm (16.95 inches)
Width	343.5 mm (13.52 inches)
Depth	217.0 mm (8.54 inches)
Weight
Weight with packaging 13.10 kg (28.88 lb)
Weight with stand assembly and cables	9.59 kg (21.14 lb)
Weight without stand assembly(For wall mount or VESA mount considerations - no cables)	6.49 kg (14.31 lb)
Weight of stand assembly 2.81 kg (6.19 lb)
Front frame gloss 2~4 GU

Environmental Characteristics

Compliant Standards
ENERGY STAR certified Monitor	yes
EPEAT EPEAT Gold registered	d in the U.S. EPEAT registration varies by country. See www.epeat.net for registration status by country.
TCO Certified Display	yes
RoHS Compliant yes
BFR/PVC Free monitor (excluding cables)	yes
Temperature
Operating 0°C to 35°C (32°F to 95°F)
Non-operating -20°C to 60°C (-4°F to 140°F)
Humidity
Operating 10% to 80% (non-condensing)
Non-operating 5% to 90% (non-condensing)
Altitude
Operating 5,000 m (16,404 ft) (maximum)
Non-operating 12,192 m (40,000 ft) (maximum)
Thermal dissipation 368.51 BTU/hour (maximum)

Power Management Modes

If you have VESA's DPM-compliant video card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. This is referred to as power save mode*. If the computer detects input from the keyboard, mouse, or other input devices, the monitor automatically resumes functioning. The following table shows the power consumption and signaling of this automatic power saving feature.

VESA Modes	Horizontal Sync	Vertical Sync	Video	Power Indicator Power	Consumption
Normal operation	Active Active	Active	White 10	8 W (maximum)**	54 W (typical)
Active-off mode	Inactive	Inactive	Off	White (Glowing)	Less than 0.3 W
Switch off	-	-	-	Off	Less than 0.3 W

Energy Star	Power Consumption
P_ON	38.4 W***
E_TEC	120.0 kWh****

The OSD operates only in the normal operation mode. If you press any button in the active-off mode, one of the following message is displayed:

Dell UltraSharp UP3017

No DP signal from your device.

Press any key on the keyboard or move the mouse or wake it up.

If there is no display, press the monitor button again to select

the correct input source.

*Zero power consumption in OFF mode can only be achieved by disconnecting the AC mains cable from the monitor.

**Maximum power consumption with maximum luminance.
***Power consumption of On mode as defined in Energy Star 7.0 version.
****Total energy consumption in kWh as defined in Energy Star 7.0 version.

This document is informational only and reflects laboratory performance. Your product may perform differently, depending on the software, components and peripherals you ordered and shall have no obligation to update such information. Accordingly, the customer should not rely upon this information in making decisions about electrical tolerances or otherwise. No warranty as to accuracy or completeness is expressed or implied.

Activate the computer and the monitor to gain access to the OSD.

NOTE: This monitor is ENERGY STAR - compliant.

Pin Assignments

DP connector (in)

19 17 15 13 11 9 7 5 3 1 20 18 16 14 12 10 8 6 4 2

Pin number 20-pin side of the connected signal cable
1 ML3(n)
2 GND
3 ML3(p)
4 ML2(n)
5 GND
6 ML2(p)
7 ML1(u)
8 GND
9 ML1(p)
10 ML0(n)
11 GND
12 ML0(p)
13 CONFIG1
14 CONFIG2
15 AUX CH (p)
16 DP_Cable Detect
17 AUX CH (n)
18 Hot Plug Detect
19 GND
20 +3.3V DP_PWR

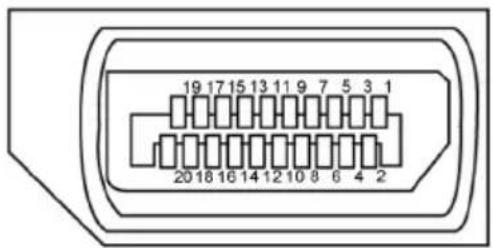

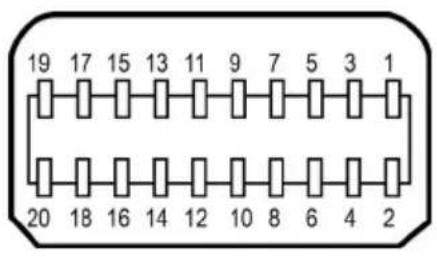

DP connector (out)

19 17 15 13 11 9 7 5 3 1 20 18 16 14 12 10 8 6 4 2

Pin number 20-pin side of the connected signal cable
1 ML0(p)
2 GND
3 ML0(n)
4 ML1(p)
5 GND
6 ML1(n)
7 ML2(p)
8 GND
9 ML2(n)
10 ML3(p)
11 GND
12 ML3(n)
13 CONFIG1
14 CONFIG2
15 AUX CH(p)
16 GND
17 AUX CH(n)
18 Hot Plug Detect
19 GND
20 DP_PWR

19 17 15 13 11 9 7 5 3 1 20 18 16 14 12 10 8 6 4 2

Pin number 20-pin side of the connected signal cable
1 GND
2 Hot Plug Detect
3 ML3 (n)
4 CONFIG1
5 ML3 (p)
6 CONFIG2
7 GND
8 GND
9 ML2 (n)
10 ML0 (p)
11 ML2 (p)
12 ML0 (p)
13 GND
14 DP_Cable Detect
15 ML1 (n)
16 AUX (p)
17 ML1 (p)
18 AUX (n)
19 GND
20 +3.3V DP_PWR

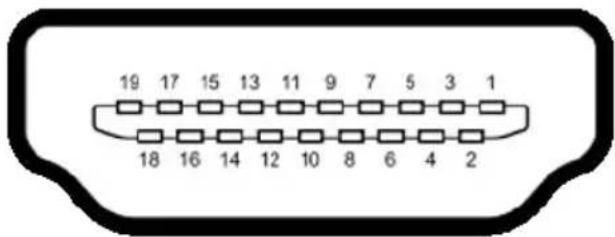

HDMI connector

19 17 15 13 11 9 7 5 3 1 18 16 14 12 10 8 6 4 2

Pin number 19-pin side of the connected signal cable
1 TMDS DATA	2+
2 TMDS DATA	2 SHIELD
3 TMDS DATA	2-
4 TMDS DATA	1+
5 TMDS DATA	1 SHIELD
6 TMDS DATA	1-
7 TMDS DATA	0+
8 TMDS DATA	0 SHIELD
9 TMDS DATA	0-
10 TMDS CLOCK+
11 TMDS CLOCK SHIELD
12 TMDS CLOCK-
13 CEC
14 Reserved (N.C. on device)
15 DDC CLOCK (SCL)
16 DDC DATA (SDA)
17 DDC/CEC Ground
18 +5 V POWER
19 HOT PLUG DETECT

Universal Serial Bus (USB)

This section gives you information about the USB ports available on your monitor.

NOTE: Up to 2 A on USB downstream port (port with SSG-101ry icon) with BC 1.2 compliance devices; up to 0.9 A on the other 2 USB downstream ports.

Your computer has the following USB ports:

• 2 upstream - bottom

• 4 downstream - 2 at left side, 2 at bottom

Power Charging Port - the ports with 📋️icon supports fast current charging capability if the device is BC 1.2 compatible.

NOTE: The monitor's USB ports work only when the monitor is on or in the power save mode. If you turn off the monitor and then turn it on, the attached peripherals may take a few seconds to resume normal functionality.

Transfer speed Data rate	Power consumption
SuperSpeed 5 Gbps 4.5 W (Max., each port)
Hi-Speed 480 Mbps 2.5 W (Max., each port)
Full speed 12 Mbps 2.5 W (Max., each port)

USB upstream port USB downstream port

5 6 7 8 9 2 1 3 4

1 2 3 4 5 6 7 8 9

Pin number	Signal name
1	VBUS
2	D-
3	D+
4	GND
5	StdB_SSTX-
6	StdB_SSTX+
7	GND_DRAIN
8	StdB_SSRX-
9	StdB_SSRX+
Shell	Shield

Pin number Signal name
1	VBUS
2	D-
3	D+
4	GND
5	StdA_SSRX-
6	StdA_SSRX+
7	GND_DRAIN
8	StdA_SSTX-
9	StdA_SSTX+
Shell	Shield

Plug-and-Play

You can install the monitor in any Plug-and-Play-compatible system. The monitor automatically provides the computer system with its extended display identification data (EDID) using display data channel (DDC) protocols so the computer can configure itself and optimize the monitor settings. Most monitor installations are automatic; you can select different settings if desired. For more information about changing the monitor settings, see Operating the Monitor.

LCD Monitor Quality and Pixel Policy

During the LCD monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state which are hard to see and do not affect the display quality or usability. For more information on LCD Monitor Pixel Policy, see Dell support site at: http://www.dell.com/support/monitors.

Attaching the Stand

NOTE: The stand riser and stand base are detached when the monitor is shipped from the factory.

NOTE: The procedure below is applicable for the default stand. If you purchased any other stand, see the documentation shipped with the stand to set it up.

CAUTION: Place monitor on a flat, clean, and soft surface to avoid scratching the display panel.

Two views of a device showing a close-up of the interior and top view, with orange arrows indicating transformation (no text or symbols present)

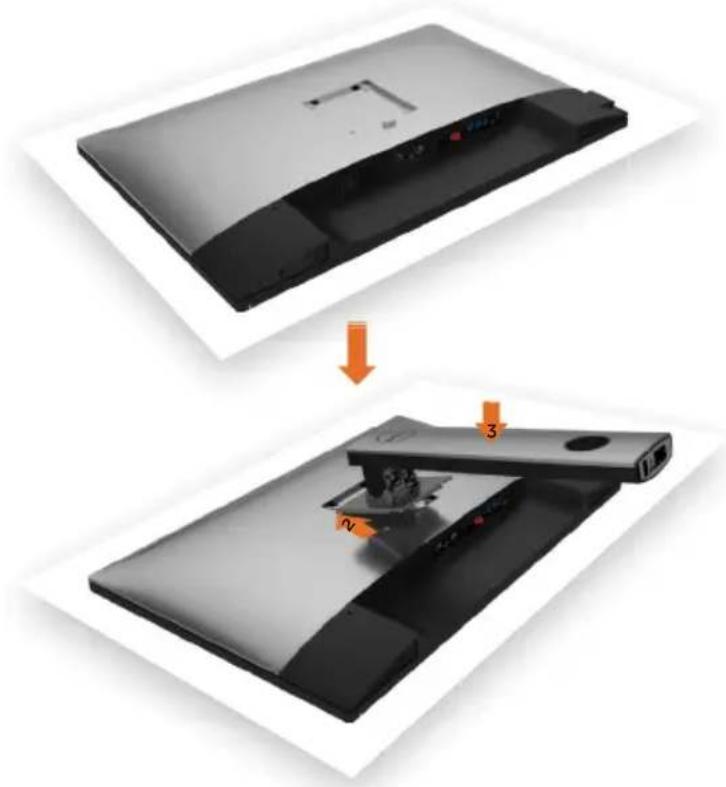

To attach the monitor stand:

1 Remove the monitor protective cover and place the moitor with its front facing downward on it.
2 Insert the two tabs on the upper part of the stand to the groove on the back of the monitor.
3 Press the stand down till it snaps into its place.

Top-down view of a circular mechanical component with central hub and mounting holes (no text or symbols visible)

Diagram of a computer hard drive showing internal components and a close-up of the next drive (no text or symbols visible)

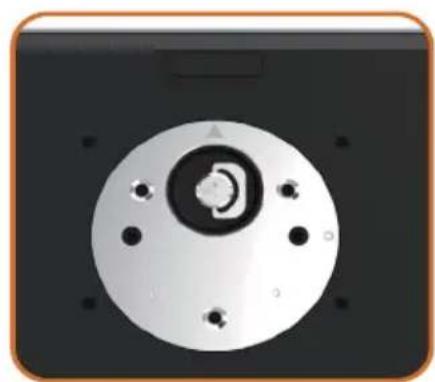

- Hold the stand base with the triangle mark facing upward.

3D rendering of a mechanical component with a circular inset showing a pin or knob (no text or symbols visible)

Close-up of a metallic mechanical component with a circular hole and a rectangular base (no text or symbols visible)

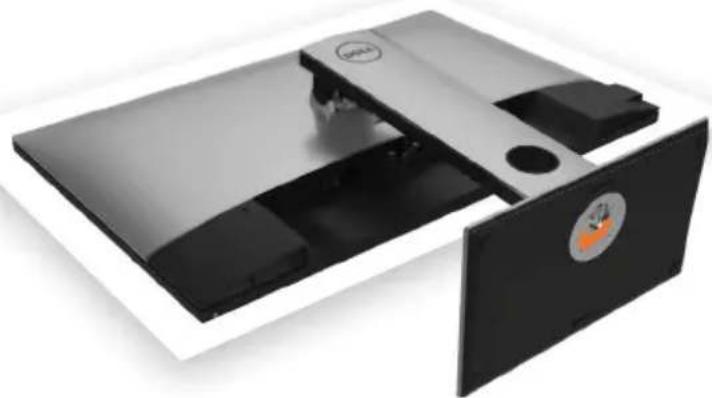

• Align the stand base protruded blocks to the matching slot on the stand.
• Insert the stand base blocks fully into the stand slot.

Exterior view of a modern office building (no signage)

Close-up of a mechanical component with an orange arrow indicating rotation or direction (no text or symbols)

- Lift the screw handle and turn the screw clockwise.

• After fully tightening the screw, fold the screw handle flat within the recess.

Using the Tilt, Swivel, and Vertical Extension

NOTE: This is applicable for a monitor with a stand. If you purchased any other stand, refer to the respective stand setup guide for set up instructions.

Tilt, Swivel and Vertical Extension

With the stand attached to the monitor, you can tilt the monitor for the most comfortable viewing angle.

5° 30° 150 mm 30° 21°

NOTE: The stand is detached when the monitor is shipped from the factory.

Rotating the Monitor

Before you rotate the monitor, your monitor should be fully vertically extended and fully tilted up to avoid hitting the bottom edge of the monitor.

1 2 90° 90°

NOTE: To use the Display Rotation function (Landscape versus Portrait view) with your Dell computer, you require an updated graphics driver that is not included with this monitor. To download the graphics driver, go to www.dell.com/support and see the Download section for Video Drivers for latest driver updates.

NOTE: When in the Portrait View Mode, you may experience performance degradation in graphic-intensive applications (3D Gaming and etc.).

Adjusting the Rotation Display Settings of Your System

After you have rotated your monitor, you need to complete the procedure below to adjust the Rotation Display Settings of your System.

NOTE: If you are using the monitor with a non-Dell computer, you need to go the graphics driver website or your computer manufacturer website for information on rotating the 'contents' on your display.

To adjust the Rotation Display Settings:

1 Right-click on the desktop and click Properties.
2 Select the Settings tab and click Advanced.
3 If you have an ATI graphics card, select the Rotation tab and set the preferred rotation.
4 If you have an nVidia graphics card, click the nVidia tab, in the left-hand column select NVRotate, and then select the preferred rotation.
5 If you have an Intel ^ graphics card, select the Intel graphics tab, click Graphic Properties, select the Rotation tab, and then set the preferred rotation.

OTE: If you do not see the rotation option or it is not working correctly, go to www.dell.com/support and download the latest driver for your graphics card.

Connecting Your Monitor

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

To connect your monitor to the computer:

1 Turn off your computer.
2 Connect the DP-mDP/HDMI/USB cable from your monitor to the computer. (Vertically extend and tilt the monitor completely to rotate it for cable connection. See Rotating the Monitor.)
3 Switch on your monitor.
4 Select the correct input source at Monitor OSD Menu and turn on your computer.

NOTE: UP3017 default setting is DP 1.2. A DP 1.1 Graphic card may not display normally. Please refer to "product specific problems – No image when using DP connection to the PC" to change default setting.

Single monitor connection

Connecting the DP (or mDP) cable

Diagram showing cable connection between a server and a computer, with labeled components including mDP and DP connectors.

NOTE: Default is DP port. Select input source on monitor to switch to mDP.

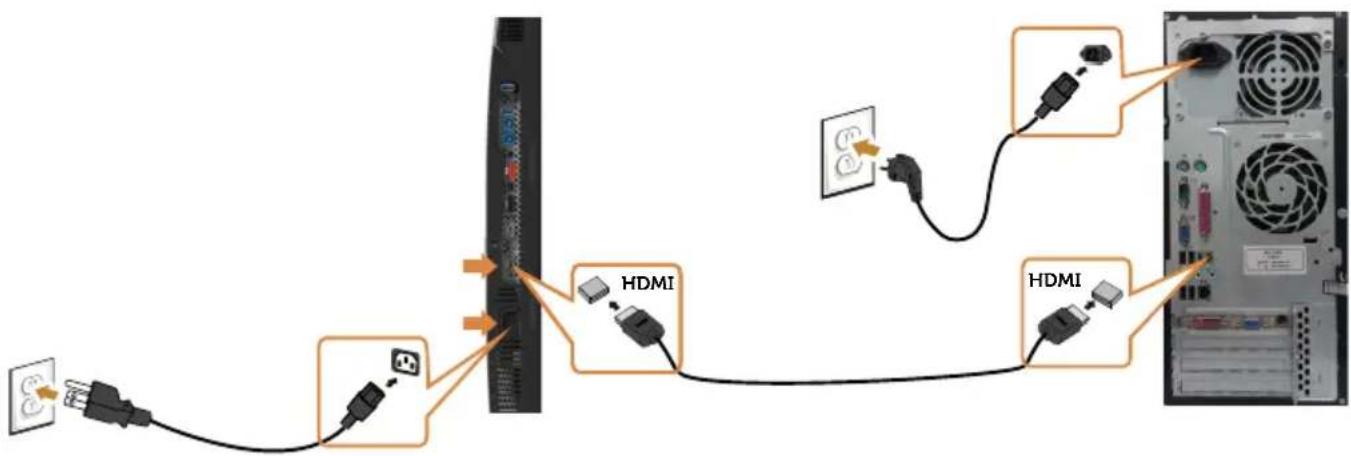

Connecting the HDMI cable (Optional)

Diagram showing cable connection between a computer tower and HDMI, with labeled components and cable routing.

Connecting the USB cable

After you have completed connecting the DP-mDP cables, follow the procedure below to connect the USB 3.0 cable to the computer and complete your monitor setup:

1 a. Connect one computer:

Connect the upstream USB 3.0 port (cable supplied) to an appropriate USB 3.0 port on your computer.

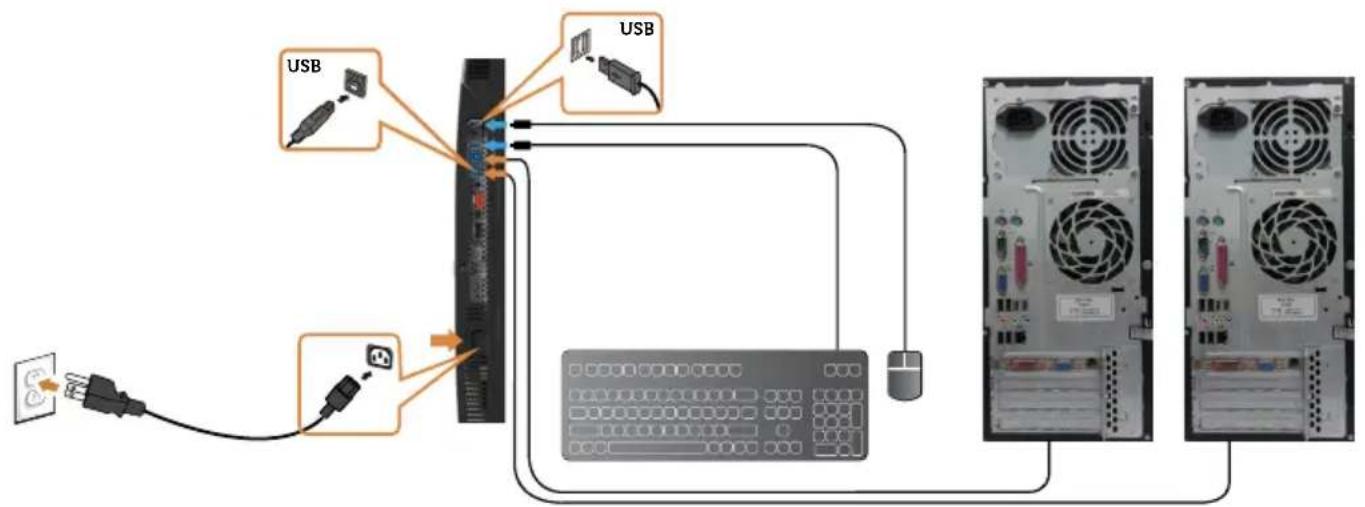

b. Connect two computers:

Connect the upstream USB 3.0 ports to appropriate USB 3.0 ports on the two computers. Then use the OSD menu to select between the two USB upstream sources and input sources. See USB Select Switch.

NOTE: When connecting two computers to the monitor, the monitor's USB downstream ports for the keyboard and mouse can be assigned to different input signals from the two computers by changing the USB Selection setting from the OSD menu. (See USB Selection for details)

2 Connect the USB 3.0 peripherals to the downstream USB 3.0 ports on the monitor.

3 Plug the power cables for your computer and monitor into nearby outlet.

Diagram showing USB cable connection to a server rack with power and network connections

a. Connect one computer

b. Connect two computers

4 Turn On the monitor and the computer.

If your monitor displays an image, installation is complete. If it does not display an image, see Troubleshooting.

Multiple monitor connections

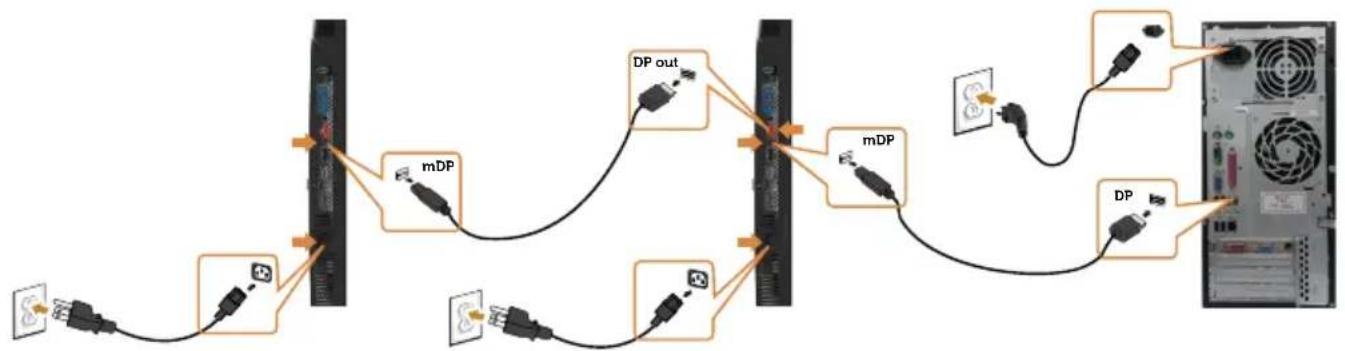

Connecting the monitor for DP Multi-Stream Transport (MST) function

NOTE: Supports the DP MST feature. To make use of this feature, your PC Graphics Card must be certified to DP1.2 with MST option.

NOTE: Remove the rubber plug when using the DP out connector.

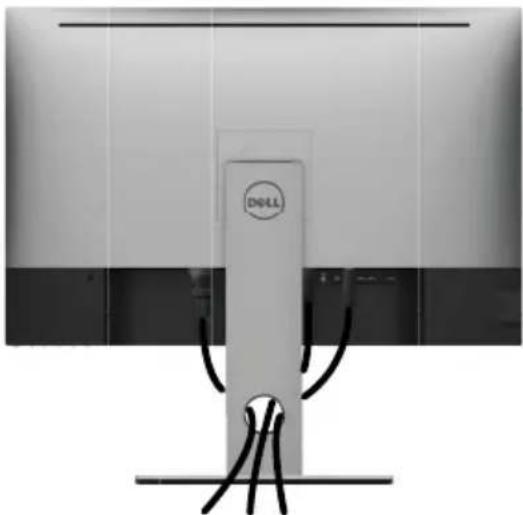

Organizing Your Cables

Close-up of a Dell computer monitor with cable routing (no visible text or symbols)

After attaching all necessary cables to your monitor and computer, (see Connecting Your Monitor for cable attachment) organize all cables as shown above.

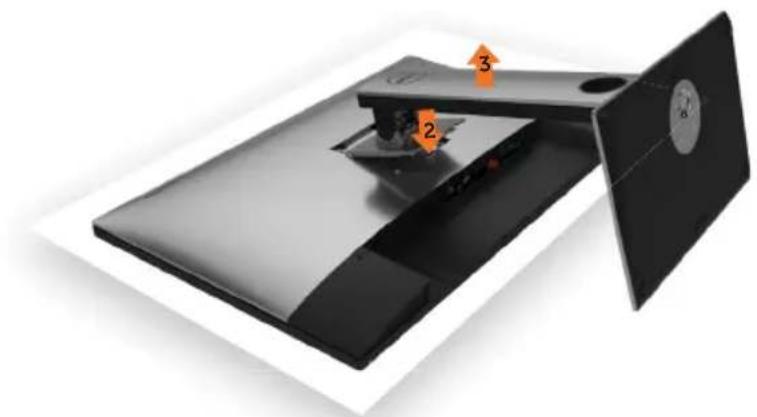

Removing the Monitor Stand

CAUTION: To prevent scratches on the LCD screen while removing the stand, make sure that the monitor is placed on a soft, clean surface.

NOTE: The procedure below is applicable for the default stand. If you purchased any other stand, see the documentation shipped with the stand to set it up.

1 Place the monitor on a soft cloth or cushion.
2 Press and hold the stand-release button.
3 Lift the stand up and away from the monitor.

3D rendering of a black electronic device with labeled parts (no text or symbols visible)

Wall Mounting (Optional)

Computer monitor screen displaying a black text box with orange arrows pointing to it, surrounded by control buttons and a small display screen.

NOTE: Use M4 x 10 mm screws to connect the monitor to the wall-mounting kit. Refer to the instructions that come with the VESA-compatible wall mounting kit.

1 Place the monitor on a soft cloth or cushion on a stable, flat table.
2 Remove the stand.
3 Use a Phillips crosshead screwdriver to remove the four screws securing the plastic cover.
4 Attach the mounting bracket from the wall mounting kit to the monitor.
5 Mount the monitor on the wall by following the instructions that comes with the wall mounting kit.

NOTE: For use only with UL or CSA or GS-listed wall mount bracket with minimum weight/load bearing capacity of 6.49 kg (14.31 lb).

Turning on the Monitor

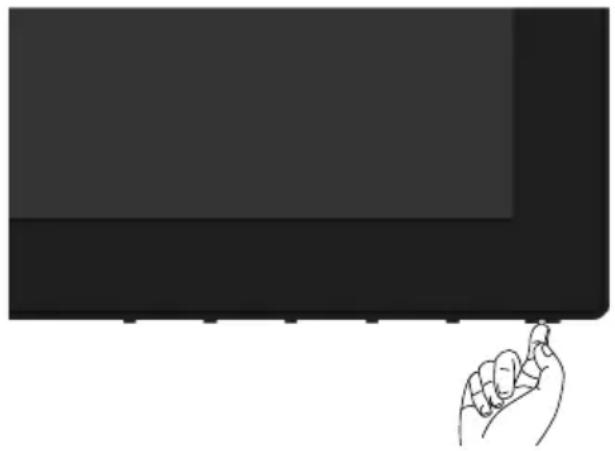

Press the 📁 button to turn on the monitor.

Simple line drawing of a hand pressing a button on a black rectangular object (no text or symbols)

Using the Front Panel Controls

Use the control buttons on the front of the monitor to adjust the characteristics of the image being displayed. As you use these buttons to adjust the controls, an OSD shows the numeric values of the characteristics as they change.

654

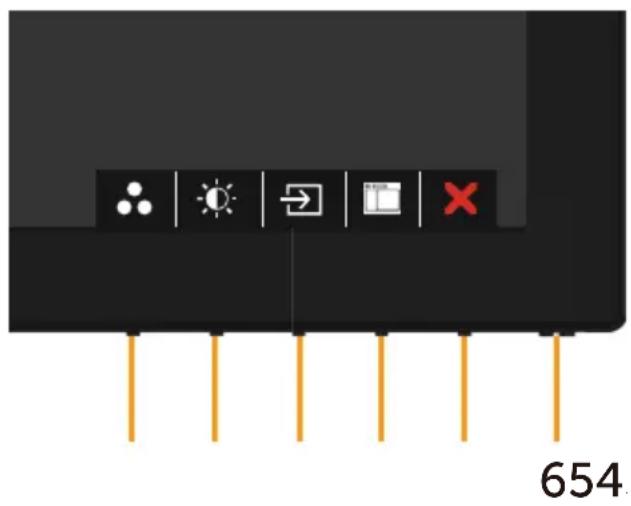

The following table describes the front panel buttons:

Front-Panel Button Description
1		Use this button to choose from a list of preset color modes.
	Shortcut key: Preset Modes
2		Use this button to directly access the “Brightness/ Contrast” menu.
	Shortcut key: Brightness/Contrast
3		Use this button to choose from a list of Input Source.
	Shortcut key: Input Source
4		Use this menu button to launch the on-screen display (OSD) and select the OSD menu.
	Menu	See Accessing the Menu System.
5		Use this button to go back to the main menu or exit the OSD main menu.
	Exit
6		Use the Power button to turn the monitor On and Off. The white LED indicates the monitor is On and fully functional.
	Power (with power light indicator)	A glowing white LED indicates DPMS Power Save Mode.

Front-Panel Button

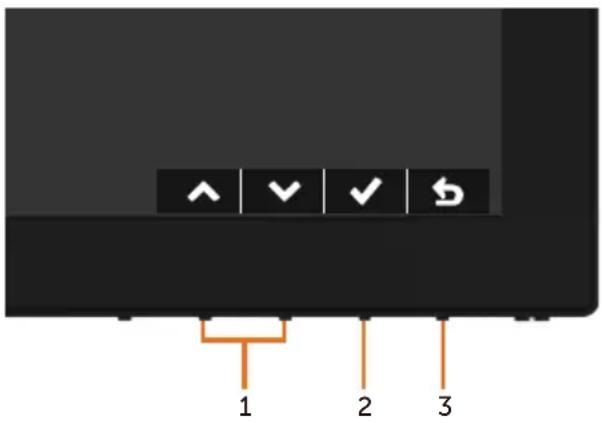

Use the buttons on the front of the monitor to adjust the image settings.

1 2 3

Front Panel Button Description

1			Use the Up (increase) and Down (decrease) keys to adjust items in the OSD menu.
	Up	Down
2			Use the OK button to confirm your selection.
		OK
3			Use the Back button to go back to the previous menu.
		Back

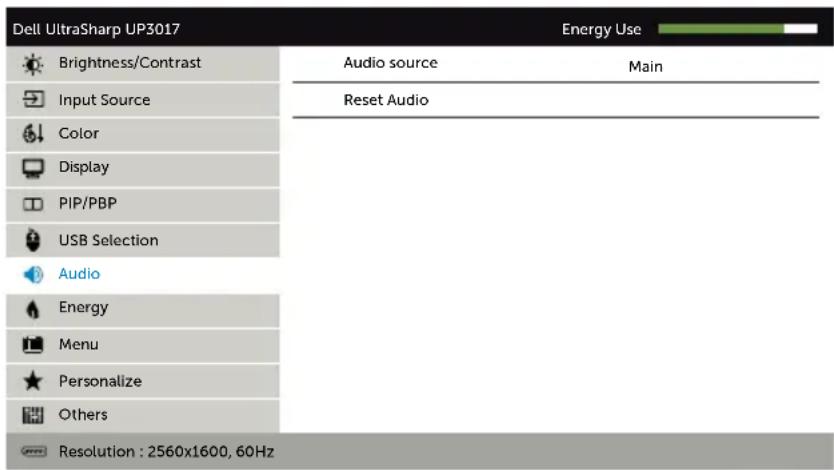

Using the On-Screen Display (OSD) Menu

Accessing the Menu System

NOTE: Any changes you make using the OSD menu are automatically saved if you move to another OSD menu, exit the OSD menu, or wait for the OSD menu to disappear.

1 Press the button to launch the OSD menu and display the main menu.

2 Press the and buttons to move between options. As you move from one icon to another, the option name is highlighted.
3 Press the 🔒 or button once to activate the highlighted option.
4 Press the and buttons to select the desired parameter.
5 Press → enter the slide bar and then use the ⬆ button, according to the indicators on the menu, to make your changes.
6 Select the 📄 to return to previous menu or to accept and return to previous menu.

Icon Menu and Submenus

Brightness/Contrast

Description

Use this menu to activate Brightness/Contrast adjustment.

Brightness Brightness adjusts the luminance of the backlight

(minimum 0; maximum 100).

Press the button to increase brightness.

Press the button to decrease brightness.

NOTE: Manual adjustment of Brightness is disabled when Dynamic Contrast is switched on.

Contrast

Adjust the Brightness first, and then adjust Contrast only if further adjustment is necessary.

Press the 🔊 button to increase contrast and press the button to decrease contrast (between 0 and 100).

Contrast adjusts the difference between darkness and lightness on the monitor.

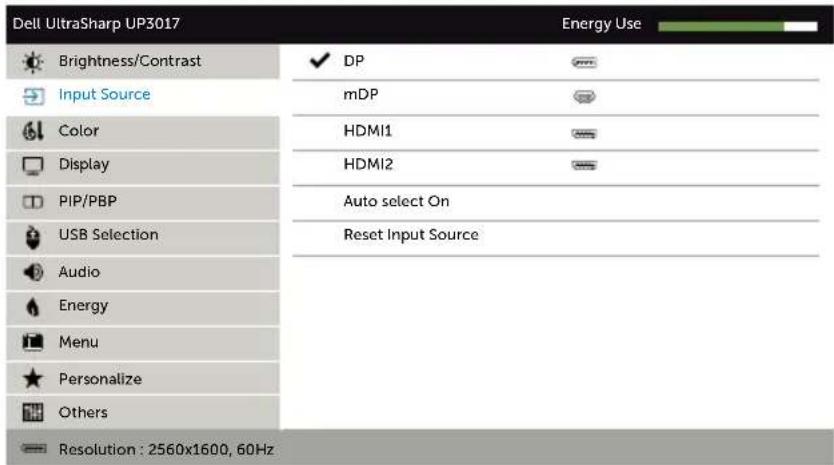

Input Source Use the Input Source menu to select between different video inputs that are be connected to your monitor.

Dell UltraSharp UP3017 Energy Use Brightness/Contrast Input Source Color Display PIP/PBP USB Selection Audio Energy Menu Personalize Others Resolution : 2560x1600, 60Hz DP mDP HDMI1 HDMI2 Auto select On Reset Input Source

Icon Menu and Submenus	Description
	DP Select DP input when you are using the DP (DisplayPort) connector.Useselect the DP input source.
	mDP Select mDP input when you are using the mDP (mini DisplayPort) connector.Useselect the mDP input source.
	HDMI 1 Select the HDMI 1 input when you are using the HDMI connector.Useselect the HDMI 1 input source.
	HDMI 2 Select the HDMI 2 input when you are using the HDMI connector.Useselect the HDMI 2 input source.
	Auto SelectUseselect Auto Select, the monitor scans for available input sources.
	Reset Input Source Resets your monitor's Input Source settings to the factory defaults.

Color Use the Color menu to adjust the color setting mode.

Dell UltraSharp UP3017		Energy Use
Brightness/Contrast	Preset Modes	Standard
Input Source	Input Color Format	RGB
Color	Gamma	2.2
Display	Reset Color
PIP/PBP
USB Selection
Audio
Energy
Menu
Personalize
Others
Resolution : 2560x1600, 60Hz

Icon Menu and Submenus

Description

Preset Mode When you select Preset Modes, you can choose Standard, ComfortView, Multimedia, Movie, Game, Color Temp., Color Space, or Custom Color from the list.

Dell UltraSharp UP3017		Energy Use
Brightness/Contrast	Preset Modes	✓ Standard
Input Source	Input Color Format	ComfortView
Color	Gamma	Multimedia
Display	Reset Color	Movie
PIP/PBP		Game
USB Selection		Color Temp.
Audio		Color Space
Energy		Custom Color
Menu
Personalize
Others
Resolution : 2560x1600, 60Hz

• Standard: Default color settings. This is the default preset mode.
• ComfortView: Decreases the level of blue light emitted from the screen to make viewing more comfortable for your eyes.
• Multimedia: Ideal for multimedia applications.
• Movie: Ideal for movies.
• Game: Ideal for most gaming applications.
• Color Temp.: The screen appears warmer with a red/yellow tint with slider set at 5,000K or cooler with blue tint with slider set at 10,000K.

Icon Menu and Submenus

Description

- Color Space: Allows users to select the color space: Adobe RGB, sRGB, REC709, DCI-P3, CAL1, CAL2.

Dell UltraSharp UP3017		Energy Use
	Brightness/Contrast	Preset Modes	✓ Adobe RGB
	Input Source	Input Color Format	sRGB
	Color	Gamma	REC709
	Display	Reset Color	DCI-P3
	PIP/PBP		CAL1 YYYY-MM-DD
	USB Selection		CAL2 YYYY-MM-DD
	Audio
	Energy
	Menu
	Personalize
	Others
	Resolution : 2560x1600, 60Hz

- Adobe RGB: This mode is compatible with Adobe RGB (99% coverage).

- sRGB: Emulates 99% sRGB.

- REC709: This mode matches 99% REC709 standard.

- DCI-P3: This mode reproduces 99% of DCI-P3 digital cinema color standard.

- CAL1/CAL2: User calibrated preset mode using Dell Ultrasharp Color Calibration Software or other Dell approved software. Dell Ultrasharp Color Calibration Software works with the X-rite colorimeter i1Display Pro. The i1Display Pro can be purchased from the Dell Electronics, Software and Accessories website.

NOTE: Accuracy of sRGB, Adobe RGB, REC709, DCI-P3, CAL1 and CAL2 are optimized for RGB input color format.

NOTE: Factory Reset will remove all calibrated data in CAL1 and CAL2.

NOTE: YYYY-MM-DD depicts last calibration date. If this space is blanked it means no calibration was saved.

Icon Menu and Submenus	Description
	Custom Color: Allows you to manually adjust the color settings. Press the ▲ and ▶ buttons to adjust the Red, Green, and Blue values and create your own preset color mode.Use the ▲ and ▶ buttons to select the Gain, Offset, Hue, Saturation.
	Custom Color
	√ Gain
	Offset
	Hue
	Saturation
	^ √ √ ↕
	- Gain: Select it to adjust input RGB signal gain level (default value are 100).- Offset: Select it to adjust RGB black-level offset value (default value are 50) to control your monitor base color.- Hue: Select it to adjust RGBCMY hue value individually (default value are 50).- Saturation: Select it to adjust RGBCMY saturation value individually (default value are 50).
Input Color Format	Allows you to set the video input mode to:RGB: Select this option if your monitor is connected to a computer (or DVD player) using the HDMI or DP-mDP cable.YPbPr: Select this option if your DVD player supports only YPbPr output.
Gamma Allows you to set the display Gamma according to your system.
Hue	Use ▲ to ▼ adjust the hue from 0 to 100.NOTE: Hue adjustment is available only for Movie and Game mode.
Saturation	Use ▲ to ▼ adjust the saturation from 0 to 100.NOTE: Saturation adjustment is available only for Movie and Game mode.
Reset Color Resets your monitor's color settings to the factory defaults.
Display Use the Display menu to adjust image.

Gamma Allows you to set the display Gamma according to your system.
Hue	Use to adjust the hue from 0 to 100.NOTE: Hue adjustment is available only for Movie and Game mode.
Saturation	Use to adjust the saturation from 0 to 100.NOTE: Saturation adjustment is available only for Movie and Game mode.

Dell UltraSharp UP3017		Energy Use
	Brightness/Contrast	Aspect Ratio	Wide 16:10
	Input Source	Monitor Sleep	$
	Color	Sharpness	50
	Display	Dynamic Contrast
	PIP/PBP	Response Time	Normal
	USB Selection	MST	Off
	Audio	Uniformity Compensation	Off
	Energy	Display Info
	Menu	Reset Display
	Personalize
	Others
	Resolution : 2560x1600, 60Hz

Icon Menu and Submenus	Description
Aspect Ratio	Adjust the image ratio to Wide 16:10, Auto Resize, 4:3, or 1:1.
Monitor Sleep Sleep After Timeout: Monitor goes into sleep after timeout. Never: Monitor never goes into sleep.
Sharpness Makes the image look sharper or softer.Use to adjust the sharpness from '0' to '100'.
Dynamic Contrast	Allows you to increase the level of contrast to provide sharper and more detailed image quality.Push the button to select the Dynamic Contrast "On" or "Off".NOTE: For Game and Movie preset mode only.NOTE: Dynamic Contrast provides higher contrast if you select Game or Movie preset mode.
Response Time	Allows you to set the Response Time to Normal or Fast.
MST DP Multi Stream Transport, Set to ON enables MST(DP out),Set to OFF disables MST function.
Uniformity Compensation	Select screen brightness and color uniformity compensation settings. Off is factory setting by default.Uniformity Compensation adjusts different areas of the screen with respect to the center to achieve uniform brightness and color over the entire screen.
Display Info	Displays the monitor's current settings.
Reset Display Restores the display settings to factory defaults.

Icon Menu and Submenus

Description

PIP/PBP This function brings up a window displaying image from another input source. Thus you can watch two images from different sources at the same time.

Dell UltraSharp UP3017		Energy Use
Brightness/Contrast	PIP/PBP Mode	Off
Input Source	PIP/PBP (Sub)	mDP
Color	PIP Location	Top-Right
Display	USB Select Switch
PIP/PBP	Video Swap
USB Selection	Contrast (Sub)
Audio
Energy
Menu
Personalize
Others
Resolution : 2560x1600, 60Hz

Main Window	Sub - Window
	DP m	DP HDMI	1 HDMI 2
DP X √ √	√
mDP √ X √	√
HDMI 1 √ √	X √
HDMI 2 √ √	√ X

NOTE: When you use the PIP/PBP feature, the DP MST (Daisy Chain) function is disabled.

Icon Menu and Submenus	Description
PIP/PBP Mode	Adjusts the PBP (Picture by Picture) model to PIP Small, PIP Large, PBP Aspect Ratio, or PBP Fill. You can disable this feature by selecting Off.
PIP/PBP (Sub) Select between the different video signals that may be connected to your monitor for the PIP/PBP sub-window.
PIP Location Select PIP sub-window position.Use to browse and to select Top-Right, Top-Left, Bottom-Right, or Bottom-left.
USB Select Switch	Select to switch between the USB upstream sources in PBP mode.
Video Swap Swap Main & Sub video.
Contrast (Sub) Change Contrast settings of Sub video.

Icon Menu and Submenus

Description

USB Selection Select the USB upstream signals from the list: DP, mDP and HDMI, thus the monitor's USB downstream port (eg. keyboard and mouse) can be used by the current input signals when connecting a computer to either one of the upstream ports.

The display and USB upstream ports connection can be changed by selecting the input source function.

When you use only one upstream port, the connected upstream port is active.

Dell UltraSharp UP3017		Energy Use
Brightness/Contrast	USB 1	DP
Input Source	USB 2	HDMI1
Color
Display
PIP/PBP
USB Selection
Audio
Energy
Menu
Personalize
Others
Resolution : 2560x1600, 60Hz

NOTE: To prevent data damage or loss, before changing USB upstream ports, make sure that NO USB storage devices are in use by the computer connected to the monitor's USB upstream port.

USB 1

Use the ➕ to Indicate the input signal for USB 1.

USB 2

Use the + to Indicate the input signal for USB 2.

Audio

Dell UltraSharp UP3017 Energy Use Brightness/Contrast Audio source Main Input Source Reset Audio Color Display PIP/PBP USB Selection Audio Energy Menu Personalize Others Resolution : 2560x1600, 60Hz

Icon Menu and Submenus

Description

Audio source Allows you to set the audio source from the main window or the sub-window.

Reset Audio Select this option to restore default audio settings.

Energy

Dell UltraSharp UP3017		Energy Use
Brightness/Contrast	Power Button LED	On During Active
Input Source	USB	Off During Standby
Color	Reset Energy
Display
PIP/PBP
USB Selection
Audio
Energy
Menu
Personalize
Others
Resolution : 2560x1600, 60Hz

Power Button LED Allows you to set the state of the power light to save energy.

USB Allows you to enable or disable USB function during monitor standby mode.

NOTE: USB ON/OFF under standby mode is only available when the USB upstream cable is unplugged. This option will be greyed out when the USB upstream cable plugs in.

Reset Energy Select this option to restore default Energy settings.

Icon Menu and Submenus

Description

Menu Select this option to adjust the settings of the OSD, such as, the languages of the OSD, the amount of time the menu remains on screen, and so on.

Dell UltraSharp UP3017 Battery Brightness/Contrast Input Source Color Display PIP/PBP USB Selection Audio Energy Menu Personalize Others Resolution : 2560x1600, 60Hz Language English Rotation Transparency 20 Lock Unlock Reset Menu

Language Set the OSD display to one of eight languages.

(English, Spanish, French, German, Brazilian Portuguese, Russian, Simplified Chinese, or Japanese).

Rotation Rotates the OSD by 0/90/180/270 degrees.

You can adjust the menu according to your display rotation.

Transparency Select this option to change the menu transparency by using

Timer OSD Hold Time: Sets the length of time the OSD remains active after you press a button.

Use the 📐 and buttons to adjust the slider in 1-second increments, from 5 to 60 seconds.

Lock Controls user access to adjustments. When Lock is selected, no user adjustments are allowed. All buttons are locked.

NOTE:

Lock function – Either soft lock (through OSD menu) or hard lock (Press and hold the exit button 6 sec)

Unlock function – Only hard unlock (Press and hold the exit button 6 sec)

Reset Menu Restore the menu settings to factory defaults.

Icon Menu and Submenus		Description
	Personalize	Select from Preset Modes, Brightness/Contrast, Input Source, Aspect Ratio, Rotation, PIP/PBP Modes, USB Select Switch, or Video Swap and set as shortcut key.
	Reset Personalization	Restores shortcut keys to factory defaults.
	Other
		Select this option to adjust the OSD settings, such as the DDC/CI, LCD conditioning, and so on.

Icon Menu and Submenus

Description

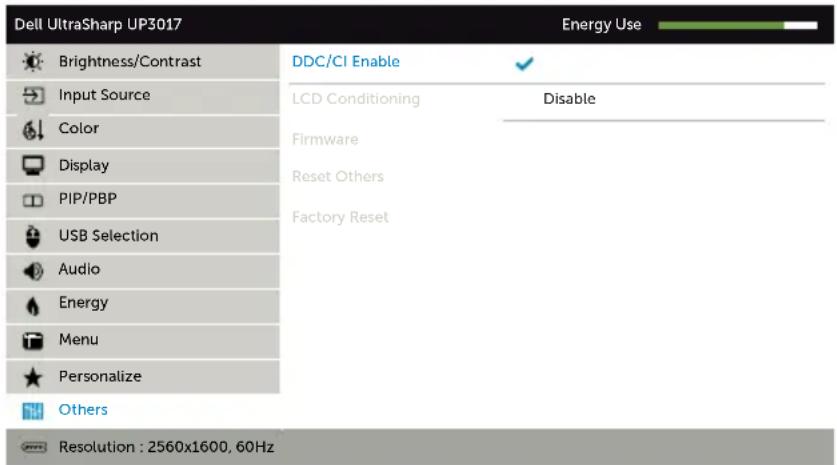

DDC/CI DDC/CI (Display Data Channel/Command Interface) allows you to adjust the monitor settings using software on your computer.

Select Disable to turn off this feature.

Enable this feature for best user experience and optimum performance of your monitor.

Dell UltraSharp UP3017 Energy Use Brightness/Contrast Input Source Color Display PIP/PBP USB Selection Audio Energy Menu Personalize Others DDC/CI Enable LCD Conditioning Firmware Reset Others Factory Reset Resolution : 2560x1600, 60Hz Disable

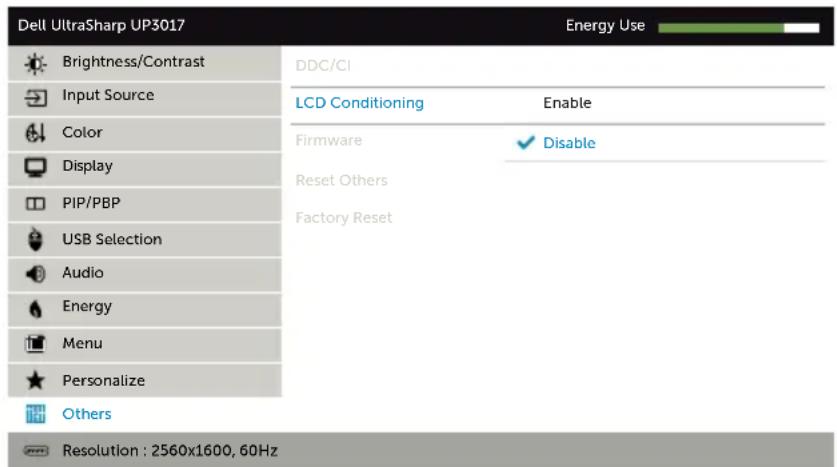

LCD Conditioning

Helps reduce minor cases of image retention. Depending on the degree of image retention, the program may take some time to run. Select Enable to start the process.

Dell UltraSharp UP3017 Energy Use Brightness/Contrast Input Source Color Display PIP/PBP USB Selection Audio Energy Menu Personalize Others DDC/CI LCD Conditioning Enable Firmware ✓ Disable Reset Others Factory Reset Resolution : 2560x1600, 60Hz

Firmware Firmware version

Reset Others Restores other settings, such as DDC/CI, to factory defaults.

Factory Reset Restores all OSD settings to the factory defaults.

NOTE: This monitor has a built-in feature to automatically calibrate the brightness to compensate for LED aging.

OSD Warning Messages

When the Dynamic Contrast feature is enabled (in these preset modes: Game or Movie), manual brightness adjustment is disabled.

Dell UltraSharp UP3017

To allow manual adjustment of brightness, the Dynamic Contrast will be switched off.
Do you want to continue?

No

Yes

When the monitor does not support a particular resolution mode, you can see the following message:

Dell UltraSharp UP3017

The current input timing is not supported by the monitor display. Please change your input timing to 2560x1600, 60Hz or any other monitor listed timing as per the monitor specifications.

[Unreadable]

This means that the monitor cannot synchronize with the signal that it is receiving from the computer. See Monitor Specifications for the Horizontal and Vertical frequency ranges addressable by this monitor. Recommended mode is 2560 x 1600.

You can see the following message before the DDC/CI function is disabled:

Dell UltraSharp UP3017

The function of adjusting display setting using PC application will be disabled.

Do you wish to disable DDC/CI function?

No

Yes

When the monitor enters the Power Save mode, the following message appears:

Dell UltraSharp UP3017

Entering Power Save Mode.

Activate the computer and wake up the monitor to gain access to the OSD.

If you press any button other than the power button, the following messages will appear depending on the selected input:

Dell UltraSharp UP3017

No DP signal from your device.

Press any key on the keyboard or move the mouse or wake it up.

If there is no display, press the monitor button again to select

the correct input source.

If either DP, mDP, HDMI1 or HDMI2 input is selected and the corresponding cable is not connected, a floating dialog box as shown below appears.

Dell UltraSharp UP3017

No DP Cable

The display will go into Power Save Mode in 4 minutes.

www.dell.com/support/monitors

or

Dell UltraSharp UP3017

No mDP Cable

The display will go into Power Save Mode in 4 minutes.

www.dell.com/support/monitors

or

Dell UltraSharp UP3017

No HDMI1 Cable

The display will go into Power Save Mode in 4 minutes.

www.dell.com/support/monitors

or

Dell UltraSharp UP3017

No HDMI2 Cable

The display will go into Power Save Mode in 4 minutes.

www.dell.com/support/monitors

See Troubleshooting for more information.

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

Self-Test

Your monitor provides a self-test feature that allows you to check whether your monitor is functioning properly. If your monitor and computer are properly connected but the monitor screen remains dark, run the monitor self-test by performing the following steps:

1 Turn off both your computer and the monitor.
2 Unplug the video cable from the back of the computer. To ensure proper Self-Test operation, remove all digital and the analog cables from the back of computer.
3 Turn on the monitor.

The floating dialog box should appear on-screen (against a black background), if the monitor cannot sense a video signal and is working correctly. While in self-test mode, the power LED remains white. Also, depending upon the selected input, one of the dialogs shown below will continuously scroll through the screen.

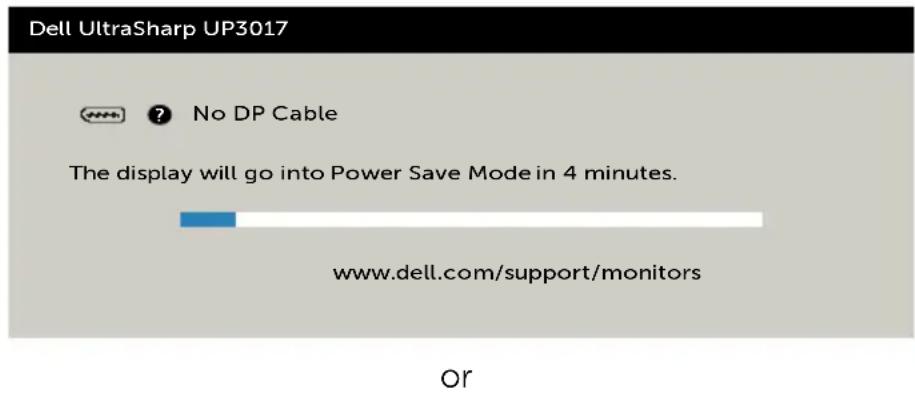

Dell UltraSharp UP3017 ? No DP Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/monitors Or

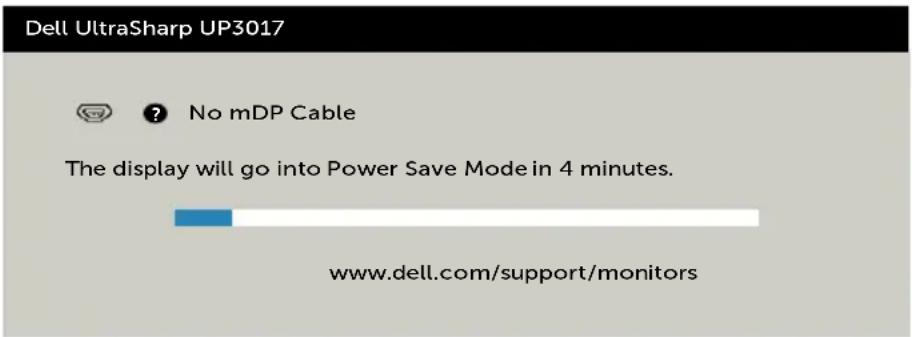

Dell UltraSharp UP3017 No mDP Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/monitors

or

Dell UltraSharp UP3017

No HDMI1 Cable

The display will go into Power Save Mode in 4 minutes.

www.dell.com/support/monitors

or

Dell UltraSharp UP3017

No HDMI2 Cable

The display will go into Power Save Mode in 4 minutes.

www.dell.com/support/monitors

4 This box also appears during normal system operation, if the video cable becomes disconnected or damaged.
5 Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor.

If your monitor screen remains blank after you use the previous procedure, check your video controller and computer, because your monitor is functioning properly.

Built-in Diagnostics

Your monitor has a built-in diagnostic tool that helps you determine if the screen abnormality you are experiencing is an inherent problem with your monitor, or with your computer and video card.

NOTE: You can run the built-in diagnostics only when the video cable is unplugged and the monitor is in self-test mode.

65432

To run the built-in diagnostics:

1 Make sure that the screen is clean (no dust particles on the surface of the screen).
2 Unplug the video cable(s) from the back of the computer or monitor. The monitor then goes into the self-test mode.
3 Press and hold Button 1 for 5 seconds. A gray screen appears.
4 Carefully inspect the screen for abnormalities.
5 Press Button 1 on the front panel again. The color of the screen changes to red.
6 Inspect the display for any abnormalities.
7 Repeat steps 5 and 6 to inspect the display in green, blue, black, white, and text screens.

The test is complete when the text screen appears. To exit, press Button 1 again. If you do not detect any screen abnormalities upon using the built-in diagnostic tool, the monitor is functioning properly. Check the video card and computer.

Common Problems

The following table contains general information about common monitor problems you might encounter and the possible solutions:

Common Symptoms	What You Experience	Possible Solutions
No Video/Power LED off	No picture • Ensure that the video cable connecting the monitor and the computer is properly connected and secure. • Verify that the power outlet is functioning properly using any other electrical equipment. • Ensure that the power button is depressed fully. • Ensure that the correct input source is selected in the Input Source menu.
No Video/Power LED on	No picture or no brightness	• Increase brightness & contrast controls via OSD. • Perform monitor self-test feature check. • Check for bent or broken pins in the video cable connector. • Run the built-in diagnostics. • Ensure that the correct input source is selected in the Input Source menu.
Missing Pixels LCD screen has spots		• Cycle power on-off. • Pixel that is permanently off is a natural defect that can occur in LCD technology. • For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: http://www.dell.com/support/monitors.
Stuck-on Pixels LCD screen has bright spots		• Cycle power On-Off. • Pixel that is permanently off is a natural defect that can occur in LCD technology. • For more information on Dell Monitor Quality and PixelPolicy, see Dell Support site at: http://www.dell.com/support/monitors.
Brightness Problems	Picture too dim or too bright	• Reset the monitor to factory settings. • Adjust brightness & contrast controls via OSD.
Safety Related Issues	Visible signs of smoke or sparks	• Do not perform any troubleshooting steps. • Contact Dell immediately.
Intermittent Problems	Monitor malfunctions on & off	• Ensure that the video cable connecting the monitor to the computer is connected properly and is secure. • Reset the monitor to factory settings. • Perform monitor self-test feature check to determine if the intermittent problem occurs in self-test mode.
Missing Color Picture missing color		Perform monitor self-test.Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.Check for bent or broken pins in the video cable connector.
Wrong Color Picture color not good		Change the settings of the Preset Modes in the Color menu OSD depending on the application.Adjust R/G/B value under Custom. Color in Color menu OSD.Change the Input Color Format to PC RGB or YPbPr in the Color menu OSD.Run the built-in diagnostics.
Image retention from a static image left on the monitor for a long period of time	Faint shadow from the static image displayed appears on the screen	Use the Power Management feature to turn off the monitor at all times when not in use (for more information, see Power Management Modes).Alternatively, use a dynamically changing screensaver.

Product Specific Problems

Specific Symptoms	What You Experience	Possible Solutions
Screen image is too small	Image is centered on screen, but does not fill entire viewing area	·Check the Aspect Ratio setting in the Display menu OSD.·Reset the monitor to factory settings.
Cannot adjust the monitor with the buttons on the front panel	OSD does not appear on the screen	·Turn off the monitor, unplug the monitor power cable, plug it back, and then turn on the monitor.·Check whether the OSD menu is locked. If yes, press and hold the button beside the power button for 6 seconds to unlock (for more information, see Lock).
No Input Signal when user controls are pressed	No picture, the LED light is white	·Check the signal source. Ensure the computer is not in the power saving mode by moving the mouse or pressing any key on the keyboard.·Check whether the signal cable is plugged in properly. Re-plug the signal cable if necessary.·Reset the computer or video player.
The picture does not fill the entire screen	The picture cannot fill the height or width of the screen	·Due to different video formats (aspect ratio) of DVDs, the monitor may display in full screen.·Run the built-in diagnostics.
No image when using DP connection to the PC	Black screen • Verify which DP standard (DP 1.1a or DP 1.2) is your Graphics Card certified to. Download and install the latest graphics card driver.• Some DP 1.1a graphics card cannot support DP 1.2 monitors. Go to OSD menu, under Input Source selection, press and hold DP select √key for 8 sec to change the monitor setting from DP 1.2 to DP 1.1a.

Universal Serial Bus (USB) Specific Problems

Specific Symptoms	What You Experience	Possible Solutions
USB interface is not working	USB peripherals are not working	Check that your monitor is turned ON.Reconnect the upstream cable to your computer.Reconnect the USB peripherals (downstream connector).Switch off and then turn on the monitor again.Reboot the computer.Some USB devices like external portable HDD require higher electric current; connect the device directly to the computer system.
Supre Speed USB 3.0 interface is slow.	Super Speed USB 3.0 peripherals working slowly or not working at all	Check that your computer is USB 3.0-capable.Some computers have USB 3.0, USB 2.0, and USB 1.1 ports. Ensure that the correct USB port is used.Reconnect the upstream cable to your computer.Reconnect the USB peripherals (downstream connector).Reboot the computer.
Wireless USB peripherals stop working when a USB 3.0 device is plugged in	Wireless USB peripherals responding slowly or only working as the distance between itself and its receiver decreases	Increase the distance between the USB 3.0 peripherals and the wireless USB receiver.Position your wireless USB receiver as close as possible to the wireless USB peripherals.Use a USB-extender cable to position the wireless USB receiver as far away as possible from the USB 3.0 port.

Safety Instructions

For displays with glossy bezels the user should consider the placement of the display as the bezel may cause disturbing reflections from surrounding light and bright surfaces.

WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards.

For information on safety instructions, see the Safety, Environmental, and Regulatory Information (SERI).

FCC Notices (U.S. only) and Other Regulatory Information

For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com/regulatory_compliance.

Contacting Dell

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area.

To get online Monitor support content:

See www.dell.com/support/monitors.

To contact Dell for sales, technical support, or customer service issues:

1 Go to www.dell.com/support.
2 Verify your country or region in the Choose A Country/Region drop-down menu at the top-left corner of the page.
3 Click Contact Us next to the country dropdown.
4 Select the appropriate service or support link based on your need.
5 Choose the method of contacting Dell that is convenient for you.

Setting Up Your Monitor

Setting Display Resolution to 2560 x 1600 (maximum)

For best performance, set the display resolution to 2560 x 1600 pixels by performing the following steps:

In Windows Vista, Windows 7, Windows 8 or Windows 8.1:

1 For Windows 8 and Windows 8.1 only, select the Desktop tile to switch to classic desktop.
2 Right-click on the desktop and click Screen Resolution.
3 Click the Dropdown list of the Screen Resolution and select 2560 x 1600.
4 Click OK.

In Windows 10:

1 Right-click on the desktop and click Display Settings.
2 Click Advanced display settings.
3 Click the dropdown list of Resolution and select 2560 x 1600.
4 Click Apply.

If you do not see the recommended resolution as an option, you may need to update your graphics driver. Please choose the scenario below that best describes the computer system you are using, and follow the given steps.

Dell computer

1 Go to www.dell.com/support, enter your service tag, and download the latest driver for your graphics card.
2 After installing the drivers for your graphics adapter, attempt to set the resolution to 2560 x 1600 again.

NOTE: If you are unable to set the resolution to 2560 x 1600, please contact Dell to inquire about a graphics adapter that supports these resolutions.

Non-Dell computer

In Windows Vista, Windows 7, Windows 8 or Windows 8.1:

1 For Windows 8 or Windows 8.1 only, select the Desktop tile to switch to classic desktop.
2 Right-click on the desktop and click Personalization.
3 Click Change Display Settings.
4 Click Advanced Settings.
5 Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
6 Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com or http://www.NVIDIA.com).
7 After installing the drivers for your graphics adapter, attempt to set the resolution to 2560 x 1600 again.

In Windows 10:

1 Right-click on the desktop and click Display Settings.
2 Click Advanced display settings.
3 Click Display adapter properties.
4 Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
5 Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com or http://www.NVIDIA.com).
6 After installing the drivers for your graphics adapter, attempt to set the resolution to 2560 x 1600 again.

NOTE: If you are unable to set the recommended resolution, please contact the manufacturer of your computer or consider purchasing a graphics adapter that supports the video resolution.

Maintenance Guidelines

Cleaning Your Monitor

WARNING: Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.

AUTION: Read and follow the Safety Instructions before cleaning the monitor.

For best practices, follow these instructions in the list below while unpacking, cleaning, or handling your monitor:

• To clean your anti-static screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the anti-static coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.
• Use a lightly-dampened, soft cloth to clean the monitor. Avoid using detergent of any kind as some detergents leave a milky film on the monitor.
  • If you notice white powder when you unpack your monitor, wipe it off with a cloth.
• Handle your monitor with care as a darker-colored monitor may get scratched and show white scuff marks more than a lighter-colored monitor.
• To help maintain the best image quality on your monitor, use a dynamically changing screen saver and turn off your monitor when not in use.
