USER MANUAL IAN 114181 CRIVIT
BEHEIZBARE EINLEGESOHLEN CEB 2000 A1
DE AT CH
Operating instructions
DE AT CH
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
ACHTUNG
ATTENTION
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM, GERMANY
www.kompernass.com
Indice
Introduzione 28
Diritti d'autore 28
ATTENZIONE
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM, GERMANY
www.kompernass.com
Index
Introduction 42
Copyright 42
Limited liability 42
Intended use 42
Warnings 43
Safety 44
Risks from electrical current 44
Interaction with the battery pack 44
Basic Safety Instructions 45
Initial use 46
Items supplied and transport inspection .... 4 6
Disposal of the packaging 46
Before initial use 47
Appliance description 47
Trimming the insoles to size 47
Charging the battery pack 48
Handling and operation 49
Switching the insoles on / off / selecting the heat setting .... 4 9
Cleaning....50
Storage 50
Disposal 50
Disposal of the appliance....50
Disposal of batteries /cells 50
Appendix 51
Technical Data 51
Information regarding the EC Declaration of Conformity .... 5 1
Warranty 52
Service 52
Importer 52
Introduction
Congratulations on the purchase of your new appliance.
You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. Retain these instructions for future reference. In addition, pass these operating instructions on to whoever might acquire the appliance at a future date.
GB
Copyright
This documentation is copyright protected.
Any copying and / or reproduction, wholly or partially, including reproduction of the illustrations, also in a modified format is only permitted with written consent from the manufacturer.
Limited liability
All technical information, data and information for the connection and operation contained in these operating instructions correspond to the latest at time of printing and, to the best of our knowledge, take into account our previous experience and know-how. No claims can be derived from the details, illustrations and descriptions in these instructions. The manufacturer assumes no responsibility for damage caused by failure to observe the instructions, improper use, inappropriate repairs, making unauthorised changes or for using unauthorised replacement parts.
Intended use
These heatable insoles are intended exclusively for warming the feet on cold days during extended periods outdoors. They are intended solely for domestic use, not for commercial applications. Any use other than that previously described, or a modification of the insoles, is not permitted and may result in injury and / or damage to the insoles. The manufacturer assumes no liability for damages caused by contrary applications. The user alone bears the liability.
Warnings
In these extant operating instructions the following warnings are used:
DANGER
A warning of this risk level signifies a potentially dangerous situation.
In the event that the dangerous situation is not avoided it could lead to death or serious physical injury.
▶ Comply with the directives in this warning to avoid the risks of death or serious physical injury.
WARNING
A warning of this risk level signifies a potentially dangerous situation.
If the dangerous situation is not avoided it could lead to physical injuries.
▶ Observe the instructions in this warning to avoid personal injuries.
IMPORTANT
A warning of this risk level signifies possible property damage.
If the dangerous situation is not avoided it could lead to physical injuries.
▶ Observe the instructions in this warning to avoid property damage.
NOTE
▶ A notice signifies additional information that may assist you in the handling of the appliance.
Safety
In this chapter you will receive important safety information regarding the handling of the appliance. Incorrect usage can lead to injuries and property damage.
Risks from electrical current
DANGER
Observe the following safety instructions to avoid risks from electrical current:
▶ Do not use the appliance if the power adapter, the connection cable or the connector plug is damaged.
▶ Under no circumstances should you open the power adapter. There is a risk of receiving an electric shock if voltage carrying connections are touched or the electrical and /or mechanical construction is changed.
Interaction with the battery pack
WARNING
The risk of explosions and leakages exists!
For safe handling of battery pack observe the following safety instructions:
▶ Do not throw the battery pack into a fire.
▶ Do not short circuit the battery pack.
▶ Check the battery pack regularly. Leaking battery acid can cause permanent damage to the device. Special care should be taken when handling a damaged or leaking battery. Danger from acid burns! Wear protective gloves.
▶ Store the battery pack away from children.
▶ Disconnect the battery pack from the insole if you do not intend to use it for longer periods.
▶ The battery packs must be properly disposed of separately from the insoles.
Basic Safety Instructions
For safe handling of the appliance observe the following safety information:
■ Before use, check the insoles, the battery pack and the power adapter for any externally visible damage. Do not take into operation an appliance that is damaged or has been dropped.
■ To avoid possible risks, arrange for damaged cables or connectors to be exchanged by an authorised specialist or the Customer Service Department.
■ Check your feet regularly for any redness of the skin. Too much heat for a long time can cause burns. Children should therefore use the product only under adult supervision.
■ This appliance may be used by children aged 8 over and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use of the appliance safely and are aware of the potential risks. Children must not play with the appliance. Cleaning and user maintenance tasks must not be carried out by children unless they are supervised.
■ People who can not correctly perceive heat or cold, such as diabetics and people with disabilities etc, should consult their doctor before using the insoles.
■ Do not operate the insoles unattended.
■ Protect the insoles and the battery packs against rain and snow. Should the insoles and the battery pack becomes wet, allow them to air dry only.
■ Do not dry the insoles and the battery pack on the heating, with other sources of heat or with a hair dryer.
GB
■ Protect the battery packs against moisture and the penetration of liquids. After attaching the battery packs to your shoes, they must always be connected (even when not switched on) to the insoles when outdoors. Thereby, the penetration of moisture and soiling in the connector sockets or plugs will be avoided.
■ Operate the insoles only with the supplied battery packs.
■ Use only the supplied power adapter to charge the battery packs. The power adapter is designed for indoor use and may not be exposed to moisture.
The power adapter is designed for indoor use and should not be exposed to moisture.
In the event of malfunctions or thunderstorms, remove the plug from the mains power socket.
Initial use
Items supplied and transport inspection
The device is delivered with the following components as standard:
- 2 x heatable insoles with integrated heating elements and connection cables
- 2 x Li-ion battery pack
● Power adapter
• This operating manual
NOTE
▶ Check the contents to make sure everything is there and for visible damage.
▶ If the delivery is not complete, or is damaged due to defective packaging or through transportation, contact the Service Hotline (see chapter Service).
Disposal of the packaging
The packaging protects the device from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.
culation of packaging into the material circuit saves on raw material and reduces the amount of waste generated. Dispose of packaging material that is no longer needed as per the regionally established regulations.
Before initial use
Remove all packaging materials and all transport securing devices from the appliance.
NOTE
▶ With initial use and for a brief period, a light odour accumulation can occur. This is normal and completely harmless.
GB
Appliance description
① Insole connector plug
② Insole (underside)
3 Trimming marks
4 Connection socket of the battery pack
5 Function indicator of the battery pack
6 Function switch for the heat settings
⑦ Battery pack
8 Mains power connector for power pack
9 Connector plugs for power adapter
Trimming the insoles to size
IMPORTANT
The heating element is located in the region of the toes.
▶ Under no circumstances should you cut within the warning symbol ⊖, as this may damage the heating element.
First, select the shoes in which you wish to wear the insoles 2. Bear in mind that the insoles 2 are ca. 4 mm thick and that the better the shoe is insulated against cold, the longer you can heat with a single battery charge.
The trim mark 3 for different shoe sizes are printed on the bottom of the insoles and serve only as a guide for trimming.
Initially, trim the insole ^2 slightly larger than needed. Determine the required actual size by using an existing insole.
◆ Cut along the trim mark 3 and adjust the insole 2 at the heel and sides to your individual size.
NOTE
In the final state the insole ② should fill the entire foot bed and it not be possible for it to move in the shoe.
Charging the battery pack
The battery packs ⑦ re charged via the supplied power adapter ⑧. For safe and faultless operation of the appliance with the electrical connection, observe the following instructions:
GB
IMPORTANT
▶ Before connecting the appliance, compare the connection data (voltage and frequency) on the rating plate with that of your mains power supply. This data must be compatible to avoid possible damage to the device.
▶ Ensure that the mains power cable is not damaged and that it has not been laid over hot surfaces and / or sharp edges.
▶ Ensure that the mains power cable is not overtaut or kinked.
▶ Do not let the power cable hang over edges (trip wire effect).
◆ Plug the power adapter 8 into a mains power socket. Ensure that the battery packs 7 are switched off (function indicators 5 do not glow).
Connect the connector plug 9 of the power adapter 8 with the connection sockets 4 of the battery packs 7 The function indicators 5 glow red and the battery packs 7 re being charged. The optimum charging time is a minimum of 6 hours and a maximum of 8 hours.
◆ The battery packs⑦ are fully charged when the function indicators ⑤ glow green.
NOTE
▶ Frequent overcharging of the battery pack⑦ (over 8 hours) results in a reduction of both efficiency and service lifetime.
For longer storage periods (e.g. over the summer), the battery packs ⑦ should be charged to half their capacity (charging time approx. 3 hours) to extend their service life.
Handling and operation
In this section you receive important information for the handling and operation of the appliance.
Switching the insoles on / off / selecting the heat setting
Place the trimmed insoles ② in your shoes with the printed side down and run the cable upward along the heel.

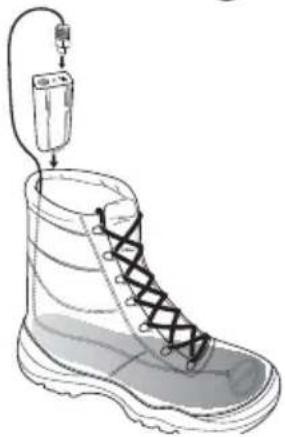

◆ Attach the battery pack ⑦ using the straps to your shoes and connect the connector plug ① of the insoles ② with the connection sockets ④ of the battery pack ⑦ see Figure 1).
IMPORTANT
▶ When wearing low shoes, tuck the excess cable into your socks. The cable must not drag on the ground while walking!
◆ Press the function switch 6 to switch the battery pack 7n. The battery pack 7 switches itself on with the heat level I and the function indicator 5 glows green.
By pressing the function switch 6 once again, the heat level II can be switched on. The function indicator 5 glows red.
To switch the battery pack 7 off, press the function switch 6 once more. The function indicator 5 goes out.
NOTE
For quick warming, it is recommended to initially select the heat level II. It can later, if necessary, be turned down to the lower heating level.
▶ When the battery pack ⑦ is discharged, the function indicator ⑤ switches off and the insole ④ no longer heated.
Cleaning
IMPORTANT
▶ Protect the insole ^2 and the battery packs ^7 against moisture and the ingress of liquids.
▶ Do NOT use aggressive cleaning agents or chemical solvents, otherwise the surfaces may be damaged.
■ Clean the battery pack⑦ with a dry lint-free cloth.
■ The insole② should be taken out of the shoes occasionally and aired.
Storage
■ Disconnect the battery packs ⑦ from the insoles ② if you do not intend to use them for longer periods.
■ Store the insole ② and the battery packs ⑦ in a dry place away from direct sunlight.
Disposal
Disposal of the appliance
Do not dispose of this appliance in your no mal domestic waste. This product is subject to European Directive 2012/19/EU WEEE (Waste Electrical and Electronic Equipment).
Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre. The battery packs must be properly disposed of separately from the insoles.
Disposal of batteries /cells
Used batteries / cells may not be disposed of in household waste.
Defective or worn-out batteries must be recycled according to Directive 2006/66/EC. All consumers are legally required to dispose of batteries / cells at a collecting point in their community or at a retail company. The purpose of this obligation is to ensure that batteries / cells are disposed of in a non-polluting manner. Only dispose of batteries / cells when they are fully discharged.
GB
Appendix Technical Data
| Power adapter GQ05-050090-AG | |
| Input voltage 100 - 240 V | ~ 50/60 Hz |
| Current consumption max. 0.3 A | |
| Output voltage 5 V | --- |
| Output current 900 mA | |
| Protection class | II / ☐ |
| Operating temperature +15 to +35°C | |
| Humidity (no condensation) ≤ 75 % | |
| Li-ion battery pack 18650 | |
| Voltage 3.7 V | --- |
| Capacity 2000 mAh | |
| Protection class | III / ◆ |
| Charging time approx. 6. hrs | |
| Insoles | |
| Input voltage 3.7 V | --- |
| Current consumption 250 mA | |
| Protection class | III / ◆ |
| Shoe sizes 36 - 48 | |
| Max. operating time | approx. 7 hrs(at Heat Level II) |
Information regarding the EC Declaration of Conformity
In regard to compliance with basic requirements and other relevant provisions, this appliance conforms with the Low Voltage Directive 2006/95/EC and the Electromagnetic Compatibility Directive 2004/108/EC.
The complete original Declaration of Conformity can be obtained from the importer.
Warranty
With this device you receive a 3 year warranty from the date of purchase. This appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the case of a warranty claim please contact, by telephone, our Service Department. Only in this way can a post-free dispatch for your goods be assured.
NOTE
The warranty covers only claims for material and manufacturing defects, not for transport damages, worn parts or for damage to fragile components, e.g. buttons or batteries.
GB
This appliance is intended solely for private domestic use, not for commercial applications. If this product has been subjected to improper or inappropriate handling, abuse, or modifications not carried out by one of our authorised sales and service outlets, the warranty will be considered void.
Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs effected under warranty. This applies also to replaced and repaired parts.
Damages or defects discovered after purchase are to be reported directly after unpacking, at the latest two days after the purchase date.
Repairs carried out after lapse of the warranty period are subject to charge.
Service
Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-Mail: kompernass@lidl.co.uk
IAN 114181
Hotline availability: Monday to Friday 08:00 - 20:00 (CET)
Importer
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM, GERMANY
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND / GERMANY
www.kompernass.com
