AR4W07P - Heating ARDES - Free user manual and instructions

Product Type	Electric fan heater with fan-only mode
Brand	Ardes
Model	AR4W07P
Power Supply	220-240V ~50Hz
Nominal Heat Output	2.0 kW
Minimum Heat Output	1.0 kW
Maximum Continuous Heat Output	2.0 kW
Standby Power Consumption	0.5 W
Control Type	Electronic with remote control
Timer	Daily timer (1-24 hours) and weekly programmable timer
Thermostat	Electronic room temperature control (10-49°C)
Oscillation	Yes, automatic louver (Swing function)
Window Open Function	Yes (auto shut-off if temp drops 3°C in 1 min)
Child Lock	Yes (locks remote control except On/Off and Lock)
Mounting	Wall-mounted (fixed position)
Installation Height	At least 1.80 m above ground, 15 cm from ceiling
Safety Features	Overheat protection, DO NOT COVER warning, thermal cut-off
Remote Control Battery	CR2025 3V lithium (included)
Display	LED display with temperature, mode, timer indicators
Fan Modes	Fan-only, minimum power, maximum power, automatic
Warranty	24 months
Country of Origin	China

Frequently Asked Questions - AR4W07P ARDES

How do I set the current time and day on the heater?

Press the Set button (11m) repeatedly: first to select the day (MO-SU), then the hour (00-24), then minutes (00-59). Use + and - to adjust. Wait 5 seconds to save. Settings are lost if power is disconnected.

How can I program the heater to turn on and off automatically on weekdays?

Use the Weekly Program function. Press W-Timer (8h) and follow the sequence: select day, set ON hour and minute, set OFF hour and minute. Repeat for each day. Then set the desired temperature for each day using +/- after pressing Delay. Wait 5 seconds to save.

What does the Window Open function do and how do I activate it?

The Window Open function automatically stops the heater if the ambient temperature drops by at least 3°C within one minute (e.g., if a window is opened). To activate, press the AUTO button (3c); the indicator light (P) turns on. Press again to deactivate.

How do I clean the heater?

Disconnect the plug and let the heater cool down completely. Use a soft, slightly damp cloth to clean the exterior. Never use abrasives or chemical solvents. Do not allow water to enter the appliance. Never immerse the heater in water.

How do I install the heater on the wall?

Use the provided kit: two screws and wall plugs. Fix the plugs to the wall at a distance of approximately 33 cm apart (matching the holes on the back). Leave screw heads protruding slightly. Hang the heater on the screws, then push it to the right to lock into the guides. Ensure the heater is at least 1.80 m above the floor and 15 cm from the ceiling.

The heater emits a bad smell when first used. Is this normal?

Yes, this is normal during first use or after a long period of inactivity. The smell will disappear after a short time of operation. Ensure the room is ventilated if necessary.

How do I replace the remote control battery?

The remote uses a CR2025 3V lithium battery. Remove the battery tray from the remote (see drawing on back). Replace with the same type, observing polarity. Dispose of used batteries properly.

Can I use an extension cord or adapter with this heater?

No, do not use adapters or extension cables that do not meet current safety standards or exceed current carrying capacity limits. Plug the heater directly into a suitable wall socket.

What should I do if the heater stops working?

First, check if the main switch (1) is on (I) and the plug is connected. If it still does not work, disconnect it and contact an authorized service center. Do not attempt to repair it yourself.

Is the heater safe to use in a bathroom?

The heater must be installed at least 1.80 m above the floor and positioned so that switches and controls cannot be touched by a person in the bath or shower. Do not place it immediately below a socket outlet. Do not use in the immediate surroundings of a bath, shower, or swimming pool.

USER MANUAL AR4W07P ARDES

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and

less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

If the power cable gets damaged, it has to be replaced only at a service centre approved by the manufacturer.

DO NOT COVER

WARNING: In order to avoid overheating, do not cover the heater.

Do not place the appliance immediately below a socket outlet.

Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

The appliance must be installed at least 1.80m above ground and 15 cm from the ceiling.

This heater is to be installed in fixed position (see ASSEMBLY INSTRUCTION) so that switches and other controls cannot be touched by a person in the bath or shower.

Warnings

GB

ATTENTION : read this booklet carefully it contains important instructions for a safe installation, use and maintenance. Important instructions to be kept for future reference.

Keep handy the guarantee, receipt of payment and these instructions for future use and reference.

After removing the packaging, check the appliance for any signs of damage.

In case of visible damage, do not use it and contact a qualified technician.

Do not leave parts of the packaging with in the reach of children. This appliance is not a children's toy: it is an electrical device and must be treated with the necessary caution.

Before connecting the appliance, make sure that the power supply voltage matches the indication on the data plate.

If the plug and socket are not compatible, the socket has to be replaced

with a suitable type by skilled persons.

Do not use adapters or extension cables which do not meet current safety standards or that exceed the current carrying capacity limits.

When you don't use the appliance disconnect it from the power supply and assure that the interruptor is off.

Do not tug on the power cable or on the appliance itself to remove the plug from the socket.

The use of any electrical appliance requires that a number of basic rules are observed, namely:

- Never touch the appliance with wet or humid hands.

- Do not leave the appliance exposed to weathering (rain, sunlight).

- Do not subject it to rough handling.

In case of a breakdown or malfunctioning of the appliance, disconnect it at once.

Do not attempt to repair it, but take it to a service centre approved by the manufacturer.

If you decide you do not want to use this appliance any longer, disable it by cutting the power cable - of course, after disconnecting it from the socket.

The power cable should be extended to its full lenght to avoid over heating.

For safety reasons, the appliance should never be opened.

The appliance has been designed and manufactured to operate in the home.

Any other use is considered inappropriate and dangerous.

Do not insert objects through the safety grill or the air inlets.

During use, rest the appliance on a flat surface.

Do not use this heating appliance with programmers, timers, separate remote control systems (different to the ones provided with the appliance) or any other device that automatically turns on the appliance, as there is a risk of fire in the event the appliance is covered or positioned incorrectly.

Do not use the heater in presence of flammable substances (petrol, paints, etc.).

Do not place the cord near sources of heat.

WARNING: DO NOT COVER THIS PRODUCT NEAR CURTAINS OR OTHER COMBUSTIBLE MATERIAL.

WARNING: DO NOT COVER THE APPLIANCE OR OBSTRUCT THE AIR INLETS TO AVOID OVERHEATING.

WARNINGS ABOUT BATTERIES

1. KEEP BATTERIES OUT OF THE REACH OF CHILDREN.

Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.

1. Do not allow children to replace batteries.

2. Always insert batteries correctly with regard to polarity (+ and -) marked on the battery and the equipment.

3. Do not short-circuit batteries.

4. Do not charge batteries.

5. Do not force discharge batteries.

6. Do not mix new and used batteries or batteries of different types or brands.

7. Exhausted batteries should be immediately removed from equipment and properly disposed of.

8. Do not heat batteries

9. Do not weld or solder directly to batteries.

10. Do not dismantle batteries.

11. Do not deform batteries.

12. Do not dispose of batteries in fire.

13. A lithium battery with a damaged container should not be exposed to water.

14. Do not encapsulate and/or modify batteries.

15. Store unused batteries in their original packaging away from metal objects. If already unpacked, do not mix or jumble batteries.

16. Remove batteries from equipment if it is not to be used for an extended period of time unless it is for emergency purposes.

17. Clean the battery contacts and also those of the equipment prior to battery installation.

18. In case of leak from batteries, avoid any contact with it; in case of contact, wash the affected part with water and seek medical attention.

1 - Main switch On/Off
2 - Air outlet grid
3 - Display
4 - Remote control

Technical data indicated on the appliance.

Instructions for use

GB

ASSEMBLY INSTRUCTIONS

Assembly kit composed of: 2 screws - 2 wall plugs.

WALL INSTALLATION

Fix the two plugs to the wall with the respective screws, taking into consideration that the distance between them must correspond to that between the two hanging holes on the back of the appliance (approx 33 cm). Leave the heads of the screws protruding out from the wall enough so that the appliance can be hung on the screws. Once the appliance has been hung on the screws, push it to the right so that the screws go into the guide above the hole, thus improving the stability of the appliance.

The appliance must be installed at least 1,80m above the ground and 15 cm from the ceiling.

Operation.

Remove the sticker from the display before use. The appliance can emit both cold and hot air, depending on how it is set.

Before connecting or disconnecting the appliance, make sure the main switch On/Off (1) is in Off position (O).

To turn the appliance on put the plug in the socket and position the switch (1) on "I". The appliance will emit a "beep" sound and the power supply indicator (A) will turn on in the display.

Display.

A. Power supply
B. Temperature
C. Minimum power
D. Maximum power
E. Oscillation
F. Indicator of temperature
G. Ambient temperature
H. Set temperature

I. Hours/Minutes
L. Off indicator
M.On indicator
N. Window Open Function
O. Weekly program
P. Daily timer
Q. Days of the week

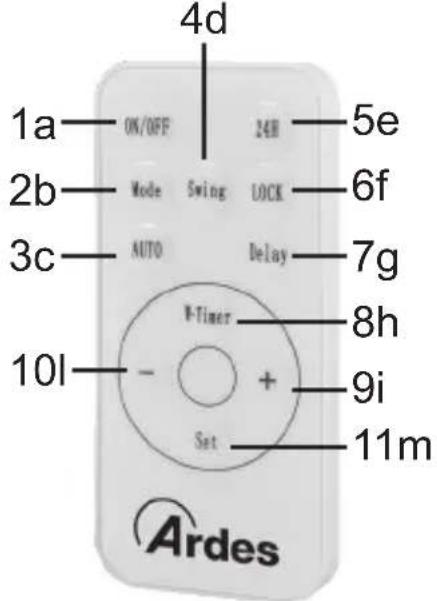

Remote control.

1a. On/Off
2b. Power selection
3c. Window open function
4d. Oscillation
5e. Daily timer
6f. Child-lock function
7g. Temperatures of weekly program
8h. Weekly program
9i. Increase pushbutton
10l. Decrease pushbutton
11m. Set time and date

REMOTE CONTROL OPERATION:

Batteries

Remote control is supplied with battery inside (CR2025 type, 3V); remove the transparent sheet from the battery cover before use remote control. When the battery is over, it must be replaced with the same type. To remove battery, follow the drawing on the back of remote control.

WARNING: during first use or after long non-operating time, the appliance could emit bad smell: this smell will disappear by use.

Set the current time and day (if unit is in working status)

Perform the following operations by press the relative pushbuttons:

	Pushbutton	Blinking indicator light	Function
1 Set (11m) MO – SU		(Q) Select the day of	the week
2 -, +
3 Set (11m) 00 – 24 (hours) Select hour
4 -, +
5 Set (11m) 00 – 59 (minutes) Select minutes
6 -, +
7 Set (11m) Day and time set

Note: if between each pushbutton operation 5 seconds pass, the settings will be saved.

To change again, repeat points from 1 to 7.

Attention: the settings of time and day will be stored till the unit is in stand-by mode or working status. In case of power failure, removing the plug from the wall socket, or switching off the appliance using the On / Off switch (1), all settings will be lost.

Set the manual working mode (if unit is in working status):

- To turn the unit on press the "ON/OFF" pushbutton (1a); the unit will start to work in fan mode.

- Press the “Mode” pushbutton (2b) repeatedly to select the desired power level: minimum power (C light indicator will be on) or maximum power level (D light indicator will be on). Pressing this button for the third time the unit will work in fan mode and the C and D light indicators will be off in the display.

- Press the “Swing” pushbutton (4d) to activate the automatic oscillation louver. If this function is activated the E indicator light will be on in the display. To deactive this function press again the “Swing” pushbutton (4d).

Set the automatic working mode (if unit is in working status):

During automatic working mode, the unit automatically select the power according to the difference between the desired room temperature and the ambient temperature. In this working mode the appliance can switch between the different power levels (fan, minimum power and maximum power) even repeatedly. The selected power level is always shown on the display.

- Press “+” (9i) or “-” (10i) when the unit is in working status to set the desired ambient temperature from 10 to 49°C. At each pressure the temperature increases or decreases by 1°C. During the temperature setting, the “ST” indicator light (H) will be on in the display to indicate that the display is showing the setting temperature.

Wait 5 second; now the setting temperature is set, the "ST" indicator light will be off and the "RT" indicator light (G) will be on to indicate that the display is showing the current ambient temperature:

	Pushbutton	Blinking indicator light	Function	Reference indicator light
1 +,	- 10 – 49 (°C)	Temperature	selection	ST
2 Wait 5 seconds			Ambient temperature	RT

-To check the setting temperature, press "+" or "-" and the display will show it for 5 seconds together with "ST" indicator light.

-To deactivate this function, press "Mode" pushbutton (2b) and select the desired function (fan only, minimum power or maximum power).

Set the daily timer (if unit is in working status):

- Press “24H” pushbutton (5e) when unit is on to set the automatic shutdown from 1 to 24 hours. Each pressing increase 1 hour time. If the daily timer function is activated the indicator light (P) will be on in the display. To deactive timer off function, push “24H” button till the display show “0 0”. If the daily timer function is off, the P light will off in the display.

Set the weekly program (if unit is in working status):

The weekly program allows to program the automatic switch on, switch off and the temperature for each day of the week.

Perform the following operations by press the relative pushbuttons:

	Pushbutton	Blinking indicator light	Function	Reference indicator light
1 W	Timer MO	SU (Q) Select day of the week	week	W, ON
2 -,	+
3 W	Timer 00 –	24 (hours) Select switch on hour
4 -,	+
5	W-Timer	00 – 59 (minutes)	Select switch on minutes
6 -,	+
7 W	W-Timer 00 –	24 (hours) Select switch off	hour	W, OFF
8 -, +
9 W	W-Timer 00 –	59 (minutes) Select switch off minutes
10 -, +
11 W	Wait 5 seconds		Weekly program set	W, (ON o OFF)

Note: if between each pushbutton operation 5 seconds pass, the setting parameters will be saved.

If you need to program other days of the week or to change settings, repeat from point 1 to 11.

After setting the operating time for each day, it is possible to set the correspondant temperature.

If the product is not in Weekly program mode (W indicator light on), press "W-Timer".

Perform the following operations by press the relative pushbuttons:

	Pushbutton	Blinking indicator light	Function	Reference indicator light
1 Delay		10 – 49 (°C)	Set the temperature for the correspondant day of the week	MO-SU(Q), W, OFF
2 -	+

Note: if between each pushbutton operation 5 seconds pass, the setting parameters will be saved.

If you need to change settings, repeat point 1 and 2.

When the Weekly program is set, the W indicator light will be on and the current state of the appliance (ON, OFF) is showed on the display.

To deactivate the Weekly program and relative temperatures, press W-Timer (8h). W, ON (or OFF) indicator lights will be off.

Attention: the settings of time and day will be stored till the unit is in stand-by mode or working status. In case of power failure, removing the plug from the wall socket, or switching off the appliance using the On / Off switch (1), all settings will be lost.

Set the Window Open Function (if unit is in working status):

This function will stop the appliance working when the ambient temperature decreases by at least 3^ C within 1 minute.

To activate the Window open function, press “AUTO” (3c); the (P) indicator light will be on in the display.

To deactivate this function, press "AUTO" (3c); the (P) indicator light will be off in the display.

Set the Child Lock Fuction (if unit is in working status)

Press the “Lock” (6f) pushbutton, all indicator lights will be off in the display except (A). In this status, the remote control can not control the unit except “ON/OFF” (1a) and “Lock” (6f) pushbuttons.

Press again “Lock” (6f) pushbutton to deactivate this function. The indicator lights on the display related to the current status will be on in the display.

Maintenance

GB

This appliance does not require any special maintenance.

Disconnect the plug from the socket and let the appliance cool down well before cleaning it.

In order to clean the appliance, use a soft or slight damp cloth.

Never use abrasives or chemical solvents.

Do not use very wet substances, liquids or cloths to prevent water from entering into the apparatus and irreparably damaging it.

NEVER IMMERSE THE APPLIANCE INTO THE WATER.

Battery replacement.

Remove the battery tray and replace the battery with another one featuring the same specifications (CR2025), and replace the tray correctly.

If you do not intend to use the appliance for an extended period of time, remove the battery.

If the batteries are leaking, be careful not to touch the acid which has leakied out.

If you come into contact with the acid, wash your hands thoroughly.

Be careful that the acid does not come into contact with the eyes and that it is not ingested.

Remove the batteries from the appliance before its disposal.

The batteries must be disposed of in the appropriate containers.

Information requirements for electric local space heaters

Model identifier(s): AR4W07P
Item	Symbol	Value Unit			Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	2,0 kW			Manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P_min	1,0 kW			Manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P_max,c	2,0 kW			Electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption					Fan assisted heat output No
At nominal heat output	eI_max	0	kW		Type of heat output/room temperature control (select one)
At minimum heat output	eI_min	0	kW		Single stage heat output and no room temperature control	No
In standby mode	eI_SB	0,0005 kW			Two or more manual stages, no room temperature control	No
					With mechanic thermostat room temperature control	No
					With electronic room temperature control	No
					Electronic room temperature control plus day timer	No
					Electronic room temperature control plus week timer	Yes
					Other control options (multiple selections possible)
					Room temperature control, with presence detection	No
					Room temperature control, with open window detection	Yes
					With distance control option No
					With adaptive start control No
					With working time limitation Yes
					With black bulb sensor	No
Contact details POLY POOL S.p.A. - via Sottocorna 21/B, 24020 Parre (BG) - Italy

User Information

BATTERIES - Remove the batteries from the appliance before its disposal. Do not dispose the batteries with domestic waste. The batteries must be disposed of in the appropriate containers or in the specific collecting centre. Suitable segregated collection helps prevent damage to the environment and to human health. To remove batteries, refer to Instructions for use.

USER INFORMATION

“Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)”, pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal”.

The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life.

The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste, or return it to the dealer in case they purchase a new device of equivalent type, at a one-to-one-ratio.

Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment.

Abusive disposal of the product by the user shall result in the application of administrative fines in accordance with the laws in force.

GUARANTEE

Terms and Conditions

The guarantee is valid for 24 months.

This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.

The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.

After the guarantee has expired, the appliance will be repaired against payment.

The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.

Limits

All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:

- mishandled by unauthorized persons

- improperly used, stored or transported.

The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.

If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.

Ardes

Poly Pool S.p.A. Via Sottocorna, 21/B

24020 Parre (Bergamo) - Italy

Tel. [phone] r.a. - Fax [phone]

http://www.ardes.it - e-mail: [e-mail]

MADE IN CHINA
