USER MANUAL ELIPR-8 Monacor

Please read this manual carefully for correct use of the product and preserve it for reference purposes

Notes

- Please read this user manual carefully to ensure that you can use the device correctly and safely.

- There may be several technically incorrect places or printing errors in this manual. The updates will be added into the new version of this manual. The contents of this manual are subject to change without notice.

- This device should be operated only from the type of power source indicated on the marking label. The voltage of the power must be verified before using the same. Kindly remove the cables from the power source if the device is not to be used for a long period of time.

- Do not install this device near any heat sources such as radiators, heat registers, stoves or other devices that produce heat.

- Do not install this device near water. Clean only with a dry cloth.

- Do not block any ventilation openings and ensure proper ventilation around the machine.

- Do not power off the device at normal recording condition.

- This machine is for indoor use only. Do not expose the machine in rain or moist environment. In case any solid or liquid get inside the machine's case, please turn off the device immediately and get it checked by a qualified technician.

- Do not try to repair the device by yourself without technical aid or approval.

- When this product is in use, the relevant contents of Microsoft, Apple and Google will be involved in. The pictures and screenshots in this manual are only used to explain the usage of our product. The ownerships of trademarks, logos and other intellectual properties related to Microsoft, Apple and Google shall belong to the above-mentioned companies.

- This manual is suitable for many models. All examples and pictures used in the manual are from one of the models for reference purpose.

Contents

Contents ...... i

1 Introduction....1

1.1 Summary....1
1.2 Features....1
1.3 Front Panel Descriptions .... 4

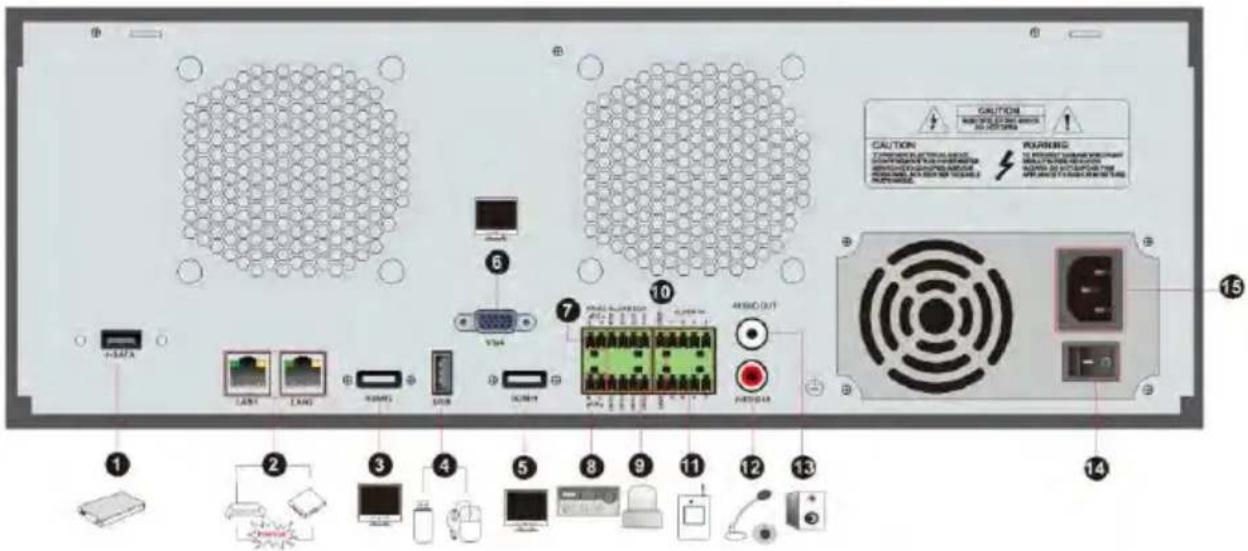

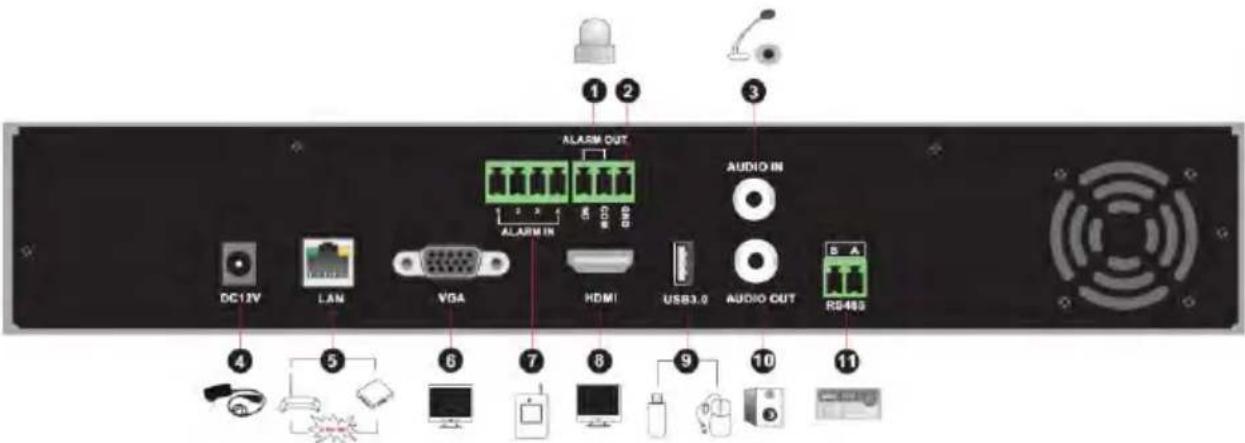

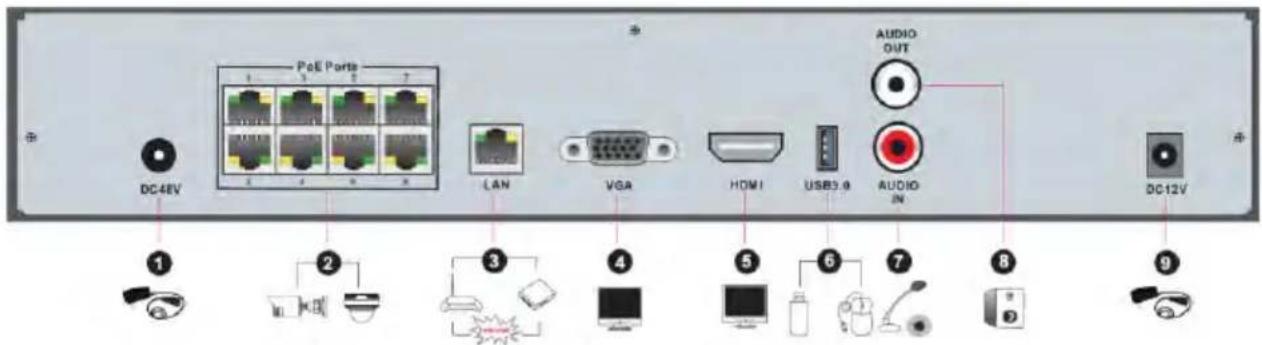

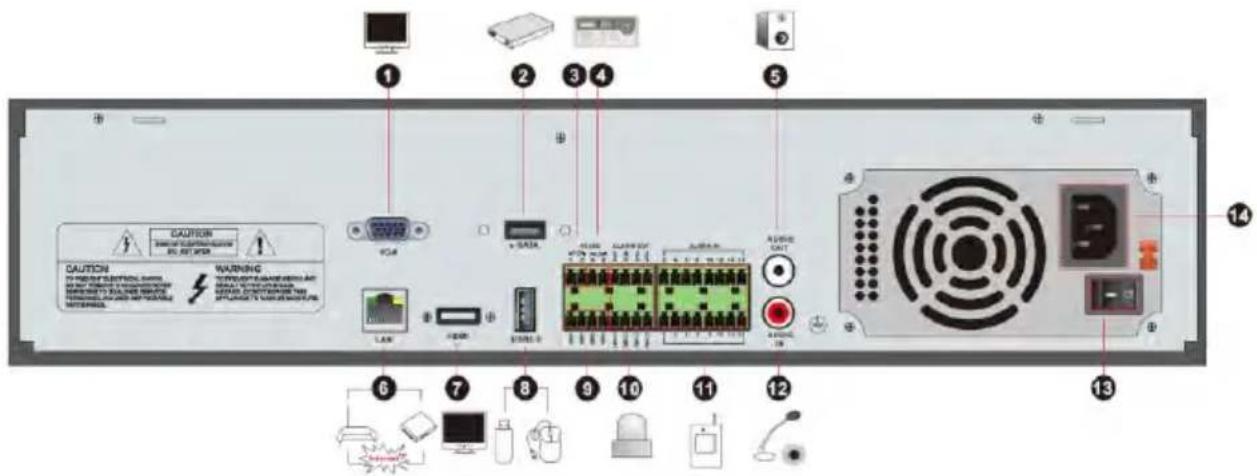

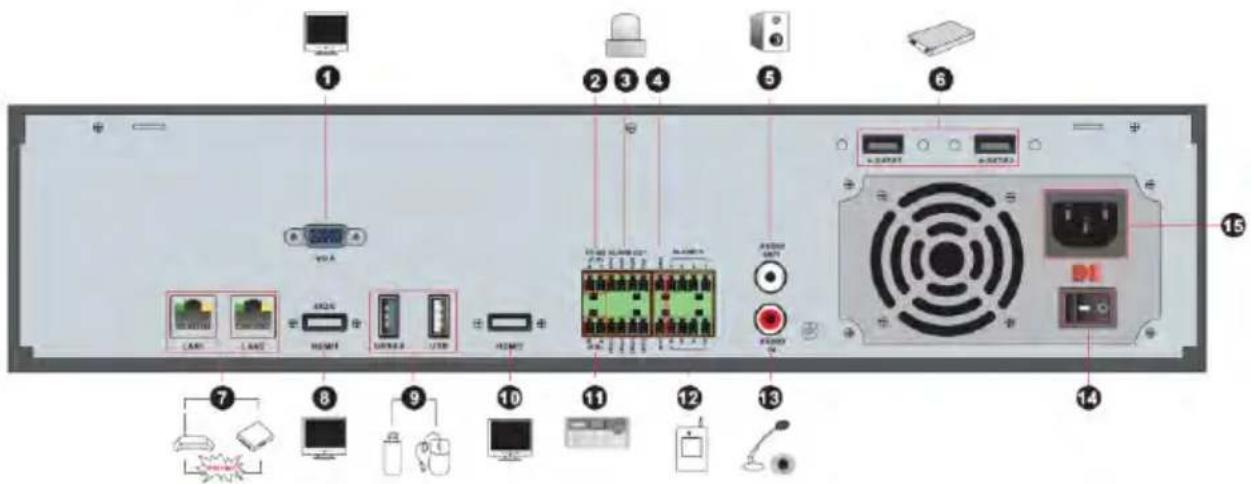

1.4 Rear Panel Descriptions .... 5
1.5 Connections....8

2 Basic Operation Guide.... 11

2.1 Startup & Shutdown.... 11
2.1.1 Startup.... 11
2.1.2 Shutdown 11

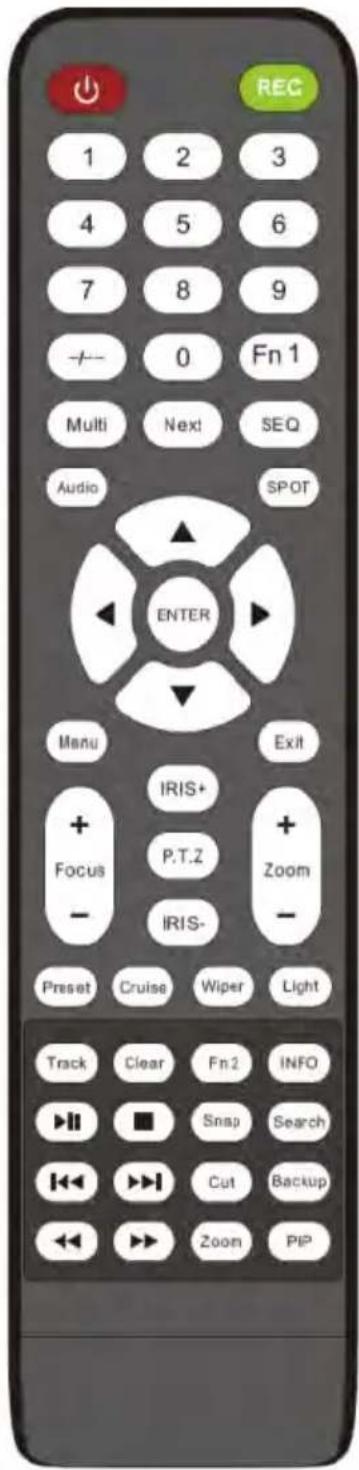

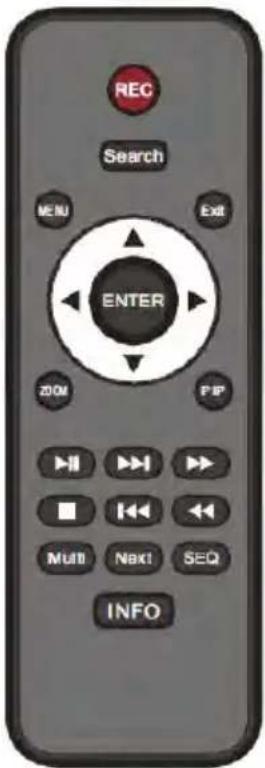

2.2 Remote Controller....11
2.3 Mouse Control....13
2.4 Text-input Instruction 13
2.5 Common Button Operation 14

3 Wizard & Main Interface....15

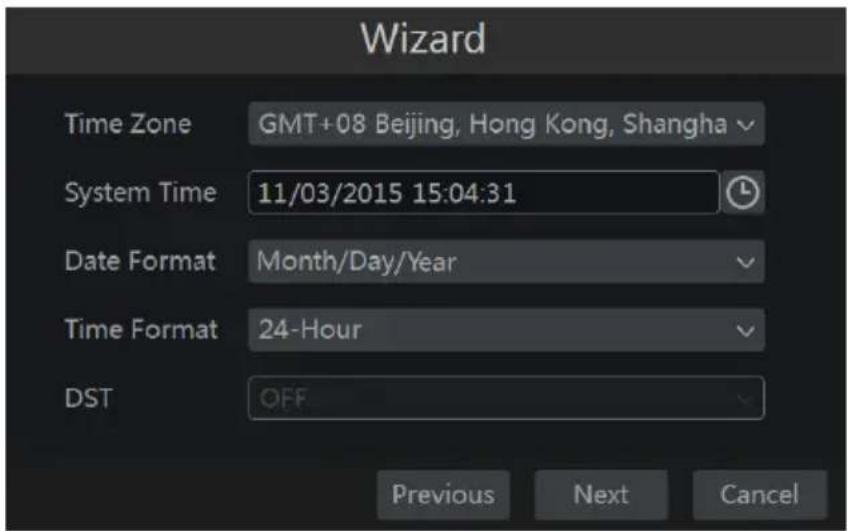

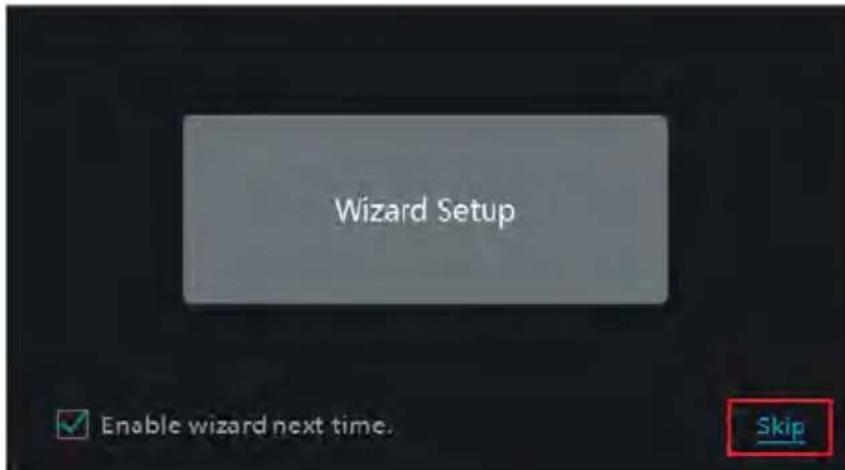

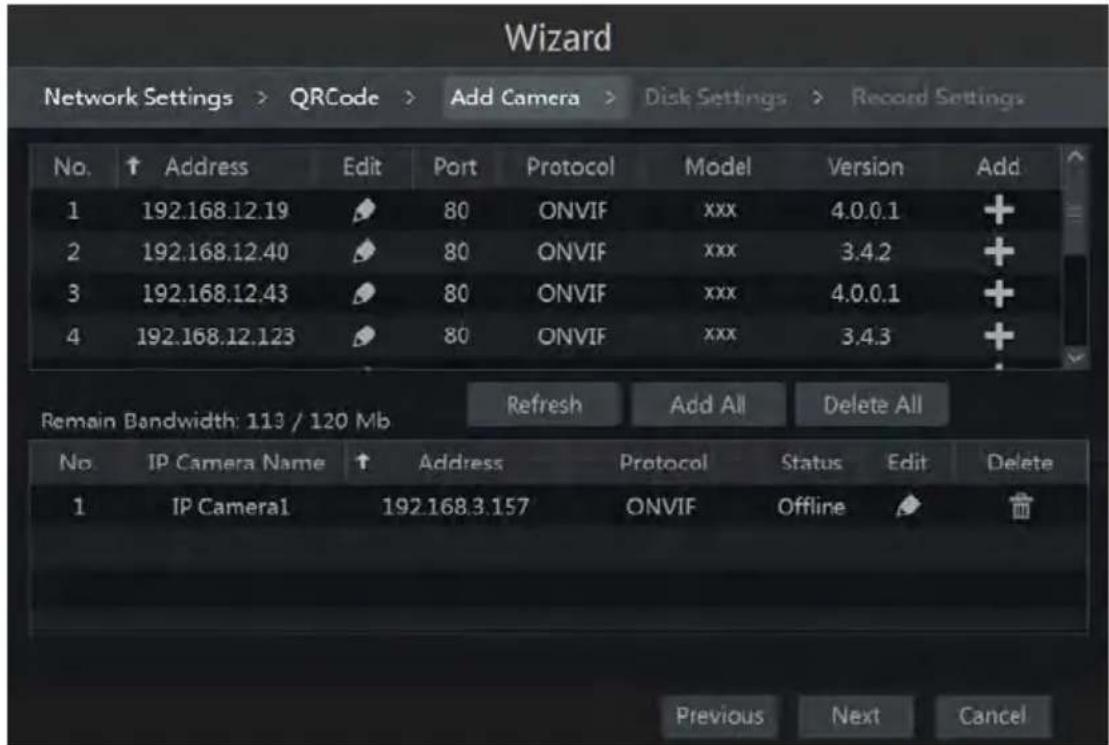

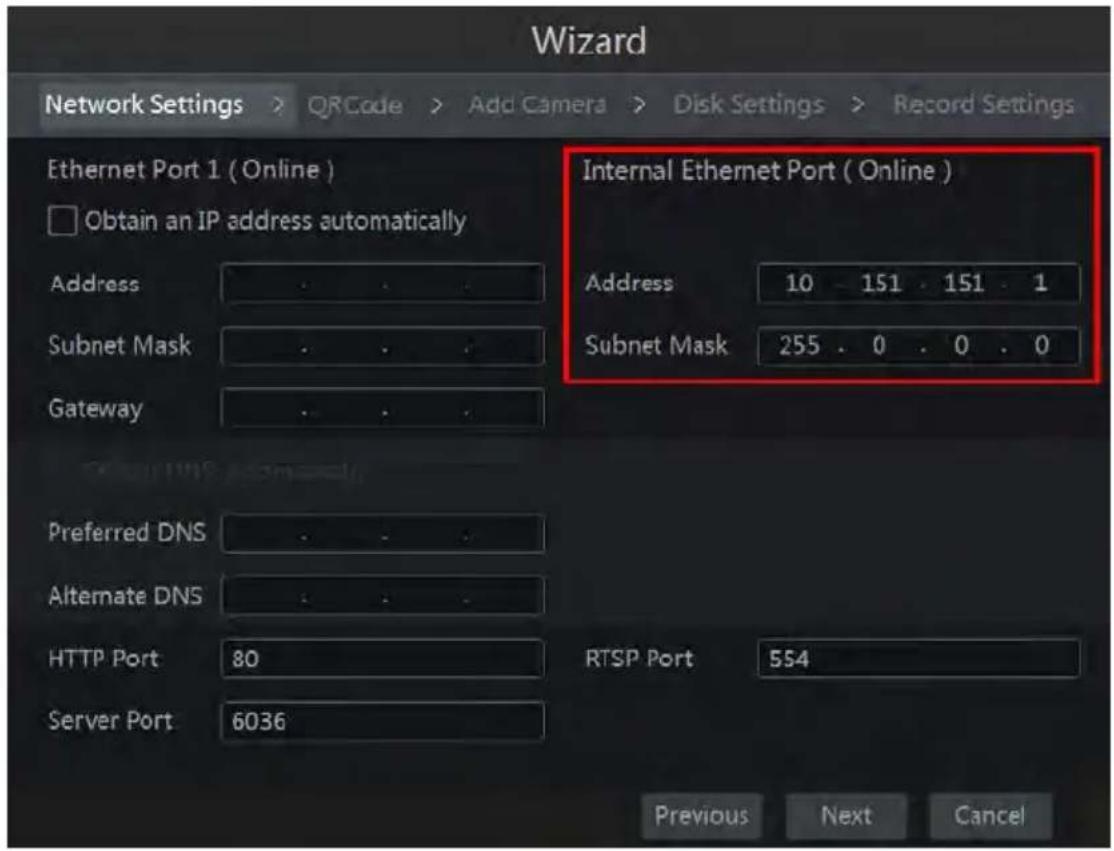

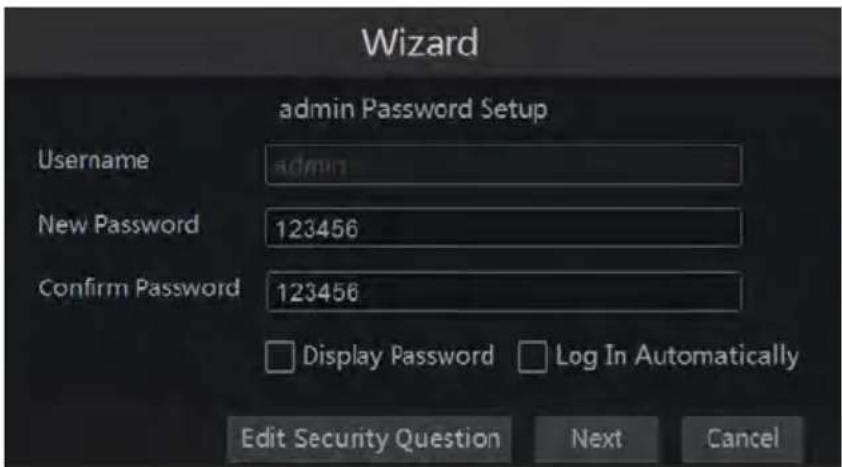

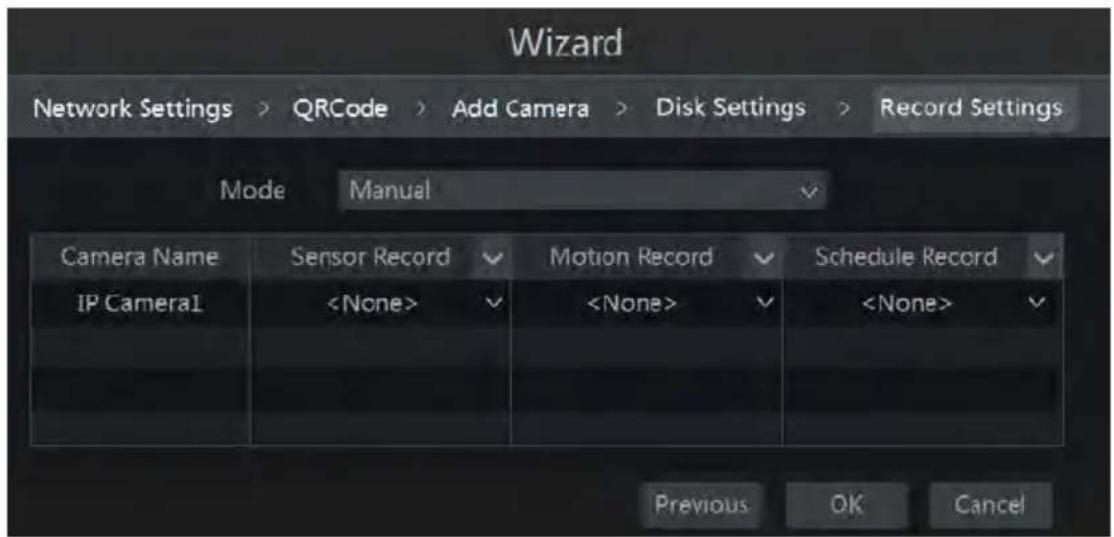

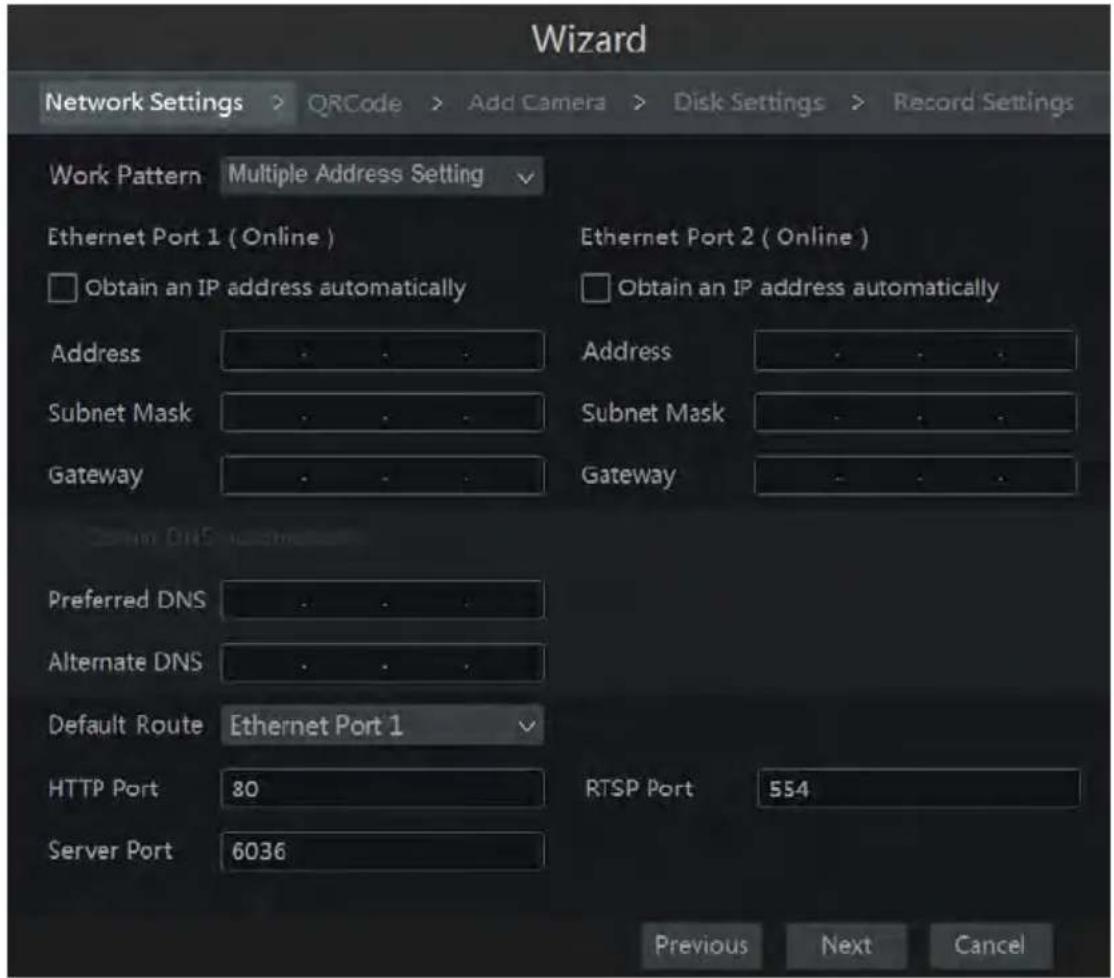

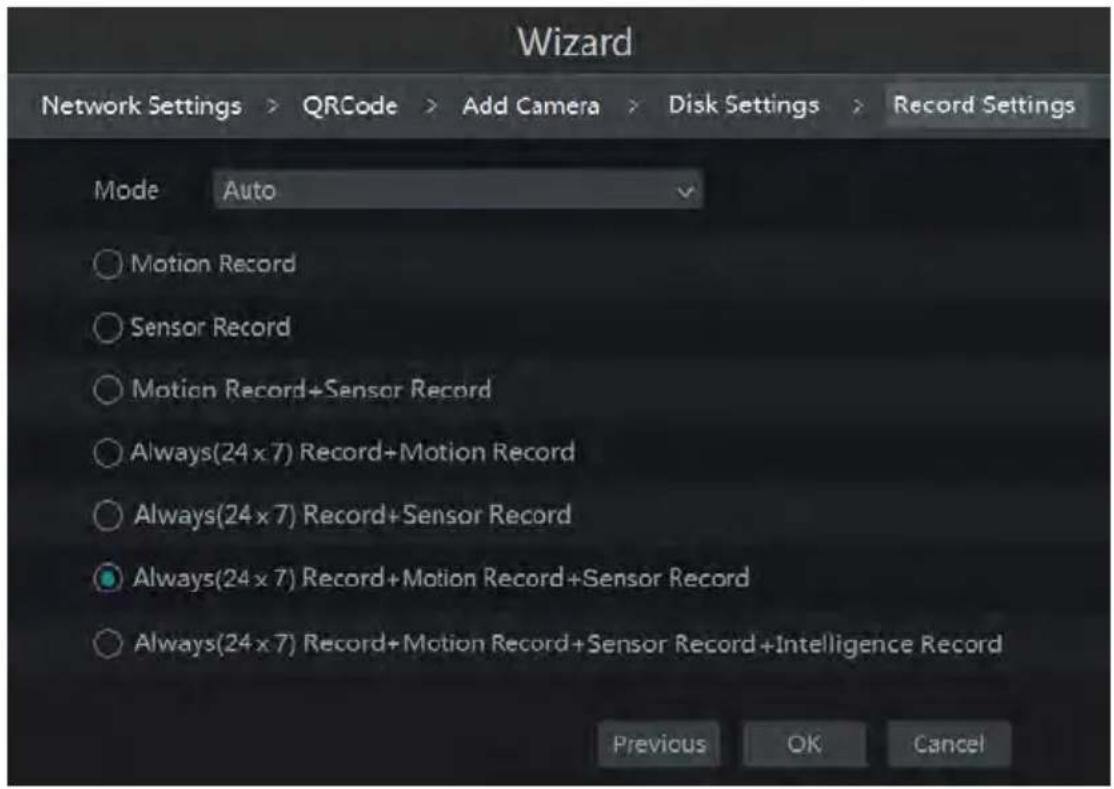

3.1 Startup Wizard....15
3.2 Main Interface 22

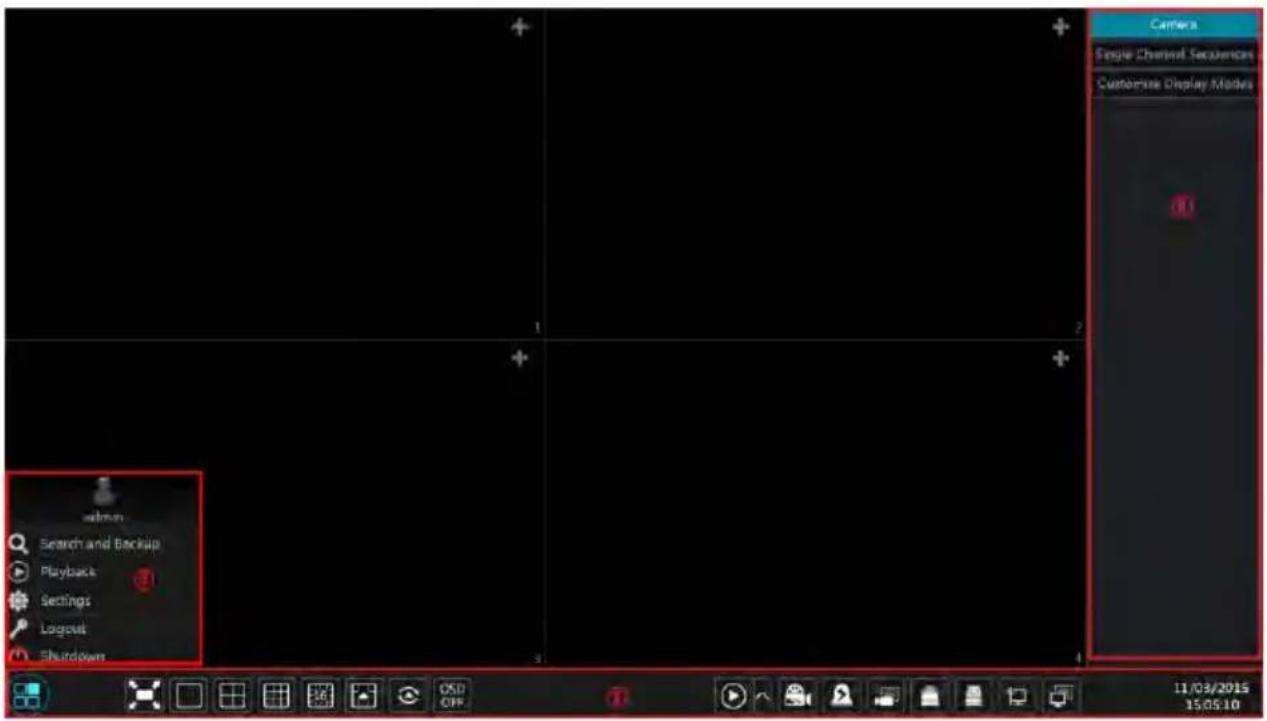

3.2.1 Main Interface Introduction ...... 22
3.2.2 Setup Panel 23
3.2.3 Main Functions 25

4 Camera Management....27

4.1 Add/Edit Camera....27

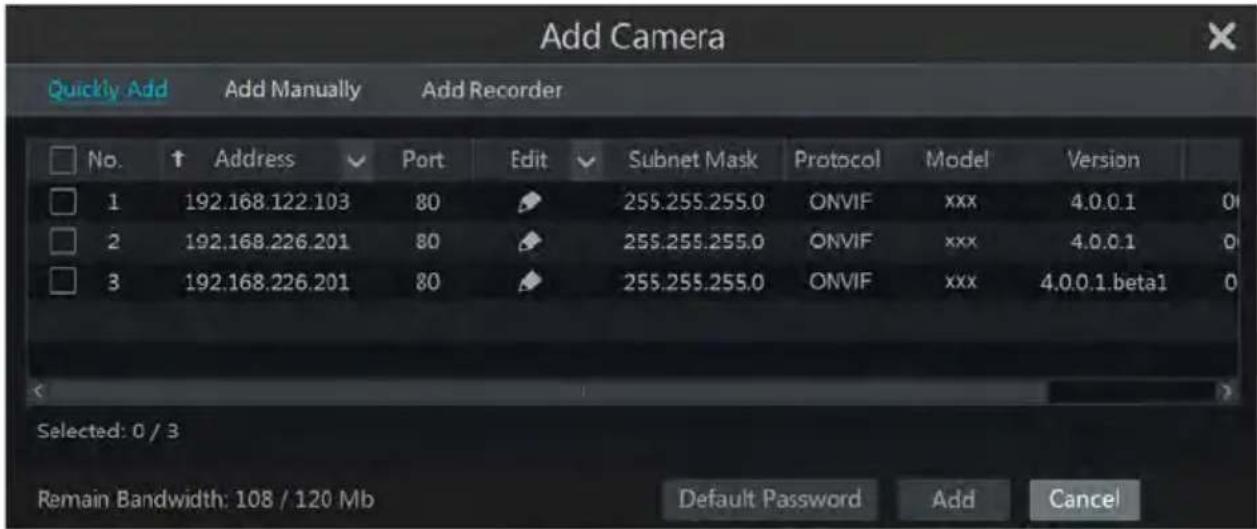

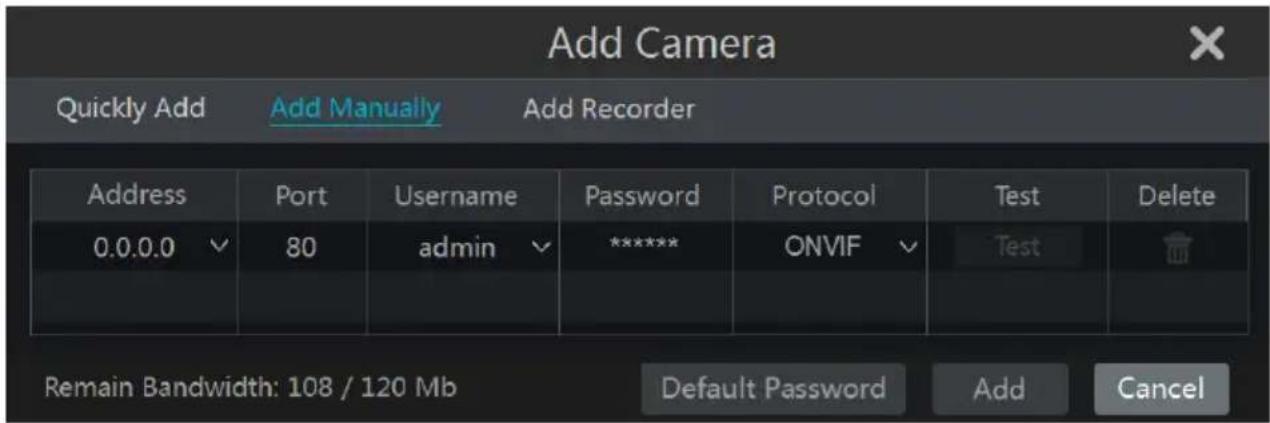

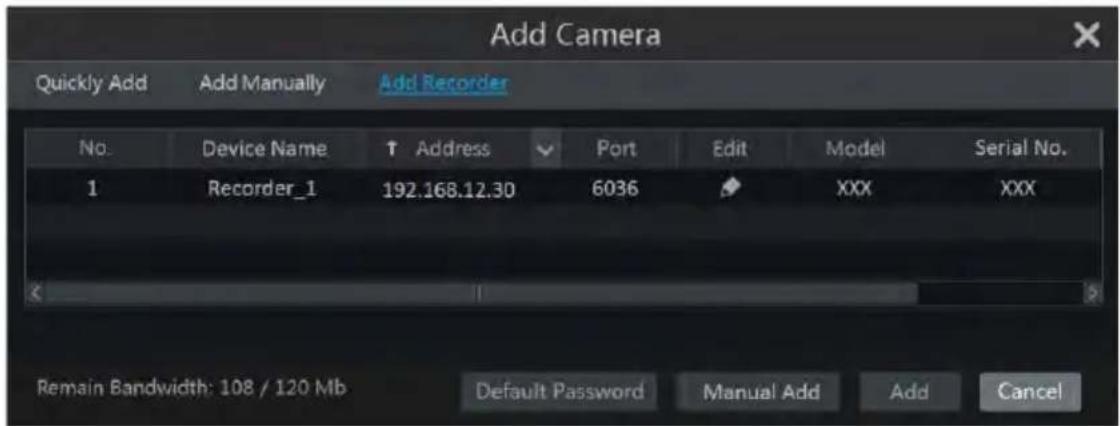

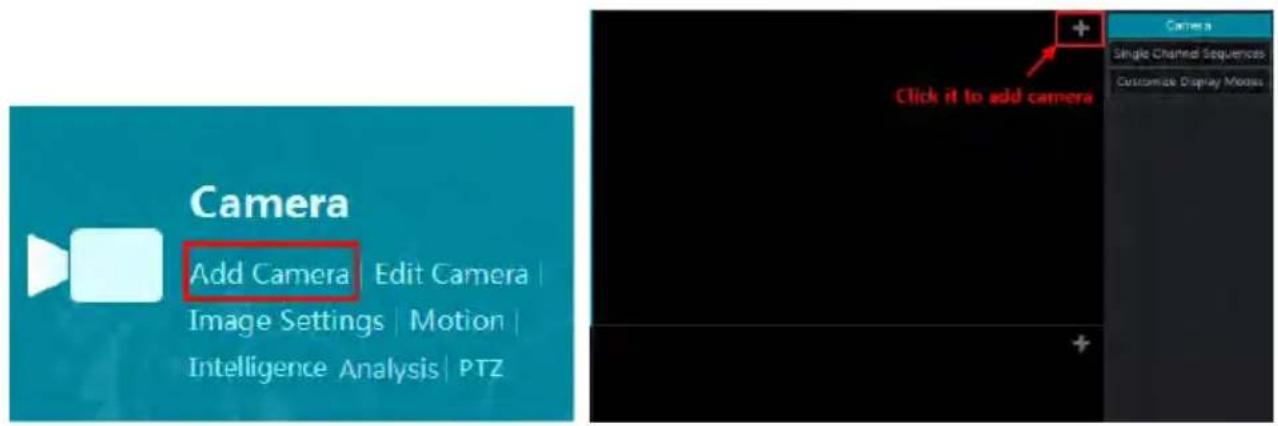

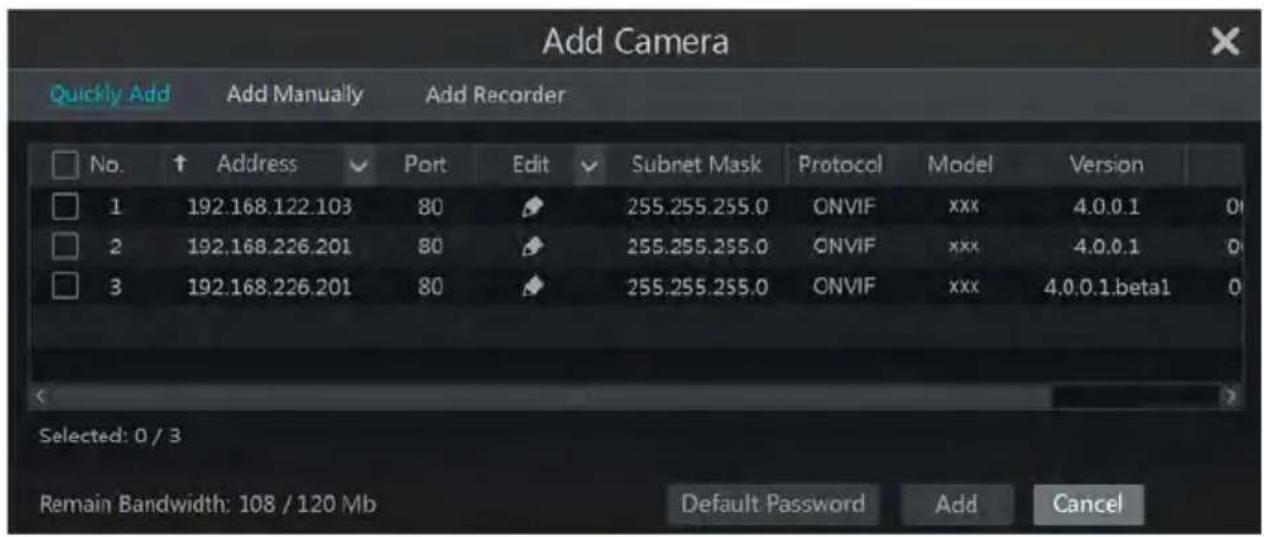

4.1.1 Add Camera 27

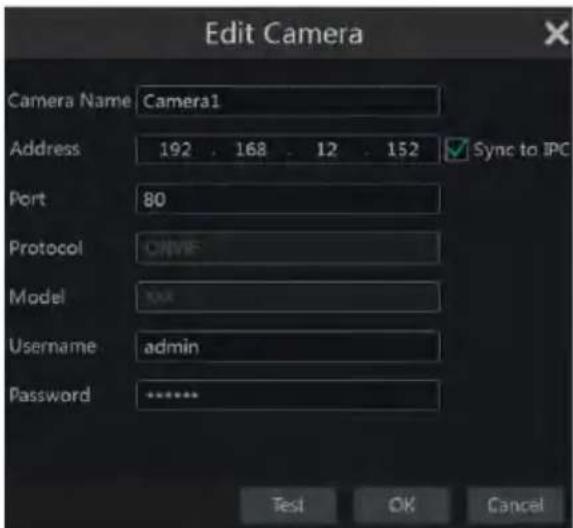

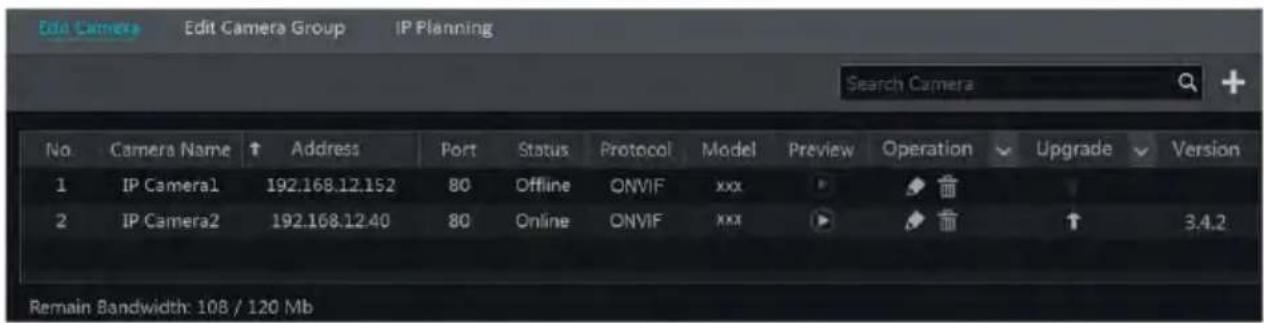

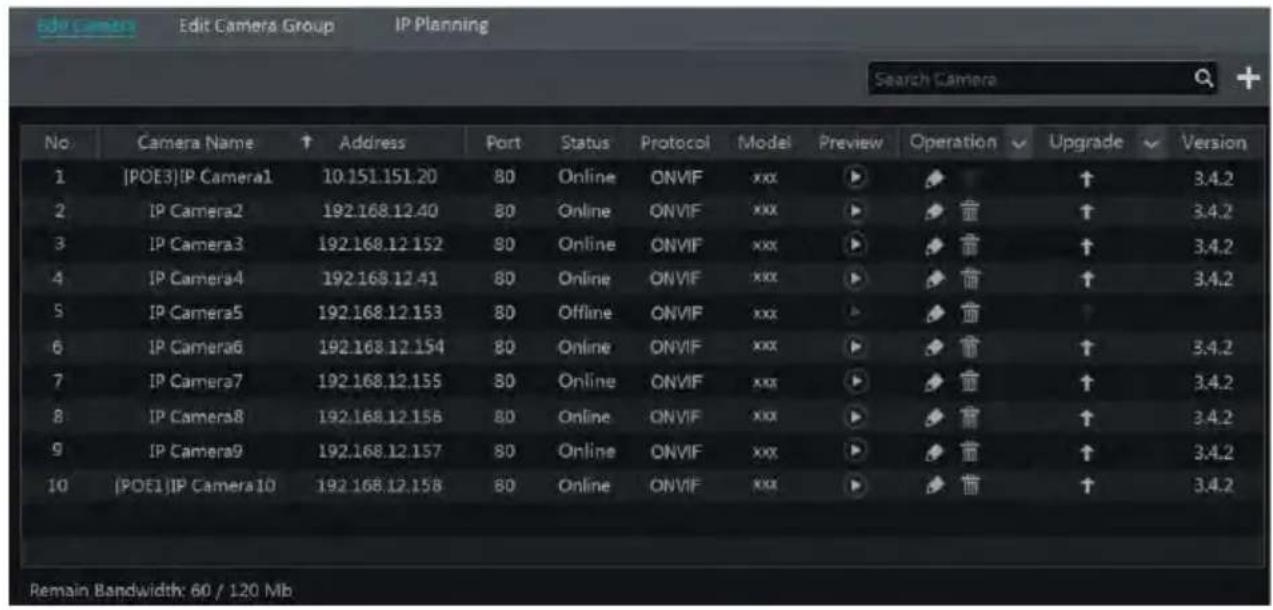

4.1.2 Edit Camera 29
4.2 Add/Edit Camera Group 30

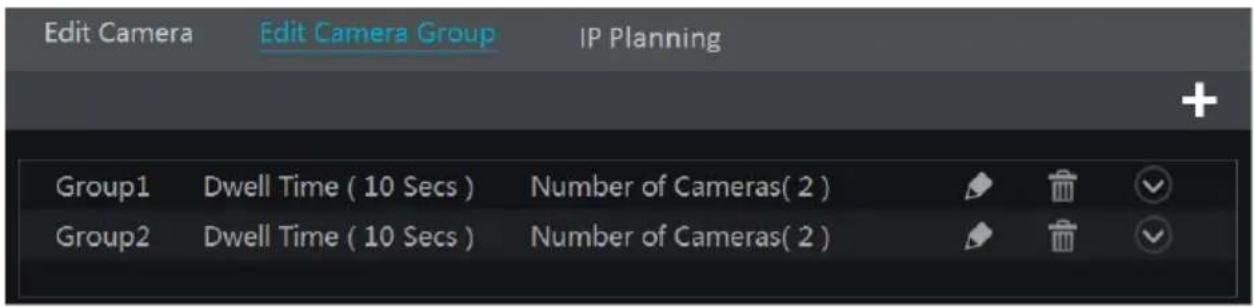

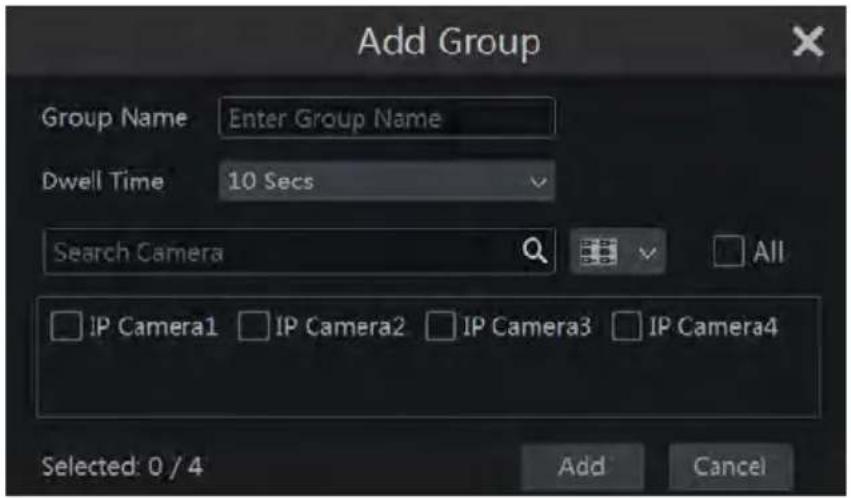

4.2.1 Add Camera Group 30

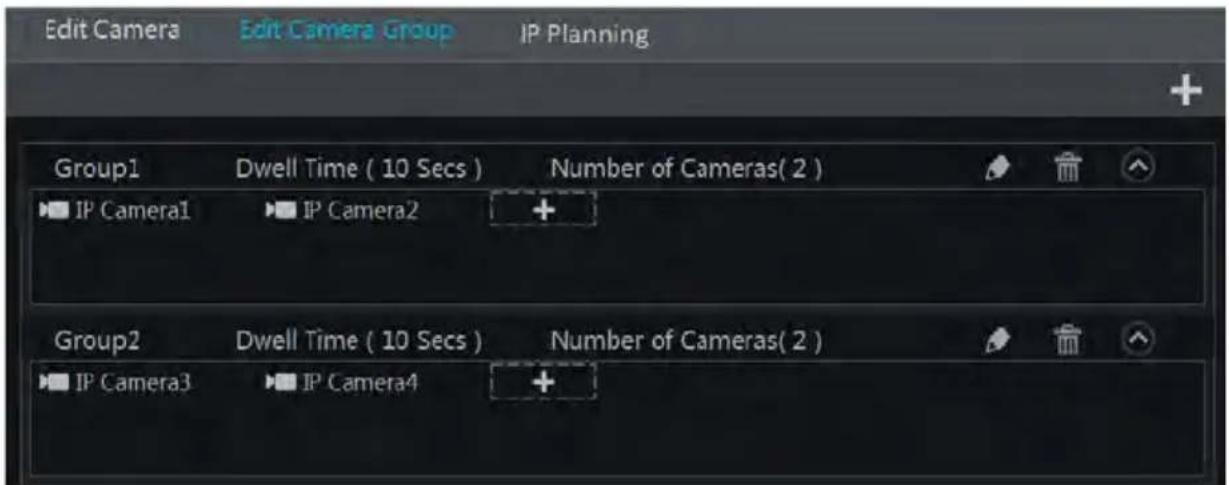

4.2.2 Edit Camera Group 31

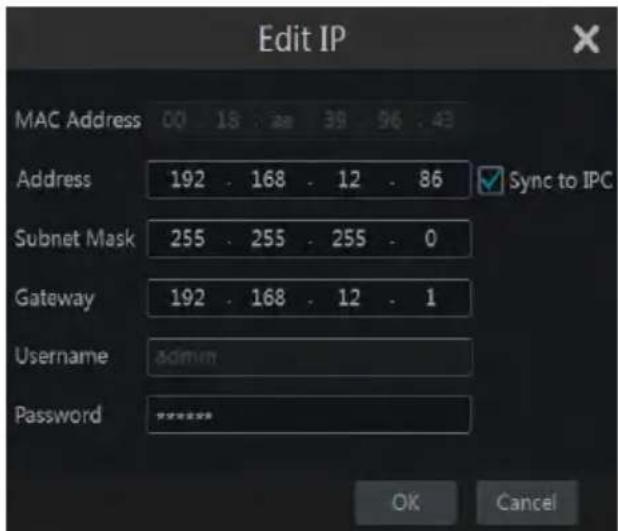

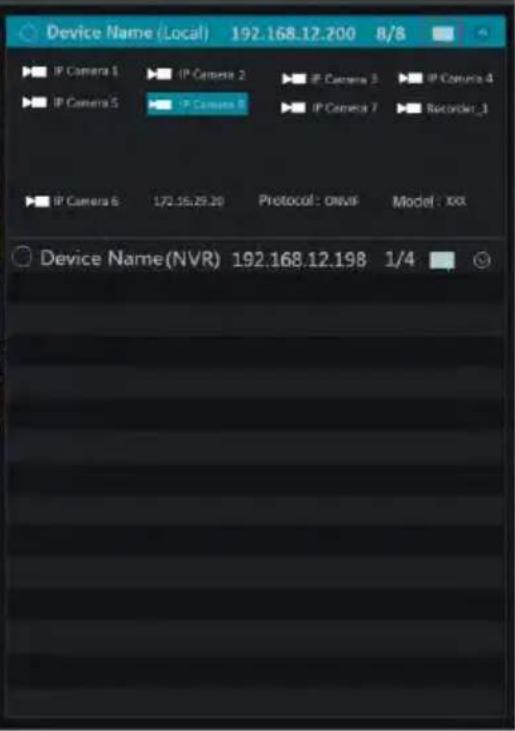

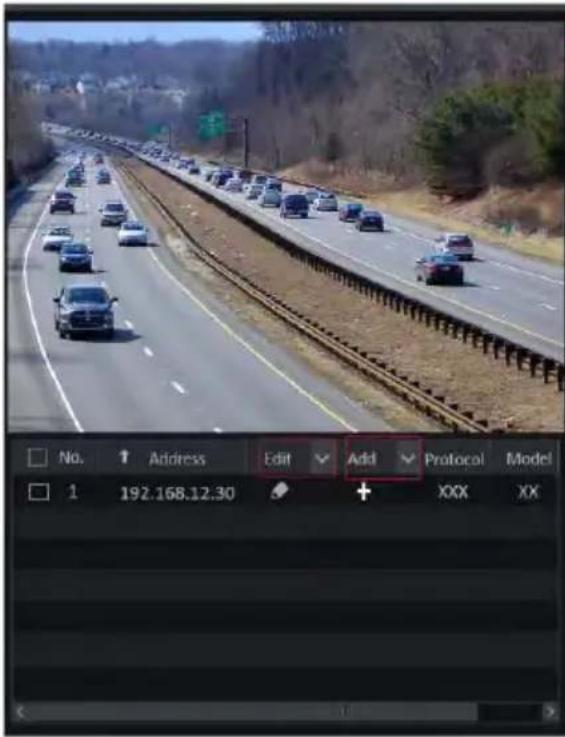

4.2.3 IP Planning....31

5 Live Preview Introduction 33

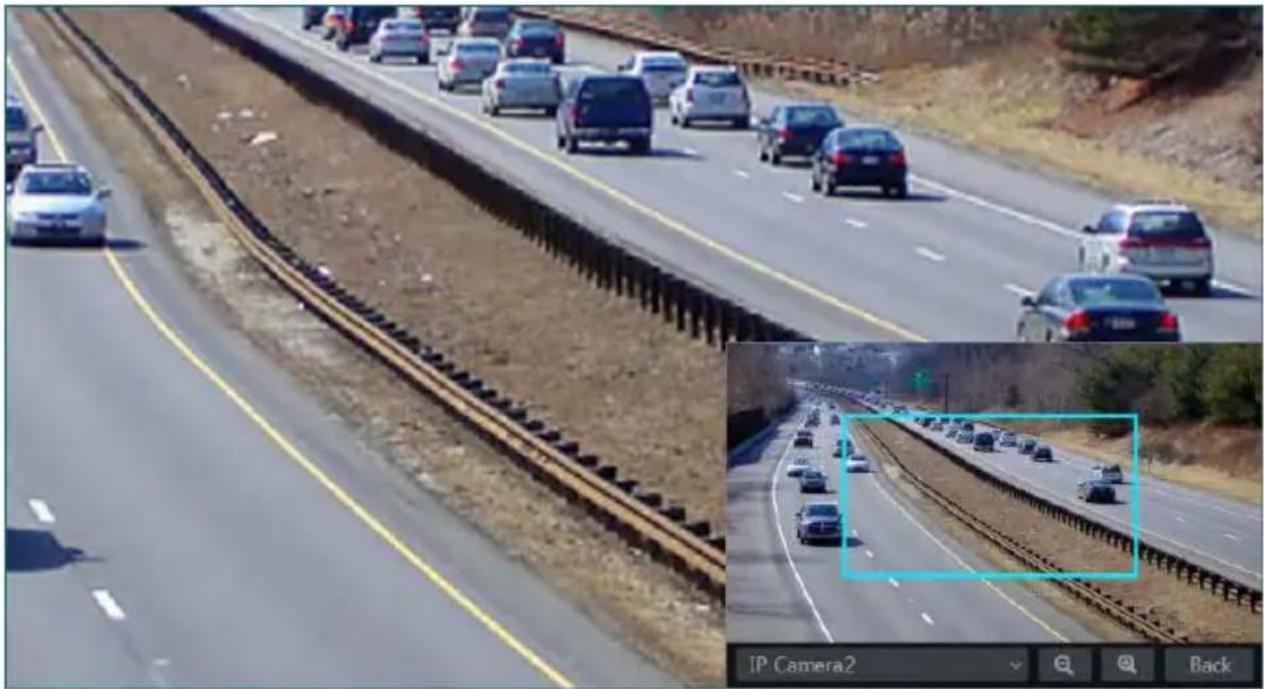

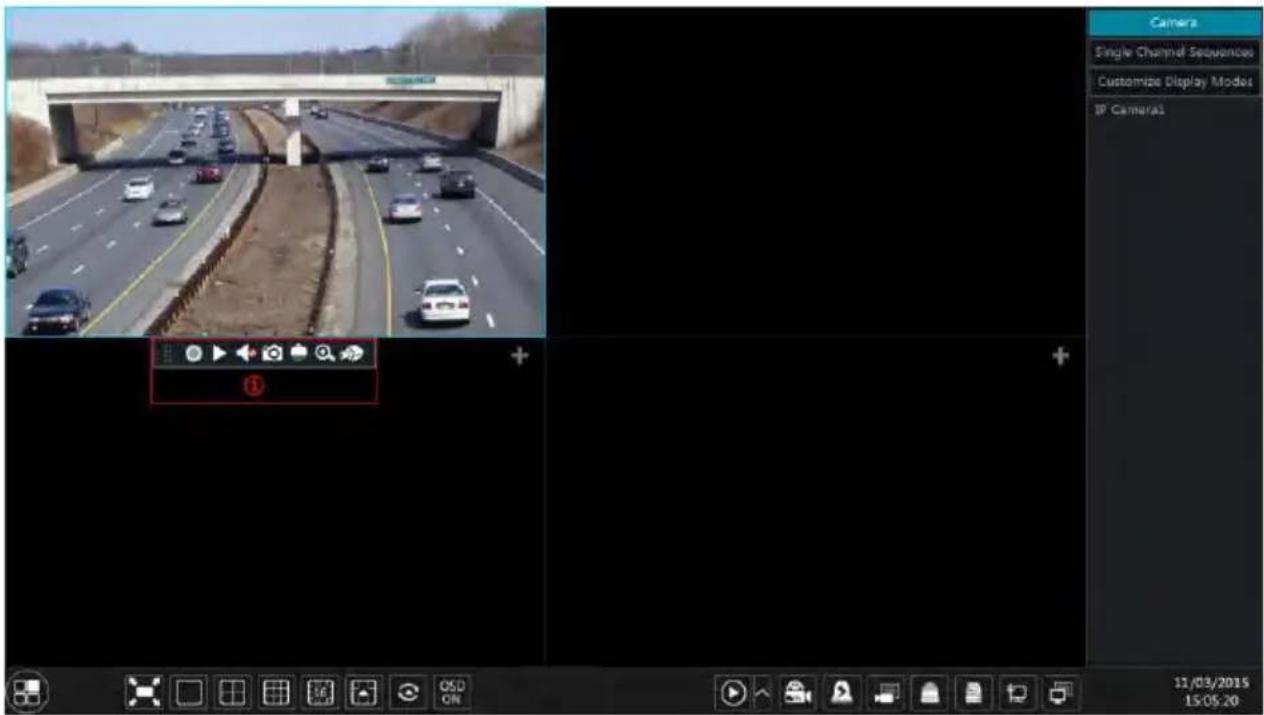

5.1 Preview Interface Introduction ...... 33
5.2 Preview Mode 34

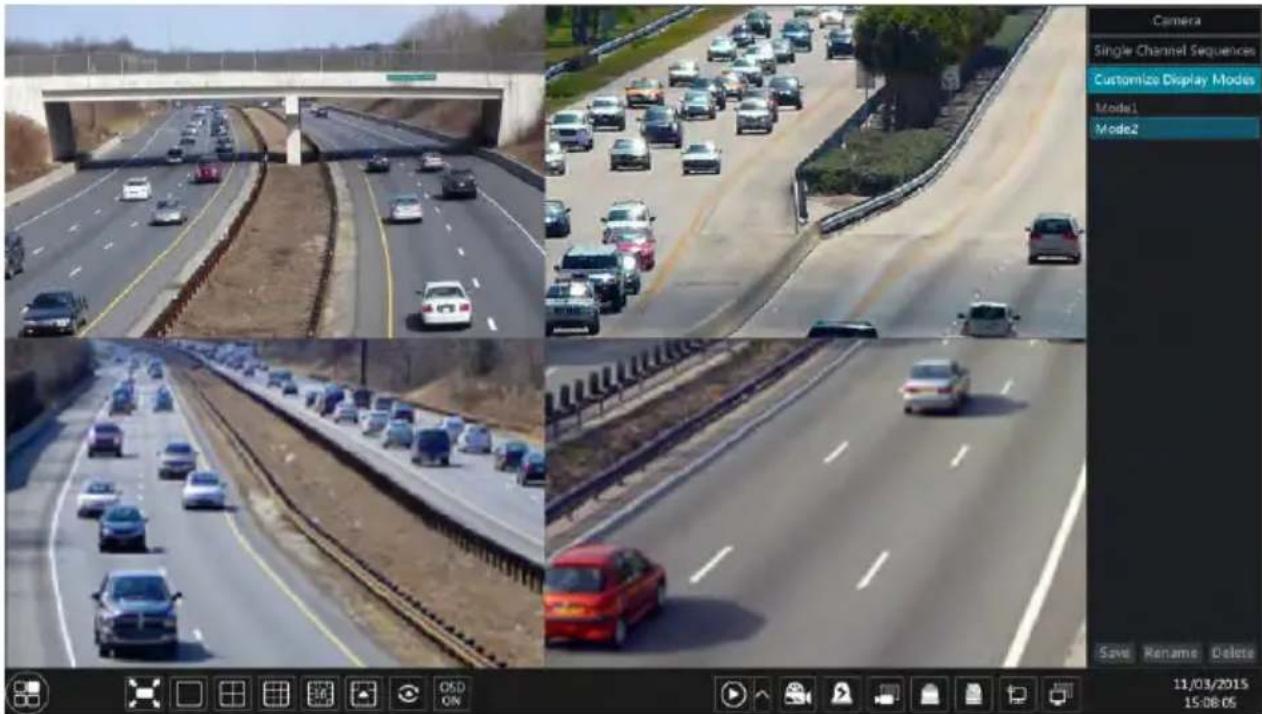

5.2.1 Preview By Display Mode 34

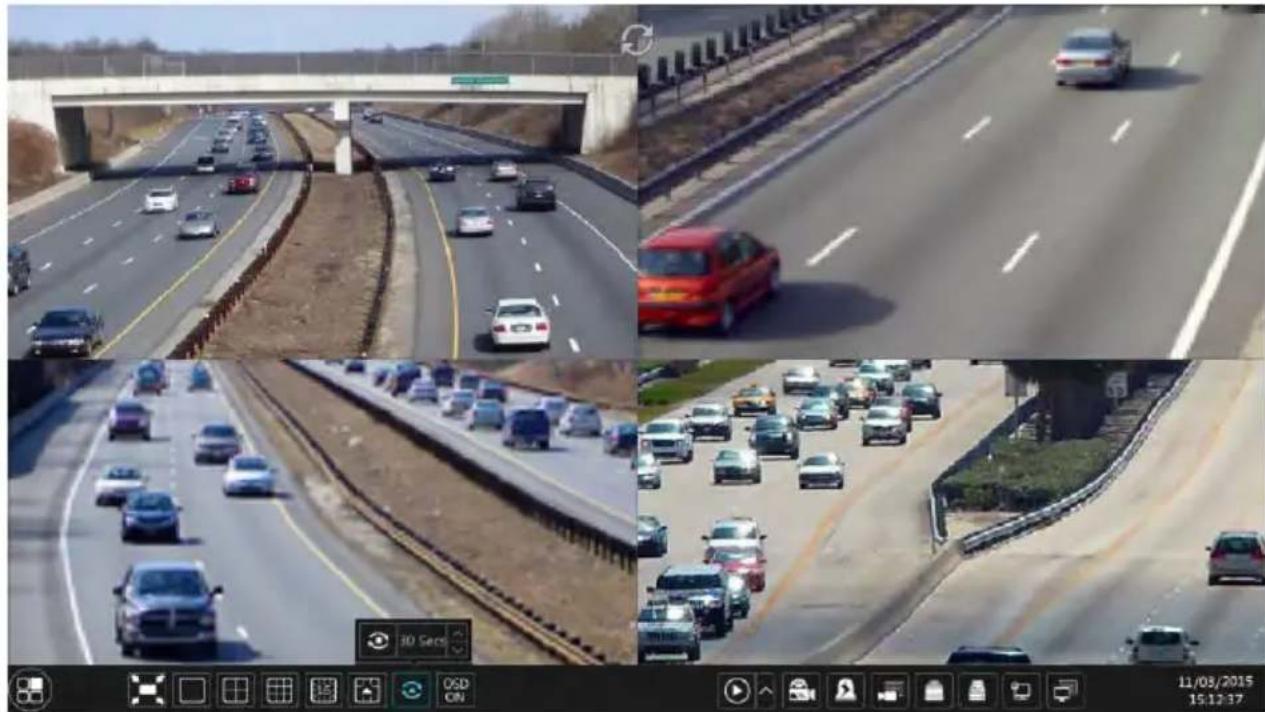

5.2.2 Quick Sequence View 35

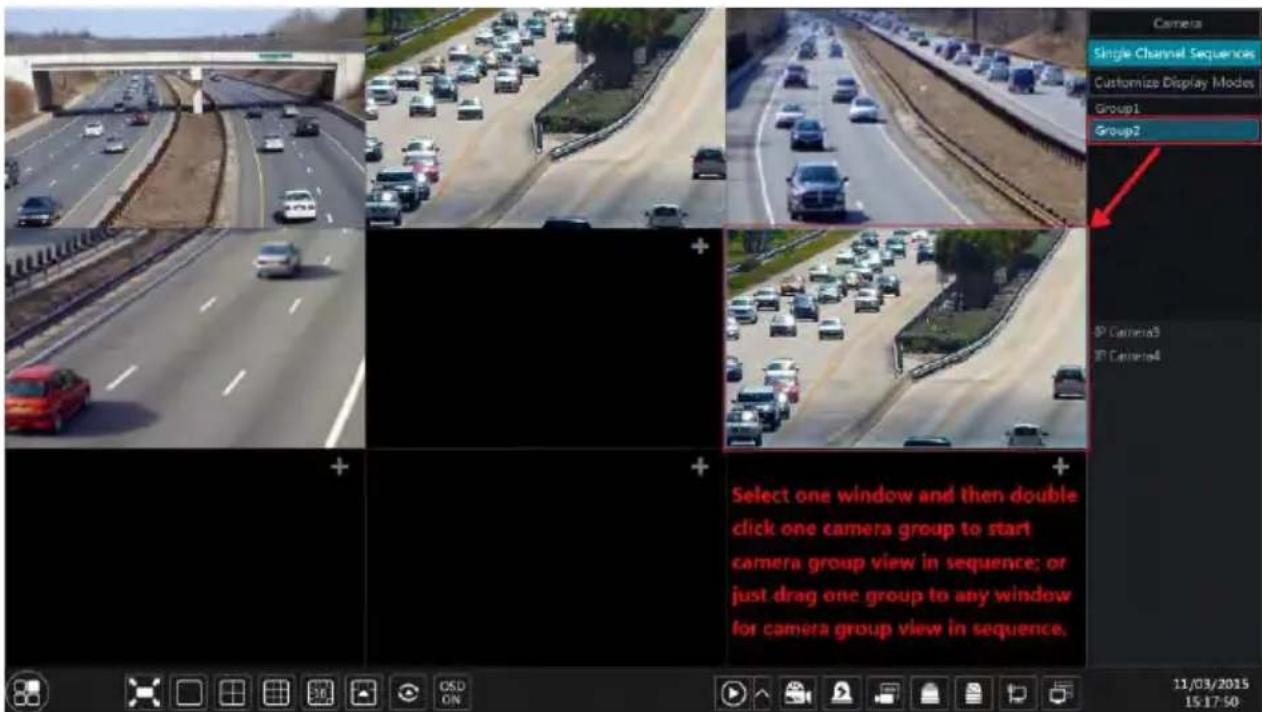

5.2.3 Camera Group View In Sequence 36

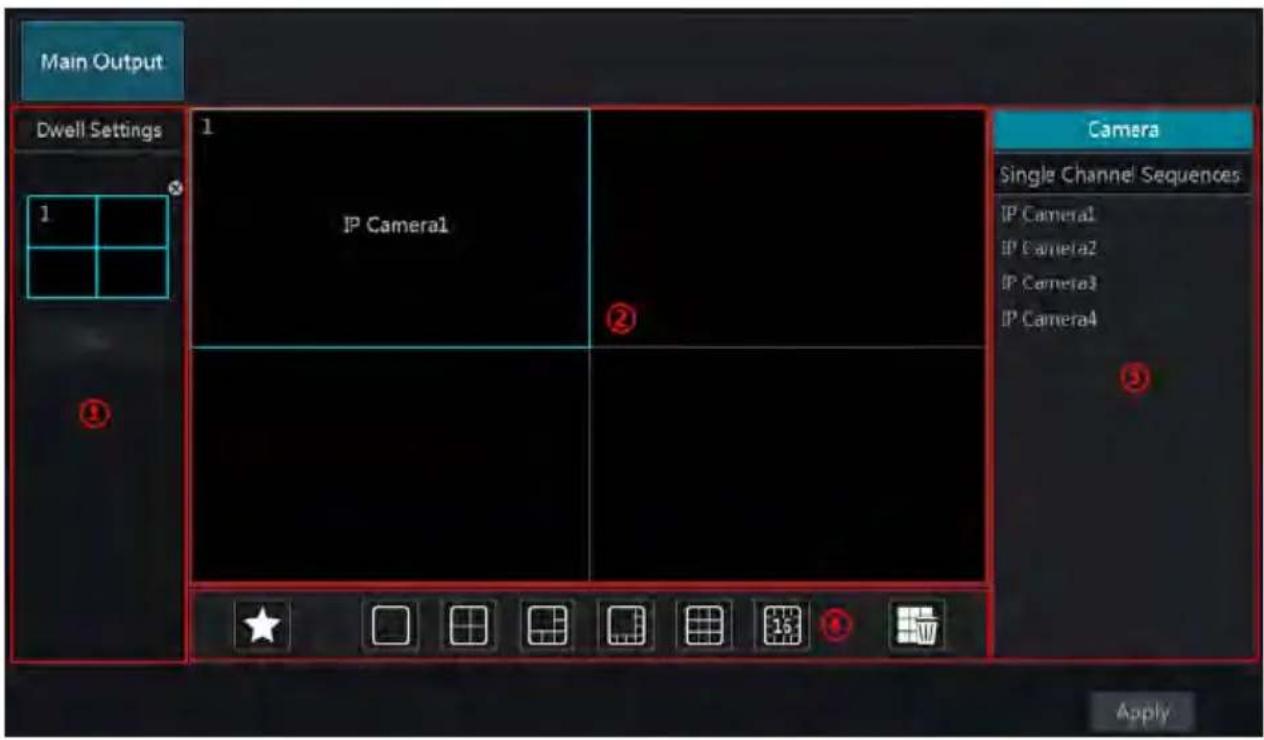

5.2.4 Scheme View In Sequence 37
5.3 Preview Image Configuration.... 38

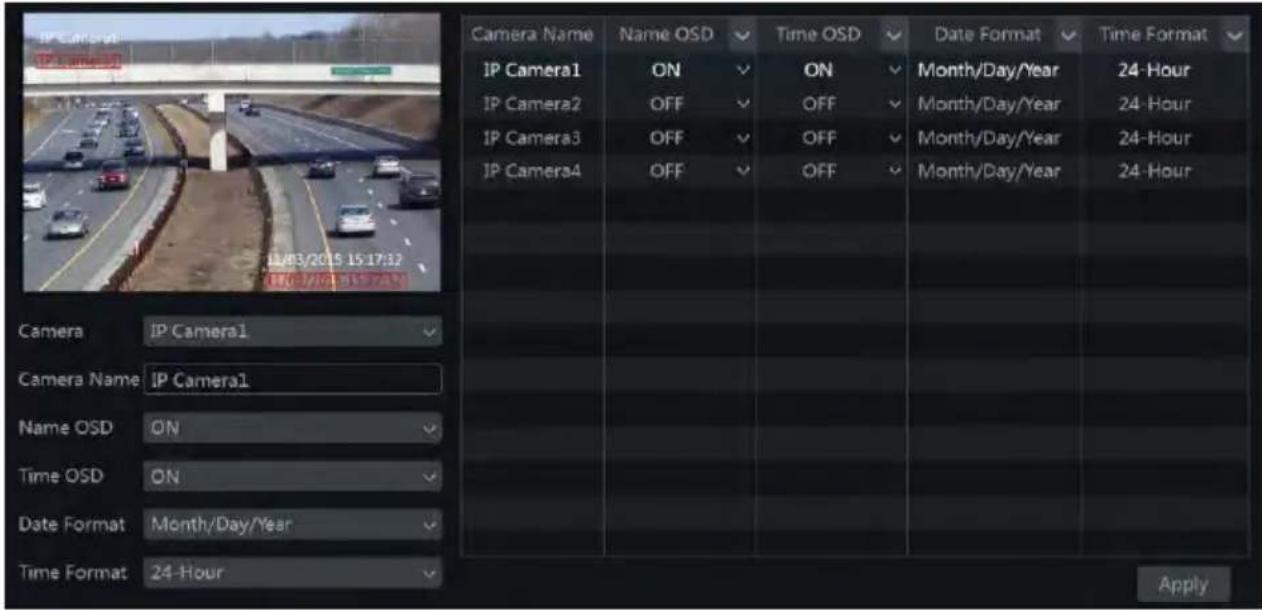

5.3.1 OSD Settings 38

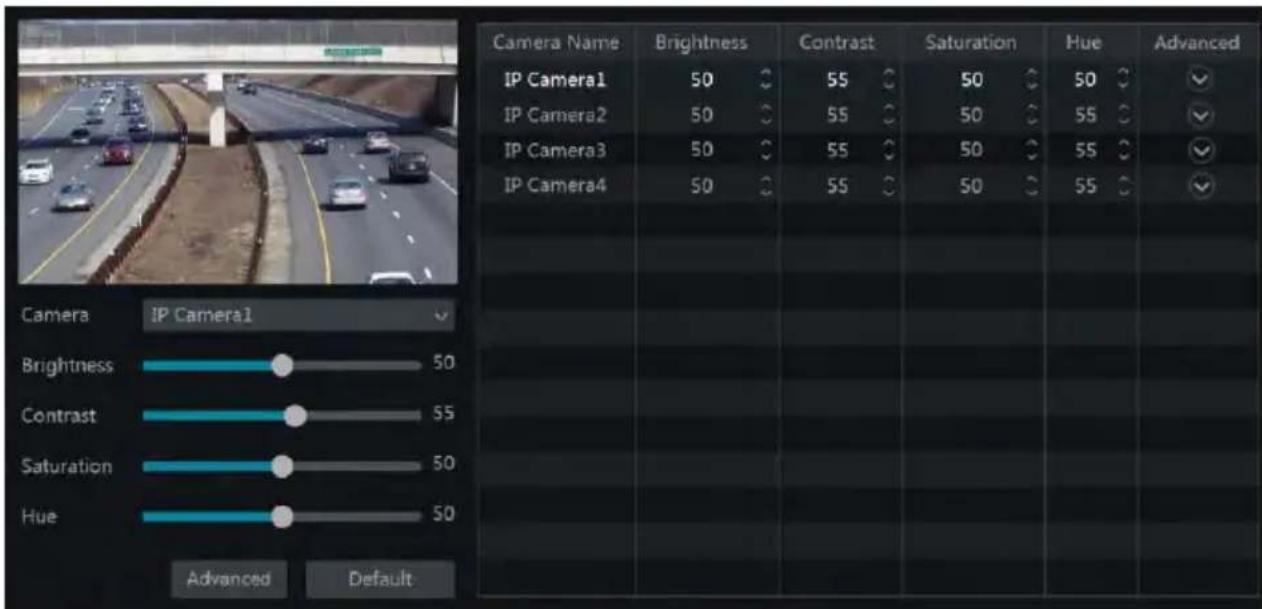

5.3.2 Image Settings....39

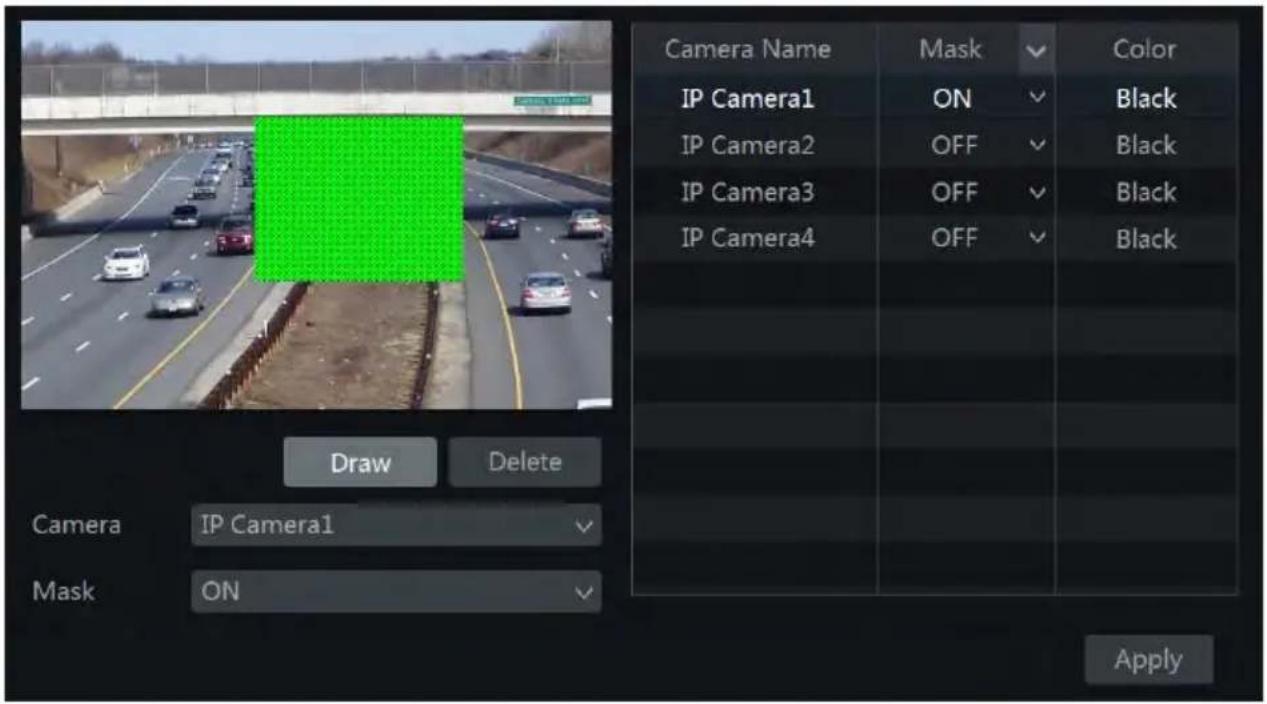

5.3.3 Mask Settings....39

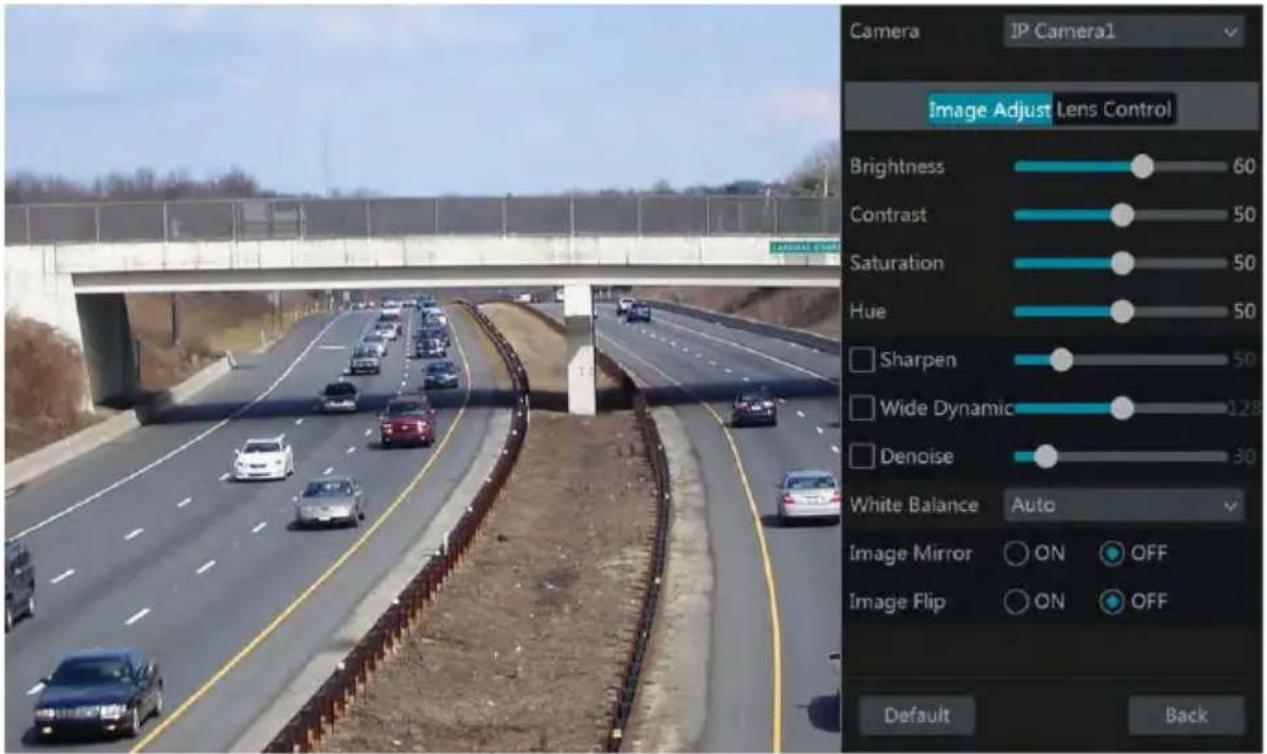

5.3.4 Image Adjustment 40

6 PTZ....43

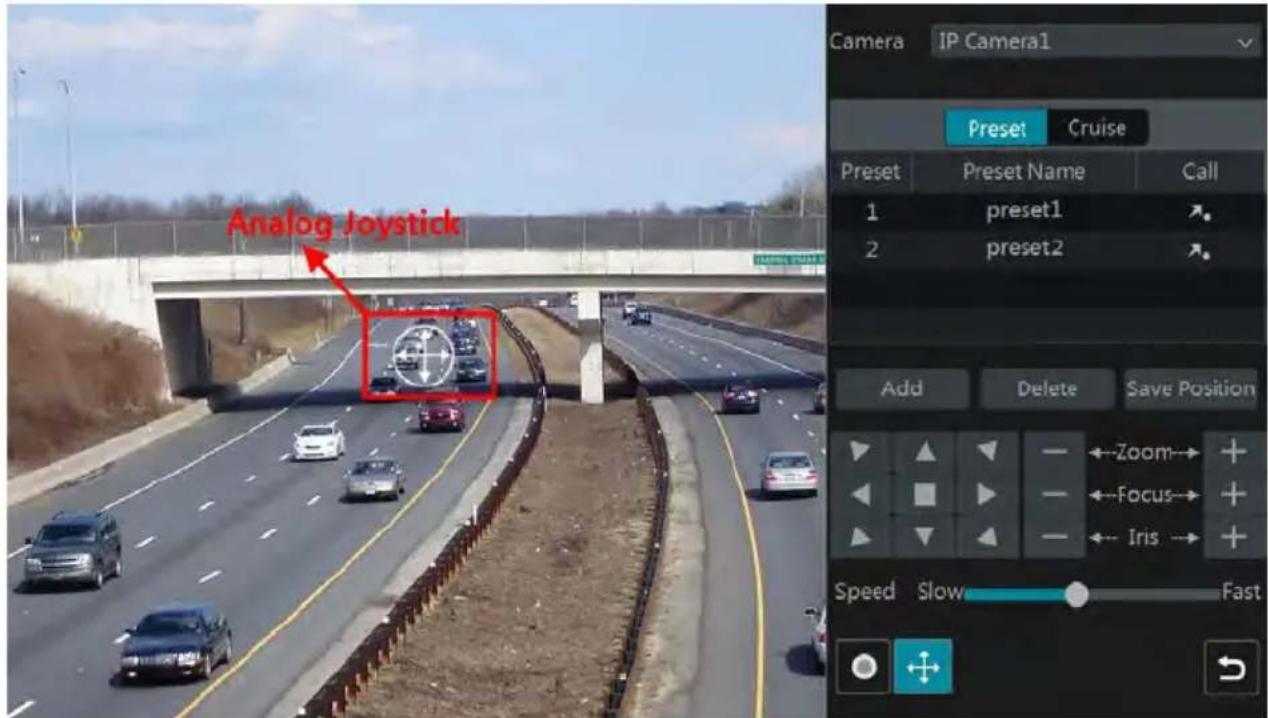

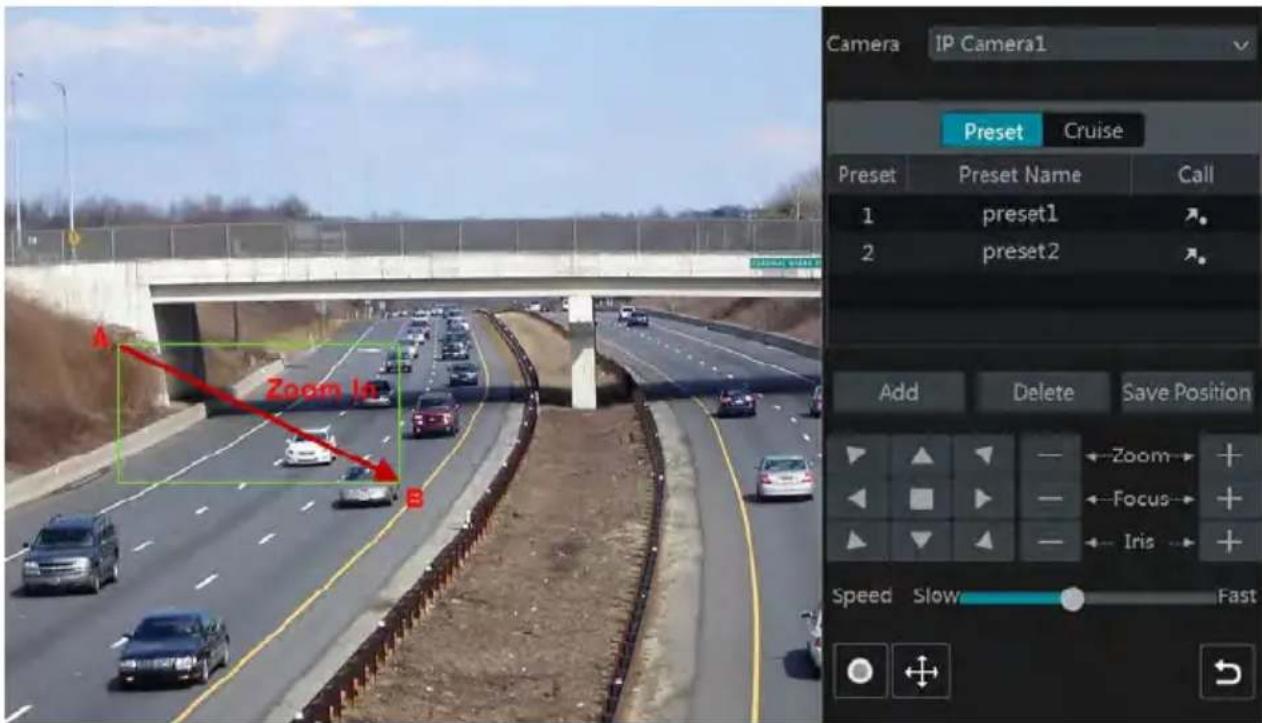

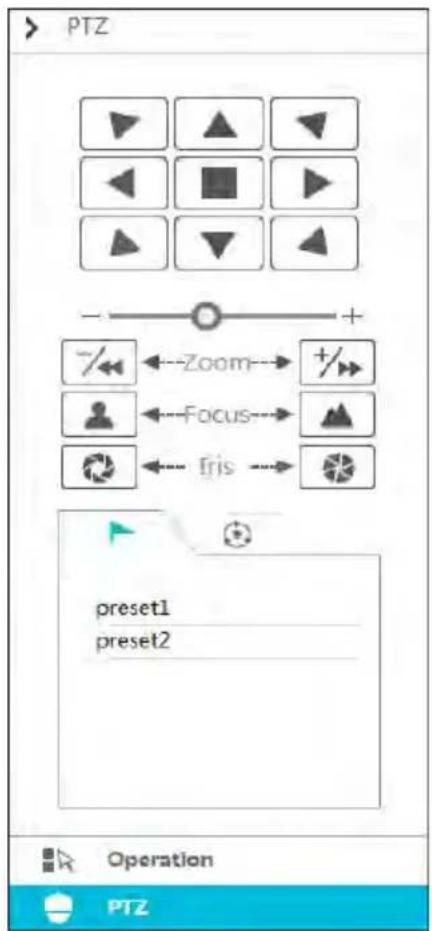

6.1 PTZ Control Interface Introduction 43

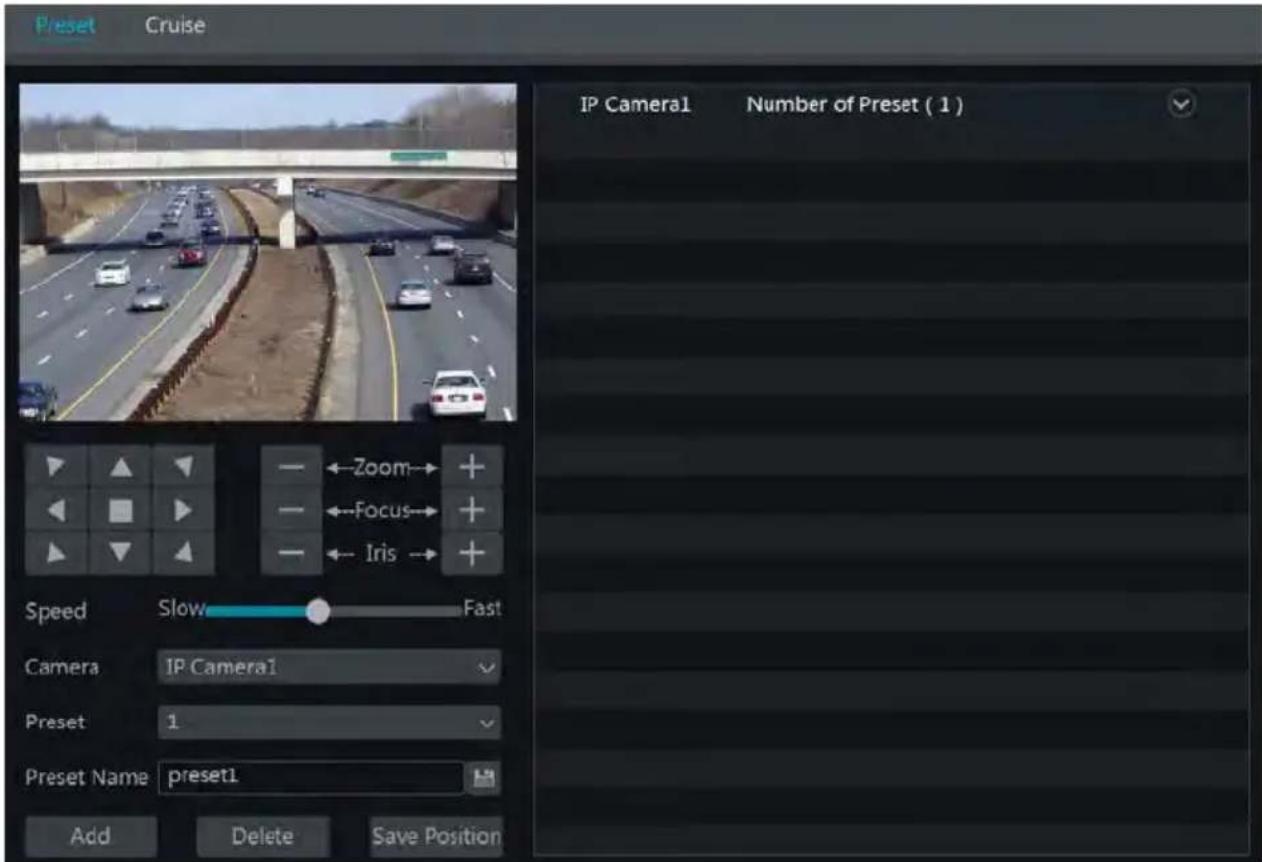

6.2 Preset Setting....46

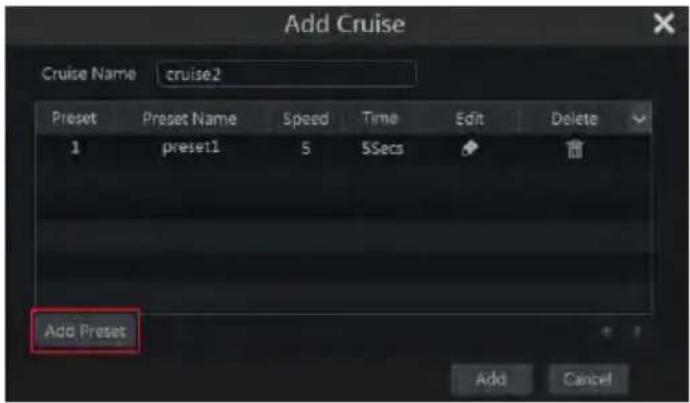

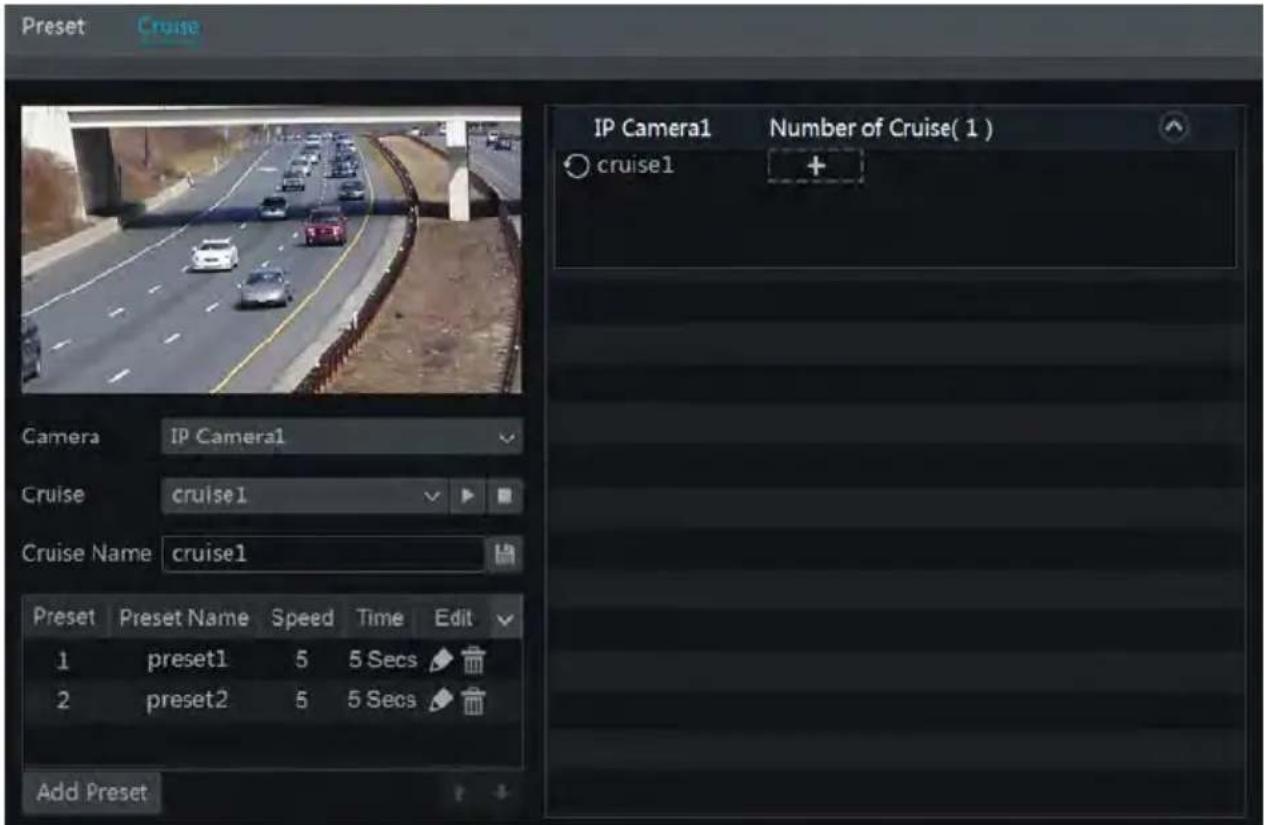

6.3 Cruise Setting....47

7 Record & Disk Management 49

7.1 Record Configuration....49

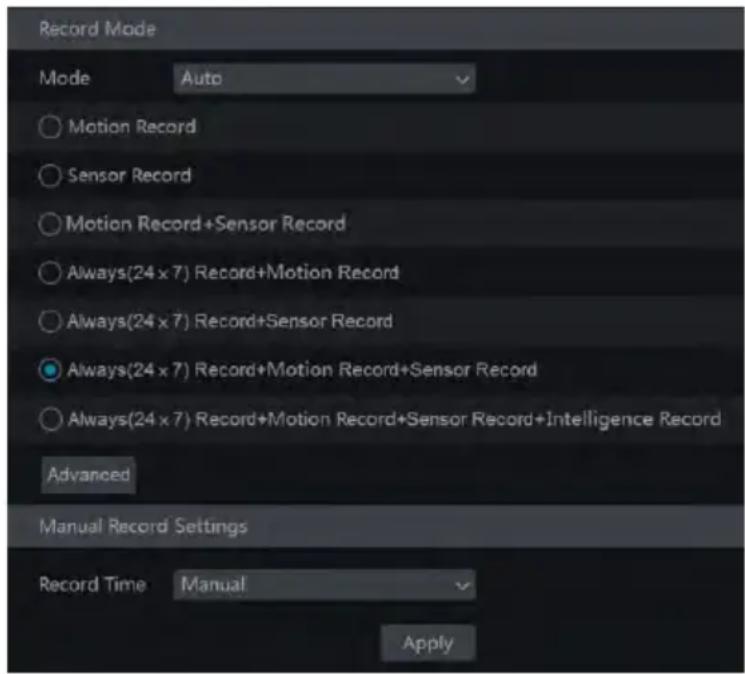

7.1.1 Mode Configuration....49

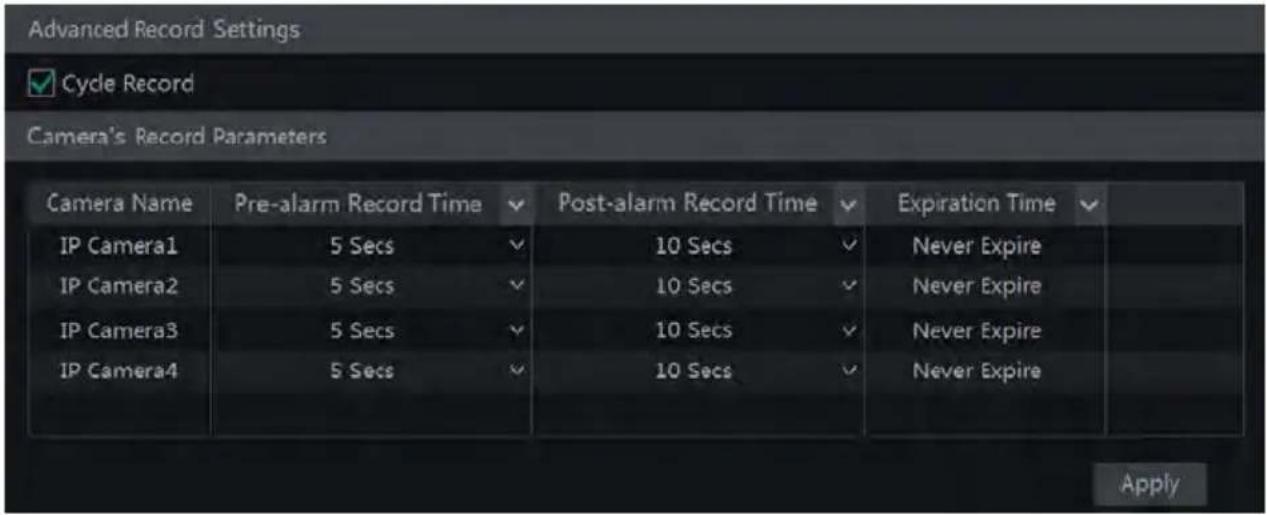

7.1.2 Advanced Configuration 51

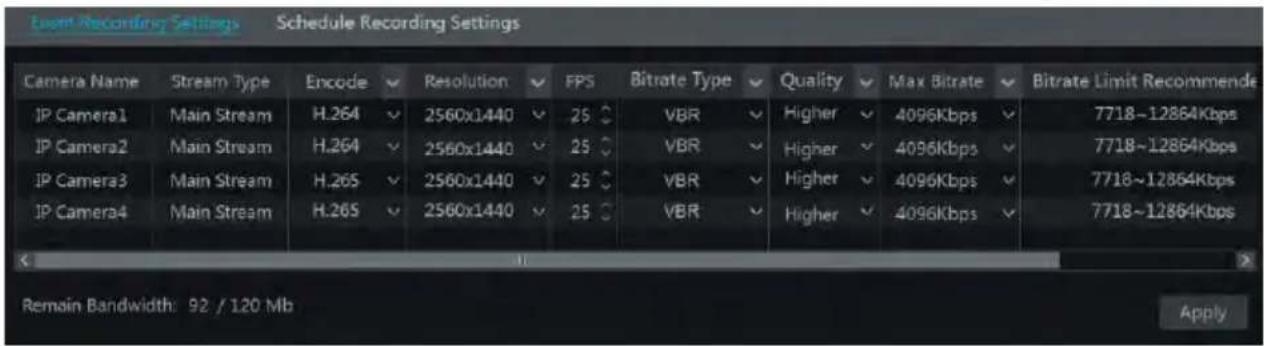

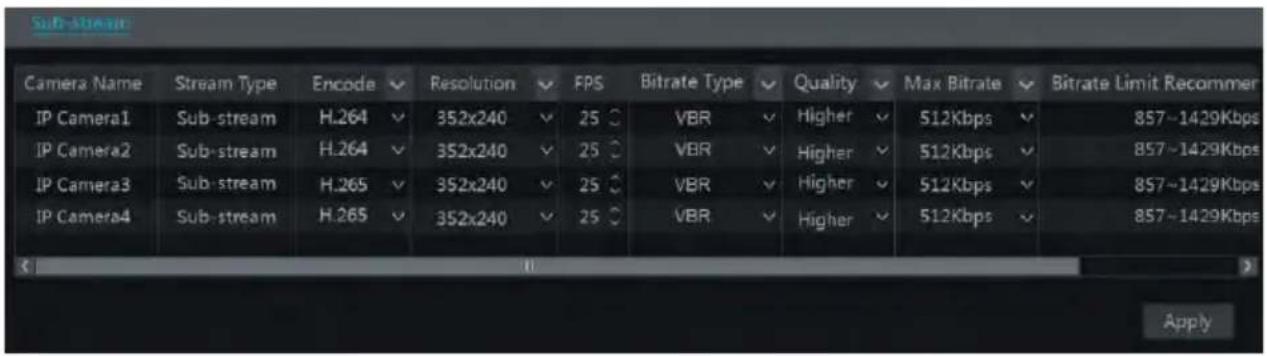

7.2 Encode Parameters Setting....51
7.3 Schedule Setting....52

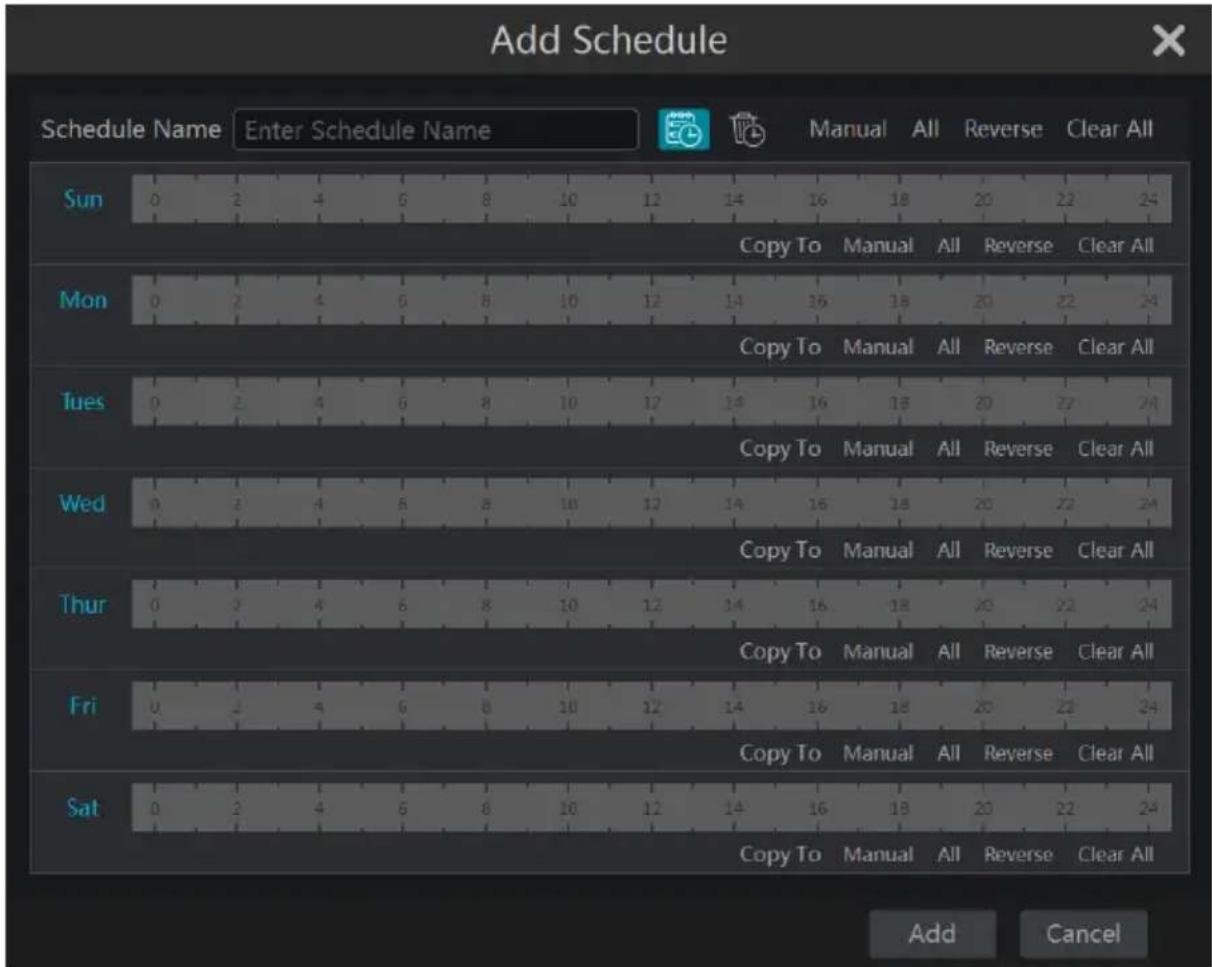

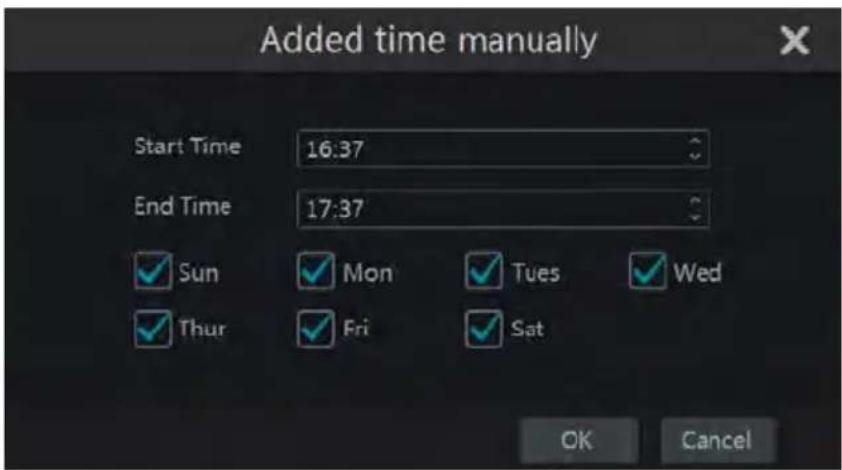

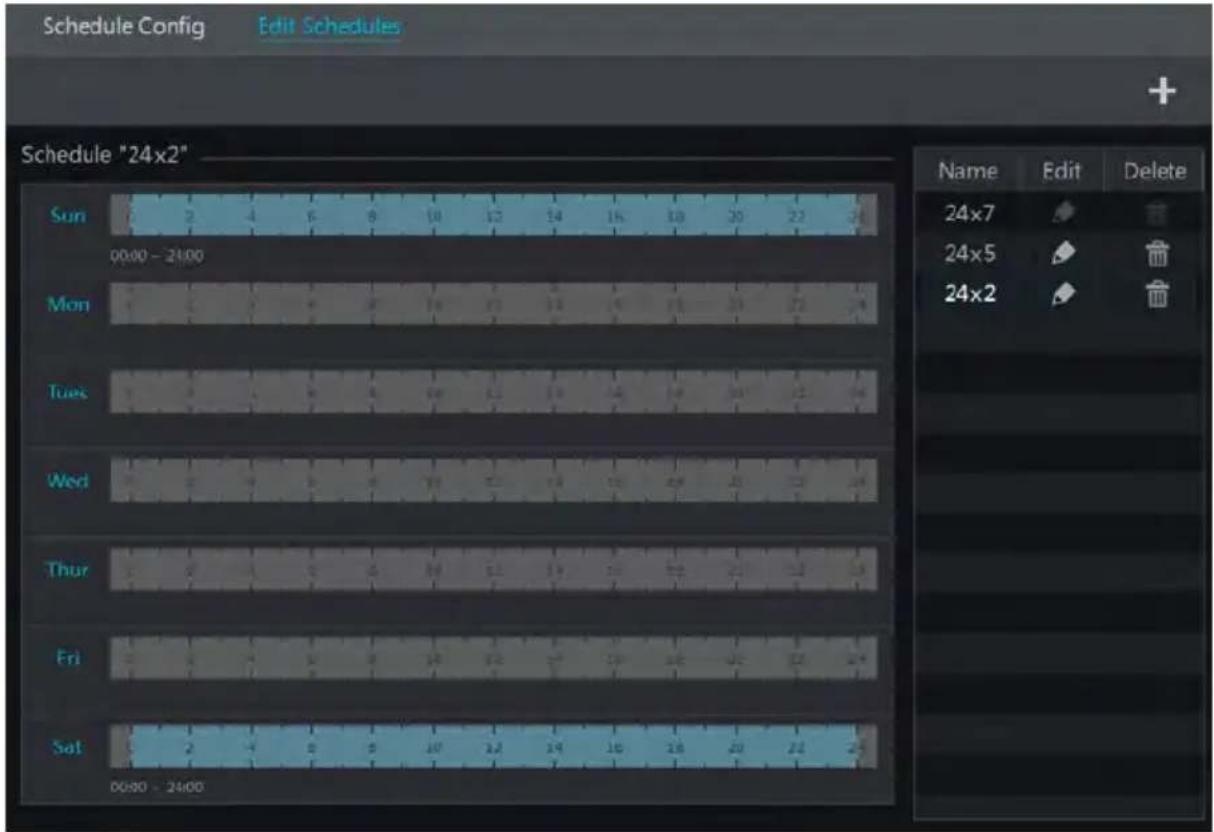

7.3.1 Add Schedule 52

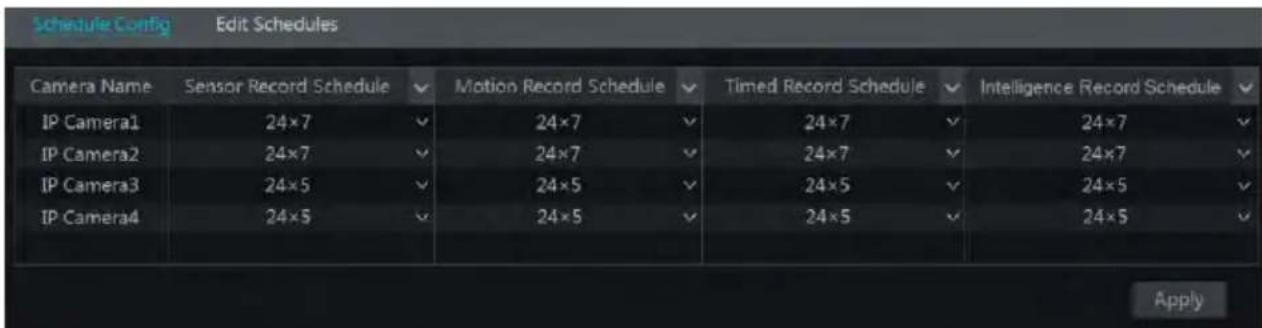

7.3.2 Record Schedule Configuration 54

7.4 Record Mode....55

7.4.1 Manual Recording....55
7.4.2 Timing Recording 55
7.4.3 Motion Based Recording....55
7.4.4 Sensor Based Recording 55
7.4.5 Intelligence Recording....56

7.5 Disk Management 56

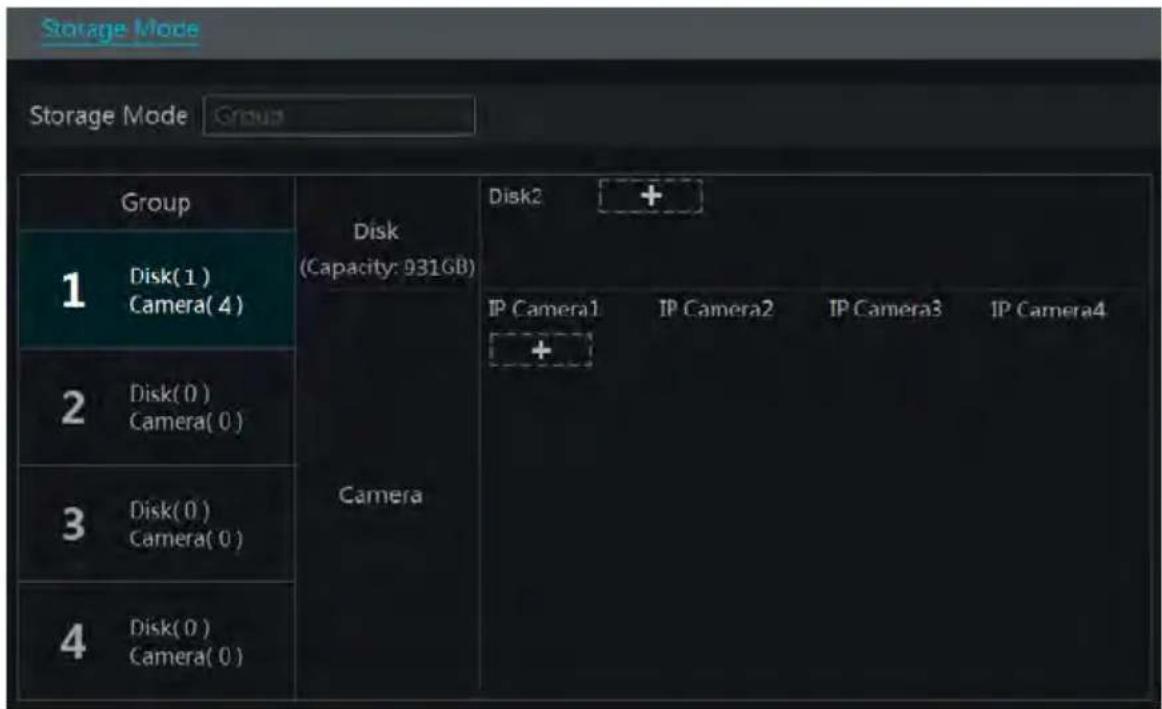

7.5.1 Storage Mode Configuration....56

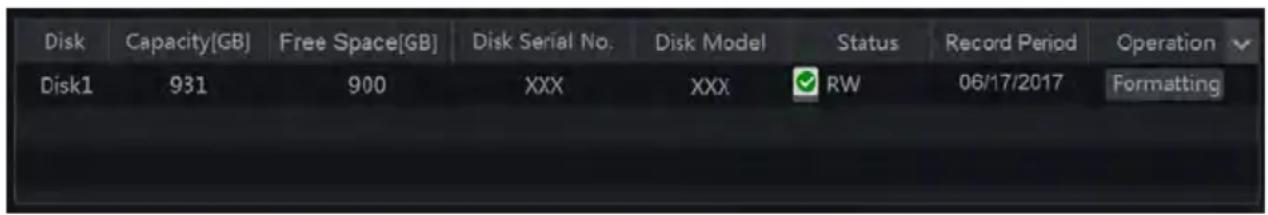

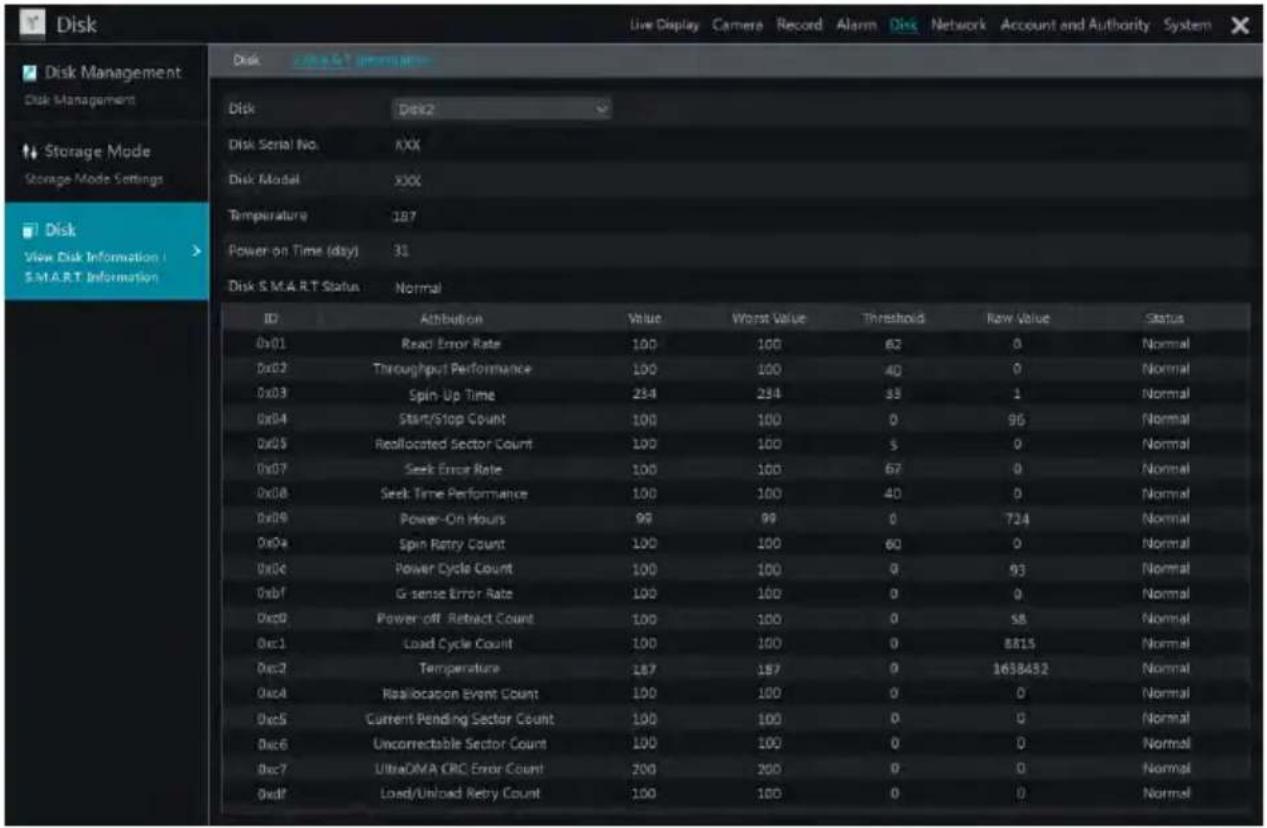

7.5.2 View Disk and S.M.A.R.T. Information 57

8 Playback & Backup....59

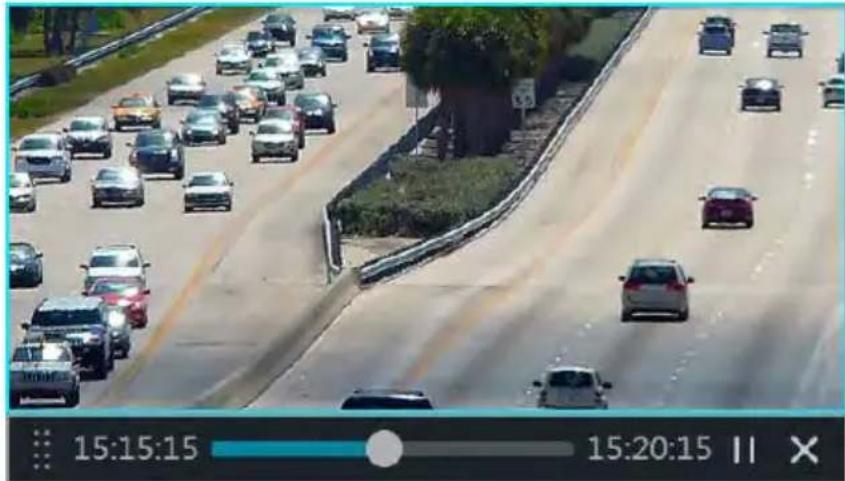

8.1 Instant Playback....59

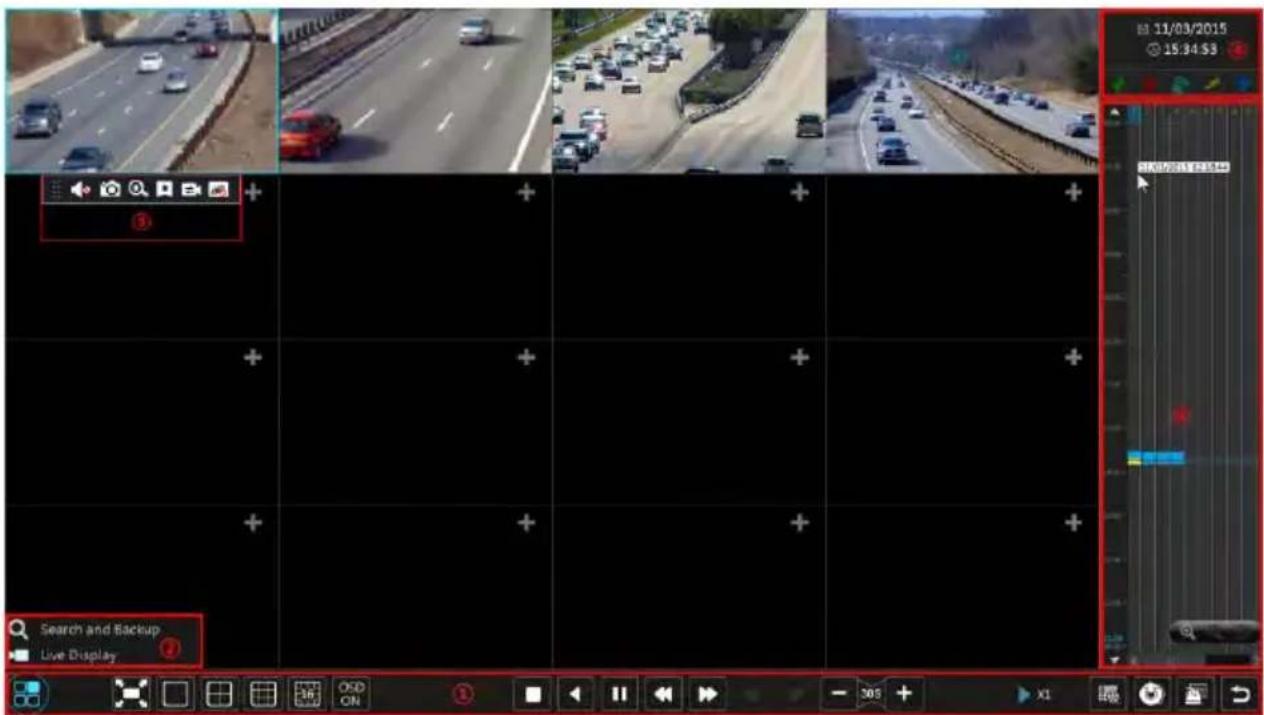

8.2 Playback Interface Introduction....59
8.3 Record Search, Playback & Backup 62

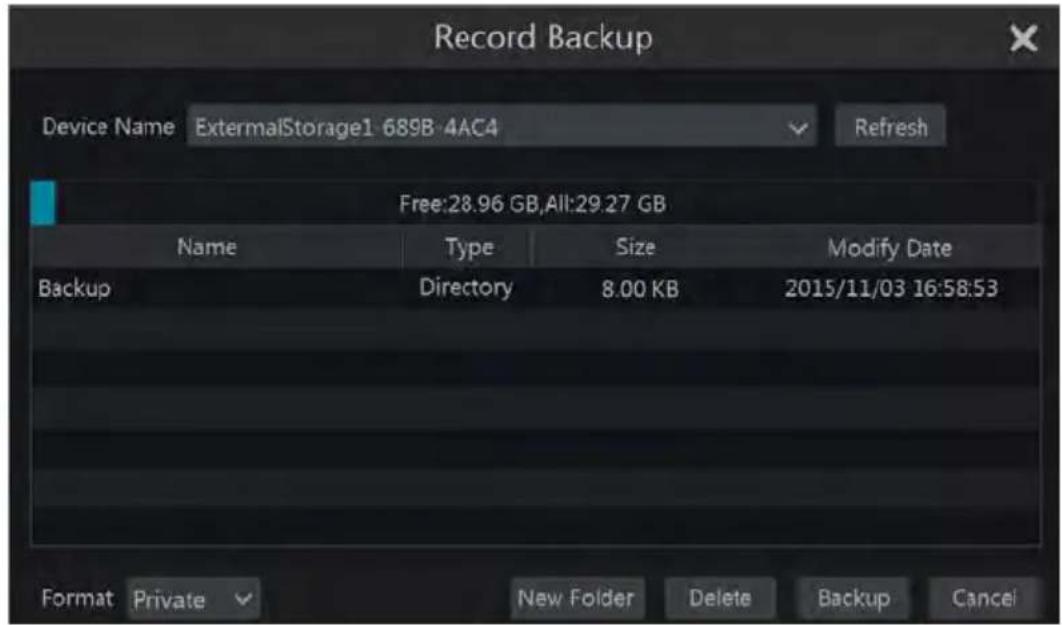

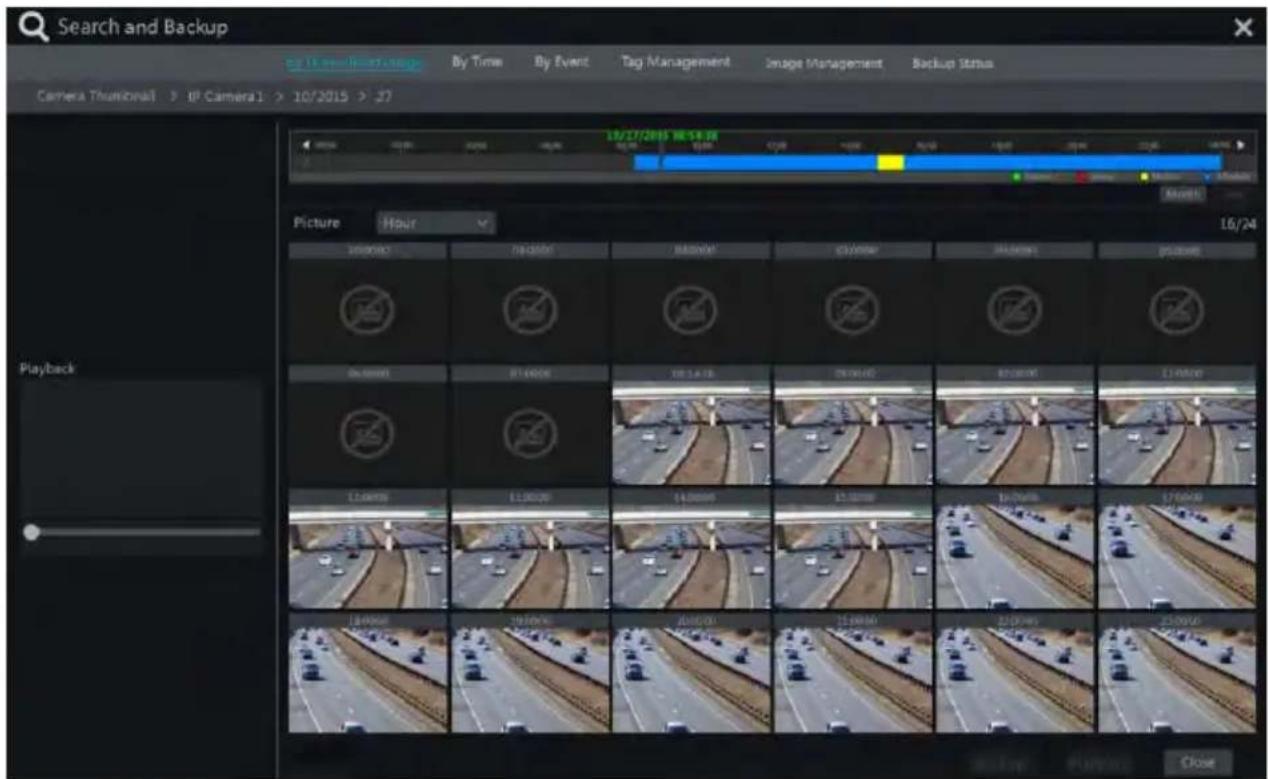

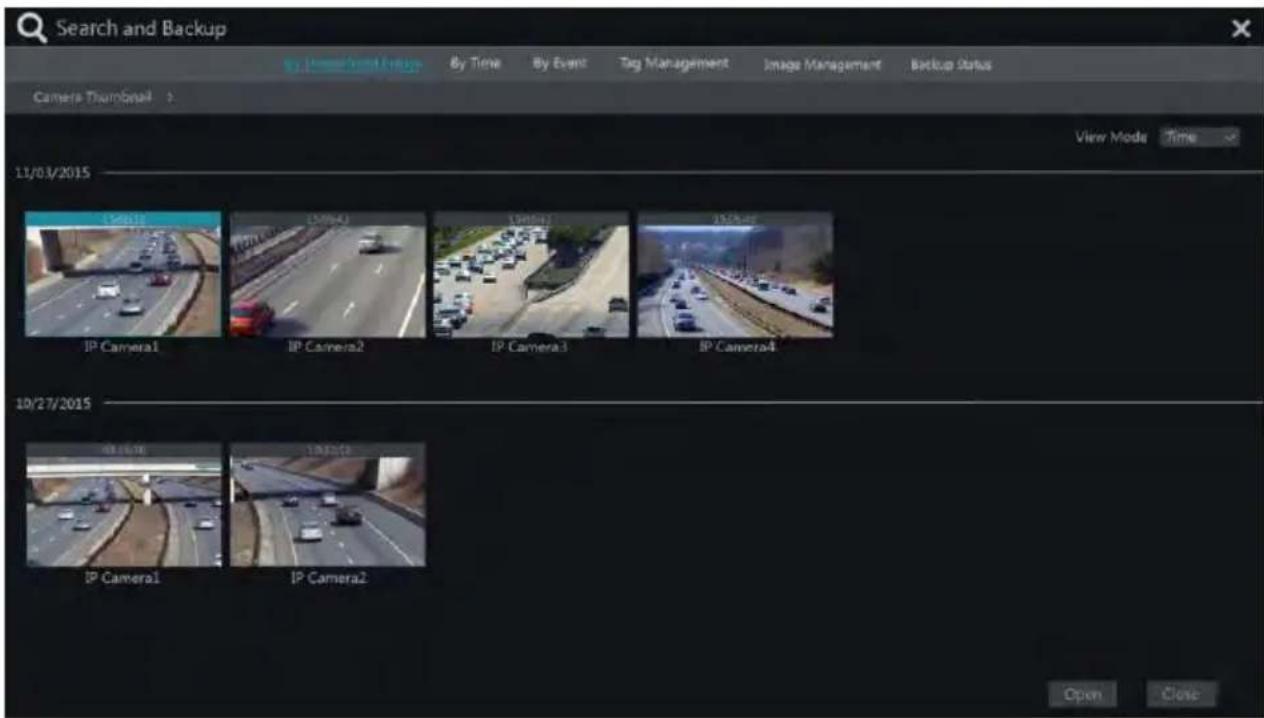

8.3.1 Search, Playback & Backup by Time-sliced Image....62

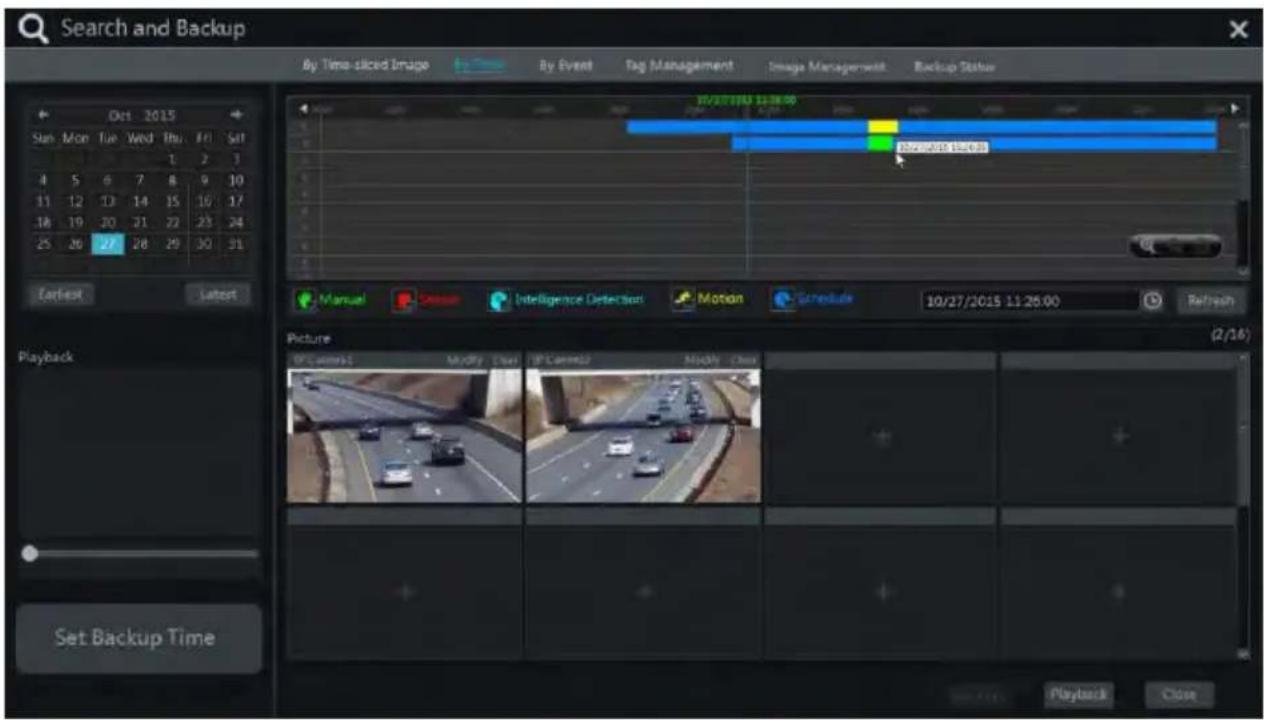

8.3.2 Search, Playback & Backup by Time 64

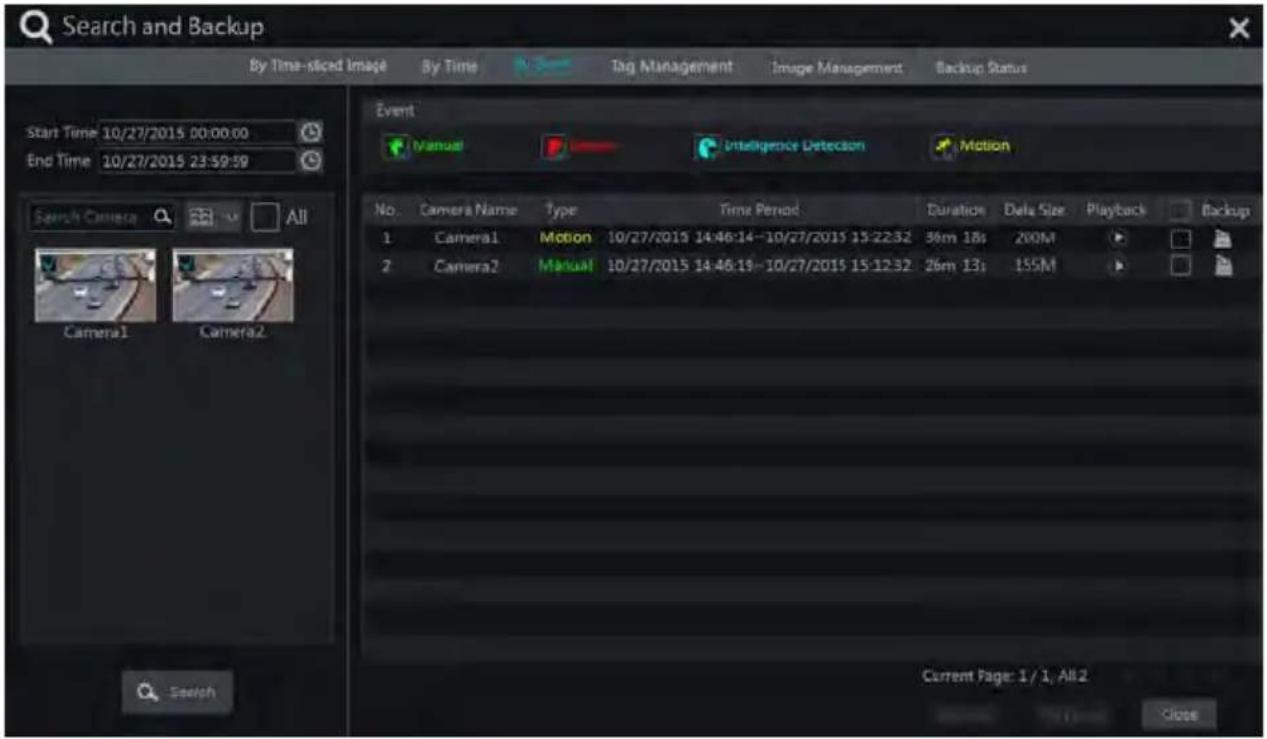

8.3.3 Search, Playback & Backup by Event 64

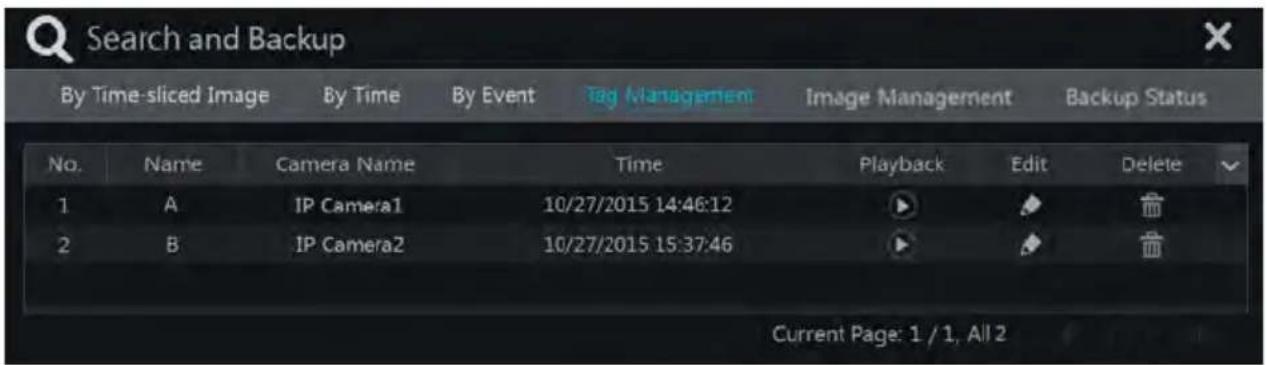

8.3.4 Search & Playback by Tag 65

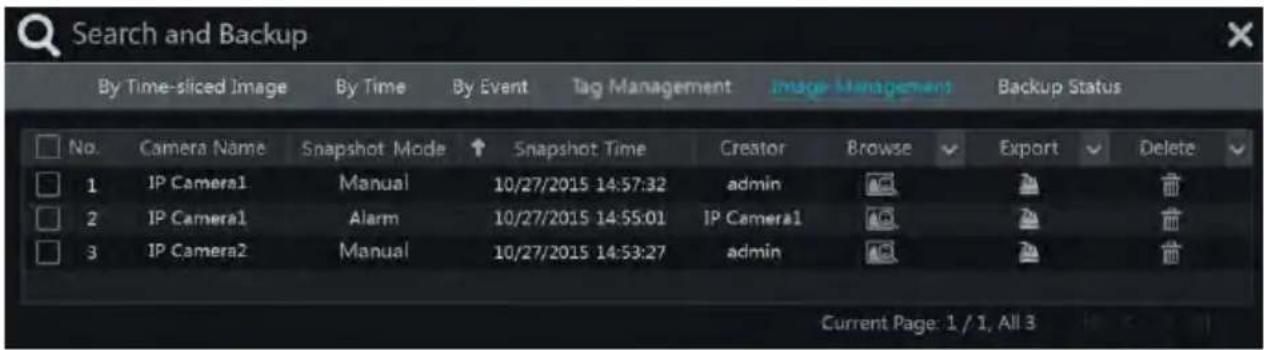

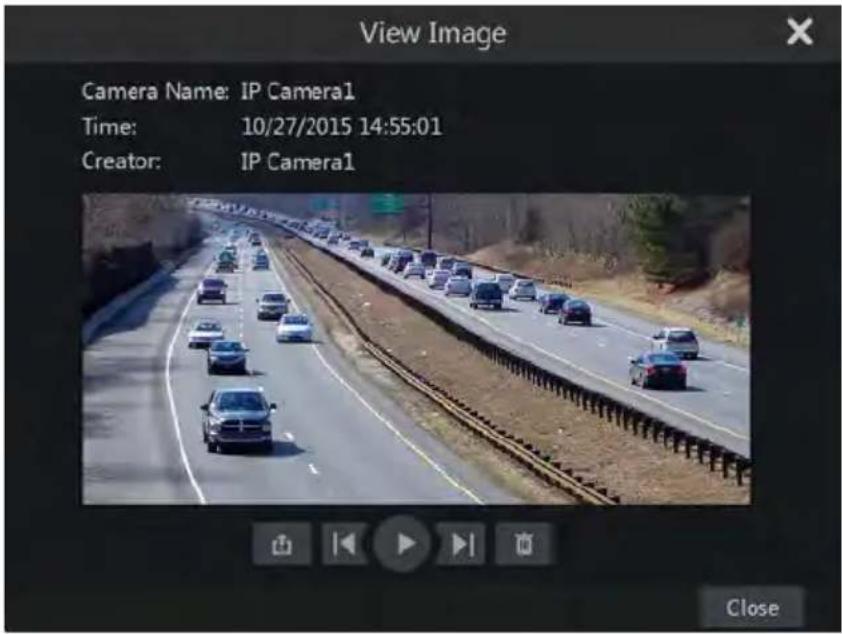

8.3.5 Image Management....66
8.3.6 View Backup Status 66

9 Alarm Management....67

9.1 Sensor Alarm....67
9.2 Motion Alarm....68

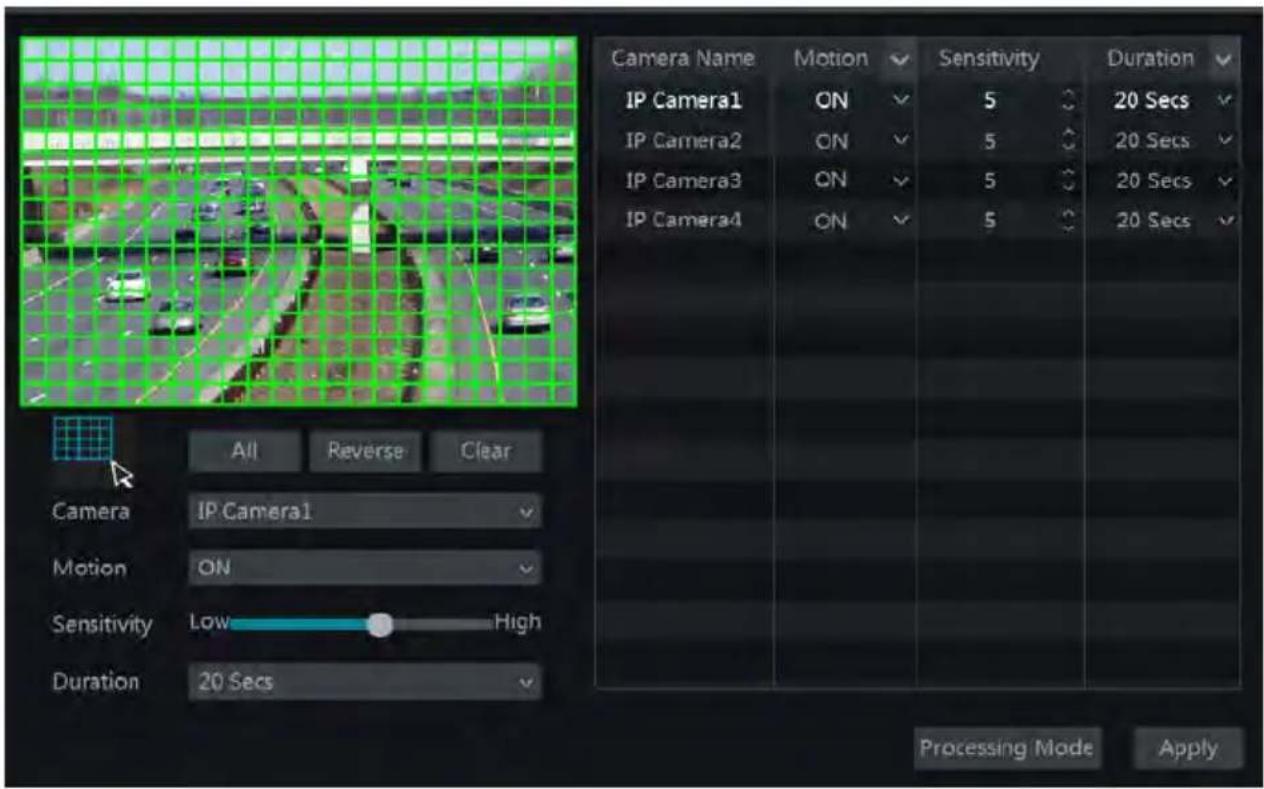

9.2.1 Motion Configuration 68

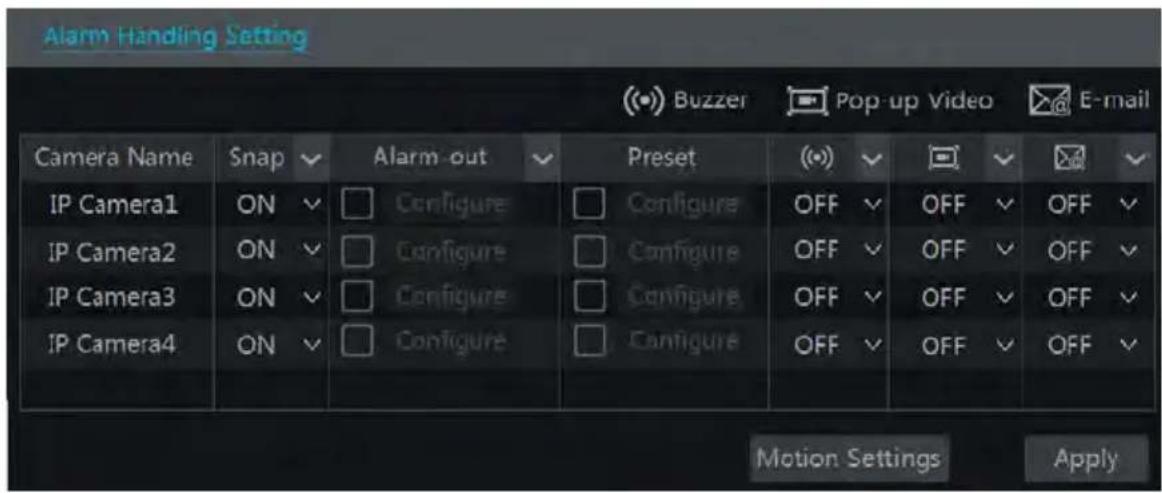

9.2.2 Motion Alarm Handling Configuration 69

9.3 Intelligence Alarm 69

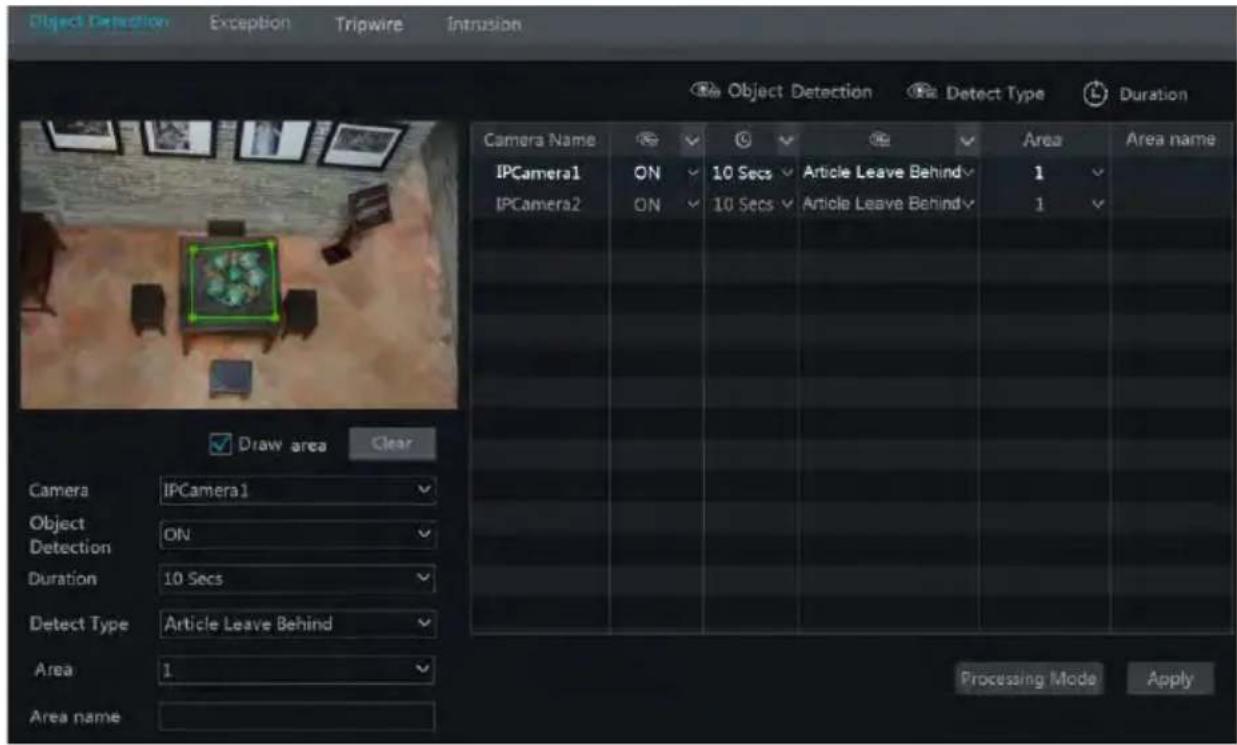

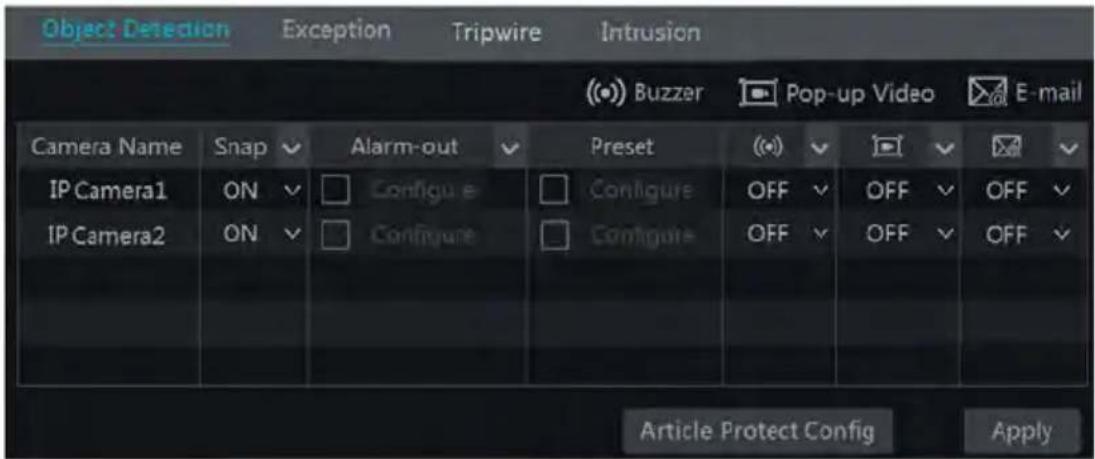

9.3.1 Object Detection 69

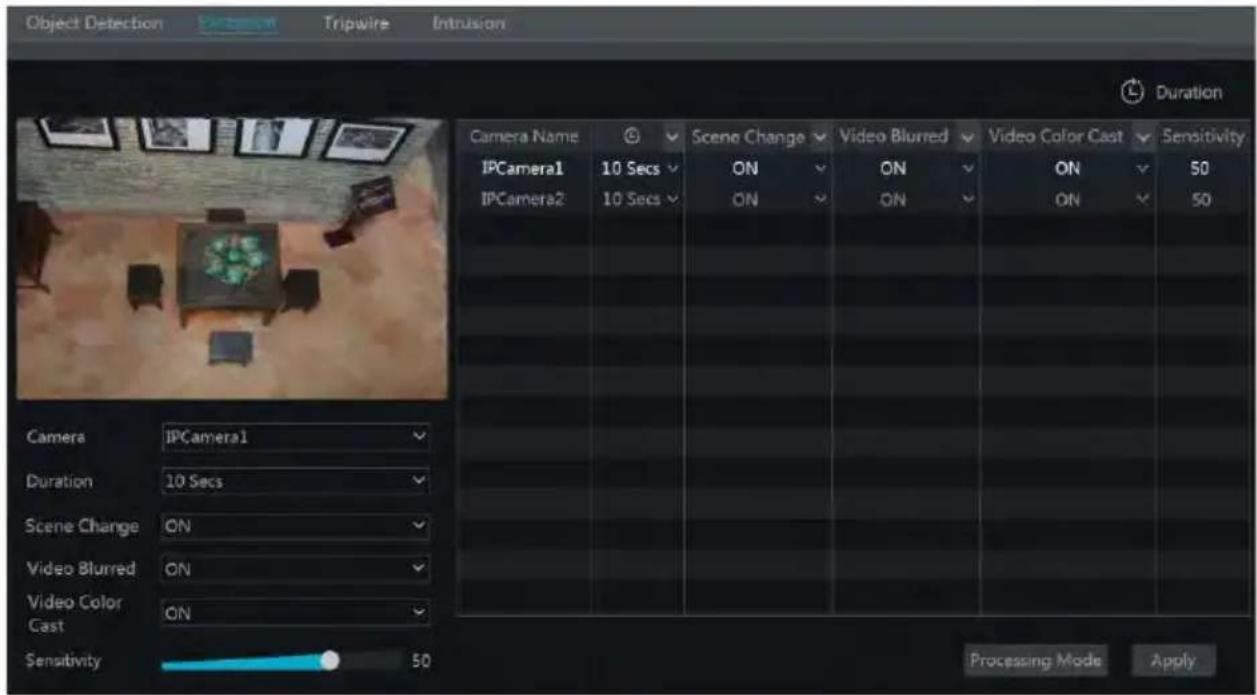

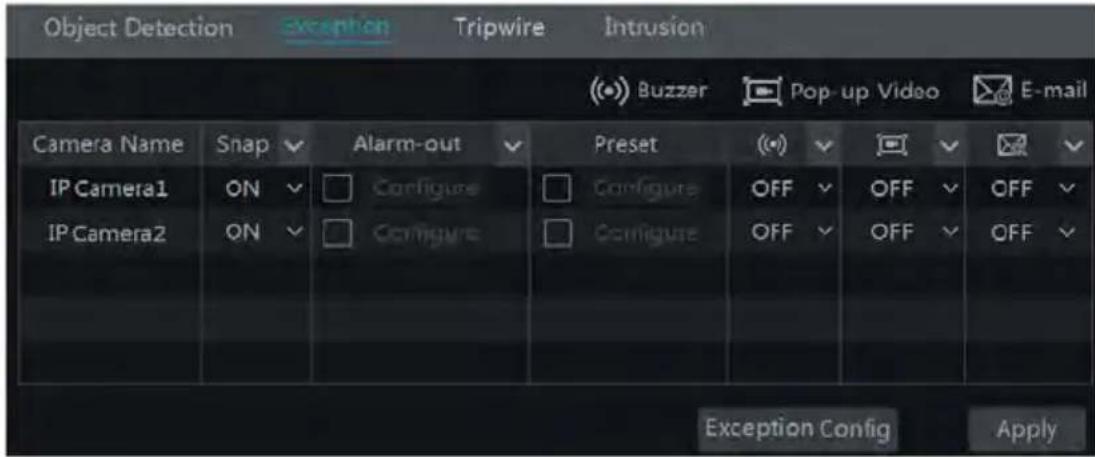

9.3.2 Exception....71

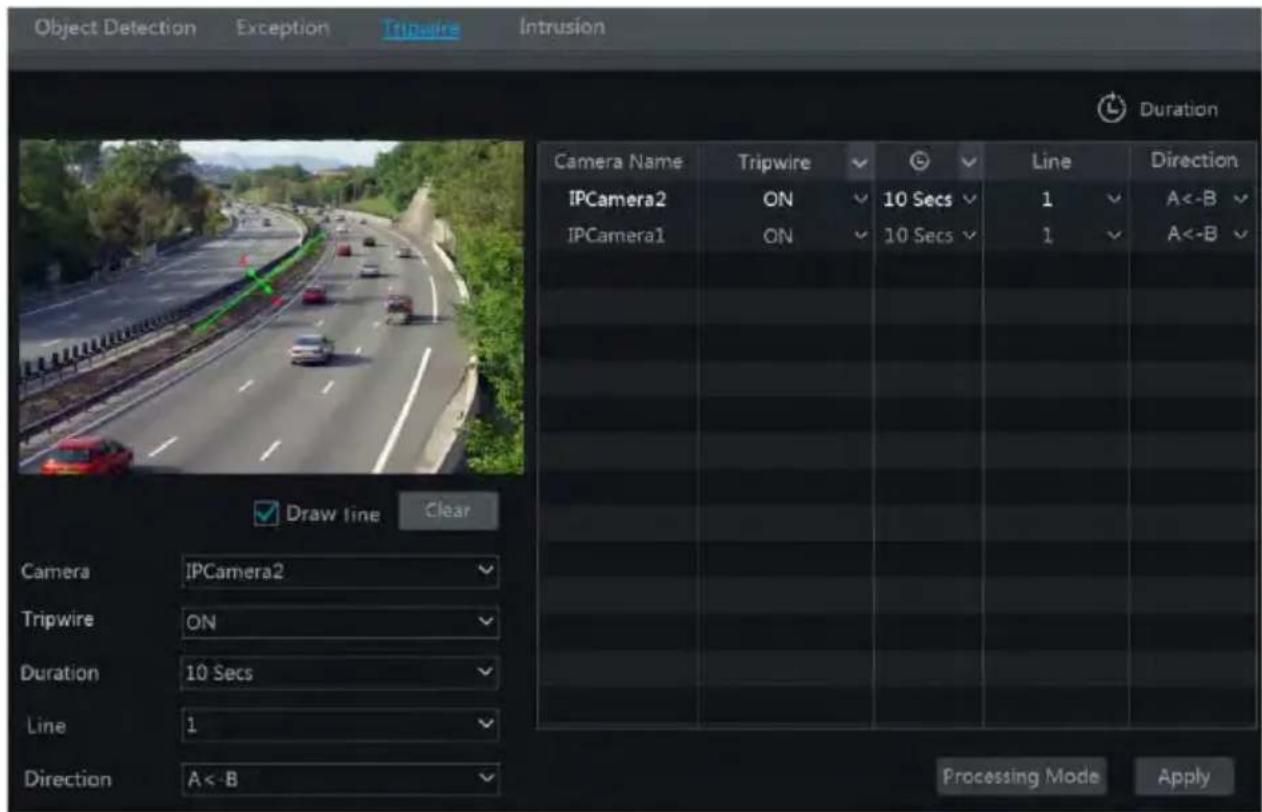

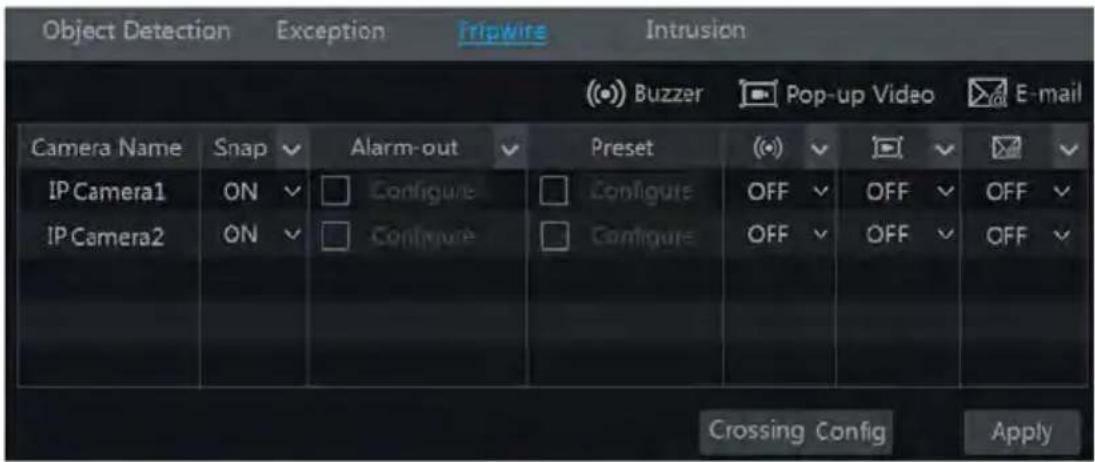

9.3.3 Tripwire 72

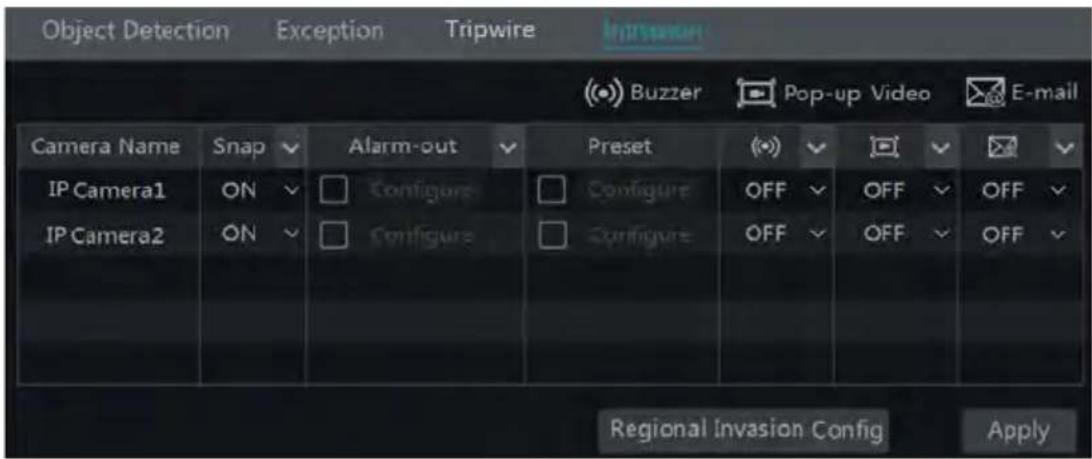

9.3.4 Intrusion Detection....73

9.4 Exception Alarm....75

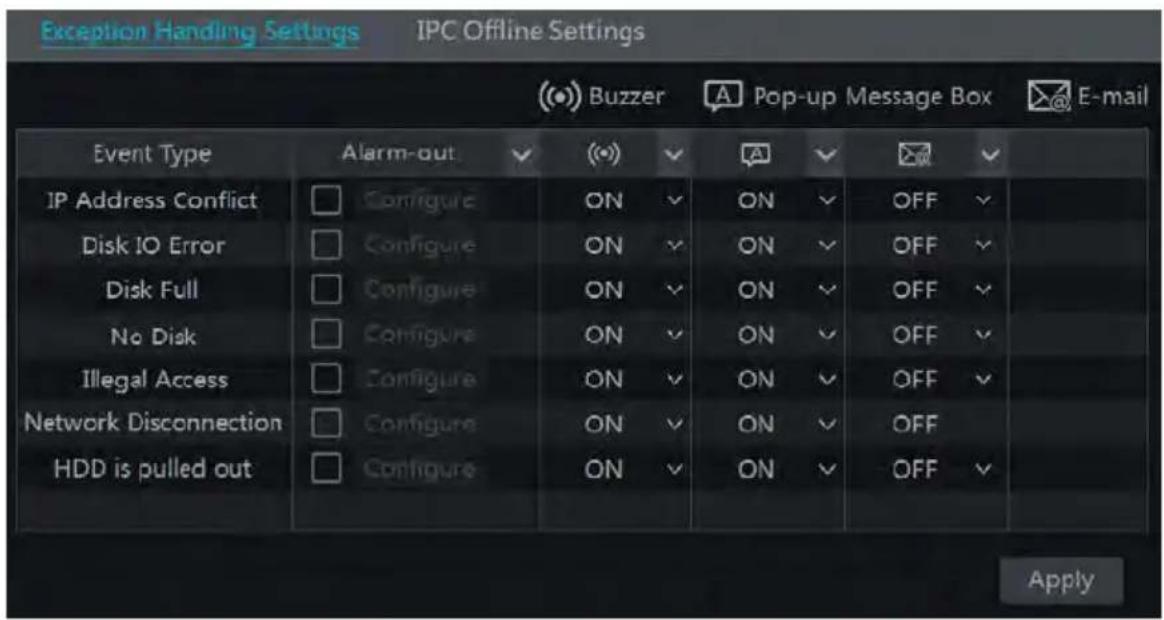

9.4.1 Exception Handling Settings 75

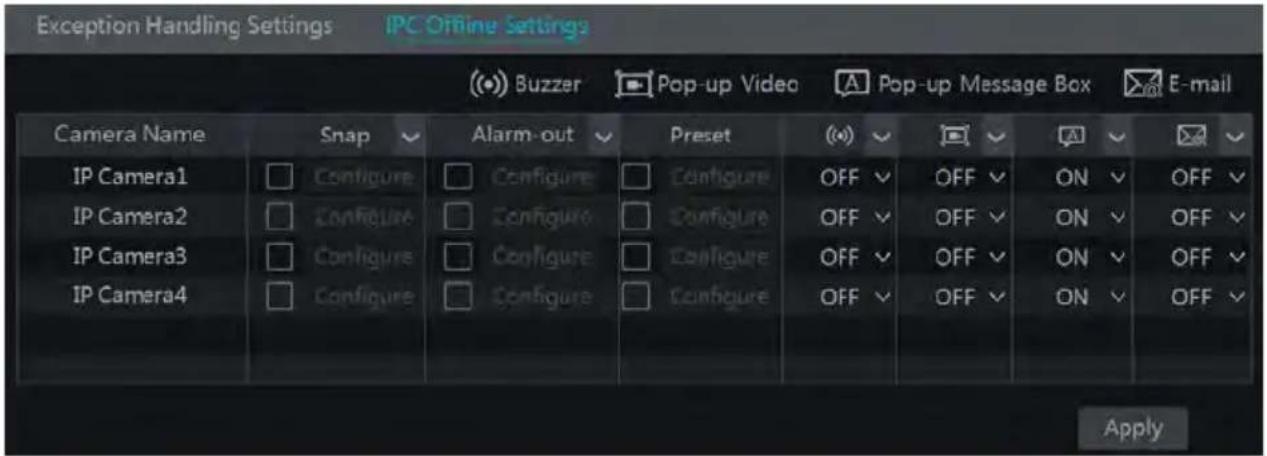

9.4.2 IPC Offline Settings....75

9.5 Alarm Event Notification 76

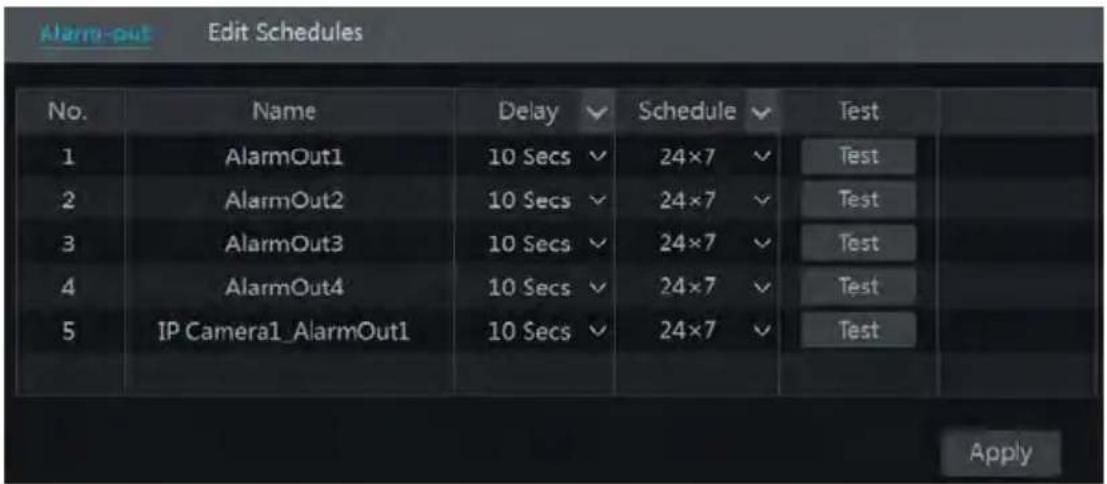

9.5.1 Alarm-out....76

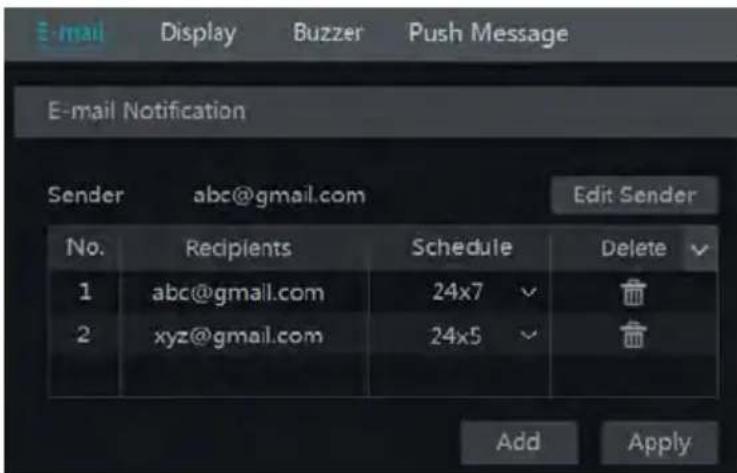

9.5.2 E-mail 76

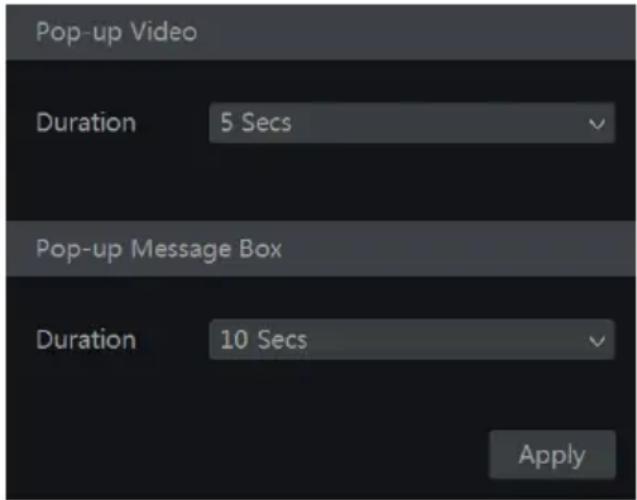

9.5.3 Display....76
9.5.4 Buzzer....77
9.5.5 Push Message....77

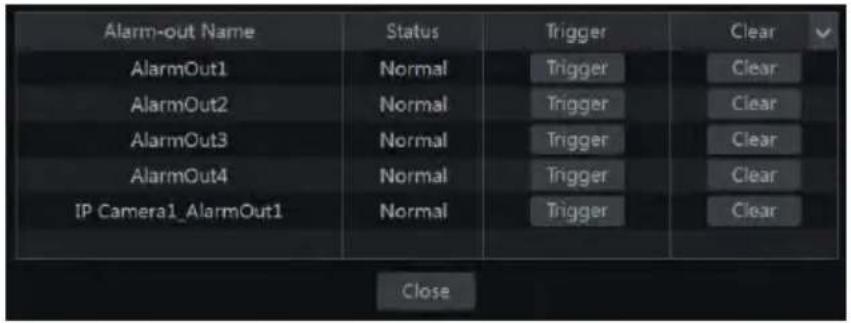

9.6 Manual Alarm 77

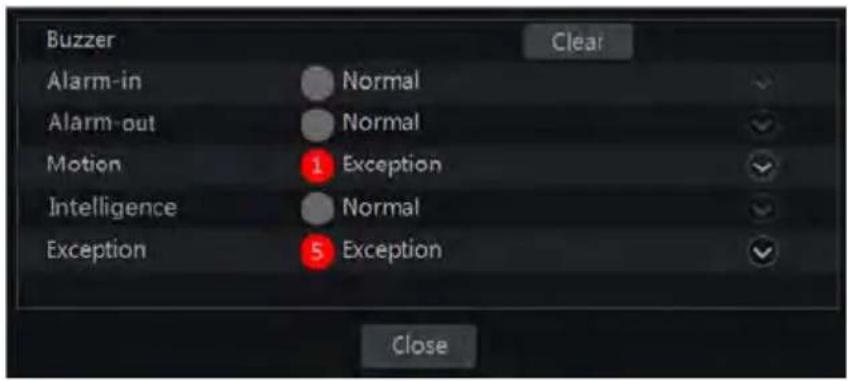

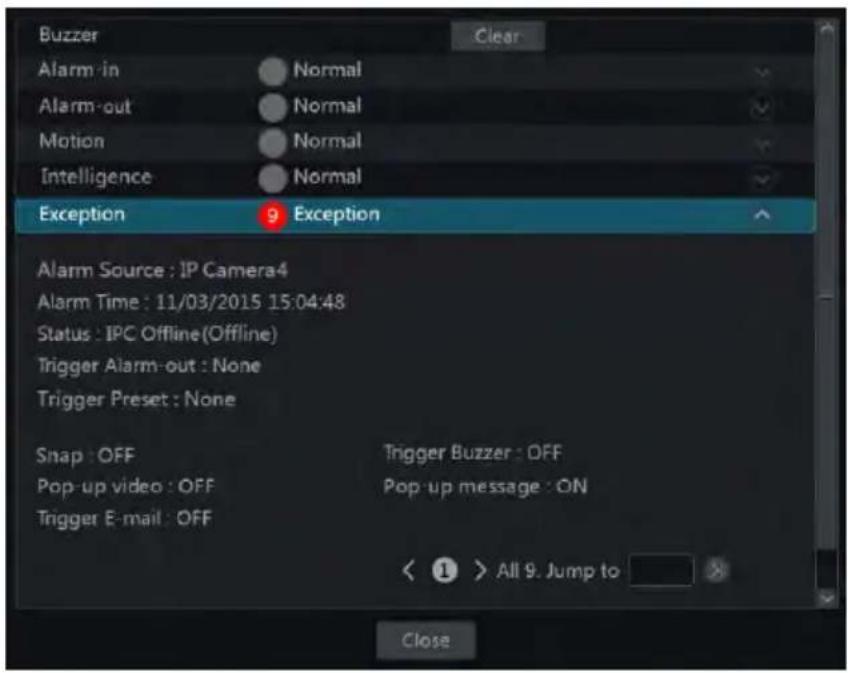

9.7 View Alarm Status....78

10 Account & Permission Management....79

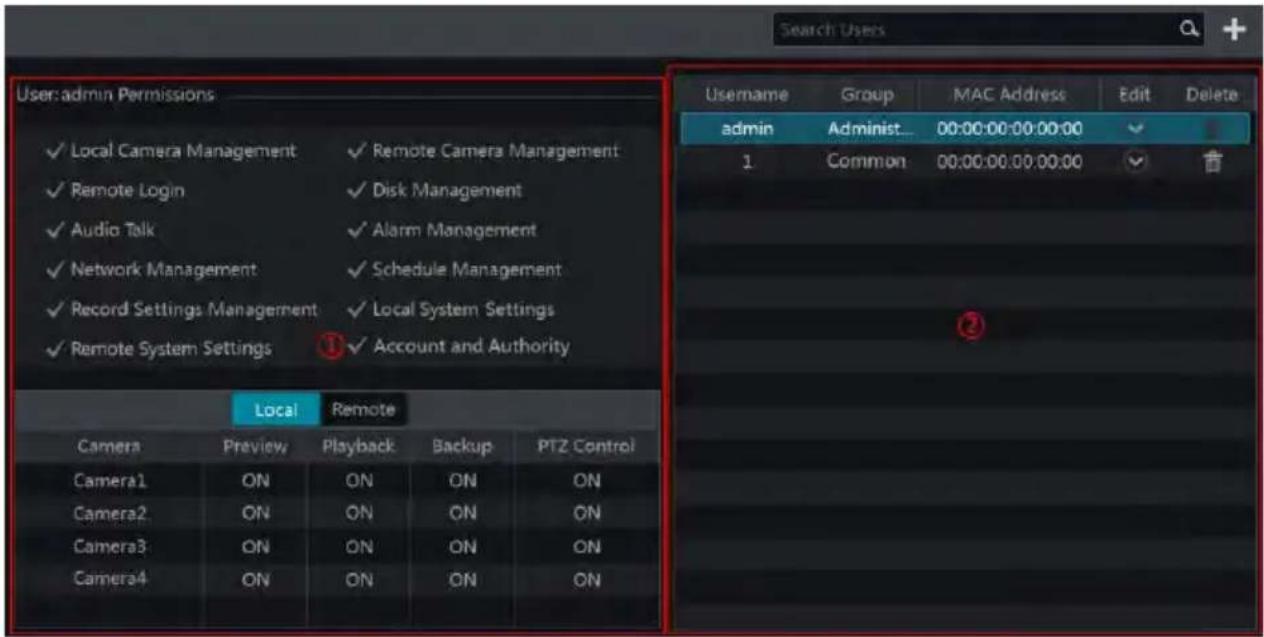

10.1 Account Management....79

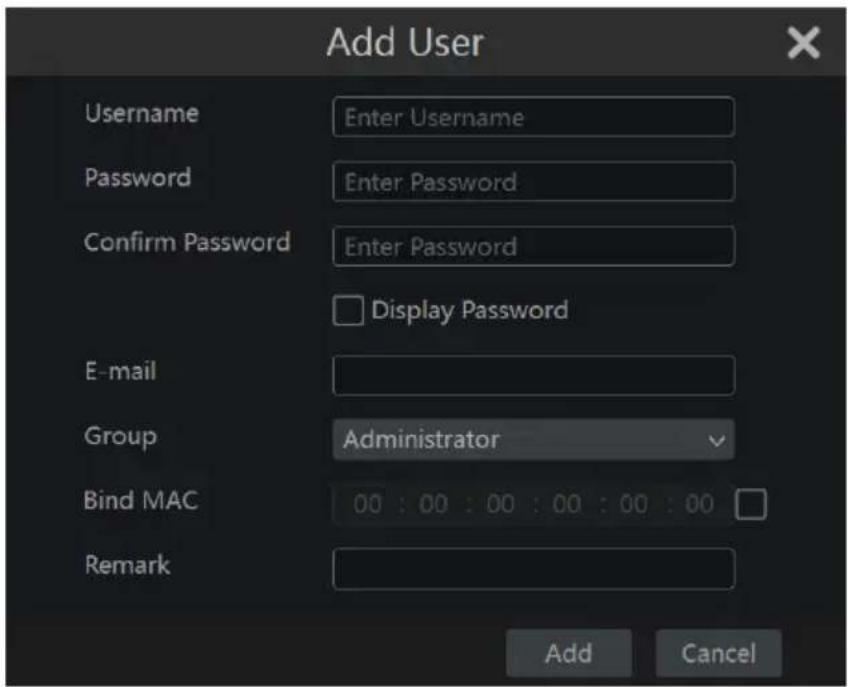

10.1.1 Add User 79

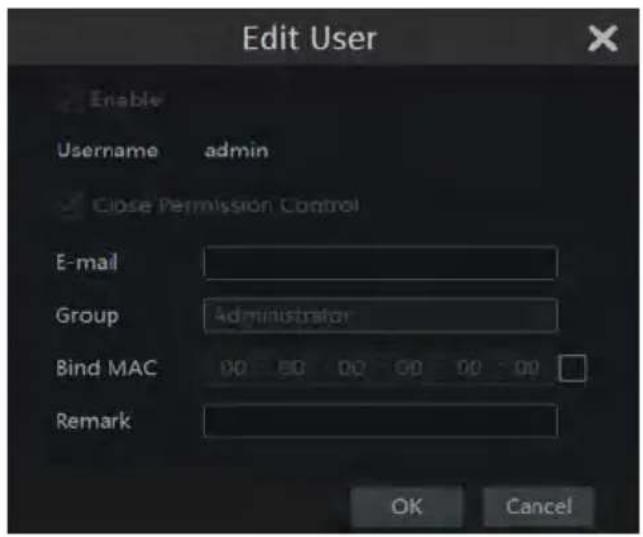

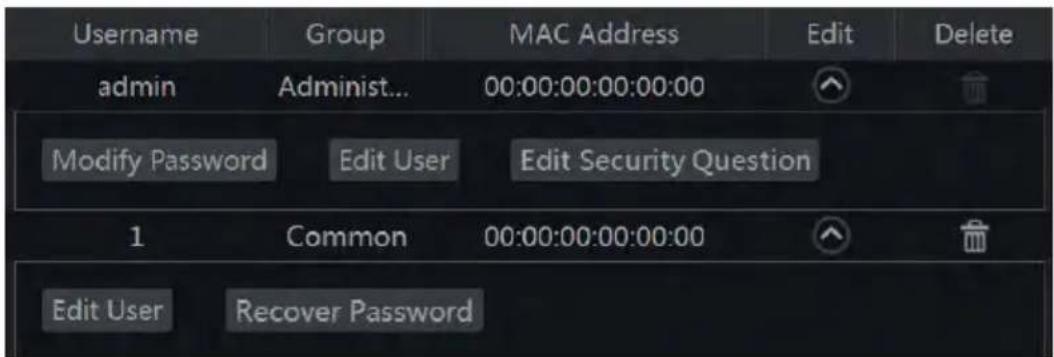

10.1.2 Edit User 80

10.2 User Login & Logout 81

10.3 Permission Management 81

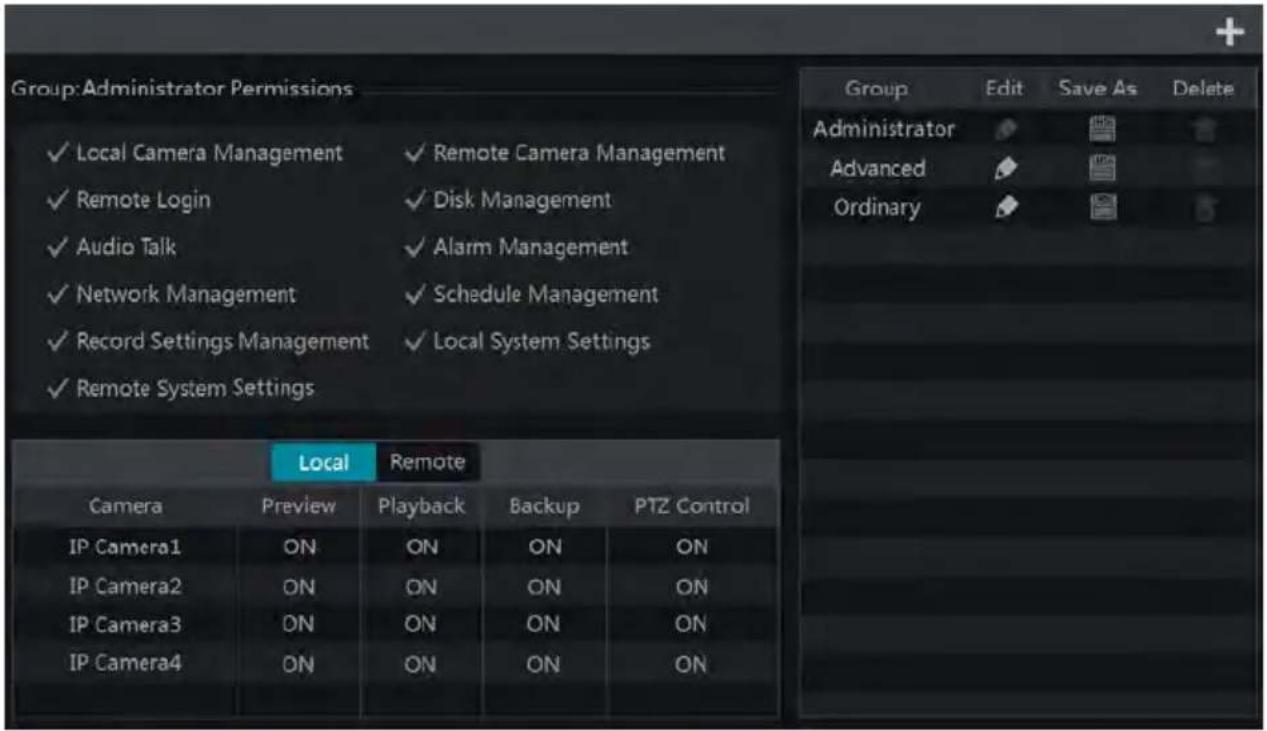

10.3.1 Add Permission Group....81
10.3.2 Edit Permission Group 83

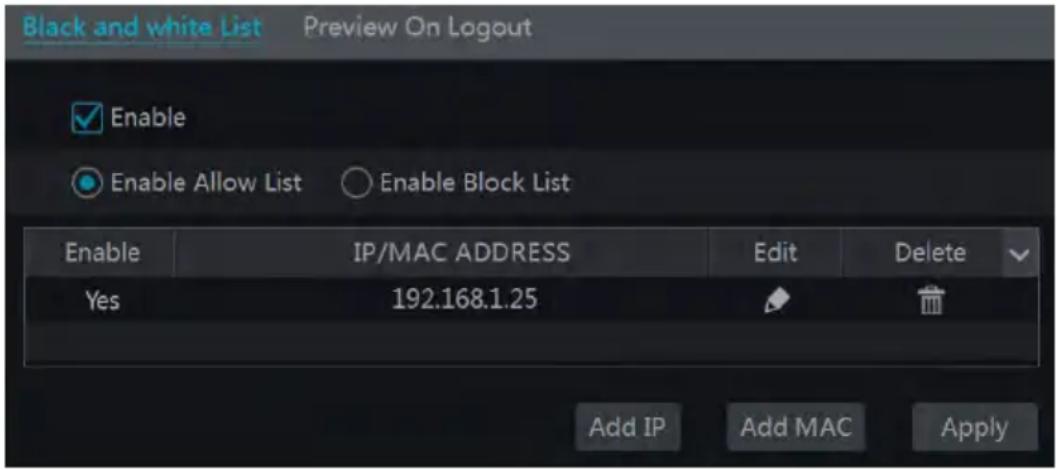

10.4 Black and White List....83

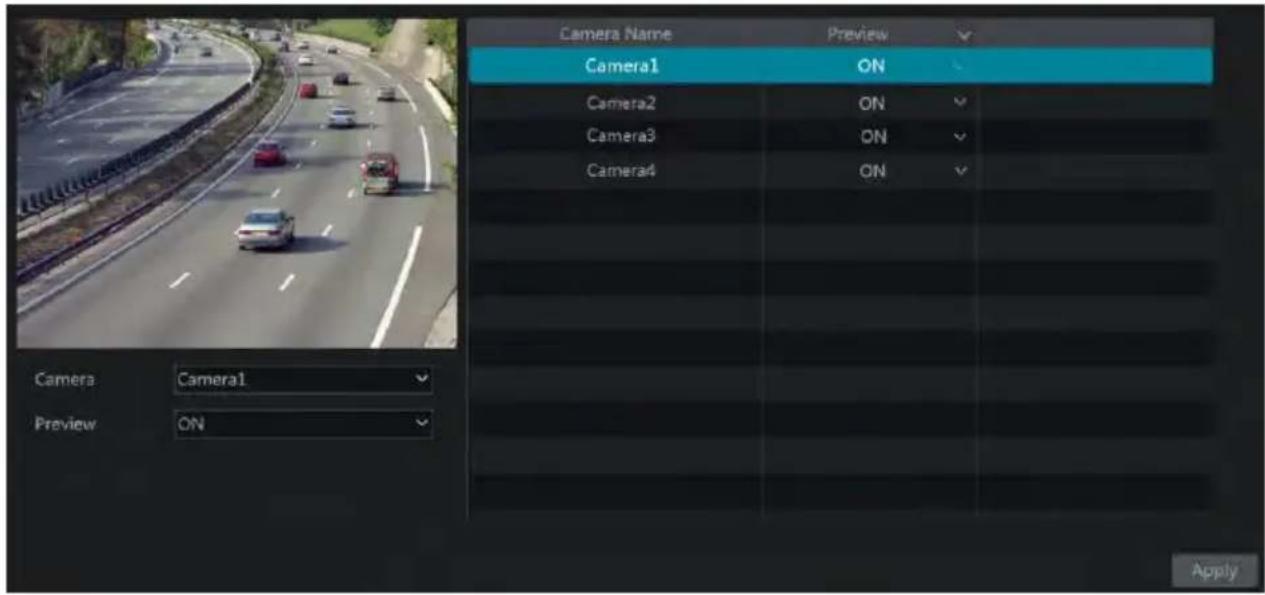

10.5 Preview On Logout 83
10.6 View Online User 84

11 Device Management 85

11.1 Network Configuration....85

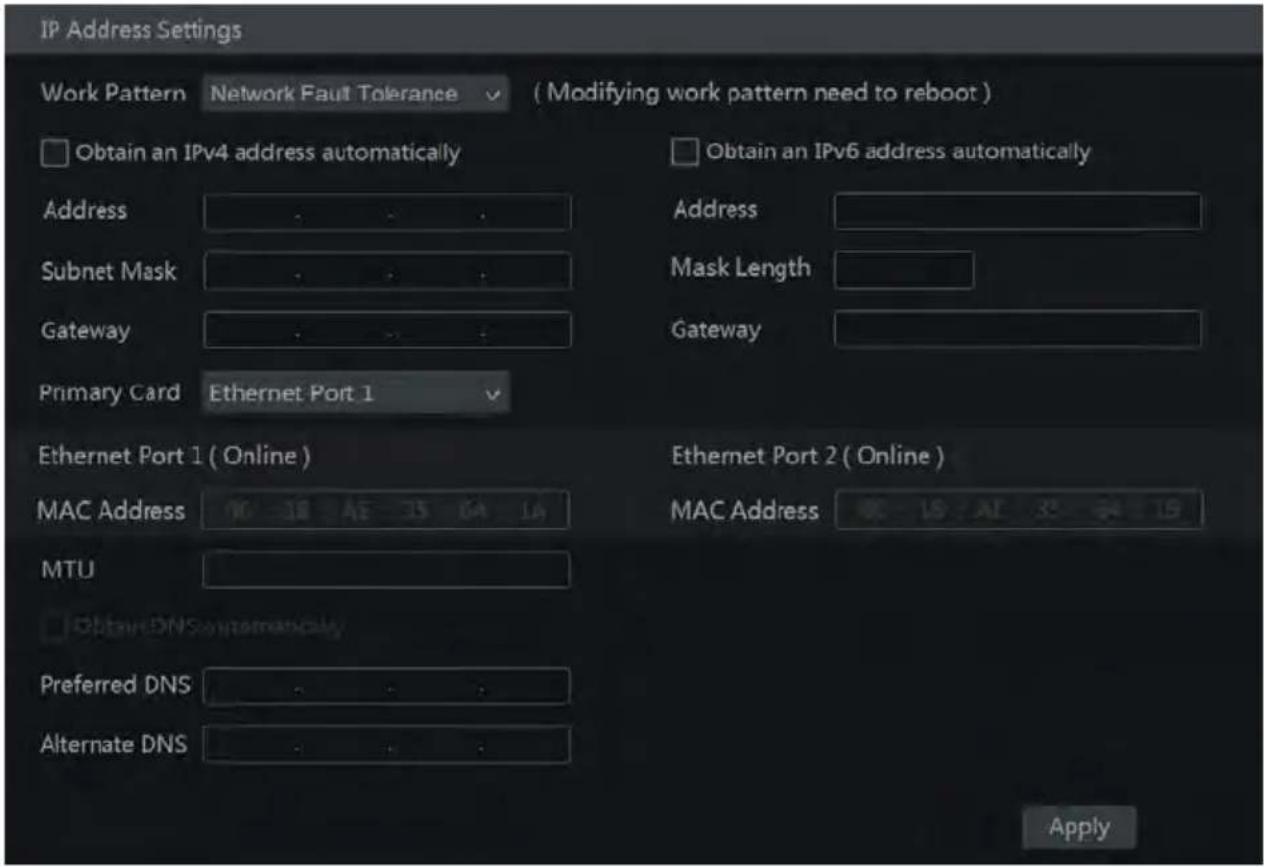

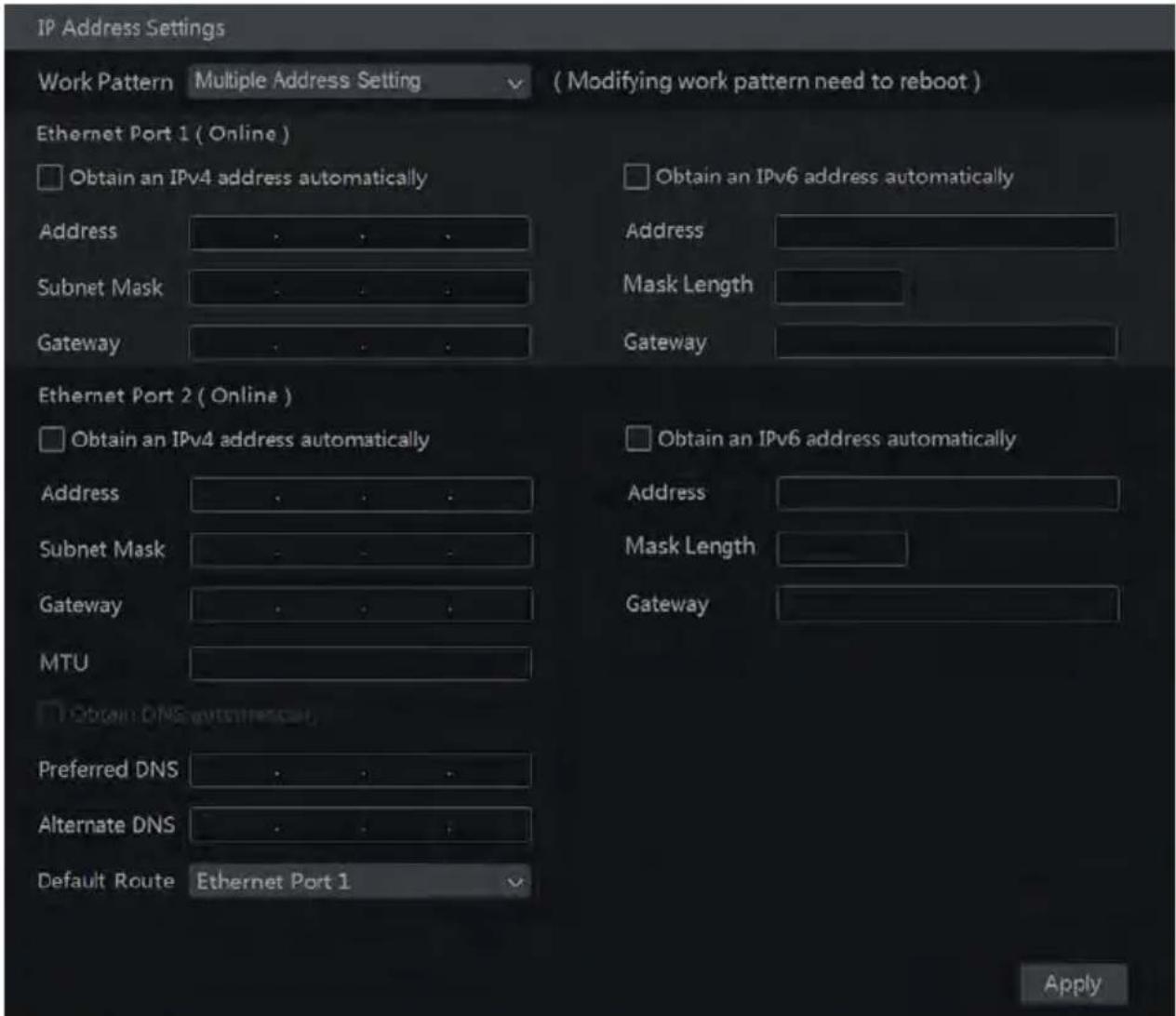

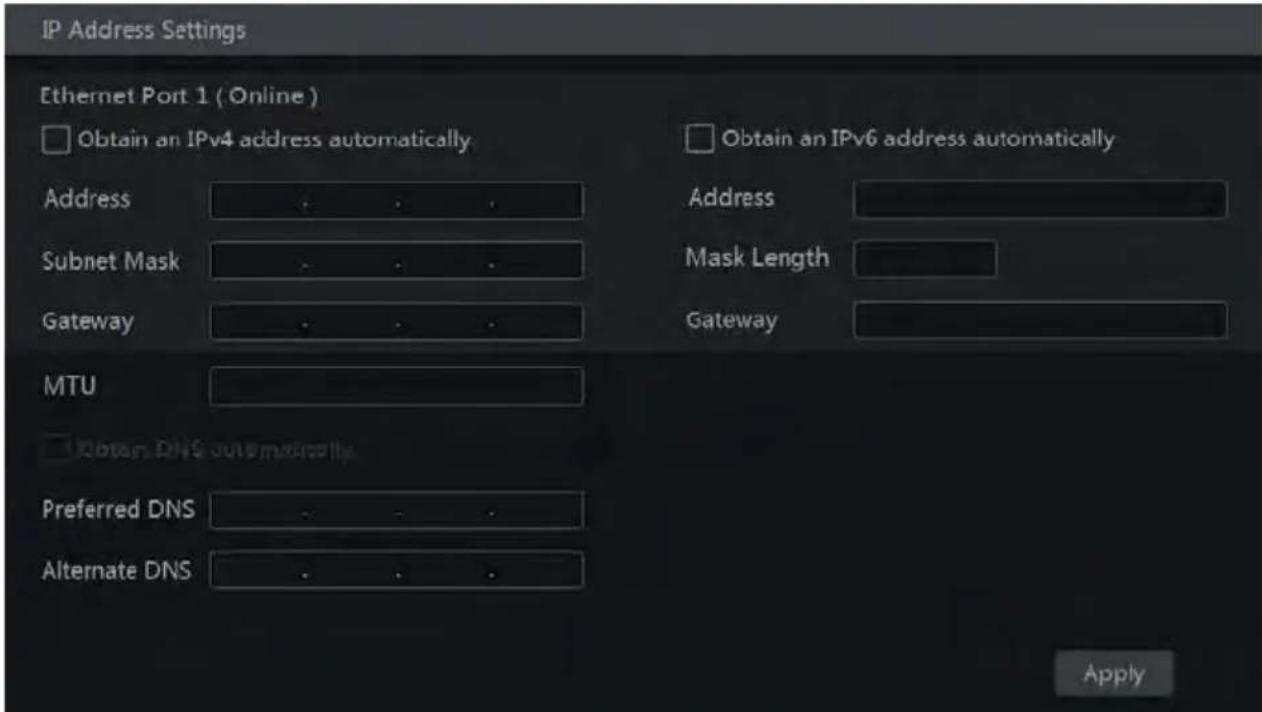

11.1.1 TCP/IP Configuration....85

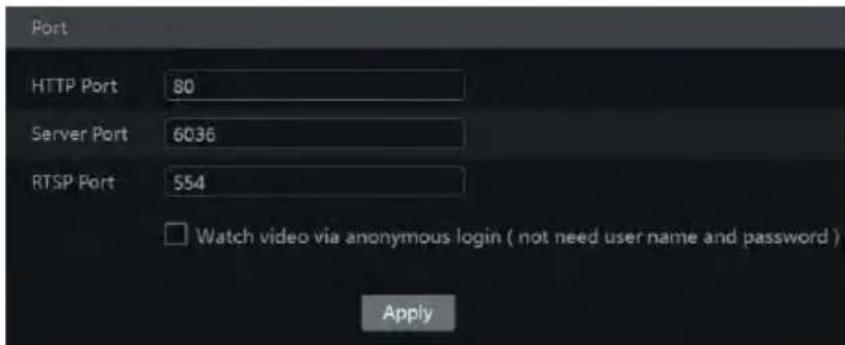

11.1.2 Port Configuration....88

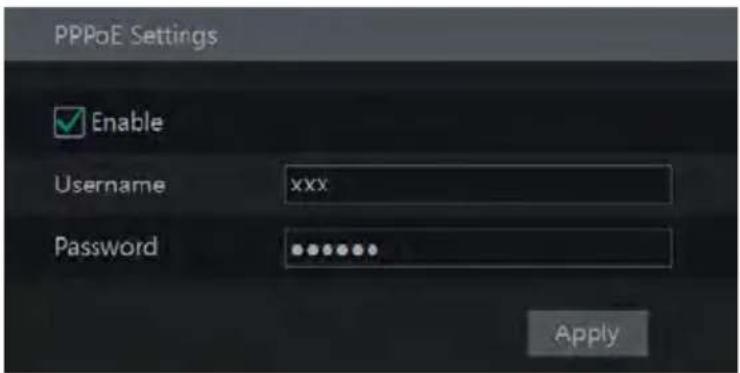

11.1.3 PPPoE Configuration 89

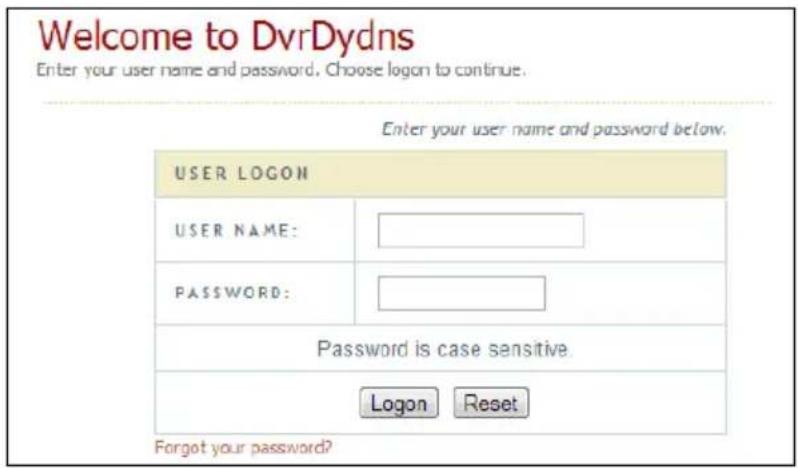

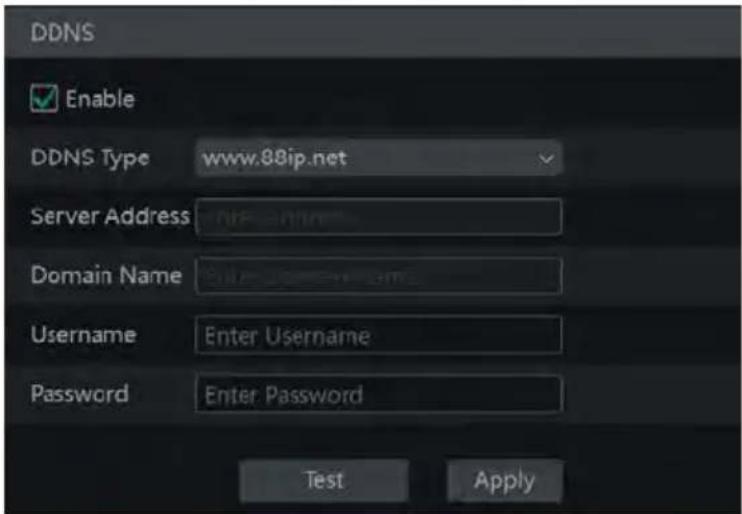

11.1.4 DDNS Configuration....89

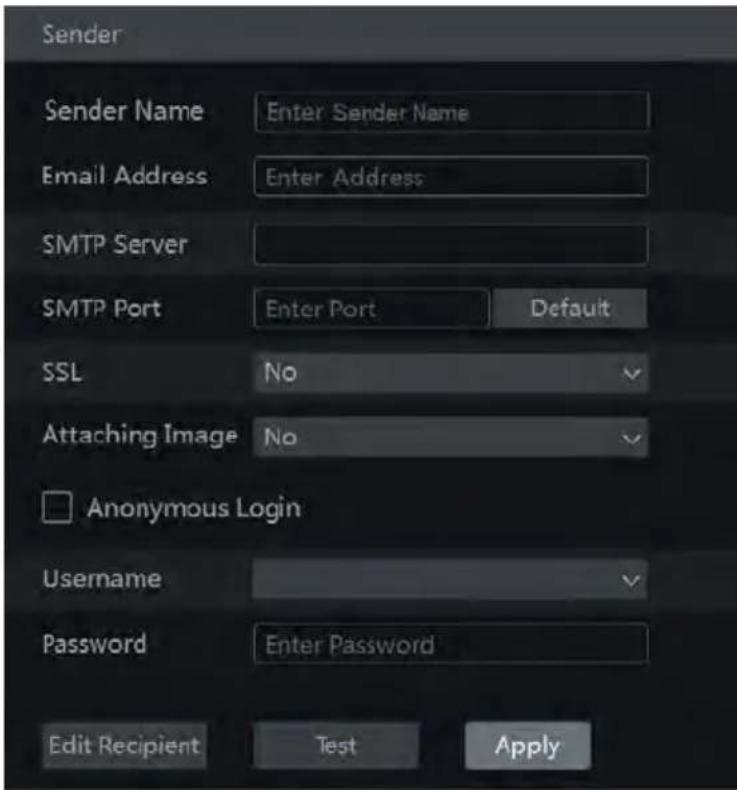

11.1.5 E-mail Configuration....91

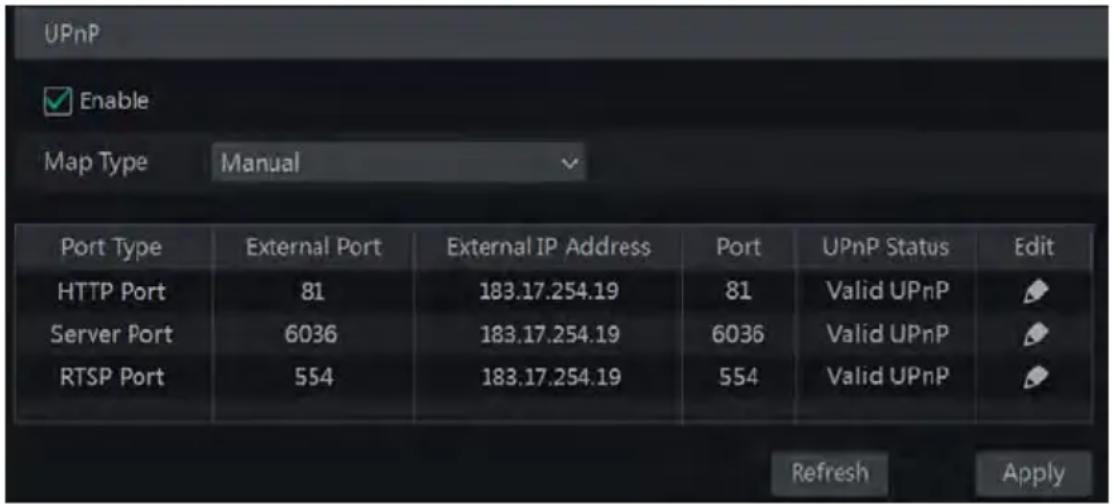

11.1.6 UPnP Configuration 93
11.1.7 NAT Configuration....93
11.1.8 View Network Status....93

11.2 Basic Configuration....93

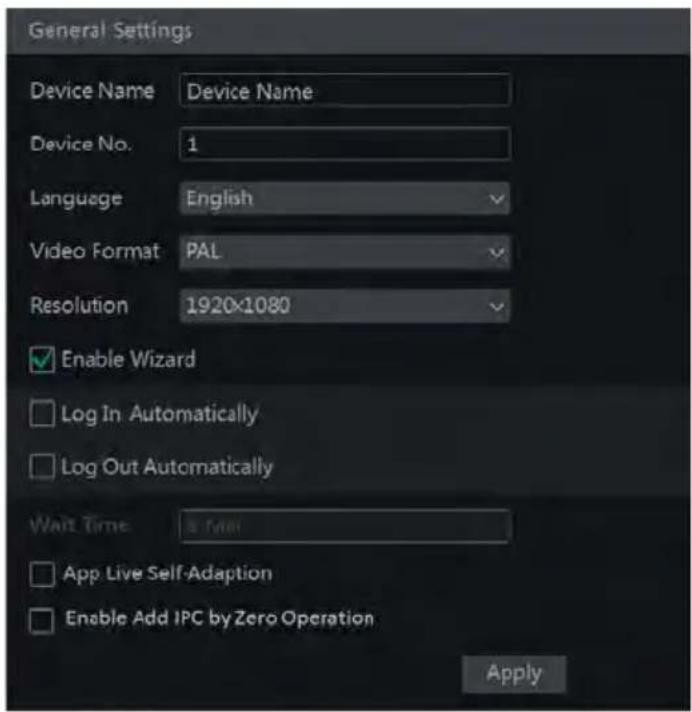

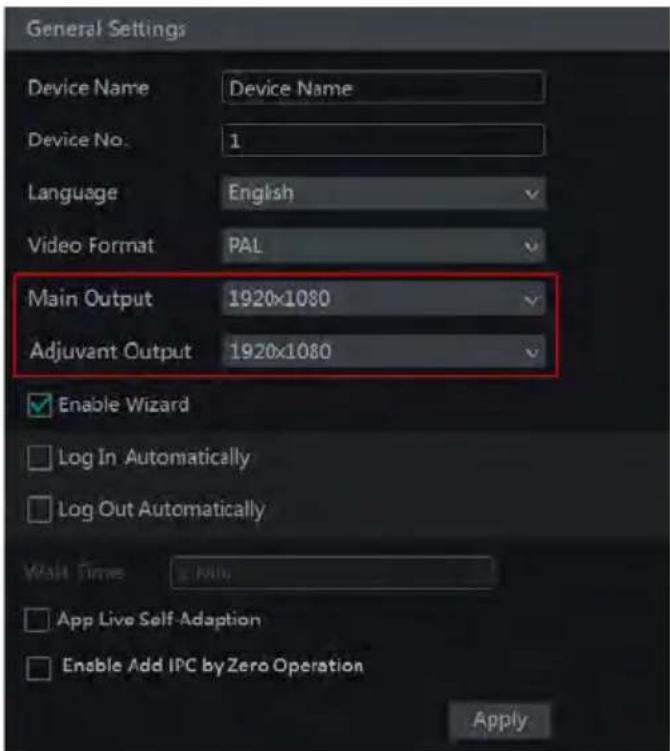

11.2.1 Common Configuration....93

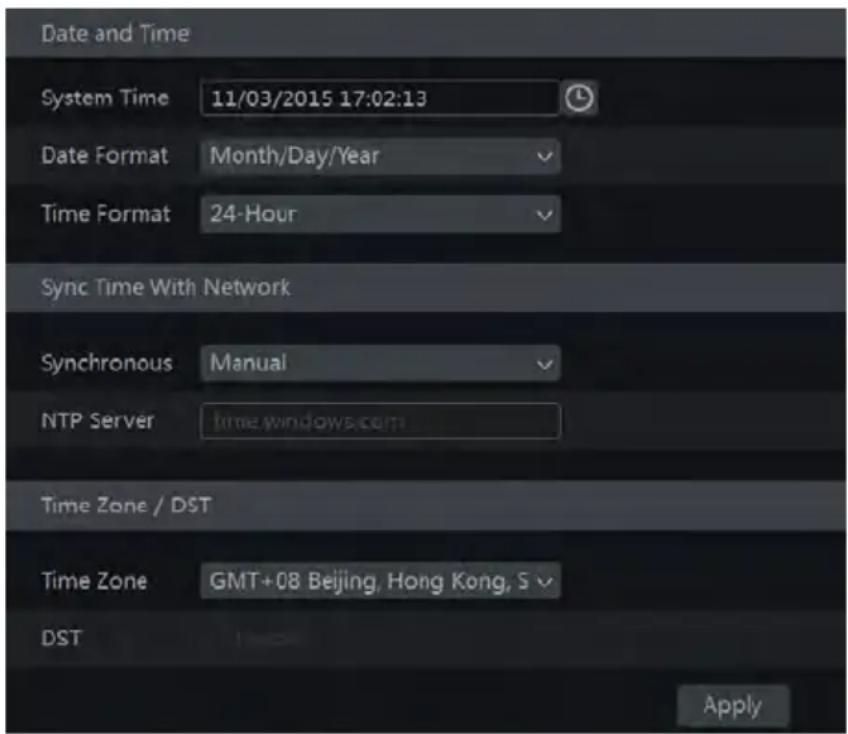

11.2.2 Date and Time Configuration 95

11.3 Factory Default....95
11.4 Device Software Upgrade....95
11.5 Backup and Restore....96

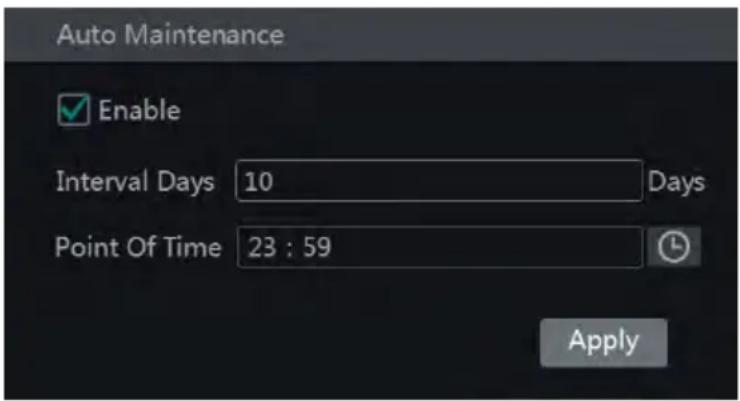

11.6 Restart Automatically....96

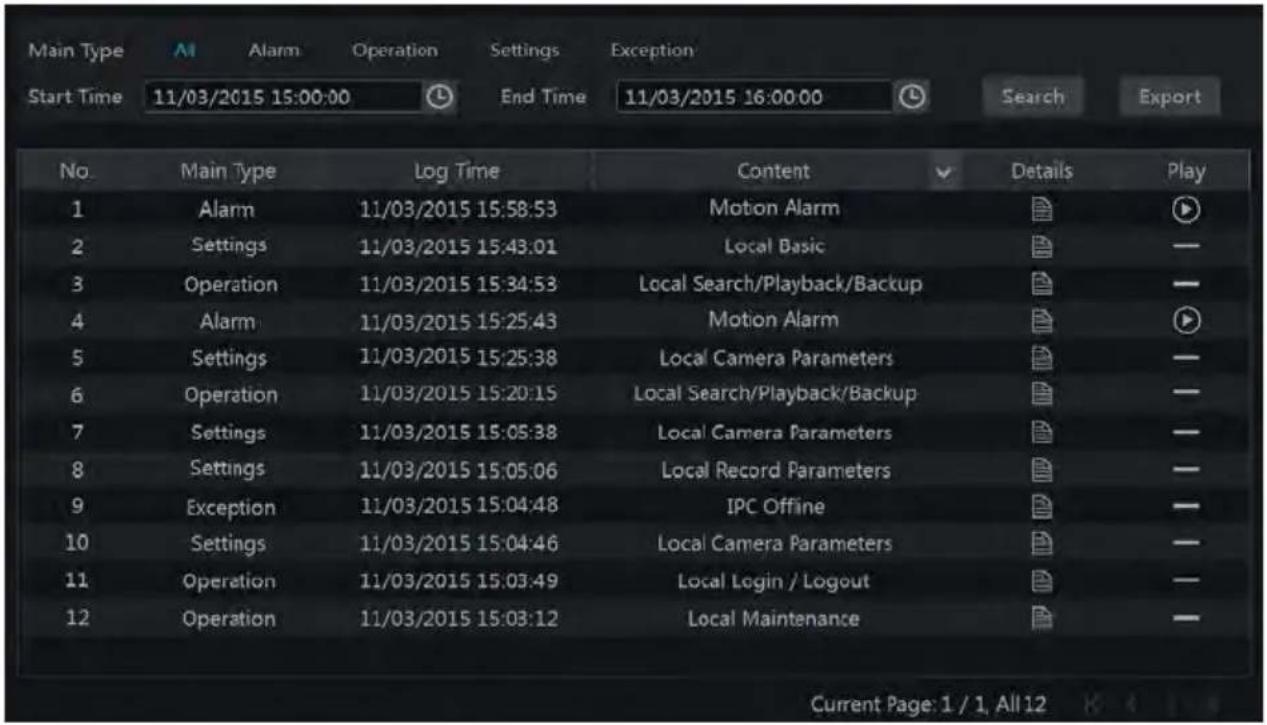

11.7 View Log....96
11.8 View System Information....97

12 Remote Surveillance....98

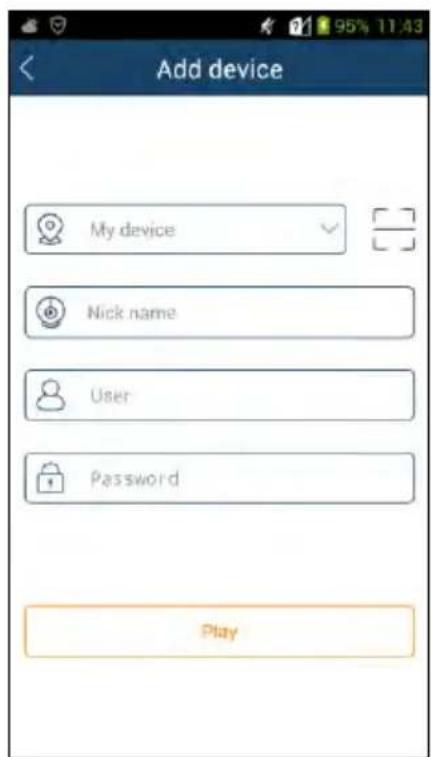

12.1 Mobile Client Surveillance....98

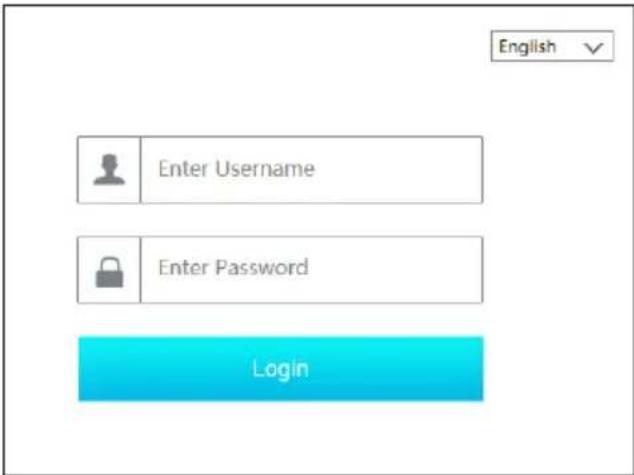

12.2 Web LAN Access 98
12.3 Web WAN Access....99

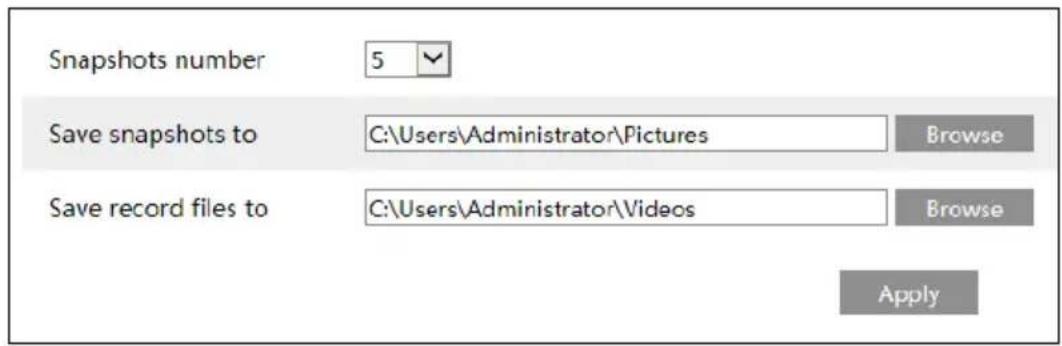

12.4 Web Remote Control....100

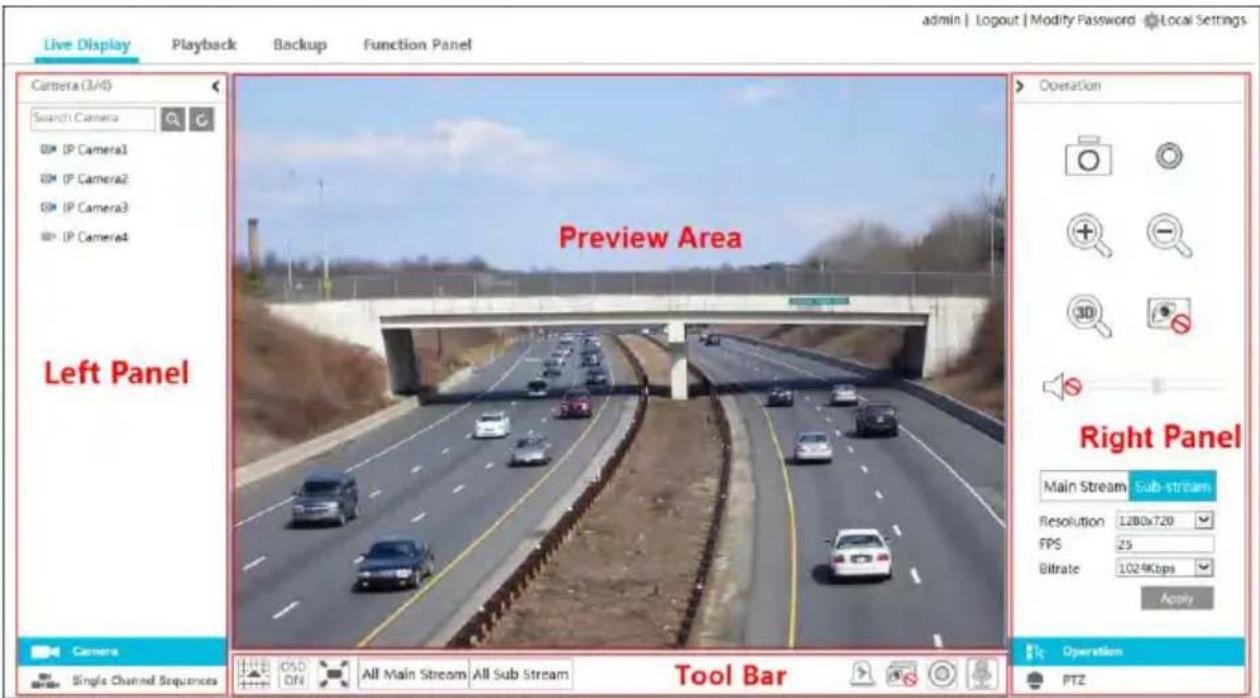

12.4.1 Remote Preview.... 101
12.4.2 Remote Playback 104
12.4.3 Remote Backup.... 105
12.4.4 Remote Configuration.... 105

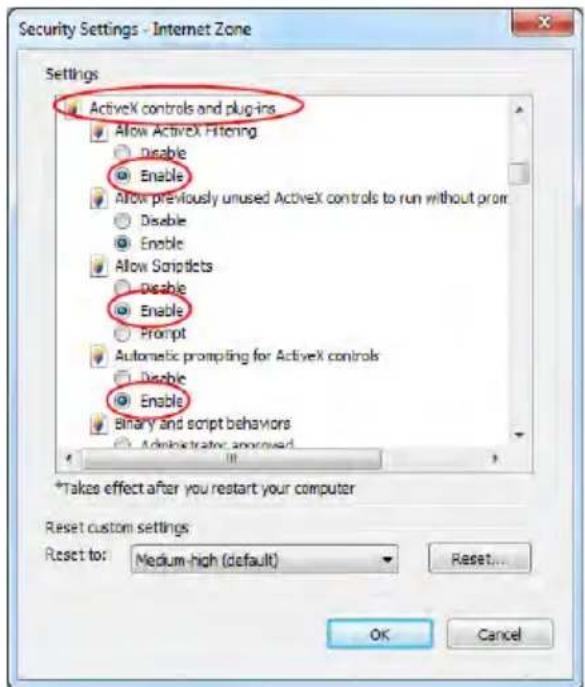

Appendix A FAQ 106

Appendix B Calculate Recording Capacity 112

Appendix C Compatible Device List.... 113

1 Introduction

1.1 Summary

Based on the most advanced SOC technology and embedded system in the field, this series of the NVR adopt the new designed human interface and support the smart management of the IP camera and the record search of slice. This series of the NVR which are powerful and easy to use are provided with excellent image quality and stable system. They are centralized monitoring management products with high performance and high quality specially designed for network video monitoring field.

This series of the NVR can be widely used to security system of banks at home and abroad, schools, intelligent mansions, traffic, environmental protection, supermarkets, petrol service stations, residential quarters and factories and so on.

1.2 Features

Basic Functions

● Support network device access including IP camera/dome and the third party IP cameras
- Some NVRs support the latest H.265 video coding stream and a mixture input of H.265 and H.264 IP cameras
● Support standard ONVIF protocol
● Support dual stream recording of each camera (max 8MP resolution)
● Support IP cameras to be added quickly or manually
- Support batch or single configuration of the cameras' OSD, video parameters, mask, motion and so on
● Support a maximum of 8 user permission groups including Administrator, Advanced and Ordinary which are the default permission groups of the system
- Support a maximum of 16 users to be created, multiple web clients login by using one username at the same time and the user's permission control to be enabled or disabled
● Support a maximum of 10 web clients login at the same time

Live Preview

● Support 4K×2K/1920×1080/1280×1024 HDMI and 1920×1080/1280×1024 VGA high definition synchronous display

● Support multi-screen modes such as 1/4/6/8/9/13/16/25/36

- Support auto adjustment of the camera's image display proportion

● Support audio monitoring of the camera to be enabled or disabled

● Support manual snap of the preview camera

● Support the sequence of the preview cameras to be adjusted

● Support display mode to be added and saved and the saved modes can be called directly

● Support quick tool bar operation of the preview window

● Support camera group view and scheme view in sequence, quick sequence view and dwell time setting

● Support motion detection and video mask

● Support multiple popular P.T.Z. control protocol and setup of the preset and cruise

● Support direct mouse control of the IP dome including rotating, zoom, focusing and so on
● Support single camera image to be zoomed by sliding the scroll wheel of the mouse
● Support any area of the image to be zoomed in to a maximum of 16 times of the current size
● Support image and lens adjustment (only available for some cameras)
● Support quick camera adding in the camera window of the live preview interface
- The live camera sequence of the web client will keep consistent with that of the NVR after adjusting the live camera sequence of the NVR, but the live camera sequence of the NVR will not be changed if that of the web client is changed

Disk Management

• The NVRs with the 3U case can add a maximum of 16 SATA HDDs; a maximum of 8 SATA HDDs with the 2U case, a maximum of 4 SATA HDDs with the 1.5U case, a maximum of 2 SATA HDDs with the 1U case and a maximum of 1 SATA HDD with the small 1U case
  ● Each SATA interface of the NVR supports the HDDs with max 8TB storage capacity
• Some of the NVRs support record to be backed up by e-SATA HDD
  ● Support disk group configuration and management and each camera can be added into different disk groups with different storage capacity
  ● Support disk information and disk working status viewing
  ● Support batch formatting of the disks

Record Configuration

● Support main stream and sub stream recording at the same time and batch or single configuration of the record stream
● Support manual and auto record modes
● Support schedule recording, sensor alarm recording and motion detection recording, etc
● Support schedule recording and event recording setting with different record streams
● Support record schedule setting and recycle recording
● Support pre recording and delay recording configuration of the event recording

Record Playback

● Support time scale operation in quick playback and the playback date and time can be set randomly by scrolling the mouse; the time interval of the time scale can be zoomed
● Support record searching by time slice/time/event/tag
● Support time view and camera view in searching by time slice mode
● Support time slice searching by month, by day, by hour and by minute and time slice to be displayed with camera thumbnail

● Support a maximum of 16 cameras to be searched by time
● Support event searching by manual/motion/sensor/intelligent events
● Support tag searching by the manual added tags
● Support instant playback of the selected camera in the live preview interface
● Support a maximum of 16 synchronous playback cameras
- Support acceleration(maximum 32 times of the normal speed), deceleration (minimum 1/32 times of the normal speed) and 30s' addition or reduction to current playing time

Record Backup

● Support record to be backed up through USB (U disk, mobile HDD) or e-SATA interface
● Support record to be backed up by time/event/image searching
● Support record cutting for backing up when playing back
● Support a maximum of 10 backup tasks in background and backup status viewing

Alarm Management

● Support alarm schedule setting
- Support enabling or disabling of the motion detection, external sensor alarm input, intelligence alarm and exception alarms including IP address conflict alarm, disk IO error alarm, disk full alarm, no disk alarm, illegal access alarm, network disconnection alarm, IPC offline alarm and so on, alarm trigger configuration supportable
● Support IPC offline alarm trigger configuration of PTZ, snap, pop-up video, etc.
● Support event notification modes of alarm-out, pop-up video, pop-up message box, buzzer, e-mail and so on
● The snapped images can be attached into the e-mail when alarm linkage is triggered
● Support alarm status view of alarm-in, alarm-out, motion detection and exception alarm
● Support alarm to be triggered and cleared manually
● Support system auto reboot when exception happens

Network Functions

● Support TCP/IP and PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP protocol and so on
● Support allow and block list function and the allow and block IP address/IP segment/MAC address can be set
● Support multiple browsers including IE8/9/10/11, Firefox, Opera, Chrome (available only for the versions lower than 45) and Safari in MAC system
● Support remote achievement, configuration, import and export of the NVR parameters and other system maintenance operations including remote upgrading and system restart
● Support remote camera configuration of the NVR including video parameters, image quality and so on
● Support remote searching, playback and backup of the NVR
● Support manual alarm to be triggered and cleared remotely
- The auto-focusing camera can be adjusted through web client (support zoom in/out, but one key focus is not currently supported)
● Support NVMS or other platform management software to access the NVR and manage it

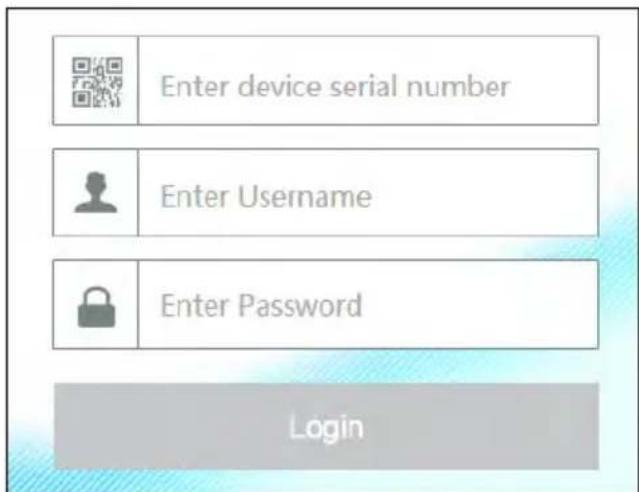

● Support NAT function and QRCode scanning by mobile phone and PAD
● Support mobile surveillance by phones or PADs with iOS or Android OS
● Support NVR to be accessed remotely through telnet and the telnet function can be enabled or disabled
- If one camera recording is enabled or disabled manually through web client, it will be simultaneously enabled or disabled in the NVR

Other Functions

• The NVR can be controlled and operated by the buttons on the front panel, the remote controller and the mouse
• Setting interfaces can be switched to one another conveniently by clicking the main menus

on the top of the setting interfaces

● Support NVR information viewing including basic, camera status, alarm status, record status, network status, disk and backup status

● Support factory restoring, import and export of the system configuration, log view and export and local upgrading by USB mobile device

- Support auto recognition of the displayer's resolution

● You can click the right mouse button at any interface to go back to the upper interface

● You can click the middle mouse button at any interface to go to the live view interface

● The display language and video format of the NVR will not be changed and the system logs will be reserved if you reset the NVR to factory default

- Press and hold the right mouse button for 5 seconds in any interface to switch the output to VGA and the NVR will display the video at the lowest resolution which the NVR supports

1.3 Front Panel Descriptions

The following descriptions are for reference only.

Type I:

Name	Descriptions
REC	When recording, the light is blue
Net	When access to network , the light is blue
Power	Power indicator, when connection , the light is blue
Fn	No function temporarily

Type II:

Name	Descriptions
Power	Power Indicator, when connected, the light is blue
HDD	The light turns blue when reading/writing HDD
Net	The light turns blue when it is able to access the network
Backup	The light turns blue when backing up files and data
Play	The light turns blue when playing video
REC	Power Indicator, when connected, the light is blue
AUDIO /+	1. Adjust audio 2. Increase the value in setup
P.T.Z / -	1. Enter PTZ mode 2. Decrease the value in setup
MENU	Enter Menu in live
INFO	Check the information of the device
BACKUP	Enter backup mode in live
SEARCH	Enter search mode in live
Exit	Exit the current interface
	Manually record
	Play/Pause
	Speed down
	Speed up
1-9	Input digital number and select camera
0/--	Input number 0, the number above 10
Direction Key	Change direction
Multi-Screen Switch	Change the screen mode
Enter	Confirm selection
USB	To connect external USB device like USB mouse or USB flash

1.4 Rear Panel Descriptions

Here we only take a part of real panels for example to introduce their interfaces and connections. The interfaces and locations of the interfaces are only for references. Please take the real object as the standard.

1 2 3 ALARM OUT AUDIO IN DC12V LAN VGA HDMI USB3.0 AUDIO OUT RS485 4 5 6 7 8 9 10 11

No.	Name	Descriptions
1	ALARM OUT	Relay output; connect to external alarm
2	GND	Grounding
3	AUDIO IN	Audio input; connect to audio input device, like microphone, pickup, etc
4	DC12V	DC12V power input
5	LAN	Network port
6	VGA	Connect to monitor
7	ALARM IN	Alarm inputs for connecting sensors
8	HDMI	Connect to high definition display device
9	USB	Connect USB storage device or USB mouse
10	AUDIO OUT	Audio output; connect to sound box
11	RS485	Connect to keyboard. A is TX+; B is TX-

Labeled diagram of a computer rack showing ports, indicators, and warning labels in Chinese

No.	Name	Descriptions
1	VGA	Connect to monitor
2	e-SATA	Connect to HDD with e-SATA interface
3	RS485 Y/Z interface	Unavailable right now
4	RS485 A/B interface	Connect to keyboard. A is TX+; B is TX-
5	AUDIO OUT	Audio output; connect to sound box
6	LAN	Network port
7	HDMI	Connect to high definition display device
8	USB	Connect USB storage device or USB mouse
9	GND	Grounding
10	ALARM OUT	Relay output; connect to external alarm
11	ALARM IN	Alarm inputs for connecting sensors
12	AUDIO IN	Audio input; connect to audio input device, like microphone, pickup, etc
13	Power Switch	Press the switch to turn on/off the NVR
14	Power Supply	Power supply interface

Labeled diagram of a computer rack showing ports, connectors, and hardware components with numbered annotations

No.	Name	Descriptions
1	VGA	Connect to monitor
2	RS485 Y/Z interface	Unavailable right now
3	ALARM OUT	Relay output; connect to external alarm
4	GND	Grounding
5	AUDIO OUT	Audio output; connect to sound box
6	e-SATA1/ e-SATA2	Connect to HDD with e-SATA interface
7	LAN1/LAN2	Network port
8	HDMI1	Connect to 4K×2K high definition display device
9	USB3.0/USB	USB3.0 and USB 2.0 interface, connect USB storage device or USB mouse
10	HDMI2	Connect to 1920×1080 high definition display device
11	RS485 A/B interface	Connect to keyboard. A is TX+; B is TX-
12	ALARM IN	Alarm inputs for connecting sensors
13	AUDIO IN	Audio input; connect to audio input device, like microphone, pickup, etc
14	Power Switch	Press the switch to turn on/off the NVR
15	Power Supply	Power supply interface

PoE Ports DC4EV LAN VGA HDMI USB3.9 AUDIO OUT AUDIO IN DC12V ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

No.	Name	Descriptions
1	Power Supply	DC48V power supply interface
2	PoE port	8 PoE network ports; connect to 8 PoE IP cameras
3	LAN	Network port
4	VGA	Connect to monitor
5	HDMI	Connect to 1920×1080 high definition display device
6	USB3.0	USB3.0 interface, connect USB storage device or USB mouse
7	AUDIO IN	Audio input; connect to audio input device, like microphone, pickup, etc
8	AUDIO OUT	Audio output; connect to sound box
9	Power Supply	DC12V power supply interface

Labeled diagram of an electronic device rear panel showing ports, connectors, and warning labels in Chinese.

No.	Name	Descriptions
1	e-SATA	Connect to HDD with e-SATA interface
2	LAN1/LAN2	Network port
3	HDMI2	Connect to 1920×1080 high definition display device
4	USB	USB interface, connect USB storage device or USB mouse
5	HDMI1	Connect to 4K×2K high definition display device
6	VGA	Connect to monitor
7	RS485 Y/Z interface	Unavailable right now
8	RS485 A/B interface	Connect to keyboard. A is TX+; B is TX-
9	ALARM OUT	Relay output; connect to external alarm
10	GND	Grounding
11	ALARM IN	Alarm inputs for connecting sensors
12	AUDIO IN	Audio input; connect to audio input device, like microphone, pickup, etc
13	AUDIO OUT	Audio output; connect to sound box
14	Power Switch	Press the switch to turn on/off the NVR
15	Power Supply	Power supply interface

1.5 Connections

- Video Connections

Video Output: Supports VGA/HDMI video output. You can connect to monitor through these video output interfaces simultaneously or independently.

● Audio Connections

Audio Input: Connect to microphone, pickup, etc.

Audio Output: Connect to headphone, sound box or other audio output devices.

- Alarm Connections

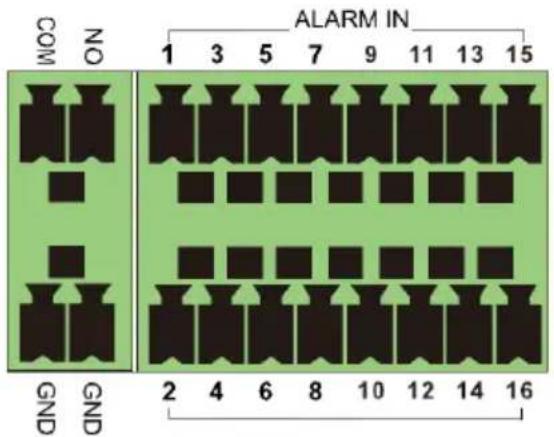

Some models may support this function. Take 16 CH alarm inputs and 1 CH alarm output for example.

ALARM IN 1 3 5 7 9 11 13 15 GND GND 2 4 6 8 10 12 14 16

Alarm Input:

Alarm IN 1\~16 are 16 CH alarm input interfaces. There are no type requirements for sensors. NO type and NC type are both available.

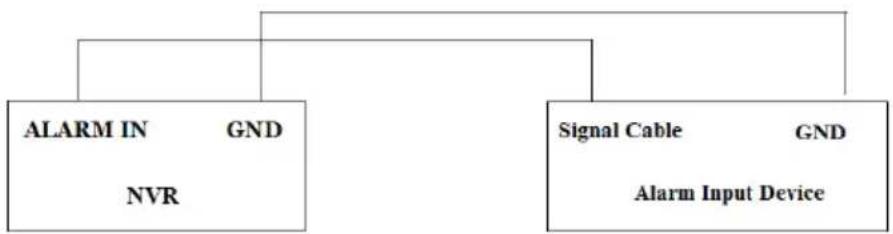

The way to connect sensor and the device is as shown below:


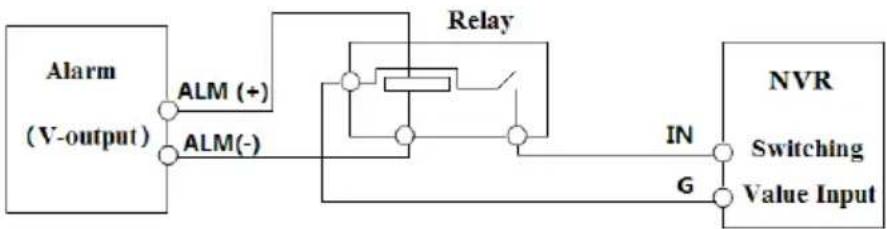

The alarm input is an open/closed relay. If the input is not an open/closed relay, please refer to the following connection diagram:

Alarm Output:

The way to connect alarm output device:

Pull out the green terminal blocks and loosen the screws in the alarm-out port. Then insert the signal wires of the alarm output devices into the port of NO and COM separately. Finally, tighten the screws. Provided that the external alarm output devices need power supply, you can connect the power supply as per the following figures.

NVR NO COM DC

- RS485 Connection

There are two types of RS485 interfaces:

RS485 P/Z K/B Y Z A B

(Type 1)

B A
RS485
(Type 2)

Type 1: The P/Z interfaces are unavailable temporarily. K/B interfaces are used to connect keyboard.

Type 2: The RS485 interfaces are used to connect keyboard. A is TX+; B is TX-.

2 Basic Operation Guide

2.1 Startup & Shutdown

Please make sure all the connections are done properly before you power on the unit. Proper startup and shutdown are crucial to expending the life of your device.

2.1.1 Startup

① Connect the output display device to the VGA/HDMI interface of the NVR.
② Connect with the mouse and power. The device will boot and the power LED would turn blue.
③ A WIZARD window will pop up (you should select the display language the first time you use the NVR). Refer to 3.1 Startup Wizard for details.

2.1.2 Shutdown

You can power off the device by using remote controller or mouse.

By remote controller:

① Press Power button. This will take you to a shutdown window. The unit will power off after a while by clicking “OK” button.
② Disconnect the power.

By mouse:

① Click Start→Shutdown to pop up the Shutdown window. Select “Shutdown” in the window. The unit will power off after a while by clicking “OK” button.
② Disconnect the power.

2.2 Remote Controller

① It uses two AAA size batteries.
② Open the battery cover of the remote controller.
③ Place batteries. Please take care the polarity (+ and -).
④ Replace the battery cover.

Key points to check in case the remote doesn't work.

1. Check batteries polarity.
2. Check the remaining charge in the batteries.
3. Check IR controller sensor for any masking.

If it still doesn't work, please change a new remote controller to try, or contact your dealers. You can just turn the IR sensor of the remote controller towards the IR receiver of the NVR to control it when you are controlling multiple devices by remote controller.

There are two kinds of remote controller. The interface of remote controller is shown as below.

REC 1 2 3 4 5 6 7 8 9 - - 0 Fn 1 Multi Next SEQ Audio SPOT ENTER Menu Exit + IRIS+ Focus P.T.Z + - IRIS- Zoom - Preset Cruise Wiper Light Track Clear Fn 2 INFO ▶ ▶ Snap Search ◀◀ ▶ Cut Backup ◀◀ ▶ Zoom PIP

Button		Function
	Power Button	Switch off—to stop the device
Record Button		To start recording
-/-- /0-9		Input number or choose camera
Fn1 Button		Unavailable temporarily
Multi Button		To choose multi screen display mode
Next Button		To switch the live image
SEQ		To go to sequence view mode
Audio		To enable audio output in live mode
Switch		No function temporarily
Direction button		To move cursor in setup or pan/title PTZ
Enter Button		To confirm the choice or setup
Menu Button		To go to menu
Exit Button		To exit the current interface
Focus/IRIS/Zoom/PTZ		To control PTZ camera
Preset Button		To enter into preset setting in PTZ mode
Cruise Button		To go to cruise setting in PTZ mode
Track Button		No track function temporarily
Wiper Button		No function temporarily
Light Button		No function temporarily
Clear Button		No function temporarily
Fn2 Button		No function temporarily
Info Button		Get information about the device
		To control playback. Play(Pause)/Stop/Previous Frame/Next Frame/Speed Down/Speed Up
Snap Button		To take snapshots manually
Search Button		To go to search mode
Cut Button		No function temporarily
Backup Button		To go to backup mode
Zoom Button		To zoom in the images
PIP Button		No function temporarily

Note:

You shall press P.T.Z button to enter PTZ setting mode, choose a channel and press P.T.Z button again to hide the P.T.Z control panel. Then you can press preset, cruise, track, wiper or light button to enable the relevant function.

REC Search MENU Exit ENTER ZOOM PIP MUI NBXI SEQ INFO

Button		Function
REC		Record manually
Search		To enter search mode
MEUN		To enter menu
Exit		To exit the current interface
ENTER		To confirm the choice or setup
Direction button		To move cursor in setup
ZOOM		To zoom in
PIP		No function temporarily
		To control playback. Play(Pause)/Next Frame/Speed Up/Stop/Previous Frame/Speed Down
Multi		To choose multi screen display mode
Next		To switch the live image
SEQ		To go to sequence view mode
INFO		Get information about the device

2.3 Mouse Control

Mouse control in Live Display & Playback interface

In the live display & playback interface, double click on any camera window to show the window in single screen mode; double click the window again to restore it to the previous size. In the live display & playback interface, if the interfaces display in full screen, move the mouse to the bottom of the interface to pop up a tool bar. The tool bar will disappear automatically after you move the mouse away from it for some time; move the mouse to the right side of the interface to pop up a panel and the panel will disappear automatically after you move the mouse away from it.

➢ Mouse control in text-input

Move the mouse to the text-input box and then click the box. The input keyboard will pop up automatically.

Note: Mouse is the default tool for all operations unless an exception as indicated.

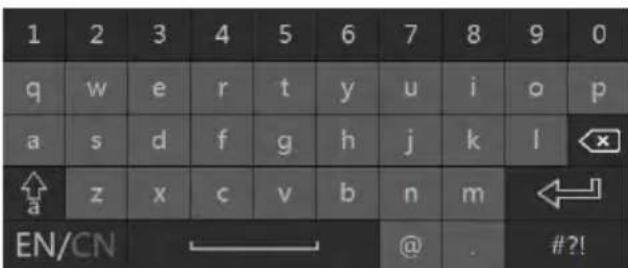

2.4 Text-input Instruction

1 2 3 4 5 6 DEL 7 8 9 0 .

1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p a s d f g h j k l x ↑ z x c v b n m ← a EN/CN @ . #?!

The system includes two input boxes. Refer to the above pictures. The left box is the number input box and the right box is the input box which provides inputs of numbers, letters and punctuation characters. The introductions of keys on the input boxes are shown below.

Button	Meaning	Button	Meaning
	Backspace key		Switch key of punctuation character
	Delete Key		Enter key
	Switch key between upper and lower letter		Space key
	Switch key of language

2.5 Common Button Operation

Button	Meaning
	Click it to show the menu list.
	Click it to change the sequence of the list.
	Click it to change the camera displaying mode.
	Click it to close the current interface.
	Click it to go to the earliest date of camera recording.
	Click it to go to the latest date of camera recording.

3 Wizard & Main Interface

3.1 Startup Wizard

The disk icons will be shown on the top of the startup interface. You can view the number and status of each disk quickly and conveniently through these icons ( : no disk; : unavailable disk; : RW available disk).

You can quickly configure the NVR by wizard setup to make the NVR work normally. You must configure the wizard if you start the NVR for the first time (or click “Skip” to cancel the wizard next time).

Wizard Setup Enable wizard next time. Skip

Click "Wizard Setup" to start wizard. The setting steps are as follows.

① System Login. Set your own password or use the default when you use the wizard for the first time (the default username of the system is admin and the default password of admin is 123456); select the login username and enter the corresponding password next time.

Wizard admin Password Setup Username admin New Password 123456 Confirm Password 123456 □ Display Password □ Log In Automatically Edit Security Question Next Cancel

Click “Edit Security Question” to set questions and answers for password security of admin. If you forget the password, please refer to Q4 in Appendix A FAQ for details.

Click "Next" to continue or click "Cancel" to exit the wizard.

② Date and Time Configuration. The date and time of the system need to be set up if you use the wizard for the first time. Refer to the following figure. Set the time zone, system time, date format and time format. The DST will be enabled by default if the time zone selected includes DST. Click “Next” to continue.

Wizard Time Zone GMT+08 Beijing, Hong Kong, Shanghai System Time 11/03/2015 15:04:31 Date Format Month/Day/Year Time Format 24-Hour DST OFF Previous Next Cancel

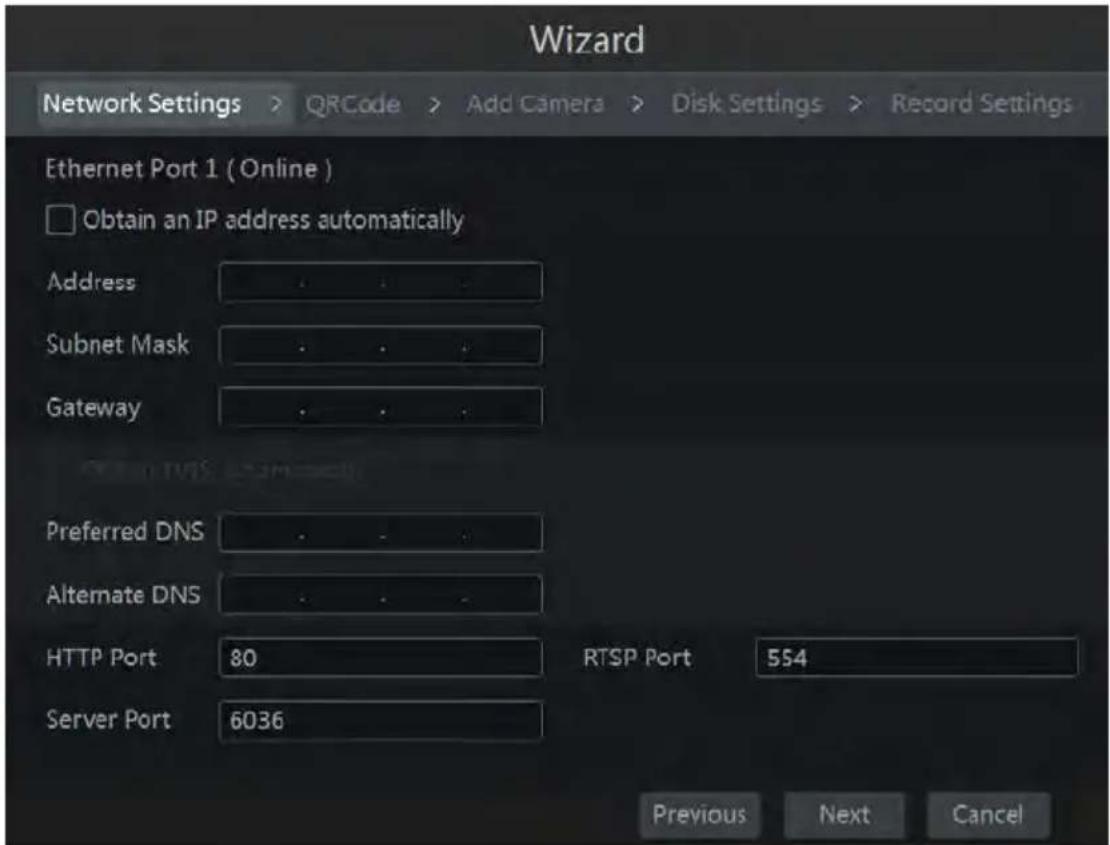

③ Network Settings. Check “Obtain an IP address automatically” and “Obtain DNS automatically” to get the IP address and DNS automatically (the DHCP function of the router in the same LAN should also be enabled), or manually input them. Input the HTTP port, RTSP port and Server port (please see 11.1.2 Port Configuration for details). Click “Next” to continue.

Wizard Network Settings > QRCode > Add Camera > Disk Settings > Record Settings Ethernet Port 1 ( Online ) Obtain an IP address automatically Address Subnet Mask Gateway Preferred DNS Alternate DNS HTTP Port 80 RTSP Port 554 Server Port 6036 Previous Next Cancel

Note:

If you use the NVR with the PoE network ports, the online state of the internal ethernet port will be shown on the interface. Refer to the picture below. Please refer to 11.1.1 TCP/IP Configuration for detail introduction of the internal ethernet port.

Wizard Network Settings > QRCode > Add Camera > Disk Settings > Record Settings Ethernet Port 1 ( Online ) Obtain an IP address automatically Address Subnet Mask Gateway Internal Ethernet Port ( Online ) Address 10 151 151 1 Subnet Mask 255 0 0 0 Preferred DNS Alternate DNS HTTP Port 80 RTSP Port 554 Server Port 6036 Previous Next Cancel

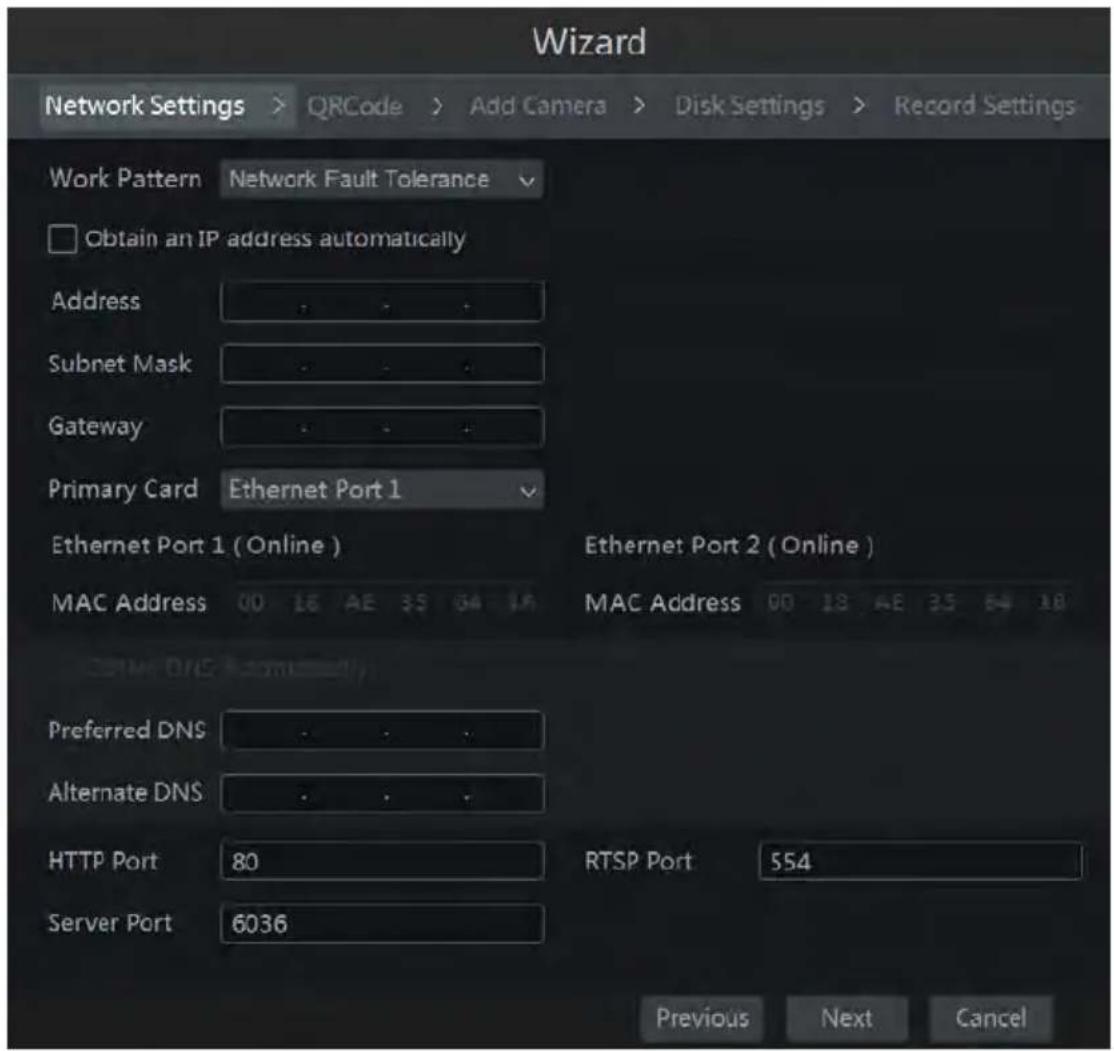

If the NVR has two network ports or above, you can select the network work pattern as required. Network Fault Tolerance and Multiple Address Setting are available. Refer to the pictures below. Please refer to 11.1.1 TCP/IP Configuration for more detailed information.

Wizard Network Settings > QRCode > Add Camera > Disk Settings > Record Settings Work Pattern Network Fault Tolerance Obtain an IP address automatically Address Subnet Mask Gateway Primary Card Ethernet Port 1 Ethernet Port 1 ( Online ) MAC Address 00 16 AE 35 64 16 Ethernet Port 2 ( Online ) MAC Address 00 18 AE 25 64 18 Preferred DNS Alternate DNS HTTP Port 80 RTSP Port 554 Server Port 6036 Previous Next Cancel

Wizard Network Settings > QRCode > Add Camera > Disk Settings > Record Settings Work Pattern Multiple Address Setting Ethernet Port 1 ( Online ) Obtain an IP address automatically Address Subnet Mask Gateway Ethernet Port 2 ( Online ) Obtain an IP address automatically Address Subnet Mask Gateway Preferred DNS Alternate DNS Default Route Ethernet Port 1 HTTP Port 80 Server Port 6036 RTSP Port 554 Previous Next Cancel

④ QRCode. Enable the NAT function in the interface or set it in the network configuration after exiting the wizard (please refer to 11.1.7 NAT Configuration for details). You can scan the QRCode through mobile client which is installed in the mobile phone or PAD to log in the mobile client instantly. Please refer to 12.1 Mobile Client Surveillance for details.
⑤ Add Camera. Click “Refresh” to refresh the list of online IP cameras which are in the same local network with NVR and then click + add the searched camera. Click “Add All” to add all the cameras in the list. Click 📋 to delete the added camera. Click “Delete All” to delete all the added cameras.

Wizard Network Settings > QRCode > Add Camera > Disk Settings > Record Settings No. ↑ Address Edit Port Protocol Model Version Add 1 192.168.12.19 80 ONVIF xxx 4.0.0.1 + 2 192.168.12.40 80 ONVIF xxx 3.4.2 + 3 192.168.12.43 80 ONVIF xxx 4.0.0.1 + 4 192.168.12.123 80 ONVIF xxx 3.4.3 + Remain Bandwidth: 113 / 120 Mb Refresh Add All Delete All No IP Camera Name ↑ Address Protocol Status Edit Delete 1 IP Camera1 192.168.3.157 ONVIF Offline Previous Next Cancel

Click to edit the searched IP camera as shown on the below left. Input the new IP address, subnet mask, gateway, username and the password of the camera. You can check “Sync to IPC” to modify the IP address of the IPC via different network segments for being in the same network segment with the NVR. Click “OK” to save the settings.

Edit IP MAC Address 00 18 28 39 96 .43 Address 192 . 168 . 12 . 86 Sync to IPC Subnet Mask 255 . 255 . 255 . 0 Gateway 192 . 168 . 12 . 1 Username admin Password ***** OK Cancel

Edit Camera Camera Name Camera1 Address 192 168 12 152 Sync to IPC Port 80 Protocol CMFE Model XX Username admin Password ***** Test OK Cancel

Click to edit the added camera as shown on the above right. Input the new camera name, IP address, port, username and the password of the camera. You can click “Test” to test the effectiveness of the input information. Click “OK” to save the settings. You can change the IP camera name only when the added camera is online. Click “Next” to continue.

⑥ Disk Settings. You can view the disk number, disk capacity of the NVR and serial number, R&W status of the disk. Click “Formatting” to format the disk. Click “Next” to continue.

⑦ Record Settings. Two record modes are available: auto and manual.

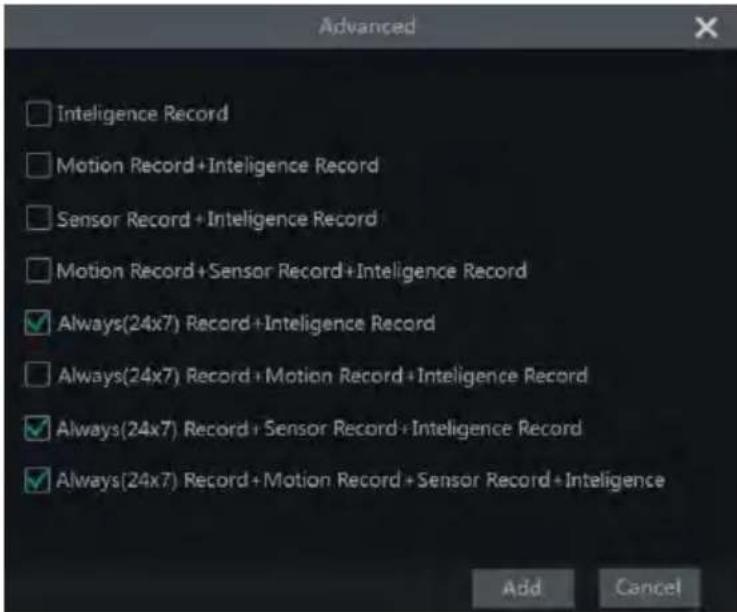

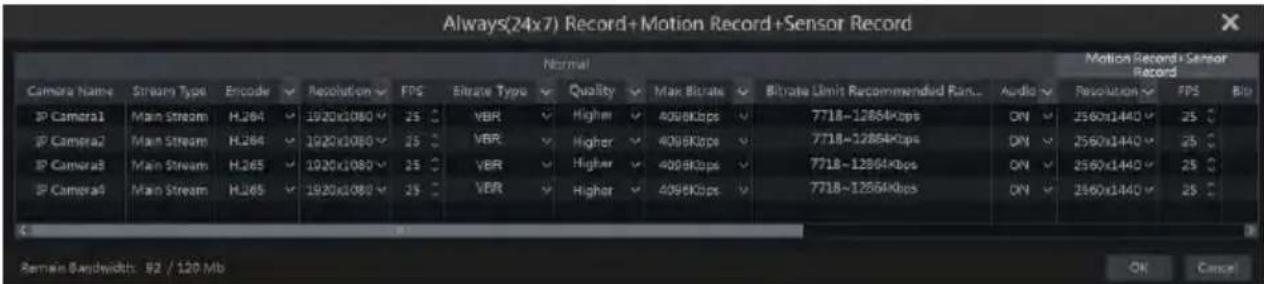

Auto: Select one auto mode in the interface as shown below and then click "OK" button to save the settings. See 7.1.1 Mode Configuration for details.

Wizard Network Settings > QRCode > Add Camera > Disk Settings > Record Settings Mode Auto Motion Record Sensor Record Motion Record+Sensor Record Always(24 x 7) Record+Motion Record Always(24 x 7) Record+Sensor Record Always(24 x 7) Record+Motion Record+Sensor Record Always(24 x 7) Record+Motion Record+Sensor Record+Intelligence Record Previous OK Cancel

Manual: Set the “Sensor Record”, “Motion Record” and “Schedule Record” of each camera. Click “OK” to save the settings. See 7.1.1 Mode Configuration for details.

Wizard Network Settings > QRCode > Add Camera > Disk Settings > Record Settings Mode Manual Camera Name Sensor Record Motion Record Schedule Record IP Camera1 Previous OK Cancel

3.2 Main Interface

3.2.1 Main Interface Introduction

Camera Single Channel Sequences Customize Display Modes admin Search and Backup Playback Settings Logout Shutdown 11/03/2015 15:05:10

The buttons in area ① are introduced in the table below.

Button	Meaning
	Start button. Click it to pop up area 3.
	Full screen button. Click it to show full screen; click it again to exit the full screen.
	Screen mode button.
	Dwell button (see 5.2.2 Quick Sequence View and 5.2.4 Scheme View In Sequence for details).
	Click it to enable OSD; click [IMAGE] disable OSD.
	Click [to set the default playback time before starting instant playback (8.1 Instant Playback) or going to the playback interface for playback operations (8.2 Playback Interface Introduction); click [IMAGE] go to the playback interface. For instance, if you choose “5 minutes ago” as the default playback time, you can playback the record from the past five minutes.
	Manual record button. Click it to enable/disable record.
	Manual alarm button. Click it to trigger or clear the alarm-out manually in the popup window.
	Record status button. Click it to view the record status.
	Alarm status button. Click it to view the alarm status.

Button		Meaning
	[GDB3]	Disk status button. Click it to view the disk status and RAID status.
		Network status button. Click it to view the network status.
	[YGY6]	Information button. Click it to view system information.

Introduction of area ②:

Click “Camera” to view all the added cameras in the camera list. Select one camera window on the left side of the interface and then double click one camera in the list to preview the camera image in the selected window.

Click “Single Channel Sequences” to view all the added groups in the group list; click one group in the list to view all the added cameras in the group (refer to 4.2 Add/Edit Camera Group for detail configuration of the camera group). Select one camera window on the left side of the interface and then double click one group in the group list to preview the cameras’ images one by one in the selected window.

Click “Customize Display Modes” to view all the display modes in the display mode list (refer to 5.2.1 Preview By Display Mode for detail configuration of the display mode). Double click one display mode in the list to switch to the display mode for previewing.

Introduction of area ③:

Icon / Button	Meaning
	It shows the current login user.
Search and Backup	Click it to go to record search and backup interface, see 8.3 Record Search, Playback & Backup for details.
DAAP	Click it to go to playback interface (click ↑ on the tool bar at the bottom of the live preview interface to set the default playback time), see 8.2 Playback Interface Introduction for details.
BAN-1	Click it to pop up the setup panel, see 3.2.2 Setup Panel for details.
BAN-2	Click it to log out the system.
CBAI	Click it and then select “Logout”, “Reboot” or “Shutdown” in the popup window.

3.2.2 Setup Panel

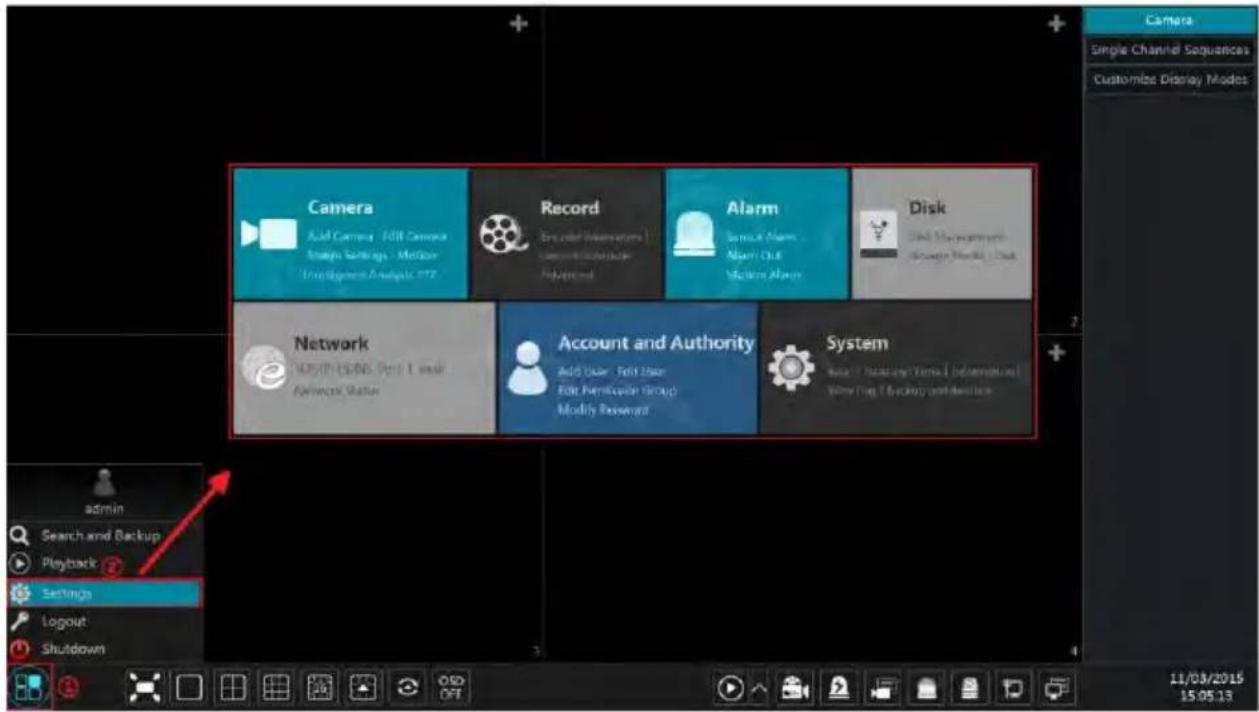

Click Start→Settings to pop up the setup panel as shown below.

Camera Aud Camera - Full Camera Images Settings - Monitor Unggeng Analysis 202 Record Eco color Resinvets comer & other video Advanced Alarm Service Name Alarm Club Motion Alarms Disk Dial Management Google Music Us Network 45/01/2006. Post 1 week Advanced Status Account and Authority Add User - Full User Edit Permission Group Modify Password System View History Time (Information) Wing Tag / Backup Print/Session admin Search and Backup Playback Settings Logout Shutdown 11/03/2015 15:05:13

The setup panel includes seven modules. Each module provides some function entries with links for convenient operation.

Here we take Camera module as an example. The Camera module provides convenient links such as “Add Camera”, “Edit Camera”, “Image Settings”, “Motion”, “Intelligent Detection” and “PTZ”. Click Camera to go to the camera management interface as shown below.

Camera Manage Camera Add Camera Edit Camera Edit Camera Group Search Camera No Camers Name Address Port Status Protocol Model Process Operation Upgrade Version 1 IP Camera1 192.168.12.152 80 Offline ONVIF xx ▼ ▼ ▼ 2 IP Camera2 192.168.12.40 80 Online ONVIF xx ▼ ▼ ▼ ↑ 3.4.2 Motion Motion Settings Intelligence Analysis Object Detection Exception Tripwire Intrusion PTZ Reset: Close Domain Bandwidth: 10B / 120 Mb

There are some function items on the left side of the camera management interface. Click each item to go to corresponding interface or window. For instance, click “Add Camera” to pop up the window as shown below.

Add Camera Quickly Add Add Manually Add Recorder No. ↑ Address Port Edit Subnet Mask Protocol.Model.Version 1 192.168.122.103 80 255.255.255.0 ONVIF xxx 4.0.0.1 0 2 192.168.226.201 80 255.255.255.0 ONVIF xxx 4.0.0.1 0 3 192.168.226.201 80 255.255.255.0 ONVIF xxx 4.0.0.1.beta1 0 Selected: 0 / 3 Remain Bandwidth: 108 / 120 Mb Default Password Add Cancel

Click the main menus on the top of the camera management interface to go to corresponding interfaces. Refer to the picture below. For instance, you can go to system setup interface by clicking “System” tag.

Live Display Camera Record Alarm Disk Network Account and Authority System

3.2.3 Main Functions

Camera

The module covers the functions such as Camera Management (see Chapter 4 Camera Management for details), Image Settings (see 5.3 Preview Image Configuration for details), Motion (see 9.2.1 Motion Configuration for details), and PTZ (see Chapter 6 PTZ for details) and so on.

Record

The module covers the functions such as Encode Parameters and Record Schedule and so on. Please see Chapter 7 Record & Disk Management for details.

Disk

The module covers the functions such as Disk Management, Storage Mode and Disk Information and so on. Please see Chapter 7 Record & Disk Management for details.

> Alarm

The module covers the functions such as Sensor and Motion Alarm Handling and Alarm Out Settings. Please see Chapter 9 Alarm Management for details.

Network

The module covers the functions such as TCP/IP, DDNS, Port, E-mail and Network Status and so on. Please see 11.1 Network Configuration for details.

Account and Authority

The module covers the functions such as Account Management (see 10.1 Account Management for details) and Permission Management (see 10.3 Permission Management for details) and so on.

System

The module covers the functions such as Basic Configuration (see 11.2 Basic Configuration for details), Device Information (see 11.8 View System Information for details), Log Information (see 11.7 View Log for details) and Configuration File Import&Export (see 11.5 Backup and Restore for details) and so on.

4 Camera Management

4.1 Add/Edit Camera

4.1.1 Add Camera

The network of the NVR should be set before adding IP camera (see 11.1.1 TCP/IP Configuration for details).

Refer to the pictures below. Click Add Camera in the setup panel or + in the top right corner of the preview window to pop up the “Add Camera” window as shown below. You can quickly add or add the IP camera manually.

Camera Add Camera Edit Camera Image Settings Motion Intelligence Analysis PTZ Click it to add camera Single Channel Sequences Customize Display Movies

Add Camera Quickly Add Add Manually Add Recorder No. ↑ Address Port Edit Subnet Mask Protocol.Model.Version 1 192.168.122.103 80 255.255.255.0 ONVIF xxx 4.0.0.1 0 2 192.168.226.201 80 255.255.255.0 ONVIF xxx 4.0.0.1 0 3 192.168.226.201 80 255.255.255.0 ONVIF xxx 4.0.0.1.beta1 0 Selected: 0 / 3 Remain Bandwidth: 108 / 120 Mb Default Password Add Cancel

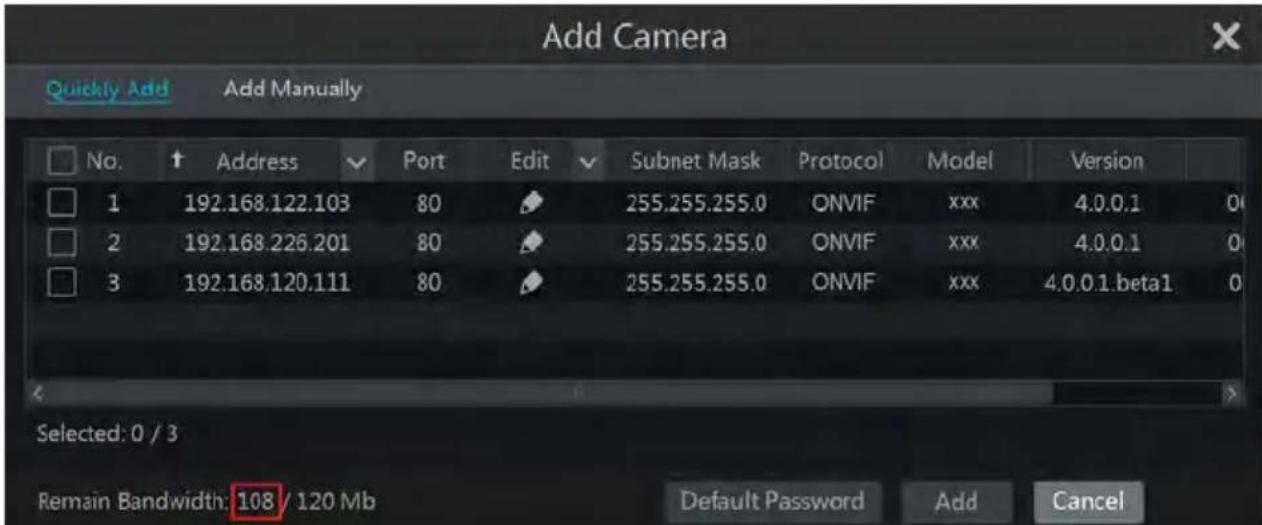

▶ Quickly Add

Check the cameras and then click “Add” to add cameras. Click to edit the camera’s IP address, username and password and so on. Click “Default Password” to set the default username and password of each camera.

Add Camera Quickly Add Add Manually Add Recorder Address Port Username Password Protocol Test Delete 0.0.0.0 80 admin **** ONVIF Test Remain Bandwidth: 108 / 120 Mb Default Password Add Cancel

Add Manually

Input the IP address or domain name (click 📋 the IP address column to pop up the domain name input window, input the domain name of the IPC in the window and then click “OK” button), port, username and password of the camera and then select the protocol. Click “Test” to test the effectiveness of the input information and then click “Add” button (you can input one camera’s information or above such as IP address, username and password before clicking “Add” button). Click 📋 to delete the camera. Click “Default Password” to set the default username and password of each camera.

Note: Some models may support this function.

Click Start→Settings→System→Basic→General Settings to check “Enable Add IPC by Zero Operation”. If the NVR has unoccupied channels, it can add IPC without any operation by restarting.

Add Recorder

Add Camera Quickly Add Add Manually Add Recorder No.Device Name ↑ Address ✓ Port Edit.Model Serial No. 1 Recorder_1 192.168.12.30 6036 ◇ XXX XXX Remain Bandwidth: 108 / 120 Mb Default Password Manual Add Add Cancel

- Quickly Add : Select the searched NVR/DVR and the click “Add” to add NVR in the same local network.

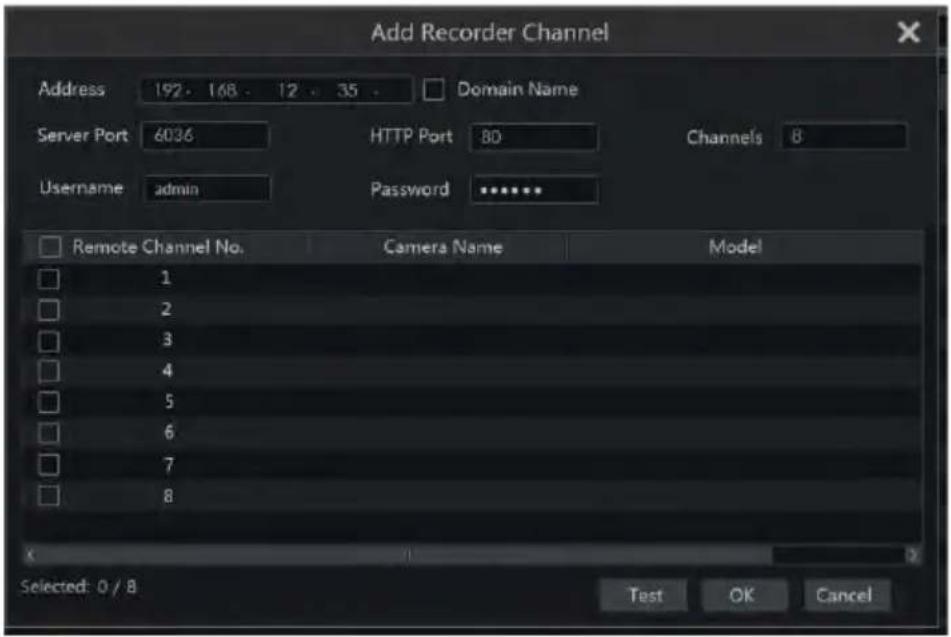

- Manually Add : Click “Manual Add” and then input the IP address or domain name, port, username and password of the NVR/DVR. Check the added remote channel number and click “Test” to test the effectiveness of the input information. Then click “OK” button to return to the previous interface.

Add Recorder Channel Address 192. 168. 12. 35. Domain Name Server Port 6036 HTTP Port 80 Channels 8 Username admin Password ...... Remote Channel No. Camera Name Model 1 2 3 4 5 6 7 8 Selected: 0 / 8 Test OK Cancel

Note: Only the local NVR has unoccupied channels, may the IPC of other NVR/DVR in the same local network be added. And the added IPC supports previewing and recording.

4.1.2 Edit Camera

Click “Edit Camera” in the setup panel to go to the interface as shown below. Click to view the live image of the camera in the popup window. Click to edit the camera (see Add camera in 3.1 Startup Wizard for details). Click to delete the camera. Click in the “Operation” header line and then click “Modify IPC Password” to pop up a window(check the IPCs in the window, set the new password and then click “OK” button; only the online IPCs’ passwords can be modified and a batch of IPCs’ passwords can be modified at the same time). Click to upgrade an online IPC (or click in the “Upgrade” header line and then click “IPC Batch Upgrade” to upgrade a batch of IPCs), select the device which stores the upgrade file in the “Device Name” item of the popup window and the upgrade file in the list(you should select the upgrade IPC model in the window if a batch of IPCs’ passwords need to be modified) and then click “Upgrade” button to start upgrading(the IPC will restart automatically after the upgrade is completed successfully).

Edit Camera Edit Camera Group IP Planning Search Camera No. Camera Name ↑ Address Port Status Protocol Model Preview Operation Upgrade Version 1 IP Camera1 192.168.12.152 80 Offline ONVIF xxx 2 IP Camera2 192.168.12.40 80 Online ONVIF xxx Remain Bandwidth: 108 / 120 Mb

Note:

If you use the NVR with the PoE network ports, the IP cameras (with PoE function) which

directly connect to the PoE port of the NVR will be displayed automatically in the camera list. Refer to the picture below. The IP camera which occupies the PoE resource has a prefix shown before its camera name. The prefix consists of PoE plus PoE port number. The IP camera which connects to the PoE port cannot be deleted from the camera list manually.

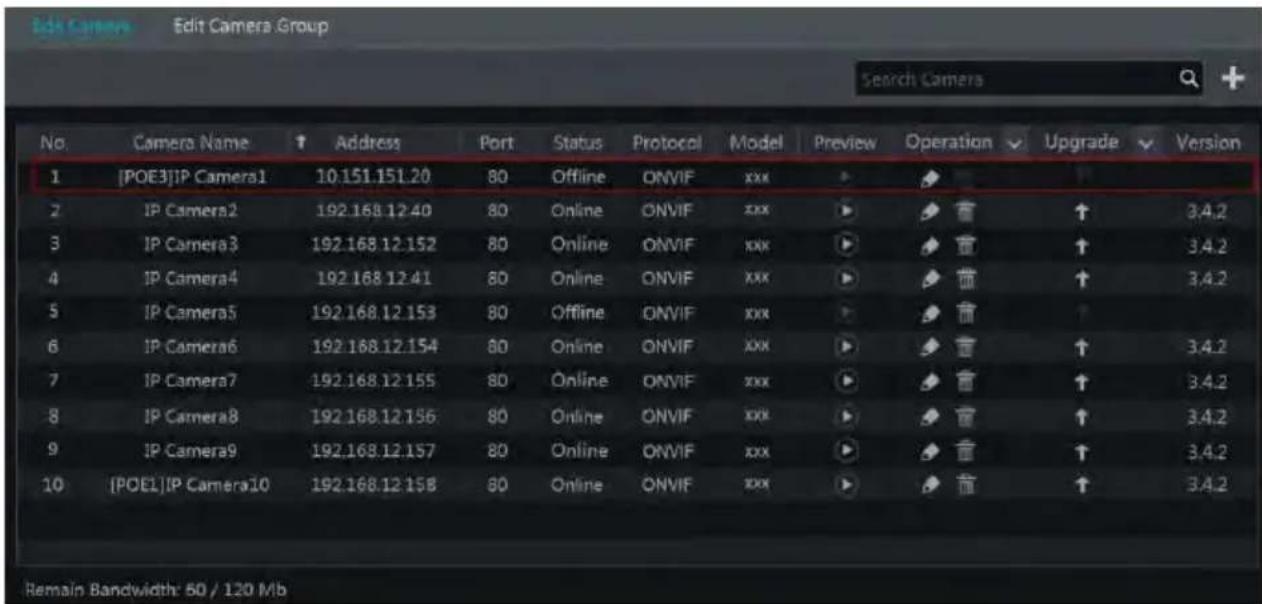

Edit Camera Edit Camera Group IP Planning Search Camera No. Camera Name ↑ Address Port Status Protocol Model Preview Operation Upgrade Version 1 |POE3|IP Camera1 10.151.151.20 80 Online ONVIF xxx ▶ ♦ ↑ ↑ 3.4.2 2 IP Camera2 192.168.12.40 80 Online ONVIF xxx ▶ ♦ 雷 ↑ 3.4.2 3 IP Camera3 192.168.12.152 80 Online ONVIF xxx ▶ ♦ 雷 ↑ 3.4.2 4 IP Camera4 192.168.12.41 80 Online ONVIF xxx ▶ ♦ 雷 ↑ 3.4.2 5 IP Camera5 192.168.12.153 80 Offline ONVIF xxx ▶ ♦ 雷 ↑ 6 IP Camera6 192.168.12.154 80 Online ONVIF xxx ▶ ♦ 雷 ↑ 3.4.2 7 IP Camera7 192.168.12.155 80 Online ONVIF xxx ▶ ♦ 雷 ↑ 3.4.2 8 IP Camera8 192.168.12.156 80 Online ONVIF xxx ▶ ♦ 雷 ↑ 3.4.2 9 IP Camera9 192.168.12.157 80 Online ONVIF xxx ▶ ♦ 雷 ↑ 3.4.2 10 |POE1|IP Camera10 192.168.12.158 80 Online ONVIF xxx ▶ ♦ 雷 ↑ 3.4.2 Remain Bandwidth: 60 / 120 Mb

• The IP camera which directly connects to the PoE port of the NVR through private protocol will be shown automatically in the camera list.
  ● One of the two conditions must be met if the IP camera which directly connects to the PoE port of the NVR through ONVIF protocol should be shown automatically in the camera list.

√ The IP camera which directly connects to the PoE port is in the same network segment with the internal ethernet port.

√ The DHCP (obtain an IP address automatically) of the IP camera which directly connects to the PoE port is enabled.

If the IP camera which connects to the PoE port cannot be displayed automatically in the camera list, please refer to Q6 in Appendix A FAQ for details.

4.2 Add/Edit Camera Group

4.2.1 Add Camera Group

Click "Edit Camera Group" in the above interface to go to the interface as shown below.

Edit Camera Edit Camera Group IP Planning Group1 Dwell Time ( 10 Secs ) Number of Cameras( 2 ) Group2 Dwell Time ( 10 Secs ) Number of Cameras( 2 )

Click to pop up the window as shown below. Set the group name and dwell time (the dwell time of the camera group sequence view) in the window. Check the cameras and then click “Add” to add group. Click to view the cameras in the group after adding group.

Add Group Group Name Enter Group Name Dwell Time 10 Secs Search Camera All IP Camera1 IP Camera2 IP Camera3 IP Camera4 Selected: 0 / 4 Add Cancel

4.2.2 Edit Camera Group

Edit Camera Edit Camera Group IP Planning Group1 Dwell Time ( 10 Secs ) Number of Cameras( 2 ) IP Camera1 IP Camera2 + Group2 Dwell Time ( 10 Secs ) Number of Cameras( 2 ) IP Camera3 IP Camera4 +

Click to modify the group information such as group name and dwell time. Click to delete the group.

4.2.3 IP Planning

Some models may not support this function.

Click “IP Planning” to go to the interface as shown below. This function supports searching other NVRs/DVRs that is in the same local network as the local NVR. The user may add the IPC of other NVRs/DVRs into the unoccupied channels of the local NVR.

No. ↑ Address Edit ▼ Add ▼ Protocol Model 1 192.168.12.30 + XXX XX

Device Name (Local) 192.168.12.200 8/8 IP Camera 1 IP Camera 2 IP Camera 3 IP Camera 4 IP Camera 5 IP Camera 6 IP Camera 7 Recorder_1 IP Camera 8 172.15.29.20 Protocol: Onvar Model: XXI Device Name(NVR) 192.168.12.198 1/4

Click to edit the IP address, user name or password and other information of the NVRs.

Click behind "add" button to add the IPC selected and the user may edit the IP address, user name or password by clicking behind "edit" button.

5 Live Preview Introduction

5.1 Preview Interface Introduction

You should add camera first after logging on to the system (see 4.1.1 Add Camera for details).

Refer to the interface as shown below, drag one camera in the preview window to another window for camera window exchanging.

The record symbols with different colors in the live preview window refer to different record types when recording: green stands for manual record, red stands for sensor based record, yellow stands for motion based record, blue stands for schedule record and cyan stands for intelligence record.

Camera Single Channel Sequences Customize Display Modes IP Camera1 11/03/2015 15:05:20

Click the preview window to show the tool bar as shown in area ①; right click the preview window to show the menu list. The tool bar and menu list are introduced in the table below.

Button	Menu List	Meaning
	--	Move tool. Click it to move the tool bar anywhere.
	Manually Record On	Click it to start recording.
	Instant Playback	Click to playback the record; click “Instant Playback” to select or self-define the instant playback time. See 8.1 Instant Playback for details.
	Enable Audio	Click it to enable audio. You can listen to the camera audio by enabling audio.
	Snap	Click it to pop up the snap window. Click “Save” in the window to save the image. Click “Export” to export the image.
	PTZ Control	Click it to go to PTZ control interface. See Chapter 6 PTZ for details.

Button		Menu List	Meaning
		Zoom In	Click it to go to single channel amplification interface.
		--	Click it to go to image adjustment interface. Refer to 5.3.4 Image Adjustment for details.
	--	Camera Info	Click it to view the camera information.

The single channel amplification interface is as shown below. Press and drag the blue box to select the zoom in area. Click / to zoom the image. Click the camera selection box to select other cameras for amplification. Click “Back” to return to the live preview interface.

Composite image showing a multi-lane highway with traffic and a close-up inset of a multi-lane road with visible tracks and lane markings (no text or symbols)

5.2 Preview Mode

5.2.1 Preview By Display Mode

Set different screen modes and cameras' display sequences as required and then save the display modes classified by surveillance areas, priorities and so on. Refer to the picture below. Double click one display mode in the display mode list to view the live images in this mode.

Camera Single Channel Sequences Customize Display Modes Mode1 Mode2 Save Rename Delete 11/03/2015 15:08:05

▶ Add Display Mode

Method One:

① Click “Customize Display Modes” in the above interface and then set the screen mode.
② Add the cameras and adjust the cameras' display sequence as required.
③ Click “Save” button under the display mode list and then enter the display mode name in the popup window, click “OK” button to save the current display mode.

Method Two:

① Click Start→Settings→System→Basic→Output Settings to go to the interface and then set the screen mode.
② Double click the camera or camera group in the list to add them to the selected window.
③ Click ★ to save the current display mode (refer to 5.2.4 Scheme View In Sequence for detail configurations). The display mode will be saved and displayed in the display mode list in the live preview interface.

➢ Edit Display Mode

Click “Customize Display Modes” tab in the live preview interface and then select one display mode in the list. Click “Rename” to edit the display mode name; click “Delete” to delete the display mode.

5.2.2 Quick Sequence View

You can start quick sequence view if the scheme has not been created. If the scheme has been created, please refer to 5.2.4 Scheme View in Sequence for details.

Composite highway surveillance system showing multiple lanes with vehicles and traffic, captured in four different angles (top: bridge, middle: car, bottom-right: highway), plus a camera interface overlay.

Go to the live preview interface and then click 📄 to up a little window. Set the dwell time in the window and then click 🔒 to view the live group by group according to the camera number of the current screen mode. Double click the sequence view interface to pause the view; double click again to restore the view. Click 🔒 to stop the view.

5.2.3 Camera Group View In Sequence

You can start camera group view in sequence if camera group has been created (see 4.2.1 Add Camera Group for details).

① Go to the live preview interface and then select a camera window.

Camera Single Channel Sequences Customize Display Modes Group1 Group2 IP Camera3 IP Camera4 Select one window and then double click one camera group to start camera group view in sequence; or just drag one group to any window for camera group view in sequence. 11/03/2015 15:17:50

② Double click one camera group on the right side of the interface. The cameras in the group will start camera group view one by one in the selected camera window.

You can also drag the group directly to any preview window. Right click on the group view window and then click “Close Dwell” button to stop the view.

5.2.4 Scheme View In Sequence

Click Start→Settings→System→Basic→Output Settings to go to the interface as shown below. Area ① displays all the dwell schemes; area ② shows the detailed information of the scheme; area ③ displays all the cameras and groups; area ④ is the tool bar (☐: clear button; ☒: favourite button, click it to pop up a window, enter the display mode name in the window and then click “OK” to save the current display mode; other buttons are screen mode buttons).

Main Output Dwell Settings 1 IP Camera1 2 Camera Single Channel Sequences IP Camera1 IP Camera2 IP Camera3 IP Camera4 3 Apply

Add Scheme

Click + in area ① to create a new scheme. Click ✗ on the top right corner of the scheme to delete it.

Configure Scheme

a) Select a scheme in area ① and then click the screen mode button on the tool bar to set the screen mode of the scheme.

b) Select a camera window in area ② and then double click the camera or group in area ③. The camera or group will be added into the selected window. One camera in the same scheme cannot repeat. You can click the right-click menu “Clear” in area ② to remove a single camera or click to remove all the cameras.

c) Click "Apply" to save the settings.

▶ Start Sequence View

Go to live preview interface and then click 🔒 to pop up a window. Set the dwell time in the window and then click 🔒 to start scheme view in sequence. Double click the sequence view interface to pause the view; double click again to restore the view. Click 🔒 to stop the view.

Note:

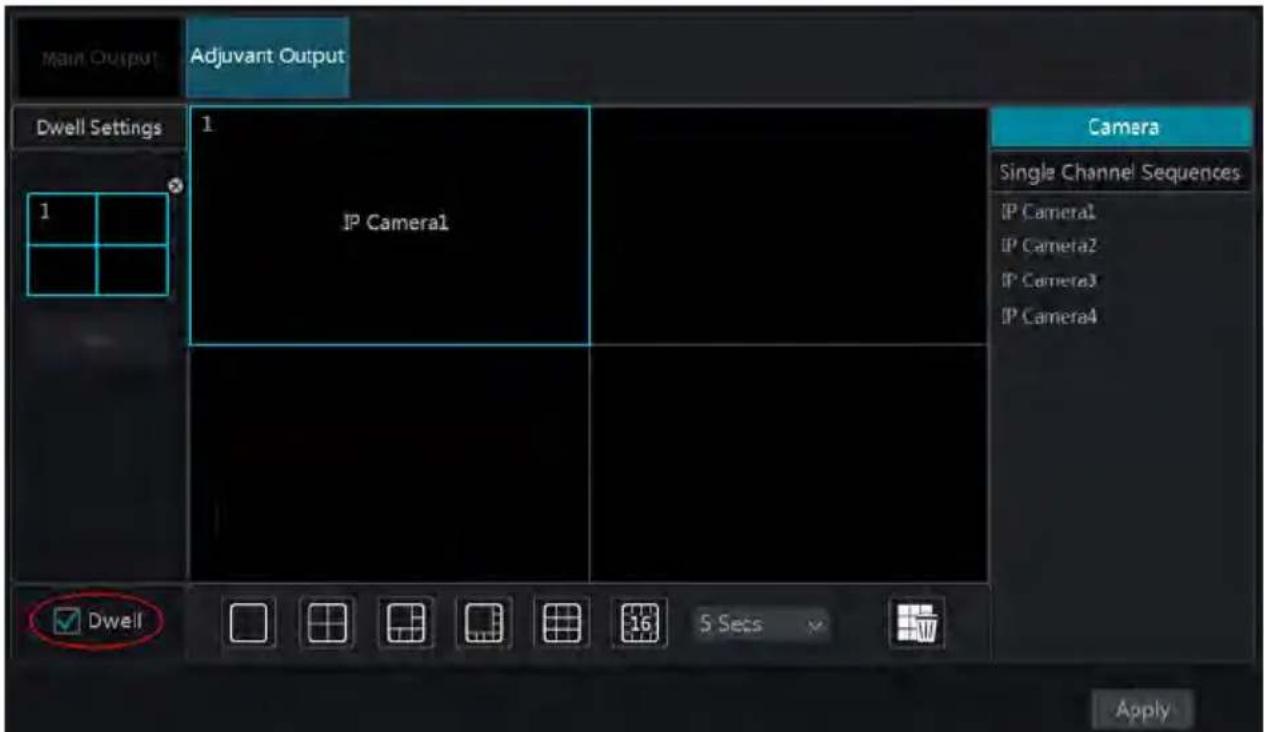

You can set the adjuvant output preview if the NVR has dual outputs. Refer to the interface as shown below.

Check “Dwell” and then set scheme view in sequence of the adjuvant output. The setting steps are similar to that of the main output.

Set quick sequence view if "Dwell" is not checked. The setting steps are as follows:

① Set screen mode by clicking the relevant buttons on the tool bar.
② Select one window and then double click one camera or group in the list.
③ Click “Apply” button to save the settings after adding cameras or groups to the windows.

Main Output Adjuvant Output Dwell Settings 1 IP Camera1 Camera Single Channel Sequences IP Camera1 IP Camera2 IP Camera3 IP Camera4 Dwell 5 Sets Apply

5.3 Preview Image Configuration

5.3.1 OSD Settings

Click Start→Settings→Camera→Image→OSD Settings to go to the interface as shown below. Select the camera, input the camera name (or double click the camera name in the camera list to change the camera name), enable or disable the name and time OSDs (if enabled, drag the red name and time OSDs directly in the image view area to change the OSDs' display position) and select the date and time formats. Click “Apply” to save the settings.

IP Camera1 IP Camera2 IP Camera3 IP Camera4 Camera Name IP Camera1 Camera Name IP Camera1 Name OSD ON Time OSD ON OFF OFF OFF OFF OFF Month/Day/Year Month/Day/Year Month/Day/Year Month/Day/Year 24-Hour 24-Hour 24-Hour 24-Hour 24-Hour 24-Hour 24-Hour 24-Hour 24-Hour 24-Hour 24-Hour 24-Hour 24-Hour 24-Hour 24-Hour 24-Hour 24-Hour 24-Hour 24-Hour 24-Hour 24-H our 24-H our 24-H our 24-H our 24-H our 24-H our 24-H our 24-H our 24-H our 24-H our 24-H our 24-H our 24-H our 24-H our 24-H our 24-H our 24-H our 24-H our 24-H our 24-H our 24-H Our 24-H Our 24-H Our 24-H Our 24-H Our 24-H Our 24-H Our 24-H Our 24-H Our 24-H Our 24-H Our 24-H Our 24-H Our 24-H Our 24-H Our 24-H Our 24-H Our 24-H Our 24-H Our 24-H Our 24-HOur

5.3.2 Image Settings

Click Start→Settings→Camera→Image→Image Settings to go to the following interface. Select the camera and then set the brightness, contrast, saturation and hue of the camera. Click “Advanced” button or in the camera list on the right side of the interface to pop up “Image Adjust” interface and then set the relevant setting items. Please refer to 5.3.4 Image Adjustment for detailed introductions of these items.

You can click "Default" button to restore the image settings to the default factory settings.

Camera Name IP Camera1 50 55 50 50 IP Camera2 50 55 50 55 IP Camera3 50 55 50 55 IP Camera4 50 55 50 55 Advanced Camera IP Camera1 Brightness 50 Contrast 55 Saturation 50 Hue 50 Advanced Default

5.3.3 Mask Settings

Some areas of the image can be masked for privacy. Up to four mask areas can be set for each camera. Click Start→Settings→Camera→Image→Mask Settings to go to the interface as shown below. Select the camera and enable the mask. Click “Draw” button and then drag the mouse on the image area to set the mask area; click “Delete” button to delete the mask areas;

click "Apply" to save the settings.

Camera Name Mask Color IP Camera1 ON Black IP Camera2 OFF Black IP Camera3 OFF Black IP Camera4 OFF Black Draw Delete Camera IP Camera1 Mask ON Apply

5.3.4 Image Adjustment

Go to live preview interface and then click 📋 button on the tool bar under the camera window to go to the image adjustment interface.

Camera IP Camera1 Image Adjust Lens Control Brightness 60 Contrast 50 Saturation 50 Hue 50 Sharpen 50 Wide Dynamic 128 Denoise 30 White Balance Auto Image Mirror ON OFF Image Flip ON OFF Default Back

Image Adjustment

Select the camera and then click “Image Adjustment” to go to image adjustment tab. Refer to the above picture. Drag the slider to set the camera’s brightness, contrast, saturation and hue

value. Check sharpen, wide dynamic and denoise and then drag the slider to set the value. Click "Default" button to set these parameters to default values.

The introductions of these parameters are as follows:

Parameter	Meaning
Brightness	It is the brightness level of the camera's image.
Contrast	It is the color difference between the brightest and darkest parts.
Saturation	It is the degree of color purity. The color is purer, the image is brighter.
Hue	It relates to the total color degree of the image.
Sharpen	It relates to the resolution level of the image plane and the sharpness level of the image edge.
Wide Dynamic	The wide dynamic range (WDR) function helps the camera provide clear images even under back light circumstances. When there are both very bright and ver dark areas simultaneously in the field of view, WDR balances the brightness level of the whole image and provide clear images with details.
Denoise	Adopt the noise reduction technology to decrease the noise and make the image more thorough. Increasing the value will make the noise reduction effect better but it will reduce the image resolution.
White Balance	White balance is the white rendition function of the camera to adjust the col temperature according to the environment automatically.
Image Mirror	Reverse the current video image right and left.
Image Flip	Turn the current video image upside down.

Lens Control

Select the camera and then click “Lens Control” to go to lens control tab. Click or to adjust the zoom and focus parameters of the camera’s lens. Click “Save” to save the settings.

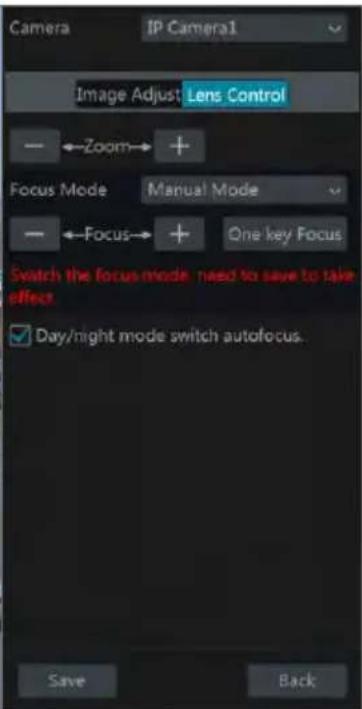

Highway with multiple cars driving on elevated tracks under a clear sky (no visible text or signage)

Camera IP Camera1 Image Adjust Lens Control - ←Zoom→ + Focus Mode Manual Mode - ←Focus→ + One key Focus Switch the focus mode, need to save to take effect Day/night mode switch autofocus. Save Back

The introductions of these parameters and buttons are as follows:

Button/Parameter	Meaning
	Click to zoom in/out the image.
Focus Mode	If manual mode is selected, focus button & “One Key Focus” & “Day/night mode switch autofocus” will be available; if auto mode is selected, the time interval setup will be available.
	Click to increase/decrease the focal length.
	Click it to focus instantly.
Day/night mode switch autofocus	If checked, the lens will focus automatically when the camera is switching day/night mode.
Time Interval	It is the time interval when camera lens is auto-focusing. The interval can be set in the drop-down list.

Note: This function is only available for the models with auto varifocal lens, or the settings here are ineffective.

6 PTZ

6.1 PTZ Control Interface Introduction

You can control the IP dome or PTZ which connects to the IP camera for PTZ control.

Click the tool bar at the bottom of the live preview window to go to the PTZ control interface as shown below. You can select another IP dome or PTZ which connects to the IP camera on the top right of the interface for PTZ control.

Analog Joystick Camera IP Camera1 Preset Cruise Preset Preset Name Call 1 preset1 2 preset2 Add Delete Save Position ←Zoom→ + ←Focus→ + ←Iris→ + Speed Slow Fast

Introductions of the buttons on the bottom right of the interface:

Button	Meaning
	Click / / / / / / / / / / / / to rotate the dome. Click to stop rotating the dome.
	Click + / - to zoom in / out the camera image.
	Click + / - to increase / decrease the focal length.
	Click + / - to increase / decrease the iris of the dome.
	Drag the slider to adjust the rotating speed of the dome.
	Click / to start / stop recording.
	Click + / + to hide / show the analog joystick.
	Click it to return to the live preview interface.

▶ Analog Joystick Control

The analog joystick on the left side of the interface provides quick PTZ control. The dome or PTZ will rotate when you drag the analog joystick. The farther you drag the analog joystick from the middle of the image, the faster the dome or PTZ rotates. The dome or PTZ will stop rotating when you stop dragging the analog joystick.

3D Control

Click the camera image on any area and then the image will be centered on the clicked point. Refer to the picture as shown below. Drag the mouse from A to B to get a green rectangle and the rectangle area will be zoomed in.

Camera IP Camera1 Preset Cruise Preset Preset Name Call 1 preset1 2 preset2 Add Delete Save Position Zoom Focus Iris Speed Slow Fast

Refer to the picture as shown below. Drag the mouse from C to D to get a green rectangle and the rectangle area will be zoomed out.

Camera IP Camera1 Preset Cruise Preset Preset Name Call 1 preset1 2 preset2 Add Delete Save Position Zoom→ + ←Focus→ + ←Iris→ + Speed Slow Fast

▶ Advanced 3D Control

Double click the left button of the mouse on any area of the camera image and then the image size will be doubled and centered on the clicked point.

Press and hold the left button of the mouse on any area of the camera image to zoom in the image; press and hold the right button to zoom out the image.

Move the cursor of the mouse to the camera image and then slide the scroll wheel of the mouse forward to zoom in the image, slide the scroll wheel of the mouse backward to zoom out the image.

➢ Preset Setting

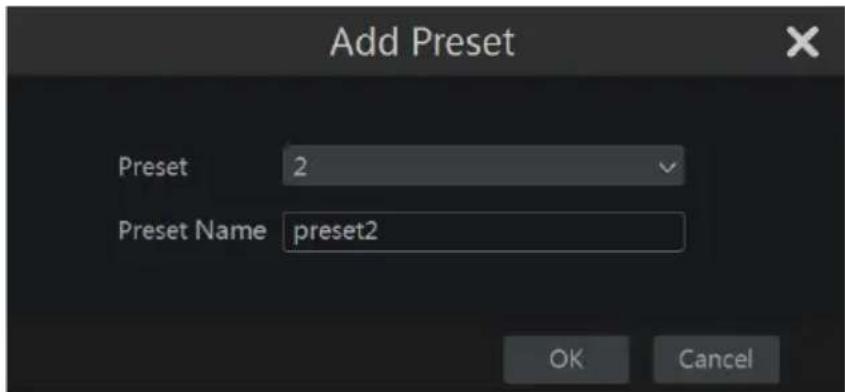

Click “Preset” to go to preset operation tab and then click “Add” button to pop up a window as shown below. Select the preset and then input the preset name in the window; finally click “OK” button to save the settings. You can add 255 presets for each dome at most.

Add Preset Preset 2 Preset Name preset2 OK Cancel

Adjust the dome's direction and then click "Save Position" to save the current preset position (you can also click another preset in the preset list and then save the preset position after

adjusting the dome's direction); click the preset list to call the preset; click "Delete" button to delete the selected preset.

You can also go to preset setting interface for preset setting, see 6.2 Preset Setting for details.

Cruise Setting

Click “Cruise” to go to cruise operation tab and then click “Add” button to pop up a window as shown below left. You can add 8 cruises for each dome at most.

Add Cruise Cruise Name cruise2 Preset Preset Name Speed Time Edit Delete 1 preset1 5 5Secs Add Preset Add Cancel

Add Preset Preset Name preset2 Time 5Secs Speed 5 OK Cancel

① Input the cruise name in the “Add Cruise” window and then click “Add preset” to pop up the “Add Preset” window (Before adding preset to the cruise, please add preset of the dome first).
② In the “Add Preset” window, select the preset name, preset time and preset speed and then click “OK” button.
③ In the “Add Cruise” window, you can click 📋 to reselect the preset, then change the preset time and speed. Click 🔒 to delete the preset. Click “Add” button to save the cruise.

Click ▶ to start the cruise and click □ to stop the cruise in the cruise list of the cruise operation tab; click “Delete” button to delete the selected cruise.

You can also go to cruise setting interface for cruise setting, see 6.3 Cruise Setting for details.

6.2 Preset Setting

Click Start→Settings→Camera→PTZ→Preset to go to the interface as shown below.

Preset Cruise IP Camera1 Number of Preset ( 1 ) ←Zoom→ + ←Focus→ + ←Iris→ + Speed Slow Fast Camera IP Camera1 Preset 1 Preset Name preset1 Add Delete Save Position

Add preset

Select camera and then click “Add” button to add preset; or click the camera list on the right side of the interface to display the preset information of the dome and then click to add preset. The operations of the “Add Preset” window are similar to that of the PTZ control interface; please see 6.1 PTZ Control Interface Introduction for details.

Edit preset

Select camera and preset. You can input the new name of the preset and then click to save the new preset name. Adjust the rotating speed, position, zoom, focus and iris of the preset and then click “Save Position” to save the preset.

Delete Preset

Select camera and preset and then click "Delete" to delete the preset.

6.3 Cruise Setting

Click Start→Settings→Camera→PTZ→Cruise to go to the interface as shown below.

Preset Cruise IP Camera1 Number of Cruise( 1 ) cruise1 + Camera IP Camera1 Cruise cruise1 Cruise Name cruise1 Preset Preset Name Speed Time Edit 1 preset1 5 5 Secs 2 preset2 5 5 Secs Add Preset

Add Cruise

Click the camera list on the right side of the interface to display the cruise information of the dome and then click to add cruise. The operations of the “Add Cruise” window are similar to that of the PTZ control interface; please see 6.1 PTZ Control Interface Introduction for details.

Edit Cruise

Select the camera and cruise in the “Cruise” interface. Input the new cruise name and then click to save the cruise name. Click “Add Preset” to add preset to the cruise. Click to edit the preset. Click to delete the preset from the cruise. Click one preset in the preset list and then click to move down the preset and click to move up the preset. Click to start the cruise and click to stop it.

Delete Cruise

Click the camera list on the right side of the interface to display the cruise information of the dome and then click on the top right corner of the cruise to delete the cruise.

7 Record & Disk Management

7.1 Record Configuration

7.1.1 Mode Configuration

Please format the HDDs before recording (refer to 7.5 Disk Management for details). Click Start→Settings→Record→Mode Settings to go to the mode settings interface. You can set the record time under the “Manual Record Settings” and then click “Apply” button to save the settings. There are two record modes: auto mode and manual mode.

Record Mode Mode Auto Motion Record Sensor Record Motion Record+Sensor Record Always(24 x 7) Record+Motion Record Always(24 x 7) Record+Sensor Record Always(24 x 7) Record+Motion Record+Sensor Record Always(24 x 7) Record+Motion Record+Sensor Record+Intelligence Record Advanced Manual Record Settings Record Time Manual Apply

Auto Mode

Motion Record: Motion alarm record will be enabled when motion alarm happens.

Sensor Record: Sensor alarm record will be enabled when sensor alarm happens.

Motion Record+Sensor Record: Motion/sensor alarm record will be enabled when motion/sensor alarm happens.

Always(24 x7) Record+Motion Record: Normal record is enabled all the time; motion alarm record will be started when motion alarm happens.

Always(24 x7) Record+Sensor Record: Normal record is enabled all the time; sensor alarm record will be started when sensor alarm happens.

Always(24 x7) Record+Motion Record+Sensor Record: Normal record is enabled all the time; motion/sensor alarm record will be enabled when motion/sensor alarm happens.

You can add more auto modes on intelligence record. Click “Advanced” button to pop up a window as shown below. Check the modes in the window and then click “Add” button to show the modes in the record mode list (in the window, the checked modes can be showed in the record mode list while the unchecked modes cannot; you can add 3 modes at most).

Advanced □ Intelligence Record □ Motion Record+Intelligence Record □ Sensor Record+Intelligence Record □ Motion Record+Sensor Record+Intelligence Record ✓ Always(24x7) Record+Intelligence Record □ Always(24x7) Record+Motion Record+Intelligence Record ✓ Always(24x7) Record+Sensor Record+Intelligence Record ✓ Always(24x7) Record+Motion Record+Sensor Record+Intelligence Add Cancel

Select one auto mode to pop up the corresponding window. Set the encode, resolution, FPS, bitrate type, quality, max bitrate and audio of each camera and then click “OK” to save the settings. Please adjust the parameters according to the actual condition.

Always(24x7) Record+Motion Record+Sensor Record Normal Motion Records+Sensor Record Camera Name Stream Type Encode Resolution FPS Bitrate Type Quality Max Bitrate Bitrate Limit Recommended Rank Audio Resolution FPS Bit IP Camera1 Main Stream H.264 1920x1080 25 VBR Higher 4096Kbps 7718~12864Kbps ON 2560x1440 25 IP Camera2 Main Stream H.264 1920x1080 25 VBR Higher 4096Kbps 7718~12864Kbps ON 2560x1440 25 IP Camera3 Main Stream H.265 1920x1080 25 VBR Higher 4096Kbps 7718~12864Kbps ON 2560x1440 25 IP Camera4 Main Stream H.265 1920x1080 25 VBR Higher 4096Kbps 7718~12864Kbps ON 2560x1440 25 Remain Bandwidth: 92 / 120 Mb OK Cancel

Video Encode: the available options will be H.265 and H.264 if the connected IP camera supports H.265, or the option will be H.264 only.

Resolution: the higher the resolution is, the clearer the image is.

FPS: the higher the frame rate is, the more fluency the video is. However, more storage room will be taken up.

Bitrate Type: CBR and VBR are optional. CBR means that no matter how changeable the video resources are, the compression bitrate keeps constant. This will not only facilitate the image quality better in a constant bitrate but also help to calculate the capacity of the recording. VBR means that the compression bitrate can be adjustable according to the change of the video resources. This will help to optimize the network bandwidth.

Quality: When VBR is selected, you need to choose image quality. The higher the image quality you choose, the more bitrate will be required.

Max Bitrate: 32Kbps \~10240Kbps are optional.

▶ Manual Mode

If the manual mode is selected, you need to set the encode parameters and record schedules of each camera. See 7.2 Encode Parameters Setting and 7.3 Schedule Setting for details.

7.1.2 Advanced Configuration

Click Start→Settings→Record→Advanced to go to the following interface. Enable or disable cycle record (cycle record: the earliest record data will be replaced by the latest when the disks are full). Set the pre-alarm record time, post-alarm record time and expiration time of each camera and then click “Apply” to save the settings.

Advanced Record Settings ✓ Cycle Record Camera's Record Parameters Camera Name Pre-alarm Record Time Post-alarm Record Time Expiration Time IP Camera1 5 Secs ✓ 10 Secs ✓ Never Expire IP Camera2 5 Secs ✓ 10 Secs ✓ Never Expire IP Camera3 5 Secs ✓ 10 Secs ✓ Never Expire IP Camera4 5 Secs ✓ 10 Secs ✓ Never Expire Apply

Pre-alarm Record Time: set the time to record before the actual recording begins.

Post-alarm Record Time: set the time to record after the actual recording is finished.

Expiration Time: set the expiration time for recorded video. If the set date is overdue, the recorded data will be deleted automatically.

7.2 Encode Parameters Setting

Click Start→Settings→Record→Encode Parameters to go to the interface as shown below. Set the encode, resolution, FPS, bitrate type, quality, max bitrate and audio of main stream for each camera in “Event Recording Settings” and “Schedule Recording Settings” interfaces. Click “Apply” to save the settings. You can set the record stream of each camera one by one or batch set them for all cameras.

Event Recording Settings Schedule Recording Settings Camera Name Stream Type Encode Resolution FPS Bitrate Type Quality Max Bitrate Bitrate Limit Recommende IP Camera1 Main Stream H.264 2560x1440 25 VBR Higher 4096Kbps 7718~12864Kbps IP Camera2 Main Stream H.264 2560x1440 25 VBR Higher 4096Kbps 7718~12864Kbps IP Camera3 Main Stream H.265 2560x1440 25 VBR Higher 4096Kbps 7718~12864Kbps IP Camera4 Main Stream H.265 2560x1440 25 VBR Higher 4096Kbps 7718~12864Kbps Remain Bandwidth: 92 / 120 Mb Apply

Click Start→Settings→Record→Stream Settings to go to “Sub-stream” interface. Set the encode, resolution, FPS, bitrate type, quality and max bitrate of sub-stream for each camera in the interface and then click “Apply” to save the settings.

Sub-Stream Camera Name Stream Type Encode Resolution FPS Bitrate Type Quality Max Bitrate Bitrate Limit Recommer IP Camera1 Sub-stream H.264 352x240 25 VBR Higher 512Kbps 857~1429Kbps IP Camera2 Sub-stream H.264 352x240 25 VBR Higher 512Kbps 857~1429Kbps IP Camera3 Sub-stream H.265 352x240 25 VBR Higher 512Kbps 857~1429Kbps IP Camera4 Sub-stream H.265 352x240 25 VBR Higher 512Kbps 857~1429Kbps Apply

7.3 Schedule Setting

7.3.1 Add Schedule

Click Start→Settings→Record→Record Schedule→Edit Schedules to go to the interface as shown below. “24×7”, “24×5” and “24×2” are the default schedules; you cannot edit or delete “24×7” while “24×5” and “24×2” can be edited and deleted. Click the schedule name to display the detailed schedule information on the left side of the interface. The seven rows stand for the seven days in a week and each row stands for 24 hours in a day. Blue stands for the selected time and gray stands for unselected time.

Schedule Config Edit Schedules Schedule "24x2" Sun 2 4 6 8 10 12 14 16 18 20 22 00:00 - 24:00 Mon 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 Tue 2 3 4 5 6 7 8 9 10 11 12 13 Wed 2 3 4 5 6 7 8 9 10 11 12 13 Thur 2 3 4 5 6 7 8 9 10 11 12 13 Fri 2 3 4 5 6 7 8 9 10 11 12 Sat 2 3 4 5 6 7 8 9 10 11 12 00:00 - 24:00 Name Edit Delete 24x7 24x5 24x2

Click + to add a new schedule. Refer to the picture below.

Set the schedule name and schedule time and then click "Add" to save the schedule. You can set day schedule or week schedule. 📄 button; : delete button.

Set Day Schedule

Click and then drag the cursor on the time scale to set record time; click and then drag the cursor on the time scale to delete the selected area.

You can manually set the record start time and end time. Click 📋 or 🌐 and then click “Manual” on each day to pop up a window as shown below. Set the start and end time in the window and then click “OK” to save the settings.

Added time manually Start Time 16:34 End Time 17:34 OK Cancel

Click "All" to set all day recording; click "Reverse" to swap the selected and unselected time

in a day; click "Clear All" to clear all the selected area in a day.

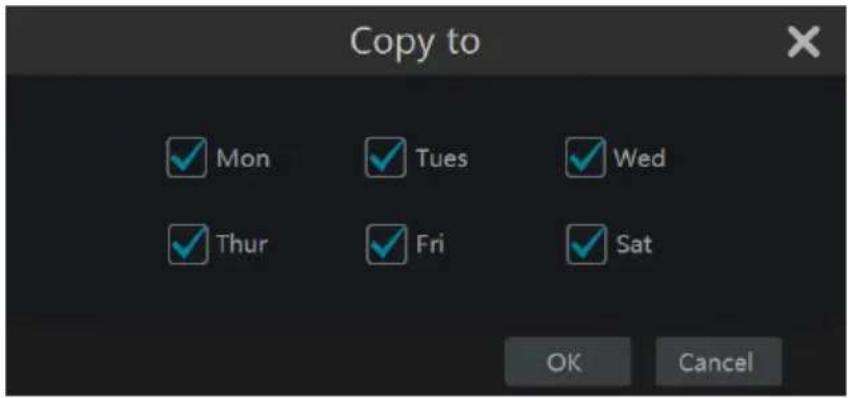

Click “Copy To” to copy the schedule of the day to other days. Refer to the picture below. Check the days in the window and then click “OK” to save the settings.

Copy to ✓ Mon ✓ Tues ✓ Wed ✓ Thur ✓ Fri ✓ Sat OK Cancel

Set Week Schedule

Click 📄 or 📋 and then click “Manual” beside 📋 to set the week schedule. Refer to the picture below. Set the start and end time, check the days in the window and then click “OK” to save the settings.

Added time manually Start Time 16:37 End Time 17:37 Sun Mon Tues Wed Thur Fri Sat OK Cancel

Click “All” to set all week recording; click “Reverse” to swap the selected and unselected time in a week; click “Clear All” to clear all the selected area in a week.

7.3.2 Record Schedule Configuration

Click Start→Settings→Record→Record Schedule→Schedule Configuration to go to the interface as shown below. Set the schedule of sensor record, motion record, timed record and intelligence record. Click “None” in the drop-down menu to clear the schedule. Click “Apply” to save the settings.

Schedule Config Edit Schedules Camera Name Sensor Record Schedule Motion Record Schedule Timed Record Schedule Intelligence Record Schedule IP Camera1 24×7 24×7 24×7 24×7 IP Camera2 24×7 24×7 24×7 24×7 IP Camera3 24×5 24×5 24×5 24×5 IP Camera4 24×5 24×5 24×5 24×5 Apply

Go to “Edit Schedules” interface and then click edit the schedule. The settings of “Edit Schedule” are similar to that of the “Add Schedule”. Click to delete the schedule.

7.4 Record Mode

7.4.1 Manual Recording

Method One: Click 📄 on the tool bar at the bottom of the live preview interface to enable recording of the camera.

Method Two: Go to live preview interface and then click the right-click menu “Manually Record On” in the camera window or click on the tool bar under the camera window to start recording.

Note: Click Start→Settings →Record→Mode Settings and then set the manual record time in the interface. Click "Apply" to save the settings.

7.4.2 Timing Recording

Timing Recording: the system will record automatically according to the schedule. Set the timing record schedule of each camera. See 7.3 Schedule Setting for details.

7.4.3 Motion Based Recording

Motion Based Recording: the system will start motion based recording when the motion object appears in the setup schedule. The setup steps are as follows:

① Set the motion based recording schedule of each camera. See 7.3 Schedule Setting for details.
② Enable the motion and set the motion area of each camera. See 9.2.1 Motion Configuration for details.

The camera will start motion based recording once you finish the above settings.

7.4.4 Sensor Based Recording

① Set the sensor based recording schedule of each camera. See 7.3 Schedule Setting for details.

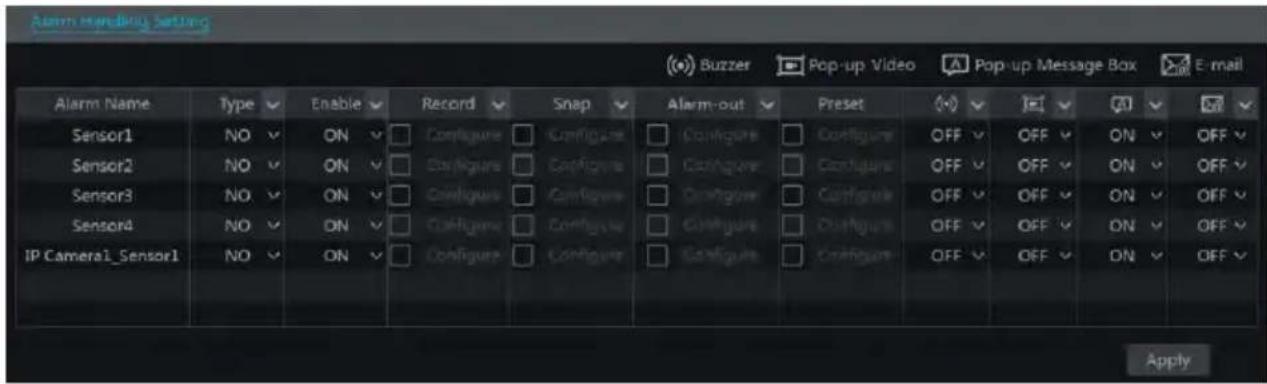

② Set the NO/NC type of the sensor, enable the sensor alarm and then check and configure the “Record”. See 9.1 Sensor Alarm for details.

7.4.5 Intelligence Recording

① Set the intelligence recording schedule of each IP camera. See 7.3 Schedule Setting for details.
② Enable the intelligence detection (object detection, exception, line crossing or intrusion detection) and draw alert surface or warning area of each IP camera. See 9.3 Intelligence Alarm for details.

The camera will start intelligence recording once you finish the above settings. This function is only available for some IPCs.

7.5 Disk Management

Click Start→Settings→Disk→Disk Management to go to disk management interface. You can view the NVR's disk number and disk status and so on in the interface. Click “Formatting” button to format the HDD.

Disk Capacity[GB] Free Space[GB] Disk Serial No. Disk Model Status Record Period Operation Disk1 931 900 XXX XXX RW 06/17/2017 Formatting

Note: 1. The new HDD should be formatted for normal use.

1. For normal use of the HDD which has been used in other NVR, if the NVR is of the same model with the new NVR, please import the configuration file of the NVR to the new NVR of format the HDD; if the models of the two NVRs are different, please format the HDD.

7.5.1 Storage Mode Configuration

Click Start→Settings→Disk→Storage Mode to go to the interface as shown below.

Storage Mode Storage Mode Group Group Disk (Capacity: 931GB) 1 Disk(1) Camera(4) 2 Disk(0) Camera(0) 3 Disk(0) Camera(0) 4 Disk(0) Camera(0) Disk2 + IP Camera1 IP Camera2 IP Camera3 IP Camera4 +

There are all four disk groups. By using disk group, you can correspond the camera to disk (the record data of the camera in the group will be stored into the disks in the same group). The NVR with e-SATA interface supports e-SATA recording.

The added disks and cameras will be added into group one automatically. The disks and cameras in the groups can be deleted except group one (select a disk group and then click on the top right corner of the added disk or camera to delete it from the group). The deleted disks and cameras will be moved into group one automatically.

Each group can add the disks and cameras from other groups. Each disk and camera can only be added into one group. Select a disk group and then click in the disk or camera row to pop up a window. Check the disks or cameras in the window and then click "Add".

7.5.2 View Disk and S.M.A.R.T. Information

Click Start→Settings→Disk→View Disk Information to view the HDD information; click "S.M.A.R.T. Information" to view the working status of the HDD. Refer to the picture below.

Disk Disk Management Disk Management Storage Mode Storage Mode Settings Disk View Disk Information | SMART Information Disk S.M.A.R.T Status Normal ID Attribution Value Worst Value Threshold Raw Value Status 0x01 Read Error Rate 100 100 62 0 Normal 0x02 Throughput Performance 100 100 40 0 Normal 0x03 Spin-Up Time 234 234 38 1 Normal 0x04 Start/Stop Count 100 100 0 96 Normal 0x05 Reallocated Sector Count 100 100 5 0 Normal 0x07 Seek Error Rate 100 100 67 0 Normal 0x08 Seek Time Performance 100 100 40 0 Normal 0x09 Power-On Hours 99 99 0 724 Normal 0x10 Spin Retry Count 100 100 60 0 Normal 0x11 Power Cycle Count 100 100 0 93 Normal 0x12 G sense Error Rate 100 100 0 0 Normal 0x13 Power-off Retract Count 100 100 0 58 Normal 0x14 Load Cycle Count 100 100 0 8815 Normal 0x15 Temperature 187 187 0 1638432 Normal 0x16 Reallocation Event Count 100 100 0 0 Normal 0x17 Current Pending Sector Count 100 100 0 0 Normal 0x18 Uncorrectable Sector Count 100 100 0 0 Normal 0x19 UltraDMA CRC Error Count 200 200 0 0 Normal 0x20 Load/Unload Retry Count 100 100 0 0 Normal

8 Playback & Backup

8.1 Instant Playback

Click on the tool bar at the bottom of the preview camera window to play back the record (click on the tool bar at the bottom of the live preview interface to set the default playback time). Refer to the picture below. Drag the playback progress bar to change the playback time. You can also click the right-click menu “Instant Playback” in the camera window and then set the instant playback time to play back the record.

Highway traffic scene with multiple cars and a tree-lined lane, captured in a video player interface (no readable text or symbols on vehicles)

8.2 Playback Interface Introduction

Click 🖼️ on the tool bar at the bottom of the live preview interface or click Start→Playback to go to the playback interface as shown below (click 🖼️ on the tool bar at the bottom of the live preview interface to set the default playback time).

11/03/2015 15:34:53 Search and Backup Live Display

The added cameras will playback their records in the playback interface automatically. You can also add the playback camera manually. Click + in the playback window to pop up the “Add Camera” window. Check the cameras in the window and then click “Add” to add playback camera. The system supports a maximum of 16 synchronous playback cameras.

The buttons on the tool bar (area ①) at the bottom of the playback interface are introduced in the table below.

Button	Meaning
	Start button. Click it to pop up area 2.
	Full screen button. Click it to show full screen; click it again to exit the full screen.
	Screen mode button.
	OSD ON button. Click it to enable OSD; click disable OSD.
	Stop button.
	Rewind button. Click it to play video backward.
	Play button. Click it to play video forward.
	Pause button.
	Deceleration button. Click it to decrease the playing speed.
	Acceleration button. Click it to increase the playing speed.
	Previous frame button. It works only when the forward playing is paused in single screen mode.
	Next frame button. It works only when the forward playing is paused in single screen mode.
	Click to step backward 30s and click to stop forward 30s.
[44XXX]	Event list/tag button. Click it to view the event record of manual/schedule/sensor/ motion and the tag information.
	Backup button. Drag the mouse on the time scale to select the time periods and cameras, and then click the button to back up the record.
	Backup status button. Click it to view the backup status.
[147Y4]	Back button. Click it to return.

Introduction of area ②:

Button	Meaning
	Click it to go to record search and backup interface; see 8.3 Record Search,Playback & Backup for details.
	Click it to go to live preview interface; see Chapter 5 Live Preview Introduction for details.

Click on the playback window to show the tool bar as shown in area ③; right click on the window to show the menu list. The tool bar and menu list are introduced in the table below.

Button	Menu List	Meaning
	--	Move tool. Click it to move the tool bar anywhere.
	Enable Audio	Click it to enable audio. You can listen to the camera audio by enabling audio.
	Snap	Click it to snap.
	Zoom In	Click it to go to the zoom in interface. The zoom in interface is similar to that of the camera window in the live preview interface.Click to pause the record playing; click to play the record. When the record is paused in forward playing mode, you can click to view the previous frame and click to view the next frame.
	Add Tag	Click it to add tag. You can play back the record by searching the added tag. Click it and then input the tag name in the popup window. Click “Add” to add tag.
	Switch Camera	Click it to switch the playback camera. Click it and then check the camera in the popup window. Click “OK” to change the camera.
	Close Camera	Click it to close the playback camera.

Introduction of area ④:

Click ☐ to set the date; click ☐ to set the time and then the playback camera will play the record from the time you set. You can check the record type as required for record playback; first you should click ☐ on the tool bar at the bottom of the interface to clear all the playback camera, then check the record type ( manual record; : sensor based record; : motion based record; ☑: schedule record; ☒: intelligence record) and finally click + in the playback window to add camera for playback (the record time scale will show the record data of the checked record type only after the above operations).

Introduction of the record time scale (area ⑤):

A tool bar will appear after moving the mouse to the record time scale. Click / to zoom the timeline; click to recover the timeline to 24 hours' ratio. Drag the timeline or slide the scroll wheel of the mouse on the time scale to show the hidden time on the top or bottom of the timeline. You can also click to show the hidden time on the top of the timeline or click to show the hidden time on the bottom of the timeline. Drag the slider at the bottom of the time scale to show the hidden playback cameras.

The record time scale shows different record types with different colors. The green block stands for manual record, red block stands for sensor based record, yellow block stands for motion based record, blue block stands for schedule record and cyan block stands for intelligence record. Click the record block to set the time and then the playback camera will play the record from the time you set.

Drag the color block on the time scale to select the backup area and then right click the area or click to pop up a backup information window. Click “Backup” button in the window to pop up the backup window. Select the device, backup path and backup format and then click “Backup” button to start the backup.

8.3 Record Search, Playback & Backup

The record data and the snapped pictures can be backed up through network, USB (U disk or USB mobile HDD) or e-SATA (only available for some models). The file system of the backup devices should be FAT32 format.

8.3.1 Search, Playback & Backup by Time-sliced Image

① Click Start→Search and Backup→By Time-sliced Image to go to “By Time-sliced Image” tab. There are two view modes: by time and by camera. In the time view mode, a maximum of 64 camera thumbnails can be showed. If the camera thumbnail number is more than 64, the cameras will be listed directly by their camera name, not the thumbnail. A maximum of 196 camera names can be listed. If the camera name number is more than 196, the time view mode will be disabled and the camera view mode will be available only.

Search and Backup By Time By Event Tag Management Image Management Backup Status Camera Thumbnail View Mode Time 11/03/2015 IP Camera1 IP Camera2 IP Camera3 IP Camera4 10/27/2015 IP Camera1 IP Camera2 Open Close

② Select one camera in the interface and then click “Open” button.
③ Click the image box to play the record in the small playback box on the left side of the interface (the box which has image inside indicates that the record data exist).
④ Refer to the picture below. Drag the color blocks on the time scale to select the record data and then click “Backup” button to pop up the “Record Backup” window as shown below. Select the device name, backup format and path and then click “Backup” button to start the backup.

Record Backup Device Name ExternalStorage1 689B 4AC4 Refresh Free:28.96 GB,All:29.27 GB Name Type Size Modify Date Backup Directory 8.00 KB 2015/11/03 16:58:53 Format Private New Folder Delete Backup Cancel

Note: If you back up the record in private format, the system will back up a RPAS player to USB device automatically. The private format record can be played by RPAS player only.

⑤ Click “Playback” button to play the record in the playback interface (refer to 8.2 Playback Interface Introduction for details). Click “Close” to close the interface.

Search and Backup By Time By Event Tag Management Image Management Backup Stras Camera Thunderwall > IP Camera1 > 10/2015 > 27 19/17/2015 06:15:00 Picture Hour 16/24 Playback 16:00:00 17:00:00 18:00:00 19:00:00 20:00:00 21:00:00 22:00:00 23:00:00 24:00:00 25:00:00 26:00:00 27:00:00 28:00:00 29:00:00 30:00:00 31:00:00 32:00:00 33:00:00 34:00:00 35:00:00 36:00:00 37:00:00 38:00:00 39:00:00 40:00:00 41:00:00 42:00:00 43:00:00 44:00:00 45:00:00 46:00:00 47:00:00 48:00:00 49:00:00 50:00:00 51:00:00 52:00:00 53:00:00 54:00:00 55:00:00 56:00:00 57:00:00 58:00:00 59:00:00 60:00:00 61:00:00 62:00:00 63:00:00 64:00:00 65:00:00 66:00:00 67:00:00 68:00:00 69:00:00 70:00:00 71:00:00 72:00:00 73:00:00 74:00:016/24

Time Slice Mode Selecting:

Method One: Click "Year", "Month" or "Day" button under the record time scale to select the

time slice mode. In “Day” mode, click ◀ / ▶ on the left/right side of the time scale to view the record of the last/next day; click “Minute” in the “Picture” option under the time scale to select “Minute” mode (in “Minute” mode, click the time scale to change the time of the 60 display windows) and click “Hour” to select “Hour” mode.

Method Two: Click > beside "Camera Thumbnail" on the left top corner of the interface to select the time slice mode.

Method Three: Right-click the mouse on any area of the time-sliced interface to go back to the upper interface.

8.3.2 Search, Playback & Backup by Time

① Click Start→Search and Backup→By Time to go to “By Time” tab as shown below.
② Click 🚗 on the bottom of the interface to add playback camera. A maximum of 16 cameras can be added for playback. Click “Modify” on the top right corner of the camera window to change the camera and click “Clear” to remove the camera.
③ Click the camera window to play the record in the small playback box on the left side of the interface. You can set the date on the top left of the interface, check the event type as required and click the time scale or click under the time scale to set the time. The camera window will play the record according to the time and event type you set.
④ Drag the color blocks on the time scale to select the record data (or click “Set Backup Time” button on the bottom left corner of the interface to set the backup start time and end time) and then click “Backup” button for record backup. Click “Playback” button to play the record in the playback interface.

Search and Backup By Time-sliced Image By Event Tag Management Image Management Backup Status 11/07/2015 12:30:00 10/06/2015 12:00:00 Manual Casean Intelligence Detection Motion Schedule 10/27/2015 11:26:00 Refresh Picture IP Camera1 Modify Ctrl IP Camera2 Modify Close Set Backup Time Playback Close

8.3.3 Search, Playback & Backup by Event

① Click Start→Search and Backup→By Event to go to “By Event” tab as shown below.

Search and Backup By Time-sticed Image Tag Management Image Management Backup Status Start Time 10/27/2015 00:00:00 End Time 10/27/2015 23:59:59 Event Manual Intelligence Detection Motion No. Camera Name Type Time Period Duration Date Size Playback Backup 1 Camera1 Motion 10/27/2015 14:46:14~10/27/2015 15:22:32 36m 18s 200M 2 Camera2 Manual 10/27/2015 14:46:19~10/27/2015 15:12:32 26m 13s 155M Current Page: 1 / 1, All-2 Close

② Check the event type in the interface as required.
③ Click ☐ to set the start time and end time on the top left of the interface.
④ Check cameras on the left side of the interface or check “All” to select all the cameras and then click Q Search to search the record. The searched record will be displayed in the list.
⑤ Click ▶ in the list to play back the record in the popup window. Click 📁 to back up one record data or check multiple record data in the list and then click “Backup” button for record batch backup.
⑥ Select one record data in the list and then click “Playback” button to play the record in the playback interface.

8.3.4 Search & Playback by Tag

Only if you add the tags can you play the record by tag search. Click Start→Playback to go to the playback interface and then click ★ on the bottom of the camera window to add tag when you want to mark the playback time point of the selected camera.

Click Start→Search and Backup→Tag Management to go to “Tag Management” tab.

Search and Backup By Time-sliced Image By Time By Event Tag Management Xiag Management Backup Status No. Name Camera Name Time Playback Edit Delete 1 A IP Camera1 10/27/2015 14:46:12 2 B IP Camera2 10/27/2015 15:37:46 Current Page: 1 / 1, All 2

Click 🎨 in the interface to play the record. Click 🔒 to edit the tag name. Click 🔒 to delete the tag.

8.3.5 Image Management

Click Start→Search and Backup→Image Management to go to “Image Management” tab. The system will display all the snapped images automatically in the list.

Search and Backup By Time-sliced Image By Time By Event Tag Management Xiuge Management Backup Status No. Camera Name Snapshot Mode Snapshot Time Creator Browse Export Delete 1 IP Camera1 Manual 10/27/2015 14:57:32 admin 2 IP Camera1 Alarm 10/27/2015 14:55:01 IP Camera1 3 IP Camera2 Manual 10/27/2015 14:53:27 admin Current Page: 1 / 1, All 3

Click 📄 to delete the image. Click 📋 to pop up the “Export” window. Select the device name and save path in the window and then click “Save” button. Click 📋 to pop up the “View Image” window. Click 📋 to export the image. Click 🖱 to view the previous image; click 🖼 to view the next image; click 🏠 to delete the image; click 📃 to play all the images.

View Image Camera Name: IP Camera1 Time: 10/27/2015 14:55:01 Creator: IP Camera1 Close

8.3.6 View Backup Status

Click Start→Search and Backup→Backup Status or click 📄 on the tool bar at the bottom of the playback interface to view the backup status.

9 Alarm Management

9.1 Sensor Alarm

To complete the entire sensor alarm settings, you should enable the sensor alarm of each camera and then set up the alarm handling of each camera.

① Click Start→Settings→Alarm→Sensor Alarm to go to the following interface.

Alarm Myrading Setup (B) Buzzer Pop-up Video Pop-up Message Box E-mail Alarm Name Type Enable Record Snap Alarm-out Preset OFF OFF ON OFF Sensor1 NO ON Configure Configure Configure OFF OFF ON OFF Sensor2 NO ON Configure Configure Configure OFF OFF ON OFF Sensor3 NO ON Configure Configure Configure OFF OFF ON OFF Sensor4 NO ON Configure Configure Configure OFF OFF ON OFF IP Camera1_Sensor1 NO ON Configure Configure Configure OFF OFF ON OFF Apply

② Select the alarm type (NO or NC) according to trigger type of the sensor.
③ Enable the sensor alarm of each camera.
④ Check the “Record”, “Snap”, “Alarm-out” and “Preset” and enable or disable the “Buzzer”, “Pop-up Video”, “Pop-up Message Box” and “E-mail” as required.
⑤ Click "Apply" to save the settings.

The configuration steps of the above mentioned alarm linkages are as follows.

Record: check it and then the “Trigger Record” window will pop up automatically (you can also click “Configure” button to pop up the window). Select camera on the left side and then click to set the camera as the trigger camera. Select trigger camera on the right side and then click to cancel the trigger camera. Click “OK” button to save the settings. The trigger cameras will record automatically when the sensor alarm is triggered.

Snap: check it and then the “Trigger Snapshot” window will pop up automatically. Configure the trigger camera in the window. The trigger cameras will snap automatically when the sensor alarm is triggered.

Alarm-out: check it and then the “Trigger Alarm-out” window will pop up automatically. Configure the trigger alarm-out in the window. The system will trigger the alarm-out automatically when the sensor alarm is triggered. You need to set the delay time and the schedule of the alarm outputs. See 9.5.1 Alarm-out for details.

Preset: check it and then the “Trigger Preset” window will pop up automatically. Configure the trigger preset of each camera. To add presets, please see 6.2 Preset Setting for details.

Buzzer: if enabled, the system will begin to buzz when the sensor alarm is triggered. To set the delay time of the buzzer, please see 9.5.4 Buzzer for details.

Pop-up Video: After camera setting, the system will pop up the corresponding video automatically when the sensor alarm is triggered. To set the duration time of the video, please see 9.5.3 Display for details.

Pop-up Message Box: if enabled, the system will pop up the corresponding alarm message box automatically when the sensor alarm is triggered. To set the duration time of the message box, please see 9.5.3 Display for details.

E-mail: if enabled, the system will send an e-mail when the sensor alarm is triggered. Before you enable the email, please configure the recipient's e-mail address first (see 11.1.5 E-mail Configuration for details).

9.2 Motion Alarm

Motion Alarm: when the motion object appears in the specified area, it will trigger the alarm. You should enable the motion of each camera first and then set the alarm handling of the camera to complete the whole configuration of the motion alarm.

9.2.1 Motion Configuration

① Click Start→Settings→Camera→Motion to go to the following interface.

Camera Name Motion Sensitivity Duration IP Camera1 ON 5 20 Secs IP Camera2 ON 5 20 Secs IP Camera3 ON 5 20 Secs IP Camera4 ON 5 20 Secs All Reverse Clear Camera IP Camera1 Motion ON Sensitivity Low High Duration 20 Secs Processing Mode Apply

② Select the camera, enable the motion and set the sensitivity and duration of the camera.

Sensitivity: the higher the value is, the more sensitive it is to motion. You should adjust the value according to the practical conditions since the sensitivity is influenced by color and time (day or night).

Duration: it refers to the interval time between the adjacent motion detections. For instance, if the duration time is set to 10 seconds, once the system detects a motion, it will go to alarm and would not detect any other motion (specific to camera) in 10 seconds. If there is another motion detected during this period, it will be considered as continuous movement; otherwise it will be considered as a single motion.

③ Drag the camera image to set the motion area. You can set more than one motion area. Click “All” to set the whole camera image as the motion area. Click “Reverse” to swap the motion area and the non-motion area. Click “Clear” to clear all the motion areas.

④ Click “Apply” to save the settings. Click “Processing Mode” to go to the alarm handling configuration interface of the motion alarm.

9.2.2 Motion Alarm Handling Configuration

① Click Start→Settings→Alarm→Motion Alarm to go to the following interface.

Alarm Handling Setting ((●) Buzzer Pop-up Video E-mail Camera Name Snap Alarm out Preset (●) OFF OFF OFF IP Camera1 ON Configure Configure OFF OFF OFF IP Camera2 ON Configure Configure OFF OFF OFF IP Camera3 ON Configure Configure OFF OFF OFF IP Camera4 ON Configure Configure OFF OFF OFF Motion Settings Apply

② Enable or disable “Snap”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling setting of motion alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).

③ Click “Apply” to save the settings. You can click “Motion Settings” to go to the motion configuration interface.

9.3 Intelligence Alarm

9.3.1 Object Detection

Object Detection Configuration:

① Click Start→Settings→Camera→Intelligent Detection→Object Detection to go to the following interface.
② Select the camera, enable the object detection and set the duration and detect type. There are two detect types: Article Leave Behind and Article Lose.

Article Leave Behind: The relevant alarms will be triggered if there are articles left in the detection area drew by the users.

Article Lose: The relevant alarms will be triggered if there are articles missing in the detection area drew by the users.

③ Select the warning area and input the area name. You can add 4 warning areas at most.
④ Draw the warning area of the object detection. Refer to the interface as shown above. Check “Draw Area” and then click around the area where you want to set as the warning area in the image (the warning area should be a closed area). Uncheck the “Draw Warning Area” if you finish the drawing. Click “Clear” button to delete the warning area.

⑤ Click “Apply” to save the settings.
⑥ Click “Processing Mode” to go to the alarm handling configuration interface of object detection.

Object Detection Exception Tripwire Intrusion Object Detection Detect Type Duration Camera Name ON 10 Secs Article Leave Behind 1 Area Area name IPCamera1 IPCamera2 ON 10 Secs Article Leave Behind 1 Draw area Clear Camera IPCamera1 Object ON Detection Duration 10 Secs Detect Type Article Leave Behind Area 1 Area name Processing Mode Apply

Object Detection Alarm Handling Configuration:

① Click Start→Settings→Alarm→Intelligence Alarm→Object Detection to go to the following interface.

Object Detection Exception Tripwire Intrusion ((*) Buzzer Pop-up Video E-mail Camera Name Snap Alarm-out Preset (*) OFF OFF OFF IP Camera1 ON Configure Configure OFF OFF OFF IP Camera2 ON Configure Configure OFF OFF OFF Article Protect Config Apply

② Enable or disable “Snap”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling setting of object detection alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).
③ Click “Apply” to save the settings. You can click “Article Protect Config” to go to the object detection configuration interface.

9.3.2 Exception

Exception Configuration:

① Click Start→Settings→Camera→Intelligent Detection→Exception to go to the following interface.

Object Detection Tripwire Intrusion Duration Camera Name Scene Change Video Blurred Video Color Cast Sensitivity IPCamera1 10 Secs ON ON ON 50 IPCamera2 10 Secs ON ON 50 Camera IPCamera1 Duration 10 Secs Scene Change ON Video Blurred ON Video Color Cast Sensitivity 50 Processing Mode Apply

② Select the camera and enable the relevant detection as required.

Scene Change: The relevant alarms will be triggered if the scene of the monitor video has changed.

Video Blurred: The relevant alarms will be triggered if the monitor video is blurred.

Video Color Cast: The relevant alarms will be triggered if color cast happens to the monitor video.

③ Set the duration and drag the slider to set the sensitivity of the exception detection.

The sensitivity value of Scene Change Detection: the bigger the value is, the more sensitive the system responds to the amplitude of the scene change.

The sensitivity value of Video Blur Detection: the bigger the value is, the more sensitive the system responds to the defocus of the device image. You should just the value according to the real situation.

The sensitivity value of Video Color Cast Detection: the bigger the value is, the more sensitive the system responds to the color cast of the device image. You should also consider other factors.

④ Click “Apply” to save the settings.

⑤ Click “Processing Mode” to go to the alarm handling configuration interface of exception detection.

Exception Alarm Handling Configuration:

① Click Start→Settings→Alarm→Intelligence Alarm→Exception to go to the interface.

Object Detection Exception Tripwire Intrusion (●) Buzzer Pop-up Video E-mail Camera Name Snap Alarm-out Preset (●) OFF OFF OFF IP Camera1 ON Configure Configure OFF OFF OFF IP Camera2 ON Configure Configure OFF OFF Exception Config Apply

② Enable or disable “Snap”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling setting of exception detection alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).
③ Click “Apply” to save the settings. You can click “Exception Config” to go to the exception detection configuration interface.

9.3.3 Tripwire

Line Crossing Configuration:

The relevant alarms will be triggered if someone or something crosses the alert line drew by the users.

① Click Start→Settings→Camera→Intelligent Detection→Tripwire to go to the following interface.

Object Detection Exception Tripwire Intrusion Duration Camera Name Tripwire Line Direction IPCamera2 ON 10 Secs 1 A<-B IPCamera1 ON 10 Secs 1 A<-B Draw line Clear Camera IPCamera2 Tripwire ON Duration 10 Secs Line 1 Direction A<-B Processing Mode Apply

② Select the camera, enable the tripwire detection and set the duration.
③ Select the line and direction. You can add 4 lines at most.

Direction: A<->B, A->B and A<-B optional. It is the crossing direction of the intruder who crosses over the alert line.

A<->B: the alarm triggers when the intruder crosses over the alert line from B to A or from A to B.

A->B: the alarm triggers when the intruder crosses over the alert line from A to B.

A<-B: the alarm triggers when the intruder crosses over the alert line from B to A.

④ Draw the alert surface. Refer to the interface as shown above. Check “Draw line” and then drag the mouse in the image to draw an alert line. Uncheck the “Draw line” if you finish the drawing. Click “Clear” button to delete the alert line.
⑤ Click “Apply” to save the settings.
⑥ Click “Processing Mode” to go to the alarm handling configuration interface of line crossing detection.

Line Crossing Alarm Handling Configuration:

① Click Start→Settings→Alarm→Intelligence Alarm→Tripwire to go to the following interface.

Object Detection Exception Tripwire Intrusion (●) Buzzer Pop-up Video E-mail Camera Name Snap Alarm-out Preset (●) ✓ ✓ ✓ ✓ IP Camera1 ON Configure Configure OFF ✓ OFF ✓ OFF ✓ IP Camera2 ON Configure Configure OFF ✓ OFF ✓ OFF ✓ Crossing Config Apply

② Enable or disable “Snap”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling setting of line crossing alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).
③ Click “Apply” to save the settings. You can click “Crossing Config” to go to the line crossing configuration interface.

9.3.4 Intrusion Detection

Intrusion Configuration:

The relevant alarms will be triggered if someone or something intrudes into the warning areas or moves in the warning areas drew by the users.

① Click Start→Settings→Camera→Intelligent Detection→Intrusion to go to the following interface.
② Select the camera, enable the intrusion detection and set the duration.

③ Select the warning area. You can add 4 warning areas at most.
④ Draw the warning area of the intrusion detection. Refer to the interface as shown below. Check “Draw area” and then click around the area where you want to set as the warning area in the image (the warning area should be a closed area). Uncheck the “Draw area” if you finish the drawing. Click “Clear” button to delete the warning area.
⑤ Click “Apply” to save the settings.
⑥ Click “Processing Mode” to go to the alarm handling configuration interface of intrusion detection.

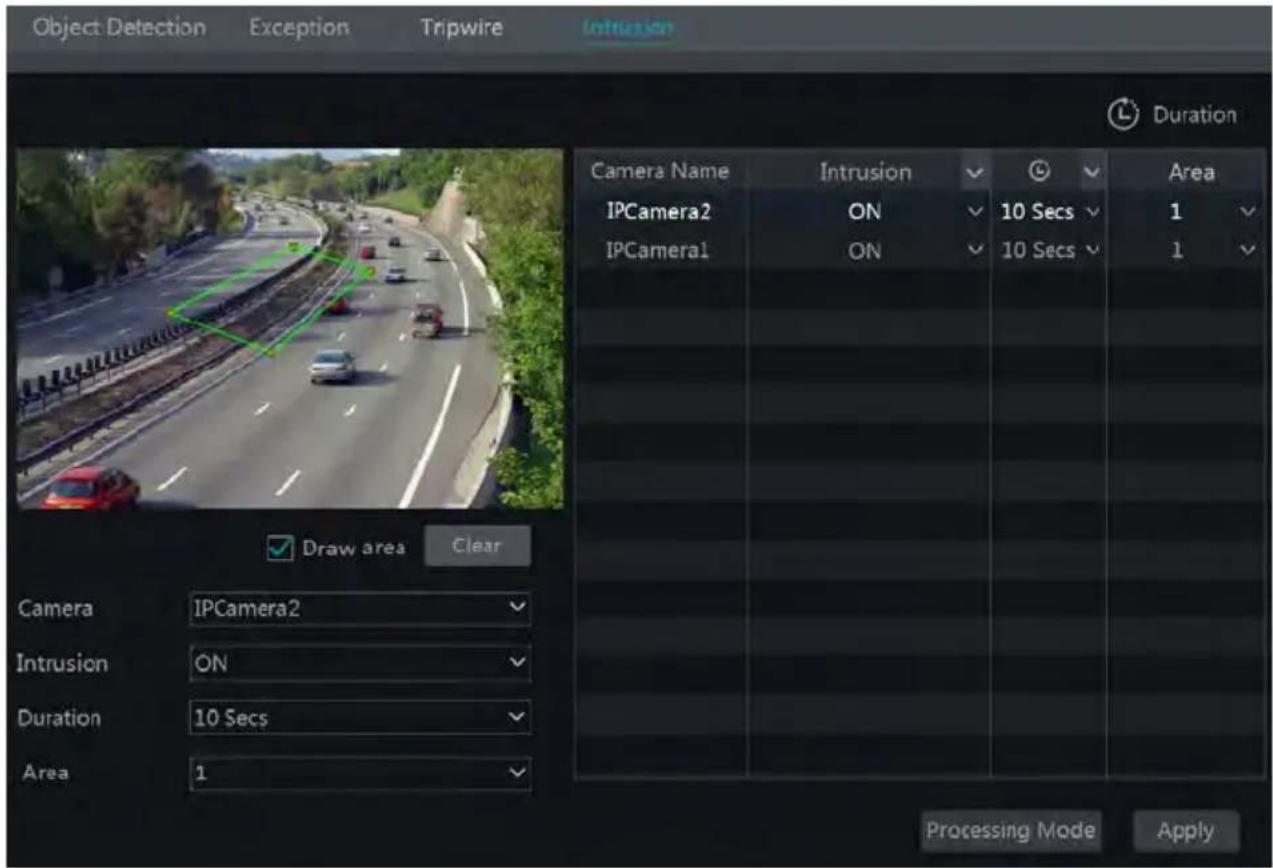

Object Detection Exception Tripwire Intrusion Duration Camera Name Intrusion Area IPCamera2 ON 10 Secs 1 IPCamera1 ON 10 Secs 1 Draw area Clear Camera IPCamera2 Intrusion ON Duration 10 Secs Area 1 Processing Mode Apply

Intrusion Detection Alarm Handling Configuration:

① Click Start→Settings→Alarm→Intelligence Alarm→Intrusion to go to the following interface.

Object Detection Exception Tripwire (Buzer) Pop-up Video E-mail Camera Name Snap Alarm-out Preset (O) ✓ □ ✓ □ ✓ IP Camera1 ON Configure Configure OFF ✓ OFF ✓ OFF ✓ IP Camera2 ON Configure Configure OFF ✓ OFF ✓ OFF ✓ Regional Invasion Config Apply

② Enable or disable “Snap”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling setting of intrusion detection alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).

③ Click “Apply” to save the settings. You can click “Regional Invasion Config” to go to the intrusion detection configuration interface.

9.4 Exception Alarm

9.4.1 Exception Handling Settings

① Click Start→Settings→Alarm→Exception→Exception Handling Settings to go to the interface as shown below.

② Enable or disable “Alarm-out”, “Buzzer”, “Pop-up Message Box” and “E-mail”. The exception handling settings are similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).

③ Click “Apply” to save the settings.

Exception Handling Settings IPC Offline Settings (B) Buzzer A Pop-up Message Box E-mail Event Type Alarm-out (●) (○) (▼) (A) (▼) (▼) IP Address Conflict Configure ON ON OFF Disk IO Error Configure ON ON OFF Disk Full Configure ON ON OFF No Disk Configure ON ON OFF Illegal Access Configure ON ON OFF Network Disconnection Configure ON ON OFF HDD is pulled out Configure ON ON OFF

9.4.2 IPC Offline Settings

① Click Start→Settings→Alarm→Exception→IPC Offline Settings to go to the interface as shown below.

② Enable or disable “Snap”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video”, “Pop-up Message Box” and “E-mail”. The IPC Offline Settings are similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).

③ Click “Apply” to save the settings.

Exception Handling Settings IPC Offline Settings (●) Buzzer Pop-up Video A Pop-up Message Box E-mail Camera Name Snap Alarm-out Preset (●) OFF OFF ON OFF IP Camera1 Configure Configure Configure OFF OFF ON OFF IP Camera2 Configure Configure Configure OFF OFF ON OFF IP Camera3 Configure Configure Configure OFF OFF ON OFF IP Camera4 Configure Configure Configure OFF OFF ON OFF Apply

9.5 Alarm Event Notification

9.5.1 Alarm-out

① Click Start→Settings→Alarm→Event Notification to go to the following interface.

Alarm-out Edit Schedules No. Name Delay Schedule Test 1 AlarmOut1 10 Secs 24×7 Test 2 AlarmOut2 10 Secs 24×7 Test 3 AlarmOut3 10 Secs 24×7 Test 4 AlarmOut4 10 Secs 24×7 Test 5 IP Camera1_AlarmOut1 10 Secs 24×7 Test Apply

② Set the delay time and the schedule of each alarm-out. You can click “Edit Schedules” to edit the schedules (see 7.3.1 Add Schedule for details).
③ Click “Apply” to save the settings. You can click “Test” to test the alarm output.

9.5.2 E-mail

Click Start→Settings→Alarm→Event Notification→E-mail to go to the e-mail configuration interface. Set the e-mail address of the recipients. See 11.1.5 E-mail Configuration for details.

9.5.3 Display

Click Start→Settings→Alarm→Event Notification→Display to go to the display configuration interface. Set the duration time of the pop-up video and the pop-up message box. Click “Apply” to save the settings.

Pop-up Video Duration 5 Secs Pop-up Message Box Duration 10 Secs Apply

9.5.4 Buzzer

Click Start→Settings→Alarm→Event Notification→Buzzer to go to the buzzer configuration interface. Set the delay time of the buzzer and then click “Apply” to save the setting. You can click “Test” to test the buzzer.

Buzzer Delay 5 Secs Test Apply

9.5.5 Push Message

Click Start→Settings→Alarm→Event Notification→Push Message to go to the interface as shown below. Check “Enable” and then click “Apply” button to save the settings. If Push Server is online, it will push messages to the mobile clients.

Push Message Enable Push Server Status: Disable Apply

9.6 Manual Alarm

Click 📁 on the tool bar at the bottom of the live preview interface to pop up a window. Click “Trigger” to start alarm. Click “Clear” to stop alarm.

Alarm-out Name Status Trigger Clear AlarmOut1 Normal Trigger Clear AlarmOut2 Normal Trigger Clear AlarmOut3 Normal Trigger Clear AlarmOut4 Normal Trigger Clear IP Camera1_AlarmOut1 Normal Trigger Clear Close

9.7 View Alarm Status

Click Start→Settings→Alarm→Alarm Status or click 📄 on the tool bar at the bottom of the live preview interface to view the alarm status.

Buzzer Clear Alarm-in Normal Alarm-out Normal Motion 1 Exception Intelligence Normal Exception 5 Exception Close

Click "Clear" button to stop the buzzer when the buzzer alarm happens. Click to view the detail information as shown below.

Buzzer Clear Alarm in Normal Alarm-out Normal Motion Normal Intelligence Normal Exception 9 Exception Alarm Source : IP Camera4 Alarm Time : 11/03/2015 15:04:48 Status : IPC Offline(Offline) Trigger Alarm-out : None Trigger Preset : None Snap OFF Trigger Buzzer : OFF Pop-up video : OFF Pop-up message : ON Trigger E-mail : OFF < ① > All 9. Jump to Close

If the exception information is more than one page, you can input the number in the box and then click ➤ to jump to the specified page. Click ◀ / ➤ to view the exception alarm information in the previous/next page. Click ➤ to play the alarm record.

10 Account & Permission Management

10.1 Account Management

Click Start→Settings→Account and Authority→Account→Edit User to go to the interface as shown below.

User: admin Permissions ✓ Local Camera Management ✓ Remote Camera Management ✓ Remote Login ✓ Disk Management ✓ Audio Talk ✓ Alarm Management ✓ Network Management ✓ Schedule Management ✓ Record Settings Management ✓ Local System Settings ✓ Remote System Settings ① ✓ Account and Authority Local Remote Camera Preview Playback Backup PTZ Control Camera1 ON ON ON ON Camera2 ON ON ON ON Camera3 ON ON ON ON Camera4 ON ON ON ON Search Users Username Group MAC Address Edit Delete admin Administ... 00:00:00:00:00:00 1 Common 00:00:00:00:00:00

Area ① displays the user permissions. Area ② displays the user list. Click the user in the list to display its user permissions in area ①.

There are three default permission groups (“Administrator”, “Advanced” and “Common”) available when adding accounts. You can manually add new permission group (see 10.3.1 Add Permission Group for details).

Only admin and the users that have the “Account and Authority” permission can manage the system’s accounts. Group “Administrator” owns all the permissions displayed in area ① except “Account and Authority” and its permissions cannot be changed while the permissions of “Advanced” and “Common” can be changed.

10.1.1 Add User

① Click Start→Settings→Account and Authority→Account→Add User or click beside the search box to pop up the window as shown below.

Add User Username Enter Username Password Enter Password Confirm Password Enter Password □ Display Password E-mail Group Administrator Bind MAC 00 : 00 : 00 : 00 : 00 : 00 Remark Add Cancel

② Set the username, password and group. The e-mail address, MAC address and the remark are optional (input the MAC address after you check it). Click “Add” to add the user.

10.1.2 Edit User

Click Start→Settings→Account and Authority→Account→Edit User and then click in the user list or double click the user to edit the user information. Click to delete the user (the user admin cannot be deleted).

Username Group MAC Address Edit Delete admin Administ... 00:00:00:00:00:00 Modify Password Edit User Edit Security Question 1 Common 00:00:00:00:00:00 Edit User Recover Password

➢ Edit Security Question

You can set password security only for admin. Click “Edit Security Question” and then set questions and answers in the popup window. If you forget the password for admin, please refer to Q4 in Appendix A FAQ for details. The passwords of other users can be recovered by admin or the users that have the “Account and Authority” permission.

Modify Password

Only the password of admin can be modified. Click “Modify Password” to pop up a window. Input the current password and then set new password. Click “OK” to save the settings.

▶ Recover Password

Click "Recover Password" to reset the password to 123456.

Edit User

Click “Edit User” to pop up the window as shown below. The admin is enabled, its permission control is closed and permission group cannot be changed by default. You can enable or disable other users (if disabled, the user will be invalid), open or close their permission control (if closed, the user will get all the permissions which admin has) and set their permission groups. Click “OK” to save the settings.

Edit User Enable Username admin Close Permission Control E-mail Group Administrator Bind MAC 00 50 02 00 00 00 Remark OK Cancel

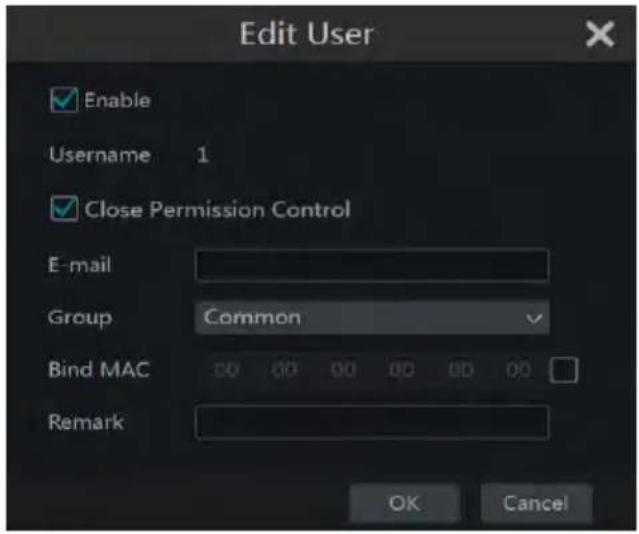

Edit User Enable Username 1 Close Permission Control E-mail Group Common Bind MAC Remark OK Cancel

10.2 User Login & Logout

Login: Click Start→Login or directly click the preview interface and then select username and enter the password in the popup window. Click “Login” button to log in the system.

Logout: Click Start→Logout or click Start→Shutdown to pop up the “Shutdown” window. Select “Logout” in the window and then click “OK” button to log out the system.

10.3 Permission Management

10.3.1 Add Permission Group

Click Start→Settings→Account and Authority→Account→Edit Permission Group to go to the interface as shown below.

Group: Administrator Permissions ✓ Local Camera Management ✓ Remote Camera Management ✓ Remote Login ✓ Disk Management ✓ Audio Talk ✓ Alarm Management ✓ Network Management ✓ Schedule Management ✓ Record Settings Management ✓ Local System Settings ✓ Remote System Settings Local Remote Camera Preview Playback Backup PTZ Control IP Camera1 ON ON ON ON IP Camera2 ON ON ON ON IP Camera3 ON ON ON ON IP Camera4 ON ON ON ON

Click to add permission group. Set the group name, check the permissions as required and then set the “Local” and “Remote” permissions. Click “Add” to save the settings.

Add Permission Group Group Name Enter Permission Group Name Local Camera Management Remote Login Audio Talk Network Management Record Settings Management Remote System Settings Remote Camera Management Disk Management Alarm Management Schedule Management Local System Settings Account and Authority Local Remote Camera Preview Playback Backup PTZ Control Camera1 OFF OFF OFF OFF OFF Camera2 OFF OFF OFF OFF OFF Camera3 OFF OFF OFF OFF OFF Camera4 OFF OFF OFF OFF Add Cancel

10.3.2 Edit Permission Group

Go to “Edit Permission Group” interface and then click 📋 in the group list to edit the permission group (the operations of the “Edit Permission Group” are similar to that of the “Add Permission Group”, please see 10.3.1 Add Permission Group for details). Click 📋 to save the group as another group. Click 📋 to delete the permission group. The three default permission groups (“Administrator”, “Advanced” and “Common”) cannot be deleted.

10.4 Black and White List

① Click Start→Settings→Account and Authority→Security to go to the following interface.

Black and white List Preview On Logout Enable Enable Allow List Enable Block List Enable IP/MAC ADDRESS Edit Delete Yes 192.168.1.25 Add IP Add MAC Apply

② Check “Enable” and then choose “Enable Allow List” or “Enable Block List” (the PC client of which the IP address is in the allow list can access NVR remotely while the PC client in the block list cannot).
③ Add IP/IP segment/MAC. Click “Add IP” or “Add MAC” button and then check “Enable” in the popup window (only if you check it can the IP/IP segment/MAC you add be effective).
Enter the IP/IP segment/MAC and then click "OK" button. In the above interface, click to edit IP/IP segment/MAC, click delete it. Click "Apply" to save the settings.

10.5 Preview On Logout

Click Start→Settings→Account and Authority→Security→Preview On Logout to go to the following interface.

Set a camera and then enable or disable the preview permission on logout as required. If a camera's preview permission on logout is "ON", you can view the live image of the camera when the system is logged out, or the live image of the camera cannot be seen when logged out.

Camera Name Preview Camera1 ON Camera2 ON Camera3 ON Camera4 ON Camera Camera1 Preview ON Apply

10.6 View Online User

Click Start→Settings→Account and Authority→User Status to view the online user information (you can view the online user name, login type, IP address and login time; click

to pop up a window showing the preview occupied channel number and playback occupied channel number).

11 Device Management

11.1 Network Configuration

11.1.1 TCP/IP Configuration

Click Start→Settings→Network→TCP/IP to go to the following interface. Check “Obtain an IPv4 address automatically”, “Obtain an IPv6 address automatically” and “Obtain DNS automatically” to get the network addresses automatically, or manually input the network addresses. You can modify the MTU value according to the network condition (MTU, Maximum Transmission Unit, can be modified according to network condition for higher network transmission efficiency). Click “Apply” to save the settings.

IP Address Settings Ethernet Port 1 ( Online ) Obtain an IPv4 address automatically Obtain an IPv6 address automatically Address Subnet Mask Gateway MTU Obtain DNS automatically Preferred DNS Alternate DNS Address Mask Length Gateway Apply

Note:

- Internal Ethernet Port

If you use the NVR with the PoE network ports, the online state of the internal ethernet port will be shown on the interface. Refer to the picture below.

The internal ethernet port is the port which connects all the PoE ports with the NVR system. The PoE ports are available if the internal ethernet port is online; if it is offline, all the PoE ports will be unavailable, may be the internal ethernet port is broken. The network addresses of the internal ethernet port can be changed to make the port in the same network segment with the IP cameras which directly connect to the PoE ports of the NVR (it is not recommended to change the network addresses of the internal ethernet port).

IP Address Settings Ethernet Port 1 ( Online ) Obtain an IPv4 address automatically Address Subnet Mask Gateway Obtain an IPv6 address automatically Address Mask Length Gateway Internal Ethernet Port ( Online ) Address 10 151 151 1 Subnet Mask 255 0 0 0 MTU Address Mask Length Preferred DNS Alternate DNS Apply

● Multiple Ethernet Ports Setting

If the NVR has two network ports or above, you can select the network work pattern as required. Network Fault Tolerance and Multiple Address Setting are available.

Network Fault Tolerance:

The two network ports will be bound to one IP address if you select the “Network Fault Tolerance” pattern. There are many advantages of this work pattern: 1. increase the bandwidth; 2. form a network redundant array to share the load. When a failure happens to one network port, the other port will take over the entire load immediately. The takeover process is seamless and the network service will not be broken off.

Refer to the figure as shown below. If “Network Fault Tolerance” is selected, check “Obtain an IPv4 address automatically”, “Obtain an IPv6 address automatically” and “Obtain DNS automatically” to get the network addresses automatically, or manually input the network addresses; select one Ethernet port as the primary card and then click “Apply” button to save the settings.

IP Address Settings Work Pattern Network Fault Tolerance (Modifying work pattern need to reboot) Obtain an IPv4 address automatically Address Subnet Mask Gateway Primary Card Ethernet Port 1 Ethernet Port 1 ( Online ) MAC Address MTU Preferred DNS Alternate DNS Obtain an IPv6 address automatically Address Mask Length Gateway Ethernet Port 2 ( Online ) MAC Address Apply

Multiple Address Setting:

If “Multiple Address Setting” is selected, the IP addresses of the two Ethernet ports should be set respectively. Refer to the picture as shown below.

Check “Obtain an IPv4 address automatically”, “Obtain an IPv6 address automatically” and “Obtain DNS automatically” to get the network addresses automatically, or manually input the network addresses; select one Ethernet port as the default route and then click “Apply” button to save the settings.

IP Address Settings Work Pattern Multiple Address Setting ( Modifying work pattern need to reboot ) Ethernet Port 1 ( Online ) Obtain an IPv4 address automatically Address Subnet Mask Gateway Obtain an IPv6 address automatically Address Mask Length Gateway Ethernet Port 2 ( Online ) Obtain an IPv4 address automatically Address Subnet Mask Gateway MTU Obtain an IPv6 address automatically Address Mask Length Gateway Preferred DNS Alternate DNS Default Route Ethernet Port 1 Apply

11.1.2 Port Configuration

Click Start→Settings→Network→Port to go to the interface as shown below. Input the HTTP port, server port and RTSP port of the NVR, enable “Watch video via anonymous login (not need user name and password)” as required and then click “Apply” button to save the settings.

Port HTTP Port 80 Server Port 6036 RTSP Port 554 Watch video via anonymous login ( not need user name and password ) Apply

HTTP Port: the default HTTP port of the NVR is 80. The port number can be changed to others like 81. The port is mainly used to IE remote access. If you want to access the NVR through IE, you should input IP address plus HTTP port in the IE address bar like http://192.168.11.61:81.

Server Port: the default server port of the NVR is 6036. The server port number can be changed as required. The port is mainly used in network video management system.

RTSP Port: RTSP real-time stream protocol can be used to control the sending of real-time data. By media player which supports the RTSP real-time stream protocol, you can view the live images synchronously. The default RTSP port is 554 and it can be changed as required.

Note: The HTTP port and server port of the NVR should be mapped to the router before you access the NVR via WAN.

11.1.3 PPPoE Configuration

Click Start→Settings→Network→PPPoE to go to the interface as shown below. Check “Enable” in “PPPoE Settings” and then input the username and password obtained from the dealer. Click “Apply” to save the settings.

PPPoE Settings Enable Username xxx Password ••••••• Apply

11.1.4 DDNS Configuration

The DDNS is used to control the dynamic IP address through domain name. You can access to the NVR easily if the DDNS is enabled and configured.

Click Start→Settings→Network→DDNS to go to the interface as shown below.

DDNS Enable DDNS Type www.88ip.net Server Address Domain Name Username Enter Username Password Enter Password Test Apply

Check "Enable" and then select the DDNS type. Input the server address, domain name,

username and password according to the selected DDNS type. Click “Test” to test the effectiveness of the input information. Click “Apply” to save the settings.

You will have to input the server address and domain name if some DDNS types are selected. Go to the relative DNS website to register domain name and then input the registered domain information here). Now we take www.dvrdydns.com for example.

① Input www.dvrdydns.com in the IE address bar to visit its DNS website.

Welcome to DvrDydns Enter your user name and password. Choose logon to continue. Enter your user name and password below. USER LOGON USER NAME: PASSWORD: Password is case sensitive. Logon Reset Forgot your password?

② Click Registration button to go to the interface as shown below. Set the DDNS account information (username, password and so on) and then click Submit button to save the account.

DDNS account creation. NEW USER REGISTRATION USER NAME PASSWORD PASSWORD CONFIRM FIRST NAME LAST NAME SECURITY QUESTION. My first phone number. ANSWER CONFIRM YOU'RE HUMAN 7+1= New Captcha Solve the problem above. Submit Reset Already have an account? Click here to logon.

③ Create domain name and then click Request Domain.

Domain Name Creation

Enter a new domain name below.

You must create a domain name to continue.

Domain name must start with (a-z, 0-9), must be least 3 char!. Cannot end or start, but may contain a hyphen and is not case-sensitive.

④ After you successfully request your domain name, you will see your domain name information in the list.

My Domains

Your domain names are listed below. Choose create new domain to add additional domain names.

Your domain was successfully created.

Search by Domain. Search

Click a name to edit your domain settings.

NAME

STATUS

DOMAIN

REDSUNSHINE

redsunshine.dvrdydns.com

Last Update: Not yet updated IP Address: 210.21.229.138

Create additional domain names

[1]

⑤ Click Start→Settings→Network→DDNS to go to DDNS setting interface. Enable DDNS and then select the www.dvrdydns.com DDNS type. Input the registered username, password and domain name and then click “Apply”.
⑥ Map the IP address and HTTP port in the router (you can skip this step if UPnP function is enabled).
⑦ Input the registered domain name plus HTTP port like http://www.xxx.dvrdydns.com:81 in the IE address bar and then press Enter key to go to the IE client.

11.1.5 E-mail Configuration

Click Start→Settings→Network→E-mail to go to the following interface. Input the sender's name, e-mail address, SMTP server and SMTP port (you can click "Default" to reset the SMTP port to the default value) and then enable or disable the SSL and attaching image. Select the username (the username list will be updated automatically according to the email address you input) and input the password of the sender and then click "Apply" to save the settings (you don't have to input the username and password if "Anonymous Login" is enabled). Click "Test" to pop up a window. Input the e-mail address of the recipient in the window and then

click “OK” button. The e-mail address of the sender will send an e-mail to the recipient. If the e-mail is sent successfully, it indicates that the e-mail address of the sender is configured correctly.

Sender Sender Name Enter Sender Name Email Address Enter Address SMTP Server SMTP Port Enter Port Default SSL No Attaching Image No Anonymous Login Username Password Enter Password Edit Recipient Test Apply

Click "Edit Recipient" to go to the following interface.

E-mail Display Buzzer Push Message E-mail Notification Sender [e-mail] Edit Sender No. Recipients Schedule Delete 1 [e-mail] 24x7 2 [e-mail] 24x5 Add Apply

Click “Add” and then input the recipient’s e-mail address and select the schedule (if a schedule is selected, the system will send the alarm email and the recipient will receive it only in the selected schedule time) in the popup window. Click “Add” in the window to add the recipient. You can also change the recipient’s receiving schedule by clicking ▼ in the “Schedule” column. Click ▼ to delete the recipient in the list. Click “Apply” to save the settings. Click “Edit Sender” to go to the e-mail configuration interface of the sender.

11.1.6 UPnP Configuration

By UPnP you can access the NVR through IE client which is in WAN via router without port mapping.

① Click Start→Settings→Network→UPnP to go to the following interface.
② Make sure the router supports UPnP function and the UPnP is enabled in the router.
③ Set the NVR's IP address, subnet mask and gateway and so on corresponding to the router.
④ Check “Enable” in the interface as shown below and then click “Apply” button.

Click “Refresh” button to refresh the UPnP status. If the UPnP status were still “Invalid UPnP” after refreshing it for many times, the port number would be wrong. Please change the mapping type to “Manual” and then click to modify the port until the UPnP status turns to “Valid UPnP”. Refer to the following picture. You can view the external IP address of the NVR. Input the external IP address plus port in the IE address bar to access the NVR such as http://183.17.254.19:81.

UPnP Enable Map Type Manual Port Type External Port External IP Address Port UPnP Status Edit HTTP Port 81 183.17.254.19 81 Valid UPnP Server Port 6036 183.17.254.19 6036 Valid UPnP RTSP Port 554 183.17.254.19 554 Valid UPnP Refresh Apply

11.1.7 NAT Configuration

Click Start→Settings→Network→NAT to go to the interface for NAT configuration. Check “Enable” and then select the NAT server address (nat.autonat.com by default). Click “Apply” to save the settings.

You can scan the QRCode through mobile client which is installed in the mobile phone or PAD to log in the mobile client instantly.

11.1.8 View Network Status

Click Start→Settings→Network→Network Status to view the network status or click 📋 on the tool bar at the bottom of the live preview interface to view network status conveniently.

11.2 Basic Configuration

11.2.1 Common Configuration

Click Start→Settings→System→Basic→General Settings to go to the following interface. Set the device name, device No., language, video format and resolution. Enable or disable wizard,

“Log In Automatically”, “Log Out Automatically” (if checked, you can set the wait time), “App Live Self-Adaption” and “Enable Add IPC by Zero Operation”. Click “Apply” to save the settings.

General Settings Device Name Device Name Device No. 1 Language English Video Format PAL Resolution 1920x1080 Enable Wizard Log In Automatically Log Out Automatically Wait Time: 5 Min App Live Self-Adaption Enable Add IPC by Zero Operation Apply

Device Name: The name of the device. It may display on the client end or CMS that help user to recognize the device remotely.

Video Format: Two modes: PAL and NTSC. Select the video format according to the camera.

Note: You can set the resolutions of the main output and adjuvant output respectively if the NVR has dual outputs. Refer to the picture as shown below.

General Settings Device Name Device Name Device No. 1 Language English Video Format PAL Main Output 1920x1080 Adjuvant Output 1920x1080 Enable Wizard Log In Automatically Log Out Automatically Wait Time (Add) App Live Self-Adaption Enable Add IPC by Zero Operation Apply

11.2.2 Date and Time Configuration

Click Start→Settings→System→Basic→Date and Time to go to the interface as shown below. Set the system time, date format, time format and time zone of the NVR. The default time zone is GMT+08 Beijing, Hong Kong, Shanghai, Taipei. If the selected time zone includes DST, the DST of the time zone will be checked by default. Click “Apply” to save the settings.

You can manually set the system time or synchronize system time with network through NTP.

Manual: select “Manual” in the “Synchronous” option and then click 📋 after the “System Time” option to set the system time.

NTP: select “NTP” in the “Synchronous” option and then input the NTP server.

Date and Time System Time 11/03/2015 17:02:13 Date Format Month/Day/Year Time Format 24-Hour Sync Time With Network Synchronous Manual NTP Server time.windows.com Time Zone / DST Time Zone GMT+08 Beijing, Hong Kong, S DST Apply

11.3 Factory Default

Click Start→Settings→System→Maintenance→Factory Default and then click “Reset to factory default” button in the interface to reset to the factory default settings.

11.4 Device Software Upgrade

You can click Start→Settings→System→Information→Basic to view MCU, kernel version and firmware version and so on. Before upgrade, please get the upgrade file from your dealer.

The upgrade steps are as follows:

① Copy the upgrade software into the USB storage device.
② Insert the USB storage device into the USB interface of the NVR.
③ Click Start→Settings→System→Maintenance→Upgrade to go to “Upgrade” interface. Select the USB device in “Device Name” option and go to the path where the upgrade software exists. Select the upgrade software and then click “Upgrade”. The system may automatically restart during upgrading. Please wait for a while and do not power off the NVR during upgrading.

Note: The file system of the USB mobile device which is used for upgrading, backing up and restoring should be FAT32 format.

11.5 Backup and Restore

You can back up the configuration file of the NVR by exporting the file to other storage devices; you can recover the configuration to other NVRs which are of the same model with the NVR by importing the configuration file to other NVRs for time saving.

Insert the USB storage device into the USB interface of the NVR and then click Start→Settings→System→Maintenance→Backup and Restore to go to the interface.

- Backup

Select the USB device in “Device Name” option; go to the path where you want to store the configuration backup file and then click “Backup” button; finally click “OK” button in the popup window.

- Recover

Select the USB device in “Device Name” option; find the configuration backup file and then click “Recover” button; finally click “OK” button in the popup window.

11.6 Restart Automatically

You can set the automatic restart time for the NVR to maintain it regularly. Click Start→Settings→System→Maintenance→Auto Maintenance to go to the interface as shown below. Enable auto maintenance, set the interval days and point of time and then click “Apply” to save the settings. The NVR will restart automatically at the pointed time every interval days.

Auto Maintenance Enable Interval Days 10 Days Point Of Time 23 : 59 Apply

11.7 View Log

Click Start→Settings→System→Maintenance→View Log to go to the log view interface. Select the log main type, click 🔒 to set start time and end time and then click “Search” button. The searched log files will be displayed in the list.

Main Type Start Time 11/03/2015 15:00:00 Alarm Operation Settings Exception End Time 11/03/2015 16:00:00 Search Export No. Main Type Log Time Content Details Play 1 Alarm 11/03/2015 15:58:53 Motion Alarm 2 Settings 11/03/2015 15:43:01 Local Basic 3 Operation 11/03/2015 15:34:53 Local Search/Playback/Backup 4 Alarm 11/03/2015 15:25:43 Motion Alarm 5 Settings 11/03/2015 15:25:38 Local Camera Parameters 6 Operation 11/03/2015 15:20:15 Local Search/Playback/Backup 7 Settings 11/03/2015 15:05:38 Local Camera Parameters 8 Settings 11/03/2015 15:05:06 Local Record Parameters 9 Exception 11/03/2015 15:04:48 IPC Offline 10 Settings 11/03/2015 15:04:46 Local Camera Parameters 11 Operation 11/03/2015 15:03:49 Local Login / Logout 12 Operation 11/03/2015 15:03:12 Local Maintenance Current Page: 1 / 1, All 12

Choose the log file in the list and then click “Export” button to export the log file. Click on the “Content” title bar to pop up a menu list. Check contents in the menu list and then the log list will show the checked log contents only. Click to play the video log.

11.8 View System Information

Click Start→Settings→System→Information and then click the corresponding menu to view the “Basic”, “Camera Status”, “Alarm Status”, “Record Status”, “Network Status” and “Disk” information of the system.

12 Remote Surveillance

12.1 Mobile Client Surveillance

① Enable NAT in the NVR. Refer to 11.1.7 NAT Configuration for details.
② Download and install the mobile client “SuperLive Plus” into the mobile device with the Android or iOS system.
③ Run the mobile client, go to the “Add Device” interface and then click [ ] to scan the QRCode of the NVR (Go to Start→Settings→System→Information→Basic to view the QRCode of the NVR).
④ After scanning the QRCode successfully, input the login password to log in mobile client.

Add device My device Nick name User Password Play

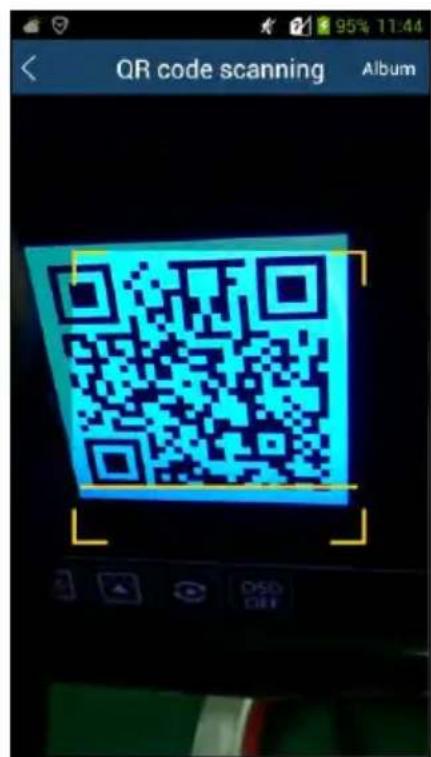

QR code scanning Album 95% 11:44

12.2 Web LAN Access

① Click Start→Settings→Network→TCP/IP to go to the “TCP/IP” interface. Set the IP address, subnet mask, gateway, preferred DNS and alternate DNS of the NVR.
② Open IE browser on a computer, input the IP address of the NVR in the IE address bar and then press enter to go to the login interface as shown below. You can change the display language on the top right corner of the login interface. Input the username and password of the NVR in the interface and then click “Login” to go to the live preview interface.

English Enter Username Enter Password Login

Notes: 1. Please make sure that the IP address of the NVR and the computer are both in the same local network segment. For example, supposing that the IP address of the computer is 192.168.1.41, the IP address of the NVR shall be set to 192.168.1.XXX. 2. If the HTTP port of the NVR is not 80, but other number instead, you need to input the IP address plus port number in the IE address bar when accessing the NVR over network. For example, the HTTP port is 81. You should enter http://192.168.1.42:81 in the IE address bar.

12.3 Web WAN Access

NAT Access

① Set the network of the NVR. Please refer to 11.1.1 TCP/IP Configuration for details.
② Enable NAT and then set the NAT server address. Please refer to 11.1.7 NAT Configuration for details.
③ Open IE browser on a computer, input the NAT server address www.autonat.com in the IE address bar and then press enter to go to the interface as shown below (download and install the relative plugin according to the popup tip if you access the NVR through NAT for the first time).

Enter device serial number Enter Username Enter Password Login

Input the serial number (click 📋 the tool bar at the bottom of the live preview interface to see the serial number of the NVR), user name (the user name of the NVR, admin by default) and password (the password of the NVR, 123456 by default) of the NVR, select the display language on the top right corner of the interface and then click “Login” button to go to the web client interface.

▶ PPPoE Access

① Click Start→Settings→Network→PPPoE to go to the “PPPoE” interface. Check “Enable” in the “PPPoE settings” and then input the username and password you get from your ISP. Click “Apply” to save the settings.
② Click Start→Settings→Network→Network Status to view the IP address of the NVR.
③ Open IE browser on a computer, input the IP address of the NVR like http://210.21.229.138 in the IE address bar and then press enter to go to the login interface. Input the username and password of the NVR in the interface and then click “Login” to go to the live preview interface.

Router Access

① Click Start→Settings→Network→TCP/IP to go to the “TCP/IP” interface. Set the IP address, subnet mask, gateway, preferred DNS and alternate DNS of the NVR.
② Set the HTTP port (it is suggested to modify the HTTP port because the default HTTP port 80 might be taken up) and enable UPnP function in both the NVR and the router. If the UPnP function is not available in the router, you need to forward the LAN IP address, HTTP port and server port of the NVR to the router. Port mapping settings may be different in different routers, so please refer to the user manual of the router for details.
③ Get the WAN IP address of the NVR from the router. Open IE browser on a computer, input the WAN IP address plus HTTP port like http://116.30.18.215:100 in the IE address bar and then press enter to go to the login interface. Input the username and password of the NVR in the interface and then click “Login” to go to the live preview interface.

Note: If the WAN IP address is a dynamic IP address, it is necessary for you to use the domain name to access the NVR. Click Start→Settings→Network→DDNS to set DDNS (see 11.1.4 DDNS Configuration for details). By using DDNS function you can use the domain name plus HTTP port like http://sunshine.dvrdydns.com:100 to access the NVR via internet.

12.4 Web Remote Control

The supported browsers of the remote surveillance are IE8/9/10/11, Firefox, Opera and Chrome (available only for the versions lower than 45) in Windows system and Safari in MAC system. When you access the NVR through IE for the first time, you need to download and install the relative components for normal preview and playback. Please refer to the tips in the remote interfaces for details. The buttons and icons on the top right corner of the remote interface are introduced as follows.

admin: the current login username.

Logout: click it to log out and return to the login interface.

Modify Password: click it to change the password of the current login user. Input current password and then set a new password in the popup window. Click "OK" button to save the new password.

Local Settings: click it to change the local settings. Set the snapshot number and click "Browse" to set the snapshot path and record path as shown below. Click "Apply" button to save the settings.

Snapshots number 5 Save snapshots to C:\Users\Administrator\Pictures Browse Save record files to C:\Users\Administrator\Videos Browse Apply

12.4.1 Remote Preview

Click “Live Display” in the remote interface to go to the preview interface. The preview interface consists of the four areas marked in the following picture.

Live Display Playback Backup Function Panel admin | Logout | Modify Password Local Settings Camera (3/4) Search Camera IP Camera1 IP Camera2 IP Camera3 IP Camera4 Left Panel Preview Area Operation Right Panel Main Stream Sub stream Resolution 1280x720 FPS 25 Bitrate 1.024Kbps Apply Camera Single Channel Sequences OSD ON All Main Stream All Sub Stream Tool Bar Operation PTZ

Start Preview

Select a window in the preview area and then click one online camera on the left panel to preview the camera in the window. You can click 📋 in the tool bar to preview all the cameras.

▶ Left Panel Introduction

Click < on the left panel to hide the panel and click > to show the panel. You can view all the added cameras and groups on the left panel.

- View Camera

Click to view the cameras. You can view the number of all the added cameras and the online cameras. For instance, the left number 3 in on the left panel stands for the number of online cameras; the right number 4 stands for the number of all the added cameras. Input the camera name in the search box and then click to search the camera. Click to refresh the camera list.

- View Group

Click to view the groups. The up side of the left panel displays all the groups and the down side displays all the cameras in the group.

▶ Tool Bar Introduction

Button		Meaning
		Screen mode button.
		Click it to disable OSD. Click OSD \ to enable OSD.
		Click it to show full screen. Right click on the full screen to exit full screen.
	[GSTX]All Main Strell Sub Stream	Click “All Main Stream” or “All Sub Stream” to set the stream of all the cameras.
		Manual alarm button. Click it to pop up a window and then trigger and clear the alarm-out in the window manually.
		Click it to preview all the cameras.
		Click it to close all the preview cameras.
		Click it to start recording. Click to stop recording.
		Click it to enable talk with the NVR.

Right Panel Introduction

Click < on the right panel to show the panel and click > to hide the panel. Click PTZ at the bottom of the panel to go to "PTZ" panel. Click Operation to go to "Operation" panel.

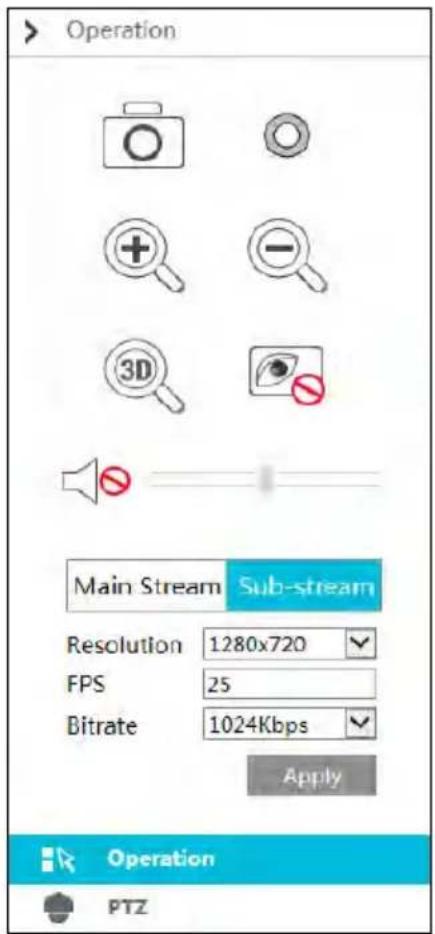

Operation Main Stream Sub-stream Resolution 1280x720 FPS 25 Bitrate 1024Kbps Apply Operation PTZ

PTZ -/←←Zoom→+/+ ←→Focus→▲ ←→Fris→● preset1 preset2 Operation PTZ

Click one camera window in the preview area and then click to set the camera's live preview stream and record stream to main stream in manual record mode; click to set the camera's live preview stream and record stream to sub stream. In sub stream tab, set the resolution, FPS and bitrate and then click "Apply" to save the settings.

Operation panel introduction:

Button	Meaning
	Click it to snap.
	Click it to start recording; click it again to stop recording.
[Z408]	Click it to zoom in the image of the camera and then drag the mouse on the camera image to view the hidden area.
	Click it to zoom out the image of the camera.
	The 3D zoom in function is designed for P.T.Z. Click the button and then drag the image to zoom in or zoom out the image; click the image on different areas to view the image of the dome omni-directionally.
	Click it to close the preview camera.
	Click it to enable audio and then drag the slider bar to adjust the volume. You can listen to the camera audio by enabling audio.

PTZ panel introduction:

Button	Meaning
	Drag the slider to adjust the rotating speed of dome.
	Clickto zoom in/out camera image.
	Click/ to increase/decrease the focal length.
	Click/ to increase/decrease the iris of the dome.
[233C]	Click it to view the preset list and then click the button in the list to call the preset.
[40XXT]	Click it to view the cruise list and then click the corresponding buttons in the list to start or stop the cruise.

12.4.2 Remote Playback

Click "Playback" in the remote interface to go to the playback interface.

① Check the record event types and cameras on the left panel. Set the record date on the calendar beside the time scale.
② Click Search to search the record data and then click Play or directly click the time scale to play the record.

The operation of the playback time scale is similar to that of the time scale in the main program of the NVR. Please refer to 8.2 Playback Interface Introduction for details.

Introduction of playback control buttons:

Button	Meaning
	Stop button.
	Rewind button. Click it to play video backward.
	Play button. Click it to play video forward.
	Pause button.
	Deceleration button. Click it to decrease the playing speed.
	Acceleration button. Click it to increase the playing speed.
	Previous frame button. It works only when the forward playing is paused in single screen mode.
	Next frame button. It works only when the forward playing is paused in single screen mode.
	Click to step backward 30s and click to step forward 30s.
	Backup start time button. Click the time scale and then click it to set the backup start time.
	Backup end time button. Click the time scale and then click it to set the backup end time.
	Backup button.
	Backup tasks button. Click it to view the backup status.
	Event list button. Click it to view the event record of manual/schedule/sensor/motion.

12.4.3 Remote Backup

Click “Backup” in the remote interface to go to the backup interface. You can back up the record by event or by time.

By Event

Check the record type on the left side of the interface and then click to set the start time and end time; check the cameras and then click on the right side to search the record (the searched record data will be displayed in the list); check the record data in the list and then click “Backup” button to backup the record.

By Time

Click to set the start time and end time on the left side of the interface; check the cameras and then click on the right side to backup the record.

View Backup Status: Click “Backup Status” to view the backup status. Click “Pause” to pause the backup; click “Resume” to continue the backup; click “Delete” to delete the task.

12.4.4 Remote Configuration

Click “Function Panel” in the remote interface and then configure the camera, record, alarm, disk, network, account and authority and system of the NVR remotely. All of these settings are similar to that of the NVR. See the configurations of the NVR for details.

Appendix A FAQ

Q1. Why can't I find the HDD?

a. Please check the power and SATA data cables of the HDD to make sure they are well connected.
b. For some NVRs with the 1U or small 1U case, the power of the adapter may be not enough for operating them. Please use the power adaptor supplied along with the NVR.
c. Please make sure the HDDs are compatible with the NVR. See Appendix C Compatible Device List for details.
d. The HDD could have gone bad. Change a new one.

Q2. Why are there no images output in some or all of the camera windows?

a. Please make sure the resolutions of the cameras are supported by the NVR.
b. Please make sure the network cables of the IP camera and NVR are both connected properly and the network parameters are set correctly.
c. Please make sure the network and the switch both work normally.

Q3. The screen has no output after booting the NVR normally.

a. Please make sure the screen, HDMI or VGA cables are good and well connected.
b. Please make sure the screen supports the resolution of 1280*1024, 1920*1080 or 3840*2160 (4K*2K). The NVR cannot self-adapt to the screen of which the resolution is lower than 1280*1024, and then the screen will remind you that the screen resolution is not supported by the NVR or just have no display. Please change a screen at 1280*1024, 1920*1080 or 3840*2160 resolution before booting the NVR.

Q4. Forget the passwords?

a. The password for admin can be reset through "Edit Security Question" function.

Click “Edit Security Question” button in the login window and then enter the corresponding answer of the selected question in the popup window, the password for admin will be reset to 123456 by default. If you forget the answer of the question, this way will be invalid, please contact your dealer for help.

b. The passwords of other users can be reset by admin, please refer to 10.1.2 Edit User for details.

Q5. The NVR cannot add up to the maximum number of IP cameras?

Take the 16 CH NVR as an example. Some 16 CH NVR support a maximum of 120Mbps bandwidth input (please take the real device for standard). Refer to the picture below. The remaining bandwidth should be larger than the bandwidth of the IP camera you want to add, or you would fail to add the IP camera. You should lower the added cameras' bitrate to release the bandwidth. It is recommended to add cameras by “Quickly Add” for batch adding.

Add Camera Quickly Add Add Manually No. ↑ Address ✓ Port Edit ✓ Subnet Mask Protocol Model Version 1 192.168.122.103 80 255.255.255.0 ONVIF xxx 4.0.0.1 0 2 192.168.226.201 80 255.255.255.0 ONVIF xxx 4.0.0.1 0 3 192.168.120.111 80 255.255.255.0 ONVIF xxx 4.0.0.1.beta1 0 Selected: 0 / 3 Remain Bandwidth: 108 / 120 Mb Default Password Add Cancel

Q6. The IP camera which connects to the PoE port of the NVR cannot be displayed automatically in the camera list, why?

a. Please check whether the resource of the PoE port is occupied by another IP camera that is added through network.

- Take the 16 CH NVR with 8 PoE ports as an example. The resource distribution of the 16 CH IP cameras is shown in the picture below.

CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

CH9

CH10

CH11

CH12

CH13

CH14

CH15

CH16

POE-1

POE-2

POE-3

POE-4

POE-5

POE-6

POE-7

POE-8

When you add IP cameras through network, the IP cameras will occupy the resource from CH1, CH2, CH3, CH4... by the adding sequence; if you directly connect the IP cameras to the PoE ports of the NVR, the IP cameras will occupy the resource from CH9 to CH16 according to the number of the PoE port each IP camera is connecting to.

Supposing that 12 CH IP cameras have been added to the NVR through network and no IP camera has been directly connected to the PoE port. The 12 CH IP cameras occupy the 8 network resources from CH1 to CH8 and 4 PoE resources from CH9 to CH12 which are supposed to be occupied by connecting the IP cameras directly. In this situation, if you directly connect one IP camera to PoE5, PoE6, PoE7 or PoE8, the IP camera will be displayed in the camera list automatically; if you connect it to PoE1, PoE2, PoE3 or PoE4, it won't be displayed in the camera list by showing resource conflict; if you just need to connect it to PoE1, PoE2, PoE3 or PoE4, you should first delete the IP camera which occupies the PoE port resource and then reconnect it to the PoE port.

- Take the 8 CH NVR with 8 PoE ports as another example. The resource distribution of the 8 CH IP cameras is shown in the picture below and the adding rules of the IP cameras are similar to the rules mentioned in the above. Please refer to the above for details.

CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
POE-1	POE-2	POE-3	POE-4	POE-5	POE-6	POE-7	POE-8

b. Please make sure that the internal ethernet port and the IP camera which directly connects to the PoE port through ONVIF protocol are in the same network segment.

The internal ethernet port and the IP camera which directly connects to the PoE port through ONVIF protocol should be in the same network segment, or you will fail to add the IP camera. Log in the IP camera's web client and then enable DHCP (obtain an IP address automatically); or manually change the IP address of the IP camera to make it in the same network segment with the internal ethernet port.

c. Check whether the number of the added IP camera is the maximum.

If the number of the added IP camera is the maximum, the system will show you the message that the IP camera number is beyond the maximum when you directly connect another IP camera to the available PoE port and thus you will fail to add the IP camera.

Q7. The IP camera which directly connects to the PoE port of the NVR through ONVIF protocol is shown in the camera list, but there is no image output, why?

Please make sure the username and password of the IP camera are correct. The IP camera's username and password can be modified through the two ways mentioned as below.

① Click “Edit Camera” in the Camera module of the setup panel to go to the interface as shown below. Click to modify the username and password of the IP camera (input the correct username and password of the IP camera in the popup window and then click “OK” button).

Edit Camera Edit Camera Group Search Camera No. Camera Name ↑ Address Port Status Protocol Model Preview Operation Upgrade Version 1 [POE3]IP Camera1 10.151.151.20 80 Offline ONVIF xxx ▶ ♦ 2 IP Camera2 192.168.12.40 80 Online ONVIF xxx ▶ ♦ 言 ↑ 3.4.2 3 IP Camera3 192.168.12.152 80 Online ONVIF xxx ▶ ♦ 言 ↑ 3.4.2 4 IP Camera4 192.168.12.41 80 Online ONVIF xxx ▶ ♦ 言 ↑ 3.4.2 5 IP Camera5 192.168.12.153 80 Offline ONVIF xxx ▶ ♦ 言 ↑ 6 IP Camera6 192.168.12.154 80 Online ONVIF xxx ▶ ♦ 言 ↑ 3.4.2 7 IP Camera7 192.168.12.155 80 Online ONVIF xxx ▶ ♦ 言 ↑ 3.4.2 8 IP Camera8 192.168.12.156 80 Online ONVIF xxx ▶ ♦ 言 ↑ 3.4.2 9 IP Camera9 192.168.12.157 80 Online ONVIF xxx ▶ ♦ 言 ↑ 3.4.2 10 [POE1]IP Camera10 192.168.12.158 80 Online ONVIF xxx ▶ ♦ 言 ↑ 3.4.2 Remain Bandwidth: 50 / 120 Mb

② Go to the live preview interface and then click in the preview window of the IP camera to edit the IP camera's username and password.

Q8. The system cannot record, why?

a. Make sure the HDD was formatted prior to use.

b. The record schedule has not been set in manual record mode. Please refer to 7.3.2 Record Schedule Configuration for details.

c. Maybe HDD is full and thus the NVR is not able to record. Check HDD information from Disk Management and if required, please enable the recycle function (please see 7.1.2 Advanced Configuration for details).
d. There is no disk but cameras in the disk group, so please add at least one disk to the group. Refer to 7.5.1 Storage Mode Configuration for details.
e. The HDD could have gone bad. Please change another one.

Q9. Fail to access the NVR remotely through IE.

a. Please make sure the IE version is IE8 or above.
b. Please check whether the PC has enabled the firewall or installed the antivirus software. Please try to access the NVR again after you disable the firewall and stop the antivirus software.
c. Allow & block list may have been set in Account and Authority setting. The PC of which the IP address is in the block list or out of the allow list cannot access the NVR remotely.

Q10. ActiveX control cannot be downloaded. How can I do?

a. IE browser blocks ActiveX control. Please do setup as per the steps mentioned below.

① Open IE browser. Click →Internet Options.

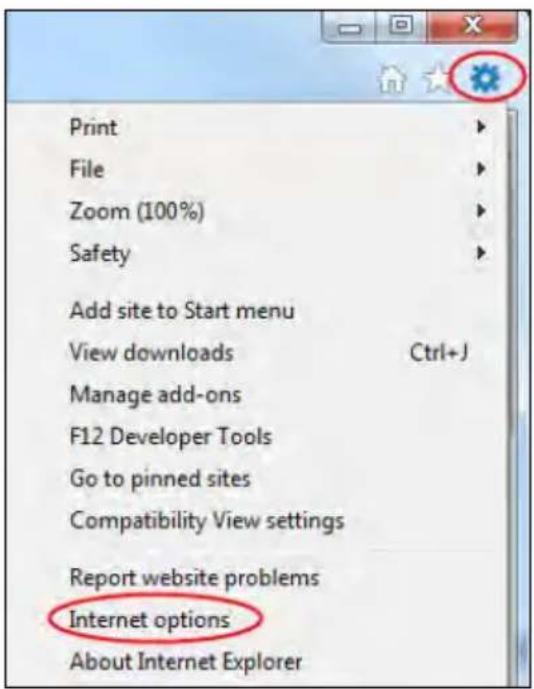

Print File Zoom (100%) Safety Add site to Start menu View downloads Ctrl+J Manage add-ons F12 Developer Tools Go to pinned sites Compatibility View settings Report website problems Internet options About Internet Explorer

② Select Security→Custom Level. Refer to Fig 10-1.
③ Enable all the sub options under “ActiveX controls and plug-ins”. Refer to Fig 10-2.
④ Then click "OK" to finish setup.
b. Other plug-ins or anti-virus may block ActiveX. Please disable or do the required settings.

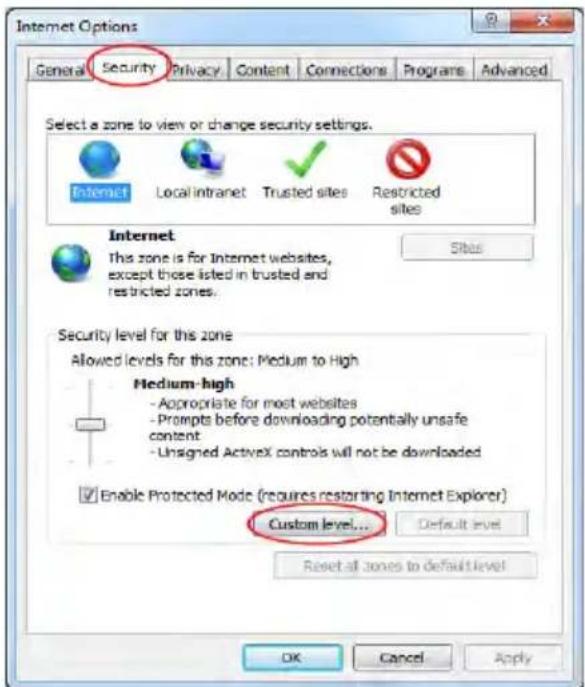

Internet Options General Security Privacy Content Connections Programs Advanced Select a zone to view or change security settings. Internet Local Intranet Trusted sites Restricted sites Internet This zone is for Internet websites, except those listed in trusted and restricted zones. Security level for this zone Allowed levels for this zone: Medium to High Medium-high - Appropriate for most websites - Prompts before downloading potentially unsafe content - Unsigned ActiveX controls will not be downloaded Enable Protected Mode (requires restarting Internet Explorer) Custom level... Default level Reset all zones to default level OK Cancel Apply

Fig 10-1

Security Settings - Internet Zone Settings ActiveX controls and plug-ins Allow ActiveX Filtering Disable Enable Allow previously unused ActiveX controls to run without prom Disable Enable Allow Scriptlets Disable Enable Prompt Automatic prompting for ActiveX controls Disable Enable Binary and script behaviors Administrative approved * *Take effect after you restart your computer Reset custom settings Reset to: Medium-high (default) Reset... OK Cancel

Fig 10-2

Q11. How to play the backup file?

a. Record backed up by NVR: insert the USB device in which the record backup files is saved to the USB interface of the PC and then open the USB device path. The record can be backed up in the private format and AVI format by NVR.

- If you select the private format when backing up record by NVR, a RPAS compression package will be backed up to the USB device automatically along with the record data. Uncompress the “RPAS.zip” and then click “RPAS.exe” to set up RPAS. After the setup is completed, open RPAS player and then click “Open Folder” button in the middle of the interface to select the record data. Refer to Fig 11-1.

Select camera in the resource tree on the left side of the interface to play the camera record. Click 📄 on the tool bar under the camera image to enable audio. Refer to Fig 11-2.

Note: The record will not have audio output if you disable the audio when recording by NVR. Please see 7.1.1 Mode Configuration and 7.2 Encode Parameters Setting for details.

- If you select the AVI format when backing up record by NVR, the record backup data can be played by the video player which supports this format.

b. Record backed up through web. The record can only be backed up with AVI format through web. The record can be backed up to PC and played by the video player which supports this format.

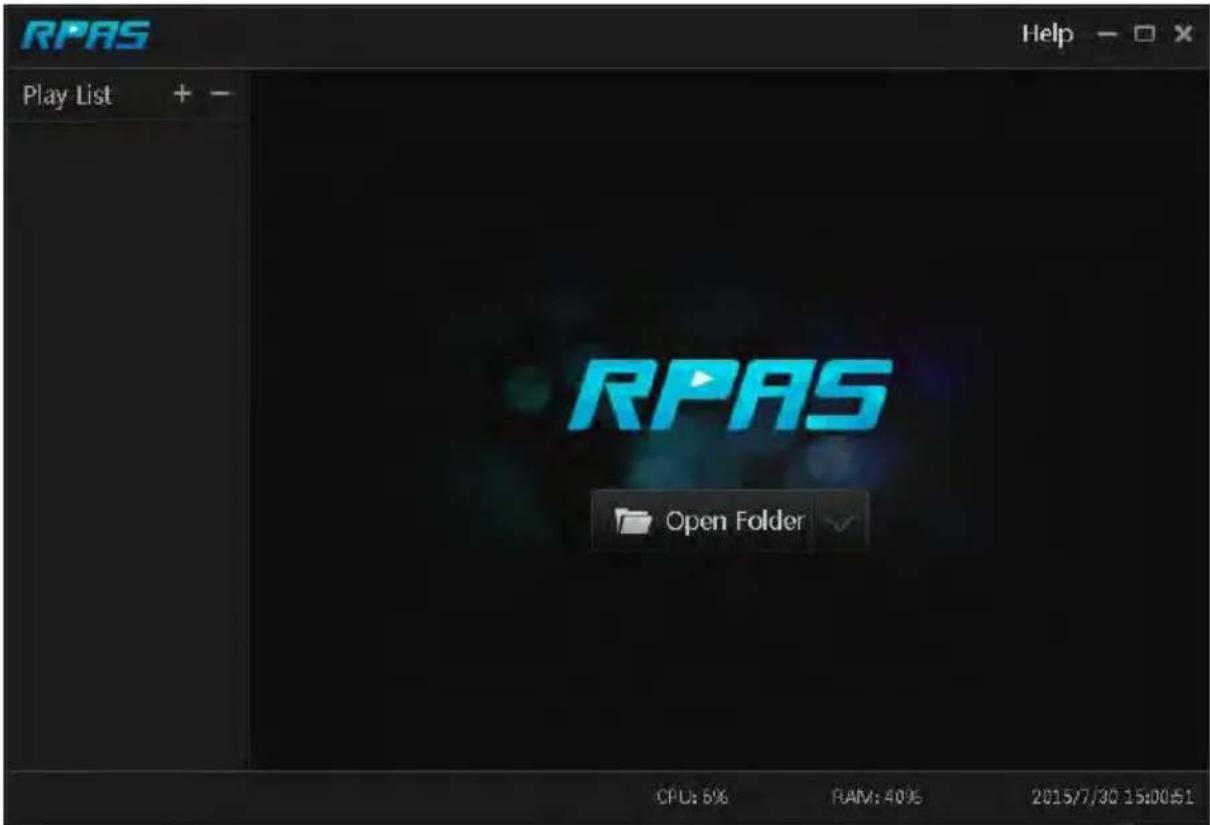

RPAS Play List + - RPAS Open Folder CPU: 5% RAM: 40% 2015/7/30 15:00:51

Fig 11-1

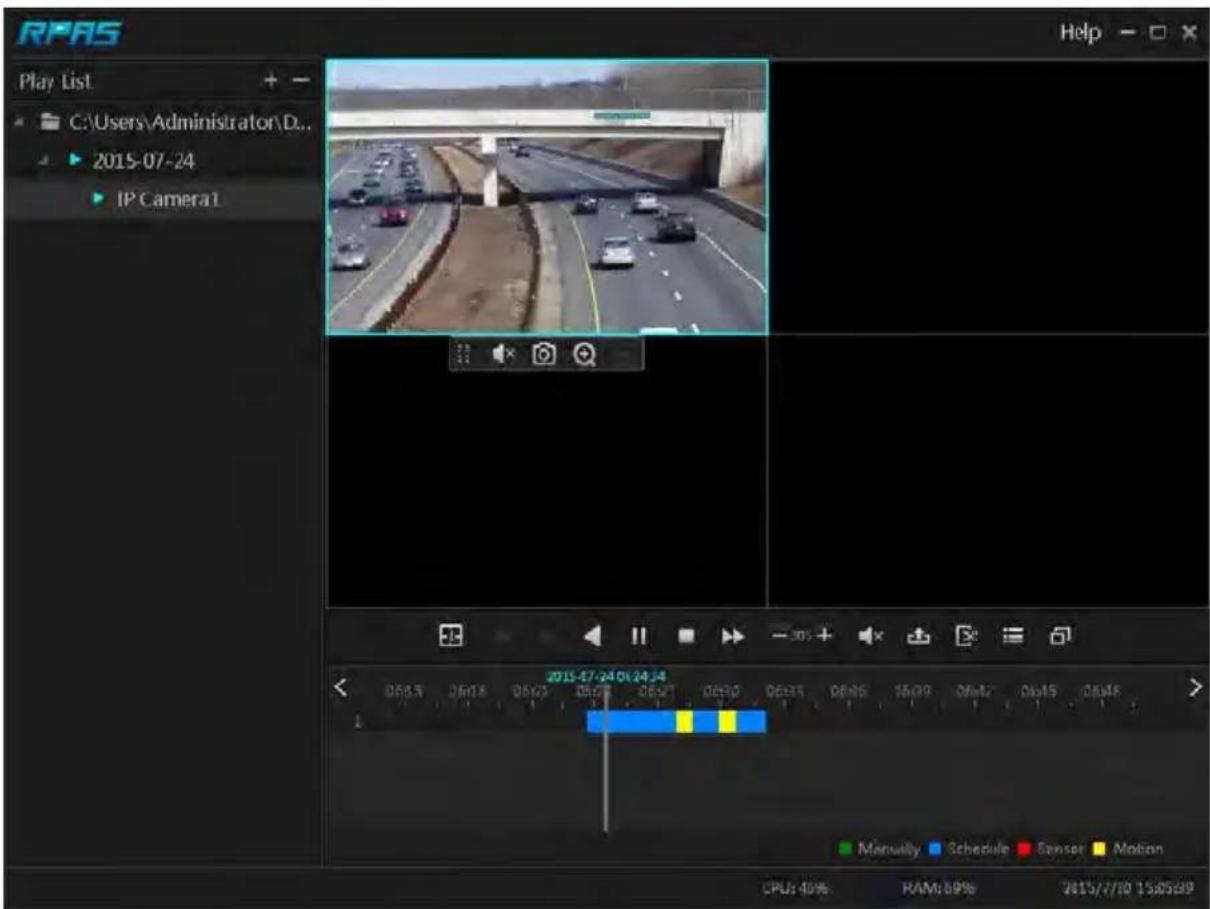

RPAS Play List C:\Users\Administrator\D... 2015-07-24 IP Camera1 Help 2015-07-24 01:24:34 Manually Schedule Sensor Motion CPU: 40% RAM: 89% 2015/7/30 15:05:39

Fig 11-2

Appendix B Calculate Recording Capacity

The recording capacity is mainly up to the record resolution, record stream and bitrate. Different image quality parameters decide different disk capacity occupation in equal times. The bigger the record resolution, record stream and record bitrate is, the more disk capacity is taken up in equal times. The calculation format of recording capacity is shown as below.

Recording Capacity(MB) = Bitrate(Kbps) ÷ 1024 ÷ 8 × 3600 × Recording hours per day × Record Storage Days × channel numbers

3600 means record for an hour(1TB=1024GB, 1GB=1024MB, 1MB=1024KB, 1Byte=8bit).

Record Bitrate (Kbps)	Used Space (MB/H)	Used Space (MB/D)
10240	4500	108000
8192	3600	86400
6144	2700	64800
4096	1800	43200
3072	1350	32400
2048	900	21600
1024	450	10800
768	337.5	8100
512	225	5400
384	168.75	4050
256	112.5	2700

The table below shows the recording capacity requirements for record storage in 30 days.

Record Bitrate (Kbps)	Recording Capacity(TB)
	1CH	4CH	8CH	16CH	32CH	64CH
10240	3.09	12.36	24.72	49.44	98.88	197.76
8192	2.48	9.89	19.78	39.56	79.11	158.21
6144	1.86	7.42	14.84	29.67	59.33	118.66
4096	1.24	4.95	9.89	19.78	39.56	79.11
3072	0.93	3.71	7.42	14.84	29.67	59.33
2048	0.62	2.48	4.95	9.89	19.78	39.56
1024	0.31	1.24	2.48	4.95	9.89	19.78
768	0.24	0.93	1.86	3.71	7.42	14.84
512	0.16	0.62	1.24	2.48	4.95	9.89
384	0.12	0.47	0.93	1.86	3.71	7.42
256	0.08	0.31	0.62	1.24	2.48	4.95

For instance, there is a 32CH NVR recording 24 hours per day and the record stores for 30 days. The NVR adopts dual stream recording. The main stream is 4096Kbps and the sub stream is 1024Kbps, then the total recording capacity is 49.45TB (39.56TB + 9.89TB).

Considering the format loss of the disk is about 10%, the required disk capacity will be 55TB (49.45TB ÷ (1-10%)).

Appendix C Compatible Device List

Compatible HDD list

Brand and Series		Capacity
Seagate	Barracuda Series	500GB /1TB /2TB /3TB
	SV35 Series (recommended)	1TB /2TB /3TB
	Surveillance HDD Series (recommended)	1TB /2TB /3TB /4TB /6TB
Western Digital	Blue Series	500GB /1TB
	Green Series	2TB /3TB /4TB
	Purple Series(recommended)	1TB /2TB /3TB /4TB /6TB

Compatible USB mobile device

Brand	Capacity
SSK	2GB
Netac	4GB
Kingston	2GB/8GB/16GB/32GB
Aigo	2GB
Smatter vider	1GB
SanDisk	4GB/8GB/16GB/32GB
