USER MANUAL DVR-216G-K2 HiLook

Abstract geometric pattern with gray and blue diamond shapes arranged in a grid (no text or symbols)

Blue background with white globe and hand icon (no text or symbols)

Digital Video Recorder

User Manual

User Manual

COPYRIGHT © 2018 Hangzhou Hikvision Digital Technology Co., Ltd.

ALL RIGHTS RESERVED.

Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be "Hikvision"). This user manual (hereinafter referred to be "the Manual") cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to HiLook Series Turbo HD Digital Video Recorder (DVR).

The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the company website (http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

HiLook and other Hikvision's trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Information

FCC Information

Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Applicable Models

This manual is applicable for the following products:

DVR-XXXXY-FX, DVR-XXXXY-FX/Y, DVR-XXXXY-KX

(X = 0, 1, 2, 3, 4, 5, 6, 7, 8, 9; Y = A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z)

Symbol Conventions

The symbols that may be found in this document are defined as follows.

Symbol	Description
NOTE	Provides additional information to emphasize or supplement important points of the main text.
WARNING	Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results.
DANGER	Indicates a hazard with a high level of risk, which if not avoided, will result in death or serious injury.

Safety Instructions

• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.
• In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region. Please refer to technical specifications for detailed information.
• Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 100 to 240 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to technical specifications for detailed information.
• Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire hazard.
• Please make sure that the plug is firmly connected to the power socket.
• If smoke, odor or noise rise from the device, turn off the power at once and unplug the power cable, and then please contact the service center.

Preventive and Cautionary Tips

Before connecting and operating your device, please be advised of the following tips:

• Ensure unit is installed in a well-ventilated, dust-free environment.
• Unit is designed for indoor use only.
• Keep all liquids away from the device.
• Ensure environmental conditions meet factory specifications.
• Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it may cause damage to the sensitive electronics within the unit.
• Use the device in conjunction with an UPS if possible.
  ● Power down the unit before connecting and disconnecting accessories and peripherals.
  ● A factory recommended HDD should be used for this device.
• Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufacturer.

Product Key Features

General

• Connectable to Turbo HD and analog cameras;
  ● Supports UTC (Coaxitron) protocol for connecting camera over coax;
• Connectable to AHD cameras;
• Connectable to HDCVI cameras;
• Connectable to IP cameras;
  ● Each channel supports dual-stream except DVR-100/200G-F series DVR. And sub-stream supports up to WD1 resolution;
  ● The main stream of DVR-100G-F1 and DVR-200G-F1 series DVR support up to 720p resolution;
• The main stream of DVR-200Q-K1 and DVR-200Q-K2 series support up to 3 MP resolution for the first channel of DVR with 4-ch video inputs, the first 2 channels of DVR with 8-ch video inputs and the first 4 channels of DVR with 16-ch video inputs;
• For DVR-200Q-K1 and DVR-200Q-K2 series DVR, if the 3 MP camera is connected to the channel which supports up to 1080p signal input, it will switch to 1080p signal input. When the 3 MP signal is switched to 1080p signal, the PAL will be switched to 1080p/25Hz, and the NTSC will be switched to 1080p/30Hz;
• DVR-200Q-K1 and DVR-200Q-K2 series support 4 MP lite mode. If you disable 4 MP lite mode, 4 MP signal can be connected;

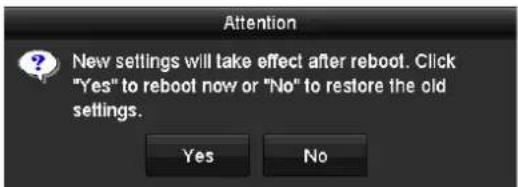

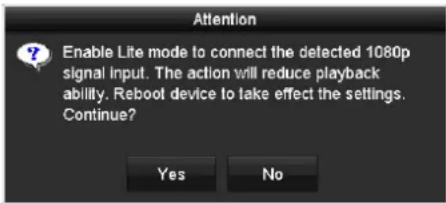

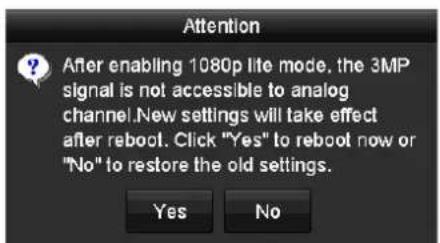

• For DVR-100G-F1 and DVR-200G-F1 series DVR, 1080p lite mode is applicable to all the channels;
• Independent configuration for each channel, including resolution, frame rate, bit rate, image quality, etc.;
• Encoding for both video stream and video & audio stream; audio and video synchronization during composite stream encoding;
  ● Supports enabling H.264+ to ensure high video quality with lowered bitrate;
  ● One-key enable or disable H.264+;

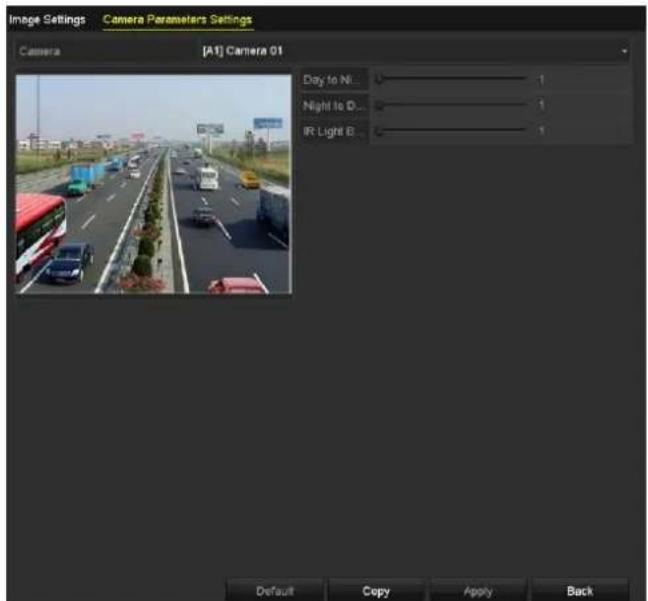

  ● Supports configuring night to day sensitivity, day to night sensitivity, and IR light brightness for the connected analog cameras supporting these parameters;
  ● Watermark technology.

Local Monitoring

● HDMI output at up to 4K (3840 × 2160) resolution for DVR-216Q-K1 and DVR-216Q-K2;
- 1/4/6/8/9/16/25/36 screen live view is supported, and the display sequence of screens is adjustable;
● Live view screen can be switched in group and manual switch and automatic cycle live view are also provided, the interval of automatic cycle can be adjusted;

• CVBS output only serves as the aux output or live view output;
• Quick setting menu is provided for live view;
  ● The selected live view channel can be shielded;

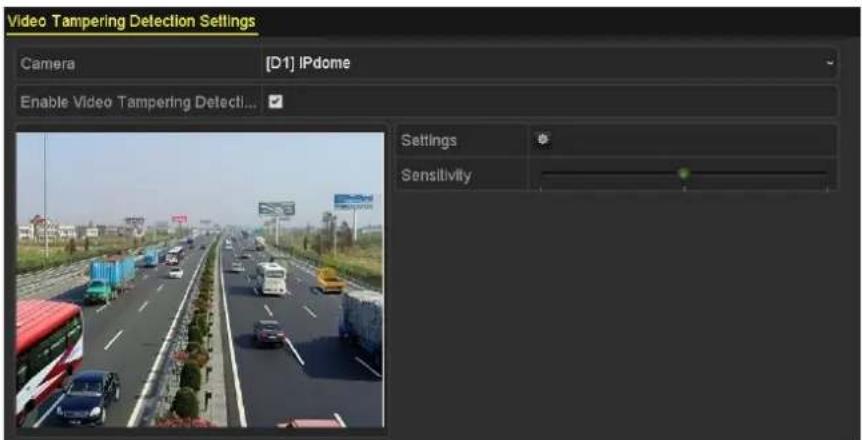

• Motion detection, video-tampering detection, video exception alarm, video loss alarm and VCA alarm functions;

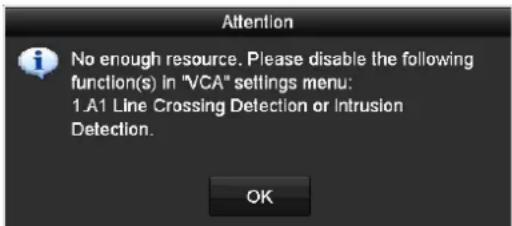

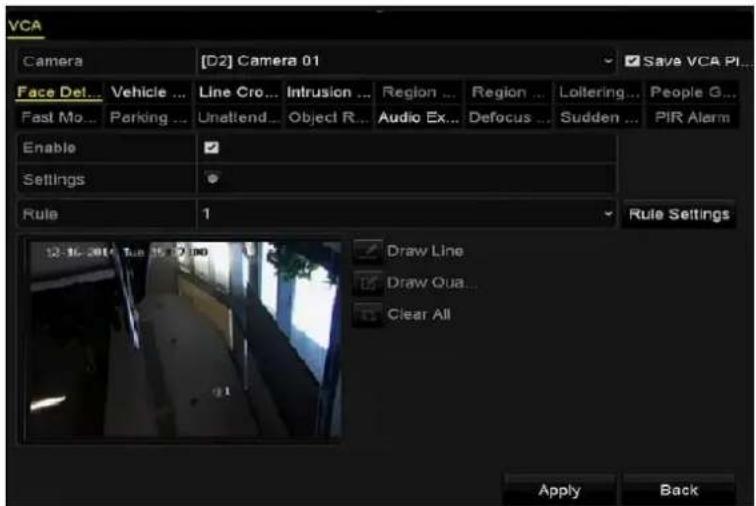

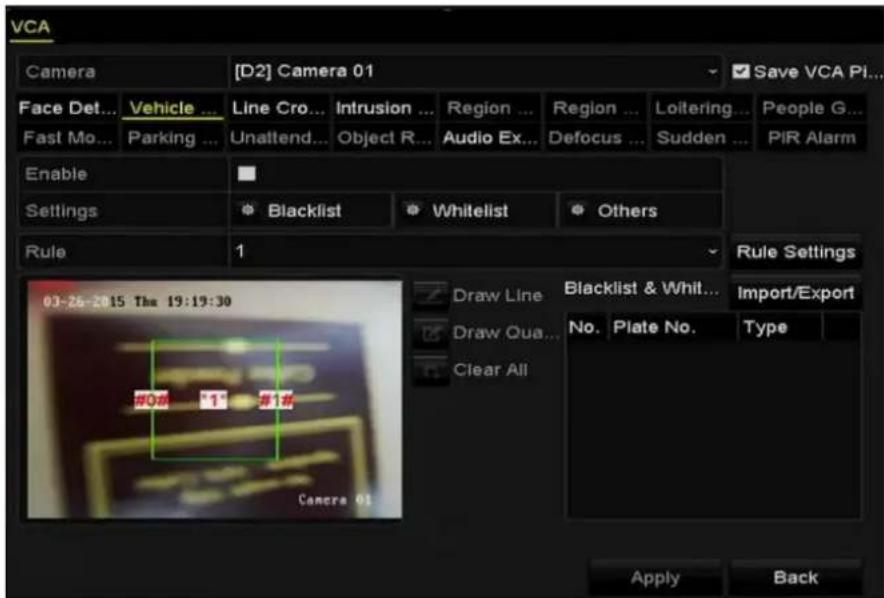

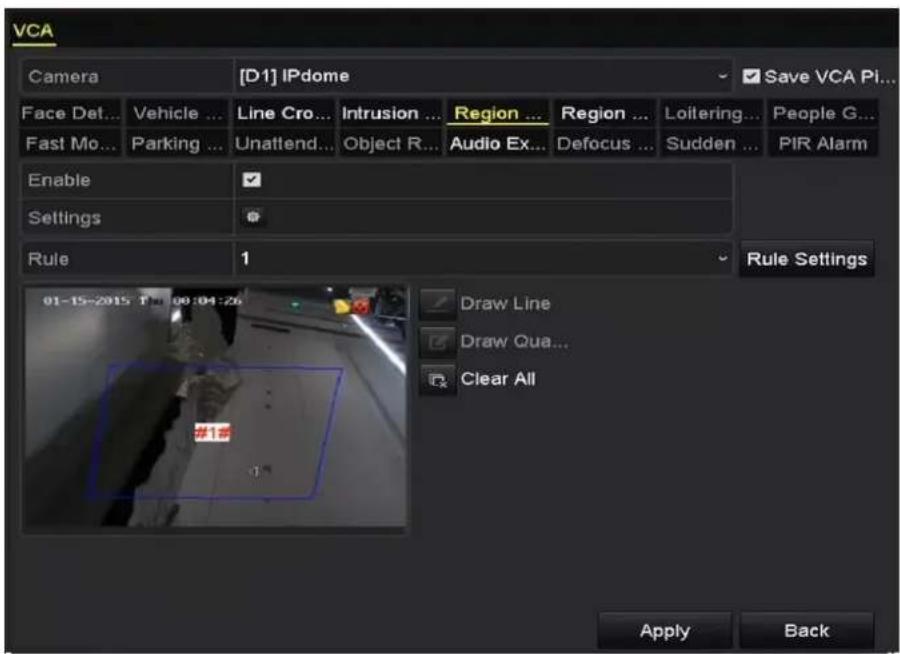

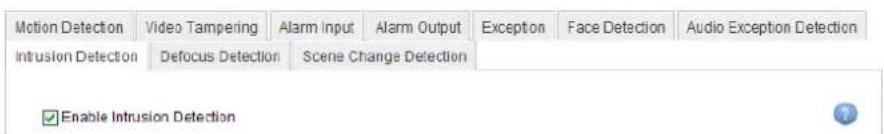

• DVR-200Q-K2 series support 4-ch VCA (line crossing detection and intrusion detection). For the analog channels, the line crossing detection and intrusion detection conflict with other VCA detection such as sudden scene change detection, face detection and vehicle detection and heat map or people counting functions. You can only enable one function;

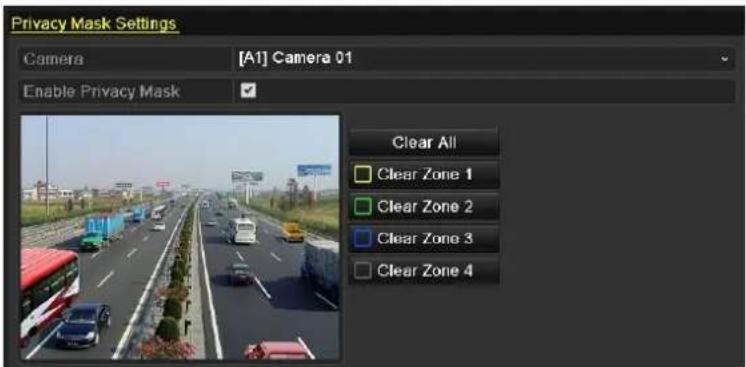

• Privacy mask;
  ● Several PTZ protocols supported; PTZ preset, patrol and pattern;

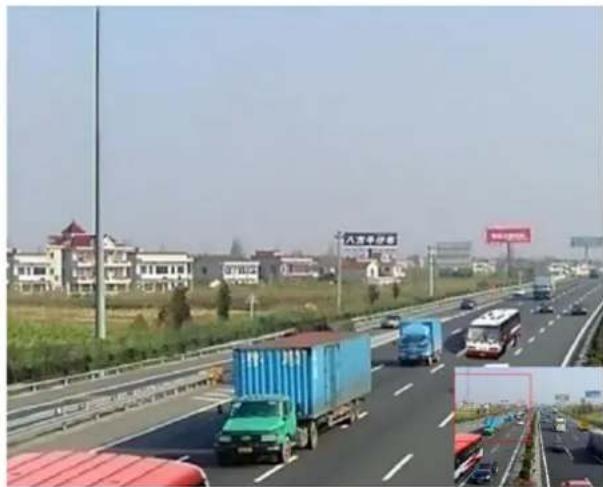

• Zooming in/out by clicking the mouse and PTZ tracing by dragging mouse.

HDD Management

• Up to 10 TB capacity per HDD for DVR-200Q-K1 and DVR-200Q-K2 series. Up to 6 TB capacity per HDD for other series;

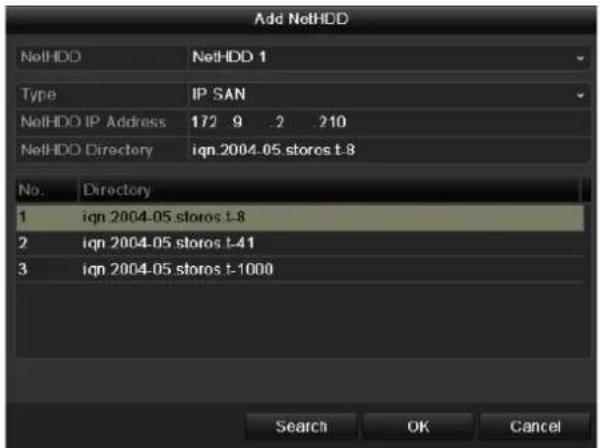

• 8 network disks (8 NAS disks, 8 IP SAN disks or n NAS disks + m IP SAN disks (n+m ≤ 8)) can be connected;

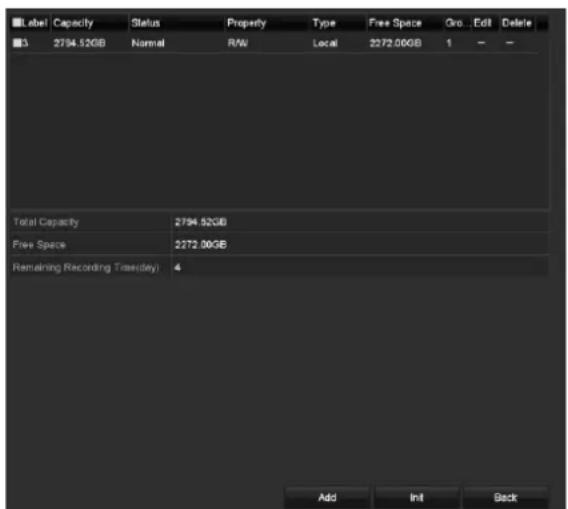

  ● Remaining recording time of the HDD can be viewed;

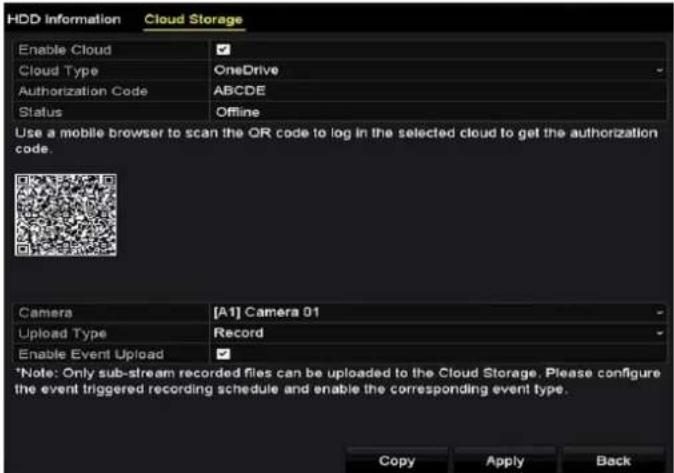

  ● Supports cloud storage;

Cloud storage is only applicable to DVR-200Q-K1 and DVR-200Q-K2 series DVR.

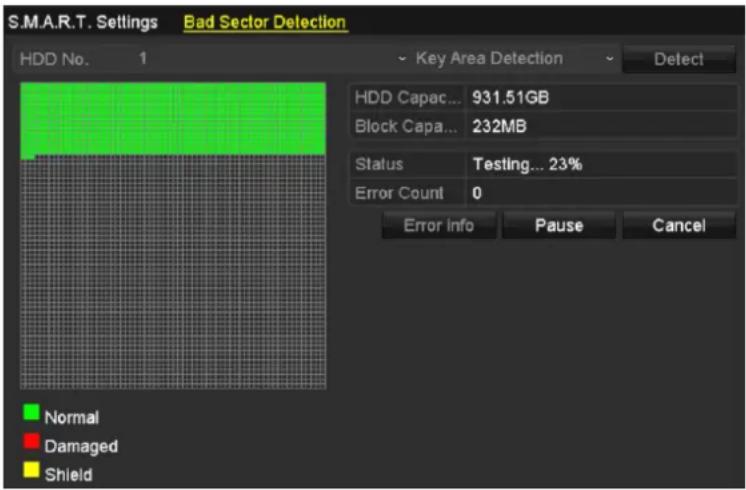

● S.M.A.R.T. and bad sector detection;
- HDD sleeping function;

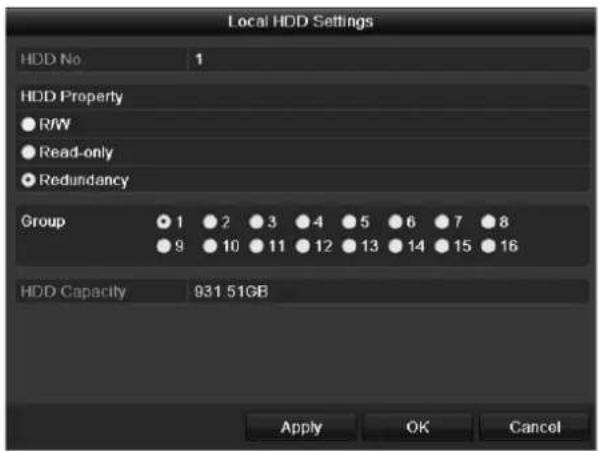

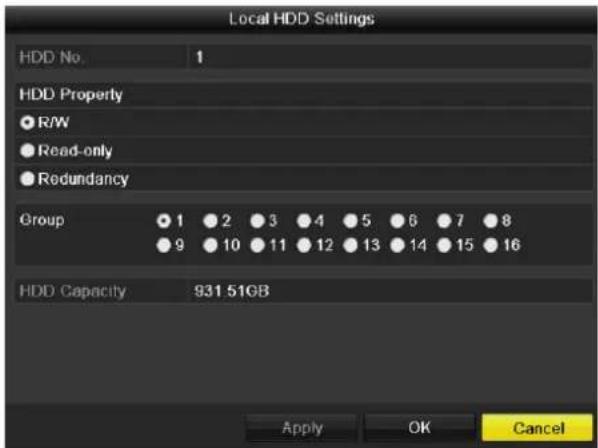

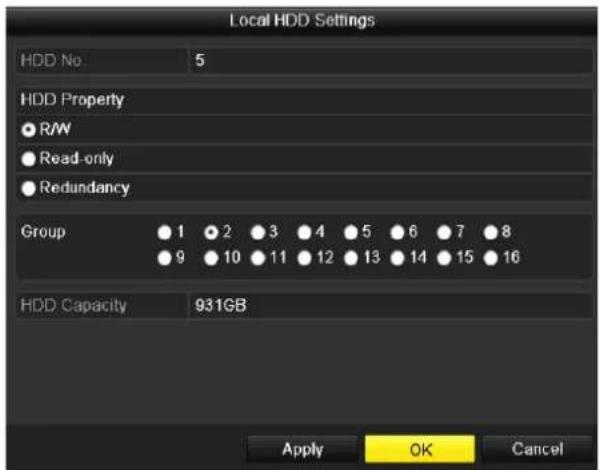

- HDD property: redundancy, read-only, read/write (R/W);

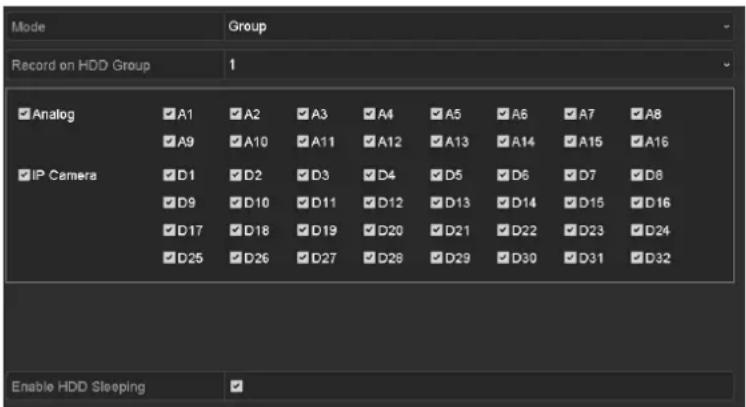

- HDD group management;

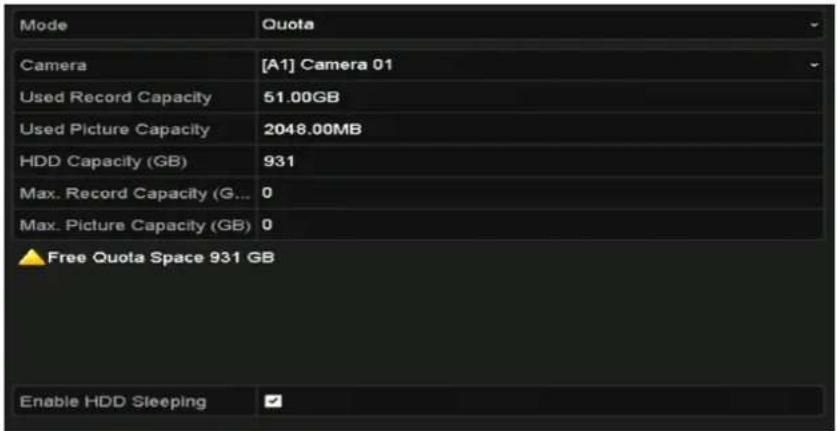

- HDD quota management; different capacity can be assigned to different channels.

Recording and Playback

• Holiday recording schedule configuration;
  ● Cycle and non-cycle recording modes;
  ● Normal and event video encoding parameters;
• Multiple recording types: manual, continuous, alarm, motion, motion | alarm, motion & alarm and Event;
  ● 8 recording time periods with separated recording types;
  ● Supports Channel-Zero encoding;
  ● Main stream and sub-stream configurable for simultaneous recording;

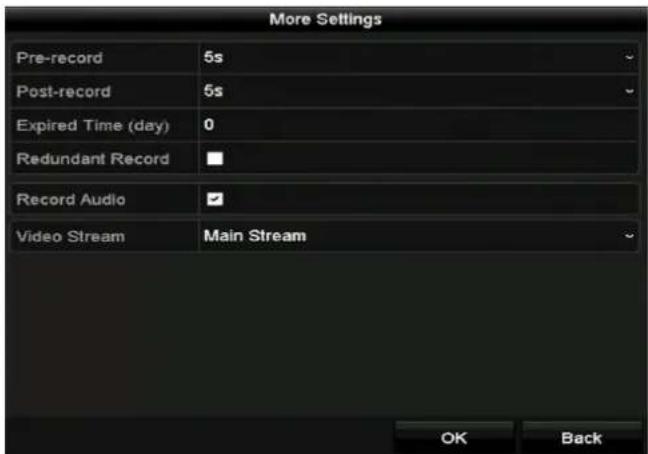

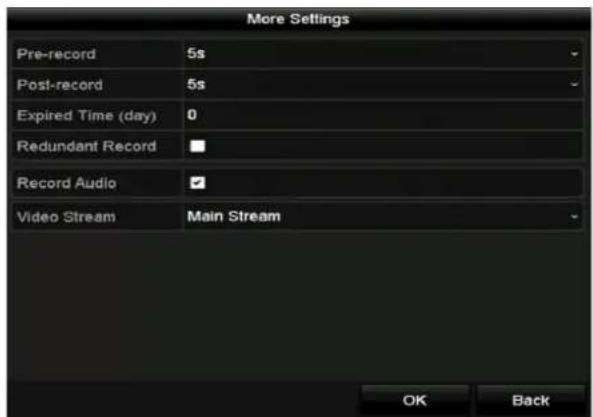

● Pre-record and post-record for motion detection triggered recording, and pre-record time for schedule and manual recording;
- Searching record files by events (alarm input/motion detection);

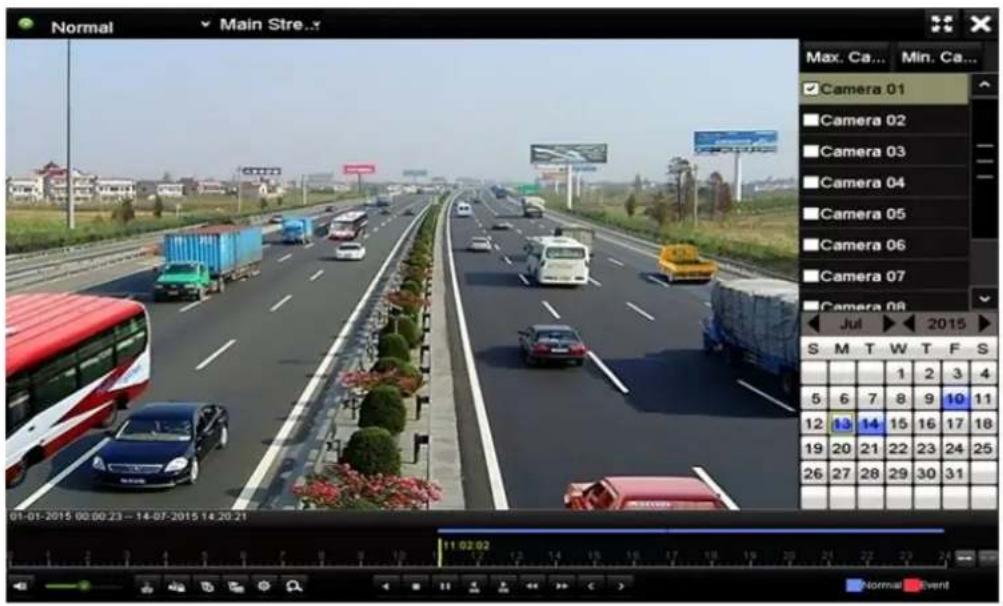

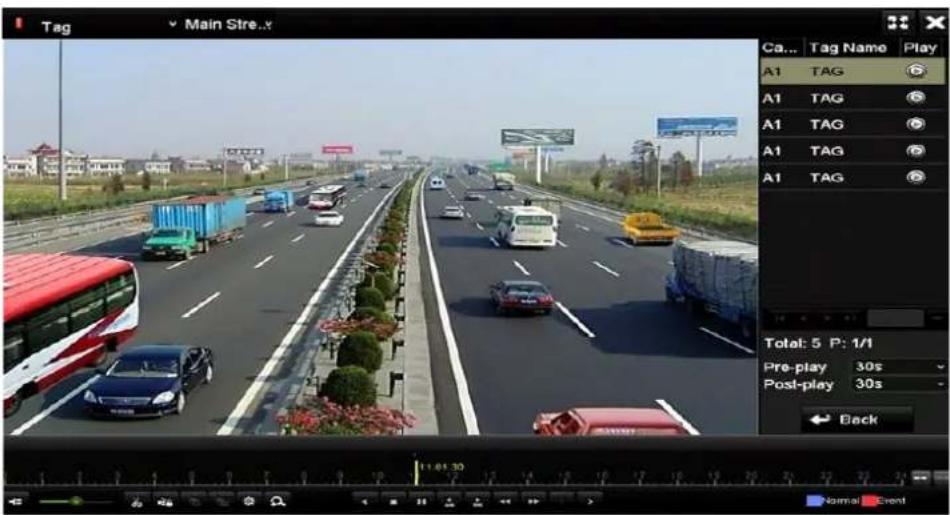

- Customization of tags, searching and playing back by tags;
● Locking and unlocking of record files;
● Local redundant recording;
- When Turbo HD, AHD, or HDCVI input is connected, the information including the resolution and frame rate will be overlaid on the bottom right corner of the live view for 5 seconds.
When CVBS input is connected, the information such as NTSC or PAL will be overlaid on the bottom right corner of the live view for 5 seconds.

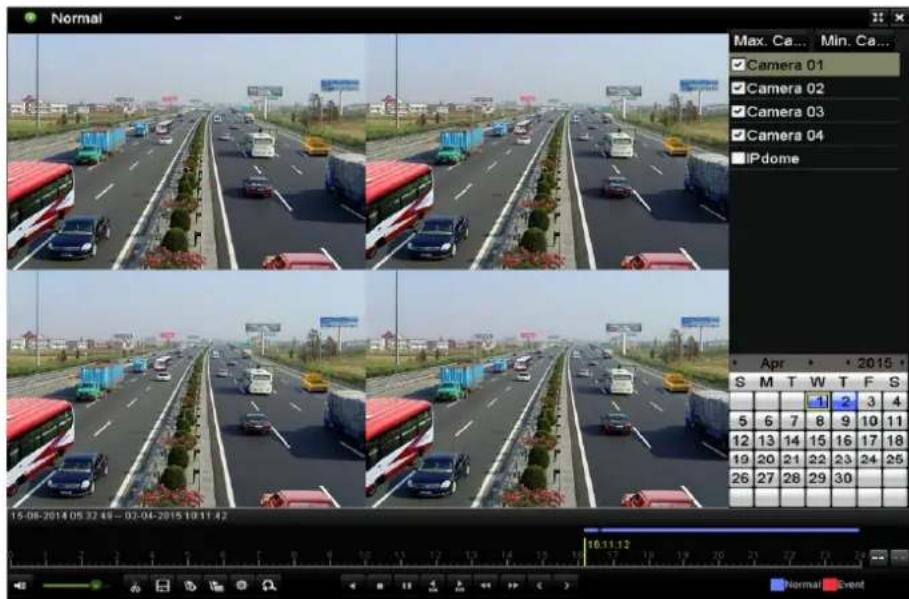

- Searching and playing back record files by camera number, recording type, start time, end time, etc.;

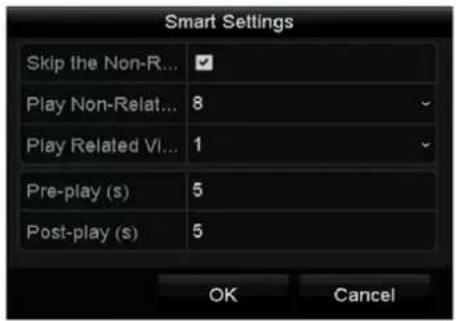

● Smart playback to go through less effective information;
● Main stream and sub-stream selectable for local/remote playback;

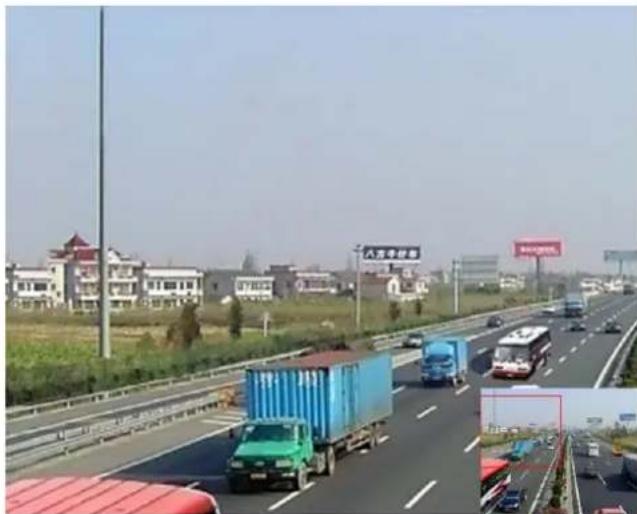

- Zooming in for any area when playback;
● Multi-channel reverse playback;

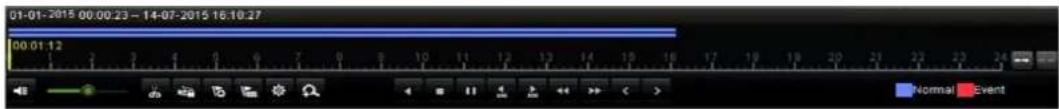

● Supports pause, fast forward, slow forward, skip forward, and skip backward when playback, locating by dragging the mouse on the progress bar;
● 4/8/16-ch synchronous playback;

Backup

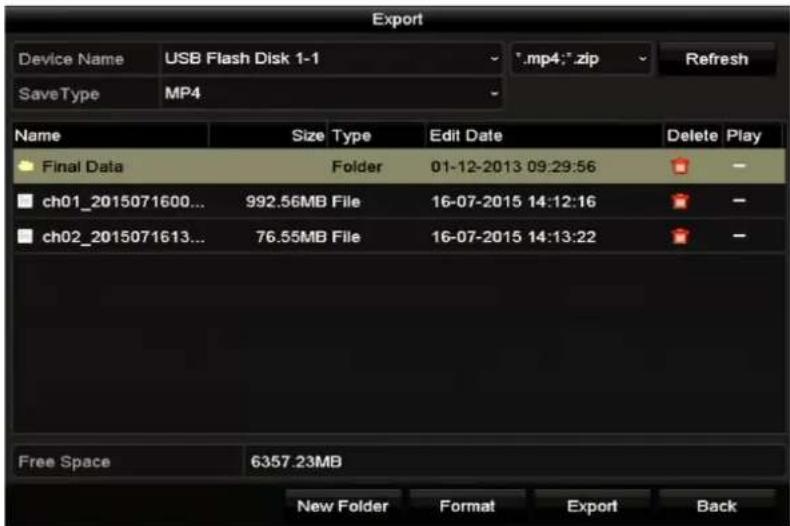

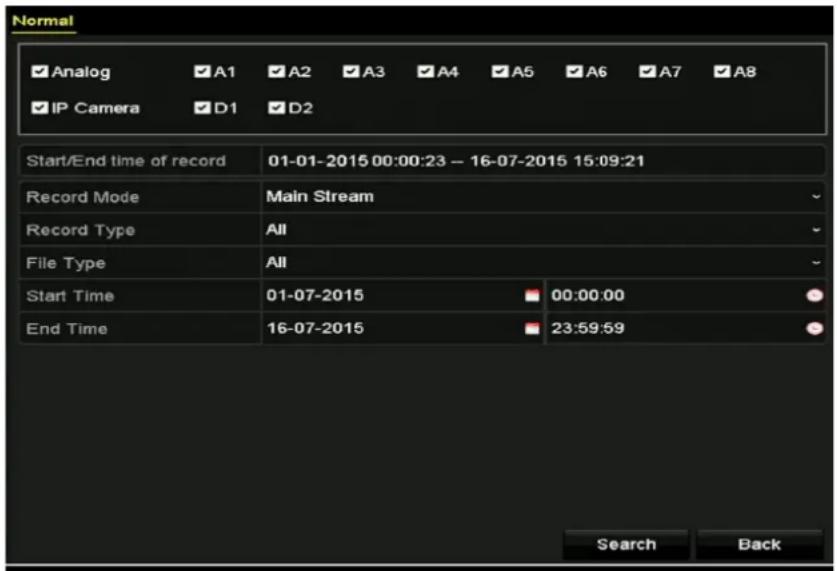

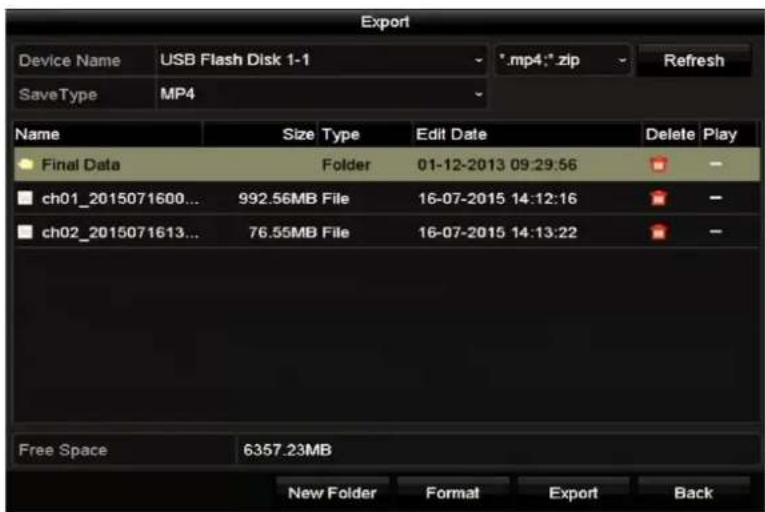

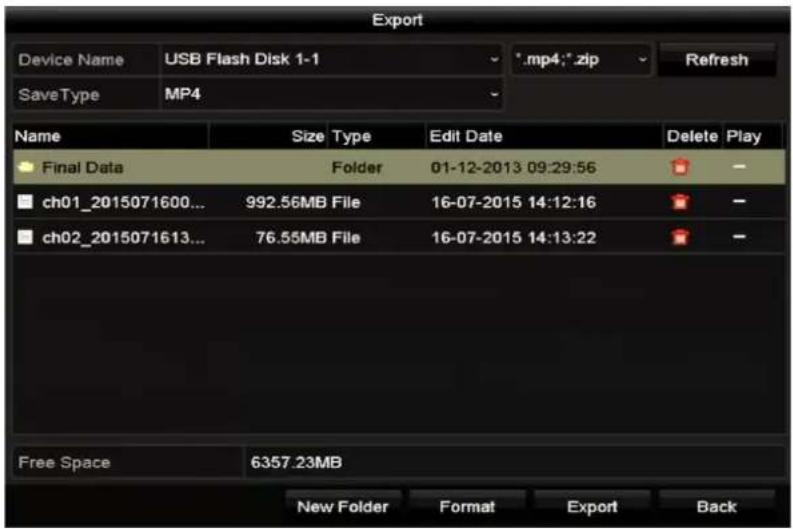

● Exports data by a USB, and SATA device;

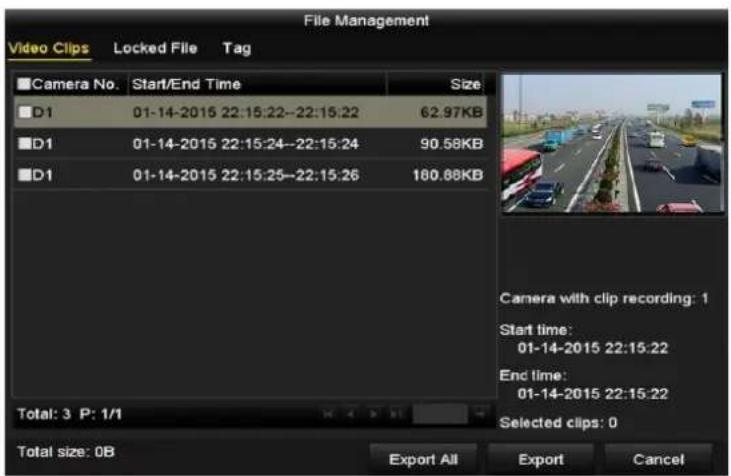

● Exports video clips when playback;
● Video and Log, Video and Player, and Player selectable to export for backup;
● Management and maintenance of backup devices.

Alarm and Exception

• Configurable arming time of alarm input/output;
• Alarm for video loss, motion detection, video tampering, abnormal signal, video input/recording resolution mismatch, illegal login, network disconnected, IP confliction, record exception, HDD error, and HDD full, etc.;
• Alarm triggers full screen monitoring, audio alarm, notifying surveillance center, sending email and alarm output;
  ● VCA detection alarm is supported;

DVR-100G-F1 series do not support VCA alarm.

● Supports coaxial alarm;

● Automatic restoration when system is abnormal.

Other Local Functions

● Manual and automatic video quality diagnostics;
- Operable by mouse and remote control;

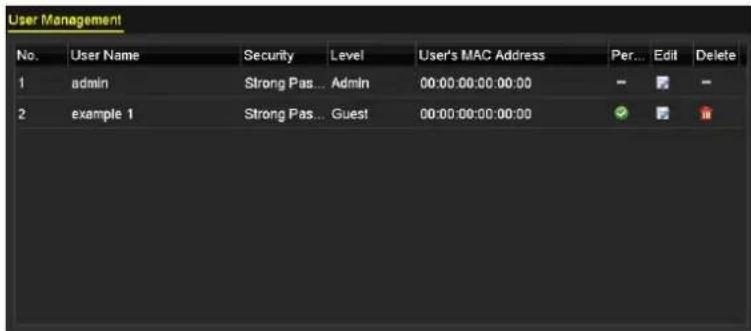

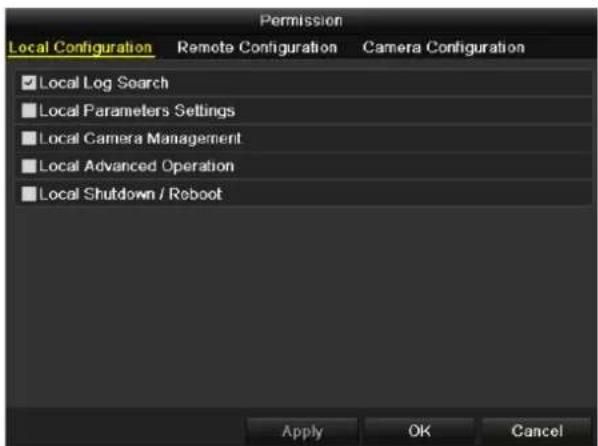

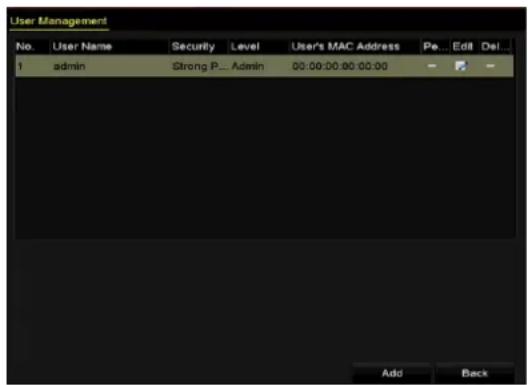

- Three-level user management; admin user can create many operating account and define their operating permission, which includes the permission to access any channel;
● Completeness of operation, alarm, exceptions and log writing and searching;

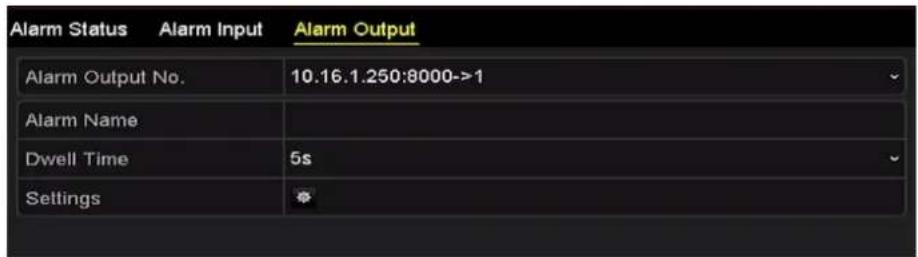

- Manually triggering and clearing alarms;

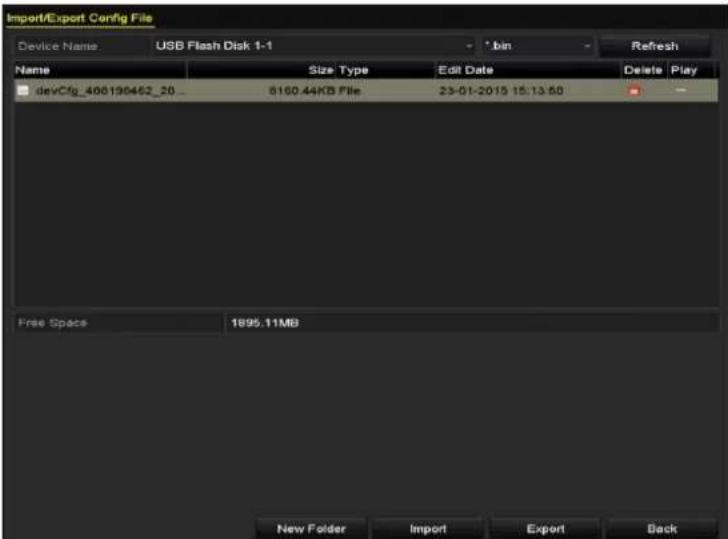

- Importing and exporting of configuration file of devices;
- Getting cameras type information automatically;

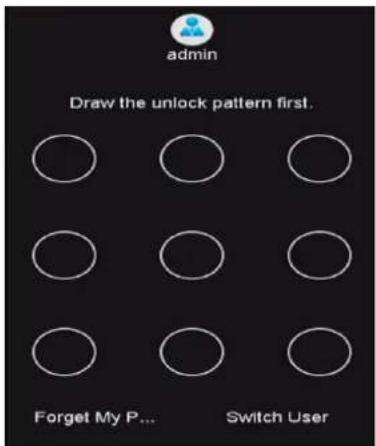

- Unlock pattern for device login for the admin;
- Clear-text password available;

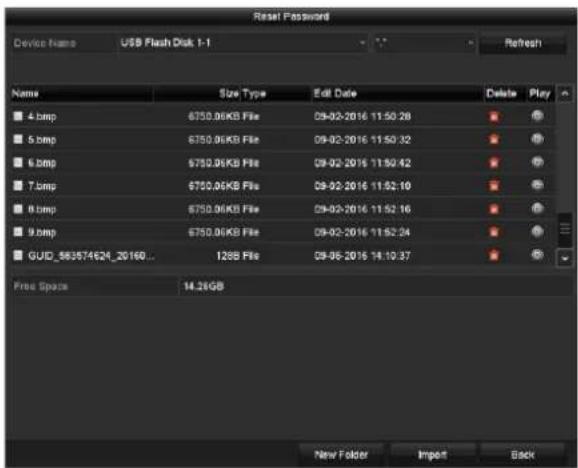

● GUID file can be exported for password resetting.

Network Functions

• IPv6 is supported;

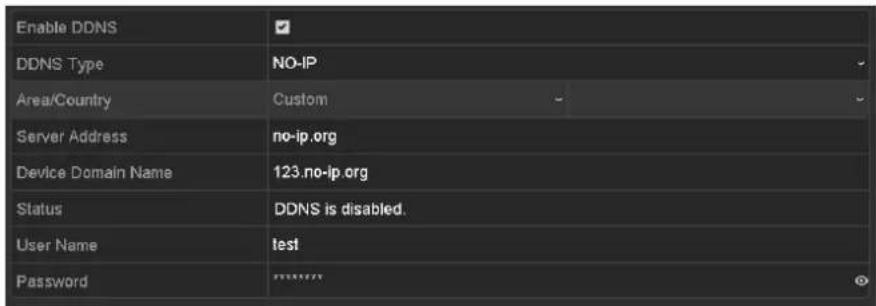

• TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™ and HTTPS are supported;

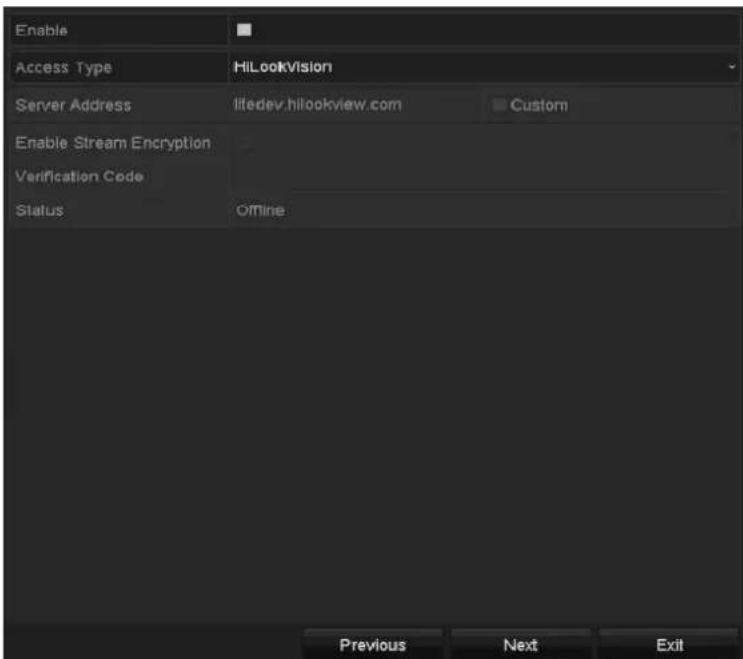

  ● Supports access by HiLookVision;
  ● TCP, UDP and RTP for unicast;

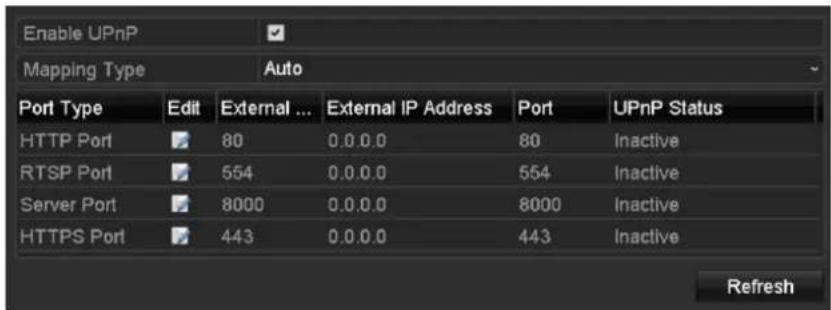

  ● Auto/Manual port mapping by UPnPTM;
• Remote search, playback, download, locking and unlocking the record files, and downloading files broken transfer resume;
• Remote parameters setup; remote import/export of device parameters;
• Remote viewing of the device status, system logs and alarm status;
• Remote keyboard operation;
  ● Remote HDD formatting and program upgrading;
• Remote system restart and shutdown;
  ● Supports upgrading via remote FTP server;
  ● RS-485 transparent channel transmission;
• Alarm and exception information can be sent to the remote host;
  ● Remotely start/stop recording;
• Remotely start/stop alarm output;
• Remote PTZ control;
  ● Two-way audio and voice broadcasting;

• Configurable output bandwidth limit;

• Embedded WEB server;

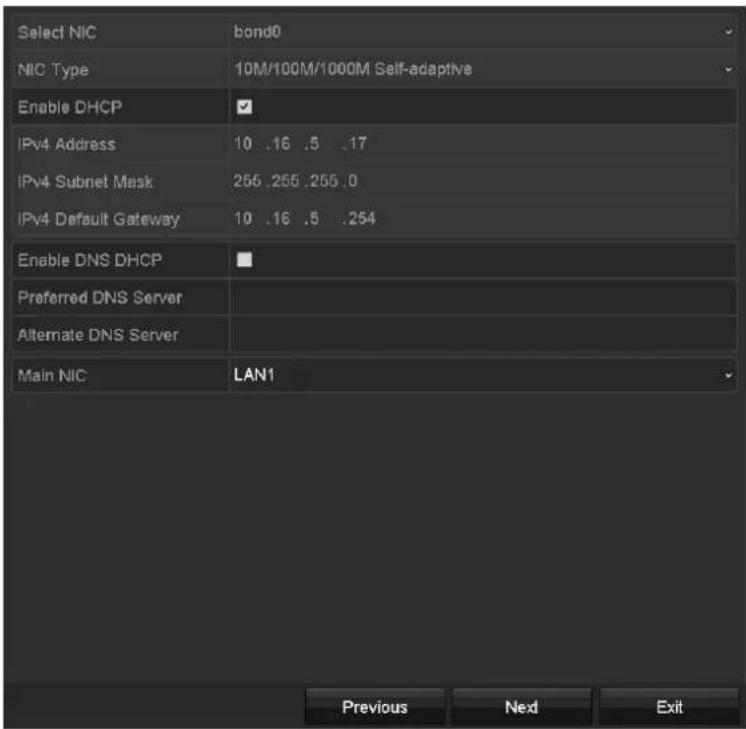

• If DHCP is enabled, you can enable DNS DHCP or disable it and edit the Preferred DNS Server and Alternate DNS Server.

Development Scalability

• SDK for Windows and Linux system;
  ● Source code of application software for demo;
  ● Development support and training for application system.

Table of Contents

Product Key Features....5

Chapter 1 Introduction....16

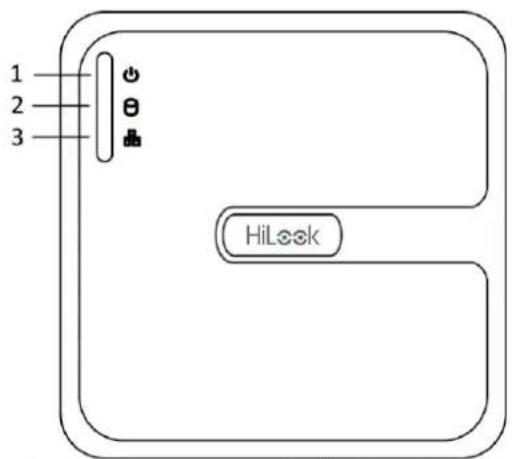

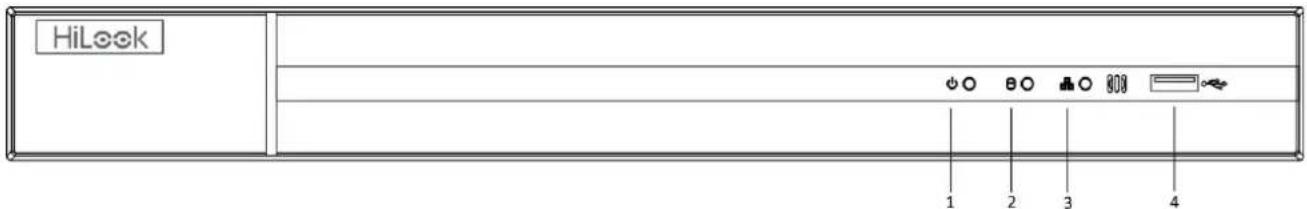

1.1 Front Panel....16

1.2 IR Remote Control Operations....17

1.3 USB Mouse Operation 21

1.4 Input Method Description 22

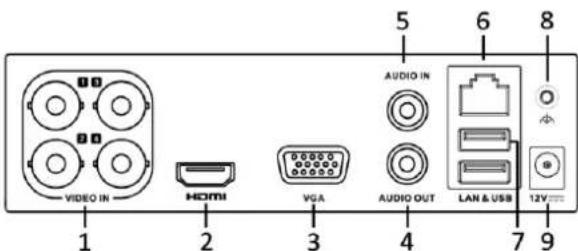

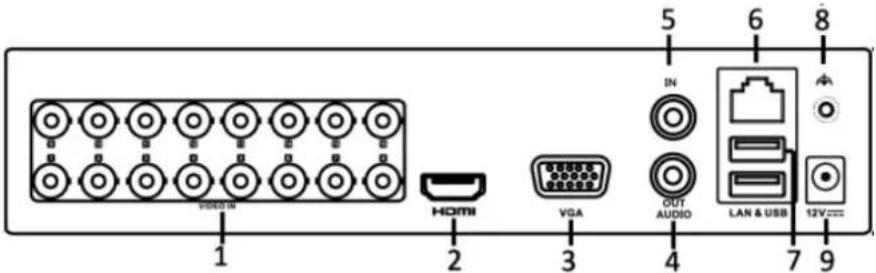

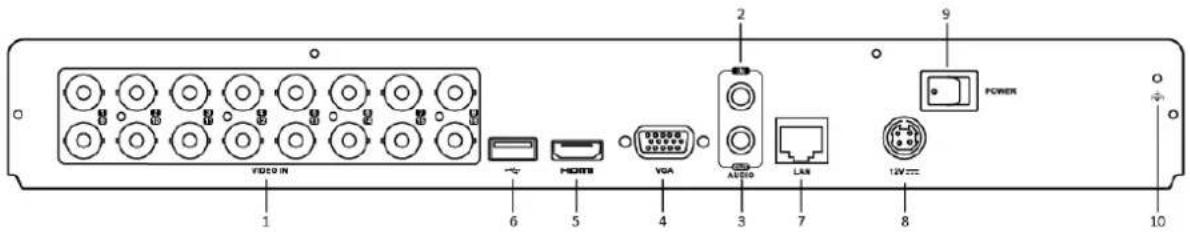

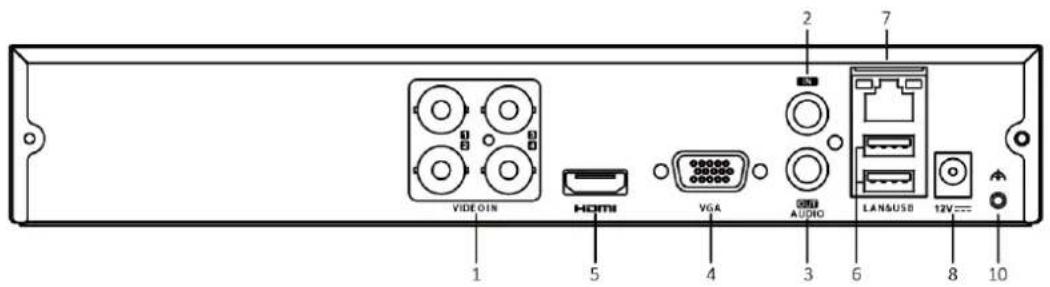

1.5 Rear Panel....22

Chapter 2 Getting Started....25

2.1 Starting Up and Shutting Down the DVR 25

2.2 Activating the Device 26

2.3 Using the Unlock Pattern for Login 27

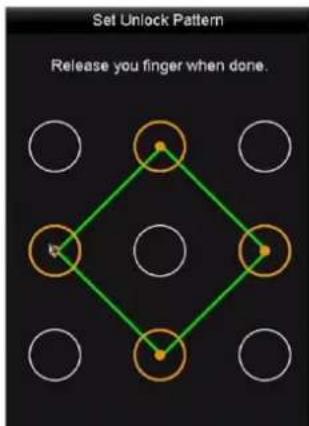

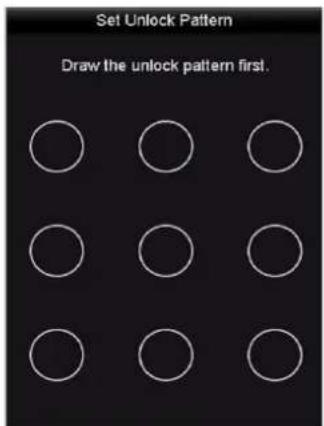

2.3.1 Configuring the Unlock Pattern....27

2.3.2 Logging in via Unlock Pattern....29

2.4 Basic Configuration in Startup Wizard....31

2.4.1 Configuring the Signal Input Wizard....31

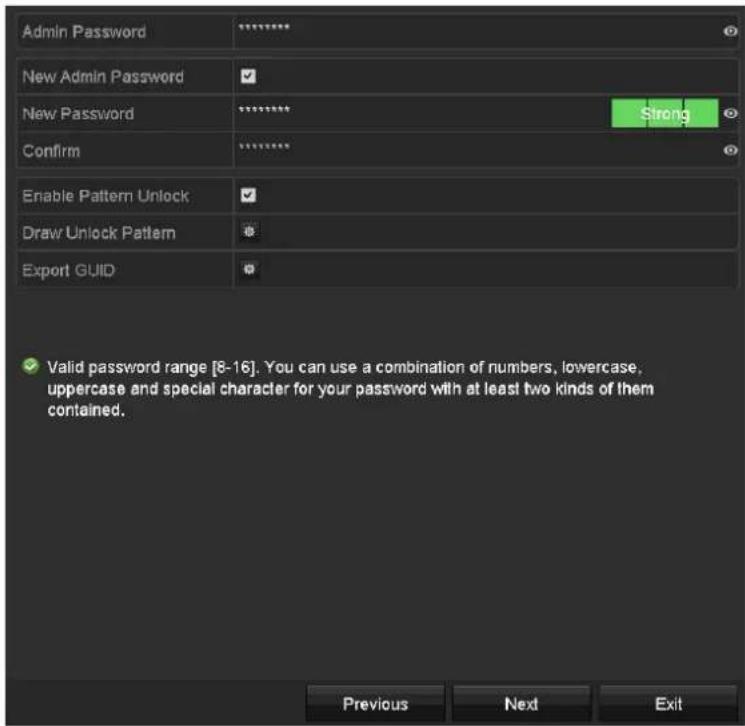

2.4.2 Using the Wizard for Basic Configuration 31

2.5 Login and Logout....37

2.5.1 User Login 37

2.5.2 User Logout....38

2.6 Resetting Your Password 39

2.7 Adding and Connecting the IP Cameras....40

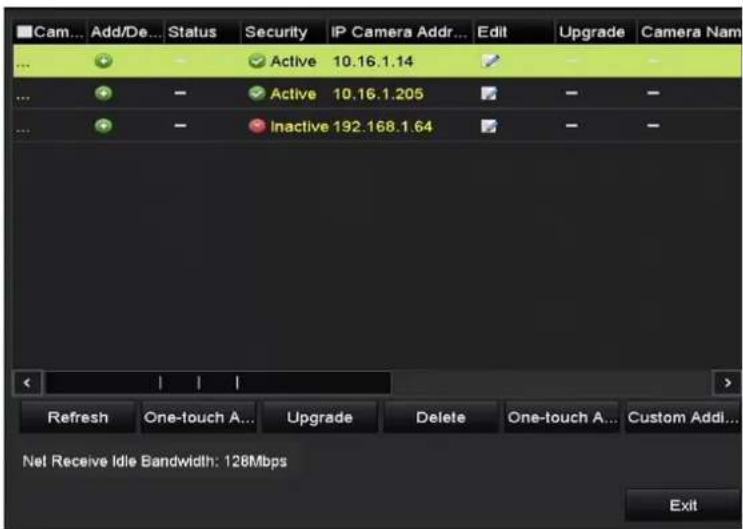

2.7.1 Activating the IP Camera....40

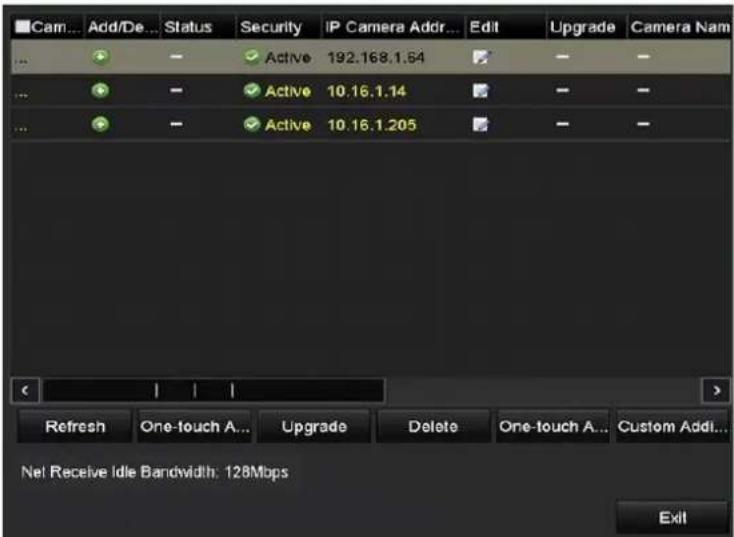

2.7.2 Adding the Online IP Camera....42

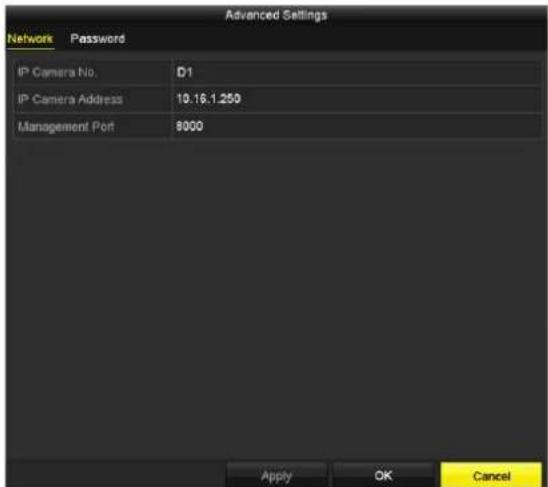

2.7.3 Editing the Connected IP Camera 45

2.8 Configuring the Signal Input Channel 46

Chapter 3 Live View ....48

3.1 Introduction of Live View 48

3.2 Operations in Live View Mode....48

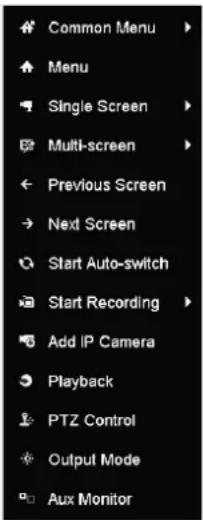

3.2.1 Using the Mouse in Live View....49

3.2.2 Switching Main/Aux Output....51

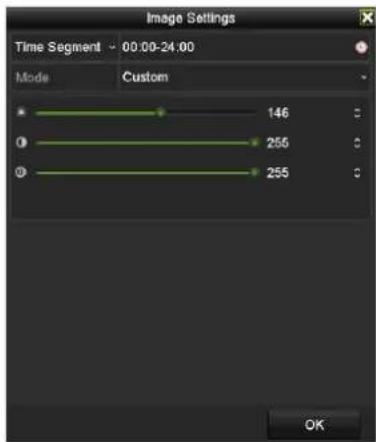

3.2.3 Quick Setting Toolbar in Live View Mode....52

3.3 Channel-Zero Encoding....53
3.4 Adjusting Live View Settings ....54

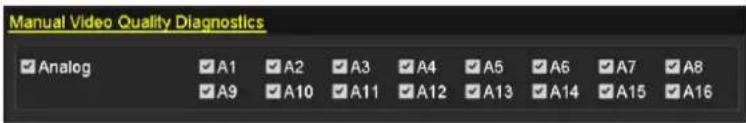

3.5 Manual Video Quality Diagnostics....55

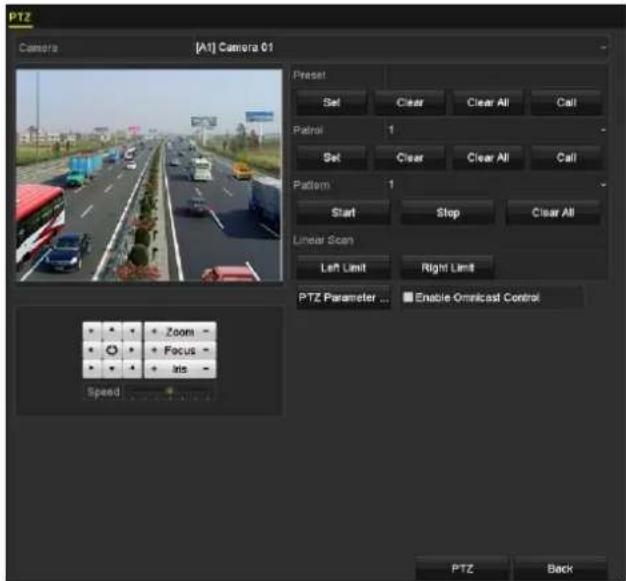

Chapter 4 PTZ Controls....57

4.1 Configuring PTZ Settings 57
4.2 Setting PTZ Presets, Patrols and Patterns....59

4.2.1 Customizing Presets....59
4.2.2 Calling Presets....60
4.2.3 Customizing Patrols....60
4.2.4 Calling Patrols....61
4.2.5 Customizing Patterns....62
4.2.6 Calling Patterns....63
4.2.7 Customizing Linear Scan Limit 64
4.2.8 Calling Linear Scan 65

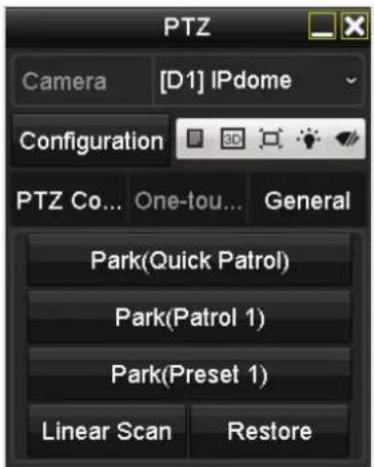

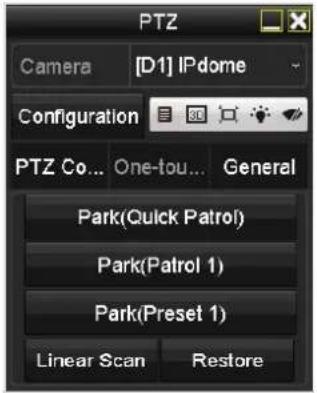

4.2.9 One-touch Park....66

4.3 PTZ Control Panel....67

Chapter 5 Recording Settings....69

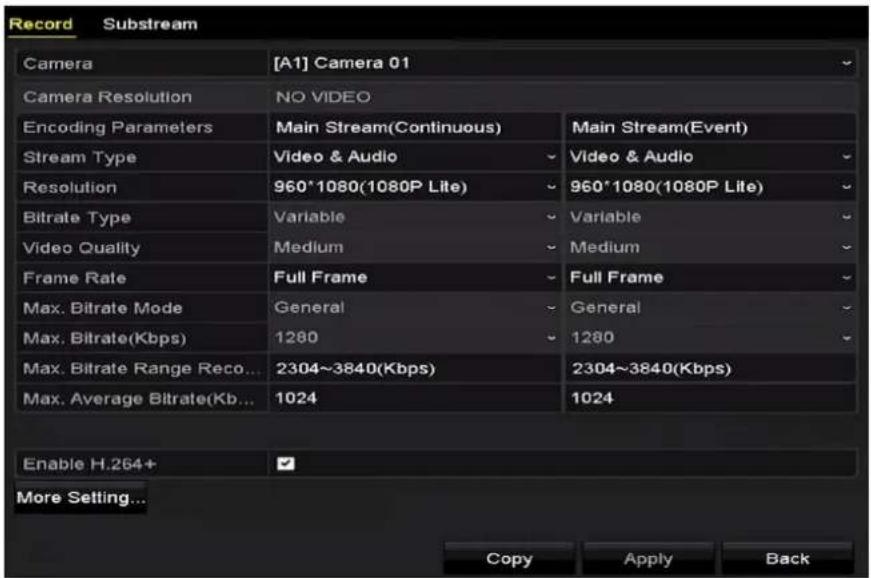

5.1 Configuring Encoding Parameters....69

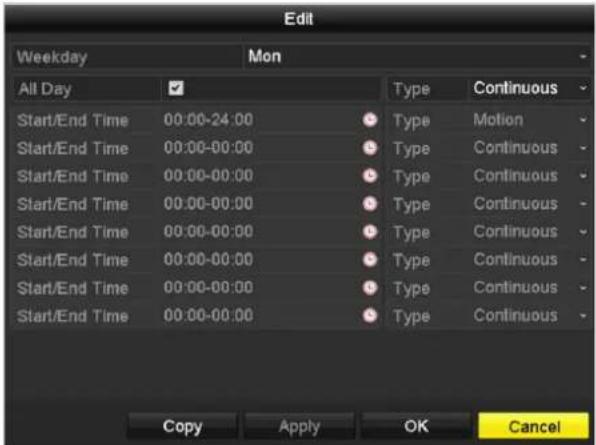

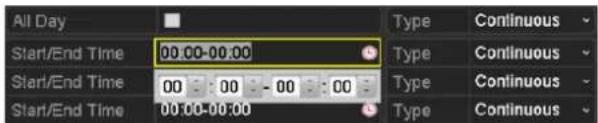

5.2 Configuring Recording Schedule....74

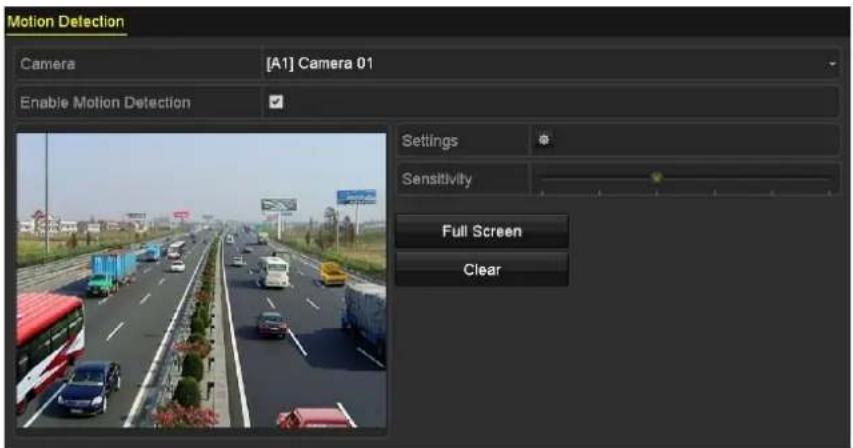

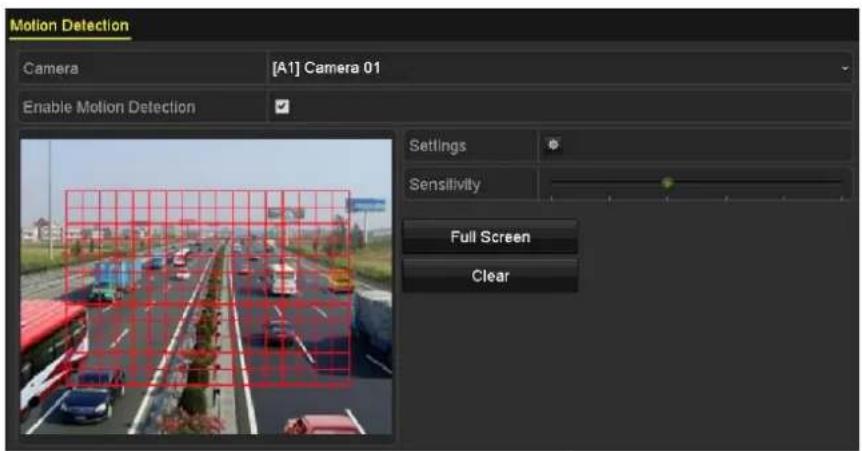

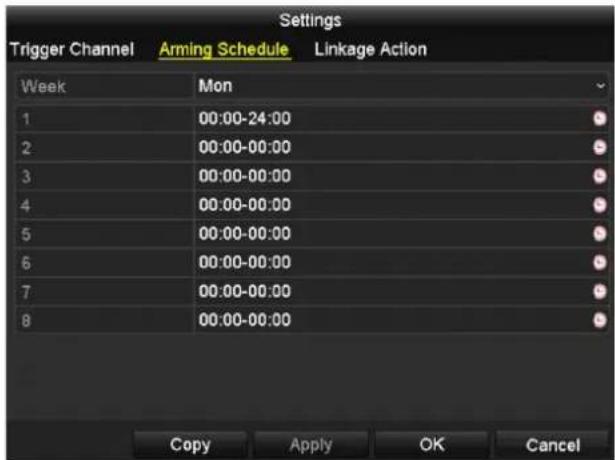

5.3 Configuring Motion Detection Recording....77
5.4 Configuring Alarm Triggered Recording....78
5.5 Configuring Event Recording....80
5.6 Configuring Manual Recording 82
5.7 Configuring Holiday Recording 82
5.8 Configuring Redundant Recording....84
5.9 Configuring HDD Group 86
5.10 Files Protection 87
5.11 One-Key Enabling and Disabling H.264+ for Analog Cameras....89
5.12 Configuring 1080P Lite....91

Chapter 6 Playback....94

6.1 Playing Back Record Files....94

6.1.1 Instant Playback....94

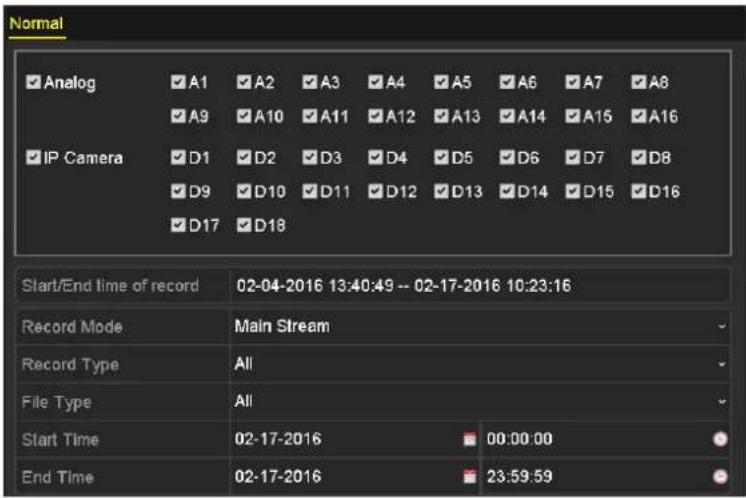

6.1.2 Playing Back by Normal Search....94

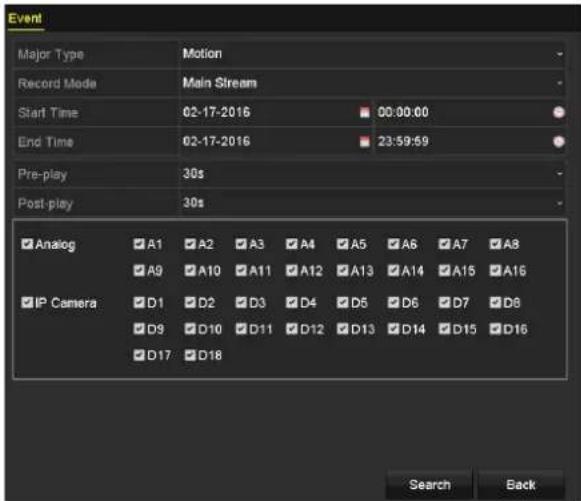

6.1.3 Playing Back by Event Search....97

6.1.4 Playing Back by Tag 99

6.1.5 Playing Back by Smart Search....102

6.1.6 Playing Back by System Logs....105

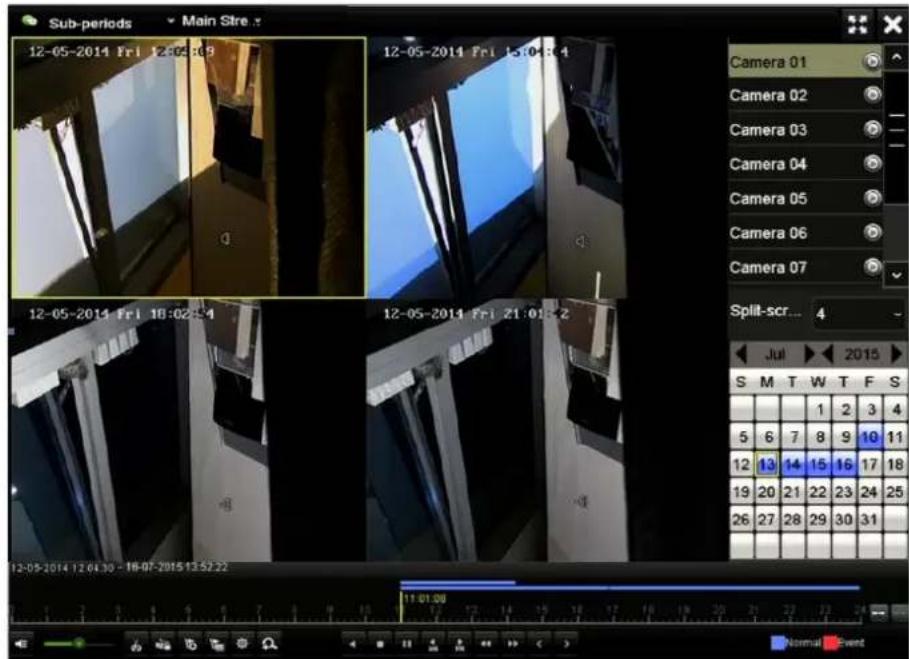

6.1.7 Playing Back by Sub-Periods 106

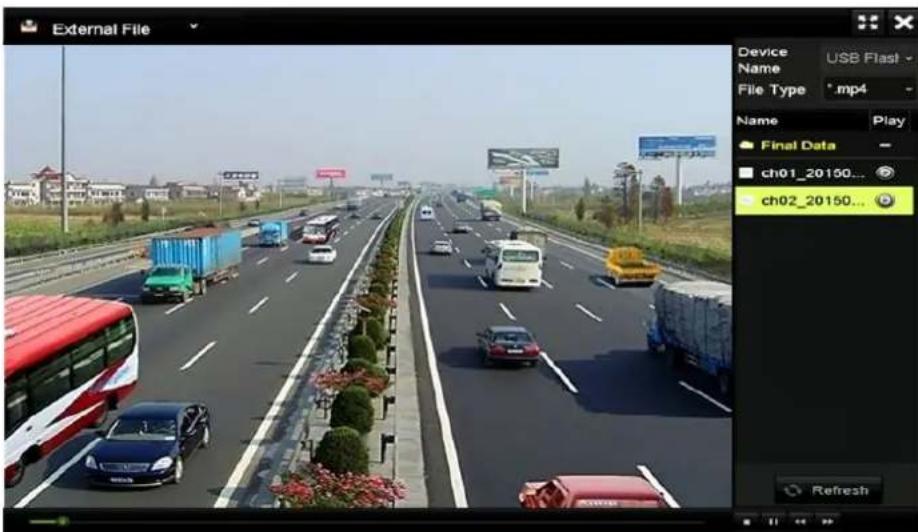

6.1.8 Playing Back External File 107

6.2 Auxiliary Functions of Playback....108

6.2.1 Playing Back Frame by Frame 108

6.2.2 Digital Zoom....108

6.2.3 Reverse Playback of Multi-Channel 109

Chapter 7 Backup....111

7.1 Backing up Record Files....111

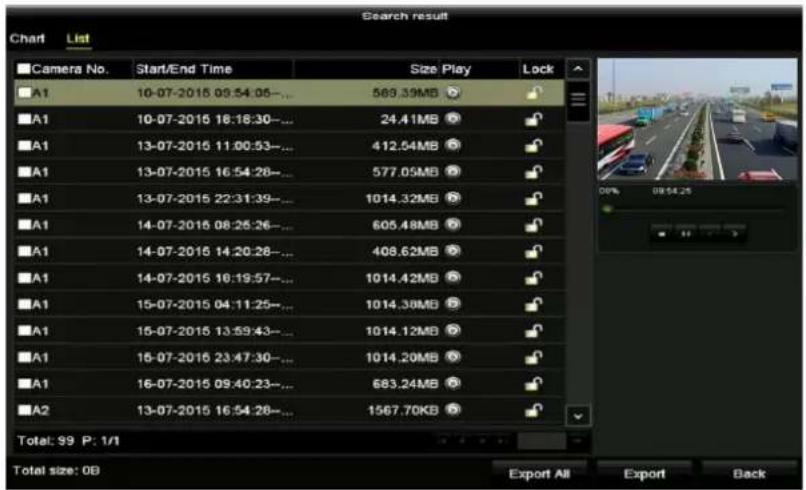

7.1.1 Backing up by Normal Video Search....111

7.1.2 Backing up by Event Search 113

7.1.3 Backing up Video Clips....114

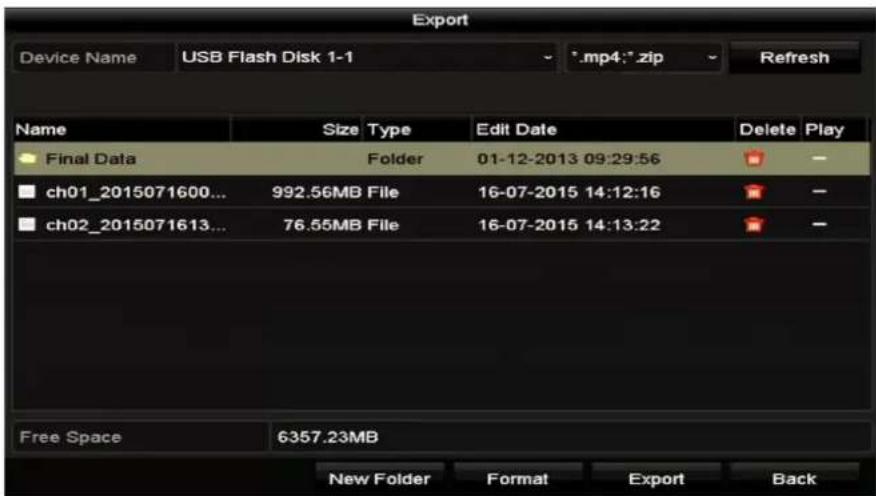

7.2 Managing Backup Devices....115

Chapter 8 Alarm Settings....117

8.1 Setting Motion Detection 117

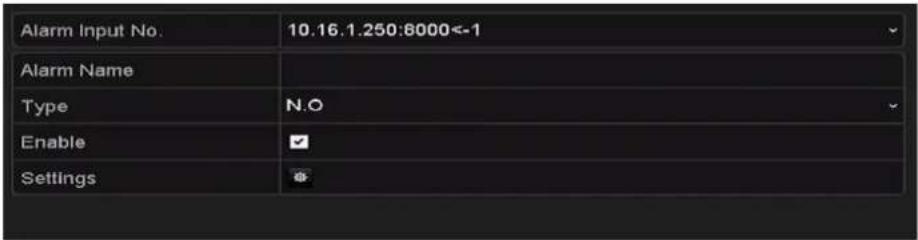

8.2 Setting Sensor Alarms....119

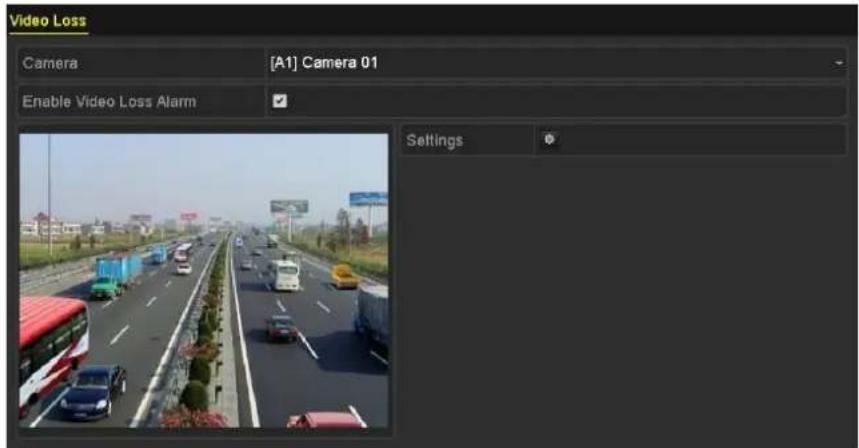

8.3 Detecting Video Loss 121

8.4 Detecting Video Tampering....123

8.5 Setting All-day Video Quality Diagnostics....124

8.6 Handling Exceptions....126

8.7 Setting Alarm Response Actions....128

Chapter 9 VCA Alarm....131

9.1 Face Detection 131

9.2 Vehicle Detection....132

9.3 Line Crossing Detection 134

9.4 Intrusion Detection....135

9.5 Region Entrance Detection....137

9.6 Region Exiting Detection....138

9.7 Loitering Detection 139

9.8 People Gathering Detection....139

9.9 Fast Moving Detection....139

9.10 Parking Detection....140

9.11 Unattended Baggage Detection....140

9.12 Object Removal Detection 141

9.13 Audio Exception Detection 141

9.14 Defocus Detection....142

9.15 Sudden Scene Change....143

9.16 PIR Alarm....143

Chapter 10 VCA Search....145

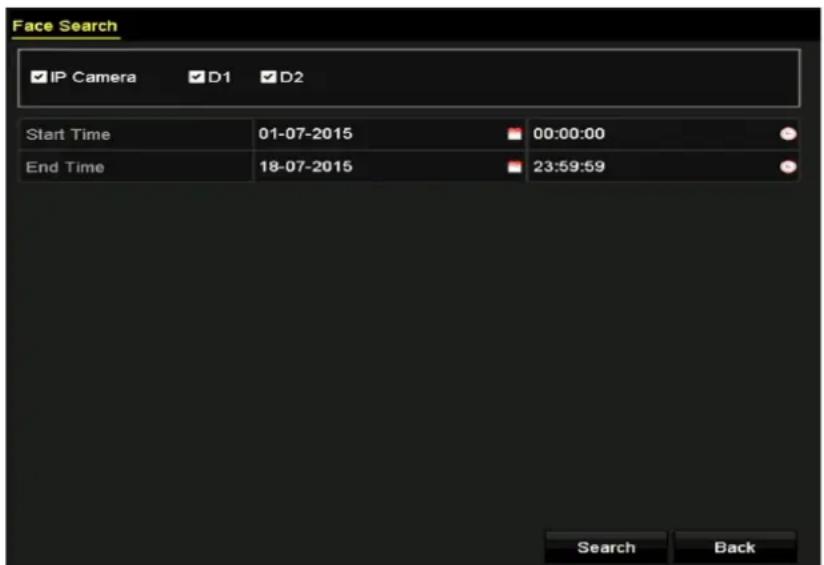

10.1 Face Search 145

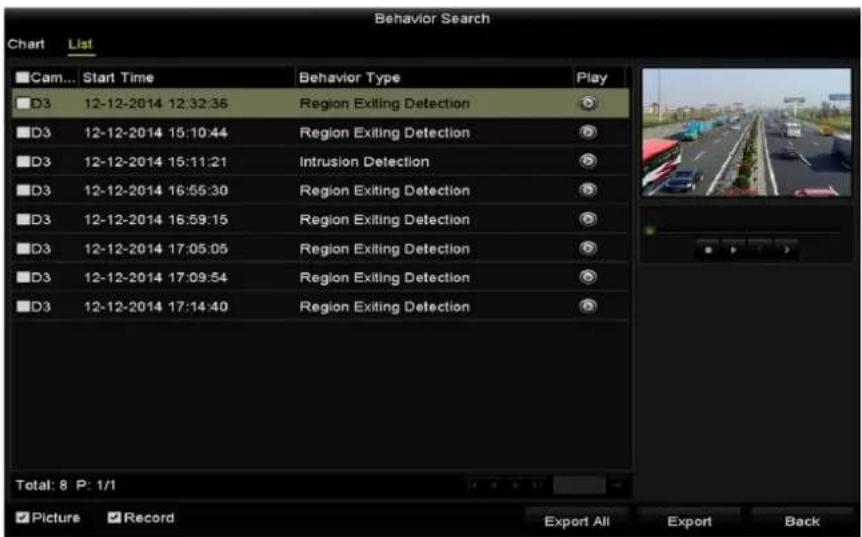

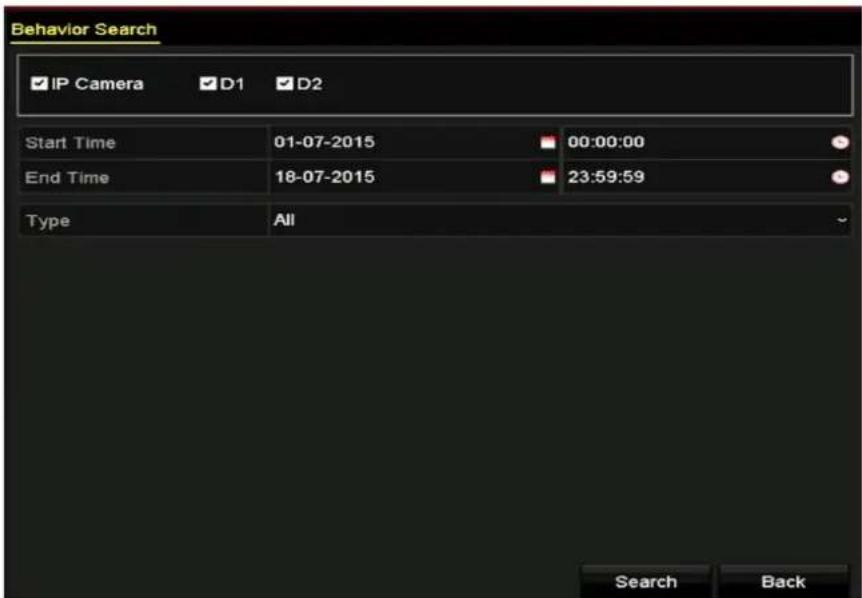

10.2 Behavior Search 147

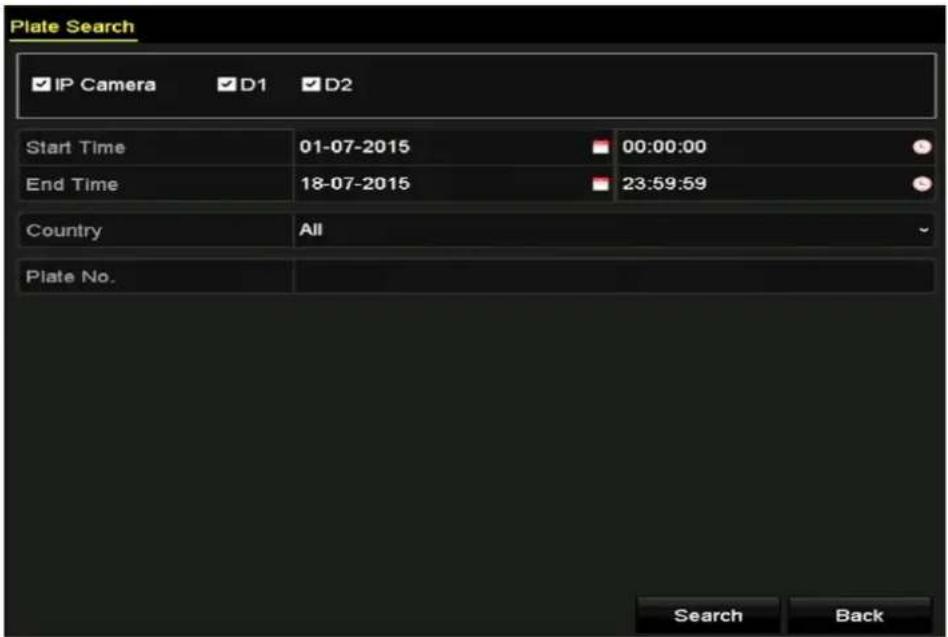

10.3 Plate Search....148

10.4 People Counting....149

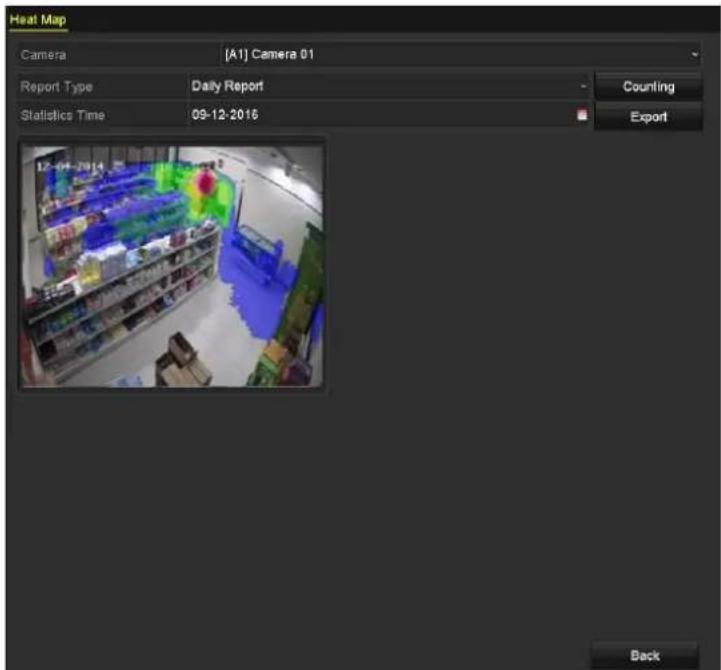

10.5 Heat Map 150

Chapter 11 Network Settings....152

11.1 Configuring General Settings....152

11.2 Configuring Advanced Settings....153

11.2.1 Configuring PPPoE Settings....153

12.2.1 Configure HiLookVision 153

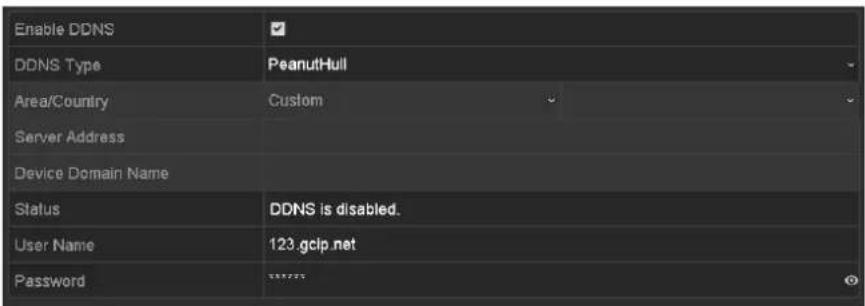

11.2.2 Configuring DDNS 154

11.2.3 Configuring NTP Server....156

11.2.4 Configuring NAT 157

11.2.5 Configuring More Settings....158

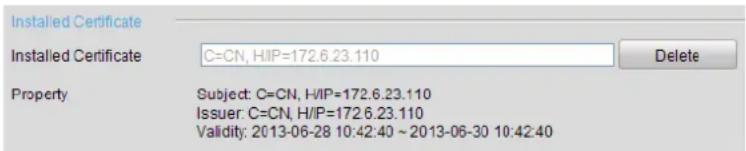

11.2.6 Configuring HTTPS Port....160

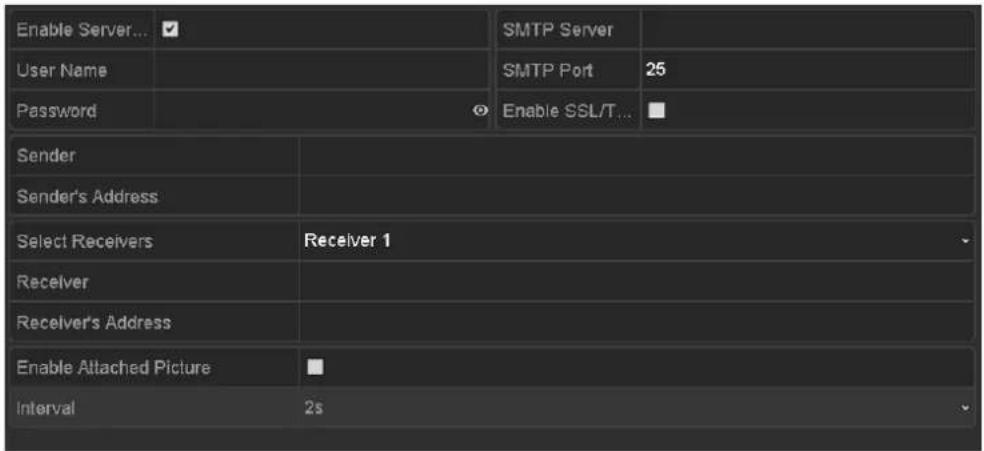

11.2.7 Configuring Email....161

11.2.8 Checking Network Traffic....163

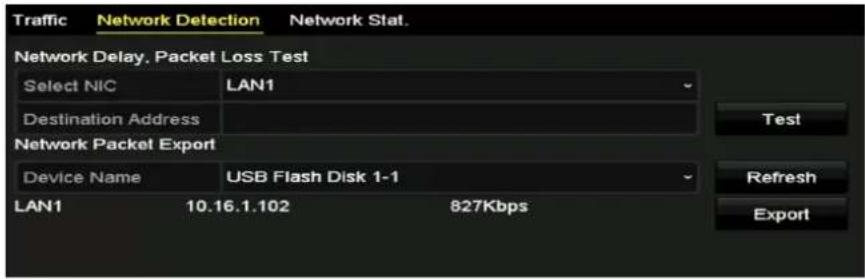

11.3 Configuring Network Detection....164

11.3.1 Testing Network Delay and Packet Loss....164

11.3.2 Exporting Network Packet 164

11.3.3 Checking Network Status....165

11.3.4 Checking Network Statistics....166

Chapter 12 HDD Management....168

12.1 Initializing HDDs....168

12.2 Managing Network HDD....169

12.3 Managing HDD Group....172

12.3.1 Setting HDD Groups....172

12.3.2 Setting HDD Property....173
12.4 Configuring Quota Mode....174
12.5 Configuring Cloud Storage....175

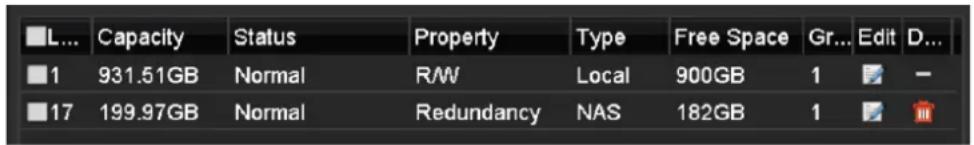

12.6 Checking HDD Status....178
12.7 Checking S.M.A.R.T Information 179
12.8 Detecting Bad Sector 179
12.9 Configuring HDD Error Alarms....180

Chapter 13 Camera Settings....182

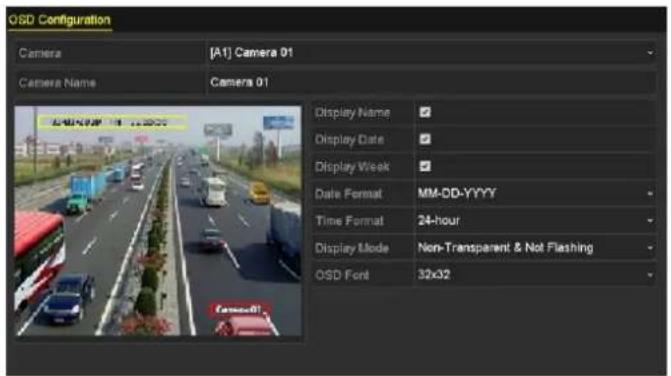

13.1 Configuring OSD Settings....182

13.2 Configuring Privacy Mask....183

13.3 Configuring Video Parameters....184

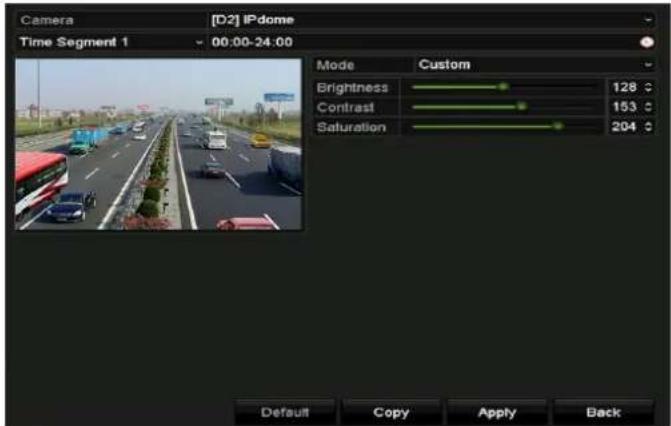

13.3.1 Configuring Image Settings....184

13.3.2 Configuring Camera Parameters Settings....186

Chapter 14 DVR Management and Maintenance....188

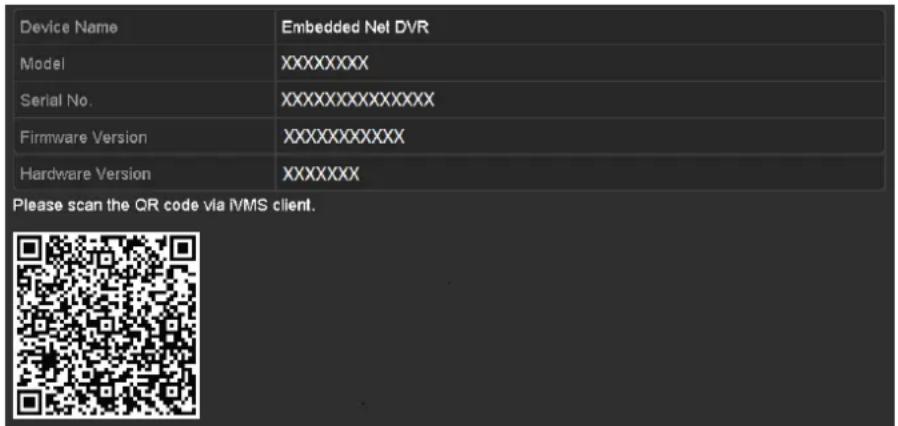

14.1 Viewing System Information....188

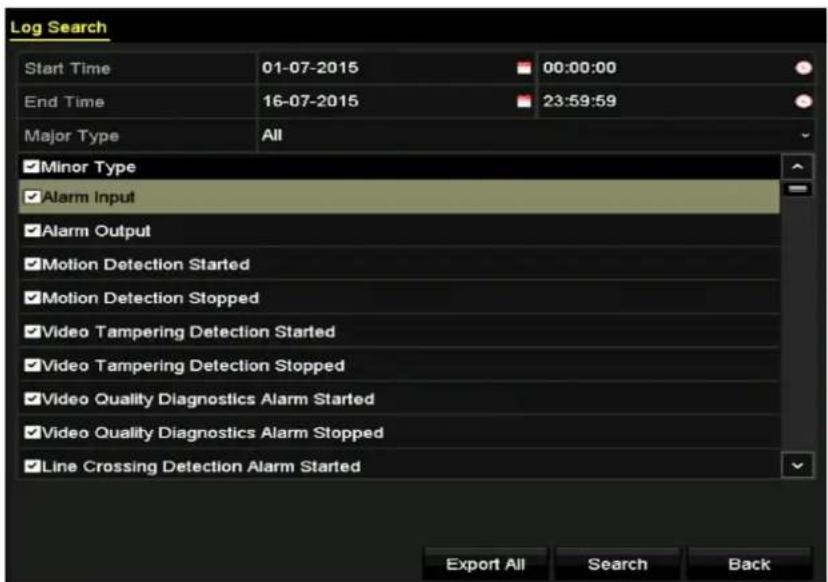

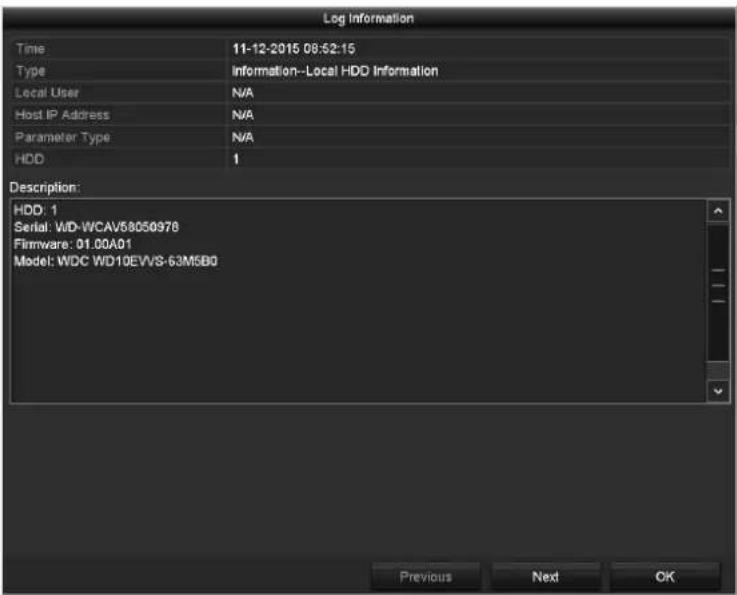

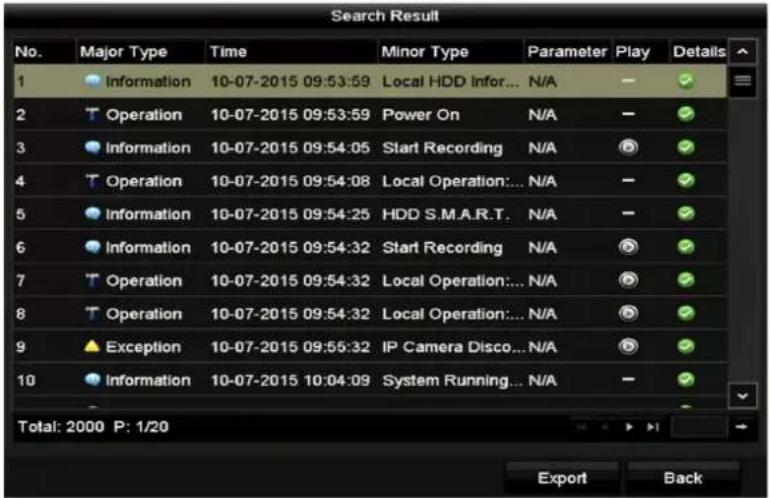

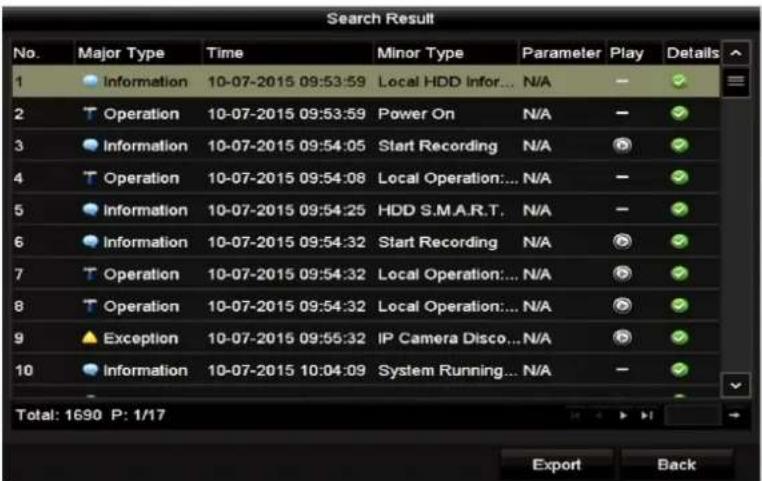

14.2 Searching Log Files....188

14.3 Importing/Exporting IP Camera Info 191

14.4 Importing/Exporting Configuration Files....191

16.1 Upgrading System....192

16.5.1 Upgrading by Local Backup Device 192

16.5.2 Upgrading by FTP 193

16.5.3 Upgrading by HiLookVision....193

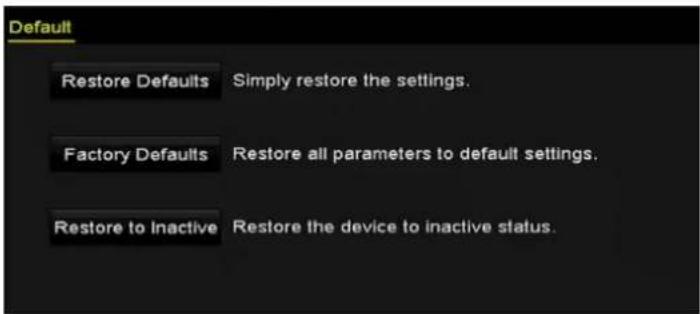

14.5 Restoring Default Settings....194

Chapter 15 Others ....195

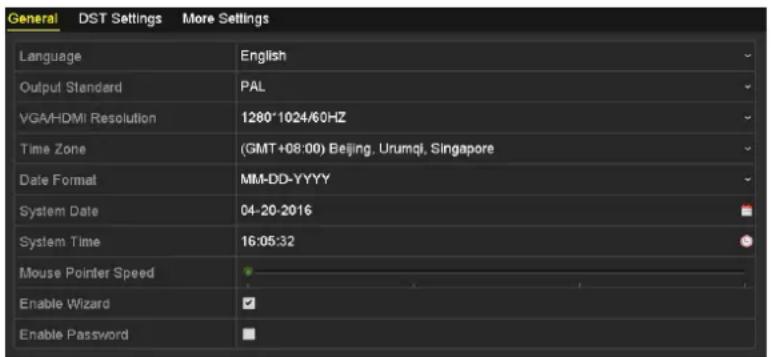

15.1 Configuring General Settings....195

15.2 Configuring DST Settings....196

15.3 Configuring More Settings....196

15.4 Managing User Accounts....197

15.4.1 Adding a User....197

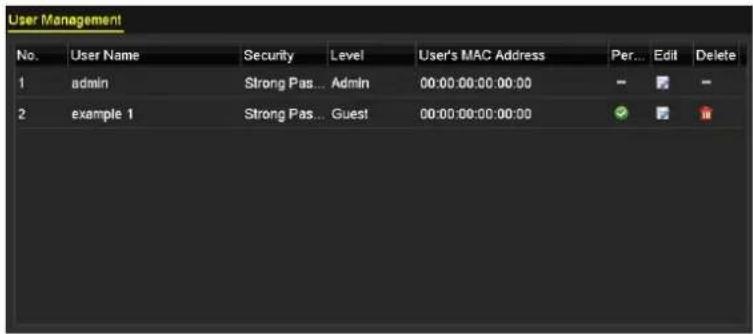

15.4.2 Deleting a User....200

17.5.1 Editing a User 201

Chapter 16 Appendix....202

16.1 Glossary....202

16.2 Troubleshooting....203

16.3 List of Compatible Third-Party IP Cameras 206

Chapter 1 Introduction

1.1 Front Panel

Front Panel 1:

1 2 3 HiLock

Figure 1-1 Front Panel of DVR-100G-F1

Front Panel 2:

HiLook 1 2 3

Figure 1-2 Front Panel of DVR-200G-F1 and DVR-200Q-K1

Front Panel 3:

HiLook 1 2 3 4

Figure 1-3 Front Panel of DVR-200Q-K2

Table 1-1 Description of Front Panel

No.	Icon	Description
1		Turns red when DVR is powered up.
2		Turns red when data is being read from or written to HDD.
3		Flickers blue when network connection is functioning properly.
4	USB Interface	Universal Serial Bus (USB) port for additional devices.

1.2 IR Remote Control Operations

The DVR may also be controlled with the included IR remote control, shown in Figure 1-4.

Batteries (2×AAA) must be installed before operation.

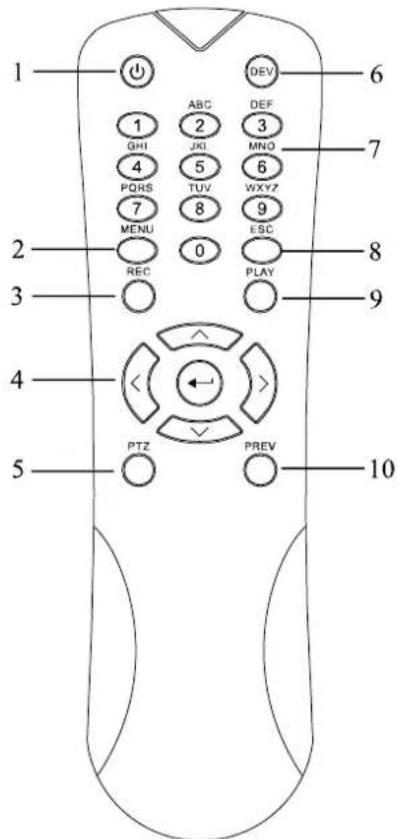

1 2 3 4 5 6 7 8 9 10 1 GHI 4 PQRS 7 MENU REC ABC 2 JKI 5 TUV 8 ABC DEF 3 MNO 6 WXYZ 9 ESC PLAY PREV PTZ

Figure 1-4 Remote Control

The keys on the remote control closely resemble the ones found on the front panel. Refer to Table 1-2, they include:

Table 1-2 Description of the IR Remote Control Buttons

No.	Name	Description
1	POWER	Power on/off the device.
		Power on/off the device by pressing and holding the button for 5 seconds.
2	MENU Button	Press the button to return to the main menu (after successful login).
		Press and hold the button for 5 seconds will turn off audible key beep.
		In PTZ Control mode, the MENU button will start wiper (if applicable).
		In Playback mode, it is used to show/hide the contro
		interface.
3	REC Button	Enter the Manual Record setting menu.
		In PTZ control settings, press the button and then yo can call a PTZ preset by pressing Numeric button.
		It is also used to turn audio on/off in the Playback mode.
4	DIRECTION Button	Navigate between different fields and items in menus.
		In the Playback mode, the Up and Down button is used to speed up and slow down recorded video. The Left and Right button will select the next and previous record files.
		In Live View mode, these buttons can be used to cycle through channels.
		In PTZ control mode, it can control the movement of the PTZ camera.
	ENTER Button	Confirm selection in any of the menu modes.
		It can also be used to tick checkbox fields.
		In Playback mode, it can be used to play or pause th video.
		In single-frame Playback mode, pressing the button will advance the video by a single frame.
5	PTZ Button	In Auto-switch mode, it can be used to stop /start auto switch.
6	DEV	Enables/Disables Remote Control.
7	AlphanumericButtons	Switch to the corresponding channel in Live view or PTZ Control mode.Input numbers and characters in Edit mode.
		Switch between different channels in the Playback mode.
8	ESC Button	Back to the previous menu.
		Press for Arming/disarming the device in Live View mode.
9	PLAY Button	The button is used to enter the All-day Playback mode.
		It is also used to auto scan in the PTZ Control menu.
10	PREV Button	Switch between single screen and multi-screen mode.
		In PTZ Control mode, it is used to adjust the focus in conjunction with the A/FOCUS+ button.

Troubleshooting Remote Control:

Make sure you have installed batteries properly in the remote control. And you have to aim the remote control at the IR receiver in the front panel.

If there is no response after you press any button on the remote, follow the procedure below to troubleshoot.

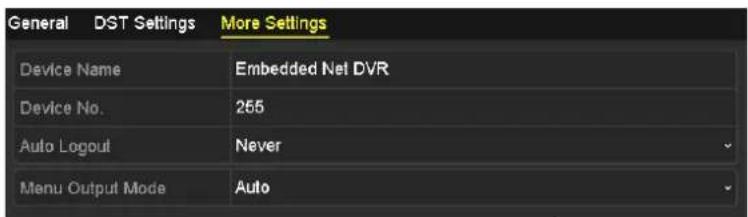

Step 1 Go into Menu > Configuration > General > More Settings by operating the front control panel or the mouse.

Step 2 Check and remember the DVR No. The default DVR No. is 255. This number valid for all IR remote controls.

Step 3 Press the DEV button on the remote control.

Step 4 Enter the DVR No. in step 2.

Step 5 Press the ENTER button on the remote.

If the Status indicator on the front panel turns blue, the remote control is operating properly. If the Status indicator does not turn blue and there is still no response from the remote, please check the following:

Step 1 Batteries are installed correctly and the polarities of the batteries are not reversed.

Step 2 Batteries are fresh and not out of charge.

Step 3 IR receiver is not obstructed.

If the remote still cannot function properly, please change the remote and try again, or contact the device provider.

1.3 USB Mouse Operation

A regular 3-button (Left/Right/Scroll-wheel) USB mouse can also be used with this DVR. To use a USB mouse:

Step 1 Plug USB mouse into one of the USB interfaces on the front panel of the DVR.

Step 2 The mouse should automatically be detected. If in a rare case that the mouse is not detected, the possible reason may be that the two devices are not compatible, please refer to the recommended the device list from your provider.

The operation of the mouse:

Table 1-3 Description of the Mouse Control

Name	Action	Description
Left-Click	Single-Click	Live view: Select channel and show the quick set menu.Menu: Select and enter.
	Double-Click	Live view: Switch between single-screen and multi-screen.
	Drag	PTZ control: Wheeling.Privacy mask and motion detection: Select target area.Digital zoom-in: Drag and select target area.Live view: Drag channel/time bar.
Right-Click	Single-Click	Live view: Show menu.Menu: Exit current menu to upper level menu.
Scroll-Wheel	Scrolling up	Live view: Previous screen.Menu: Previous item.
	Scrolling	Live view: Next screen.
	down	Menu: Next item.

1.4 Input Method Description

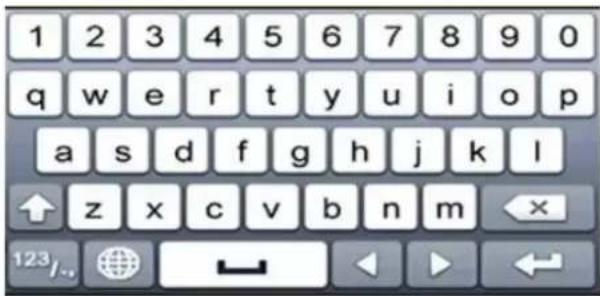

1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p a s d f g h j k l ↑ z x c v b n m ←x 123/..

Figure 1-5 Soft Keyboard

Description of the buttons on the soft keyboard:

Table 1-4 Description of the Soft Keyboard Icons

Icon	Description	Icon	Description
	Number		English letter
	Lowercase/Uppercase		Backspace
ABC	Switch the keyboard		Space
	Positioning the cursor		Enter
[K3AB]	Symbols	[KYAC]	Reserved

1.5 Rear Panel

The rear panel vaires according to different models. Please refer to the actual product. The following figures are for reference only.

Rear Panel 1:

VIDEO IN HDMI VGA AUDIO IN AUDIO OUT LAN & USB 1 2 3 4 5 6 7 8 9

Figure 1-6 Rear Panel of DVR-100G-F1

Rear Panel 2:

1 2 3 4 5 6 7 8 VDDOM HDMI VGA OUT AUDIO LAN & USB 12V==

Figure 1-7 Rear Panel of DVR-200G-F1

Table 1-5 Description of Rear Panel 1/2

No.	Item	Description
1	VIDEO IN	BNC interface for Turbo HD, and analog video input.
2	HDMI	HDMI video output connector.
3	VGA	DB15 connector for VGA output. Display local video output and menu.
4	AUDIO OUT	RCA connector.
5	AUDIO IN	RCA connector.
6	Network Interface	Connector for network
7	USB Interface	Universal Serial Bus (USB) port for additional devices.
8	GND	Ground
9	Power Supply	12 VDC power supply.

Rear Panel 3:

VIDEO HDMI VGA AUDIO LAN6/USB 12V 2 7 1 5 4 3 6 8 10

Figure 1-8 Rear Panel of DVR-200Q-K1

Rear Panel 4:

VIDEO IN 1 6 5 4 3 7 8 10 2 9 POWER

Figure 1-9 Rear Panel of DVR-200Q-K2

Table 1-6 Description of Rear Panel 3/4

No.	Item	Description
1	VIDEO IN	BNC interface for Turbo HD and analog video input.
2	AUDIO IN	RCA connector
3	AUDIO OUT	RCA connector
4	VGA	DB15 connector for VGA output. Display local video output and menu.
5	HDMI	HDMI video output connector.
6	USB Interface	Universal Serial Bus (USB) port for additional devices.
7	Network Interface	Connector for network
8	Power Supply	12 VDC power supply.
9	Power Switch	Switch for turning on/off the device.
10	GND	Ground

Chapter 2 Getting Started

2.1 Starting Up and Shutting Down the DVR

Purpose

Proper startup and shutdown procedures are crucial to expanding the life of the DVR.

Before you start

Check that the voltage of the extra power supply is the same with the DVR's requirement, and the ground connection is working properly.

Starting up the DVR

Step 1 Check the power supply is plugged into an electrical outlet. It is HIGHLY recommended that an Uninterruptible Power Supply (UPS) be used in conjunction with the device.

Step 2 Turn on the power switch on the rear panel, and the Power indicator LED should turn on indicating that the unit begins to start up.

Step 3 After startup, the Power indicator LED remains on.

Shutting down the DVR

There are two proper ways to shut down the DVR. To shut down the DVR:

• OPTION 1: Standard shutdown

Step 1 Enter the Shutdown menu.

Menu > Shutdown

Shutdown Logout Shutdown Reboot Cancel

Figure 2-1 Shutdown Menu

Step 2 Select the Shutdown button.

Step 3 Click the Yes button.

Step 4 Turn off the power switch on the rear panel when the note appears.

Please power off!

Figure 2-2 Shutdown Tips

Rebooting the DVR

While in the Shutdown menu (Figure 2-1), you can also reboot the DVR.

Step 1 Enter the Shutdown menu by clicking Menu > Shutdown.

Step 2 Click the Logout button to log out or the Reboot button to reboot the DVR.

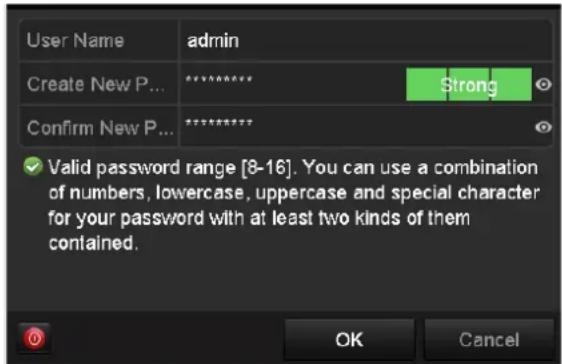

2.2 Activating the Device

Purpose

For the first-time access, you need to activate the device by setting an admin password. No operation is allowed before activation. You can also activate the device via Web Browser, SADP or Client Software.

Step 1 Enter the admin password twice.

User Name admin Create New P... ********* Confirm New P... ********* ✓ Valid password range [8-16]. You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained.

Figure 2-3 Set Admin Password

WARNING

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Step 2 Enter the password to activate the IP camera(s) connected to the device.

Step 3 Click OK to save the password and activate the device.

- For the old version device, if you upgrade it to the new version, it requires to set a stronger password when the device starts up. Click YES and follow the wizard to set a strong password

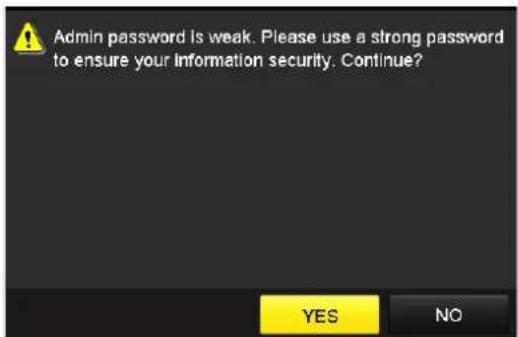

Admin password is weak. Please use a strong password to ensure your information security. Continue? YES NO

Figure 2-4 Warning

What to do next:

Export the GUID file to USB flash drive for the future password resetting.

2.3 Using the Unlock Pattern for Login

Purpose

For the admin, you can configure the unlock pattern for device login.

2.3.1 Configuring the Unlock Pattern

After the device is activated, you can enter the following interface to configure the device unlock pattern.

Set Unlock Pattern Draw the unlock pattern first.

Figure 2-5 Set Unlock Pattern

Step 1 Use the mouse to draw a pattern among the 9 dots on the screen. Release the mouse when the pattern is done.

Figure 2-6 Draw the Pattern

i NOTE

• Connect at least 4 dots to draw the pattern.
  ● Each dot can be connected for once only.

Step 2 Draw the same pattern again to confirm it. When the two patterns match, the pattern is configured successfully.

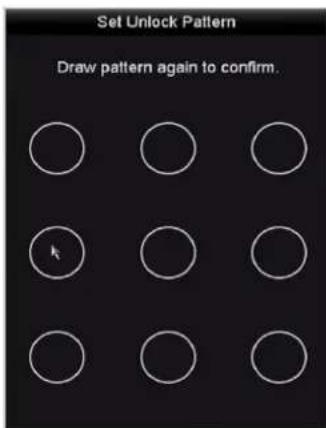

Set Unlock Pattern Draw pattern again to confirm.

Figure 2-7 Confirm the Pattern

i NOTE

If the two patterns are different, you must set the pattern again.

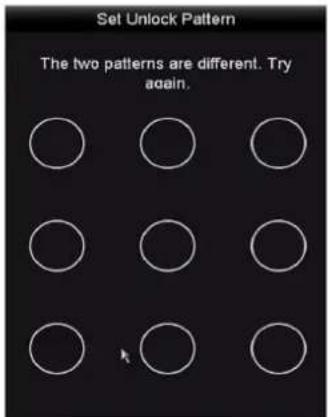

Set Unlock Pattern The two patterns are different. Try again.

Figure 2-8 Reset the Pattern

2.3.2 Logging in via Unlock Pattern

i NOTE

• Only the admin user has the permission to unlock the device.
• Please configure the pattern first before unlocking. Please refer to Chapter 2.3.1 Configuring the Unlock Pattern.

Step 1 Right click the mouse on the screen and select the menu to enter the interface.

admin Draw the unlock pattern first. Forget My P... Switch User

Figure 2-9 Draw the Unlock Pattern

Step 2 Draw the pre-defined pattern to unlock to enter the menu operation.

i NOTE

● You can right click the mouse to log in via the normal mode.
- If you have forgotten your pattern, you can select the Forget My Pattern or Switch User option to enter the normal login dialog box.
- When the pattern you draw is different from the pattern you have configured, you should try again.
- If you have drawn the wrong pattern for 7 times, the account will be locked for 1 minute.

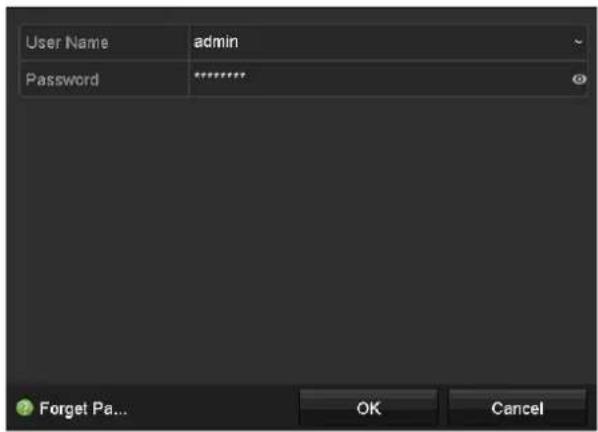

User Name admin Password ******** ? Forget Pa... OK Cancel

Figure 2-10 Normal Login Dialog Box

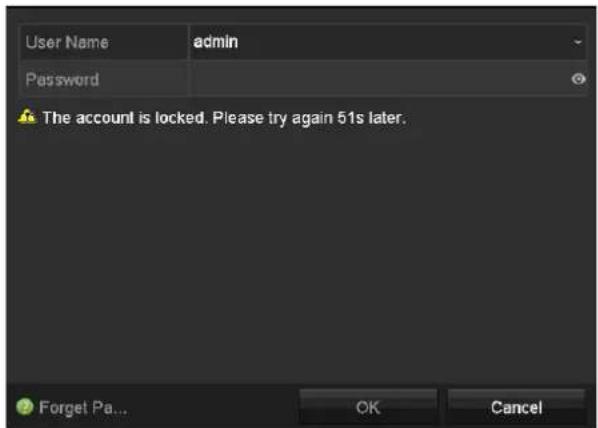

User Name admin Password The account is locked. Please try again 51s later. Forget Pa... OK Cancel

Figure 2-11 Lock the Account

2.4 Basic Configuration in Startup Wizard

2.4.1 Configuring the Signal Input Wizard

Purpose

After the startup and login, the device system enters the Wizard for configuring the signal input.

You can also click Menu > Camera > Signal Input Status to configure the signal input.

Step 1 Check the checkbox to select different signal input types: HD/CVBS and IP.

Step 2 Click Apply to save the settings.

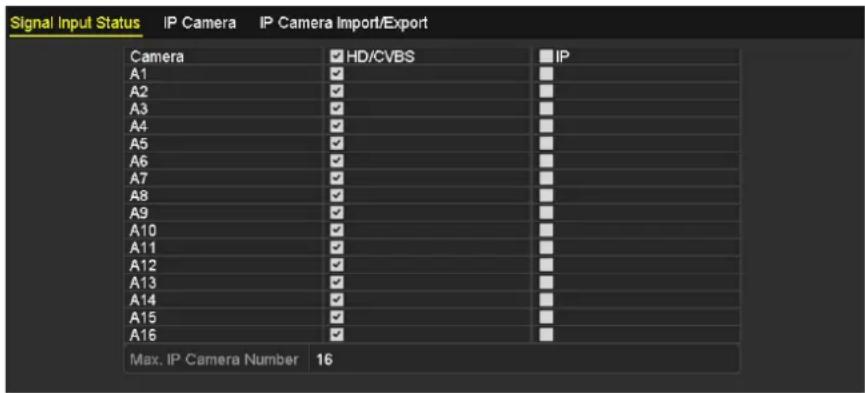

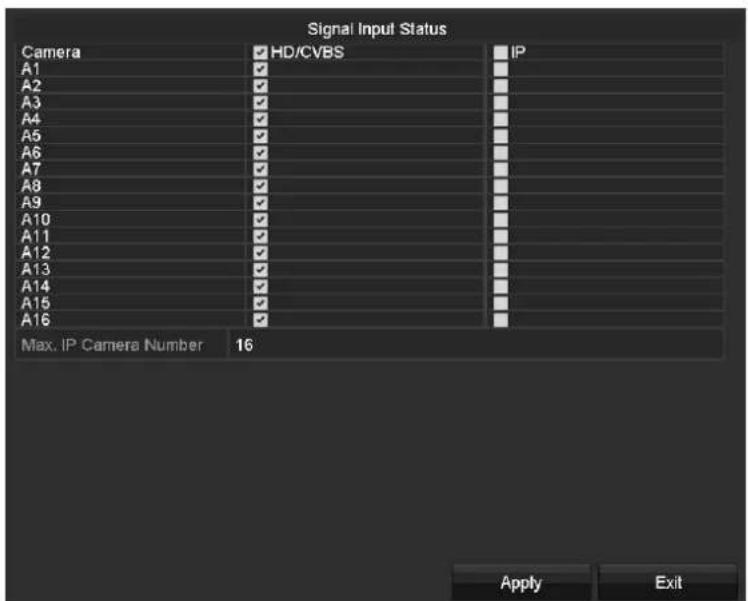

Signal Input Status Camera HD/CVBS IP A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 Max. IP Camera Number 16 Apply Exit

Figure 2-12 Configure Signal Input Type

For detailed information of signal input, you can refer to Chapter 2.8 Configuring the Signal Input Channel for reference.

2.4.2 Using the Wizard for Basic Configuration

Purpose

By default, the Setup Wizard starts once the device has loaded. You can follow it to complete the basic configuration.

Selecting the language:

Step 1 Select the language from the drop-down list.

Step 2 Click Apply button.

System Language English

Figure 2-13 Language Configuration

Operating the Setup Wizard:

Step 1 The Start Wizard can walk you through some important settings of the device. If you don't want to use the Start Wizard at that moment, click Exit. You can also use the Start Wizard next time by leaving the "Start wizard when device starts?" checkbox checked.

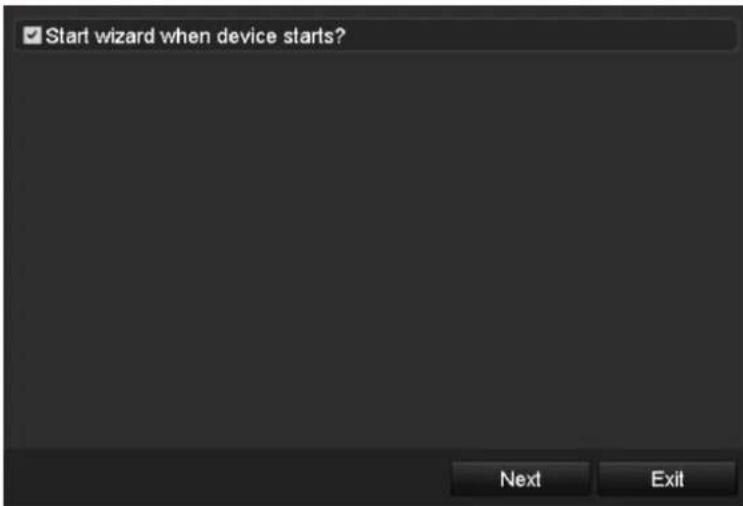

Start wizard when device starts? Next Exit

Figure 2-14 Start Wizard Interface

Step 2 Click Next button to enter the Change the Password interface.

1) Input the Admin Password.
2) (Optional) Check the checkbox of New Admin Password, input the New Password and confirm it.
3) (Optional) Check the checkbox of Enable Pattern Unlock and draw the unlock pattern. Or click 📋 icon of Draw Unlock Pattern to change the pattern. Refer to Chapter 2.3 Using the Unlock Pattern for Login for reference.
4) (Optional) Click 🎨 icon of Export GUID to export GUID to the connected USB flash disk for resetting password. Refer to Chapter 15.4.3 Editing a User for reference.

Admin Password New Admin Password New Password Confirm Enable Pattern Unlock Draw Unlock Pattern Export GUID ✓ Valid password range [8-16]. You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. Previous Next Exit

Figure 2-15 Change the Password

i NOTE

Clear-text password is supported. Click the icon and you can see the clear text of the password. Click the icon again and the content of the password restores invisible.

Step 3 Click Next button and the Attention box pops up as shown below. Click Yes to duplicate the password of the device to IP cameras that are connected with default protocol. Or click No to enter the Date and Time Settings interface.

Attention Duplicate the password to IP cameras that are connected with default protocol. Yes No

Figure 2-16 Duplicate the Password

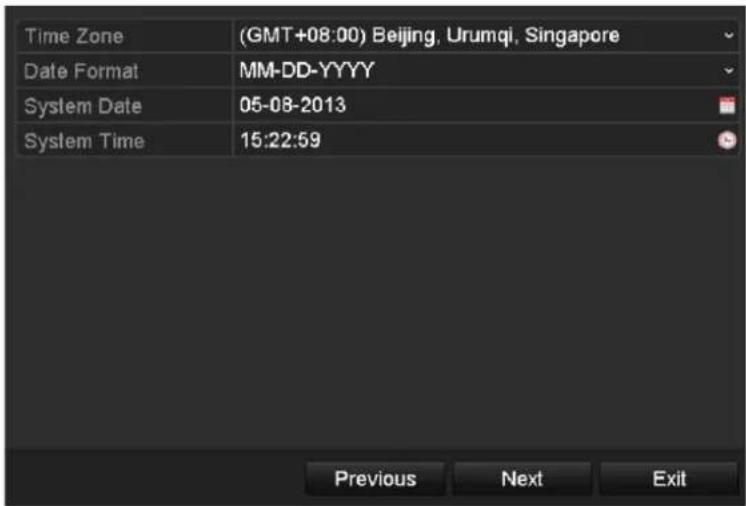

Time Zone (GMT+08:00) Beijing, Urumqi, Singapore Date Format MM-DD-YYYY System Date 05-08-2013 System Time 15:22:59 Previous Next Exit

Figure 2-17 Date and Time Settings

Step 4 After the time settings, click Next button to enter the General Network Setup Wizard interface as shown below.

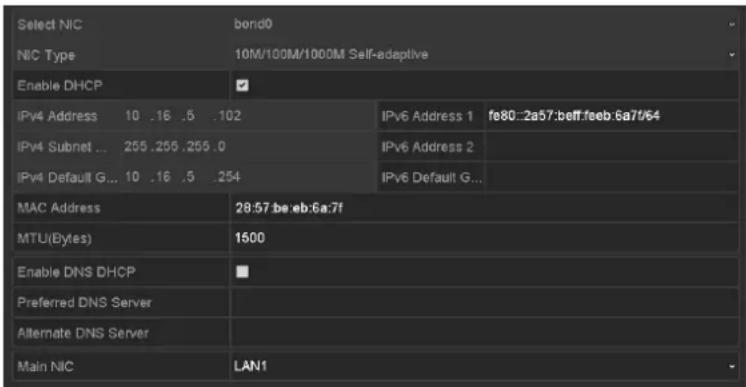

Select NIC bond0 NIC Type 10M/100M/1000M Self-adaptive Enable DHCP ✓ IPv4 Address 10 .16 .5 .17 IPv4 Subnet Mask 255 .255 .255 .0 IPv4 Default Gateway 10 .16 .5 .254 Enable DNS DHCP Preferred DNS Server Alternate DNS Server Main NIC LAN1 Previous Next Exit

Figure 2-18 General Network Configuration

If DHCP is enabled, you can check the checkbox of Enable DNS DHCP or uncheck it and edit the Preferred DNS Server and Alternate DNS Server.

Step 5 Click Next button after you configured the basic network parameters.

Then you will enter the HiLookVision interface. Configure the HiLookVision according to your need. Refer to 错误!未找到引用源。错误!未找到引用源。for detailed operations.

Enable Access Type HiLookVision Server Address litedev.hilookview.com Custom Enable Stream Encryption Verification Code Status Offline Previous Next Exit

Figure 2-19 HiLookVision Configuration

Step 6 Click Next button to enter the Advanced Network Parameters interface. You can enable DDNS and set other ports according to your need.

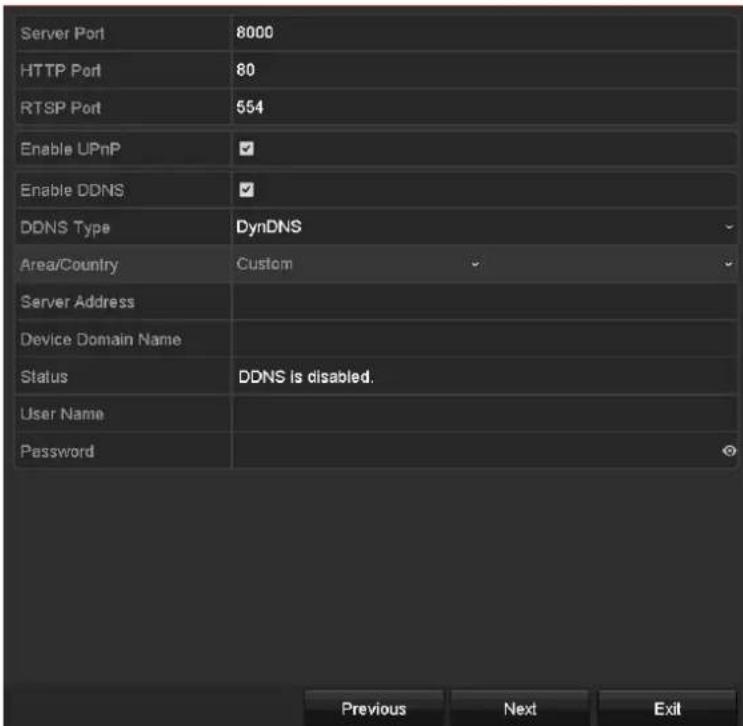

Server Port 8000 HTTP Port 80 RTSP Port 554 Enable UPnP ✓ Enable DDNS ✓ DDNS Type DynDNS Area/Country Custom ✓ Server Address Device Domain Name Status DDNS is disabled. User Name Password Previous Next Exit

Figure 2-20 Set Advanced Network Parameters

Step 7 Click Next button after configuring the advanced network parameters, which will take you to the HDD Management interface as shown below.

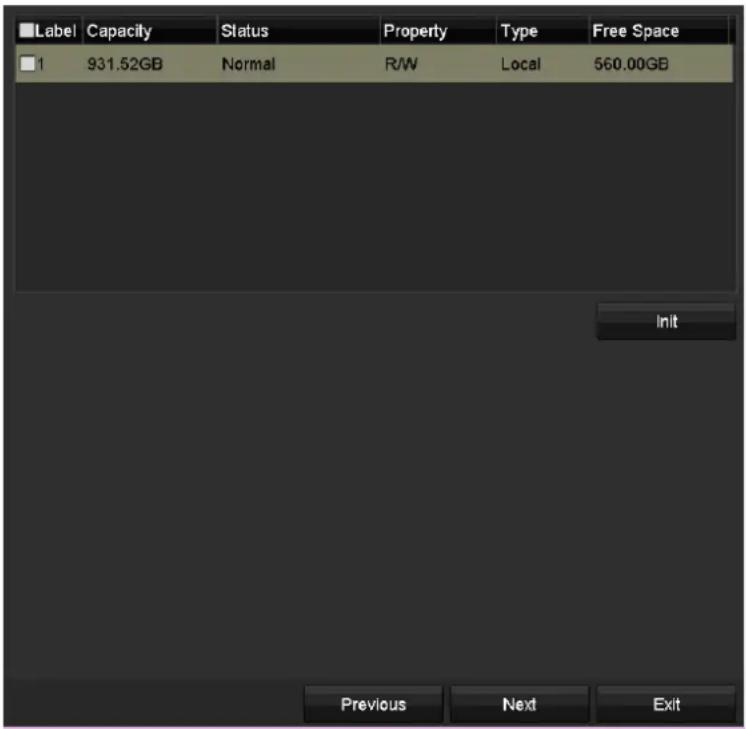

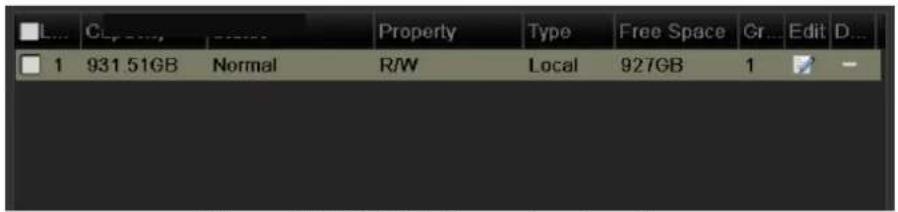

Label Capacity Status Property Type Free Space 1 931.52GB Normal R/W Local 560.00GB Init Previous Next Exit

Figure 2-21 HDD Management

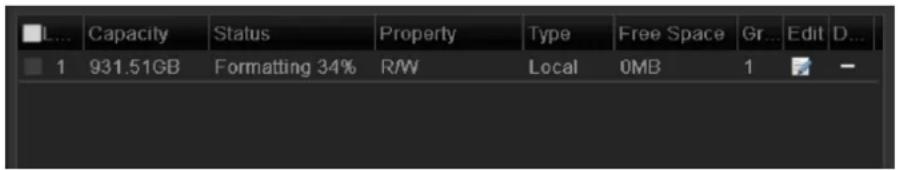

Step 8 To initialize the HDD, click the Init button. Initialization will remove all the data saved in the HDD.

Step 9 Click Next button to enter the IP Camera Management interface.

Step 10 Add the IP camera.

1) Click Search to search the online IP Camera. The Security status shows whether it is active or inactive. Before adding the camera, make sure the IP camera to be added is in active status. If the camera is in inactive status, you can click the inactive icon of the camera to set the password to activate it. You can also select multiple cameras from the list and click the One-touch Activate to activate the cameras in batch.
2) Click the Add to add the camera.

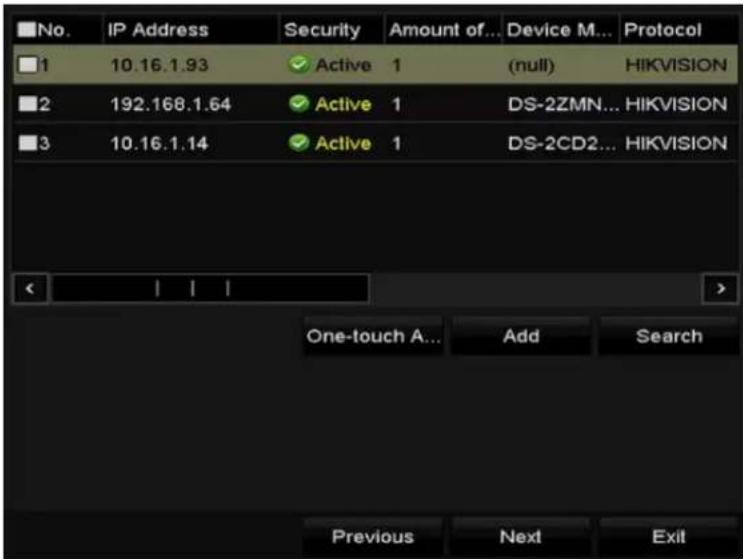

No. IP Address Security Amount of... Device M... Protocol 1 10.16.1.93 Active 1 (null) HIKVISION 2 192.168.1.64 Active 1 DS-2ZMN... HIKVISION 3 10.16.1.14 Active 1 DS-2CD2... HIKVISION < | | | One-touch A... Add Search Previous Next Exit

Figure 2-22 IP Camera Management

Step 11 After finishing IP Camera settings, click Next to enter the Record Settings interface.

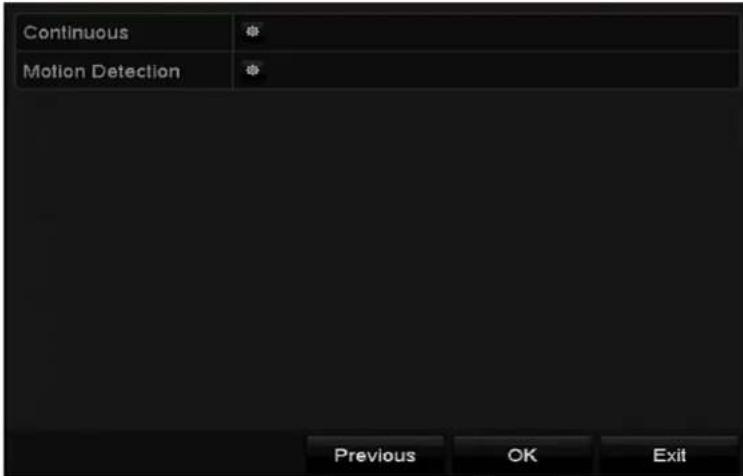

Step 12 Click the icon 📁, and you can enable the continuous recording or motion detection recording for all channels of the device.

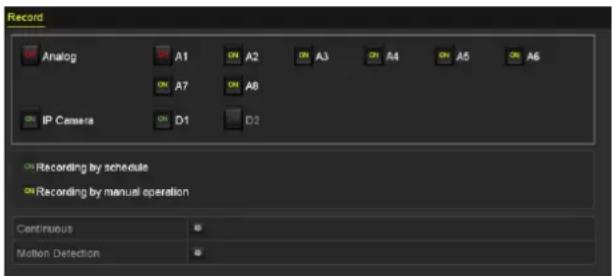

Continuous Motion Detection Previous OK Exit

Figure 2-23 Record Settings

Step 13 Click OK to complete the wizard settings.

2.5 Login and Logout

2.5.1 User Login

Purpose

You have to log in to the device before operating the menu and other functions

Step 1 Select the User Name in the drop-down list.

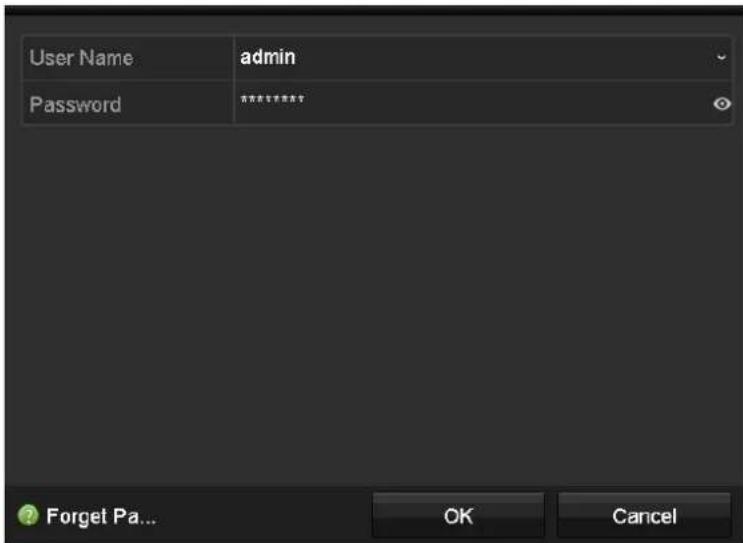

User Name admin Password ****

Figure 2-24 Login Interface

Step 2 Input the Password.

Step 3 Click OK to log in.

i NOTE

• Clear-text password is supported. Click the icon and you can see the clear text of the password. Click the icon again and the content of the password restores invisible.
• In the Login interface, for the admin, if you have entered the wrong password for 7 times, the account will be locked for 60 seconds. For the operator, if you have entered the wrong password for 5 times, the account will be locked for 60 seconds.

Attention Incorrect password. You still have 6 chances. Please try again. OK

Figure 2-25 User Account Protection for the Admin

Attention Incorrect password. You still have 4 chances. Please try again. OK

Figure 2-26 User Account Protection for the Operator

2.5.2 User Logout

Purpose

After logging out, the monitor turns to the live view mode and if you want to perform some operations, you need to enter the user name and password to log in again.

Step 1 Enter the Shutdown menu.

Menu > Shutdown

Shutdown Logout Shutdown Reboot Cancel

Figure 2-27 Logout

Step 2 Click Logout.

After you have logged out of the system, menu operation on the screen is invalid. It is required to input a user name and password to unlock the system.

2.6 Resetting Your Password

Purpose

When you forget the password of the admin, you can reset the password by importing the GUID file. The GUID file must be exported and saved in the local USB flash disk after you have activated the device (refer to Chapter 2.2 Activating the Device).

Step 2 On the user login interface, click Forget Password to pop up the Import GUID interface.

Reset Password Device Name USB Flash Disk 1-1 Refresh Name Size Type Edit Date Delete Play 4.bmp 6750.06KB File 09-02-2016 11:50:28 5.bmp 6750.06KB File 09-02-2016 11:50:32 6.bmp 6750.06KB File 09-02-2016 11:50:42 7.bmp 6750.06KB File 09-02-2016 11:52:10 8.bmp 6750.06KB File 09-02-2016 11:52:16 9.bmp 6750.06KB File 09-02-2016 11:52:24 GUID_583574624_20160... 1285 File 09-06-2016 14:10:37 Free Space 14.26GB New Folder Import Back

Figure 2-28 Import GUID

Step 3 Select the GUID file from the USB flash disk and click Import button to pop up the Reset Password interface.

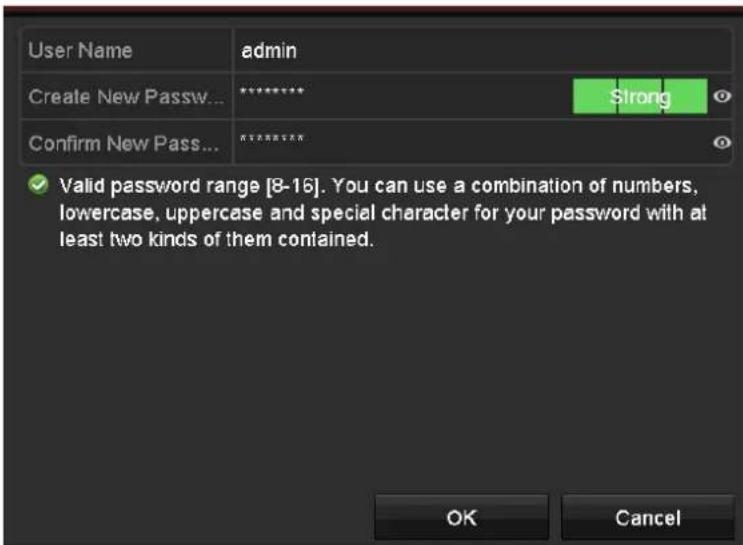

User Name admin Create New Pass... ********* Strong Confirm New Pass... ********* ✓ Valid password range [8-16]. You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. OK Cancel

Figure 2-29 Reset Password

Step 4 Input the new password and confirm the password.

Step 5 Click OK to save the new password. Then the Attention box pops up as shown below.

Attention The password is reset. The GUID file is ineffective. Export a new GUID file. OK

Figure 2-30 GUID File Imported

Step 6 Click OK and the Attention box as below pops up to remind you to duplicate the password of the device to IP cameras that are connected with default protocol. Click Yes to duplicate the password or No to cancel it.

Attention Duplicate the password to IP cameras that are connected with default protocol. Yes No

Figure 2-31 Duplicate the Password

NOTE

• If you want to retrieve the password when you forget it, you must export the GUID file first.
• Once the password is reset, the GUID file will be invalid. You can export a new GUID file. Refer to Chapter 15.4.3 Editing a User for reference.

2.7 Adding and Connecting the IP Cameras

2.7.1 Activating the IP Camera

Purpose

Before adding the camera, make sure the IP camera to be added is in active status.

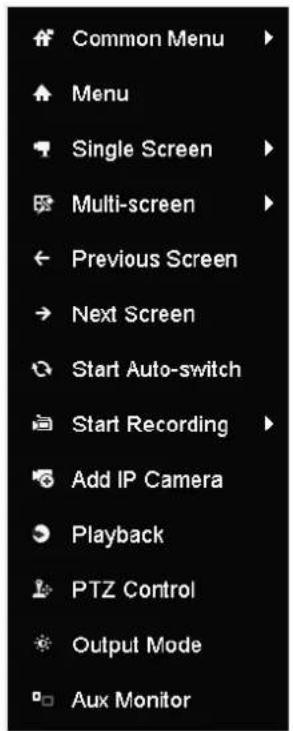

Step 1 Select the Add IP Camera option from the right-click menu in live view mode or click Menu> Camera> IP Camera to enter the IP Camera Management interface.

For the IP camera detected online in the same network segment, the Security status shows whether it is active or inactive.

Cam... Add/De... Status Security IP Camera Addr... Edit Upgrade Camera Nam Active 10.16.1.14 Active 10.16.1.205 Inactive 192.168.1.64 Refresh One-touch A... Upgrade Delete One-touch A... Custom Addl... Net Receive Idle Bandwidth: 128Mbps Exit

Figure 2-32 IP Camera Management Interface

Step 2 Click the inactive icon of the camera to enter the following interface to activate it. You can also select multiple cameras from the list and click the One-touch Activate to activate the cameras in batch.

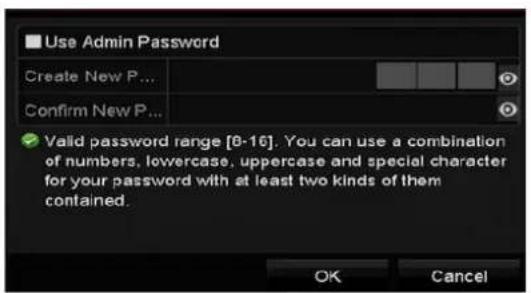

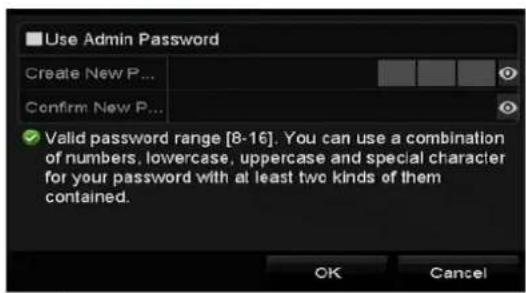

Use Admin Password Create New P... Confirm New P... ✓ Valid password range [0-16]. You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. OK Cancel

Use Admin Password Create New P... Confirm New P... ✓ Valid password range [8-16]. You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. OK Cancel

Figure 2-33 Activate the Camera

Step 3 Set the password of the camera to activate it.

Use Admin Password: When you check the checkbox, the camera (s) will be configured with the same admin password of the operating DVR.

Create New Password: If the admin password is not used, you must create the new password for the camera and confirm it.

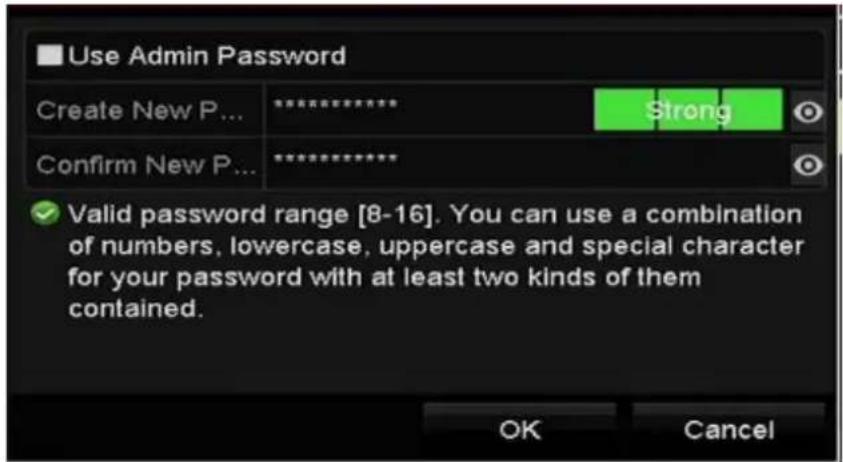

Use Admin Password Create New P... Strong Confirm New P... ✓ Valid password range [8-16]. You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. OK Cancel

Figure 2-34 Set New Password

WARNING

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Step 4 Click OK to finish the acitavting of the IP camera. And the security status of camera will be changed to Active.

2.7.2 Adding the Online IP Camera

Purpose

Before you can get a live view or record of the video, you should add the network cameras to the connection list of the device.

Before you start

Ensure the network connection is valid and correct. For detailed checking and configuring of the network, please see Chapter 11 Network Settings.

- OPTION 1:

Step 1 Select the Add IP Camera option from the right-click menu in live view mode or click Menu> Camera> IP Camera to enter the IP Camera Management interface.

Cam... Add/De... Status Security IP Camera Addr... Edit Upgrade Camera Nam Active 192.168.1.54 Active 10.16.1.14 Active 10.16.1.205 Refresh One-touch A... Upgrade Delete One-touch A... Custom Add... Net Receive Idle Bandwidth: 128Mbps Exit

Figure 2-35 IP Camera Management Interface

Step 2 The online cameras with same network segment will be detected and displayed in the camera list.

Step 3 Select the IP camera from the list and click the button to add the camera (with the same admin password of the DVR's). Or you can click the One-touch Adding button to add all cameras (with the same admin password) from the list.

NOTE

Make sure the camera to add has already been activated by setting the admin password, and the admin password of the camera is the same with the DVR's.

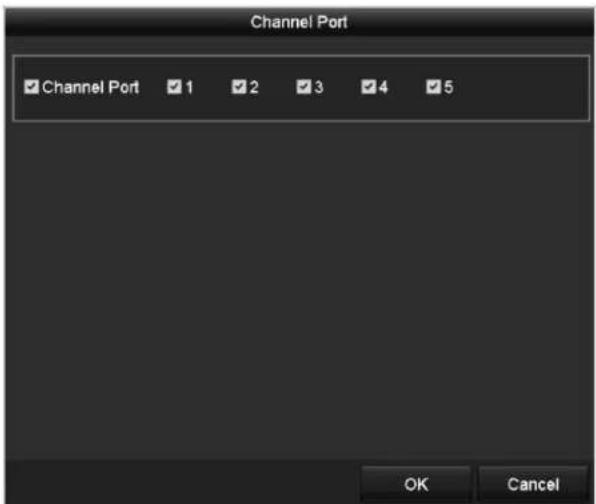

Step 4 (For the encoders with multiple channels only) check the checkbox of Channel Port in the pop-up window, as shown in the following figure, and click OK to add multiple channels.

Channel Port ✓ Channel Port ✓ 1 ✓ 2 ✓ 3 ✓ 4 ✓ 5 OK Cancel

Figure 2-36 Select Multiple Channels

- OPTION 2:

Step 1 On the IP Camera Management interface, click the Custom Adding button to pop up the Add IP Camera (Custom) interface.

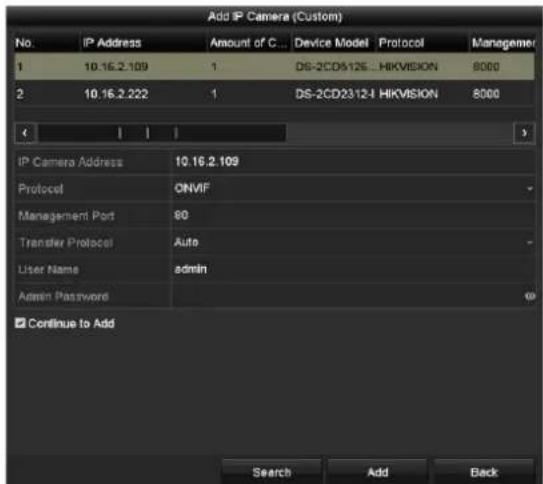

Add IP Camera (Custom) No. IP Address Amount of C... Device Model Protocol Manager 1 10.16.2.109 1 DS-2CD512E...HIKVISION 8000 2 10.16.2.222 1 DS-2CD23/12-I HIKVISION 8000 IP Camera Address 10.16.2.109 Protocol ONVIF Management Port 60 Transfer Protocol Auto User Name hemin Admin Password 60 Continue to Add Search Add Back

Figure 2-37 Custom Adding IP Camera Interface

Step 2 You can edit the IP address, protocol, management port, and other information of the IP camera to be added.

If the IP camera to add has not been activated, you can activate it from the IP camera list on the IP Camera Management interface.

Step 3 Click Add to add the camera.

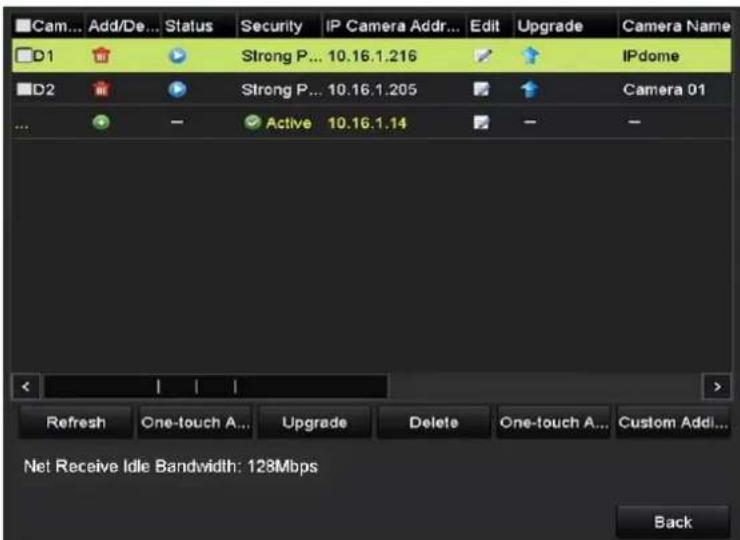

For the successfully added IP cameras, the Security status shows the security level of the password of camera: strong password, weak password and risky password.

Cam... Add/De... Status Security IP Camera Addr... Edit Upgrade Camera Name D1 Strong P... 10.16.1.216 IPdome D2 Strong P... 10.16.1.205 Camera 01 Active 10.16.1.14 Refresh One-touch A... Upgrade Delete One-touch A... Custom Add... Net Receive Idle Bandwidth: 128Mbps Back

Figure 2-38 Successfully Added IP Cameras

Please refer to the specifications for the number of connectable IP cameras for different models.

Table 2-1 Explanation of the icons

Icon	Explanation	Icon	Explanation
	Edit basic parameters of the camera	[2Y2K]	Add the detected IP camera.
	The camera is disconnected; You can click the icon to get the exception information of camera.		Delete the IP camera
	Play the live video of the connected camera.	[042K]	Advanced settings of the camera.
[4H02]	Upgrade the connected IP camera.	Security	Shows the security status of the camera to be active/inactive or the password strength (strong/medium/weak/risky)

2.7.3 Editing the Connected IP Camera

Purpose

After the adding of the IP cameras, the basic information of the camera is listed on the interface, and you can configure the basic settings of the IP cameras.

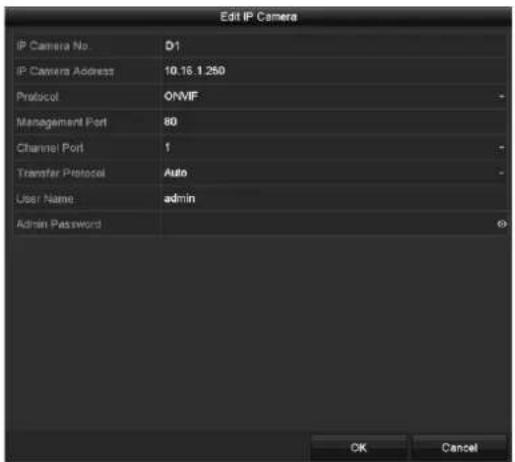

Step 1 Click the 📋 icon to edit the parameters. You can edit the IP address, protocol and other parameters.

Edit IP Camera IP Camera No. D1 IP Camera Address 10.16.1.250 Protocol ONMIF Management Port 80 Channel Port 1 Transfer Protocol Auto User Name admin Admin Password OK Cancel

Figure 2-39 Edit IP Camera

Channel Port: If the connected device is an encoding device with multiple channels, you can choose the channel to connect by selecting the channel port No. in the drop-down list.

Step 2 Click OK to save the settings and exit from the editing interface.

Step 3 Drag the horizontal scroll bar to the right side and click the 📄 icon to edit the advanced parameters.

Advanced Settings Network Password IP Camera No. D1 IP Camera Address 10.16.1.250 Management Port 8000 Apply OK Cancel

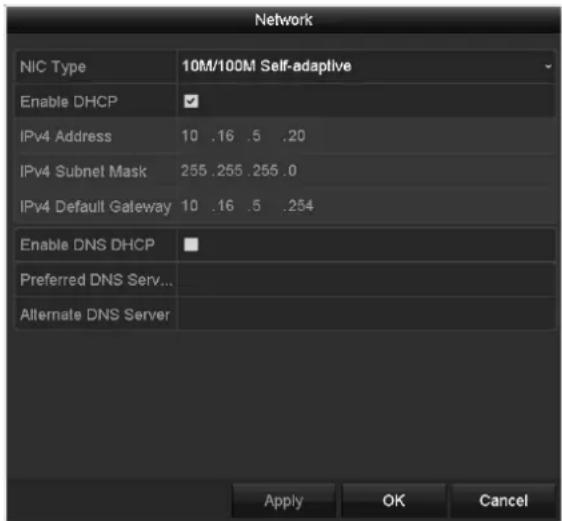

Figure 2-40 Network Configuration of the Camera

Step 4 You can edit the network information and the password of the camera.

Advanced Settings Network Password IP Camera No D1 Current Password New Password Confirm ✓ Valid password range [8-16]. You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. Apply OK Cancel

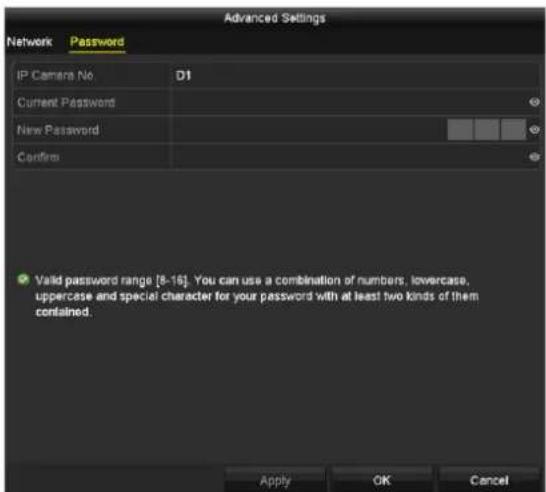

Figure 2-41 Password Configuration of the Camera

Step 5 Click OK to save the settings and exit the interface.

2.8 Configuring the Signal Input Channel

Purpose

You should configure the analog and IP signal input types.

Step 1 Enter the Signal Input Status interface.

Menu > Camera > Signal Input Status

Step 2 Check the checkbox to select different signal input types: HD/CVBS and IP. If you select HD/CVBS, four types of analog signal inputs including Turbo HD, AHD, HDCVI, and CVBS can be connected randomly for the selected channel. If you select IP, IP camera can be connected for the selected channel.

Signal Input Status IP Camera IP Camera Import/Export Camera ✓ HD/CVBS ■ IP A1 ✓ ■ A2 ✓ ■ A3 ✓ ■ A4 ✓ ■ A5 ✓ ■ A6 ✓ ■ A7 ✓ ■ A8 ✓ ■ A9 ✓ ■ A10 ✓ ■ A11 ✓ ■ A12 ✓ ■ A13 ✓ ■ A14 ✓ ■ A15 ✓ ■ A16 ✓ ■ Max. IP Camera Number 16

Figure 2-42 Configure Signal Input Type

Step 3 Click Apply to save the settings.

i NOTE

• Four kinds of analog signal inputs including Turbo HD (including 3 MP, 1080p and 720p signal), AHD, HDCVI and CVBS can be connected. The analog signal inputs can be recognized automatically and can be mixed randomly.
• For DVR-200Q-K1 and DVR-200Q-K2 series DVR, the 3 MP signal can be accessed for the first channel of DVR with 4-ch video inputs, the first 2 channels of DVR with 8-ch video inputs and the first 4 channels of DVR with 16-ch video inputs.
• When Turbo HD, AHD, or HDCVI input is connected, the information including the resolution and frame rate (e.g., 720P25) will be overlaid on the bottom right corner of the live view for 5 seconds. When CVBS input is connected, the information such as NTSC or PAL will be overlaid on the bottom right corner of the live view for 5 seconds. When there is no video signal for the channel, the connectable video signal type message will not be displayed on the screen. When the unsupported signal input is connected, no video message is displayed on the screen. You can refer to the specifications for the supported resolution of the analog signal input types.
• You can view the max. IP camera accessible number in the Max. IP Camera Number text field.

Chapter 3 Live View

3.1 Introduction of Live View

Live view shows you the video image getting from each camera in real time. The DVR will automatically enter Live View mode when powered on. It is also at the very top of the menu hierarchy, thus hitting the ESC many times (depending on which menu you're on) will bring you to the Live View mode.

Live View Icons

In the live view mode, there are icons at the right top of the screen for each channel, showing the status of the record and alarm in the channel, so that you can know whether the channel is recorded, or whether there are alarms occur as soon as possible.

Table 3-1 Description of Live View Icons

Icons	Description
	Alarm (video loss, tampering, motion detection, VCA or sensor alarm)
	Record (manual record, schedule record, motion detection or alarm triggered record)
[DAXH]	Alarm & Record
	Event/Exception (motion detection, sensor alarm or exception information. For details, see Chapter 8.6 Handling Exceptions.)

3.2 Operations in Live View Mode

In live view mode, there are many functions provided. The functions are listed below.

● Single Screen: show only one screen on the monitor.
- Multi-screen: show multiple screens on the monitor simultaneously.

- Start Auto-switch: the screen is auto switched to the next one. And you must set the dwell time for each screen on the configuration menu before enabling the auto-switch. Menu>Configuration>Live View>Dwell Time.

- Start Recording: normal record and motion detection record are supported.

- Output Mode: select the output mode to Standard, Bright, Gentle or Vivid.

● Playback: play back the recorded videos for current day.

- Aux/Main Monitor: the DVR checks the connection of the output interfaces to define the main and auxiliary output interfaces. When the aux output is enabled, the main output cannot do any operation, and you can do some basic operation on the live view mode for the Aux output.

For DVR-200Q-K2 series DVR with CVBS output, the VGA/HDMI output is the main output, and the CVBS output is the aux output. The priority relationship is shown as Table 3-2.

For DVR-100/200G-F1 and DVR-200Q-K1 series DVR, there is no CVBS output. The VGA/HDMI output is the main output. The priority relationship is shown as Table 3-3.

Table 3-2 Priorities of Outputs for DVR-200Q-K2 Series

S.N	HDMI	VGA	CVBS	Main output	Auxiliary output
1	or ×	or ×	or ×	VGA/HDMI	CVBS

Table 3-3 Priorities of Outputs for DVR-100/200G-F1 and DVR-200Q-K1 Series

S.N	HDMI	VGA	Main output
1	√ or ×	√ or ×	VGA/HDMI

i NOTE

√ means the interface is in use, × means the interface is out of use or the connection is invalid. And the HDMI, VGA and CVBS can be used at the same time.

3.2.1 Using the Mouse in Live View

You can refer to Table 3-4 for the description of mouse operation in live view mode.

Table 3-4 Mouse Operation in Live View

Name	Description
Menu	Enter the main menu of the system by right clicking the mouse.
Single Screen	Switch to the single full screen by choosing channel number from the drop-down list.
Multi-Screen	Adjust the screen layout by selecting from the drop-down list.
Previous Screen	Switch to the previous screen.
Next Screen	Switch to the next screen.
Start/Stop Auto-Switch	Enable/disable the auto-switch of the screens. The dwell time of the live view configuration must be set before using Start Auto-Switch.
Start Recording	Start recording of all channels, Continuous Record and Motion Detection Record are selectable from the drop-down list.
Add IP Camera	A shortcut to enter the IP camera management interface.(For HDVR series only)
Playback	Enter the playback interface and start playing back the video of the selected channel immediately.
PTZ Control	A shortcut to enter the PTZ control interface of the selected camera.
Output Mode	Output Mode is configurable with Standard, Bright, Gentle and Vivid options.
Aux Monitor	Switch to the auxiliary output mode and the operation for the main output is disabled.NOTEIf you enter Aux monitor mode and the Aux monitor is not connected, the mouse operation is disabled. You need to switch back to the Main output with the F1 button on front panel or VOIP/MON button on IR remote control and then press the Enter button.

Common Menu Menu Single Screen Multi-screen Previous Screen Next Screen Start Auto-switch Start Recording Add IP Camera Playback PTZ Control Output Mode Aux Monitor

Figure 3-1 Right-click Menu

3.2.2 Switching Main/Aux Output

i NOTE

• DVR-200Q-K2 series DVR support Aux/Main output switch. Refer to the tables of Chapter 3.2 Operations in Live View Mode for the main and aux output relationship.
• For the DVR with CVBS output, the CVBS output only serves as the aux output or live view output.

Step 1 Use the mouse wheel to double-click on the HDMI/VGA output screen, and the following message box pops up.

Tip Double-click the mouse again to switch the auxiliary and main output? Cancel

Figure 3-2 Switch Main and Aux Output

Step 2 Use the mouse wheel to double-click on the screen again to switch to the aux output, or click Cancel to cancel the operation.

Step 3 Select the Menu Output Mode to others from the right-click menu on the monitor.

Step 4 On the pop-up message box, click Yes to reboot the device to enable the selected menu output as the main output.

i NOTE

You can select the Menu Output Mode under Menu>Configuration>General>More Settings to Auto and HDMI/VGA and then reboot the device to switch the main output.

3.2.3 Quick Setting Toolbar in Live View Mode

On the screen of each channel, there is a quick setting toolbar which shows when you click the screen.

Screenshot of a software toolbar with icons for media, video, audio, and other media functions

Figure 3-3 Quick Setting Toolbar

You can refer to Table 3-5 for the description of Quick Setting Toolbar icons.

Table 3-5 Description of Quick Setting Toolbar Icons

Icons	Description	Icons	Description	Icons	Description
	Enable/Disable Manual Record		Instant Playback		Mute/Audio on
	PTZ Control	[3CGS]	Digital Zoom		Image Settings
	Close Live View		Face Detection		Information

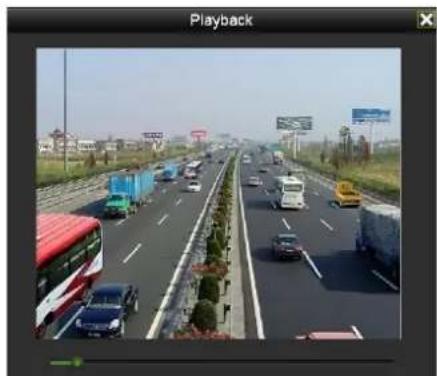

Instant Playback only shows the record in last five minutes. If no record is found, it means there is no record during the last five minutes.

Digital Zoom can zoom in the selected area to the full screen. Click and draw to select the to zoom in, as shown in Figure 3-4.

Highway scene with trucks, shipping containers, and residential buildings in the background (no visible text or symbols)

Figure 3-4 Digital Zoom

Image Settings icon can be selected to enter the Image Settings menu. You can drag the mouse or click 📄 to adjust the image parameters, including brightness, contrast, and saturation. Refer to the Chapter 13.3 Configuring Video Parameters for details.

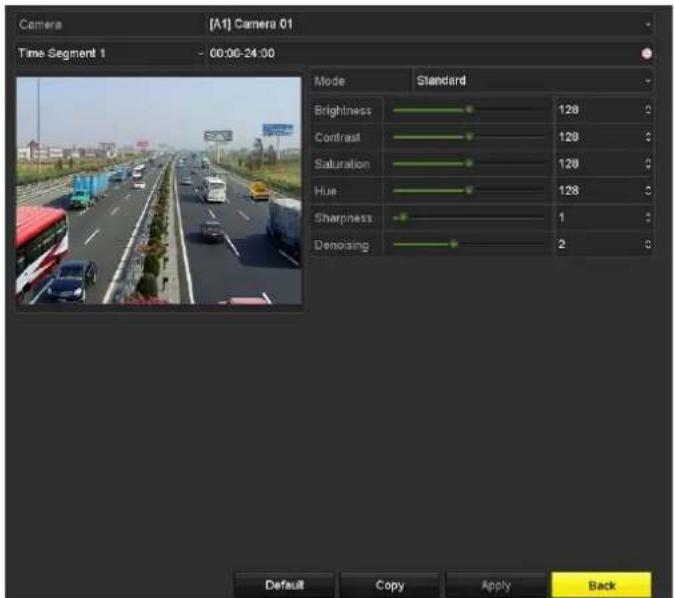

Image Settings Time Segment 00:00-24:00 Mode Custom 146 255 255 OK

Figure 3-5 Image Settings

Face Detection can be enabled if you click the icon. The dialog pops up as shown in Figure 3-6. Click Yes and the full-screen live view of the channel is enabled. You can click ✗ to exit from the full-screen mode.

Attention Enable face detection? Yes No

Figure 3-6 Enable Face Detection

You can configure face detection only when it is supported by the connected camera.

Move the mouse onto the Information icon to show the real-time stream information, including the frame rate, bit rate, resolution and stream type.

Figure 3-7 Information

3.3 Channel-Zero Encoding

Purpose

Sometimes you need to get a remote view of many channels in real time from web browser or CMS (Client Management System) software, in order to decrease the bandwidth requirement without affecting the image quality, channel-zero encoding is supported as an option for you.

Step 1 Enter the Live View Settings interface.

Menu> Configuration> Live View

Step 2 Select the Channel-Zero Encoding tab.

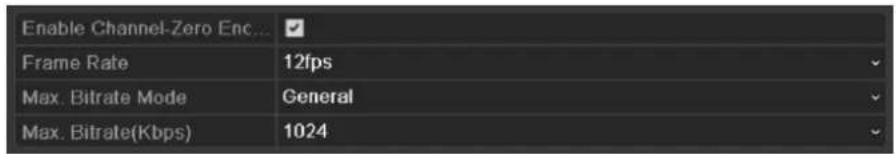

Enable Channel-Zero Enc... Frame Rate 12fps Max. Bitrate Mode General Max. Bitrate(Kbps) 1024

Figure 3-8 Live View- Channel-Zero Encoding

Step 3 Check the checkbox after Enable Channel-Zero Encoding.

Step 4 Configure the Frame Rate, Max. Bitrate Mode and Max. Bitrate.

Step 5 Click the Apply button to activate the settings.

Step 6 After you set the Channel-Zero encoding, you can get a view in the remote client or web browser of 16 channels in one screen.

3.4 Adjusting Live View Settings

Purpose

Live View settings can be customized according to different needs. You can configure the output interface, dwell time for screen to be shown, mute or turning on the audio, the screen number for each channel, etc.

Step 1 Enter the Live View Settings interface.

Menu> Configuration> Live View

Video Output Interface VGA/HDMI Live View Mode 1 + 7 Dwell Time No Switch Enable Audio Output Volume Event Output VGA/HDMI Full Screen Monitoring D... 10s

Figure 3-9 Live View-General

The settings available in this menu include:

● Video Output Interface: Selects the output to configure the settings.

If CVBS output is supported, you can select Main CVBS and HDMI/VGA for video output interface. If CVBS output is not supported, HDMI/VGA serves as the video output interface.

● Live View Mode: Selects the display mode to be used for Live View.

● Dwell Time: The time in seconds to dwell between switching of channels when enabling auto-switch in Live View.

• Enable Audio Output: Enables/disables audio output for the selected camera in the live view mode.
  ● Volume: Adjust the volume of the audio output.
  ● Event Output: Designates the output to show event video. If available, you can select a different video output interface from the Video Output Interface when an event occurs.
  ● Full Screen Monitoring Dwell Time: The time in seconds to show alarm event screen.

Step 2 Set the camera order.

1) Click View tab and select the Video Output Interface from the drop-down list.

General View Channel Zero Encoding Video Output Features VGAHDMI Camera... Camera Name A1 Camera 01 A2 Camera 02 A3 Camera 03 A4 Camera 04 A5 Camera 05 A6 Camera 06 A7 Camera 07 A8 Camera 08 A9 Camera 09 A10 Camera 10 A11 Camera 11 D1 A1 A2 A3 A4 A5 A5 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 Apply Back

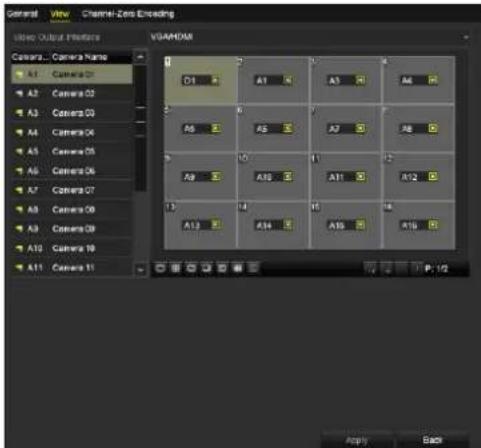

Figure 3-10 Live View-Camera Order

2) Click a window to select it, and then double-click a camera name in the camera list you would like to display. Setting an 'X' means the window will not display any camera.
3) You can also click 📄 to start live view of all channels in order and click 📄 to stop live view of all channels. Click 📄 or 📄 to go to the previous or next page.
4) Click the Apply button.

3.5 Manual Video Quality Diagnostics

Purpose

The video quality of the analog channels can be diagnosed manually and you can view the diagnostic results from a list.

Step 1 Enter the Manual Video Quality Diagnostics interface.

Menu> Manual >Manual Video Quality Diagnostics

Manual Video Quality Diagnostics ✓ Analog ✓ A1 ✓ A2 ✓ A3 ✓ A4 ✓ A5 ✓ A6 ✓ A7 ✓ A8 ✓ A9 ✓ A10 ✓ A11 ✓ A12 ✓ A13 ✓ A14 ✓ A15 ✓ A16

Figure 3-11 Video Quality Diagnostics

Step 2 Check the checkboxes to select the channels for diagnostics.

Step 3 Click the button Diagnose, and the results will be displayed on a list. You can view the video status and diagnostics time of the selected channels.

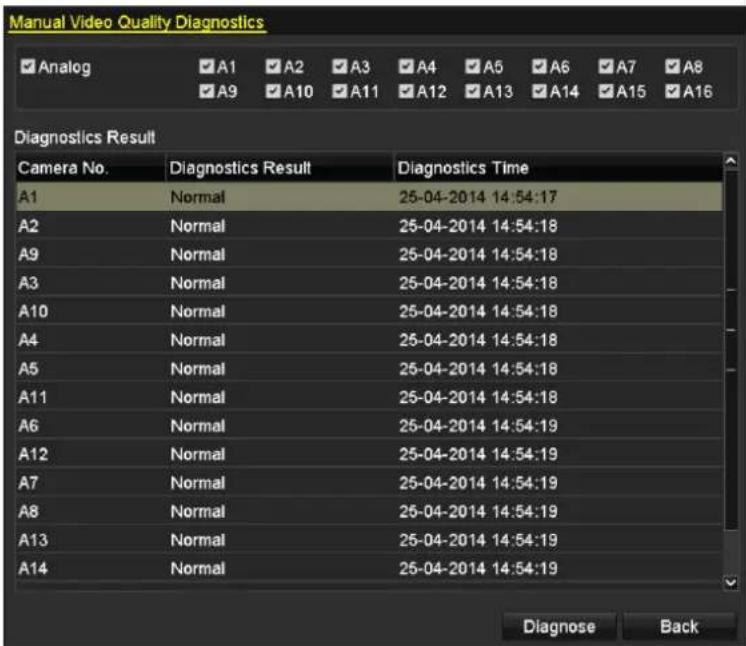

Manual Video Quality Diagnostics ✓ Analog ✓ A1 ✓ A2 ✓ A3 ✓ A4 ✓ A5 ✓ A6 ✓ A7 ✓ A8 ✓ A9 ✓ A10 ✓ A11 ✓ A12 ✓ A13 ✓ A14 ✓ A15 ✓ A16 Diagnostics Result Camera No. Diagnostics Result Diagnostics Time A1 Normal 25-04-2014 14:54:17 A2 Normal 25-04-2014 14:54:18 A9 Normal 25-04-2014 14:54:18 A3 Normal 25-04-2014 14:54:18 A10 Normal 25-04-2014 14:54:18 A4 Normal 25-04-2014 14:54:18 A5 Normal 25-04-2014 14:54:18 A11 Normal 25-04-2014 14:54:18 A6 Normal 25-04-2014 14:54:19 A12 Normal 25-04-2014 14:54:19 A7 Normal 25-04-2014 14:54:19 A8 Normal 25-04-2014 14:54:19 A13 Normal 25-04-2014 14:54:19 A14 Normal 25-04-2014 14:54:19 Diagnose Back

Figure 3-12 Diagnostics Result

NOTE

• Connect the camera to the device for the video quality diagnostics.
• Three exception types can be diagnosed: Blurred Image, Abnormal Brightness and Color Cast.

Chapter 4 PTZ Controls

4.1 Configuring PTZ Settings

Purpose

Follow the procedure to set the parameters for PTZ. You should configure the PTZ parameters before controlling the PTZ camera.

Step 1 Enter the PTZ Settings interface.

Menu >Camera> PTZ

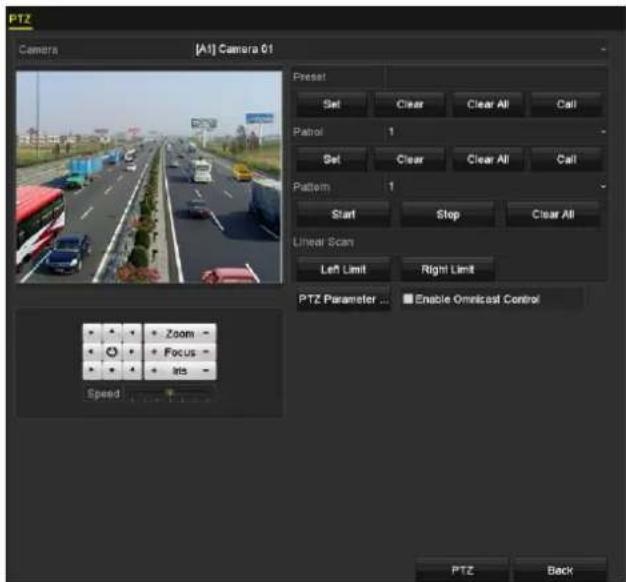

PTZ Camera [A1] Camera 01 Preiser Set Clear Clear All Call Patrol 1 Set Clear Clear All Call Pattern 1 Start Stop Clear All Linear Scan Left Limit Right Limit PTZ Parameter ... Enable Omicast Control Zoom - Focus - Iris - Speed PTZ Back

Figure 4-1 PTZ Settings

Step 2 Select the camera for PTZ setting in the Camera drop-down list.

Step 3 Click the PTZ Parameters button to set the PTZ parameters.

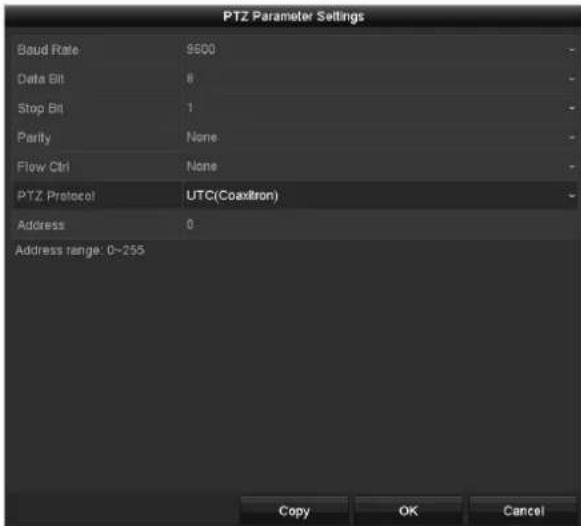

PTZ Parameter Settings Baud Rate 9600 Data Bit 8 Stop Bit 1 Parity None Flow Ctrl None PTZ Protocol UTC(Coaxitron) Address 0 Address range: 0-255 Copy OK Cancel

Figure 4-2 PTZ- General

Step 4 Select the parameters of the PTZ camera from the drop-down list.

i NOTE

● All the parameters should be exactly the same as the PTZ camera parameters.
- For the Coaxitron camera/dome connected, you can select the PTZ protocol to UTC (Coaxitron). Make sure the protocol selected is supported by the connected camera/dome.
● The AHD and HDCVI cameras support coaxitron control.
- When the Coaxitron protocol is selected, all the other parameters like the baud rate, data bit, stop bit, parity and flow control are not configurable.

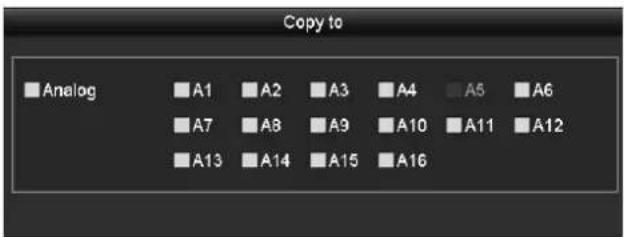

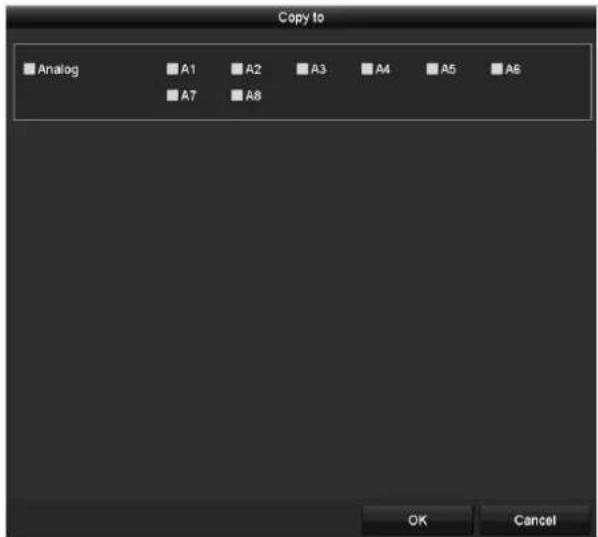

Step 5 (Optional) Click Copy button to copy the settings to the other channels. Select the channels you want to copy to and click OK to return to the PTZ Parameters Settings interface.

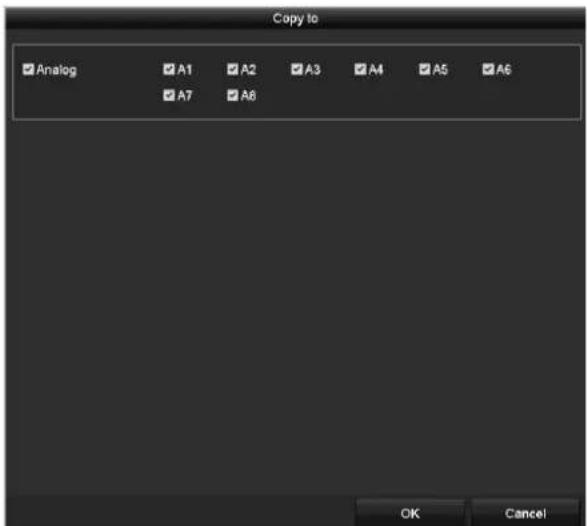

Copy to Analog A1 A2 A3 A4 A5 A6 A7 A8 OK Cancel

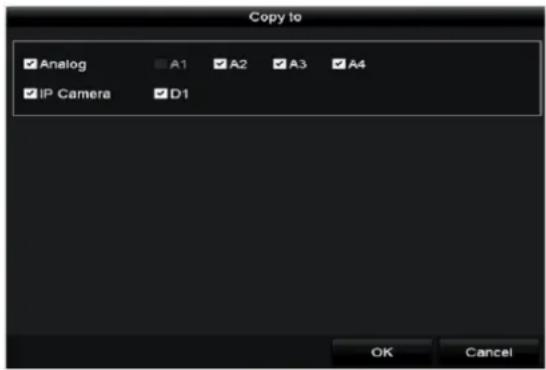

Figure 4-3 Copy to Other Channels

Step 6 Click OK to save the settings.

Step 7 (Optional) Check the checkbox of Enable Omnicast Control to enable the PTZ control of the selected camera.

4.2 Setting PTZ Presets, Patrols and Patterns

Before you start

Please make sure that the presets, patrols and patterns should be supported by PTZ protocols.

4.2.1 Customizing Presets

Purpose

Follow the steps to set the Preset location which you want the PTZ camera to point to when an event takes place.

Step 1 Enter the PTZ Settings interface.

Menu>Camera>PTZ

PTZ Camera (A1) Camera 0.1 Preset Set Clear Clear All Call Patrol 1 Set Clear Clear All Call Pattern 1 Start Stop Clear All Linear Scan Left Limit Right Limit PTZ Parameter ... Enable Omicast Control Zoom - Focus - Iris - Speed - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - PTZ Back

Figure 4-4 PTZ Settings

Step 2 Use the directional button to wheel the camera to the location where you want to set preset; and the zoom and focus operations can be recorded in the preset as well.

Step 3 Enter the preset No. (1\~255) in the preset text field, and click the Set button to link the location to the preset.

Repeat the steps from 2 to 3 to save more presets.

You can click the Clear button to clear the location information of the preset, or click the Clear All button to clear the location information of all the presets.

4.2.2 Calling Presets

Purpose

This feature enables the camera to point to a specified position such as a window when an event takes place.

Step 1 Click the button PTZ in the lower-right corner of the PTZ setting interface;

Or press the PTZ button on the front panel or click the PTZ Control icon in the quick setting bar, or select the PTZ option in the right-click menu to show the PTZ control panel.

Step 2 Choose Camera in the drop-down list.

Step 3 Click the General tab to show the general settings of the PTZ control.

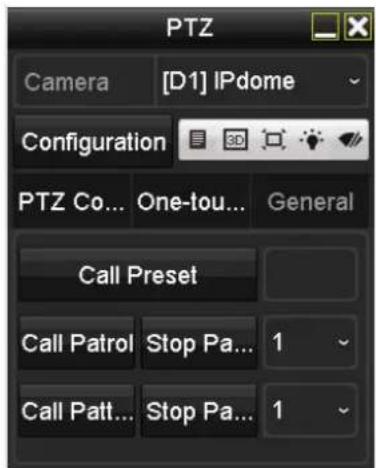

PTZ Camera [D1] IPdome Configuration PTZ Co... One-tou... General Call Preset Call Patrol Stop Pa... 1 Call Patt... Stop Pa... 1

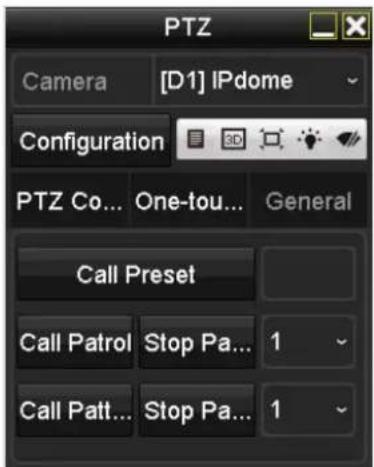

Figure 4-5 PTZ Panel-General

Step 4 Click to enter the preset No. in the corresponding text field.

Step 5 Click the Call Preset button to call it.

i NOTE

When the Coaxitron camera/dome connected and the PTZ protocol is selected to UTC (Coaxitron), you can call the preset 95 to enter the menu of the connected Coaxitron camera/dome. Use the directional buttons on the PTZ control panel to operate the menu.

4.2.3 Customizing Patrols

Purpose

Patrols can be set to move the PTZ to different key points and have it stay there for a set duration before moving on to the next key point. The key points are corresponding to the presets. The presets can be set following the steps above in Customizing Presets.

Step 1 Enter the PTZ Settings interface.

Menu>Camera>PTZ

PTZ Camera [A1] Camera 01 Preset Set Clear Clear All Call Patrol 1 Set Clear Clear All Call Pattern 1 Start Stop Clear All Linear Scan Left Limit Right Limit PTZ Parameter ... Enable Omnicat Control Zoom - Focus - Ins - Speed - - PTZ Back

Figure 4-6 PTZ Settings

Step 2 Select patrol No. in the drop-down list of patrol.

Step 3 Click the Set button to add key points for the patrol.

KeyPoint KeyPoint: 1 Preset 1 Duration 0 Speed 1 Add OK Cancel

Figure 4-7 Key point Configuration

Step 4 Configure key point parameters, such as the key point No., duration of staying for one key point and speed of patrol. The key point is corresponding to the preset. The Key Point No. determines the order at which the PTZ will follow while cycling through the patrol. The Duration refers to the time span to stay at the corresponding key point. The Speed defines the speed at which the PTZ will move from one key point to the next.

Step 5 Click the Add button to add the next key point to the patrol, or you can click the OK button to save the key point to the patrol.

You can delete all the key points by clicking the Clear button for the selected patrol, or click the Clear All button to delete all the key pints for all patrols.

4.2.4 Calling Patrols

Purpose

Calling a patrol makes the PTZ to move according the predefined patrol path.

Step 1 Click the button PTZ in the lower-right corner of the PTZ Settings interface;

Or press the PTZ button on the front panel or click the PTZ Control icon in the quick setting bar, or select the PTZ option in the right-click menu to show the PTZ control panel.

Step 2 Click the General tab to show the general settings of the PTZ control.

PTZ Camera [D1] IPdome Configuration PTZ Co... One-tou... General Call Preset Call Patrol Stop Pa... 1 Call Patt... Stop Pa... 1

Figure 4-8 PTZ Panel - General

Step 3 Select a patrol in the drop-down list and click the Call Patrol button to call it.

Step 4 You can click the Stop Patrol button to stop calling it.

4.2.5 Customizing Patterns

Purpose

Patterns can be set by recording the movement of the PTZ. You can call the pattern to make the PTZ movement according to the predefined path.

Step 1 Enter the PTZ Settings interface.

Menu > Camera > PTZ

PTZ Camera [A1] Camera 01 Preset Set Clear Clear All Call Patrol 1 Set Clear Clear All Call Pattern 1 Start Stop Clear All Linear Scan Left Limit Right Limit PTZ Parameter... Enable Omnicast Control Zoom - Focus - Ins - Speed - PTZ Back

Figure 4-9 PTZ Settings

Step 2 Choose pattern number in the drop-down list.

Step 3 Click the Start button and click corresponding buttons in the control panel to move the PTZ camera, and click the Stop button to stop it.

The movement of the PTZ is recorded as the pattern.

4.2.6 Calling Patterns

Purpose

Follow the procedure to move the PTZ camera according to the predefined patterns.

Step 1 Click the button PTZ in the lower-right corner of the PTZ Settings interface;

Or press the PTZ button on the front panel or click the PTZ Control icon in the quick setting bar, or select the PTZ option in the right-click menu to show the PTZ control panel.

Step 2 Click the General tab to show the general settings of the PTZ control.

PTZ Camera [D1] IPdome Configuration PTZ Co... One-tou... General Call Preset Call Patrol Stop Pa... 1 Call Patt... Stop Pa... 1

Figure 4-10 PTZ Panel - General

Step 3 Click the Call Pattern button to call it.

Step 4 Click the Stop Pattern button to stop calling it.

4.2.7 Customizing Linear Scan Limit

Purpose

The Linear Scan can be enabled to trigger the scan in the horizontal direction in the predefined range.

This function is supported by some certain models.

Step 1 Enter the PTZ Settings interface.

Menu > Camera > PTZ

PTZ Camera [A1] Camera 01 Preset Set Clear Clear All Call Patrol 1 Set Clear Clear All Call Pattern 1 Start Stop Clear All Linear Scan Left Limit Right Limit PTZ Parameter... Enable Omnicast Control Zoom - Focus - Ins - Speed PTZ Back

Figure 4-11 PTZ Settings

Step 2 Use the directional button to wheel the camera to the location where you want to set the limit, and click the Left Limit or Right Limit button to link the location to the corresponding limit.

i NOTE

The speed dome starts linear scan from the left limit to the right limit, and you must set the left limit on the left side of the right limit, as well the angle from the left limit to the right limit should be no more than 180^ .

4.2.8 Calling Linear Scan

Purpose

Follow the procedure to call the linear scan in the predefined scan range.

Step 1 Click the button PTZ in the lower-right corner of the PTZ Settings interface;

Or press the PTZ button on the front panel or click the PTZ Control icon in the quick setting bar to enter the PTZ setting menu in live view mode.

Step 2 Click the One-touch tab to show the one-touch function of the PTZ control.

PTZ Camera [D1] IPdome Configuration PTZ Co... One-tou... General Park(Quick Patrol) Park(Patrol 1) Park(Preset 1) Linear Scan Restore

Figure 4-12 PTZ Panel - One-touch

Step 3 Click Linear Scan button to start the linear scan and click the Linear Scan button again to stop it.

You can click the Restore button to clear the defined left limit and right limit data and the dome needs to reboot to make settings take effect.

4.2.9 One-touch Park

Purpose

For some certain model of the speed dome, it can be configured to start a predefined park action (scan, preset, patrol and etc.) automatically after a period of inactivity (park time).

Step 1 Click the button PTZ in the lower-right corner of the PTZ Settings interface;

Or press the PTZ button on the front panel or click the PTZ Control icon in the quick setting bar to enter the PTZ setting menu in live view mode.

Step 2 Click the One-touch tab to show the one-touch function of the PTZ control.

PTZ Camera [D1] IPdome Configuration PTZ Co... One-tou... General Park(Quick Patrol) Park(Patrol 1) Park(Preset 1) Linear Scan Restore

Figure 4-13 PTZ Panel - One-touch

Step 3 There are 3 one-touch park types selectable. Click the corresponding button to activate the park action.

Park (Quick Patrol): The dome starts patrol from the predefined preset 1 to preset 32 in order after the park time. The undefined preset will be skipped.

Park (Patrol 1): The dome starts moving according to the predefined patrol 1 path after the park time.

Park (Preset 1): The dome moves to the predefined preset 1 location after the park time.

The park time can only be set through the speed dome configuration interface. The default value is 5s.

Step 4 Click the button again to inactivate it.

4.3 PTZ Control Panel

To enter the PTZ control panel, there are two ways supported.

OPTION 1:

In the PTZ Settings interface, click the PTZ button on the lower-right corner which is next to the Back button.

OPTION 2:

In the Live View mode, you can press the PTZ Control button on the front panel or on the remote control, or choose the PTZ Control icon in the quick setting bar, or select the PTZ Control option in the right-click menu.

Click the Configuration button on the control panel, and you can enter the PTZ Settings interface.

In PTZ control mode, the PTZ panel will be displayed when a mouse is connected with the device. If no mouse is connected, the F120 appears in the lower-left corner of the window, indicating that this camera is in PTZ control mode.

PTZ Camera [D1] IPdome Configuration PTZ Co... One-lou... General + Zoom - + Focus - + Iris - Speed

PTZ Camera [D1] IPdome Configuration PTZ Co... One-tou... General Call Preset Call Patrol Stop Pa... 1 Call Patt... Stop Pa... 1

PTZ Camera [D1] IPdome Configuration PTZ Co... One-tou... General Park(Quick Patrol) Park(Patrol 1) Park(Preset 1) Linear Scan Restore

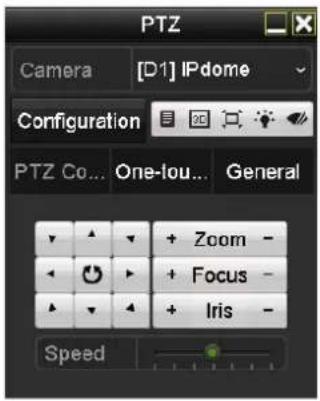

Figure 4-14 PTZ Control Panel

You can refer to Table 4-1 for the description of the PTZ panel icons.

Table 4-1 Description of the PTZ panel icons

Icon	Description	Icon	Description	Icon	Description
	Direction button and the auto-cycle button		Zoom+, Focus+, Iris+		Zoom-, Focus-, Iris-
	The speed of the PTZ movement		Light on/off		Wiper on/off
[KS77]	3D-Zoom		Image Centralization		Menu
[SS4C]	Switch to the PTZ control interface	One-touch	Switch to the one-touch control interface	General	Switch to the general settings interface
	Exit		Minimize windows

Chapter 5 Recording Settings

5.1 Configuring Encoding Parameters

Before you start

Step 1 Make sure that the HDD has already been installed. If not, please install a HDD and initialize it. (Menu>HDD>General)

Label Capacity Status Property Type Free Space Gro... Edit Delete 1 2794.52GB Normal R/W Local 2613.00GB 1 - -

Figure 5-1 HDD- General

Step 2 Click Advanced tab to check the storage mode of the HDD. (Menu>HDD>Advanced>Storage Mode)

1) If the HDD mode is Quota, please set the maximum record capacity. For detailed information, see Chapter 12.4 Configuring Quota Mode.
2) If the HDD mode is Group, you should set the HDD group. For detailed information, see Chapter 5.9 Configuring HDD Group.

Storage Mode Mode Group Record on HDD Group 1 Analog A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 IP Camera D1 D2 Enable HDD Sleeping

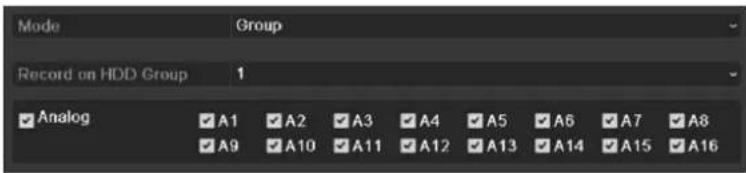

Figure 5-2 HDD- Advanced

Steps

Step 1 Enter the Record Parameters interface to configure the encoding parameters.

Menu>Record>Parameters

Record Substream Camera [A1] Camera 01 Camera Resolution NO VIDEO Encoding Parameters Main Stream(Continuous) Main Stream(Event) Stream Type Video & Audio - Video & Audio Resolution 960*1080(1080P Lite) - 960*1080(1080P Lite) Bitrate Type Variable - Variable Video Quality Medium - Medium Frame Rate Full Frame - Full Frame Max. Bitrate Mode General - General Max. Bitrate(Kbps) 1280 - 1280 Max. Bitrate Range Reco... 2304~3840(Kbps) 2304~3840(Kbps) Max. Average Bitrate(Kb... 1024 1024 Enable H.264+ ✓ More Setting... Copy Apply Back

Figure 5-3 Record Parameters

Step 2 Set the parameters for recording.

1) Select the Record tab to configure.
2) Select a camera from the camera drop-down list.
3) View the Camera Resolution.

For -F series DVR, when Turbo HD, AHD, or HDCVI input is connected, you can view the information including the input signal type, resolution and frame rate (e.g., Turbo HD 720P25). When CVBS input is connected, you can view the information such as NTSC or PAL.

4) Configure the following parameters for the Main Stream (Continuous) and the Main Stream (Event): Stream Type: Set the stream type to be Video or Video & Audio.

Resolution: Set recording resolution.

i NOTE

- The DVR-200Q-K1 and DVR-200Q-K2 series DVR support up to 3 MP resolution for the first channel of DVR with 4-ch video inputs, the first 2 channels of DVR with 8-ch video inputs and the first 4 channels of DVR with 16-ch video inputs. When the 3 MP signal input is connected to the supported channel, the recording resolution will be adjusted to 3 MP and the frame rate will be adjusted to 12 fps automatically if the resolution and frame rate is not configured manually.

- For DVR-200Q-K1 and DVR-200Q-K2 series DVR, if the 3 MP camera is connected to the channel which supports up to 1080p signal input, it will switch to 1080p signal input. When the 3 MP signal is switched to 1080p signal, the PAL will be switched to 1080p/25Hz, and the NTSC will be switched to 1080p/30Hz.

- Four kinds of analog signal inputs including Turbo HD (including 3 MP, 1080p and 720p signal), AHD, HDCVI and CVBS can be connected. The analog signal inputs can be recognized automatically and can be mixed randomly.

- If the configured encoding resolution conflicts with the resolution of the front-end camera, the encoding parameters will adjust automatically to meet the front-end camera. E.g., if the resolution of the front-end camera is 720p, then the encoding resolution of the main stream will adjust to 720p automatically.

- The resolution of 960 × 1080 (1080P Lite) is available when the 1080P Lite is enabled in the Record>Advanced Settings interface (refer to Chapter 5.12 Configuring 1080P Lite).

- Please refer to the Appendix-Specifications for the supported resolutions of different models.

Bitrate Type: Set the bitrate type to be Variable or Constant.

Video Quality: Set the video quality of recording, with 6 levels configurable.

i NOTE

The Stream Type, Resolution, Bitrate Type and Video Quality are not configurable for the Main Stream (Event) of the IP Camera.

Frame Rate: Set the frame rate of recording.

Max. Bitrate Mode: Set the mode to General or Custom.

Max Bitrate (Kbps): Select or customize the maximum bit rate for recording.

Max. Bitrate Range Recommended: A recommended max. bit rate range is provided for reference.

Max. Average Bitrate (Kbps): Set the max. average bit rate which refers to the average amount of data transferred per unit of time.

Step 3 Check the checkbox of Enable H.264+ to enable this function. Enabling it helps to ensure the high video quality with a lowered bitrate.

i NOTE

● After enabling the H.264+, the Bitrate Type, Video Quality, Max. Bitrate Mode, Max. Bitrate(Kbps) and Max. Bitrate Range Recommend are not configurable.

● The H.264+ is not supported simultaneously with SVC.

- For the connected IP camera, the H.264+ should be supported by the camera and added to the DVR with the HIKVISION protocol.

● You should reboot the device to activate the new settings after enabling the H.264+.

Step 4 Click More Settings to configure more parameters.

More Settings Pre-record 5s Post-record 5s Expired Time (day) 0 Redundant Record ■ Record Audio ✓ Video Stream Main Stream OK Back

Figure 5-4 More Settings of Record Parameters

Pre-record: The time you set to record before the scheduled time or event. For example, when an alarm triggered the recording at 10:00, if you set the pre-record time as 5 seconds, the camera records it at 9:59:55.

Post-record: The time you set to record after the event or the scheduled time. For example, when an alarm triggered the recording ends at 11:00, if you set the post-record time as 5 seconds, it records till 11:00:05.

Expired Time: The time for keeping the record files in the HDDs, once exceeded, the files will be deleted. The files will be saved permanently if the value is set as 0. The actual keeping time for the files should be determined by the capacity of the HDDs.

Redundant Record: Enabling redundant record means you save the record in the redundant HDD. See Chapter 5.8 Configuring Redundant Recording.

Record Audio: Enable this feature to record the sound and disable it to record the video without sound.

Video Stream: Main stream, Sub-stream and Dual-stream are selectable for recording. When you select sub-stream, you can record for a longer time with the same storage space.

i NOTE

● The Redundant Record option is only available when the HDD mode is Group.
- Redundant HDD is required for the redundant record function. For detailed information, see Chapter 12.3.2 Setting HDD Property.
- For network cameras, the parameters of Main Stream (Event) are not editable.

Step 5 Click Apply to save the settings.

Step 6 Optionally, you can click Copy to copy the settings to other analog channels if needed.

i NOTE

The analog signal inputs can be recognized automatically and mixed randomly. So you can copy the same settings of the selected analog camera to any other analog channel.

Copy to Analog A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16

Figure 5-5 Copy Camera Settings

Step 7 Set encoding parameters for sub-stream.

1) Select the Sub-Stream tab.

Record Substream Camera [A1] Camera 01 Stream Type Video Resolution (maximum val... 352°288(CIF) Bifrate Type Constant Video Quality Medium Frame Rate Full Frame Max. Bitrate Mode General Max. Bifrate (Kbps) (max.... 512 Max. Bitrate Range Reco... 384~640(Kbps)

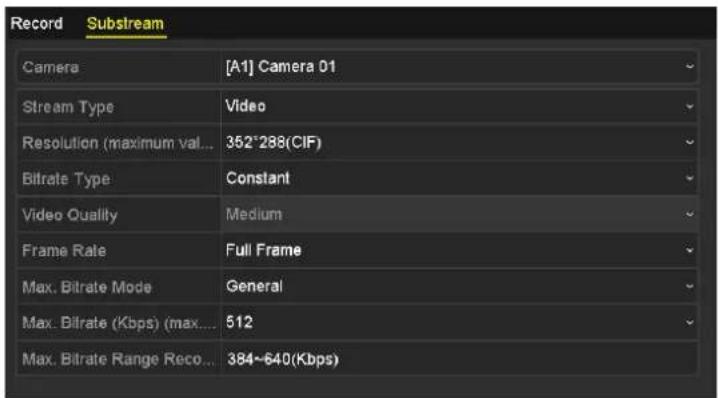

Figure 5-6 Sub-Stream Encoding

2) Select a camera in the camera drop-down list.
3) Configure the parameters.
4) Click Apply to save the settings.
5) (Optional) If the parameters can also be used to other cameras, click Copy to copy the settings to other channels.

For DVR-200Q-K1/K2 series, when 3 MP signal input is connected, the frame rate of sub-stream cannot exceed 12 fps.

5.2 Configuring Recording Schedule

The DVR-100G-F1 and DVR-200Q-K1 series DVR support continuous, motion and event triggered recording types. Other models support continuous, alarm, motion, motion | alarm, motion & alarm, and event triggered recording types.

Purpose

Set the record schedule, and then the camera will automatically start/stop recording according to the configured schedule.

Step 1 Enter the Record Schedule interface.

Menu > Record > Schedule

Record Camera [A1] Camera 01 Enable Schedule Mon Tue Wed Thu Fri Sat Sun 0 2 4 6 8 10 12 14 16 18 20 22 24 Edit Continuous Event Motion Alarm M | A M & A None Copy Apply Back

Figure 5-7 Record Schedule

Different recording types are marked in different color icons.

Continuous: scheduled recording.

Event: recording triggered by all event triggered alarm.

Motion: recording triggered by motion detection.

Alarm: recording triggered by alarm.

M/A: recording triggered by either motion detection or alarm.

M&A: recording triggered by motion detection and alarm.

Step 2 Choose the camera you want to configure in the Camera drop-down list.

Step 3 Check the checkbox of Enable Schedule.

Step 4 Configure the record schedule.

Edit the schedule

1) Click Edit.
2) In the message box, you can choose the day to which you want to set schedule.
3) To schedule an all-day recording, check the checkbox after the All Day item.

Edit Weekday Mon All Day ✓ Type Continuous Start/End Time 00:00-24:00 Start/End Time 00:00-00:00 Start/End Time 00:00-00:00 Start/End Time 00:00-00:00 Start/End Time 00:00-00:00 Start/End Time 00:00-00:00 Start/End Time 00:00-00:00 Copy Apply OK Cancel

Figure 5-8 Edit Schedule- All Day

4) To arrange other schedule, leave the All Day checkbox blank and set the Start/End time.

All Day Start/End Time 00.00-00.00 Start/End Time 00 00 - 00 00 Start/End Time 00.00-00.00 Type Continuous Type Continuous Type Continuous Type Continuous

Figure 5-9 Edit Schedule- Set Time Period

i NOTE

• Up to 8 periods can be configured for each day. And the time periods cannot be overlapped with each other.
• To enable Event, Motion, Alarm, M | A (motion or alarm), and M & A (motion and alarm) triggered recording, you must configure the motion detection settings, alarm input settings or VCA settings as well. For detailed information, refer to Chapter 8.1, Chapter 8.7 and Chapter 9.
  5) Repeat the above steps 1)-4) to schedule recording for other days in the week. If the schedule can also be set to other days, click Copy.

Copy to All 1 2 3 4 5 6 7 Holiday OK Cancel

Figure 5-10 Copy Schedule to Other Days

The Holiday option is available when you enable holiday schedule in Holiday settings. See Chapter 5.7 Configuring Holiday Recording.

6) Click OK to save setting and back to upper level menu.

Draw the schedule

1) Click on the color icon to select a record type in the event list on the right-side of the interface.

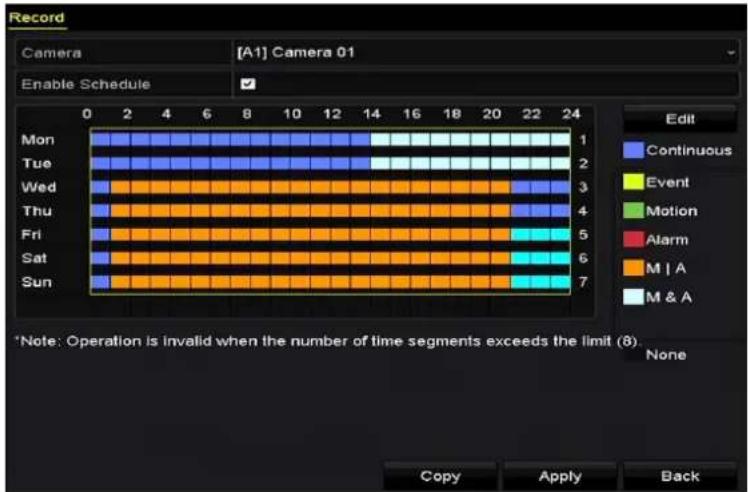

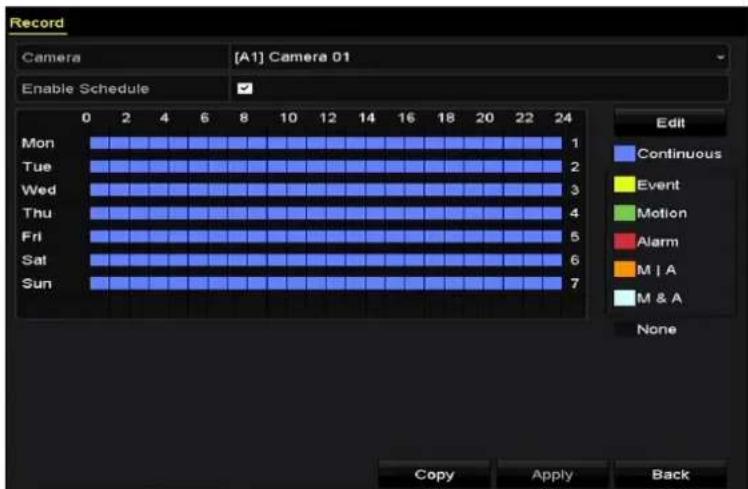

Record Camera [A1] Camera 01 Enable Schedule Mon 1 Tue 2 Wed 3 Thu 4 Fri 5 Sat 6 Sun 7 Edit Continuous Event Motion Alarm M I A M & A *Note: Operation is invalid when the number of time segments exceeds the limit (8) None Copy Apply Back

Figure 5-11 Draw the Recording Schedule

2) Click and drag the mouse on the schedule.
3) Click on the other area except for the schedule table to finish and exit from the drawing.

You can repeat step 4 to set schedule for other channels. If the settings can also be used to other channels, click Copy, and then choose the channel to which you want to copy to.

Step 5 Click Apply in the Record Schedule interface to save the settings.

5.3 Configuring Motion Detection Recording

Purpose

Follow the steps to set the motion detection parameters. In the live view mode, once a motion detection event takes place, the DVR can analyze it and do many actions to handle it. Enabling motion detection function can trigger certain channels to start recording, or trigger full screen monitoring, audio warning, notifying the surveillance center, sending email and so on.

Step 1 Enter the Motion Detection interface.

Menu>Camera>Motion

Motion Detection Camera [A1] Camera 01 Enable Motion Detection Settings Sensitivity Full Screen Clear

Figure 5-12 Motion Detection

Step 2 Configure Motion Detection.

1) Select the Camera you want to configure.
2) Check the checkbox after Enable Motion Detection.
3) Drag and draw the area for motion detection by mouse.

If you want to set the motion detection for all the area shot by the camera, click Full Screen.

To clear the motion detection area, click Clear.

Motion Detection Camera [A1] Camera 01 Enable Motion Detection Settings Sensitivity Full Screen Clear

Figure 5-13 Motion Detection-Mask

4) Click 🙏, and the message box for channel information pops up.

Settings Trigger Channel Arming Schedule Linkage Action Analog A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16

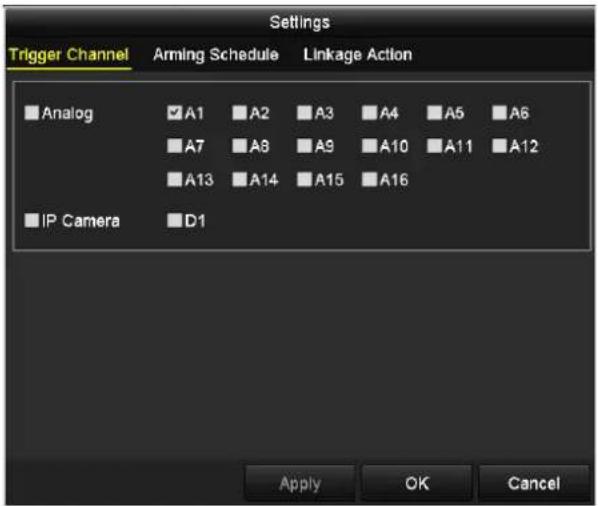

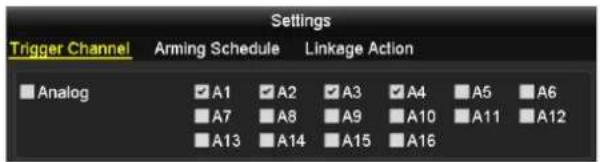

Figure 5-14 Motion Detection Settings

5) Select the channels which you want the motion detection event to trigger recording.
6) Click Apply to save the settings.
7) Click OK to back to the upper level menu.
8) Exit the Motion Detection menu.

Step 3 Configure the schedule.

Please refer to the step 4 of Chapter 5.2 Configuring Recording Schedule, while you may choose Motion as the record type.

5.4 Configuring Alarm Triggered Recording

Purpose

Follow the procedure to configure alarm triggered recording.

Step 1 Enter the Alarm Setting interface.

Menu > Configuration > Alarm

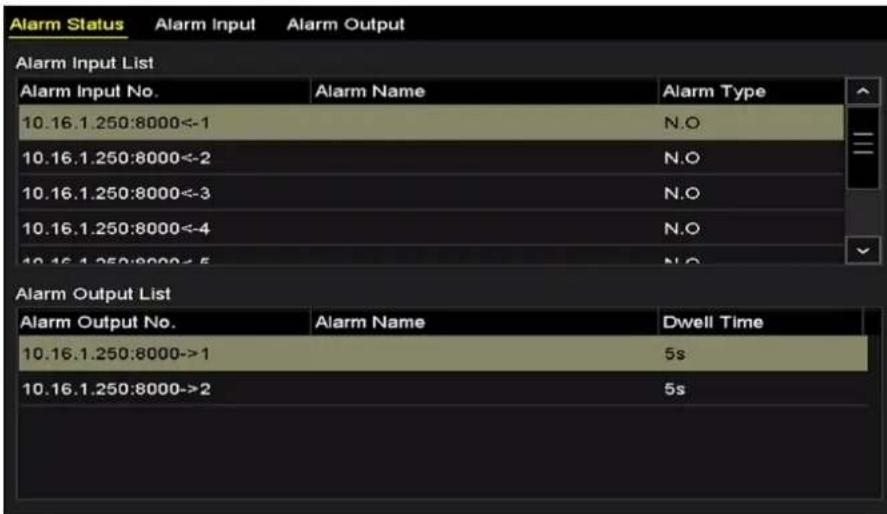

Alarm Status Alarm Input Alarm Output Alarm Input List Alarm Input No. Alarm Name Alarm Type 10.16.1.250:8000<-1 N.O 10.16.1.250:8000<-2 N.O 10.16.1.250:8000<-3 N.O 10.16.1.250:8000<-4 N.O 10.16.1.250:8000<-5 N.O Alarm Output List Alarm Output No. Alarm Name Dwell Time 10.16.1.250:8000->1 5s 10.16.1.250:8000->2 5s

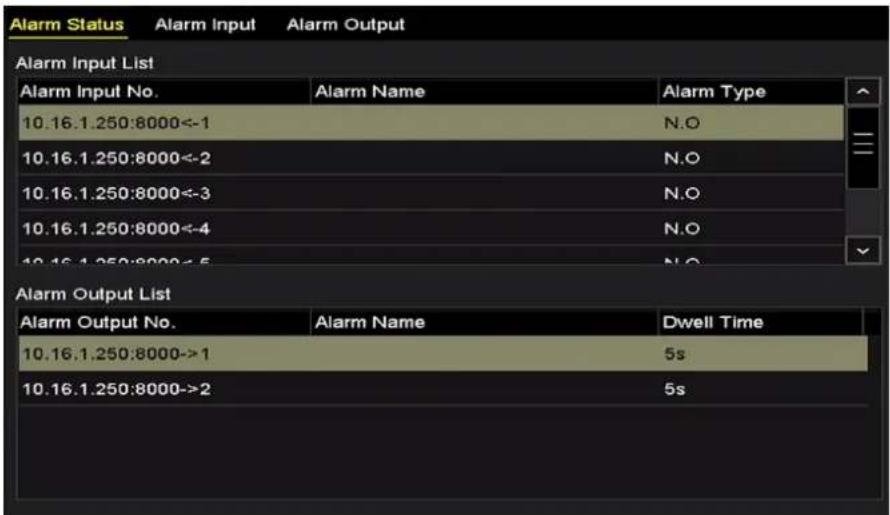

Figure 5-15 Alarm Settings

Step 2 Click the Alarm Input tab.

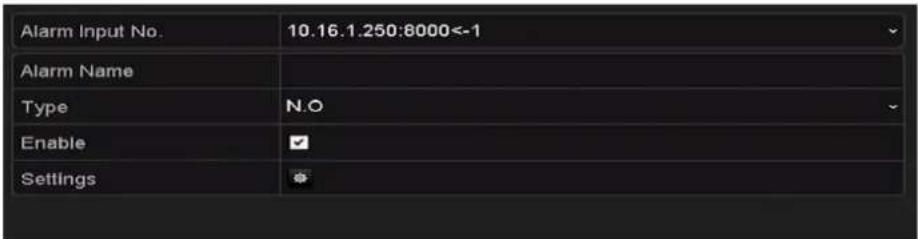

Alarm Input No. 10.16.1.250:8000<-1 Alarm Name Type N.O Enable ✓ Settings ✓

Figure 5-16 Alarm Settings- Alarm Input

1) Select Alarm Input number and configure alarm parameters.
2) Choose N.O (normally open) or N.C (normally closed) for alarm type.
3) Check the checkbox of Setting.
4) Click the button.

Settings Trigger Channel Arming Schedule Linkage Action PTZ Linking ■ Analog ■A1 ■A2 ■A3 ■A4 ■A5 ■A6 ■A7 ■A8 ■A9 ■A10 ■A11 ■A12 ■A13 ■A14 ■A15 ■A16 ■ IP Camera ■D1 ■D2

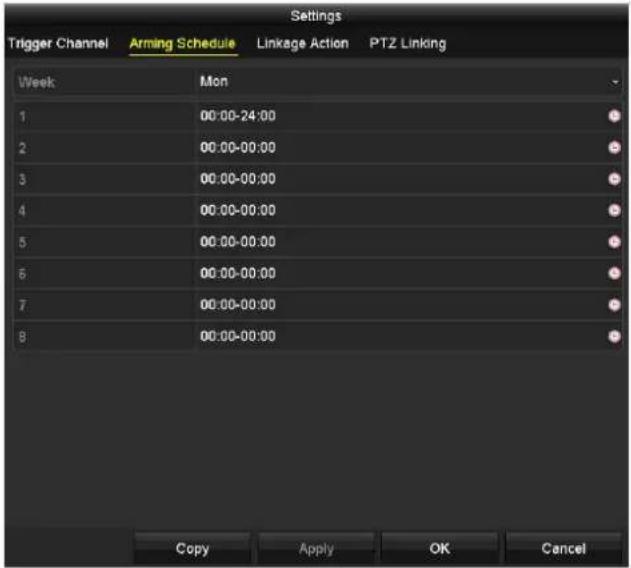

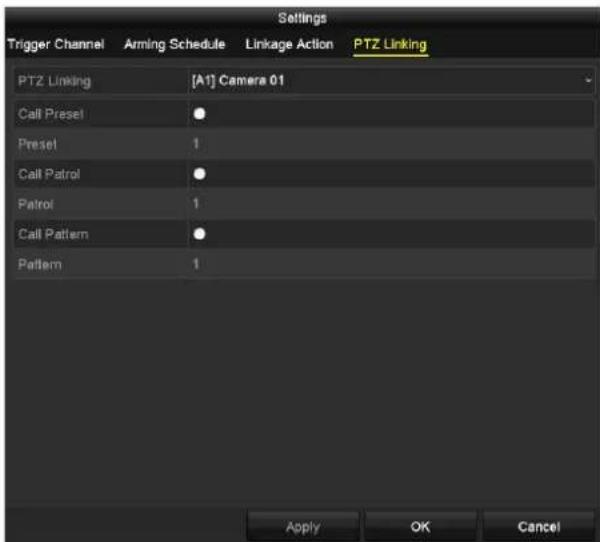

Figure 5-17 Alarm Handling

5) Choose the alarm triggered recording channel.
6) Check the checkbox to select channel.
7) Click Apply to save settings.
8) Click OK to back to the upper level menu.

Repeat the steps from 1) to 8) to configure other alarm input parameters.

If the setting can also be applied to other alarm inputs, click Copy and choose the alarm input number.

Copy Alarm Input to ✓Alarm Input No. Alarm Name 10.16.1.250:8000<-1 10.16.1.250:8000<-2 10.16.1.250:8000<-3 10.16.1.250:8000<-4 10.16.1.250:8000<-5 10.16.1.250:8000<-6 10.16.1.250:8000<-7 OK Cancel

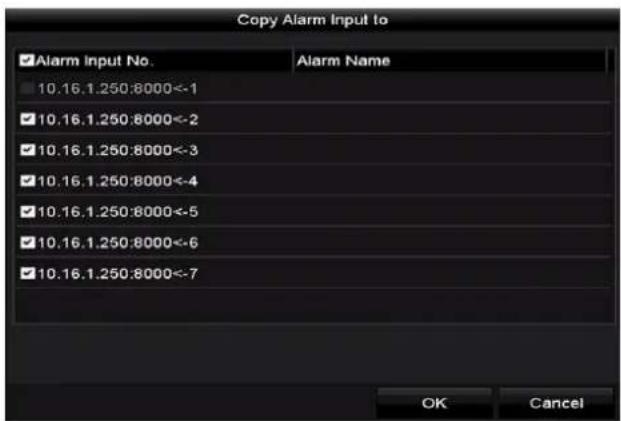

Figure 5-18 Copy Alarm Input

Step 3 Configure the schedule.

Please refer to the step 4 of Chapter 5.2 Configuring Recording Schedule, while you may choose Alarm as the record type.

5.5 Configuring Event Recording

Purpose

The event triggered recording can be configured through the menu. Then events include the motion detection, alarm and VCA events (face detection/face capture, line crossing detection, intrusion detection, region entrance detection, region exiting detection, loitering detection, people gathering detection, fast moving detection, parking detection, unattended baggage detection, object removal detection, audio loss exception detection, sudden change of sound intensity detection, and defocus detection).

NOTE

● The DVR-100G-F1 series do not support the VCA alarm.
● DVR-200Q-K2 series DVR support 4-ch VCA (line crossing detection and intrusion detection). Channels with audio support audio exception detection.
- DVR-200G-F1 series DVR support 1-ch VCA (line crossing detection and intrusion detection). Channels with audio support audio exception detection.
- For the analog channels, the line crossing detection and intrusion detection conflict with other VCA detection such as sudden scene change detection, face detection and vehicle detection and heat map or people counting functions. You can only enable one function.

Step 1 Enter the VCA settings interface and select a camera for the VCA settings.

Menu > Camera > VCA

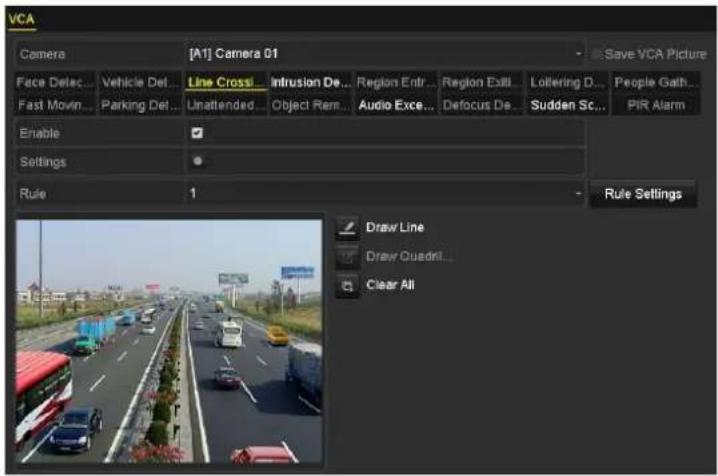

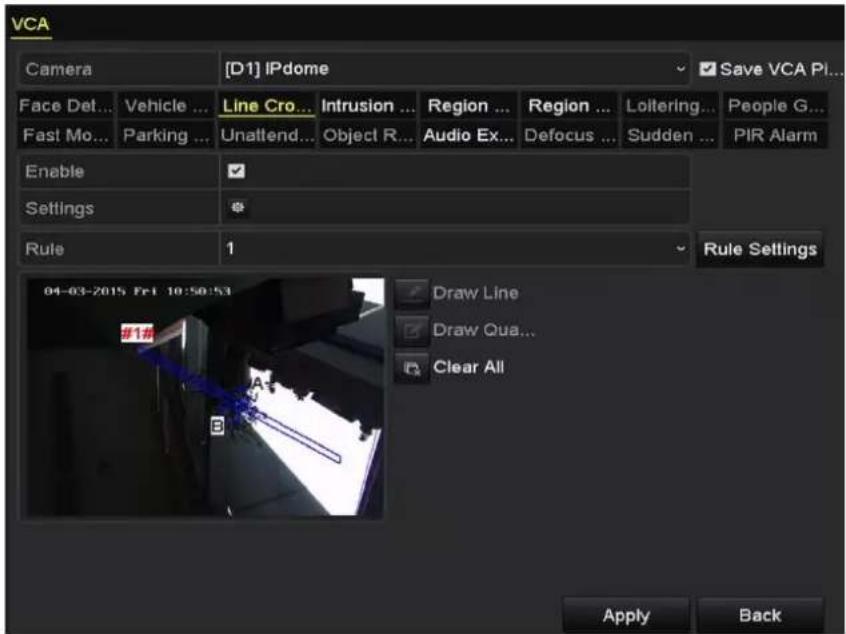

VCA Camera [A1] Camera 01 Face Detec... Vehicle Det... Line Cross... Intrusion De... Region Entr... Region Extill... Lottering D... People Gath... Fast Movin... Parking Det... Unattended... Object Rem... Audio Exce... Defocus De... Sudden Sc... PIR Alarm Enable ✓ Settings ● Rule 1 Draw Line Draw Quadril... Clear All

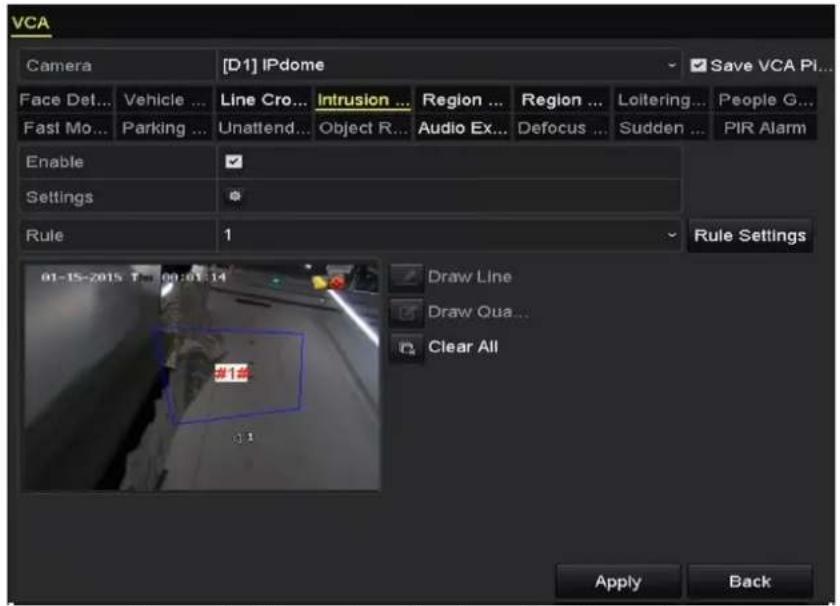

Figure 5-19 VCA Settings

Step 2 Configure the detection rules for VCA events. For details, see the step 6 in Chapter 9.3 Line Crossing Detection.

Step 3 Click the icon 🙏 to configure the alarm linkage actions for the VCA events.

Select Trigger Channel tab and select one or more channels which will start to record when VCA alarm is triggered.

Step 4 Click Apply to save the settings.

Settings Trigger Channel Arming Schedule Linkage Action Analog A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 IP Camera D1 Apply OK Cancel

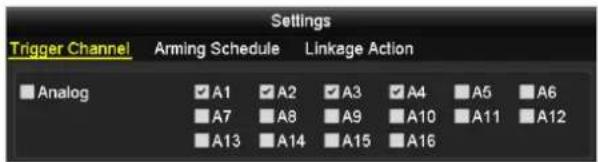

Figure 5-20 Set Trigger Camera of VCA Alarm

The PTZ Linking function is only available for the VCA settings of IP cameras.

Step 5 Enter Record Schedule Settings interface (Menu>Record>Schedule>Record Schedule), and then set Event as the record type. For details, see step 2 in Chapter 5.2 Configuring Recording Schedule.

5.6 Configuring Manual Recording

Purpose

Follow the steps to set parameters for the manual recording. Using manual recording, you need to manually cancel the record. The manual recording is prior to the scheduled recording.

Step 1 Enter the Manual Record interface.

Menu > Manual

Record Analog A1 A2 A3 A4 A5 A6 IP Camera D1 D2 Recording by schedule Recording by manual operation Continuous Motion Detection

Figure 5-21 Manual Record

Step 2 Enable manual record.

Click the status icon before camera number to change it to . ON

Or click the status icon ☑ of Analog to enable manual record of all channels.

Step 3 Disable manual record.

Click the status icon to change it to .

Or click the status icon ON of Analog to disable manual record of all channels.

After rebooting all the manual records enabled are canceled.

5.7 Configuring Holiday Recording

Purpose

Follow the steps to configure the record schedule on holiday for that year. You may want to have different plan for recording on holiday.

Step 1 Enter the Record setting interface.

Menu > Record

Step 2 Choose Holiday on the left bar.

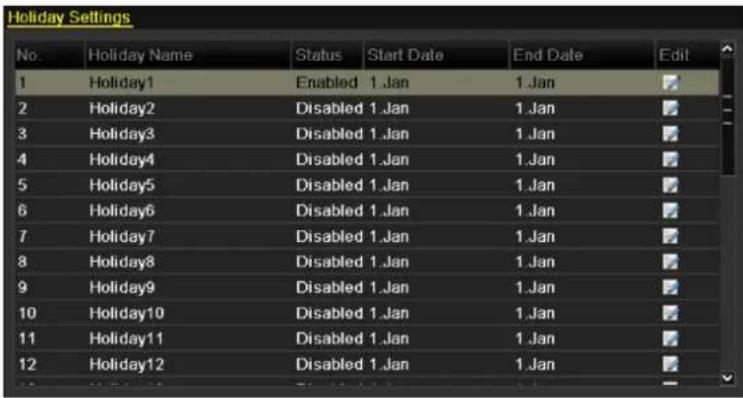

Holiday Settings No.Holiday Name Status Start Date End Date Edit 1 Holiday1 Enabled 1.Jan 1.Jan 2 Holiday2 Disabled 1.Jan 1.Jan 3 Holiday3 Disabled 1.Jan 1.Jan 4 Holiday4 Disabled 1.Jan 1.Jan 5 Holiday5 Disabled 1.Jan 1.Jan 6 Holiday6 Disabled 1.Jan 1.Jan 7 Holiday7 Disabled 1.Jan 1.Jan 8 Holiday8 Disabled 1.Jan 1.Jan 9 Holiday9 Disabled 1.Jan 1.Jan 10 Holiday10 Disabled 1.Jan 1.Jan 11 Holiday11 Disabled 1.Jan 1.Jan 12 Holiday12 Disabled 1.Jan 1.Jan

Figure 5-22 Holiday Settings

Step 3 Enable Edit Holiday schedule.

1) Click to enter the Edit interface.

Edit Holiday Name Holiday1 Enable Mode By Month Start Date Jan 1 End Date Jan 1 Apply OK Cancel

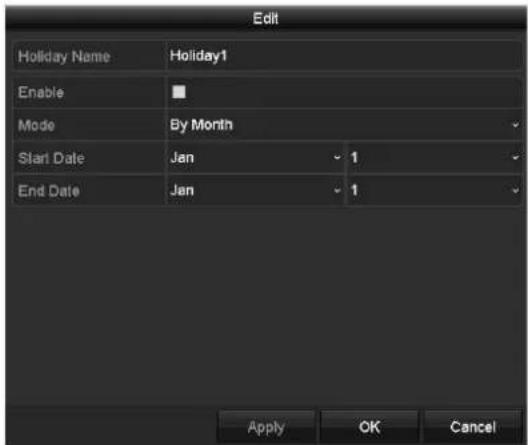

Figure 5-23 Edit Holiday Settings

2) Check the checkbox of Enable.
3) Select Mode from the drop-down list.

There are three different modes for the date format to configure holiday schedule. By Month, By Week, and By Date are selectable.

4) Set the start and end date.
5) Click Apply to save settings.
6) Click OK to exit the Edit interface.

Step 4 Configure the record schedule.

Please refer to the Chapter 5.2 Configuring Recording Schedule, while you may choose Holiday in the Schedule drop-down list, or you can draw the schedule on the timeline of Holiday.

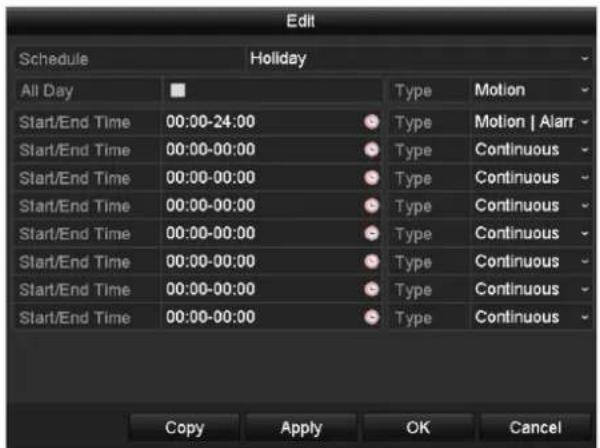

Edit Schedule Holiday All Day Start/End Time 00:00-24:00 Start/End Time 00:00-00:00 Start/End Time 00:00-00:00 Start/End Time 00:00-00:00 Start/End Time 00:00-00:00 Start/End Time 00:00-00:00 Copy Apply OK Cancel Type Type Type Type Type Type Type Continuous Continuous Continuous Continuous Continuous Continuous Continuous Continuous Continuous Continuous Continuous

Figure 5-24 Edit Schedule-Holiday

i NOTE

• Up to 8 periods can be configured for each day. And the time periods cannot be overlapped each other.
• In the time table of the channel, both holiday schedule and normal day schedule are displayed.
• Repeat the above step 4 to set Holiday schedule for other channels. If the holiday schedule can also be used to other channels, click Copy and choose the channel you want to apply the settings.

5.8 Configuring Redundant Recording

Purpose

Enabling redundant recording, which means saving the record files not only in the R/W HDD but also in the redundant HDD, will effectively enhance the data safety and reliability.

Before you start

You must set the Storage mode in the HDD advanced settings to Group before you set the HDD property to Redundant. For detailed information, please refer to Chapter 12.3 Managing HDD Group. There should be at least another HDD which is in Read/Write status.

Step 1 Enter HDD Information interface.

Menu> HDD

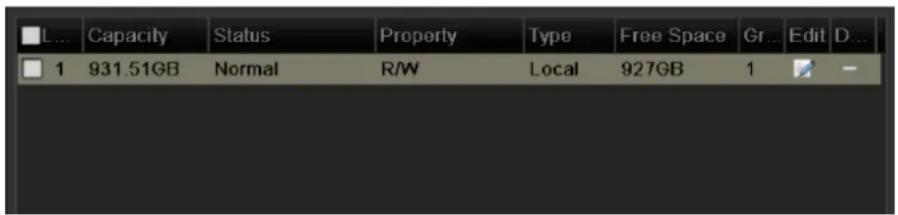

Label Capacity Status Property Type Free Space Group Edit Delete 1 931.51GB Normal R/W Local 865GB 1 - 3 931.51GB Normal R/W Local 931GB 1 -

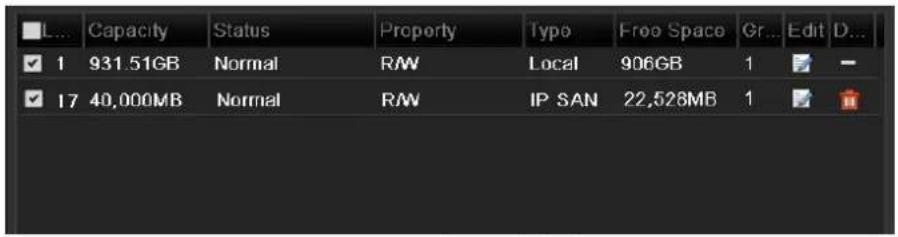

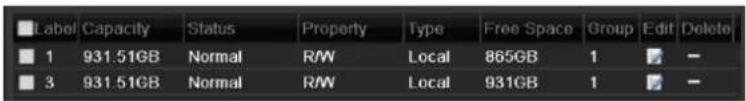

Figure 5-25 HDD General

Step 2 Select the HDD and click to enter the Local HDD Settings interface.

1) Set the HDD property to Redundant.

Local HDD Settings HDD No 1 HDD Property ● R/W ● Read-only ● Redundancy Group ● 1 ● 2 ● 3 ● 4 ● 5 ● 6 ● 7 ● 8 ● 9 ● 10 ● 11 ● 12 ● 13 ● 14 ● 15 ● 16 HDD Capacity 931.51GB Apply OK Cancel

Figure 5-26 HDD General-Editing

2) Click Apply to save the settings.
3) Click OK to back to the upper level menu.

Step 3 Enter the Record setting interface.

Menu> Record> Parameters

1) Select the Record tab.
2) Select Camera you want to configure.
3) Click More Settings button.

More Settings Pre-record 5s Post-record 5s Expired Time (day) 0 Redundant Record Record Audio Video Stream Main Stream OK Back

Figure 5-27 More Settings

4) Check the checkbox of Redundant Record.
5) Click OK to save the settings.
6) If the encoding parameters can also be used to other channels, click Copy and choose the channel you want to apply the settings.

5.9 Configuring HDD Group

Purpose

You can group the HDDs and save the record files in certain HDD group.

Step 1 Enter HDD setting interface.

Menu>HDD>Advanced

Step 2 Select Storage Mode tab.

Check whether the storage mode of the HDD is Group. If not, set it to Group. For detailed information, please refer to Chapter 12.3 Managing HDD Group.

Step 3 Select General in the left bar.

Click to enter editing interface.

Step 4 Configuring HDD group.

1) Choose a group number for the HDD group.
2) Click Apply to save your settings.
3) Click OK to back to the upper level menu.

Step 5 Repeat the above steps to configure more HDD groups.

Step 6 Choose the Channels which you want to save the record files in the HDD group.

1) Enter Storage Mode interface.

Menu>HDD>Advanced> Storage Mode

Record on HDD Group 1 Analog A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 IP Camera D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 D17 D18 D19 D20 D21 D22 D23 D24 D25 D26 D27 D28 D29 D30 D31 D32 Enable HDD Sleeping

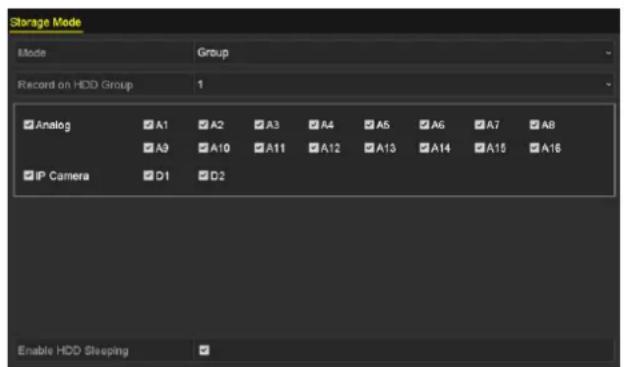

Figure 5-28 HDD Advanced

2) Choose Group number in the drop-down list of Record on HDD Group
3) Check the channels you want to save in this group.
4) Click Apply to save settings.

After you have configured the HDD groups, you can configure the recording settings following the procedure provided in Chapter 5.2-5.7.

5.10 Files Protection

Purpose

You can lock the recorded files or set the HDD property to Read-only to protect the record files from being overwritten.

Protect file by locking the record files

Step 1 Enter Export Settings interface.

Menu> Export

Normal ✓ Analog ✓ A1 ✓ A2 ✓ A3 ✓ A4 ✓ A5 ✓ A6 ✓ A7 ✓ A8 ✓ A9 ✓ A10 ✓ A11 ✓ A12 ✓ A13 ✓ A14 ✓ A15 ✓ A16 ✓ IP Camera ✓ D1 ✓ D2 ✓ D3 ✓ D4 ✓ D5 ✓ D6 ✓ D7 ✓ D8 ✓ D9 ✓ D10 ✓ D11 ✓ D12 ✓ D13 ✓ D14 ✓ D15 ✓ D16 ✓ D17 ✓ D18 Start/End time of record 02-04-2016 13:40:49 -- 02-17-2016 10:23:16 Record Mode Main Stream Record Type All File Type All Start Time 02-17-2016 00:00:00 End Time 02-17-2016 23:59:59

Figure 5-29 Export

Step 2 Select the channels you want to investigate by checking the checkbox to √.

Step 3 Configure the record mode, record type, file type, start time and end time.

Step 4 Click Search to show the results.

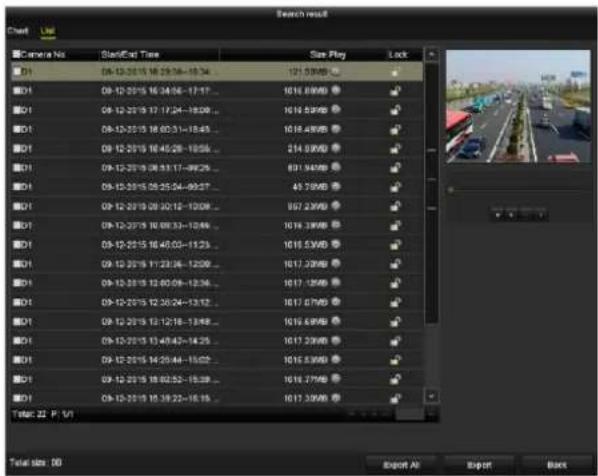

Camere No Standard Time Size Play Lock 01 09-12-2015 16:23:26-18:34 121.57KB 09-12-2015 16:24:26-17:17 1016.89KB 09-12-2015 17:17:24-18:00 1016.89KB 09-12-2015 18:02:31-18:43 1016.48KB 09-12-2015 18:45:26-18:55 214.99KB 09-12-2015 08:33:17-39:25 631.94KB 09-12-2015 08:25:24-39:27 45.76KB 09-12-2015 08:30:15-19:08 857.23KB 09-12-2015 10:08:33-19:46 1016.39KB 09-12-2015 10:45:03-11:23 1016.53KB 09-12-2015 11:23:36-12:00 1017.20KB 09-12-2015 12:00:58-12:34 1017.18KB 09-12-2015 12:35:24-13:12 1017.67KB 09-12-2015 12:12:16-13:48 1016.69KB 09-12-2015 13:49:47-14:25 1017.39KB 09-12-2015 14:25:44-15:02 1016.83KB 09-12-2015 18:02:32-18:38 1016.77KB 09-12-2015 18:38:22-18:15 1017.39KB Total: 22 P.VI Export All Export Back

Figure 5-30 Export-Search Result

Step 5 Protect the record files.

1) Find the record files you want to protect, and then click the 📁 icon which will turn to 🔒, indicating that the file is locked.

The record files of which the recording is still not completed cannot be locked.

2) Click 🔒 to change it to 🔒 to unlock the file and the file is not protected.

Protect file by setting HDD property to Read-only

Before you start

To edit HDD property, you need to set the storage mode of the HDD to Group. See Chapter 12.3 Managing HDD Group.

Step 1 Enter HDD setting interface.

Menu> HDD

Label Capacity Status Property Type Free Space Group Edit Delete 1 931.51GB Normal R/W Local 865GB 1 - 3 931.51GB Normal R/W Local 931GB 1 -

Figure 5-31 HDD General

Step 2 Click to edit the HDD you want to protect.

Local HDD Settings HDD No: 1 HDD Property ● R/W ● Read-only ● Redundancy Group 1 2 3 4 5 6 7 8 ● 9 10 11 12 13 14 15 16 HDD Capacity 931.51GB Apply OK Cancel

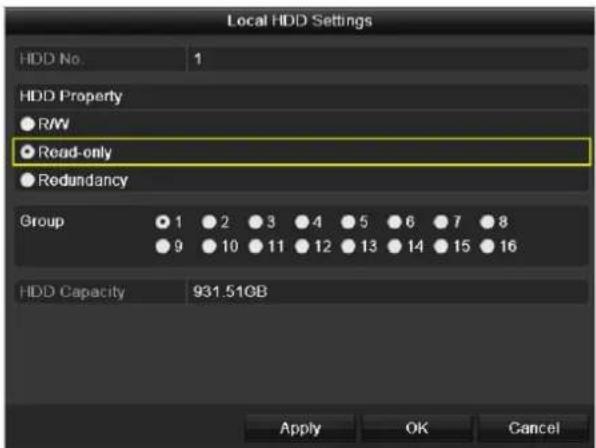

Figure 5-32 HDD General- Editing

Step 3 Set the HDD to Read-only.

Step 4 Click OK to save settings and back to the upper level menu.

i NOTE

• You cannot save any files in a Read-only HDD. If you want to save files in the HDD, change the property to R/W.
• If there is only one HDD and is set to Read-only, the DVR cannot record any files. Only live view mode is available.
• If you set the HDD to Read-only when the DVR is saving files in it, then the file will be saved in next R/W HDD. If there is only one HDD, the recording will be stopped.

5.11 One-Key Enabling and Disabling H.264+ for Analog Cameras

Purpose

You can one-key enable or disable H.264+ for the analog cameras.

Task 1: One-Key Enabling H.264+ for All Analog Cameras

Step 1 Enter the Record menu

Menu > Record

Step 2 Click Advanced to enter the Advanced Settings interface.

Advanced Settings H.264+ for All the Analog Camer... Enable Disable 1080P Lite Mode ✓ Overwrite ✓

Figure 5-33 Advanced Settings

Step 3 Click Enable to enable H.264+ for all the analog cameras and the following attention box pops up.

Attention Enable H.264+ for all analog cameras and reboot the device? Yes No

Figure 5-34 Attention Box

Step 4 Click Yes to enable the function and reboot the device to have new settings taken effect.

If H.264+ is already enabled for all the analog cameras, when you click Enable button, the following attention box pops up to remind you that H.264+ is already enabled for all analog cameras.

Attention H.264+ is enabled for all analog cameras. OK

Figure 5-35 Attention Box

Task 2: One-Key Disabling H.264+ for All Analog Cameras

Step 1 Enter the Record menu

Menu > Record

Step 2 Click Advanced to enter the advanced interface.

Advanced Settings H.264+ for All the Analog Camer... Enable Disable 1080P Lite Mode ✓ Overwrite ✓

Figure 5-36 Advanced Settings

Step 3 Click Disable to disable H.264+ for all the analog cameras and the following attention box pops up.

Attention Disable H.264+ for all analog cameras and reboot the device? Yes No

Figure 5-37 Attention Box

Step 4 Click Yes to enable the function and reboot the device to have new settings taken effect.

If H.264+ is already disabled for all the analog cameras, when you click Disable button, the following attention box pops up to remind you that H.264+ is already disabled for all analog cameras.

Attention H.264+ is disabled for all analog cameras. OK

Figure 5-38 Attention Box

5.12 Configuring 1080P Lite

Purpose

When 1080p lite mode is enabled, the encoding resolution at 1080p lite (real-time) is supported. If not, up to 1080p (non-real-time) is supported.

For DVR-200Q-K1/K2 Series DVR

Task 1: Enabling the 1080P Lite Mode

Step 1 Enter the Record menu

Menu > Record

Step 2 Click Advanced to enter the advanced interface.

Advanced Settings H.264+ for All the Analog Camer... Enable Disable 1080P Lite Mode Overwrite

Figure 5-39 Advanced Interface

Step 3 Check the checkbox of 1080P Lite Mode and click Apply to pop up the attention box. After enabling 1080p lite mode, the 3 MP signal is not accessible to analog channel.

Attention After enabling 1080p lite mode, the 3MP signal is not accessible to analog channel. New settings will take effect after reboot. Click "Yes" to reboot now or "No" to restore the old settings. Yes No

Figure 5-40 Attention

Step 4 Click Yes to reboot the device to have new settings taken effect.

Task 2: Disabling the 1080P Lite Mode

Step 1 Enter the Record menu

Menu > Record

Step 2 Click Advanced to enter the advanced interface.

Step 3 Uncheck the checkbox of 1080P Lite Mode and click Apply. The following attention box pops up:

Attention After disabling 1080p lite mode, the 1080p stream will not be real-time. New settings will take effect after reboot. Click "Yes" to reboot now or "No" to restore the old settings. Yes No

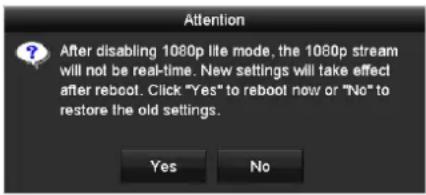

Figure 5-41 Attention

Step 4 Click Yes to reboot the device to activate the new settings or No to restore the old settings.

● For DVR-100G/200G-F1 Series DVR

You can enable 1080p lite mode in two ways.

Task 1: Enabling 1080P Lite Mode in Live View

Step 1 In live view mode, connect 1080p signal to the DVR.

Then the interface as shown below will pop up to remind you to enable 1080p lite mode.

Attention Enable Lite mode to connect the detected 1080p signal input. The action will reduce playback ability. Reboot device to take effect the settings. Continue? Yes No

Figure 5-42 Attention

Step 2 Click Yes to reboot the device and enable 1080p lite mode.

Or click No to cancel it.

i NOTE

• The Attention interface will only pop up in live view mode. If you enter the main menu, it will not pop up. If you exit from the main menu and the device detects the signal, it will pop up.
• When the 1080p signal is connected to multiple channels and the interface already pops up for one channel, the interface will not pop up for other channels.
• If you click No, the interface will not pop up again if you do not disconnect it. If you disconnect it and connect it again, the interface will pop up.
  ● The interface will not disappear if you do not operate.

Task 2: Enabling 1080P Lite Mode in Advanced Settings

Step 1 Enter the Record menu

Menu > Record

Step 2 Click Advanced to enter the advanced interface.

Advanced Settings H.264+ for All the Analog Camer... Enable Disable 1080P Life Mode ✓ Overwrite ✓

Figure 5-43 Advanced Interface

Step 3 Check the checkbox of 1080P Lite Mode.

Step 4 Click Apply and the attention box pops up as below.

Attention The settings will reduce playback ability. Reboot device to take effect the settings? Yes No

Figure 5-44 Attention

Step 5 Click Yes to reboot the device and enable 1080p lite mode.

Task 3: Disabling the 1080P Lite Mode

Step 1 On the Advanced Settings interface, uncheck the checkbox of 1080P Lite Mode.

Step 2 Click Apply and the attention box pops up as below.

Attention New settings will take effect after reboot. Click "Yes" to reboot now or "No" to restore the old settings. Yes No

Figure 5-45 Attention

Step 3 Click Yes on the pop-up interface to reboot the device and disable 1080p lite mode.

Chapter 6 Playback

6.1 Playing Back Record Files

6.1.1 Instant Playback

Purpose

Play back the recorded video files of a specific channel in the live view mode. Channel switch is supported.

Instant playback by channel

Choose a channel in live view mode and click the button in the quick setting toolbar.

In the instant playback mode, only record files recorded during the last five minutes on this channel will be played back.

Four-panel composite image showing a multi-lane highway with vehicles and traffic, no visible text or symbols.

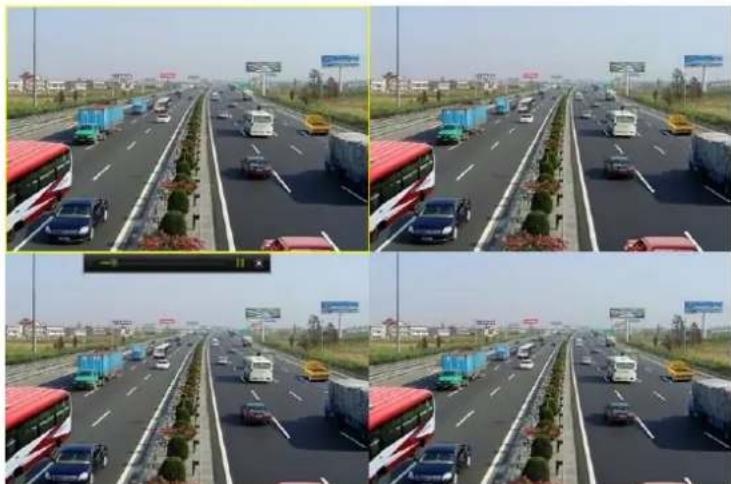

Figure 6-1 Instant Playback Interface

6.1.2 Playing Back by Normal Search

Playback by Channel

Enter the Playback interface.

Right click a channel in live view mode and select Playback from the menu, as shown in the following figure:

Common Menu Menu Single Screen Multi-screen Previous Screen Next Screen Start Auto-switch Start Recording Add IP Camera Playback PTZ Control Output Mode Aux Monitor

Figure 6-2 Right-click Menu under Live View

Playback by Time

Purpose

Play back video files recorded in specified time duration. Multi-channel simultaneous playback and channel switch are supported.

Step 1 Enter Playback interface.

Menu>Playback

Step 2 Check the checkbox of channel(s) in the channel list and then double-click to select a date on the calendar.

Dec 2014 S M T W T F S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 _______________________________

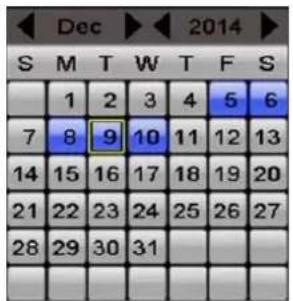

Figure 6-3 Playback Calendar

If there are record files for that camera in that day, in the calendar, the icon for that day is displayed as . Otherwise it is displayed as .

Playback Interface

You can select the main stream or sub stream from the drop-down list for playback.

You can also use the toolbar in the bottom part of Playback interface to control playing progress, as shown in the following figure.

Normal Main Stre... Max. Ca... Min. Ca... Camera 01 Camera 02 Camera 03 Camera 04 Camera 05 Camera 06 Camera 07 Camera 08 Jul 2015 S M T W T F S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 01:01:2015 00:00:23 - 14:07:2015 14:20:21 11:02:02 normal event

Figure 6-4 Playback Interface

Select the channel(s) if you want to switch playback to another channel or execute simultaneous playback of multiple channels.

01-01-2015 00:00:23 - 14-07-2015 16:10:27 00:01:12 Normal Event

Figure 6-5 Toolbar of Playback

Table 6-1 Detailed Explanation of Playback Toolbar

Button	Operation	Button	Operation	Button	Operation
	Audio on/Mute		Start/Stop clipping	[83K4]	Lock File
[CYA]	Add default tag	[2660]	Add customized tag	[CW03]	File management for video clips,locked files and tags
	Reverse play/Pause	[T5BH]	Stop	[77BH]	Digital Zoom
	30s forward		30s reverse		Pause/Play
	Fast forward		Previous day		Slow forward
	Full Screen	[ZXGA]	Exit		Next day
[172T]	Save the clips	[4XS4]	Process bar	[KSDY]	Scaling up/down the time line

i NOTE

• The 01-08-2015 60:30:33 + 67:07:36 and 69:12:37 d time of the record files.
• represents normal recording (manual or schedule); ■ represents event recording (motion, alarm, motion | alarm, motion & alarm).
• Playback progress bar: use the mouse to click any point of the progress bar to locate special frames.

6.1.3 Playing Back by Event Search

Purpose

Play back record files on one or several channels searched out by restricting event type (motion detection, alarm input or VCA). Channel switch is supported.

Step 1 Enter the Playback interface.

Menu>Playback

Step 2 Click Normal and select Event to enter the Event Playback interface.

Step 3 Select Alarm Input, Motion, VCA as the event type, and specify the start time and end time for search.

Major Ty... Motion Camera Camera 01 Camera 02 Camera 03 Camera 04 Camera 05 Camera 06 Camera 07 Start Time 14-07-2015 00:00:00 End Time 14-07-2015 23:59:59 Search

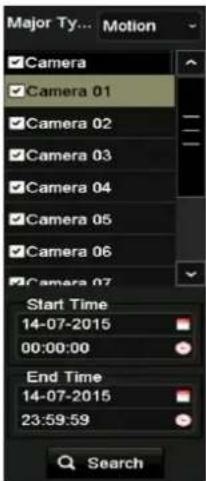

Figure 6-6 Video Search by Motion Detection

Step 4 Click Search, and the record files matching the search conditions will be displayed on a list.

Step 5 Select and click button to play back the record files.

You can click Back button to return to the search interface.

If there is only one channel triggered, clicking 📷 button takes you to Full-screen Playback interface of this channel.

If several channels are triggered, clicking 📋 button takes you to the Synchronous Playback interface. Check ⚙ checkbox to select one channel for playback or select multiple channels for synchronous playback.

The maximum number of channels for synchronous playback supported varies to different models.

Synch Playback Analog A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 OK Cancel

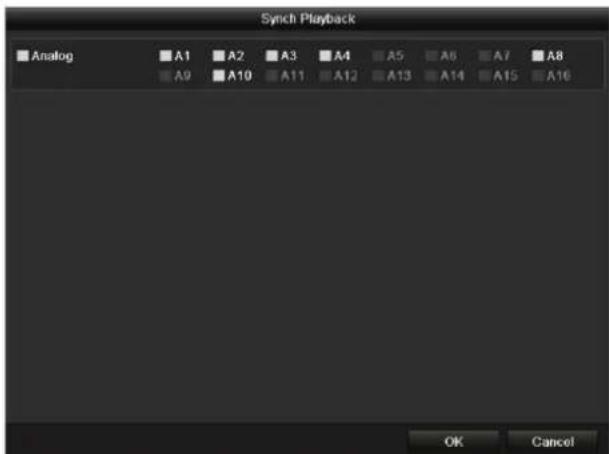

Figure 6-7 Select Channels for Synchronous Playback

Step 6 On the Event Playback interface, you can select the main stream or sub-stream from the drop-down list for playback.

The toolbar in the bottom part of Playback interface can be used to control playing process.

Event Main Stre Source Start Time Play D1 16:30:30 D1 16:35:50 D1 16:36:37 D1 16:37:39 D1 16:38:06 D1 16:39:26 D1 16:39:54 D1 16:43:02 D1 16:47:49 D1 16:54:20 D1 16:55:51 D1 16:59:11 D1 17:13:20 D1 17:13:49 D1 17:29:38 D1 47:49:07 Total: 225 P: 1/3 Pre-play 30s Post-play 30s Back

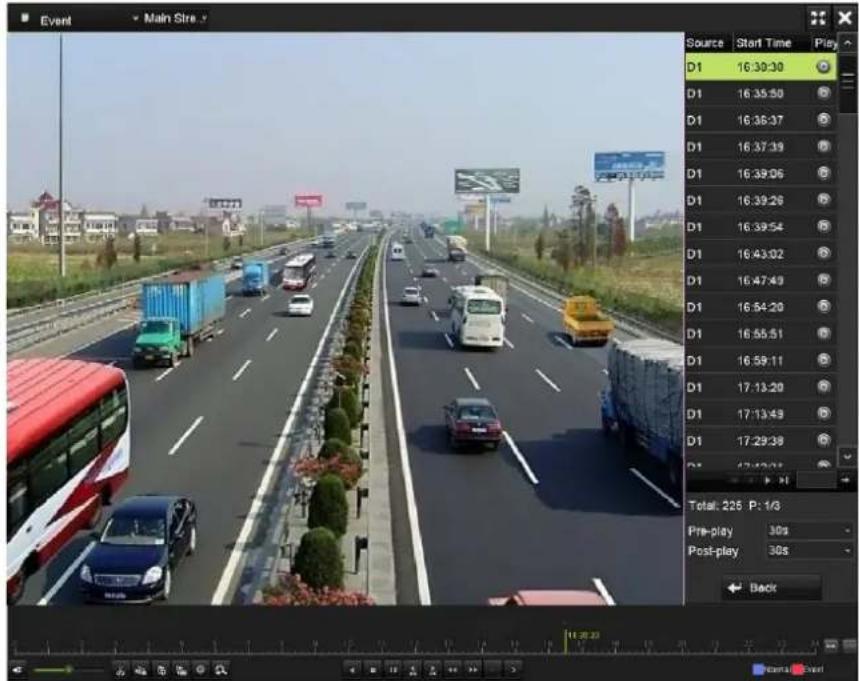

Figure 6-8 Interface of Playback by Event

Pre-play and post-play can be configured for the playback of event triggered record files.

Pre-play: The time you set to play back before the event. For example, when an alarm triggered the recording at 10:00, if you set the pre-play time as 5 seconds, the video plays back from 9:59:55.

Post-play: The time you set to play back after the event. For example, when an alarm triggered the recording ends at 11:00, if you set the post-play time as 5 seconds, the video plays back till 11:00:05.

Step 7 You can click < or > button to select the previous or next event. Please refer to Table 6-1 for the description of buttons on the toolbar.

6.1.4 Playing Back by Tag

Purpose

Video tag allows you to record related information like people and location of a certain time point during playback. You are also allowed to use video tag(s) to search for record files and position time point.

Before playing back by tag

Step 1 Enter Playback interface.

Menu>Playback

Step 2 Search and play back the record file(s). Refer to Chapter 6.1.2 Playing Back by Normal Search for the detailed information about searching and playback of the record files.

Normal Main Stre... Max. Ca... Min. Ca... Camera 01 Camera 02 Camera 03 Camera 04 Camera 05 Camera 06 Camera 07 Camera 08 Jul 2015 S M T W T F S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 01-01-2015 00:00:23 - 14-07-2015 14:20:21 11:03:02 Normal Event

Figure 6-9 Interface of Playback by Time

Click Button to add default tag.

Click 📄 button to add customized tag and input tag name.

Add Tag Tag Time 09-12-2015 08:53:41 Tag Name 1 OK Cancel

Figure 6-10 Add Tag

Max. 64 tags can be added to a single video file.

Step 3 Tag management.

Click 📄 button to check, edit and delete tag(s).

File Management Video Clips Locked File Tag Cam... Tag Name Time Edit Delete A1 TAG 13-07-2015 11:01:00 A1 TAG 13-07-2015 11:01:01 A1 TAG 13-07-2015 11:01:03 A1 TAG 13-07-2015 11:01:05 A1 TAG 13-07-2015 11:01:06 Total: 5 P: 1/1 Cancel

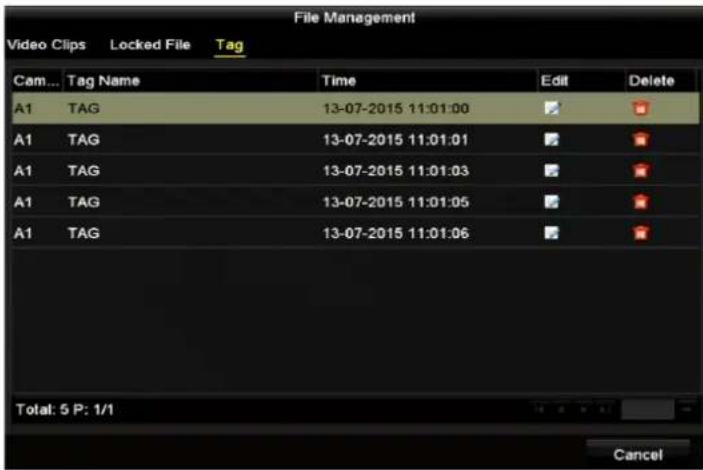

Figure 6-11 Tag Management Interface

Steps

Step 1 Select Tag from the drop-down list in the Playback interface.

Step 2 Choose channels, edit start time and end time, and then click Search to enter Search Result interface.

You can enter keyword in the textbox Keyword to search the tag on your command.

Tag Main Stre... Ca... Tag Name Play A1 TAG A1 TAG A1 TAG A1 TAG Total: 5 P: 1/1 Pre-play 30s Post-play 30s Back

Figure 6-12 Video Search by Tag

Step 3 Click Button to play back the file.

You can click the Back button to return to the search interface.

i NOTE

● Pre-play and post-play can be configured.
- You can click 📄 button to select the previous or next tag. Please refer to Table 6-1 for the description of buttons on the toolbar.

6.1.5 Playing Back by Smart Search

Purpose

The smart playback function provides an easy way to get through the less effective information. When you select the smart playback mode, the system will analyze the video containing the motion or VCA information, mark it with green color and play it in the normal speed while the video without motion will be played in the 16-time speed. The smart playback rules and areas are configurable.

Before you start

To get the smart search result, the corresponding event type must be enabled and configured on the IP camera. Here we take the intrusion detection as an example.

Step 1 Log in the IP camera by the web browser, and enable the intrusion detection by checking the checkbox of it. You may enter the motion detection configuration interface by Configuration > Advanced Configuration > Events > Intrusion Detection.

Motion Detection Video Tampering Alarm Input Alarm Output Exception Face Detection Audio Exception Detection Intrusion Detection Defocus Detection Scene Change Detection Enable Intrusion Detection

Figure 6-13 Setting Intrusion Detection on IP Camera

Step 2 Configure the required parameters of intrusion detection, including area, arming schedule and linkage methods. Refer to the user manual of smart IP camera for detailed instructions.

Steps

Step 1 Enter the Playback interface.

Menu>Playback

Step 2 Select the Smart in the drop-down list on the top-left side.

Step 3 Select a camera in the camera list.

Smart Main Stre... Camera 01 Camera 02 Camera 03 Camera 04 Camera 05 Camera 06 Camera 07 Camera 08 Camera 09 Jan 2016 S M T W T F S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 03-22-1970 17:24.02 - 01-26-2016 20:06.45 05:31:15 Normal Event Smart

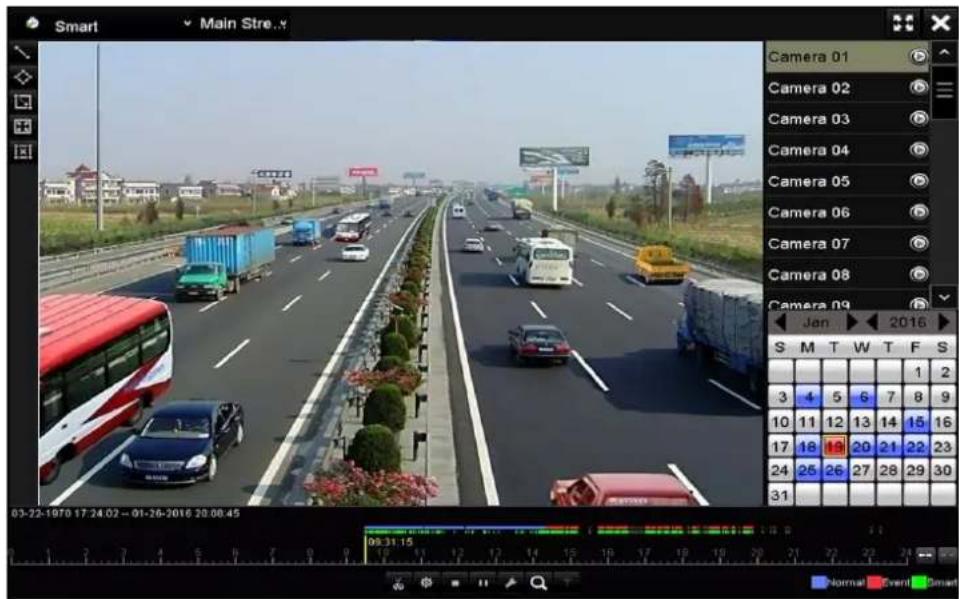

Figure 6-14 Smart Playback Interface

Step 4 Select a date in the calendar and click the 📄 button to play.

Refer to Table 6-2 for the descriptions of the buttons on the Smart Playback Toolbar.

Table 6-2 Detailed Explanation of Smart Playback Toolbar

Button	Operation	Button	Operation	Button	Operation
	Draw line for the line crossing detection		Draw quadrilateral for the intrusion detection		Draw rectangle for the intrusion detection
	Set full screen for motion detection		Clear all		Start/Stop clipping
	File management for video clips	[4840]	Stop playing	[606G]	Pause playing /Play
	Smart settings		Search matched video files		Filter video files by setting the target
					characters

Step 5 Set the rules and areas for smart search of VCA event or motion event.

● Line Crossing Detection

Select the button, and click on the image to specify the start point and end point of the line.

- Intrusion Detection

Click the button, and specify 4 points to set a quadrilateral region for intrusion detection. Only one region can be set.

- Motion Detection

Click the 📄 button and then click and draw the mouse to set the detection area manually. You can also click the 📄 button to set the full screen as the detection area.

Step 6 Click ☐ configure the smart settings.

Smart Settings Skip the Non-R... Play Non-Relat... 8 Play Related VI... 1 Pre-play (s) 5 Post-play (s) 5 OK Cancel

Figure 6-15 Smart Settings

Skip the Non-Related Video: The non-related video will not be played if this function is enabled.

Play Non-Related Video at: Set the speed to play the non-related video. Max. 8/4/2/1 are selectable.

Play Related Video at: Set the speed to play the related video. Max. 8/4/2/1 are selectable.

Pre-play and post-play is not available for the motion event type.

Step 7 Click search and play the matched video files.

Step 8 (Optional) You can click 📋 to filter the searched video files by setting the target characters, including the gender and age of the human and whether he/she wears glasses.

Result Filter ✓ Enable Gender All Ages All Glasses All OK Cancel

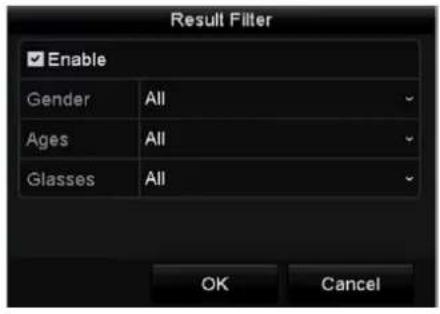

Figure 6-16 Set Result Filter

The Result Filter function is supported by the IP camera only.

6.1.6 Playing Back by System Logs

Purpose

Play back record file(s) associated with channels after searching system logs.

Step 1 Enter Log Information interface.

Menu>Maintenance>Log Information

Log Search Start Time 01-07-2015 00:00:00 End Time 16-07-2015 23:59:59 Major Type All ✓Minor Type ✓Alarm Input ✓Alarm Output ✓Motion Detection Started ✓Motion Detection Stopped ✓Video Tampering Detection Started ✓Video Tampering Detection Stopped ✓Video Quality Diagnostics Alarm Started ✓Video Quality Diagnostics Alarm Stopped ✓Line Crossing Detection Alarm Started Export All Search Back

Figure 6-17 System Log Search Interface

Step 2 Click Log Search tab to enter System Log Search interface.

Set search time and type and click Search button.

Search Result No. Major Type Time Minor Type Parameter Play Details 1 Information 10-07-2015 09:53:59 Local HDD Infor... N/A 2 Operation 10-07-2015 09:53:59 Power On N/A 3 Information 10-07-2015 09:54:05 Start Recording N/A 4 Operation 10-07-2015 09:54:08 Local Operation... N/A 5 Information 10-07-2015 09:54:25 HDD S.M.A.R.T. N/A 6 Information 10-07-2015 09:54:32 Start Recording N/A 7 Operation 10-07-2015 09:54:32 Local Operation... N/A 8 Operation 10-07-2015 09:54:32 Local Operation... N/A 9 Exception 10-07-2015 09:55:32 IP Camera Disco... N/A 10 Information 10-07-2015 10:04:09 System Running... N/A Total: 1690 P: 1/17 Export Back

Figure 6-18 Result of System Log Search

Step 3 Choose a log with record file and click 📋 button to enter Playback interface.

If there is no record file at the time point of the log, the message box "No result found" will pop up.

Step 4 Playback management.

The toolbar in the bottom part of Playback interface can be used to control playing process.

Highway scene with multiple vehicles and a red double-decker bus, no visible text or symbols

Figure 6-19 Interface of Playback by Log

6.1.7 Playing Back by Sub-Periods

Purpose

The video files can be played in multiple sub-periods simultaneously on the screens.

Step 1 Enter Playback interface.

Menu>Playback

Step 2 Select Sub-periods from the drop-down list in the upper-left corner of the page to enter the Sub-periods Playback interface.

Step 3 Select a date and start playing the video file.

Step 4 Select the Split-screen Number from the drop-down list. Up to 16 screens are configurable.

Sub-periods Main Stre 12-05-2014 Fri 12:05:09 12-05-2014 Fri 15:04:4 Camera 01 Camera 02 Camera 03 Camera 04 Camera 05 Camera 06 Camera 07 12-05-2014 Fri 18:02:54 12-05-2014 Fri 21:01:2 Split-scr... 4 Jul 2015 S M T W T F S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 12-05-2014 12-04:30 - 18-07-2015 13:57:22 Normal Event

Figure 6-20 Interface of Sub-periods Playback

NOTE

According to the defined number of split-screens, the video files on the selected date can be divided into average segments for playback. E.g., if there are video files existing between 16:00 and 22:00, and the 6-screen display mode is selected, then it can play the video files for 1 hour on each screen simultaneously.

6.1.8 Playing Back External File

Purpose

Perform the following steps to look up and play back files in the external devices.

Step 1 Enter the Playback interface.

Menu>Playback

Step 2 Select the External File in the drop-down list on the top-left side.

The files are listed in the right-side list.

You can click the Refresh to refresh the file list.

Step 3 Select and click the button to play back it.

External File Device USB Flast - Name File Type *.mp4 Name Play Final Data ch01_20150... ch02_20150... Refresh

Figure 6-21 Interface of External File Playback

6.2 Auxiliary Functions of Playback

6.2.1 Playing Back Frame by Frame

Purpose

Play video files frame by frame, in order to check image details of the video when abnormal events happen.

Step 1 Go to Playback interface and click button until the speed changes to Single frame.

Step 2 One click on the playback screen represents playback or adverse playback of one frame. You can use button in toolbar to stop the playing.

6.2.2 Digital Zoom

Step 1 Click the button on the playback control bar to enter Digital Zoom interface.

Step 2 Use the mouse to draw a red rectangle and the image within it will be enlarged up to 16 times.

Highway scene with vehicles and trucks, residential buildings in background (no visible text or symbols)

Figure 6-22 Draw Area for Digital Zoom

Step 3 Right-click the image to exit the digital zoom interface.

6.2.3 Reverse Playback of Multi-Channel

Purpose

You can play back record files of multi-channel reversely. Up to 16-ch simultaneous reverse playback is supported.

Step 1 Enter Playback interface.

Menu>Playback

Step 2 Check more than one checkboxes to select multiple channels and click to select a date on the calendar.

Normal Max. Ca... Min. Ca... Camera 01 Camera 02 Camera 03 Camera 04 IPdome Apr • 2015 S M T W T F S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 15-08-2014 05:32:48 - 02-04-2015 10:11:42 16:11:12 Normal Event

Figure 6-23 4-ch Synchronous Playback Interface

Step 3 Click 1 play back the record files reversely.

Chapter 7 Backup

7.1 Backing up Record Files

Before you start

Please insert the backup device(s) into the device.

7.1.1 Backing up by Normal Video Search

Purpose

The record files can be backed up to various devices, such as USB devices (USB flash drives, USB HDDs, USB writer), SATA writer and e-SATA HDD.

Backup using USB flash drives and USB HDDs

Step 1 Enter Export interface.

Menu>Export>Normal/Picture

Step 2 Select the cameras to search.

Step 3 Set search condition and click Search button to enter the search result interface.

Normal ✓ Analog ✓ A1 ✓ A2 ✓ A3 ✓ A4 ✓ A5 ✓ A6 ✓ A7 ✓ A8 ✓ IP Camera ✓ D1 ✓ D2 Start/End time of record 01-01-2015 00:00:23 - 16-07-2015 15:09:21 Record Mode Main Stream Record Type All File Type All Start Time 01-07-2015 00:00:00 End Time 16-07-2015 23:59:59 Search Back

Figure 7-1 Normal Video Search for Backup

Step 4 The matched video files are displayed in Chart or List display mode.

Click ☐ to play the record file if you want to check it.

Check the checkbox before the video files you want to back up.

The size of the currently selected files is displayed in the lower-left corner of the window.

Search result Chart List Camera No. Start/End Time Size Play Lock A1 10-07-2015 09:54:05.... 589.39MB A1 10-07-2015 16:18:30.... 24.41MB A1 13-07-2015 11:00:53.... 412.54MB A1 13-07-2015 16:54:28.... 577.05MB A1 13-07-2015 22:31:39.... 1014.32MB A1 14-07-2015 08:25:26.... 605.48MB A1 14-07-2015 14:20:28.... 408.62MB A1 14-07-2015 16:19:57.... 1014.42MB A1 15-07-2015 04:11:25.... 1014.38MB A1 15-07-2015 13:59:43.... 1014.12MB A1 15-07-2015 23:47:30.... 1014.20MB A1 16-07-2015 09:40:23.... 683.24MB A2 13-07-2015 16:54:28.... 1567.70KB Total: 99 P: 1/1 Total size: 0B Export All Export Back

Figure 7-2 Result of Normal Video Search for Backup

Step 5 Select video files from the Chart or List to export, and click the button Export to enter the Export interface.

You can also click Export All to select all the video files for backup and enter the Export interface.

Export Device Name USB Flash Disk 1-1 *.mp4;*.zip Refresh SaveType MP4 Name Size Type Edit Date Delete Play Final Data Folder 01-12-2013 09:29:56 ch01_2015071600... 992.56MB File 16-07-2015 14:12:16 ch02_2015071613... 76.55MB File 16-07-2015 14:13:22 Free Space 6357.23MB New Folder Format Export Back

Figure 7-3 Export by Normal Video Search with USB Flash Disk

Step 6 Select the backup device from the drop-down list and you can also select the file format to filter the files existing in the backup device.

Step 7 Select the saving type.

Step 8 Click the Export button on the Export interface to start the backup process.

1) On the pop-up message box, click the radio button to export the video files, log or the player to the backup device.

2) Click OK to confirm it.

Export Video and log Video and Pla... Player OK Cancel

Figure 7-4 Backup

Step 9 A prompt message will pop up after the backup process is complete. Click OK to confirm it.

Export Export finished. OK

Figure 7-5 Export Finished

NOTE

The backup of pictures using USB writer or SATA writer has the same operating instructions. Please refer to steps described above.

7.1.2 Backing up by Event Search

Purpose

Back up event-related record files using USB devices (USB flash drives, USB HDDs, USB writer), or SATA writer. Quick Backup and Normal Backup are supported.

Step 1 Enter Export interface.

Menu > Export > Event

Step 2 Select the cameras to search.

Step 3 Select the event type to alarm input, motion, or VCA.

Event Major Type Motion Record Mode Main Stream Start Time 02-17-2016 00:00:00 End Time 02-17-2016 23:59:59 Pre-play 30s Post-play 30s ✓ Analog ✓ A1 ✓ A2 ✓ A3 ✓ A4 ✓ A5 ✓ A6 ✓ A7 ✓ A8 ✓ A9 ✓ A10 ✓ A11 ✓ A12 ✓ A13 ✓ A14 ✓ A15 ✓ A16 ✓ IP Camera ✓ D1 ✓ D2 ✓ D3 ✓ D4 ✓ D5 ✓ D6 ✓ D7 ✓ D8 ✓ D9 ✓ D10 ✓ D11 ✓ D12 ✓ D13 ✓ D14 ✓ D15 ✓ D16 ✓ D17 ✓ D18 Search Back

Figure 7-6 Event Search for Backup

Step 4 Set search condition and click Search button to enter the search result interface. The matched video files are displayed in Chart or List display mode.

Step 5 Select video files from the Chart or List interface to export.

Search result Chart List Source Camera No: HDD Event Time Size Play D1 D1 1 13-07-2015 17:51:48-... 4535.04KB D1 D1 1 13-07-2015 17:57:53-... 2452.46KB D1 D1 1 13-07-2015 17:59:32-... 2673.78KB D1 D1 1 13-07-2015 18:00:08-... 2468.02KB D1 D1 1 13-07-2015 18:00:47-... 2485.31KB D1 D1 1 13-07-2015 18:01:57-... 2459.40KB D1 D1 1 13-07-2015 18:04:53-... 2528.10KB D1 D1 1 13-07-2015 18:06:21-... 2608.41KB D1 D1 1 13-07-2015 18:06:43-... 2826.09KB D1 D1 1 13-07-2015 18:07:25-... 3128.92KB D1 D1 1 13-07-2015 18:07:59-... 3160.69KB D1 D1 1 13-07-2015 18:08:35-... 2892.27KB D1 D1 1 13-07-2015 18:13:56-... 3035.90KB Total: 569 P: 1/6 Total size: 0B Export All Export Back

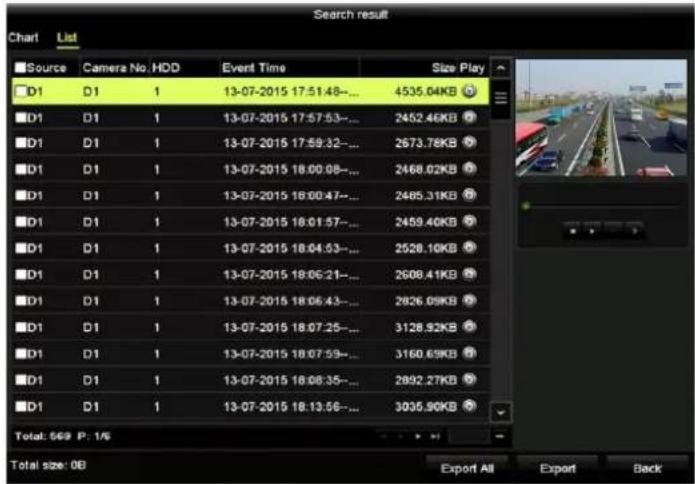

Figure 7-7 Result of Event Search

Step 6 Export the video files. Please refer to step5 of Chapter 7.1.1 Backing up by Normal Video Search for details.

7.1.3 Backing up Video Clips

Purpose

You may also select video clips in playback mode to export directly during Playback, using USB devices (USB flash drives, USB HDDs, USB writer), or SATA writer.

Step 1 Enter Playback interface.

Step 2 During playback, use buttons 📋 or 📋 in the playback toolbar to start or stop clipping record file(s).

Step 3 Click enter the file management interface.

File Management Video Clips Locked File Tag Camera No. Start/End Time Size D1 01-14-2015 22:15:22--22:15:22 62.97KB D1 01-14-2015 22:15:24--22:15:24 90.58KB D1 01-14-2015 22:15:25--22:15:26 180.88KB Total: 3 P: 1/1 Total size: 0B Export All Export Cancel Camera with clip recording: 1 Start time: 01-14-2015 22:15:22 End time: 01-14-2015 22:15:22 Selected clips: 0

Figure 7-8 Video Clips Export Interface

Step 4 Export the video clips in playback. Please refer to step5 of Chapter 7.1.1 Backing up by Normal Video Search for details.

7.2 Managing Backup Devices

Management of USB flash drives and USB HDDs

Step 1 Enter the Export interface.

Export Device Name USB Flash Disk 1-1 *.mp4;*.zip Refresh SaveType MP4 Name Size Type Edit Date Delete Play Final Data Folder 01-12-2013 09:29:56 ch01_2015071600... 992.56MB File 16-07-2015 14:12:16 ch02_2015071613... 76.55MB File 16-07-2015 14:13:22 Free Space 6357.23MB New Folder Format Export Back

Figure 7-9 Storage Device Management

Step 2 Backup device management.

Click New Folder button if you want to create a new folder in the backup device.

Select a record file or folder in the backup device and click button if you want to delete it.

Click Erase button if you want to erase the files from a re-writable CD/DVD.

Click Format button to format the backup device.

i NOTE

If the inserted storage device is not recognized:

• Click the Refresh button.
• Reconnect device.
• Check for compatibility from vendor.

Chapter 8 Alarm Settings

8.1 Setting Motion Detection

Step 1 Enter Motion Detection interface of Camera Management and select a camera you want to set motion detection.

Menu> Camera> Motion

Motion Detection Camera [A1] Camera 01 Enable Motion Detection Settings Sensitivity Full Screen Clear

Figure 8-1 Motion Detection Setup Interface

Step 2 Set detection area and sensitivity.

Check checkbox to enable motion detection. Use the mouse to draw detection area(s) or click Full Screen to set the detection area to be the full screen and drag the sensitivity bar to set sensitivity.

Click 📄 to set alarm response actions.

Motion Detection Camera [A1] Camera 01 Enable Motion Detection Settings Sensitivity Full Screen Clear

Figure 8-2 Set Detection Area and Sensitivity

Step 3 Click Trigger Channel tab and select one or more channels which will start to record or become full-screen monitoring when motion alarm is triggered.

Settings Trigger Channel Arming Schedule Linkage Action Analog A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16

Figure 8-3 Set Trigger Camera of Motion Detection

Step 4 Set arming schedule of the channel.

Select Arming Schedule tab to set the channel's arming schedule.

Choose one day of a week and up to eight time periods can be set within each day. Or you can click the Copy button to copy the time period settings to other day(s).

Time periods shall not be repeated or overlapped.

Settings Trigger Channel Arming Schedule Linkage Action Week Mon 1 00:00-24:00 2 00:00-00:00 3 00:00-00:00 4 00:00-00:00 5 00:00-00:00 6 00:00-00:00 7 00:00-00:00 8 00:00-00:00 Copy Apply OK Cancel

Figure 8-4 Set Arming Schedule of Motion Detection

Step 5 Click Linkage Action tab to set up alarm response actions of motion alarm (please refer to Chapter 8.7 Setting Alarm Response Actions).

Repeat the above steps to set up arming schedule of other days of a week.

Click the OK button to complete the motion detection settings of the channel.

Step 6 If you want to set motion detection for another channel, repeat the above steps or just copy the above settings to it.

You are not allowed to copy the "Trigger Channel" action.

8.2 Setting Sensor Alarms

Purpose

Set up handling method of an external sensor alarm.

Step 1 Enter Alarm Settings of System Configuration and select an alarm input.

Menu> Configuration> Alarm

Select Alarm Input tab to enter Alarm Input Settings interface.

Alarm Status Alarm Input Alarm Output Alarm Input List Alarm Input No. Alarm Name Alarm Type 10.16.1.250:8000<-1 N.O 10.16.1.250:8000<-2 N.O 10.16.1.250:8000<-3 N.O 10.16.1.250:8000<-4 N.O 10.16.1.250:8000<-5 N.O Alarm Output List Alarm Output No. Alarm Name Dwell Time 10.16.1.250:8000->1 5s 10.16.1.250:8000->2 5s

Figure 8-5 Alarm Status Interface of System Configuration

Step 2 Set the handling method of the selected alarm input.

Check the Enable checkbox and click 📋 button to set its alarm response actions.

Alarm Input No. 10.16.1.250:6000<-1 Alarm Name Type N.O Enable ✓ Settings ●

Figure 8-6 Alarm Input Settings Interface

Step 3 Select Trigger Channel tab and select one or more channels which will start to record or become full-screen monitoring when an external alarm input is triggered.

Step 4 Select Arming Schedule tab to set the channel's arming schedule.

Choose one day of a week and max. eight time periods can be set within each day.

Time periods shall not be repeated or overlapped.

Settings Trigger Channel Arming Schedule Linkage Action PTZ Linking Week Mon 1 00:00-24:00 2 00:00-00:00 3 00:00-00:00 4 00:00-00:00 5 00:00-00:00 6 00:00-00:00 7 00:00-00:00 8 00:00-00:00 Copy Apply OK Cancel

Figure 8-7 Set Arming Schedule of Alarm Input

Step 5 Select Linkage Action tab to set up alarm response actions of the alarm input (please refer to Chapter 8.7 Setting Alarm Response Actions).

Repeat the above steps to set up arming schedule of other days of a week. You can also use Copy button to copy an arming schedule to other days.

Step 6 If necessary, select PTZ Linking tab and set PTZ linkage of the alarm input.

Set PTZ linking parameters and click the OK button to complete the settings of the alarm input.

Please check whether the PTZ or speed dome supports PTZ linkage.

One alarm input can trigger presets, patrol or pattern of more than one channel. But presets, patrols and patterns are exclusive.

Settings Trigger Channel Arming Schedule Linkage Action PTZ Linking PTZ Linking [A1] Camera 01 Call Preset ● Preset 1 Call Patrol ● Patrol 1 Call Pattern ● Pattern 1 Apply OK Cancel

Figure 8-8 Set PTZ Linking of Alarm Input

Step 7 If you want to set handling action of another alarm input, repeat the above steps or just copy the above settings to it.

Copy Alarm Input to ✓Alarm Input No. Alarm Name 10.16.1.250:8000<-1 10.16.1.250:8000<-2 10.16.1.250:8000<-3 10.16.1.250:8000<-4 10.16.1.250:8000<-5 10.16.1.250:8000<-6 10.16.1.250:8000<-7 OK Cancel

Figure 8-9 Copy Settings of Alarm Input

8.3 Detecting Video Loss

Purpose

Detect video loss of a channel and take alarm response action(s).

Step 1 Enter Video Loss interface of Camera Management and select a channel you want to detect.

Menu> Camera> Video Loss

Video Loss Camera [A1] Camera 01 Enable Video Loss Alarm Settings

Figure 8-10 Video Loss Setup Interface

Step 2 Set up handling method of video loss.

Check the checkbox of Enable Video Loss Alarm.

Click Button to set up handling method of video loss.

Step 3 Set arming schedule of the channel.

Select Arming Schedule tab to set the channel's arming schedule.

Choose one day of a week and up to eight time periods can be set within each day. Or you can click the Copy button to copy the time period settings to other day(s).

Time periods shall not be repeated or overlapped.

Settings Arming Schedule Linkage Action Week Mon 1 00:00-24:00 2 00:00-00:00 3 00:00-00:00 4 00:00-00:00 5 00:00-00:00 6 00:00-00:00 7 00:00-00:00 8 00:00-00:00 Copy Apply OK Cancel

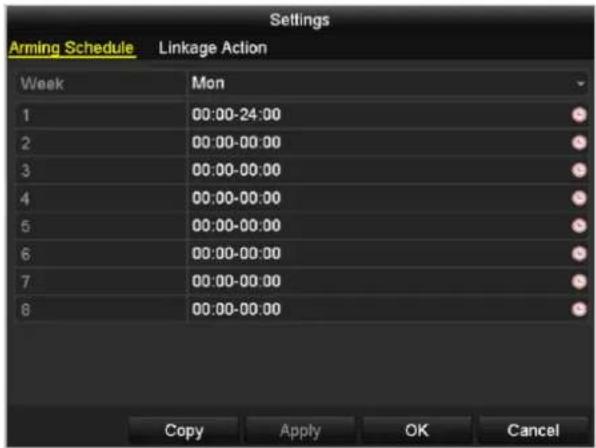

Figure 8-11 Set Arming Schedule of Video Loss

Repeat the above steps to set arming schedule of other days of a week. You can also use Copy button to copy an arming schedule to other days.

Step 4 Select Linkage Action tab to set up alarm response action of video loss (please refer to Chapter 8.7 Setting Alarm Response Actions).

Step 5 Click the OK button to complete the video loss settings of the channel.

Repeat the above steps to finish settings of other channels, or click the Copy button copy the above settings to them.

8.4 Detecting Video Tampering

Purpose

Trigger alarm when the lens is covered and take alarm response action(s).

Step 1 Enter Video Tampering interface of Camera Management and select a channel you want to detect video tampering.

Menu> Camera> Video Tampering Detection

Video Tampering Detection Settings Camera [D1] IPdome Enable Video Tampering Detect... Settings Sensitivity

Figure 8-12 Video Tampering Interface

Step 2 Check the checkbox of Enable Video Tampering Detection.

Step 3 Drag the sensitivity bar and choose a proper sensitivity level.

Step 4 Click 🙏 to set handling method of video tampering. Set arming schedule and alarm response actions of the channel.

1) Click Arming Schedule tab to set the arming schedule of response action.

2) Choose one day of a week and up to eight time periods can be set within each day.

Time periods shall not be repeated or overlapped.

Settings Arming Schedule Linkage Action Week Mon 1 00:00-24:00 2 00:00-00:00 3 00:00-00:00 4 00:00-00:00 5 00:00-00:00 6 00:00-00:00 7 00:00-00:00 8 00:00-00:00 Copy Apply OK Cancel

Figure 8-13 Set Arming Schedule of Video Tampering

3) Select Linkage Action tab to set alarm response actions of video tampering alarm (please refer to Chapter 8.7 Setting Alarm Response Actions).

Repeat the above steps to set arming schedule of other days of a week. You can also use Copy button to copy an arming schedule to other days.

4) Click the OK button to complete the video tampering settings of the channel.

Repeat the above steps to finish settings of other channels, or click the Copy button copy the above settings to them.

Step 5 Click the Apply button to save and activate the settings.

8.5 Setting All-day Video Quality Diagnostics

Purpose

The device provides two ways to diagnose the video quality: manual and all-day. Perform the following steps to set the threshold of the diagnosing and the linkage actions.

Step 1 Enter Video Quality Diagnostics Settings interface of Camera Management and select a channel you want to detect video tampering.

Menu> Camera> Video Quality Diagnostics

Video Quality Diagnostics Camera [A1] Camera 01 Enable Video Quality Diagnostics Settings Diagnostics Mode Threshold Blurred Im... 60 °C Abnormal ... 55 °C Color Cast 60 °C

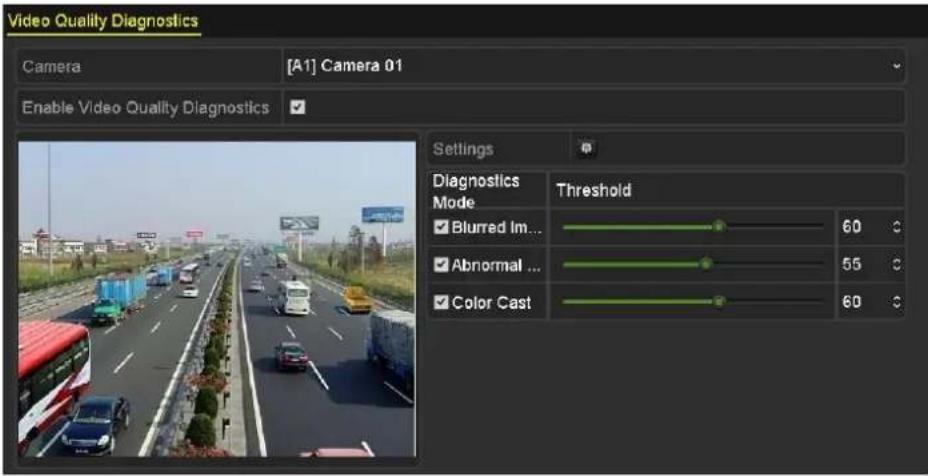

Figure 8-14 Video Quality Diagnostics Interface

Step 2 Check the checkbox of Enable Video Quality Diagnostics.

NOTE

To enable video quality diagnostics, the function should be supported by the selected camera.

Step 3 Enable and set the threshold of the diagnostic types, there are Blurred Image, Abnormal Brightness, and Color Cast.

Check the corresponding checkbox of the diagnostic type, and adjust the threshold of it by dragging the bar.

i NOTE

The higher the threshold you set, the harder the exception will be detected.

Step 4 Click 🙏 to set handling method of video quality diagnostics. Set arming schedule and alarm response actions of the channel.

1) Click Arming Schedule tab to set the arming schedule of response action.

2) Choose one day of a week and up to eight time periods can be set within each day.

i NOTE

Time periods shall not be repeated or overlapped.

Settings Arming Schedule Linkage Action Week Mon 1 10:00-16:00 2 00:00-00:00 3 00:00-00:00 4 00:00-00:00 5 00:00-00:00 6 00:00-00:00 7 00:00-00:00 8 00:00-00:00 *For getting an accurate feedback result, it is recommended to set the testing schedule in the daytime. Copy Apply OK Cancel

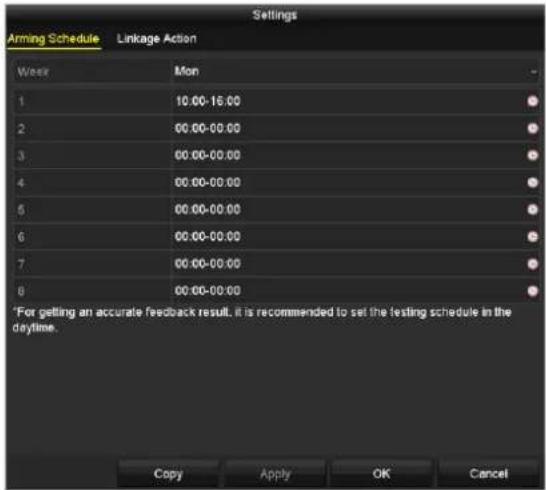

Figure 8-15 Set Arming Schedule of Video Quality Diagnostics

3) Select Linkage Action tab to set alarm response actions of video quality diagnostics alarm (please refer to Chapter 8.7 Setting Alarm Response Actions).

Repeat the above steps to set arming schedule of other days of a week. You can also use Copy button to copy an arming schedule to other days.

4) Click the OK button to complete the video quality diagnostics settings of the channel.

Step 5 Click the Apply button to save and activate settings.

Step 6 (Optional) you can copy the same settings to other cameras by clicking the Copy button.

8.6 Handling Exceptions

Purpose

Exception settings refer to the handling method of various exceptions, e.g.

• HDD Full: The HDD is full.
• HDD Error: Writing HDD error, unformatted HDD, etc.
  ● Network Disconnected: Disconnected network cable.
  ● IP Conflicted: Duplicated IP address.
• Illegal Login: Incorrect user ID or password.
• Input/Recording Resolution Mismatch: The input resolution is smaller than the recording resolution.
  ● Record Exception: No space for saving recorded files.

Step 1 Enter Exceptions interface and handle various exceptions.

Menu> Configuration> Exceptions

Exception Enable Event Hint Event Hint Settings Exception Type HDD Full Audible Warning Notify Surveillance Center Send Email Trigger Alarm Output

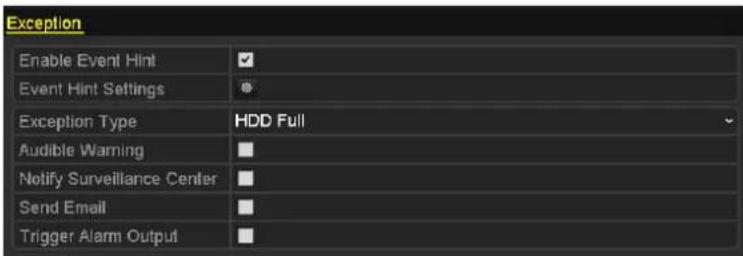

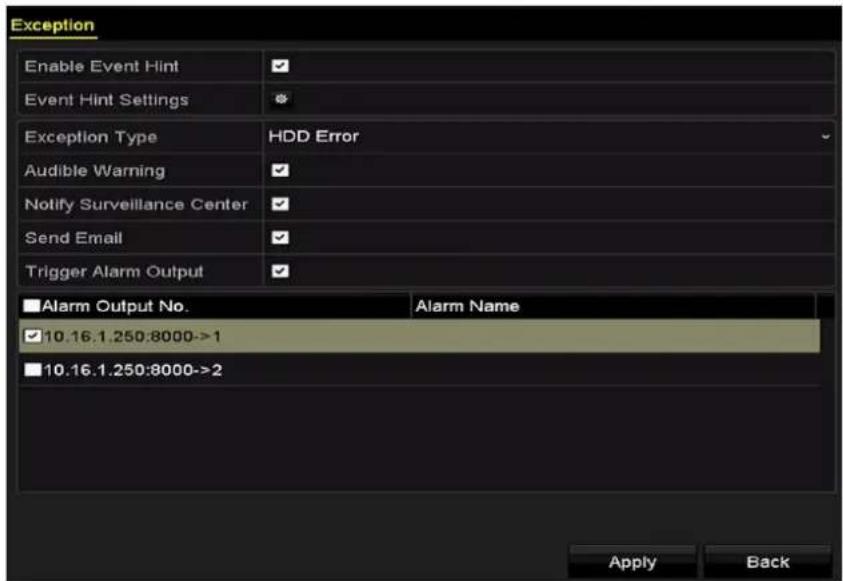

Figure 8-16 Exception Settings Interface

Step 2 Check the checkbox of Enable Event Hint to display the 🔊 (Event/Exception icon) when an exceptional event occurs. And click the icon 📋 to select the detailed event hint for display.

Event Hint Settings All HDD Full HDD Error Network Disconnected IP Conflicted Illegal Login Input/recording resolution mismatch Video Signal Less Alarm Input Triggered Video Tamper Detected OK Cancel

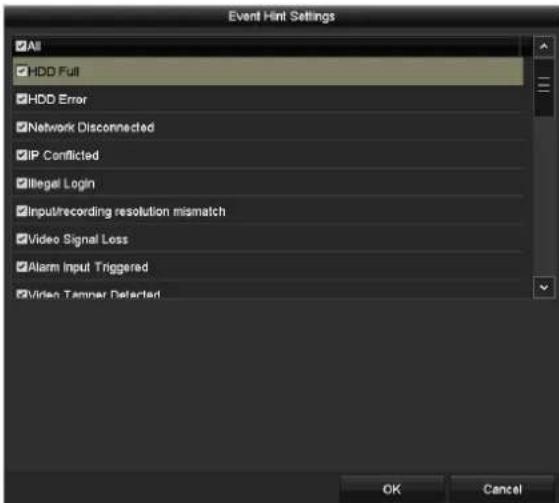

Figure 8-17 Event Hint Settings

i NOTE

Click the icon 2appears in the live view interface, and you can view the detailed information of the exceptional event. Click the button Set, and then you can select the detailed event hint for display.

Alarm/Exception Information Alarm/Exception Information(Camera No., Alarm Input No., H... Motion Detection D1 10.16.1.250 Set Exit

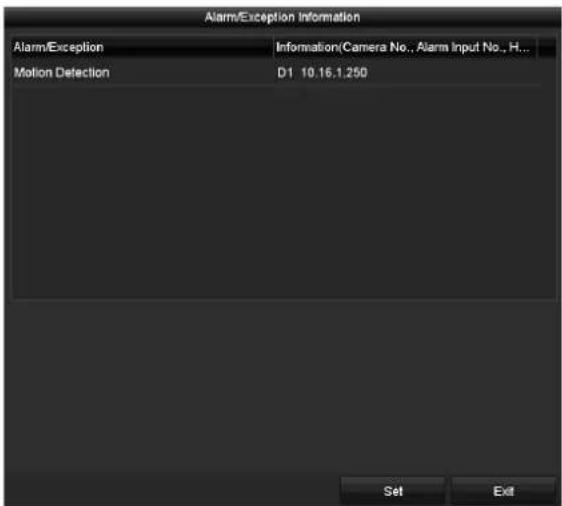

Figure 8-18 Detailed Event

Step 3 Set the alarm linkage actions. For details, see Chapter 8.7 Setting Alarm Response Actions.

Step 4 Click Apply to save the settings.

8.7 Setting Alarm Response Actions

Purpose

Alarm response actions will be activated when an alarm or exception occurs, including Full Screen Monitoring, Audible Warning (buzzer), Notify Surveillance Center, Send Email and Trigger Alarm Output.

Full Screen Monitoring

When an alarm is triggered, the local monitor (HDMI, VGA or CVBS monitor) displays in full screen the video image from the alarming channel configured for full screen monitoring.

If alarms are triggered simultaneously in several channels, their full-screen images will be switched at an interval of 10 seconds (default dwell time). A different dwell time can be set by going to Menu > Configuration > Live View.

Auto-switch will terminate once the alarm stops and you will be taken back to the Live View interface.

Audible Warning

Trigger an audible beep when an alarm is detected.

Notify Surveillance Center

Sends an exception or alarm signal to remote alarm host when an event occurs. The alarm host refers to the PC installed with Remote Client.

i NOTE

The alarm signal will be transmitted automatically at detection mode when remote alarm host is configured. Please refer to Chapter 11.2.6 Configuring More Settings for details of alarm host configuration.

Send Email

Send an email with alarm information to a user or users when an alarm is detected.

Please refer to Chapter 11.2.8 Configuring Email for details of Email configuration.

Trigger Alarm Output

Trigger an alarm output when an alarm is triggered.

Step 1 Enter Alarm Output interface.

Menu> Configuration> Alarm> Alarm Output

Select an alarm output and set alarm name and dwell time.

Alarm Status Alarm Input Alarm Output Alarm Output No. 10.16.1.250:8000->1 Alarm Name Dwell Time 5s Settings

Figure 8-19 Alarm Output Settings Interface

NOTE

If Manually Clear is selected in the drop-down list of Dwell Time, you can clear it only by going to Menu> Manual> Alarm.

Step 2 Click Button to set the arming schedule of alarm output.

Choose one day of a week and up to 8 time periods can be set within each day.

i NOTE

Time periods shall not be repeated or overlapped.

Settings Arming Schedule Week Mon 1 00:00-24:00 2 00:00-00:00 3 00:00-00:00 4 00:00-00:00 5 00:00-00:00 6 00:00-00:00 7 00:00-00:00 8 00:00-00:00 Copy Apply OK Cancel

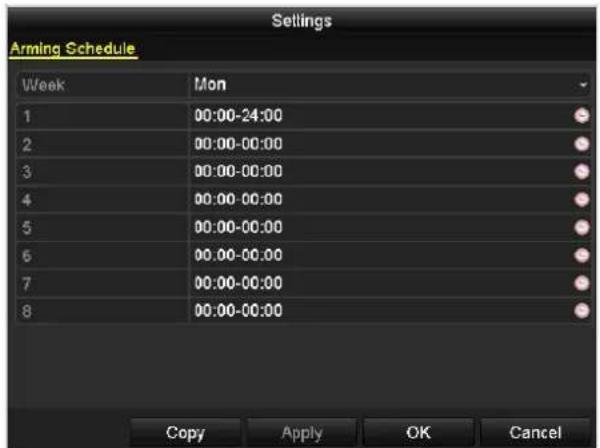

Figure 8-20 Set Arming Schedule of Alarm Output

Step 3 Repeat the above steps to set arming schedule of other days of a week. You can also click Copy button to copy an arming schedule to other days.

Click the OK button to complete the arming schedule setting of alarm output.

Step 4 Click the Apply button to save the settings.

Chapter 9 VCA Alarm

Purpose

The DVR can receive the VCA alarm (line crossing detection, intrusion detection, sudden scene change detection and audio exception detection) sent by analog camera, and the VCA detection must be enabled and configured on the camera settings interface first. All other VCA detection features must be supported by the connected IP camera.

i NOTE

● The DVR-100G-F1 series do not support the VCA alarm.
- DVR-200Q-K2 series DVR support 4-ch VCA (line crossing detection and intrusion detection). Channels with audio support audio exception detection.
- DVR-200G-F1 series DVR support 1-ch VCA (line crossing detection and intrusion detection). Channels with audio support audio exception detection.
- For the analog channels, the line crossing detection and intrusion detection conflict with other VCA detection such as sudden scene change detection, face detection and vehicle detection and heat map or people counting functions. You can only enable one function.

9.1 Face Detection

Purpose

Face detection function detects the face appears in the surveillance scene, and some certain actions can be taken when the alarm is triggered.

Step 1 Enter the VCA settings interface.

Menu > Camera > VCA

Step 2 Select the camera to configure the VCA.

You can click the checkbox of Save VCA Picture to save the captured pictures of VCA detection.

VCA Camera [D2] Camera 01 Save VCA PL... Face Det... Vehicle ... Line Cro... Intrusion ... Region ... Region ... Loltering... People G... Fast Mo... Parking ... Unattend... Object R... Audio Ex... Defocus ... Sudden ... PIR Alarm Enable Settings Rule 1 Rule Settings 12-16-2014 Tue 15 2:00 Draw Line Draw Qua... Clear All Apply Back

Figure 9-1 Face Detection

Step 3 Select the VCA detection type to Face Detection.

Step 4 Click ☐ to enter the face detection settings interface. Configure the trigger channel, arming schedule and linkage action for the face detection alarm. Please refer to step3 to step5 of Chapter 8.1 Setting Motion Detection for detailed instructions.

Step 5 Click the Rule Settings button to set the face detection rules. You can drag the slider to set the detection sensitivity.

Sensitivity: Range [1-5]. The higher the value is, the more easily the face can be detected.

Rule Settings No. 1 Sensitivity 3

Figure 9-2 Set Face Detection Sensitivity

Step 6 Click Apply to activate the settings.

9.2 Vehicle Detection

Purpose

Vehicle Detection is available for the road traffic monitoring. In Vehicle Detection, the passed vehicle can be detected and the picture of its license plate can be captured. You can send alarm signal to notify the surveillance center and upload the captured picture to FTP server.

Step 1 Enter the VCA settings interface.

Menu> Camera> VCA

Step 2 Select the camera to configure the VCA.

You can click the checkbox of Save VCA Picture to save the captured pictures of VCA detection.

Step 3 Select the VCA detection type to Vehicle Detection.

Step 4 Check the Enable checkbox to enable this function.

VCA Camera [D2] Camera 01 Face Det... Vehicle ... Line Cro... Intrusion ... Region ... Region ... Loitering ... People G... Fast Mo... Parking ... Unattend... Object R... Audio Ex... Defocus ... Sudden ... PIR Alarm Enable Settings Blacklist Whitelist Others Rule 1 03-26-2015 The 19:19:30 Draw Line Blacklist & Whit... Import/Export Draw Qua... Clear All No. Plate No. Type P0# #1 #1# Camera 01 Apply Back

Figure 9-3 Set Vehicle Detection

Step 5 Click 🤗 to configure the trigger channel, arming schedule and linkage actions for the Blacklist, Whitelist and Others.

Step 6 Click the Rule Settings to enter the rule settings interface. Configure the lane, upload picture and overlay content settings. Up to 4 lanes are selectable.

Rule Settings Basic Picture Overlay Content No. 1 Scene No Vehicle Detection Scene 1 Scene Name Lane Number 1 Apply OK Cancel

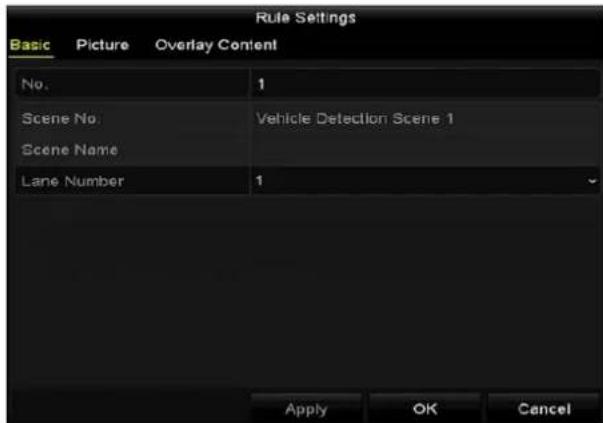

Figure 9-4 Rule Settings

Step 7 Click Save to save the settings.

Please refer to the User Manual of Network Camera for the detailed instructions for the vehicle detection.

9.3 Line Crossing Detection

Purpose

This function can be used for detecting people, vehicles and objects cross a set virtual line. The line crossing direction can be set as bidirectional, from left to right or from right to left. And you can set the duration for the alarm response actions, such as full screen monitoring, audible warning, etc.

Step 1 Enter the VCA settings interface.

Menu> Camera> VCA

Step 2 Select the camera to configure the VCA.

You can click the checkbox of Save VCA Picture to save the captured pictures of VCA detection.

Step 3 Select the VCA detection type to Line Crossing Detection.

Step 4 Check the Enable checkbox to enable this function.

Step 5 Click ☐ to configure the trigger channel, arming schedule and linkage actions for the line crossing detection alarm.

Step 6 Click the Rule Settings button to set the line crossing detection rules.

1) Select the direction to A<->B, A->B or B->A.

A<->B: Only the arrow on the B side shows. When an object goes across the configured line, both directions can be detected and alarms are triggered.

A->B: Only the object crossing the configured line from the A side to the B side can be detected.

B->A: Only the object crossing the configured line from the B side to the A side can be detected.

2) Drag the slider to set the detection sensitivity.

Sensitivity: Range [1-100]. The higher the value is, the more easily the detection alarm can be triggered.

3) Click OK to save the rule settings and return to the line crossing detection settings interface.

Rule Settings No. 1 Direction A<->B Sensitivity 50

Figure 9-5 Set Line Crossing Detection Rules

Step 7 Click ↗ and set two points in the preview window to draw a virtual line.

You can use the ☐ to clear the existing virtual line and re-draw it.

Up to 4 rules can be configured.

VCA Camera [D1] IPdome Save VCA PI... Face Det... Vehicle ... Line Cro... Intrusion ... Region ... Region ... Loitering... People G... Fast Mo... Parking ... Unattend... Object R... Audio Ex... Defocus ... Sudden ... PIR Alarm Enable Settings Rule 1 Rule Settings 04-03-2015 Fri 10:50:53 Draw Line Draw Qua... Clear All Apply Back

Figure 9-6 Draw Line for Line Crossing Detection

Step 8 Click Apply to activate the settings.

The sudden scene change detection and the line crossing detection cannot be enabled at the same channel.

9.4 Intrusion Detection

Purpose

Intrusion detection function detects people, vehicle or other objects which enter and loiter in a pre-defined virtual region, and some certain actions can be taken when the alarm is triggered.

Step 1 Enter the VCA settings interface.

Menu> Camera> VCA

Step 2 Select the camera to configure the VCA.

You can click the checkbox of Save VCA Picture to save the captured pictures of VCA detection.

Step 3 Select the VCA detection type to Intrusion Detection.

Step 4 Check the Enable checkbox to enable this function.

Step 5 Click 🙏 to configure the trigger channel, arming schedule and linkage actions for the intrusion detection alarm.

Step 6 Click the Rule Settings button to set the intrusion detection rules. Set the following parameters.

1) Threshold: Range [1s-10s], the threshold for the time of the object loitering in the region. When the duration of the object in the defined detection area is longer than the set time, the alarm will be triggered.

2) Drag the slider to set the detection sensitivity.

Sensitivity: Range [1-100]. The value of the sensitivity defines the size of the object which can trigger the alarm. The higher the value is, the more easily the detection alarm can be triggered.

3) Percentage: Range [1-100]. Percentage defines the ratio of the in-region part of the object which can trigger the alarm. For example, if the percentage is set as 50%, when the object enters the region and occupies half of the whole region, the alarm is triggered.

Rule Settings No. 1 Time Threshold (s) 5 Sensitivity 50 Percentage 0

Figure 9-7 Set Intrusion Crossing Detection Rules

4) Click OK to save the rule settings and back to the line crossing detection settings interface.

Step 7 Click 📋 and draw a quadrilateral in the preview window by specifying four vertexes of the detection region, and right click to complete drawing. Only one region can be configured.

You can use the 📄 clear the existing virtual line and re-draw it.

Up to 4 rules can be configured.

VCA Camera [D1] IPdome Save VCA Pi... Face Det... Vehicle ... Line Cro... Intrusion ... Region ... Region ... Loitering... People G... Fast Mo... Parking ... Unattend... Object R... Audio Ex... Defocus ... Sudden ... PIR Alarm Enable ✓ Settings * Rule 1 Rule Settings 01-15-2015 Tel: 00:01:14 Draw Line Draw Qua... Clear All Apply Back

Figure 9-8 Draw Area for Intrusion Detection

Step 8 Click Apply to save the settings.

The sudden scene change detection and the intrusion detection cannot be enabled at the same channel.

9.5 Region Entrance Detection

Purpose

Region entrance detection function detects people, vehicle or other objects which enter a pre-defined virtual region from the outside place, and some certain actions can be taken when the alarm is triggered.

Step 1 Enter the VCA settings interface.

Menu> Camera> VCA

Step 2 Select the camera to configure the VCA.

You can click the checkbox of Save VCA Picture to save the captured pictures of VCA detection.

Step 3 Select the VCA detection type to Region Entrance Detection.

Step 4 Check the Enable checkbox to enable this function.

Step 5 Click ☐ to configure the trigger channel, arming schedule and linkage actions for the region entrance detection alarm.

Step 6 Click the Rule Settings button to set the sensitivity of the region entrance detection.

Sensitivity: Range [0-100]. The higher the value is, the more easily the detection alarm can be triggered.

Step 7 Click ☑ and draw a quadrilateral in the preview window by specifying four vertexes of the detection region, and right click to complete drawing. Only one region can be configured.

You can use the □ clear the existing virtual line and re-draw it.

VCA Camera [D1] IPdome Save VCA Pi... Face Det... Vehicle ... Line Cro... Intrusion ... Region ... Region ... Loitering ... People G... Fast Mo... Parking ... Unattend... Object R... Audio Ex... Defocus ... Sudden ... PIR Alarm Enable Settings Rule 1 Rule Settings 01-15-2015 1:00:04:26 Draw Line Draw Qua... Clear All #1#

Figure 9-9 Set Region Entrance Detection

i NOTE

Up to 4 rules can be configured.

Step 8 Click Apply to save the settings.

9.6 Region Exiting Detection

Purpose

Region exiting detection function detects people, vehicle or other objects which exit from a pre-defined virtual region, and some certain actions can be taken when the alarm is triggered.

i NOTE

• Please refer to the Chapter 10.5 Region Entrance Detection for operating steps to configure the region exiting detection.
  ● Up to 4 rules can be configured.

9.7 Loitering Detection

Purpose

Loitering detection function detects people, vehicle or other objects which loiter in a pre-defined virtual region for some certain time, and a series of actions can be taken when the alarm is triggered.

i NOTE

• Please refer to the Chapter 10.4 Intrusion Detection for operating steps to configure the loitering detection.
• The Threshold [1s-10s] in the Rule Settings defines the time of the object loitering in the region. If you set the value as 5, alarm is triggered after the object loitering in the region for 5s; and if you set the value as 0, alarm is triggered immediately after the object entering the region.
• Up to 4 rules can be configured.

9.8 People Gathering Detection

Purpose

People gathering detection alarm is triggered when people gather around in a pre-defined virtual region, and a series of actions can be taken when the alarm is triggered.

i NOTE

• Please refer to the Chapter 10.4 Intrusion Detection for operating steps to configure the people gathering detection.
  ● The Percentage in the Rule Settings defines the gathering density of the people in the region. Usually, when the percentage is small, the alarm can be triggered when small number of people gathered in the defined detection region.
• Up to 4 rules can be configured.

9.9 Fast Moving Detection

Purpose

Fast moving detection alarm is triggered when people, vehicle or other objects move fast in a pre-defined virtual region, and a series of actions can be taken when the alarm is triggered.

i NOTE

• Please refer to the Chapter 9.4 Intrusion Detection for operating steps to configure the fast moving detection.
• The Sensitivity in the Rule Settings defines the moving speed of the object which can trigger the alarm. The higher the value is, the more easily a moving object can trigger the alarm.
  ● Up to 4 rules can be configured.

9.10 Parking Detection

Purpose

Parking detection function detects illegal parking in places such as highway, one-way street, etc., and a series of actions can be taken when the alarm is triggered.

i NOTE

• Please refer to the Chapter 9.4 Intrusion Detection for operating steps to configure the parking detection.
• The Threshold [5s-20s] in the Rule Settings defines the time of the vehicle parking in the region. If you set the value as 10, alarm is triggered after the vehicle stay in the region for 10s.
  ● Up to 4 rules can be configured.

9.11 Unattended Baggage Detection

Purpose

Unattended baggage detection function detects the objects left over in the pre-defined region such as the baggage, purse, dangerous materials, etc., and a series of actions can be taken when the alarm is triggered.

i NOTE

• Please refer to the Chapter 9.4 Intrusion Detection for operating steps to configure the unattended baggage detection.
• The Threshold [5s-20s] in the Rule Settings defines the time of the objects left over in the region. If you set the value as 10, alarm is triggered after the object is left and stay in the region for 10s. And the Sensitivity defines the similarity degree of the background image. Usually, when the sensitivity is high, a very small object left in the region can trigger the alarm.
  ● Up to 4 rules can be configured.

9.12 Object Removal Detection

Purpose

Object removal detection function detects the objects removed from the pre-defined region, such as the exhibits on display, and a series of actions can be taken when the alarm is triggered.

i NOTE

• Please refer to the Chapter 9.4 Intrusion Detection for operating steps to configure the object removal detection.
• The Threshold [5s-20s] in the Rule Settings defines the time of the objects removed from the region. If you set the value as 10, alarm is triggered after the object disappears from the region for 10s. And the Sensitivity defines the similarity degree of the background image. Usually, when the sensitivity is high, a very small object taken from the region can trigger the alarm.
  ● Up to 4 rules can be configured.

9.13 Audio Exception Detection

Purpose

Audio exception detection function detects the abnormal sounds in the surveillance scene, such as the sudden increase/decrease of the sound intensity, and some certain actions can be taken when the alarm is triggered.

i NOTE

The audio exception detection is supported by all analog channels.

Step 1 Enter the VCA settings interface.

Menu> Camera> VCA

Step 2 Select the camera to configure the VCA.

You can click the checkbox of Save VCA Picture to save the captured pictures of VCA detection.

Step 3 Select the VCA detection type to Audio Exception Detection.

Step 4 Click 🙏 to configure the trigger channel, arming schedule and linkage action for the audio exception alarm.

Step 5 Click the Rule Settings button to set the audio exception rules.

Rule Settings No. 1 Audio Loss Exception Sudden Increase of Sound Intensity... Sensitivity 50 Sound Intensity Threshold 50 Sudden Decrease of Sound Intensit... Sensitivity 50 OK Cancel

Figure 9-10 Set Audio Exception Detection Rules

1) Check the checkbox of Audio Loss Exception to enable the audio loss detection function.
2) Check the checkbox of Sudden Increase of Sound Intensity Detection to detect the sound steep rise in the surveillance scene. You can set the detection sensitivity and threshold for sound steep rise.

Sensitivity: Range [1-100], the smaller the value is, the more severe the change should be to trigger the detection.

Sound Intensity Threshold: Range [1-100], it can filter the sound in the environment, the louder the environment sound, the higher the value should be. You can adjust it according to the real environment.

3) Check the checkbox of Sudden Decrease of Sound Intensity Detection to detect the sound steep drop in the surveillance scene. You can set the detection sensitivity [1-100] for sound steep drop.

Step 6 Click Apply to activate the settings.

9.14 Defocus Detection

Purpose

The image blur caused by defocus of the lens can be detected, and some certain actions can be taken when the alarm is triggered.

NOTE

• Please refer to the Chapter 9.1 Face Detection for operating steps to configure the defocus detection.
• The Sensitivity in the Rule Settings ranges from 1 to 100, and the higher the value is, the more easily the defocus image can trigger the alarm.

9.15 Sudden Scene Change

Purpose

Scene change detection function detects the change of surveillance environment affected by the external factors; such as the intentional rotation of the camera and some certain actions can be taken when the alarm is triggered.

i NOTE

• Please refer to the Chapter 9.1 Face Detection for operating steps to configure the scene change detection.
• The Sensitivity in the Rule Settings ranges from 1 to 100, and the higher the value is, the more easily the change of scene can trigger the alarm.
• For the analog cameras, the line crossing detection and intrusion detection conflict with other VCA detection such as sudden scene change detection, face detection and vehicle detection. You can only enable one function. If you have enabled line crossing detection or intrusion detection, when you enable sudden scene change detection and apply the settings, the following attention box pops up to remind you there is no enough resource and ask you to disable the enabled VCA type(s) of the selected channel(s).

Attention No enough resource. Please disable the following function(s) in "VCA" settings menu: 1.A1 Line Crossing Detection or Intrusion Detection. OK

Figure 9-11 Disable Other VCA Type(s)

9.16 PIR Alarm

Purpose

A PIR (Passive Infrared) alarm is triggered when an intruder moves within the detector's field of view. The heat energy dissipated by a person, or any other warm blooded creature such as dogs, cats, etc., can be detected.

Step 1 Enter the VCA settings interface.

Menu> Camera> VCA

Step 2 Select the camera to configure the VCA.

You can click the checkbox of Save VCA Picture to save the captured pictures of VCA detection.

Step 3 Select the VCA detection type to PIR Alarm.

Step 4 Click 🙏 to configure the trigger channel, arming schedule and linkage action for the PIR alarm.

Step 5 Click the Rule Settings button to set the rules. Please refer to the Chapter 9.1 Face Detection for instructions.

Step 6 Click Apply to activate the settings.

Chapter 10 VCA Search

With the configured VCA detection, the device supports the VCA search for the behavior search, face search, plate search, people counting and heat map results.

The DVR-100G-F1 and DVR-200Q-K1 series DVR do not support the VCA search.

10.1 Face Search

Purpose

When there are detected face picture captured and saved in HDD, you can enter the Face Search interface to search the picture and play the picture related video files according to the specified conditions.

Before you start

Please refer to Section 9.1 Face Detection for configuring the face detection.

Step 1 Enter the Face Search interface.

Menu>VCA Search> Face Search

Step 2 Select the camera (s) for the face search.

Face Search IP Camera D1 D2 Start Time 01-07-2015 00:00:00 End Time 18-07-2015 23:59:59 Search Back

Figure 10-1 Face Search

Step 3 Specify the start time and end time for searching the captured face pictures or video files.

Step 4 Upload the pictures from your local storage device for matching the detected face pictures.

Step 5 Set the similarity level for the source pictures and the captured pictures.

Step 6 Click Search to start searching. The search results of face detection pictures are displayed in list or in chart.

Face Search Chart List Cam... Start Time Similarity Play D1 12-08-2014 20:33:17 D1 12-10-2014 11:18:11 D1 12-10-2014 11:18:11 Total: 3 P: 1/1 Picture Record Export All Export Back

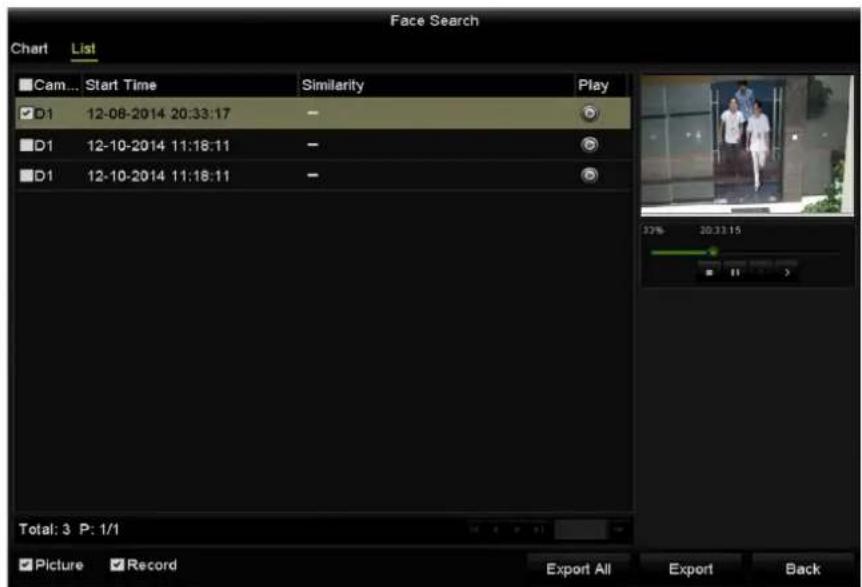

Figure 10-2 Face Search Interface

Step 7 Play the face picture related video file.

You can double click on a face picture to play its related video file in the view window on the top right, or select a picture item and click 📋 to play it.

You can also click stop the playing, or click / to play the previous/next file.

Step 8 If you want to export the captured face pictures to local storage device, connect the storage device to the device and click Export All to enter the Export interface.

Click Export to export all face pictures to the storage device.

Please refer to Chapter 7 Backup for the operation of exporting files.

Export Device Name USB Flash Disk 1-1 .mp4:*.zip Refresh SaveType MP4 Name Size Type Edit Date Delete Play Final Data Folder 01-12-2013 09:29:56 ch01_2015071600... 992.56MB File 16-07-2015 14:12:16 ch02_2015071613... 76.55MB File 16-07-2015 14:13:22 Free Space 6357.23MB New Folder Format Export Back

Figure 10-3 Export Files

10.2 Behavior Search

Purpose

The behavior analysis detects a series of suspicious behavior based on VCA detection, and certain linkage methods will be enabled if the alarm is triggered.

Step 1 Enter the Behavior Search interface.

Menu>VCA Search> Behavior Search

Step 2 Select the camera (s) for the behavior search.

Step 3 Specify the start time and end time for searching the matched pictures.

Behavior Search IP Camera D1 D2 Start Time 01-07-2015 00:00:00 End Time 18-07-2015 23:59:59 Type All Search Back

Figure 10-4 Behavior Search Interface

Step 4 Select the VCA detection type from the drop-down list, including the line crossing detection, intrusion detection, unattended baggage detection, object removal detection, region entrance detection, region exiting detection, parking detection, loitering detection, people gathering detection and fast moving detection.

Step 5 Click Search to start searching. The search results of pictures are displayed in list or in chart.

Behavior Search Chart List Cam... Start Time Behavior Type Play D3 12-12-2014 12:32:35 Region Exiting Detection D3 12-12-2014 15:10:44 Region Exiting Detection D3 12-12-2014 15:11:21 Intrusion Detection D3 12-12-2014 16:55:30 Region Exiting Detection D3 12-12-2014 16:59:15 Region Exiting Detection D3 12-12-2014 17:05:05 Region Exiting Detection D3 12-12-2014 17:09:54 Region Exiting Detection D3 12-12-2014 17:14:40 Region Exiting Detection Total: 8 P: 1/1 Picture Record Export All Export Back

Figure 10-5 Behavior Search Results

Step 6 Play the behavior analysis picture related video file.

You can double click on a picture from the list to play its related video file in the view window on the top right, or select a picture item and click 📋 to play it.

You can also click stop the playing, or click / to p? the previous/next file.

Step 7 If you want to export the captured pictures to local storage device, connect the storage device to the device and click Export All to enter the Export interface.

Click Export to export all pictures to the storage device.

10.3 Plate Search

Purpose

You can search and view the matched captured vehicle plate picture and related information according to the plate searching conditions including the start time/end time, country and plate No.

Step 1 Enter the Plate Search interface.

Menu>VCA Search> Plate Search

Step 2 Select the camera (s) for the plate search.

Step 3 Specify the start time and end time for searching the matched plate pictures.

Plate Search ✓ IP Camera ✓ D1 ✓ D2 Start Time 01-07-2015 00:00:00 End Time 18-07-2015 23:59:59 Country All Plate No. Search Back

Figure 10-6 Plate Search

Step 4 Select the country from the drop-down list for searching the location of the vehicle plate.

Step 5 Input the plate No. in the field for search.

Step 6 Click Search to start searching. The search results of detected vehicle plate pictures are displayed in list or in chart.

Please refer to the Step 7 to Step 8 of Section 10.1 Face Search for the operation of the search results.

10.4 People Counting

Purpose

The People Counting is used to calculate the number of people entered or left a certain configured area and form in daily/weekly/monthly/annual reports for analysis.

Step 1 Enter the People Counting interface.

Menu>VCA Search> People Counting

Step 2 Select the camera for the people counting.

Step 3 Select the report type to Daily Report, Weekly Report, Monthly Report or Annual Report.

Step 4 Set the statistics time.

Step 5 Click the Counting button to start people counting statistics.

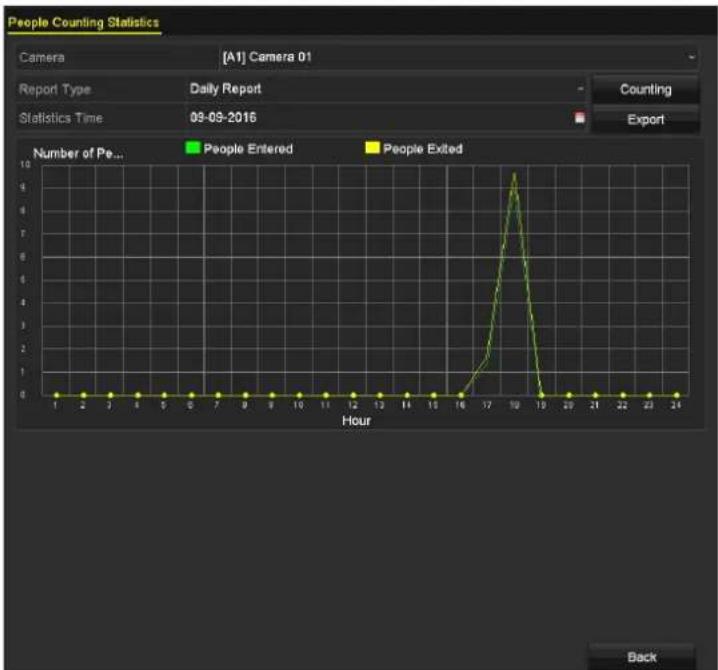

Figure 10-7 People Counting Interface

Step 6 You can click the Export button to export the statistics report in excel format.

10.5 Heat Map

Purpose

Heat map is a graphical representation of data represented by colors. The heat map function is usually used to analyze the visit times and dwell time of customers in a configured area.

Step 1 Enter the Heat Map interface.

Menu>VCA Search> Heat Map

Step 2 Select the camera for the heat map processing.

Step 3 Select the report type to Daily Report, Weekly Report, Monthly Report or Annual Report.

Step 4 Set the statistics time.

Heat Map Camera [A1] Camera 01 Report Type Daily Report Statistics Time 09-12-2016 Counting Export Back

Figure 10-8 Heat Map Interface

Step 5 Click the Counting button to export the report data and start heat map statistics, and the results are displayed in graphics marked in different colors.

NOTE

As shown in Figure 10-8, red color block (255, 0, 0) indicates the most welcome area, and blue color block (0, 0, 255) indicates the less-popular area.

Step 6 You can click the Export button to export the statistics report in excel format.

Chapter 11 Network Settings

11.1 Configuring General Settings

Purpose

Network settings must be properly configured before you operate DVR over network.

Step 1 Enter the Network Settings interface.

Menu > Configuration > Network

Select NIC bond0 NIC Type 10M/100M/1000M Self-adaptive Enable DHCP ✓ IPv4 Address 10 .16 .5 .102 IPv6 Address 1 fe80:2a57:beff.feeb:6a7f/64 IPv4 Subnet ... 255 .255 .255 .0 IPv6 Address 2 IPv4 Default G... 10 .16 .5 .254 IPv6 Default G... MAC Address 28:57:be:eb:6a:7f MTU(Bytes) 1500 Enable DNS DHCP ■ Preferred DNS Server Alternate DNS Server Main NIC LAN1

Figure 11-1 Network Settings Interface

Step 2 Select the General tab.

Step 3 In the General Settings interface, you can configure the following parameters: NIC Type, IPv4 Address, IPv4 Gateway, MTU, DNS Server and Main NIC.

• Multi-address Mode: The parameters of the two NIC cards can be configured independently. You can select LAN1 or LAN2 in the NIC type field for parameter settings.
  You can select one NIC card as default route. And then the system is connecting with the extranet and the data will be forwarded through the default route.

- Net-fault Tolerance Mode: The two NIC cards use the same IP address, and you can select the Main NIC to LAN1 or LAN2. By this way, in case of one NIC card failure, the device will automatically enable the other standby NIC card so as to ensure the normal running of the whole system.

- Load Balance Mode: By using the same IP address and two NIC cards share the load of the total bandwidth, which enables the system to provide two Gigabit network capacity.

i NOTE

● The valid value of MTU is from 500 to 1500.
- If the DHCP server is available, you can check the checkbox of Enable DHCP to automatically obtain an IP address and other network settings from that server.
- For -F series DVR, if DHCP is enabled, you can check the checkbox of Enable DNS DHCP or uncheck it and edit the Preferred DNS Server and Alternate DNS Server.

Step 4 After having configured the general settings, click the Apply button to save the settings.

11.2 Configuring Advanced Settings

11.2.1 Configuring PPPoE Settings

Purpose

The DVR also allows access by Point-to-Point Protocol over Ethernet (PPPoE).

Step 1 Enter the Network Settings interface.

Menu > Configuration > Network

Step 2 Select the PPPoE tab to enter the PPPoE Settings interface.

Enable PPPoE User Name Password

Figure 11-2 PPPoE Settings Interface

Step 3 Check the Enable PPPoE checkbox to enable this feature.

Step 4 Enter User Name and Password for PPPoE access.

NOTE

The User Name and Password should be assigned by your ISP.

Step 5 Click the Apply button to save the settings.

Step 6 After successful settings, the system asks you to reboot the device to enable the new settings, and the PPPoE dial-up is automatically connected after reboot.

You can go to Menu > Maintenance > System Info > Network interface to view the status of PPPoE connection.

12.2.1 Configure HiLookVision

Purpose

HiLookVision provides mobile phone application and platform service to access and manage your connected devices, which enables you to get a convenient remote access to the surveillance system.

Step 2 Go to Menu > Configuration > Network > Platform Access.

Step 3 Check Enable to activate the function. Then the service terms will pop up.

1) Enter the verification code in Verification Code.
2) Scan the QR code to read the service terms and privacy statement.
3) Check The HiLookVision service will require internet access. Please read Service Terms and Privacy Statement before enabling the service if you agree the service terms and privacy statement.
4) Click OK to save the settings.

NOTE

● HiLookVision is disabled by default.
- The verification code is empty by default. It must contain 6 to 12 letters or numbers, and it is case sensitive.

Step 4 (Optional) Check Custom to enter the server address as your desire.

Step 5 (Optional) Check Enable Stream Encryption, verification code is required for remote access and live view.

Step 6 (Optional) Click Unbind if the device requires to unbind with the current HiLookVision account.

Step 7 Click Apply.

What to do next:

After configuration, you can access and manage your devices through HiLookVision app or website.

11.2.2 Configuring DDNS

Purpose

If your DVR is set to use PPPoE as its default network connection, you may set Dynamic DNS (DDNS) to be used for network access.

Prior registration with your ISP is required before configuring the system to use DDNS.

Step 1 Enter the Network Settings interface.

Menu > Configuration > Network

Step 2 Select the DDNS tab to enter the DDNS Settings interface.

Step 3 Check the Enable DDNS checkbox to enable the function.

Step 4 Select DDNS Type. Three different DDNS types are selectable: DynDNS, PeanutHull and NO-IP.

DynDNS:

1) Enter Server Address for DynDNS (i.e. members.dyndns.org).
2) In the Device Domain Name text field, enter the domain obtained from the DynDNS website.
3) Enter the User Name and Password registered in the DynDNS website.

Enable DDNS DDNS Type DynDNS Area/Country Custom Server Address members.dyndns.org Device Domain Name 123.dyndns.com Status DDNS is disabled. User Name lest Password *****

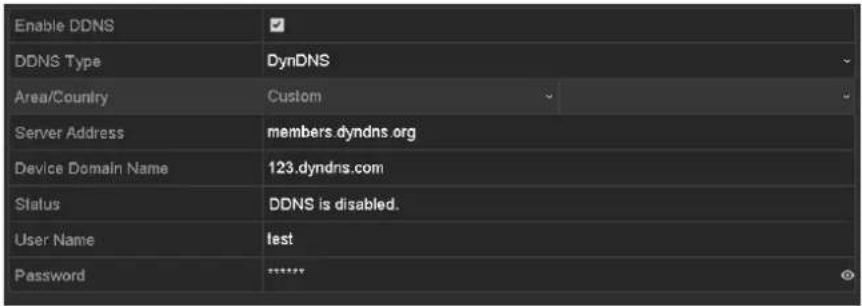

Figure 11-3 DynDNS Settings Interface

- PeanutHull: Enter the User Name and Password obtained from the PeanutHull website.

Enable DDNS DDNS Type PeanutHull Area/Country Custom Server Address Device Domain Name Status DDNS is disabled. User Name 123.gclip.net Password

Figure 11-4 PeanutHull Settings Interface

NO-IP:

Enter the account information in the corresponding fields. Refer to the DynDNS settings.

1) Enter Server Address for NO-IP.
2) In the Device Domain Name text field, enter the domain obtained from the NO-IP website (www.no-ip.com).
3) Enter the User Name and Password registered in the NO-IP website.

Enable DDNS DDNS Type NO-IP Area/Country Custom Server Address=no-ip.org Device Domain Name 123.no-ip.org Status DDNS is disabled. User Namealed Password ###

Figure 11-5 NO-IP Settings Interface

Step 5 Click the Apply button to save the settings.

11.2.3 Configuring NTP Server

Purpose

A Network Time Protocol (NTP) Server can be configured on your DVR to ensure the accuracy of system date/time.

Step 1 Enter the Network Settings interface.

Menu > Configuration > Network

Step 2 Select the NTP tab to enter the NTP Settings interface.

Enable NTP	✓
Interval (min)	60
NTP Server	210.72.145.44
NTP Port	123

Figure 11-6 NTP Settings Interface

Step 3 Check the Enable NTP checkbox to enable this feature.

Step 4 Configure the following NTP settings:

• Interval: Time interval between the two synchronizing actions with NTP server. The unit is minute.
  ● NTP Server: IP address of NTP server.
  ● NTP Port: Port of NTP server.

Step 5 Click the Apply button to save and exit the interface.

The time synchronization interval can be set from 1 to 10080 minutes, and the default value is 60 minutes. If the DVR is connected to a public network, you should use a NTP server that has a time synchronization function, such as the server at the National Time Center (IP Address: 210.72.145.44). If the DVR is set in a more customized network, NTP software can be used to establish a NTP server used for time synchronization.

11.2.4 Configuring NAT

Purpose

Universal Plug and Play (UPnP™) can permit the device seamlessly discover the presence of other network devices on the network and establish functional network services for data sharing, communications, etc. You can use the UPnP™ function to enable the fast connection of the device to the WAN via a router without port mapping.

Before you start

If you want to enable the UPnP™ function of the device, you must enable the UPnP™ function of the router to which your device is connected. When the network working mode of the device is set as multi-address, the Default Route of the device should be in the same network segment as that of the LAN IP address of the router.

Step 1 Enter the Network Settings interface.

Menu > Configuration > Network

Step 2 Select the NAT tab to enter the UPnP™ Settings interface.

Enable UPnP Mapping Type Auto Port Type Edit External ... External IP Address Port UPnP Status HTTP Port 80 0.0.0.0 80 Inactive RTSP Port 554 0.0.0.0 554 Inactive Server Port 8000 0.0.0.0 8000 Inactive HTTPS Port 443 0.0.0.0 443 Inactive Refresh

Figure 11-7 UPnP™ Settings Interface

Step 3 Check Enable UPnP checkbox to enable UPnP™.

Step 4 Select the Mapping Type as Manual or Auto in the drop-down list.

OPTION 1: Auto

If you select Auto, the Port Mapping items are read-only, and the external ports are set by the router automatically.

1) Click Apply button to save the settings.
2) You can click Refresh button to get the latest status of the port mapping.

Enable UPnP Mapping Type Auto Port Type Edit External ... External IP Address Port UPnP Status HTTP Port 80 0.0.0.0 80 Inactive RTSP Port 654 0.0.0.0 554 Inactive Server Port 8000 0.0.0.0 8000 Inactive HTTPS Port 443 0.0.0.0 443 Inactive Refresh

Figure 11-8 UPnP™ Settings Finished-Auto

OPTION 2: Manual

If you select Manual as the mapping type, you can edit the external port on your demand by clicking to activate the External Port Settings dialog box.

1) Click ☐ to activate the External Port Settings dialog box. Configure the external port No. for server port, http port and RTSP port respectively.

i NOTE

• You can use the default port No., or change it according to actual requirements.
  ● External Port indicates the port No. for port mapping in the router.
• The value of the RTSP port No. should be 554 or between 1024 and 65535, while the value of the other ports should be between 1 and 65535 and the value must be different from each other. If multiple devices are configured for the UPnP™ settings under the same router, the value of the port No. for each device should be unique.

External Port Settings Port Type Server Port External Port 8002 OK Cancel

Figure 11-9 External Port Settings Dialog Box

2) Click Apply button to save the settings.
3) You can click Refresh button to get the latest status of the port mapping.

Enable UPnP Mapping Type Manual Port Type Edit External Port Mapping IP Address Port Status Server Port 8002 172.6.21.31 8000 Active HTTP Port 80 172.6.21.31 80 Active RTSP Port 554 172.6.21.31 554 Active HTTPS Port 443 172.6.21.31 443 Active Refresh

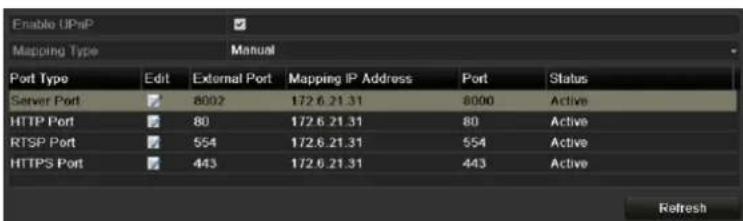

Figure 11-10 UPnP™ Settings Finished-Manual

11.2.5 Configuring More Settings

Step 1 Enter the Network Settings interface.

Menu > Configuration > Network

Step 2 Select the More Settings tab to enter the More Settings interface.

Alarm Host IP
Alarm Host Port	0
Server Port	8000
HTTP Port	80
Multicast IP
RTSP Port	554
Output Bandwidth Limit	✓
Output Bandwidth (Mbps)	2

Figure 11-11 More Settings Interface

Step 3 Configure the remote alarm host, server port, HTTP port, multicast, and RTSP port.

- Alarm Host IP/Port: With a remote alarm host configured, the device will send the alarm event or exception message to the host when an alarm is triggered. The remote alarm host must have the CMS (Client Management System) software installed.

The Alarm Host IP refers to the IP address of the remote PC on which the CMS (Client Management System) software (e.g., iVMS-4200) is installed, and the Alarm Host Port must be the same as the alarm monitoring port configured in the software (default port is 7200).

- Multicast IP: The multicast can be configured to realize live view for more than the maximum number of cameras through network. A multicast address spans the Class-D IP range of 224.0.0.0 to 239.255.255.255. It is recommended to use the IP address ranging from 239.252.0.0 to 239.255.255.255.

When adding a device to the CMS (Client Management System) software, the multicast address must be the same as the device's multicast IP.

- RTSP Port: The RTSP (Real Time Streaming Protocol) is a network control protocol designed for use in entertainment and communications systems to control streaming media servers.

Enter the RTSP port in the text field of RTSP Port. The default RTSP port is 554, and you can change it according to different requirements.

- Server Port and HTTP Port: Enter the Server Port and HTTP Port in the text fields. The default Server Port is 8000 and the HTTP Port is 80, and you can change them according to different requirements.

The Server Port should be set to the range of 2000-65535 and it is used for remote client software access. The HTTP port is used for remote IE access.

- Output Bandwidth Limit: You can check the checkbox to enable output bandwidth limit.

- Output Bandwidth: After enable the output bandwidth limit, input the output bandwidth in the text field.

i NOTE

• Enabling output bandwidth limit and settings output bandwidth options are applicable for -F series DVR.
  ● The output bandwidth limit is used for the remote live view and playback.
  ● The minimum output bandwidth is 2 Mbps.

Step 4 Click the Apply button to save and exit the interface.

11.2.6 Configuring HTTPS Port

Purpose

HTTPS provides authentication of the web site and associated web server that one is communicating with, which protects against Man-in-the-middle attacks. Perform the following steps to set the port number of https.

Example

If you set the port number as 443 and the IP address is 192.0.0.64, you may access the device by inputting https://192.0.0.64:443 via the web browser.

i NOTE

The HTTPS port can be only configured through the web browser.

Step 1 Open web browser, input the IP address of device, and the web server will select the language automatically according to the system language and maximize the web browser.

Step 2 Input the correct user name and password, and click Login button to log in the device.

Step 3 Enter the HTTPS settings interface.

Configuration > Remote Configuration > Network Settings > HTTPS

Step 4 Create the self-signed certificate or authorized certificate.

HTTPS Enable HTTPS Create Create Self-signed Certificate Create Certificate Request Install Signed Certificate Certificate Path Created Request Created Request Installed Certificate Installed Certificate Save

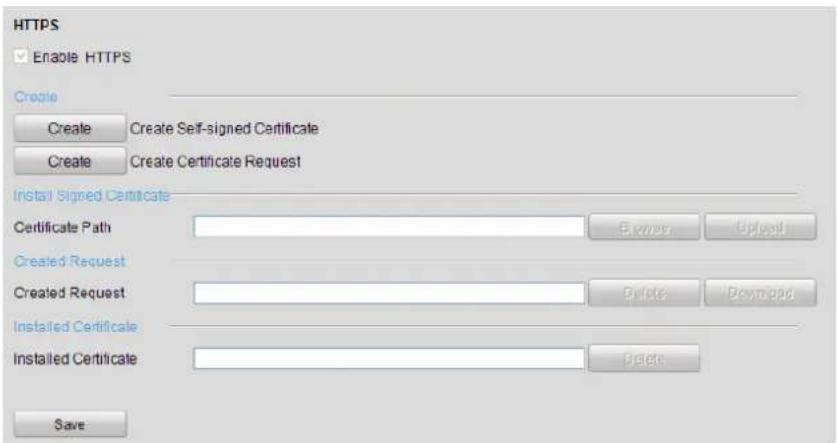

Figure 11-12 HTTPS Settings

OPTION 1: Create the self-signed certificate

1) Click the Create button to create the following dialog box.

Country CN * example:CN Hostname/P 172.6.23.67 * Validity 200 | Day* range :1-5000 Password State or province Locality Organization Organizational Unit Email OK Cancel

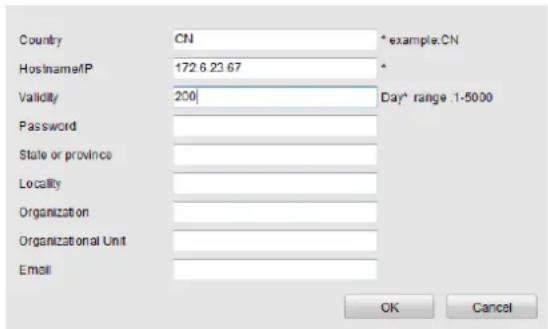

Figure 11-13 Create Self-signed Certificate

2) Enter the country, host name/IP, validity and other information.
3) Click OK to save the settings.

OPTION 2: Create the authorized certificate

1) Click the Create button to create the certificate request.
2) Download the certificate request and submit it to the trusted certificate authority for signature.
3) After receiving the signed valid certificate, import the certificate to the device.

Step 5 There will be the certificate information after you successfully create and install the certificate.

Installed Certificate Installed Certificate C=CN, H/IP=172.6.23.110 Delete Property Subject: C=CN, H/IP=172.6.23.110 Issuer: C=CN, H/IP=172.6.23.110 Validity: 2013-06-28 10:42:40 ~ 2013-06-30 10:42:40

Figure 11-14 Installed Certificate Property

Step 6 Check the checkbox to enable the HTTPS function.

Step 7 Click the Save button to save the settings.

11.2.7 Configuring Email

Purpose

The system can be configured to send an Email notification to all designated users if an event is detected, e.g. an alarm or motion event is detected, etc.

Before configuring the Email settings, the DVR must be connected to a local area network (LAN) that maintains an SMTP mail server. The network must also be connected to either an intranet or the Internet depending on the location of the e-mail accounts to which you want to send notification. Additional, the Preferred DNS server must be configured.

Before you start

Make sure you have configured the IPv4 Address, IPv4 Subnet Mask, IPv4 Gateway and the Preferred DNS Server in the Network Settings menu. Please refer to Chapter 11.1 Configuring General Settings for detailed information.

Step 1 Enter the Network Settings interface.

Menu > Configuration > Network

Step 2 Select the Email tab to enter the Email Settings interface.

Enable Server... ✓ User Name Password SMTP Server SMTP Port 25 Enable SSL/T... Sender Sender's Address Select Receivers Receiver 1 Receiver Receiver's Address Enable Attached Picture ■ Interval 2s

Figure 11-15 Email Settings Interface

Step 3 Configure the following Email settings:

Enable Server Authentication (optional): Check the checkbox to enable the server authentication feature.

User Name: The user account of sender's Email for SMTP server authentication.

Password: The password of sender's Email for SMTP server authentication.

SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).

SMTP Port: The SMTP port. The default TCP/IP port used for SMTP is 25.

Enable SSL (optional): Click the checkbox to enable SSL if required by the SMTP server.

Sender: The name of sender.

Sender's Address: The Email address of sender.

Select Receivers: Select the receiver. Up to 3 receivers can be configured.

Receiver: The name of the receiver of the Email.

Receiver's Address: The Email address of the receiver.

Enable Attached Picture: Check the checkbox if you want to send email with attached alarm images. The interval is the time between two captures of the alarm images.

i NOTE

• For the IP cameras, the alarm images are directly sent as the attached pictures by Email. Up to one picture can be sent for one IP camera. The attached pictures of the linked cameras cannot be sent.
• For analog cameras, 3 attached pictures can be sent for one analog camera when the alarm is triggered.

Interval: The interval refers to the time between two actions of sending attached pictures.

E-mail Test: Sends a test message to verify that the SMTP server can be reached.

Step 4 Click the Apply button to save the Email settings.

Step 5 You can click the Test button to test whether your Email settings work. The corresponding Attention message box pops up.

Attention Failed to send test email, please check the parameters or network status. OK

Attention Email test succeeded. OK

Figure 11-16 Email Testing Attention

11.2.8 Checking Network Traffic

Purpose

You can check the network traffic to obtain real-time information of DVR such as linking status, MTU, sending/receiving rate, etc.

Step 1 Enter the Network Traffic interface.

Menu > Maintenance > Net Detect

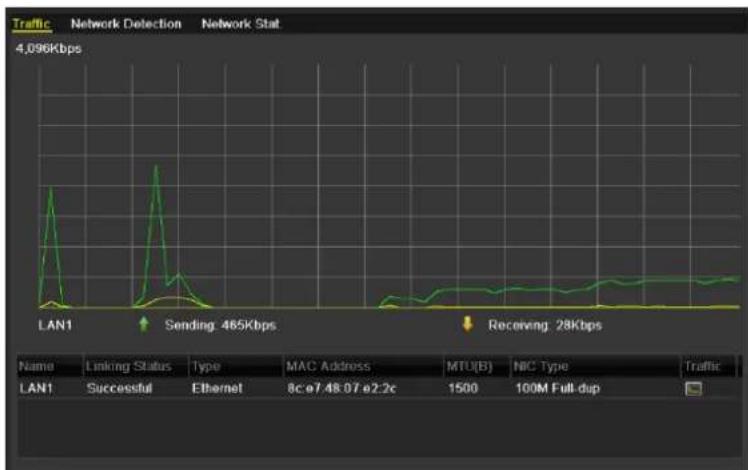

Figure 11-17 Network Traffic Interface

Step 2 You can view the sending rate and receiving rate information on the interface. The traffic data is refreshed every 1 second.

11.3 Configuring Network Detection

Purpose

You can obtain network connecting status of DVR through the network detection function, including network delay, packet loss, etc.

11.3.1 Testing Network Delay and Packet Loss

Step 1 Enter the Network Traffic interface.

Menu > Maintenance > Net Detect

Step 2 Click the Network Detection tab to enter the Network Detection interface.

Traffic Network Detection Network Stat. Network Delay, Packet Loss Test Select NIC LAN1 Destination Address Test Network Packet Export Device Name USB Flash Disk 1-1 LAN1 10.16.1.102 827Kbps Refresh Export

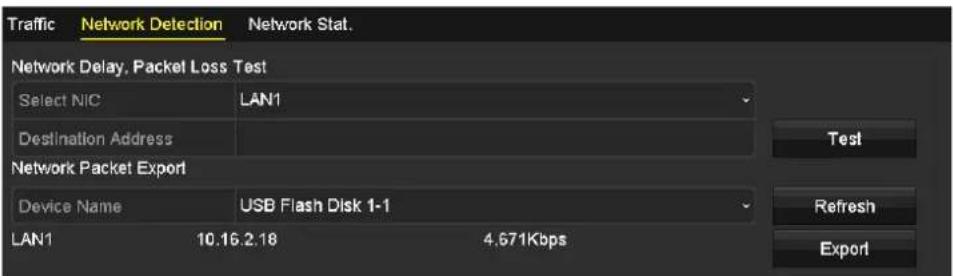

Figure 11-18 Network Detection Interface

Step 3 Select a NIC to test network delay and packet loss.

Step 4 Enter the destination address in the text field of Destination Address.

Step 5 Click the Test button to start testing network delay and packet loss.

11.3.2 Exporting Network Packet

Purpose

By connecting the DVR to network, the captured network data packet can be exported to USB-flash disk, SATA and other local backup devices.

Step 1 Enter the Network Traffic interface.

Menu > Maintenance > Net Detect

Step 2 Click the Network Detection tab to enter the Network Detection interface.

Step 3 Select the backup device from the drop-down list of Device Name.

Click the Refresh button if the connected local backup device cannot be displayed. When it fails to detect the backup device, please check whether it is compatible with the DVR. You can format the backup device if the format is incorrect.

Traffic Network Detection Network Stat. Network Delay, Packet Loss Test Select NIC LAN1 Destination Address Network Packet Export Device Name USB Flash Disk 1-1 LAN1 10.16.1.102 827Kbps Test Refresh Export

Figure 11-19 Export Network Packet

Step 4 Click the Export button to start exporting.

Step 5 After the exporting is complete, click OK to finish the packet export.

Attention Packet export succeeded. OK

Figure 11-20 Packet Export Attention

Up to 1M data can be exported each time.

11.3.3 Checking Network Status

Purpose

You can also check the network status and quick set the network parameters in this interface.

Step 1 Enter the Network Traffic interface.

Menu > Maintenance > Net Detect

Step 2 Click the Network Detection tab to enter the Network Detection interface.

Step 3 Click Status on the right bottom of the interface.

Traffic Network Detection Network Stat. Network Delay. Packet Loss Test Select NIC LAN1 Destination Address Test Network Packet Export Device Name USB Flash Disk 1-1 LAN1 10.16.2.18 4.671Kbps Refresh Export

Figure 11-21 Checking Network Status

If the network is normal the following message box pops out.

Result Network status is normal. OK

Figure 11-22 Network Status Checking Result

If the message box pops out with other information instead of this one, you can click Network button to show the quick setting interface of the network parameters.

Network NIC Type 10M/100M Self-adaptive Enable DHCP ✓ IPv4 Address 10 .16 .5 .20 IPv4 Subnet Mask 255 .255 .255 .0 IPv4 Default Gateway 10 .16 .5 .254 Enable DNS DHCP Preferred DNS Serv... Alternate DNS Server Apply OK Cancel

Figure 11-23 Network Parameters Configuration

11.3.4 Checking Network Statistics

Purpose:

You can check the network statistics to obtain the real-time information of the device.

Step 1 Enter the Network Statistics interface.

Menu > Maintenance > Net Detect

Step 2 Click the Network Stat. tab to enter the Network Statistics interface.

Type IP Camera 8,192Kbps Remote Live View 0bps Remote Playback 0bps Net Total Idle 88Mbps Refresh

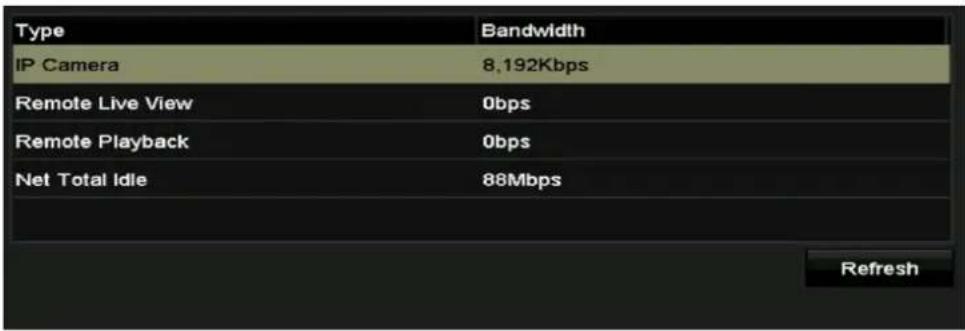

Figure 11-24 Network Stat. Interface

Step 3 View the bandwidth of Remote Live View, bandwidth of Remote Playback, and bandwidth of Net Total Idle.

Step 4 Click Refresh button to get the latest bandwidth statistics.

Chapter 12 HDD Management

12.1 Initializing HDDs

Purpose

A newly installed hard disk drive (HDD) must be initialized before it can be used with your DVR.

Step 1 Enter the HDD Information interface.

Menu > HDD > General

Label Capacity Status Property Type Free Space Gro. Edit Delete ■3 2794.52GB Normal R/W Local 2272.00GB 1 — — Total Capacity 2794.52GB Free Space 2272.00GB Remaining Recording Time(days) 4 Add Init Back

Figure 12-1 HDD Information Interface

You can view the Total Capacity, Free Space and Remaining Recording Time of the HDD. The algorithm of the Remaining Recording Time is to use average bit rate for the channel enabling smart encoding to raise accuracy.

Step 2 Select HDD to be initialized.

Step 3 Click the Init button.

Initialize Initialization will erase all data on the HDD. Continue? OK Cancel

Figure 12-2 Confirm Initialization

Step 4 Select the OK button to start initialization.

L... Capacity Status Property Type Free Space Gr... Edit D... 1 931.51GB Formatting 34% R/W Local 0MB 1 -

Figure 12-3 Start Initialization

Step 5 After the HDD has been initialized, the status of the HDD will change from Uninitialized to Normal.

L... Capacity Status Property Type Free Space Gr... Edit D... 1 931.51GB Normal R/W Local 927GB 1 -

Figure 12-4 HDD Status Changes to Normal

Initializing the HDD will erase all data on it.

The HDDs which are free of working for a long time can be enabled to sleep, thus to decrease the power consumption of the device and extend the life of the HDDs.

Click Menu > HDD > Advanced

Enable HDD Sleeping

Figure 12-5 Enable HDD Sleeping

Check the checkbox of Enable HDD Sleeping (by default), and the HDDs which are free of working for a long time will be set to sleep.

Uncheck the checkbox of Enable HDD Sleeping, and the HDDs will be set to work for all time.

12.2 Managing Network HDD

Purpose

You can add the allocated NAS or disk of IP SAN to DVR, and use it as network HDD.

Step 1 Enter the HDD Information interface.

Menu > HDD>General

C Property Type Free Space Gr... Edit D... 1 931.51GB Normal R/W Local 927GB 1 -

Figure 12-6 HDD Information Interface

Step 2 Click the Add button to enter the Add NetHDD interface, as shown in Figure 12-7.

Add NetHDD NetHDD NetHDD 1 Type NAS NetHDD IP Address NetHDD Directory Search OK Cancel

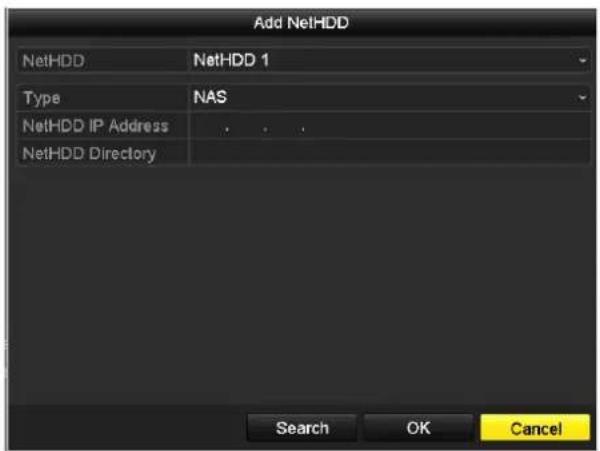

Figure 12-7 HDD Information Interface

Step 3 Add the allocated NetHDD.

Step 4 Select the type to NAS or IP SAN.

Step 5 Configure the NAS or IP SAN settings.

- Add NAS disk:

1) Enter the NetHDD IP address in the text field.
2) Click Search to search the available NAS disks.
3) Select the NAS disk from the list shown below.

Or you can just manually enter the directory in the text field of NetHDD Directory.

4) Click OK to add the configured NAS disk.

Up to 8 NAS disks can be added.

Add NetHDD NetHDD NetHDD 1 Type NAS NetHDD IP Address 172.6 24 .201 NetHDD Directory /dvr/dvr_1 No. Directory 1 /dvr/dvr_2 2 /dvr/dvr_1 3 /mnt/backup/indexbackup Search OK Cancel

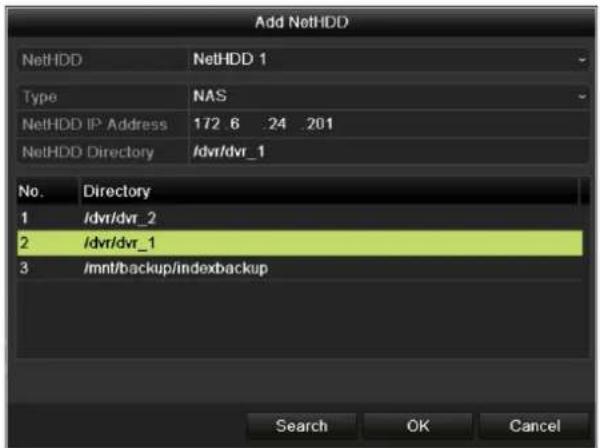

Figure 12-8 Add NAS Disk

- Add IP SAN:

1) Enter the NetHDD IP address in the text field.
2) Click the Search button to the available IP SAN disks.
3) Select the IP SAN disk from the list shown below.
4) Click the OK button to add the selected IP SAN disk.

i NOTE

Up to 8 IP SAN disks can be added.

Add NetHDD NetHDD NetHDD 1 Type IP SAN NetHDD IP Address 172 .9 .2 .210 NetHDD Directory ign.2004-05 stores t-8 No. Directory 1 ign 2004-05 stores t-8 2 ign 2004-05 stores t-41 3 ign 2004-05 stores t-1000 Search OK Cancel

Figure 12-9 Add IP SAN Disk

5) After having successfully added the NAS or IP SAN disk, return to the HDD Information menu. The added NetHDD will be displayed in the list.

i NOTE

If the added NetHDD is uninitialized, please select it and click the Init button for initialization.

L... Capacity Status Property Typo Free Space Gr... Edit D... ✓ 1 931.51GB Normal RAW Local 906GB 1 ✓ 17 40,000MB Normal RAW IP SAN 22,528MB 1

Figure 12-10 Initialize Added NetHDD

12.3 Managing HDD Group

12.3.1 Setting HDD Groups

Purpose

Multiple HDDs can be managed in groups. Video from specified channels can be recorded onto a particular HDD group through HDD settings.

Step 1 Enter the Storage Mode interface.

Menu > HDD > Advanced

Step 2 Set the Mode to Group, as shown in Figure 12-11.

Mode Group Record on HDD Group 1 Analog A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16

Figure 12-11 Storage Mode Interface

Step 3 Click the Apply button and the following Attention box will pop up.

Attention Reboot to take effect of the changing of the storage mode. Continue? Yes No

Figure 12-12 Attention for Reboot

Step 4 Click the Yes button to reboot the device to activate the changes.

Step 5 After reboot of device, enter the HDD Information interface.

Menu > HDD > General

Step 6 Select HDD from the list and click the 📋 icon to enter the Local HDD Settings interface, as shown in Figure 12-13.

Local HDD Settings HDD No 5 HDD Property ● RAW ● Read-only ● Redundancy Group ● 1 ● 2 ● 3 ● 4 ● 5 ● 6 ● 7 ● 8 ● 9 ● 10 ● 11 ● 12 ● 13 ● 14 ● 15 ● 16 HDD Capacity 931GB Apply OK Cancel

Figure 12-13 Local HDD Settings Interface

Step 7 Select the Group number for the current HDD.

The default group No. for each HDD is 1.

Step 8 Click the OK button to confirm the settings.

Attention ? Regroup the cameras for HDD if the HDD group number is changed. Yes No

Figure 12-14 Confirm HDD Group Settings

Step 9 In the pop-up Attention box, click the Yes button to finish the settings.

12.3.2 Setting HDD Property

Purpose

The HDD property can be set to redundancy, read-only or read/write (R/W). Before setting the HDD property, please set the storage mode to Group (refer to step1-4 of Chapter 12.3.1 Setting HDD Groups).

A HDD can be set to read-only to prevent important recorded files from being overwritten when the HDD becomes full in overwrite recording mode.

When the HDD property is set to redundancy, the video can be recorded both onto the redundancy HDD and the R/W HDD simultaneously so as to ensure high security and reliability of video data.

Step 1 Enter the HDD Information interface.

Menu > HDD > General

Step 2 Select HDD from the list and click the 📋 icon to enter the Local HDD Settings interface, as shown in Figure 12-15.

Local HDD Settings HDD No. 1 HDD Property ● R/W ● Read-only ● Redundancy Group ● 1 ● 2 ● 3 ● 4 ● 5 ● 6 ● 7 ● 8 ● 9 ● 10 ● 11 ● 12 ● 13 ● 14 ● 15 ● 16 HDD Capacity 931.51GB Apply OK Cancel

Figure 12-15 Set HDD Property

Step 3 Set the HDD property to R/W, Read-only or Redundancy.

Step 4 Click the OK button to save the settings and exit the interface.

Step 5 In the HDD Information menu, the HDD property will be displayed in the list.

At least 2 hard disks must be added on your DVR when you want to set a HDD to Redundancy, and there is one HDD with R/W property.

12.4 Configuring Quota Mode

Purpose

Each camera can be configured with allocated quota for the storage of recorded files.

Steps

Step 1 Enter the Storage Mode interface.

Menu > HDD > Advanced

Step 2 Click the Storage Mode tab.

Step 3 Set the Mode to Quota, as shown in Figure 12-16.

The DVR must be rebooted to enable the changes to take effect.

Mode Quota Camera [A1] Camera 01 Used Record Capacity 51.00GB Used Picture Capacity 2048.00MB HDD Capacity (GB) 931 Max. Record Capacity (G... 0 Max. Picture Capacity (GB) 0 ▲ Free Quota Space 931 GB Enable HDD Sleeping

Figure 12-16 Storage Mode Settings Interface

Step 4 Select a camera for which you want to configure quota.

Step 5 Enter the storage capacity in the text field of Max. Record Capacity (GB).

Step 6 You can copy the quota settings of the current camera to other cameras if required. Click the Copy button to enter the Copy Camera interface, as shown in Figure 12-17.

Copy to Analog A1 A2 A3 A4 A5 A6 A7 A8 IP Camera D1 D2 OK Cancel

Figure 12-17 Copy Settings to Other Camera(s)

Step 7 Select the camera (s) to be configured with the same quota settings. You can also click the checkbox of Analog to select all cameras.

Step 8 Click the OK button to finish the Copy settings and back to the Storage Mode interface.

Step 9 Click the Apply button to apply the settings.

If the quota capacity is set to 0, then all cameras will use the total capacity of HDD for record.

12.5 Configuring Cloud Storage

Purpose

The cloud storage facilitates you to upload and download the recorded files at any time and any place, which can highly enhance the efficiency.

Cloud storage is only applicable to DVR-200Q-K1/K2 series DVR.

Step 1 Enter the Cloud Storage interface

Menu > HDD > General > Cloud Storage

Step 2 Check the Enable Cloud checkbox to enable the feature.

Step 3 Select the Cloud Type from the drop-down list to One Drive, Google Drive or Drop Box.

HDD Information Cloud Storage Enable Cloud ✓ Cloud Type OneDrive Authorization Code ABCDE Status Offline Use a mobile browser to scan the OR code to log in the selected cloud to get the authorization code. Camera [A1] Camera 01 Upload Type Record Enable Event Upload ✓ *Note: Only sub-stream recorded files can be uploaded to the Cloud Storage. Please configure the event triggered recording schedule and enable the corresponding event type. Copy Apply Back

Figure 12-18 Cloud Storage Interface

Step 4 According to the prompts, you are required to use a mobile browser to scan the QR code to log in the selected cloud to get the authentication code. And then copy the authentication code to the Authentication Code text filed.

Step 5 Click Apply and then back to the main menu.

Step 6 Enter the cloud storage interface again about 20s later. When the Status shows online, it indicates the successful registration.

Step 7 Configure the recording schedule.

Back to enter the record interface, choose a certain camera from the Camera drop-down list and check the Enable Schedule checkbox to enable the schedule recording. For detailed recording schedule, refer to Chapter 5.2 Configuring Recording Schedule.

Record Camera [A1] Camera 01 Enable Schedule Mon Tue Wed Thu Fri Sat Sun 0 2 4 6 8 10 12 14 16 18 20 22 24 Edit Continuous Event Motion Alarm M | A M & A None Copy Apply Back

Figure 12-19 Record Schedule

Step 8 Upload the event triggered recording files to the cloud storage.

1) Back to enter the cloud storage interface, and select the camera you have set in the recording schedule interface.
2) Select the upload type in the Upload Type text filed.
3) Check the Enable Event Upload checkbox.
4) Click Apply to finish the settings.

HDD Information Cloud Storage Enable Cloud ✓ Cloud Type OneDrive Authorization Code ABCDE Status Offline Use a mobile browser to scan the OR code to log in the selected cloud to get the authorization code. Camera [A1] Camera 01 - Upload Type Record Enable Event Upload ✓ *Note: Only sub-stream recorded files can be uploaded to the Cloud Storage. Please configure the event triggered recording schedule and enable the corresponding event type. Copy Apply Back

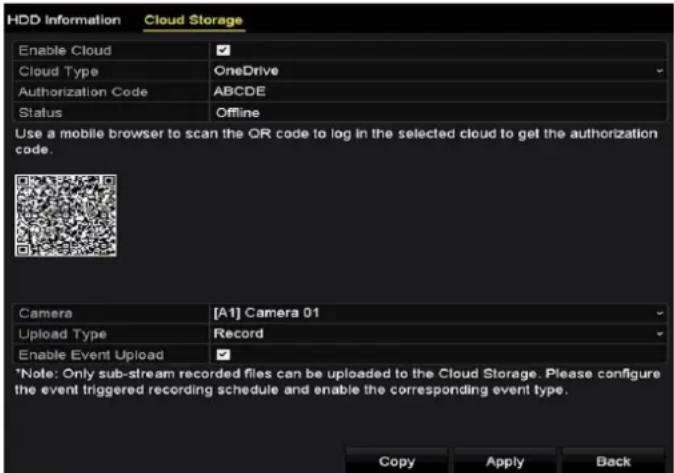

Figure 12-20 Upload to Cloud Storage Interface

i NOTE

• Only the sub-stream recorded files can be uploaded to the Cloud Storage.
• Please configure the event triggered recording schedule and enable the corresponding event type.

Step 9 (Optional) You can click the Copy button to copy the cloud storage settings to other cameras. You can also click the checkbox of Analog/IP Camera to select all cameras.

Click OK button to back to the cloud storage interface and click Apply to finish the settings.

Copy to Analog A1 A2 A3 A4 IP Camera D1 OK Cancel

Figure 12-21 Copy to Interface

12.6 Checking HDD Status

Purpose

You may check the status of the installed HDDs on DVR so as to take immediate check and maintenance in case of HDD failure.

Checking HDD Status in HDD Information Interface

Step 1 Enter the HDD Information interface.

Menu > HDD > General

Step 2 Check the status of each HDD which is displayed on the list, as shown in Figure 12-22.

L... Capacity Status Property Type Free Space Gr... Edit D... 1 931.51GB Normal RAW Local 900GB 1 17 199.97GB Normal Redundancy NAS 182GB 1

Figure 12-22 View HDD Status (1)

NOTE

If the status of HDD is Normal or Sleeping, it works normally. If the status is Uninitialized or Abnormal, please initialize the HDD before use. And if the HDD initialization is failed, please replace it with a new one.

Checking HDD Status in System Information Interface

Step 1 Enter the System Information interface.

Menu > Maintenance > System Info

Step 2 Click the HDD tab to view the status of each HDD displayed on the list, as shown in Figure 12-23.

Label	Status	Capacity	Free Space	Property	Type	Group
1	Normal	931.51GB	900GB	R/W	Local	1
17	Normal	199.97GB	182GB	Redundancy	NAS	1

Figure 12-23 View HDD Status (2)

12.7 Checking S.M.A.R.T Information

Purpose

The S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitoring system for HDD to detect and report on various indicators of reliability in the hopes of anticipating failures.

Step 1 Enter the HDD Detect interface.

Menu > Maintenance > HDD Detect

Step 2 Click the S.M.A.R.T. Settings tab to enter the interface.

Step 3 Select the HDD to view its S.M.A.R.T. information list, as shown in Figure 12-24.

If you want to use the HDD even when the S.M.A.R.T. checking is failed, you can check the checkbox before the Continue to use this disk when self-evaluation is failed item.

S.M.A.R.T. Settings Bad Sector Detection Continue to use this disk when self-evaluation is failed. HDD 1 Self-test Status Not tested Self-test Type Short Test S.M.A.R.T. Temperature(*... 34 Power On (da... 329 Self-evaluation Pass All-evaluation Functional S.M.A.R.T. Information ID Attribute Name Status Flags Threshold Value Worst Raw Value 0x1 Raw Read Error Rate OK 21 51 200 200 0 0x3 Spin Up Time OK 27 21 112 107 7375 0x4 Start/Stop Count OK 32 0 98 98 2333 0x5 Reallocated Sector Count OK 33 140 200 200 0

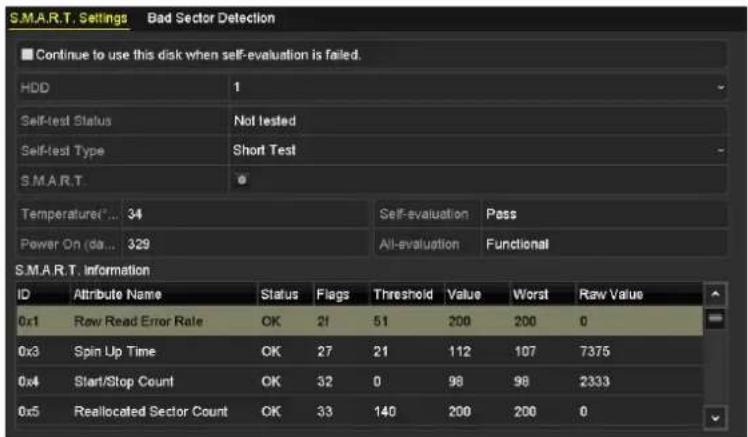

Figure 12-24 S.M.A.R.T Settings Interface

12.8 Detecting Bad Sector

Purpose

You can detect the bad sector of the HDD to check the status of the HDD.

Step 1 Enter the HDD Detect interface.

Menu>HDD>HDD Detect

Step 2 Click the Bad Sector Detection tab to enter the interface.

Step 3 Select a HDD and click the Detect button to start detecting.

S.M.A.R.T. Settings Bad Sector Detection HDD No. 1 Key Area Detection Detect HDD Capac... 931.51GB Block Capa... 232MB Status Testing... 23% Error Count 0 Error info Pause Cancel Normal Damaged Shield

Figure 12-25 Bad Sector Detecting

Step 4 You can click the Pause button to pause the detection and click the Resume button to resume the detection.

Step 5 If there is error information about the HDD, you can click the Error Info button to view the information.

12.9 Configuring HDD Error Alarms

Purpose

You can configure the HDD error alarms when the HDD status is Uninitialized or Abnormal.

Step 1 Enter the Exception interface.

Menu > Configuration > Exceptions

Step 2 Select the Exception Type to HDD Error from the drop-down list.

Step 3 Check the checkbox(s) below to select the linkage action(s) for HDD error, as shown in Figure 12-26.

The linkage actions can be selected to: Audible Warning, Notify Surveillance Center, Send Email and Trigger Alarm Output.

Exception Enable Event Hint Event Hint Settings Exception Type Audible Warning Notify Surveillance Center Send Email Trigger Alarm Output ■Alarm Output No. 10.16.1.250:8000->1 ■10.16.1.250:8000->2 Apply Back

Figure 12-26 Configure HDD Error Alarm

Step 4 When the Trigger Alarm Output is selected, you can also select the alarm output to be triggered from the list below.

Step 5 Click the Apply button to save the settings.

Chapter 13 Camera Settings

13.1 Configuring OSD Settings

Purpose

You can configure the OSD (On-Screen Display) settings for the camera, including date/time, camera name, etc.

Step 1 Enter the OSD Configuration interface.

Menu > Camera > OSD

Step 2 Select the camera to configure OSD settings.

Step 3 Edit the Camera Name in the text field.

Step 4 Configure the Display Name, Display Date and Display Week by checking the checkbox.

Step 5 Select the Date Format, Time Format, Display Mode and the OSD Font.

OSD Configuration Camera [A1] Camera 01 Camera Name Camera 01 Display Name ✓ Display Date ✓ Display Week ✓ Date Format MM-DD-YYYY Time Format 24-hour Display Mode Non-Transparent & Not Flashing OSD Font 32x32

Figure 13-1 OSD Configuration Interface

Step 6 You can use the mouse to drag the text frame on the preview window to adjust the OSD position.

Step 7 Copy Camera Settings

1) If you want to copy the OSD settings of the current camera to other cameras, click the Copy button to enter the Copy Camera interface, as shown in Figure 13-2.

Copy to Analog A1 A2 A3 A4 A5 A6 A7 A8 OK Cancel

Figure 13-2 Copy Settings to Other Cameras

2) Select the camera (s) to be configured with the same OSD settings. You can also check the checkbox of Analog to select all cameras.
3) Click the OK button to finish the Copy settings and back to the OSD Configuration interface.

Step 8 Click the Apply button to apply the settings.

13.2 Configuring Privacy Mask

Purpose

You are allowed to configure the four-sided privacy mask zones that cannot be viewed or recorded by the operator.

Step 1 Enter the Privacy Mask Settings interface.

Menu > Camera > Privacy Mask

Step 2 Select the camera to set privacy mask.

Step 3 Check the checkbox of Enable Privacy Mask to enable this feature.

Privacy Mask Settings Camera [A1] Camera 01 Enable Privacy Mask Clear All Clear Zone 1 Clear Zone 2 Clear Zone 3 Clear Zone 4

Figure 13-3 Privacy Mask Settings Interface

Step 4 Use the mouse to draw a zone on the window. The zones will be marked with different frame colors.

Up to 4 privacy mask zones can be configured, and the size of each area can be adjusted.

Step 5 The configured privacy mask zones on the window can be cleared by clicking the corresponding Clear Zone1-4 icons on the right side of the window, or click Clear All to clear all zones.

Privacy Mask Settings Camera [A1] Camera 01 Enable Privacy Mask Clear All Clear Zone 1 Clear Zone 2 Clear Zone 3 Clear Zone 4

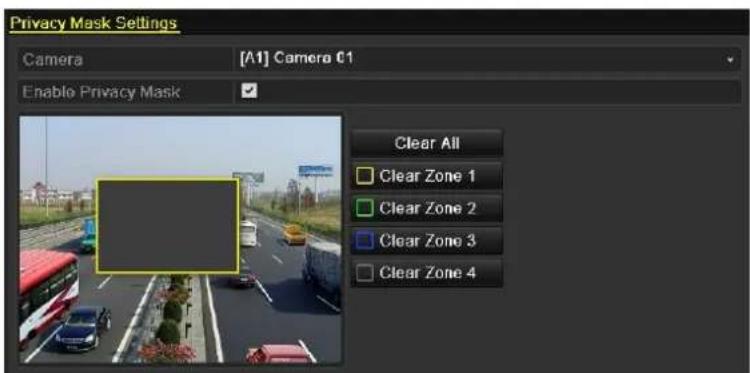

Figure 13-4 Set Privacy Mask Area

Step 6 You can click the Copy button to copy the privacy mask settings of the current camera to other cameras.

Please refer to step 7 of Chapter 13.1 Configuring OSD Settings.

Step 7 Click the Apply button to save the settings.

13.3 Configuring Video Parameters

13.3.1 Configuring Image Settings

Step 1 Enter the Image Settings interface.

Menu > Camera > Image

Step 2 Select the Image Settings tab.

Camera (A1) Camera 01 Time Segment 1 - 00:06-24:00 Mode Standard Brightness 128 Contrast 128 Saturation 128 Hue 128 Sharpness 1 Denoising 2 Default Copy Apply Back

Figure 13-5 Image Settings Interface (Analog Camera)

Camera [D2] IPdome Time Segment 1 00:00-24:00 Mode Custom Brightness 128 °C Contrast 153 °C Saturation 204 °C Default Copy Apply Back

Figure 13-6 Image Settings Interface (IP Camera)

Step 3 Select the camera to set image parameters.

Step 4 Two periods for different image settings are provided, select the period name in the drop-down list.

The time periods cannot be overlapped with each other.

Step 5 Select the mode from the drop-down list of Mode, there are four modes selectable for the analog cameras: Standard, Indoor, Dim Light and Outdoor.

Step 6 Adjust the image parameters according to actual needs. The parameters include Brightness, Contrast, Saturation, Hue, Sharpness and Denoising for the analog cameras and Brightness,

Contrast and Saturation for the IP cameras. You can also click Restore to set the parameters to the default settings.

Step 7 You can click Copy to copy the image settings of the current camera to other cameras.

Step 8 Click Apply to save the settings.

13.3.2 Configuring Camera Parameters Settings

Step 1 Enter the Image Settings interface.

Menu > Camera > Image

Step 2 Select the Camera Parameters Settings tab.

Image Settings Camera Parameters Settings Camera [A1] Camera 01 Day to Ni: 1 Night to D: 1 IR Light B: 1 Default Copy Apply Back

Figure 13-7 Camera Parameters Settings

Step 3 Select the Camera from the drop-down list.

Step 4 Adjust the camera parameters. The parameters include Day to Night Sensitivity, Night to Day Sensitivity and IR Light Brightness for the analog cameras. You can also click Default to set the parameters to the default settings.

Step 5 You can click Copy to copy the parameters of the current camera to other analog cameras.

Step 6 Click Apply to save the settings.

i NOTE

● The camera parameters settings is only applicable for ananlog cameras.
● The Day to Night Sensitivity, Night to Day Sensitivity and IR Light Brightness functions must be supported by the connected analog camera. You cannot set the parameters if the connected analog camera does not support them or there is no video signal.
● The parameters are saved to the connected analog camera and are not saved to the DVR.
- The default value of Day to Night Sensitivity, Night to Day Sensitivity and IR Light Brightness is 5. The effective value ranges from 1 to 9.
- If you exit from the interface and enter it again, the parameters displayed are those you have set the last time.
- The DVR connects to the analog camera via coaxitron and there is no response mechanism. Even if the coaxitron is abnormal, the parameters are still displayed to be set successfully.

Chapter 14 DVR Management and Maintenance

14.1 Viewing System Information

Step 1 Enter the System Information interface.

Menu > Maintenance > System Info

Step 2 You can click the Device Info, Camera, Record, Alarm, Network and HDD tabs to view the system information of the device.

Device Name Embedded Net DVR Model XXXXXXXXX Serial No. XXXXXXXXXXXXX Firmware Version XXXXXXXXXX Hardware Version XXXXXXXXX Please scan the QR code via IVMS client.

Figure 14-1 System Information Interface

i NOTE

• This alarm information is not available for the DVR-100G-F1, DVR-200Q-K1 and DVR-200G-F1 series.
• You can view the hardware version in the Device Information interface.

14.2 Searching Log Files

Purpose

The operation, alarm, exception and information of the DVR can be stored in log files, which can be viewed and exported at any time.

Step 1 Enter the Log Search interface.

Menu > Maintenance > Log Information

Log Search Start Time 01-07-2015 00:00:00 End Time 18-07-2015 23:59:59 Major Type All Minor Type Alarm Input Alarm Output Motion Detection Started Motion Detection Stopped Video Tampering Detection Started Video Tampering Detection Stopped Video Quality Diagnostics Alarm Started Video Quality Diagnostics Alarm Stopped Line Crossing Detection Alarm Started Export All Search Back

Figure 14-2 Log Search Interface

Step 2 Set the log search conditions to refine your search, including the Start Time, End Time, Major Type and Minor Type.

Step 3 Click the Search button to start search log files.

Step 4 The matched log files will be displayed on the list shown below.

Up to 2000 log files can be displayed each time.

Search Result No. Major Type Time Minor Type Parameter Play Details 1 Information 10-07-2015 09:53:59 Local HDD Infor... N/A 2 Operation 10-07-2015 09:53:59 Power On N/A 3 Information 10-07-2015 09:54:05 Start Recording N/A 4 Operation 10-07-2015 09:54:08 Local Operation... N/A 5 Information 10-07-2015 09:54:25 HDD S.M.A.R.T. N/A 6 Information 10-07-2015 09:54:32 Start Recording N/A 7 Operation 10-07-2015 09:54:32 Local Operation... N/A 8 Operation 10-07-2015 09:54:32 Local Operation... N/A 9 Exception 10-07-2015 09:55:32 IP Camera Disco... N/A 10 Information 10-07-2015 10:04:09 System Running... N/A Total: 2000 P: 1/20 Export Back

Figure 14-3 Log Search Results

Step 5 You can click the √ button of each log or double-click it to view its detailed information. And you can also click the Ⓐ button to view the related video files if available.

Log Information Time 11-12-2015 08:52:15 Type Information--Local HDD Information Local User N/A Host IP Address N/A Parameter Type N/A HDD 1 Description: HDD: 1 Serial: WD-WCAV58050976 Firmware: 01.00A01 Model: WDC WD10EVVS-63M5B0 Previous Next OK

Figure 14-4 Log Information Interface

Step 6 If you want to export the log files, click the Export button to enter the Export menu, as shown in Figure 14-5.

Export Device Name USB Flash Disk 1-1 .mp4:zip Refresh Name Size Type Edit Date Delete Play Final Data Folder 01-12-2013 09:29:56 ch01_2015071600... 992.56MB File 16-07-2015 14:12:16 ch02_2015071613... 76.55MB File 16-07-2015 14:13:22 Free Space 6357.23MB New Folder Format Export Back

Figure 14-5 Export Log Files

Step 7 Select the backup device from the drop-down list of Device Name.

Step 8 Click the Export to export the log files to the selected backup device.

You can click the New Folder button to create new folder in the backup device, or click the Format button to format the backup device before log export.

i NOTE

- Please connect the backup device to DVR before operating log export.

- The log files exported to the backup device are named by exporting time, e.g., 20110514124841logBack.txt.

14.3 Importing/Exporting IP Camera Info

Purpose

The information of added IP camera can be generated into an excel file and exported to the local device for backup, including the IP address, manage port, password of admin, etc. And the exported file can be edited on your PC, like adding or deleting the content, and copy the setting to other devices by importing the excel file to it.

Step 1 Enter the camera management interface.

Menu > Camera > Camera

Click the IP Camera Import/Export tab, the content of detected plugged external device appears.

Step 2 Click the Export button to export configuration files to the selected local backup device.

Step 3 To import a configuration file, select the file from the selected backup device and click the Import button. After the importing process is completed, you must reboot the DVR.

14.4 Importing/Exporting Configuration Files

Purpose

The configuration files of the DVR can be exported to local device for backup; and the configuration files of one DVR can be imported to multiple DVR devices if they are to be configured with the same parameters.

Step 1 Enter the Import/Export Configuration File interface.

Menu > Maintenance > Import/Export

Import/Export Config File Device Name USB Flash Disk 1-1 *bin Refresh Name Size Type Edit Date Delete Play devCfg_406190462_20 8160.44KB File 23-01-2015 15:13:50 Free Space 1895.11MB New Folder Import Export Back

Figure 14-6 Import/Export Configuration File

Step 2 Click the Export button to export configuration files to the selected local backup device.

Step 3 To import a configuration file, select the file from the selected backup device and click the Import button. After the import process is completed, you must reboot the DVR.

After having finished the import of configuration files, the device will reboot automatically.

16.1 Upgrading System

You can upgrade the system by local backup device, FTP, and HiLookVision.

Do not shutdown the device or turn off the power during upgrade. Otherwise it may cause serious consequence to the device.

16.5.1 Upgrading by Local Backup Device

Step 1 Connect your DVR with a local backup device where the update firmware file is located.

Step 2 Go to Menu > Maintenance > Upgrade > Local Upgrade.

Step 3 Select the update file from the backup device.

Step 4 Click Upgrade to start upgrading.

Step 5 The device will reboot automatically after the upgrading is completed.

16.5.2 Upgrading by FTP

Before you start

Configure PC (running FTP server) and DVR to the same Local Area Network. Run the 3^rd -party TFTP software on the PC and copy the firmware into the root directory of TFTP.

Step 1 Go to Menu > Maintenance > Upgrade > FTP.

Step 2 Enter the FTP server address.

Step 3 Click Upgrade to start upgrading.

Step 4 The device will reboot automatically after the upgrading is completed.

16.5.3 Upgrading by HiLookVision

Purpose

After logging the device into HiLookVision, the device would periodically check for the latest firmware from HiLookVision. If an upgrade firmware is available, the device will notify you when you log in. You can also manually check for the latest firmware.

Before You Start:

Ensure the device has successfully connected to HiLookVision, and it requires to install at least one read-write HDD for firmware downloading.

Step 1 Go to Menu > Maintenance > System Info > Device Info.

Step 2 Click Check Update.

Step 3 If new firmware version is available, click Yes to download the firmware at the pup up window.

• Ensure the device has successfully connected to HiLookVision, and it has install at least one read-write HDD.
• If you choose to ignore the current version, it will ignore this version forever unless you restore the device to inactive status.

Step 4 Wait for the download process. You can view the download status at Download Status.

Device Name Embedded Net DVR Model Serial No. Firmware Version Upgrade Verification Code Hardware Version Download Status Downloaded.

Figure 14-7 Upgrade by HiLookVision

Step 5 Click Upgrade after the firmware is downloaded.

Step 6 Wait for the upgrade process. The device will reboot automatically after the upgrading is completed.

14.5 Restoring Default Settings

Step 1 Enter the Default interface.

Menu > Maintenance > Default

Default Restore Defaults Simply restore the settings. Factory Defaults Restore all parameters to default settings. Restore to Inactive Restore the device to inactive status.

Figure 14-8 Restore Defaults

Step 2 Select the restoring type from the following three options.

Restore Defaults: Restore all parameters, except the network (including IP address, subnet mask, gateway, MTU, NIC working mode, default route, server port, etc.) and user account parameters, to the factory default settings.

Factory Defaults: Restore all parameters to the factory default settings.

Restore to Inactive: Restore the device to the inactive status.

Step 3 Click the OK button to restore the default settings.

The device will reboot automatically after restoring to the default settings.

Chapter 15 Others

15.1 Configuring General Settings

Purpose

You can configure the output resolution, system time, mouse pointer speed, etc.

Step 1 Enter the General Settings interface.

Menu > Configuration > General

Step 2 Select the General tab.

General DST Settings More Settings Language English Output Standard PAL VGA/HDMI Resolution 1280°1024/60HZ Time Zone (GMT+08:00) Beijing, Urumqi, Singapore Date Format MM-DD-YYYY System Date 04-20-2016 System Time 16:05:32 Mouse Pointer Speed Enable Wizard ✓ Enable Password ■

Figure 15-1 General Settings Interface

Step 3 Configure the following settings:

● Language: The default language used is English.
- Output Standard: Select the output standard to be PAL or NTSC.
- VGA/HDMI Resolution: Select the output resolution, which must be the same with the resolution of the VGA/HDMI display.
● Time Zone: Select the time zone.
● Date Format: Select the date format.
● System Date: Select the system date.
- System Time: Select the system time.
- Mouse Pointer Speed: Set the speed of mouse pointer; 4 levels are configurable.
- Enable Wizard: Enable/disable the Wizard when the device starts up.
- Enable Password: Enable/disable the use of the login password.

For -F series DVR, if you check the checkbox of Enable Password, every time when you log in to the DVR, the Unlock Pattern interface will pop up. If you uncheck the checkbox of Enable Password, when you log in to the DVR, the Unlock Pattern interface will not pop up.

Step 4 Click the Apply button to save the settings.

15.2 Configuring DST Settings

Step 1 Enter the General Settings interface.

Menu >Configuration>General

Step 2 Choose DST Settings tab.

General DST Settings More Settings ■ Auto DST Adjustment Enable DST From Apr 1st Sun 2 :00 To Oct last Sun 2 :00 DST Bias 60 Minutes

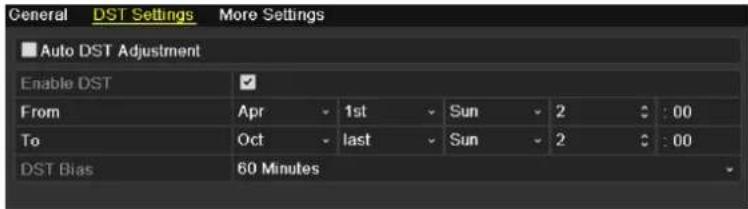

Figure 15-2 DST Settings Interface

You can check the checkbox before the Auto DST Adjustment item.

Or you can manually check the Enable DST checkbox, and then you choose the date of the DST period.

15.3 Configuring More Settings

Step 1 Enter the General Settings interface.

Menu > Configuration > General

Step 2 Click the More Settings tab to enter the More Settings interface, as shown in the following figure.

General DST Settings More Settings Device Name Embedded Net DVR Device No. 255 Auto Logout Never Menu Output Mode Auto

Figure 15-3 More Settings Interface

Step 3 Configure the following settings:

● Device Name: Edit the name of DVR.

• Device No.: Edit the serial number of DVR. The Device No. can be set in the range of 1\~255, and the default No. is 255.
• Auto Logout: Set timeout time for menu inactivity. E.g., when the timeout time is set to 5 Minutes, then the system will exit from the current operation menu to live view screen after 5 minutes of menu inactivity.
• Menu Output Mode: You can choose the menu display on different video output.
• Main CVBS Scaling: You can check the checkbox to enable main CVBS scaling.

Step 4 Click the Apply button to save the settings.

15.4 Managing User Accounts

Purpose

There is a default account in the DVR: Administrator. The Administrator user name is admin and the password is set when you start the device for the first time. The Administrator has the permission to add and delete user and configure user parameters.

15.4.1 Adding a User

Step 1 Enter the User Management interface.

Menu >Configuration>User

User Management No. User Name Security Level User's MAC Address Pe Edit Del ... 1 admin Strong P... Admin 00:00:00:00 00:00 Add Back

Figure 15-4 User Management Interface

Step 2 Click the Add button to enter the Add User interface.

Add User User Name example 1 Password ****** Confirm ****** Level Guest User's MAC Address 00 :00 :00 :00 :00 :00 ✓ Valid password range (8-16). You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. OK Cancel

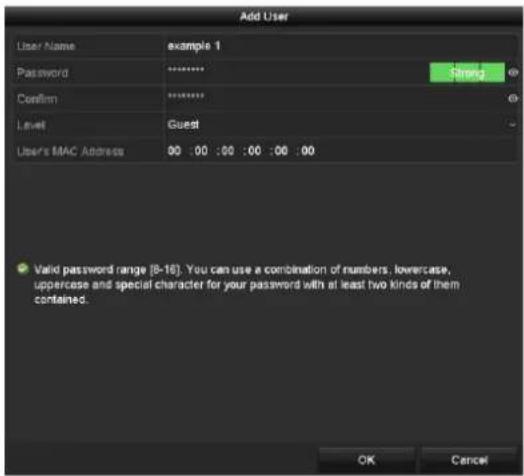

Figure 15-5 Add User Menu

Step 3 Enter the information for new user, including User Name, Password, Confirm, Level and User's MAC Address.

Password: Set the password for the user account.

WARNING

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Level: Set the user level to Operator or Guest. Different user levels have different operating permission.

- Operator: The Operator user level has permission of Two-way Audio in Remote Configuration and all operating permission in Camera Configuration by default.

- Guest: The Guest user has no permission of Two-way Audio in Remote Configuration and only has the local/remote playback in the Camera Configuration by default.

User's MAC Address: The MAC address of the remote PC which logs onto the DVR. If it is configured and enabled, it only allows the remote user with this MAC address to access the DVR.

Step 4 Click the OK button to save the settings and go back to the User Management interface. The added new user will be displayed on the list, as shown in Figure 15-6.

User Management No. User Name Security Level User's MAC Address Per... Edit Delete 1 admin Strong Pas... Admin 00:00:00:00:00:00 - - - 2 example 1 Strong Pas... Guest 00:00:00:00:00:00 ✓ ✓ ✓

Figure 15-6 Added User Listed in User Management Interface

Step 5 You can assign permissions for the added user.

1) Select the user from the list and then click ✅ to enter the Permission Settings interface, as shown in Figure 15-7.

Permission Local Configuration Remote Configuration Camera Configuration ✓ Local Log Search ■ Local Parameters Settings ■ Local Camera Management ■ Local Advanced Operation ■ Local Shutdown / Reboot Apply OK Cancel

Figure 15-7 User Permission Settings Interface

2) Set the operating permission of Local Configuration, Remote Configuration and Camera Configuration for the user.

Local Configuration

• Local Log Search: Searching and viewing logs and system information of device.
• Local Parameters Settings: Configuring parameters, restoring factory default parameters and importing/exporting configuration files.
• Local Camera Management: Enabling and disabling analog camera (s). Adding, deleting and editing of network camera (s). This function is supported by HDVR series.
• Local Advanced Operation: Operating HDD management (initializing HDD, setting HDD property), upgrading system firmware.
• Local Shutdown /Reboot: Shutting down or rebooting the device.

Remote Configuration

• Remote Log Search: Remotely viewing logs that are saved on the device.
• Remote Parameters Settings: Remotely configuring parameters, restoring factory default parameters and importing/exporting configuration files.
• Remote Camera Management: Remotely enabling and disabling analog camera (s), and adding, deleting and editing of network camera (s). This function is supported by HDVR series.
• Remote Serial Port Control: Configuring settings for RS-485 port.
• Remote Video Output Control: Sending remote control panel signal.
• Two-way Audio: Realizing two-way radio between the remote client and the device.
• Remote Alarm Control: Remotely arming (notify alarm and exception message to the remote client) and controlling the alarm output.
• Remote Advanced Operation: Remotely operating HDD management (initializing HDD, setting HDD property), upgrading system firmware.
• Remote Shutdown/Reboot: Remotely shutting down or rebooting the device.

Camera Configuration

• Remote Live View: Remotely viewing live video of the selected camera (s).
• Local Manual Operation: Locally starting/stopping manual recording, picture capturing and alarm output of the selected camera (s).
• Remote Manual Operation: Remotely starting/stopping manual recording, picture capturing and alarm output of the selected camera (s).
• Local Playback: Locally playing back recorded files of the selected camera (s).
• Remote Playback: Remotely playing back recorded files of the selected camera (s).
• Local PTZ Control: Locally controlling PTZ movement of the selected camera (s).
• Remote PTZ Control: Remotely controlling PTZ movement of the selected camera (s).
• Local Video Export: Locally exporting recorded files of the selected camera (s).

Local Camera Management is provided for the IP cameras only.

3) Click OK to save the settings and exit.

15.4.2 Deleting a User

Step 1 Enter the User Management interface.

Menu >Configuration>User

Step 2 Select the user to be deleted from the list, as shown in Figure 15-8.

User Management No. User Name Security Level User's MAC Address Per... Edit Delete 1 admin Strong Pas... Admin 00:00:00:00:00:00 - - - 2 example 1 Strong Pas... Guest 00:00:00:00:00:00 ✓ ✓ ✓

Figure 15-8 User List

Step 3 Click delete the selected user account.

17.5.1 Editing a User

Purpose

For the added user accounts, you can edit the parameters.

Step 1 Go to Menu > Configuration> User.

Step 2 Select user from the list, as shown in Figure 15-8.

Step 3 Click

Step 4 Edit the corresponding parameters.

- Operator and Guest

You can edit the user information, including user name, password, permission level and MAC address.

- Admin

You can to export GUID, and edit the password, unlock pattern, and MAC address. You are allowed to edit the operator and guest permission by clicking 📋 on User Management.

Chapter 16 Appendix

16.1 Glossary

• Dual-Stream: Dual-stream is a technology used to record high resolution video locally while transmitting a lower resolution stream over the network. The two streams are generated by the DVR, with the main stream having a maximum resolution of 1080P and the sub-stream having a maximum resolution of CIF.
• DVR: Acronym for Digital Video Recorder. A DVR is device that is able to accept video signals from analog cameras, compress the signal and store it on its hard drives.
• HDD: Acronym for Hard Disk Drive. A storage medium which stores digitally encoded data on platters with magnetic surfaces.
• DHCP: Dynamic Host Configuration Protocol (DHCP) is a network application protocol used by devices (DHCP clients) to obtain configuration information for operation in an Internet Protocol network.
• HTTP: Acronym for Hypertext Transfer Protocol. A protocol to transfer hypertext request and information between servers and browsers over a network
• PPPoE: PPPoE, Point-to-Point Protocol over Ethernet, is a network protocol for encapsulating Point-to-Point Protocol (PPP) frames inside Ethernet frames. It is used mainly with ADSL services where individual users connect to the ADSL transceiver (modem) over Ethernet and in plain Metro Ethernet networks.
• DDNS: Dynamic DNS is a method, protocol, or network service that provides the capability for a networked device, such as a router or computer system using the Internet Protocol Suite, to notify a domain name server to change, in real time (ad-hoc) the active DNS configuration of its configured hostnames, addresses or other information stored in DNS.
  • Hybrid DVR: A hybrid DVR is a combination of a DVR and NVR.
• NTP: Acronym for Network Time Protocol. A protocol designed to synchronize the clocks of computers over a network.
• NTSC: Acronym for National Television System Committee. NTSC is an analog television standard used in such countries as the United States and Japan. Each frame of an NTSC signal contains 525 scan lines at 60Hz.

• NVR: Acronym for Network Video Recorder. An NVR can be a PC-based or embedded system used for centralized management and storage for IP cameras, IP Domes and other DVRs.

• PAL: Acronym for Phase Alternating Line. PAL is also another video standard used in broadcast televisions systems in large parts of the world. PAL signal contains 625 scan lines at 50Hz.

• PTZ: Acronym for Pan, Tilt, Zoom. PTZ cameras are motor driven systems that allow the camera to pan left and right, tilt up and down and zoom in and out.
• USB: Acronym for Universal Serial Bus. USB is a plug-and-play serial bus standard to interface devices to a host computer.

16.2 Troubleshooting

- No image displayed on the monitor after the device is starting up normally.

Possible Reasons:

— No VGA or HDMI connections.
— Connection cable is damaged.
— Input mode of the monitor is incorrect.

Step 1 Verify the device is connected with the monitor via HDMI or VGA cable.

If not, please connect the device with the monitor and reboot.

Step 2 Verify the connection cable is good.

If there is still no image display on the monitor after rebooting, please check if the connection cable is good, and change a cable to connect again.

Step 3 Verify Input mode of the monitor is correct.

Please check the input mode of the monitor matches with the output mode of the device (e.g. if the output mode of DVR is HDMI output, then the input mode of monitor must be the HDMI input). And if not, please modify the input mode of monitor.

Step 4 Check if the fault is solved by the step 1 to step 3.

If it is solved, finish the process.

If not, please contact the engineer from our company to do the further process.

● There is a beep sound after a new bought device starts up.

Possible Reasons:

— No HDD is installed in the device.
— The installed HDD has not been initialized.
— The installed HDD is not compatible with the device or is broken-down.

Step 1 Verify at least one HDD is installed in the device.

1) If not, please install the compatible HDD.

i NOTE

Please refer to the "Quick Operation Guide" for the HDD installation steps.

2) If you do not want to install a HDD, select "Menu>Configuration >Exceptions", and uncheck the Audible Warning checkbox of "HDD Error".

Step 2 Verify the HDD is initialized.

1) Select "Menu>HDD>General".

2) If the status of the HDD is "Uninitialized", please check the checkbox of corresponding HDD and click the "Init" button.

Step 3 Verify the HDD is detected or is in good condition.

1) Select "Menu>HDD>General".

2) If the HDD is not detected or the status is "Abnormal", please replace the dedicated HDD according to the requirement.

Step 4 Check if the fault is solved by the step 1 to step 3.

1) If it is solved, finish the process.

2) If not, please contact the engineer from our company to do the further process.

● Live view stuck when video outputs locally.

Possible Reasons:

— The frame rate has not reached the real-time frame rate.

Step 1 Check the parameters of Main Stream (Continuous) and Main Stream (Event).

Select "Menu > Record > Parameters > Record", and set the resolution of Main Stream (Event) the same as the one of Main Stream (Continuous).

Step 2 Verify the frame rate is real-time frame rate.

Select "Menu > Record > Parameters > Record", and set the Frame Rate to Full Frame.

Step 3 Check if the fault is solved by the above steps.

If it is solved, finish the process.

If not, please contact the engineer from our company to do the further process.

- When using the device to get the live view audio, there is no sound or there is too much noise, or the volume is too low.

Possible Reasons:

— Cable between the pickup and camera is not connected well; impedance mismatches or incompatible.

— The stream type is not set as "Video & Audio".

Step 1 Verify the cable between the pickup and camera is connected well; impedance matches and compatible.

Step 2 Verify the setting parameters are correct.

Select "Menu > Record > Parameters > Record", and set the Stream Type as "Audio & Video".

Step 3 Check if the fault is solved by the above steps.

If it is solved, finish the process.

If not, please contact the engineer from our company to do the further process.

- The image gets stuck when DVR is playing back by single or multi-channel cameras.

Possible Reasons:

— The frame rate is not the real-time frame rate.
— The DVR supports up to 16-channel synchronize playback at the resolution of 4CIF, if you want a 16-channel synchronize playback at the resolution of 720p, the frame extracting may occur, which leads to a slight stuck.

Step 1 Verify the frame rate is real-time frame rate.

Select "Menu > Record > Parameters > Record", and set the Frame Rate to "Full Frame".

Step 2 Verify the hardware can afford the playback.

Reduce the channel number of playback.

Select "Menu > Record > Encoding > Record", and set the resolution and bitrate to a lower level.

Step 3 Reduce the number of local playback channel.

Select "Menu > Playback", and uncheck the checkbox of unnecessary channels.

Step 4 Check if the fault is solved by the above steps.

If it is solved, finish the process.

If not, please contact the engineer from our company to do the further process.

- No record file found in the device local HDD, and the prompt "No record file found" pops up when you search the record files.

Possible Reasons:

— The time setting of system is incorrect.
— The search condition is incorrect.
— The HDD is error or not detected.

Step 1 Verify the system time setting is correct.

Select "Menu > Configuration > General > General", and verify the "System Time" is correct.

Step 2 Verify the search condition is correct.

Select "Playback", and verify the channel and time are correct.

Step 3 Verify the HDD status is normal.

Select "Menu > HDD > General" to view the HDD status, and verify the HDD is detected and can be read and written normally.

Step 4 Check if the fault is solved by the above steps.

If it is solved, finish the process.

If not, please contact the engineer from our company to do the further process.

16.3 List of Compatible Third-Party IP Cameras

Manufacturer	Model	Version	Max. Resolution	Sub-stream	Audio
Axis	P3304	5.2	1440×900	√	×
Sony	SNC-RH 124	1.7.00	1280×720	√	√
Samsung	SND-50 80P	3.10_130 416	1280×1024	√	√
Vivotek	FD8134	0107a	1280×800	√	×
Bosch	Dinion NBN-92 1-P	V105004 53	1280×720	×	×
Panasonic	SP306H	Application: 1.34 Image Data: 1.06	1280×960	×	√
Cannon	VB-H41 0	Ver.+1.0.0	1280×960	×	√
Zavio	F3206	MG.1.6.0 2c045	1920×1080	√	×
Pelco	IX30DN -ACFZH B3	1.8.2-20 120327-2.9080-A 1.7852	2048×1536	√	×

World map silhouette showing continents and oceans (no text or labels)
