Network Speed Dome User Manual

User Manual

COPYRIGHT © 2017 Hangzhou Hikvision Digital Technology Co., Ltd.

ALL RIGHTS RESERVED.

Any and all informaon, including, among others, wordings, pictures, graphs are the properes of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinaer referred to be "Hikvision"). This user manual (hereinaer referred to be "the Manual") cannot be reproduced, changed, translated, or distributed, parally or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise spulated, Hikvision does not make any warranties, guarantees or representaons, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to Network Speed Dome.

The Manual includes instrucons for using and managing the product. Pictures, charts, images and all other informaon hereinaer are for descripon and explanaon only. The informaon contained in the Manual is subject to change, without noce, due to rmware updates or other reasons. Please end the latest version in the company website (hp://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

HiLook and other Hikvision's trademarks and logos are the properes of Hikvision in various jurisdicons. Other trademarks and logos menoned below are the properes of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Informaon

FCC Informaon

Please take aenon that changes or modicaon not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucon manual, may cause harmful interference to radio communicaons. Operaon of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operaon is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operaon.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Direcve 2014/30/EU, the RoHS Direcve 2011/65/EU.

2012/19/EU (WEEE direcve): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collecon points. For more informaon see: www.recyclethis.info.

2006/66/EC (baery direcve): This product contains a baery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentaon for speci baery informaon. The baery is marked with this symbol, which may include leering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the baery to your supplier or to a designated collecon point. For more informaon see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Waring:

This is a class A product. In a domesc environment this product may cause radio inter-ference in which case the user may be required to take adequate measures.

Safety Instrucon

These instrucons are intended to ensure that the user can use the product correctly to avoid danger or property loss.

The precauon measure is divided into 'Warnings' and 'Cauons':

Warnings: Serious injury or death may be caused if any of these warnings are neglected.

Cauons: Injury or equipment damage may be caused if any of these cauons are neglected.

Warnings Follow these safeguards to prevent serious injury or death.	Cauons Follow these precautions to prevent potential injury or material damage.

Warnings:

• Adopt the power adapter which can meet the safety extra low voltage (SELV) standard. The power consumption cannot be less than the required value.
• Do not connect several devices to one power adapter as an adapter overload may cause over-heang and can be a re hazard.
• When the product is installed on a wall or ceiling, the device should be rmly xed.
• To reduce the risk of re or electrical shock, do not expose the indoor used product to rain or moisture.
• This installaon should be made by a qualified service person and should conform to all the local codes.
  ● Install blackouts equipment into the power supply circuit for convenient supply interrupon.
• If the product does not work properly, contact your dealer or the nearest service center. Never aempt to disassemble the product yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.)

Cauons:

• If the camera fails to synchronize local me with that of the network, you need to set up camera me manually. Visit the camera (via web browser or client sware) and enter system sengs interface for me sengs.
  ● Make sure the power supply voltage is correct before using the product.
• Do not drop the product or subject it to physical shock. Do not install the product on vibratory surface or places.
• Do not expose it to high electromagnec radiang environment.
• Do not aim the lens at the strong light such as sun or incandescent lamp. The strong light can cause fatal damage to the product.
  ● The sensor may be burned out by a laser beam, so when any laser equipment is being used,

make sure that the surface of the sensor not be exposed to the laser beam.

• For working temperature, refer to the specicaon manual for details.
  ● To avoid heat accumulaon, good venlaon is required for a proper operang environment.
  ● While shipping, the product should be packed in its original packing.
• Use the provided glove when open up the product cover. Do not touch the product cover with ngers directly, because the acidic sweat of the ngers may erode the surface coang of the product cover.
• Use a so and dry cloth when clean inside and outside surfaces of the product cover. Do not use alkaline detergents.
• Improper use or replacement of the baery may result in hazard of explosion. Use the manufacturer recommended baery type.

Table of Contents

CHAPTER 1 OVERVIEW ....1

1.1 SYSTEM REQUIREMENT....1
1.2 FUNCTIONS....1

CHAPTER 2 NETWORK CONNECTION ....4

2.1 SETTING THE NETWORK CAMERA OVER THE LAN....4

2.1.1 Wiring over the LAN 4
2.1.2 Acvang the Camera 5
2.1.3 (Oponal) Seng Security Queson....10

2.2 SETTING THE NETWORK CAMERA OVER THE WAN 10

2.2.1 Stac IP Connecon....10
2.2.2 Dynamic IP Connecon 11

CHAPTER 3 ACCESSING TO THE NETWORK SPEED DOME....13

3.1 ACCESSING BY WEB BROWSERS....13
3.2 ACCESSING BY CLIENT SOFTWARE....14

CHAPTER 4 BASIC OPERATIONS ....16

4.1 CONFIGURING LOCAL PARAMETERS 16
4.2 LIVE VIEW PAGE 17
4.3 STARTING LIVE VIEW 18
4.4 OPERATING PTZ CONTROL 20

4.4.1 PTZ Control Panel....20
4.4.2 Auxiliary Funcons....22
4.4.3 Seng/Calling a Preset 23
4.4.4 Seng/Calling a Patrol....25
4.4.5 One-touch Patrol....27
4.4.6 Seng/Calling a Paern 27

4.5 PLAYBACK....28

4.5.1 Play Back Video Files 29
4.5.2 Downloading Video Files 30

4.6 PICTURES 31

CHAPTER 5 SYSTEM CONFIGURATION....33

5.1 STORAGE SETTINGS 33

5.1.1 Conguring Recording Schedule 33
5.1.2 Conguring Capture Schedule 35
5.1.3 Conguring Net HDD 36

5.2 BASIC EVENT CONFIGURATION....39

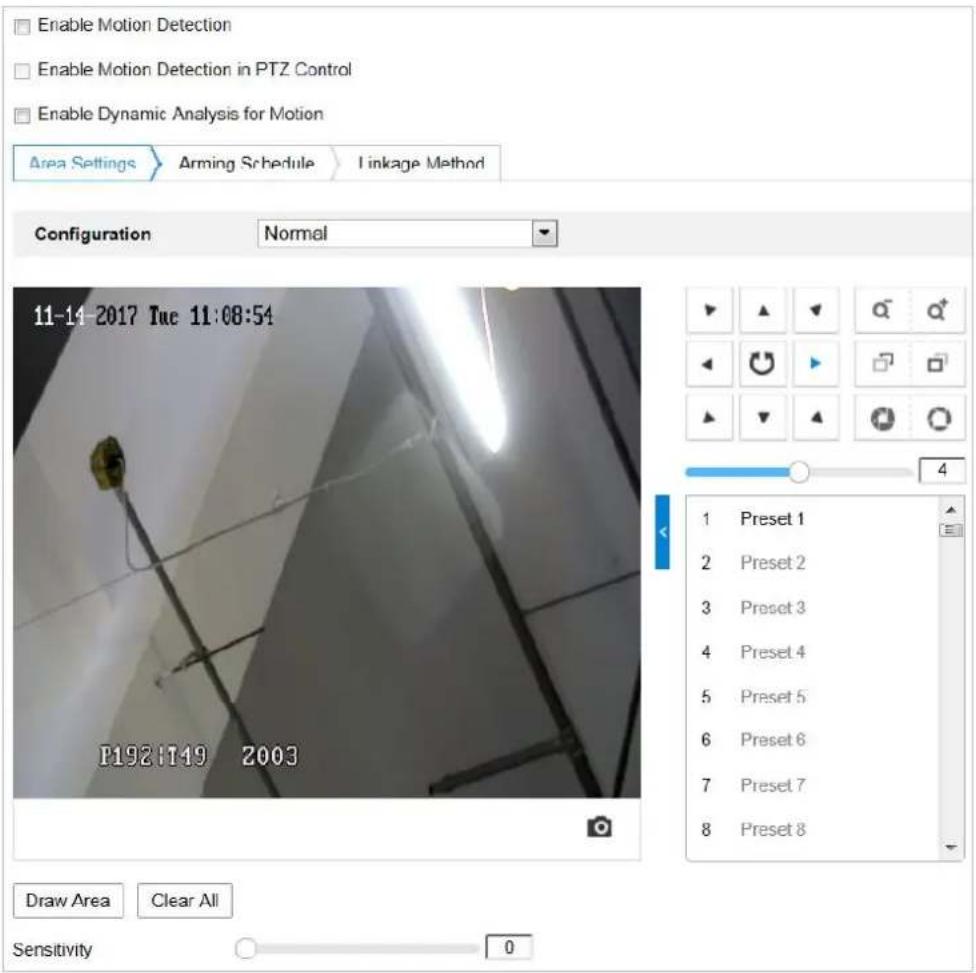

5.2.1 Conguring Moon Detecon 39
5.2.2 Conguring Video Tampering Alarm 43
5.2.3 Handling Excepon....44

5.3 SMART EVENT CONFIGURATION....45

5.3.1 Conguring Intrusion Detecon....45
5.3.2 Conguring Line Crossing Detecon 47
5.3.3 Conguring Region Entrance Detecon 48
5.3.4 Conguring Region Exing Detecon 49
5.3.5 Conguring Unended Baggage Detecon 50
5.3.6 Conguring Object Removal Detecon....52
5.3.7 Conguring Face Detecon....54

5.4 PTZ CONFIGURATION ....55

5.4.1 Conguring Basic PTZ Parameters....55
5.4.2 Conguring PTZ Limits 56
5.4.3 Conguring Inial Posion....57
5.4.4 Conguring Park Acons....58
5.4.5 Conguring Privacy Mask 59
5.4.6 Conguring Scheduled Tasks....61
5.4.7 Clearing PTZ Conguraons....62
5.4.8 Priorize PTZ....63

CHAPTER 6 SPEED DOME CONFIGURATION....64

6.1 CONFIGURING NETWORK SETTINGS....64

6.1.1 Basic Sengs....64
6.1.2 Advanced Sengs....68

6.2 CONFIGURING VIDEO AND AUDIO SETTINGS....78

6.2.1 Conguring Video Sengs 78
6.2.2 Conguring Audio Sengs 80

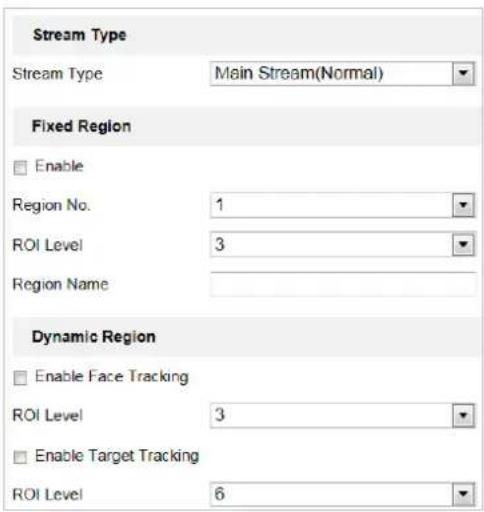

6.2.3 Conguring ROI Sengs 81
6.2.4 Conguring Info. on Stream....82

6.3 CONFIGURING IMAGE SETTINGS....83

6.3.1 Conguring Display Sengs 83
6.3.2 Conguring OSD Sengs....88
6.3.3 Conguring Text Overlay Sengs 89
6.3.4 Conguring Image Parameters Switch....90

6.4 CONFIGURING SYSTEM SETTINGS 91

6.4.1 System Sengs....91
6.4.2 Maintenance....94
6.4.3 Security 96
6.4.4 User Management 98

APPENDIX 102

SADP SOFTWARE INTRODUCTION 102

Chapter 1 Overview

1.1 System Requirement

System requirement of web browser accessing is as follows:

Operang System: Microso Windows XP SP1 and above version/Vista/Win7/Server 2003/Server 2008 32bits

CPU: Intel Penum IV 3.0 GHz or higher

RAM: 1G or higher

Display: 1024 × 768 resoluon or higher

Web Browser: Internet Explorer 8 to 11, Google Chrome 31 to 44, and Mozilla Firefox 30 to 51

1.2 Funcons

The funcons vary depending on dierent speed dome models.

- PTZ Limits

The camera can be programmed to move within the PTZ limits (le/right, up/down).

- Scan Modes

The camera provides 5 scan modes: auto scan, It scan, frame scan, random scan and panorama scan.

- Presets

A preset is a predened image posion. When the preset is called, the camera will automatically move to the dened posion. The presets can be added, modified, deleted and called.

- Label Display

The on-screen label of the preset tle, azimuth/elevaon, zoom, me and camera name can be displayed on the monitor. The displays of me and camera name can be programmed.

- Auto Flips

In manual tracking mode, when a target object goes directly beneath the camera, the video will automatically ips 180 degrees in horizontal direcon to maintain connuity of tracking. This funcon can also be realized by auto mirror image depending on dierent speed dome models.

- Privacy Mask

This funcon allows you to block or mask certain area of a scene, for preventing the personal privacy from recording or live viewing. A masked area will move with pan and It funcons and automacally adjust in size as the lens zooms telephoto and wide.

● 3D Posioning

In the client soware, use the le key of mouse to click on the desired posion in the video image and drag a rectangle area in the lower right direcon, then the camera system will move the posion to the center and allow the rectangle area to zoom in. Use the le key of mouse to drag a rectangle area in the upper le direcon to move the posion to the center and allow the

rectangle area to zoom out.

● Proporonal Pan/Tilt

Proporonal pan/It automacally reduces or increases the pan and It speeds according to the amount of zoom. At telephoto zoom sengs, the pan and It speeds will be slower than at wide zoom sengs. This keeps the image from moving too fast on the live view image when there is a large amount of zoom.

- Auto Focus

The auto focus enables the camera to focus automacally to maintain clear video images.

● Day/Night Auto Switch

The cameras deliver color images during the day. And as light diminishes at night, the cameras switch to night mode and deliver black and white images with high quality.

- Slow Shuer

In slow shutter mode, the shutter speed will automatically slow down in low illumination conditions to maintain clear video images by extending the exposure me. The feature can be enabled or disabled.

● Backlight Compensaon (BLC)

If you focus on an object against strong backlight, the object will be too dark to be seen clearly. The BLC (Backlight Compensaon) funcon can compensate light to the object in the front to make it clear, but this causes the over-exposure of the background where the light is strong.

● Wide Dynamic Range (WDR)

The wide dynamic range (WDR) funcon helps the camera provide clear images even under back light circumstances. When there are both very bright and very dark areas simultaneously in the eld of view, WDR balances the brightness level of the whole image and provide clear images with details.

● White Balance (WB)

White balance can remove the unrealisc color casts. White balance is the white rendition funcon of the camera to adjust the color temperature according to the environment automacally.

- Patrol

A patrol is a memorized series of pre-dened preset funcon. The scanning speed between two presets and the dwell me at the preset are programmable.

● Paern

A paern is a memorized series of pan, lt, zoom, and preset funcons. By default the focus and iris are in auto status during the paern is being memorized.

● Power O Memory

The camera supports the power o memory capability with the predened resume me. It allows the camera to resume its previous posion aer power is restored.

- Scheduled Task

A me task is a precongured acon that can be performed automacally at a speci date and me. The programmable actions include: auto scan, random scan, patrol 1-8 ,pattern 1-4, preset 1-8,frame scan, panorama scan, lt scan, day, night, reboot, PT adjust, Aux Output, etc.

- Park Acon

This feature allows the camera to start a predened acon automacally aer a period of inactivity.

- User Management

The camera allows you to edit users with dierent levels of permission, in the admin login status. Mulple users are allowed to access and control the same network camera via network simultaneously.

● 3D Digital Noise Reducon

Comparing with the general 2D digital noise reducon, the 3D digital noise reducon funcon processes the noise between two frames besides processing the noise in one frame. The noise will be much less and the video will be clearer.

Chapter 2 Network Connecon

• You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network aacks and informaon leakage, strengthen your own protecon. If the product does not work properly, contact with your dealer or the nearest service center.
• To ensure the network security of the network camera, we recommend you to have the network camera assessed and maintained termly. You can contact us if you need such service.

Before you start:

• If you want to set the network camera via a LAN (Local Area Network), refer to Secon 2.1 Seng the Network Camera over the LAN.
• If you want to set the network camera via a WAN (Wide Area Network), refer to Secon 2.2 Seng the Network Camera over the WAN.

2.1 Seng the Network Camera over the LAN

Purpose:

To view and congregate the camera via a LAN, you need to connect the camera in the same subnet with your computer, and install the SADP or client soware to search and change the IP of the network camera.

For the detailed introducon of SADP, refer to Appendix.

2.1.1 Wiring over the LAN

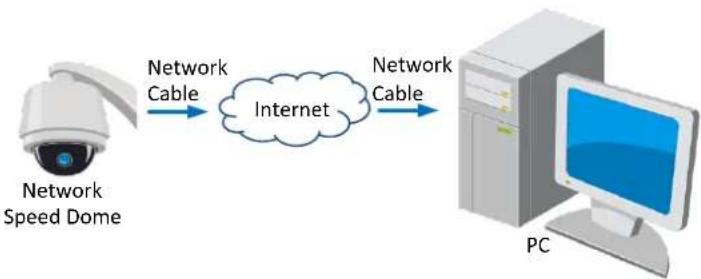

The following gures show the two ways of cable conncon of a network camera and a computer:

Purpose:

• To test the network camera, you can directly connect the network camera to the computer with a network cable as shown in Figure 2-1.
  ● Refer to the Figure 2-2 to set the network camera over the LAN via a switch or a router.

Figure 2-1 Connecng Directly


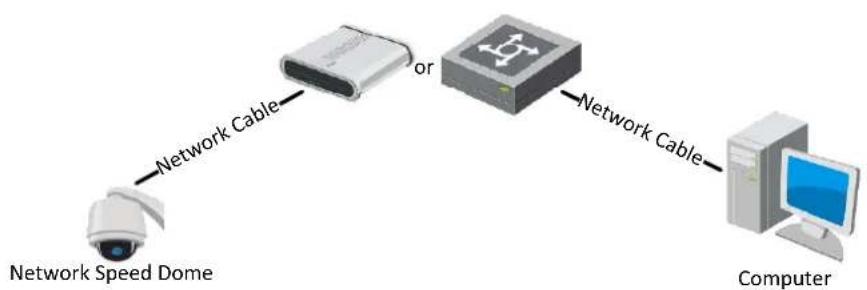

Figure 2-2 Connecng via a Switch or a Router

2.1.2 Acvang the Camera

Purpose:

You are required to acvate the camera rst before you can use the camera.

Acvaon via web browser, acvaon via SADP, and acvaon via client soware are supported.

1. Power on the camera, and connect the camera to the network.
2. Input the IP address into the address bar of the web browser, and enter the acvaon interface.

The default IP address of the camera is 192.168.1.64.

Activation User Name admin Password Valid password range [8-16]. You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. Confirm OK

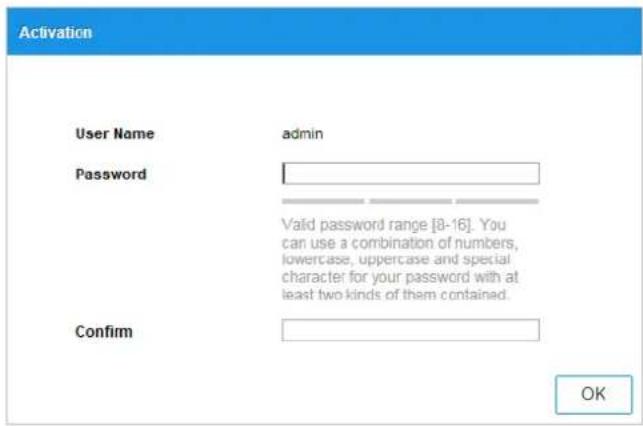

Figure 2-3 Acvaon Interface (Web)

1. Create a password and input the password into the password eld.

- For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

- Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

1. Conrm the password.

2. Click OK to acvate the camera and enter the live view interface.

◆ Acvaon via SADP Soware

SADP soware is used for detecting the online device, acvang the device, and reseng the password.

Get the SADP soware from the supplied disk or the ofcial website, and install the SADP according to the prompts. Follow the steps to acvate the camera.

Steps:

1. Run the SADP soware to search the online devices.
2. Check the device status from the device list, and select an inacve device.

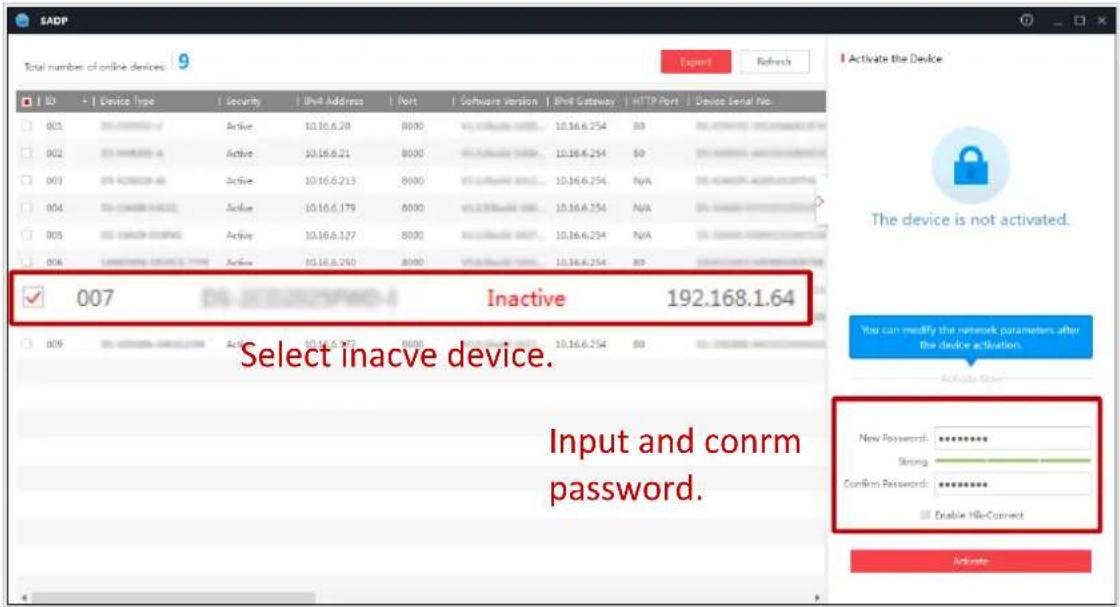

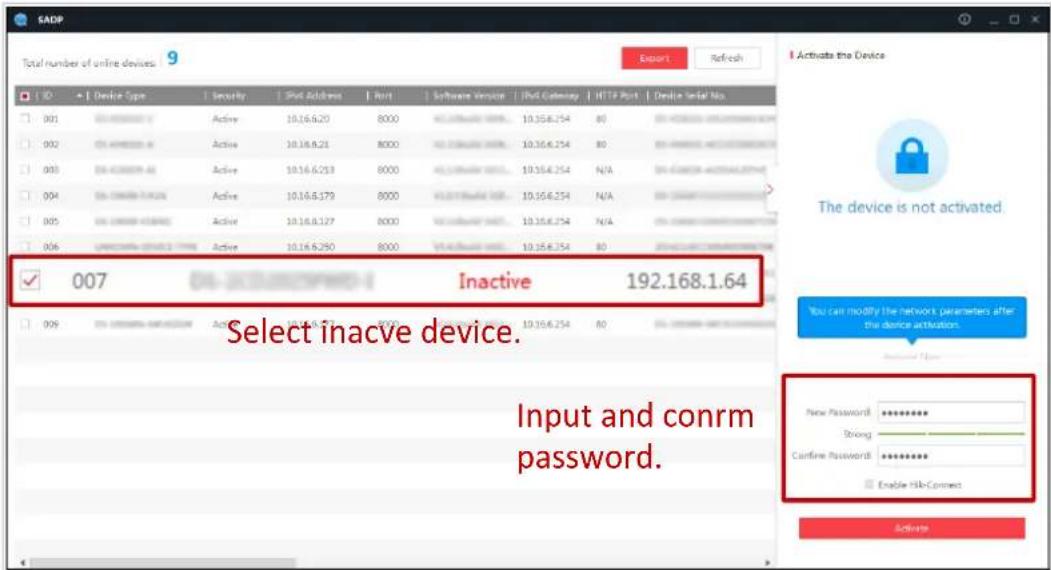

SADP Total number of online devices: 9 Expert Refresh ID Device Type Security IPv4 Address Port Software Version IPv4 Gateway HTTP Port Device Serial No. 001 Active 10.16.6.28 8000 10.16.6.254 80 002 Active 10.16.6.21 8000 10.16.6.254 80 003 Active 10.16.6.213 8000 10.16.6.254 N/A 004 Active 10.16.6.179 8000 10.16.6.254 N/A 005 Active 10.16.6.127 8000 10.16.6.254 N/A 006 Active 10.16.6.250 8000 10.16.6.254 80 ✓ 007 Inactive 192.168.1.64 Select inactive device. Input and conrm password. Activate the Device The device is not activated. You can modify the network parameters after the device activation. Active User New Password: ********** Strong Confirm Password: ********** Enable Hk-Connect Activate

Figure 2-4 SADP Interface

The SADP soware supports acvang the camera in batch. Refer to the user manual of SADP soware for details.

1. Create a password and input the password in the password eld, and conrm the password.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.
• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

You can enable the Hik-Connect service for the device during acvaon. Hik-Connect funcon varies depending on dierent speed dome models.

1. Click Acvate to start acvaon. You can check whether the acvaon is completed on the popup window. If acvaon failed, make sure that the password meets the requirement and then try again.
2. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking Enable DHCP.

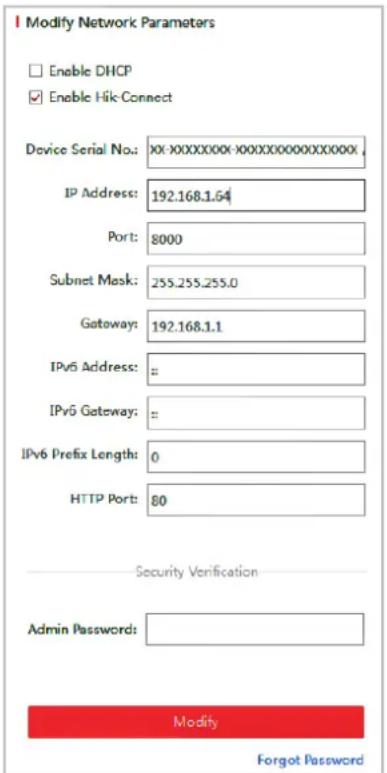

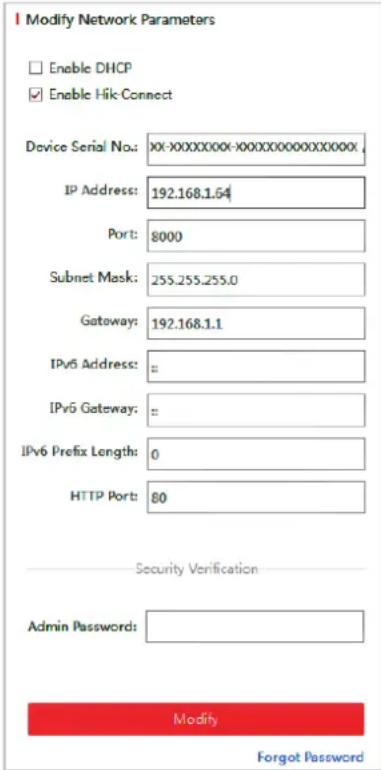

Modify Network Parameters Enable DHCP Enable Hik Connect Device Serial No: 0X-XXXXXXX-XXXXXXXXXXXXX IP Address: 192.168.1.64 Port: 8000 Subnet Mask: 255.255.255.0 Gateway: 192.168.1.1 IPv6 Address: :# IPv6 Gateway: :# IPv6 Prefix Length: 0 HTTP Port: 80 Security Verification Admin Password: Modify Forgot Password

Figure 2-5 Modify the IP Address

1. Input the password and click Modify to activate your IP address modification.

The batch IP address modicaon is supported by the SADP. Refer to the user manual of SADP for details.

◆ Acvaon via Client Soware

The client soware is versale video management soware for mulple kinds of devices.

Get the client soware from the supplied disk or the ocial website, and install the soware according to the prompts. Follow the steps to acvate the camera.

Steps:

1. Run the client soware and the control panel of the soware pops up, as shown in Figure 2-6.

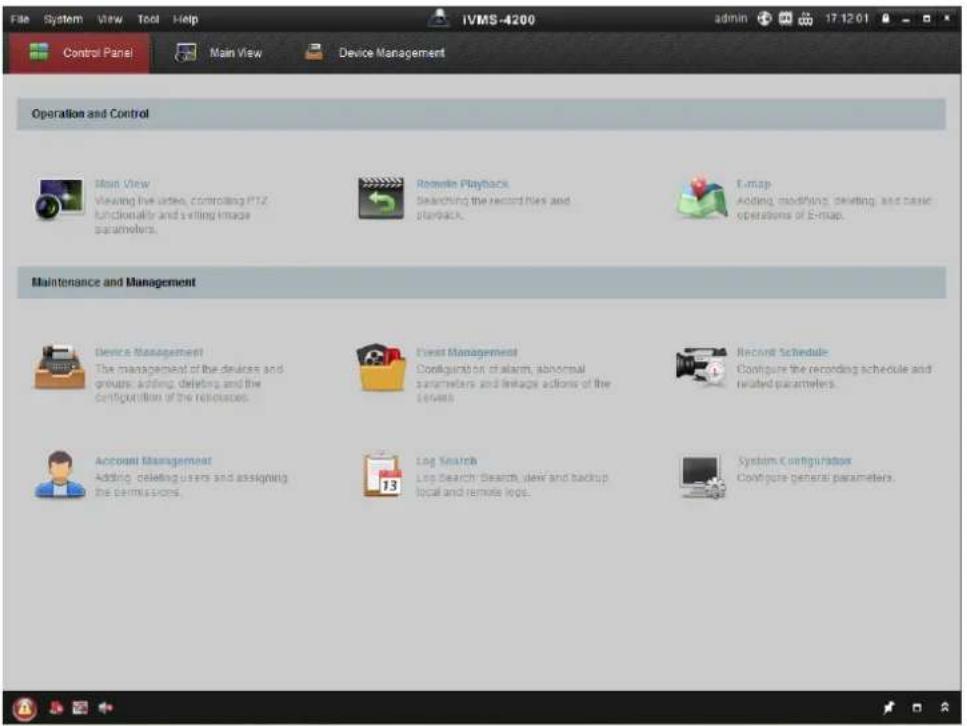

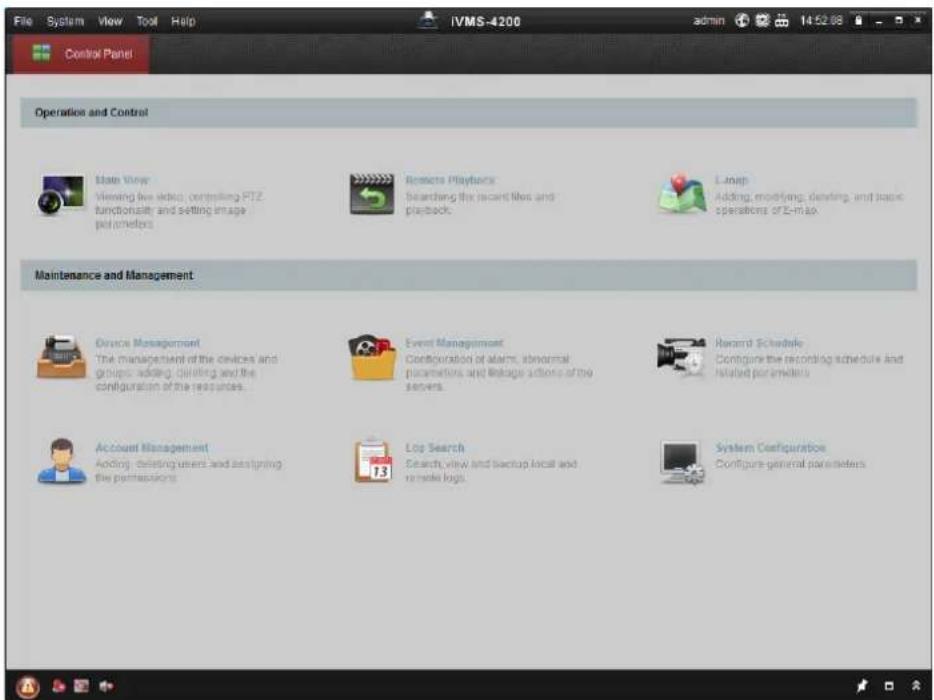

File System View Tool Help IVMS-4200 admin 14:52:08 Control Panel Operation and Control Main View Viewing live video, controlling PTZ functionality and setting image parameters Reagents Playbacks Searching the recent files and playback E-mail Adding, modifying, deleting, and basic operations or E-mail Maintenance and Management Device Management The management of the devices and groups, adding, deleting and the configuration of the resources. Event Management Configuration of alarms, abnormal paramulations and linkages actions of the servers. Record Schedule Configure the recording schedule and related parameters Account Management Adding, deleting users and assigning the performances. Log Search Search, view and backup local and to make logs. System Configuration Configure general parameters

Figure 2-6 iVMS-4200 Control Panel

1. Click Device Management to enter the Device Management interface, as shown in Figure 2-7.

Device for Management (0) Add Device Modify Delete Remote C VCA Apache Activate Refresh All Filter Nickname IP Device Serial No. Security Net Status HDD Statu Online Device (3) Refresh Every 15s Add to Client Add All Modify NetInfo Reset Password Activate Filter IP Device Type Firmware Version Security Server Port Start time Ac 182.168.1.64 XX-XXXXXXXXXX Vx.x.xbuild xxxxxx Inactive 8000 2015-03-20 16:13:47 No 10.10.1.222 XX-XXXXXXXXXX Vx.x.xbuild xxxxxx Active 8000 2015-03-20 10:27:51 No 192.0.0.64 XX-XXXXXXXXXX Vx.x.xbuild xxxxxx Active 8000 2015-03-20 07:53:43 No Encoding devices: DVREVISN/RIPCPDVMIS-4200 PCNVRIVMS-4200 EncodersCard server Motion Detection Alarm

Figure 2-7 Device Management Interface

1. Check the device status from the device list, and select an inactive device.
2. Click Acvate to pop up the Acvaon interface.
3. Create a password and input the password in the password eld, and conrm the password.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.
• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

Activation User Name: admin Password: •••••••••• Strong Valid password range [8-16]. You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. Confirm New Password: •••••••••••• Ok Cancel

Figure 2-8 Acvaon Interface

1. Click OK to start acvaon.
2. Click Modify Nenfo to pop up the Network Parameter Modicaon interface, as shown in Figure 2-9.

Modify Network Parameter Device Information: MAC Address: XX-XX-XX-XX-XX Software Version: Vx.xxbuildxxxxxx Device Serial No.: XX-XXXXXXXXXXXXXXXXXXXXX Network Information: DHCP Port: 8000 IPv4(Enable) IP address: 192.168.1.64 Subnet Mask: 255.255.255.0 Gateway: 192.168.1.1 IPv6(Disable) Password: OK Cancel

Figure 2-9 Modifying the Network Parameters

1. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking Enable DHCP.
2. Input the password to acvate your IP address modicaon.

2.1.3 (Oponal) Seng Security Queson

Security queson is used to reset the admin password when admin user forgets the password. Admin user can follow the pop-up window to complete security queson sengs during camera acvaon. Or, admin user can go to User Management interface to set up the funcon.

2.2 Seng the Network Camera over the WAN

Purpose:

This secon explains how to connect the network camera to the WAN with a stac IP or a dynamic IP.

2.2.1 Stac IP Connecon

Before you start:

Apply a stac IP from an ISP (Internet Service Provider). With the stac IP address, you can connect the network camera via a router or connect it to the WAN directly.

- Connecng the network camera via a router

Steps:

1. Connect the network camera to the router.
2. Assign a LAN IP address, the subnet mask and the gateway. Refer to Secon 2.1.2 for detailed IP address conguraon of the camera.
3. Save the stac IP in the router.
4. Set port mapping, E.g., 80, 8000 and 554 ports. The steps for port mapping vary depending on dierent routers. Call the router manufacturer for assistance with port mapping.
5. Visit the network camera through a web browser or the client soware over the internet.


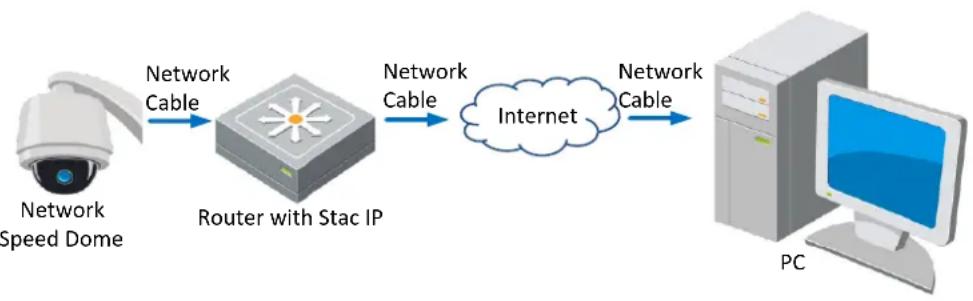

Figure 2-10 Accessing the Camera through Router with Stac IP

- Connecng the network camera with stac IP directly

You can also save the stac IP in the camera and directly connect it to the internet without using a router. Refer to Secon 2.1.2 for detailed IP address conguraon of the camera.

Figure 2-11 Accessing the Camera with Stac IP Directly

2.2.2 Dynamic IP Connecon

Before you start:

Apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the network camera to a modem or a router.

- Connecng the network camera via a router

Steps:

1. Connect the network camera to the router.

2. In the camera, assign a LAN IP address, the subnet mask and the gateway. Refer to Secon 2.1.2 for detailed LAN conguraon.

3. In the router, set the PPPoE user name, password and conrm the password.

- For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product. - Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

1. Set port mapping. E.g. 80, 8000 and 554 ports. The steps for port mapping vary depending on dierent routers. Call the router manufacturer for assistance with port mapping.

2. Apply a domain name from a domain name provider.

3. Congure the DDNS seings in the setng interface of the router.

4. Visit the camera via the applied domain name.

- Connecng the network camera via a modem

Purpose:

This camera supports the PPPoE auto dial-up funcon. The camera gets a public IP address by ADSL dial-up aer the camera is connected to a modem. You need to congregate the PPPoE parameters of the network camera. Refer to Secon 6.1.1 Conguring PPPoE Sengs for detailed conguraon.

The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes aer reboong the camera. To solve the inconvenience of the dynamic IP, you need to get a domain name from the DDNS provider (E.g. DynDns.com). Follow the steps below for normal domain name resoluon and private domain name resoluon to solve the problem.

♦ Normal Domain Name Resoluon

Steps:

1. Apply a domain name from a domain name provider.
2. Congure the DDNS seings in the DDNS Sengs interface of the network camera. Refer to Secon 6.1.1 Conguring DDNS Sengs for detailed conguraon.
3. Visit the camera via the applied domain name.

Chapter 3 Accessing to the Network Speed Dome

3.1 Accessing by Web Browsers

Steps:

1. Open the web browser.
2. In the address eld, input the IP address of the network camera, e.g., 192.168.1.64 and enter the login interface.
3. Acvate the camera for the first me using, refer to the secon 2.1.2 Acvang the Camera.
4. Select English as the interface language on the top-right of login interface.
5. Input the user name and password and click Login.

The admin user should congregate the device accounts and user/operator permissions properly. Delete the unnecessary accounts and user/operator permissions.

The device IP address gets locked if the admin user performs 7 failed password aempts (5 aempts for the user/operator).

User Name Password Login

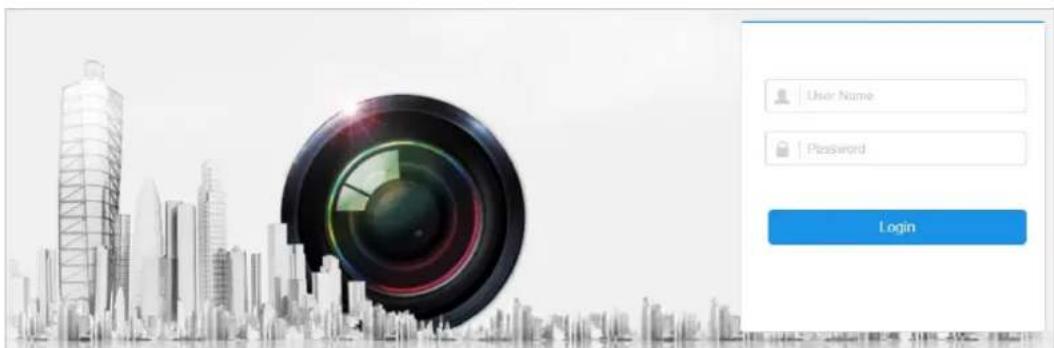

Figure 3-1 Login Interface

1. Install the plug-in before viewing the live video and operang the camera. Follow the installaon prompts to install the plug-in.

You may have to close the web browser to install the plug-in. Reopen the web browser and log in again aer installing the plug-in.

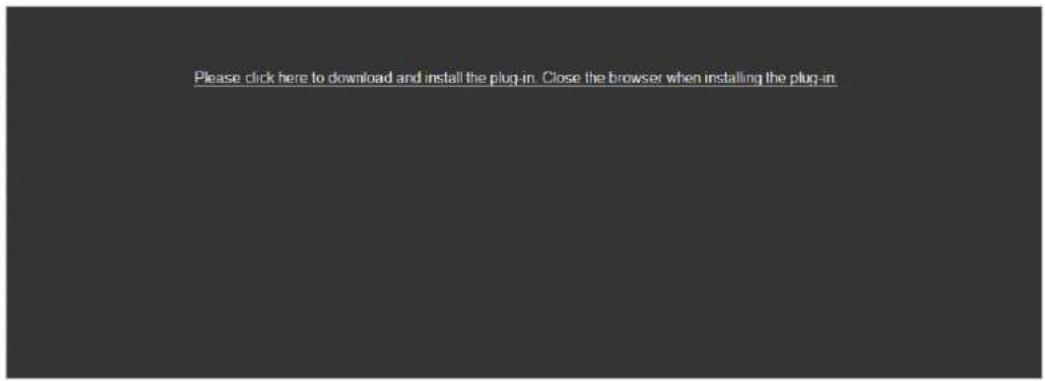

Please click here to download and install the plug-in. Close the browser when installing the plug-in.

Figure 3-2 Download and Install Plug-in

3.2 Accessing by Client Soware

The product CD contains the client soware. You can view the live video and manage the camera with the client soware.

Follow the installaon prompts to install the client soware and WinPcap. The conguraon interface and live view interface of client soware are shown in Figure 3-3.

File System View Tool Help Control Panel Main View Device Management Operation and Control Main View Viewing the video, controlling IPTZ functionality and setting image parameters. Remote Playback Searching the record files and playback. E-map Adding modifying, deleting, and basic operations of E-map. Maintenance and Management Device Management The management of the devices and groups: adding, deleting and the configuration of the resources. Event Management Configuration of alarm, abnormal parameters and linkage actions of the listations. Recent Schedule Configure the recording schedule and rated parameters. Account Management Adding, deleting users and assigning the permissions. Log Search Log Search Search, view and backup local and remote logs. System Configurations Configure general parameters.

Figure 3-3 iVMS-4200 Control Panel

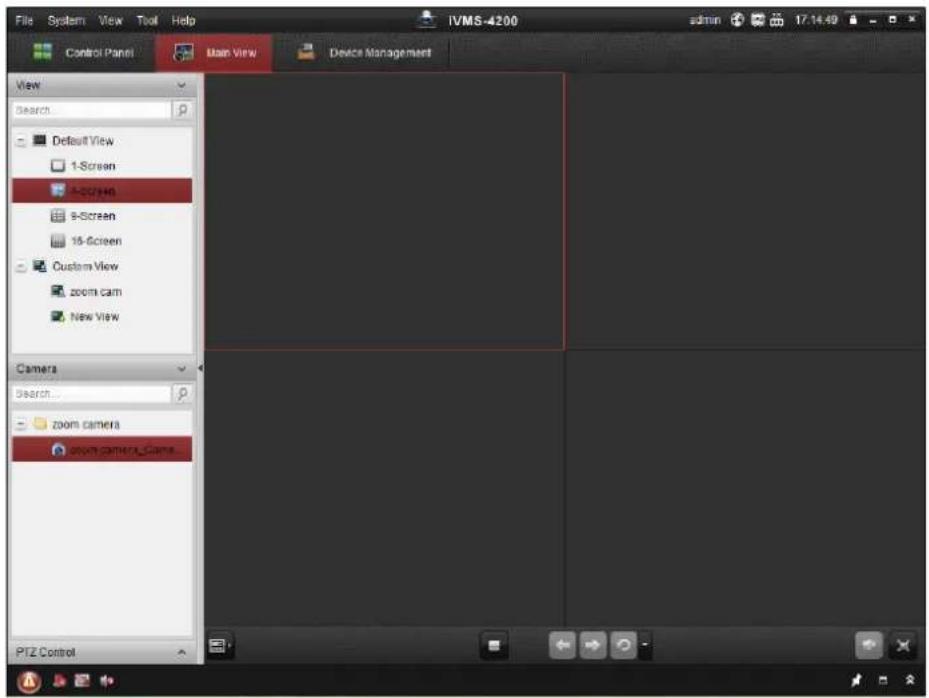

File System View Tool Help Control Panel Main View Device Management View Search Default View 1-Screen 1-Screen 9-Screen 15-Screen Custom View zoom cam New View Camera Search... zoom camera zoom camera_Cam PTZ Control

Figure 3-4 iVMS-4200 Live View Interface

• If you use third party VMS soware, contact technical support of our branch for camera rmware.
• For detailed informaon about client soware of our company, refer to the user manual of the soware. This manual mainly introduces accessing to the network camera by web browser.

Chapter 4 Basic Operaons

In this and the following chapters, operaon of the camera by the web browser will be taken as an example.

4.1 Conguring Local Parameters

The local conguraon refers to the parameters of the live view and other operaons using the web browser.

Steps:

1. Enter the Local Conguraon interface:

Conguraon > Local

Live View Parameters Protocol TCP UDP MULTICAST HTTP Play Performance Shortest Delay Balanced Fluent Rules Enable Disable Image Format JPEG BMP Record File Settings Record File Size 256M 512M 1G Save record files to Browse Open Save downloaded files to Browse Open Picture and Clip Settings Save snapshots in live vi... Browse Open Save snapshots when pla... Browse Open Save clips to Browse Open

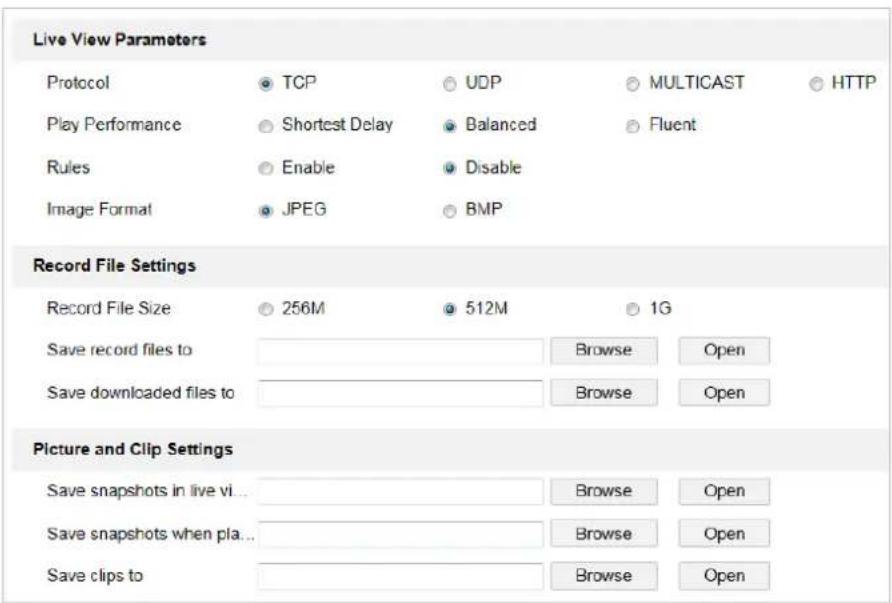

Figure 4-1 Local Conguraon Interface

1. Congure the following sengs:

● Live View Parameters: Set the protocol type, play performance, rules and image format.

◆ Protocol Type: TCP, UDP, MULTICAST and HTTP are selectable. TCP: Ensures complete delivery of streaming data and better video quality, yet the real-me transmission will be aected.

UDP: Provides real-me audio and video streams.

MULTICAST: It's recommended to select the protocol type to MULTICAST when using the Mulcast funcon.

HTTP: Allows the same quality as of TCP without seng speci parts for streaming under some network environments.

◆ Play Performance: Set the play performance to Shortest Delay, Balanced, or Fluent.
Rules: You can enable or disable the rules of dynamic analysis for moon here.

Image Format: The captured pictures can be saved as dierent format. JPEG and BMP are available.

- Record File Setngs: Set the saving path of the video les.

Record File Size: Select the packed size of manually recorded and downloaded video les. The size can be set to 256 M, 512 M or 1 G.
◆ Save record les to: Set the saving path for the manually recorded video les.
Save downloaded les to: Set the saving path for the downloaded video les in Playback interface.

● Picture and Clip Setngs: Set the saving paths of the captured pictures and clipped videos.

◆ Save snapshots in live view to: Set the saving path of the manually captured pictures in Live View interface.
Save snapshots when playback to: Set the saving path of the captured pictures in Playback interface.
Save clips to: Set the saving path of the clipped video les in Playback interface.

• You can click Browse to change the directory for saving video les, clips and pictures.

• You can click Open to directly open the video les, clips and pictures.

• Click Save to save the sengs.

4.2 Live View Page

Purpose:

The live video page allows you to view live video, capture images, realize PTZ control, set/call presets and congure video parameters.

Log in the network camera to enter the live view page, or you can click Live View on the menu bar of the main page to enter the live view page.

The funcons vary depeding on dierent speed dome models. Refer to the actual interface as standard.

Descripons of the live view page:

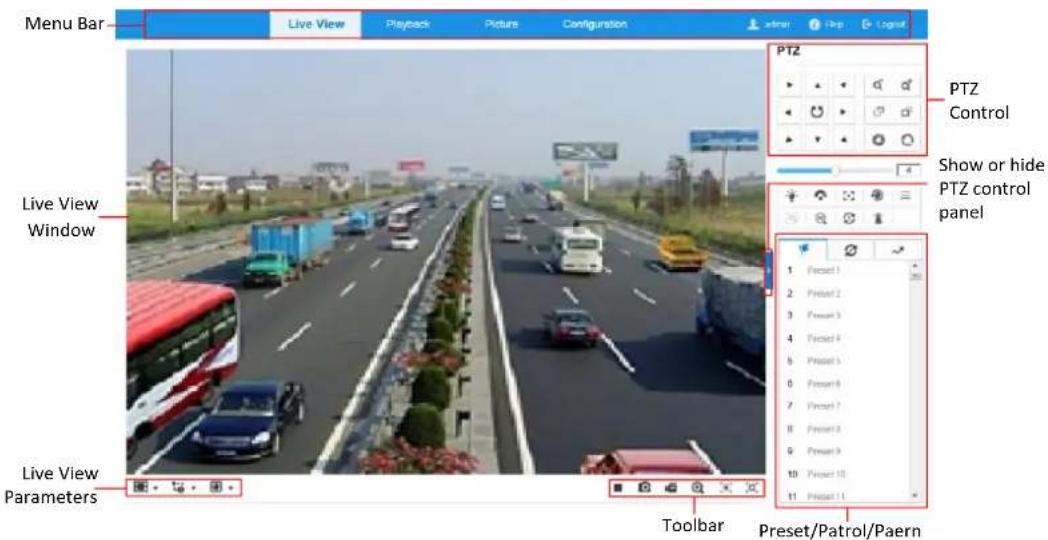

Menu Bar Live View Playback Picture Configuration PTZ Control Show or hide PTZ control panel Live View Window Live View Parameters Toolbar Preset/Patrol/Paern

Figure 4-2 Live View Page

Menu Bar:

Click each tab to enter Live View, Playback, Picture, and Conguraon page respectively.

Click to display the help le of the network camera.

Click to logout the system.

Live View Window:

Display the live video.

Toolbar:

Operaons on the live view page, e.g., live view, capture, record, audio on/o, regional exposure, regional focus, etc.

PTZ Control:

Panning, Ing, focusing and zooming acons of the network. The lighter, wiper, one-touch focus and lens inializaon control.

Preset/patrol/paern:

Set and call the preset/patrol/paern for the camera.

Live View Parameters:

Congure the image size, stream type, plug-in type, and two-way audio of the live video.

4.3 Starng Live View

In the live view window as shown in Figure 4-3, click ▶ on the toolbar to start the live view of the network.

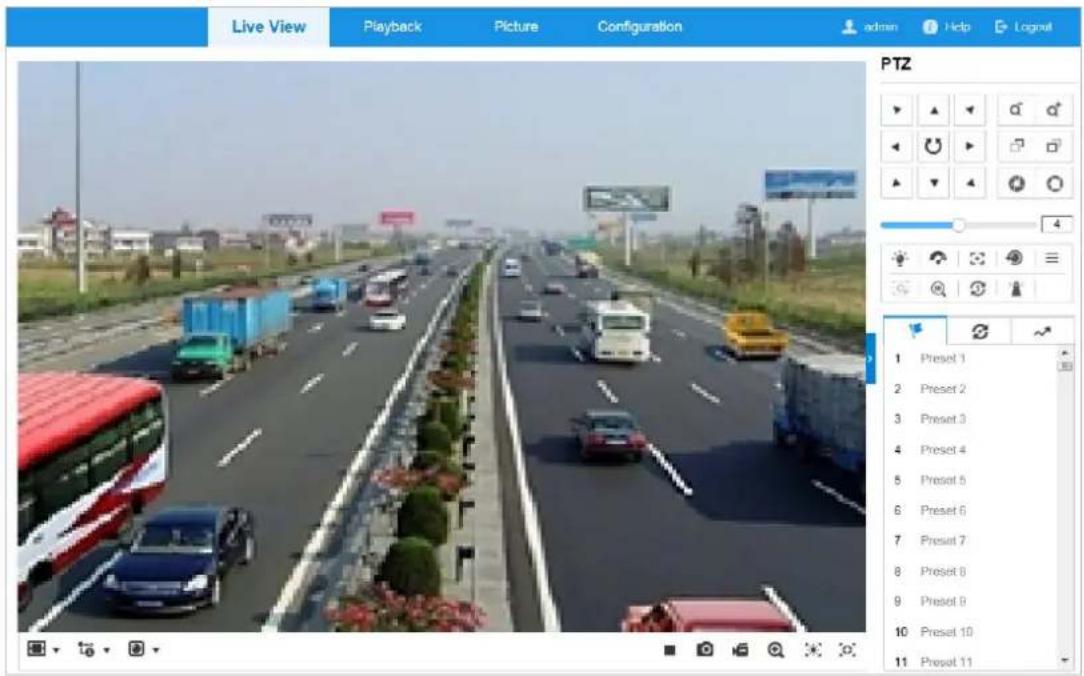

Live View Playback Picture Configuration admin Help Logout PTZ 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 9 Preset 9 10 Preset 10 11 Preset 11

Figure 4-3 Start Live View

Table 4-1 Descripons of the Toolbar

Icon		Descripon	Icon	Descripon
		Display in 4:3/16:9/original/self-adapve window size.		Live view with the main/sub/third stream.
		Play via webcomponents/quick me.		Start/stop Live view.
		Manually capture the pictures.		Manual start/stop recording.
		Start/stop digital zoom.		Enable/disable regional exposure
		Enable/disable regional focus

• Double-click on the live video to switch the current live view into full-screen or return to normal mode from the full-screen.
• Click to select from and display live video in 4:3/16:9/original/self-adapve window size.
• Click L_1 to select from L_1 , L_2 , L_3 and display live video with the main/ sub/third stream. The main stream is with a relatively high resolution and needs much bandwidth. The default seng of stream type is .

• Click to select between and play the live video via player Webcomponents or Quick Time. The live video is played via webcomponents by default, and other types of players are supported for the browser, such as MJPEG, and VLC. You are required to download and install the player to play the live video.

• Click ▶ to start live view and the icon turns into ■. Click the icon again to stop live view.

• Click to capture the picture.
• Click → to start recording and the icon turns into . Click the icon again to stop recording.
• Click ☐ to enable digital zoom function and the icon turns into 🔒. Then drag the mouse towards low right direcon to draw a rectangle on the image as the desired zoom. Aer viewing it you can click any place of the picture to get back to normal picture.
• Click the 🧑️ on the toolbar to enter the regional exposure operaon mode and the icon turns into . Then drag the mouse to draw a rectangle on the image as the desired exposure region.
• Click the 📋 on the toolbar to enter the regional focus operaon mode and the icon turns into . Then drag the mouse to draw a rectangle on the image as the desired focus region.

Before using the two-way audio or recording with audio funcons, set the Stream Type to Video & Audio referring to Secon 6.2.1 Conguring Video Sengs.

Refer to the following seconds for more informaon:

● Conguring remote recording in Secon 5.1.1 Conguring Recording Schedule.
- Seing the image quality of the live video in Secon 6.3 Conguring Image Sengs and Secon 6.2.1 Conguring Video Sengs.
● Seing the OSD text on live video in Secon 6.3.2 Conguring OSD Sengs.

4.4 Operang PTZ Control

Purpose:

In the live view interface, you can use the PTZ control buons to control panning, lting and zooming.

PTZ funcons vary depending on dierent speed dome models.

4.4.1 PTZ Control Panel

• Click to show the PTZ control panel or click to hide it.
• Click the direcon buttons to control the pan/lt movements.
• Click the zoom/iris/focus buons to realize lens control.

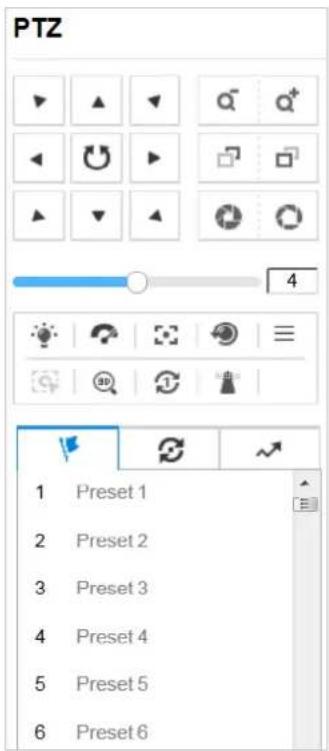

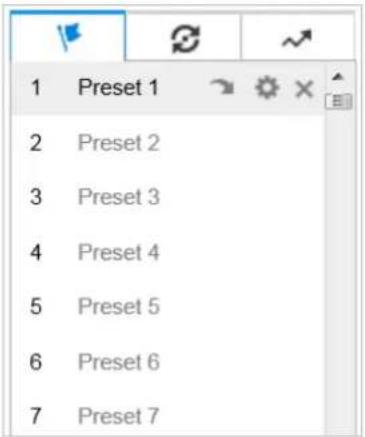

PTZ 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6

Figure 4-4 PTZ Control Panel

Table 4-2 Descripons of PTZ Control Panel

Buon	Name	Descripon
	PTZ Control Panel	Hold and press the direcon buon to pan/lt the camera.Click and the camera keeps panning, the icon turns into . Click the icon again to stop the camera.
	Zoom out/in	Click , the lens zooms in, click , and the lens zooms out.
	Focus near/far	Click , the lens focus far and the items far away gets clear. Click , the lens focus near and the items nearby gets clear.
	Iris close/open	When the image is too dark, click to open the iris. When the image is too bright, click to close the iris.
	Auxiliary Funcons	The auxiliary funcons include light, wiper, auxiliary focus, lens inializaon, manual tracking, 3D posioning, one-touch patrol, and one-touch park.
	Speed Adjustment	Adjust speed of pan/lt movements.
	Preset	Refer to 4.4.3 for detailed informaon of seng preset.
	Patrol	Refer to 4.4.4 for detailed informaon of seng patrol.
	Paern	Refer to 4.4.6 for detailed informaon of seng paern.

● Buons on the Preset/Patrol/Paerns interface:

Table 4-3 Descripons of Buons

Buons	Descripon
	Start the selected patrol/paern.
	Stop current patrol/paern.
	Set the selected preset/patrol.
×	Delete the selected preset/patrol/paern.
	Start recording a paern.
	Stop recording the paern.

4.4.2 Auxiliary Funcons

The Auxiliary funcons panel is shown in Figure 4-5.

Toolbar with icons representing functions like lights, maps, camera, and timer, arranged in a grid.

Figure 4-5 Auxiliary Funcons

Click to enable/disable the light supplement of the camera. This funcon is reserved.

• Wiper

Click to move the wiper once.

- Auxiliary Focus

The auxiliary focus funcon is reserved.

● 3D Posioning

Steps:

1. Click on the toolbar of live view interface.

2. Operate the 3D posioning funcon:

3. Click a posion of the live video. The corresponding posion will be moved to the center of the live video.

4. Hold down the le mouse button and drag the mouse to the lower right on the live video. The corresponding posion will be moved to the center of the live video and zoomed in.
5. Hold down the le mouse button and drag the mouse to the upper le on the live video. The corresponding posion will be moved to the center of the live video and zoomed out.
   ● One-touch Patrol

Click to call one-touch patrol. For detailed informaon of seng one-touch patrol, refer to 4.4.5 One-touch Patrol.

● One-touch Park

Click to save the current view as the preset No. 32 and start park at the the current posion.

4.4.3 Seng/Calling a Preset

Purpose:

A preset is a predened image posion. For the dened preset, you can click the calling button to quickly view the desired image posion.

- Seng a Preset:

Steps:

1. In the PTZ control panel, select a preset number from the preset list.

1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7

Figure 4-6 Seng a Preset

1. Use the PTZ control buons to move the lens to the desired posion.

2. Pan the camera to the right or le.

3. Tilt the camera up or down.
4. Zoom in or out.

5. Refocus the lens.

6. Click to nish the seng of the current preset.

7. Edit a preset name by double clicking on the default name such as preset 1. (The pre-dened presets are named already and not congorable. Refer to the user manual for detailed funcon descripon.)

8. You can click to delete the preset.

You can congure up to 300 presets.

- Calling a Preset:

In the PTZ control panel, select a dened preset from the list and click to call the preset.

1 Preset 1 2 Preset 2 3 Preset 3

Figure 4-7 Calling a Preset

For convenient preset selecon, refer to the following steps to navigate to the preset you want.

Steps:

1. Select any preset from the list.
2. Click the preset number you need on the keyboard.

- The following presets are predened with special commands. You can only call them but not congure them. For instance, preset 99 is the "Start auto scan". If you call the preset 99, the camera starts auto scan funcon.

● Pattern funcon varies depending on dierent speed dome models.

Table 4-4 Special Presets

Preset	Funcon	Preset	Funcon
33	Auto ip	92	Set manual limits
34	Back to origin	93	Save manual limits
35	Call patrol 1	94	Remote reboot
36	Call patrol 2	95	Call OSD menu
37	Call patrol 3	96	Stop a scan
38	Call patrol 4	97	Start random scan
39	Day mode	98	Start frame scan
40	Night mode	99	Start auto scan
41	Call paern 1	100	Start lt scan
42	Call paern 2	101	Start panorama scan
43	Call paern 3	102	Call patrol 5
44	Call paern 4	103	Call patrol 6
45	One-touch Patrol	104	Call patrol 7
46	Day/night auto mode	105	Call patrol 8

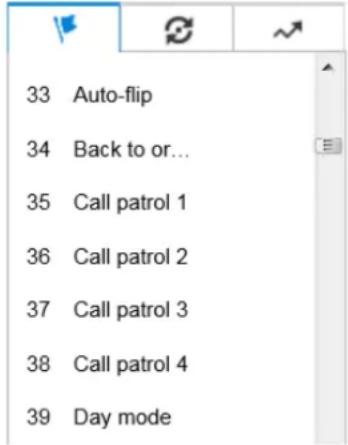

33 Auto-flip 34 Back to or... 35 Call patrol 1 36 Call patrol 2 37 Call patrol 3 38 Call patrol 4 39 Day mode

Figure 4-8 Special Preset

You may need to use the OSD (On Screen Display) menu when controlling the camera remotely. To display the OSD menu on the live view screen, you can call the preset number 95.

4.4.4 Seng/Calling a Patrol

Purpose:

A patrol is a memorized series of preset funcon. It can be congured and called on the patrol sengs interface. There are up to 8 patrols for customizing. A patrol can be congured with 32

presets.

Before you start:

Make sure that the presets you want to add into a patrol have been dened.

- Seng a Patrol:

Steps:

1. In the PTZ control panel, click 📋 to enter the patrol settings interface.

2. Select a patrol number from the list and click .

3. Click + to enter the adding interface of preset, as shown in Figure 4-9.

Patrol Path7 Preset Speed Time (s) OK Cancel

Figure 4-9 Adding Presets

1. Congure the preset number, patrol me and patrol speed.

Name	Descripon
Patrol Time	It is the duraon staying on one patrol point. The camera moves to another patrol point aer the patrol me.
Patrol Speed	It is the speed of moving from one preset to another.

1. Click OK to save a preset into the patrol.

2. Repeat the steps from 3 to 5 to add more presets.

3. Click OK to save all the patrol settings.

- Calling a Patrol:

In the PTZ control panel, select a dened patrol from the list and click to call the patrol, as shown in Figure 4-10.

Patrol... Patrol Path2 Patrol Path3 Patrol Path4 Patrol Path5

Figure 4-10 Calling a Preset

4.4.5 One-touch Patrol

Purpose:

One-touch patrol is an automacally created patrol. The system automacally add preset No.1 to No.32 to the patrol path 8. You can call the one-touch patrol and the camera moves as the patrol path 8 automacally.

Steps:

1. Set preset No.1 to No.32. Refer to 4.4.3 Seng/Calling a Preset for detailed informaon of seng preset.

2. Call preset No. 45, and the camera moves as patrol path 8.

3. Click to enter the patrol seings interface and start/stop one-touch patrol, edit the patrol me and the speed.

4. You can click 3 of the PTZ control panel to start one-touch patrol.

Patrol Path5 Patrol Path6 Patrol Path7 Patrol...

Figure 4-11 Patrol Path 8

4.4.6 Seng/Calling a Paern

Purpose:

A paern is a memorized series of pan, lt, zoom, and preset funcons. It can be called on the paern sengs interface. There are up to 4 paerns for customizing.

Paern funcon varies depending on dierent speed dome models.

- Seng a Paern:

Steps:

1. In the PTZ control panel, click ↗ to enter the pattern sengs interface.
2. Select a paern number from the list as shown in Figure 4-12.

Pattern1 Pattern2 Pattern3 Pattern4

Figure 4-12 Paerns Sengs Interface
3. Click ☐ to enable recording the panning, lng and zooming acons.
4. Use the PTZ control buons to move the lens to the desired position aer the informaon of PROGRAM PATTERN REMAINNING MEMORY(%) is displayed on the screen.

- Pan the camera to the right or le.

- Tilt the camera up or down.

- Zoom in or out.

- Refocus the lens.

1. Click to save all the paern sengs.
   ● Buons on the Paerns interface:

Buons	Descripon
	Start the selected patrol/paern.
	Stop current patrol/paern.
	Set the selected preset/patrol.
×	Delete the selected preset/patrol/paern.
	Start recording a paern.
	Stop recording the paern.

NOTE

● These 4 paerns can be operated separately and with no priority level.
- When conguring and calling the pattern, proporcional pan is valid; the limit stops and auto ip will be invalid; and the 3D posioning operaon is not supported.

4.5 Playback

Purpose:

This secon explains how to view the video les stored in the network disks or memory cards.

4.5.1 Play Back Video Files

Steps:

1. Click Playback on the menu bar to enter playback interface.

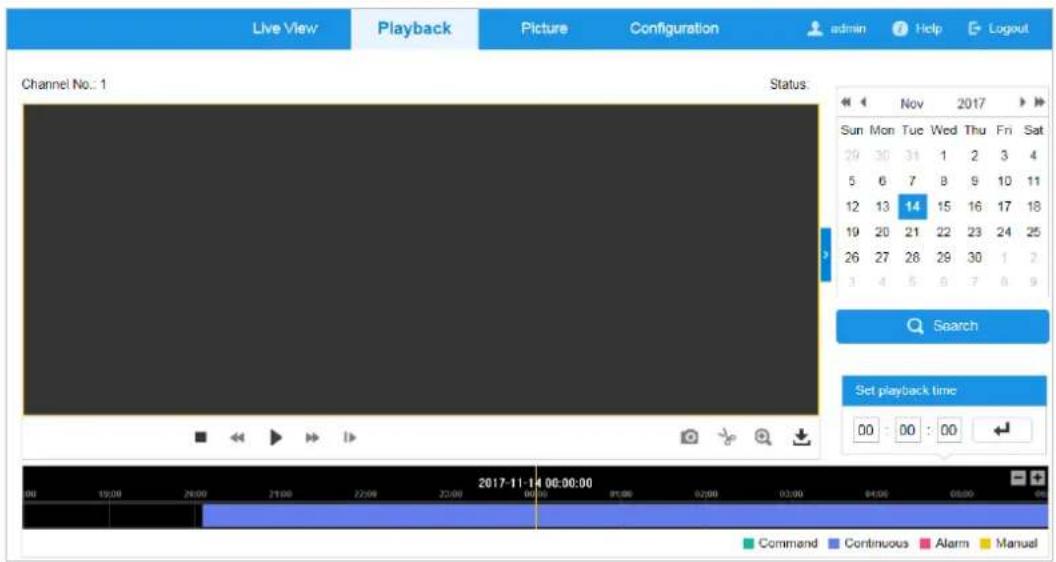

Live View Playback Picture Configuration admin Help Logout Channel No.: 1 Status: Nov 2017 Sun Mon Tue Wed Thu Fri Sat 29 30 31 1 2 3 4 5 6 7 B 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 1 2 3 4 5 6 7 8 9 Search Set playback time 00 : 00 : 00 Command Continuous Alarm Manual 2017-11-14 00:00:00

Figure 4-13 Playback Interface

1. Select the date and click Search.

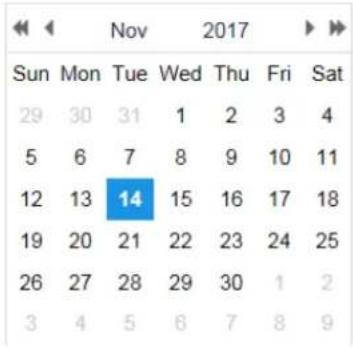

Sun Mon Tue Wed Thu Fri Sat 29 30 31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 1 2 3 4 5 6 7 8 9

Figure 4-14 Search Video

1. Click ▶ to play the video les found on this date.

The toolbar on the boom of Playback interface can be used to control playing process.

Screenshot of a media control toolbar with playback, navigation, and editing icons

Figure 4-15 Playback Toolbar

Table 4-5 Descripon of the buons

Buon	Operaon	Buon	Operaon
	Play	II	Pause
boxed	Stop	boxed	Speed down
boxed	Speed up	boxed	Playback by frame
boxed	Capture a picture		Start/Stop clipping video les
boxed	Enable/Disable digital zoom	boxed	Download

You can choose the le paths locally for downloaded playback video les and pictures in Local Conguraon interface. Refer to Secon 4.1 Conguring Local Parameters for details.

Drag the progress bar with the mouse to locate the exact playback point. You can also input the me and click ← to locate the playback point in the Set playback me eld. You can also click to zoom out/in the progress bar.

Figure 4-16 Set Playback Time

2015-06-15 05:34:54

Figure 4-17 Progress Bar

The dierent colors of the video on the progress bar stand for the dierent video types as shown in Figure 4-18.

Figure 4-18 Video Types

4.5.2 Downloading Video Files

Steps:

1. Click ↓ on the playback interface. The pop-up menu is shown in Figure 4-19.
2. Set the start me and end me. Click Search. The corresponding video les are listed on the le.

Download by File Search Conditions File List Download Stop Downloading File Type All Type Start Time 2017-11-14 00:00:00 End Time 2017-11-14 23:59:59 Search No. File Name Start Time End Time File Size Progress Total 0 Items 0/0

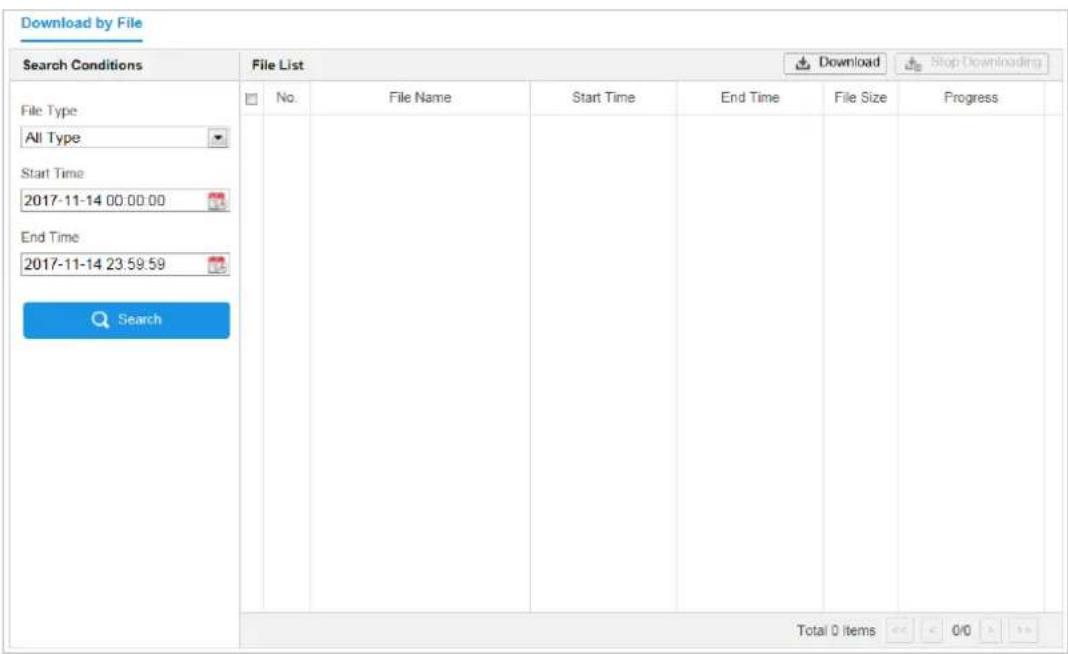

Figure 4-19 Video Downloading interface

1. Check the checkbox in front of the video les that you need to download.
2. Click Download to download the video les.

4.6 Pictures

Purpose:

This secon explains how to view the captured picture les stored in the network disks or the memory cards and download the captured pictures.

Steps:

1. Click Picture on the menu bar to enter picture interface.

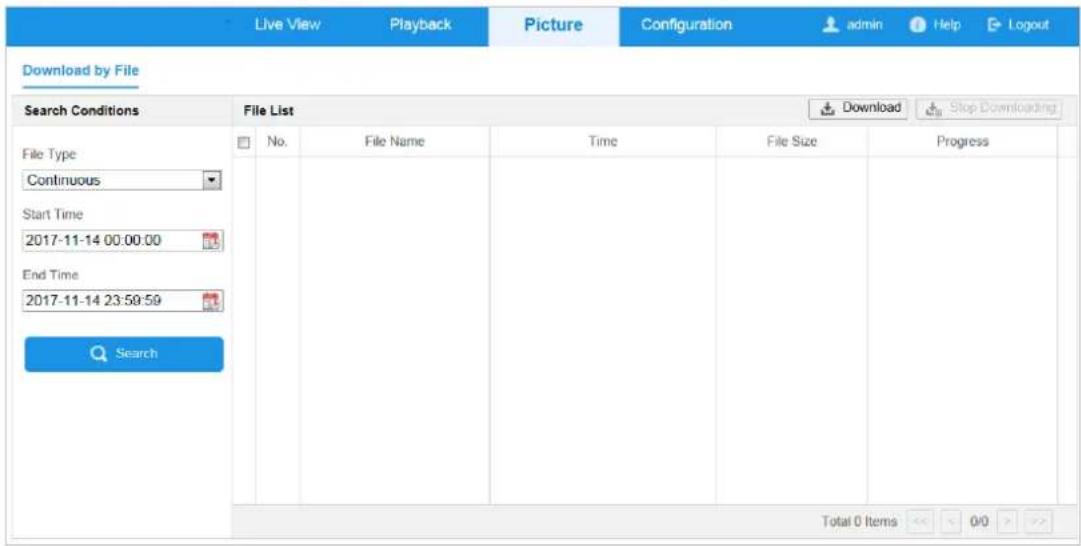

Download by File Search Conditions File List No. File Name Time File Size Progress Continuous Start Time 2017-11-14 00:00:00 End Time 2017-11-14 23:59:59 Search Total 0 Items 0/0

Figure 4-20 Picture Interface

1. Select the le type of capturing the pictures from the list as ming, alarm, moon, etc.

2. Set the start time and end me. Click Search. The corresponding picture les will be listed.

3. Check the checkbox in front of the les that you need to download.
4. Click Download to download the les.

Chapter 5 System Conguraon

5.1 Storage Sengs

Before you start:

To congure record settings, make sure that you have the network storage device within the network or the memory card inserted in your camera.

5.1.1 Conguring Recording Schedule

Purpose:

There are two kinds of recording for the camera: manual recording and scheduled recording. In this secon, you can follow the instrucons to conjure the scheduled recording. By default, the record les of scheduled recording are stored in the memory card (if supported) or in the network disk.

Steps:

1. Enter the Record Schedule sengs interface:

Conguraon > Storage > Schedule Seings > Record Schedule

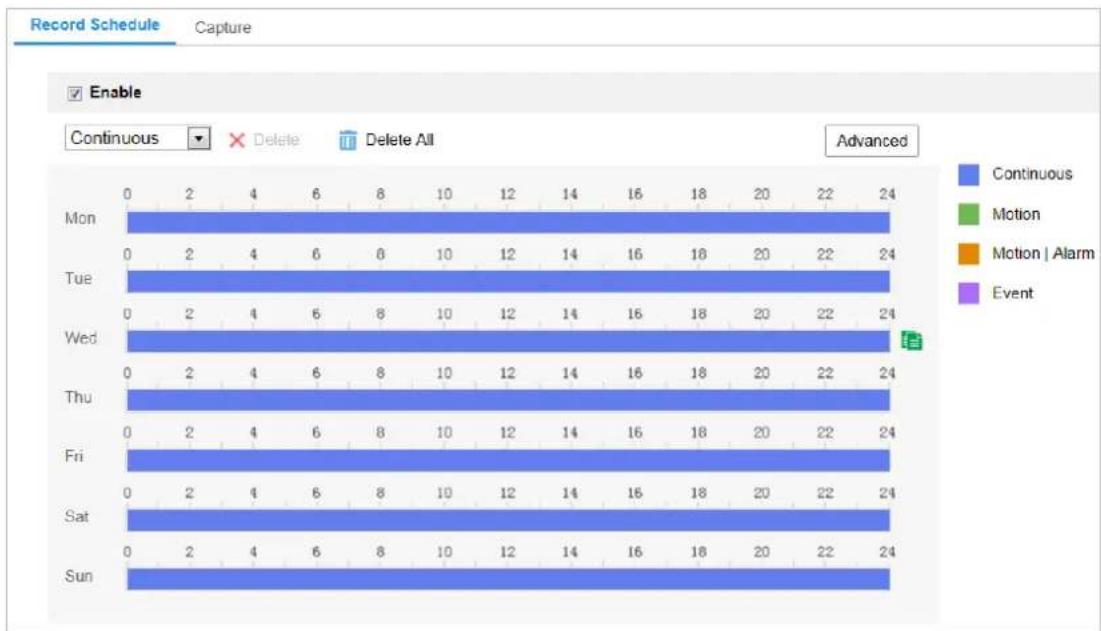

Figure 5-1 Recording Schedule Interface

1. Check Enable to enable scheduled recording.
2. To set the advanced seings of the camera, click Advanced to enter the advanced sengs interface.

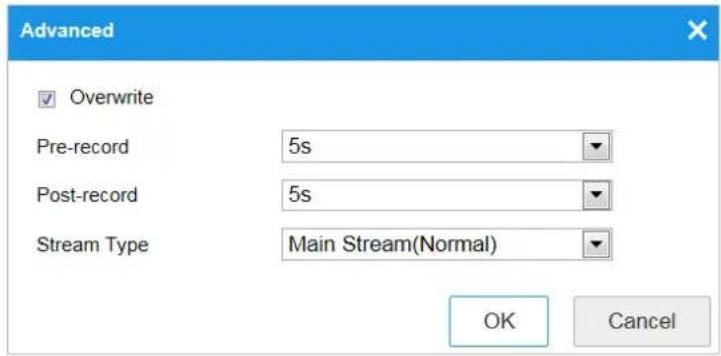

Advanced Overwrite Pre-record 5s Post-record 5s Stream Type Main Stream(Normal) OK Cancel

Figure 5-2 Record Parameters

- Pre-record: The me you set to start recording before the scheduled me or the event. For example, if an alarm triggers recording at 10:00, and the pre-record me is set as 5 seconds, the camera starts to record at 9:59:55.

The pre-record me can be congured as No Pre-record, 5 s, 10 s, 15 s, 20 s, 25 s, 30 s or not limited.

The pre-record me changes according to the video bitrate.

- Post-record: The me you set to stop recording aer the scheduled me or the event. For example, if an alarm triggered recording ends at 11:00, and the post-record me is set as 5 seconds, the camera records until 11:00:05.

The Post-record me can be congured as 5 s, 10 s, 30 s, 1 min, 2 min, 5 min or 10 min.

- Stream Type: You can select the stream type for recording; Main stream, Sub-stream and third stream are selectable. If you select the sub-stream, you can record for a longer me with the same storage capacity.

The Pre-record and Post-record parameters vary depending on dierent speed dome models.

1. Click OK to save the advanced seing.

2. Select a Record Type. The record type can be Connuous, Moon, Alarm, Moon | Alarm, Moon & Alarm, and Event.

Record type varies depending on dierent speed dome models.

● Normal: If you select Connuous, the video will be recorded automatically according to the me of the schedule.

- Record Triggered by Moon Detecon: If you select Moon, the video will be recorded when the moon is detected. Besides conguring the recording schedule, you have to set the moon detecon area and check Trigger Channel in the Linkage Method of Moon Detecon sengs interface. For detailed informaon, refer to Secon Moon Detecon.

- Record Triggered by Event: If you select to record by event, the video will be recorded when any of the events is triggered.

1. Click Save to save the settings.

5.1.2 Conguring Capture Schedule

Purpose:

You can congregate the scheduled snapshot and event-triggered snapshot. The captured picture can be stored in the local storage or network storage.

Steps:

1. Enter the Snapshot sengs interface:

Conguraon > Storage > Storage Sengs > Capture

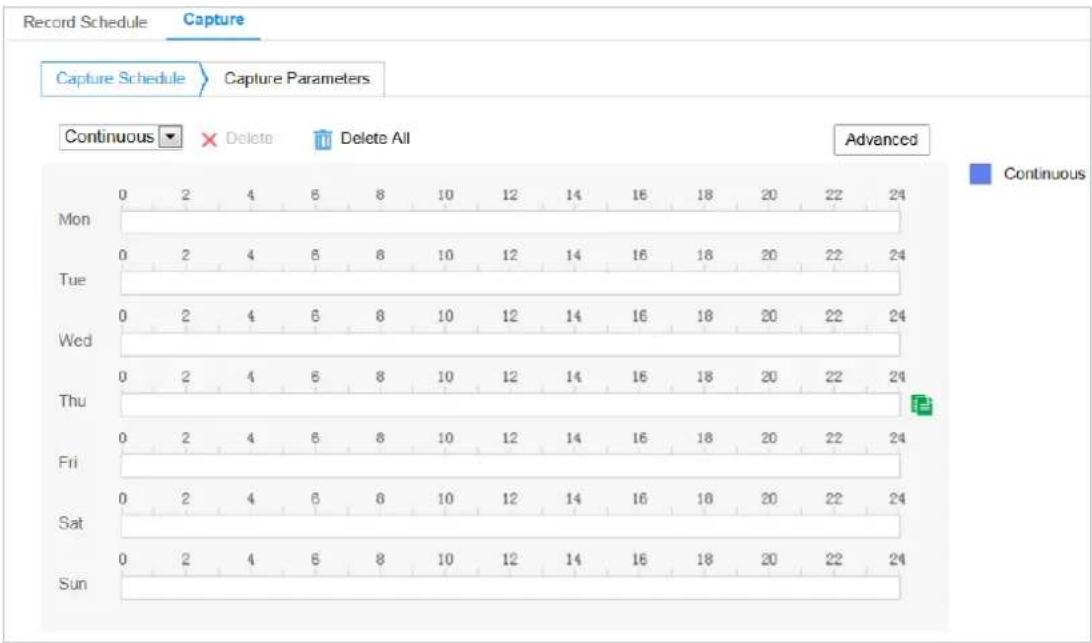

Record Schedule Capture Capture Schedule Capture Parameters Continuous Delete Delete All Advanced Mon 0 2 4 6 8 10 12 14 16 18 20 22 24 Tue 0 2 4 6 8 10 12 14 16 18 20 22 24 Wed 0 2 4 6 8 10 12 14 16 18 20 22 24 Thu 0 2 4 6 8 10 12 14 16 18 20 22 24 Fri 0 2 4 6 8 10 12 14 16 18 20 22 24 Sat 0 2 4 6 8 10 12 14 16 18 20 22 24 Sun 0 2 4 6 8 10 12 14 16 18 20 22 24 Continuous

Figure 5-3 Snapshot Sengs

1. Click Capture Schedule to enter the capture schedule interface.
2. Select the meline of a certain day, and drag the le button of the mouse to set the capture schedule (the start me and end me of the recording task).
3. Aer you set the scheduled task, you can click and copy the task to other days (oponal).
4. Aer setng the capture schedule, you can click a capture segment to display the segment capture sengs interface to edit the segment capture parameters. (oponal)

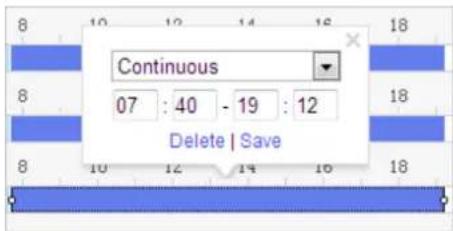

Continuous 07 : 40 - 19 : 12 Delete | Save

Figure 5-4 Segment Snapshot Sengs

1. Click Advanced to enter the advanced seng interface. You can select the stream type of

the capture.

1. Click Capture Parameters to enter the capture parameters Interface.
2. Check Enable Timing Snapshot to enable connuous snapshot, and congure the schedule of ming snapshot. Check Enable Event-triggered Snapshot to enable event-triggered snapshot.
3. Select the format, resoluon, quality of the snapshot.
4. Set the me interval between two snapshots.
5. Click Save to save the seings.

Uploading to FTP

Make sure that the FTP server is online.

You can follow below conguraon instrucons to upload the snapshots to FTP.

- Upload connuous snapshots to FTP

Steps:

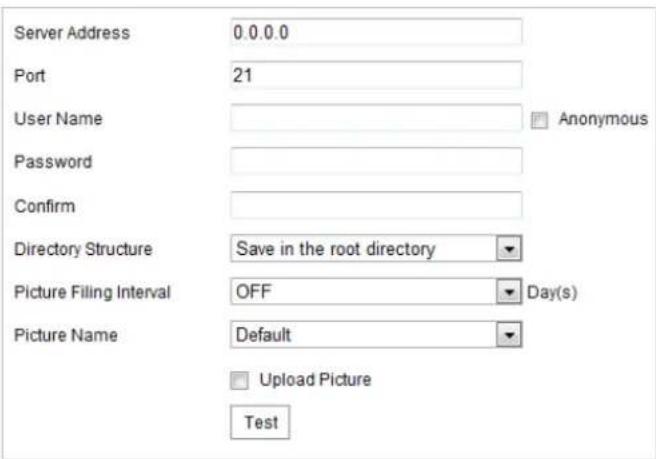

1) Congure the FTP settings and check Upload Picture in FTP Sengs interface. Refer to Secon 6.1.2 Conguring FTP Sengs for more details to congregate FTP parameters.

2) Check Enable Timing Snapshot.

3) Click Edit to set the snapshot schedule. Refer to Secon 5.2.1 Conguring Moon Detecon.

- Upload event-triggered snapshots to FTP

Steps:

1) Congure the FTP settings and check Upload Picture in FTP Sengs interface. Refer to Secon 6.1.2 Conguring FTP Sengs for more details to congregate FTP parameters.
2) Check Upload to FTP in Moon Detecon Sengs interface. Refer to Secon 5.2.1 Conguring Moon Detecon.
3) Check Enable Event-triggered Snapshot.

5.1.3 Conguring Net HDD

Before you start:

The network disk should be available within the network and properly congured to store the recorded les, log les, etc.

Steps:

- Add the network disk

1. Enter the NAS (Network-Aached Storage) settings interface:

Conguraon > Storage > Storage Management > Net HDD

HDD Management Net HDD Net HDD HDD No. Server Address File Path Type Delete 1 10.66.4.251 /dvr/21_8 NAS ✗ 2 3 4 5 6 Mounting Type NFS User Name Password Test 7 8 NAS ✗ NAS ✗

Figure 5-5 Select Net HDD Type

1. Enter the IP address and the le path of the network disk.
2. Select the mounting type. NFS and SMB/CIFS are selectable. You can set the user name and password to guarantee the security if SMB/CIFS is selected.

Refer to the NAS User Manual for creating the le path.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

• Click Save to save the sengs.

Aer having saved successfully, you need to reboot the camera to acvate the sengs.

- Initialize the added network disk.

1. Enter the HDD sengs interface (Configuraon > Storage > Storage Management > HDD Management), in which you can view the capacity, free space, status, type and property of the disk.

HDD Management Net HDD
HDD Management Format
	HDD No.	Capacity	Free space	Status	Type	Property	Progress
	9	30,00GB	7.25GB	Normal	NAS	R/W

Figure 5-6 Storage Management Interface
2. If the status of the disk is Uninialized, check the corresponding checkbox to select the disk and click Format to start initializing the disk.
3. When the initializaon completed, the status of disk will become Normal as shown in Figure 5-7.

HDD Management							Set	Format
✓	HDD No.	Capacity	Free space	Status	Type	Property	Progress
✓	9	20.00GB	0.00GB	Formatting	NAS	R/W

Figure 5-7 View Disk Status

● Dene the Quota for Record and Pictures

1. Input the quota percentage for picture and for record.
2. Click Save and refresh the browser page to acvate the setngs.

Quota Max.Picture Capacity 0.00GB Free Size for Picture 0.00GB Max. Record Capacity 0.00GB Free Size for Record 0.00GB Percentage of Picture 25 % Percentage of Record 75 %

Figure 5-8 Quota Sengs

● Up to 8 NAS disks can be connected to the camera.
- To inialize and use the memory card aer insert it to the camera, refer to the steps of NAS disk initializaon

5.2 Basic Event Conguraon

Purpose:

This secon explains how to conjure the network camera to respond to alarm events, including moon detecon, video tampering, and excepon. These events can trigger the alarm acons, such as Send Email, Nofy Surveillance Center, etc.

For example, when moon detecon is triggered, the network camera sends a nocaon to an e-mail address.

• Click to show the PTZ control panel or click to hide it.
• Click the direcon buons to control the pan/lt movements.
• Click the zoom/iris/focus buons to realize lens control.
  ● The funcons vary depending on dierent speed dome models.

5.2.1 Conguring Moon Detecon

Purpose:

Moon detecon is a feature which can trigger alarm acons and acons of recording videos when the moon occurred in the surveillance scene.

Steps:

1. Enter the Moon Detecon sengs interface:

Conguraon > Event > Basic Event > Moon Detecon

1. Check Enable Moon Detecon to enable this function.

You can check Enable Moon Detecon in PTZ Control and when the speed dome is performing PTZ acon, moon detecon can also trigger alarm.

You can check Enable Dynamic Analysis for Moon if you want the detected object get marked with rectangle in the live view.

1. Select the conguraon mode as Normal or Expert and set the corresponding moon detecon parameters.

Normal

Enable Motion Detection Enable Motion Detection in PTZ Control Enable Dynamic Analysis for Motion Area Settings > Arming Schedule > Linkage Method Configuration Normal 11-14-2017 Tue 11:08:54 P192:T49 2003 Draw Area Clear All Sensitivity 0

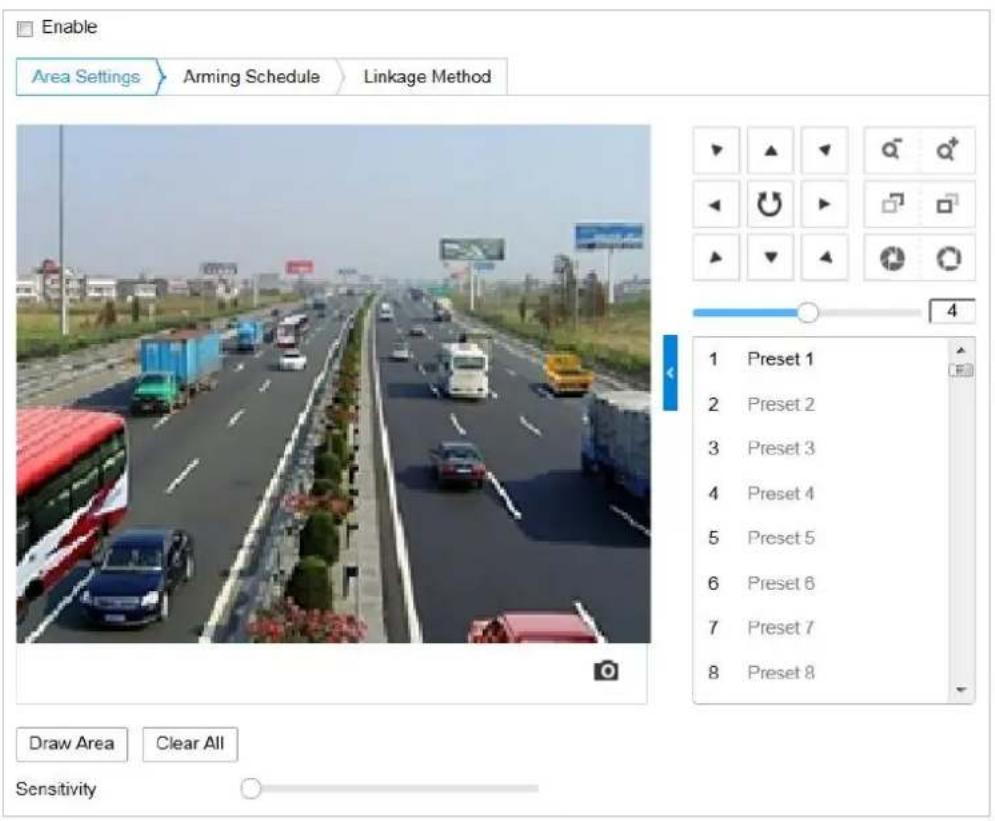

Figure 5-9 Moon Detecon Sengs-Normal

Steps:

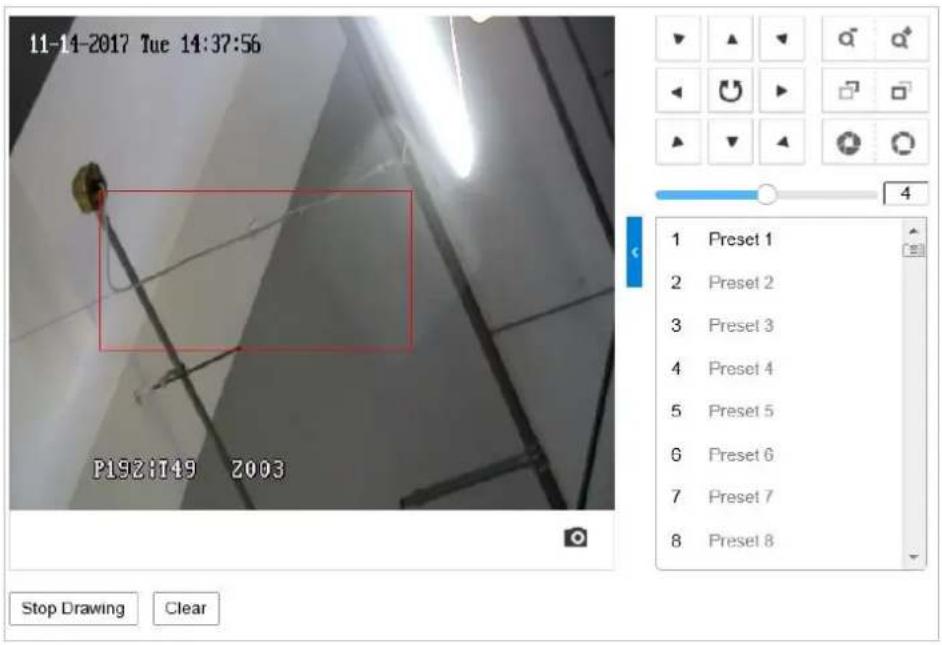

(1) Click Draw Area and drag the mouse on the live video image to draw a moon detecon area.
(2) Click Stop Drawing to nish drawing.

You can click Clear All to clear all of the areas.

(3) Move the slider to set the sensitivity of the detecon.

- Expert

Area Settings Arming Schedule Linkage Method Configuration Expert 11-14-2017 Tue 11:09:20 P192:T49 2003 Draw Area Clear All Scheduled Image Settings OFF Area 1 Sensitivity 50 Percentage 0 4 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8

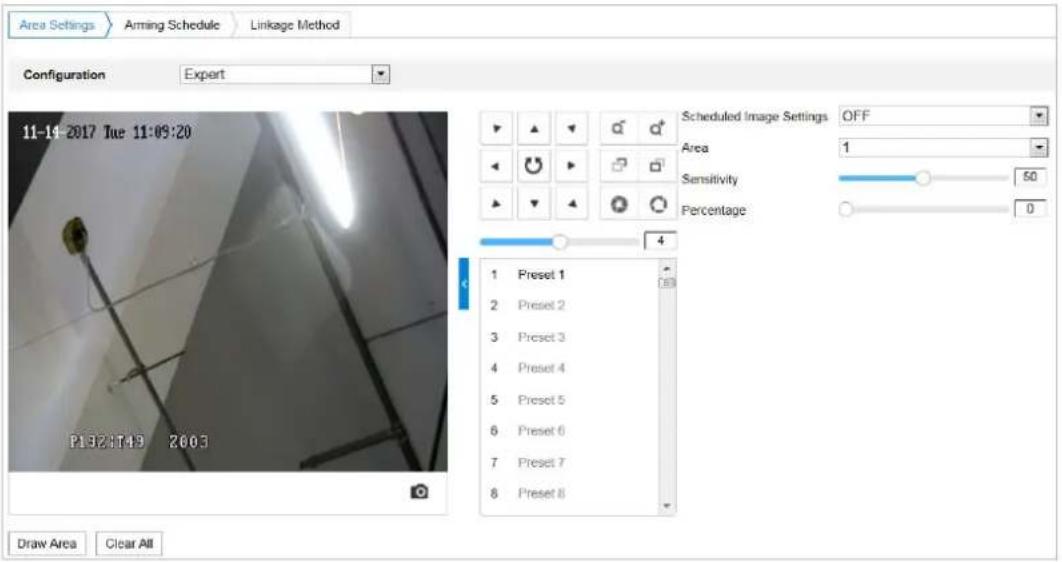

Figure 5-10 Moon Detecon Sengs-Expert

Steps:

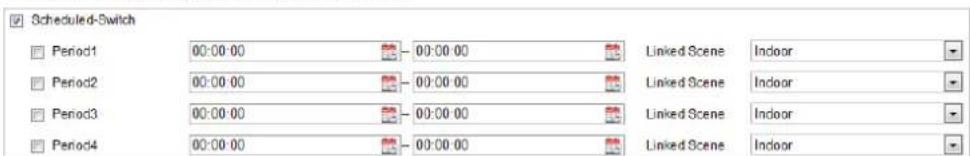

(1) Set the Schedule Image Settings, there are OFF, Auto-Switch and Scheduled-Switch selectable. If the schedule image switch mode is enabled, you can congregate the detector rule for the day and night separately.

OFF: Disable the day and night switch.

Auto-Switch: Switch the day and night mode according to the illuminaon automacally.

Scheduled-Switch: Switch to the day mode and the night mode according to the congured me. You need to set the start me and end me.

(2) Select Area from the drop-down list to congregate.

(3) Set the values of sensitivity and percentage.

Sensitivity: The greater the value is, the easier the alarm will be triggered.

Percentage: When the size proporon of the moving object exceeds the predened value, the alarm will be triggered. The less the value is, the easier the alarm will be triggered.

1. Set the Arming Schedule for Motion Detecon.

(1) Click Arming Schedule to enter the arming schedule setng interface.

(2) Select the meline of a certain day, and drag the mouse to set the arming schedule (the start me and end me of the arming task).

(3) Aer you set the scheduled task, you can click and copy the task to other days (oponal).

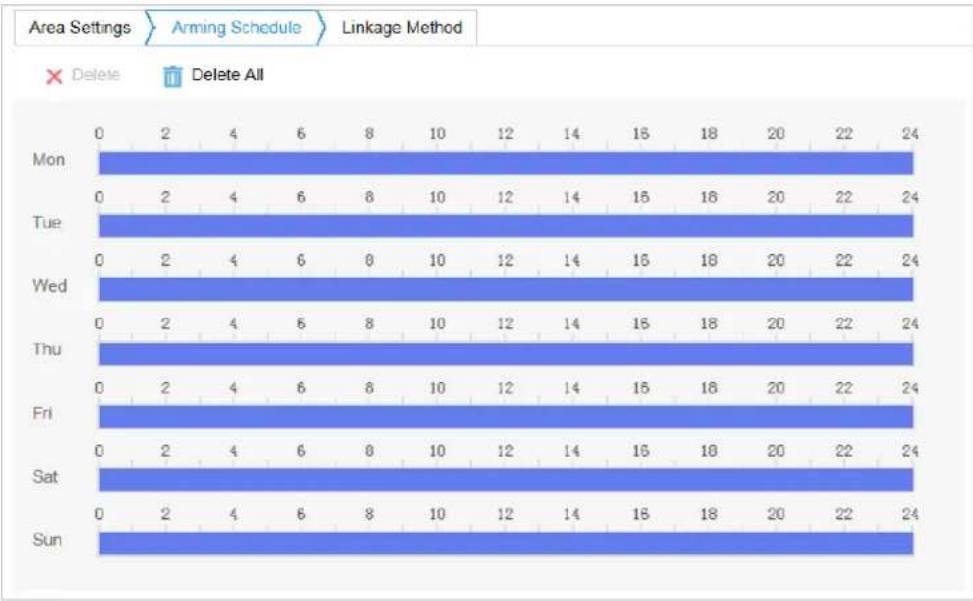

Figure 5-11 Arming Time Schedule

(4) Aer setng the arming schedule, you can click a segment to display the segment arming sengs interface to edit the segment record parameters (oponal).

06 : 35 - 11 : 40 Delete | Save

Figure 5-12 Segment Arming Sengs

(5) Click Save to save the sengs.

The me of each period cannot be overlapped. Up to 8 periods can be congured for each day.

1. Set the Alarm Acons for Moon Detecon.

Click Linkage Method to enter the linkage method interface.

You can specify the linkage method when an event occurs. The following contents are about how to conjure the dierent types of linkage method.

Area Settings > Arming Schedule > Linkage Method Normal Linkage Trigger Recording Send Email A1 Notify Surveillance Center Upload to FTP/Memory Card/...

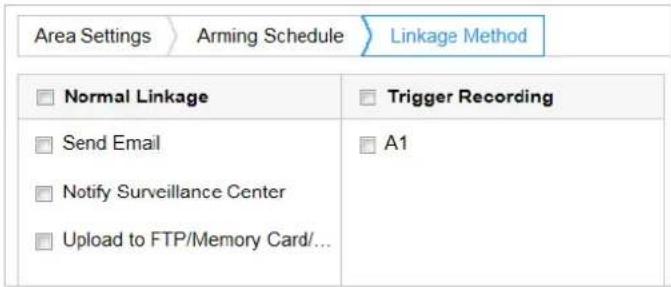

Figure 5-13 Linkage Method

Check the checkbox to select the linkage method. Nofy Surveillance Center, Send Email, Upload to FTP/Memory/NAS, and Trigger Recording are selectable.

Linkage method varies depending on dierent speed dome models.

● Nofy Surveillance Center

Send an excepon or alarm signal to remote management soware when an event occurs.

- Send Email

Send an email with alarm informaon to a user or users when an event occurs.

To send the Email when an event occurs, you need to refer to Secon Conguring Email Sengs to set the Email parameters.

- Upload to FTP/Memory/NAS

Capture the image when an alarm is triggered and upload the picture to a FTP server.

You need a FTP server and set FTP parameters rst. Refer to Secon Conguring FTP Sengs for seng FTP parameters.

- Trigger Recording

Record a video when an event occurs.

You have to set the recording schedule to realize this funcon. Refer to Secon 5.1.1 Conguring Recording Schedule for sengs the recording schedule.

5.2.2 Conguring Video Tampering Alarm

Purpose:

You can congregate the camera to trigger the alarm acons when the lens is covered.

Steps:

1. Enter the Video Tampering setngs interface :

Conguraon > Event > Basic Event > Video Tampering

Enable Area Settings Arming Schedule Linkage Method 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 Draw Area Clear All Sensitivity

Figure 5-14 Tampering Alarm

1. Check Enable to enable the tampering detecon.
2. Click Arming Schedule to enter the arming schedule seng interface. The arming schedule conguraon is the same as the seng of the arming schedule for moon detecon. Refer to Secon 5.2.1 Conguring Moon Detecon.
3. Click Linkage Method to select the linkage method taken for tampering. Refer to Secon 5.2.1 Conguring Moon Detecon.
4. Click Save to save the settings.

5.2.3 Handling Excepon

The exception type can be HDD full, HDD error, network disconnected, IP address conicted and illegal login to the cameras.

Steps:

1. Enter the Excepon sengs interface:

Conguraon > Event > Basic Event > Excepon

1. Check the checkbox to set the acons taken for the Excepon alarm. Refer to Secon 5.2.1 Conguring Moon Detecon.

Exception Type HDD Full Normal Linkage Send Email Notify Surveillance Center

Figure 5-15 Excepon Sengs

1. Click Save to save the sengs.

5.3 Smart Event Conguraon

The funcons vary depending on dierent speed dome models.

5.3.1 Conguring Intrusion Detecon

Intrusion detecon can set an area in the surveillance scene and once the area is entered, a set of alarm acon is triggered.

Steps:

1. Enter the Intrusion Detecon interface:
   Conguraon > Events > Smart Event > Intrusion Detecon
2. Check Enable.

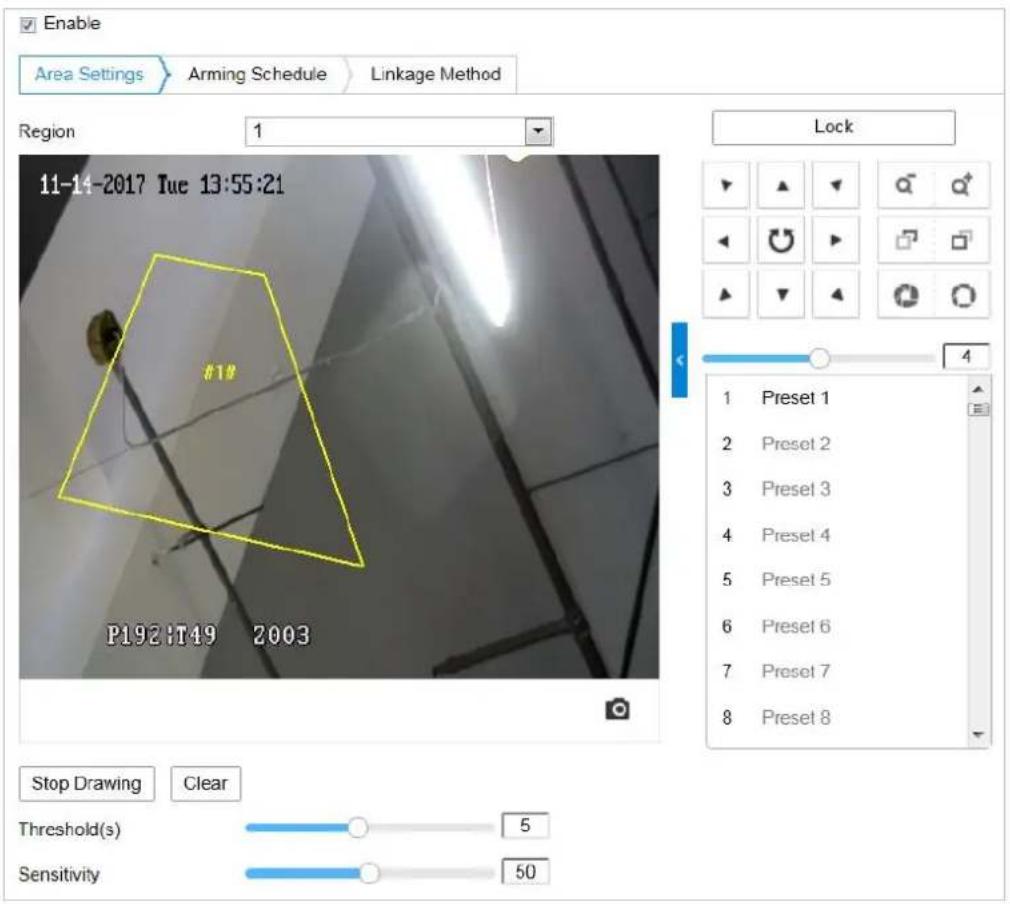

Enable Area Settings Arming Schedule Linkage Method Region 1 11-11-2017 Tue 13:55:21 P192:T49 2003 Stop Drawing Clear Threshold(s) 5 Sensitivity 50 Lock 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8

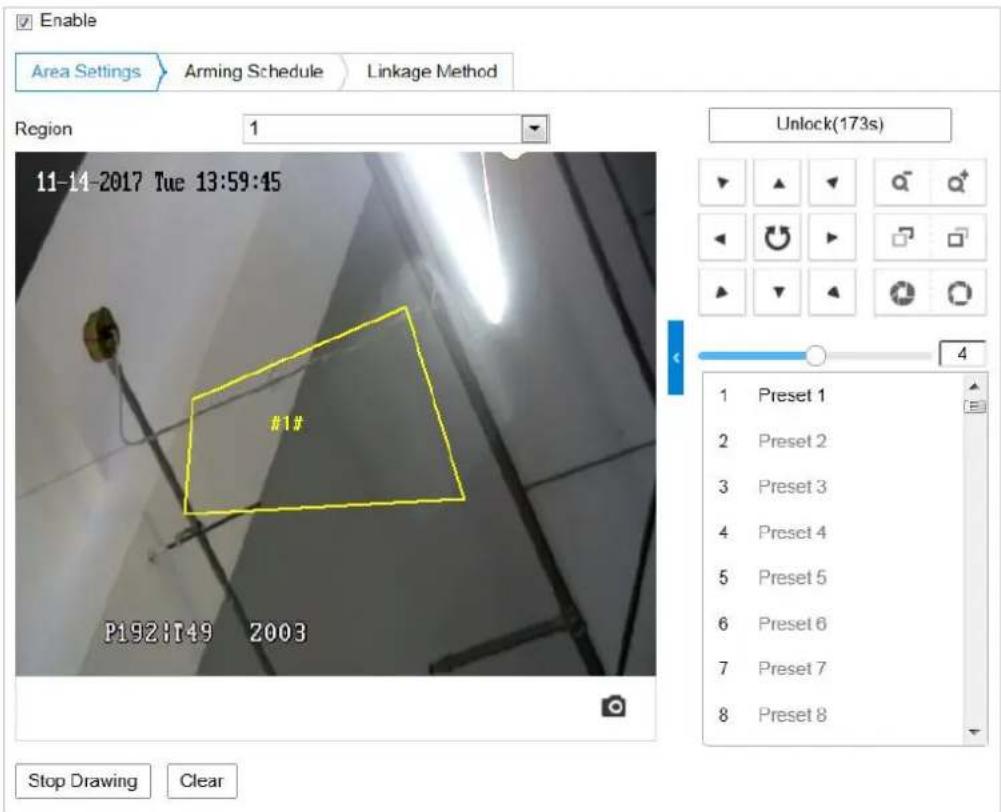

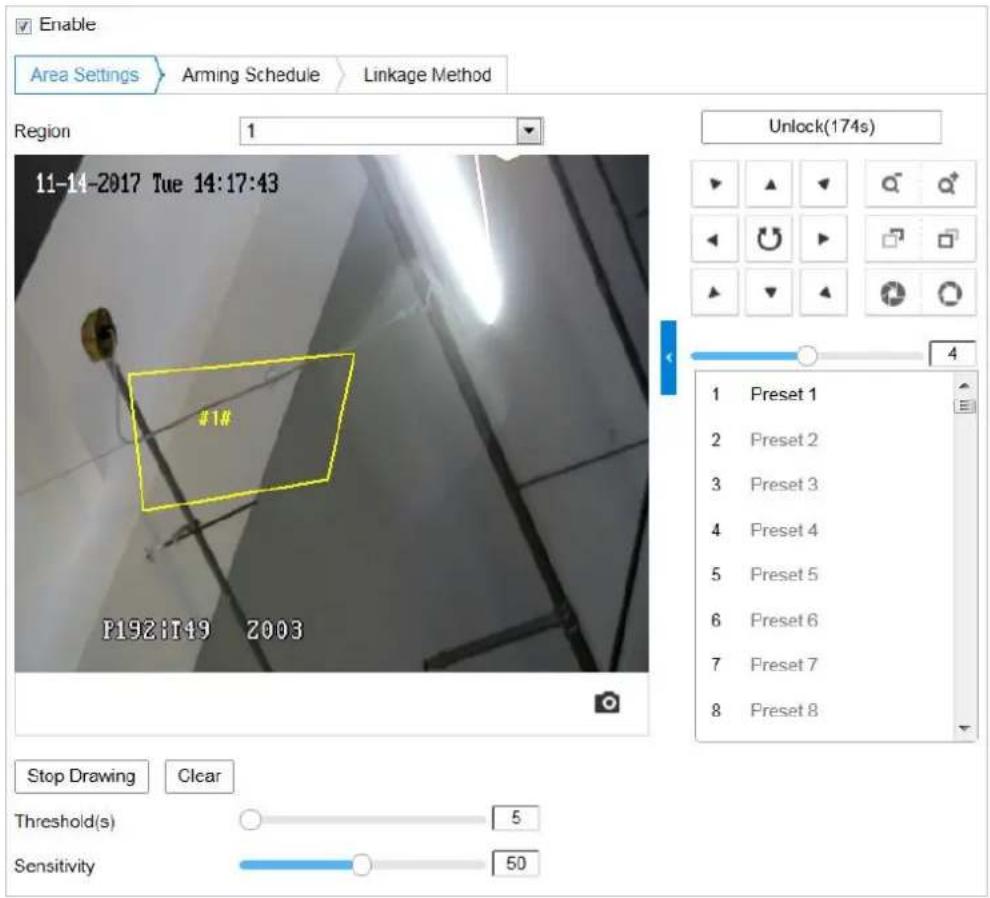

Figure 5-16 Conguring Intrusion Area

1. The event triggered and park acon related PTZ movement will be locked for 180 seconds aer you enter the intrusion detecon interface. Oponally, you can click

Unlock(69s) to manually acvate the movement, or lock the movement when the buon turns to by clicking it.

1. Draw area.

1) Select the Region No.in drop-down list.
2) Click Draw Area to draw a rectangle on the image as a defense region.
3) Click on the image to specify a corner of the rectangle, and right-click the mouse aer four corners are congured.

1. Congure the parameters for each defense region separately.

● Threshold: Range [0-10s], the threshold for the me of the object loitering in the region. If you set the value as 0, alarm is triggered immediately aer the object entering the region.
● Sensitivity: Range [1-100]. The value of the sensitivity denotes the size of the object which can trigger the alarm, when the sensitivity is high, a very small object can trigger the alarm.

1. Click Arming Schedule to enter the arming schedule setng interface. The me schedule conguraon is the same as the sengs of the arming schedule for moon detecon. Refer to Secon 5.2.1 Conguring Moon Detecon.
2. Click Linkage Method to select the linkage method taken for intrusion detecon. Refer to Secon 5.2.1 Conguring Moon Detecon.
3. Click Save to save the seings.

5.3.2 Conguring Line Crossing Detecon

The virtual plane detecon can be adopted for the intrusion detecon. Once the virtual plane is detected being traversed according to the congured direcon, a set of alarm acon is triggered.

Steps:

1. Enter the Line Crossing Detecon interface:

Conguraon >Event > Smart Event > Line Crossing Detecon

1. Check Enable.

2. Select the Line in drop-down list to congure.

3. The event triggered and park acon related PTZ movement will be locked for 180 seconds aer you enter the line crossing detecon interface. Oponally, you can click

Unlock(69s) to manually acvate the movement, or lock the movement when the buon turns to by clicking it.

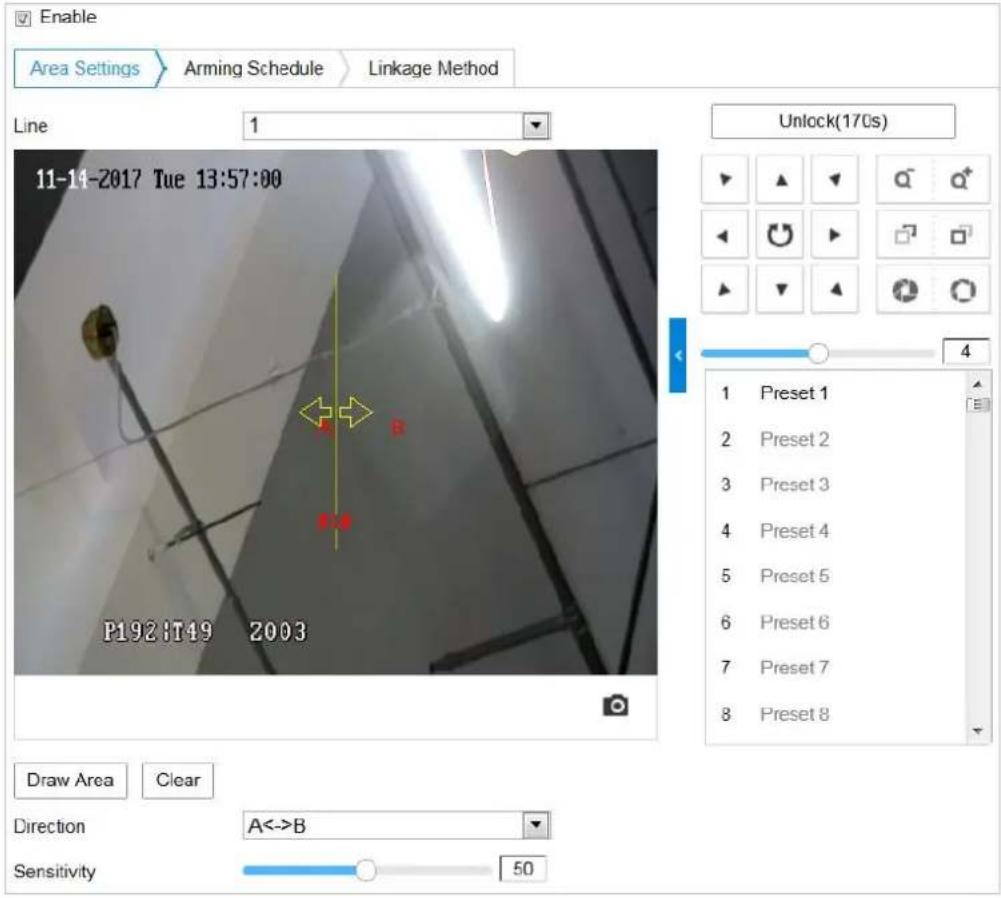

Enable Area Settings > Arming Schedule > Linkage Method Line 1 11-11-2017 Tue 13:57:00 P192 HT49 2003 Draw Area Clear Direction A<->B Sensitivity 50 Unlock(170s) 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8

Figure 5-17 Conguring Line

1. Draw area.

1) Click Draw Area to draw a line on the image.
2) Click the line to switch to the eding mode.

Drag an end to the desired place to adjust the length and angle of the line. And drag the line to adjust the locaon.

1. Congure the parameters for each defense region separately.

- Direcon: Select the detecon direcon in the drop-down list, there are A<->B, A->B and B->A selectable.

- Sensitivity: Range [1-100]. The value of the sensitivity denotes the size of the object which can trigger the alarm, when the sensitivity is high, a very small object can trigger the alarm.

1. Click Arming Schedule to enter the arming schedule setng interface. The me schedule conguraon is the same as the seings of the arming schedule for moon detection. Refer to Secon 5.2.1 Conguring Moon Detecon.
2. Click Linkage Method to select the linkage method taken for the line crossing detecon. Refer to Secon 5.2.1 Configuring Moon Detecon.
3. Click Save to save the sengs.

5.3.3 Conguring Region Entrance Detecon

Purpose:

Region entrance detecon funcon detects people, vehicle or other objects which enter a pre-dened virtual region from the outside place, and some certain acons can be taken when the alarm is triggered.

Steps:

1. Enter the Region Entrance Detecon sengs interface:

Conguraon> Event > Smart Event> Region Entrance Detecon

1. Check Enable.

Enable Area Settings Arming Schedule Linkage Method Region 1 11-14-2017 Tue 13:58:35 #1# P19ZHT49 2003 Stop Drawing Clear Unlock(171s) 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8

Figure 5-18 Conguring Region Entrance Detecon

1. Select the region from the drop-down list for detecon sengs.

2. Click Draw Area to start the region drawing.

3. Click on the live video to specify the four vertexes of the detecon region, and right click to complete drawing.
   Repeat the step to congregate other regions. You can click the Clear to clear all pre-dened regions.

4. Set the detecon target for the region entrance detecon. You can select human, vehicle, or all (human & vehicle) as the detecon target from the drop-down list. If Human is selected, only human beings will be idened as detecon objects and as well as Vehicle.
5. Click Arming Schedule to enter the arming schedule seeing interface. The me schedule conguraon is the same as the setngs of the arming schedule for motion detecon. Refer to Secon 5.2.1 Configuring Moon Detecon.
6. Click Linkage Method to select the linkage method taken for region entrance detecon. Refer to Section 5.2.1 Conguring Moon Detection.
7. Click Save to save the seings.

5.3.4 Conguring Region Exing Detecon

Purpose:

Region exing detecon funcon detects people, vehicle or other objects which exit from a pre-dened virtual region, and some certain acons can be taken when the alarm is triggered.

Steps:

1. Enter the Region Exing Detecon sengs interface:

Conguraon> Event > Smart Event> Region Exing Detecon

1. Check Enable.

Enable Area Settings > Arming Schedule > Linkage Method Region 1 11-11-2017 Tue 13:59:15 #1# P192:T49 2003 Stop Drawing Clear Unlock(173s) 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8

Figure 5-19 Conguring Region Exing Detecon

1. Select the region from the drop-down list for detection seings.
2. Click Draw Area to start the region drawing.
3. Click on the live video to specify the four vertexes of the detector region, and right click to complete drawing.
   Repeat the step to conjure other regions. Up to 4 regions can be set. You can click Clear to clear all pre-dened regions.
4. Set the detecon target for the region entrance detection. You can select human, vehicle, or all (human & vehicle) as the detecon target from the drop-down list. If Human is selected, only human beings will be idened as detecon objects and as well as Vehicle.
5. Click Arming Schedule to enter the arming schedule seeing interface. The me schedule conguration is the same as the sengs of the arming schedule for moon detecon. Refer to Secon 5.2.1 Configuring Moon Detecon.
6. Click Linkage Method to select the linkage method taken for region exing detecon. Refer to Secon 5.2.1 Configuring Moon Detecon.
7. Click Save to save the seings.

5.3.5 Conguring Unaended Baggage Detecon

Purpose:

Unaended baggage detecon funcon detects the objects le over in the pre-dened region such as the baggage, purse, dangerous materials, etc. A series of acons can be taken when the alarm is triggered.

Steps:

1. Enter the Unaended Baggage Detecon sengs interface:

Conguraon > Event > Smart Event > Unaended Baggage Detecon

Enable Area Settings Arming Schedule Linkage Method Region 1 11-14-2017 Tue 14:12:05 P192:T49 Z003 Stop Drawing Clear Threshold(s) 5 Sensitivity 50 Unlock(170s) 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8

Figure 5-20 Conguring Unaended Baggage Detecon

1. Check Enable.
2. Select the Region from the drop-down list for detection settings.
3. Click Area Setngs and click Draw Area to start the area drawing.
4. Click on the live video to specify the four vertexes of the detecon region, and right click to complete drawing.
5. Set the Max. Size and Min. Size for valid targets. Targets smaller or larger than the valid target size are not able to trigger detecon.

Max. Size: The maximum size of a valid target. Targets with larger sizes would not trigger detecon.

Min. Size: The minimum size of a valid target. Targets with smaller sizes would not trigger detecon.

1. Click Stop Drawing when nish drawing.
2. Set the me threshold and detecon sensitivity for unattended baggage detecon.

Threshold: Range [5-100s], the threshold for the me of the objects le over in the region. If you set the value as 10, alarm is triggered aer the object is le and stay in the region for 10s.

1. Drag the slider to set the sensitivity value.

Sensitivity: Range [1-100]. Sensitivity stands for the percentage of the body part of an acceptable target that enters the pre-dened region.

$$ \text { Sensitivity } = 1 0 0 - S _ {1} / S _ {T} ^ {*} 1 0 0 $$

S_1 stands for target body part that enters the pre-dened region. S_T stands for the complete target body.

Example: if you set the value as 60, a target is possible to be counted as an unaended baggage only when 40 percent body part of the target enters the region.

The Sensitivity of the detecon is supported by certain models. Refer to actual display for details.

1. Repeat the above steps to congregate other regions. Up to 4 regions can be set. You can click Clear to clear all pre-dened regions.
2. Click Arming Schedule to enter the arming schedule setng interface. The me schedule conguraon is the same as the setngs of the arming schedule for moon detecon. Refer to Secon 5.2.1 Configuring Moon Detecon.
3. Click Linkage Method to select the linkage method taken for unattended baggage detecon. Refer to Section 5.2.1 Conguring Moon Detection.
4. Click Save to save the sengs.

5.3.6 Conguring Object Removal Detecon

Purpose:

Object removal detecon funcon detects the objects removed from the pre-dened region, such as the exhibits on display, and a series of acons can be taken when the alarm is triggered.

Steps:

1. Enter the Object Removal Detecon sengs interface:

Conguraon > Event > Smart Event > Object Removal Detecon

Enable Area Settings > Arming Schedule > Linkage Method Region 1 11-14-2017 Tue 14:17:43 P192:T49 2003 Stop Drawing Clear Threshold(s) 5 Sensitivity 50 Unlock(174s) 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8

Figure 5-21 Conguring Object Removal Detecon

1. Check Enable.
2. Select the Region from the drop-down list for detection settings.
3. Click Area Settings and click Draw Area to start the area drawing.
4. Click on the live video to specify the four vertexes of the detector region, and right click to complete drawing.
5. Set the Max. Size and Min. Size for valid targets. Targets smaller or larger than the valid target size are not able to trigger detecon.

Max. Size: The maximum size of a valid target. Targets with larger sizes would not trigger detecon.

Min. Size: The minimum size of a valid target. Targets with smaller sizes would not trigger detecon.

1. Click Stop Drawing when nish drawing.
2. Set the me threshold for object removal detecon.

Threshold: Range [5-100s], the threshold for the me of the objects removed from the region. If you set the value as 10, alarm is triggered aer the object disappears from the region for 10 s.

1. Drag the slider to set the sensitivity value.

Sensitivity: Range [1-100]. It stands for the percentage of the body part of an acceptable target that leaves the pre-dened region.

$$ \text { Sensitivity } = 1 0 0 - S _ {1} / S _ {T} * 1 0 0 $$

S_1 stands for the target body part that leaves the pre-dened region. S_T stands for the

complete target body.

Example: if you set the value as 60, a target is possible to be counted as a removed object only when 40 percent body part of the target leaves the region.

The Sensitivity of the detecon is supported by certain models. Refer to actual display for details.

1. Repeat the above steps to congregate other regions. Up to 4 regions can be set. You can click Clear to clear all pre-dened regions.
2. Click Arming Schedule to enter the arming schedule seng interface. The me schedule conguraon is the same as the sengs of the arming schedule for moon detection. Refer to Secon 5.2.1 Configuring Moon Detecon.
3. Click Linkage Method to select the linkage method taken for object removal detecon. Refer to Secon 5.2.1 Configuring Moon Detecon.
4. Click Save to save the seings.

5.3.7 Conguring Face Detecon

Purpose:

Face detecon funcon detects the face appears in the surveillance scene, and some certain acons can be taken when the alarm is triggered.

Face funcon is not supported when third stream is enabled. You need do disable the third stream in Conguraon > System > Maintenance > System Service.

Steps:

1. Enter the Face Detecon sengs interface:

Conguraon > Event > Smart Event > Face Detecon

1. Check Enable Face Detecon.
2. Check Enable Dynamic Analysis for Face Detecon, and then the detected face is marked with green rectangle on the live video.

To mark the detected face on the live video, you need to enable Rules in Conguraon > Local.

1. Drag the slider to set the detecon sensitivity. The Sensitivity ranges from 1 to 5. The higher the value is, the more easily the face can be detected.
2. Click Arming Schedule to enter the arming schedule seng interface. The me schedule conguraon is the same as the sengs of the arming schedule for moon detecon. Refer to Secon 5.2.1 Configuring Moon Detecon.
3. Click Linkage Method to select the linkage method taken for face detecon. Refer to Secon 5.2.1 Conguring Moon Detecon.

5.4 PTZ Conguraon

• Click to show the PTZ control panel or click to hide it.
• Click the direcon buons to control the pan/lt movements.
• Click the zoom/iris/focus buons to realize lens control.
  ● The funcons vary depending on dierent speed dome models.

5.4.1 Conguring Basic PTZ Parameters

You can congregate the basic PTZ parameters, including proporcional pan, preset freezing, preset speed, etc.

1. Enter the Basic Sengs interface:

Conguraon > PTZ > Basic Setngs

Basic Parameter Enable Proportional Pan Enable Preset Freezing Preset Speed 4 Manual Control Speed Auto Keyboard Control Speed Medium Auto Scan Speed 28 Max. Tilt-angle (0 - 90)Degree Zooming Speed 2 PTZ OSD Zoom Status NO PT Status NO Preset Status NO Power Off Memory Set Resume Time Point 30s

Figure 5-22 Basic Sengs

1. Congure the following sengs:

● Basic Parameters: Set the basic parameters of PTZ.

◆ Proporonal Pan: If you enable this function, the pan/lt speeds change according to the amount of zoom. When there is a large amount of zoom, the pan/lt speed will be slower for keeping the image from moving too fast on the live view image.
◆ Preset Freezing: This funcon enables the live view to switch directly from one scene dened by a preset to another, without showing the middle areas between these two, to

ensure the surveillance efficiency. It can also reduce the use of bandwidth in a digital network system.

Preset freezing funcon is invalid when you calling a paern.

◆ Preset Speed: You can set the speed of a dened preset from 1 to 8.
◆ Manual Control Speed: The manual control speed can be set as Compatible, Pedestrian, Non-motor Vehicle, Motor Vehicle or Auto.
◆ Comparable: The control speed is same as the Keyboard Control Speed.
◆ Pedestrian: Choose the Pedestrian when you monitor the pedestrians.
◆ Non-motor Vehicle: Choose the Non-motor Vehicle when you monitor the non-motor vehicles.
◆ Motor Vehicle: Choose the Motor Vehicle when you monitor the motor vehicles.
◆ Auto: You are recommended to set it as Auto when the applicaon scene of the speed dome is complicated.
◆ Keyboard Control Speed: Dene the speed of PTZ control by a keyboard as Low, Medium or High.
◆ Auto Scan Speed: The scan speed can be set from level 1 to 40.
Max. Tilt-angle: Set the lt-angle of the speed dome from the drop-down list.
◆ Zooming Speed: The zoom speed is adjustable from level 1 to 3.

◆

- PTZ OSD: Set the on-screen display duraon of the PTZ status.

◆ Zoom Status: Set the OSD duration of zooming status as 2 seconds, 5 seconds, 10 seconds, NC (Normally Closed), or NO (Normally Open).
◆ PT Status: Set the azimuth angle display duraon while panning and Ing as 2 seconds, 5 seconds, 10 seconds, NC (Normally Closed), or NO (Normally Open).
◆ Preset Status: Set the preset name display duraon while calling the preset as 2 seconds, 5 seconds, 10 seconds, NC (Normally Closed), or NO (Normally Open).

- Power-o Memory: The speed dome can resume its previous PTZ status or acons aer it restarted from a power-o. You can set the me point of which the dome resumes its PTZ status. You can set it to resume the status of 30 seconds, 60 seconds, 300 seconds or 600 seconds before power-o.

1. Click Save to save the settings.

5.4.2 Conguring PTZ Limits

Purpose:

The speed dome can be programmed to move within the congorable PTZ limits (le/right, up/down).

Steps:

1. Enter the Limit conguraon interface:

Conguraon > PTZ > Limit

Enable Limit 11-14-2017 Tue 14:26:20 P192HT49 2003 Limit Type Manual Stops Type Status No limited Set Clear 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8

Figure 5-23 Congure the PTZ Limit

1. Click Enable Limit and choose the limit type as manual stops or scan stops.

- Manual Stops:

When manual limit stops are set, you can operate the PTZ control panel manually only in the limited surveillance area.

- Scan Stops:

When scan limit stops are set, the random scan, frame scan, auto scan, lt scan, panorama scan is performed only in the limited surveillance area.

Manual Stops of Limit Type is prior to Scan Stops. When you set these two limit types at the same me, Manual Stops is valid and Scan Stops is invalid.

1. Click the PTZ control buons to nd the le/right/up/down limit stops; you can also call the dened presets and set them as the limits of the speed dome.
2. Click Set to save the limits or click Clear to clear the limits.
3. Click Save to save the seings.

5.4.3 Conguring Inial Posion

Purpose:

The initial posion is the origin of PTZ coordinates. It can be the factory default initial position. You can also customize the initial posion according to your own demand.

- Customize an Inial Posion:

Steps:

1. Enter the Inial Posion conguraon interface:

Conguraon > PTZ > Inial Posion

11-14-2017 Tue 14:27:06 P192:T19 2003 Set Clear Call 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8

Figure 5-24 PTZ Conguraon

1. Click the PTZ control buons to nd a posion as the initial posion of the speed dome; you can also call a dened preset and set it as the initial posion of the speed dome.
2. Click Set to save the posion.

- Call/delete an Inial Posion:

You can click to call the initial posion. You can click to delete the initial posion and restore the factory default initial posion.

5.4.4 Conguring Park Acons

Purpose:

This feature allows the camera to start a predened park acon (scan, preset, pattern and etc.) automacally aer a period of inactivity (park me).

• Scheduled Tasks funcon is prior to Park Acon funcon. When these two funcons are set at the same me, only the Scheduled Tasks funcon takes eect.
  ● Park funcon varies depending on different speed dome models.

Steps:

1. Enter the Park Acon sengs interface:

Conguraon > PTZ > Park Acon

Enable Park Action Park Time 5 s Action Type Pattern Action Type ID 1

Figure 5-25 Set the Park Acon

1. Check Enable Park Acon.
2. Set the Park Time as the inactivity me of the camera before it starts the park acons.
3. Choose Acon Type the from the drop-down list.
4. If you select Patrol, Pattern, or Preset as Acon Type, you need to select Acon Type ID from the drop-down list.
5. Click Save to save the setngs.

5.4.5 Conguring Privacy Mask

Purpose:

Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the surveillance area from being live viewed and recorded.

Steps:

1. Enter the Privacy Mask sengs interface:

Conguraon > PTZ > Privacy Mask

Enable Privacy Masks 11-14-2017 Tue 14:28:35 P192:T49 2003 Stop Drawing Clear All Privacy Mask List Add Delete No. Name Type Enable Active Zoom Ratio

Figure 5-26 Draw the Privacy Mask

1. Click the PTZ control buons to nd the area you want to set the privacy mask.
2. Click Draw Area; drag the mouse in the live video window to draw the area.
3. You can drag the corners of the red rectangle area to draw a polygon mask.
4. Click Stop Drawing to nish drawing or click Clear All to clear all of the areas you set without saving them.
5. Click Add to save the privacy mask, and it will be listed in the Privacy Mask List area; set the value of Acve Zoom Rao on your demand, and then the mask will only appear when the zoom rao is greater than the predened value.

Privacy Mask List Add Delete No. Name Type Enable Active Zoom Ratio 1 Privacy Mask 1 gray Yes 1

Figure 5-27 Privacy Mask List

1. Check Enable Privacy Mask to enable this function.

2. Click

5.4.6 Conguring Scheduled Tasks

Purpose:

You can congregate the network speed dome to perform a certain acon automatically in a user-dened me period.

Steps:

1. Enter the Scheduled Task sengs interface:

Conguraon> PTZ > Scheduled Tasks

Figure 5-28 Congure Scheduled Tasks

1. Check Enable Scheduled Task.
2. Set the Park Time. You can set the park me (a period of inactivity) before the speed dome starts the scheduled tasks.
3. Select the task type from the drop-down list.
4. Select the meline of a certain day, and drag the mouse to set the recording schedule (the start me and end me of the recording task).
5. Aer you set the scheduled task, you can click and copy the task to other days (oponal).

Figure 5-29 Edit the Schedule and Task Type

1. Click Save to save the settings.

5.4.7 Clearing PTZ Conguraons

Purpose:

You can clear PTZ conguraons in this interface, including all presets, patrols, privacy masks, PTZ limits, scheduled tasks and park acons.

Steps:

1. Enter the Clearing Conguraon interface:

Conguraon > PTZ > Clear Cong

1. Check the checkbox of the items you want to clear.

Select All Clear All Presets Clear All Patrols Clear All Patterns Clear All Privacy Masks Clear All PTZ Limited Clear All Scheduled Tasks Clear All Park Action

Figure 5-30 Clear Cong

1. Click Save to clear the setngs..

5.4.8 Priorize PTZ

Steps:

1. Enter the Priorize PTZ interface:

Conguraon > PTZ > Prioritize PTZ.

Prioritize PTZ Network Delay 10 s

Figure 5-31 Posion Sengs

1. Select Network or RS-485 from the drop-down list
2. Set the delay me (Range 2-200s).
3. Click Save to save the sengs.

Chapter 6 Speed Dome Conguraon

6.1 Conguring Network Sengs

The funcons vary depending on dierent speed dome models.

6.1.1 Basic Sengs

Conguring TCP/IP Sengs

Purpose:

TCP/IP sengs must be properly congured before you operate the camera over network. IPv4 and IPv6 are both supported.

Steps:

1. Enter TCP/IP sengs interface:

Conguraon > Network > Basic Sengs > TCP/IP

NIC Type Auto DHCP IPv4 Address 10.65.72.221 Test IPv4 Subnet Mask 255.255.255.0 IPv4 Default Gateway 10.65.72.254 IPv6 Mode Route Advertisement View Route Advertisement IPv6 Address IPv6 Subnet Mask IPv6 Default Gateway Mac Address 00:40:30:11:11:06 MTU 1500 Multicast Address Enable Multicast Discovery DNS Server Preferred DNS Server 8.8 8.8 Alternate DNS Server

Figure 6-1 TCP/IP Sengs

1. Congure the NIC seings, including the IPv4(IPv6) Address, IPv4(IPv6) Subnet Mask and IPv4(IPv6) Default Gateway.
2. Click Save to save the above sengs.

You can click Test to make sure that the IP address is valid.

• If the DHCP server is available, you can check ☐ DHCP to automatically obtain an IP address and other network sengs from that server.
  ● The valid value range of Maximum Transmission Unit (MTU) is 1280 to 1500.
• The Mulcast sends a stream to the multicast group address and allows mulple clients to acquire the stream at the same me by requesng a copy from the mulcast group address. Before ulizing this funcon, you have to enable the Mulcast funcon of your router and congure the gateway of the network camera.
• If the DNS server sengs are required for some applications (e.g., sending email), you should properly congregate the Preferred DNS Server and Alternate DNS server.

DNS Server Preferred DNS Server 8.8.8.8 Alternate DNS Server

Figure 6-2 DNS Server Sengs

The router must support the route adversement funcon if you select Route Adversement as the IPv6 mode.

Conguring DDNS Sengs

Purpose:

If your camera is set to use PPPoE as its default network conncon, you can use the Dynamic DNS (DDNS) for network access.

Before you start:

Registraon on the DDNS server is required before conguring the DDNS sengs of the camera.

- For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

- Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

Steps:

1. Enter the DDNS sengs interface:

Conguraon > Network > Basic Sengs > DDNS

1. Check Enable DDNS to enable this feature.
2. Select DDNS Type. Two DDNS types are selectable: DynDNS and NO-IP.

• DynDNS:

Steps:

(1) Input Server Address of DynDNS (e.g. members.dyndns.org).
(2) In the Domain text eld, input the domain name obtained from the DynDNS website.
(3) Input the Port of DynDNS server.
(4) Input the User Name and Password registered on the DynDNS website.
(5) Click Save to save the seings.

Enable DDNS DDNS Type DynDNS Server Address members.dyndns.org Domain 123.dyndns.org User Name test Port 0 Password •••••••••• Confirm •••••••••••

Figure 6-3 DynDNS Sengs

- NO-IP:

Steps:

(1) Input Server Address of NO-IP.
(2) In the Domain text eld, Input the domain name obtained from the NO-IP website.
(3) Input the Port of NO-IP server.
(4) Input the User Name and Password registered on the NO-IP website.
(5) Click Save to save the seings.

Conguring PPPoE Sengs

Purpose:

If you have no router but only a modem, you can use Point-to-Point Protocol over Ethernet (PPPoE) funcon.

Steps:

1. Enter the PPPoE settings interface:

Conguraon > Network > Basic Sengs > PPPoE

Enable PPPoE Dynamic IP 0.0.0.0 User Name Password Confirm

Figure 6-4 PPPoE Sengs

1. Check Enable PPPoE to enable this feature.
2. Enter User Name, Password, and Conrm password for PPPoE access.

The User Name and Password should be assigned by your ISP.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

• Click Save to save and exit the interface.

Conguring Port Sengs

Purpose:

If there is a router and you want to access the camera through Wide Area Network (WAN), you need to forward the 3 ports for the camera.

Steps:

1. Enter the Port sengs interface:

Conguraon > Network > Basic Sengs > Port

HTTP Port 80 RTSP Port 554 HTTPS Port 443 Server Port 8000

Figure 6-5 Port Sengs

1. Set the HTTP port, RTSP port and port of the camera.

HTTP Port: The default port number is 80.

RTSP Port: The default port number is 554.

HTTPS Port: The default port number is 443.

Server Port: The default port number is 8000.

1. Click Save to save the sengs.

Conguring NAT (Network Address Translaon) Sengs

Purpose:

Universal Plug and Play (UPnP™) is a networking architecture that provides compatibility among networking equipment, soware and other hardware devices. The UPnP protocol allows devices to connect seamlessly and to simplify the implementation of networks in the house and corporate environments.

With the funcon enabled, you don't need to conjure the port mapping for each port, and the camera is connected to the Wide Area Network via the router.

Steps:

1. Enter the UPnP ^TM sengs interface.

Conguraon >Network > Basic Sengs > NAT

1. Check the checkbox to enable the UPnP™ function.

You can edit the Friendly Name of the camera. This name can be detected by corresponding device, such as a router.

1. Set the port mapping mode:

To port mapping with the default port numbers:

To port mapping with the customized port numbers:

And you can customize the value of the port number by yourself.

Enable UPnPTM Nickname 490340679 Port Mapping Mode Auto Port Type External Port External IP Address Internal Port Status HTTP 80 0.0.0 80 Valid RTSP 554 0.0.0 554 Valid Server Port 8000 0.0.0 8000 Valid

Figure 6-6 Port Mapping Mode

1. Click Save to save the settings.

6.1.2 Advanced Sengs

Conguring SNMP Sengs

Purpose:

You can use SNMP to get camera status and parameters related informaon.

Before you start:

Before seng the SNMP, use the SNMP soware and manage to receive the camera informaon via SNMP port. By seng the Trap Address, the camera can send the alarm event and excepon messages to the surveillance center.

The SNMP version you select should be the same as that of the SNMP soware.

Steps:

1. Enter the SNMP sengs interface:

Conguraon > Network > Advanced Sengs > SNMP

SNMP v1/v2 Enable SNMPv1 Enable SNMP v2c Read SNMP Community public Write SNMP Community private Trap Address Trap Port 162 Trap Community public SNMP v3 Enable SNMPv3 Read UserName Security Level no auth, no priv Authentication Algorithm MD5 SHA Authentication Password ****** Private-key Algorithm DES AES Private-key password ****** Write UserName Security Level no auth, no priv Authentication Algorithm MD5 SHA Authentication Password ****** Private-key Algorithm DES AES Private-key password ****** SNMP Other Settings SNMP Port 161

Figure 6-7 SNMP Sengs

1. Check the corresponding version checkbox (Enable SNMP v1, Enable SNMP v2c, Enable SNMP v3) to enable the feature.
2. Congure the SNMP sengs.

The conguraon of the SNMP soware should be the same as the sengs you congure here.

1. Click Save to save and nish the sengs.

Conguring FTP Sengs

Purpose:

You can set a FTP server and congure the following parameters for uploading captured pictures.

Steps:

1. Enter the FTP seings interface:

Conguraon > Network > Advanced Sengs > FTP

Server Address 0.0.0.0 Port 21 User Name Anonymous Password Confirm Directory Structure Save in the root directory Picture Filing Interval OFF Day(s) Picture Name Default Upload Picture Test

Figure 6-8 FTP Sengs

1. Congure the FTP settings, including server address, port, user name, password, directory, and upload type.

The server address supports both the domain name and IP address formats.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.
• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.
• Setng the directory in FTP server for saving les:

In the Directory Structure eld, you can select the root directory, parent directory and child directory.

◆ Root directory: The les will be saved in the root of FTP server.
◆ Parent directory: The les will be saved in a folder in FTP server. The name of folder can be dened as shown in Figure 6-9.

Use Device Name Use Device Name Use Device Number Use Device IP address Custom

Figure 6-9 Parent Directory

◆ Child directory: It is a sub-folder which can be created in the parent directory. The les will be saved in a sub-folder in FTP server. The name of folder can be dened as shown in Figure 6-10.

Use Camera Name Use Camera Name Use Camera Number Custom

Figure 6-10 Child Directory

- Upload type: To enable uploading the captured picture to the FTP server.

1. Click Save to save the seings.

2. You can click Test to conrm the conguraon.

If you want to upload the captured pictures to FTP server, you also have to enable the connuous snapshot or event-triggered snapshot in Snapshot interface.

Conguring Email Sengs

Purpose:

The system can be congured to send an Email nocaon to all designated receivers if an alarm event is detected, e.g., moon detecon event, video loss, video-tampering, etc.

Before you start:

Congure the DNS Server sengs under Conguraon> Network > Basic Settings > TCP/IP before using the Email funcon.

Steps:

1. Enter the Email sengs interface:

Conguraon> Network > Advanced Sengs > Email

Sender Sender's Address SMTP Server SMTP Port 25 E-mail Encryption None Attached Image Interval 2 Authentication User Name Password Confirm Receiver No. Receiver Receiver's Address Test 1 2 3 Test

Figure 6-11 Email Sengs

1. Congure the following sengs:

Sender: The name of the email sender.

Sender's Address: The email address of the sender.

SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).

SMTP Port: The SMTP port. The default TCP/IP port for SMTP is 25.

E-mail encrypon: None, SSL, and TLS are selectable. When you select SSL or TLS and disable STARTTLS, e-mails will be sent aer encrypted by SSL or TLS. The SMTP port should be set as 465 for this encrypon method. When you select SSL or TLS and enable STARTTLS, emails will be sent aer encrypted by STARTTLS, and the SMTP port should be set as 25.

STARTTLS protocol must be supported by the email server for e-mail encrypon with STARTTLS. When it is not supported by the email server and the checkbox of Enable STARTTLS is checked, the email will not be encrypted.

Aached Image: Check Aached Image if you want to send emails with attached alarm images.

Interval: The interval refers to the me between two acons of sending aached pictures.

Authenticaon (oponal): If your email server requires authencaon, check this checkbox to use authencaon to log in to this server and input the login user name and password.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.
• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

Receiver: Select the receiver to which the email is sent. Up to 2 receivers can be congured.

Receiver: The name of the user to be noed.

Receiver's Address: The email address of user to be need. (Oponal: click Test to make sure that the email server can send email out.)

1. Click Save to save the settings.

Conguring Plaorm Sengs

Purpose:

Plaorm access provides you an opon to manage the devices via plaorm.

This funcon varies depending on dierent speed dome models.

Steps:

1. Enter the Plaorm sengs interface:

Conguraon> Network > Advanced Seings > Plaorm Access

Enable Platform Access Mode Hik-Connect Server IP dev.hik-connect.com Custom Register Status Offline Verification Code 6 to 12 letters (a to z, A to Z) or numbers (0 to 9), case sensitive. You are recommended to use a combination of no less than 8 letters or numbers.

Figure 6-12 Plaorm Access

1. Check Enable to enable the plaorm access funcon of the device.
2. Select the Plaorm Access Mode.

If you select Plaorm Access Mode as Hik-Connect,

1) Click and read "Terms of Service" and "Privacy Policy" in pop-up window.
2) Create a vericaon code or change the vericaon code for the camera.

● The vericaon code is required when you add the camera to Hik-Connect app.
- For more information about the Hik-Connect app, refer to Hik-Connect Mobile Client User Manual.

1. You can use the default server address. Or you can check Custom on the right and input a desired server address.

2. Click Save to save the setngs.

Hik-Connect is an applicaon for mobile devices. With the App, you can view live image of the camera, receive alarm nocaaon and so on.

Conguring HTTPS Sengs

Purpose:

HTTPS is consisted by SSL&HTTP. It is used for encrypon transmission, identity authencaon network protocol which enhances the security of WEB accessing.

- For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

● Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

Steps:

1. Enter the HTTPS seings interface.

Conguraon > Network > Advanced Sengs > HTTPS

1. Create the self-signed cercate or authorized cercate.

Enable Install Certificate Installation Method Create Self-signed Certificate Signed certificate is available, Start the installation directly. Create the certificate request first and continue the installation. Create Self-signed Certificate Create

Figure 6-13 Create Cercate

OPTION 1: Create the self-signed cercate

1) Select Create Self-signed Cercate.
2) Click Create to create the following dialog box.

Create Public Key Length 2048 Country * Hostname/IP * Validity Day(s)* Password State or province Locality Organization Organizational Unit Email OK Cancel

Figure 6-14 Create Self-signed Cercate

3) Select Public Key Length. Input the country, host name/IP, validity and other informaon.
4) Click OK to save the sengs.

OPTION 2: Start the installaon when signed cercate is available.

1) Select Signed cercate is available, Start the installaon directly.
2) Click Browse to upload the available cercate.
3) Click Install to install the cercate.
4) Click OK to save the sengs.

OPTION 3: Create cercate request rst and connue the installaon.

1) Select Create cercate request rst and connue the installaon.
2) Click Create to create the cercate request, and full the required informaon.
3) Download the cercate request and submit it to the trusted cercate authority for signature.
4) Aer receiving the signed valid cercate, import the cercate to the device.
5) Click OK to save the sengs.

1. There will be the cercate informaon aer you successfully create and install the cercate.

Certificate Details Installed Certificate C=CN, H/IP=ADMIN Property Subject: C=CN, H/IP=ADMIN Leasee: C=CN, H/IP=ADMIN Validity: 2015-05-12 09:43:55 - 2015-10-01 09:43:55 Delete

Figure 6-15 Installed Cercate Property

NOTE

● The default port number of HTTPS is 443. The port value ranges from 1 to 65535.
- When the port number is the default number 443, the format of the URL is https://IP address, eg., hps://192.168.1.64.
- When the port number is not the default number 443, the format of the URL is hps://IP address:port number, eg., hps://192.168.1.64:81.

Conguring QoS Sengs

Purpose:

QoS (Quality of Service) can help solve the network delay and network congeson by conguring the priority of data sending.

Steps:

1. Enter the QoS settings interface:

Conguraon >Advanced Conguraon > Network > QoS

Video/Audio DSCP 0 Event/Alarm DSCP 0 Management DSCP 0

Figure 6-16 QoS Sengs

1. Congure the QoS sengs, including video / audio DSCP, event / alarm DSCP and Management DSCP. The valid DSCP value ranges from 0 to 63. The DSCP value is bigger, the priority is higher.

2. Click Save to save the sengs.

NOTE

● Make sure that you enable the QoS function of your network device (such as a router).
- It will ask for a reboot for the sengs to take eect.

Conguring 802.1X Sengs

Purpose:

The camera supports IEEE 802.1X standard.

IEEE 802.1X is a port-based network access control. It enhances the security level of the LAN. When devices connect to this network with IEEE 802.1X standard, the authencaon is needed. If the authencaon fails, the devices don't connect to the network.

The protected LAN with 802.1X standard is shown in Figure 6-17.

Figure 6-17 Protected LAN

• Before connecng the Network Camera to the protected LAN, apply a digital cercate from a Cercate Authority.
• The network camera requests access to the protected LAN via the authencator (a switch).
• The switch forwards the identity and password to the authentication server (RADIUS server).
  ● The switch forwards the cercate of authencaon server to the network camera.
• If all the informaon is validated, the switch allows the network access to the protected network.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.
  ● Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

Steps:

1. Connect the network camera to your PC directly with a network cable.
2. Enter the 802.1X sengs interface:

Conguraon > Network > Advanced Sengs > 802.1X

Enable IEEE 802.1X Protocol EAP-MD5 EAPOL version 1 User Name Password Confirm

Figure 6-18 802.1X Sengs

1. Check Enable IEEE 802.1X to enable it.
2. Congure the 802.1X setngs, including user name and password.

The EAP-MD5 version must be identical with that of the router or the switch.

1. Click Save to nish the setngs.

The camera reboots when you save the sengs.

1. Aer the conguraon, connect the camera to the protected network.

Integraon Protocol

Purpose:

If you need to access to the camera through the third party plaorm, you can enable Hikvision-CGI funcon. And if you need to access to the device through ONVIF protocol, you can congregate ONVIF user in this interface. Refer to ONVIF standard for detailed conguraon rules.

Steps:

1. Enter the Integraon Protocol conguraon interface.

Conguraon > Network > Advanced Sengs > Integraon Protocol

Enable Hikvision-CGI Hikvision-CGI Authenticat... digest Enable ONVIF User List Add Modify Delete No User Name Level

Figure 6-19 Integraon Protocol Sengs

1. Enable CGI funcon.

Check Enable Hikvision-CGI and then select the authencaon from the drop-down list.

Digest is the recommended authencaon method.

1. Enable ONVIF funcon.

1) Check Enable ONVIF.
2) Click Add to add a new ONVIF user. Set the user name and the password, and conrm the password. You can set the user as media user, operator, and administrator.
3) You can select an added ONVIF user, and click Modify to modify the informaon.
4) You can select an added ONVIF user, and click Delete to delete it.

1. Click Save to save the sengs.

• ONVIF user account is dierent from the camera user account. Set ONVIF user account independently.
• User sengs of ONVIF are cleared when you restore the camera.

6.2 Conguring Video and Audio Sengs

6.2.1 Conguring Video Sengs

Steps:

1. Enter the Video sengs interface:

Conguraon > Video/Audio > Video

Stream Type Main Stream(Normal) Video Type Video Stream Resolution 1920*1080P Bitrate Type Variable Video Quality Medium Frame Rate 25 fps Max. Bitrate 4096 Kbps Video Encoding H.264 H.264+ OFF Profile High Profile I Frame Interval 50 SVC OFF Smoothing 50 [Clear<->Smooth]

Figure 6-20 Congure Video Sengs

1. Select the Stream Type of the camera to main stream (normal), sub-stream or third stream. The main stream is usually for recording and live viewing with good bandwidth, and the sub-stream can be used for live viewing when the bandwidth is limited. Refer to the Secon

4.1 Conguring Local Parameters for switching the main stream and sub-stream for live viewing.

1. You can customize the following parameters for the selected stream.

The parameters vary depending on dierent speed dome models.

Video Type:

Select the stream type to video stream, or video & audio composite stream. The audio signal will be recorded only when the Video Type is Video & Audio.

Resoluon:

Select the resolution of the video output.

Bitrate Type:

Select the bitrate type to constant or variable.

Video Quality:

When bitrate type is selected as Variable, 6 levels of video quality are selectable.

Frame Rate:

The frame rate is to describe the frequency at which the video stream is updated and it is measured by frames per second (fps). A higher frame rate is advantageous when there is movement in the video stream, as it maintains image quality throughout.

Max. Bitrate:

Set the Max. bitrate. The higher value corresponds to the higher video quality, but the higher bandwidth is required.

Video Encoding:

Select Video Encoding from the drop-down list for dierent stream type.

H.264+/H.265+:

Set it as ON or OFF.

H.264+: If you set the main stream as the stream type, and H.264 as the video encoding, you can see H.264+ available. H.264+ is an improved compression coding technology based on H.264. By enabling H.264+, users can esmate the HDD consumpon by its maximum average bitrate. Compared to H.264, H.264+ reduces storage by up to 50% with the same maximum bitrate in most scenes.

H.265+: If you set the main stream as the stream type, and H.265 as the video encoding, you can see H.265+ available. H.265+ is an improved compression coding technology based on H.265. By enabling H.265+, users can esmate the HDD consumpon by its maximum average bitrate. Compared to H.265, H.265+ reduces storage by up to 50% with the same maximum bitrate in most scenes.

You need to reboot the camera if you want to turn on or turn o the H.264+/H.265+. If you switch from H.264+ to H.265+ directly, and vice versa, a reboot is not required by the system.

Prole:

Basic Prole, Main Prole and High Prole are selectable.

I Frame Interval:

Set the I-Frame interval from 1 to 400.

SVC:

Scalable Video Coding is an extension of the H.264/AVC standard. Select OFF/ON to disable/enable the SVC funcon. Select Auto, and the device will automatically extract frames from the original video when the network bandwidth is insucient.

Smoothing:

It refers to the smoothness of the stream. The higher value of the smoothing, the beer uency of the stream, though, the video quality may not be so sased. The lower value of the smoothing, the higher quality of the stream, though it may appear not uent.

4. Click Save to save the setngs.

6.2.2 Conguring Audio Sengs

Steps:

1. Enter the Audio sengs interface
   Conguraon > Video/Audio > Audio

2. Congure the following sengs.

Audio Encoding: G.722.1, G.711ulaw, G.711alaw, MP2L2, G.726 and PCM are selectable.

Audio Input: When an intercom is connected to the camera, you need to set this opon to LineIn. When a microphone is connected to the camera, you need to set this opon to MicIn.

Audio Stream Bitrate: When the Audio Encoding is selected as MP2L2, you can congure the Audio Stream Bitrate in the drop-down list. The greater the value is, the beer the audio quality will be.

Sampling Rate: When the Audio Encoding is selected as MP2L2, you can conjure the Sampling Rate in the drop-down list. The greater the value is, the beer the audio quality will be.

Input Volume: Slid the bar to turn up/down the volume. The value ranges from 0 to 100.

Environmental Noise Filter: Select ON or OFF in the drop-down list to enable or disable the funcon. It's recommended to enable the funcon when sampling rate is lower than 32 kHz.

1. Click Save to save the setngs.

Audio funcon varies depending on dierent speed dome models.

6.2.3 Conguring ROI Sengs

Purpose:

ROI (Region of Interest) encoding is used to enhance the quality of images which are specified in advance. There are two different ROI methods: Fixed Region and Dynamic Region. When Fixed Region is enabled, image quality of ROI area will be enhanced and image quality of other areas will be reduced. When Dynamic Region is enabled, image quality of tracking target will be enhanced.

ROI funcon varies depending on dierent speed dome models.

Enter the ROI sengs interface:

Conguraon >Video/Audio >ROI

11-14-2017 Tue 14:37:56 P192:149 Z003 Stop Drawing Clear 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8

Figure 6-21 Region of Interest (1)

Stream Type Stream Type Main Stream(Normal) Fixed Region Enable Region No. 1 ROI Level 3 Region Name Dynamic Region Enable Face Tracking ROI Level 3 Enable Target Tracking ROI Level 6

Figure 6-22 Region of Interest (2)

● ROI for Fixed Region

Steps:

1. Check Enable to enable the Fixed Region funcon.
2. Select a stream type. You can set the ROI funcon for main stream, sub-stream or third stream.
3. Click Draw Area and then drag the mouse to draw a red frame in the live view image. You can click Clear to clear it.

The number of areas supported in ROI funcon varies depending on dierent speed dome models.

1. Select the Region No. from the drop-down list.
2. Adjust the ROI level from 1 to 6. The higher the value, the beer image quality in the red frame.
3. Input a Region Name.

● ROI for Dynamic Region

1. Check Enable Face Tracking to enable face tracking, and the captured face picture is set as region of interest. Adjust the ROI level from 1 to 6.
2. Check Enable Target Tracking to enable target tracking, and the target is set as region of interest. Adjust the ROI level from 1 to 6.
3. Click Save to save the sengs.

6.2.4 Conguring Info. on Stream

Check Enable Dual-VCA, and the informaon of the objects (e.g. human, vehicle, etc.) will be marked in the video stream. Then, you can set rules on the connected rear-end device to detect the events including line crossing, intrusion, etc.

6.3 Conguring Image Sengs

• Click to show the PTZ control panel or click to hide it.
• Click the direcon buons to control the pan/lt movements.
• Click the zoom/iris/focus buons to realize lens control.
  ● The funcons vary depending on dierent speed dome models.

6.3.1 Conguring Display Sengs

Purpose:

Congure the image adjustment, exposure sengs, day/night switch, backlight sengs, white balance, image enhancement, video adjustment, and other parameters in display sengs.

• The parameters in Display Setngs interface vary depending on dierent speed dome models.
  ● You can double click the live view to enter full screen mode and double click it again to exit.

Steps:

1. Enter the Display sengs interface:

Conguraon > Image> Display Sengs

1. You can select the Scene in the drop-down list with dierent predened image parameters.
2. Set the image parameters of the speed dome.

Scene Indoor 11-14-2017 Tue 14:40:20 P1921T49 Z003 Image Adjustment Brightness 50 Contrast 50 Saturation 30 Sharpness 50 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 ✓ Exposure Settings ✓ Focus ✓ Day/Night Switch ✓ Backlight Settings ✓ White Balance ✓ Image Enhancement Default

Figure 6-23 Display Sengs

Image Adjustment

- Brightness

This feature is used to adjust brightness of the image. The value ranges from 0 to 100.

- Contrast

This feature enhances the dience in color and light between parts of an image. The value ranges from 0 to 100.

- Saturaon

This feature is used to adjust color saturaon of the image. The value ranges from 0 to 100.

- Sharpness

Sharpness funcon enhances the detail of the image by sharpening the edges in the image. The value ranges from 0 to 100.

Exposure Sengs

- Exposure Mode

The Exposure Mode can be set to Auto, Iris Priority, Shuer Priority, and Manual.

Auto:

The iris, shuer and gain values will be adjusted automatically according to the brightness of the environment.

◆ Iris Priority:

The value of iris needs to be adjusted manually. The shuer and gain values will be adjusted automatically according to the brightness of the environment.

Exposure Mode Iris Priority Exposure Level 4 Max.Shutter Limit 1/25 Min.Shutter Limit 1/30000 Iris f1.6 Limit Gain 94 Slow Shutter OFF

Figure 6-24 Manual Iris

◆ Shuer Priority:

The value of shuer needs to be adjusted manually. The iris and gain values will be adjusted automatically according to the brightness of the environment.

Exposure Mode Shutter Priority Exposure Level 4 Max. Iris Limit 100 Min. Iris Limit 0 Shutter 1/25 Limit Gain 94 Slow Shutter OFF

Figure 6-25 Manual Shuer

◆ Manual:

In Manual mode, you can adjust the values of Gain, Shutter, Iris manually.

Exposure Mode Manual Iris f1.6 Shutter 1/25 Gain 0 Limit Gain 94 Slow Shutter OFF

Figure 6-26 Manual Mode

- Limit Gain

This feature is used to adjust gain of the image. The value ranges from 0 to 100.

- Slow Shuer

This funcon can be used in underexposure condion. It lengthens the shuer me to ensure full exposure.

- Slow Shuer Level

When slow shutter is set as ON, you can select the slow shuer level from the drop-down list. The slow shutter lever can be set to Slow Shuer*2, *3, *4, *6, *8.

Slow Shutter ON Slow Shutter Level Slow Shutter*2

Figure 6-27 Slow Shuer

Focus Sengs

- Focus Mode

The Focus Mode can be set to Auto, Manual, and Semi-auto.

Auto:
The speed dome focuses automacally at any me according to objects in the scene.
◆ Semi-auto:

The speed dome focuses automacally only once aer panning, Ing and zooming.

◆ Manual:

In Manual mode, you need to use

on the control panel to focus manually.

● Min. Focus Distance

This funcon is used to limit the minimum focus distance. The value can be set to 10cm, 50cm, 1.0m, 1.5m, 3m, 6m, 10m and 20m.

The minimum focus value varies depending on dierent speed dome models.

Day/Night Switch

● Day/Night Switch

The Day/Night Switch mode can be set to Auto, Day, Night and Scheduled-Switch.

This funcon varies depending on dierent speed dome models.

Auto:

In Auto mode, the day mode and night mode can switch automatically according to the light condition of environment.

Day/Night Switch Auto

Figure 6-28 Auto Mode Sensitivity

Day:

In Day mode, the speed dome displays color image. It is used for normal lighng conditions.

◆ Night:

In Night mode, the image is black and white. Night mode can increase the sensitivity in low light conditions.

◆ Scheduled-Switch:

In Schedule mode, you can set the time schedule for day mode as shown in Figure 6-29. The rest me out of the schedule is for night mode.

Day/Night Switch Scheduled-Switch Start Time 07:00:00 End Time 18:00:00

Figure 6-29 Day Night Schedule

Backlight Sengs

● BLC (Back Light Compensaon)

If there's a bright backlight, the subject in front of the backlight appears silhoueed or dark. Enabling BLC (back light compensaon) funcon can correct the exposure of the subject. But the

backlight environment is washed out to white.

● WDR (Wide Dynamic Range)

The wide dynamic range (WDR) funcon helps the camera provide clear images even under back light circumstances. When there are both very bright and very dark areas simultaneously in the eld of view, WDR balances the brightness level of the whole image and provide clear images with details.

You can enable or disable the WDR funcon as shown in Figure 6-30. The wide dynamic level ranges from 0 to 100.

WDR ON Wide Dynamic Level 50

Figure 6-30 WDR

HLC

HLC (High Light Compensation) makes the camera identify and suppress the strong light sources that usually are across a scene. This makes it possible to see the detail of the image that would normally be hidden.

White Balance

The White Balance mode can be set to Auto, MWB, Outdoor, Indoor, Fluorescent Lamp, Sodium Lamp and Auto-Tracking.

Auto:

In Auto mode, the camera retains color balance automacally according to the current color temperature.

◆ Manual White Balance:

In MWB mode, you can adjust the color temperature manually to meet your own demand as shown in Figure 6-31.

White Balance MWB WB Gain Circuit R 0 WB Gain Circuit B 0

Figure 6-31 Manual White Balance

Outdoor

You can select this mode when the speed dome is installed in outdoor environment.

Indoor

You can select this mode when the speed dome is installed in indoor environment.

◆ Fluorescent Lamp

You can select this mode when there are uorescent lamps installed near the speed dome.

♦ Sodium Lamp

You can select this mode when there are sodium lamps installed near the speed dome.

Auto-Tracking

In Auto-Tracking mode, white balance is connuously being adjusted in real-me according to the color temperature of the scene illuminaon.

Image Enhancement

● 3D Digital Noise Reducon

You can set Digital Noise Reducon funcon to Normal and adjust the Noise Reduction Level.

The level ranges from 0 to 100.

If you are a professional technician, you can set it to Expert Mode then adjust Space DNR Level and Time DNR Level. The level ranges from 0 to 100.

- Defog Mode

You can set the Defog Mode to ON or OFF as you need.

● EIS (Electronic Image Stabilizaon)

You can set theEIS to ON or OFF as you need.

Video Adjustment

The funcons vary depending on dierent speed dome models.

- Mirror

If you turn the MIRROR funcon on, the image will be ipped. It is like the image in the mirror.

The ip direcon can be set to OFF or CENTER.

- Video Standard

You can set the Video Standard to 50 Hz (PAL) or 60 Hz (NTSC) according to the video system in your country.

- Capture Mode

You can disable this funcon or select the capture mode from the list.

Other

The funcons vary depending on dierent speed dome models.

- Lens Inializaon

The lens operates the movements for inializaon when you enable Lens Inializaon.

- Zoom Limit

You can set Zoom Limit value to limit the maximum value of zooming. The value can be selected from the list.

6.3.2 Conguring OSD Sengs

Purpose:

The speed dome supports following on screen displays:

Time: Supports for me display.

Camera Name: Idenes the name of camera.

You can customize the on screen display of me.

Steps:

1. Enter the OSD settings interface:

Conguraon > Image > OSD Sengs

11-24-2017 Tel: 14:45:36 P152/1045 2003 Display Mode Not transparent & Not flashing OSD Size Auto Font Color Black&White Self-adaptive Alignment Custom Display Name Display Date Display Week Camera Name IPdome Time Format 24-hour Date Format MM-DD-YYYY Text OverLay 1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6 7 Preset 7 8 Preset 8 □ 1 □ 2 □ 3 □ 4

Figure 6-32 OSD Sengs

1. Check the corresponding checkbox to select the display of camera name, date or week if required.
2. Edit the camera name in the text eld of Camera Name.
3. Select from the drop-down list to set the me format, date format, display mode, OSD size, font color, and alignment.
4. You can use the mouse to drag the text frame IPdome in the live view window to adjust the OSD posion.
5. Click Save to save the seings.

6.3.3 Conguring Text Overlay Sengs

Purpose:

You can customize the text overlay.

Steps:

1. Enter the Text Overlay sengs interface:

Conguraon > Image > OSD Sengs

1. Check the checkbox in front of textbox to enable the on-screen display.
2. Input the characters in the textbox.
3. Use the mouse to drag the red text frame Text in the live view window to adjust the text overlay posion.
4. Click Save to save the settings.

6.3.4 Conguring Image Parameters Switch

This funcon varies depending on dierent speed dome models.

Purpose:

You can congregate Link to Preset or Scheduled-Switch in this interface. Link to Preset: Set the me period and linked scene for the preset and check the corresponding checkbox to go to the linked scene in the congured me period. Scheduled-Switch: Set the me period and linked scene and it will go to the linked scene in the congured me period when you check the corresponding checkbox.

Steps:

1. Enter the Image Parameters Switch interface:

Conguraon > Image > Image Parameters Switch

1. Check Link to Preset or Scheduled-Switch to enable the funcon. (Only one funcon can be enabled in the same me.)

2. When you enable the funcon of Link to Preset, select one preset from the drop-down list, check the corresponding checkbox, set the me period and the linked scene for the selected preset. (Up to 4 periods can be congured for one preset.)

Link to Preset Preset 1 Period1 00:00:00 00:00:00 Linked Scene Indoor Period2 00:00:00 00:00:00 Linked Scene Indoor Period3 00:00:00 00:00:00 Linked Scene Indoor Period4 00:00:00 00:00:00 Linked Scene Indoor

Figure 6-33 Link to Preset

Indoor Indoor Outdoor Day Night Morning Nightfall Street Low Illumination Custom1 Custom2

Figure 6-34 Linked Scene

1. When you enable the funcon of Scheduled-Switch, check the corresponding checkbox, set the me period and the linked scene.

Scheduled-Switch Period1 00:00:00 00:00:00 Linked Scene Indoor Period2 00:00:00 00:00:00 Linked Scene Indoor Period3 00:00:00 00:00:00 Linked Scene Indoor Period4 00:00:00 00:00:00 Linked Scene Indoor

Figure 6-35 Schedule-Switch

1. Click Save to save the sengs.

The two funcons are not enabled by default.

6.4 Conguring System Sengs

6.4.1 System Sengs

Viewing Basic Informaon

Enter the Device Informaon interface:

Conguraon > System > System Sengs > Basic Informaon

In the Basic Informaon interface, you can edit the Device Name and Device No.

Other informaon of the camera, such as Model, Serial No., Firmware Version, Encoding Version, Web Version, Plugin Version, Number of Channels, Number of HDDs, Number of Alarm Input, Number of Alarm Output, and Firmware Version Property are displayed. The informaon cannot be changed in this menu. It is the reference for maintenance or modicaon in future.

Device Name Device No. Model Serial No. Firmware Version Encoding Version Web Version Plugin Version Number of Channels Number of HDDs Number of Alarm Input Number of Alarm Output Firmware Version Property

Figure 6-36 Device Informaon

Time Sengs

Purpose:

You can follow the instrucons in this secon to congure the me which can be displayed on the video. There are Time Zone, Time Synchronizaon, and Daylight Saving Time (DST) funcons for seng the me. Time Synchronizaon consists of auto mode by Network Time Protocol (NTP) server and manual mode.

Enter the Time Sengs interface:

Conguraon > System > System Sengs > Time Sengs

Time Zone (GMT+08:00) Beijing, Urumqi, Singapore NTP ○ NTP Server Address time.windows.com NTP Port 123 Interval 1440 minute(s) Test Manual Time Sync. ● Manual Time Sync. Device Time 2017-07-03T14.18.26 Set Time 2017-07-03T14.18.24 Sync with computer time

Figure 6-37 Time Sengs

● Conguring Time Synchronizaon by NTP Server

Steps:

(1) Check the radio buon to enable the NTP funcon.
(2) Congure the following sengs:

Server Address: IP address of NTP server.

NTP Port: Port of NTP server.

Interval: The me interval between the two synchronizing acons by NTP server. It can be set from 1 to 10080 minutes.

NTP ● NTP Server Address time windows.com NTP Port 123 Interval 1440 min Test

Figure 6-38 Time Sync by NTP Server

You can click Test to make sure that the NTP server is connected.

If the camera is connected to a public network, you should use a NTP server that has a me synchronizaon funcon, such as the server at the Naonal Time Center (IP Address: 210.72.145.44). If the camera is set in a customized network, NTP soware can be used to establish a NTP server for me synchronizaon.

● Conguring Time Synchronizaon Manually

Steps:

(1) Check Manual Time Sync.
(2) Click to set the system me from the pop-up calendar.
(3) Click Save to save the sengs.

You can also check Sync with local me to synchronize the me of the camera with the me of your computer.

Sun Mon Tue Wed Thu Fri Sat 20 30 31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 1 2 3 4 5 6 7 8 9 Time 14 : 53 : 10 OK Manual Time Sync. ● Manual Time Sync. Device Time 2015-08-11T20:12:33 Set Time 2015-08-11T20:11:33 Sync. with computer time

Figure 6-39 Time Sync Manually

- Select the Time Zone

Purpose:

When the camera is taken to another me zone, you can use the Time Zone funcon to adjust the me. The me will be adjusted according to the original me and the me dierence between the two me zones.

From the Time Zone drop-down menu as shown in Figure 6-40, select the Time Zone in which the camera locates.

Time Zone (GMT+08:00) Beijing, Urumqi, Singapore

Figure 6-40 Time Zone Sengs

Conguring DST (Daylight Saving Time)

Purpose:

Daylight Saving Time (DST) is a way of making beer use of the natural daylight by seng your clock forward one hour during the summer months, and back again in the fall.

If there is the habit of adjusng clocks forward in your country in certain me period of a year, you can turn this funcon on. The me will be adjusted automacally when the Daylight Saving Time (DST) comes.

Steps:

1. Enter the DST interface by Conguraon > Advanced Conguraon > System > DST

Enable DST Start Time Apr First Sun 02 End Time Oct Last Sun 02 DST Bias 30min

Figure 6-41 DST Sengs

1. Check Enable DST to enable the DST funcon.
2. Set the date of the DST period.
3. Click Save to save the sengs.

About

Click View License, you can check Open Source Soware Licenses.

6.4.2 Maintenance

Upgrade & Maintenance

● Reboong the Camera

Steps:

1. Enter the Maintenance interface:
2. Conguraon > System > Maintenance > Upgrade & Maintenance:
3. Click Reboot to reboot the network camera.

● Restoring Default Sengs

Steps:

1. Enter the Maintenance interface:
   Conguraon > System > Maintenance > Upgrade & Maintenance:
2. Click Restore or Dafault to restore the default settings.

Clicking Default restores all the parameters to default settings including the IP address and user informaon. Use this buon with cauon.

Default Restore Reset all the parameters, except the IP parameters and user information, to the default settings. Default Restore all parameters to default settings.

Figure 6-42 Restore Default Sengs

● Exporng Conguraon File

Steps:

1. Enter the Maintenance interface:
   Conguraon > System > Maintenance > Upgrade & Maintenance
2. Click Device Parameters and set the encrypon password to export the current conguraon le.
3. Set the saving path to save the conguraon le in local storage.
4. Click Diagnose Informaon to download the log and system informaon.

- Imporng Conguraon File

1. Enter the Maintenance interface:
   Conguraon > System > Maintenance > Upgrade & Maintenance
2. Click Browse to select the saved conguraon le.
3. Input the encrypon password you have set when exporting the conguraon le.
4. Click Import to import conguraon le.

You need to reboot the camera aer imporng conguraon le.

- Upgrading the System

Steps:

1. Enter the Maintenance interface:

Conguraon >System > Maintenance > Upgrade & Maintenance

1. Select Firmware or Firmware Directory.

- Firmware: when you select Firmware, you need to nd the rmware in your computer to upgrade the device. - Firmware Directory: You need to nd the directory where the rmware locates. The device can nd the rmware in the directory automacally.

1. Click Browse to select the local upgrade le and then click Upgrade to start remote upgrade.

The upgrading process will take 1 to 10 minutes. Don't disconnect power of the camera during the process. The camera reboots automatically aer upgrading.

Log Searching

Purpose:

The operaon, alarm, excepon and informaon of the camera can be stored in log les. You can also export the log les on your demand.

Before you start:

Congure network storage for the camera or insert a memory card in the camera.

Steps:

1. Enter the Log interface:

Conguraon >System > Maintenance > Log

Major Type All Types Minor Type All Types Start Time 2015-08-11 00:00:00 End Time 2015-08-11 23 59:59 Search Log List Export No. Time Major Type Minor Type Channel No. Local/Remote User Remote Host IP Total 0 Items << < 0/0 >>

Figure 6-43 Log Searching Interface

1. Set the log search conditions to specify the search, including the Major Type, Minor Type, Start Time and End Time as shown in Figure 6-43.
2. Click Search to search log les. The matched log les will be displayed on the Log interface.
3. To export the log les, click Save Log to save the log les in your computer.

System Service

Steps:

1. Enter the interface of conging the remote conncon:

Conguraon > System > Maintenance > System Service

1. Check the checkbox to enable supplement light funcon if the device supports the function.
2. Input a number in text eld as the upper limit of the remote connection number. E.g. when you specify the remote conncon number as 10, then the 11th remote conncon cannot be established.

Hardware ✓ Enable Supplement Light Software Live View Connection 10 ✓ Enable Third Stream The device reboots when the third stream is enabled. And the face detection function is not supported.

Figure 6-44 Live View Connecon Sengs

1. You can check Eable Third Stream to enable the third stream. And face detection function is invalid when the third stream is enabled.
2. Click Save to acvate the setngs.

6.4.3 Security

Conguring Authencaon Security

Purpose:

You can specifically secure the stream data of live view.

Steps:

1. Enter the Authencaon interface:

Conguraon> System> Security > Authencaon

1. Set the RTSP Authencaon/WEB Authencaon type from the drop-down list. Digest and digest/basic are selectable.
2. Click Save to save the settings.

Conguring IP Address Filter

Purpose:

With this funcon on, the camera allows certain IP addresses whether to log in or not.

Steps:

1. Enter IP Address Filter interface:

Conguraon > System > Security > IP Address Filter

Enable IP Address Filter IP Address Filter Type Forbidden IP Address Filter Add Modify Delete No. IP Add Modify Delete

Figure 6-45 IP Address Filter

1. Check Enable IP Address Filter.
2. Select the type of IP Address Filter in the drop-down list, Forbidden and Allowed are selectable.
3. Set the IP Address Filter list.

- Add an IP Address

Steps:

(1) Click Add to add an IP.
(2) Input the IP Adreess.
(3) Click OK to nish adding.

- Modify an IP Address

Steps:

(1) Select an IP address from Iter list and click Modify.
(2) Modify the IP address in the text led.
(3) Click OK to nish modifying.

- Delete an IP Address

Le-click an IP address from Iter list and click Delete.

- Delete all IP Addresses

Click Clear to delete all the IP addresses.

1. Click Save to save the sengs.

Congure Security Service Sengs

Steps:

1. Enter the Security Service interface:

Conguraon> System > Security > Security Service

1. Check the checkbox to enable the Illegal Login Lock function.

Illegal Login Lock: Enabling illegal login lock funcon is to automacally lock the device IP aer the admin user performing 7 failed password aempts (5 aempts for the user/operator).

1. Click Save to save the settings.

6.4.4 User Management

Enter the User Management interface:

Conguraon > System > User Management

The admin user has access to create, modify or delete other accounts. Up to 32 user accounts can be created.

User List Add Modify Delete
No.	User Name	Level
1	admin	Administrator

Figure 6-46 User Informaon

- Add a User

Steps:

1. Click Add to add a user.

2. Input the new User Name, select Level and input Password.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.
• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

The level indicates the permissions you give to the user. You can denote the user as Operator or User.

1. In the Basic Permission eld and Camera Conguration eld, you can check or uncheck the permissions for the new user.
2. Click OK to nish the user addition.

Add user User Name Level Operator Admin Password Password Valid password range [8-16]. You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. Confirm Select All Remote: Parameters Settings Remote: Log Search / Interrogate Wor... Remote: Upgrade / Format Remote: Two-way Audio Remote: Shutdown / Reboot Remote: Notify Surveillance Center / Remote: Video Output Control Remote: Serial Port Control Remote: Live View Remote: Manual Record Remote: PTZ Control Remote: Playback OK Cancel

Figure 6-47 Add a User

- Modify a User

Steps:

1. Select an added user from the list and click Modify.
2. Modify the User Name, Level or Password.
3. In the Basic Permission eld and Camera Conguration eld, you can check or uncheck the permissions.
4. Click OK to nish the user modicaon.

Modify user User Name a Level Operator Admin Password Password ●●●●●● Valid password range [8-16]. You can use a combination of numbers, lowercase, uppercase and special character for your password with at least two kinds of them contained. Confirm ●●●●●● Select All Remote: Parameters Settings ✓ Remote: Log Search / Interrogate Wor... ✓ Remote: Upgrade / Format ✓ Remote: Two-way Audio ✓ Remote: Shutdown / Reboot ✓ Remote: Notify Surveillance Center / ✓ Remote: Video Output Control ✓ Remote: Serial Port Control ✓ Remote: Live View ✓ Remote: Manual Record ✓ Remote: PTZ Control ✓ Remote: Playback OK Cancel

Figure 6-48 Modify a User

- Delete a User

Steps:

1. Select an added user and click Delect.
2. Click OK on the pop-up dialogue box to delete the user.

Online Users

Enter the Online Users conguraon interface:

Conguraon > System > User Management > Online Users

User List					Refresh
No.	User Name	Level	IP Address	User Operation Time
1	admin	Administrator	10.15.2.15	2017-11-14 14:59:15

Figure 6-49 Online Users

You can see the current users who are vising the device through this interface.

User informaon, such as user name, level, IP address, and operaon me, is displayed in the User List. Click Refresh to refresh the list.

Appendix

SADP Soware Introducon

- Descripon of SADP

SADP (Search Acve Devices Protocol) is a kind of user-friendly and installaon-free online device search tool. It searches the acve online devices within your subnet and displays the informaon of the devices. You can also modify the basic network informaon of the devices using this soware.

- Search acve devices online

◆ Search online devices automacally

Aer launch the SADP soware, it automacally searches the online devices every 15 seconds from the subnet where your computer locates. It displays the total number and informaon of the searched devices in the Online Devices interface. Device informaon including the device type, IP address and port number, etc. will be displayed.

SADP Total number of online devices 9 Export Refresh ID Device Type Security Spot Address Port Software Version Pack Gateway HTTP Port Device Serial No. 001 Active 10.16.6.20 8000 10.35.6.254 80 002 Active 10.16.6.21 8000 10.35.6.254 80 003 Active 10.16.6.213 8000 10.35.6.254 N/A 004 Active 10.16.6.179 8000 10.35.6.254 N/A 005 Active 10.16.6.127 8000 10.35.6.254 N/A 006 Active 10.16.6.250 8000 10.35.6.254 80 ✓ 007 Inactive 192.168.1.64 Select inactive device. Input and conrm password. Active 10.16.6.20 8000 10.35.6.254 80 Active 10.16.6.254 80 New Password: ********** Strong: Confine Password: ********** Enable link connect Activate

Figure A.1.1 Searching Online Devices

Device can be searched and displayed in the list in 15 seconds aer it went online; it will be removed from the list in 45 seconds aer it went oine.

◆ Search online devices manually

You can also click Refresh to refresh the online device list manually. The newly searched devices will be added to the list.

You can click or on each column heading to order the informaon; you can

click to expand the device table and hide the network parameter panel on the

right side, or click to show the network parameter panel.

- Modify network parameters

Steps:

1. Select the device to be modified in the device list and the network parameters of the device will be displayed in the Modify Network Parameters panel on the right side.
2. Edit the modiable network parameters, e.g. IP address and port number.
3. Input the password of the admin account of the device in the Password eld and click Modify to save the changes.

• For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.
• Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

Modify Network Parameters Enable DHCP Enable Hik-Connect Device Serial No.: XX-XXXXXXX-XXXXXX0000000000 IP Address: 192.168.1.64 Port: 8000 Subnet Mask: 255.255.255.0 Gateway: 192.168.1.1 IPv6 Address: = IPv6 Gateway: = IPv6 Prefix Length: 0 HTTP Port: 80 Security Verification Admin Password: Modify Forgot Password

Figure A.1.2 Modify Network Parameters

World map silhouette showing continents and oceans (no text or labels)
