Product type	Electric coffee grinder
Brand	Concept
Model	KM5005
Dimensions (L x W x H)	12 x 12 x 20 cm
Net weight	0.8 kg
Power supply	230 V ~ 50 Hz
Power	150 W
Reservoir capacity	200 g of coffee beans
Housing material	Plastic and stainless steel
Burr type	Conical steel burrs
Grind adjustment	Multiple levels, from coarse to fine
Switch	On/off with safety lock
Automatic shut-off	Yes, in case of overheating or empty operation
Power cord	Detachable, length 0.8 m
Noise level	Approximately 80 dB
Color	Black and silver
Maintenance	Removable reservoir and burrs for easy cleaning
Safety	Overheat protection and no-load operation protection
Warranty	2 years
Spare parts available	Reservoir, burrs, lid, measuring spoon
Repairability index	7/10
Included accessories	Measuring spoon, cleaning brush

Frequently Asked Questions - KM5005 Concept

How to clean the coffee grinder?

Unplug the appliance. Remove the reservoir and the burrs if removable. Clean them with a soft brush. Do not immerse the motor in water.

Can I grind other grains besides coffee?

No, this grinder is designed only for coffee beans. Grinding other foods could damage the burrs.

What is the recommended grind setting for espresso?

For espresso, choose a very fine grind. Set the knob to the finest level and adjust according to your machine.

Is the grinder noisy?

The noise level is approximately 80 dB, which is normal for an electric coffee grinder.

What to do if the grinder does not turn on?

Check that the reservoir is properly engaged and the lid is closed. Make sure the outlet works. If the problem persists, contact customer service.

How to adjust the grind fineness?

Turn the adjustment knob located on top or side: clockwise for a finer grind, counterclockwise for coarser.

What is the maximum capacity of the reservoir?

The reservoir can hold up to 200 g of coffee beans. Do not exceed to avoid clogging.

Where to find spare parts?

Spare parts (reservoir, burrs, etc.) are available through Concept's after-sales service or on their official website.

Can the grinder overheat?

Yes, a thermal protection automatically stops the appliance in case of overheating. Let it cool down before reusing.

How to use the grinder for the first time?

Wash the reservoir and burrs with warm water. Dry thoroughly. Insert the beans, choose the grind, close the lid, and operate the switch.

USER MANUAL KM5005 Concept

Black concept coffee maker with transparent lid and 'concept' text label (no other visible text or symbols)

KM5005

CZ SK PL HU LVEN DE FR IT ES

CZ

concept

PODĚKOVÁNÍ

NÁVOD K OBSLUZE

NÁVOD NA OBSLUHU

INSTRUKCJA OBSŁUGI

HASZNÁLATI ÚTMUTATÓ

EKSPLUATĀCIJAS NORĀDĪJUMI

Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life.

Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure other people using the product are familiar with these instructions.

Technical parameters
Voltage 220-240 V ~ 50/60	Hz
Input 130 W
Noise level 94 dB(A)

IMPORTANT SAFETY PRECAUTIONS:

- Use the unit only as described in this operating manual.

- Remove all the covering and marketing materials from the unit before the first use.

- Make sure the mains voltage corresponds to the values stated on the product's rating plate.

- Never pull the cord to disconnect the plug from the socket; hold the plug instead.

• The appliance is not intended for and should not be accessible to children or people with reduced capabilities.

- Persons with limited movement capacity, reduced sensory perception, insufficient mental capacity or those who are unaware of the proper handling should use the product only under the supervision of a responsible, aware person.

- Pay the utmost attention when using the unit close to children.

- Do not use the appliance as a toy.

• Turn the unit off, disconnect the power cord from the wall outlet, and allow the unit to cool before cleaning.

- Do not let the power cord hang loosely over the edge of a table. Make sure the power cord does not touch hot surfaces.

- The unit may only be installed on a stable surface resistant to high temperature, away from other heat sources, such as heating bodies, ovens, etc. Do not expose the unit to direct sunlight or moisture.

- Do not use the unit if it does not operate properly, if it has been dropped, damaged or exposed to any liquids. Take the unit to an authorised service centre for testing and repair.

- Never use the appliance if the supply cord or plug is damaged. Immediately refer to an authorised service centre for repair.

• The unit is not designed for outdoor use.

• The appliance is intended for domestic use only, not for commercial use.

- Do not immerse the power cord, plug, or appliance in water or any other liquid.

- Do not try to repair the appliance; instead, refer to an authorised service centre.

- This appliance may be used by children 8 years of age and older and by persons with physical or mental impairments or by inexperienced persons if they are properly supervised or have been informed about how to use of the product in a safe manner and understand the potential dangers. Children must not play with the appliance. This appliance may be cleaned by children 8 years of age and older if they are properly supervised. Keep this appliance and the power cord out of reach of children younger than 8 years of age.

Failure to follow the manufacturer's instructions invalidates the warranty.

concept

EN

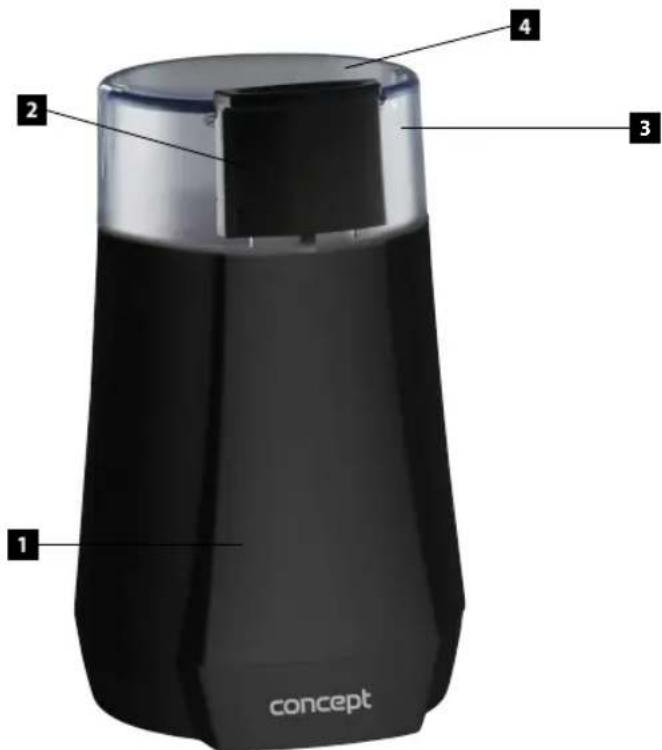

PRODUCT DESCRIPTION

1. Main unit
2. ON/OFF switch
3. Coffee container
4. Lid

OPERATING INSTRUCTIONS

1. Fill the container with coffee (3).

Do not fill higher than 2 to 3 mm below the upper edge of the metal coffee container.

Maximum amount equals to 40 g of coffee beans.

1. Mount the lid (4).
2. Connect the power cord plug into power socket.
3. Hold the grinder with both hands and press and hold switch (2). If container is filled completely, the grinding lasts approximately 30 seconds. The longer is the grinding process, the milder is the ground coffee.

(Note: Do not exceed the maximum grinding period of 60 seconds!)

1. Release switch.
2. Unplug the power cord from socket outlet.
3. Open the grinder.

CLEANING AND MAINTENANCE

WARNING!

Before cleaning the unit, always disconnect the power cord from the wall outlet!

The surface of the unit may only be cleaned using a wet cloth. Do not use any detergents or hard objects, as they may damage the unit's surface!

Never clean the unit under running water, do not rinse it, and do not submerge it in water!

REPAIRS & MAINTENANCE

Any extensive maintenance or repair requiring access to the internal parts of the product shall be performed by an authorized service center.

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
• The transport box may be disposed of as sorted waste.
  • Polyethylene (PE) bags shall be handed over for recycling.

Recycling at the end of the service life:

A symbol on the product or its packaging indicates that this product should not be disposed of as household waste. It must be taken to the collection point authorized for recycling electric and electronic equipment. By making sure this product is disposed of properly, you will help prevent negative effects on the environment and human health that would otherwise result from inappropriate disposal of this product. You can learn more about recycling this product from your local authorities, a household waste disposal service, or in the shop where you purchased this product.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

DANKE FÜR IHR VERTRAUEN

BEDIENUNGSANLEITUNG

MODE D'EMPLOI

MANUALE D'USO

MANUAL DE USO

The manufacturer (or importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.

The quality warranty term is 24 months from product takeover by the customer.

The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.

The warranty specifically does not apply:

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,
  • to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation,
  • to malfunctions caused by an inexpert third-party intervention,
  • to malfunctions caused by natural disaster,
• to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments,
• to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,
  • to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments,
• if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.

The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).

Filing a complaint

A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term.

The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.

While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.

The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.

While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.

Complaints processing

As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.

Where such a procedure is not reasonable with regard to the nature of the defect, the user may require to be supplied a new defect-free product (replacement), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge.

concept

If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).

The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).

If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer.

The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned, required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint filing date, unless the seller and the customer agree on a later deadline.

On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.

The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.

This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.

Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.

Manufacturer

Jindřich Valenta – Concept

Vysokomýtská 1800, 565 01 Choceň

Czech Republic

tel.: [phone]

fax [phone]

Company ID No. 13216660

email: [e-mail] www:

www.my-concept.com

Product data

Model:
Production number:
Date of purchase:	Seal and signature of vendor:

KM5005
