Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life.

Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure other people using the product are familiar with these instructions.

Technical parameters
Voltage 230 V ~ 50 Hz
Input 160 W
Noise level < 80 dB(A)

IMPORTANT SAFETY PRECAUTIONS:

• Use the unit only as described in this operating manual.
• Remove all the covering and marketing materials from the unit before the first use.
• Make sure the mains voltage corresponds to the values stated on the product's rating plate.
• Never pull the cord to disconnect the plug from the socket; hold the plug instead.
• The appliance is not intended for and should not be accessible to children or people with reduced capabilities.
• Persons with limited movement capacity, reduced sensory perception, insufficient mental capacity or those who are unaware of the proper handling should use the product only under the supervision of a responsible, aware person.
• Pay the utmost attention when using the unit close to children.
• Do not use the appliance as a toy.
• Turn the unit off, disconnect the power cord from the wall outlet, and allow the unit to cool before cleaning.
• Do not let the power cord hang loosely over the edge of a table. Make sure the power cord does not touch hot surfaces.
• The unit may only be installed on a stable surface resistant to high temperature, away from other heat sources, such as heating bodies, ovens, etc. Do not expose the unit to direct sunlight or moisture.
• Do not use the unit if it does not operate properly, if it has been dropped, damaged or exposed to any liquids. Take the unit to an authorised service centre for testing and repair.
• Never use the appliance if the supply cord or plug is damaged. Immediately refer to an authorised service centre for repair.
• The unit is not designed for outdoor use.
• The appliance is intended for domestic use only, not for commercial use.
• Do not immerse the power cord, plug, or appliance in water or any other liquid.
• Do not try to repair the appliance; instead, refer to an authorised service centre.

Failure to follow the manufacturer's instructions invalidates the warranty.

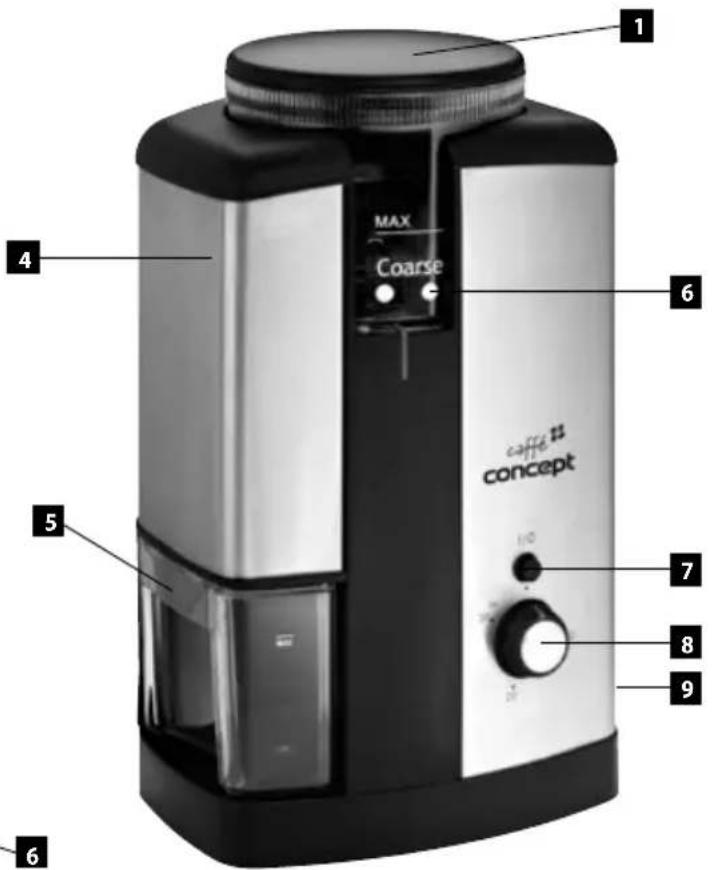

PRODUCT DESCRIPTION

1. Lid
2. Coffee bean container (fineness settings)
3. Grinding segment
4. Body
5. Ground coffee container
6. Fineness indicator
7. Start/Stop button
8. Grinding time adjustment knob
9. Switch

Close-up of a mechanical component with a circular dial and central hub, labeled with number 3 (no text or symbols beyond label)

Transparent cylindrical container with internal components and a labeled arrow pointing to the top section (no text or symbols on the container itself)

1 MAX Coarse 4 6 caffe ## concept 5 7 8 9 6

IMPORTANT:

The coffee bean container (2) and ground coffee container (5) also function as the appliance's safety elements. If either of the containers is not installed properly, the appliance will not start.

OPERATING INSTRUCTIONS:

1. With the appliance turned off, turn the coffee bean container (2) to select the desired fineness of the grind.

Recommended settings for selected types of coffee:

Coarse French Press 50g – 90g/30s
Medium Drip coffee 40g – 70g/30s
Fine Espresso 20g – 60g/30s

1. Fill the coffee bean container (2) with the desired quantity of coffee beans and close the lid (1).

Note:

When completely filled, the container contains approximately 250 g.

1. Select the required grinding time using the knob (8). Check whether the grinding time is sufficient for the desired quantity of coffee.
2. Make sure that the ground coffee container (5) is correctly fitted and turn on the appliance using the switch (9). Press the Start/Stop button to start the grinding process.

IMPORTANT!

• Do not fill the coffee container if it is not properly installed.
• The fineness of the grind is always set before the container is filled.
• Do not remove the container when the appliance is in operation.
• Before removing the container and the grinding segment for cleaning, always turn the container so that the indicator shows „0“. After washing, always put the container back in its place.

CLEANING AND MAINTENANCE

WARNING!

Before cleaning the unit, always disconnect the power cord from the wall outlet!

Do not wash any of the parts of the appliance in the dishwasher.

The surface of the unit may only be cleaned using a wet cloth. Do not use any detergents or hard objects, as they may damage the unit's surface!

Use only a dry cloth to clean the coffee bean and the ground coffee containers and the grinding segment.

Never clean the unit under running water, do not rinse it, and do not submerge it in water!

TROUBLESHOOTING:

Fault Possible cause Solution
The appliance does not work after pressing the Start/Stop button	The coffee bean container is not fitted properly	Put the container back in its place and make sure it is properly fitted
	The fineness of the grind has not been set Set	the fineness of the grind
	The grinding time has not been set Set the grinding time
	The motor of the appliance is stalled Contact a professional service centre
Unusual noise, no coffee is produced	The grinder is blocked Turn the appliance off and remove all coffee beans. Then check whether no foreign objects entered the container and make sure the appliance is not damaged

REPAIRS & MAINTENANCE

Any extensive maintenance or repair requiring access to the internal parts of the product shall be performed by an authorized service center.

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
  • The transport box may be disposed of as sorted waste.
• Polyethylene (PE) bags shall be handed over for recycling.

Recycling at the end of the service life:

A symbol on the product or its packaging indicates that this product should not be disposed of as household waste. It must be taken to the collection point authorized for recycling electric and electronic equipment. By making sure this product is disposed of properly, you will help prevent negative effects on the environment and human health that would otherwise result from inappropriate disposal of this product. You can learn more about recycling this product from your local authorities, a household waste disposal service, or in the shop where you purchased this product.
