USER MANUAL Holly ARGO

PORTABLE AIR CONDITIONER (LOCAL)

Holly

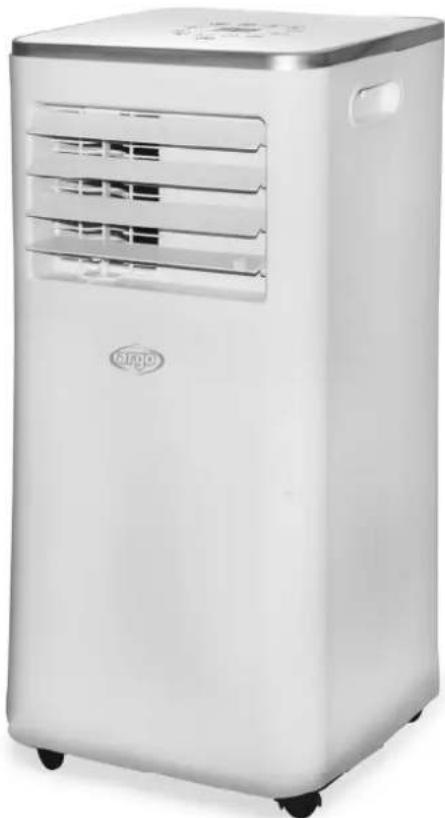

White portable air conditioner unit with ventilation slots and a logo (no visible text or symbols on the device body)

OPERATING INSTRUCTIONS

Read the instructions carefully before operating the appliance or carrying out maintenance work. Observe all the safety instructions; failure to do so may lead to accidents and/or damage. Store these instructions in a safe place for future reference.

GENERAL OPERATING AND SAFETY INSTRUCTIONS

• This appliance is a portable air conditioner designed for domestic use.
• Only use this air conditioner as described in this manual.
• Ensure that the required voltage and frequency (220-240 V / 50 Hz) match the available power source.
• Fuse style FSD or 50F 250V, the electricity passing through the fuse cannot be above 3.15A.
• This appliance can be used by children older than 8 years and by people with reduced physical, sensory or mental abilities, or who lack sufficient experience or the necessary knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and understand the hazards related to its use.
• Children must not be allowed to play with the appliance.
• Cleaning and maintenance operations normally carried out by the user must not be performed by unsupervised children.
• Ensure that the electrical system is able to deliver the operating current required by the air conditioner, in addition to that normally absorbed by other appliances (electrical appliances, lighting system, etc.). Please refer to the maximum power input data shown on the air conditioner's data plate.
• Connection to the electricity grid must take place in accordance with current installation standards.
• Ensure that the automatic switches and system protection valves are able to withstand a start-up current of 6A (normally for less than 1 second).
• The power socket must always include an efficient earth connection.
• Make sure that the plug is properly inserted into the socket. Do not use multiple adapters. Do not touch the plug with wet hands. Make sure that the plug is clean.

• Do not use the plug for starting/stopping the air conditioner: use the ON/OFF button on the remote control or control panel instead.

• Do not install the air conditioner in rooms potentially subject to water sprays (e.g. laundries).

• This air conditioner can be used by children of 8 years or older and by persons with reduced physical, sensory and mental abilities, or lacking the necessary experience and knowledge, provided they are supervised or instructed on its use by a person responsible for their safety, so that they are fully aware of the attendant risks.
• Before moving or cleaning the appliance, ensure that it is unplugged from the socket.
• Do not move the air conditioner while it is operating; first turn the appliance off, then check and remove any condensate which may have formed.
• To turn the appliance off, set the remote control to OFF and remove the plug from the socket. Pull on the plug only. Do not pull the cord.
• Do not use the appliance if the cord or plug are damaged. Contact a service centre to replace a damaged power cord, so as to avoid any safety risks.

PRECAUTION!

- Do not insert any objects into the air conditioner: this is very dangerous as the fan turns at high speed.

- Ensure that air circulates freely around the unit. Do not cover the air intake and delivery grilles with drapes or any other means.

WARNING!

- The air conditioner must be positioned at least 50 cm from the wall or any other obstacles, on a flat and stable surface so as to avoid water leaks.

- The air conditioner is fitted with a system for protecting the compressor from overload. This means that the compressor only starts 3 minutes after its previous stoppage.

• Please wait at least 3 minutes before starting the unit. This helps prevent the compressor from being damaged.
• WARNING!

In the event of an anomaly, switch the appliance off and unplug it from the socket. Do not dismantle or attempt to repair or modify the product. In the event of a malfunction, contact the service centre directly.

WARNING!

• Do not expose the air conditioner to direct sunlight, as the colour of the materials may change; moreover, the appliance may overheat causing the protection mechanism to intervene and switch the appliance off.
• Do not use insecticides, oils, detergents or spray paints near the appliance; do not use aggressive chemical detergents to clean the casing: this may damage the finish and colour.
• Close all open windows to maximise air conditioning efficiency.

The manufacturer will not be held liable if safety and accident prevention rules are not observed.

DESCRIPTION OF THE APPLIANCE

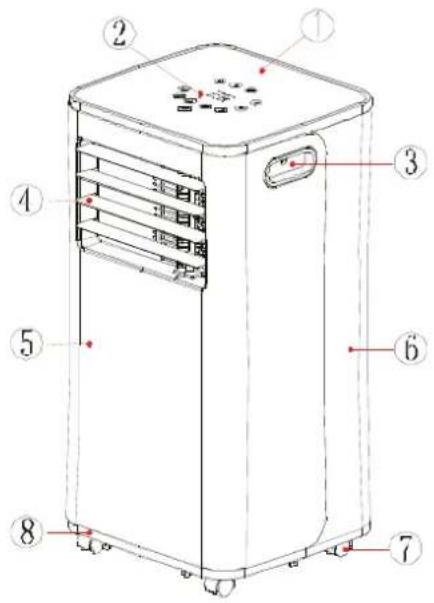

FRONT VIEW

Technical diagram of a portable air conditioner unit with numbered components and labeled parts

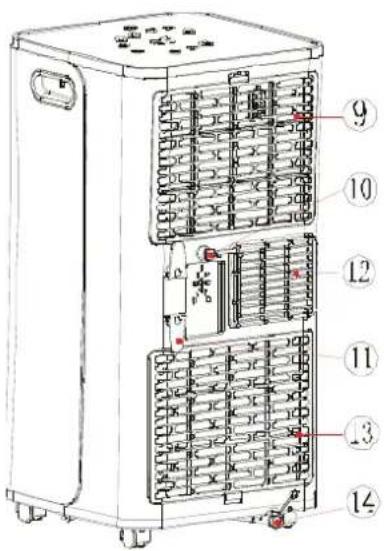

REAR VIEW

Technical diagram of an industrial electrical cabinet with numbered components for identification

1) UPPER PANEL
2) CONTROL PANEL – BUTTONS FOR OPERATION WITHOUT REMOTE CONTROL
3) HANDLE
4) FINS AND AIR FLOW OUTLET
5) FRONT STRUCTURE
6) REAR STRUCTURE
7) SWIVEL CASTERS
8) BASE
9) UPPER FILTER
10) DRAINAGE HOLE FOR DEHUMIDIFICATION FUNCTION
11) CABLE REEL
12) AIR OUTLET AND FITTING
13) LOWER FILTER
14) DRAINAGE HOLE FOR COOLING FUNCTION

Min/max operating limits (internal temperature)

Cooling: 7°C DB / 35 °C DB

Dehumidification: 17°C DB / 35 °C DB

Cooling mode room temperature adjustment range: 16 °C DB / 31 °C DB

APPLIANCE START-UP

Open the packaging and pull out the box. Remove the product and the elements supplied (illustrated in the box below).

Infrared remote control

Type-AAA - LR03 - 1.5 V batteries for remote control.

Flexible pipe inclusive of fitting for unit and end fitting for window (2).

Round fitting for window unit, to be positioned between the end of the tube and the window unit itself (3)(accessory managed separately).

Window unit kit with plug. (accessory managed separately).

Pure technical line drawing of a mechanical component or structural assembly (no text or symbols)

Position the product vertically on a flat and stable surface, as close as possible to a window and at least 50 cm from walls or other nearby obstacles.

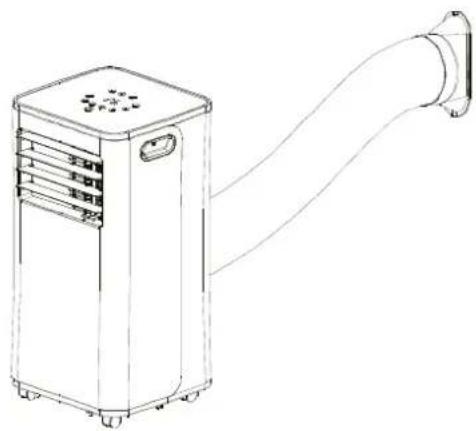

USE WITH END FITTING FOR WINDOW

1. Stretch the flexible hose sufficiently so that it reaches the outside (max 1.5 m) and hook it to the rear part of the air conditioner.

2. Open the window and lock one of the two leaves with the handle.

3. Rest the terminal connection on the fixed leaf, bring the other leaf of the window close.

PUSH

Simple line drawing of a door with a handle, no text or symbols present

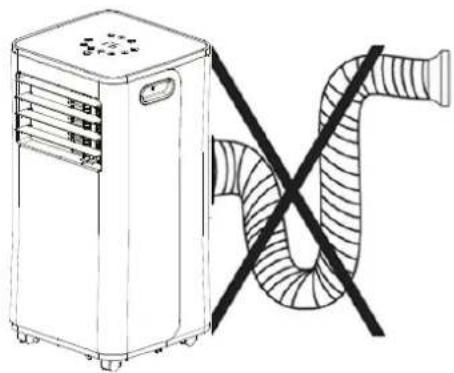

1. Avoid tight bends or folds in the flexible pipe.

Line drawing of a portable air conditioner unit with a black diagonal line crossing through the tube (no text or symbols)

Line drawing of a portable air conditioner unit with a hose extending from its side (no text or symbols)

USE WITH WINDOW UNIT KIT (accessory managed separately)

1. Make a hole having a diameter of roughly 133 mm on the glass window.

2. Insert the window unit into the window.

Simple line drawing of a two-panel window with a single circular dot on the left (no text or symbols)

1. Insert the round fitting into the retractable flexible pipe and insert the latter with its round fitting into the window unit without the plug.

Simple 3D diagram of a window with a circular object on the left side (no text or symbols)

1. Insert the round fitting onto the flexible pipe.

Close-up of a metallic spiral mechanical component with a coiled spring (no text or symbols visible)

Diagram of a coiled cylindrical pipe with an arrow indicating direction (no text or symbols)

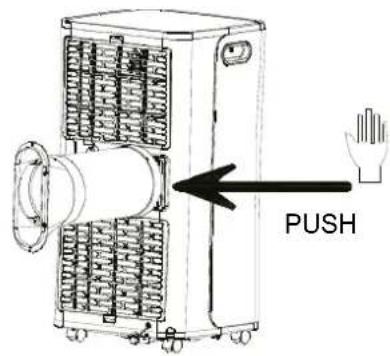

1. Insert the flexible pipe thus mounted into the rear of the air conditioner.

If the air conditioner is not used for prolonged periods, disconnect the pipe and plug the window unit.

Connect the power cord to a suitable electric socket (220-240V). Insert the supplied batteries into the remote control and make sure the poles match. Select the desired operating mode from the remote control.

HOW TO USE THE APPLIANCE

This appliance can be used for cooling, dehumidifying and ventilation purposes.

Before using the appliance, leave it standing erect for at least two hours.

When switching between modes, the fan continues to turn but the compressor stops: the compressor will re-start after 3 minutes. This delay protects the compressor from potential damage.

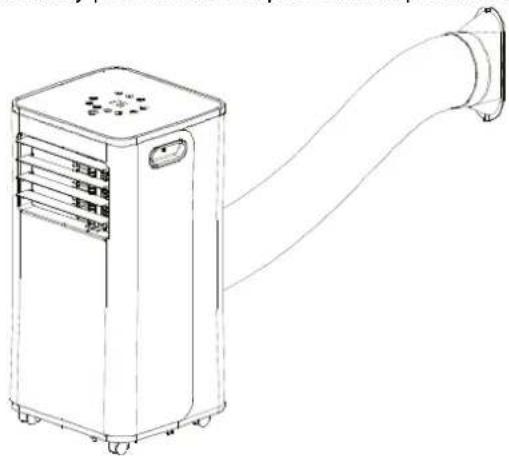

Line drawing of a portable air conditioner unit with attached hose (no text or symbols)

Cooling, Ventilation

Line drawing of a portable air conditioner unit with control panel and fan (no text or symbols)

Dehumidifying

THE DRAINAGE TUBE MUST BE CONNECTED to the appliance AT ALL TIMES: the only exception is when the appliance is used in dehumidification mode only, in which case the appliance should be left to discharge directly into the room for maximum efficiency (see the "Dehumidification Mode" paragraph).

Clean the air filters under the easily removable rear grille regularly to keep the air conditioner working efficiently.

OPERATING MODES

1. COOLING MODE

• The "Cool" LED on the control panel will turn on.
• The temperature can be adjusted to between 16^ and 31^ .
• In this mode, each time the ON/OFF button is pressed the unit switches off, the appliance saves the temperature setting and retains this setting when it is switched on again.
• In this mode, the fan speed can be adjusted and the Timer and SLEEP functions can be set.
• For more silent operation, run the fan at low speed.

2. DEHUMIDIFICATION MODE (DRY)

• Press the MODE button to select the dehumidification mode.
• The temperature is controlled by the electronic board and cannot be adjusted.
• In this mode, each time the ON/OFF button is pressed the unit switches off, the appliance saves the settings and retains them when it is switched on again.
• The fan speed is set to low and cannot be adjusted.

NOTE

The air conditioner does not cool the room when operating as a dehumidifier.

When the appliance is used as a dehumidifier, the flexible pipe must not be connected.

For maximum dehumidification efficiency, leave the rear discharge attachment free to discharge directly into the environment.

The dehumidification mode is recommended during autumn and winter.

If used during summer, it is best to leave the flexible pipe attached so that the hot air is discharged towards the outside rather than into the room.

During dehumidification, continuous drainage should be implemented (see the next chapter, "HOW TO ELIMINATE CONDENSATE").

3. FAN MODE

• Press the MODE button to select ventilation until the corresponding icon appears.
• In this mode, the fan speed can be adjusted.
• The temperature cannot be adjusted.

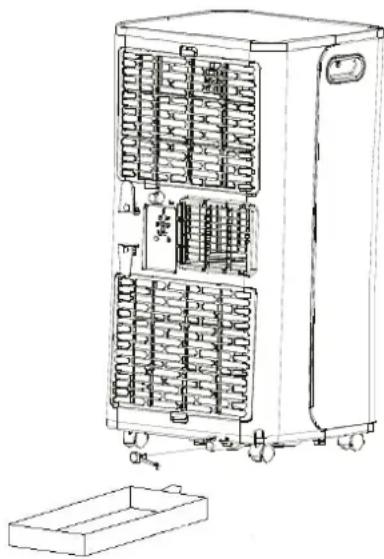

HOW TO ELIMINATE CONDENSATE

Manual drainage

Technical line drawing of a multi-tiered industrial electrical cabinet with cooling fans and heat sinks (no text or labels)

Cooling

This appliance automatically vaporises condensate in the cooling mode.

Ensure that when the unit is operating in cooling mode, the rubber caps closing the drainage holes on the rear of the appliance are properly positioned.

When the air conditioner operates in cooling mode, there is no need for continuous condensate drainage; only in specific weather conditions with very high air humidity levels may water deposit inside the unit. When the container is full, the "Full" LED (full tank) lights up on the control panel to signal that full status and block the appliance's operation.

To empty the container, switch the air conditioner off and unplug it. Remove the cap form the rear drainage hole and direct it over a normal drain.

Ensure that the tube is not twisted or bent. The tube must slope downwards. Re-close the drainage hole with the cap and resume use of the air conditioner.

Continuous drainage

Technical line drawing of a multi-tiered industrial appliance with cooling fans and a bucket (no text or labels)

Dehumidification

WARNING!

When using the air conditioner in dehumidification mode, it is advisable to always arrange for continuous drainage, so as to maximise dehumidification efficiency.

Connect one end of the PVC pipe (not provided) to the upper discharge hole and place the other end above a drain.

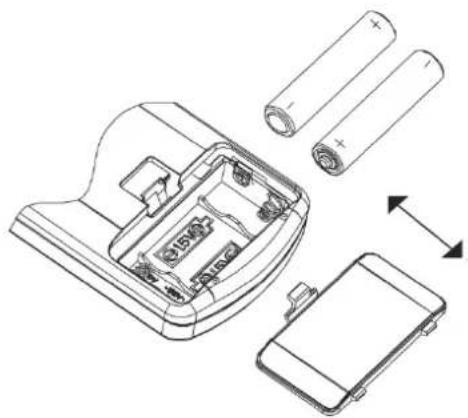

1. Slide the cover open in the direction indicated by the arrow.
2. Insert the batteries (LR03/1.5 V) into the remote control and make sure the poles match.
3. Put the cover back on.
4. Point the remote control towards the receiver on the air conditioner.
5. The remote control should be positioned within 6 metres from the receiver.
6. There must be no obstacles between the remote control and the receiver.
7. Do not drop or launch the remote control.
8. Do not leave the remote control under strong sunlight or heating devices and other source of heat.
9. Remove the batteries from the remote control when the latter is not used for a long time.
10. If no sound is heard and the transmission symbol on the display does not flash, the batteries must be replaced.
11. If the system resets when the remote control button is pressed, the electrical signal is poor and the batteries must be replaced.
12. Flat batteries must be disposed of correctly.

Technical line drawing of a battery pack assembly with cylindrical batteries and internal components (no text or symbols)

N.B.:

* The image depicts a general remote control, which contains nearly all the function keys. These may be of a slightly different material (depending on the model).

INFORMATION FOR THE CORRECT DISPOSAL OF BATTERIES IN ACCORDANCE WITH EUROPEAN DIRECTIVE

2006/66/EC

Replace batteries when they are depleted. At the end of their life, batteries must be disposed of separately from unsorted waste. They must be taken to designated recycling centres or returned to a retailer providing this service. Separate disposal of batteries prevents potential negative effects on the environment and human health due to inadequate disposal, and also allows for recovering and recycling their constituent materials, resulting in significant savings in terms of energy and resources. The separate disposal obligation is underlined by the crossed-out dustbin symbol appearing on the battery. Illegal disposal of the product by the user implies administrative sanctions applied as per current regulations.

FOR OPTIMAL REMOTE CONTROL OPERATION, POINT THE TRANSMITTER HEAD TOWARDS THE RECEIVER ON THE AIR CONDITIONER.

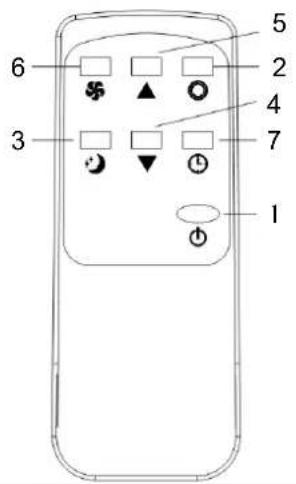

5 6 2 4 3 7 1

1. ON/OFF BUTTON
2. BUTTON MODE
3. SLEEP BUTTON
4. DOWN BUTTON
5. UP BUTTON
6. SPEED BUTTON
7. TIMER BUTTON

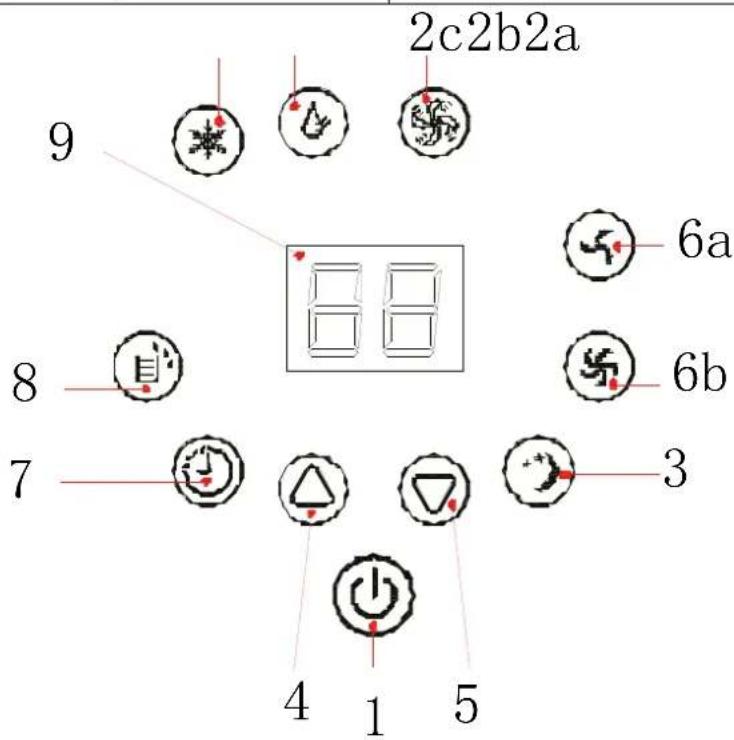

2c2b2a 9 8 7 4 1 5 6a 6b 3

1) ON/OFF BUTTON

2) MODE BUTTON

2a COOLING

2b DEHUMIDIFYING

2c FAN

3) SLEEP BUTTON

(1) POWER BUTTON (on the remote control and on the control panel)

Press this button to switch the unit on or off.

(2) MODE BUTTON

When the unit is on, press this button to choose the desired mode among: COOLING, FAN and DEHUMIDIFYING.

(3) SLEEP BUTTON (on the remote control and on the control panel)

In cooling mode, press the UP and FAN buttons to activate the Sleep mode, after which the unit will return to the silent mode and save energy.

N.B.: The Sleep function is not available in the dehumidifying or fan modes.

(4) DOWN BUTTON ▼ (on the remote control and on the control panel)

Press this button to adjust the temperature and set the time.

(5) UP BUTTON ▲ (on the remote control and on the control panel)

Press this button to adjust the temperature and set the time.

(6) SPEED BUTTON

In the cooling and fan modes, press this button to adjust the ventilation speed to low (Low) or high (High). In certain conditions, the fan speed may not function according to the settings.

In dehumidifying mode, this button cannot be pressed, thus the fan will forcefully choose the low fan speed.

(7) TIMER BUTTON (on the remote control and on the control panel)

a. When the air conditioner is off, press "TIMER" to set when to switch the unit on. Press "+" o "-" to set the time, and press "TIMER" again to confirm.

b. When the air conditioner is on, press "TIMER" to set when to switch the unit off. Press "+" o "-" to set the time, and press "TIMER" again to confirm.

c. After setting the time, press "TIMER" to cancel the time setting.

(8) FULL TANK

When the tank is full with condensate the LED light turns on and the air conditioner emits a sound for some seconds.

CARE AND MAINTENANCE

WARNING!

Before carrying out any cleaning or maintenance operations, unplug the appliance.

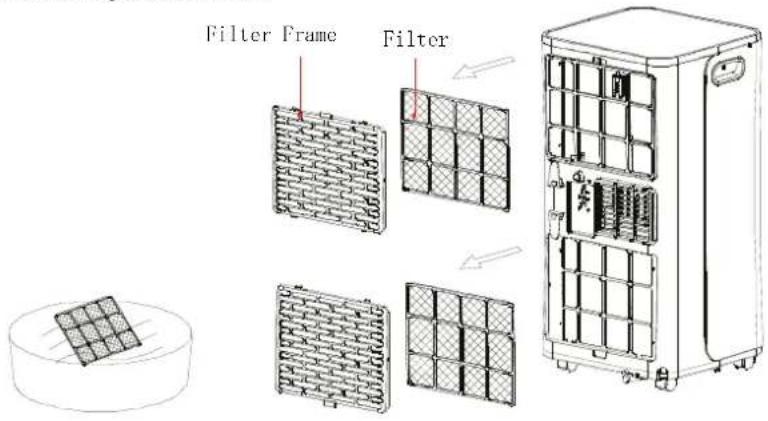

1. Cleaning the air filters

Filter Frame Filter

The air filters must be checked at least once every two weeks of use. Operating the appliance with dirty or clogged filters will decrease the air conditioner's efficiency and may cause serious problems.

To remove the filters, pull the grille's lever.

Use a vacuum cleaner to remove the dust from the filters. Should this not suffice, wash the filter with lukewarm water and some neutral detergent (if necessary), then rinse it thoroughly in cold water and leave it to dry in air before putting it back in place. Once the filter has been replaced, close the grille and resume use of the air conditioner.

2. Cleaning the casing.

Use a damp and soft cloth to clean the outer surface of the appliance.

Do not use excessively hot water, solvents, petrol or other aggressive chemical compounds, talcum powder or brushes: these may damage the surface or colour of the casing.

Remove any stains using lukewarm water with a little neutral detergent.

Do not pour water onto the air conditioner to clean it, as this may damage its internal components or cause a short-circuit.

3. Storage.

When the air conditioner is not expected to be used for a long time, clean the filters before storing it away.

Keep the appliance in a vertical position at all times. Do not place heavy objects on top of the air conditioner. It is advisable to protect the appliance with a plastic sheet.

4. Transport.

Transport the air conditioner in the vertical position.

Should this not be possible, rest it on its right-hand side; when the appliance reaches its final destination, place it immediately in the vertical position and wait at least 4 hours before operating it in cooling mode.

Line drawing of a car interior with three furniture and a central box, no text or symbols present

1. For complete safety, regularly check the condition of the power

cord; should it be damaged as a result of wear, contact the Service Centre to replace it.

TIPS FOR MAXIMISING COMFORT AND MINIMISING CONSUMPTION

CHECK that:

• the unit intake and delivery grilles are always free;
  • the air filters are always clean; a dirty filter will decrease the passage of air and reduce the unit's performance;
  • all doors and windows are closed, so as to avoid infiltration of unconditioned air;
  • the flexible pipe is correctly positioned, without tight bends or curves;
  • the room temperature is above 7^ C for the cooling mode, and above 17^ C for the dehumidifying mode.

REGULATION (EU) No. 517/2014 - F-GAS

The unit contains R410A, a fluorinated greenhouse gas with global warming potential (GWP) = 2087.50. Kg. 0,350 = 0,0731 CO _2 equiv. tons. Do not release R410A into the atmosphere.

INFORMATION FOR THE CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EUROPEAN DIRECTIVE 2012/19/EU

This appliance may not be scrapped with domestic waste at the end of its life cycle. We call your attention to the crucial role played by the consumer in the re-use, recycling and other forms of recovery of such waste.

The appliance must be scrapped by a sorted waste disposal centre or by returning it to the retailer (no charge is levied for this service), when you purchase a new equivalent appliance.

Sorted disposal of electric and electronic equipment prevents the negative effects on the environment and human health resulting from improper scrapping, and also allows the materials from which it is made to be recovered and recycled, with significant savings in terms of energy and resources.

The sorted disposal requirement is indicated by the crossed waste bin label affixed to the appliance.

improve your life

www.argoclima.com
