Product type	Blender
Brand	Sogo
Model	BAT-SS-5505
Power supply	220-240 V ~ 50/60 Hz
Power	550 W
Bowl capacity	1.5 L
Speeds	2 speeds (1: low, 2: high) and Pulse function
Blades	Stainless steel, removable
Bowl material	Glass
Safety	Safety lock (only works if the bowl is properly installed)
Thermal protection	Automatic shut-off in case of overheating
Max. continuous operation time	2 minutes
Pulse operation time	10 seconds max., 10-second pause between pulses
Maintenance	Bowl, lid, cap and blade are dishwasher safe; wipe base with a damp cloth
Spare parts	Available from the manufacturer (www.sogo.es) or reseller
After-sales service	www.sogosat.com / [e-mail] / [phone]
Country of manufacture	P. R. China
Dimensions	Approximately 30 x 20 x 40 cm (estimated)
Weight	Approximately 2.5 kg (estimated)

Frequently Asked Questions - BAT-SS-5505 Sogo

What is the maximum capacity of the blender?

The maximum capacity is 1.5 liters for liquids. Do not exceed this limit.

Can I blend hot food?

No, never pour hot ingredients into the bowl. Let food cool to room temperature before blending.

How to clean the blender?

Unplug the appliance. The bowl, lid, cap and blade are dishwasher safe. Clean the base with a damp cloth, do not immerse.

The blender does not start, what to do?

Check that the bowl is properly locked onto the base. The blender is equipped with a safety lock: it will only operate if the bowl is correctly positioned.

What is the maximum continuous operation time?

Do not exceed 2 minutes of continuous use. For Pulse function, use cycles of max 10 seconds with a 10-second pause.

What to do if the motor stops suddenly?

The thermal protection is activated. Let the motor cool down for at least 3 minutes before restarting. If the problem persists, contact after-sales service.

Are the blades removable?

Yes, the blades unscrew from the bowl for cleaning. Be careful, they are very sharp.

Can I blend ice?

Yes, use the Pulse function to crush ice. Do not run continuously.

Where to find spare parts?

Spare parts are available from the manufacturer at www.sogo.es or from your local dealer. You can also contact after-sales service.

Is the bowl glass or plastic?

The bowl is made of resistant glass. It is dishwasher safe.

USER MANUAL BAT-SS-5505 Sogo

Exterior view of a modern blender with clear glass and black casing (no text or symbols visible)

Caution: please read and preserve these important instructions

Instructions for use

Please read these instructions fully before use and preserve them for future reference.

This manual can also be downloaded from our website www.sogo.es

ATTENTION

• Wrong operation and improper handling can cause problems with the appliance and injury to the user.
• The unit may be used only for the intended purposes. No liability is accepted for damages arising from improper use or faulty handling.
• Before connecting to the mains, please check whether the type of supply and the mains voltage match with the details given on the nameplate on the appliance.
• Do not immerse the appliance and mains plug in water or other fluids. Should the appliance still fall in water some time, pull out the power plug immediately and have the appliance checked by an expert before using it again. There is danger to life from electrical shock!
• Do not try to open the housing yourself! Do not introduce any kind of objects into the housing.
• Do not use the appliance with wet hands, on moist floor or when the ambience is humid.
• Do not hold the mains plug with wet or moist hands.
• Check the mains plug and mains adapter regularly for damages. In case of damages, have the power cord and mains plug changed by the manufacturer, or a qualified expert, in order to avoid danger.
• Do not operate the appliance, if power cable or the mains plug shows damage or the unit falls to the floor or has been damaged otherwise. In such cases, bring the unit to the workshop for checking and repairs, if necessary.
• Do not ever try to repair the unit yourselves. There is danger from electrical shock!
• Do not let the power cord hang over sharp edges and keep it away from hot objects and open flames. Pull the plug itself to remove it from the plug socket.
  • Installation of a spike protector will offer additional protection with a nominal trigger current of not more than 30 Ma in the house installation. Please consult your installing electrician.
• The cable as well any extension cable required should be laid such that there will not be any risk of anyone

pulling it inadvertently or tripping over it.

- If a long extension cable is used, it must be suitable for the power supply in question. Otherwise it causes overheating of the cable and/or plug.

- Set the unit on a rigid, flat and heat-proof surface, not near open flames(such as gas oven) and operate it out of reach of children.

- This appliance is suitable neither for commercial use nor for use outdoors.

- Children cannot sense the dangers caused by improper handling of electrical devices.

- Do not, therefore, let children use household devices, except under supervision.

- Pull out the plug out of the socket, when the appliance is not in use and also before cleaning.

- Caution! The appliance is on power so long as it is connected to the power circuit.

- Switch off the unit before pulling out the mains plug.

- Use only spare parts from the manufacturer or his local dealer.

- Never carry the unit by its power cord.

- Do not remove individual housing components.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance shall not be made by children without supervision.

- Children should be supervised to ensure that they do not play with the appliance.

- If the supply cord is damaged, it must be replaced by manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Do not use this appliance with a programmer, counter, remote control or another device which can automatically turn it on because if the appliance is covered or incorrectly positioned there is a danger of fire or serious injury.

CAUTION

Switch off the unit before clean it to avoid creepage

and other dangers. When the plug or power cord have damage, do not use the unit, even not to disassembly by yourself, must be inform the after-service center to handle.

SPECIAL SECURITY PRECAUTIONS

• Caution: The blades of the jug are very sharp. There is a danger of injury! While the blades are turning, never touch the jug from the inside and never put any objects inside.
• Only use equipment endorsed by the manufacturer.
• Only use the unit with tightly closed cover and inserted closure.
• The unit is equipped with a security function. The unit can only be switched on if the jug is put on the engine base properly. If the unit cannot be switched on, pull the power cable and check the connection between jug and engine base.

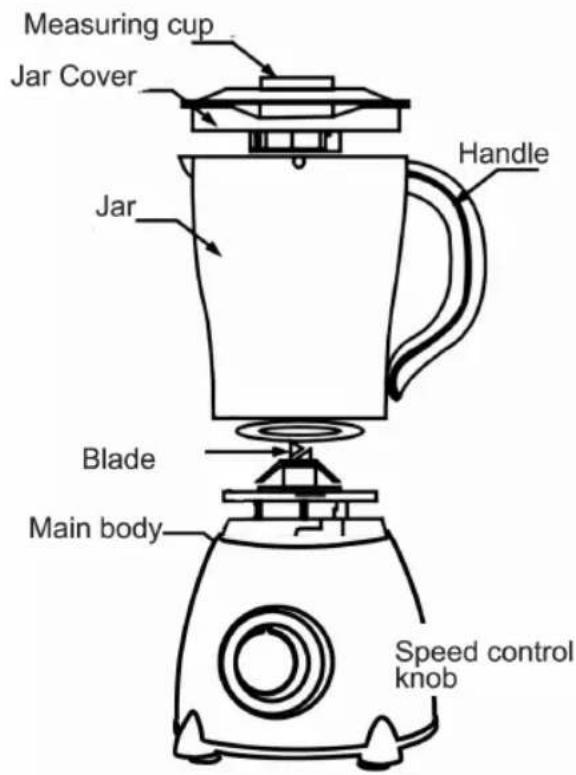

PARTS ITEM

INSTALLATION

1. Clean the measuring cup, cover and jar(except main body)and so on before first using.
2. To make sure the unit is turned off and no to connect before installation.
3. First ring the jar sealed ring into blade base, then enclose the blade base into jar, last rock the jar slightly causing it to lock into place.
4. Put the jar base on the top of motor mainbody, please pay attention to match the position of jar and the bulge of the motor main body. Fill the jug with the desired foods. please ensure the water not spill over from cup.(Maximal water capacity can not exceed 1500 ml)DO NOT USE THE UNIT WITHOUT ANY MATERIAL INSIDE.
5. Put the cover on top of the jar and push it down. Insert the closure into the cover and turn till it locks into place.
6. Place the measuring cup on the center of cover, anticlockwise rock the measuring cup slightly.

OPERATION

1. Connect the power.
2. This unit have safety design, it do not working if the jar is not install on motor main body properly.
3. turn the turning knob */0/1/2 to position 0 in order to make sure the unit is turned off.
4. Fill the jug with the desired foods
5. Put the cover on top of the jar and fix it. Place the measuring cup on the center of cover, anticlockwise rock the measuring cup slightly.
6. Turning the knob to required speed(P—pluse,1—low speed,2—high speed)

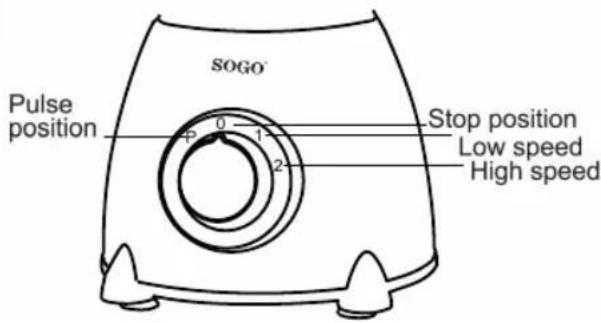

SPEED ADJUST

P—pulse -Stainless steel blade operate with transitorily highest speed, suitable for ice.
1—low speed - Stainless steel blade operate with low speed, suitable for elementary blending.
2—high speed - Stainless steel blade operate with high speed, suitable for symmetrical blending.
0—turn off the unit.

SPECIFICATION

Model: SS-5505

Voltage / Fregency: 220-240V \~ 50/60Hz

Power Consumption: 550W

Capacity: 1.5L

Continuous Operating Time: 1 Mins. Máx

CAUTION: Do not operate the unit when empty.

CAUTION: Do not put hot ingredients into the jar. Before food preparation, allow food to cool down for a few minutes.

CAUTION: Before you eat or serve blended food, please always check for ingredients that might have not been blended adequately.

CAUTION: Maximum time of food processing should not exceed 1 Minute of continuous use. The three Preset functions and the Pulse functions finish their working under 1 minute.

Temperature Protection:

In case of overheating (due to possible excess usage time or due to using high speed with food blocked with the blades inside the jar), the motor may suddenly stop working. This is a safety feature to protect the motor. In this situation, let the motor cool down completely for at least 3 minutes and then you can restart the motor and it should work again. If the motor does not re-start even after cooling completely, then please take it to your nearest authorized service center for repair.

GENERAL:

For better results: please make sure that the quantity of ingredients fully covers the blade while chopping solid food.

Cleaning

Always unplug the appliance first from the mains before cleaning the blender or its parts. It is dangerous otherwise!

Power base

Do not immerse the power base in water. Wipe clean with a damp cloth only.

Easy cleaning/rinsing of assembled glass jar After emptying the glass jar, fill it with water. Place it on the power base and turn the rotary switch to «0» position. Press pulse button several times. Empty the glass jar and rinse clean.

Thoroughly cleaning the disassembled glass jar

Make sure the glass jar is empty before you unscrew the Cup holder. Handle the blade with caution.

All detachable parts are dishwasher-safe.

Storage:

1. Store in a cool and dry place and out of reach of Children.
2. Never keep the appliance stored with the cord and plug connected to the electric socket.
3. You can use the cord winding facility at the bottom part of the base to store the electric cord and plug safely without damaging it or fold them in the same way as received from the manufacturer and hold it with a string.

Mode d'emploi

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain Product made in P.R.C. – Designed by SOGO based on the European Quality Standards Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
