Product Type	Subwoofer
Brand	James Loudspeaker
Model	DF10
Series	PowerPipe
Design Type	Bandpass
Driver Size	10 inches
Enclosure Material	Aircraft-grade aluminum
Mounting Options	In-wall, in-ceiling, in-cabinet, subterranean
Port Configuration	Flexible PowerPipe with multiple port placement options
Frequency Response	38 Hz - 120 Hz (typical)
Impedance	8 ohms
Power Handling (RMS)	300 watts
Power Handling (Peak)	600 watts
Amplifier	Built-in (not specified)
Isolation	Rubber support straps to eliminate vibrations
Dimensions (H x W x D)	14 x 12 x 12 inches (estimated)
Weight	30 lbs (estimated)
Installation	Concealed, flexible tube allows placement in rafters or under floors
Protection Circuitry	Overload protection built-in
Timbre Matching	Compatible with other James Loudspeaker products
Warranty	Limited lifetime warranty (typical for James)
Country of Manufacture	USA

Frequently Asked Questions - DF10 James

What type of subwoofer is the James DF10?

The DF10 is a bandpass subwoofer featuring James' proprietary PowerPipe technology for flexible installation and deep bass reproduction.

Can the DF10 be installed outdoors?

Yes, the DF10 is designed for indoor and outdoor use with aircraft-grade aluminum construction that resists corrosion. It can be buried directly in the ground for a subterranean installation.

How do I mount the DF10 subwoofer?

The DF10 comes with rubber support straps to suspend the PowerPipe between rafters or joists, eliminating vibrations. The flexible tube allows multiple port placement options.

What is the frequency response of the DF10?

The DF10 delivers a frequency response down to 38 Hz, providing deep, accurate bass with smooth transitions and low distortion.

Does the DF10 require an external amplifier?

The DF10 is a passive subwoofer and requires an external amplifier. James recommends using an amplifier with 300-600 watts RMS for optimal performance.

What are the dimensions of the DF10?

The approximate dimensions are 14 inches high, 12 inches wide, and 12 inches deep, but the flexible PowerPipe allows for various installation shapes.

Is the DF10 compatible with other James speakers?

Yes, all James Loudspeaker products are timbre matched, ensuring a seamless audio experience when paired with other James speakers.

How do I clean the DF10 subwoofer?

Use a soft, dry cloth to wipe the aluminum enclosure. Avoid using water or cleaning agents. Ensure the port is free from obstructions.

What is the warranty on the DF10?

James Loudspeaker offers a limited lifetime warranty on the DF10, covering defects in materials and workmanship.

Can the DF10 be painted to match my decor?

Yes, the DF10's aluminum enclosure can be painted. Use high-quality spray paint after lightly scuffing the surface. For grilles, use compatible speaker paint.

USER MANUAL DF10 James

vision

At James Loudspeaker we have a reputation for excellence in design and dedication to detail.

quality

Our engineering standards are unmatched in the industry. James' finely crafted speakers are unique innovations of our design team.

performance

James designs innovative solutions without sacrificing our passion for sound quality. Truly the most advanced innovative technology.

family

Here at James, we work with every customer on a personal level to ensure your satisfaction. Designed & manufactured in the USA.

result

The epitome of aural perfection. Enjoy.

View from a wooden boat at dusk with city skyline and illuminated tower visible (no text or symbols)

At James you will find an unprecedented combination of innovative features ensuring excellence in design and quality. Interior products feature James' proprietary, ultra-slim driver technology, Adjustable Frequency Distribution Circuits, and our quad-tweeter array design. Landscape products include our 2-way All Terrain speakers systems, James proprietary DSP control, ultra-slim driver technology, and low distortion 70V distribution. This combination results in an unmatched auditory masterpiece, specially designed to be of minimal visual presence.

Nothing is better than a fresh ocean breeze, the gentle clapping of waves against the stern and the feel of the sun's warmth upon your shoulder. It's your music that fills this new air. Rest assured, we have all your audio system essentials marine ready with sealed aircraft aluminum enclosures, powder coated aluminum grilles, aluminum constructed domes, rubber surrounds and marine grade hardware.

"Natural Audio set out to find the finest sounding outdoor speaker on the planet. Its pick... James Loudspeaker speakers and subwoofers."

Electronic House Magazine - Gold Award, Best Outdoor Space

AT Collection 42AT Tree Installation

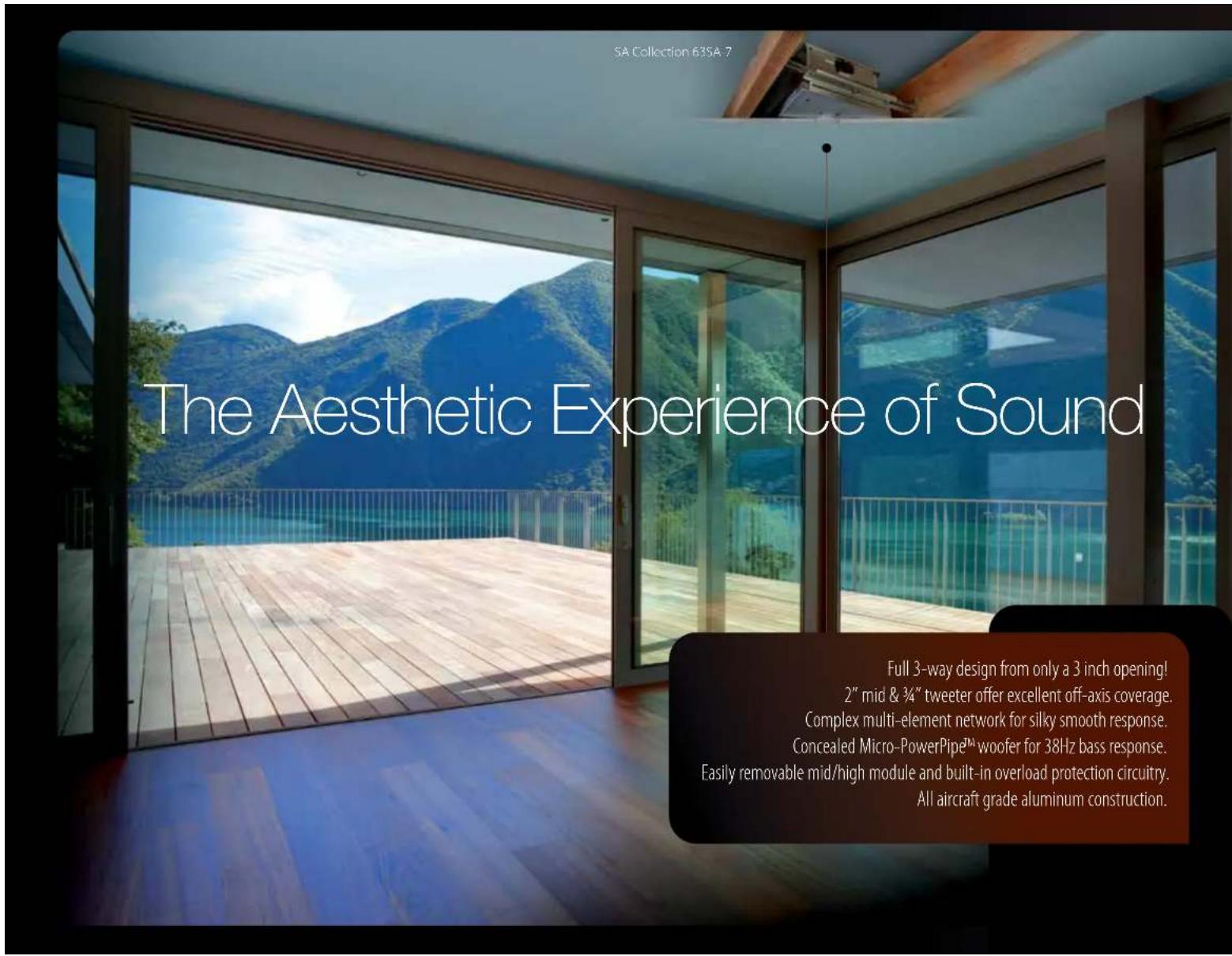

SA Collection 63SA 7

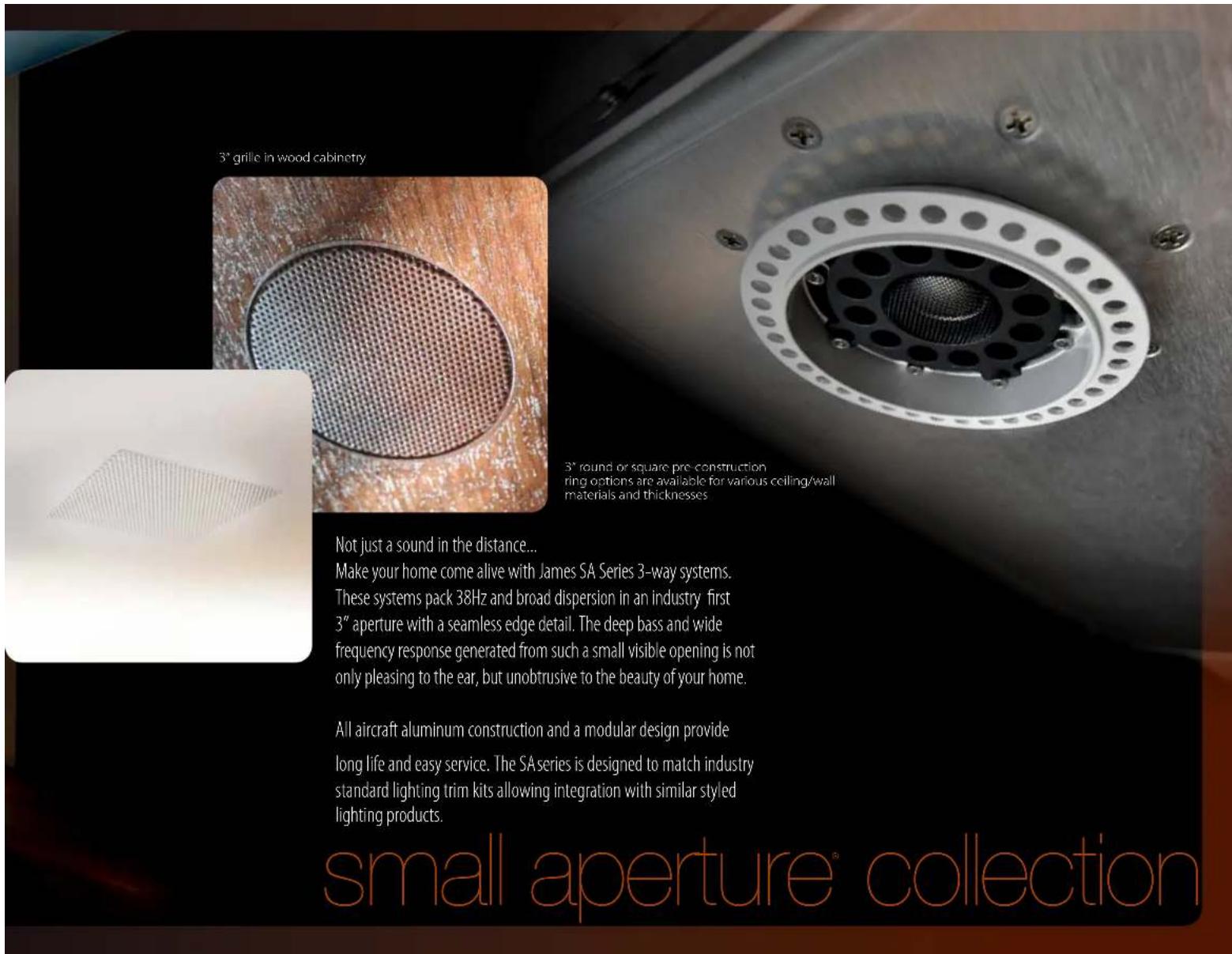

The Aesthetic Experience of Sound

Full 3-way design from only a 3 inch opening!

2" mid & 3/4" tweeter offer excellent off-axis coverage.

Complex multi-element network for silky smooth response.

Concealed Micro-PowerPipe™ woofer for 38Hz bass response.

Easily removable mid/high module and built-in overload protection circuitry.

All aircraft grade aluminum construction.

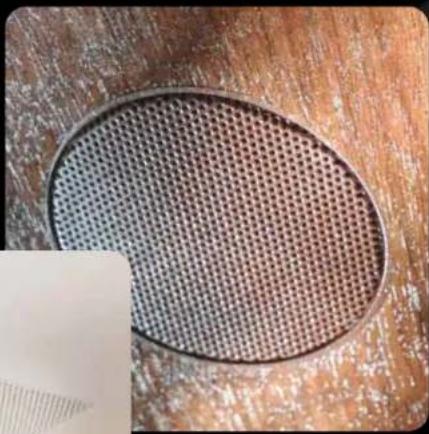

3" grille in wood cabinetry

Close-up of a perforated metal grate on a textured wooden surface (no text or symbols visible)

3" round or square pre-construction ring options are available for various ceiling/wall materials and thicknesses

Not just a sound in the distance...

Make your home come alive with James SA Series 3-way systems. These systems pack 38Hz and broad dispersion in an industry first 3" aperture with a seamless edge detail. The deep bass and wide frequency response generated from such a small visible opening is not only pleasing to the ear, but unobtrusive to the beauty of your home.

All aircraft aluminum construction and a modular design provide long life and easy service. The SA series is designed to match industry standard lighting trim kits allowing integration with similar styled lighting products.

small aperture collection

Real world solutions through the most advanced innovative technology

classic in-wall BE series

Perfection, to some, is the absolute expression of deep, accurate and dynamic sound. At James, we offer you the ideal: the aesthetic sound of perfection and precision. Now this incredible mixture of innovation and experience brings you a new class of in-wall speakers. The world's finest... only from James!

The BE series from James Loudspeaker features our proprietary Multi directional Beryllium-copper tweeter array. This arrangement provides a seamless, precise soundstage that assures extremely wide coverage of the listening area with uniform sound quality. Beryllium is seven times stiffer than titanium or aluminum, creating a 2nd resonance break-up mode beyond 22kHz for incredible 40kHz high frequency extension. Beryllium's extreme lightness makes for the ideal tweeter.

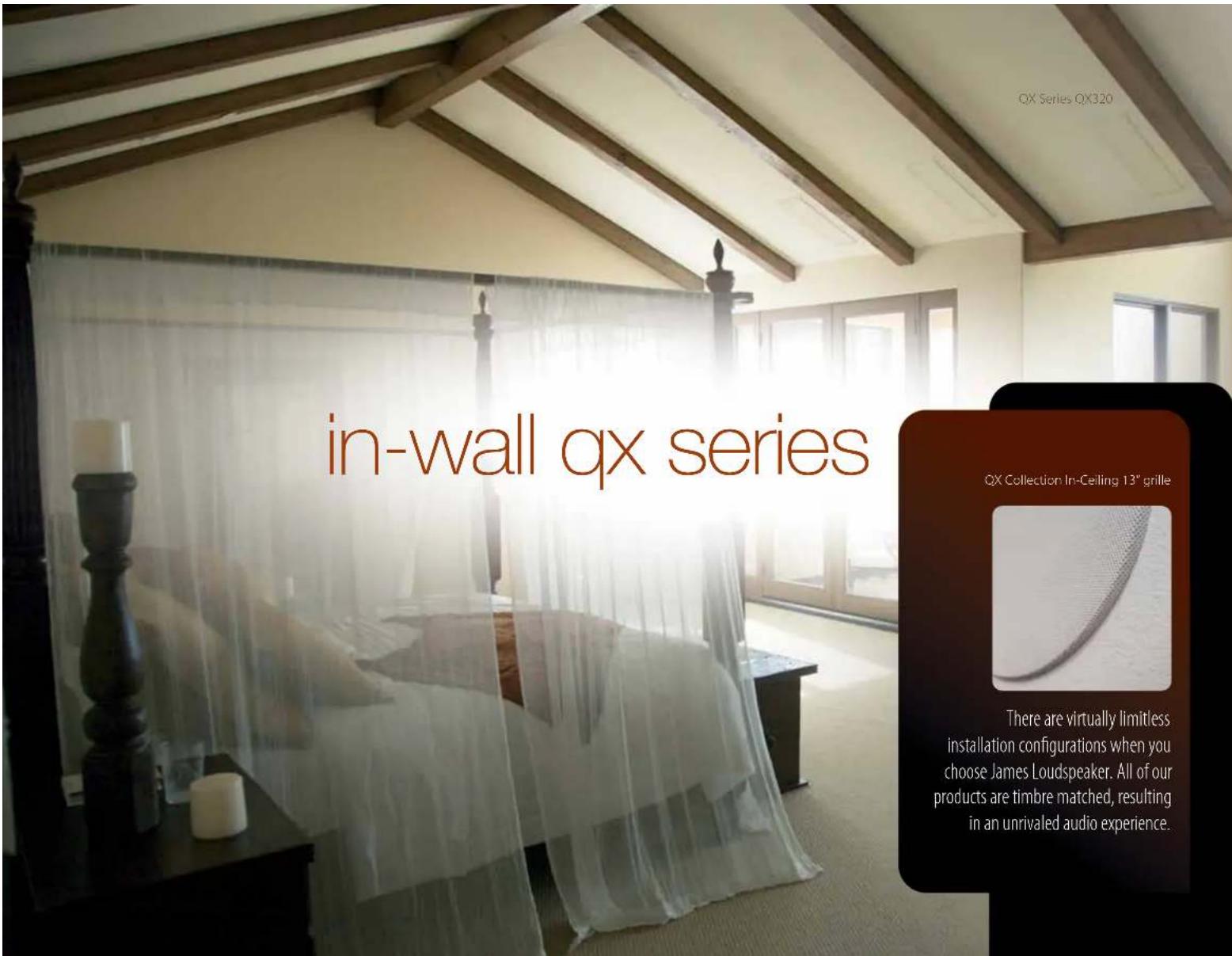

in-wall qx series

QX Collection In-Ceiling 13" grille

Close-up of a curved, textured surface with no visible text or symbols

There are virtually limitless installation configurations when you choose James Loudspeaker. All of our products are timbre matched, resulting in an unrivaled audio experience.

technology without compromise

James introduces the QX Series, a complete new line of in-wall and ceiling speakers setting new standards for performance, appearance and installation ease. The Quad tweeter array redefines the performance of speakers in this size and price class by providing high SPL, low distortion, high power handling and extremely wide coverage angle. The new grille design only protrudes 3/16" above the mounting surface and has an edgeless design for a very clean look designers will love. Installers will appreciate the ease of installation as the QX Series fits standard 4" wall construction. And of course James' proprietary welded, aircraft aluminum ensuring minimal acoustic internal resonance.

OX820 Paintable Borderless Aluminum Grille

OX1010 Laminated Aluminum 10" Woofer

QX Series QX820

In-wall, in-ceiling, in-cabinet Subwoofer System. Inconspicuous by design, James PowerPipe Subwoofers offer seamless fusion of visionary technology and revolutionary performance. James' bandpass design produces a thunderous performance while delivering smooth frequency response and tight transitions. Tube flexibility allows for multiple port placement options. Rubber support straps suspend the PowerPipe between rafters, eliminating vibrations.

powerpipe

The PowerPipe

architectural

port options are the

perfect solution for

systems installed

in cabinetry,

in-ceiling, in-closet,

an adjoining room,

or under the floor;

essentially

any location!

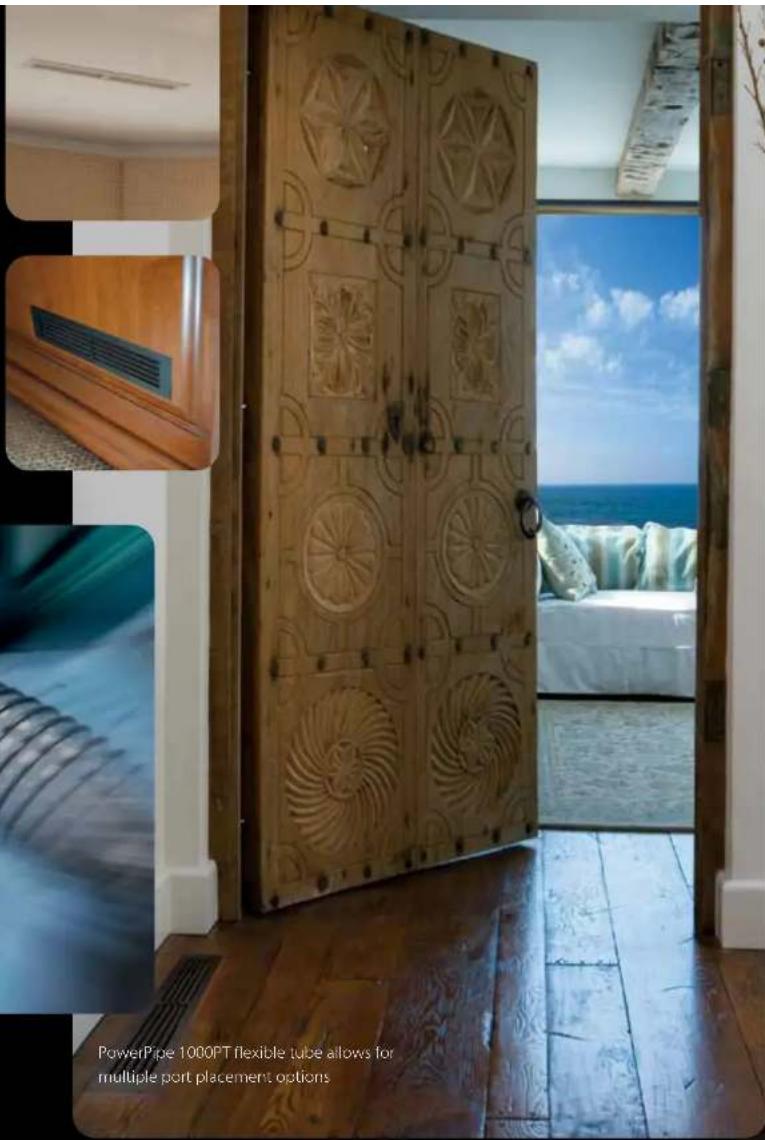

PowerPipe 1000PT flexible tube allows for multiple port placement options

Close-up of a metallic jet engine component with visible fan blades and mounting bracket (no text or symbols)

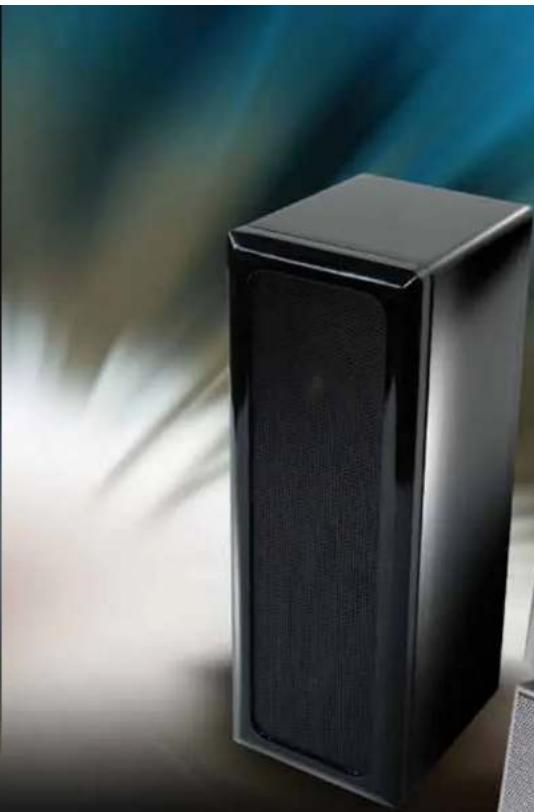

Black rectangular speaker with visible grille and sound waves against a blue background (no text or symbols)

33AL 2-Way Bookshelf/Center

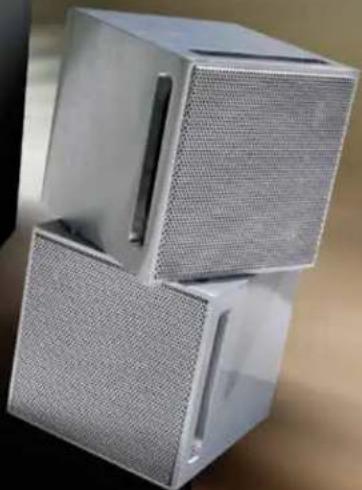

43CUBE Full-Range Bookshelf

Exterior view of a modern metal speaker with mesh grille (no text or symbols visible)

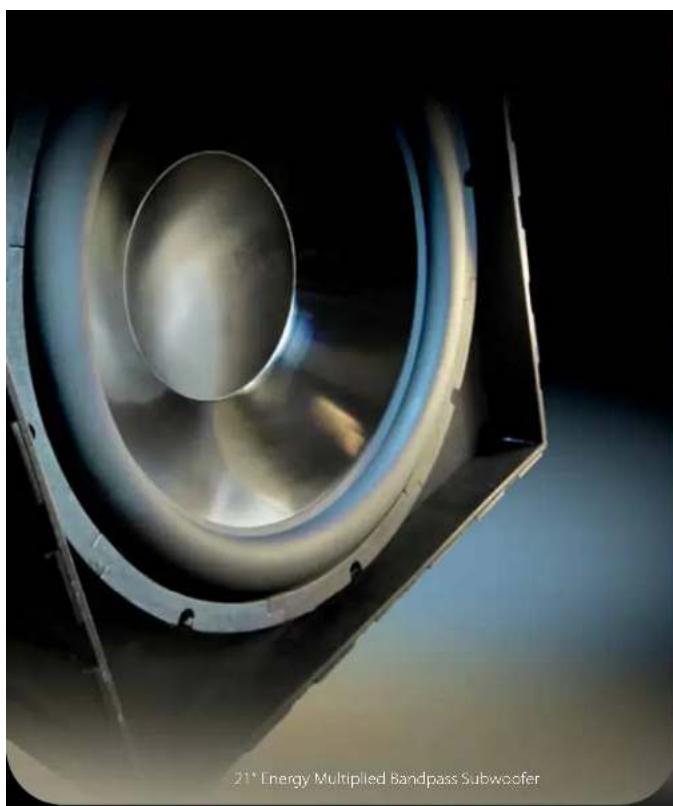

21* Energy Multiplied Bandpass Subwoofer

Unrivaled in the industry...James' Innovative array of forward thinking features and patented technologies achieve flawless and faithful sound. Astonishing clarity of tone, harmony and voice is brought to life.

James Loudspeakers EMB subwoofers have redefined the subwoofer category. In fact, The Complete Guide to High-End Audio by Robert Harley includes James' proprietary EMB technology as a class of its own. Designed for listeners that demand the very best, EMB subwoofers deliver lower distortion, smoother frequency response, tighter transitions and greater bass extension than conventional designs.

freestanding subs & speakers

James has pioneered the design of ultra-slim sound bars and now offers two complete series. The SPL3 Series features a 3.5" woofer and is a mere 1.5" deep, yet plays down to 90 Hz. The SPL6 series feature 6.5" woofers for deep bass and high SPL, at only 2.75" deep. Both series feature LCR, Stereo and James' famous Centergy configurations. All bars are constructed of aircraft aluminum, are custom sized to fit your display, and include custom brackets. A wide range of matching on-wall/in-wall surrounds and subwoofers are available to complement any James sound bar.

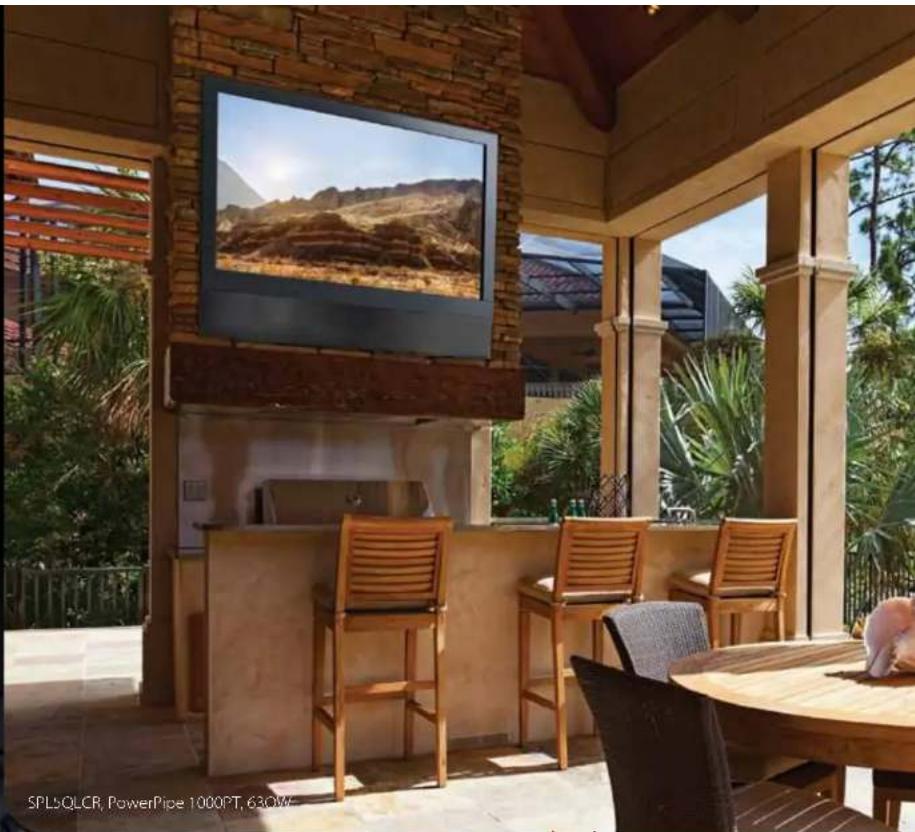

Outdoor patio with brick walls, wooden benches, and a large screen displaying a landscape photo (no text or symbols visible)

sound bars

A new standard has emerged. The QX Series from James Loudspeaker includes performance that is second to none. QX Series in-wall LCR Bars: Quite simply the world's finest speakers. Our pleasure, your enjoyment.

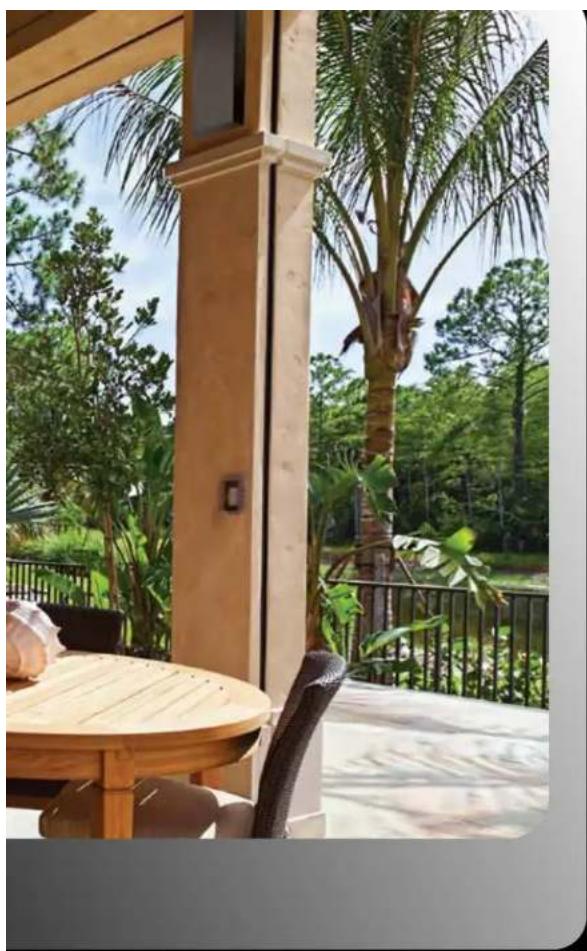

Outdoor patio scene with a wooden table, palm tree, and greenery in the background (no text or symbols visible)

James Loudspeaker creates innovative products to complete your outdoor system. For example, our Under Eave speakers feature solid aluminum enclosures and offer custom colors.

under eave

OW | UE Series 66UE Custom Finish

James Landscape Series offers you precise audio performance for the outdoor environment with an unlimited choice of installation configurations. All James Loudspeaker products are timbre matched, resulting in an unrivaled audio experience.

White rectangular card with multiple colorful swatches arranged in a fan shape (no text or symbols visible)

10 colors available.

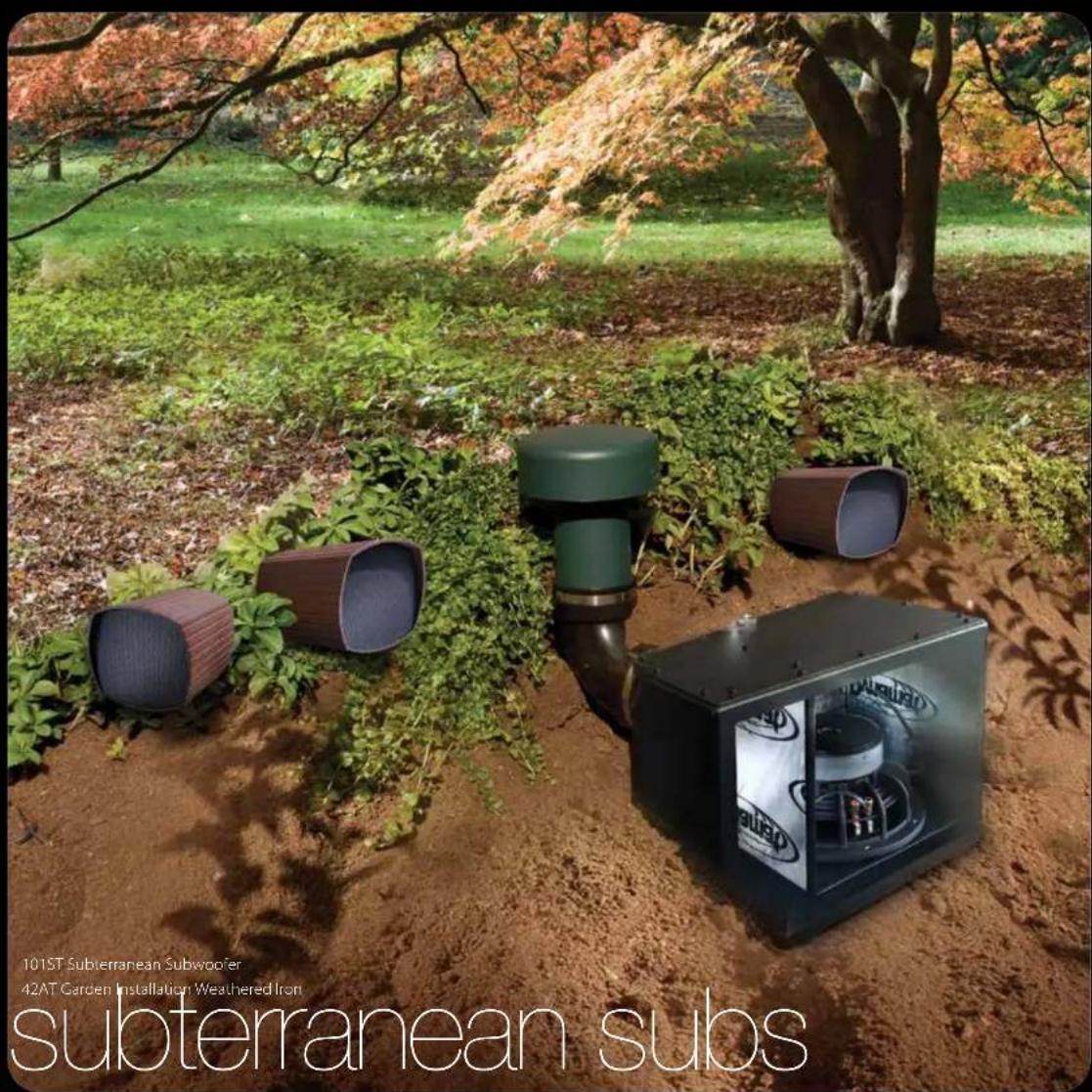

Having attained excellence in design, technology and superior sound, James has mastered outdoor entertainment. Our subterranean subwoofer's direct burial and compression bandpass design provides an earthshaking experience. Available in four sizes to fit a multitude of applications.

outdoor

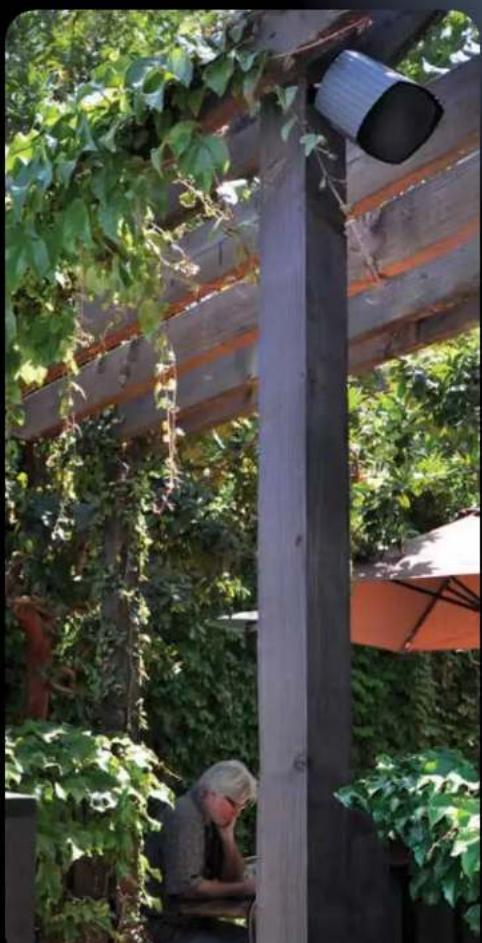

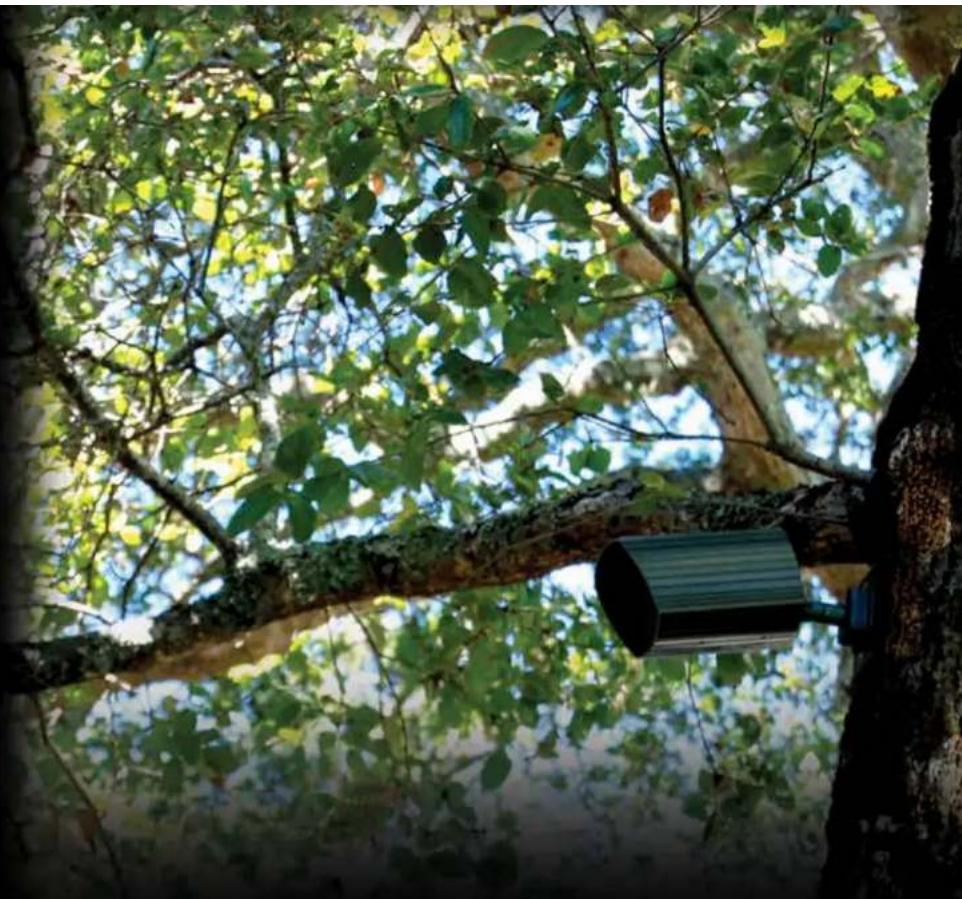

42AT Arbor Installation Black & 42AT Tree Installation Verde

Person sitting under a wooden pergola in a lush green garden, with no visible text or symbols.

Tree with green leaves and a birdhouse hanging from its branches, reflecting sunlight (no text or symbols visible)

"Natural Audio set out to find the finest sounding outdoor speaker on the planet. Its pick...James Loudspeaker speakers and subwoofers."

Electronic House Magazine - Gold Award, Best Outdoor Space
