Brand	ETNA
Model	VV2143WIT
Product type	Freezer
Refrigerant	R600a (isobutane)
Supply voltage	220-240 V
Frequency	50 Hz
Recommended freezing temperature	-18 °C
Thermostat setting	Yes, positions MIN, NORMAL, MAX
Quick freeze function	Yes
Defrost type	Manual
Door orientation	Reversible
Number of drawers	1 freezer drawer
Adjustable feet	Yes
Door handle	Installation possible
Climate class	N, ST, T (according to rating plate)
Cleaning	Warm water and mild detergent
Child safety	Child supervision recommended
Insulating material	Foam containing flammable gas
Disposal	Do not dispose with household waste
Included accessories	User manual

Frequently Asked Questions - VV2143WIT ETNA

How to adjust the freezer temperature?

Use the thermostat located inside. Turn it to MIN for a higher temperature, to MAX for a lower temperature. The NORMAL position is recommended for daily use.

How to defrost the freezer?

The day before, set the thermostat to MAX to deep-freeze the food. Turn off the appliance and leave the door open. Remove frost manually (do not use sharp objects). Wipe away defrost water. Clean the interior with warm water, dry, then restart.

What to do if the door does not close properly?

Check that the door seals are clean and undamaged. Adjust the door alignment using the adjustable feet. If the seal is worn, contact after-sales service for replacement.

How to reverse the door opening direction?

Unplug the appliance. Remove the upper and lower hinges, move the door and cover plates. Attach hinges on the opposite side. Also change the door handle side. Ensure the door is properly aligned.

What is the ideal temperature for freezing food?

The recommended temperature is -18 °C. For quick freezing of large quantities, set the thermostat to MAX the day before, then return to NORMAL after freezing.

How to clean the inside of the freezer?

Unplug the appliance. Use a soft cloth soaked in warm water with mild detergent. Never use abrasive products. Dry thoroughly before restarting.

What to do in case of a power outage?

Avoid opening the door. Frozen food stays cold for several hours (see the temperature rise time on the label). If the outage lasts longer, consume the food quickly or transfer to another freezer.

How to install the door handle?

The handle is supplied with the appliance. Attach it to the front of the door using the provided screws. If you change the opening direction, move the handle to the corresponding side.

How to save energy with this freezer?

Place the appliance away from heat sources. Ensure sufficient ventilation around the appliance. Do not open the door unnecessarily. Defrost regularly when ice layer exceeds 3 mm. Allow food to cool before storing.

Which foods should not be frozen?

Avoid freezing lettuce, eggs, apples, pears, grapes, peaches, yogurt, buttermilk, sour cream, or mayonnaise. These foods lose their texture and flavor.

USER MANUAL VV2143WIT ETNA

Diagram of a tool being adjusted with a screwdriver, showing a downward arrow (no text or symbols present)

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

Mechanical diagram showing a tool inserted into a bracket with a downward arrow indicating direction (no text or symbols)

Pure geometric diagram showing a curved dashed line and two marked points on a solid line (no text or symbols)

Pure technical diagram of a mechanical assembly with no text or symbols

Pure mechanical component diagram without any text, numbers, or symbols

Technical line drawings of a mechanical device and its internal components, showing alignment and rotation (no text or symbols)

Technical line drawing showing a mechanical assembly with a tool and two directional arrows indicating movement (no text or symbols present)

Open refrigerator with four compartments and one checked (no text or symbols visible)

Safety instructions 5

Before using the appliance for the first time

Before you use the appliance for the first time 11

Energy-saving advice 11

Installation and connection

Selecting the location 12

Connecting the appliance 13

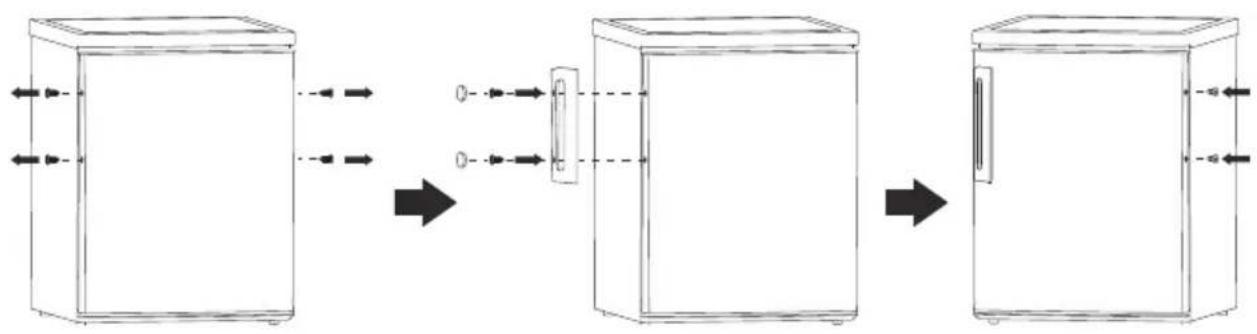

Door handle installation 14

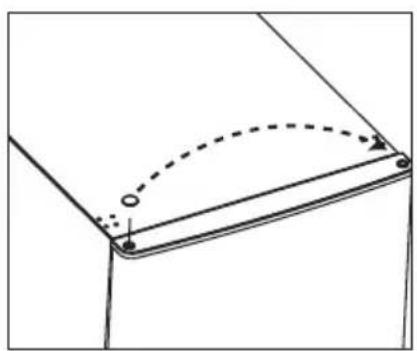

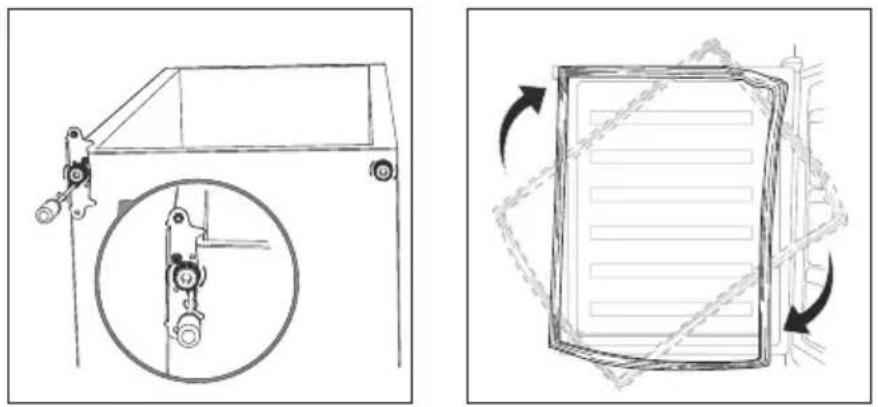

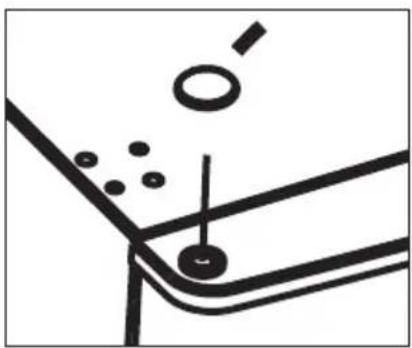

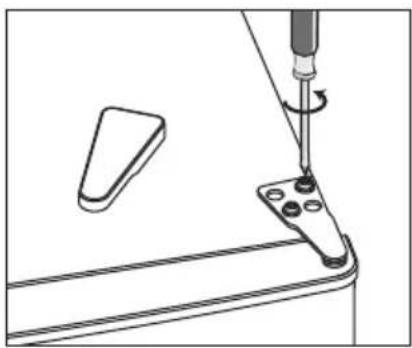

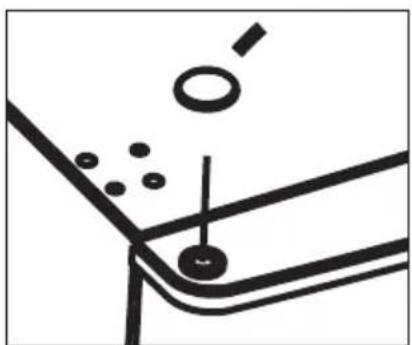

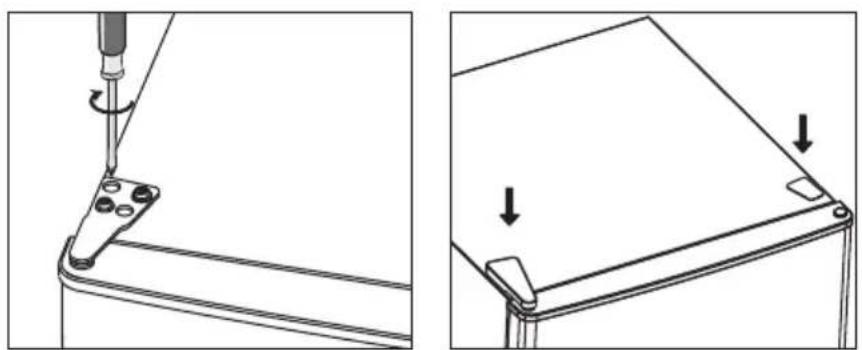

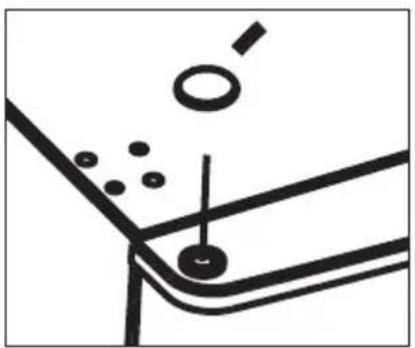

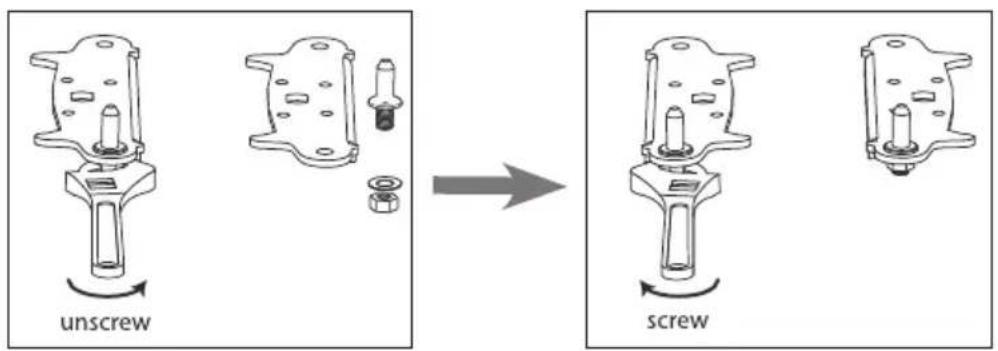

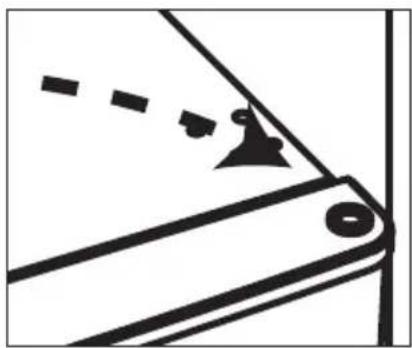

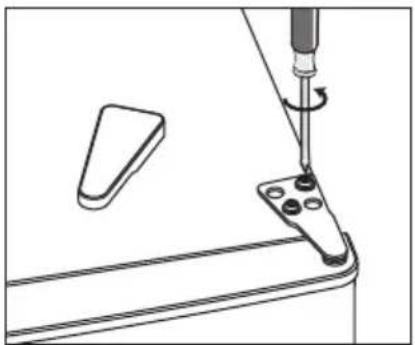

Changing the side on which the door opens 14

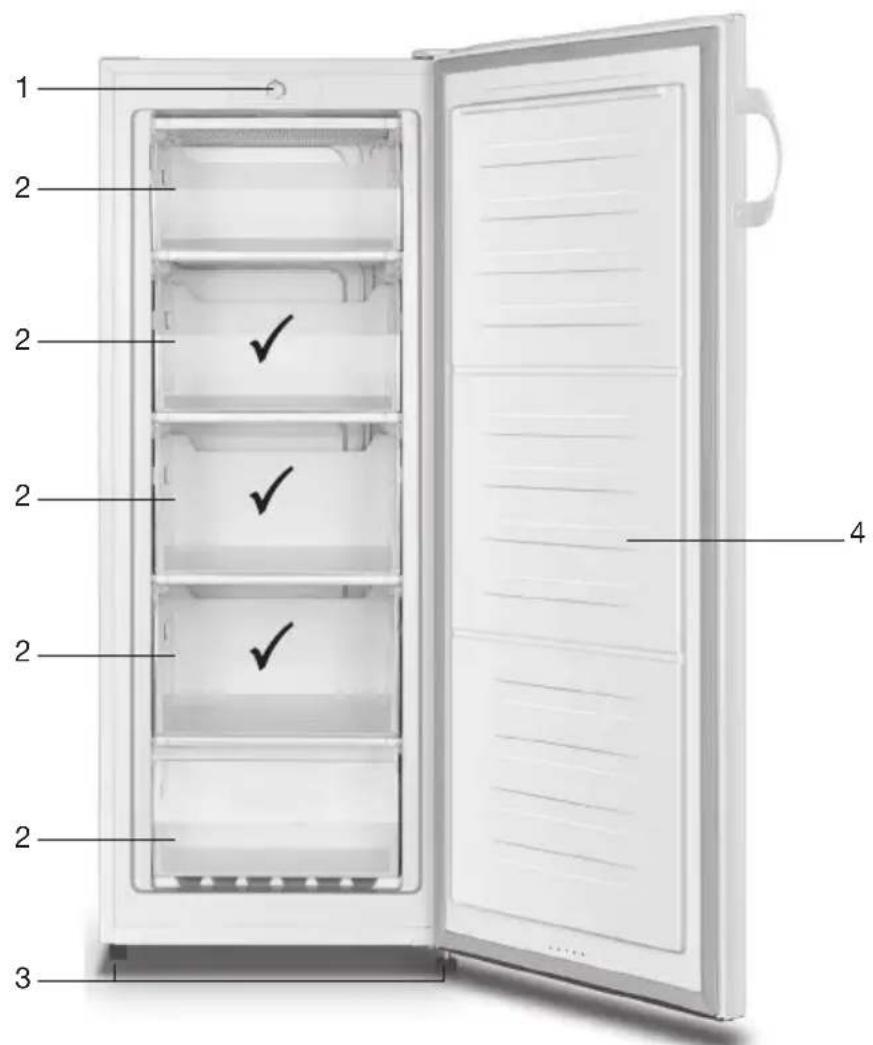

Description of the appliance

Appliance 17

Operating the appliance

Setting the thermostat 18

Fast freezing 18

Storing and freezing food

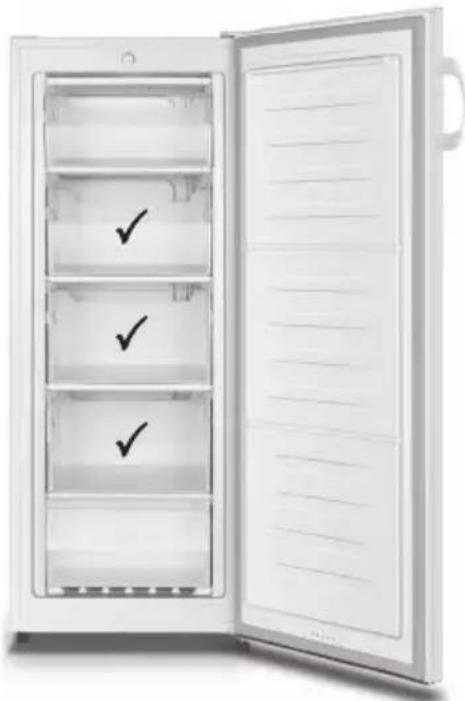

Recommended distribution 19

Avoid contamination of food 19

Freezing and storing foods in the frozen compartment 20

Thawing frozen food 21

Maintenance

Defrosting the appliance 22

Cleaning the appliance 23

Faults

Faults table 24

Environmental aspects

Disposal of packaging and appliance 26

Pictograms used

Important information

Tip

Warning; risk of fire / flammable materials

Introduction

Congratulations on choosing this Etna freezer. This product is designed with simple operation and optimum comfort in mind.

These instructions for use explain how you can make best use of this appliance. These instructions contain information about the operation of the appliance and background information that may be of help to you during its use.

Read the safety instructions before using the appliance!

Read these instructions thoroughly before you first use the appliance, and keep the instructions for future use.

You can find the most recent version of the instructions for use on our website.

Link to the EU EPREL database

The QR code on the energy label supplied with the appliance provides a web link to the registration of this appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is possible to find information related to the performance of the product in the EU EPREL database using the link https://eprel.ec.europa.eu and the model name and product number that you can find on the rating plate of the appliance.

For more detailed information about the energy label, visit www.theenergylabel.eu.

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Safety of children and vulnerable people

• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Keep all packaging away from children.

For European markets only

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

General safety

• The lamp in this household appliance is only suitable for illumination of this appliance. The lamp is not suitable for household room illumination.
• WARNING! This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
• WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING! Do not damage the refrigerant circuit.
• WARNING! Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• WARNING! Do not use water spray and steam to clean the appliance.
• WARNING! Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• WARNING! Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• WARNING! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Installation

• WARNING! This appliance should only be connected by a registered installer.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
• Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Make sure the air can circulate around the appliance.
• Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.
• Do not install the appliance close to radiators or cookers, oven or hobs.
• Do not install the appliance where there is direct sunlight.
• Do not install this appliance in areas that are too humid or too colds, such as the construction appendices, garages or wine cellars.
• When you move the appliance, lift it by the front edge to avoid scratching the floor.
• WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

Electrical connection

• WARNING! Risk of fire and electrical shock.
• The appliance must be earthed.
• All electrical connections should be made by a qualified electrician.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Service or an electrician to change the electrical components.
• The mains cable must stay below the level of the mains plug.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• WARNING! Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• If a stationary appliance is not fitted with a supply cord and a plug, or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, the means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. This is also applicable for appliances with a supply cord and plug when the plug is not accessible after installing the appliance. Using an omnipolar switch with a contact separation of at least 3 mm fitted in the fixed wiring will fulfil this requirement.

Use

• WARNING! Risk of injury, burns, electrical shock or fire.
• Do not change the specification of this appliance.
• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.
• Be careful not to cause damage to the refrigerant circuit. It contains isobutene (R600a), a natural gas with a high level of environmental compatibility. This gas is flammable.
• If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.
• Do not let hot items to touch the plastic parts of the appliance.
• Do not store flammable gas and liquid in the appliance.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not touch the compressor or the condenser. They are hot.

Care and cleaning

• WARNING! Risk of injury or damage to the appliance.
• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.
• Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.

Disposal

• WARNING! Risk of injury or suffocation
• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation materials of this appliance are ozone friendly.
• The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.
• Do not cause damage to the part of the cooling unit that is near the heat exchanger.

Before you use the appliance for the first time

Do not connect the appliance to the mains until you have carefully read the instructions for the correct and safe use of the appliance. As these instructions are for various types and models, it is possible that the instructions for use refer to settings or parts that are not available on your appliance. We recommend that you keep these instructions for future use. If you sell the appliance, enclose them with the appliance.

Inspect the appliance for damage and/or irregularities. If the appliance is damaged, contact the store that sold you the appliance.

Allow the appliance to stand upright for at least 4 hours before you connect the appliance to the mains. This reduces the risk of malfunctions resulting from transport effects on the refrigerant unit.

Before using the appliance for the first time, the interior and all internal accessories should be cleaned with lukewarm water and a neutral cleaning agent. Wipe the cleaned parts with a cloth with clean water and then dry them thoroughly.

If you use the appliance for the first time, do not put food into the appliance until the temperature has decreased to the set temperature.

Energy-saving advice

• Install the appliance as stated in the instructions for use.
- Do not open the door more than necessary.
- Never cover or obstruct the ventilation openings.
- Replace a door seal that is damaged or no longer seals properly as quickly as possible.
- Store food in well-sealed containers or suitable packaging.
- Allow food to cool to room temperature before you put it in the appliance.
- Defrost a conventional frozen compartment once a layer of about 2 to 3 millimetres of frost or ice has formed on the inside.
- The lower the set temperature, the higher the power consumption.
- High ambient temperatures have a negative effect on energy use. Keep the appliance in a position away from direct sunlight or other sources of heat.
- Make sure there is sufficient space around the appliance so a good ventilation and air flow around the appliance is possible.
- The condenser on the rear wall should always be clean, free of dust or any impurities.

Selecting the location

• This refrigerating appliance is not intended to be used as a built-in appliance.
• Do not place the appliance near a source of heat, such as a gas cooker, radiator or boiler, etc., and do not expose it to direct sunlight.
• Place the appliance in a dry and well aired room. The permitted ambient temperature range for the appliance depends on the appliance's climate class, which is shown on the type plate.

Description Class Ambient temperature range °C Relative humidity
Extended temperate SN	+10 to +32		≤ 75%
Temperate N +16 to +32
Subtropical ST +16 to +38
Tropical T +16 to +43

Do not place the appliance in a room where the temperature can fall below the lowest permitted ambient temperature: the appliance may not work properly!

Do not place the appliance in a room where the temperature can fall below 5 °C: the appliance may become defective!

The appliance is not suitable for outdoor use and may not be exposed to rain.

Place the appliance in a room with a sufficient volume of air. The room must have a volume of at least 1 m^3 of air for every 8 grams of refrigerant. The quantity of refrigerant is shown on the type plate on the inside of the appliance.

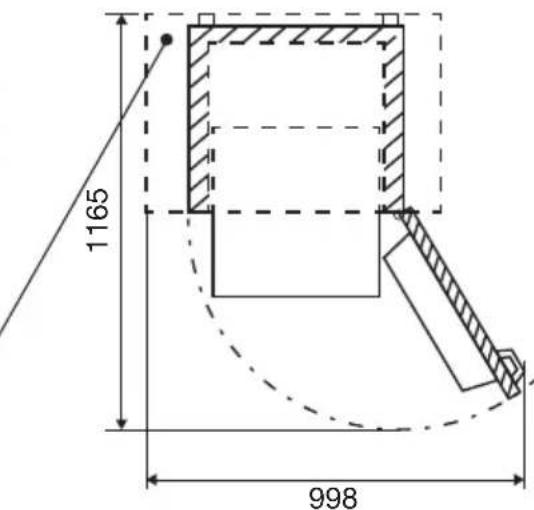

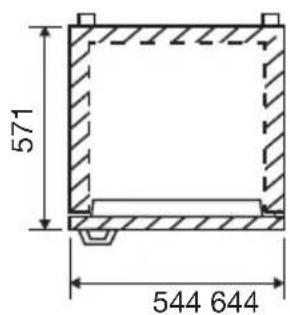

Overall dimensions

Space required in use

Overall space required in use

Make sure there is sufficient space around the appliance so a good ventilation and air flow around the appliance is possible.

• The appliance must be placed at a distance of at least 5 cm from an electrical or gas cooker and at least 30 cm from a radiator or heater. An insulation panel must be fitted when these distances cannot be kept.
• The appliance must be placed at a distance of about 5 cm from the wall, back and sides of a cupboard. A kitchen cupboard above the appliance must have a gap of at least 5 cm between the back of the cupboard and the wall. This is needed to make sure that there is sufficient cooling air for the condenser.
• The plug of the installed appliance must remain accessible!
• The appliance's air outlet is at the top. Make sure that the outlet is not blocked. Blocking the outlet can result in damage to the appliance.
• The appliance must be handled and installed by two or more persons.
• Be careful not to damage the floors when moving the appliance.
• During installation, make sure the appliance does not damage the power cable.
• The appliance must be placed on a flat, stable surface.
• You can level the appliance using the adjustable feet.

Connecting the appliance

• Connect the appliance to the power supply with a plug. The socket must be earthed. The nominal voltage and frequency required for the appliance are shown on the appliance's type plate/label with basic information.
• The appliance must be connected to the mains and earthed in accordance with the prevailing standards and regulations. The appliance can withstand small variations in the mains voltage to a maximum of plus or minus 6%.

When you are not going to use the appliance for a longer period then switch it off with the appropriate key and disconnect it from the mains. Empty, defrost and clean the appliance, and leave the door ajar.

Freeze burn hazard

To avoid freeze burn, never put frozen food in your mouth and do not touch frozen food.

In the event of a defect or power cut, do not open the frozen compartment unless the appliance has been out of operation for more than the hours indicated on the appliance's type plate (temperature rise time). After this time, you must either use the frozen food or make sure that it is properly cooled (for example, by transferring it to another appliance).

Door handle installation

Changing the side on which the door opens

Switch off the appliance and disconnect it from the mains.

Remove the cover plates and the screws and the upper hinge.

Diagram of a tool being adjusted with a screwdriver, showing a downward arrow (no text or symbols present)

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

Mechanical diagram showing a tool inserted into a bracket with an arrow indicating direction (no text or symbols present)

Move the cover plate from the left side to the right side.

Pure geometric diagram showing a curved dashed line and two marked points on a solid line (no text or symbols)

Pure technical diagram of a mechanical assembly with no text or symbols

Pure mechanical component diagram without any text, numbers, or symbols

Carefully lift the door and place it on a padded surface to prevent scratching.

Remove the lower hinge and flip the hinge.

Attach the lower hinge on the other side. Loosen the adjustable feet and attach them on the other side.

Detach the door gaskets and then attach them after rotating.

Technical line drawings of a mechanical device and its internal mechanism, showing assembly and rotation (no text or symbols)

Fit the upper hinge on the opposite side with the screws and place the cover plates.

Technical illustration showing a mechanical assembly with a tool and two views of a component (no text or symbols present)

Check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Level the appliance with the adjustable feet.

Move the door handle from the left side of the door to the right side.

Appliance

1. Thermostat

2. Freezer drawer

3. Adjustable feet

4. Door

√ Best location for freezing fresh food.

Setting the thermostat

The thermostat automatically regulates the temperature inside the freezer.

• The normal temperature setting is position NORMAL.
• Set a higher temperature by turning the knob to setting MIN.
• Set a lower temperature by turning the knob to setting MAX.
• Disconnect from the power mains; the freezer is off.

The recommended temperature of the frozen compartment is -18 °C.

Fast freezing

The day before you want to freeze large amounts of fresh food at the same time, you can set the thermostat knob to the lowest temperature setting. Set the thermostat knob to the normal position when the food is frozen.

Recommended distribution

• Top section: leftovers, ice, pizza.
  • Middle section: meat, fish, bread.
• Bottom section: standard freezer, vegetables and fruit.

The best location for freezing fresh food is marked with a √

Open refrigerator with three compartments and one checked (no text or symbols visible)

Do not store lettuce, eggs, apples, pears, grapes, peaches, yoghurt, buttermilk, sour cream or mayonnaise in the frozen compartment.

Avoid contamination of food

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Freezing and storing foods in the frozen compartment

Important recommendations for freezing fresh food

• The maximum quantity of food that you can put in the frozen compartment in one go is stated on the type plate. Putting more than this maximum quantity of food into the frozen compartment will slow the freezing process and reduce the quality. Moreover, this will also harm the quality of frozen food already stored in the frozen compartment.
• Use only good-quality fresh food that is suitable for freezing.
• Allow hot food to cool to room temperature.
• Food needs to be frozen quickly. It is recommended that you use small packs.
• Use air and watertight packaging to prevent the food from drying out and lose its vitamins.
• Note the type and quantity of the food on the packaging, together with the date on which it was frozen.
• Do not allow fresh food to come into contact with frozen food.

Freezing small quantities of fresh food/making ice cubes

See the chapter ‘Recommended distribution’ for the best location for freezing fresh food (1 to 2 kilograms) and making ice cubes.

Freezing large quantities of fresh food

• The day before you want to freeze large amounts of fresh food at the same time, you can set the thermostat knob to the lowest temperature setting. Set the thermostat knob to the normal position when the food is frozen.
• Distribute the fresh food equally between all the drawers in the freezer.
• After 24 hours, you can transfer the food to another compartment in the freezer and then freeze a new batch of food.

Important recommendations for storing frozen food

• Follow the manufacturer's instructions for the storage and use of frozen food. Take note of the recommended storage temperature and use-by date stated on the packaging.
• Use only food in undamaged packaging that has been stored at a temperature of -18 °C or lower.
• Do not buy food covered in frost. This indicates that the food has thawed or partially thawed several times and, as a result, is of inferior quality.
• Make sure that the food does not thaw during transport. An increase in its temperature will shorten the storage life and harm the quality of the food.

Recommended storage times of frozen food in the frozen compartment

Type of food Storage life
Fruit, beef 10 to 12 months
Vegetables, veal, poultry 8 to 10 months
Venison 6 to 8 months
Pork 4 to 6 months
Finely chopped or minced meat 4 months
Bread, pastas, cooked dishes, whitefish 3 months
Offal 2 months
Smoked sausage, bluefish 1 month

Thawing frozen food

• Thawing is an important step in storing food preserved by freezing. Food must be thawed in the correct way.
• Suitable methods of thawing food are:

▶in the refrigerator;

▶in cold water;

in a microwave or conventional oven with a suitable thaw program.

• Some frozen products can be prepared without needing to thaw them first. The manufacturer will state this on the packaging.
• The food needs to be packed in small portions. In this way the food thaws faster.
• Use partially or completely thawed food as quickly as possible. The bacteria in thawed food are reactivated and the food will spoil rapidly. This applies in particular to fruit, vegetables and ready-made food.
• Do not refreeze partially or completely thawed food.

Defrosting the appliance

After a period of time, frost will build up in certain areas in the frozen compartment. The frost, accumulated in the frozen compartment, should be removed periodically. If the frost layer exceeds 3-5 mm, it is necessary to defrost the frozen compartment completely to maintain the efficiency of the frozen compartment.

The day before you defrost, set the thermostat dial to the lowest temperature setting to freeze the foods completely.

• Before defrosting, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.
• Switch off the appliance.
• Leave the door open to accelerate defrosting. Remove the defrost water from the compartment.
• Avoid using defrosting sprays, as they may cause damage to the plastic parts and may be hazardous to health.
• Water collected at the bottom basket of the appliance should be mopped with a sponge or highly absorbing cloth.
• Clean the interior of the appliance by hand with lukewarm water and a little detergent. Never use abrasive products or aggressive cleaning agents.
• Dry the interior of the appliance, plug on the mains, and set the thermostat knob to the lowest temperature setting. After 24 hours, set the thermostat to the normal position.

Warning

Never remove ice layer with sharp objects, defrosting sprays, a hairdryer, an electric heater or something similar. This can be unsafe and cause irreparable damage to the appliance.

Cleaning the appliance

Switch off the appliance and disconnect it from the mains before you start cleaning it.

Do not use abrasive cleaning agents, as they can damage the surface.

The day before you clean, set the thermostat dial to the lowest temperature setting to freeze the foods completely.

• Before cleaning, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.
• Regularly clean the interior of the appliance with lukewarm water. If so required, add a neutral cleaning agent or special refrigerator cleaner to the water. Clean all surfaces with a soft cloth. Wipe the cleaned parts with a cloth with clean water and then dry them thoroughly.
• Do not put parts of the appliance in a dishwasher: this could damage them.
• Dry the interior of the appliance, plug on the mains, and set the thermostat knob to the lowest temperature setting. After 24 hours, set the thermostat to the normal position.
• Clean the outside using a soft cloth.
• Regularly clean the air vents and the condenser at the rear of the appliance with a vacuum cleaner or a brush.

When you are not going to use the appliance for a longer period then switch it off and disconnect it from the mains. Empty, defrost and clean the appliance, and leave the door ajar.

Faults table

When you have any doubts about whether your appliance is working properly you should not immediately assume that it is defective. We recommend that you should in any case check the points in the following table.

Symptom Possible cause Solution
The appliance emits a slight odour when used for the first time.	New appliance. This is normal and disappears when the appliance starts cooling.
The appliance does nothing. Plug not in socket. Insert the plug in the socket.
			Thermostat off. Adjust the thermostat to the correct setting.
Temperature inside the appliance too high or too low.	Thermostat setting incorrect. Adjust the thermostat properly.
	The door seals are dirty or the seals are damaged.	Clean the door seals. Call the service centre if the door seals are damaged.
Appliance makes a noise. Incorrect positioning of food in the appliance.		Place foods in the proper manner in the appliance.
		Remove the object.
Ice building up. The door has been opened for too long.		Make sure that the door is closed properly.
Door does not open easily. You	are trying to open the appliance's door just after you have closed the door. Then opening the door is difficult. When you open the door, cold air escapes from the appliance and is replaced by warm air from the surroundings. As this air cools a slight vacuum is created that makes it more difficult to open the door.	The situation returns to normal after a few minutes, and the door opens easily again.

Note

It is normal for the cooling circuit to make gurgling or expansion noises.

If you are unable to solve the problem then contact the service centre. When you do so, state the type, model and serial number shown on the type plate or label on the inside of the appliance.

Disposal of packaging and appliance

This appliance is made from sustainable materials. This appliance must be disposed of in a responsible manner at the end of its service life. Contact the local authorities for information about the method.

See also the chapter ‘Disposal’ in the Safety instructions.

The packaging of the appliance is recyclable. The following materials may have been used:

• Cardboard.
  • Polyethylene foil (PE).
  • CFC-free polystyrene (hard PS foam).

These materials must be disposed of in a responsible manner and in accordance with government regulations.

The appliance is marked with a crossed out wheeled bin symbol to draw your attention to the requirement for the separate disposal of domestic electrical appliances. This means that the appliance may not be disposed of in unsorted household waste at the end of its service life. The appliance must be taken to a special municipal waste processing location for separated waste or to a dealer who provides this service.

Collecting and disposing of domestic appliances separately avoids detrimental consequences for humans and the environment. This ensures that the materials used to make the appliance can be recovered and that substantial savings in the use of energy and raw materials can be achieved.

Declaration of conformity

We hereby declare that our products conform to the applicable European Directives, Regulations and requirements, as well as all requirements in the standards to which reference is made.

www.etna.nl

www.etna.be

865753

Installation et raccordement

Diagram of a tool interacting with a mechanical component, showing a lever and a downward arrow (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

Mechanical diagram showing a tool interacting with a bracket, with an arrow indicating direction (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Pure technical diagram of a mechanical assembly with no text or symbols

Pure mechanical component diagram without any text, numbers, or symbols

Technical line drawings of a mechanical device and its corresponding schematic diagram showing gear assembly and rotation (no text or symbols)

Technical line drawing showing two views of a mechanical component with a screw and adjustment tool (no text or symbols)

Open refrigerator with three shelves and one door open, all checked with a black checkmark (no text or symbols visible)

Diagram of a tool interacting with a mechanical component, showing a lever and a downward arrow (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

Mechanical diagram showing a tool inserted into a bracket with a downward arrow indicating force (no text or symbols present)

Pure geometric diagram showing a curved dashed line and a solid line with circular markers, without any text or symbols.

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Pure mechanical diagram showing a bracket with mounting holes and a triangular load, without any text or symbols

Technical line drawings of a mechanical device and its internal frame with rotational arrows (no text or symbols)

Technical line drawing showing two views of a mechanical component with a screwdriver inserted (no text or symbols)

• The normal temperature setting is position NORMAL.
• Set a higher temperature by turning the knob to setting MIN.
• Set a lower temperature by turning the knob to setting MAX.
• Disconnect from the power mains; the freezer is off.

Open refrigerator with three compartments and one closed door, all checked with a black checkmark (no text or symbols visible)

865754
