Product Type	Rugged Tablet PC
Dimensions	11.05 x 7.07 x 0.86 in (28.1 x 18.0 x 2.2 cm)
Weight	Starting at 2.4 lbs (1.09 kg)
Operating System	Android 5.1 Lollipop
Processor	Intel Atom E3845 Quad Core 1.91 GHz
Memory	4 GB DDR3L RAM
Storage	64 GB SSD, microSDXC expansion
Display	10.1" WXGA (1366x768) IPS LCD, 500 NIT, 10-finger multi-touch, glove touch, chemically strengthened glass
Graphics	Intel HD Graphics Gen 7
Connectivity	Wi-Fi 802.11ac, Bluetooth 4.0, Gigabit Ethernet, GPS (WAAS/EGNOS/MSAS), optional 4G/LTE

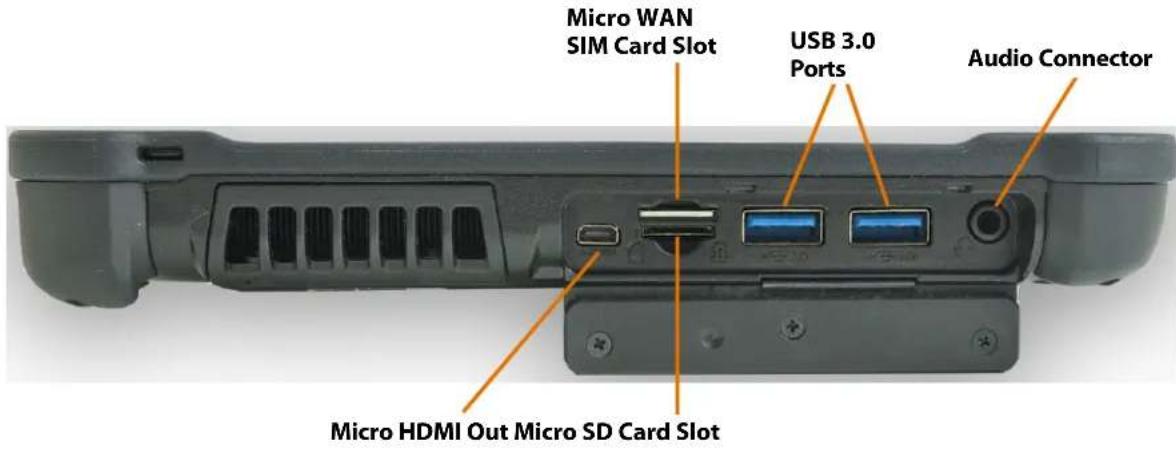

Ports	2 x USB 3.0, micro HDMI out, microSDXC, micro SIM, headphone/mic combo, 19V DC power, docking connector
Cameras	5 MP rear with flash, 2 MP front
Battery	7.4V lithium-ion, up to 8 hours; optional hot-swappable external battery (up to 14-20 h dual)
Charging	AC adapter 100-240V, 19V/3.42A; recharge 3.5 h to 90%
Environmental Rating	IP65 (dust & water resistant), MIL-STD-810G drop 5 ft (1.52 m)
Operating Temperature	-34°C to 60°C (-30°F to 140°F)
Safety Certifications	FCC Class B, IC, CE, ATEX Zone 2, UL, CB
Warranty	36-month international limited warranty
Care & Cleaning	Clean display with damp soft cotton cloth or isopropyl alcohol; use screen protector
Spare Parts & Repairability	Battery replaceable by authorized technician; external battery hot-swappable; screen protector available

Frequently Asked Questions - XSlate D10 Xplore

What is the battery life of the XSlate D10?

The internal battery provides up to 8 hours of operation. With the optional external battery, it can reach up to 14 hours (or 20 hours with dual batteries).

Is the XSlate D10 rugged?

Yes, it meets MIL-STD-810G for drops from up to 5 feet (1.52 m) and has an IP65 rating for dust and water resistance. It also operates in extreme temperatures from -34°C to 60°C.

Which operating system does it run?

The XSlate D10 comes with Android 5.1 Lollipop pre-installed.

What connectivity options are available?

It includes Wi-Fi 802.11ac, Bluetooth 4.0, Gigabit Ethernet, GPS (with WAAS/EGNOS/MSAS), and optional 4G/LTE via micro SIM.

What is the display quality?

The 10.1-inch WXGA (1366x768) IPS LCD screen has a brightness of 500 NITs, supports 10-finger multi-touch, and works with gloves. It also has chemically strengthened glass for durability.

Can I take photos with the tablet?

Yes, it has a rear 5 MP camera with flash and a front 2 MP webcam for video calls.

Does it have a GPS for outdoor use?

Yes, the GPS is discrete with SBAS support (WAAS, EGNOS, MSAS), providing accuracy up to 2.5 meters.

What accessories are available?

Accessories include a carrying handle, shoulder strap, rotating hand strap, kickstand, companion keyboard, vehicle docks, and an external battery.

What is the warranty period?

The standard warranty is a 36-month international limited warranty. Extended warranty options are available.

How do I clean the screen?

Use a soft, damp cotton cloth with water or isopropyl alcohol. Avoid harsh chemicals. A screen protector is recommended for added protection.

USER MANUAL XSlate D10 Xplore

© 2003–2016 Xplore Technologies Corporation of America. All rights reserved.

This document contains information protected by copyright. No part of this document may be reproduced in any form without written consent from Xplore Technologies.

The information in this document is provided "as is" and is subject to change without notice. Xplore Technologies is not liable for errors or omissions in this document.

Xplore, Motion by Xplore, View Anywhere, and QuickNav are trademarks or registered trademarks of Xplore Technologies Corporation of America in the U.S.A. and other countries.

Acrobat is a registered trademark of Adobe Systems Incorporated.

Bluetooth is a registered trademark owned by the Bluetooth SIG, Inc., U.S.A. and licensed to Xplore Technologies Corporation of America.

Intel, Intel Atom, Core, vPro, and Centrino are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Android, Google, Google Play, and other marks are trademarks registered trademarks of Google Inc. in the United States and/or other countries.

Qualcomm, Gobi, and Gobi 5000 are trademarks or registered trademarks of Qualcomm Incorporated.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Kensington and MicroSaver are registered trademarks of the Kensington Technology Group.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks of HDMI Licensing LLC in the United States and other countries.

This product incorporates copy protection technology that is protected by U.S. and foreign patents, including patent numbers 5,315,448 and 6,836,549, and other intellectual property rights. The use of Macrovision's copy protection technology in the product must be authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Xplore Technologies Corporation of America has made every effort to identify trademarked properties and owners on this page. All brands and product names used in this document are for identification purposes only and may be trademarks or registered trademarks of their respective companies.

The warranties for Xplore and Motion by Xplore products are set forth in the express limited warranty statements accompanying such products. Nothing in this document constitutes an additional warranty.

The Xplore and Motion by Xplore products and services may be covered by one or more patent-protected inventions. Additional patents may also be pending. For more information, see www.motioncomputing.com/us/legal/patents.

The end user may access only one operating system language version.

Chapter 1 Introduction to Your Tablet..... 1

Welcome ....1

About Your Tablet ....1

Touchscreen 1

Rugged Features....1

Package Contents....2

Optional Accessories....2

Disclaimer ....3

Warranty Information....3

Contacting Xplore: Service and Questions ....3

Chapter 2 Tablet Specifications .... 5

Major Features....5

Discrete GPS with SBAS ....7

Security 7

Chapter 3 Safety and Conformity 9

Declaration of Conformity....9

Important Safety Information ....9

Chapter 4 Getting Started.... 13

Overview of the XSLATE D10 External Features 13

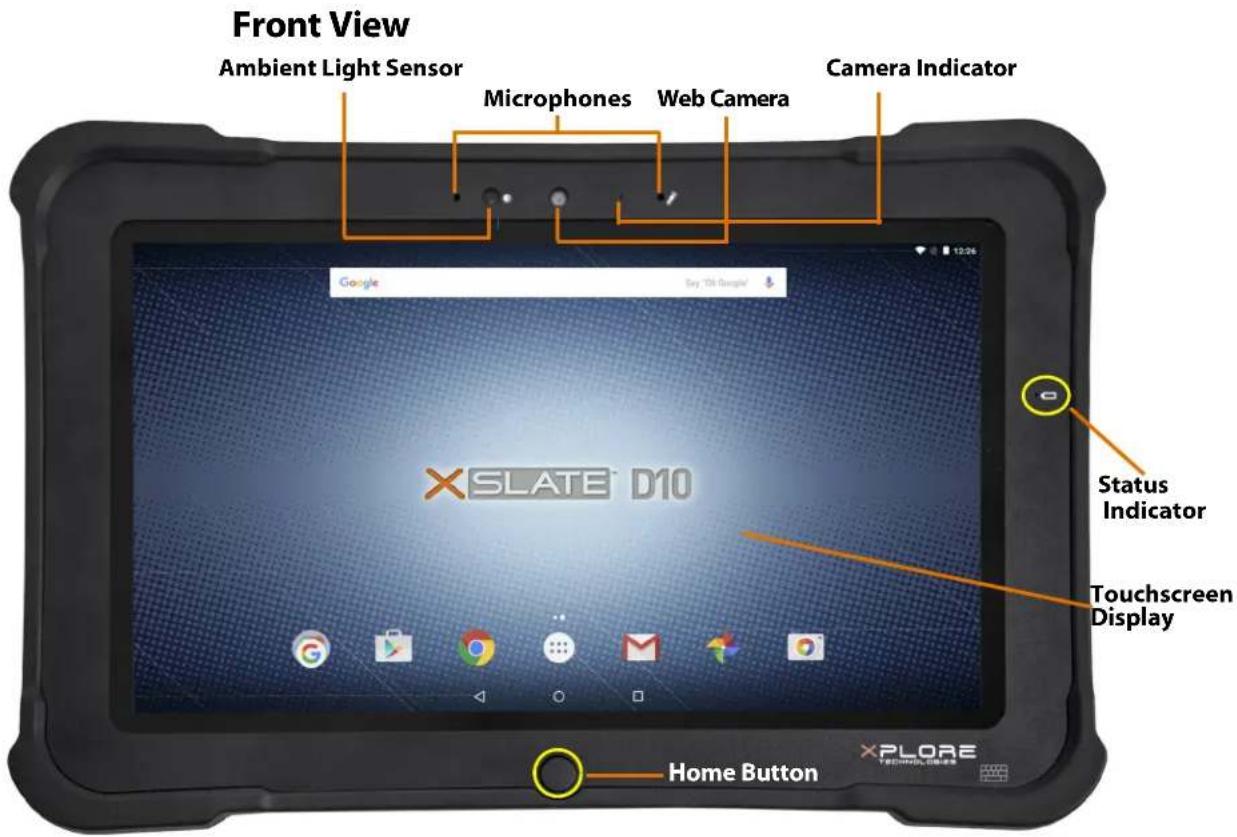

Front View 13

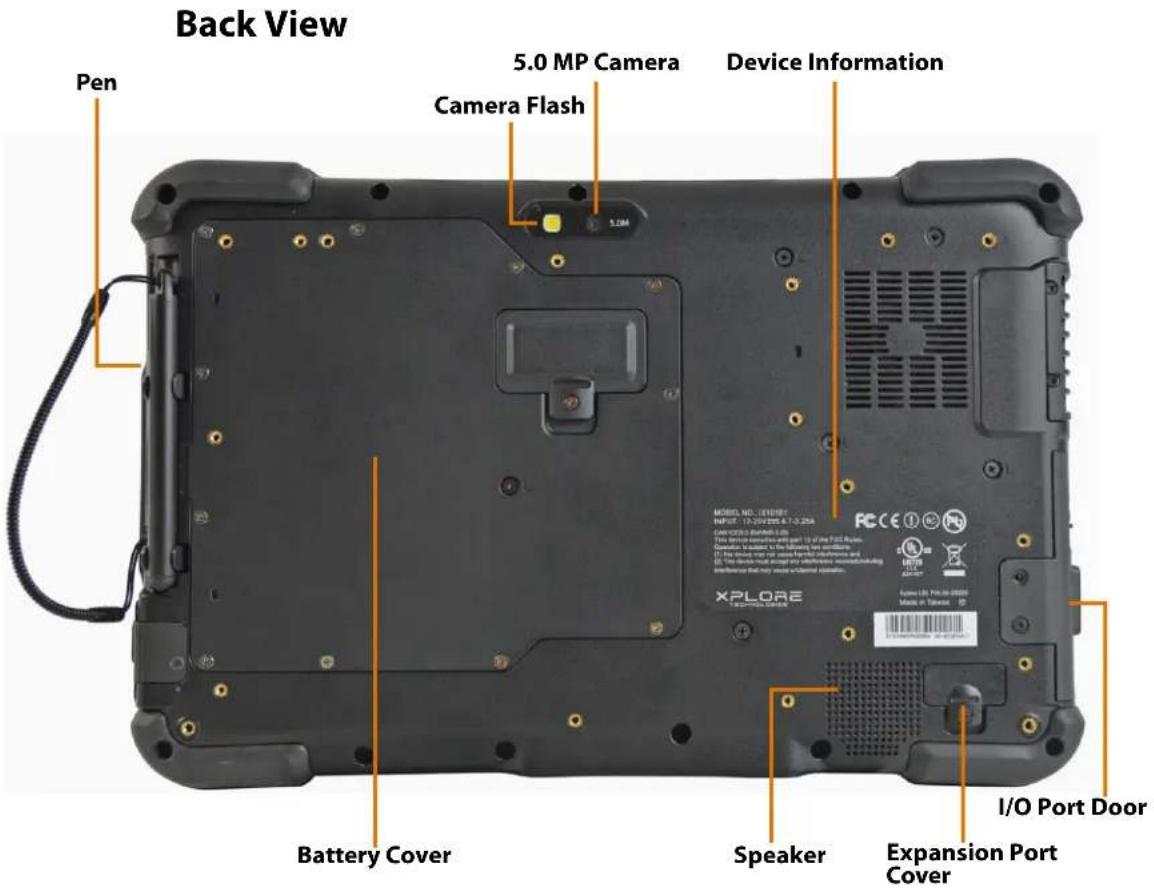

Back View 14

Right Side View 15

Left Side View 16

Bottom View 17

Quick Start for Your Tablet 18

Turning on the XSLATE D10 18

Suspending Operation 18

Resuming Operation after Suspending 18

Screen Input 19

Camera Status and Battery Charging Indicators 20

Chapter 5 Troubleshooting.... 21

Problems and Solutions 21

Chapter 6 Maintaining the Tablet....23

Checking Power Cords and Connectors 23

Protecting the Tablet from Damages....23

Storing the Tablet 23

Caring for the Display Screen....23

Protecting the Tablet with a Screen Protector 24

Applying a New Screen Protector 24

Chapter 7 Agency Notices ....25

FCC Notices 25

WLAN: (Wi-Fi)....25

RF Exposure 26

Health and Safety Information 27

Exposure to Radio Frequency (RF) Signals 27

Specific Absorption Rate (SAR) Limits....27

DOC (Industry of Canada Notices) 28

Notice to Users of Radio and Television....28

UL Notice 29

Warning....29

System Disposal 29

Chapter 8 Environment....31

Environmental Policy .... 31

Compliance 31

Risk Reduction and Prevention Management 31

Communication....32

Continuous Improvement 32

Return and Recycling Program 32

Environmental and Sustainability Corporate Report....32

Appendix A Declaration of Conformity ..... 35

Index....37

Introduction to Your Tablet

1

Welcome

Welcome to the Xplore™ XSLATE™ D10 tablet, the rugged tablet designed, tested, and manufactured to meet the environmental and physical real-world challenges faced by today's mobile workers. Based on years of experience in rugged mobile applications, the XSLATE D10 is designed to withstand the abuses of everyday wear and tear. Advanced technology, innovative design, and a rugged case are just a few highlights of your tablet system.

NOTE: This guide assumes that you have basic experience using the Android ^™ platform. This tablet is shipped with Android 5.1, Lollipop OS.

About Your Tablet

The XSLATE D10 is a high-performance tablet that runs the Android operating system (OS). For quick start information, see Turning on the XSLATE D10 on page 18.

Touchscreen

The XSLATE D10 has a capacitive touchscreen for user input. The method you use to control the tablet includes:

• Using a passive pen that comes with the tablet

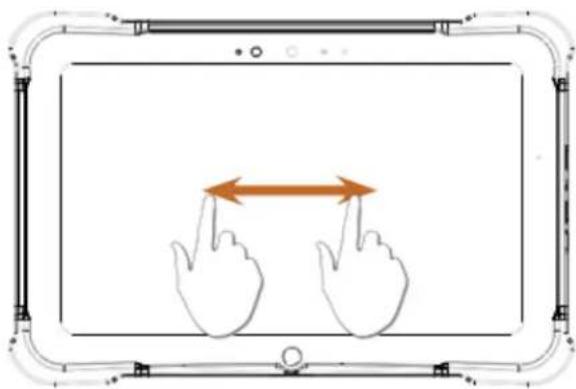

- Touching the tablet with your fingers. The screen has multifinger touch.
- Using the glove touch application that is included (Glove Touch Mode). You do not need special touchscreen gloves.

Rugged Features

XSLATE D10 tablets are engineered and tested to meet Military Standards for Environmental Extremes (MIL STD 810G). Your tablet includes the following features that make it exceptionally rugged and durable:

• Durable, long-lasting, plastic enclosure
• Interior magnesium alloy frame
- Bumper system and gasket protection mechanisms
• Solid state storage memory

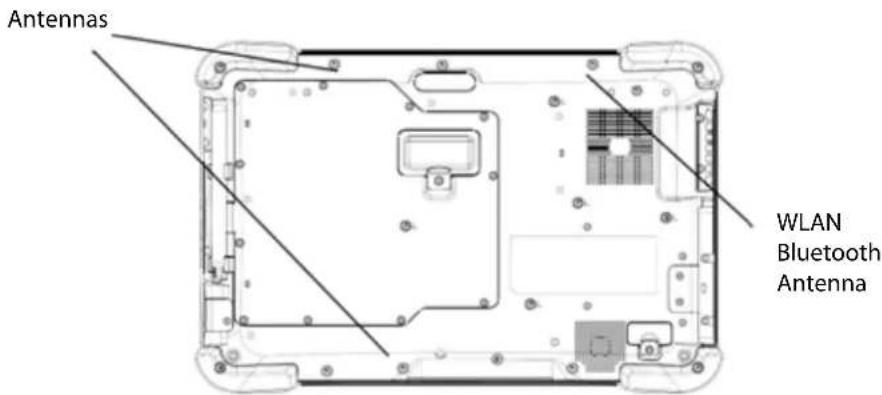

- Integrated, protected wireless LAN and WAN antennas for dual mode operation
- Chemically strengthened glass to give the display greater resistance to damage

Package Contents

Check to make sure your package includes the following items:

• Getting Started Guide
• AC adapter

• X S L A T E D 1 0 t a b l e t

- Warranty information

Optional Accessories

Docking Options

• xDock G2/xDim vehicle cradle and docking interface module
• Industrial Dock that combines the xDock G2 vehicle cradle and a sturdy stand for the office or warehouse.

Support Accessories

• Carrying handle with a pen
• Adjustable shoulder strap
• Rotating hand strap on the back of the tablet. Keeps the tablet secured to your hand for extended periods of use.

- K i c k s t a n d

• Companion keyboard
• You can see and explore the accessories for your tablet by going to http://www.xploretech.com/products/d10-rugged-tablet-pc and tapping the Accessories button.

Additional Accessories

• SD memory
  • External battery and brackets

• Power accessories

• 12-16V Input, 19V Output DC-DC converter (cigarette lighter adapter)

• 12-32V Input, 19V Output DC-DC converter (heavy duty cigarette lighter adapter)
• 18 - 60V Input, 13.8 V Output DC - DC converter, direct wire

Factory Options

You might have one of these options that can only be installed at the factory.

• Near Field Communication (NFC)

This technology is a short-range wireless connectivity standard that uses magnetic field induction to enable communication between devices when they're touched together, or brought within a few centimeters of each other.

• 1 D / 2 D b a r c o d e s c a n n e r

• H D M I input port

(There is an HDMI output by default.)

Disclaimer

The Xplore Technologies® Corporation has made every effort to ensure the accuracy and completeness of this document. However, because ongoing development efforts are made to continually improve the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes herein.

Warranty Information

The XSLATE D10 is backed by a standard 36-month International Limited Warranty. An extended International Limited Warranty is available. Check the warranty information included with your tablet for warranty terms and conditions.

Contacting Xplore: Service and Questions

To troubleshoot problems (including wireless and GPS problems), before you call, read the FAQ page of the Xplore Technologies web site.

Go to http://www.xploretech.com. Tap Support > FAQ.

If you purchased your tablet from an authorized Xplore dealer, contact the dealer for service and support. If you purchased your tablet directly from Xplore, use any of the following methods to contact Xplore for service and support:

Website: http://www.xploretech.com

Send email to [e-mail].

Call toll free: 1-866-296-8541, option 3 Fax: [phone]

Before you contact Xplore, have the following information ready so that the customer support representative can more quickly provide a solution:

- Product name: XSLATED10

• Product serial number from the back of the tablet
• Conditions under which the problem occurred
• Any error messages that were displayed
• Type of device connected, if any

Tablet Specifications 2

Major Features

The Xplore XSLATE™ D10 tablet is a durable, lightweight, and rugged tablet, providing robust computing power. It is designed, tested, and manufactured to meet the environmental and physical real-world challenges faced by today's mobile workers. This table lists the major features of the XSLATE D10.

Physical
Dimensions 11.05" (28.1cm) x 7.07" (18 cm) x 0.86" (2.2cm) (W x H x D)
Weight Starting at 2.4lbs (1.09 kgs)
Processor
Central Processing Unit (CPU) Intel® AtomTM E3485 Quad Core, 2 Mb L2 cache
Processor speed 1.91 GHz
Memory/Storage
Main RAM 4GB DDR3L 1333 MHz
RAM Options None
Storage 64 GByte SSD (solid state device)
Storage Expansion One micro SDXC slot for additional memory storage
Display
Screen	10.1" WXGA (1366x768) rugged IPS LCD display that is LED backlitChemically strengthened glass for increased display damage resistance500 NITs direct bonded screen178 degree viewing cone (89 degree off axis)Contrast ratio 800:1 Aspect ratio 16:9Ambient light sensorPen input on screen10-finger multi-touch screenGlove touch capable
Graphics	Intel HD Graphics Gen 7
Interface
Integrated Communications • Wireless	LAN: 802.11ac Wi-Fi® and Bluetooth® 4.0• Dedicated GPS is standard and accurate to 2.5 meters• LAN: 10/100/1000 Gigabit Ethernet (RJ45)
Integrated Interfaces • 2 USB 3.0 ports	• Micro S D X C m e m or y• Micro HDMI-out port• Micro SIM card reader• Stereo headphones or speaker mini-jack. This jack is compatible with smartphone headsets.• Built-in microphones and speaker
Cameras • 5.0 MP documentation camera with flash and a 2 MP webcam
Operating System
Operating System (OS) • AndroidTM 5.1 platform, Lollipop OS
Power
Main Battery • 7.4V Serviceable lithium lon	• Recharge time: 3.5 hours (90%)• Battery life: Gets up to 8 hours on single battery, depending on operating system, power management, and applications in use.• Suspend life: Min. 5 days
External Battery • You can add an external second battery that is hot-swappable while the tablet is running on the main battery.Gets up to 14 hours and 20 hours with dual batteries.
AC Adapter	• Autosensing 100-240V, supplying19 V DC, with a current of 3.42 A;Supports 12~20V Input DC on tablet
Environmental
Temperature	• Operating temperature: -34°C to 60°C, -30°F to 140°FCold start: -20°C, -4°F• Storage: From -30°C to 70°C and from -22°F to 158°F
Humidity	• 95% non-condensing
Shock/ Drop	• Operating 5' (1.52 meters) dropped directly on plywood over concrete. 26 drops per Mil Std 810. External. Battery not installed.
Vibration	• Minimum integrity. Vehicle Vibration MIL STD 810G Truck and Composite Wheel Operating, Minimum Integrity Non-Operating
IEC Ingress testing	• IEC (60529) Ingress Tested to IP65 standard
Agency Approvals
Emissions and Immunity	• Tested to MIL-STD-461F• Immunity: CISPR 24 EN 55024 (US, CAN, EU)• Emissions: EN 55022, CISPR 22, CFR47 Part 15, Subpart B, ICES-003 for Class B (US, CAN, EU)
Safety	• CB Scheme, IEC 60950 (US, CAN, EU),UL60079-0: 2013, UL60079-11: 2013 R3.14, CAN/CSA-C22.2No. 60079-0: 11, CAN/CSA-C22.2 No. 60079-11: 14, UL Class I Zone 2, A,B, C, D (US,CAN), ATEX Zone 2

Discrete GPS with SBAS

The GPS in your tablet includes a satellite-based augmentation system (SBAS) that supports wide-area or regional augmentation through the use of additional satellite-broadcast messages. Such systems are commonly composed of multiple ground stations, located at accurately-surveyed points.

Your tablet comes with an embedded, discrete Global Positioning System (GPS) module that supports the Wide Area Augmentation System (WAAS) for improved accuracy in the United States, the European Geostationary Navigation Overlay Service (EGNOS) for improved accuracy in Europe, and the Multifunctional Satellite Augmentation System (MSAS) for improved accuracy in Japan.

The proper augmentation system is detected based on your location. No special selection is required. The augmentation feature uses signals from geostationary satellites to improve on the reliability and accuracy of the signals from the GPS satellites. You can use it with your preferred mapping applications to find your current location and locations you are searching for.

Security

The XSLATE D10 includes features that you can use to enhance the security of your data and serve as the foundation for complementary security technologies. The core security features include the following:

• Password-protected BIOS
  • Networking control
  • Trusted Platform Module, TPM 1.2

This feature has been developed by the Trusted Computing Group (TCG), a nonprofit group. With the built-in TPM 1.2, you can create and manage digital certificates, user and device authentication, full disk data encryption, and restricted network access.

For more information about this module, visit the TPM Summary page on the TCG web site.

- Kensington® cable lock slot

Safety and Conformity

3

Declaration of Conformity

Declaration of Conformity according to FCC Part 15, IC ICES-003, and R&TTE directives Responsible Party Name: Xplore Corp.

Address: 14000 Summit Drive, Suite 900, Austin, Texas 78728

Telephone: [phone]

Declares that product: Model Series: XSLATE™ D10 complies with Part 15 of the FCC Rules. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and, (2) This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications to this unit not expressly approved by the party responsible for compliance may void the user's authority to operate this equipment. For more information about FCC, IC, and EU rules and their applicability to the XSLATE D10, see AGENCY NOTICES on page 25.

Important Safety Information

Before you use the XSLATE D10 (referred to as the tablet), read these safety instructions and the operation instructions in this handbook.

Failure to observe all these instructions voids the Limited Warranty and may lead to suspension or denial of services to the offender, or legal action, or both.

Follow any special regulations governing the use of the tablet and, if radio-enabled, always switch it off in areas where radio devices are forbidden or when the radio device can cause interference or danger.

Always follow any safety laws and regulations pertaining to the use of cell phones and two-way radios, because these laws and regulations typically apply to the use of the wireless-enabled tablet.

Observe all restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, and wherever blasting operations are in progress or in any area in which restrictions on radio transmissions are imposed. Switch off the tablet when in an aircraft. The tablet is not FAA-approved for use on aircraft. The effect of the use of the tablet in aircraft is unknown. Using the tablet in an aircraft may affect aircraft instrumentation, communication, and performance; may disrupt the network; and may be illegal.

Operating the wireless-enabled tablet might interfere with the functioning of inadequately protected medical devices such as pacemakers. Consult a physician or the manufacturer of the medical device if you have any questions.

Radio signals from your tablet will not affect the operation of most modern equipment, but certain electronic equipment, including automotive systems, may not be shielded against radio signals from your tablet. Check with the manufacturer of your motor vehicle or the manufacturer's representative to determine whether using the tablet will present any safety issues.

Avoid using the tablet in any environment that requires your full attention, such as when driving a vehicle. If you need to use your tablet while driving, have a passenger use it for you or find a safe location to halt your vehicle.

WARNING: B ATTERIES

Use only battery types specified in this guide. Using any other type of battery can be dangerous and can disable the tablet. Do not drop or mishandle the batteries, immerse them in water, or subject them to high heat. Doing so could increase the risk of explosion or leakage, and possibly cause injury.

The lithium-ion batteries used in this equipment contain material that is hazardous to your health. If battery contents come in contact with the eyes, IMMEDIATELY flush the affected area with clean water for 15 minutes and have someone else summon medical attention for you. Unaffected persons should assist the affected individual in the vital first flushing of the eyes.

Recharging the battery must only be carried out in a nonhazardous area using the supplied AC adapter. The definition of hazardous areas can be found in Standard EN 60079-10.

WARNING: When operating the tablet in a known explosive environment do not remove or replace the battery while the circuit is live. Before removing the battery, verify that the area is known to be free of ignitable concentrations of flammable substances. EXPLOSION HAZARD – DO NOT DISCONNECT WHILE CIRCUIT IS LIVE UNLESS AREA IS KNOWN TO BE NON-HAZERDOUS.

The primary internal battery is replaceable by an Xplore Technologies* technician, an Xplore certified repair center, an approved reseller technician, or your IT professional. It should only be replaced in a safe, nonhazardous place.

AVERISSEMENT: RISQUE D'EXPLOSION. NE PAS DÉBRANCHER TANT QUE LE CIRCUIT EST SOUS TENSION, À MOINS QU'IL NE S'AGISSE D'UN EMPLACEMENT NON DANGEREUX.

EXPLOSION HAZARD: DO NOT REPLACE THE BATTERY UNLESS POWER HAS BEEN TURNED OFF AND THE AREA IS KNOWN TO BE NONHAZARDOUS.

AVERTISSEMENT: RISQUE D'EXPLOSION—COUPER LE COURANT OU S'ASSURER QUE L'EMPLACEMENT EST DESIGNE NON DANGEREUX AVANT DE REPLACER LE BATTERY.

The external secondary battery is hot swappable. Therefore, you can replace the optional external battery yourself even while the tablet is still running and powered by the internal battery. However, you must replace it only in an area that is nonhazardous.

EXPLOSION HAZARD: SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2

AVERTISSEMENT: RISQUE D'EXPLOSION. LA SUBSTITUTIOND E COMPOSANTSP EUTR ENDRE CE MATERIEL INACCEPTABLE POUR LES EMPLACEMENTS DE CLASSE I, DIVISION 2

WARNING: Do not use any dock, any other accessory, or any attachment that is not manufactured or supplied by Xplore or an authorized Xplore accessories supplier. Use of any accessory or attachment that is not supplied or approved for use with the tablet by Xplore is not permitted because it might be hazardous.

Operate the tablet only from the type of power source indicated on the marking label. Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs and convenience receptacles, and at the point where cords exit from the tablet or its dock. Do not overload wall outlets, extension cords, or integral convenience receptacles because this can cause fire or electric shock.

Unplug the tablet and refer the tablet and dock for service to qualified service personnel if any of the following conditions occur:

• The power supply cord or plug is damaged.
• The tablet or dock does not operate normally when you follow the instructions in this guide.
• The tablet or dock exhibits a distinct change in performance.

Adjust only controls for which there are instructions in this book. An improper adjustment of other controls can result in damage and might require extensive work by a qualified technician to restore the tablet or dock to normal operation.

Getting Started 4

Overview of the XSLATE D10 External Features

The photos in this section show the buttons, slots, and ports on the Xplore™ XSLATE™ D10 tablet. For quick start information, see TURNING ON THE XSLATE D10 on page 18.

Feature	Description
Ambient Light Sensor	Measures the light in the environment and adjusts the display brightness.
Microphones	Optimize sound detection for conferencing and voice recording.
Web Camera	Lets you interact with people online, stream video, or capture color images with a 2MP, 1080 HD web camera.
Camera Indicator Indicates that the web or documentation camera is active.
Status Indicator Indicates system status (On, Off, Charging)
touchscreen Display	Lets you use your finger or pen to access all the functions of the 10.1" display.
Home Button	Displays the home screen.

Feature	Description
Passive Pen	Pen device that works like a mouse to interact with the touchscreen
Camera Flash	Flash that provides light when you take pictures
5.0 MP Camera	5-megapixel camera for high quality photographs or HD video
Device Information	Provides product number, model number, FCC, safety, and electrical information about the tablet
I/O Port Door	Provides access to the I/O ports
Expansion Port Cover	Provides access to the expansion ports
Speaker Integrated speaker for audio playback
Battery Cover	Provides access to the battery

Right Side View

Feature	Description
Ethernet LAN Port Connector to the IEEE 802.3 standard for LAN technology
Volume Control for the speaker volume
Power On/Off, Suspend/Resume Button	Turns the power on or offSuspends and resumes tablet operation
19V DC Power Jack Power connector
Screen Orientation Lock	Locks the orientation of the screen in the vertical or horizontal position

Left Side View

Feature	Description
Micro WAN SIM Card Slot Slot for inserting the SIM card for 4G/LTE data usage
USB 3.0 Ports These ports are connectors for peripheral devices. USB 3.0 is the next major revision to the Universal Serial Bus (USB) and provides up to a 10X increase in throughput. USB 3.0 devices are compatible with USB 2.0 and USB 1.1 ports and connectors.
Audio Connector Connects to devices like headphones for sound output.
Micro HDMI Out	This port is a miniaturized version of the High Definition Multimedia Interface (HDMI) specification for combining audio and video into a single digital interface so you can connect smartphones and other devices to your tablet.
Micro SD Card Slot	Opening where you insert a micro SD Card so the built-in reader can read and write to it, providing you with more memory for your tablet.

Bottom View

Feature	Description
Kensington Lock Slot Connector for the optional Kensington MicroSaver® or another compatible security cable. Contact your reseller for information regarding the Kensington security cable.
Dock connector for the optional Xplore Tablet Dock	Connects the tablet to the xDock G2 vehicle cradle.
Guide Pin Receptacles	Helps assure a secure connection for attaching to the dock.

NOTE: For docking accessories, see OPTIONAL ACCESSORIES on page 2 of this document, or for more details, check the accessories on the web site for the XSLATE™ D10.

Quick Start for Your Tablet

Turning on the XSLATE D10

1. The first time you turn on the tablet, be sure to plug it in to an external power source with your AC adapter.
   From now on, you can start the tablet without plugging it in if the battery is charged.

2. Turn on the tablet by pressing the Power button.

The Xplore logo appears.

1. Let the tablet finish booting up.

2. After it has started up, you can follow the configuration instructions on the screen.

Suspending Operation

To conserve battery power when you do not want to turn off the tablet, put the it into suspend mode. (You can suspend operation without closing any apps.)

The default configuration is for the tablet to enter the suspend mode automatically after 5 minutes of no activity.

1. To manually enter the suspend mode, press the Power button briefly and release.

The display turns off, without displaying any confirmation menu.

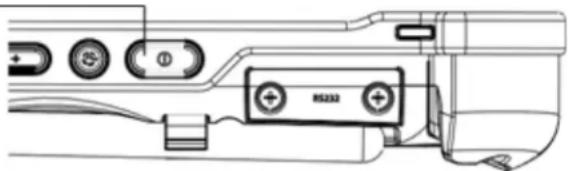

Power On/Off Display Toggle and Suspend/Resume Button

Resuming Operation after Suspending

To resume tablet operation from suspend mode, follow the same procedure as turning the tablet on.

1. Press the Power button.

If the tablet does not power on, then the battery on the tablet might have fully discharged. If this is the case, then plug the tablet into AC power and repeat the step.

Screen Input

The screen allows 10-finger Multi-Touch or Glove Touch. These illustrations show some of the ways the tablet responds to your touch, even to two or more fingers. The XSLATE D10 also responds when you are wearing gloves even if they are not special gloves for touchscreens.

Touch: Select item or option

Touch and Hold: Open special menu

Drag: Scroll the screen

Flick: Scroll the screen quickly

Drag and Drop: Move an item

Touch: Zoom in or out

Touch and Hold: Open special menu

Camera Status and Battery Charging Indicators

This is the front of the tablet with the two indicators circled.

This table explains the status indicators. The battery status indicator tells you the status of the battery. The camera indicator shows you if the camera is on.

Battery Status Indicator
Power Condition Off On Sleep
AC adapter, battery is charging Orange	(blink)	Green (blink)	Orange (blink)
AC adapter, battery is fully charged	Orange	Green	Green (slow blink)
Battery power	Off	Green	Green (slow blink)
Battery power is low at < 15% Off Red		(blink)	Red (blink)
Battery power is critical at < 8%	Off	Red	Red
Camera Indicator
Camera Indicator	Off	Blue	Off

Troubleshooting

Problems and Solutions

This table provides solutions to some problems. If you cannot solve the problem by taking the actions described here, then contact your local help desk or your reseller for further assistance.

Problem Possible causes and solution
The tablet will not start.	· The battery might be defective or discharged to a critically low level. Connect an external power supply (such as the AC adapter) or install a charged battery.· Internal components might be above or below the acceptable operating range, which is -20°C to 60°C, or -4°F to 140°F. After the temperature returns to a safe operating range, the tablet will start.
The tablet will not resume operation.	· The battery might be defective or discharged to a critically low level. When the battery reaches a critically low level, the tablet is forced into Suspend- to-RAM mode to avoid a total system power failure. Connect an external power supply (such as the AC adapter) or install a charged battery.· The tablet might be at the critical thermal limit. To avoid damage to heat-sensitive components, the tablet enters Suspend-to- RAM mode when the it operates above 60°C, or 140°F. Operation automatically resumes when the tablet cools to below 60°C, or 140°F. Move the tablet to a cooler location after being suspended.
The status LED is red continuously.	· The tablet is on, running under battery power, and the charge level in the battery has reached acriticallevel. Plug the tablet into an AC/DC power source or install a charged battery.· The system has encountered a fault and is preventing normal operation. Contact your local help desk.
The status LED is red and blinking.	· The tablet is powered on, running under battery power, and the charge level in the battery is at a minimum warning level. Plug the tablet into an AC/DC power source or install a charged battery.
The display screen is blank or difficult to read.	· Confirm that the tablet is on (the Power icon is continuously displayed in the Status area in the upper right corner of the screen).· The brightness might be set too low, causing the screen to appear too dark. To change system brightness, follow these steps:1. Tap the Settings icon.The Setting menu comes up.2. In the Device section, tap Display> Brightness level, or tap Display > Adaptive Brightness.· The video time-out might have expired. Tap the display screen to reactivate the display. Note: This is a normal, power-saving feature.
The headphone or speaker volume is too low.	· The volume might be in Mute mode or set too low. Follow the instruction to adjust the headphone or speaker volume.· Make sure that the volume control in your audio software is set to an audible level.
An external device is not working with the tablet.	• You might need to enable the device in the tablet's configuration program. Contact your local help desk or reseller.

Maintaining the

Tablet

This chapter provides information about how to keep your tablet in top working condition.

Checking Power Cords and Connectors

Check AC and DC power cords and power connectors periodically for damage. Replace the power cord immediately if you find any damage.

Protecting the Tablet from Damages

1. Your tablet is designed to sustain a multiple-axis drop to an unyielding surface. Do not intentionally drop the tablet, because the cumulative effects of multiple drops might damage it.
2. Do not place heavy objects on the tablet.
3. Do not disassemble the tablet.
4. Keep the tablet at least 5 inches (13 centimeters) away from any electrical appliance that generates a strong magnetic field, such as a motor, magnet, TV, refrigerator, or large audio speakers.
   • Install a screen protector to preserve the screen.

Storing the Tablet

You can store the tablet in the off state for about 30 days with a fully charged battery installed. After this period, recharge the battery or replace it with a charged battery.

Caring for the Display Screen

To clean the display screen, dampen a soft cotton cloth with water and gently wipe the screen surface. You can also use isopropyl alcohol to clean the screen.

Protecting the Tablet with a Screen Protector

The screen protector is a durable, replaceable writing surface that protects the display screen from abrasion.

To get screen protectors, check with your reseller, or go to the Xplore web site at www.xploretech.com for ordering information. Additional information about installation is included with the screen protectors.

Applying a New Screen Protector

Follow the instructions included with your screen protector replacement kit.

NOTE: If a screen protector is already on the display screen, remove it before installing the new screen protector.

Agency Notices 7

FCC Notices

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device must not cause harmful interference.
• This device must accept any interference received, including interference that might cause undesired operation.

Modifications not expressly approved by the Xplore corporation could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, the tablet might cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, then you are encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

WLAN: (Wi-Fi)

Note that 5150-5250MHz (Ch. 36-48) is restricted to indoor use only in many countries, including the United States.

RF Exposure

Tests for the Specific Absorption Rate (SAR) are conducted using standard operating positions specified by the FCC with the tablet transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the SAR level of the tablet while operating can be well below the maximum value. This is because the tablet is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.

Before a tablet model is available for sale to the public, it must be tested and certified to the FCC and IC that it does not exceed the limit established by the government adopted requirement for safe exposure. The tests are performed in positions and locations (next to body and lap) as required by the FCC for each model. (Next-to-body and next-to-lap measurements can differ among tablet models, depending on the available accessories, the FCC requirements, and the IC requirements.) While there might be differences between the SAR levels of various tablets and at various positions, they are all required to meet the government regulations for safe exposure.

This device was evaluated and shown to comply with FCC and IC SAR RF exposure requirements.

Avoid covering or holding antennas when transmitting. Antenna locations are shown in this figure.

Health and Safety Information

Exposure to Radio Frequency (RF) Signals

Your wireless tablet is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government as well as the European directive set by the Radio and Telecommunications Terminal Equipment (R&TTE). These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population.

The guidelines are based on the safety standards previously set by both U.S. and international standards bodies:

• American National Standards Institute (ANSI) IEEE. C95.1-1992
• National Council on Radiation Protection and Measurement (NCRP). Report 86. 1986
• International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1996
- Ministry of Health (Canada), Safety Code 6. The standards include substantial safety margin designed to assure the safety of all persons, regardless of age and health.
• European Union R&TTE directive for the Specific Absorption Rate

Specific Absorption Rate (SAR) Limits

The exposure standard for wireless mobile tablets employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. The SAR limit set in the European Union by the R&TTE is 2.0W/kg.

NOTE: In the U.S. and Canada, the SAR limit for mobile tablets used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. In Europe, the SAR limit for mobile tablets used by the public is 2.0 watts/kg (W/kg) averaged over 10 grams of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations.

DOC (Industry of Canada Notices)

Notice to Users of Radio and Television

This device complies with Industry Canada license-exempt Radio Standards Specifications (RSS). Operation is subject to the following two conditions:

1. This device must not cause interference.
2. This device must accept any interference, including interference that might cause undesired operation of the device.

The device might automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology. The device for the band 5150-5250 MHz is only for indoor usage to reduce the potential for harmful interference to co-channel mobile satellite systems. The maximum antenna gain permitted (for devices in the bands 5250-5350 MHz and 5470-5725 MHz) complies with the equivalent isotropically radiated power (EIRP) limit, also known as the effective isotropically radiated power. The maximum antenna gain permitted (for devices in the band 5725-5850 MHz) complies with the EIRP limits specified for point-to-point and non-point-to-point operation as appropriate, as stated in section A9.2(3). In addition, high-power radars are allocated as primary users (meaning they have priority) of the 5250-5350 MHz band, and this radar might cause interference and/or damage to LE-LAN devices.

IC radiation exposure statement

This EUT is in compliance with the SAR for general population/uncontrolled exposure limits in IC RSS-102 and has been tested in accordance with the measurement methods and procedures specified in IEEE 1528.

Intel® Dual Band Wireless-AC 7260/AC3160 Country-specific Compliance Statements

Hereby, the Xplore corporation declares that the Intel Dual Band Wireless-AC 7260/3160 complies with the essential requirements and other relevant provisions of Directive 1999/5/EC. This equipment is marked with the CE symbol and can be used throughout the European community.

Sierra EM7355/7305 Country-specific Compliance Statements

Hereby, the Xplore corporation declares that the Sierra EM7355/7305 complies with the essential requirements and other relevant provisions of Directive 1999/5/EC. This equipment is marked with the CE symbol and can be used throughout the European community.

UL Notice

This unit requires an AC adapter to operate. Use only UL Listed Class 2 Adapters with an output rating of 19 VDC, with a current of 3.42 A. AC Adapter output polarity:

This is for authorized repair technicians only.

Warning

For continued protection against risk of fire, replace only with the same type and rating fuse.

There is a danger of explosion if the Lithium (clock) battery is incorrectly replaced.

Replace only with the same equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instruction.

System Disposal

In the event of system disposal, observe the following information regarding proper procedures in the State of Vermont.

The liquid crystal display (LCD) lamps used in this system contain mercury. In the event of system disposal, be sure to follow local guidelines.

Environment

Environmental Policy

Xplore Technologies is committed to managing health, safety, and environmental (HS&E) matters as an integral part of our business. In particular, it is our policy to assure the HS&E integrity of our processes and facilities at all times and at all places. We will do so by adhering to the principles of compliance, risk reduction, prevention management, communication, and continuous improvement as described in this chapter.

Compliance

We will comply with applicable laws and regulations and will implement programs and procedures to assure compliance. Compliance with HS&E standards will be a key ingredient in the training, performance reviews, and incentives of all employees.

Risk Reduction and Prevention Management

We will seek opportunities, beyond compliance requirements, for reducing risk to human health and the environment, and we will establish and meet our own HS&E quality standards where appropriate.

We will employ management systems and procedures specifically designed to prevent activities and/or conditions that pose a threat to human health, safety, or the environment. We will look for ways to minimize risk and protect our employees and the communities in which we operate by employing clean technology, including safe technologies and operating procedures, as well as being prepared for emergencies.

We will strive to minimize releases to the air, land, or water through use of cleaner technologies and the safer use of chemicals. We will minimize the amount and toxicity of waste generated and will ensure the safe treatment and disposal of waste. We will manage scarce resources, such as water, energy, land, and forests in an environmentally sensitive manner.

Communication

We will communicate our commitment to HS&E quality to our employees, vendors, and customers. We will solicit their input in meeting our HS&E goals and in turn will offer assistance to meet their goals.

Continuous Improvement

We measure our progress as best we can. We will review our progress at least on an annual basis. We will continuously seek opportunities to improve our adherence to these principles, and will periodically report progress to our stakeholders.

If you do not have access to the internet, please contact our technical support at [phone] option 3.

Return and Recycling Program

You can return your unwanted Xplore products and batteries to us, or find a recycling center near you. If your old Xplore product or batteries have no value or you want to recycle in a socially and environmentally responsible manner, visit our Recycling page on our web site by going to our site, http://www.xploretech.com, and clicking About Us > Environment. On the Environment page, scroll down and click the Recycling Program link. On the Recycling page, click the Contact Support link to submit a technical support request. Fill in the fields. In the Message field, type I want to recycle my product. Click Submit and an Xplore Technologies specialist will contact you with shipping instructions.

Alternatively customers can choose to drop their unwanted Xplore products at a local recycling center. For batteries, Xplore Technologies has partnered with Call2Recycle® (http://www.call2recycle.org/). Call2Recycle is a program of the Rechargeable Battery Recycling Corporation (RBRC) promoting environmental sustainability by providing free battery and cell phone recycling in North America. RBRC is a 501(c)4 nonprofit public service organization.

For the return of any other Xplore Product (excluding batteries) Xplore Technologies has partnered with R2 Solutions (https://sustainableelectronics.org). R2 Solutions (R2S) is a nonprofit organization established to house the R2 Practices for proper recycling practices.

Environmental and Sustainability Corporate Report

As the manufacturer of the world's most advanced ruggedized tablet, and peripherals, Xplore Technologies is recognized in the efficient design and manufacturing of it products. In this inaugural Corporate Environmental Responsibility Report (CERR), we outline our plans and aspirations to sustain our environment. As you review this report, we welcome your candid feedback. We know that CERR is a journey and your input will help us along the way.

In 2011, Xplore Technologies Corporation of America established the Xplore Technologies Environmental committee to proactively work with stakeholders including customers, nongovernmental organizations (NGOs), and other interested groups on environmental issues. As a result of the committee's work, we have implemented initiatives to improve our performance across the spectrum of corporate environmental responsibility issues. Our progress on implementing these issues is outlined in this report.

While the Xplore Technologies Environmental committee has only been active since 2012 we have always cared for the environment and this has been a core value since Xplore Technologies was founded more than fifteen years ago. We are proud of our accomplishments to date and we are committed to continuously improve in the future.

Publishing this report is a significant step toward the goal of becoming an environmental sustaining leader of our industry. Going forward, we will perfect our environmental performance and transparency. We will also leverage our role as an industry leader and actively support international organizations and industry associations working to improve environmental conditions.

The Xplore Technologies 2012 Environmental Sustainability Report is located at http://www.xploretech.com/environment/policy_and_report. Scroll to the bottom of the page and click Environmental Sustainability Report 2012. Feel free to save this to your personal files. If you do not have access to the internet please call technical support at [phone] option 3 and request a digital copy be sent to your email.

Declaration of Conformity

A

Xplore Technologies, Corp. hereby declares under our sole responsibility that the product

Name: XSLATE D10 Top Handle with tether and pen

Model: iX101B1 Part Number: 11-16036

to which this declaration relates, is in compliance with all the applicable essential requirements, and other provisions of the European Council Directives listed. The conformity assessment procedure used for this declaration is Annex IV of Directive 1999/5/EC. This product will bear the CE Mark label (CE !)

Directives

• Council Directive 2012/19/EU (WEEE Directive)
• Council Directive 2011/65/EC (RoHS Directive)
• Regulation (EC) No 1907/2006 (Registration, Evaluation, Authorisation & restriction of Chemicals) (REACH)
• Council Directive 2009/125/EC (ErP Directive)
• Council Directive 72/245/EEC including amendments and corrigenda to 2004/104/EC.

- The iX101B1 is only compliant to the stated directive when used with the X-DIM G2 dock, Xplore PN: 02-05147

• Council Directive 94/9/EC (ATEX Directive)

II 3 G Ex ic IIC T5 Gc

• EN 60079-0:2012
• EN 60079-11:06-07

• Council Directive 2004/108/EC (EMC Directive)

• EN 55022:2010
• EN 55024:2010
• EN 61000-3-2: 2006 +A1:2009 +A2:2009
• EN 61000-3-3: 2008

• Council Directive 2006/95/EC (Low Voltage Directive)

- EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011

• Council Directive 1999/5/EC (Radio and Telecommunications Terminal Equipment) (R&TTE Directive)

• EN 301 489-1 V1.9.2:2011 - EN 301 908-1 V5.2.1:2011
• EN 301 489-3 V1.4.1:2002 - EN 301 511 V9.0.2
• EN 301 489-07 V1.3.1:2005 - EN 301 893 V1.7.1
• EN 301 489-17 V2.2.1:2012 - EN 62209-2:2010
• EN 301 489-24 V1.5.1:2010 - EN 50566:2013
• EN 300 328 V1.8.1: 2010 - EN 62311:2008
• EN 300 440-1 V1.6.1:2010 - EN 50332-2:2013
• EN 300 440-2 V1.4.1:2010 -

03 December 2015 Austin, TX, USA

David J Ball Date

Place

Senior Regulatory and Compliance Specialist

The technical construction file is available at:

Xplore Technologies Corp

14000 Summit Dr, Ste 900

Austin, TX 78728

USA 888-44-XPLORE, FAX: [phone], www.xploretech.com

Index

Numerics

10-finger multitouch 19

5.0 megapixel camera 14

A

AC adapter

100 to 240 volts 6

voltage autosensing 6

Additional Accessories 2

ambient light sensor 13

Android

Lollipop OS 1

OS, operating system, platform 6

antennas

LAN, WAN 1

audio connector 16

B

barcode scanner 2

battery

charging indicator 20

conserve power 18

cover 14

external 2,6

fully charged 20, 23

hot-swappable 6

life 6

lithium-ion battery replacement 29

power critical 20

power low 20

recharge time 6

recycling 32

second 6

storing 23

battery indicator

using AC adapter 20

battery life

dual batteries 6

in suspension 6

battery status

indicator 20

battery, main 6

BIOS, password protected 7

Bluetooth 6

C

cable lock 7

camera

documentation with 5 megapixels 6

indicator 20

web camera with 2 megapixels 6

camera flash 14

carrying handle 2

Central Processing Unit (CPU) 5

clean

display screen 23

companion keyboard 2

conserve battery power 18

Contacting Xplore 3

D

Declaration of Conformity 35

declaration of conformity 9

device information

model number 14

product number 14

directive

ErP 35

low voltage 35

R&TTE 35

RoHS 35

disclaimer 3

Discrete GPS with SBAS 7

display

blank 21

strengthened 1

display specifications 5

disposing of LCD 29

docking

connector for XDock 17

industrial 2

Industrial Dock 2

vehicle cradle 2

xDim 2

xDock G2 2

docking options 2

documentation disclaimer 3

drag and drop 19

Drag with finger

on touchscreen 19

drop

tablet 6

dual batteries

battery life 6

E

Environmental and Sustainability Corporate Report 32

environmental compliance (HS&E) 31

Environmental Policy 31

Environmental Sustainability Report 33

ErP directive 35

ethernet LAN port 15

ethernet RJ45 6

European Geostationary Navigation Overlay Service (EGNOS) 7

expansion port cover 14

Exposure to Radio Frequency Signals safety 27

External battery 2

external features 13

F

Factory Options 2

FCC Notices 25

flick with finger 19

G

Getting Started Guide 2

glass

strengthened 1

Global Positioning System (GPS) 7

glove touch 19

glove touch application 1

glove touch capable 5

glove touch mode 1

gloves

touchscreen 19

gloves for touchscreen 1

GPS accuracy 6

H

hand strap 2

handle, carrying 2

HDMI input port

factory installed option 2

HDMI out 6, 16

headphone

low volume 21

Health and Safety Information 27

Health Safety & Environmental Compliance Resources 31

home button 13

I

I/O port door 14

Industrial Dock 2

J

jack

compatibility with headsets 6

for speaker 6

power 15

K

Kensington lock slot 17

keyboard 2

kickstand 2

L

LAN

ethernet 15

life of battery

in suspension 6

light

ambient sensor 13

lithium-ion

battery replacement 29

lock slot 17

Lollipop OS (operating system) 6

M

maintenance

cleaning 23

power cords 23

protecting 23

screen protector 23

Major Features 5

memory

card slot for more memory 16

micro SDXC 6

SD 2

memory SD card slot 16

memory storage 5

micro HDMI

out port 6, 16

micro SDXC

memory 6

micro SDXC slot 5

micro SIM card reader 6

micro WAN SIM card slot 16

microphones 13

model number 14

multifinger touch 1

Multi-functional Satellite Augmentation System (MSAS) 7

N

Near Field Communication (NFC) 2

0

operating system 6

out port

micro HDMI 6, 16

Overview of the XSLATE D10 External Features 13

P

passive pen 1, 14

passive stylus 14

pen

passive 14

power 6

jack 15

power accessories 2

power button

on/off 15

suspend mode 18

turn on tablet 18

power cords 23

Problems and Solutions

troubleshooting 21

Processor Speed 5

product number 14

protecting the tablet 23

R

R&TTE directive 35

Radio Standards Specifications (RSS) 28

RAM, main 5

recharge battery time 6

Rechargeable Battery Recycling Corporation 32

recycling

battery 32

Call2Recycle (for batteries) 32

recycling program 32

resume button 15

Resuming Operation 18

RF exposure

safety 26

rugged features 1

S

safety

emission limits 27

from RF exposure 26

radio frequency 27

radio frequency (RF) signals 27

SAR 27

safety information 9

scanner

barcode 2

screen

blank 21

clean 23

orientation lock 15

protector 24

specifications 5

Screen Input 19

SD memory 2

security features 7

service 3

shoulder strap 2

solid state device 5

solid state storage memory 1

speaker 14

low volume 21

special gloves

for touchscreen 19

Specific Absorption Rate (SAR) Limits 27

specifications

hardware, tablet 5

SSD 5

starting up the tablet 18

status Indicator (on/off) 13

status LED

red continuously 21

status LED is red 21

storage expansion 5

storing

battery 23

tablet 23

stylus

passive 14

Support Accessories 2

suspend mode

power button 15, 18

Suspending Operation 18

suspension life of battery 6

system disposal 29

T

tablet

drop 6

operating temperature 6

screen protector 24

storage temperature 6

storing 23

won't start 21

temperature

for operating tablet 6

tablet storage 6

touch

drag and drop 19

drag with finger 19

flick 19

select item or option 19

touch and hold

open special menu 19

touch zoom 19

touchscreen

capacitive 1

display 13

gloves 1

TPM 7

Troubleshooting

problems, solutions 21

Trusted Platform Module 7

turn on tablet

power button 18

Turning on the XSLATE D10 18

U

UL notice 29

USB ports 6, 16

V

vehicle cradle

docking 2

vibration

in vehicle 6

volume control 15

W

warranty 3

warranty information 2

web camera 13

indicator 13

Wide Area Augmentation System (WAAS) 7

Wi-Fi 6

wireless

Bluetooth 6

LAN 6

Wi-Fi 6

X

xDim

docking 2

xDock G2

docking 2

Z

zoom by touch 19
