USER MANUAL IAN 273011 MIOMARE

Assembly, operating and safety instructions

RO

SET DUŞ PENTRU CHIUVETĂ

GB / CY Assembly, operating and safety instructions Page 3

HR Upute za montažu, uporabu i sigurnost Stranica 6

Basin Shower Head Attachment

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Proper use

This product is suitable for all pressure-tight hot water systems such as central heating boilers, instantaneous water heaters, pressurised boilers and the like. It is not suitable for low-pressure water heaters such as wood or coal burning bath geysers, oil or gas bath geysers, open electrically heated water tanks. If in doubt please seek the advice of a plumber or heating engineer. The product is intended for personal use only and not for medical or commercial use.

• Description of parts

1 Basin Shower Head Attachment
2 Screw
3 Wall mounting
4 Dowel
5 Push button
6 Shower hose
7 Seal (ø 19 mm)
8 Fitting connection
9 Adapter piece
10 Seal (ø 21 mm)
11 Aerator
12 Spanner

●Technicaldata

Wash basin hand shower: approx. 180 x 33 mm (length x ø)

Shower hose: approx. 125 cm, 21 mm (G 12 ") standard connection

Fitting connection: M22 internal thread (with adapter piece) M24 external thread (without adapter piece)

Safety advice

RISKOWLOSSING!

OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN! Never

leave children unsupervised with the packaging materials. Danger of suffocation. Keep the product away from children. The product is not a toy.

■ CAUTION! RISK OF INJURY! Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly could lead to injury.

Please note that seals are wear parts and therefore will require to be replaced from time to time. Damaged parts could adversely affect safety and proper function.

CAUTION! RISK OF DAMAGE TO

PROPERTY! Have the installation done by experienced persons only. Leaks or escape of water can lead to serious damage to buildings or household fittings and furniture. Check all connections for leaks carefully.

■ Ensure that all seals are correctly seated to prevent leakage of water.

CAUTION! DANGER OF SCALDING!

When making the hot water setting please ensure that the temperature of the water is not too high.

Please read carefully through these operating instructions before installing and using the product. Keep all the safety advice and instructions in a safe place for future reference!

Do not use the wall mounting for holding onto or for support. The fastening materials and the

wall mounting itself are not designed for the loads which would arise.

■ The assembly is only to be carried out by competent persons.
Do not connect the shower hose 6 directly to a shut-off valve, always connect the shower hose with the provided fitting connection 8.

Operation

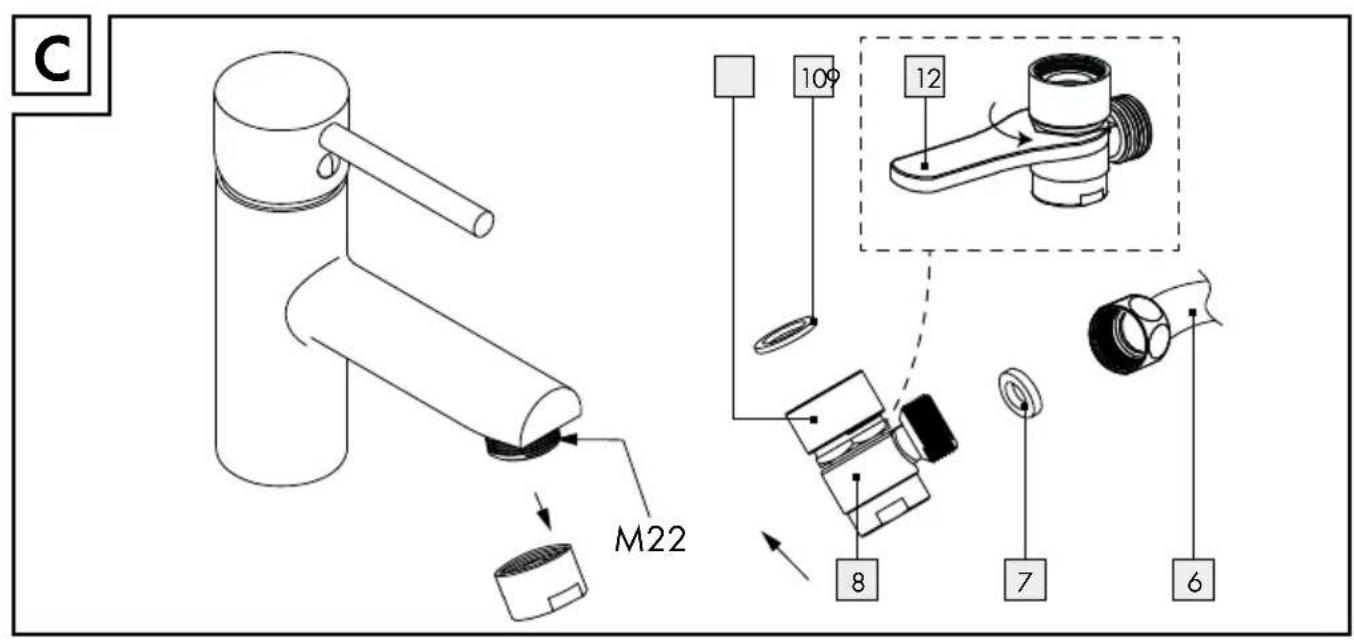

Note: with fittings with a M22 external thread please insert the supplied fitting connection with the adapter piece (M22 internal thread) screwed on, see fig. C.

With fittings with a M24 internal thread please insert the supplied fitting connection without the adapter piece (M24 external thread), see fig. D.

Note: cover each of the parts which are to be screw connected with a damp cloth or plastic clips. This will prevent them from becoming scratched.

□ Assembly: Please refer to fig. B - D.

● Maintenance and cleaning

Please note that sanitary fittings require special care and attention. Therefore you should follow the following advice:

■ Never use corrosive or alcohol-based materials for cleaning, as these could damage the product.
□ Clean your fittings with clean water, mild detergent and a soft cloth or leather only.
☐ Screw out the aerator 11 at regular intervals and remove lime deposits or foreign bodies.

Non-observance of the above care advice can be expected to result in damage to the surface of the fittings. In this event your rights under the warranty may be invalidated.

●Disposal

The packaging is wholly composed of environmentally friendly materials that can be disposed of at a local recycling centre.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Information

- Potability of mains water

☐ Find out about the potability of your mains water supply. Your local water authority or water supply company will be able to inform you.

The following general recommendations apply to the potability of the water from your pipework:

• Let the water run freely for a short time if it has been stagnating in the pipework for more than four hours. Do not use any of this stagnant water in the preparation of food or for drinking. This applies particularly as far as babies and infants are concerned. Failure to observe this advice may result in risks to health. Fresh water can be readily distinguished from stagnant as fresh water is noticeably cooler.
  Do not use stagnant water from chromium-plated pipework for the preparation of food or for drinking or for personal hygiene if you are allergic to nickel. This water may contain high quantities of nickel and trigger an allergic reaction.
• Do not use water from lead pipework for preparing food or drink for babies or infants. Do not use it for preparing food or drink during pregnancy. Lead dissolves in drinking water and is particularly damaging to the health of babies and young children.

- Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within three years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Tuš za umivaonik

• Uvod

(G 1/2"), conexiune standard

Racord baterie: M22 filet interior

(cu adaptor)

M24 filet exterior

fără adaptor)

Simple line drawing of a vertical mechanical device with a base and top component, labeled 1x1 (no text or symbols on the device itself)

1 x 3

1 x 6

Line drawing of a faucet with handle and base (no text or symbols)

C M22 109 12 8 7 6

D 10 12 M24 8 7 6

OWIM GmbH & Co. KG

Stiftsbergstraße 1

D-74167 Neckarsulm

Model-No.: HG00367

Version: 12/2016

Last Information Update · Stanje informacija

Versiunea informațiilor · Актуалност на информацията
