CAFC01 - Rack Accessory SANUS - Free user manual and instructions

Product Type	Rack Fan Accessory

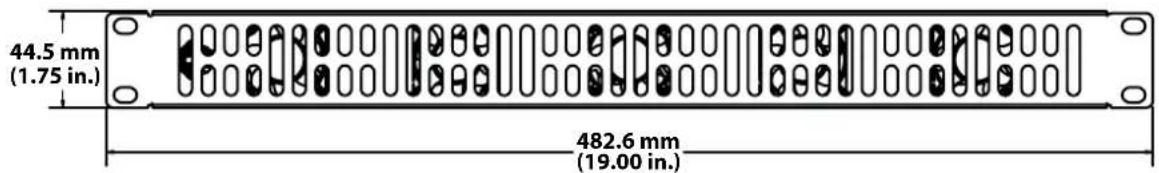

Compatible Rack Size	19 in (48.26 cm)
Power Supply Requirement	Compatible with CAPT01 SANUS EcoSystem Multi-volt Power Supply
Total Power	12V --- 0.5A
Warranty	5 years against manufacturer's defects
Mounting Hardware	Includes rack screws (optional 10-32 x 34 in. screws not included)
Safety Rating	For indoor dry locations only
Customer Service Americas	800-359-5520 / 651-484-7988 / [e-mail]
Customer Service EMEA	[phone] / [e-mail]
Customer Service Asia Pacific	86 755 8996 9226 / [e-mail]
Choking Hazard	Contains small parts, keep away from children
Assembly Required	Yes, refer to manual
Included Parts	Fan unit, plug connector
Compliance	Designed for dry indoor locations

Frequently Asked Questions - CAFC01 SANUS

What rack sizes does the CAFC01 support?

The CAFC01 is designed to work with any standard 19-inch (48.26 cm) rack.

What power supply is needed for the CAFC01?

It requires the CAPT01 SANUS EcoSystem Multi-volt Power Supply (not included) to operate.

What is the power consumption of the CAFC01?

The total power is 12V at 0.5A.

Does the CAFC01 come with mounting screws?

No, the mounting screws (10-32 x 34 in.) are optional and not included. They can be purchased separately from Sanus.

What is the warranty on the CAFC01?

Sanus provides a 5-year warranty against manufacturer's defects.

Can the CAFC01 be used outdoors?

No, it is designed for indoor dry locations only to reduce the risk of electric shock.

How do I contact Sanus customer service?

For the Americas: 800-359-5520 or [e-mail]. For EMEA: [phone] or [e-mail]. For Asia Pacific: 86 755 8996 9226 or [e-mail].

What is included in the box?

The box includes the fan unit and a plug connector. The power supply and rack screws are sold separately.

Is assembly required?

Yes, please read the entire manual before installation and follow the assembly instructions provided.

What should I do if parts are missing or damaged?

Do not return to the dealer; contact Sanus Customer Service immediately with details.

USER MANUAL CAFC01 SANUS

3D rendering of a rectangular electronic device with perforated metal panels and mounting holes (no text or symbols)

We are here to help!

Please contact Customer Service with any questions.

Customer Service

Americas: 800-359-5520 • 651-484-7988 • [e-mail]

Europe, Middle East, and Africa: [phone] • [e-mail]

Asia Pacifi c: 86 755 8996 9226 • [e-mail]

SANUS • 2221 Hwy 36 West • Saint Paul, MN 55113 USA

©2011 Milestone AV Technologies, a Duchossois Group Company. All rights reserved. Sanus is a division of Milestone. All other brand names or marks are used for identification purposes and are trademarks of their respective owners.

English - How to use this manual

For best results, reference both the text and illustrations.

OPT This item is optional

English Text Pages 3-5

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Thank you for choosing a Sanus Rack Accessory. The CAFC01 is designed to work with any 19 in. (48.26 cm) rack and to be powered by the CAPT01 SANUS EcoSystem™ Multi-volt Power Supply.

WARRANTY

The Sanus CAFC01 is covered by a five year product warranty against manufacturer's defects. If you have any questions or experience any problems with your Sanus product, please contact Sanus Customer Service.

Specifications

Total Power: 12V---0.5A

▲ CAUTION: Avoid potential personal injuries and property damage!

To Reduce the Risk of Electric Shock - Use Only in Dry Locations Indoors!

All doors and accessories must be grounded.

Do not use this product for any purpose not explicitly specified by manufacturer.

If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service or call a qualified contractor.

Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

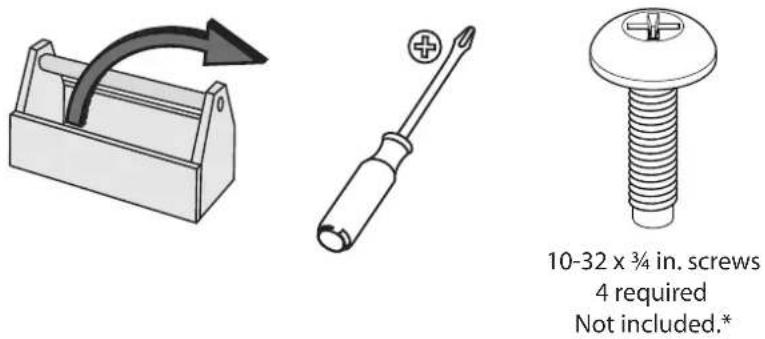

10-32 x 34 in. screws
4 required
Not included.*
*Available from Sanus.

Supplied Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

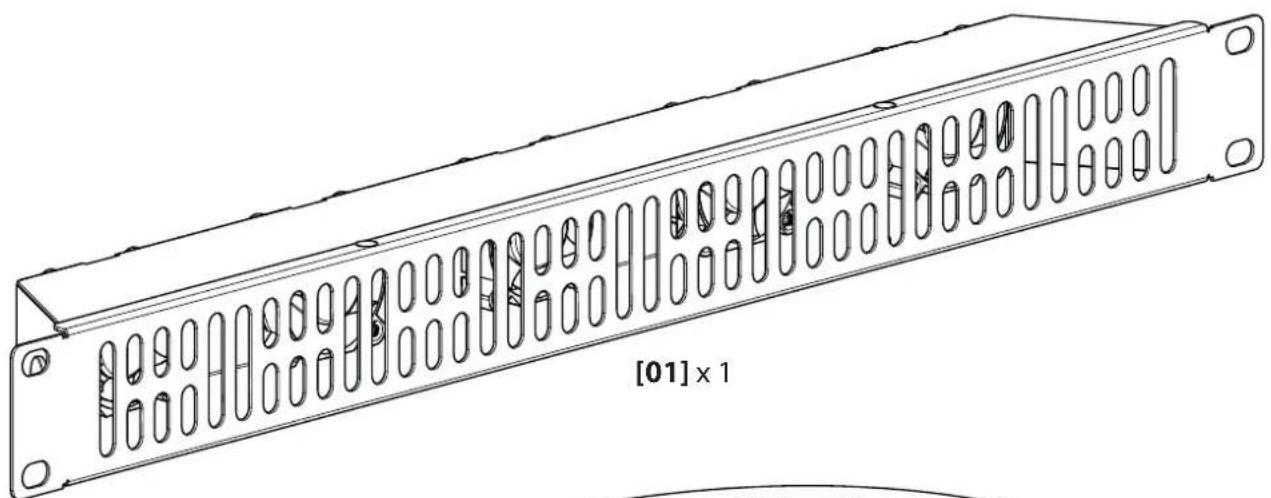

Technical line drawing of a rectangular electronic component with multiple slots and mounting holes (no text or symbols)

Diagram of a multi-layered electrical cable or tube structure with two connectors, labeled [02] x 1 (no text or symbols on the diagram itself)

2 Plug in Fan

Français

CONSIGNES DE SÉCURITÉ IMPORTANTES – CONSERVEZ CES INSTRUCTIONS – VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL AVANT D'UTILISER CE PRODUIT

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Français
