Product Type	Digital Control Panel
Brand	Yamaha
Model	DCP4V4S-US
Weight	235 g
Operating Temperature Range	0 to +40 °C
Storage Temperature Range	-20 to +60 °C
Power Supply	Powered by host device via Ethernet cable
Connection Type	RJ-45 Ethernet (two connectors)
Max Number of Panels per MTX	8
Max Total Cable Length (daisy-chain)	200 m
Panel ID Setting	DIP switches 1-3 (0 to 7)
Termination Setting	DIP switch 4 (ON for last panel)
LED Status Indication	Fast flashing, alternate flashing, sequence flashing
Package Contents	Control panel unit, plastic cover, owner's manual
Compliance	FCC Part 15 Class B, ICES-3 (B)/NMB-3(B)
Safety Warnings	No user-serviceable parts; do not open; avoid corrosive gases, salt air, vibration, extreme temperatures
Cleaning	Dry soft cloth; do not use thinners, solvents, or chemical wipes
Warranty Information	Visit http://europe.yamaha.com/warranty/ for details (EEA, Switzerland)

Frequently Asked Questions - DCP4V4S-US YAMAHA

What should I do if all LEDs are flashing quickly?

This indicates a hardware malfunction. The control panel may have failed. Contact your Yamaha dealer for inspection.

What does it mean when two LEDs flash alternately?

This indicates insufficient voltage due to low power supply from the host device. Use a CAT5e or higher Ethernet straight cable with all eight pins connected, and ensure total cable length does not exceed 200 meters.

What should I do if the LEDs light in sequence?

This indicates a communication malfunction with the host device. Check for duplicate Panel IDs, ensure the termination switch is ON for the last panel in a daisy-chain, and verify cable connections.

How do I set the Panel ID on the DCP4V4S-US?

Use DIP switches 1-3 to set a unique ID from 0 to 7. Refer to the diagram in the manual for switch positions.

How do I terminate the control panel in a daisy-chain connection?

Turn DIP switch 4 (termination switch) to ON only on the last control panel in the daisy-chain. Keep it OFF for all other panels.

How many control panels can I connect to one MTX?

Up to eight control panels can be connected to each MTX using a daisy-chain configuration.

What type of Ethernet cable should I use?

Use a CAT5e or higher Ethernet straight cable with all eight pins connected.

How do I detach the plastic cover?

Insert a slotted screwdriver into the small release slot at the bottom of the cover and gently pull up. Be careful not to damage the cover.

How should I clean the DCP4V4S-US?

Use a dry and soft cloth. Do not use paint thinners, solvents, cleaning fluids, or chemical-impregnated wiping cloths.

Where can I find warranty information for this product?

For customers in the European Economic Area (EEA), Switzerland, and Turkey, visit http://europe.yamaha.com/warranty/. For other regions, contact your local Yamaha dealer.

USER MANUAL DCP4V4S-US YAMAHA

Thank you for choosing the Yamaha DCP4V4S-US/EU Digital Control Panel. Refer to the Owner's Manual for the host device for operational details.

Bedienungsanleitung

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.
2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.
3. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class "B" digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices.

Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit "OFF" and "ON", please try to eliminate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by the interference.

Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America, Electronic Service Division, 6600 Orangethorpe Ave, Buena Park, CA90620

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

* This applies only to products distributed by YAMAHA CORPORATION OF AMERICA.

(class B)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAN ICES-3 (B)/NMB-3(B)

* Please keep this manual in a safe place for future reference.

WARNING

Always follow the ba+sic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:

Do not open

- This device contains no user-serviceable parts. Do not open the device or attempt to disassemble the internal parts or modify them in any way. If it should appear to be malfunctioning, discontinue use immediately and have it inspected by qualified Yamaha service personnel.

CAUTION

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the device or other property. These precautions include, but are not limited to, the following:

Location

• Do not place the device in a location where it may come into contact with corrosive gases or salt air. Doing so may result in malfunction.
• Before moving the device, remove all connected cables.
• Always consult qualified Yamaha service personnel if the device installation requires construction work, and make sure to observe the following precautions.
• Avoid locations that are exposed to constant vibration.
• Use the required tools to install the device.
• Inspect the device periodically.

Handling caution

• Avoid inserting or dropping foreign objects (paper, plastic, metal, etc.) into any gaps or openings on the device. If this happens, have the device inspected by qualified Yamaha service personnel.
• Do not rest your weight on the device or place heavy objects on it, and avoid use excessive force on the buttons, switches or connectors.

Yamaha cannot be held responsible for damage caused by improper use or modifications to the device, or data that is lost or destroyed.

NOTICE

To avoid the possibility of malfunction/ damage to the product, damage to data, or damage to other property, follow the notices below.

● Handling and Maintenance

• Do not use the device in the vicinity of a TV, radio, stereo equipment, mobile phone, or other electric devices. Otherwise, the device, TV, or radio may generate noise.
• Do not expose the device to excessive dust or vibration, or extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day), in order to prevent the possibility of panel disfiguration, unstable operation, or damage to the internal components.
• Do not place vinyl, plastic or rubber objects on the device, since this might discolor the panel.
• When cleaning the device, use a dry and soft cloth. Do not use paint thinners, solvents, cleaning fluids, or chemical-impregnated wiping cloths.

- About this manual

• The illustrations as shown in this manual are for instructional purposes only, and may appear somewhat different from those on your device.
• The company names and product names in this manual are the trademarks or registered trademarks of their respective companies.

Error Messages

LED Status	Meaning	Action
All LEDs are flashing quickly.	Cannot start up properly because of some problem with the hardware.	The control panel may have malfunctioned. Contact your Yamaha dealer.
The two LEDs are flashing alternately.	The voltage supply is insufficient due to low power supply from the connected host device.	Use CAT5e or higher Ethernet straight cable that has all eight pins connected. Also make sure to connect so that the total length of cables between the connected host device and the terminated control panel is no longer than 200 meters.
Each LED lights in sequence.	A malfunction has occurred with communication with the host device.	· If the device is connected to an MTX, certain Panel IDs may be duplicated. Make sure that each control Panel connected to the same MTX has a unique Panel ID.· Make sure that the termination switch is set to ON to terminate the last control panel in a daisy chain connection.· The cables may have been broken or there is some other cable connection failure. Use the proper cables.

Information for Users on Collection and Disposal of Old Equipment

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC.

By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

[For business users in the European Union]

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

This symbol is only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

(weee_eu_en_01)

European models

Purchaser/User Information specified in EN55103-1 and EN55103-2.

Conforms to Environments: E1, E2, E3 and E4

■ Package Contents (Please check before using)

• Control panel unit

• Plastic cover

• Plastic spacers (2; DCP4V4S-EU only)

• DCP4V4S-US/EU Owner's Manual (this document)

■ Installation Procedure

Settings and Connection

CAUTION

Do not connect control panels to any connector other than the [DCP] connector. Doing so can result in damage to the devices or even fire since they are not electrically compatible.

NOTE

• Be sure to switch OFF the power on all host devices before connecting, since the host devices supply power to all control panels.
• Up to eight control panels can be connected to each MTX. Refer to the device's Owner's Manual when connecting a device other than an MTX.
• Make sure that each control panel connected to the same MTX has a unique Panel ID.

① Set the Panel ID.

Set each Panel ID number to 0–7, using DIP switches 1–3 as follows.

0			1			2			3
1	2	3	1	2	3	1	2	3	1	2	3

4			5			6			7
1	2	3	1	2	3	1	2	3	1	2	3

② Set the termination.

To terminate the last control panel in a daisy-chain connection, turn DIP switch 4 (termination switch) ON. Make sure to turn DIP switch 4 OFF for the other control panels.

③ Connect RJ-45 connectors of the control panel and [DCP] connectors of the host device using Ethernet cables.

Ethernet cables can be connected to either RJ-45 connector. Use CAT5e or higher Ethernet straight cable that has all eight pins connected.

Pure electrical circuit lines without any symbols

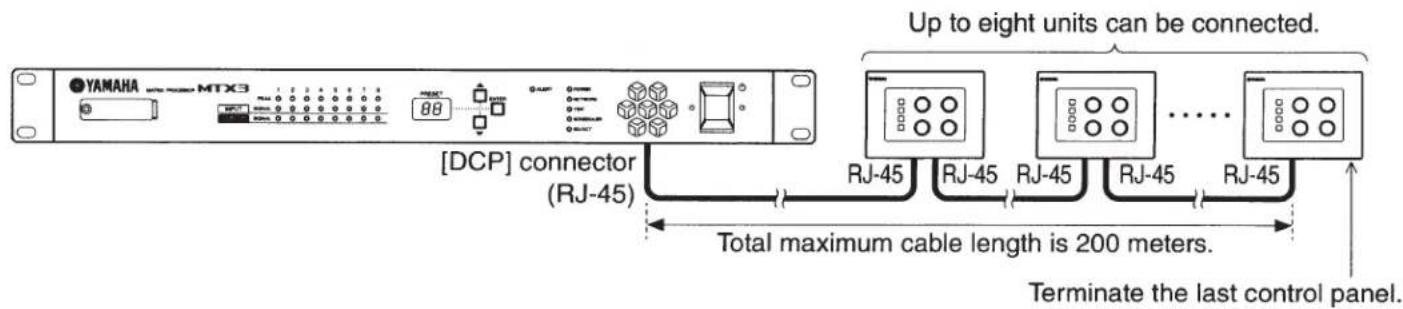

■ Connecting multiple control panels (MTX)

Make a daisy-chain connection to the [DCP] connector of the MTX when multiple control panels are connected. Up to eight control panels can be connected. Keep in mind that the total maximum length of cables between the MTX and the terminated control panel is 200 meters.

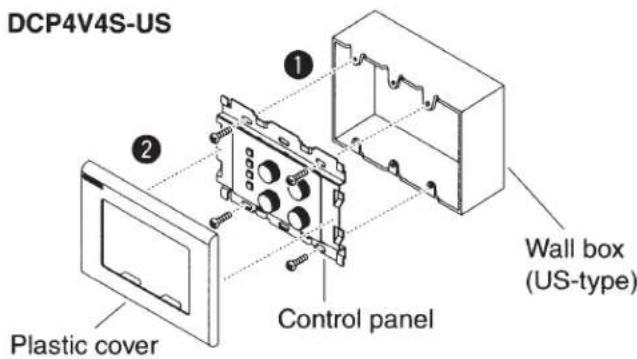

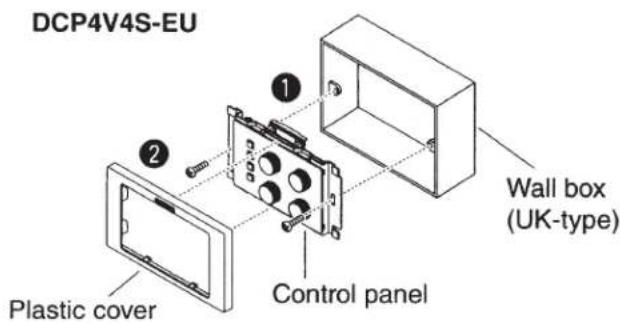

Attaching the Control Panel unit

① Fix the control panel to the wall box.

NOTE

• Use a suitable wall box: 3-gang of US-type with a depth of 44 millimeters or more for the DCP4V4S-US, and 2-gang of UK-type with a depth of 44 millimeters or more for the DCP4V4S-EU.
• Use proper screws that fit the size of wall box.
• Tighten the screws with a torque of less than 1.5 Nm. Also, make sure that the screw heads extend from the control panel by no more than 3 millimeters.

② Put the plastic cover on the control panel.

Push the plastic cover all the way, until it clicks in place.

* Screws for attaching the control panel and wall box are not included.

NOTE (DCP4V4S-EU only)

When attaching to a surface mount box, insert the included plastic spacers to fill the gap between the box's edge and the face of screw holes of the box. Adjust the height of spacers if needed.

NOTE

When detaching the plastic cover, insert a slotted screwdriver into the small release slot at the bottom of the cover, then pull up gently to remove it. Be careful not to damage the plastic cover.

■ Other Settings (MTX)

Using the MTX Editor, the following functions are available. Refer to the MTX Editor User's Manual for details.

• The brightness of the control panel can be set according to the brightness of the room.
• The control panel can be locked to avoid it being utilized by unauthorized persons.
• Error messages are shown on the control panel by a combination of the LEDs turning on, off and blinking.

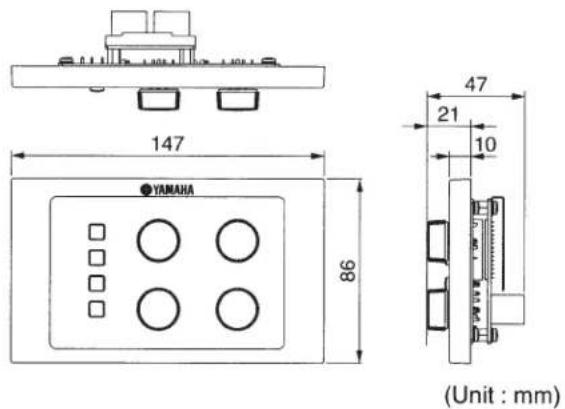

- DCP4V4S-US

With plastic cover

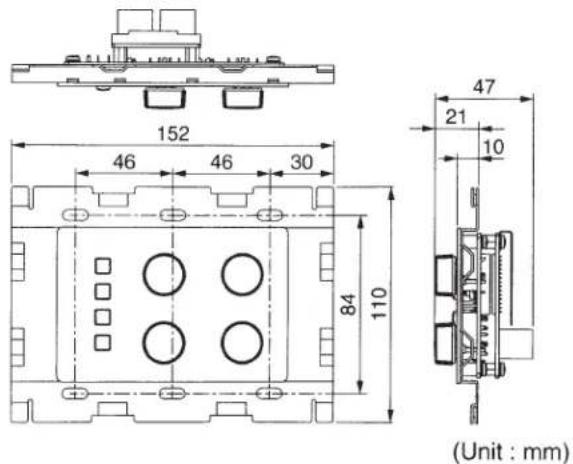

Without plastic cover

Operating temperature range: 0 to +40 °C Storage temperature range: -20 to +60 °C Weight: 235 g

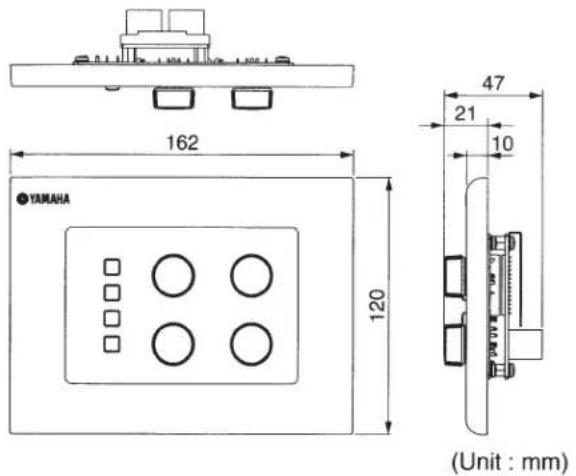

- DCP4V4S-EU

With plastic cover

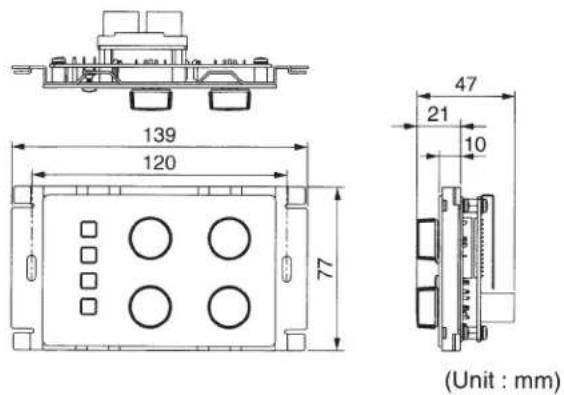

Without plastic cover

Operating temperature range: 0 to +40 °C Storage temperature range: -20 to +60 °C Weight: 175 g

* Specifications and descriptions in this owner's manual are for information purposes only. Yamaha Corp. reserves the right to change or modify products or specifications at any time without prior notice. Since specifications, equipment or options may not be the same in every locale, please check with your Yamaha dealer.
* Die technischen Daten und Beschreibungen in dieser Bedienungsanleitung dienen nur der Information. Yamaha Corp. behält sich das Recht vor, Produkte oder deren technische Daten jederzeit ohne vorherige Ankündigung zu verändern oder zu modifizieren. Da die technischen Daten, das Gerät selbst oder Sonderzubehör nicht in jedem Land gleich sind, setzen Sie sich im Zweifel bitte mit Ihrem Yamaha-Händler in Verbindung.
* Les caractéristiques techniques et les descriptions du mode d'emploi ne sont données que pour information. Yamaha Corp. se réserve le droit de changer ou modifier les produits et leurs caractéristiques techniques à tout moment sans aucun avis. Du fait que les caractéristiques techniques, les équipements et les options peuvent différer d'un pays à l'autre, adressez-vous au distributeur Yamaha le plus proche.
* Las especificaciones y descripciones de este manual del propietario tienen sólo el propósito de servir como información. Yamaha Corp. se reserva el derecho a efectuar cambios o modificaciones en los productos o especificaciones en cualquier momento sin previo aviso. Puesto que las especificaciones, equipos u opciones pueden no ser las mismas en todos los mercados, solicite información a su distribuidor Yamaha.
* Le specifiche e le descrizioni presenti in questo manuale sono fornite a fini puramente informativi. Yamaha Corp. si riserva il diritto di modificare prodotti o specifiche in qualsiasi momento senza preavviso. Dato che le specifiche, le apparecchiature o le opzioni possono essere diverse da paese a paese, verificarle con il proprio rappresentante Yamaha.
* Технические характеристики и их описания в данном руководстве пользователя предназначены только для общего сведения. Корпорация Yamaha сохраняет за собой право модифицировать свои изделия и менять их технические характеристики без предварительного уведомления. Поскольку технические характеристики, оборудование и набор возможностей могут зависеть от региона, обращайтесь за информацией к местному представителю корпорации Yamaha.
* 本使用说明书中的技术规格及介绍仅供参考。YAMAHA 公司保留随时更改或修订产品或技术规格的权利，若确有更改，恕不事先通知。技术规格、设备或选购件在各个地区可能均会有所不同，因此如有问题，请和当地 YAMAHA 经销商确认。
* 仕様および外観は、改良のため予告なく変更することがあります。
