Brand	Honeywell
Model	QuietClean HFD230B
Product Type	Portable Air Purifier
Power Supply	115 V, 60 Hz (polarized plug)
Main Functions	3-stage purification, ionizer, oscillation, dimmer, filter check indicator
Filtration	Washable pre-filter or K pre-filter for odor and VOC retention (optional) + permanent washable IFD filter
Filters Included	Pre-installed washable pre-filter, optional K pre-filter (in a separate bag), 2 permanent IFD filters
Filter Cleaning	IFD filter: wash with warm water every 3 months; washable pre-filter: rinse with hot water; K pre-filter: not washable, replace every 3 months
Indicator Reset	After cleaning, press the filter check button for 3 seconds (unit off but plugged in)
Minimum Distance to Walls	15.2 cm (6 inches)
Dimensions (approx.)	Not specified in the manual
Weight	Not specified in the manual
Safety	Polarized plug, automatic shut-off if grille or filter improperly installed, do not use with speed control dimmer, do not expose to water
Warranty	5-year limited (material and workmanship defects)
Certifications	ENERGY STAR, FCC Class B compliant, ARB California certified
Customer Service	1 800 477-0457, [e-mail]

Frequently Asked Questions - QuietClean HFD230B HONEYWELL

How long should I leave my air purifier running?

It is recommended to run the unit when you are at home to clean the air. It is more effective if doors and windows are closed. In the presence of tobacco smoke or pet dander, the filter may become dirty faster than the indicator signals.

My air purifier does not turn on. What should I do?

Check that the IFD filter and back grille are correctly installed. The grille must be securely attached. If the problem persists, contact customer service at 1 800 477-0457.

My purifier is noisy and the airflow is weak. What is the cause?

The filters are probably dirty. Large particles can clog the filter pores. Clean the IFD filter and pre-filter (or replace the K pre-filter if used).

Can I wash the odor-retention pre-filter (K pre-filter)?

No, the K pre-filter is not washable. Washing it would destroy it. It must be replaced every 3 months. However, the permanent washable pre-filter can be rinsed with hot water.

How to use the optional pre-filter provided in the plastic bag?

Remove the pre-installed washable pre-filter and place the K pre-filter in its place in the back grille. This pre-filter helps reduce odors and VOCs. It is not washable and must be replaced every 3 months.

How does the electronic filter check indicator work?

An LED light turns on after 3 months of continuous operation to remind you to check and clean the filters. After cleaning, you must reset the indicator by pressing the filter check button for 3 seconds (unit off but plugged in).

How to clean the permanent IFD filter?

Turn off and unplug the unit, wait 60 seconds, remove the grille and filters. Rinse the filters with clean water. If necessary, wash them with a mild detergent, rinse, then let dry completely before reinstalling. Do not put them in the dishwasher and do not use solvents.

How to reset the filter check indicator?

After cleaning or replacing the filters and putting them back, plug in the unit without turning it on. Press and hold the filter check button for 3 seconds. The light flashes twice to confirm the reset.

How to use the oscillation function?

Press the oscillation button (symbol) to activate the back-and-forth movement that helps distribute purified air in the room. Press again to stop oscillation.

How to adjust the brightness of the LED lights?

Press the dimmer button (symbol) to switch from high to low intensity. The lights cannot be turned off completely. A second press returns to high intensity.

USER MANUAL QuietClean HFD230B HONEYWELL

Black industrial air conditioner with mesh grille and side-mounted control panel (no visible text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

⚠️ READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS AIR PURIFIER

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Read all instructions before operating the air purifier.
2. Place air purifier where it is not easily knocked over by persons in the household.
3. Always turn the air purifier controls to the OFF position and unplug from the wall outlet when not in use.
4. To disconnect the air purifier, press the Power button to turn the unit off, grip the plug and pull it from the wall outlet. Never pull by the cord.
5. Do not use any product with a damaged cord or plug or if product malfunctions, is dropped or damaged in any manner. Keep the cord away from heated surfaces.
6. Do not use air purifier outdoors.
7. Never use air purifier unless it is fully assembled.
8. Do not run power cord under carpets, and do not cover with throw rugs. Arrange cord such that it will not be tripped over.

QUIETCLEAN® OSCILLATING TOWER AIR PURIFIER

Model Series HFD230

1. Do not use air cleaner where combustible gases or vapors are present.
2. Do not expose the air purifier to rain, or use near water, in a bathroom, laundry area or other damp location.
3. The air purifier must be used in its upright position.
4. Do not allow foreign objects to enter ventilation or exhaust opening as this may cause electric shock or damage to the air purifier. Do not block air outlets or intakes.
5. Locate air purifier near the outlet and avoid using an extension cord.
6. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.
7. A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
8. Do not sit, stand or place heavy objects on the air purifier.
9. Disconnect power supply before servicing.

Note: For FCC compliance information, please see last page of this manual.

WARNING: To Reduce The Risk of Fire or Electric Shock, Do Not Use This Air Purifier With Any Solid-State Speed Control Device.

YOUR AIR PURIFIER

ENHANCED ODOR REDUCTION

The washable pre-filter came installed in your air purifier and removes larger particles from the air that passes through the filter. You may use this washable pre-filter, or you have the choice to use the Optional Odor & VOC Reducing KPre-filter that is packed in a bag that came with the air purifier. In addition to capturing larger particles, the KPre-filter will also trap common household odors and gases. If you choose to use the KPre-filter, you must remove the installed washable pre-filter then insert the KPre-filter. Note: the K Pre-filter cannot be washed and should be replaced every 3 months for optimum performance.

NOTE: Please only use one pre-filter in your air cleaner at a time. You will need to choose whether you want to use the permanent washable pre-filter or the replaceable.

HOW YOUR AIR PURIFIER WORKS

This model air cleaner incorporates a 3-stage cleaning system to clean the air that passes through the filters in the unit (Fig. 1).

Stage 1: Washable or Odor-Reducing Pre-filter (your choice) attaches to the rear grille. Captures larger airborne particles and traps odors and VOCs (when used with Optional pre-filter).

Stage 2: Permanent Washable IfD ^® Filter. Captures microscopic airborne particles.

Stage 3: Electronic lonizer boosts the cleaning power.

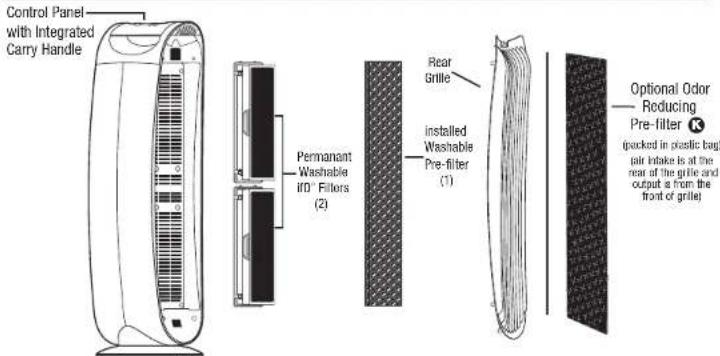

3-Stage Cleaning System

Fig. 1

SET-UP

• Select a firm, level and flat location. For best airflow, locate the unit 6 inches (15.2 cm) from any wall or furniture.
• When operating, large volumes of air are drawn toward the air purifier. Surrounding areas should be cleaned and/or vacuumed frequently to prevent build-up of dust and other contaminants. This may also help prolong the life of the filter. If the unit is placed on a light colored carpet, a small mat or rug should be used underneath to prevent staining. This is especially important in homes with contamination from smoking or fireplaces.

ENERGY STAR®

This product earned the ENERGY STAR® by meeting strict energy efficiency guidelines set by the U.S. EPA. U.S. EPA does not endorse any manufacturer claims of healthier indoor air from the use of this product.

The energy efficiency of this ENERGY STAR ^® qualified model is measured based on a ratio between the model's CADR for Dust and the electrical energy it consumes, or CADR/Watt.

OPERATION

• Ensure the air purifier is plugged into a working electrical outlet.
• Press the power button (Once). The unit will start at medium speed for a few seconds and then automatically change to low speed (Fig. 2).
• Press the power button again to select a different cleaning level.

Portable air purifiers are more effective in rooms where all doors and windows are closed. In general, it is recommended that you run your air purifier while you are at home to clean the air.

DIMMER OPTION

The Dimmer Option ( ?allows you to adjust the brightness of the LED display on the control panel. You may wish to adjust the brightness depending on the room where the unit is placed.

• The unit always turns on with brightness on HIGH
- Press the ( ) button once and LED display will dim to Low setting (Fig. 3).
• The LED lights cannot be turned completely off
- Pressing the ( 🔵 ) button a 2nd time will turn the LED light brightness back to HIGH.

OSCILLATION OPTION

To help circulate fresher, cleaner air through the room, this unit has an oscillation feature.

• To turn Oscillation on, simply press the Oscillation button ( Fig. 4).
  • To turn Oscillation off, press the button again.

ELECTRONIC FILTER CLEAN REMINDER

Check Filters Button – When it is time to check and clean the filters, an indicator light will illuminate. When this light comes on, you will need to clean the primary ifD ^® filter and clean or replace the pre-filter. (See Filter Cleaning instructions on pages 4-5). It is recommended that you periodically check the filters.

Depending on operating conditions, the filters should be cleaned every 3 months. If you have chosen to use the Odor & VOC Reducing Pre-filter, it is not washable and should be replaced after 3 months. After you have cleaned or replaced the filters, you will need to RESET the Electronic Filter Check.

To RESET the Electronic Filter Check:

After the ifD® filters and pre-filter have been cleaned/replaced and re-installed in the unit, plug the unit into the power outlet with the unit remaining in POWER OFF mode, press and hold the CHECK FILTERS button (see Fig. 5) for 3 seconds. The CHECK FILTERS LED will flash twice indicating the filter check has been reset. The LED will no longer be illuminated.

The Intervals are intended as guidelines only. Performance of any filter media is dependent upon the concentration of contaminants going through the system. High concentrations of contaminants such as dust, pet dander and smoke particles will reduce the useful performance of the filter and they may need to be cleaned more frequently.

REMOVING THE FILTERS

CAUTION: Turn off the air cleaner and wait 60 seconds before removing the grille to clean filters.

The ifD® filter is supplied within the air cleaner.

- Turn-off the air cleaner. Wait 60 seconds and unplug the unit before removing the grille.

- Press down on the tab on the rear grille, and pull the grille down and toward you. Remove the grille (Fig. 6).

- With one hand, hold the air purifier steady and use other hand to grasp ifD® filter and pull out. Repeat for second filter.

- To place the IID^® filter back into the air cleaner housing, insert at bottom and ensure it is pushed in as far as it can go, then push in from the top. Repeat with second filter.

CLEANING THE IFD® FILTERS

The ifD ^® filter should be cleaned approximately every 3 months.

Turn the power off and unplug the air purifier. After removing the ifD® filter from the air purifier, follow the steps below to clean the ifD® filter.

- Rinse the filter with clean tap water (Fig. 7)

- If the filter still appears dirty, proceed to "Washing," otherwise proceed to 'Drying."

Washing:

• Remove the ifD ^※ filters from the unit.
• Fill a sink with lukewarm water and add a few drops of mild dish soap.
• Gently swish the filters in the soap solution to clean.
• Soak the filters for 2-3 minutes. Do not leave for an extended period of time.
• Rinse the filters with clean tap water (Fig. 7) and proceed to 'Drying.'

CLEANING THE IFD® FILTERS (Cont)

Drying:

• Shake the filters to remove any excess water.
• Place the filters with the honeycomb side down on a plush towel.
  • Note that the filters may still be discolored even after washing.
  This is acceptable and will not affect performance.
• Allow the ifD® filters to dry for a few hours or overnight.
• When the ifD® filters are completely dry, place back into the air purifier.

CAUTION:

• Never place wet IfD® filters in your air purifier.
• The ifD ^® filters are NOT dishwasher safe. Do not place the ifD ^® filters in a dishwasher or subject them to other extreme hot water conditions.
• Do not use any solvents, strong cleaning agents or flammable liquids to clean the ifD ^® filters.

MAINTAINING YOUR WASHABLE PRE-FILTER

The pre-filter helps capture large airborne particles that enter the rear grille. This pre-filter can be periodically removed and shaken to clean it. Alternatively, it can be rinsed by hand under warm water (Fig. 8). Let the pre-filter air dry completely before inserting back into the grille (Fig. 9). If you need to replace this item, please call 1-800-477-0457.

OPTIONAL: Changing the Odor Adsorbing Pre-Filter

If you choose to use the odor adsorbing K pre-filter that came with your air purifier, it will lose its effectiveness for odor adsorption over time and will need to be replaced.

To purchase additional Ⓚ pre-filter, see Accessories and Replant Filters section below.

To install it in the unit, simply place it securely into the rear grille held in place with plastic tabs in lieu of the standard pre-filter as shown in Fig. 9.

If using the odor adsorbing pre-filter, it is recommended that you store the original washable pre-filter in the event that you decide to use it in the future.

NOTE: The odor adsorbing pre-filter is not washable.

CLEANING AND STORAGE

We recommend that you clean the air purifier at least every 3 months and before extended storage. Use only a dry cloth to wipe the external surfaces of the air purifier. DO NOT USE WATER, WAX POLISH, OR ANY CHEMICAL SOLUTION.

There is an optional pre-filter that can be purchased and used with this air purifier that will help reduce common household odors and VOCs. The K Pre-filter (HRF-K2) can be used in lieu of the permanent washable pre-filter that is supplied with the air purifier. The optional K Pre-filter should be replaced every 3 months for optimum odor and VOC reduction performance.

You may purchase Honeywell replacement Odor & VOC Reducing K Pre-filter Model HRF-K2 (2 pack) at the store where you purchased your air purifier or they can be ordered directly from www.replacementfilters.com.

If you have any questions about ifD® filter or the washable pre-filter, call Consumer Relations at 1-800-477-0457 or email [e-mail].

FREQUENTLY ASKED QUESTIONS

How long should I run my Air Purifier?

It is recommended that you run your air purifier when you are at home to clean the air. This unit will be more effective when doors and windows are closed.

My Filter Check Light has not come on but when I checked my filter, it was really dirty.

In conditions where smoke, pets or air with a lot of contaminants are present it is possible that the filter could be dirty sooner than indicated by the Check Filters light. The Check Filters light on your unit runs on a timer and if there are more particles in your air than in an average home, your filter could require cleaning sooner than indicated on the display. The indicator is intended to be used as a guideline and individual environmental conditions will vary.

My unit will not turn on.

The air cleaner has safety features to ensure that the unit is ready for operation. To make sure the IfD ^ filter and rear grille are installed correctly, check to make sure the filter is installed and is flush to the air cleaner. Check to make sure the rear grille is snapped into place. If your unit still won't turn on, contact Consumer Relations at 1-800-477-0457.

My Air Purifier is starting to make noise and the air output is less. What's wrong?

The filters may be dirty. High amounts of contaminants can block the pores in the filter and stop the air from moving through it. The filter and pre-filter should be cleaned.

Can I wash my Odor Reducing K Pre-filter?

No. Washing the Odor & VOC reducing ⚫ pre-filter will destroy it. You can, however, wash the permanent pre-filter.

How do I use the additional pre-filter that is packed in the plastic bag?

Your air purifier came with an installed washable pre-filter that helps capture the larger airborne particles before they reach the ifD® filter. If you would like the additional benefit of Odor & VOC Reduction, you may replace the washable pre-filter with the Odor & VOC Reducing K Pre-filter that was packed in a plastic bag with the purifier. You must first remove the washable pre-filter that came in your air purifier and replace it with the K pre-filter. This pre-filter is not washable and should be replaced every 3 months for optimum performance.

How does the electronic filter check work?

The filter check LED will illuminate when it is time to check the filters after 3 months of continuous operation. After the filters have been cleaned/changed, you should reset the Electronic Filter Check. See Instructions on page 4.

IMPORTANT NOTEACCESSORIES AND REPLACEMENT FILTERS

The ionizing process used by the air cleaner produces small amount of ozone as a byproduct. The air cleaner complies with the U.S. Government limits for acceptable levels of ozone (less than 50 parts per billion by volume of air circulating through the product.) Studies have demonstrated that you will get more ozone in a room from simply opening a window than you will get from operating an air cleaner with ifD® filters.

This product is California ARB (Air Resource Board) certified and complies with Federal ozone emissions limits. This product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-hour period. The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on an averaging time of 8 hours, is 0.020 ppmv or less when tested in a sealed, controlled room approximately 30 m ^3 .

CONSUMER RELATIONS

Questions or comments:

Call us toll-free at: 1-800-477-0457

E-mail: [e-mail]

Or visit our website at: www.HoneywellPluggedIn.com

Please be sure to specify the model number.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE AIR PURIFIER OR PERSONAL INJURY.

5 YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

A. This 5 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how

long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty glves you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

B. At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship.
C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
D. This warranty does not cover the ifD ^ filters or pre-filters except for material or workmanship defects.

CONSIGNES DE SÉCURITÉ IMPORTANTES

⚠ LISEZ ET CONSERVEZ CES CONSIGNES DE SÉCURITÉ AVANT D'UTILISER CE PURIFICATEUR D'AIR

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Honeywell is a trademark of Honeywell International Inc., used under license by Helen of Troy Limited. Honeywell International Inc. makes no representation or warranties with respect to this product. The ifD® trademark is used under license from Darwin Technology International LTD. QuietClean® is a registered trademark of Helen of Troy Limited.

© 2016 All rights reserved.

Kaz USA, Inc., a Helen of Troy Company

Marlborough, MA 01752

Imported and Distributed by: Kaz Canada, Milton ON, L9T 2X6

Contact us at 1-800-477-0457 or www.HoneywellPluggedIn.com

For Responsible recycling, please visit:

RECYCLE NATION

www.RecycleNation.com

www.RecycleNation.com

Helen of Troy

CREATIVE DEPARTMENT ARTWORK SPECIFICATIONS

Brand: Honeywell

Category: Air Purifier

Model: HFD230

Artwork Part #: 31IMH230191R0

Die Line Part #: N/A

Oracle Desc.: OM, HFD230 SERIES,

KUO TONG, 2015

Subject: Owners Manual

Region: US

Flat Size: IN: W11 x H8

MM: W279.4 x H203.2

Folded Size: IN: W5.5 x H8

MM: W139.7 x H203.2

Scale: 1/1

Material: 24# white text

Page count: 24

Revision: 6

Date: 24MAR16

Release Date: 24MAR16

Rerelease Date:

Colors:

Dielines (Do not print)

Cyan 100%

Magenta 100%

Yellow 100%

Black 100%

Spot Colors

PMS XXXX

PMS XXXX

Special Instructions:

Quality Requiement of Artwork and Quality

Clarification Pocess of Artwork Printing:

Meet Eng-QS-06&02

Kaz USA, Inc., a Helen of Troy Company

Creative Services

Marlborough, 01752 MA, USA

[phone]
