Product type	Island range hood
Brand	Zephyr
Model	ZPIE36AG290
Dimensions (W x D x H)	91.4 x 66 x 66 cm (36 x 26 x 26 inches)
Net weight	28 kg (62 lb)
Power supply	120 V ~ 60 Hz, 15 A
Maximum airflow (CFM)	600 CFM (HVI standard)
Speed levels	3 speeds plus boost
Noise level	35 to 62 dB (depending on speed)
Lighting type	Integrated LED lights (2 x 50 W equivalent)
Filters	Stainless steel mesh filters, dishwasher safe
Controls	Electronic push buttons with LCD display
Installation type	Island, ducted or recirculating (charcoal filter kit optional)
Duct diameter	15.2 cm (6 inches) round
Materials	Brushed stainless steel
Certifications	UL, cUL, HVI
Warranty	Limited lifetime motor warranty, 5 years parts
Care and cleaning	Dishwasher safe filters; stainless steel surface cleanable with a soft cloth
Safety	Automatic safety shut-off in case of overheating
Spare parts and repairability	Available through Zephyr after-sales service
General information	Designed for domestic use, ideal for medium to large kitchens

Frequently Asked Questions - ZPIE36AG290 Zephyr

How to install the ZPIE36AG290 hood in recirculation mode?

You must purchase the recirculation kit (activated charcoal filter) separately. Remove the exhaust plug, insert the charcoal filter, and close. Refer to the manual for the exact diagram.

What is the recommended installation height between the hood and the cooking surface?

For a Zephyr island hood, the recommended height is 65 to 75 cm (26 to 30 inches) above an electric cooktop, and 70 to 80 cm (28 to 32 inches) for a gas cooktop.

How to clean the mesh filters?

The stainless steel mesh filters are dishwasher safe. Remove them, wash at 60°C with a mild detergent, dry thoroughly before reinstalling.

The hood is making noise, is this normal?

Yes, the noise level varies from 35 to 62 dB depending on speed. If the noise becomes abnormal, check that the duct is not obstructed and that the filters are clean.

How to replace the LED bulbs?

The hood uses integrated non-replaceable LEDs. If an LED fails, contact Zephyr after-sales service for replacement of the lighting module.

Can I use the hood without external venting?

Yes, you can use recirculation mode by installing a charcoal filter kit (sold separately). In this mode, air is purified and recirculated into the kitchen.

Is the remote control included?

No, the ZPIE36AG290 hood is not supplied with a remote control. Control is via the push buttons on the hood itself.

What is the maximum airflow (CFM)?

The maximum airflow is 600 CFM according to HVI standard. This corresponds to a high extraction capacity for large kitchens.

How to reset the filter saturation indicator?

After cleaning or replacing the filters, press and hold the 'Filter' button for 3 seconds until the indicator turns off.

Where to find spare parts?

Spare parts are available from Zephyr after-sales service. Visit the official website or contact support to order filters, bulbs, or other components.

USER MANUAL ZPIE36AG290 Zephyr

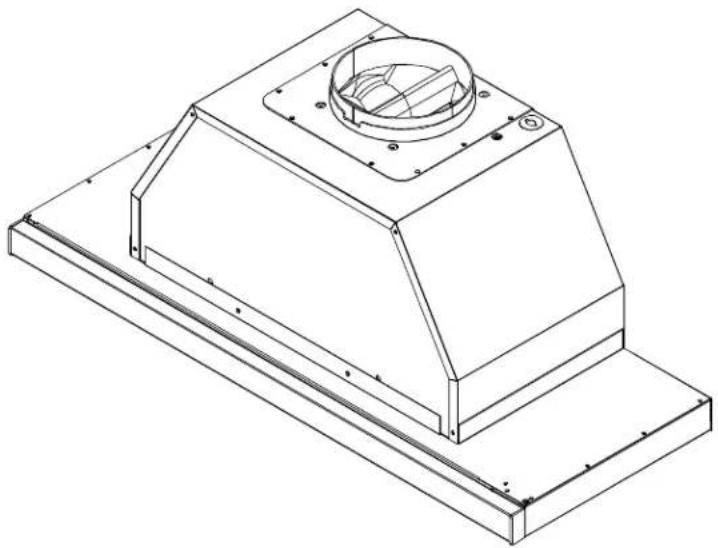

Technical line drawing of a mechanical component with a circular housing and mounting base (no text or symbols)

Model number: ____

Serial Number: ____

NOV17.0701 © Zephyr Ventilation LLC.

US LISTED

SAFETY NOTICE 2-3

LIST OF MATERIALS 4

INSTALLATION

Ducting Calculation Sheet 5

Mounting Height & Clearance 6

Ducting Options 7

Hood Specifications 8

Preparing the Cabinet 9

Horizontal Ducting Conversion.... 10

Installing the Hood....11 - 13

Recirculation Kit 14

FEATURES & CONTROLS

Slide Controls.... 15

MAINTENANCE

Hood and Filter Cleaning 16

Lights....17

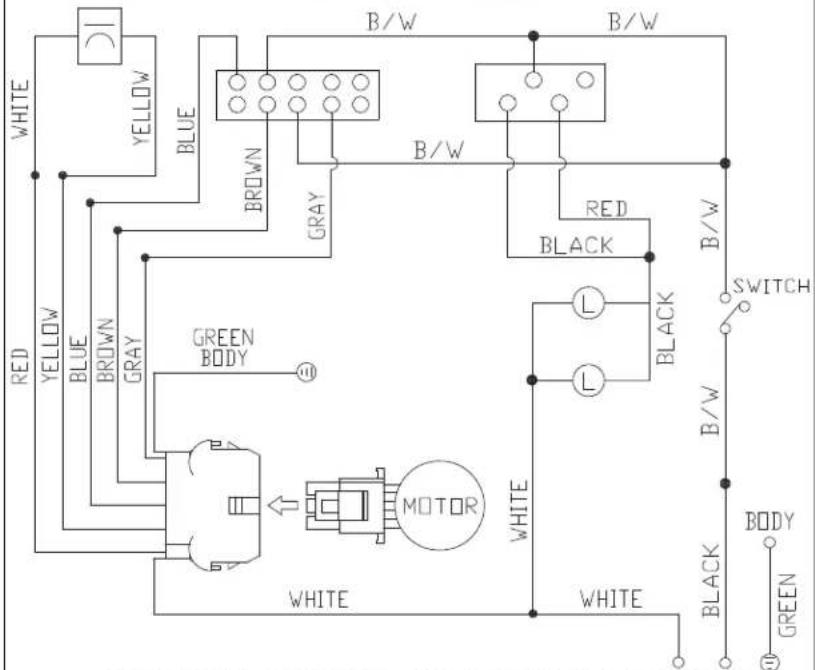

WIRING DIAGRAMS 18

TROUBLESHOOTING.... 19

LIST OF PARTS AND ACCESSORIES 20

WARRANTY 21

PRODUCT REGISTRATION.... 22

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE.

WARNING

TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a. Use this unit only in the manner intended by the manufacturer, if you have questions, contact the manufacturer.
b. Before servicing or cleaning unit, switch power off at service panel and lock panel to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

CAUTION

For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. Take care when using cleaning agents or detergents. Suitable for use in household cooking area.

WARNING

TO REDUCE THE RISK OF RANGE TOP GREASE FIRE:

a. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b. Always turn hood ON when cooking at high heat or when flaming food
c. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d. Use proper pan size. Always use cookware appropriate for the size of the surface element.
e. Keep fan, filters and grease laden surfaces clean.
f. Use high setting on hood only when necessary.
g. Don't leave hood unattended when cooking.
h. Always use cookware and utensils appropriate for the type of and amount of food being prepared.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP FIRE, OBSERVE THE FOLLOWING:

a. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b. NEVER PICK UP A FLAMING PAN – You may be burned.
c. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
d. Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards. Including fire-rated construction.
b. Sufficient air is needed for power combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back-drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
c. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
d. Ducted fans must always vent to the outdoors.
e. NEVER place a switch where it can be reached from a tub or shower.
f. Make sure the power is off before installing, wiring or maintaining.

WARNING

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

CAUTION

To reduce risk of fire and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages. Hood not intended for installation over an outdoor grill.

OPERATION

Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and loose clothing.

The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance.

*NOTE: Please check www.zephyronline.com for revisions before doing any custom work.

ELECTRICAL REQUIREMENTS

Important:

Observe all governing codes and ordinances.

It is the customer's responsibility:

• To contact a qualified electrical installer.
• To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

Do not ground to a gas pipe.

Check with a qualified electrician if you are not sure the range hood is properly grounded.

Do not have a fuse in the neutral or ground circuit.

*National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product.

A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary.

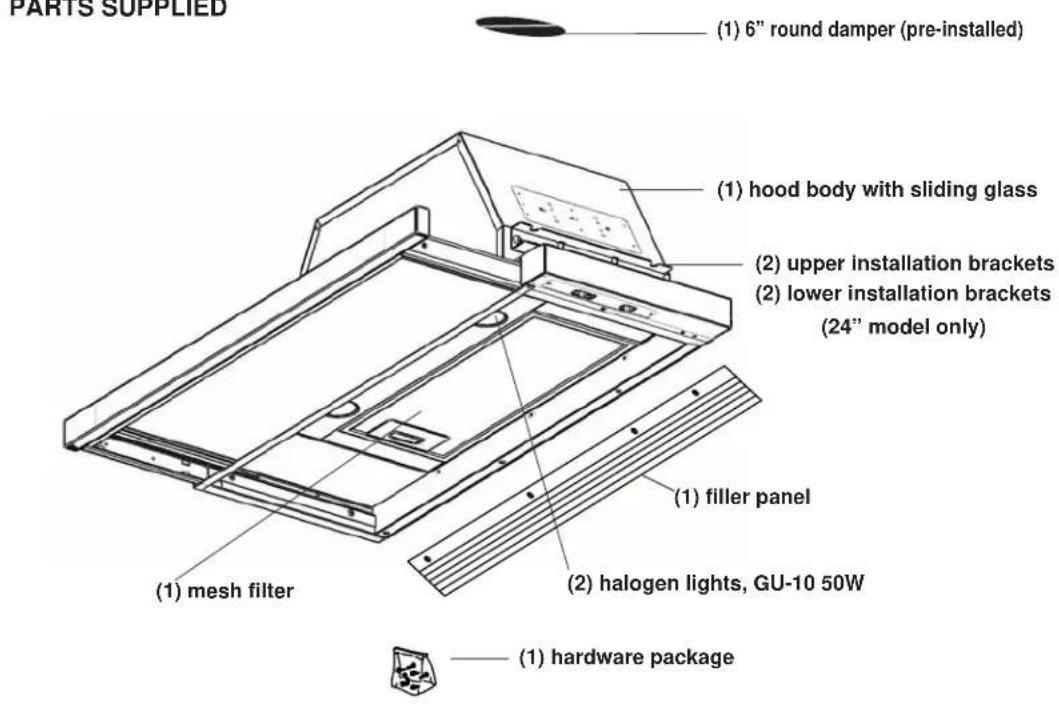

PARTS SUPPLIED

(1) 6" round damper (pre-installed) (1) hood body with sliding glass (2) upper installation brackets (2) lower installation brackets (24" model only) (1) filler panel (1) mesh filter (2) halogen lights, GU-10 50W (1) hardware package

HARDWARE PACKAGE CONTENTS

(2) M4 x 1"

(4) M3.5×10

(4) M4 × 16mm

(3) Wire Nuts

(1) Suction Cup

Simple line drawing of a laboratory flask (no text or symbols)

(4) 3/16 × 3/8"
(24" model only)

(4) 3/16 × 40
(24" model only)

(2) M4 × 8
(24" model only)

PARTS NOT SUPPLIED

• Ducting, conduit and all installation tools
• Cable connector (if required by local codes)
• Recirculation Kit

Duct pieces		Equivalent number length x used =	Total
	3- 1/ 4" x 10" Rect., straight	1 Ft. x ( ) =	Ft.
	6", 7", 8", 10" Round, straight	1 Ft. x ( ) =	Ft.
	3- 1/ 4" x 10" Rect.90° elbow	15 Ft. x ( ) =	Ft.
	3- 1/ 4" x 10" Rect.45° elbow	9 Ft. x ( ) =	Ft.
	3- 1/ 4" x 10" Rect.90° flat elbow	24 Ft. x ( ) =	Ft.
	7" to 6" or 8" to 7" Round tapered reducer	25 Ft. x ( ) =	Ft.
	6", 7", 8" Round in-line damper	15 Ft. x ( ) =	Ft.
	6", 7", 8", 10" Round, 90° elbow	15 Ft. x ( ) =	Ft.
	6", 7", 8", 10" Round, 45° elbow	9 Ft. x ( ) =	Ft.
Subtotal column 1 =			Ft.

Maximum Duct Length: For satisfactory air movement, the total duct length should not exceed 100 equivalent feet.

Duct pieces		Equivalent number length x used =	Total
	3- 1/ 4" x 10" Rect.to6" round transition	5 Ft. x ( ) =	Ft.
	3- 1/ 4" x 10" Rect.to6" round transition90° elbow	20 Ft. x ( ) =	Ft.
	6" round to3- 1/ 4" x 10" rect.transition	1 Ft. x ( ) =	Ft.
	6" round to3- 1/ 4" x 10" rect.transition90° elbow	16 Ft. x ( ) =	Ft.
	7" round to3 1/ 4" x 10" rect.transition	8 Ft. x ( ) =	Ft.
	7" round to3- 1/ 4" x 10" rect.transition90° elbow	23 Ft. x ( ) =	Ft.
	3- 1/ 4" x 10" Rect.wall cap with damper	30 Ft. x ( ) =	Ft.
	6", 7", 8", 10" Round, wall cap with damper	30 Ft. x ( ) =	Ft.
	6", 7", 8", 10" Round roof cap	30 Ft. x ( ) =	Ft.
Subtotal column 2 =Subtotal column 1 =Total ductwork =			Ft.
			Ft.
			Ft.

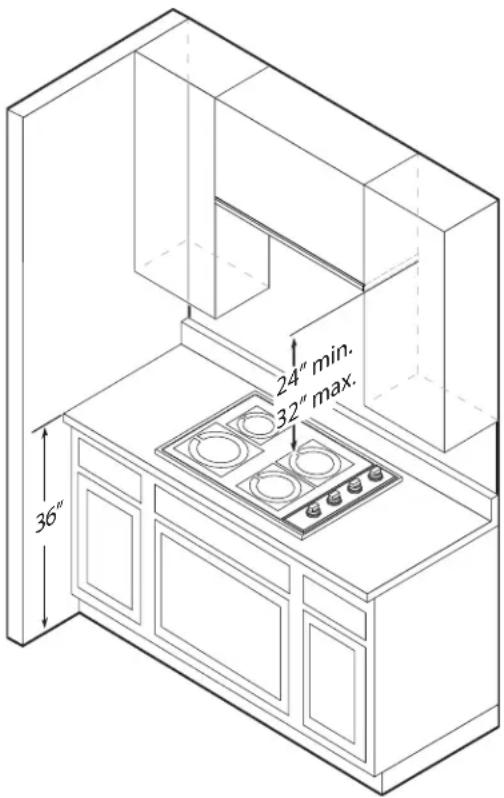

24" min. 32" max. 36"

DUCTING

A minimum of 6" round ducting must be used to maintain maximum air flow efficiency.

Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%.

Use calculation worksheet to compute total duct work.

ALWAYS, when possible, reduce the number of transitions and turns. If a long duct run is required, increase duct size from 6" to 7" or 8".

If turns or transitions are required: Install as far away from opening and as far apart, between 2, as possible.

Mounting height from top of cooking surface to bottom of hood should be no less than 24" and no more than 32".

It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard while hoods mounted too high will be hard to reach and will lose performance and efficiency.

If available, also refer to range manufacturer's height clearance requirements and recommended hood mounting height above range. Always check your local codes for any differences.

DAMAGE-SHIPMENT / INSTALLATION:

• Please fully inspect unit for damage before installation.
• If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.
• If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
• If the unit is damaged by the installer (if other than the customer), repair of replacement must be made by arrangement between customer and installer.

WARNING FIRE HAZARD

NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside.

Use single wall rigid Metal ductwork only.

Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.

Ducting Options Example

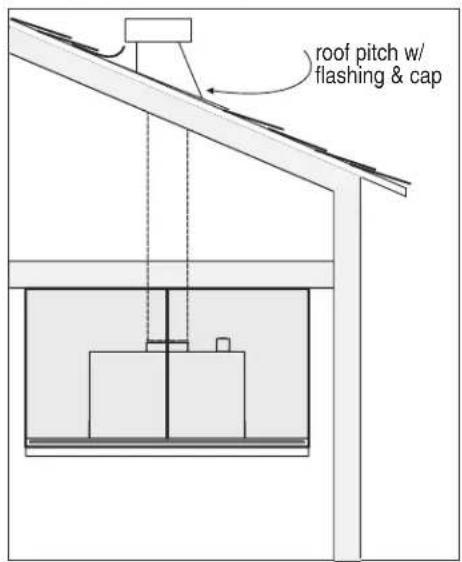

roof pitch w/ flashing & cap

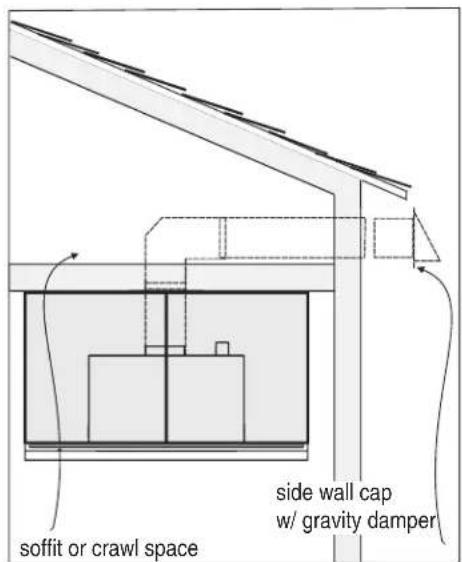

soffit or crawl space side wall cap w/ gravity damper

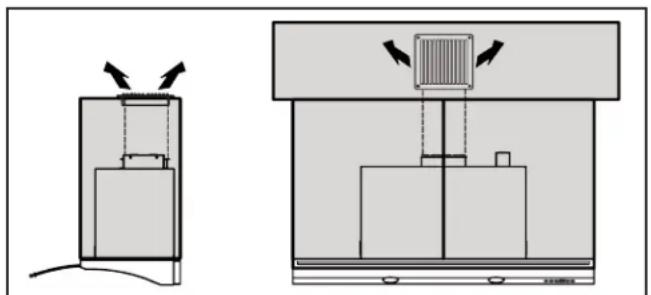

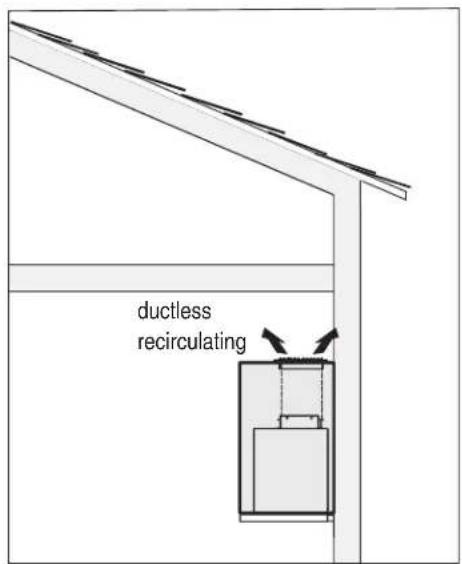

ductless recirculating

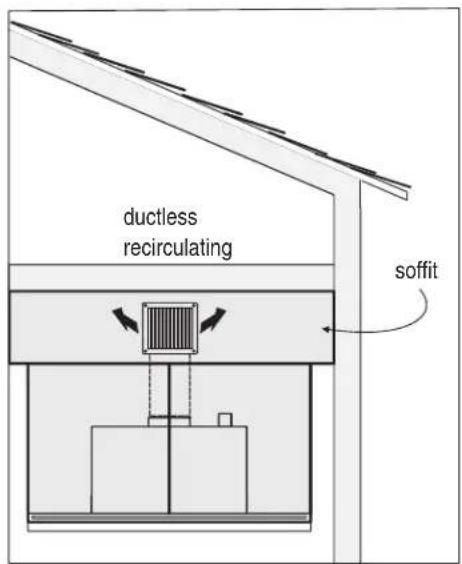

ductless recirculating soffit

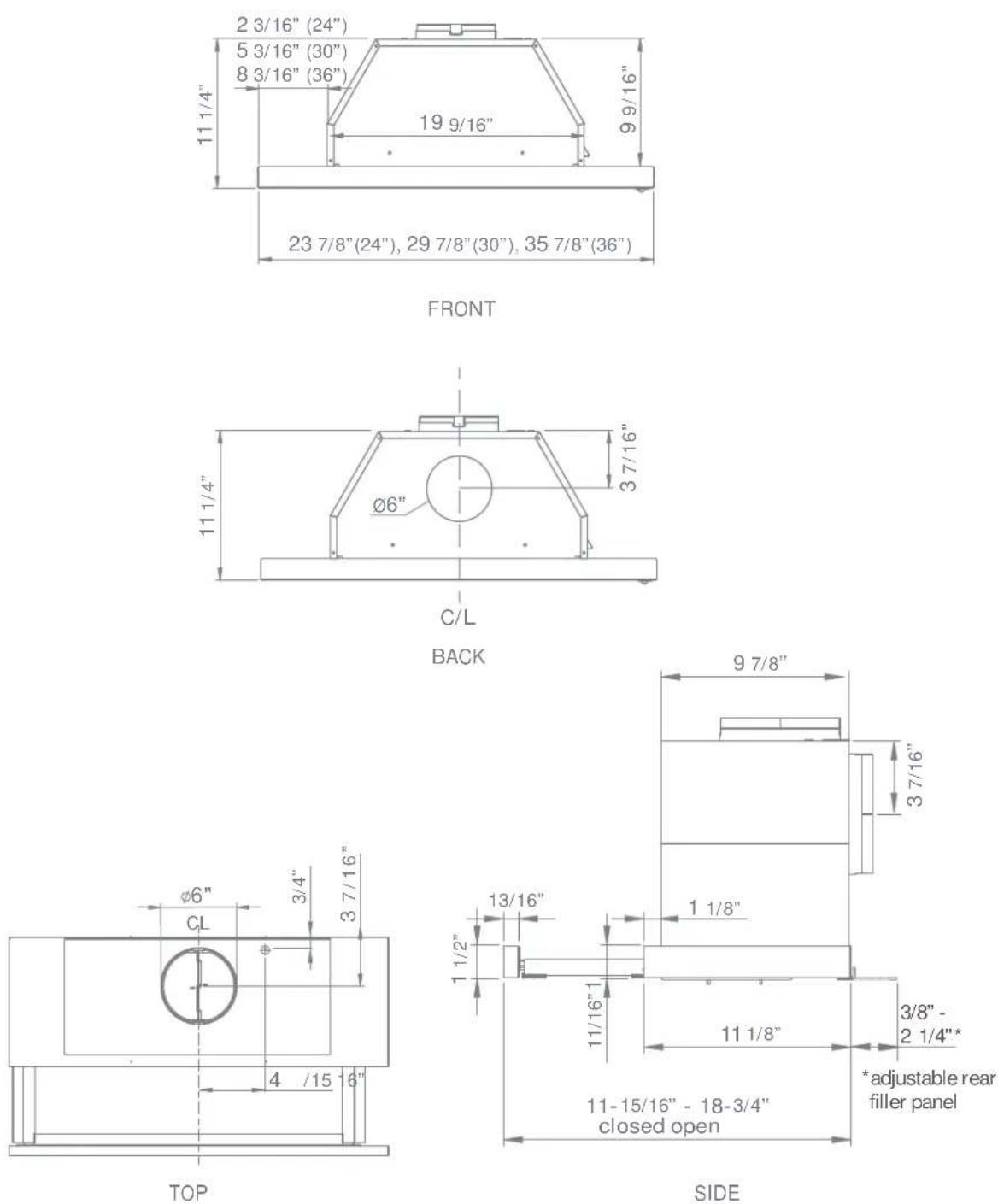

Installation – Hood Specifications

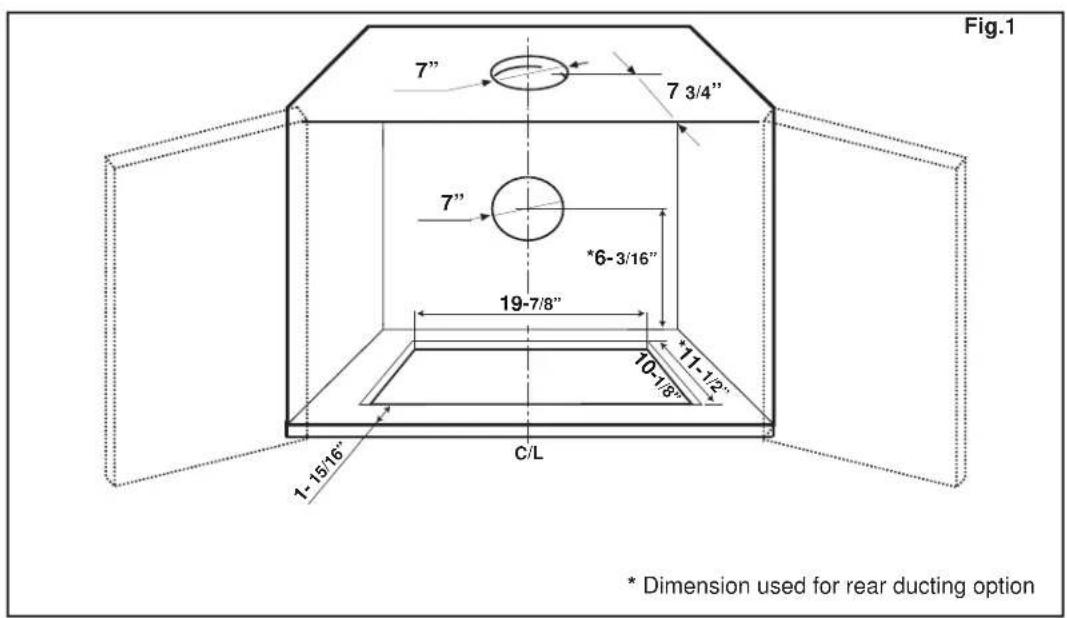

Fig.1 7" 7 3/4" 7" *6-3/16" 19-7/8" *11-1/2" 10-1/8" C/L 1-15/16" * Dimension used for rear ducting option

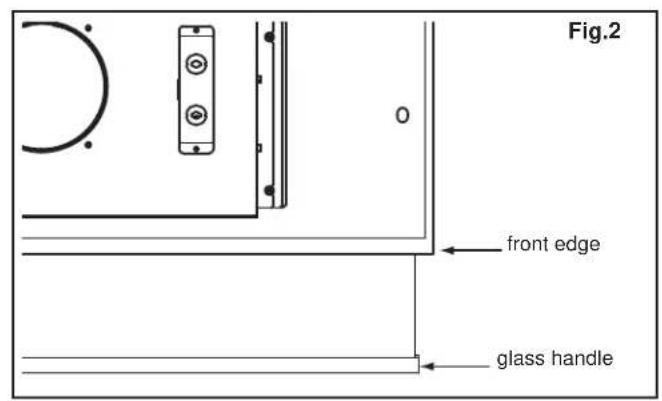

Fig.2 front edge glass handle

1. Determine and mark center line on wall and cabinet bottom with a pencil.
2. If the cabinet bottom is recessed, wood blocking must be installed to ensure proper alignment of the hood with the cabinet bottom. Wood blocking should be flush within cabinet bottom.
3. Follow the dimensions in Fig.1 and cut-out the bottom of your cabinet to create an opening for the hood to fit through. For frameless cabinet measure 1-15/16" from the front of cabinet door. For framed cabinet measure 1-15/16" from front of cabinet bottom.

6" ROUND VERTICAL TO HORIZONTAL DUCTING CONVERSION

3D mechanical assembly diagram showing two large cylindrical components with a white arrow pointing to a specific component (no text or symbols present)

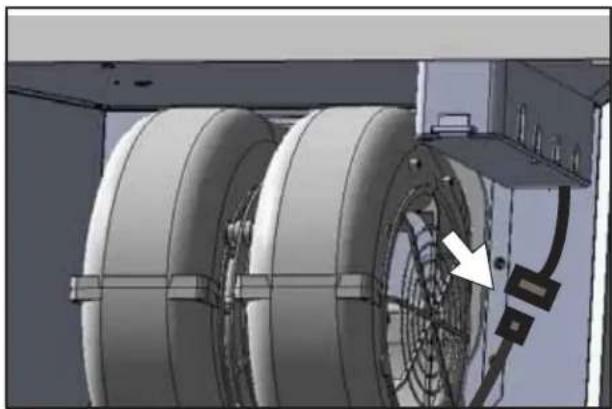

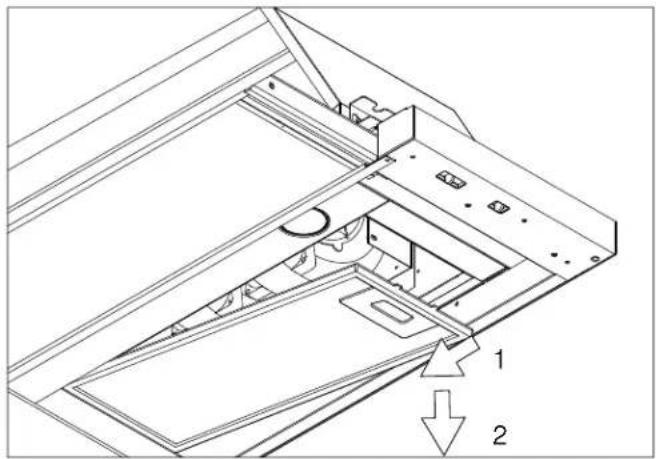

1) Remove aluminum mesh filter. From inside the hood, disconnect blower plug located toward the right side interior of hood body.

3D mechanical assembly diagram showing a housing with mounting flanges and internal components (no text or symbols)

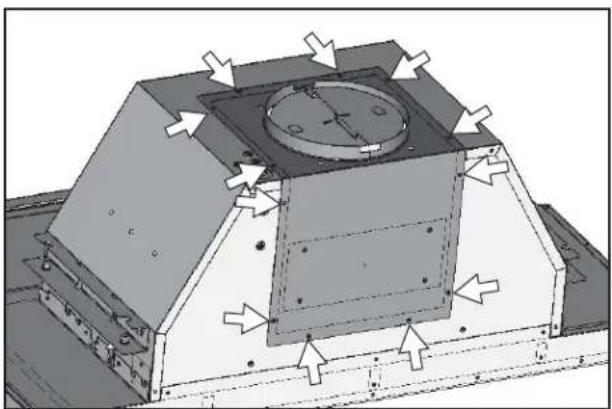

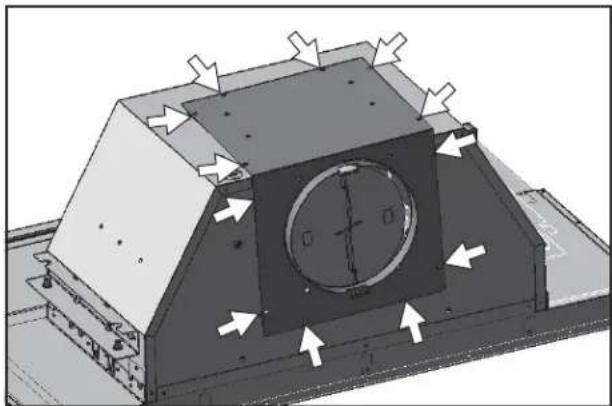

2) Remove (6) screws from top of hood and (6) screws from back of hood attaching blower plate to hood body.

3D mechanical assembly diagram showing a housing with a central circular component and directional arrows indicating motion (no text or symbols)

3) Remove blower and blower plate from hood body and reposition blower to hood body so blower collar protrudes from back of hood body. Re-install blower plate to hood body using the (12) screws previously removed from step 2. Re-connect blower plug.

WARNING: Electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards. This range hood must be properly grounded. Turn off electrical power at service entrance before wiring.

1) Prepare electrical wiring and ducting in cabinet. Location of junction box and blower outlet can be found on page 8.

3D mechanical assembly diagram showing internal components with no visible text or symbols

Fig.3

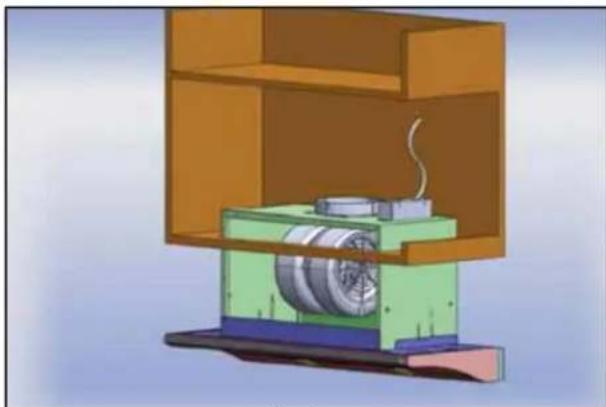

2) Open cabinet doors. Lift range hood and slide it through the opening located in the bottom of the cabinet, Fig.3. Make sure opening matches the dimensions on page 9, Fig.1.

3D mechanical assembly diagram showing layered components with no visible text or symbols

Fig.4

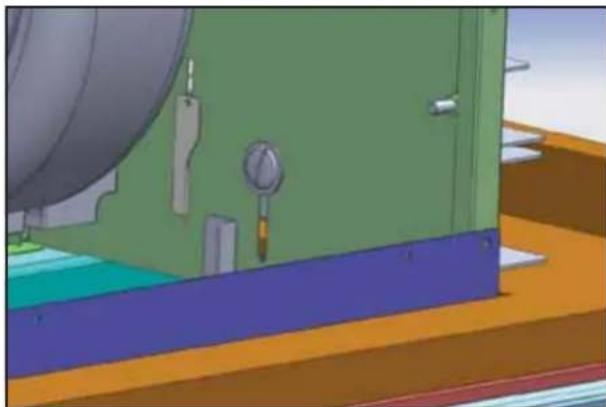

3) There are spring clips located on the left and right sides of the hood body which will temporarily hold the hood in place, Fig.4.

3D technical illustration of a mechanical assembly with colored components and no visible text or symbols

Fig.5

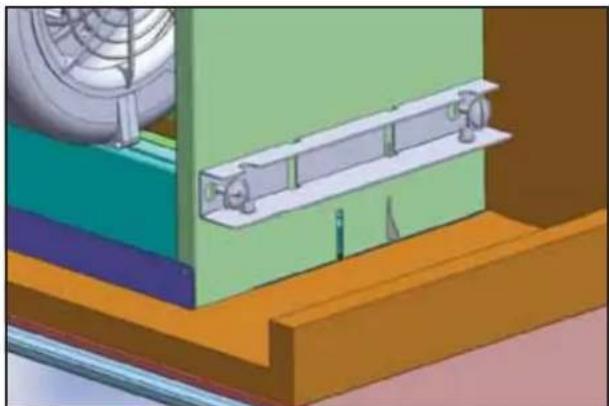

4) 24" Models Only. Secure upper brackets to left and right sides of hood body by using (2) 3/16 x 3/8" screws for each bracket. Fig.5. Make sure the (2) captive nut screws holes on the bracket are facing downward.

3D architectural rendering of a kitchen appliance with shelves and fixtures (no visible text or symbols)

Fig.6

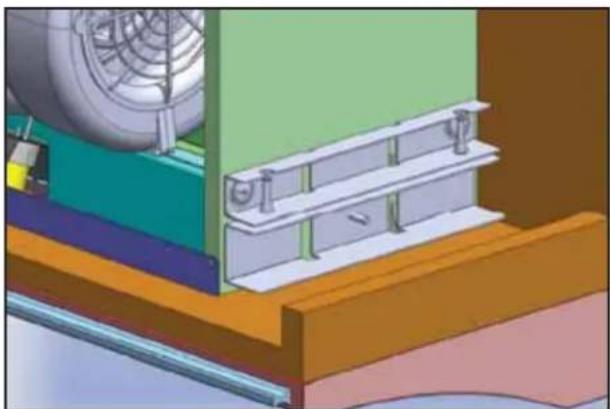

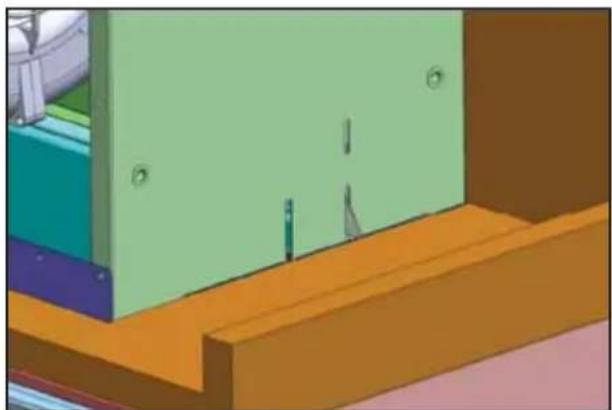

5) 24" Models Only. Place lower installation brackets under upper installation brackets located on left and right sides of hood body, Fig.6. Note: The wider portion of the lower installation bracket should be at the bottom.

3D CAD model of a mechanical assembly with colored components and no visible text or symbols

Fig.7
6) 24" Models Only. From inside the hood, secure (1) M4x8 screw into each lower installation bracket. The position of this screw is adjustable to accommodate various cabinet bottom thicknesses, Fig.7.

3D technical illustration of a mechanical assembly with colored components and no visible text or symbols

Fig.8

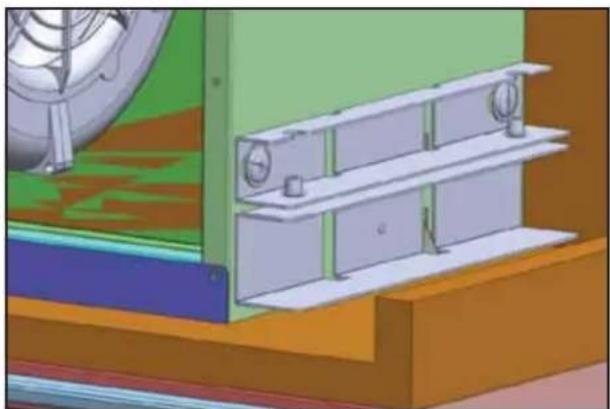

7) 24" Models Only. Install (2) 3/16x40 screws into the captive nuts of each upper installation bracket. Tighten screws to adjust the height of the range hood until there is no gap between the cabinet and front edge of the hood, Fig.8.

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

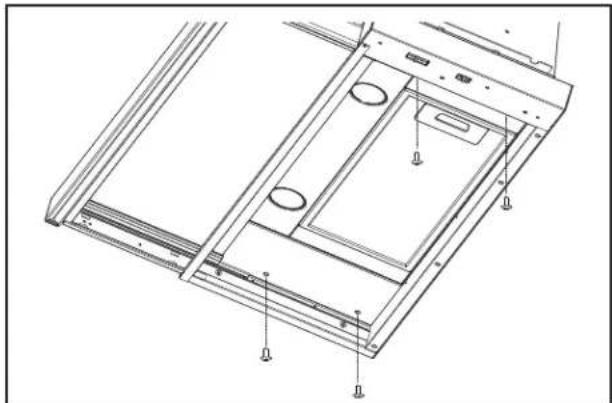

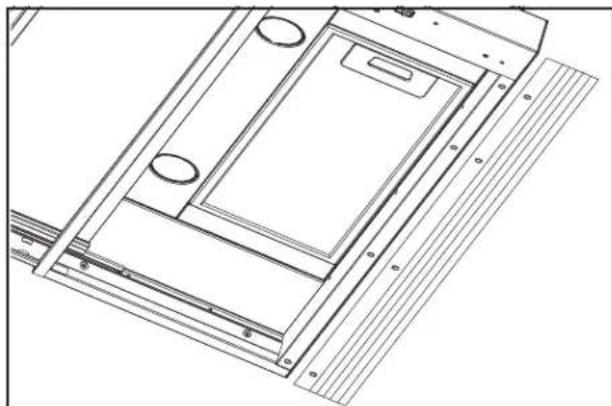

8) 30" & 36" Models Only. Secure hood body to cabinet base by (4) M4 x 16mm screws through the bottom of range hood.

Technical line drawing of a mechanical assembly with labeled components A and reference lines (no text or symbols beyond labels)

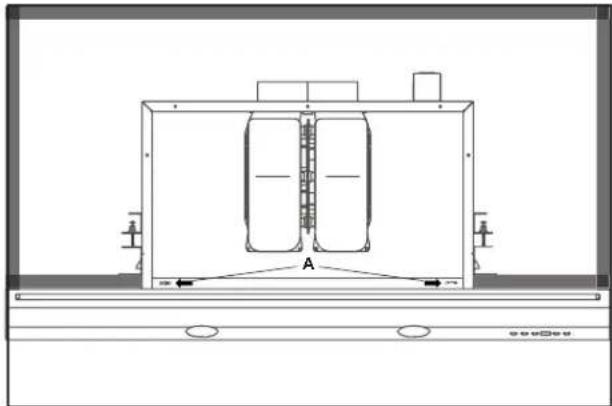

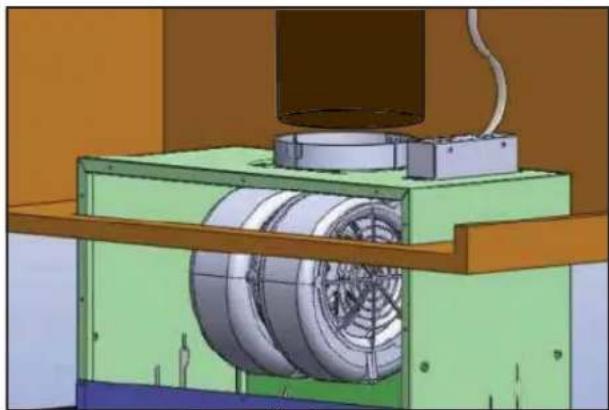

9) Secure (2) 1" wood screws (A) into the screw holes on the left and right sides of the filter opening.

3D rendering of a mechanical assembly with a cylindrical component and housing (no visible text or symbols)

Fig.9

10) Place 6" round ducting over blower collar and secure with aluminum duct tape. If using hood in ductless recirculating mode turn to page 14.

Install electrical wiring. Note: A cable lock (not included) may be required by local codes. Check with local requirements and codes, purchase and install appropriate connector if necessary.

Make sure no packing material is inside hood. Power up hood check for leaks around duct tape and verify all functions.

Line drawing of scissors cutting a sheet of paper with a ruler, no text or symbols present

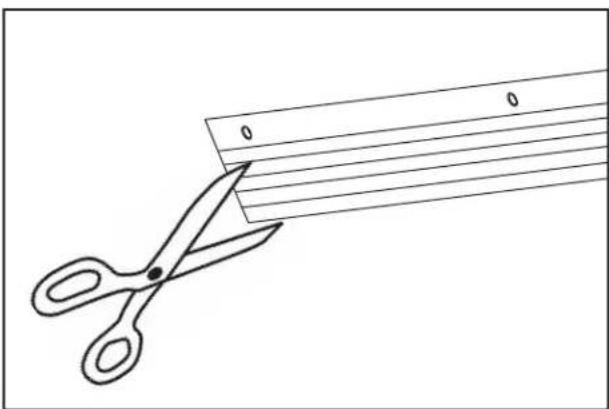

11) Measure distance between back of range hood and wall (if any) and cut filler panel to the appropriate depth using a utility knife or heavy-duty scissors.

Technical line drawing of a mechanical assembly with mounting flanges and a central rectangular component (no text or symbols)

12) Install filler panel to bottom of hood by (4) 3.5x10 screws for 30" model or (5) 3.5x10 screws for 36" model.

Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust from cooking are drawn and filtered by an optional charcoal filter. The air is then purified and recirculated back within the home.

We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct work, if possible. The hood is most effective and efficient as an exhaust hood. Only when the exhaust option is not possible should you recourse to converting the hood into a recirculating hood.

When converted to be a recirculating hood, a charcoal filter is required on top of the decorative mesh filter. Order according to its part number below. The decorative mesh filter is intended to capture residue from cooking and the optional charcoal filter helps to purify fumes exhausted from cooking for recirculation.

RECIRCULATING KIT (REQUIRED IF NOT DUCTED OUTSIDE THE HOME)

Kit includes charcoal filter, brackets and return air vent.

Hood Model Part No. Filters in Pkg.

ZPI ZRC-00PI 1

1. Purchase recirculating kit per the part number above.
2. Remove decorative mesh filter from hood and place charcoal filter on top of mesh filter. Secure charcoal filter by 4 C clips from ZRC-00PI recirculation kit, 2 C clips for each elongated side of charcoal filter. Fig. 12
3. Reinstall decorative mesh filter.
4. In order to recirculate the air properly, a return air vent must be installed to allow recycled air to be returned to the kitchen, Fig. 11. Ducting must be run from the blower to the return air vent. The return air vent can be positioned on top of the cabinet or in a soffit/ceiling.
5. Charcoal filter must be replaced after every 120 hours of use or approximately every 3 to 4 months based on an average daily use of 1 hour of cooking time)

Charcoal Filter Replacement

Hood Model Part No. Qty to Order

ZPI Z0F-C0PI 1

Diagram showing two views of a device with arrows indicating airflow or movement, no text or symbols present.

Fig.11

Technical diagram of two stacked rectangular components with directional arrows indicating movement or assembly (no text or symbols)

Fig.12

① Blower On/Off Speed Selection

② Lights Off/Dim/Bright

1 BLOWER ON/OFF/SPEED SELECTION

0 is off, I is low speed, II is medium speed and III is high speed.

2 LIGHTS OFF/DIM/BRIGHT

0 is off, I is dim, and II is bright.

NOTE: Blower and lights will automatically shut off when the glass is closed and turn back on when the glass is opened.

Blower and lights will not operate when the glass is closed.

SURFACE MAINTENANCE:

Do not use corrosive detergents, abrasive detergents or oven cleaners.

Do not use any product containing chlorine bleach or any product containing chloride.

Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface.

Cleaning Stainless Steel

Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. Always rub in the direction of the stainless steel grain. To remove heavier grease build up use a liquid degreaser detergent.

After cleaning use a non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain. Always scrub lightly, with clean cotton cloth or micro fiber cloth and buff in the direction of the stainless steel grain.

Decorative Mesh Filters

The mesh filter installed by the factory is intended to filter out residue and grease from cooking. It need not be replaced on a regular basis but is required to be kept clean.

Filter should be cleaned after every 30 hours of use or once a month.

Remove and clean by hand or in dishwasher on low heat. Spray degreasing detergent and leave to soak if heavily soiled.

Dry filter and re-install before using hood.

Replacing Mesh Filter

Should filter wear out due to age and prolonged use, replace with the following part number:

Hood Model: Part No. Qty. to Order.

ZPI 50200054 1

Replace any damaged filter that has punctured or broken mesh or damaged frame.

Technical diagram of a mechanical assembly with labeled components and directional arrows

To remove decorative mesh filter:

1. Push in filter latch.
2. Tilt filter down and remove from hood.

REPLACING LIGHT BULBS

CAUTION: Light bulb becomes extremely hot when turned on.

DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns.

Make sure all power is turned off and bulbs are not hot.

Remove by turning bulb counter-clockwise. Note: Bulb does not unscrew; it turns 60 degrees, stops and falls out.

If bulbs are difficult to turn due to prolonged use, firmly attach a glass suction cup approximately the diameter of the bulb or use a rubber/latex glove to grip the bulb and turn counter clockwise.

Replacement bulbs are available at specialty lighting stores. Purchase type (MR16) GU-10 50W halogen.

For Zephyr part numbers please turn to page 20 of the manual.

Technical line drawing of a mechanical assembly with no visible text or symbols

MODEL	VOLTS	HZ	MAX AMPS
ZPI-EXXX-290	120	60	2
ZPI-EXXX			3.3

CIRCUIT DIAGRAM

WHITE YELLOW BLUE B/W B/W RED BLACK B/W GREEN BODY L L MOTOR WHITE WHITE B/W SWITCH B/W BODY GREEN WHITE BLACK

ZPI-EXXX-290: CONDENSER 3uF 250 VAC FIT AC120V 60Hz ZPI-EXXX: CONDENSER 20uF 250 VAC FIT AC120V 60Hz

TROUBLESHOOTING PROCEDURES FOR ZPI

Issue Cause What to do
After installation, the unit doesn't work.	1. The power source is not turned ON. 1. Make sure	the circuit breaker and the unit's power is ON.
	2. The power line and the cable locking connector is not connecting properly.	2. Check the power connection with the unit is connected properly.
	3. Glass canopy is closed. 3. Glass canopy must be open to operate blower and lights.
	4. The switch board and control board wirings are disconnected.	4. Make sure the wirings between the switch board and control board are connected properly.
	5. The switch board or control board is defective. 5. Change the switch board or control board.
Light works, but blower is not turning.	1. The blower is defective, possible seized. 1. Change the blower.
	2. The thermally protected system detects if the blower is too hot to operate and shuts the blower down.	2. The blower will function properly after the thermally protected system cool down.
	3. Damaged capacitor. 3. Change the capacitor.
	4. The blower wire is not connected. 4. Make sure the blower wire is plugged into the molex connector.
The unit is vibrating.	1. The blower is not secure in place. 1. Tighten the blower screws in place.
	2. Damaged blower wheel. 2. Change the blower.
	3. The hood is not secured in place. 3. Check the installation of the hood.
The blower is working, but the lights are not.	1. Defective halogen bulb. 1. Change the halogen bulb.
	2. The light bulb is loose. 2. Tighten the light bulb.
	3. The light socket wires are disconnected.	3. Check the light socket wire connections.
The hood is not venting out properly.	1. The hood might be hanging too high from the cook top.	1. Adjust the distance between the cook top and the bottom of the hood within 24" and 32" range.
	2. Wind from opened windows or opened doors in the surrounding area is affecting the ventilation of the hood.	2. Close all the windows and doors to eliminate the outside wind flow.
	3. Blockage in the duct opening or duct work.	3. Remove all the blocking from the duct work or duct opening.
	4. The direction of duct opening is against the wind.	4. Adjust the duct opening direction.
	5. Using the wrong size of ducting.	5. Change the ducting to correct size.
Metal filter is vibrating.	1. Mesh filter is loose.	1. Change the mesh filter.
	2. Handle spring clip does not work properly	2. Adjust the handle until the spring clip works

DESCRIPTION PART#

Replacement Parts

Light Bulb GU10 50W Halogen (each) Z0B0020

Aluminum Mesh Filter 50200054

Optional Accessories

Recirculating Kit ZRC-00PI

Replacement Charcoal Filter (each) Z0F-C0PI

Light Bulb GU10 LED (each) Z0B0040

To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368

ZEPHYR

Limited Warranty

STAPLE YOUR RECEIPT HERE Proof of the original purchase date is needed to obtain service under warranty

TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call: 1-888-880-8368

Zephyr Ventilation, LLC (referred to herein as "we" or "us") warrants to the original consumer purchaser (referred to herein as "you" or "your") of Zephyr products (the "Products") that such Products will be free from defects in materials or workmanship as follows:

Three Year Limited Warranty for Parts: For three years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts (including LED light bulbs, if applicable) to replace those that failed due to manufacturing defects. We may choose, in our sole discretion, to repair or replace parts before we elect to replace the Products.

One Year Limited Warranty for Labor: For one year from the date of your original purchase of the Products, we will provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to manufacturing defects. After the first year from the date of your original purchase, you are responsible for all labor costs associated with this warranty.

Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and service required for the Products and consumable parts such as fluorescent, incandescent or halogen light bulbs, mesh and charcoal filters and fuses; (b) any Products or parts which have been subject to freight damage, misuse, negligence, accident, faulty installation or installation contrary to recommended installation instructions, improper maintenance or repair (other than by us); (c) commercial use of the Products or use otherwise inconsistent with its intended purpose; (d) natural wear of the finish of the Products or wear caused by improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service trips to your home to teach you how to use the Products; (g) damage to the Products caused by accident, fire, floods, acts of God; or (h) Custom installations or alterations that impact serviceability of the Products. If you are outside our service area, additional charges may apply for shipping costs for warranty repair at our designated service locations and for the travel cost to have a service technician come to your home to repair, remove or reinstall the Products. After the first year from the date of your original purchase, you are also responsible for all labor costs associated with this warranty.

Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRANTIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states or provinces do not allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the same two-year period described above. Any oral or written description of the Products is for the sole purpose of identifying the Products and shall not be construed as an express warranty. Prior to using, implementing or permitting use of the Products, you shall determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the original purchaser and applies in the United States and Canada.

To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and part identification number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documentation to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services.

Please check our website for any revisions, www.zephyronline.com.

Zephyr Ventilation Service Department, 2277 Harbor Bay Parkway, Alameda, CA 94502 1-888-880-8368

AUG14.0401

PRODUCT REGISTRATION

Congratulations on your Zephyr range hood purchase! Please take a moment to register your new range hood at www.zephyronline.com/ registration

IT'S IMPORTANT

Prompt registration helps in more ways than one.

• Ensures warranty coverage should you need service.
• Ownership verification for insurance purposes.
• Notification of product changes or recalls.

STOP

Zephyr Ventilation | 2277 Harbor Bay Pkwy. | Alameda, CA 94502 | 1.888.880.8368

Pisa

ZPI-E24AG

ZPI-E24AW

ZPI-E24AG290

ZPI-E24AW290

ZPI-E30AG

ZPI-E30AW

ZPI-E30AG290

ZPI-E30AW290

ZPI-E36AG

ZPI-E36AG290

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

NOV17.0701 © Zephyr Ventilation LLC.

MISE EN GARDE DE SÉCURITÉ 2-3

LISTE DU MATÉRIEL 4

INSTALLATION

*National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

Simple line drawing of a laboratory flask (no text or symbols)

(4) 3/16 × 3/8"
(24" modeles)

(4) 3/16 × 40
(24" modeles)

(2) M4 × 8
(24" modeles)

PIÈCES NON FOURNIES

7" 7 3/4" 7" *6- 3/16" 19-7/8" *11-12" 10-1/8" 1-15/16' C/L

3D mechanical assembly diagram showing cylindrical components and a curved pipe with an arrow indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with arrows indicating directional components (no text or symbols present)

3D mechanical assembly diagram showing a housing with a central circular component and directional arrows indicating force or movement (no text or symbols present)

3D mechanical assembly diagram showing a housing with internal components and a motor (no text or symbols visible)

FIG.3

3D rendered mechanical assembly with colored blocks and mounting holes (no text or symbols)

FIG.4

3D architectural rendering of a building corner with visible structural elements and ventilation duct (no text or symbols)

FIG.5 FIG.6

3D architectural rendering of a mechanical assembly with colored components and structural elements (no visible text or symbols)

3D CAD model of a mechanical assembly with colored components and no visible text or symbols

3D technical illustration of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with mounting holes and a labeled component (no text or symbols present)

Technical line drawing of a mechanical assembly with labeled components (no text or symbols)

3D rendering of a mechanical assembly with a cylindrical component and housing (no visible text or symbols)

FIG.9

Line drawing of scissors cutting a sheet of musical notation (no text or symbols)

Technical line drawing of a mechanical assembly with labeled components (no text or symbols present)

Technical diagram showing two views of a device with heat exchangers and a central component, no text or symbols present.

Diagram of two rectangular electronic components with arrows indicating internal flow or movement (no text or symbols)

FIG.11

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating flow or movement.

REEMPLACEMENT DES AMPOULES

Technical line drawing of a mechanical assembly with internal components and mounting brackets (no text or symbols)

Schéma de câblage

Zephyr Ventilation Service Department, 2277 Harbor Bay Parkway, Alameda, CA 94502 1-888-880-8368

AUG14.0401

ENREGI STRMENT DU PRODUIT
