AK8000ASES - Range hood Zephyr - Free user manual and instructions

Product type	Range hood
Brand	Zephyr
Model	AK8000ASES
Width	80 cm
Depth	50 cm
Height	60 cm (variable depending on installation)
Net weight	18 kg
Power supply	220-240 V, 50 Hz
Motor power	250 W
Lighting power	2 x 20 W (halogen or LED)
Noise level	55 dB (A) at normal speed
Max airflow	600 m³/h
Filtration type	Washable metal grease filter + optional charcoal filter
Number of speeds	3 speeds + intensive
Main functions	Extraction, lighting, recirculation or external evacuation
Controls	Electronic push-button controls
Material	Brushed stainless steel
Maintenance and cleaning	Clean grease filters every month; replace charcoal filters every 3-6 months
Safety	Automatic shut-off after 24 h if left on; overheat protection
Spare parts and repairability	Filters, bulbs, charcoal kit available; motor accessible
General information	User manual included (38 pages); manufacturer warranty 2 years

Frequently Asked Questions - AK8000ASES Zephyr

How to install the Zephyr AK8000ASES range hood?

Installation must be carried out by a qualified professional. Respect safety distances: at least 65 cm above an electric stove and 75 cm above a gas stove. Use the drilling template provided to fix the hood to the wall.

How often to clean the filters?

The metal grease filters should be cleaned every month in the dishwasher or by hand with hot water and detergent. The charcoal filters need to be replaced every 3 to 6 months depending on usage.

How to replace the hood bulb?

Unplug the hood. Unclip the bulb cover, unscrew the defective bulb and replace it with a bulb of the same type (20 W halogen or LED). Replace the cover and plug back in.

Why is the hood making noise?

Abnormal noise may come from a clogged filter, poor installation (vibrations) or a motor defect. Clean the filters and check the mounting. If the noise persists, contact after-sales service.

Can the hood work in recirculation mode?

Yes, the Zephyr AK8000ASES range hood can be used in recirculation mode by installing a charcoal filter kit (not supplied). In this case, the filtered air is returned to the kitchen.

How to clean the stainless steel exterior?

Use a soft cloth and a stainless steel cleaner. Do not use abrasive products or metal scrapers that scratch the surface. Wipe in the direction of the brush.

Where to buy spare parts (filters, bulbs)?

Spare parts are available from authorized Zephyr dealers, on the official website or at DIY superstores. Always use original parts.

Is the remote control included?

No, the hood is equipped with manual push-button controls. A remote control can be purchased as an option if compatible.

How to reset the filter saturation indicator?

After cleaning or replacing the filters, press the reset button (usually the speed button for 3 seconds) until the indicator light turns off or flashes.

What is the warranty period?

The Zephyr manufacturer warranty is 2 years from the date of purchase. Keep the invoice and manual for any claims.

USER MANUAL AK8000ASES Zephyr

Technical line drawing of a mechanical housing or enclosure with a central circular component and mounting holes (no text or symbols)

Model number: ____

Serial Number: ____

Date of Purchase: ____

Sales Dealer: ____

MAR14.0101 © 2014 Zephyr Corporation

READ AND SAVE THESE INSTRUCTIONS

Energy ENERGY STAR

SAFETY NOTICE 2-3

LIST OF MATERIALS 4

INSTALLATION

Ducting Calculation Sheet 5

Mounting Height & Clearance 6

Ducting Options 7

Specifications 8

Electrical 9

Installing the Power Pack.... 10

FEATURES & CONTROLS

Slide Controls 11

MAINTENANCE

Cleaning and Installing Filters 12

Lights....13

TROUBLESHOOTING 14

WIRING DIAGRAM 15

LIST OF PARTS AND ACCESSORIES.... 16

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE.

WARNING

TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a. Use this unit only in the manner intended by the manufacturer, if you have questions, contact the manufacturer.
b. Before servicing or cleaning unit, switch power off at service panel and lock panel to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

CAUTION

For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. Take care when using cleaning agents or detergents. Suitable for use in household cooking area.

WARNING

TO REDUCE THE RISK OF RANGE TOP GREASE FIRE:

a. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b. Always turn hood ON when cooking at high heat or when flaming food
c. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or fi liter.
d. Use proper pan size. Always use cookware appropriate for the size of the surface element.
e. Keep fan, fi Iters and grease laden surfaces clean.
f. Use high setting on hood only when necessary.
g. Don't leave hood unattended when cooking
h. Always use cookware and utensils appropriate for the type of and amount of food being prepared.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP FIRE, OBSERVE THE FOLLOWING:

a. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b. NEVER PICK UP A FLAMING PAN – You may be burned.
c. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
d. Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards. Including fi re-rated construction.
b. Sufficient air is needed for power combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back-drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
c. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
d. Ducted fans must always vent to the outdoors.
e. NEVER place a switch where it can be reached from a tub or shower.
f. Make sure the power is off before installing, wiring or maintaining.

WARNING

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

CAUTION

To reduce risk of fi re and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages.

OPERATION

Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and loose clothing.

The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance.

*NOTE: Please check www.zephyronline.com for revisions before doing any custom work.

ELECTRICAL REQUIREMENTS

Important:

Observe all governing codes and ordinances.

It is the customer's responsibility:

- To contact a qualified electrical installer.

- To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

Do not ground to a gas pipe.

Check with a qualified electrician if you are not sure the range hood is properly grounded.

Do not have a fuse in the neutral or ground circuit.

*National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product.

A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary.

MODELS: AK8000AS-ES

PARTS SUPPLIED

1 - Power Pack
1 - Metal mesh filter
2 - Fluorescent light bulbs (pre-installed)
1 - Single internal blower (pre-installed)
1 - Hardware package

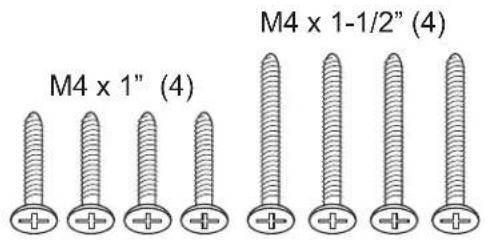

HARDWARE PACKAGE CONTENTS

M4 x 1" (4) M4 x 1-1/2" (4)

Three wire caps with ribbed top surface, no text or symbols present

PARTS NOT SUPPLIED

• Ducting, conduit and all installation tools
• Cable connector (if required by local codes)
• Optional stainless steel liner (AK08xxAS)

Duct pieces		Equivalent number length x used =	Total
	3-1/4" x 10" Rect., straight	1 Ft. x ( ) =	Ft.
	6" Round, straight	1 Ft. x ( ) =	Ft.
	7"-10" Round, straight	1 Ft. x ( ) =	Ft.
	3-1/4" x 10" Rect.90° elbow	15 Ft. x ( ) =	Ft.
	3-1/4" x 10" Rect.45° elbow	9 Ft. x ( ) =	Ft.
	3-1/4" x 10" Rect.90° flat elbow	24 Ft. x ( ) =	Ft.
	3-1/4" x 10" Rect. wall cap with damper	30 Ft. x ( ) =	Ft.
	3-1/4" x 10" Rect.to 6" round transition	5 Ft. x ( ) =	Ft.
	3-1/4" x 10" Rect.to 6" round transition 90° elbow	20 Ft. x ( ) =	Ft.
	6" Round, 90° elbow	15 Ft. x ( ) =	Ft.
	6" Round, 45° elbow	9 Ft. x ( ) =	Ft.
Subtotal column 1 =			Ft.

Duct pieces		Equivalent number length x used =	Total
	6" Round wall cap with damper	30 Ft. x ( ) =	Ft.
	6" Round, roof cap	30 Ft. x ( ) =	Ft.
	6" round to 3-1/4" x 10" rect. transition	1 Ft. x ( ) =	Ft.
	6" round to 3-1/4" x 10" rect. transition 90° elbow	16 Ft. x ( ) =	Ft.
	7" - 10" Round, 90° elbow	15 Ft. x ( ) =	Ft.
	7" - 10" Round, 45° elbow	9 Ft. x ( ) =	Ft.
	7" - 10" Round wall cap with damper	30 Ft. x ( ) =	Ft.
	7" - 10" Round, roof cap	30 Ft. x ( ) =	Ft.
	7" round to 3 1/4" x 10" rect. transition	8 Ft. x ( ) =	Ft.
	7" round to 3-1/4" x 10" rect. transition 90° elbow	23 Ft. x ( ) =	Ft.
Subtotal column 2 = Subtotal column 1 = Total ductwork =			Ft.
			Ft.
			Ft.

Maximum Duct Length: For satisfactory air movement, the total duct length should not exceed 100 equivalent feet.

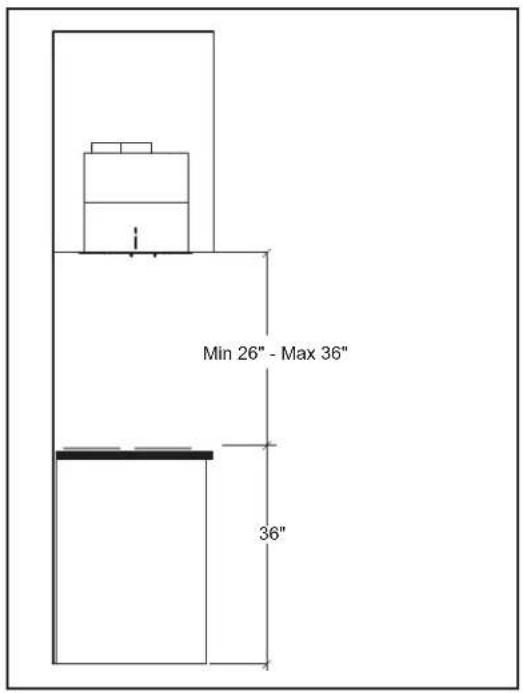

Min 26" - Max 36" 36"

Minimum mount height between range top to hood bottom should be no less than 26".

Maximum mount height should be no higher than 36".

It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose its performance and efficiency.

If available, also refer range manufacturer's height clearance requirements and recommended hood mounting height above range.

Vertical Ducting:

6" round minimum

Horizontal Ducting:

N/A

DUCTING

A minimum of 6" round or 3-1/4" x 10" rectangular duct must be used to maintain maximum air flow efficiency.

Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%.

Also use calculation (on page 5) to compute total available duct run when using elbows, transitions and caps.

ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required, increase duct size.

If turns or transitions are required; install as far away from hood duct output and as far apart, between the two as possible.

WARNING FIRE HAZARD

NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside.

Use metal ductwork only.

Fasten all connections with sheet metal screws and tape all joints with certified Silver Tape or Duct Tape.

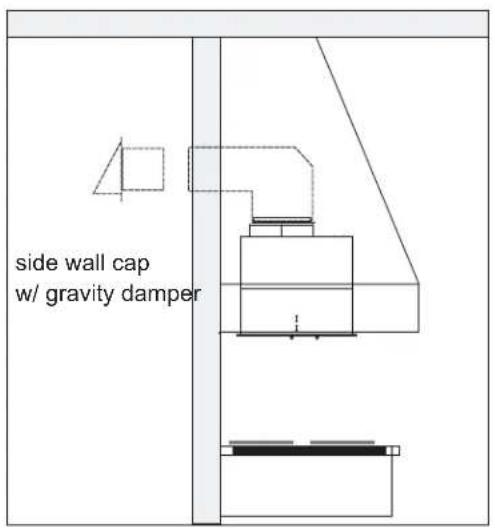

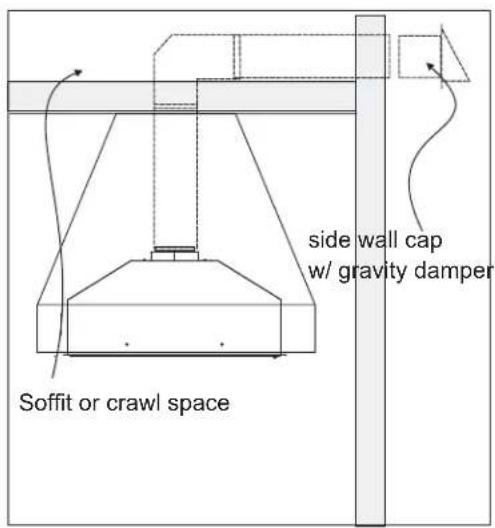

Some Ducting Options

side wall cap w/ gravity damper

side wall cap w/ gravity damper Soffit or crawl space

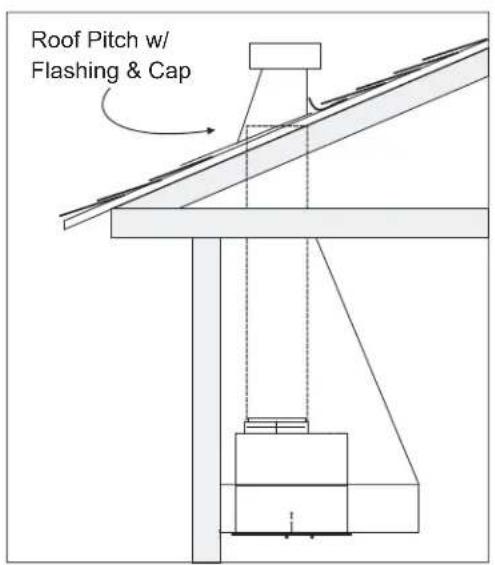

Roof Pitch w/ Flashing & Cap

Installation – Specifications

ELECTRICAL

WARNING

All Electrical work must be performed by qualified electrician or person with similar technical know how and background.

For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance.

Follow national electrical codes or prevailing local codes and ordinances.

Electrical Supply:

This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire w/ ground. Please also refer Electrical Diagram labeled on product.

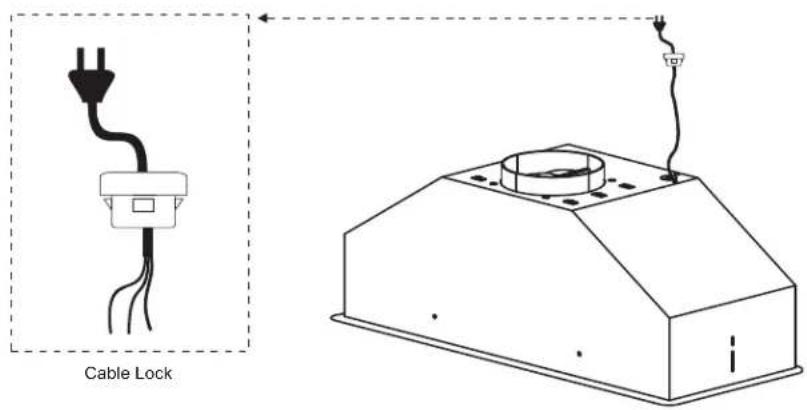

Cable Lock:

A cable locking connector (not supplied) might also be required by local codes. Check with local requirements and codes, purchase and install appropriate connector if necessary.

Cable Lock

CAUTION: At least two installers are tired due to the weight and size of the d.

1. Install optional AK08xxAS Stainless Steel Liner. Review manual included with liner for more details.
2. If no liner is used cut out an opening in the bottom of the cabinet by following the dimensions in FIG 1.
3. Lift Power Pack into opening and ensure locking clip has locked into position. (locking clip is located on left side of Power Pack. FIG 2)
4. Fasten (2) M4 screws into each long side of Power Pack. If a liner is used the screws will go through the Power Pack mounting holes, then the liner and into the wood base. note: Wood blocking may need to be added to cabinet base if additional support is needed. see FIG 3 and FIG 4
5. Install duct work and seal with duct tape.
6. Install electrical.
7. Remove all packing materials before using Power Pack. Switch power on and check for leaks around duct tape.
8. Install fi Iter.

26 7/8" C/L 10 5/8" C/L cabinet bottom cut-out size

FIG 1

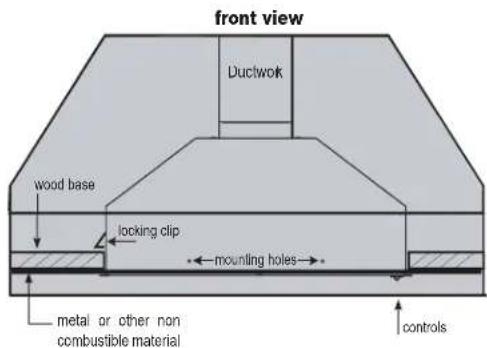

front view Ductwork wood base locking clip mounting holes metal or other non combustible material controls

FIG 2

right side view Ductwork wood base 2" minimum secure (2) M4 screws to mounting holes on each long side of Power Pack

FIG 3

Power Pack Stainless Steel Liner

FIG 4

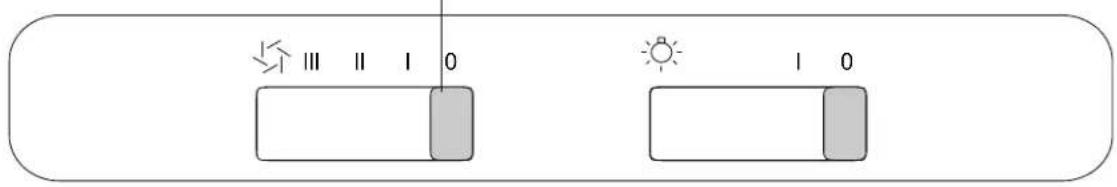

① Blower On/Off Speed Selection
② Lights On/Off

III II I 0 I 0

1 BLOWER ON/OFF/SPEED SELECTION

0 is off, I is low speed, II is medium speed and III is high speed.

2 LIGHTS ON/OFF

0 is off and I is on.

SURFACE MAINTENANCE:

Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent, or steel wool/ scoring pads which will scratch and damage surface. Do not use products containing chlorine bleach or orange cleaners. For heavier soil use liquid degreaser.

After cleaning, you may use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain. Always scrub lightly using a micro fiber or clean cotton cloth and with the grain.

The filters are intended to trap residue and grease from cooking. Although the filters should never need replacing, they are required to be cleaned every 30 days or more often depending on cooking habits.

Filters may be placed in dishwasher at low heat or soaked in hot soapy water Dry filters and re-install before using hood.

Installing Metal Mesh Filter, FIG 5:

1. Place back of filter into channel on left side of Power Pack.
2. Push fi Iter handle in towards left side of Power Pack.
3. Pivot fi Iter up and lock into place.

Hood Model: Part No. Qty. to Order

AK8000AS-ES 50200022 1

1 2 3

FIG 5

REPLACING LIGHT BULBS

CAUTION: Light bulb becomes extremely hot when turned on.

DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns.

Make sure all power is turned off and bulbs are not hot.

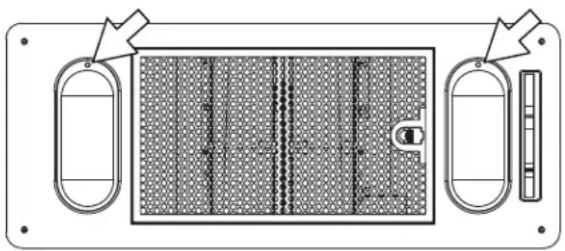

Access light bulb by removing light bulb lens cover by 1 screw. FIG. 6

Remove by turning bulb counter clockwise. Note: Bulb does not unscrew; it turns 60 degrees, stops and falls out.

Replacement bulbs are available from Zephyr or specialty lighting stores. See page 16 for ordering information. Purchase type: 13w Fluorescent, GU-24 CFL, STS T3 13GUS

Technical diagram of a device panel with front and side views, showing internal grid structure and mounting points (no text or symbols)

FIG. 6

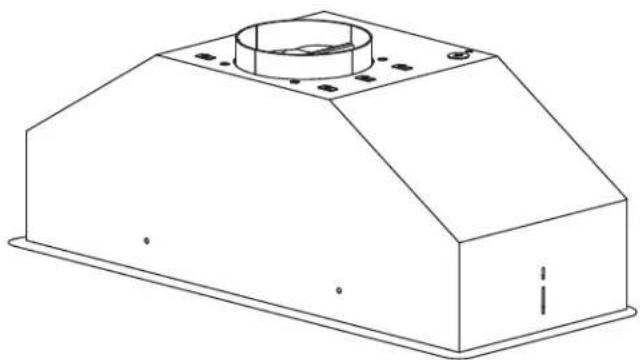

TROUBLESHOOTING PROCEDURES FOR TWISTER

Issue Cause W	what to do
After installation, the unit doesn't work.	1. The power source is not turned ON. 1. Make sure	the circuit breaker and the unit's power is ON.
	2. The power line and the cable locking connector is not connecting properly.	2. Check the power connection with the unit is connected properly.
	3. The switch wirings are disconnected. 3. Make sure	the wirings at the switch are connected properly.
	5. The switch is defective. 5. Change the switch.
Light works, but blower is not turning.	1. The blower cable is unpluged. 1. Connect the blower cable.
	2. The blower is defective, possible seized. 2. Change the blower.
	3. The thermally protected system detects if the blower is too hot to operate and shuts the blower down.	3. The blower will function properly after the thermally protected system cool down.
	4. Damaged capacitor. 4. Change the capacitor.
The unit is vibrating.	1. The blower is not secure in place. 1. Tighten the blower in place.
	2. Damaged blower wheel. 2. Change the blower.
	3. The hood is not secured in place. 3. Check the installation of the hood.
The blower is working, but the lights are not.	1. Light socket connector is unpluged. 1. Connect the light socket connector.
	2. Defective bulb.	2. Change the bulb.
	3. The light bulb is loose.	3. Tighten the light bulb.
The hood is not venting out properly.	1. The hood might be hanging to high from the cook top.	1. Adjust the distance between the cook top and the bottom of the hood within 26" to 36" range.
	2. The wind from the opened windows or opened doors in the surrounding area are affecting the ventilation of the hood.	2. Close all the windows and doors to eliminate the outside wind flow.
	3. Blocking in the duct opening or duct work.	3. Remove all the blocking from the duct work or duct opening.
	4. The direction of duct opening is against the wind.	4. Adjust the duct opening direction.
	5. Using the wrong size of ducting.	5. Change the ducting to at least 6" or higher.
Metal filter is vibrating.	1. Metal filter is loose.	1. Change the metal filter.
	2. Spring clip is broken.	2. Change the spring clip.

USE ONLY 13W, GU24 FLUORESCENT LIGHT BULBS. MODEL SPS T3 13GUS.

AK8000AS-ES	VOLTS	HZ	MAX AMPS
	120	60	1.2

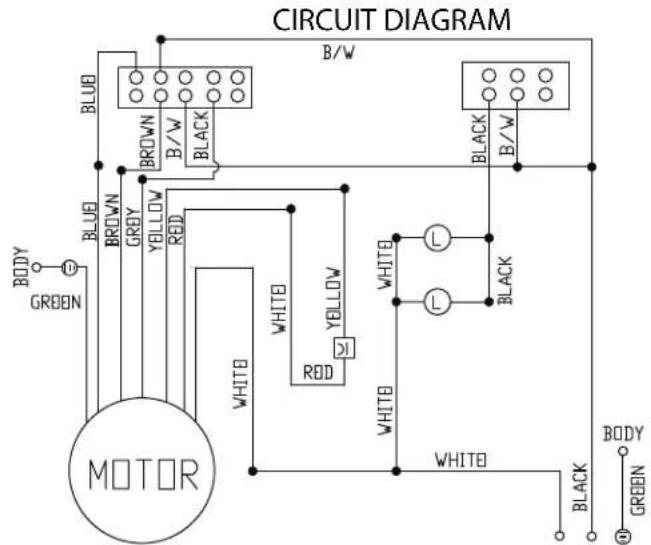

CIRCUIT DIAGRAM B/W BLUE BROWN B/W BLACK B/W BLUE BROWN GRBY YELLOW RDD WHITE YELLOW RBD WHITE L L BLACK WHITE WHITE BODY GREEN MOTOR BLACK BODY GREEN

REMARKS:CONDONSOR 4uF 250VAC FIT AC120V 60Hz

DESCRIPTION

PART #

Replacement Parts

Metal

Mesh

Filter

(each)

50200022

Fluorescent Light Bulb, 13W (each) Z0B-0036

Optional Accessories

Liner,30"

AK0800AS

Liner,36"

AK0836AS

To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368

TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call:

1-888-880-8368

Zephyr Corporation (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or workmanship as follows:

Three Year Limited Warranty for Parts: For three years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts (including LED light bulbs, if applicable) to replace those that failed due to manufacturing defects. We may choose, in our sole discretion, to repair or replace parts before we elect to replace the Products.

One Year Limited Warranty for Labor: For one year from the date of your original purchase of the Products, we will provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to manufacturing defects. After the first year from the date of your original purchase, you are responsible for all labor costs associated with this warranty.

Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and service required for the Products and consumable parts such as incandescent or halogen light bulbs, metal and carbon filters and fuses; (b) any Products or parts which have been subject to freight damage, misuse, negligence, accident, faulty installation or installation contrary to recommended installation instructions, improper maintenance or repair (other than by us); (c) commercial use of the Products or use otherwise inconsistent with its intended purpose; (d) natural wear of the finish of the Products or wear caused by improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service trips to your home to teach you how to use the Products; or (g) damage to the Products caused by accident, fire, floods or act of God. If you are outside our service area, additional charges may apply for shipping costs for warranty repair at our designated service locations and for the travel cost to have a service technician come to your home to repair, remove or reinstall the Products. After the first year from the date of your original purchase, you are also responsible for all labor costs associated with this warranty.

Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRANTIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states or provinces do not allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the same two-year period described above. Any oral or written description of the Products is for the sole purpose of identifying the Products and shall not be construed as an express warranty. Prior to using, implementing or permitting use of the Products, you shall determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the original purchaser and applies in the United States and Canada.

To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and part identification number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documentation to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services.

Please check our website for any revisions, www.zephyronline.com.

Twister

AK8000AS-ES

Technical line drawing of a mechanical housing or enclosure with a central cylindrical component and mounting holes (no text or symbols)

Energy ENERGY STAR

CONSIGNES DE SÉCURITÉ 2-3

LISTE DU MATÉRIEL 4

INSTALLATION

*National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

M4 x 1" (4) M4 x 1-1/2" (4)

Three identical conical shapes with vertical ridges, labeled 'Capuchons (3)' above (no additional text or symbols)

PIÈCES NON FOURNIES

REEMPLACEMENT DES AMPOULES

Technical diagram of a device rear panel with grid pattern and side ports (no text or symbols)

DÉPANNAGE POUR LES HOTTES TWISTER

Zephyr Corporation Service Department, 2277 Harbor Bay Parkway, Alameda, CA 94502 1-888-880-8368
