IAN 107127 - Lighting Livarno Lux - Free user manual and instructions

Product type	Decorative solar lamp for outdoor use
Brand	Livarno Lux
Model	IAN 107127
Intended use	Outdoor decorative lighting (not suitable for room lighting)
Power supply	NiMH rechargeable battery + multicrystalline solar cell
Battery type	AAA NiMH 1.2 V
Battery capacity	150 mAh
Solar cell	25 mA, multicrystalline
Bulb	1 non-replaceable LED per lamp
Rated power	0.06 W per LED
Protection rating	IPX4 (protection against water splashes)
Dimensions (L × W × H)	max. 5.5 × 9.6 × 6.5 cm
Package contents	6 solar stones with solar cell, 6 NiMH AAA/1.2V/150 mAh batteries, 1 mounting instruction
Functions	Automatic dusk activation, ON/OFF switch, lighting duration 6 to 8 h when fully charged
Lighting duration	Approximately 6 to 8 hours at full charge capacity
Maintenance	Clean with a dry, lint-free cloth; replace the battery every 12 months; do not use caustic detergents
Safety	Do not use indoors; keep out of reach of children; use only batteries of the specified type; do not expose to vibrations; do not use if damaged
Warranty	3 years from the date of purchase (excluding damage due to improper use or normal wear)
After-sales service	EGLO FRANCE LUMINAIRE SARL: [phone] or EGLO Suisse AG: [phone]

Frequently Asked Questions - IAN 107127 Livarno Lux

How to install the solar lamp?

Choose a location that is sunny all day, without shade or other light sources. Set the switch to ON and expose the lamp to sunlight for the first charge.

How to replace the battery?

Set the switch to OFF, unscrew the 4 screws of the battery compartment, remove the old battery and insert a new NiMH AAA 1.2V 150mAh battery respecting polarity (+/-). Carefully close the seal.

Why does the lamp not turn on?

Check that the switch is set to ON, the environment is dark enough, the solar cell is clean, and the battery is charged. Keep it away from parasitic light sources.

Can the lamp be used indoors?

No, this solar lamp is designed only for decorative outdoor use. It is not suitable for room lighting.

How to clean the lamp?

Use a dry, lint-free cloth. For stubborn dirt, a slightly damp cloth. Never use caustic detergents.

What is the battery life?

The battery is designed for long-term use, but it is recommended to replace it every 12 months for optimal performance.

What to do if the LEDs are defective?

The LEDs are not replaceable. If they are defective, please dispose of the product in accordance with recycling guidelines.

How to store the lamp in winter?

Clean the lamp, remove the battery and store it in a dry, heated room. Performance decreases in cold weather.

What is the warranty of this product?

The warranty is 3 years from the date of purchase, covering defects in materials or workmanship, excluding normal wear and damage due to improper use.

Where to find after-sales service?

In France, contact EGLO FRANCE LUMINAIRE SARL at [phone] or by email [e-mail]. In Switzerland, EGLO Suisse AG at [phone] or [e-mail].

USER MANUAL IAN 107127 Livarno Lux

LED-SOLARLEUCHTEN

DE AT CH

LED-SOLARLEUCHTEN

Operation and Safety Notes

IAN 107127

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GB Operation and Safety Notes Page 25

Einleitung

GERAHR EXPLOSIONSGE-

GERAHR EXPLOSIONSGE-

GEI AHR EXPLOSIONSGE-

EDI Light Service Center

Heiligkreuz 22

A-6136 Pill

E-Mail: [e-mail]

Telefon: [phone]

Schweiz

EGLO Schweiz AG

Seetalstraße 142

CH-6032 Emmen

E-Mail: [e-mail]

Telefon: [phone]

Deutschland

EDI Light Service Center

c/o RTS Service Solutions

Halle 17-1

Intended use....Page 26

Parts description Page 26

Scope of delivery....Page 26

Technical Data Page 26

Safety instructions......Page 26

Product-specific safety instructions Page 27

Safety instructions for rechargeable batteries....Page 27

Functionality Page 27

Start-up

Installing the light Page 28

Prior to initial use....Page 28

Light functions....Page 28

Replacing the battery....Page 28

Troubleshooting Page 28

Maintenance / Cleaning

Battery leaks......Page 29

Disposal Page 29

Declaration of Conformity Page 30

Warranty / Service centre

Service address......Page 30

Warranty card......Page 30

Solar-powered LED lights

- Introduction

CONGRATULATIONS ON THE PURCHASE OF YOUR NEW LIGHT

You have selected a high quality product. The assembly instructions are part of this product. They contain important information on safety, handling and disposal. Familiarise yourself with all the functions of the appliance before operating it for the first time. To do so, read the following assembly and safety instructions. Use the product only as described and for the indicated purpose. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation.

Intended use

The solar light is not suitable as residential room lighting.

The solar light is intended as an outdoor accent light. Any other use or modification of the product constitute improper use and pose a risk of short circuits, fire, electric shocks and damage to the product. The manufacturer is not liable for damage caused by improper use. The product is not intended for commercial use.

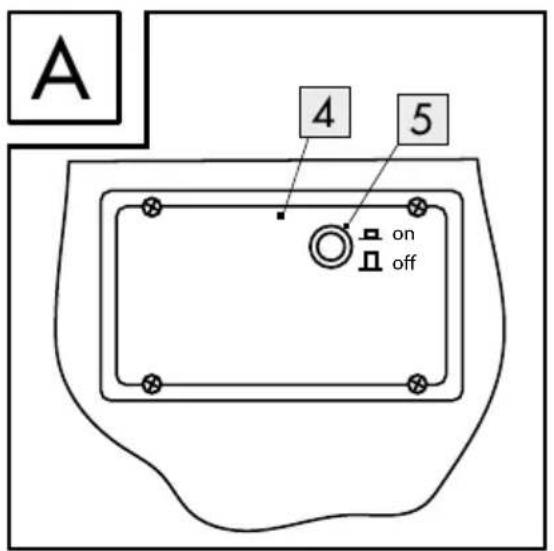

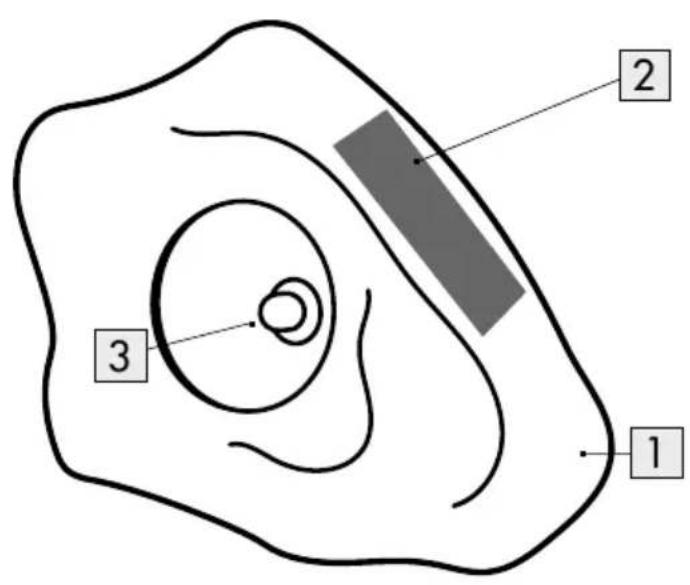

- Parts description

1 Solar rock
2 Solar cell
3 LED
4 Battery compartment
5 On/Off switch
6 Rechargeable AAA battery

- Scope of delivery

Immediately after unpacking check the parts are complete and the product is in good condition.

6 x Solar stone with solar cell

6 x Rechargeable battery Ni-Mh, AAA/1.2V/150mAh 6

1 x Assembly instructions

- Technical Data

Item number: 54317

Battery: 1x Ni-Mh rechargeable

battery/AAA/1.2V/

150 mAh

Light bulb: 1 x LED per light

(not replaceable)

Rated power: 0.06 W per LED

Protection type: IPX4 (splash-proof)

Solar cell: 25 mA, multicrystalline

Dimensions:

Solar light: max. 5.5 x 9.6 x 6.5 cm

(1 x w x h)

Distributor:

Edi Light GmbH, Heiligkreuz 22, A-6136 Pill

- Safety instructions

WARNING! ACCIDENT HAZARD AND RISK OF FATAL INJURY FOR INFANTS AND

CHILDREN!

- Rechargeable batteries are not intended for the hands of children. Do not leave the batteries lying around. They may otherwise be swallowed by children or pets. If accidentally swallowed seek immediate medical attention.

Children or persons lacking knowledge or experience in handling the device or have limited physical, sensory or mental abilities, must not use the device without supervision or instruction by a person responsible for their safety.

Children must be supervised at all times to prevent them from playing with the device.

- Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep the product out of the reach of children at all times.

This product is not a toy and should be kept out of the reach of children. Children are not aware of the dangers associated with handling electrical products.

- Do not use the article if you detect any kind of damage.

DANGER - EXPLOSION

HAZARD! Do not use the solar light in explosive environments con-

taining flammable vapours, gasses or dusts.

●Product-specific safety instructions

• Do not expose the solar light to strong vibration or high mechanical loads.
  ■ Make sure the solar cell is free of dirt and free of snow and ice in winter. Otherwise the performance of the solar panel will diminish.
• Cold temperatures negatively impact the battery operating time. Clean and store the solar light in a dry, warm location during extended periods of non-use, e.g. in winter.
  In the event of damage, repairs or other problems with the solar light, please contact an electrician. The LEDs cannot be replaced!

DANGER - EXPLOSION

HAZARD! Use only rechargeable batteries of the recommended type.

Other rechargeable or single-use batteries could explode during charging.

DANGER - FIRE HAZARD!

Never switch the solar light on inside the packaging.

● Safety instructions for rechargeable batteries

- Outdated or used rechargeable batteries may leak chemicals which damage the product. Therefore remove the rechargeable batteries when not using the solar light for extended periods.

DANGER - FIRE HAZARD!

Do not allow rechargeable batteries to short-circuit. Otherwise the rechargeable batteries may overheat, become a fire hazard or explode.

DANGER - EXPLOSION

HAZARD! Never throw rechargeable batteries into fire or water.

WARNING - WEAR

SAFETY GLOVES! If they come into contact with skin, leaked or damaged rechargeable batteries could cause chemical burns; you should therefore wear suitable protective gloves at all times if such an event occurs.

Functionality

The solar module built into this product converts sunlight into electricity and stores it in the rechargeable NiMH battery. Switches on the light as it begins to get dark.

The in-built light-emitting diodes are a very long-life and energy-saving light source.

The light duration depends on the amount of sunlight, the angle of light on the solar panel and the temperature (the battery capacity is temperature-dependent). A vertical angle of light at temperatures above the freezing point is ideal.

The battery does not achieve maximum capacity until after several charge and discharge cycles.

- Start-up

- Installing the light

Since the light relies on sunlight, consider and observe the following points prior to installation:

☐ Select a location where the solar module 2 is exposed to direct sunlight during the day.
☐ Position the solar light so the solar module 2 is not covered or in the shade (trees, roof ridge, etc.).
☐ Be sure the solar module 2 is not impacted by another light source, e.g. yard or street lighting, as this will prevent the light from switching on at twilight. Remember many light sources will only switch on due to the time or movement during the night.

Prior to initial use

The solar light features a twilight sensor and an On/Off switch. When fully charged the light on time is approx. 6 to 8 hours.

Before using the solar light for the first time, set the On/Off switch 5 to ON and place the solar light in the sun.

Lightfunctions

☐Switch 5 set to ON - the solar light will automatically switch on at twilight. At dawn the light will automatically switch off.
☐Switch 5 set to OFF - the solar light is permanently switched off.

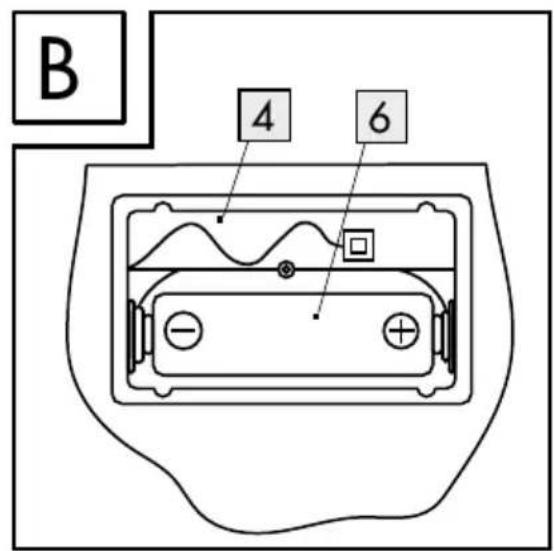

- Replacing the battery

The rechargeable battery is designed for prolonged operation. However, after a long time of use if may need to be replaced. Rechargeable batteries are subject to natural wear and the output may decrease. For optimal performance the batteries should be replaced every 12 months. Replace the battery as shown in figures A–B.

☐ Set the switch 5 on the underside to OFF.
☐ Remove all four screws on the battery compartment.
☐ Remove the battery cover incl. seal.
☐ Remove the battery 6 and replace with a new, charged rechargeable battery of the same type (see „Technical Data“). Please note the polarity (+/-) when inserting the rechargeable battery (see Fig. B). When inserting always be careful not to pinch the cables.
☐ Correctly reattach the battery cover 4 incl. the seal. Be sure the seal is seated correctly. This will prevent water from entering the battery compartment.
☐ Tighten the four screws again.
☐ Set the switch 5 to ON again.

- Troubleshooting

NOTE

The device contains delicate electronic components. For this reason it is possible that it can be disrupted by radio transmitting equipment in the immediate vicinity. These could be e.g. mobiles, two-way radios, CB radios, wireless remote controls/other remote controls and microwaves. If you notice that the device is malfunctioning, remove any sources of interference from the area of the device.

NOTE

Electrostatic discharges can lead to malfunctions. In the event of such malfunctions briefly remove and reinsert the rechargeable batteries.

NOTE

The power of the rechargeable battery varies according to the weather and will be higher in summer than in winter.

Fault Cause Solution
LEDs won't light up	Surroundings are too bright or light from other light sources is hitting the solar light	Change the location (away from e.g. yard or street lighting)
Weak LED light	Battery not fully charged or defective	Charge the rechargeable battery with a charger or replace with a new rechargeable battery (see "Replacing the battery")
LEDs defective		The LEDs cannot be replaced. Dispose of the product properly (see "Disposal")

● Maintenance / Cleaning

The LEDs cannot be replaced. The solar light is maintenance-free.

■ Never use caustic cleaners.
☐ Regularly clean the solar light with a dry, lint-free cloth. Use a slightly moist cloth to remove any stubborn dirt.
Replace the rechargeable batteries if the light on time decreases noticeably after some time despite good sun exposure (see chapter „Replacing the battery“). Only use rechargeable batteries of the right size and of the recommended type (see section „Technical data“).

●Batteryleaks

If a battery leaked, try to remove the fluid from the battery compartment using a soft cloth.

DANGER - RISK OF CHEM-

ICAL BURNS! Leaking batteries can cause in chemical burns. Be

careful not to allow the battery fluid to come into contact with your skin or your eyes. If this does happen, immediately try to remove the battery fluid under cold running water. Seek medical attention to be safe.

Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities. Contact your local community or municipal administration for more details on how to dispose your worn-out product.

NOTE

To help protect the environment, please dispose of the product properly, and not in household waste, when it has reached the end of its useful life. Please contact your local authority for information on collection points and their opening hours.

In accordance with directive 2006/66/EC, defective or used rechargeable batteries must be recycled. Return rechargeable batteries and/or the appliance using the recycling facilities provided.

NOTE

Rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of used batteries through your municipal collection site.

● Declaration of Conformity

This product fulfils the requirements of the applicable European and national directives. The relevant declarations and

documents are held by the manufacturer. This product meets the requirements of the German Equipment and Product Safety Act.

We reserve the right to make technical and visual changes to the product in the interest of product improvement. Typographical and printing errors excepted.

● Warranty / Service centre

We provide a 3 year warranty from the date of purchase.

Our products are manufactured using modern production methods and are subject to precise quality control. We guarantee this product is of good quality. During the warranty period any defects in material or manufacture will be replaced free of charge In the event of an unexpected defect, please return the carefully packaged product to the service address specified.

The warranty does not extend to damage due to improper handling as well as wear items and

consumables. These can be ordered from the telephone number listed for a charge.

Repairs not covered by the warranty (e.g. light bulb) may also be requested at cost from the service address listed.

The product will be repaired at the specified service location. Timely processing and return can only be ensured by sending the product directly to this address.

For additional product information, to order accessories or have a question about the service process, please contact our Customer Service Department at the telephone number specified. Please include the item number (see Technical Data) when inquiring about the product.

Serviceaddress

Great Britain

EGLO UK Ltd.

Unit 12 Cirrus Park

Lower Farm Road

Moulton Park Industrial Estate

GB-Northampton, NN3 6UR

E-Mail: [e-mail]

Phone: [phone]

Warrantycard

Return address:

Name/First name:

Country/Postal code/City/Street address:

Phone:

Item number/Description:

Purchase date/Point of purchase:

Description of the defect:

Date/Signature:

Non-warranty cases:

Please return the unrepaired item, carriage paid.

Please provide pricing. Repair the product against charge.
