Product type	Decorative solar lamp for outdoors
Brand	Livarno Lux
Model	IAN 273025
Dimensions (without spike)	approx. 42 x 20 cm (H x ∅)
Spike height	10 cm
Weight	Not specified in the manual (estimated approx. 300-500 g)
Power supply	1 rechargeable NiMH AAA 1.2 V / 300 mAh battery
Bulb type	1 non-replaceable LED, rated power 0.2 W
Solar cell	Multicrystalline, 50 mA
Protection rating	IP44 (protected against water splashes)
Lighting duration	approx. 6 to 8 hours when fully charged
Twilight sensor	Yes, automatic on/off
Main functions	Automatic lighting at dusk, energy saving, cable-free installation
Package contents	Ground spike, spacers (7 cm and 20 cm), globe, solar module with LED and battery, manual
Care and cleaning	Clean with a dry lint-free cloth; do not use caustic detergents
Battery replacement	Approximately every 12 months; use a NiMH AAA 1.2 V 300 mAh battery
Operating temperature	Withstands temperatures below -20 °C
Warranty	3 years from date of purchase
Repairability	LED non-replaceable; battery replaceable; for any repairs, contact an electrician
Spare parts	Battery (NiMH AAA), spacers (models 273025/273026/273027)
Intended use	Outdoor decorative lighting; not suitable as room lighting

Frequently Asked Questions - IAN 273025 Livarno Lux

How to install the solar lamp?

Drive the spike into the ground in a sunny spot. Insert the chosen spacer (7 cm or 20 cm) into the solar module, then the spike. For maximum height (42 cm for IAN 273025), use the 20 cm spacer.

Where to place the lamp for optimal charging?

Choose a location exposed to direct sunlight all day, without shade from trees or buildings. Avoid artificial light sources (yard or street lighting) that might prevent automatic activation.

How to turn the lamp on and off?

Set the ON/OFF switch to ON. The lamp turns on automatically at dusk and off in the morning. To turn it off manually, toggle the switch to OFF.

What to do if the lamp does not turn on?

Check that the switch is ON and the environment is dark enough. Move the lamp away from stray light sources. If the problem persists, replace the battery (see manual). If the LEDs are defective, the product must be disposed of.

How to replace the battery?

Unscrew the globe, set the switch to OFF, remove the solar module from the spacer. Unscrew the screws under the housing and cover. Replace the battery with a new one of the same type (NiMH AAA 1.2 V 300 mAh) respecting polarity. Screw everything back together and set the switch to ON.

Which battery to use for replacement?

Use a rechargeable NiMH AAA battery, voltage 1.2 V, capacity 300 mAh. Do not use non-rechargeable batteries. Observe polarity (+/-) during installation.

Can the lamp stay outside in winter?

Yes, it withstands temperatures below -20 °C. However, to preserve the battery, clean the lamp and store it in a dry, heated room if unused for a long time (e.g., in winter). Remove the base and spike to avoid tripping hazards.

How to clean the solar lamp?

Clean the solar cell regularly with a dry lint-free cloth. For stubborn dirt, use a slightly damp cloth. Never use caustic or abrasive detergents.

What to do in case of electrostatic malfunction?

Remove the battery, wait a few moments, then reinsert it. This resets the electronics. Also keep away from sources of radio interference (phones, microwaves, etc.).

How to dispose of the lamp at the end of its life?

Do not dispose of the lamp in household waste. Take it to a recycling center or collection point for electronic devices. Batteries must be recycled separately (containers provided for this purpose).

USER MANUAL IAN 273025 Livarno Lux

Operation and Safety Notes

NL BE

LED-SOLAR-BOLLAMP

GB / IE Operation and Safety Notes Page 14

GEFAHR EXPLOSIONSGE-

GEFAHR EXPLOSIONSGE-

GEFAHR VERLETZUNGS-

GEFAHR EXPLOSIONSGE-

Intended use......Page 15

Parts Description......Page 15

Scope of delivery....Page 15

Technical Data Page 16

Safety instructions......Page 16

Product-specific safety instructions Page 17

Safety instructions for rechargeable batteries......Page 17

Initial use

Mounting the light....Page 18

Installing the light Page 18

Preparing the light prior to initial use......Page 18

Switching the light on/off......Page 19

Replacing the rechargeable battery Page 19

Troubleshooting Page 19

Maintenance / Cleaning......Page 20

Disposal Page 20

Warranty Page 21

Solar-powered LED light ball

- Intended use

The solar light is intended as an outdoor accent light. The product is not intended for commercial use.

■ Not suitable for ordinary lighting in household room illumination.

This product is suitable for extreme temperatures below -20 °C.

The solar module built into this product converts sunlight into electricity and stores it in the rechargeable NiMH battery. The light switches on at dusk. The in-built light-emitting diodes are a very long-life and energy-saving light source.

The light duration depends on the amount of sunlight, the angle at which light hits the solar panel, and the temperature (the battery capacity varies by temperature). A vertical angle of light at temperatures above the freezing point is ideal.

The battery does not achieve maximum capacity until after several charge and discharge cycles.

- Parts Description

1 Ground spike 2 Spacer tube approx. 7 cm

3 Spacer tube approx. 20 cm (on IAN 273025); approx. 17 cm (on IAN 273026); approx. 25 cm (on IAN 273027)

4 Sphere 5 Solar module 6 On/Off switch 7 Cross-head screws (housing) 8 Housing 9 Cross-head screws (cover) 10 Cover 11 Rechargeable AAA battery 12 Solar cell

- Scope of delivery

Immediately after unpacking, verify the parts are complete and the product is in proper condition.

1 Ground spike 1
1 Spacer tube approx. 7 cm 2
1 Spacer tube approx. 20 cm (on IAN 273025); approx. 17 cm (on IAN 273026); approx. 25 cm (on IAN 273027) 3
1 Sphere 4
1 Solar module incl. LED and rechargeable Ni-Mh battery, AAA/1.2 V/300 mAh 5
1 Installation instructions

- Technical Data

Rechargeable

battery: 1 x rechargeable

Ni-Mh battery/AAA/

1.2 V / 300 mAh

Illuminant: 1 x LED (not replaceable)

Rated power: 0.2 W per LED

Protection type: IP44 (splash-proof)

Solar cell: 50 mA, multicrystalline

Dimensions:

Solar light

(excl. ground spike): approx. 42 x 20 cm (h x ∅)

(on IAN 273025);

approx. 34 x 15 cm (h x ∅)

(on IAN 273026);

approx. 51 x 25 cm (h x ∅)

(on IAN 273027)

Ground spike: 10 cm (h)

● Safety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INSTRUCTIONS AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

RISK AD WARNING!

ACCIDENT AND DANGER

TO LIFE FOR INFANTS AND

CHILDREN!

- Keep rechargeable batteries away from children. Do not leave the batteries lying around. There is a danger that these will be swallowed by children or pets. If they are accidentally swallowed seek immediate medical attention.

Children or persons lacking knowledge or experience in handling the device or have limited physical, sensory or mental abilities, must not use the device without supervision or instruction by a person responsible for their safety. Children must be supervised at all times to prevent them from playing with the device.

■ Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. Please always keep the product out of the reach of children.

This product is not a toy and should be kept out of the reach of children. Children are not aware of the dangers associated with handling electrical products.

- Do not use the product if you detect any type of damage.

DANGER - EXPLOSION

HAZARD! Do not use the solar light in explosive environments con-

taining flammable vapours, gasses or dusts.

●Product-specific safety instructions

• Do not expose the solar light to strong vibration or high mechanical loads.
  ■ Make sure the solar cell is free of dirt and free of snow and ice in winter. Otherwise the performance of the solar panel will be diminished.
• Cold temperatures negatively impact the battery operating time. Clean and store the solar light in a dry, warm location during extended periods of non-use, e.g. in winter.
  In the event of damage, repairs or other problems with the solar light, please contact an electrician. The LEDs cannot be replaced.

DANGER - EXPLOSION

HAZARD! Use only rechargeable batteries of the recommended

type. Other rechargeable or single-use batteries could explode during charging.

DANGER - RISK OF IN-

JURY! When removing the solar light, be sure to also remove the

base and ground stake to prevent hazards (e.g. tripping).

DANGER - FIRE HAZARD!

Never switch the solar light on inside the packaging.

● Safety instructions for rechargeable batteries

- Outdated or used rechargeable batteries may leak chemicals which will damage the product. Therefore remove the rechargeable batteries when not using the solar light for extended periods.

DANGER - FIRE HAZARD!

Never short-circuit rechargeable batteries. Otherwise the recharge-

able batteries may overheat, become a fire hazard or explode.

DANGER - EXPLOSION

HAZARD! Never throw rechargeable batteries into fire or water.

WARNING - WEAR

SAFETY GLOVES! Leaked or damaged rechargeable batteries

could cause chemical burns on contact with the skin; you should therefore wear suitable protective gloves at all times if such an event occurs.

DANGER - RISK OF

CHEMICAL BURNS! Leaking batteries can cause chemical burns.

Be careful not to allow the battery fluid to come into contact with your skin or your eyes. If this does happen, immediately try to remove the battery fluid under cold running water. Seek medical attention to be safe.

- Initial use

- Mounting the light

☐ Remove the individual parts from the packaging and assemble the solar light as shown in Figure A. There are two options: the spacer tube 3 will make the solar light approx. 42 cm (on IAN 273025); approx. 34 cm (on IAN 273026); approx. 51 cm (on IAN 273027) tall (see Fig. B), the spacer tube 2 will make it approx. 29 cm (on IAN 273025); approx. 24 cm (on IAN 273026); approx. 34 cm (on IAN 273027) tall (see Fig. C).

☐ Insert the selected spacer tube 2 or 3 into the designated opening on the solar module 5 (see Fig. A).

☐ Then insert the ground stake 1 into the bottom of the spacer tube 2 or 3 (see Fig. A).

• Installing the light

Note: The solar light can be installed without a power source.

Only use the solar light with the included ground stake 1.
☐ Push the assembled solar light far enough into the ground (lawn, flower bed) so it is stable. Since the light relies on sunlight, consider and observe the following points prior to installation.

1. Select a location where the solar module 5 is exposed to direct sunlight during the day.
2. Position the solar light so the solar module 5 is not covered or in the shade (trees, roof ridge, etc.).
3. Be sure the solar module 5 is not impacted by another light source, e.g. yard or street lighting, as this will prevent the light from switching on at dusk. Remember many light sources will only switch on due to the time or movement during the night.

● Preparing the light prior to initial use

Note: The solar light features a twilight sensor and an On / Off switch 6. When fully charged the light on time is approx. 6 to 8 hours.

☐ Unscrew the sphere 4 from the solar module 5 counter-clockwise. Set the On / Off switch 6 to the ON position before using it for the first time.
☐ Screw the sphere 4 clockwise all the way into the solar module 5 and place the solar light in the sun.

- Switching the light on / off

☐ Slide the On / Off switch 6 to the ON position. The solar light will automatically switch on at dusk. At dawn the light will automatically switch off.

☐ Slide the On / Off switch 6 to the OFF position. The solar light is permanently switched off.

●Replacing the rechargeable battery

Note: The rechargeable battery 11 is designed for prolonged operation. However, it may need to be replaced after being used for a long time. Rechargeable batteries are subject to natural wear and the output may decrease. For optimal performance the batteries should be replaced every 12 months.

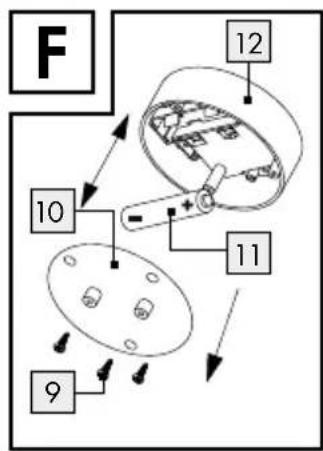

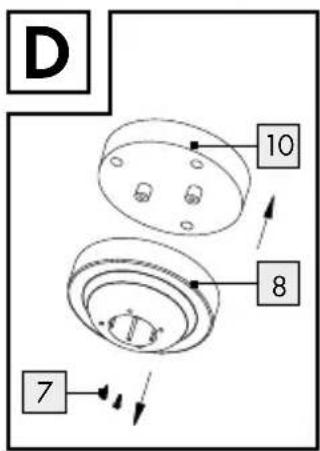

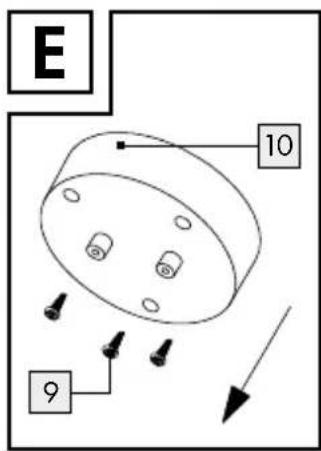

Replace the rechargeable battery as shown in figures D-F.

□ Unscrew the sphere 4 counter-clockwise.
☐ Slide the On / Off switch 6 on the solar module 5 to the OFF position.
☐ Remove the solar module 5 from the spacer tube 2 or 3.
☐ Loosen the two screws 7 on the underside counter-clockwise using a suitable cross-tip screwdriver and remove the housing 8 from the remainder of the module (see Fig. D).

☐ Then also loosen the three screws 9 on the underside of the cover counter-clockwise using a suitable cross-tip screwdriver and remove the cover 10 from the remainder of the module (see Fig. E).
☐ Remove the battery 11 and replace with a new, charged rechargeable battery of the same type (see „Technical Data“). Please note the polarity (+ / -) when inserting the rechargeable battery (see Fig. F).
☐ Now reattach the cover 10 to the solar cell 12 and secure clockwise using the three screws 9.
☐ Then reattach the housing 8 and secure clockwise using the two screws 7.
☐ Reattach the solar module 5 to the spacer tube 2 or 3.
☐ Slide the On / Off switch 6 to the ON position again.
☐ Screw the sphere 4 all the way into the solar module 5, turning clockwise.

- Troubleshooting

Note: The device contains sensitive electronic components. Radio transmitting equipment in the immediate vicinity may therefore cause interference. These could be e.g. mobile phones, two-way radios, CB radios, radio / other remote controls and microwaves. If you notice the device is malfunctioning,

remove any sources of interference from the area around the device.

Notice: Electrostatic discharge can lead to malfunctions. In the event of such malfunctions, briefly remove and reinsert the rechargeable batteries.

Note: The performance of the rechargeable battery is better in summer than in winter due to the weather.

Error Cause Solution
LEDs don't light up	Surroundings are too bright or light from other light sources is hitting the solar light	Change the location (away from e.g. yard or street lighting)
Weak LED light	Battery not fully charged or defective	Charge the rechargeable battery with a charger or replace with a new rechargeable battery (see “Replacing the battery”)
LEDs don't light up	LEDs defective	The LEDs cannot be replaced. Dispose of the product properly (see “Disposal”)

● Maintenance / Cleaning

Note: The LEDs cannot be replaced. The solar light is maintenance-free.

■ Never use caustic cleaners.
☐ Regularly clean the solar light with a dry, lint-free cloth. Use a slightly moist cloth to remove any stubborn dirt.
☐ Replace the rechargeable batteries if the operating time decreases noticeably after some time despite good sun exposure (see chapter "Replacing the rechargeable battery"). Only use the correct size and recommended type of rechargeable batteries (see section „Technical data”).

- Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Contact your local community or municipal administration for more details on how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly, not without household waste, when it has reached the end of its useful life. Please

contact your local authority for information on collection points and their opening hours.

Defective or used rechargeable batteries must be recycled according to Directive 2006/66/EC and its amendments. Return rechargeable batteries and / or the device to the recycling facilities provided.

Improper disposal of rechargeable batteries may result in environmental damage!

Rechargeable batteries may not be disposed with household waste. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of used batteries through your local collection site.

- Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE IP44
