IAN 103961 - Lighting Livarno Lux - Free user manual and instructions

Product Type	LED Under-cabinet Light
Brand	Livarno Lux
Model	IAN 103961
Operating Voltage	12V (via power supply)
Power Input	Approx. 6W
Light Source	60 LEDs (non-replaceable)
Motion Sensor Range	Approx. 6 cm
Protection Class (Light)	IP20 (indoor use only)
Power Supply Model	SA/6PA/12FEU120050
Primary Voltage	100-240V~, 50Hz
Secondary Voltage	12V ⎓, 500mA
Dimensions (approx.)	300 x 40 x 20 mm
Weight (approx.)	200 g
Scope of Delivery	Installation frame, light unit, 2 screws, power supply, manual
Intended Use	Illumination under wall cabinets, indoor only
Rotation Angle	Lamp holder can be turned approx. 270°
Warranty	3 years from purchase date
Cleaning Instruction	Unplug, cool down, wipe with damp cloth and mild detergent
Safety Note	Only use provided power supply; keep packaging away from children
Disposal	Recycle packaging; dispose of product according to local regulations

Frequently Asked Questions - IAN 103961 Livarno Lux

How do I install the Livarno Lux under-cabinet light?

Attach the installation frame to the underside of the cabinet using the included screws. Then slide the light base onto the frame. Plug the power supply into the light and then into a socket.

How does the motion sensor work?

The motion sensor detects hand movement within about 6 cm. Simply wave your hand in front of the sensor to turn the light on or off. Reflective objects nearby may affect function.

Can I replace the LEDs if they burn out?

No, the LEDs are non-replaceable. The entire light unit must be replaced if the LEDs fail.

What power supply should I use?

Only use the included power supply (model SA/6PA/12FEU120050) to avoid damage and safety hazards.

Can I use this light outdoors?

No, this under-cabinet light is designed for indoor use only. It is not weatherproof.

How should I clean the light?

Unplug the power supply and let the light cool for at least 10 minutes. Wipe with a lint-free, slightly damp cloth and mild cleaning agent. Never immerse in water.

What if the light does not turn on?

Check that the power supply is properly connected to the light and plugged into a working socket. Ensure the motion sensor is not obstructed. If it still doesn't work, contact support.

Is there a warranty on this product?

Yes, Livarno Lux offers a 3-year warranty from the date of purchase against material and manufacturing defects. Keep your sales receipt as proof.

Can I dim the light?

No, this light does not have a dimming function. It operates at full brightness when switched on.

How far does the motion sensor detect?

The sensor has a detection range of approximately 6 cm. It is designed for close-range hand gestures, not for detecting people from a distance.

USER MANUAL IAN 103961 Livarno Lux

Assembly, operating and safety instructions

DE AT CH

LED-UNTERBAULEUCHTE

Two horizontal color swatches: grayscale from dark gray to white, and solid color blocks from yellow to black (no text or symbols)

GB/MT Assembly, operating

and safety instructions Page 22

DE/AT/CH Montage-, Bedienungs-

Color palette bar with grayscale gradient and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar and a target symbol with crosshair (no text or labels)

Color palette bar and a target symbol with crosshair (no text or labels)

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

• Dati tecnici

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Intended use......Page 23

Parts description ......Page 23

Technical Data......Page 23

Scope of delivery......Page 24

General safety instructions......Page 24

Installation......Page 26

Operation......Page 27

Cleaning and Care......Page 27

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

LED Under-cabinet light

- Intended use

This under cupboard light is designed for illuminating work surfaces beneath wall cupboards. A motion sensor turns the light on and off without touching. This product is solely intended for indoor use.

- Parts description

1 Installation frame
2 Screws (ø 4 x 12 mm)
3 Light base
4 Lamp holder 60 LEDs
5 Motion sensor
6 Low voltage jack
7 Low voltage plug
8 Power supply

- Technical Data

LED Under-cabinet light

Operating voltage: 12V

Illuminant: 60 LEDs (non-re-

placeable)

Power input: approx. 6 W

Protection category:

23GB/MT

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Motion sensor

range: approx. 6 cm

AC Adaptor

(Model no. SA/6PA/12FEU120050)

Primary voltage: 100-240V\~50Hz

Secondary voltage: 12V ——, 500mA

Protection category:

- Scope of delivery

1 Installation frame
1 LED Under-cabinet light
2 Screws (ø 4 x 12 mm)
1 Power supply with connection
1 Instructions for assembly and use

General safety instructions

BEFORE USING THIS PRODUCT;

PLEASE FAMILIARISE YOURSELF WITH

ALL OF THE SAFETY INFORMATION

AND INSTRUCTIONS FOR USE!

WHEN PASSING THIS PRODUCT ON

TO OTHERS; PLEASE ALSO INCLUDE

ALL OF THE DOCUMENTS!

24 GB/MT

WARNING! DAN- GER TO LIFE AND RISK OF ACCIDENTS FOR

INFANTS AND CHILDREN! Never

leave children unattended with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the product at all times.

This appliance may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the appliance and understand the associated risks. Children should not be allowed to play with the device. Cleaning and user maintenance should not be performed by children without supervision.

Danger to life by electric shock

■ Always check the light for damage before connecting it to the mains. Never use the light if it shows any signs of damage.
■ Dispose of the power supply according to local ordinances if the power supply or the connection is damaged.

25GB/MT

■ Only use the under-cupboard light with the power supply included, model SA/6PA/12FEU120050.
■ Prior to installation, verify the available mains voltage matches the required operating voltage of the power supply (100–240 V\~ 50 Hz). Otherwise do not install the light bulb.
- Plug the power supply into an easy to reach socket. In an emergency, the light and power supply can only be disconnected from the mains by unplugging the power supply from the socket.

- Installation

☐ Hold the installation frame 1 where you wish to install it and mark the installation holes.

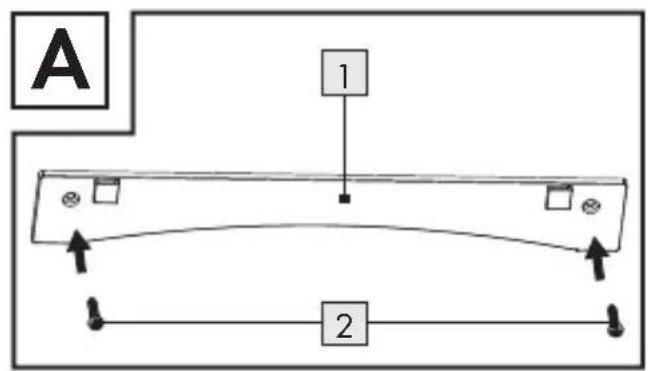

☐ Pre-drill the installation holes with a drill bit ( 2 mm) and secure the installation frame with the included screws 2 (Fig. A).

Note: The included screws are intended for installation to wood or comparable materials. Please use suitable installation materials from a speciality retailer to mount to other materials.

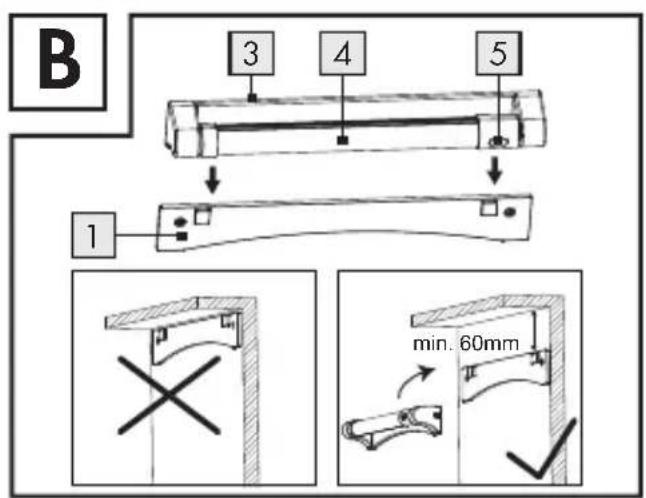

☐ Slide the light base 3 onto the installation frame (Fig. B).

26 GB/MT

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

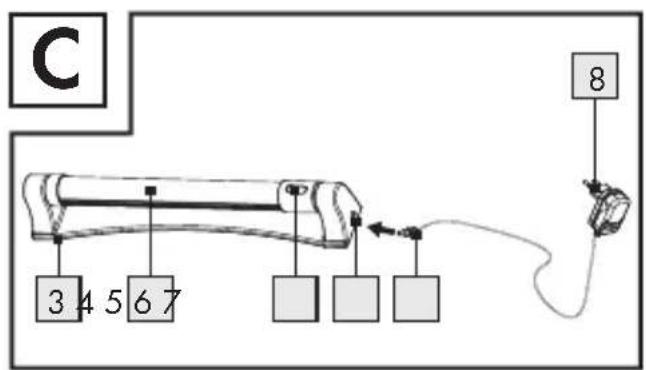

☐ Plug the low voltage plug 7 of the power supply 8 into the low voltage jack 6 on the light (Fig. C).
☐ Plug the power supply into a properly installed socket.

Your under-cupboard light is now ready to use.

Operation

With the motion sensor 5 you can turn the under-cupboard light set on and off without touching:

☐ Move your hand about 6 cm in front of the sensor. The light switches on or off.

Note: Reflective objects near the motion sensor may impair this function.

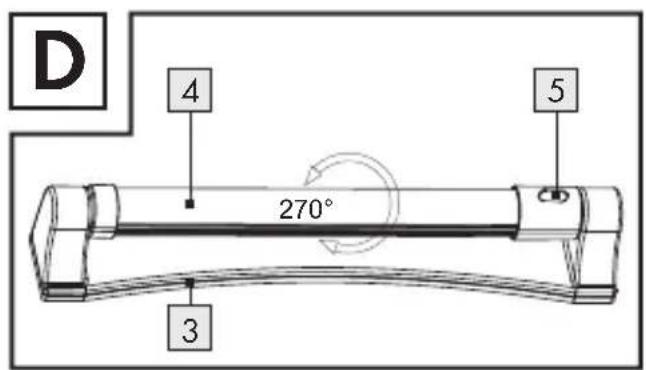

Note: The lamp holder 4 can be turned approx. 270° around the installation axis (Fig. D).

- Cleaning and Care

■ Unplug the power supply 8 from the socket before cleaning and allow the lamp to cool down at least 10 minutes.

■ Never immerse the product in water or other liquids. Otherwise the product can be damaged.

27GB/MT

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

□ Clean the light and power supply with a lint-free, slightly damp cloth and a mild cleaning agent.

- Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Contact your local refuse disposal authority for more details on how to dispose of your worn-out product.

Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase,

28 GB/MT

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE

29GB/MT
