Product type	LED magnifying lamp
Brand	Livarno Lux
Model	IAN 276585
Operating voltage	230 V ~ 50 Hz
Power consumption	6.3 W
Bulb type	60 LEDs (non-replaceable)
Protection class	II
Magnification	Approx. x2.25 (5 diopters)
Lens diameter	Approx. 5 diopters
Clamp grip	Up to 6 cm table thickness
Cable length	Approx. 1.5 m
Dimensions (L x W x H)	Approx. 40 x 15 x 10 cm
Weight	Approx. 1.2 kg
Usage	Indoor use only
Functions	Adjustable LED lighting, magnifying lens
Care and cleaning	Unplug before cleaning, use a dry lint-free cloth
Safety	Do not expose magnifier to sunlight, risk of fire
Warranty	3 years

Frequently Asked Questions - IAN 276585 Livarno Lux

How to attach the lamp to my worktop?

Use the supplied screw clamp: insert it into the bracket, secure with the locking screw, then tighten the clamp onto the table edge (max. thickness 6 cm) by turning the screw clockwise.

Can I replace the LEDs if they burn out?

No, the LEDs are not replaceable. If the lighting stops working, the entire lamp must be replaced.

How to adjust the magnifying lamp?

The lamp head is movable via the ball joint. For vertical adjustment, loosen the locking screw, adjust the height, then retighten it. The articulated arm moves at the joint.

Why should the magnifier not be left open in direct sunlight?

The magnifier concentrates light rays and can create a hot spot, risk of fire. Always close the cover after use.

How to clean the magnifying lamp?

Turn off and unplug the lamp. Use a dry lint-free cloth. Never use water or liquid products.

Does the lamp work with a dimmer?

No, the lamp is not designed for use with a dimmer. Plug it directly into a wall outlet.

What is the power consumption in standby?

Even when off, the lamp consumes a very small amount of energy when plugged in. For complete disconnection, unplug it from the outlet.

Can I use this lamp outdoors?

No, it is exclusively designed for indoor use. Do not expose it to moisture or weather.

What to do if the power cord is damaged?

The cable cannot be repaired. If damaged, the product must be discarded (risk of electric shock). Do not use anymore.

How to dispose of the lamp at end of life?

Do not dispose of it with household waste. Take it to a recycling center or an approved collection point for electronic devices.

USER MANUAL IAN 276585 Livarno Lux

LED-LUPENLEUCHTE / LED ILLUMINATED MAGNIFIER / LOUPE A ÉCLAIRAGE LED

DE AT CH

LED-LUPENLEUCHTE

Operation and Safety Notes

NL BE

VERGROOTGLAS MET LED-LAMP

LÁMPARA-LUPA CON LEDES

GB / IE Operation and Safety Notes Page 12

Technical diagram of a mechanical clamp or clamping device with hatched material section and directional arrow (no text or symbols)

Intended use......Page 13

Parts description Page 13

Technical Data Page 13

Scope of delivery....Page 14

Safety Page 14

Safety notices Page 14

Before use......Page 15

Using the LED magnifier light ...... Page 16

Adjusting the LED magnifier light ...... Page 16

Using the magnifier....Page 16

Cleaning and Care......Page 16

Disposal Page 17

Warranty Page 17

LED Illuminated magnifier

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This light is suitable for indoor use only. The product is not intended for commercial use.

Parts description

1 Bracket
2 Screw clamp
3 Lock screw
4 Joint
5 Wing bolt
6 Locking screw
7 Articulated arm
8 Ball joint
9 ON/OFF switch
10 Cover (for closing the magnifier)

●Technical Data

Light

Operating voltage: 230 V\~50 Hz

Power input: approx. 6.3 W

Light bulb: 60 x max. 0.1 W (LEDs not replaceable)

Protection class:

Magnifier

Lens size: approx. 5 dioptres

Magnification: approx. 2.25x

- Scope of delivery

1 LED Illuminated magnifier
1 Lock screw
1 Wing bolt
1 Bracket
1 Screw clamp
1 Set of instructions for use

Safety

Safety notices

PLEASE KEEP ALL SAFETY INSTRUCTIONS AND INSTRUCTIONS FOR USE FOR FUTURE REFERENCE!

DANGER TO WARIDG!

RISK OF ACCIDENTS FOR INFANTS AND

CHILDREN! Never leave children unattended with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the product at all times.

This appliance may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the appliance and understand the associated risks. Children should not be allowed to play with the device. Cleaning and user maintenance should not be performed by children without supervision.

Avoid the danger of death from electric shock!

■ Never allow the appliance to come into contact with water or other liquids.
Before using the product, ensure that the available mains voltage corresponds with the required operating voltage for the device (230V\~).

■ Always check the appliance and the mains supply for damage before connecting it to the mains. A damaged device represents the danger of death from electric shock.
Do not use the device if you detect any damage.
The power cable cannot be repaired! Should the cable be damaged, the product must be rendered useless and must be disposed off appropriately.

Prevent fire and injury hazards

RISK OF BURNS! Ensure that the luminaire has been switched off and has cooled before touching it, to avoid burn injuries.

CAUTION! RISK OF FIRE! Never expose the magnifier to direct sunlight or other light sources. Never leave an open magnifier unattended. Doing so presents a fire hazard due to bundled light rays and concentrated heat.

The product may only be used with the built-in LED control gear.
The illuminant is not replaceable.
If the illuminant fails at the end of its life, the entire light must be replaced.
The product continues to draw a small amount of power even if the lamp is off as long as product is connected to supply mains. To switch the device off completely, the mains switch should be switched off.
Please note the lamp is not dimmable.

Before use

☐ Insert the screw clamp into the bracket 1 (Fig. A). Secure the screw clamp into the bracket using the lock screw 3 (Fig. B).
Now place the screw clamp onto a table top ≤ 6 cm in thickness and secure the screw clamp by turning the screw clockwise (Fig. C).

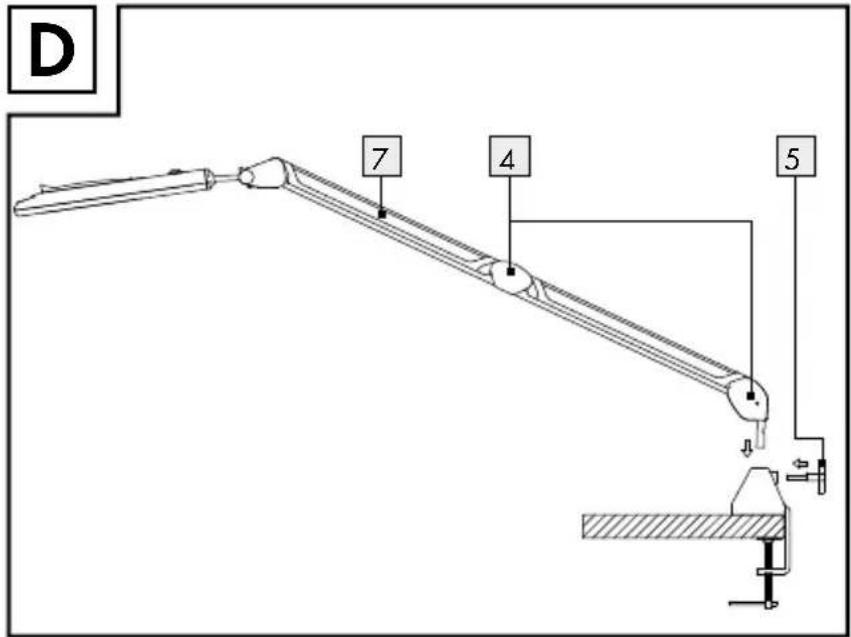

☐ Insert the articulated arm 7 into the round hole on the bracket and secure by tightening the wing bolt 5 clockwise (Fig. D). Verify the articulated arm is firmly tightened in the bracket.

● Using the LED magnifier light

☐ Plug the mains plug of the light into a properly installed socket.
□MovetheON/OFF switch 9 into the I position to switch the light on.
☐ Move the ON/OFF switch into the 0 position to switch the light off.

- Adjusting the LED magnifier light

☐ Never use force when adjusting the light.
☐ The light can be adjusted in different ways:

- The lamp head is pivot-mounted inside the ball joint 8 (Fig. E).

- After loosening the lock screw 6 you can adjust the lamp head up or down. Tighten the lock screw after adjusting the light to the desired position.

- The individual parts of the articulated arm 7 can be moved by the joints 4.

• Using the magnifier

☐ Lift the cover 10 to use the magnifier.
☐ Focus the object you wish to view by changing the distance to the object and the distance between your eyes and the magnifier.
IMPORTANT: Keep the cover closed when the magnifier is not in use. Please note, an open magnifier always poses a fire hazard as light rays bundled by the magnifier can generate concentrated heat or a fire.

- Cleaning and Care

CAUTION! DANGER TO LIFE FROM ELECTRIC

SHOCK! For electrical safety, never clean the light with water or other liquids, or immerse it in water.

■ Switch the light off before cleaning and unplug from the mains.
☐ Only use a dry, lint-free cloth for cleaning.

- Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Never dispose of the product and the bulb in your regular household rubbish.

Dispose of the product and light bulb through an authorised waste management company or your municipal disposal facilities.

Observe the applicable regulations. In case of doubt, please contact your waste disposal centre.

- Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
