Product Type	DLP Projector
Model	X1326WH
Native Resolution	1280 x 800 (WXGA)
Projection System	Single-chip DLP
Lamp Type	220 W user-replaceable lamp
Aspect Ratio	Auto, Full, 4:3, 16:9, L.Box
Optical Zoom Ratio	1.1x
Digital Zoom	2x
Keystone Correction	±40° (vertical)
Speaker	3 W (mono)
Projection Distance	1.0 m – 10.0 m (3.3' – 32.8')
Screen Size (Diagonal)	27" – 300" (69 cm – 762 cm)
Weight	2.65 kg (5.8 lbs)
Dimensions (W x D x H)	315 mm x 214 mm x 98 mm (12.4" x 8.4" x 3.8")
Power Consumption (Normal)	260 W ± 10% @ 110 VAC
Power Consumption (ECO)	200 W ± 10% @ 110 VAC
Standby Power	< 0.5 W

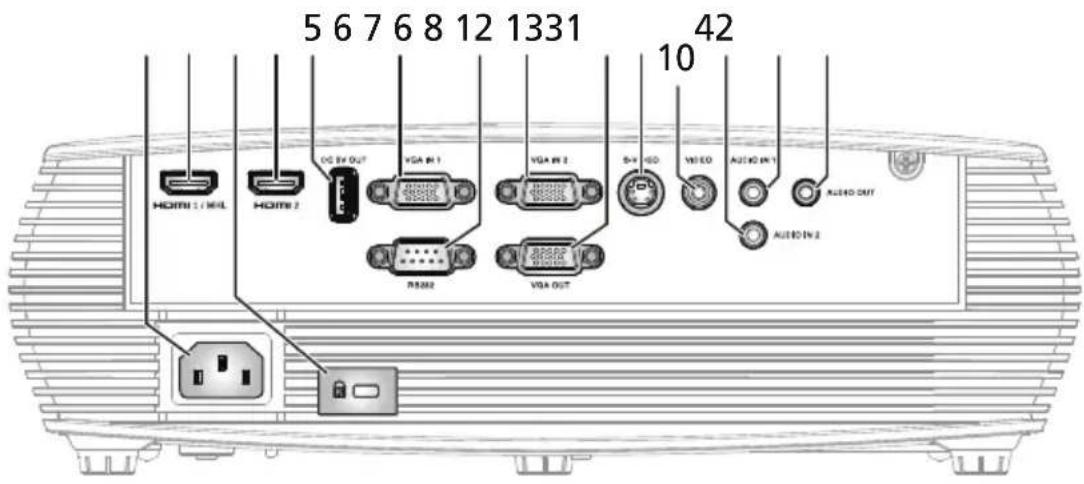

Input Connectors	HDMI (x2, one with MHL), VGA (x2), S-Video, Composite Video, Audio (3.5 mm x2), RS-232, 5V DC out
Key Technologies	Acer ColorBoost, LumiSense, 3D (DLP Link), HDMI & MHL, EcoProjection
Operating Temperature	0°C – 40°C (32°F – 104°F)
Included Accessories	Power cord, VGA cable, remote control with batteries, quick start guide, security card (optional), dust filters (optional), carrying case (optional)

Frequently Asked Questions - X1326WH ACER

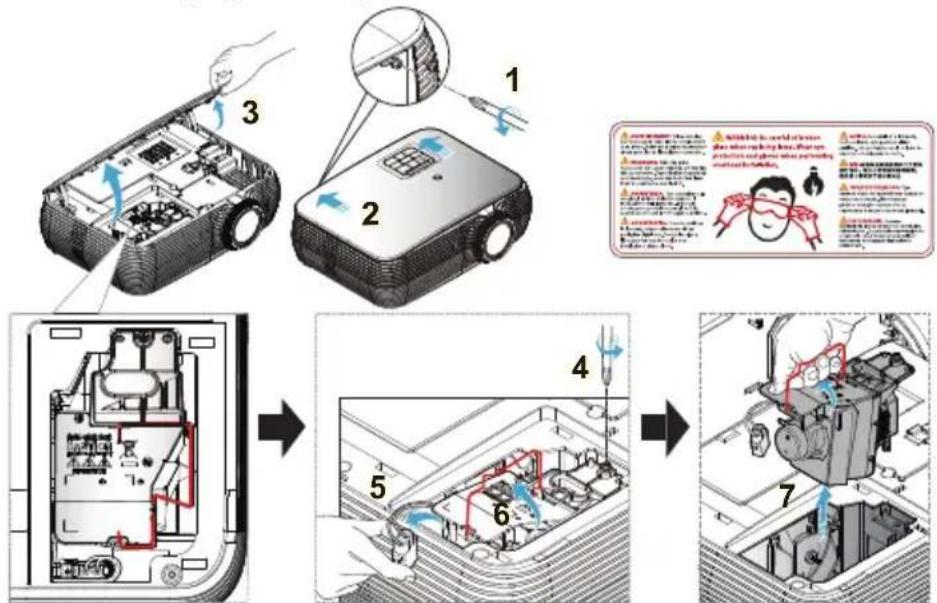

How do I replace the lamp in the Acer X1326WH?

1. Turn off the projector and unplug the power cord. Wait at least 30 minutes for the lamp to cool. 2. Remove the screw from the lamp cover and slide the cover off. 3. Remove the screw securing the lamp module, pull out the lamp plug, and lift the handle. 4. Pull out the lamp module. 5. Insert the new lamp module, tighten the screw, and replace the cover. 6. After replacement, reset the lamp hour counter in the Management menu.

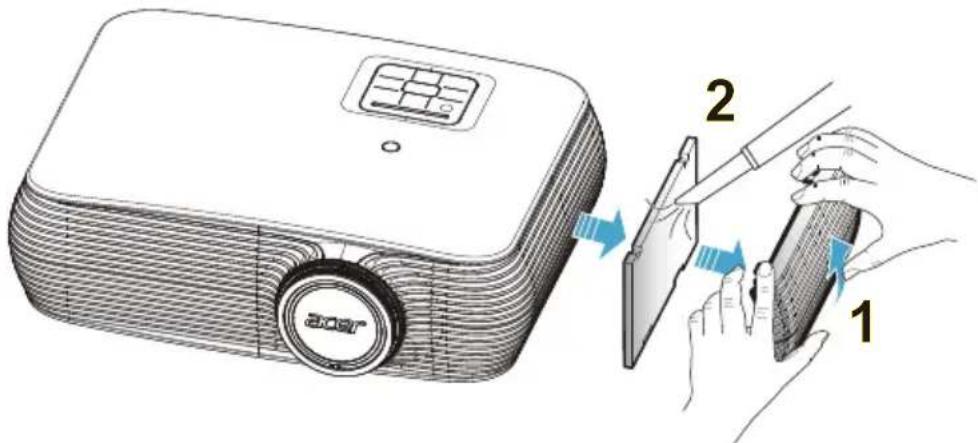

How do I clean the dust filter?

Clean the dust filter every 1000 hours of use. 1. Turn off the projector and unplug it. Wait 30 minutes to cool. 2. Pull out the dust filter. 3. Use a small vacuum cleaner to remove dust. If dirt is stubborn or the filter is damaged, contact your dealer for a replacement.

No image appears on screen. What should I do?

Check that: 1. The power cord and signal cable are securely connected. 2. The lens cap is removed. 3. The projector is turned on (Power LED blue). 4. The correct input source is selected. 5. The lamp is installed correctly. If using a computer, verify the resolution is ≤ 1920x1200 and the external display is enabled (e.g., Fn+F4).

How do I connect a smartphone or tablet to the projector?

Use an MHL-compatible HDMI cable (Micro-USB to HDMI) or a wireless HDMI kit (optional). For MHL, connect to the HDMI 1/MHL port. Some smartphones require a specific adapter. You can also use the WirelessCAST accessory for wireless display.

How do I adjust the keystone (trapezoid) distortion?

Press the Keystone button on the remote or control panel. Use the ▲/▼ keys to correct vertical distortion. You can also enable Auto Keystone in the Image menu for automatic adjustment.

How do I set a password for the projector?

Go to Settings > Security and enable it. Set a User Password (4-8 digits) using the numeric keypad on the remote. After enabling, you must enter the password each time you power on. The default administrator password is 1234.

How do I enable 3D content?

Go to the 3D menu and set 3D to On. Choose the appropriate 3D Format (e.g., Frame Packing, Side-by-Side). Use DLP-compatible 3D glasses. For 24P 3D, select 96Hz or 144Hz. If the image appears doubled, use 3D L/R Invert.

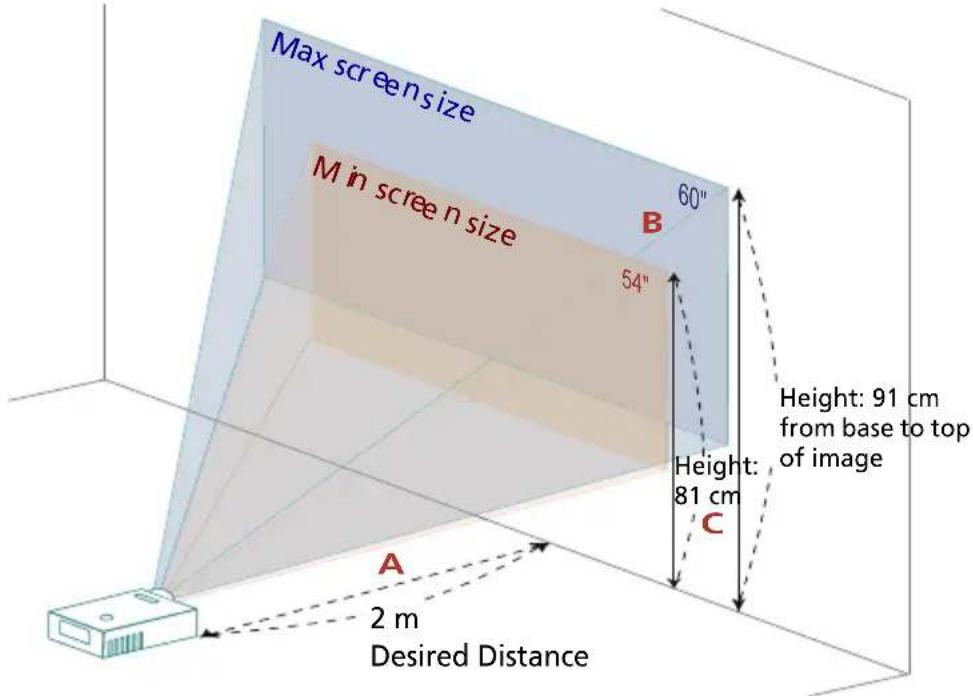

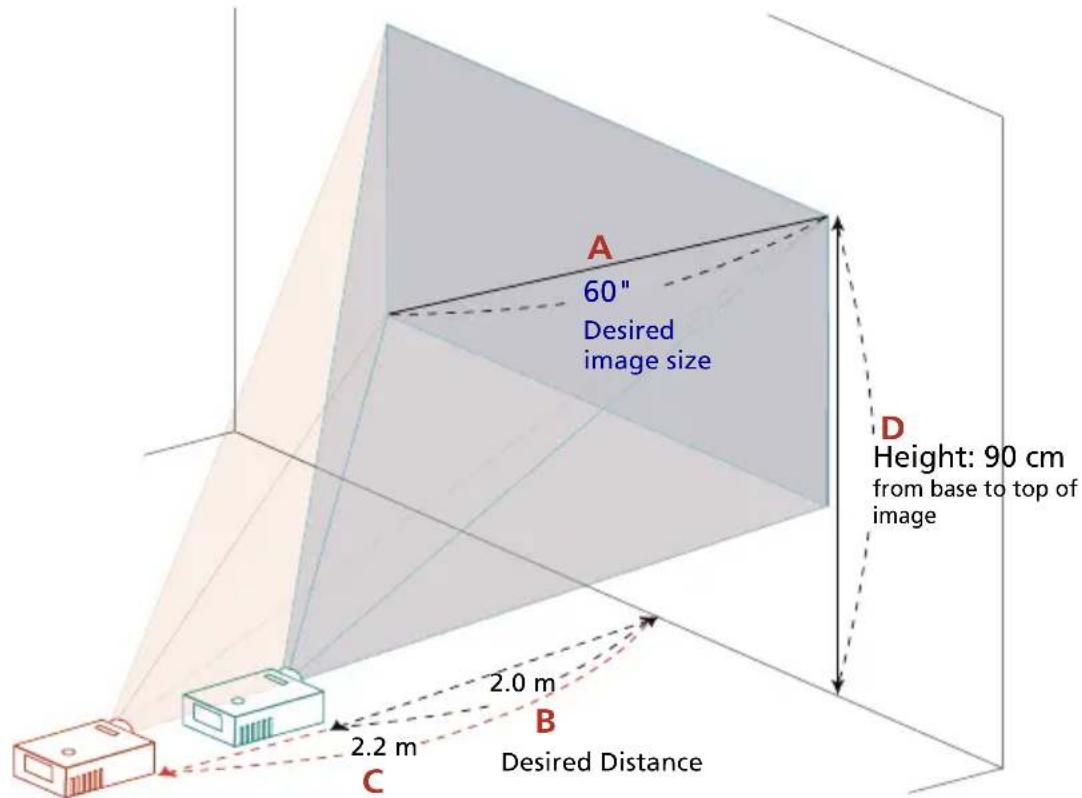

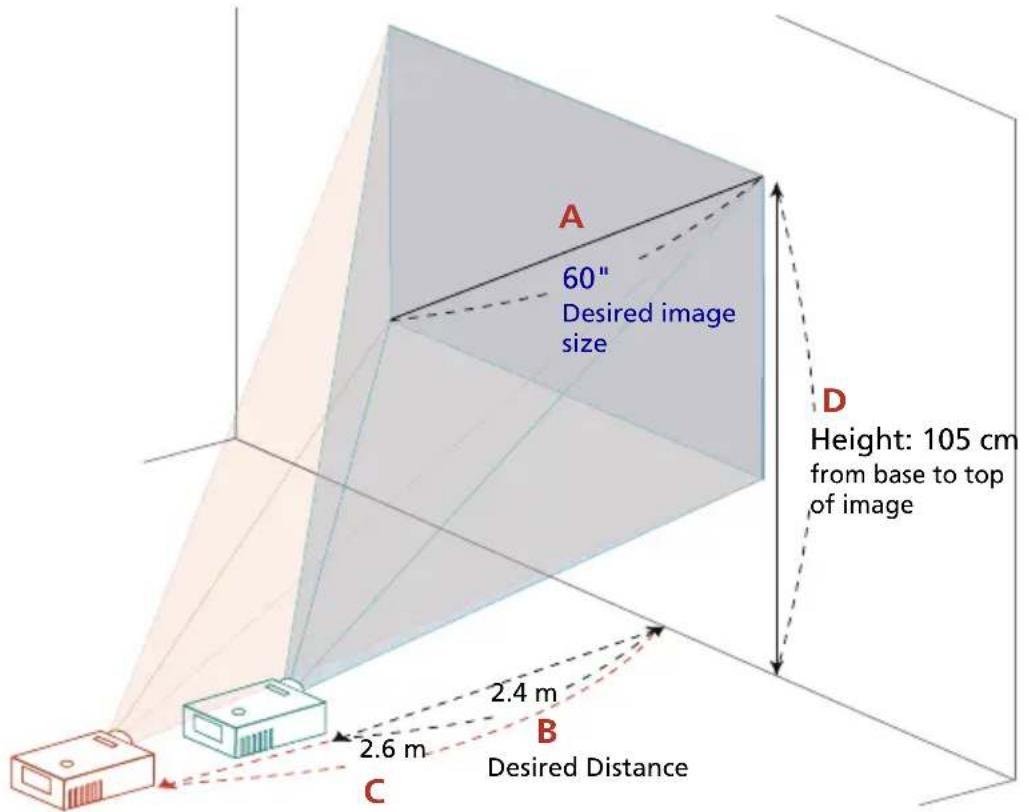

How do I optimize image size and projection distance?

Refer to the table in the manual. For example, to get a 60" image from the X1326WH, place the projector 2.0–2.2 m from the screen. Use the zoom ring to fine-tune size and the focus ring for sharpness.

How do I reset the projector to factory defaults?

Go to Settings > Reset and select Yes. This will restore all OSD settings to factory defaults, except lamp hour and security settings.

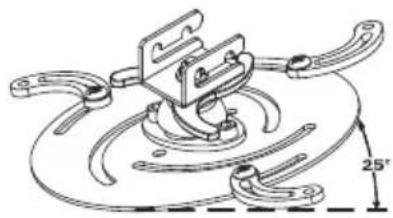

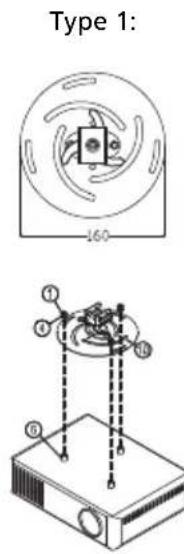

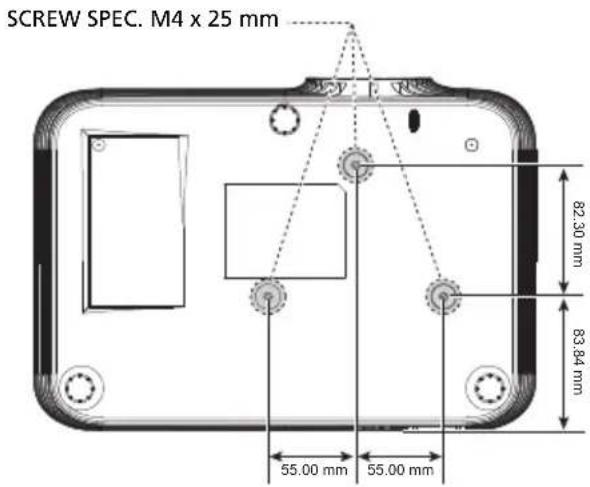

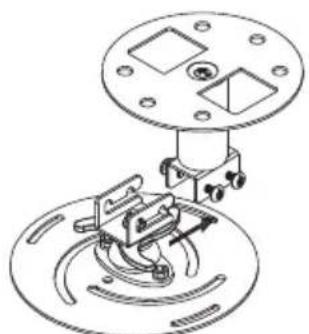

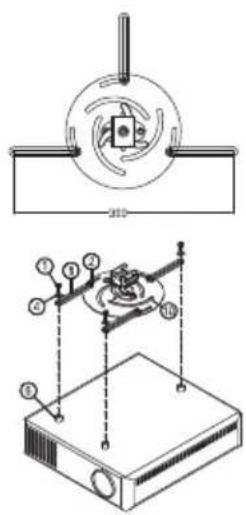

Can I install the projector on the ceiling?

Yes, use a ceiling mount kit (Acer recommended). Follow the installation guide: drill holes in a solid ceiling member, attach the mount base, hook the projector bracket, and secure with screws. Adjust angle and position as needed. The projector supports inverted image display via Projection Mode settings.

USER MANUAL X1326WH ACER

X1326WH/D526D/EV-W57H/V26W/AW600/DWX1608

User's Guide

Copyright © 2017. Acer Incorporated. All Rights Reserved.

Acer Projector User's Guide Original Issue: 01/2017

Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.

Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your projector. All correspondence concerning your unit should include the serial number, model number and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.

Model number: ____

Serial number: ____

Date of purchase: ____

Place of purchase: ____

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.

"HDMI™, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

Information for your safety and comfort

Read these instructions carefully. Keep this document for future reference.

Follow all warnings and instructions marked on the product.

Turning the product off before cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Caution for plug as disconnecting device

Observe the following guidelines when connecting and disconnecting power to the external power supply unit:

• Install the power supply unit before connecting the power cord to the AC power outlet.
- Unplug the power cord before removing the power supply unit from the projector.
- If the system has multiple sources of power, disconnect power from the system by unplugging all power cords from the power supplies.

Caution for Accessibility

Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power to the equipment, be sure to unplug the power cord from the electrical outlet.

Warnings!

• Do not use this product near water.
• Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged.
• Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface.
• This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.
• Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product.
• To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface.

iv

- Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected short current or damage rotor devices, lamp.

Using electrical power

• This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
• Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord.
• If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.
• Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.
• This product's AC adapter is equipped with a three-wire grounded plug. The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the AC adapter plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.

Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.

Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.

- Use the product only with the supplied power supply cord set. If you need to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified, VDE approved or its equivalent, 4.5 meters (15 feet) maximum length.

Product servicing

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

Unplug this product from the wall outlet and refer servicing to qualified service personnel when:

• the power cord or plug is damaged, cut or frayed
• liquid was spilled into the product
  • the product was exposed to rain or water
• the product has been dropped or the case has been damaged
• the product exhibits a distinct change in performance, indicating a need for service
• the product does not operate normally after following the operating instructions

Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

Warning! For safety reasons, do not use non-compliant parts when adding or changing components. Consult your reseller for purchase options.

Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

Additional safety information

• Do not look into the projector's lens when the lamp is on. The bright may hurt your eyes.
• Turn on the projector first and then signal sources
• Do not place the product in following environments:

- Space that is poorly ventilated or confined. At least 50cm clearance from walls and free flow of air around the projector is necessary.

- Locations where temperatures may become excessively high, such as inside of a car with all windows rolled up.

- Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shortening the life span and darkening the image.

- Locations near fire alarms.

- Locations with an ambient temperature above 40^ / 104^ .

- Locations where the altitudes are higher than 10000 feet.

- Unplug immediately if there is something wrong with your projector. Do not operate if smoke, strange noise or odor comes out of your projector. It might cause fire or electric shock. In this case, unplug immediately and

contact your dealer.

- Do not keep using this product to break or drop it. In this case contact your dealer for inspection.

- Do not face the projector lens to the sun. It can lead to fire.

- When switching the projector off, suggest to ensure the projector completes its cooling cycle before disconnecting power.

- Do not frequently turn off the main power abruptly or unplug the projector during operation. The best way is to wait for the fan to turn off before turning main power off.

- Do not touch air outlet grille and bottom plate which becomes hot.

- Clean the air filter frequently if have. The temperature inside may rise and cause damage when the filter/ventilation slots clogged with dirt or dust.

- Do not look into the air outlet grille when projector is operating. It may hurt your eyes.

• Always open the lens shutter or remove the lens cap when the projector is on.

- Do not block the projector lens with any object when the projector is under operation as this could cause the object to become heated and deformed or even cause a fire. To temporarily turn off the lamp, press HIDE on the remote control.

- The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement.

- Do not operate lamps beyond the rated lamp life. It could cause it to break on rare occasions.

- Never replace the lamp assembly or any electronic components unless the projector is unplugged.

- The product will detect the life of the lamp itself. Please be sure to change the lamp when is showing warning message.

- When changing the lamp, please allow unit to cool down, and follow all changing instructions.

- Reset the "Lamp Hour Reset" function from the Onscreen display "Management" menu after replacing the lamp module.

- Do not attempt to disassemble this projector. There are dangerous high voltages inside which may hurt you. The only user serviceable part is the lamp which has its own removable cover. Refer servicing only to suitable qualified professional service personnel.

- Do not stand the projector on end vertically. It may cause the projector to fall over, causing injury or damage.

- This product is capable of displaying inverted images for ceiling mount installation. Only use acer ceiling mount kit for mounting the projector and ensure it is securely installed.

Caution for Listening

To protect your hearing, follow these instructions.

• Increase the volume gradually until you can hear clearly and comfortably.
- Do not increase the volume level after your ears have adjusted.
- Do not listen to music at high volumes for extended periods.
- Do not increase the volume to block out noisy surroundings.
- Decrease the volume if you can't hear people speaking near you.

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit

http://www.acer-group.com/public/Sustainability/sustainability01.htm

Mercury advisory

For projectors or electronic products containing an LCD/CRT monitor or display:

"Lamp(s) contain Mercury, Dispose Properly."

Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state or federal laws. For more information, contact the Electronic Industries Alliance at www.eiae.org. For lamp-specific disposal information, check www.lamprecycle.org

Do not stare into the beam, RG2

"As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015"

viii

First things first

Usage Notes

Do:

• Turn off the product before cleaning.
• Use a soft cloth moistened with mild detergent to clean the display housing.
• Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

Don't:

• Block the slots and openings on the unit provided for ventilation.
• Use abrasive cleaners, waxes or solvents to clean the unit.
• Use under the following conditions:

• In extremely hot, cold or humid environments.
• In areas susceptible to excessive dust and dirt.
- Near any appliance that generates a strong magnetic field.
- Place In direct sunlight.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user's guide to maximize the life of your unit.

Warning:

- Do not look into the projector's lens when the lamp is on. The bright light may hurt your eyes.

• To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

- Please do not open or disassemble the product as this may cause electric shock.

- When changing the lamp, please allow unit to cool down, and follow all changing instructions.

- This product will detect the life of the lamp itself. Please be sure to change the lamp when it shows warning messages.

- Reset the "Lamp Hour Reset" function from the Onscreen display "Management" menu after replacing the lamp module.

- When switching the projector off, please ensure the projector completes its cooling cycle before disconnecting power.

- Turn on the projector first and then the signal sources.

- Do not use lens cap when projector is in operation.

- When the lamp reaches the end of its life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under "Replacing the Lamp".

Information for your safety and comfort iii

First things first viii

Usage Notes viii

Precautions viii

Introduction 1

Product Features 1

Package Overview 2

Projector Overview 3

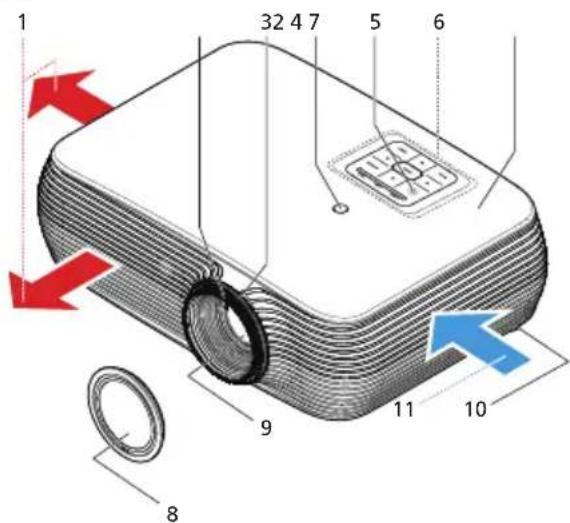

Projector Outlook 3

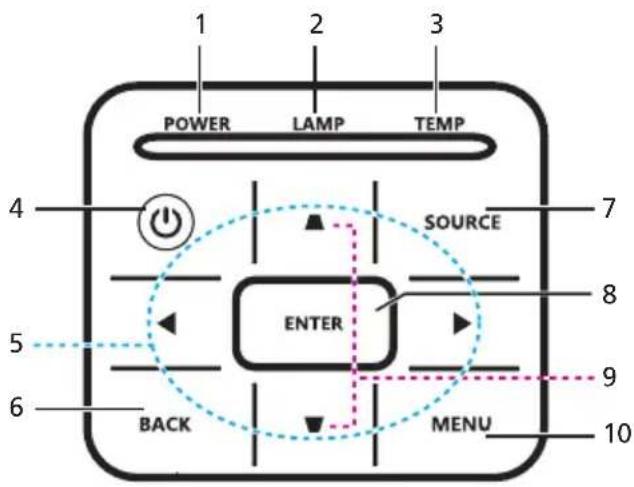

Control Panel 5

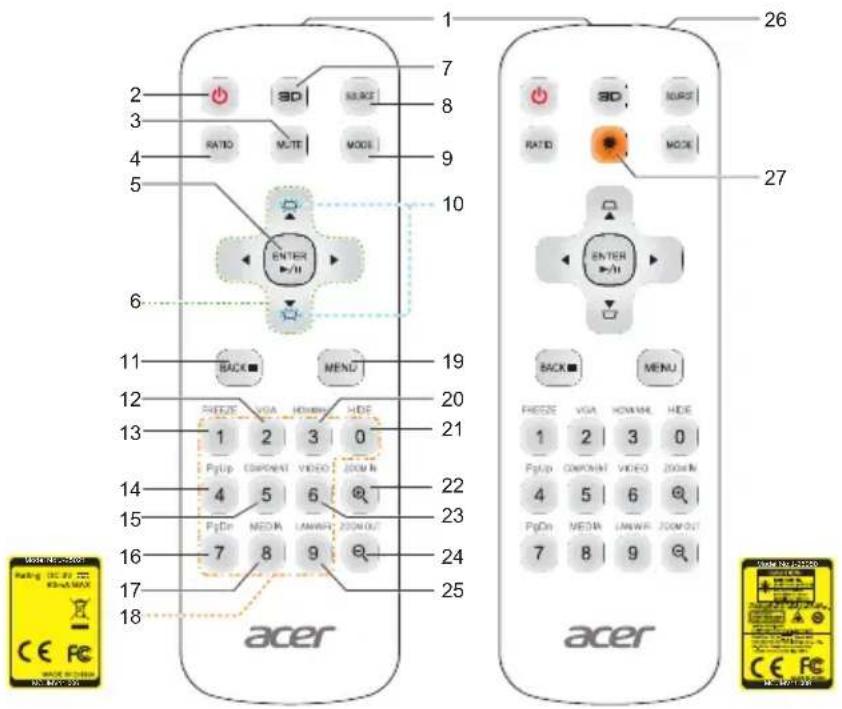

Remote Control Layout 6

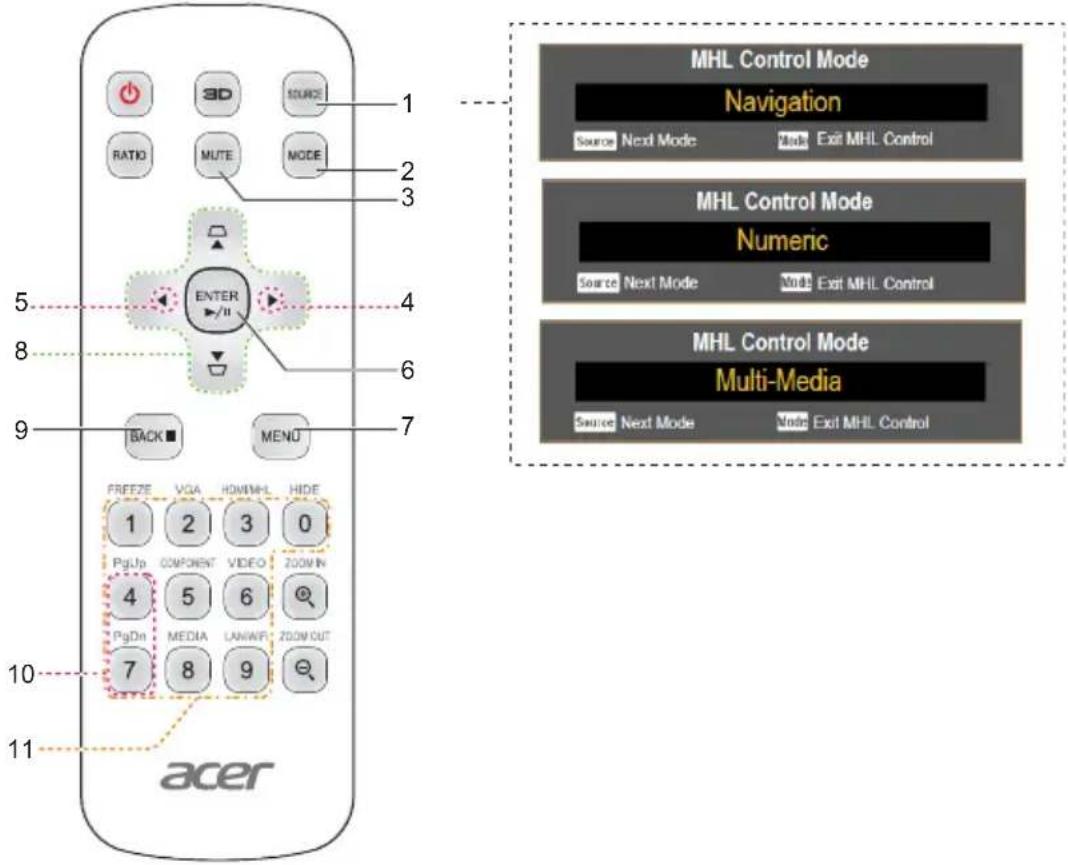

MHL (Mobile High-Definition Link) Control 8

Getting Started 10

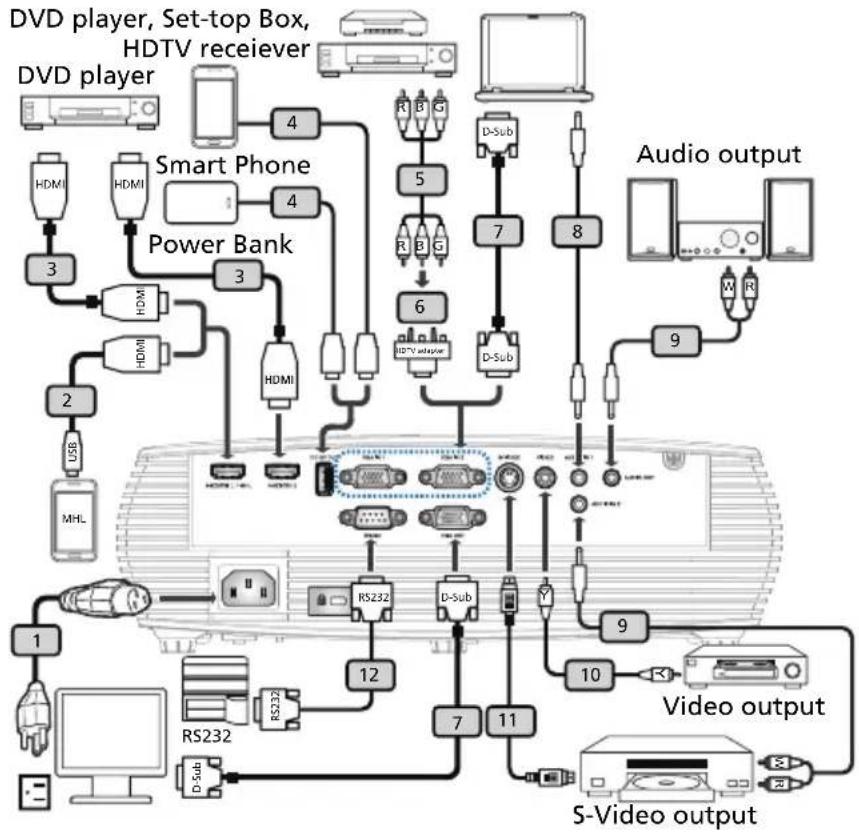

Connecting the Projector 10

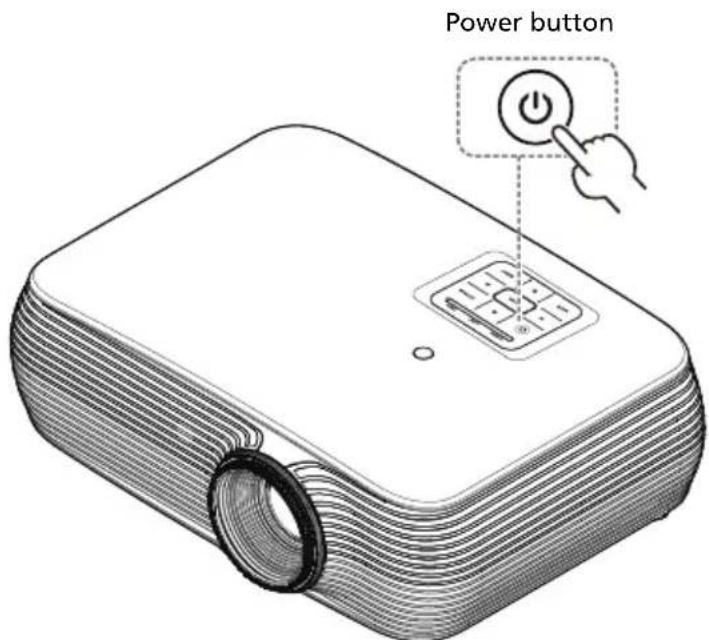

Turning the Projector On/Off 11

Turning on the Projector 11

Turning the projector off 12

Adjusting the Projected Image 13

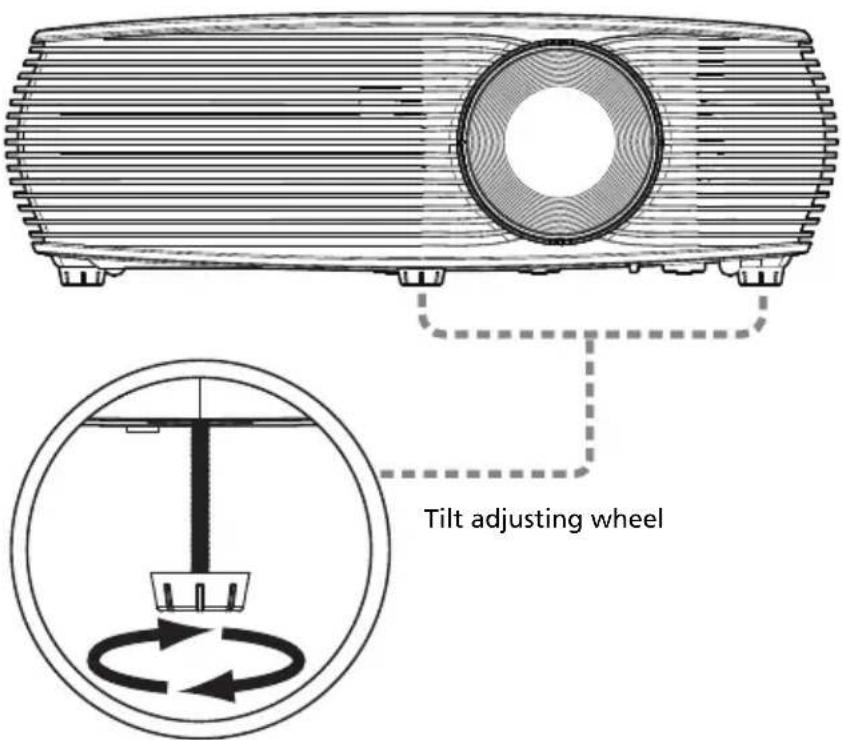

Adjusting the Height of Projected Image 13

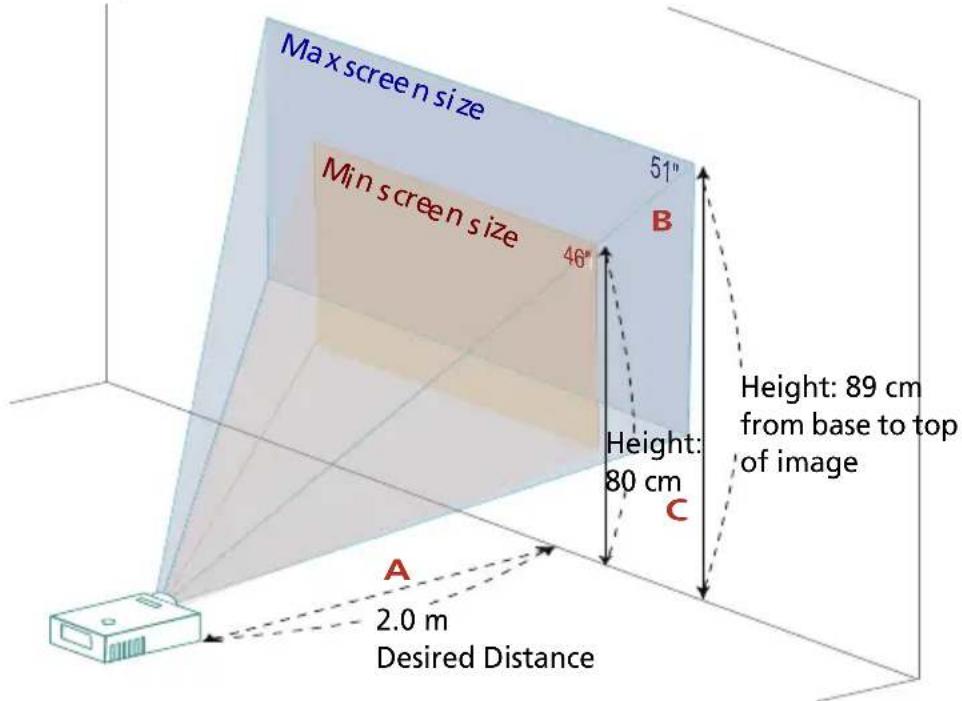

How to optimize image size and distance 14

How to get a preferred image size by adjusting

distance and zoom 16

User Controls 18

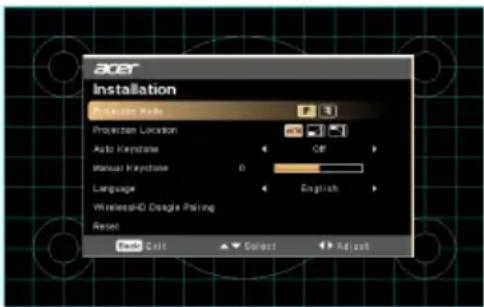

Installation menu 18

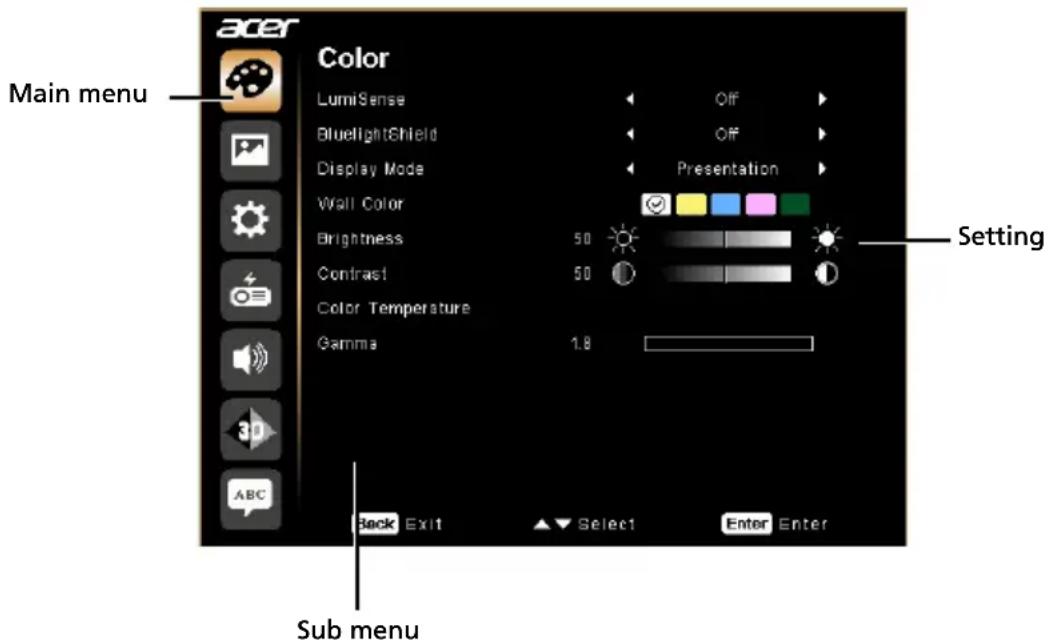

Onscreen Display (OSD) Menus 19

Color 20

Image 22

Setting 24

Management 27

Audio 28

3D 28

Language 29

Appendices 30

Troubleshooting 30

LED & Alarm Definition Listing 34

Cleaning and replacing the dust filters (Option) 35

Replacing the Lamp 36

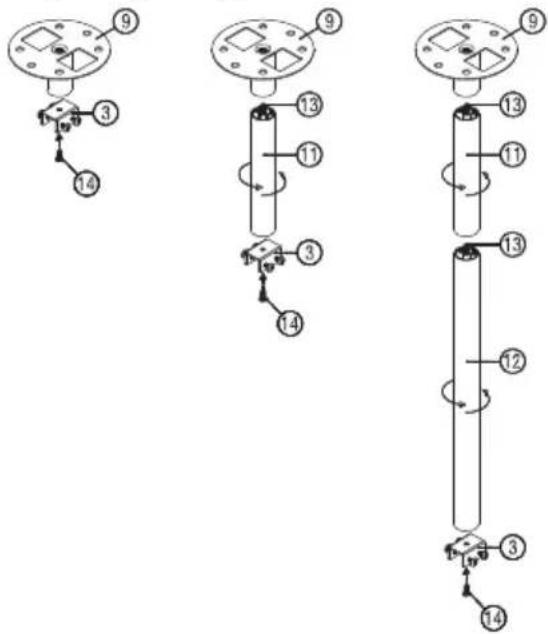

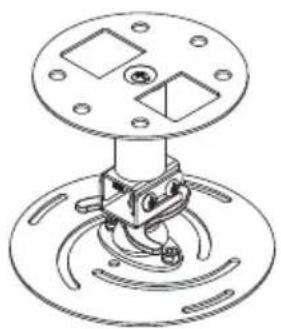

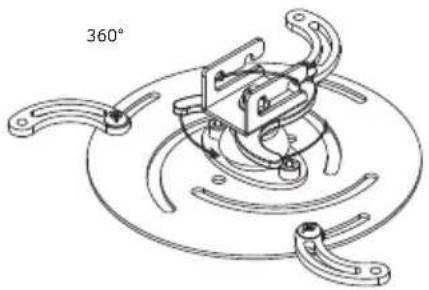

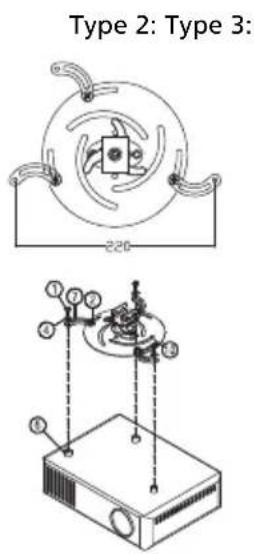

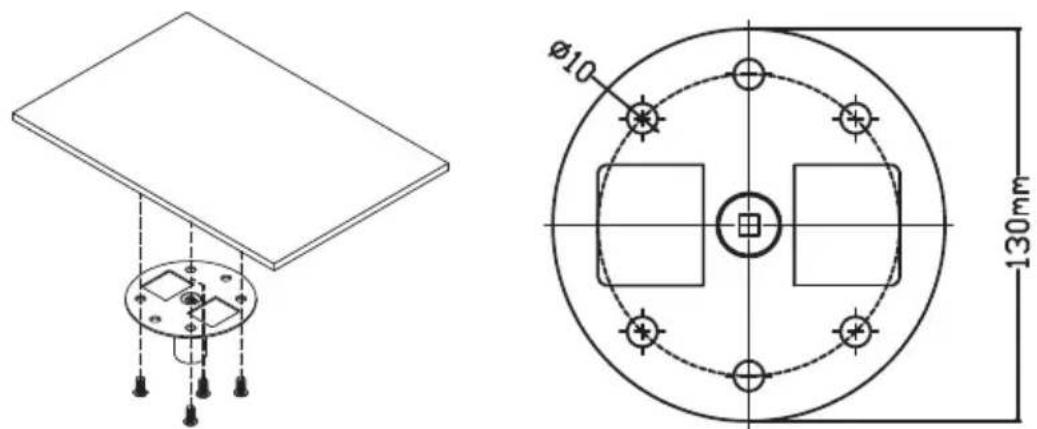

Ceiling Mount Installation 38

Specifications 41

Compatibility modes 43

Regulations and safety notices 48

Introduction

Product Features

This product is a single-chip DLP ^® projector. Outstanding features include:

• DLP ^® technology
• X1126H/D506D/EV-S57H/V26S/AS600/DSV1610 series: 800x600 SVGA resolution X1226H/D516D/EV-X57H/V26X/AX600/DNX1609 series: 1024x768 XGA resolution X1326WH/D526D/EV-W57H/V26W/AW600/DWX1608 series: 1280x800 WXGA resolution Full/4:3/16:9/L.Box aspect ratio supported
- Enables projecting 3D content via DLP Link Technology: Blue-Ray 3D supported
- Acer ColorBoost technology delivers nature's true colors for vivid, life-like images
• High brightness and contrast ratio
- Aer LumiSense technology can intelligently optimize the projection images to the most comfortable visual lumens automatically based on display content.
- Versatile display modes (Bright, Presentation, Standard, Video, Game, Education, User) enable optimum performance in any situation
- NTSC / PAL / SECAM compatible and HDTV (480i/p, 576i/p, 720p, 1080i/p) supported
- Lower power consumption and economy (ECO) mode extend lamp life
- Acer EcoProjection Technology delivers Intelligent power management approach and physical efficiency improvement
• Equipped with HDMI ™ & MHL connection supporting HDCP
- Smart detection delivers quick, intelligent source detection
- Multi-language onscreen display (OSD) menus
- Manual focus projection lens zooms up to 1.1x
- 2x digital zoom
- Microsoft ^ Windows ^ 2000, XP, Vista ^ , Windows 7, Windows 8.1, Windows 10, Macintosh ^ OS compliant
• Support MHL V2.1 signal display
- Support LumiSense
• Built-in One 3 Watts speaker

Note: Functions vary depending on model definition.

Package Overview

This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if any thing is missing.

Illustration of a projector with a small screen and lens (no text or symbols visible)

Projector Power cord VGA cable

Security card (option)

User's guide (option) Quick start guide

Carrying case (option)

Dust filters (option)

Remote control

AAA battery x2 (option)

Line drawing of a USB flash drive with ports and indicator lights (no text or symbols)

WirelessCAST (option)

Simple line drawing of a medical or laboratory device with a coiled cable, rectangular box, and bulb (no text or symbols)

WirelessHD-Kit (option)

Projector Overview

Projector Outlook

Front / upper side

# Description # Description
1 Air outlet 7 Lamp cover
2 Focus ring 8 Lens cap
3 Zoom ring 9 Projection lens
4 Remote control receiver 10 Tilt adjusting wheels
5 Power button 11 Air inlet
6 Control panel

Right / Rear side

# Description # Description
1 Power socket		8 Monitor loop-through output connector (for VGA IN 1 only)
2 HDMI 1/MHL connector 9 S-Video input connector
3 KensingtonTM lock port 10 Composite video		input connector
4	HDMI 2 connector	11 Audio in 2 connector (for S-Video, Composite)
5 5V	DC output connector (device charge & support mouse page up/down function)	12	Audio in 1 connector (for VGA IN 1, VGA IN 2)
6 PC	analog signal/HDTV/component video input connector (VGA IN 1, VGA IN 2)	13	Audio out connector
7 RS	232 connector

Note: Functions vary depending on model definition.

Control Panel

# Icon Function Description
1 POWER PO WER Power Indicator LED
2 LAMP LAMP Lamp Indicator LED
3 TEMP TEMPTemp Indicator LED
4		PO	See the contents in "Turning the Projector On/Off" section.
5		Four directional select keys	Use ▲to▼selectitems or make adjustments to your selection.
6 BACK BACK Returns to the previous operation.
7 SOURCE SOURCE Changes the active source.
8	ENTER	ENTER	Confirm your selection of items.
9	[5BY6]	Keystone	Adjusts the image to compensate for distortion caused by tilting the projector.
10	MENU MENU	MENU	Press "MENU" to launch the Onscreen display (OSD) menu, back to the previous step for the OSD menu operation or exit the OSD menu.

Note: Functions vary depending on model definition.

Remote Control Layout

# Icon Function Description
1		Infrared transmitter	Sends signals to the projector.
2		POWER	Refer to the "Turning the Projector On/Off" section.
3 MUTE	urn	on/off the volume.
4 RATIO	choose the desired aspect ratio.
5		Select/Enter Confirm your selection of items.
		Play/Pause Press to begin/pause playback.
6		Four directional select keys	Use up, down, left, right buttons to select items or make adjustments to your selection.
7 3D Pre D"		to select 3D models.
8 SOURC	anges the active source.
9		M	Press "MODE" to select the display mode from Bright, Presentation, Standard, Video and User.
10 KEYS			Adjusts the image to compensate for distortion caused by tilting the projector.
11		BACK Returns to the previous operation.
		STOP	Press to stop playback.
12 VGA	VGA		Press "VGA" to change source to the VGA connector. This connector supports analog RGB, YPbPr (480p/576p/720p/1080i), YCbCr (480i/576i) and RGBsync.
# Icon Function Description
13 FREEZETo pause the screen image.
14 PgUp4			For computer mode only. Use this button to select the previous page. This function is only available when USB Ctrl connector (mini type B) is connected to a computer via a USB cable.
15 COMPONENTNo function.
16 PgDn7			For computer mode only. Use this button to select the next page. This function is only available when USB Ctrl connector (mini type B) is connected to a computer via a USB cable.
17 MEDIANo function.
18	1 2 3 94 5 617 8 91	KeyPad 0~9	Press "0~9" to input a password in the "Security" OSD.
19 MENU			• Press "MENU" to launch the Onscreen display (OSD) menu, back to the previous step for the OSD menu operation or exit the OSD menu.• Confirm your selection of items.
20 HDMI/MHL3	To change source to HDMI/MHL.
21 HIDE	HIDE0		Momentarily turns off the video. Press "HIDE" to hide the image, press again to display the image.
22 ZOOM IN Zooms the projector display in.
23 VIDEO To change source to COMPOSITE VIDEO.
24 ZOOM OUT Zooms the projector display out.
25 LAN/WiFi			Press "LAN/WiFi" to change source to "WiFi." Only available while Acer WirelessCAST (MWA3) is plgged in projector and see "WiFi" in source list.
26 Laser pointer	Aim the remote at the viewing screen.
27 Laser button			Aim the remote at the viewing screen, press and hold this button to activate the laser pointer.

Note: Functions vary depending on model definition.

MHL (Mobile High-Definition Link) Control

# Icon Function Description
1 SOURCE			Press the "SOURCE" button to toggle between Navigation, Numeric and Multi-Media mode.
2		M	• Press "MODE" button for one second to activate O the MHL Control Mode. E • To exit, press the "MODE" button again.
3		M	To turn on/off the volume. (only for Navigation or Multi-Media mode)
4	▶	Volume UP	Increases the volume. (only for Multi-Media mode)
5	◀	Volume Down	Decreases the volume. (only for Multi-Media mode)
6		Select/Enter	Press to select/enter the file. (only for Navigation mode)
		Play/Pause	Toggles between playback and pause. (only for Multi-Media mode)
7		M	Press to launch the root memu. U (only for Navigation mode)
8		Four directional select keys	Use up, down, left, right buttons to select items or make adjustments to your selection. (only for Navigation mode)
9		Back/Exit	• Press "BACK" to go back one menu step. • To exit the file. (only for Navigation mode)
		Stop Discontinu es playback. (only for Multi-Media mode)
10 Pg	PgUp4Up/PgDnPgDn7		Use the button to select the next or previous page. (only for Navigation mode)
11 KeyPad 0~9 Number buttons. (only for Numeric mode)

Note: Functions vary depending on model definition.

Getting Started

Connecting the Projector

# Description # Description
1 Power cord 7 VGA cable
2 MHL cable (MicroUSB to HDMI) 8 Audio cable	Jack/Jack
3 HDMI cable 9 Audio cable Jack/RCA
4 USB cable for charging device 10 Composite video cable
5 3 RCA component cable 11 S-Video cable
6 VGA to component/HDTV adapter 12 RS232 cable

Note 1: To ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with the projector.

Note 2: Functions vary depending on model definition.

Note 3: USB cable needs powered extender if the length is over 5 m.

Note 4: Some smartphones require a converter (supplied by smartphone maker) to enable the MHL function.

Note 5: USB DC 5V out connector support 5V/2.0A power output for power bank charging only when MHL source is not detected.

Note 6: VGA OUT loops through for VGA IN 1 only.

Turning the Projector On/Off

Turning on the Projector

1 Ensure that the power cord and signal cable are securely connected. The Power indicator LED will flash red.
2 Turn on the projector by pressing "Power" button on the control panel or remote control, and the Power indicator LED will turn blue.
3 Turn on your source (computer, notebook, video player, etc.). The projector will detect your source automatically.

• If the screen displays "Lock" and "Source" icons, it means the projector is locked onto a specific source type and there is no such type of input signal detected.
• If the screen displays "No Signal", please make sure the signal cables are securely connected or press source direct key.
• If you connect to multiple sources at the same time, use the "Source" button on either control panel or the remote control or direct source key on the remote control to switch between inputs.

Turning the projector off

1 To turn the projector off, press and hold the power button. This message appears: "Please press the power button again to complete the shutdown process." Press the power button again.
2 The LED power indicator will turn RED and blink rapidly after the projector is turned off, and the fan(s) will continue to operate for about 2 minutes to ensure that the system cools properly. (only supported under "Instant Resume" mode)
3 As long as the power cord remains plugged in, you can press the power button to turn the projector immediately back on anytime during the 2-minute shutdown process. (only supported under "Instant Resume" mode)
4 Once the system has finished cooling, the LED power indicator will stop blinking and turn solid red to indicate standby mode.
5 It is now safe to unplug the power cord.

Warning indicators:

• "Projector Overheated. Lamp will automatically turn off soon."
  This onscreen message indicates that the projector has overheated. The lamp with automatically turn off, the projector will automatically shut down, and the LED temp indicator will turn solid red. Contact your local dealer or service center.
• "Fan failed. Lamp will automatically turn off soon."
  This onscreen message indicates that the fan has failed. The lamp will automatically turn off, the projector will automatically shut down, and the LED temp indicator will blink. Contact your local dealer or service center.

Note 1: Whenever the projector automatically shuts down and the LED lamp indicator turns solid red, contact your local reseller or service center.

Note 2: Functions vary depending on model definition.

Attention! The projector will enter a two minute cool down period to ensure continued optimal lamp operation.

Attention! Please do not turn off projector within 1 minute after power on.

Adjusting the Projected Image

Adjusting the Height of Projected Image

The projector is equipped with elevator feet for adjusting the height of image.

To raise/lower the image:

Use Tilt adjusting wheel to fine-tune the display angle.

How to optimize image size and distance

Consult the table below to find the optimal image sizes achievable when the projector is positioned at a desired distance from the screen.

- SVGA/XGA series

If the projector is 2.0 m from the screen, good image quality is possible for image sizes between 46" and 51".

Note: Remind as below figure, the space of 89 cm height is required when located at 2 m distance.

Desired Distance (m)	Screen size		Top	Screen size		Top
	(Min zoom) (Max zoom)
	Diagonal (inch)	W (cm) x H (cm)	From base to top of image (cm)	Diagonal (inch)	W (cm) x H (cm)	From base to top of image (cm)
1.0 22.	78 46 x 35	40 25 52 x 39	44
1.5 34	69 x 52 60	38 77 x 58 67
2.0 46	93 x 69 80	51 103 x 77	89
3.0 68	139 x 104	120	76 155 x 116		133
4.0 91	185 x 139	160	101 206 x 155	178
5.0	114	231 x 174	200	127	258 x 193	222
6.0	137	278 x 208	240	152	309 x 232	267
7.0	159	324 x 243	280	178	361 x 271	311
8.0	182	370 x 278	319	203	412 x 309	356
9.0	205	417 x 313	359	228	464 x 348	400
10.0	228	463 x 347	399	254	515 x 387	445
11.0	251	509 x 382	439	279	567 x 425	489
11.8	269	546 x 410	471	299.3	608 x 456	525

Zoom Ratio: 1.1x

- WXGA series

If the projector is 2 m from the screen, good image quality is possible for image sizes between 54" and 60".

Note: Remind as below figure, the space of 91 cm height is required when located at 2 m distance.

Desired Distance (m)	Screen size		Top	Screen size		Top
	(Min zoom) (Max zoom)
	Diagonal (inch)	W (cm) x H (cm)	From base to top of image (cm)	Diagonal (inch)	W (cm) x H (cm)	From base to top of image (cm)
1 26.9	9 58 x 36	41 30 65 x 41	45
1.5 40	87 x 55 61	45 97 x 61 68
2.0 54	116 x 73 8	1 60 130 x 81	91
2.5	67	145 x 91	102	75	162 x 101	114
3.0	81	174 x 109	122	90	195 x 122	136
3.5	94	203 x 127	142	106	227 x 142	159
4.0	108	233 x 145	163	121	260 x 162	182
4.5	121	262 x 164	183	136	292 x 183	205
5.0	135	291 x 182	203	151	325 x 203	227
6.0	162	349 x 218	244	181	390 x 244	273
7.0	189	407 x 254	285	211	455 x 284	318
8.0	216	465 x 291	326	241	519 x 325	364
9.0	243	523 x 327	366	271	584 x 365	409
10.0	270	581 x 363	407	301.47	649 x 406	455

Zoom Ratio: 1.1x

How to get a preferred image size by adjusting distance and zoom

The table below shows how to achieve a desired image size by adjusting either the position or the zoom ring.

- SVGA/XGA series

To obtain an image size of 60" set the projector at a distance 2.4 m and 2.6 m from the screen.

Desired Image Size Distance (m) Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	Min zoom	From base to top of image
30 61 x 46	1.2 1.3 53
40 81 x 61	1.6 1.8 70
50 102 x 76	2.0 2.2 88
60 122 x 91	2.37 2.6 105
70 142 x 107	2.8 3.1 123
80 163 x 122	3.2 3.5 140
90 183 x 137	3.5 4.0 158
100 203 x 152	3.9 4.4 175
150 305 x 229	5.9 6.6 263
180 366 x 274	7.1 7.9 315
200 406 x 305	7.9 8.8 351
250 508 x 381	9.9 11.0 438
300 610 x 457	11.8		526

Zoom Ratio: 1.1x

- WXGA series

To obtain an image size of 60" set the projector at a distance 2.0 m and 2.2 m from the screen.

Desired Image Size Distance (m) Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	Min zoom	From base to top of image
30 65 x 40	1.0 1.1 45
40 86 x 54	1.3 1.5 60
50 108 x 67	1.7 1.9 75
60 129 x 81	2.0 2.2 90
70 151 x 94	2.3 2.6 106
80 172 x 108	2.7 3.0 121
90 194 x 121	3.0 3.3 136
100 215 x 135	3.3 3.7 151
120 258 x 162	4.0 4.4 181
150 323 x 202	5.0 5.6 226
180 388 x 242	6.0 6.7 271
200 431 x 269	6.6 7.4 302
250 538 x 337	8.3 9.3 377
300 646 x 404	10.0 11.1	452

Zoom Ratio: 1.1x

User Controls

Installation menu

The installation menu provides an onscreen display (OSD) for projector installation and maintenance. Use the OSD only when the message "No signal input" is displayed on the screen.

The menu options include settings and adjustments for screen size and distance, focus, keystone correction and more.

1 Turn on the projector by pressing "Power" button on the control pad.
2 Press the "MENU" button on the remote control to launch the OSD for projector installation and maintenance.

3 The background pattern acts as a guide to adjusting the calibration and alignment settings, such as screen size and distance, focus and more.
4 The Installation menu includes the following options:

• Projection Mode
• Projection Location
  •Auto Keystone settings
• Manual Keystone settings
  •WirelessHD Dongle Pairing
• Language settings
• Reset to factory default function

Use the up and down arrow keys to select an option, the left and right arrow keys to adjust selected option settings, and the "ENTER" to enter a submenu for feature setting. The new settings will be saved automatically upon exiting the menu.

5 Push the "MENU" or "BACK" button anytime to exit the menu and return to the Acer welcome screen.

Onscreen Display (OSD) Menus

The projector has multilingual OSD that allows you to make image adjustments and change a variety of settings.

Using the OSD menus

• To open the OSD menu, press "MENU" on the remote control or control panel.
• When the OSD is displayed, use the keys to select any item in the main menu. After selecting the desired main menu item, press "ENTER" to enter submenu for feature setting.
• Use the keys to select the desired item and adjust the settings by using the keys.
• Select the next item to be adjusted in the submenu and adjust as described above.
• Press "BACK" on the remote control or control panel, the screen will return to the main menu.
• To exit OSD, press "BACK" on the remote control or control panel. The OSD menu will close and the projector will automatically save the new settings.

Note 1: Some of the following OSD settings may not be available. Please refer to the actual OSD of your projector.

Note 2: Functions vary depending on model definition.

Color

LumiSense	Acer LumiSense technology can intelligently optimize the projection images to the most comfortable visual lumens automatically based on display content. The feature greatly enhances dark detail visibility and color saturation.• Off: Default setting.• Normal: Select "Normal" to meet the visual effect of dark detail enhancement.• Boost: Select "Boost" to meet the visual effect of brightness boost.• Dynamic Black: automatically optimize the display of dark movie scenes enabling them to be shown in incredible detail.: Once LumiSense is enabled, BluelightShield switches to "Off".
BluelightShield	• Off: Default setting.• Low / Medium / High: Select Low / Medium / High to reduce different exposure levels of blue light dynamically.: Once BluelightShield is enabled, LumiSense switches to "Off".
Display Mode	There are many factory presets optimized for various types of images.• Bright: For brightness optimization.• Presentation: For meeting presentation.• Standard: For common environment.• Video: For playing video in a bright environment.• Game: For game content.• Education: For education environment.• User: Memorize user's settings.
Wall color	Use this function to choose a proper color according to the wall. There are several choices, including white, light yellow, light blue, pink, dark green. It will compensate the color deviation due to the wall color to show the correct image tone.
Brightness	Adjust the brightness of the image.• Press to darken the image.• Press to lighten the image.
Contrast	"Contrast" controls the difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.• Press to decrease the contrast.• Press to increase the contrast.
Saturation	Adjusts a video image from black and white to fully saturated color.• Press to decrease the amount of color in the image.• Press to increase the amount of color in the image.
Tint	Adjusts the color balance of red and green.• Press to increase the amount of green in the image.• Press to increase the amount of red in the image.
Color Temperature	ModeUse this function to choose CT1, CT2, CT3, User mode.
	R GainAdjusts the red gain for color temperature optimization.
	G GainAdjusts the green gain for color temperature optimization.
	B GainAdjusts the blue gain for color temperature optimization.
Gamma	Effects the representation of dark scenery. With greater gamma value, dark scenery looks brighter.

Note 1: "Saturation" and "Tint" functions are not supported under computer or HDMI mode.

Note 2: Functions vary depending on model definition.


Projection Mode
Projection Location
Aspect Ratio Use th	is function to choose your desired aspect ratio. Auto: Keep the image with original width-higth ratio and maxi mize the image to fit native horizontal or vertical pixels. Full: Resize image to fit full screen by width (1280 pixels) and height (800 pixels). 4:3: The image will be scaled to fit the screen and displayed using a 4:3 ratio. 16:9: The image will be scaled to fit the width of the screen and the height adjusted to display the image using a 16:9 ratio. L.Box: Keep original signal aspect ratio and zoom in by 1.333 times.
Auto Keystone Automatically adjusts vertical image.
Manual Keystone Adjust image distortion caused by tilting projection. The Manual Keystone function is unavailable under Auto Keystone setting to "On".
Sharpness Adjusts the sharpness of the image. Press to decrease the sharpness. Press to increase the sharpness.
H. Position (Horizontal position)	Press to move the image left. Press to move the image right.
V. Position (Vertical position)	Press to move the image down. Press to move the image up.
Frequency "Frequency" changes the projector's refresh rate to match the frequency of your computer's graphics card. If you can see a vertical flickering bar in the projected image, use this function to make the necessary adjustments.
Tracking Synchronizes the signal timing of the projector with the graphics card. If you experience an unstable or flickering image, use this function to correct it.
HDMI Color Range	Adjust the color range of the HDMI image data to correct color display error.·Auto: Automatically adjust by information from player.·Limited Range: Prosess the input image as limited color range data.·Full Range: Prosess the input image as full color range data.
HDMI Scan Info Adjust the overscan ratio of the HDMI image on screen.·Auto: Automatically adjust by information from player.·Underscan: Always no overscan on HDMI image.·Overscan: Always keep overscan on HDMI image.

Note 1: "H. Position", "V. Position", "Frequency" and "Tracking" functions are not supported under HDMI or Video mode.

Note 2: "HDMI Color Range" and "HDMI Scan Info" functions are only supported under HDMI mode.

Note 3: Functions vary depending on model definition.

Setting

Source Selection Manual by source menu, Auto by Smart Detection.
Closed Caption	Selects a preferred closed captioning mode from CC1, CC2, CC3, CC4, (CC1 displays captions in the primary language in your area). Select "Off" to turn off the captioning feature. This function is only available when a composite video or S-Video input signal is selected and its system format is NTSC.
	Set your screen aspect ratio to 4:3. This function is not available when the aspect ratio is "16:9" or "Auto".
VGA OUT (Standby)	Default is "Off". Choose "On" to enable VGA OUT connection.
Security Security	This projector provides a useful security function for the administrator to manage usage of the projector. Press "ENTER" to change the "Security" setting. If the security function is enabled, your must enter the "Administrator Password" first before changing the security settings. Select "On" to enable the security function. The user has to enter a password to operate the projector. Please refer to the "User Password" section for details. If "Off" is selected, then the user can turn on the projector without password.
	Timeout(Min.) Once "Security" is activated to "On", the administrator can set timeout function. Press or to select the timeout interval. The range is from 10 minute to 990 minutes. When the time is up, the projector will prompt the user to enter the password again. The factory default setting of "Timeout(Min.)" is "Off". Once the security function is enabled, the projector will request user to enter password when switch on the projector. Both "User Password" and "Administrator Password" can be accepted for this dialogue.
	User Password Press "ENTER" to setup or change the "User Password". Press number keys to set your password on the remote control and press "ENTER" to confirm. Press to delete character. Enter the password when you see "Confirm Password" displayed. The password should be between 4 and 8 characters long. If you select "Request password only when plugging the power cord in.", the projector will prompt the user to enter the password every time the power cord is plugged. If you select "Always request password while projector turns on.", the user has to enter the password every time when the projector is turned on.
	Administrator Password The "Administrator Password" can be used in both the "Enter Administrator Password" and "Enter Password" dialog boxes. Press "ENTER" to change the "Administrator Password". The factory default of "Administrator Password" is "1234". If you forgot your administrator password, do the following to retrieve the administrator password: An unique 6-digit "Universal Password" which is printed on the Security Card (please check accessory in the box). This unique password is the number which will be accepted by projector anytime no matter what the Administrator Password is. If losing this security card and number, please contact with an Acer service center.
Reset Press the "ENTER" button and choose "Yes" to return the parameters on all menus to the factory default settings.
Information Display the projector information for Model Name, Input Source, Signal Type, Display Mode, Serial No., Software Version and QR code on the screen.
Scan QR code linking to Acer projector portal via mobile.

Note: Functions vary depending on model definition.

Management

ECO Mode Choose "On" to dim the projector lamp which will lower power consumption, extend the lamp life and reduce noise. Choose "Off" to return normal mode.<Note> Gray out ECO mode item while either Lumisense or BluelightShield item is "On".

High Altitude Choose "On" to turn on High Altitude mode. Operate the fans at full speed continuously to allow for proper high altitude cooling of the projector.

Turn Off Mode• Standard: Properly shuts down the projector after fan cooling.• Instant Resume: Resumes the system when the Power button is pressed again within 2 minutes.

Auto Shutdown The projector will automatically shutdown when there is no signal input after the allocated time. (default is 15 minutes)

Menu Display Time (Seconds) Choose the OSD menu display time. (Default is 15 seconds). Select "Manual" to turn off main menu/one direct-key menu manually by user.

AC Power On Choose "On" to power on projector while AC power plug in.

Control Panel Lock OffDefault is set to "Off".

Lamp Hour Elapse Displays the lamp's elapsed operating time (in hours).

Lamp Reminding Activate this function to display a reminder to change the lamp 30 hours before its expected end-of-life.

Lamp Hour Reset Press the "ENTER" button and choose "Yes" to turn the lamp hour counter to 0 hours.

Audio

Volume	Press to decrease the volume.Press to increase the volume.
Mute	Choose "On" to mute the volume.Choose "Off" to restore the volume.

Note: Functions vary depending on model definition.

3D

3D Choose "On" to enable DLP 3D function.• On: Choose this item while using DLP 3D glasses, 120Hz 3D capable graphics cards and HQFS format file or DVD with corresponding SW player.• Off: Turn off 3D mode.

3D Format If the 3D content is not displayed correctly, you can select a 3D format that suits the 3D content you are viewing and obtain the best result.

24P 3D Choose "96Hz" or "144Hz" to compatible with 3D glasses.

3D L/R Invert If you see a discrete or overlapping image while wearing DLP 3D glasses, you may need to execute "Invert" to get best match of left/right image sequence to get the correct image (for DLP 3D).

3D Warning Message Choose "On" to display the 3D warning message.Note: 3D display is now enabled. Please make sure you have the correct 3D signals and glasses.Remember to turn 3D off if you don't want to see 3D images.If the 3D display isn't correct, please try to enable 3D Sync Invert.Display mode options will be disabled while in 3D mode.

Note 1: It needs correct settings on graphic card 3D application program for correct 3D display.

Note 2: The SW players, such as Stereoscopic Player and DDD TriDef Media Player can support 3D format files. You can download these three players on web page below,

• Stereoscopic Player (Trial):
  http://www.3dtv.at/Downloads/Index_en.aspx
• DDD TriDef Media Player (Trial):
  http://www.tridef.com/download/TriDef-3-D-Experience-4.0.2.html

Note 3: "3D L/R Invert" is only available when 3D is enabled.

Note 4: There has reminder screen if 3D still enable when power on projector.

Please adjust setting depended on your purpose.

Note 5: WUXGA model 24P 3D cannot be scaling due to TI ASIC buffer

memory limitation, and once detect 24P 3D (96Hz or 144Hz) inputs, Aspect Ratio / HDMI Scan Info will be gray out, also HIDE will be not supported.

Language

Language

Choose the multilingual OSD menu. Use the▲▼◄►key to select your preferred menu language.•Press "ENTER" to confirm the selection.

Appendices

Troubleshooting

If you experience a problem with your Acer projector, refer to the following troubleshooting guide. If the problem persists, please contact your local reseller or service center.

Image Problems and Solutions

# Problem Solution
1 No image appears onscreen	Connected as described in the "Getting Started" section.Ensure none of the connector pins are bent or broken.Check if the projector lamp has been securely installed. Please refer to the "Replacing the Lamp" section.Make sure you have removed the lens cap and the projector is switched on.
2 Partial, scrolling or incorrectly displayed image (for PC (Windows 2000/XP/Vista/ Windows 7/ Windows 8))	For an incorrectly displayed image:Open "My Computer", open the "Control Panel", and then double-click the "Display" icon.Select the "Settings" tab.Verify that your display resolution setting is lower than or equal to WUXGA-RB (1920 x 1200).Click the "Advanced Properties" button. If the problem still appears, change the monitor display you are using and follow the steps below:Verify that the resolution setting is lower than or equal to WUXGA-RB (1920 x 1200).Click the "Change" button under the "Monitor" tab.Click "Show all devices". Next, select "Standard monitor types" under the SP box, and choose the resolution mode you need under the "Models" box.Verify that the resolution setting of the monitor display is lower than or equal to WUXGA-RB (1920 x 1200).
3 Partial, scrolling or incorrectly displayed image (For notebooks)	·For an incorrectly displayed image: ·Follow the steps for item 2 (above) to adjust the resolution of your computer. ·Press the toggle output settings. Example: [Fn]+[F4], Compaq [Fn]+[F4], Dell [Fn]+[F8], Gateway [Fn]+[F4], IBM [Fn]+[F7], HP [Fn]+[F4], NEC [Fn]+[F3], Toshiba [Fn]+[F5] ·If you experience difficulty changing resolutions or your monitor freezes, restart all equipment including the projector.
4 The screen of the notebook computer is not displaying your presentation	·If you are using a Microsoft® Windows® based notebook: Some notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer's manual for detailed information. ·If you are using an Apple® Mac® OS based notebook: In System Preferences, open Display and select Video Mirroring "On".
5 Image is unstable or flickering	·Adjust the "Tracking" to correct it. Refer to the "Image" section for more information. ·Change the display color depth settings on your computer.
6 Image has vertical flickering bar	·Use "Frequency" to make an adjustment. Refer to the "Image" section for more information. ·Check and reconfigure the display mode of your graphics card to make it compatible with the projector.
7 Image is out of focus	·Make sure the lens cap is removed. ·Adjusts the focus ring on the projector lens. ·Make sure the projection screen is within the required distance of 3.3 to 38.7 feet (1.0 to 11.8 meters) (SVGA/XGA series) / 3.3 to 32.8 feet (1.0 to 10.0 meters) (WXGA series) from the projector. Refer to the "How to get a preferred image size by adjusting distance and zoom" section for more information.
8 Image is stretched when displaying a "widescreen" DVD title	When you play a DVD encoded in anamorphic or 16:9 aspect ratio you may need to adjust the following settings: ·If you play a 4:3 format DVD title, please change the format to 4:3 in the projector OSD. ·If the image is still stretched, you will also need to adjust the aspect ratio. Set up the display format to 16:9 (wide) aspect ratio on your DVD player. ·If you play an Letterbox (LBX) format DVD title, please change the format to Letterbox (LBX) in the projector OSD.
9 Image is too small or too large	Adjust the zoom ring on the projector.Move the projector closer to or further from the screen.Press "MENU" on the remote control. Go to "Image -> Aspect Ratio" and try different settings or press "RATIO" on the remote control to adjust directly.
10 Image has slanted sides	If possible, reposition the projector so that it is centered on the screen.Press the "Keystone / " button on the remote control until the sides are vertical.
11 Image is reversed	Select "Image --> Projection Mode" on the OSD and adjust the projection direction.

OSD Messages

# Condition Message Reminder

1 Message

•Fan Fail - the system fan is not working.Fan Fail.Lamp will automatically turn off soon.•Projector Overheated - the projector has exceeded its recommended operating temperature and must be allowed to cool down before it may be used. Please check the following message.Projector overheated, system will turn off automatically soon, please:1. Check if operation ambient temperature between 5 degree and 40 degree.2. Check if filter needs to be cleaned.3. Check if inlet or outlet is blocked.4. Check if high altitude mode is set when the projector operating at high altitude area.Please also check the dust filters if they are installed. If the dust filter is clogged with dust, please clean it. Please refer to "Cleaning and replacing the dust filters (Option)" for details.•Replace the lamp - the lamp is about to reach its maximum lifetime. Prepare to replace it soon.Lamp is approaching the end of its useful life in full power operation.Replacement suggested!

Problems with the Projector

# Condition Solution
1 The projector stops responding to all controls	If possible, turn off the projector, then unplug the power cord and wait at least 30 seconds before reconnecting power.
2 Lamp burns out or makes a popping sound	When the lamp reaches the end of its useful life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the "Replacing the Lamp" section.

LED & Alarm Definition Listing

LED Messages

Message	Lamp_LED Temp_LED Power LED
	Red Red Red Blue
Input power plug Flash ON	to OFF 100ms	Flash ON to OFF 100ms	Flash ON to OFF 100ms	--
Standby -- -- ON --
Power button ON -- -- -- ON
Lamp retry -- -- -- Quick				Flashing
Power off (Cooling state) --	-- Quick		Flashing	--
Power button OFF (cooling completed; standby mode)	-- -- ON --
Error (thermal failure) --	ON -- ON
Error (fan lock)	--	Quick Flashing	-- ON
Error (lamp breakdown)	ON	-- -- ON
Error (color wheel fail)	Quick Flashing	-- -- ON

Cleaning and replacing the dust filters (Option)

Cleaning the dust filters

Clean the dust filters after every 1000 hours of use. If they are not cleaned periodically, they can become clogged with dust, preventing proper ventilation. This can cause overheating and damage the projector.

Follow these steps:

1 Turn the projector off. Wait for the Power LED to stop flashing then unplug the power cord.
2 Allow the projector at least 30 mins to cool down.
3 Pull out the dust filter. (Illustration #1)
4 To clean the dust filters, use a small vacuum cleaner designed for computers and other office equipment. (Illustration #2)
5 If the dirt is difficult to remove or the filter is broken, please contact your local dealer or service center to obtain a new filter.

Replacing the Lamp

Use a screwdriver to remove the screw(s) from the cover, and then pull out the lamp.

The projector will detect the lamp life. You will be shown a warning message "Lamp is approaching the end of its useful life in full power operation.

Replacement suggested!" When you see this message, change the lamp as soon as possible. Make sure the projector has been cooling down for at least 30 minutes before changing the lamp.

Warning: The lamp compartment is hot! Allow it to cool down before changing the lamp.

To Change the Lamp

Turn off the projector by pressing the Power button.

Allow the projector at least 30 minutes to cool down.

Disconnect the power cord.

1 Use a screwdriver to remove the screw from the cover. (Illustration #1)

Push to the direction of the arrow. (Illustration #2)

Push up the cover. (Illustration #3)

2 Remove the screw that secure the lamp module. (Illustration #4)

Pull out the lamp plug. (Illustration #5)

Lift the handle so that it stands up. (Illustration #6)

3 Lift the handle so that it stands up. Pull out the lamp module by force.

(Illustration #7)

To replace the lamp module, use a new lamp and reverse the above steps.

Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.

Ceiling Mount Installation

If you wish to install the projector using a ceiling mount, please refer to the steps below:

1 Drill four holes into a solid, structural ceiling member, and secure the ceiling mount base to the ceiling.

2 Choose the length combination based on actual environment. (CM-01S doesn't include Type 2 and Type 3.)

Type 1 Type 2 Type 3

3 Type 1:

For the standard size use three bracket screws to mount the projector to the ceiling mount bracket.

Type 2 and Type 3:

Alternatively, for the larger size, use the sliding extensions for more supports.

Technical diagram showing mechanical components and a base with labeled parts (no readable text or symbols)

Note: It is recommended that you keep a reasonable space between the bracket and the projector to allow for proper heat distribution.

4 Connect the main body connector to the projector bracket (illustration 1), and then screw up four screws (illustration 2).

Technical line drawing of a mechanical assembly with circular components and a central component (no text or symbols)

Illustration 1

Technical line drawing of a mechanical assembly with circular components and radial elements (no text or symbols)

Illustration 2

5 Adjust the angle and positioning as necessary.

Technical line drawing of a mechanical clamp or bracket assembly with angular annotation (360°), no readable text or symbols present.

Technical line drawing of a mechanical clamp or spring assembly with a 25° angle标注 (no text or symbols beyond the angle marker)

Screw Type B Washer Type
Diameter (mm) Length (mm) Large Small
4	2	5	V

V

Specifications

The specifications listed below are subject to change without notice. For final specs, please refer to Acer's published marketing specifications.

Projection system	DLP®
Resolution	•X1126H/D506D/EV-S57H/V26S/AS600/DSV1610series: 800x600 SVGA resolution•X1226H/D516D/EV-X57H/V26X/AX600/DNX1609series: 1024x768 XGA resolution•X1326WH/D526D/EV-W57H/V26W/AW600/DWX1608 series: 1280x800 WXGA resolution
Computer compatibility IBM PC and compatibles, Apple Macintosh, iMac and VESA standards: SXGA, XGA, VGA, SVGA, SXGA+, WXGA, WXGA+, WSXGA +
Video compatibility NTSC (3.58/4.43), PAL (B/D/G/H/I/M/N), SECAM (B/D/G/K/K1/L), HDTV (720p, 1080i, 1080p), EDTV (480p, 576p), SDTV (480i, 576i)
Aspect ratio Auto, Full, 4:3, 16:9, L.Box
Displayable colors 1.07 billion colors
Optical zoom ratio 1.1X
Throw ratio	•X1126H/D506D/EV-S57H/V26S/AS600/DSV1610/X1226H/D516D/EV-X57H/V26X/AX600/DNX1609series:1.94 ~2.16 (51"@2m)•X1326WH/D526D/EV-W57H/V26W/AW600/DWX1608 series: 1.54 ~ 1.72 (60"@2m)
Projection lens	•X1126H/D506D/EV-S57H/V26S/AS600/DSV1610/X1226H/D516D/EV-X57H/V26X/AX600/DNX1609series:F = 2.41 ~ 2.53,f = 21.85mm ~ 24.01mm,Manual Zoom & Focus•X1326WH/D526D/EV-W57H/V26W/AW600/DWX1608 series:F = 2.50 ~ 2.67,f = 21.86mm ~ 24.00mm,Manual Zoom & Focus
Projection screen size (diagonal)	•X1126H/D506D/EV-S57H/V26S/AS600/DSV1610/X1226H/D516D/EV-X57H/V26X/AX600/DNX1609series:23" ~ 300" (58cm ~762cm)•X1326WH/D526D/EV-W57H/V26W/AW600/DWX1608 series: 27" ~ 300" (69cm ~ 762cm)
Projection distance	•X1126H/D506D/EV-S57H/V26S/AS600/DSV1610/X1226H/D516D/EV-X57H/V26X/AX600/DNX1609series:1.0m ~ 11.8m (3.3' ~ 38.7')•X1326WH/D526D/EV-W57H/V26W/AW600/DWX1608 series: 1.0m ~ 10.0m (3.3' ~ 32.8')
Horizontal scan rate 15 - 100 kHz

Vertical refresh scan rate 24 - 120 Hz

Lamp type 220 W user-replaceable lamp

Keystone correction ±40 degrees

Audio Internal speaker with 3 W x 1 output

Weight 2.65 Kg (5.8 lbs)

Dimensions (W x D x H) 315 mm X 214 mm X 98 mm (12.4" x 8.4" x 3.8")

Digital zoom 2X

Power supply AC input 100 - 240 V auto-switching power supply

Power consumption Normal mode: 260W ± 10% @ 110VAC

ECO mode: 200W ± 10% @ 110VAC

Standby mode < 0.5W

Operating temperature 0°C to 40°C / 32°F to 104°F

Standard package contents

- AC power cord x1

•VGA cable x1

- Remote control x1

- AAA battery x2 (for remote control) (option)

-User's guide (CD-ROM) x1 (option)

- Quick start guide x1

•Security card x1 (option)

•Dust filters x1 (option)

- Carrying case x1 (option)

I/O connectors X1126	H/X1226H/X1326WH/D506D/D516D/D526D/EV-S57H/EV-X57H/EV-W57H/V26S/V26X/V26W/AS600/AX600/AW600/DSV1610/DNX1609/DWX1608
Power socket V
VGA IN 1 V
VGA IN 2 V
VGA output V
Composite video	V
S-Video	V
HDMI 2	V
HDMI 1/MHL	V
RS232	V
3.5 mm audio jack input 1	V
3.5 mm audio jack input 2	V
3.5 mm audio jack output	V
5V DC output	V

Note: Design and specifications are subject to change without notice.

Compatibility modes

A. VGA Analog

1 VGA Analog - PC Signal

Modes	Resolution	V.Frequency [Hz]	H.Frequency [KHz]
VGA 640x480	60 31.5
	640x480 72	37.9
	640x480 75	37.5
	640x480 85	43.3
	640x480 120	61.9
SVGA 800x600	56 35.1
	800x600 60	37.9
	800x600 72	48.1
	800x600 75	46.9
	800x600 85	53.7
	800x600 120	77.4
XGA 1024x768	60 48.4
	1024x768 70	56.5
	1024x768 75	60.0
	1024x768 85	68.7
	1024x768 120	99.0
SXGA 1152x864	70 63.8
	1152x864 75	67.5
	1152x864 85	77.1
	1280x1024 60	64.0
	1280x1024 72	77.0
	1280x1024 75	80.0
	1280x1024 85	91.1
QuadVGA 1280x960	60 60.0
	1280x960 75	75.2
SXGA+ 1400x1050	60 65.3
UXGA 1600x1200	60 75.0
PowerBook G4	640x480 60	31.4
PowerBook G4	640x480	66.6(67)	34.9
PowerBook G4	800x600 60	37.9
PowerBook G4	1024x768 60	48.4
PowerBook G4	1152x870 75	68.7
PowerBook G4	1280x960 75	75.0
i Mac DV (G3)	1024x768	75 60.0

2 VGA Analog - Extended Wide timing

Modes	Resolution	V.Frequency [Hz]	H.Frequency [KHz]
WXGA 1280x768 60 47.8
	1280x768 75	60.3
	1280x768 85	68.6
	1280x720 60	44.8
	1280x720 120	92.9
	1280x800 60	49.6
	1280x800 119	909 101.6
	1920x1200 60	74
	1440x900 60	59.9
WSXGA+ 1680x1050 60 65.3
	1920x1080(1080P)	60 67.5
	1366x768 60	47.7
WUXGA	1920x1200-RB	59.94	74.04

3 VGA Analog -Component Signal

Modes	Resolution	V.Frequency [Hz]	H.Frequency [KHz]
480i	720x480(1440x480)	59.94 (29.97)	15.7
576i	720x576(1440x576)	50(25)	15.6
480p	720x480	59.94	31.5
576p	720x576	50	31.3
720p	1280x720	60	45.0
720p	1280x720	50	37.5
1080i	1920x1080	60(30)	33.8
1080i	1920x1080	50(25)	28.1
1080p	1920x1080	23.97/24	27.0
1080p	1920x1080	60	67.5
1080p	1920x1080	50	56.3

B. HDMI Digital

1 HDMI - PC Signal

Modes	Resolution	V.Frequency [Hz]	H.Frequency [KHz]
VGA	640x480	60	31.5
	640x480	72 37.9
	640x480	75 37.5
	640x480	85 43.3
	640x480 120	61.9
SVGA	800x600	56	35.1
	800x600 60 3	7.9
	800x600 72 4	8.1
	800x600 75 4	6.9
	800x600 85 5	3.7
	800x600 120	77.4
XGA 1024x768 60 48.4
	1024x768 70	56.5
	1024x768 75	60.0
	1024x768 85	68.7
	1024x768 120	99.0
SXGA 1152x864 70 63.8
	1152x864 75	67.5
	1152x864 85	77.1
	1280x1024 60	64.0
	1280x1024 72	77.0
	1280x1024 75	80.0
	1280x1024 85	91.1
QuadVGA 1280x960 60 60.0
	1280x960 75	75.2
SXGA+ 1400x1050 60 65.3
UXGA 1600x1200 60 75.0
PowerBook G4 640x480 60 31.4
PowerBook G4 640x480 66.6(67) 34.9
PowerBook G4	800x600 60 3	7.9
PowerBook G4	1024x768 60	48.4
PowerBook G4 1152x870 75 68.7
PowerBook G4 1280x960 75 75.0
i Mac DV (G3) 1024x768		75 60.0

2 HDMI - Extended Wide timing

Modes	Resolution	V.Frequency [Hz]	H.Frequency [KHz]
WXGA 1280x768	60	47.8
	1280x768 75	60.3
	1280x768 85	68.6
	1280x720 60	44.8
	1280x720 120	92.9
	1280x800 60	49.6
	1280x800-RB	119.909	101.6
	1440x900 60	59.9
	1920x1200 60	74
WSXGA+	1680x1050 60	65.3
	1920x1080(1080P)	60 67.5
	1366x768 60	47.7
WUXGA 1920x	1200-RB 59.94 74	.04

3 HDMI - Video Signal

Modes Resolution V.Frequency [Hz] H.Frequency [KHz]
480i 720x480(1440x480) 59.94 (29.97) 15.7
576i 720x576(1440x576) 50(25) 15.6
480p 720x480 59.94		31.5
576p	720x576	50	31.3
720p	1280x720	60	45.0
720p	1280x720	50	37.5
1080i	1920x1080	60(30)	33.8
1080i	1920x1080	50(25)	28.1
1080p	1920x1080	23.97/24	27.0
1080p	1920x1080	60	67.5
1080p	1920x1080	50	56.3
1080p	1920x1200-RB 59.94 74.04

4 HDMI - 1.4a 3D Timing

Modes	Resolution	V.Frequency [Hz]	H.Frequency [KHz]
720p (Frame Packing)	1280 x 720	50	37.5
720p (Frame Packing)	1280 x 720	60	45.0
1080p (Frame Packing )	1920 x1080	24	27.0
720p (Frame Packing)	1280 x 720	50	37.5
720p (Frame Packing)	1280 x 720	60	45.0
1080i (Top and Bottom)	1920 x1080	50 (25)	28.1
1080i (Top and Bottom)	1920 x1080	60 (30)	33.8
1080p (Top and Bottom)	1920 x1080	24	27.0
1080p (Top and Bottom)	1920 x1080	50	56.3
1080p (Top and Bottom)	1920 x1080	60	67.5
720p (Side by Side (Half))	1280 x 720	60	45.0
1080i (Side by Side (Half))	1920 x1080	50 (25)	28.1
1080i (Side by Side (Half))	1920 x1080	60 (30)	33.8
1080p (Side by Side (Half))	1920 x1080	50	56.3
1080p (Side by Side (Half))	1920 x1080	60	67.5

Graphic source monitor range limits	Horizontal scan rate:	15k-100kHz
	Vertical scan rate:	24-120 Hz
	Max. pixel rate:	Analog:165MHzDigital:165MHz

C. MHL Digital

Modes Resolution		V.Frequency [Hz]	H.Frequency [KHz]
VGA 640x480 59.94/60 31.5
480i 720x480 (1440x480) 59.94/60 15.7
576i 720x576 (1440x576) 50(25) 15.6
480p 720x480 59.94/60 31.5
480p_2x 1440x480 59.94/60 31.5
576p 720x576 50 31.3
576p_2x 1440x576 50 31.3
720p 1280x720 59.94/60 45.0
720p 1280x720 50 37.5
1080i	1920x1080	60(30)	33.8
1080i	1920x1080	50(25)	28.1
1080p	1920x1080	23.97/24	27.0
1080p	1920x1080 25 28.1
1080p	1920x1080	29.97/30 33.8
Graphic source monitor range limits	Horizontal scan rate:	15k-50 kHz
	Vertical scan rate:	24-60 Hz
	Max. pixel rate:	Digital: 75 MHz

Note 1: Functions vary depending on model definition.
Note 2: MHL 1080p 3D 24p frame packing is not supported.

Regulations and safety notices

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this device.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Declaration of Conformity for EU countries

Acer hereby declares that this projector series is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Compliant with Russian regulatory certification

001

Radio device regulatory notice

Note: The regulatory information below is for models with wireless LAN and/or Bluetooth only.

General

This product complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. Depending on configurations, this product may or may not contain wireless radio devices (such as wireless LAN and/or Bluetooth modules).

Canada — Low-power license-exempt radio communication devices (RSS-☐☐☐)

a Common information

Operation is subject to the following two conditions:

1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

b Operation in 2.4 GHz band

To prevent radio interference to the licensed service, this device is intended to be operated indoors and installation outdoors is subject to licensing.

List of applicable countries

This device must be used in strict accordance with the regulations and constraints in the country of use. For further information, please contact the local office in the country of use. Please see http://ec.europa.eu/enterprise/rtte/implem.htm for the latest country list.

Declaration of Conformity

We.

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

And,

Acer Italy s.r.l.

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone]

www.acer.it

Product:

DLP

Projector

Trade Name: Acer

Model Number: DSV1610/DNX1609/DWX1608

X1126H/X1226H/X1326WH/D506D/D516D/D526D/EV-S57H/EV-X57H/

EV-W57H/V26S/V26X/V26W/AS600/AX600/AW600

We, Acer Incorporated, hereby declare under our sole responsibility that the product described above is in conformity with the relevant Union harmonization legislations as below Direct following harmonized standards and/or other relevant standards have been applied:

EMC Directive: 2014/30/EU

EN 55032:2012+AC:2013, Class BEN 55024:2010+A1:2015	EN 61000-3-2:2014, Class AEN 61000-3-3:2013
R&TTE Directive: 1999/5/EC (until Jun 12, 2017)RED Directive: 2014/53/EU (From Jun 13, 2017)
EN 300 328 V1.8.1EN 301 893 V1.7.1EN 300 440-1 V1.6.1EN 300 440-2 V1.4.1EN 302 291-1 V1.1.1EN 302 291-2 V1.1.1	EN 301 511 V9.0.2EN 301 908-1 V6.2.1EN 301 908-2 V6.2.1EN 301 908-13 V6.2.1EN 301 489-1 V1.9.2EN 301 489-3 V1.6.1	EN 301 489-7 V1.3.1EN 301 489-17 V2.2.1EN 301 489-24 V1.5.1EN 50360:2001 EN 50566:2013EN 62479:2010 EN 62311:2008EN 62209-1:2006 EN 62209-2:2010

LVD Directive: 2014/35/EU

EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013

EN 50332-1:2000 EN 50332-2:2003

RoHS Directive: 2011/65/EU

EN 50581:2012

ErP Directive: 2009/125/EC

☐ Regulation (EU) No. 617/2013	☐ Regulation (EC) No. 278/2009; EN 50563:2011
☒ Regulation (EC) No. 1275/2008; EN 50564:2011

Year to begin affixing CE marking 2016.

RuJaw

Dec. 22, 2016

RU Jan / Sr. Manager Date

Acer Incorporated (Taipei, Taiwan)

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer / Importer is responsible for this declaration:

Product: DLP Projector

Model Number:

DSV1610/DNX1609/DWX1608

Machine Type:

X1126H/X1226H/X1326WH/D506D/D516D/D526D/

EV-S57H/EV-X57H/EV-W57H/V26S/V26X/V26W/

AS600/AX600/AW600

Name of Responsible Party: Acer America Corporation

Address of Responsible Party: 333 West San Carlos St.

Suite 1500

San Jose, CA 95110

U.S.A.

Contact Person: Acer Representative

Phone No.: 254-298-4000

Fax No.: 254-298-4147
