Product Type	Video Projector
Brand	Acer
Model	AF608
Display Technology	DLP
Resolution	1920 x 1080 (Full HD)
Brightness	3000 ANSI Lumens
Contrast Ratio	20,000:1
Lamp Life (Normal Mode)	5000 hours
Lamp Life (Eco Mode)	10,000 hours
Projection Distance	1.0 - 10.0 m
Screen Size	23 - 300 inches
Keystone Correction	Vertical: ±40°
Inputs	HDMI, VGA, Composite, USB, Audio
Built-in Speaker	3W x 1
Noise Level (Normal Mode)	31 dB
Noise Level (Eco Mode)	26 dB
Dimensions (W x D x H)	314 x 223 x 100 mm
Weight	2.6 kg
Power Consumption (Normal)	260 W
Power Consumption (Standby)	<0.5 W
Power Supply	AC 100-240 V, 50/60 Hz
Lamp Type	UHP 203W
Filter Cleaning Cycle	Every 500 hours
Compatible Mount	Ceiling mount (universal)

Frequently Asked Questions - AF608 ACER

How do I clean the projector filter?

Turn off the projector and unplug it. Locate the air filter on the side panel, gently remove it, and use a soft brush or vacuum to clean dust. Reinstall the filter securely. It is recommended to clean every 500 hours of use.

What is the maximum projection size?

The Acer AF608 can project images up to 300 inches diagonally, depending on the distance. The optimal range is between 1 to 10 meters.

How do I replace the lamp?

Ensure the projector is off and cooled down. Open the lamp cover on the bottom, loosen the lamp screws, remove the old lamp, insert the new one (model UHP 203W), tighten screws, and close the cover. Reset the lamp timer via the menu.

Can I connect my laptop via HDMI?

Yes, the AF608 has an HDMI input. Simply connect your laptop using an HDMI cable, then select the HDMI source using the remote or projector buttons.

What is the keystone correction range?

The projector supports vertical keystone correction of ±40 degrees. Use the on-screen menu or remote to adjust if the image is trapezoidal.

How do I adjust the focus and zoom?

Focus and zoom rings are located on the lens. Turn the focus ring to sharpen the image, and the zoom ring to adjust the image size without moving the projector.

The projector turns off automatically. What should I do?

Check if the lamp timer has expired (overheating protection). Clean the air filter and ensure vents are clear. Also verify the power source and that the lamp is properly installed. If the issue persists, contact support.

Can I use the projector without a screen?

Yes, you can project onto any flat, light-colored wall. For best image quality, use a proper projection screen with a gain of 1.0 or higher.

How do I enable Eco Mode?

Press the 'Power' button on the remote, then select 'Eco Mode' in the setup menu. Eco Mode reduces lamp brightness and fan noise, also extends lamp life up to 10,000 hours.

What is the warranty period for the Acer AF608?

Acer typically offers a 2-year limited warranty for projectors (1 year on lamp). Check your local warranty terms or the included warranty card for exact coverage.

USER MANUAL AF608 ACER

Diagram showing three scenarios of a device with checkmarks and red prohibition signs, likely indicating inspection or rejection conditions.

聽力注意事項

為保護您的聽力，請遵循下列說明。

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

水銀處理要求

Line drawing of a projector with a lens and screen (no text or symbols)

Diagram showing a hand interacting with a projector via a control panel, connected to a plug and cable.

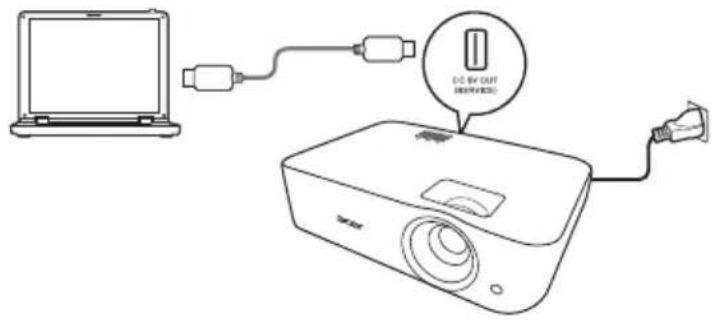

2. 將電腦連接到投影機

使用 USB 訊號線連接電腦和投影機。

DC BY OUT SERVICE

Acer Splash Downloader v1.0 DEVICE CONNECTED Logo Replace

4. 載入影像

Acer Splash Downloader v1.0 PJ Native Resolution WUXGA Aspect Ratio Full Original LoadImage Download Manufacture Device ID Image Size Max:0x600000

Acer Splash Downloaderv1.0 PJ Native Resolution WUXGA Aspect Ratio Full Original LoadImage Download Manufacture Device ID Image Size Max:0x600000 Used:0xSF4090 E:\12624_landscape_canyon_river.jpg Load Image successfully

Acer Splash Downloader v1.0 PJ Native Resolution WUXGA Aspect Ratio Full Original LoadImage Download Manufacture "Macronix" Device ID "MX29GL128F" Image Size Max:0x600000 Used:0x5F5170 E:\12624_landscape_canyon_river.jpg Finish / 02:10 Minutes Total

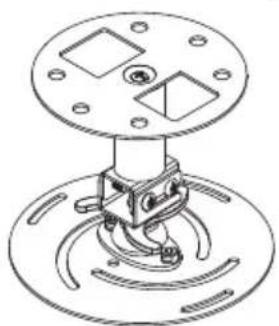

Isometric diagram of a rectangular plate mounted on a circular base with four vertical supports (no text or symbols)

Ø10 130mm

Diagram of an electronic device with labeled components and connections, including a central display and surrounding components.

Technical diagram of a mechanical assembly with numbered components and alignment indicators

Technical diagram of a mechanical assembly with numbered components and alignment indicators

Technical line drawing of a mechanical assembly with no visible text or symbols

圖1

Technical line drawing of a mechanical assembly with circular components and a central hub (no text or symbols)

圖2

5 視需要調整角度和位置。

Technical line drawing of a mechanical clamp or bracket assembly with 360° angle annotation (no text or symbols on the diagram itself)

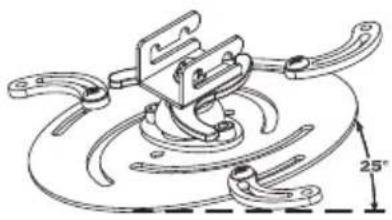

Technical line drawing of a mechanical clamp or bracket assembly with a 25° angle标注 (no text or symbols beyond the angle marker)

EAC © TP BY

無線電法規公告

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan And,

Acer Italy s.r.l.

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone]

www.acer.it

ProducProjector

Trade Name: Acer

Model Number: A1P1803/AWU1804/A1P1805/AWU1808

Marketing Name: H6531BD/E353D/HE-F24J/H6530BD+/GM523/VH-423/P1655/M461/PE-U50/PR625/MF-525/P1555/M455+/PE-F50/N348/AF600/PR525/MF-425/X1626AH/D567D/EV-WU58H/M446+/M447/DX626/BS-526

We, Acer Incorporated, hereby declare under our sole responsibility that the product described above is in conformity with the relevant Union harmonization legislations as below Directive and following harmonized standards and/or other relevant standards have been applied:

EMC Directive: 2014/30/EU

EN 55032:2012+AC:2013, Class B	EN 61000-3-2:2014
EN 55024:2010/A1:2015	EN 61000-3-3:2013

LVD Directive: 2014/35/EU

EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013

RoHS Directive: 2011/65/EU

EN 50581:2012

ErP Directive: 2009/125/EC

☐ Regulation (EU) No. 617/2013 ☐ Regulation (EC) No. 278/2009; EN 50563:2011 ☒ Regulation (EC) No. 1275/2008; EN 50564:2011

Year to begin affixing CE marking 2019.

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

And,

Acer Italy s.r.l

We, Acer Incorporated, hereby declare under our sole responsibility that the product described above is in conformity with the relevant Union harmonization legislations as below Directive and following harmonized standards and/or other relevant standards have been applied:

EMC Directive: 2014/30/EU

EN 55032:2015+AC:2016-07, Class B

EN 61000-3-2:2014

EN 55024:2010/A1:2015

EN 61000-3-3:2013

LVD Directive: 2014/35/EU

EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013

EN62368-1:2014

RoHS Directive: 2011/65/EU

EN 50581:2012

ErP Directive: 2009/125/EC

□ Regulation (EU) No. 617/2013

☐ Regulation (EC) No. 278/2009; EN 50563:2011

Regulation (EC) No. 1275/2008; EN 50564:2011

Year to begin affixin g CE marking 2020.

NuJaw

RU Jan/Sr. Manager

Acer Incorporated (Taipei, Taiwan)

Apr. 1, 2020

Date

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product: DLP Projector

Model Number: A1P1803/AWU1804/A1P1805/

AWU1808/A1P1911 series

Name of Responsible Party: Acer America Corporation

Address of Responsible Party: 333 West San Carlos St.

Suite 1500

San Jose, CA 95110

U.S.A.

Contact Person: Acer Representative

Phone No.: 254-298-4000

Fax No.: 254-298-4147

單元Unit	限用物質及化學符號Restricted substances and its chemical symbols
	鉛 Lead(Pb)	汞 Mercur(Hg)	鎘 Cadmium(Cd)	六價鉻Hexavalent chromium( Cr^+6 )	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated diphenyl ethers(PBDE)
外殼 -	○ ○	○ ○ ○
電路板 -	○ ○	○ ○	○
光學鏡片	- ○	○ ○ ○	○
燈泡 ○	- ○	○ ○ ○
風扇 -	○ ○	○ ○ ○
鐵件 -	○ ○	○ ○ ○
線材 -	○ ○	○ ○ ○
遙控器 -	○ ○	○ ○	○
包裝 ○	○ ○	○ ○ ○
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: "Exceeding 0.1 wt %" and "exceeding 0.01 wt %" indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.
備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: "○" indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.
備考3. “-”係指該項限用物質為排除項目。Note 3: The " - " indicates that the restricted substance corresponds to the exemption.
