USER MANUAL KH 710 POWERFIX

Blue industrial machine component with attached parts, displayed on a white surface (no visible text or symbols)

DRAIN CLEANER Operating instructions

Labeled diagram of a blue industrial spray gun with numbered parts for identification

CONTENT PAGE

Intended Usage 2

Safety instructions 2

Items supplied 2

Description of the appliance 2

Technical Data 3

Utilisation 3

Cleaning and care 4

Disposal 5

Service 5

Importer 5

Read the operating instructions carefully before using the device for the first time and preserve this booklet for later reference. Pass this manual on to whoever might acquire the device at a future date.

DRAIN CLEANER KH 710

Intended Usage

This Drain cleaner is intended for the environmentally friendly and chemical-free cleaning of drainpipes, pipes and other difficult to reach places, using air pressure.

This appliance is intended for domestic use only, do not use it for commercial or industrial applications.

Safety instructions

Risk of personal injury!

• Never direct the appliance at people or other living creatures.
• This appliance is not intended for use by individuals (including children) with restricted physical, physiological or intellectual abilities or deficiencies in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used.
• Children should be supervised to ensure that they do not play with the appliance.
• To avoid potentially noxious fumes, do not use solvents, alcohols, carbon-based detergents or similar agents. This appliance works exclusively with compressed air and without the addition of chemicals.

Warning in regard to property damage!

• Remove all loose parts, for example particle sieves, from the bowl and seal all openings on the same pipe, for example overflows, with a wet cloth or something similar. This will avoid soiling from the sprays which may be generated by the compressive splice.
• Use this appliance only on drains able to withstand pressure. Screwed pipes are able to bear more pressure than inserted pipes. Support poorly seated pipes against the floor! If you do not, the compressive splice could damage the pipe.

Items supplied

Drain Cleaner

WC attachment

Shower attachment

Attachments ∅ 6 cm and ∅ 5 cm

Overflow seal

Operating instructions

Description of the appliance

① Air release valve
② Sealing cap
3 Pump
4 Compressive splice actuator
⑤ Air exit opening
⑥ WC attachment
⑦ Shower attachment
⑧ Attachment ∅ 6 cm
⑨ Attachment ∅ 5 cm
⑩ Overflow seal

Technical Data

Max. operating pressure: 4 bar

Attachments: Attachment ∅ 6 cm

Attachment ∅ 5 cm

WC Attachment

Shower attachment

Utilisation

1. Select the most suitable attachment ⑥/⑦/⑧/⑨ for the blocked pipe and place it on the air exit opening ⑤. Ensure that it is firmly secured.

2. Remove the sieve or any other inserts from the pipe.

3. Close and seal all openings, for example overflows, on the pipe to be cleared. Use the overflow seal for the overflows 10:

- With round overflows, press and hold the roll pin so that the locking lever can be flapped in such a way that it stands in extension with the roll pin (Fig 1).

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Fig. 1

- Guide it into the overflow. As soon as the locking lever hits against the rear wall, it opens itself out (Fig. 2).

Diagram of a mechanical clamp or spring device with a circular component and connecting wires (no text or symbols)

Fig. 2

- Slowly release the roll pin and check to ensure that the overflow is completely closed. The edges of the overflow seal 10 must close as uniformly as possible around the overflow, otherwise residual soiling could be pressed out.

Technical line drawing of a mechanical clamp or fastener assembly (no text or symbols)

Fig. 3: Correctly inserted overflow seal 10

- For elongated overflows, press the roll pin and tip the locking lever so that it stands at right angles to the roll pin (Fig. 4).

Diagram of a mechanical or electrical component with a bulb, spring, and rectangular block (no text or symbols)

Abb. 4

- Guide it into the overflow. - Turn the roll pin through 90^ and slowly release it (Fig. 5).

Diagram of a medical or mechanical device with a metallic screw and curved cable, showing motion direction (no text or symbols)

Fig. 5

- Check to ensure that the overflow is completely closed. The edges of the overflow seal 10 must close as uniformly as possible around the overflow, otherwise residual soiling could be pressed out.

(i) Note:

The overflow seal 10 does not fit in all overflows. If the overflow seal 10 cannot close the overflow, use a cloth or something similar to seal it.

⚠ Warning in regard to property damage!

Use this appliance only on drains and pipeworks able to withstand pressure. Support poorly seated pipes against the floor! If you do not, the pressure surge could damage the pipe.

1. Close the plughole with a stopper and and pour some warm water into the bowl (up to about 7 cm above the plughole). The best possible pressure effect is achieved only when the blocked pipe is completely filled with water. Without water in the pipe the pressure effect is strongly reduced.

2. Build up a little pressure, in that you activate the pump ③ quickly about 3 - 4 times. If you pump too slowly, the air could escape from the appliance.

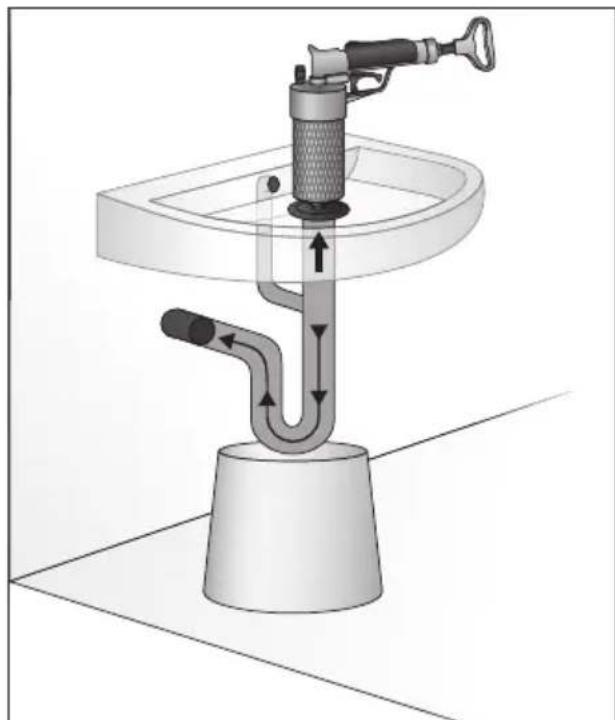

3. Remove the stopper and place the appliance, as shown in Fig. 6, on the plughole.

Diagram of a shower pump system with suction tube and funnel, no text or symbols present

Fig. 6

1. Then release the pressure surge. When doing this, press the appliance firmly against the plug-hole.

2. If the blockage is not released, and you are sure that the pipe can withstand the pressure, increase the pressure for the next pressure surge.

3. Take the appliance out of the water and activate the pump ③ rapidly about 10 times.

4. Should you wish to release some pressure from the appliance, unscrew the air release valve ①. Afterwards, screw it back down firmly.

5. Place the appliance back onto the plughole and activate the pressure surge.

i Important:

Repeat these pressure surges only for as long as the water level is above the plughole. If necessary, refill with water.

1. Repeat the pressure surge until the blockage is cleared.

(i) Note:

Should you not be able to build up pressure, check the air release valve ①. Ensure that it is firmly screwed onto the appliance.

Cleaning and care

- Clean the attachments 6/7/8/9 and the housing with a moist cloth. For stubborn soiling use a mild detergent on the cloth.

Attention! Appliance Damage!

Do not use aggressive, abrasive or chemical cleaning agents to clean the appliance or its attachments

6/7/8/9. These could damage the upper surfaces.

(i) Note:

The white powder on the pump ③ is not soiling. It is a talcum powder that was used in the factory for the first pump lubrication.

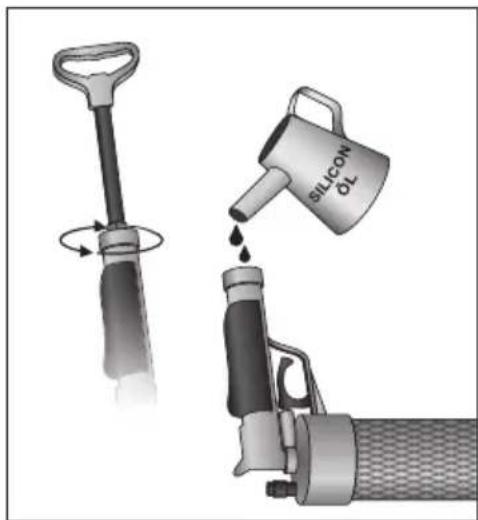

After frequent usage it could happen that the pump ③ may require lubrication:

1. Unscrew the sealing cap ②.
2. Insert a few drops of silicon oil into the handgrip. Other oils could damage the seals or the plastic.

Illustration of a hand tool and a syringe pouring liquid into a barrel (no text or symbols)

Fig. 7

1. Screw the sealing cap ② back on hand-tight.

Disposal

Dispose of the appliance in an environmentally-friendly manner. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Dispose of all packaging materials in an environmentally friendly manner.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 64586

IE Service Ireland

Tel.: [phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 64586

Importer

KOMPERNASS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com
