USER MANUAL TL-SG105S TP-LINK
10/100/1000Mbps Desktop Switch Datasheet
MODELS: TL-SG105S/TL-SG108S


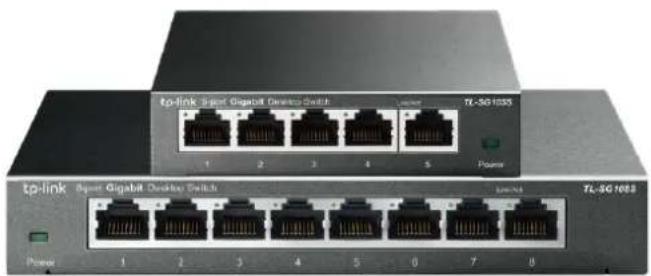

tp-link Signal Gigabit Desktop Switch 1 2 3 4 5 TL-SG 1035 Power tp-link Signal Gigabit Desktop Switch 1 2 3 4 5 6 7 8 TL-SG 1063Highlights
- 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves power
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, no configuration needed
Overview
The TP-Link Gigabit Unmanaged Switch TL-SG105S/TL-SG108S provide an easy way to expand your wired network. With all ports support Auto-MDI/MDIX, there's no need to worry about the type of cable to use. Featuring full duplex mode, TL-SG105S/TL-SG108S can process data at a rate up to 2000Mbps, making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, TL-SG105S/TL-SG108S can save power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured 10/100/1000Mbps ports, TL-SG105S/TL-SG108S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. TL-SG105S/TL-SG108S can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to reduction in power use.
Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length. This is not the case with most devices as they will use the same amount of power across the cable regardless of the length.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications
Features & Performance
| Product Picture |  |  |
| Model TL-SG105S TL-SG108S | ||
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p | |
| Forwarding Mode | Store and forward | |
| Interface | 5 10/100/1000Mbps RJ45 portsAuto NegotiationAuto MDI/MDIX | 8 10/100/1000Mbps RJ45 portsAuto NegotiationAuto MDI/MDIX |
| Switching Capacity 10Gbps 16Gbps | ||
| MAC Address Table 2K 4K | ||
| Packet Forwarding Rate 7.4Mpps 11.9Mpps | ||
| Buffer Memory | 1Mb 1.5Mb | |
| Jumbo Frame | 16KB | 16KB |
| Advanced Features | Green Technology802.3x Flow Control802.1p/DSCP QoSIGMP Snooping | |
| Max Power Consumption (220V/50Hz) | 2.3W | 3.31W |
| LEDs | Power, Link/Act (indicators per port built into RJ45 port) | |
| Power Supply | External Adapter (output: 5VDC/0.6A) | External Adapter (output: 9VDC/0.6A) |
| Dimensions (W × D × H) | 3.9 × 3.9 × 1.0 in.(99.8 × 98 × 25 mm) | 6.2 × 4.0 × 1.0 in.(158 × 101 × 25 mm) |
| Certifications | CE, FCC, RoHS | |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F)Storage Temperature: -40°C~70°C (-40°F~158°F)Operating Humidity: 10% ~ 90%RH, non-condensingStorage Humidity: 5%~95%RH, non-condensing | |
Ordering Information
| Product Model | Description |
| TL-SG105S | 5-Port 10/100/1000Mbps Desktop Switch |
| TL-SG108S | 8-Port 10/100/1000Mbps Desktop Switch |
