USER MANUAL KGN 186 A2+ IO BAUKNECHT

Simple line drawing of a refrigerator with two legs, no text or symbols present

User Manual

THANK YOU FOR BUYING A BAUKNECHT PRODUCT.

In order to receive a more complete assistance,

please register your appliance on www.bauknecht.eu/register

INDEX

HEALTH & SAFETY GUIDE.... 3

Safety instructions....3

USE & CARE GUIDE....6

Product Description 6

Accessories 6

Control panel and temperature setting 6

No-frost refrigerator compartment 7

No-frost freezer compartment....7

Air fan....7

Flexi use box container....7

Shelves....7

Door....7

How to use the appliance 8

First time use 8

Fridge compartment....8

How to store fresh food and beverage 8

Where to store fresh food and beverage 8

Freezer compartment 9

How to increase freezer storage capacity....9

Removing the freezer drawer container....9

Tips for freezing and storing fresh food 9

Frozen food: shopping tips 9

Storage time of frozen food 10

Functional sounds 11

Alarm table 11

Recommendation in case of no use of the appliance 11

Cleaning and maintenance 12

Replacing the light bulb....12

Replace led * light....12

Troubleshooting....13

After-sales service 14

SAFETY INSTRUCTIONS

Before using the appliance, read these safety instructions. Keep them nearby for future reference. These instructions and the appliance itself provide important safety warnings, to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.

SAFETY WARNINGS

⚠️ Very young children (0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

PERMITTED USE

⚠️ CAUTION: the appliance is not intended to be operated by means of an external timer or separate remote controlled system.

This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments.

⚠ This appliance is not for professional use. Do not use the appliance outdoors.

The bulb used inside the appliance is specifically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009).

The appliance is designed for operation in places where the ambient temperature comes within the following ranges, according to the climatic class given on the rating plate. The appliance may not work properly if it is left for a long time at a temperature outside the specified range.

Climatic Class Amb. T. (°C)

SN: From 10 to 32

N: From 16 to 32

ST: From 16 to 38

T: From 16 to 43

This appliance does not contain CFCs. The refrigerant circuit contains R600a (HC). Appliances

IMPORTANT TO BE READ AND OBSERVED

with Isobutane (R600a): isobutane is a natural gas without environmental impact, but is flammable. Therefore, make sure the refrigerant circuit pipes are not damaged, especially when emptying the refrigerant circuit.

WARNING: Do not damage the appliance refrigerant circuit pipes.

⚠ WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

⚠ WARNING: Do not use mechanical, electric or chemical means other than those recommended by the Manufacturer to speed up the defrost process.

⚠ WARNING: Do not use or place electrical devices inside the appliance compartments if they are not of the type expressly authorised by the Manufacturer.

⚠ WARNING: Ice makers and or water dispensers not directly connected to the water supply must be filled with potable water only.

WARNING: Automatic ice-makers and/or water dispensers must be connected to a water supply that delivers potable water only, with main water pressure between 0.17 and 0.81 MPa (1.7 and 8.1 bar).

⚠ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Do not swallow the contents (non-toxic) of the ice packs (in some models). Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns.

For products designed to use an air filter inside an accessible fan cover, the filter shall be always in position when the refrigerator is in function.

Do not store glass containers with liquids in the freezer compartment since they may break.

Do not obstruct the fan (if available) with food items. After placing the food check if the door of compartments closes properly, especially the freezer door.

Damaged gasket must be replaced as soon as possible.

Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.

Avoid storing unwrapped food in direct contact with internal surfaces of the refrigerator or freezer compartments.

Appliances could have special compartments (Fresh Food Compartment, Zero Degree Box,...). In

case not differently specified in the specific booklet of product, they can be removed, maintaining equivalent performances.

C-Pentane is used as blowing agent in the insulation foam and it is a flammable gas.

INSTALLATION

⚠ The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts.

⚠️ Installation, including water supply (if any) and electrical connections, and repairs must be carried out by a qualified technician. Do not repair or replace any part of the appliance unless specifically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suffocation. The appliance must be disconnected from the power supply before any installation operation - risk of electrical shock. During installation, make sure the appliance does not damage the power cable - risk of fire or electrical shock. Only activate the appliance when the installation has been completed.

Be careful not to damage the floors (e.g. parquet) when moving the appliance. Install the appliance on a floor or support strong enough to take its weight and in a placesuitable for its size and use. Make sure the appliance is not near a heat source and that the four feet are stable and resting on the floor, adjusting them as required, and check that the appliance is perfectly level using a spirit level. Wait at least two hours before switching the appliance on, to ensure that the refrigerant circuit is fully efficient.

⚠ WARNING: To avoid a hazard due to instability, positioning or fixing of the appliance must be done in accordance with the manufacturer instructions. Warning: It's forbidden to place the refrigerator in such way that the metal hose of gas stove, metal gas or water pipes, or electrical wires are in contact with the refrigerator back wall (condenser coil).

ELECTRICAL WARNINGS

⚠ It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards.

⚠ Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped. If the power cable is damaged, it must be replaced with an identical one - risk of electrical shock. ⚠️ If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard - risk of electrical shock.

CLEANING AND MAINTENANCE

⚠ WARNING: Ensure that the appliance is switched off and disconnected from the power supply before performing any maintenance operation - risk of electrical shock. Never use steam cleaning equipment.

Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.

DISPOSAL OF PACKAGING MATERIALS

The packaging material is 100% recyclable and is marked with the recycle symbol ⚙.

The various parts of the packaging must therefore be disposed of responsibility and in full compliance with local authority regulations governing waste disposal.

DISPOSAL OF HOUSEHOLD APPLIANCES

This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health.

The symbol ☒ on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.

ENERGY SAVING TIPS

To guarantee adequate ventilation follow installation instructions. Insufficient ventilation on back of the product increases energy consumption and decreases cooling efficiency.

Frequent door opening might cause an increase in Energy consumption.

The internal temperature of the appliance and the Energy Consumption may be affected also by the ambient temperature, as well as location of the appliance. Temperature setting should take into consideration these factors.

Reduce to a minimum door opening.

When thawing frozen food, place them in the refrigerator. The low temperature of the frozen products cools the food in the refrigerator. Allow warm food and drinks to cool down before placing in the appliance.

Positioning of the shelves in the refrigerator has no impact on the efficient usage of energy. Food should be placed on the shelves in such way to ensure proper air circulation (food should not touch each other and distance between food and rear wall should be kept).

You can increase storage capacity of frozen food by removing baskets and, if present, Stop Frost shelve, maintaining an equivalent energy consumption.

Do not worry of the noise coming from the compressor.

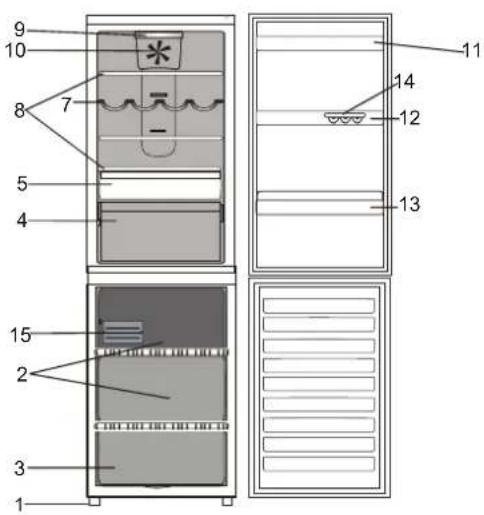

PRODUCT DESCRIPTION

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Simple line drawing of a door with a vertical panel and a horizontal bar, no text or symbols present

1. Levelling FEET
2. STORAGE compartment
3. FREEZER and STORAGE compartment
4. FRUIT and VEGETABLE bin
5. FLEXI USE BOX Container
6. TEMPERATURE REGULATING Knob / Control panel
7. WINE RACK *
8. SHELVES
9. LAMP (see Maintenance).
10. AIR FAN
11. Extractable STORAGE shelf WITH COVER *
12. Removable multipurpose SHELVES
13. BOTTLE shelf
14. Egg tray
15. Easy Ice

* Varies by number and/or position, available only on certain models.

ACCESSORIES

EGG TRAY

Line drawing of a six-cylinder baking mold (no text or symbols)

BOTTLE HOLDER

EASY ICE

Two identical 3D rectangular electronic components with internal pins, no text or symbols visible

CONTROL PANEL AND TEMPERATURE SETTING

① 8 6 5 4 2 ② ③ Temp°C ④ ⑤ Super

1. ON/OFF
2. FRIDGE temperature indicator
3. FRIDGE temperature setting
4. SUPER indicator light (rapid freezing)
5. SUPER button (rapid freezing)

ON/OFF

The whole product (both fridge and freezer compartments) can be turned on by pressing this button for 2 seconds. The last set value is indicated on the interface. Press this button to turn off the device. An audible signal will confirm the "off commutation of the product".

FRIDGE TEMPERATURE INDICATOR

It shows the temperature of the fridge compartment.

FRIDGE TEMPERATURE SETTING

It allows you to change the fridge temperature value, in a cyclical way; it also confirms the selected temperature on the interface.

SUPER INDICATOR LIGHT (RAPID FREEZING)

Illuminates when the SUPER FREEZE button is pressed.

SUPER BUTTON (RAPID FREEZING)

To be used to freeze fresh foods. When it is pressed, the SUPER FREEZE indicator light illuminates (see Start-up and use).

During SUPER function do NOT enable AiR in fridge compartment, can caused too cold temperature. For the best food conservation MED position is recommended.

Note: Displayed set points correspond to the average temperature throughout the whole refrigerator.

NO-FROST REFRIGERATOR COMPARTMENT

Refrigerator compartment defrosting is completely automatic. Droplets of water on the rear wall inside the refrigerator

compartment indicate that the automatic defrost phase is in progress.

NO-FROST FREEZER COMPARTMENT

No Frost freezers provide chilled air circulation around the storage areas, and prevent the formation of ice, thereby completely eliminating the need for defrosting.

Frozen items don't stick to the walls, labeling stays legible and storage space remains neat and clear.

AIR FAN

It is recommended to activate Fridge AIR by turning ON bottom in high ambient temperature, over 30°C. After Air enable temperature in fridge compartment will drop, it can be necessary to regulate temperature on display.

It is recommended to turn OFF AIR when ambient temperature turn back to temperature below 30^ C, and regulate product to reache required temperatures. Do not block the air inlet with foods.

FLEXI USE BOX CONTAINER

This is the new box which offers maximum flexibility in order to stock your food in an excellent way.

If you put in the low section of your fridge compartment, on the crisper box, it becomes CHILLER, and it guarantees a temperature very close to 0^ C, which is ideal to:

• store meat, fish and delicate food;
- rapid cooling of hot foods;
- low temperature defrosting (it inhibits the proliferation of microorganisms).

You can get the 0^ C temperature, in standard conditions, when the fridge compartment temperature is at about 4^ C.

By decreasing the fridge temperature you decrease the CHILLER compartment temperature too. If you put it in the "upper" part of the fridge compartment (A1), it will be suitable to store fruit and vegetables, thus giving you the possibility to have a second crisper box.

SHELVES

All shelves, flaps and pull-out baskets are removable.

DOOR

DOOR REVERSIBILITY

If it is necessary to change the direction in which the doors open, please contact the Technical Assistance Centre.

HOW TO USE THE APPLIANCE

FIRST TIME USE

Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate. After plugging the appliance to the mains, it starts the operation automatically. After starting the appliance, wait at least 4-6 hours before

FRIDGE COMPARTMENT

The refrigerator is the ideal storage location for ready meals, fresh and preserved food, dairy products, fruit and vegetables and beverage.

AIR VENTILATION

The natural circulation of air in the refrigerator compartment

placing food into the appliance.

When the appliance is connected to the power supply, the display lights up and all the icons appear on the display for approximately 1 second. The default (factory) values of the fridge compartment settings light-up.

results in zones with different temperatures. It is coldest directly above the fruits and vegetables crisper and at the rear wall. It is warmest at the top front of the compartment. Insufficient ventilation results in an increase in energy consumption and reduction of the refrigerating performance. Do not cover air slots by food on other staff - they are optimized for proper air circulation and food preservation.

HOW TO STORE FRESH FOOD AND BEVERAGE

Use recyclable plastic, metal, aluminum and glass containers and cling film to wrap foods.

• Always use closed containers for liquids and for food that may give off or be tainted by odor or flavor transfer or cover them.
- Foods which give off a large amount ethylene gas and those that are sensitive to this gas, such as fruit, vegetables and salad, should always be separated or wrapped so as not to reduce the storage life; for example do not store tomatoes together with kiwi fruits or

cabbage.

• Do not store food too close together to enable sufficient air circulation.
• To avoid bottles falling over, you can use the bottle holder.
• If you have a little quantity of food to store in the refrigerator, we recommend to use the shelves above the crisper for fruits and vegetables since this is the coolest area of the compartment.

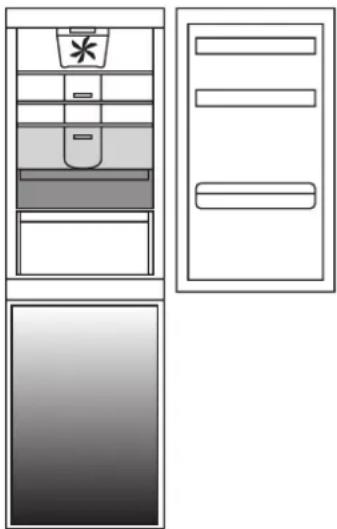

WHERE TO STORE FRESH FOOD AND BEVERAGE

• On the fridge shelves: ready meals, tropical fruits, cheeses, deli.
• In the coldest area (the one above the fruits and vegetables crisper): meat, fish, cold cuts, cakes.

Diagram of a refrigerator with front and back views showing internal compartments and storage areas (no text or symbols)

• In the fruits and vegetables crisper: fruits, salad, vegetables.
• In the door: butter, jams, sauces, pickles, cans, bottles, beverage cartons, eggs.

Legend

TEMPERATE ZONE

Suggested for the storage of tropical fruit, cans, drinks, eggs, sauces, pickles, butter, jam.

COOL ZONE

Suggested for storage of cheese, milk, dairy food, delicatessen, yogurt.

FRUIT & VEGETABLE DRAWER

COOLEST AREA

Suggested for the storage of cold cuts, desserts..

Note

The Grey tone of the legend doesn't match with the color of drawers

FREEZER COMPARTMENT

The freezer is the ideal storage location for store frozen food, make ice cubes and freeze fresh food in the freezer compartment.

The maximum number of kilograms of fresh food that can be frozen within a 24-hour period is indicated on the rating plate (...kg/24h).

If you have a little quantity of food to store in the freezer, we recommend to use the bottom area.

Diagram showing three vertical file cabinets with horizontal bars, no text or symbols present

Legend

FREEZING ZONE DRAWER (MAX COOL ZONE) Suggested to freeze fresh/cooked food.

NORMAL FREEZER DRAWERS

HOW TO INCREASE FREEZER STORAGE CAPACITY

• removing the baskets to allow the storage of big products.
• placing the food products directly on the freezer shelves.
• removing additional removable accessories.

• Do not block the air out area (on the back wall and on the bottom inside the product) with food products.

• All shelves and pull-out baskets are removable.

• The internal temperatures of the appliance may be affected by the ambient temperature, frequency of door opening, as well as location of the appliance.

Temperature setting should take into consideration these factors.

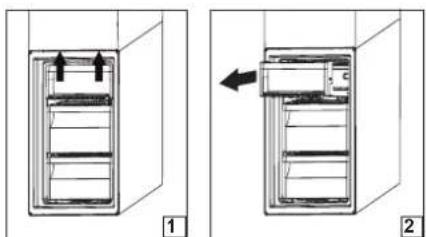

REMOVING THE FREEZER DRAWER CONTAINER

• Open the freezer door
• Pull the upper container upwards by the right and left corners (1)
• Remove the drawer (2)

Diagram showing two views of a refrigerator with labeled parts and directional arrows indicating movement or change.

• Install the upper container in the reverse order

TIPS FOR FREEZING AND STORING FRESH FOOD

• We recommend to label and date all your frozen food. Adding a label will help you to identify foods and to know when they should be used before their quality deteriorates. Do not re-freeze defrosted food.
- Before freezing, wrap and seal fresh food in: aluminium foil, cling film, air and water-tight plastic bags, polythene containers with lids or freezer containers suitable for freezing fresh food.
- Food must be fresh, mature and of prime quality in order to obtain high quality frozen food.

• Fresh vegetables and fruit should preferably be frozen as soon as they are picked to maintain the full original nutritional value, consistency, colour and flavor. Some meat, especially game, should be hung before it is frozen.
  • Always leave hot food to cool before placing in the freezer.
• Eat fully or partially defrosted foods immediately. Do not refreeze unless the food is cooked after it has thawed. Once cooked, the thawed food can be refrozen.
• Do not freeze bottles with liquid.

FROZEN FOOD: SHOPPING TIPS

When purchasing frozen food products:

• Ensure that the packaging is not damaged (frozen food in damaged packaging may have deteriorated). If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have already begun.

• When shopping, buy frozen foods at the end of your trip and transport them in a thermally insulated cool bag.

• Once at home, place the frozen foods immediately in the freezer.

• If food has defrosted even partially, do not refreeze it. Consume within 24 hours.
• Avoid or reduce temperature variations to the minimum. Respect the best-before date on the package.
  • Always observe the storage information on the package.

STORAGE TIME OF FROZEN FOOD

MEAT	months	STEWS	months	FRUITS	months
Beef	8 - 12	Meat, Poultry	2 - 3	Apples	12
Pork, veal 6 - 9 DAIRY PRODUCTS Apricots 8
Lamb	6 - 8	Butter	6	Blackberries	8 - 12
Rabbit	4 - 6	Cheese	3	Blackcurrants / Redcurrants	8 - 12
Mince/Offal	2 - 3	Double Cream	1 - 2	Cherries	10
Sausages	1 - 2	Ice-cream	2 - 3	Peaches	10
POULTRY		Eggs	8	Pears	8 - 12
Chicken	5 - 7	SOUPS AND SAUCES		Plum	10
Turkey	6	Soup	2 - 3	Raspberries	8 - 12
Giblets	2 - 3	Meat Sauce	2 - 3	Strawberries	10
CRUSTACEANS		Pate	1	Rhubarb	10
Molluscs creab, lobster	1 - 2	Ratatouille	8	Fruit juices (orange, lemon, grapefruit)	4 - 6
Crab, lobster	1 - 2	PASTRY AND BREAD		VEGETABLES
SHELLFISH		Bread	1 - 2	Asparagus	8 - 10
Oyster, Shucked	1 - 2	Cakes (plain)	4	Basil	6 - 8
FISH		Gateaux (cakes)	2 - 3	Beans	12
"fatty" (salmon, herring, meckerel)	2 - 3	Crepes	1 - 2	Artichokes	8 - 10
"lean" (code, sole)	3 - 4	Uncooked pastry	2 - 3	Broccoli	8 - 10
		Quiche	1 - 2 Brussels sprout	8 - 10
		Pizza	1 - 2 Cauliflower	8 - 10
				Carrots	10 - 12
				Celery	6 - 8
				Mushrooms	8
				Parlsley 6 - 8
				Peppers	10 - 12
				Peas	12
				Runner-beans	12
				Spinach 12
				Tomatoes	8 - 10
				Zucchini	8 - 10

FUNCTIONAL SOUNDS

Sounds coming from your appliances are normal since it has a number of fans and engines to regulate performances that switch on and off automatically.

SOME OF THE FUNCTIONAL SOUNDS CAN BE REDUCED THROUGH:

• Leveling the appliance and installing it on an even surface.
• Separating and avoiding contact between the appliance and furniture.
• Checking if the internal components are correctly placed.
• Checking if bottles and containers are not in contact with each other.

SOME OF THE FUNCTIONAL SOUNDS YOU MIGHT HEAR

1. A hissing sound when switching on the appliance for the first time or after a long pause.

1. A gurgling sound when refrigerant fluid enters into the pipes.

1. BRRR sound is from the compressor running.

1. Buzzing sound when water valve or fan start working.

1. A cracking sound when compressor starts.

1. The CLICK is from the thermostat which adjusts how often the compressor is running.

ALARM TABLE

ALARM TYPE SIGNAL CAUSE CURE

Door open alarm Refrigerator Light blanks The door has remaned open for more than 3 minutes

close the door

Malfunction Any temperature indicatorblinks

Product Malfunction Contact The After SaleService

RECOMMENDATION IN CASE OF NO USE OF THE APPLIANCE

ABSENCE / VACATION

In case longer absence its recommended to use up food and to disconnect the appliance to save energy. It is recommended to clean the inside and leave the doors open.

MOVING

1. Take out all internal parts.
2. Wrap them well, and fix them together with adhesive tape so that they do not bang together or get lost.
3. Screw the adjustable feet so that they do not touch the support surface.
4. Close and fix door with adhesive tape and, again using adhesive tape, fix the power cable to the appliance.

POWER FAILURE

In the event of a power failure, call the local office of your electricity supply company and ask how long it is going to last.

Note: Bear in mind that a full appliance will stay cold longer than a partially filled one.

If ice crystals are still visible on the food, it may be frozen again, although flavour and aroma may be affected.

If food is found to be in a poor condition, it is best to throw it away.

For power failures lasting up to 24 hours.

Keep the door of the appliance closed.

This will allow the stored food to stay cold as long as possible.

For power failures lasting more than 24 hours.

Empty the freezer compartment and arrange the food in a

portable freezer. If this type of freezer is not available and, likewise, no artificial ice packs are available, try to use up the food, which is more easily perishable.

Empty the ice tray.

CLEANING AND MAINTENANCE

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply.

Never use abrasives. Never clean refrigerator parts with flammable fluids.

Do not use steam cleaners.

The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a dry cloth.

• Periodically clean the appliance with a cloth and a solution of lukewarm water and neutral detergent specifically for refrigerator interiors.
- The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully.
- Clean the outside of the appliance and the door seal with a damp cloth and dry with a soft cloth.
- Condenser placed in the rear of the appliance should be cleaned regularly using a vacuum cleaner.
- Unless otherwise specified the appliance accessories are not dishwasher safe.

Illustration of a server rack with a magnified inset showing internal components (no text or symbols)

Important:

- The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a dry cloth.

- The refrigeration system pipes are located near the defrost pan and can become hot. Periodically clean them with a vacuum cleaner.

To ensure continuous and correct flow of defrost water, regularly clean the inside of the draining hole on the back of the refrigerator near the fruit and vegetable drawer, using the tool provided.

Diagram showing three circular views of a surface with a hand adjusting a tool, no text or symbols present

REPLACING THE LIGHT BULB

To replace the light bulb in the refrigerator compartment, pull out the plug from the electrical socket. Follow the instructions below.

Diagram showing two views of a device with labeled parts and directional arrows indicating motion or movement.

REPLACE LED \* LIGHT

The LED lighting, thanks to the powerful diffused light, allows a clear view of each food. If you need to replace the LED light, contact the Technical Service.

Simple line drawing of a rectangular container with a circular top and bottom hole (no text or symbols)

TROUBLESHOOTING

What to do if... Possible reasons Solutions

THE APPLIANCE IS NOT WORKING	There may be an appliance power supply problem.	Check if power cable plugged into a live socket with the proper voltage.• Check if the protection devices and fuses of the electrical system in your home
THERE IS WATER IN THE DEFROST PAN	This is normal in hot, damp weather. The pan can even be half full.	• Make sure the appliance is level so that the water does not overflow.
THE EDGES OF THE APPLIANCE CABINET, WHICH COME IN CONTACT WITH THE DOOR SEAL, ARE WARM TO THE TOUCH	This is not a defect.This is normal in hot weather and when the compressor is running.
THE LIGHT DOES NOT WORK	The light may need replacing.The appliance may be in On/ Stand-by model	Make sure if the protection devices and fuses of the electrical system in your home work well.• Check if the power cable is plugged into a live socket with the proper voltage• In case the LEDs are broken the user must call the Service for exchange of the same type available only at our After-sales Service Centers or authorized dealers.
THE MOTOR SEEMS TO RUN TOO MUCH	Motor running time depends on different things: number of door openings, amount of food stored, temperature of the room, setting of the temperature controls.	Make sure that the appliance controls are correctly set.• Check if there is not a large amount of food been added to the appliance.• Check that the door is not opened too often.• Check that the door close properly.
THE APPLIANCE TEMPERATURE IS TOO HIGH	There could be various causes (see “Solutions”)	• Make sure that the condenser (back the appliance) is free of dust and fluff.• Make sure that the door properly closed.• Make sure that the door seals properly fitted.• On hot days or if the room is warm, the motor naturally runs longer.• If the appliance door has been left open for a while or if large amounts of food have been stored, the motor will run longer in order to cool down the interior of the appliance.
THE DOORS DO NOT OPEN AND CLOSE PROPERLY	There could be various causes (see “Solutions”)	Check that food packages are not blocking the door.• Check that the internal parts or automatic ice maker are not out of position.• Check that the door seals are not dirty or sticky.• Ensure the appliance is level.
THE FOOD INSIDE THE REFRIGERATOR IS BEGINNING TO BE FREEZE	Ambient temperature is warm (below 30°C) and refrigerator AIR FAN is turned ON.	Regulate product to warmer knob position (or to warmer display setting - for products with display), disable AIRFAN in refrigerator.

AFTER-SALES SERVICE

BEFORE CALLING THE AFTER-SALES SERVICE

1. See if you can solve the problem by yourself with the help of the suggestions given in the TROUBLESHOOTING.

2. Switch the appliance off and back on again to see if the fault persists.

IF AFTER THE ABOVE CHECKS THE FAULT STILL OCCURS, GET IN TOUCH WITH THE NEAREST AFTER-SALES SERVICE

To receive assistance, call the number shown on the warranty booklet or follow the instructions on the website www.bauknecht.eu

When contacting our Client After sales service, always specify:

• a brief description of the fault;

- the type and exact model of the appliance;

- the service number (number after the word Service on the rating plate). The service number is also indicated on the guarantee booklet;

- your full address;

- your telephone number.

If any repairs are required, please contact an authorised after-sales service (to guarantee that original spare parts will be used and repairs carried out correctly).

Manufacturer

Whirlpool Europe s.r.l. - Socio Unico

Viale Guido Borghi 27

21025 Comerio (VA)

Italy

400010884893

19514523600
